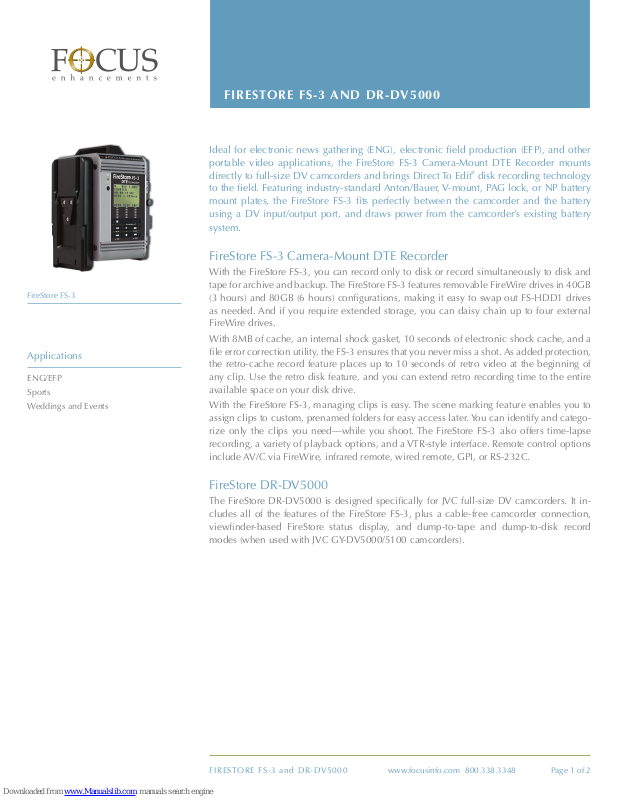

Page 1
FireStore FS-3
Applications
ENG/EFP
Sports
Weddings and Events
FIRESTO R E F S - 3 AND DR-DV5000
Ideal for electronic news gathering (ENG), electronic field production (EFP), and other
portable video applications, the FireStore FS-3 Camera-Mount DTE Recorder mounts
directly to full-size DV camcorders and brings Direct To Edit
®
disk recording technology
to the field. Featuring industry-standard Anton/Bauer, V-mount, PAG lock, or NP battery
mount plates, the FireStore FS-3 fits perfectly between the camcorder and the battery
using a DV input/output port, and draws power from the camcorder’s existing battery
system.
FireStore FS-3 Camera-Mount DTE Recorder
With the FireStore FS-3, you can record only to disk or record simultaneously to disk and
tape for archive and backup. The FireStore FS-3 features removable FireWire drives in 40GB
(3 hours) and 80GB (6 hours) configurations, making it easy to swap out FS-HDD1 drives
as needed. And if you require extended storage, you can daisy chain up to four external
FireWire drives.
With 8MB of cache, an internal shock gasket, 10 seconds of electronic shock cache, and a
file error correction utility, the FS-3 ensures that you never miss a shot. As added protection,
the retro-cache record feature places up to 10 seconds of retro video at the beginning of
any clip. Use the retro disk feature, and you can extend retro recording time to the entire
available space on your disk drive.
With the FireStore FS-3, managing clips is easy. The scene marking feature enables you to
assign clips to custom, prenamed folders for easy access later. You can identify and catego
rize only the clips you need—while you shoot. The FireStore FS-3 also offers time-lapse
recording, a variety of playback options, and a VTR-style interface. Remote control options
include AV/C via FireWire, infrared remote, wired remote, GPI, or RS-232C.
-
FireStore DR-DV5000
The FireStore DR-DV5000 is designed specifically for JVC full-size DV camcorders. It includes all of the features of the FireStore FS-3, plus a cable-free camcorder connection,
viewfinder-based FireStore status display, and dump-to-tape and dump-to-disk record
modes (when used with JVC GY-DV5000/5100 camcorders).
FI RES TO RE FS- 3 a nd DR- DV 500 0 Page 1 of 2
www.focusinfo.com 800.338.3348
Page 2
FIRESTO R E F S - 3 AND DR-DV5000
Support
When you purchase video production
solutions from Focus Enhancements,
you not only receive reliable products
that deliver superior performance every
day, but you also receive unconditional
service and support from a team of seasoned video professionals. All products
are backed by comprehensive warranties
and optional support contracts that cover
installation, training, 24/7 phone support, and priority parts replacement.
Consultation
With extensive experience in designing,
configuring, and integrating video production solutions for leading companies
around the world, the Focus team can
help you select the right products for your
business. If you have special requirements, solution consultation and custom
configuration services are available.
Technical Specifications
HARDWARE FireStore FS-3
Inputs/Outputs DV video I/O: 25 Mb/s (1 x 6-pin IEEE-1394)
External HDD I/O–up to 400 Mb/s (1 x 6-pin IEEE-1394)
Slot internal HDD I/O–up to 400 Mb/s (1 x 6-pin IEEE-1394)
GPI and RS-232C control (1 x 3.5mm minijack)
26-pin custom JVC DV and control interface (DR-DV5000 only)
Audio DV embedded 2-channel (16-bit) or 4-channel (12-bit) (RawDV only)
Video DV: 25 Mb/s, 8-bit 4:1:1 (NTSC-DV) or 4:2:0 (PAL-DV) video (model dependant)
Timecode SMPTE or DV embedded timecode (drop or nondrop)
DTE File Formats RawDV, AVI Type 1, AVI Type 2, AVI Type 2 24p, Avid DV-OMF, Canopus AVI,
Matrox AVI, Pinnacle AVI, QuickTime, QuickTime 24p
Disk 40GB or 80GB
Internal: FSHDD-1 FireWire disk drive (slot)
External: IEEE-1394a FireWire (user supplied)
Disk format: FAT32
OS Compatibility Windows 98SE, ME, 2000, XP; Mac OS 9, OS X
Power Source 2-wire AMP connection (from battery on camera)
V-mount (Sony/IDX), Anton/Bauer (3-stud), NP or PAG plates (FS-3 only)
Anton/Bauer digital battery and IDX Syncron pass thru (FS-3 only)
4-pin XLR DC input
12V to 17V, 7.5W
Dimensions 4-1/8" x 3-1/2" x 6-1/4" (105mm x 89mm x 159mm)
Weight 2.5 lbs (1.1 kg) with FSHDD-1 Disk Drive
Compliance CE, C-Tick, and FCC
Warranty 2 years
Corporate Headquarters
Focus Enhancements
1370 Dell Avenue
Campbell, CA 95008
P 800 338 3348 (toll free)
P 408 866 8300
F 408 866 4859
E [email protected]
E [email protected]
FI RES TO RE FS- 3 a nd DR- DV 500 0 Page 2 of 2
European Headquarters
COMO Computer & Motion GmbH
A Focus Enhancements Company
Lise-Meitner-Str.15
24223 Raisdorf
Germany
P +49 4307 8358 0
F +49 4307 8358 99
E [email protected]
www.focusinfo.com 800.338.3348
©2006. Focus Enhancements, Inc. Specifications
are subject to change. All brand and product
names are trademarks of their respective companies. MANL-1003-01
