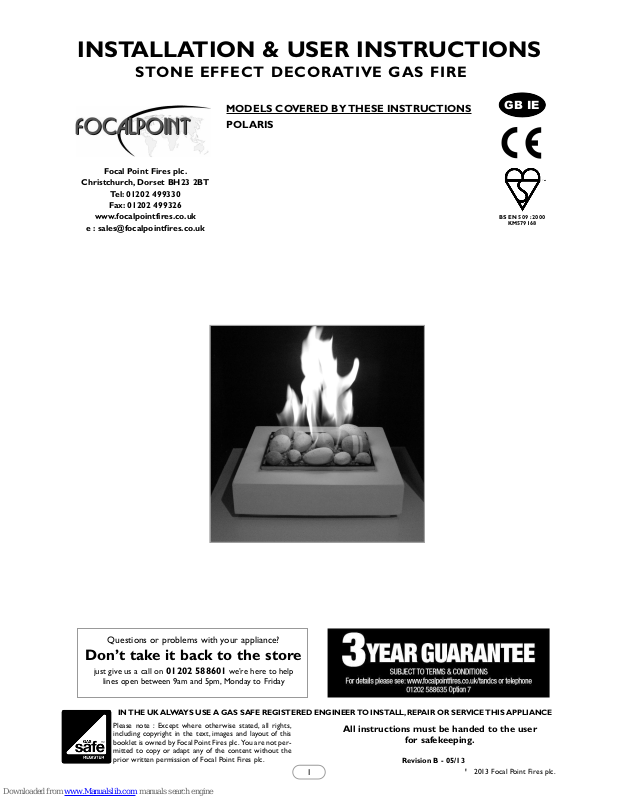

INSTALLATION & USER INSTRUCTIONS

MODELS COVERED BY THESE INSTRUCTIONS POLARIS

Focal Point Fires plc.

Christchurch, Dorset BH23 2BT

Tel: 01202 499330

Fax: 01202 499326

www.focalpointfires.co.uk

e : sales@focalpointfires.co.uk

STONE EFFECT DECORATIVE GAS FIRE

Revision B - 05/13

' 2013 Focal Point Fires plc.

GB IE

BS EN 509 : 2000

KM579168

All instructions must be handed to the user

for safekeeping.

Please note : Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not permitted to copy or adapt any of the content without the prior written permission of Focal Point Fires plc.

IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE

Questions or problems with your appliance?

Don’t take it back to the store

just give us a call on 01202 588601 we’re here to help

lines open between 9am and 5pm, Monday to Friday

• This appliance is an Inset Decorative Fuel Effect appliance which provides radiant warmth utilising the latest type burner technology.

• The fire is designed to suit various types of fireplaces and natural draught flues as detailed in this manual.

• The appliance must be installed by a competent person in accordance with Gas Safety (Installation and Use)

Regulations 1998. It is strongly recommended that a GAS SAFE registered engineer be used for this purpose.

• Read all these instructions before commencing installation.

• This appliance must be installed in accordance with the rules in force and used only in a sufficiently ventilated

space.

• The appliance is designed for installation on to a non-combustible hearth of at least 300mm depth.

• This appliance is factory set for operation on the gas type, and at the pressure stated on the appliance data plate.

• In the event of gas leakage from the appliance, the gas supply must be turned off at the nearest isolating valve.

• The appliance must be installed in accordance with the following:

• Failure to comply with the above could lead to prosecution and deem the manufacturer’s warranty invalid.

• The appliance is designed to fit various types of situations as described in sections 3.0 and 4.0.

• It should be noted that heaters create warm air currents. These currents move heat to wall surfaces next to the

heater. Installing the heater next to vinyl or cloth wall coverings or operating the heater where impurities in the air (such as tobacco smoke, candle smoke etc.) exist, may cause the walls to become discoloured.

• WARNING: The manufacturer of this appliance considers all surfaces as working surfaces with the exception of the control knob and ash pan door.

• As with any gas fire, a fire guard complying with BS 8423 must be used in presence of pets, children, and the elderly or infirm.

• Consult ALL instructions before installation and use of this appliance.

• This appliance is intended for decorative purposes.

• This appliance is free from any asbestos material.

• Refractories and fuel bed are constructed from ceramic fibre.

1.0 IMPORTANT NOTES

I N S T A L L A T I O N I N S T R U C T I O N S

' 2013 Focal Point Fires plc.

GB IE

• Manufacturers' Instructions.

• The Building Regulations issued by the Department for Communities and Local Government, the Building Standards

(Scotland)

(Consolidation) Regulations issued by the Scottish Development Department.

• Relevant British Standards insofar as the relevant areas are not covered by these instructions.

• For Republic of Ireland, reference should be made to the current edition of IS813 (the relevant standards governing

installation).

ection

1.0

2.0

3.0

4.0

5.0

6.0

6.1

7.0

8.0

9.0

ontents

Important Notes Appliance Data Installation Requirements Site Requirements Ventilation Unpacking the Appliance Component Checklist Installing the Burner Fuel Bed Layout Testing & Commissioning

age No.

2 3 3 3 4 4 4 4 5 5

ection

10.0

11.0

12.0

12.1

12.2

12.3

13.0

14.0

ontents

Operating the fire Spark Gap Operating Pressure Flue Spillage Monitoring System Testing For Spillage Briefing the Customer Servicing Troubleshooting Guide User Instructions

age No.

5 5 5 6 6 6 6 7

2.0 APPLIANCE DATA

Model

Destination

Country

Cat

Operating Pressure

(±2.0 mbar)

Max Energy Input (kW) Min Energy Input (kW)

Natural gas

G20 G25 G30 G31 Gross Net Gross Net

Polaris

GB - IE

20 -

- - 5.5 4.95 3.5 3.15

GB IE

3.0 INSTALLATION REQUIREMENTS

This appliance MUST NOT be installed into a room containing a bath or shower, or where steam may be present. The fire has been designed to fit into a builders’ opening or fireplace conforming to BS 1251 (and meeting certain dimensional requirements), or a suitable flue box complying with the constructional requirements of BS 715. Either a ‘Replacement Chairbrick’ or a BS 1251 chairbrick should also be fitted into the builders’ opening. The flue box must be installed onto a suitable non-combustible insulating surface at least 12mm thick, covering the entire base are of the box.

The flue must have an effective height of at least three meters, as measured from the hearth to the top of the flue. Any flue damper plates or restrictors should be removed and no other restriction fitted to the flue. Where removal is not practical, the restriction must be fixed in the fully open position. A natural draught flue system is required, and if previously used for solid fuel or oil burning, the flue and chimney must be swept prior to appliance installation. The flue must be checked before installation by using a smoke pellet or similar to ensure proper draw and that leakage is not evident at any joints. Repair and re-test as necessary before the appliance is installed. The flue must be connected to only one fireplace, and the flue must not vent more than one appliance (i.e. not shared with a gas back boiler). There must be no opening in the flue apart from the one that the appliance is installed into, and the one venting the gases into the air. A suitable terminal may be fitted, such as class GC1, as regulations allow.

This appliance has been tested for use with circular flues of a minimum internal diameter of 175mm. The flue termination (cowl) must be of a type suitable for use with an inset Decorative Fuel Effect Fire BS5871 part 3 contains further details.

The fireplace opening should be inspected and repairs made where necessary. Any chair brick may be left in place. The opening WIDTH and HEIGHT dimensions should be between 455mm and 545mm wide, and 360mm to 470mm high.

Opening DEPTH should be 355mm or greater. Opening DEPTHS include any plaster or infill panels which form part of the installation.

This appliance requires a natural draught flue system which may be one of the following;

• 225mm x 225mm (9in x 9in) brick or stone.

• 175mm (7in) minimum diameter lined brick or stone.

• 175mm (7in) minimum diameter twin wall flue conforming to BS 715.

Any existing under grate draught device must be sealed off.

The opening wall must be non-combustible.

The appliance requires a hearth with non-combustible surface of at least 12mm thick.

Specifications Polaris - All models

Main burner injector Stereo size 66 Oxypilot SIT 9090 Gas Control

Copreci 21400/342

Gas Inlet 8mm compression - Inlet restrictor elbow Ignition Piezo Spark Spark Gap 3.5 - 4.5mm

Flue specification

225mm x 225mm (9in x 9in) brick or stone.

175mm (7in) minimum diameter lined brick or stone.

175mm (7in) minimum diameter twin wall flue conforming to BS 715.

4.0 SITE REQUIREMENTS

‘A’

‘B’

‘C’

Figure 1

A. Opening height: 360mm Min / 470mm Max. B. Opening width: 455mm Min / 545mm Max. C. Opening depth: 355 mm Min.

' 2013 Focal Point Fires plc.

4.0 SITE REQUIREMENTS - CONTINUED

The top surface must be at least 50mm above the surrounding floor level, or be surrounded by a raised edge or fender 50mm high.

Any type of fire surround used with this appliance must be adequately sealed to the wall and floor.

A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given below. A non-combustible shelf may be fitted to within 10mm of the top edge of the fireplace opening. Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the fireplace opening , providing the forward projection does not exceed 100mm (4in). Any combustible side walls must be at least 500mm to the side of the radiant heat source. As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock, blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch.

No purpose provided ventilation is normally required for this appliance. The requirements of other appliances operating in the same room or space must be taken into consideration when assessing ventilation. If spillage is detected when commissioning the appliance then amongst other problems there may be insufficient natural ventilation for the correct operation of the flue. This is potentially a greater problem should the property be of modern nature. If the appliance does not spill with windows open but does with windows closed, this proves that lack of ventilation is the problem, if not, it will be the flue at fault. Installation of an air brick in these circumstances may be the best solution. Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2. Ventilation located underneath or within the immediate vicinity (one metre) of the fire MUST NOT be used as it may adversely affect the performance of the O.D.S. system. Spillage detected during commissioning is almost always a result of poor flue performance, which cannot be corrected by any amount of ventilation. For Republic of Ireland ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.

Read all

the instructions before continuing to unpack or install this appliance. Remove the box containing the firefront, and the bag containing the coals. Remove the cardboard packing pieces, and any bags containing other fittings or parts. Remove the burner unit from the remaining packaging. Check that the components supplied correlate with the checklist given in section 6.1. Please dispose of the packaging materials at your local recycling centre.

GB IE

' 2013 Focal Point Fires plc.

Maximum depth of shelf Minimum distance from finished hearth

surface to underside of shelf

100mm 745mm 150mm 845mm 203mm 895mm

5.0 VENTILATION

6.0 UNPACKING THE APPLIANCE

Hearth

Builders’ opening

A. Front face of the stone effect body to be flush with fireplace opening. B. Hearth must extend minimum of 240mm in front of the stone effect body. C. Hearth must extend minimum of 90mm either side of the stone effect body. D. Overall hearth width must be at least 540mm. E. Recommended 70mm minimum for access to control knob.

Notes: Ensure that the gas supply is isolated before commencing

installation of the appliance. Check that the thermocouple connection nut into the rear

of the valve is secure. Smoke test the flue to ensure proper draw and that there are no leaks present.

Locate the gas supply point. This appliance is suitable for all gas connections, including those concealed behind the opening. Using the fitting template provided mark out and drill the position of the four fixing screws as required using a 7mm masonry bit. These hole positions are shown on the template together with the position of the inlet restrictor elbow and the outer profile of the stone effect body. IMPORTANT : The front face of the stone effect body should be flush (i.e. on the same vertical plane) as

the fireplace opening when the appliance is installed in it’s final position.

Insert the fibre rawlplugs into the fixing holes and then using the fixing screws provided secure the burner unit to the hearth/base of builders’ opening. Remove any protective film from the lower decorative trim.

Using 8mm diameter pipe, connect the appliance to the gas supply point. The appliance must be fitted with rigid or semi-rigid pipe of 8mm external diameter. The appliance is factory fitted with an inlet restrictor elbow.

Keep the amount of 8mm pipe used in the supply to a minimum - less than 1.2m where possible. A long run of pipe may cause an unacceptable drop in the supply pressure.

The stone effect body of the fire is simply placed onto the four supporting lugs and then sits under it’s own weight. Similarly, the upper decorative trim sits on top of the stone effect body. No additional fixing is required.

Please refer to the relevant section of the user manual.

8.0 FUEL BED LAYOUT

' 2013 Focal Point Fires plc.

Securing the burner

Fitting the stone effect body

Fit the upper decorative trim

7.0 INSTALLING THE BURNER

6.1 UNPACKING THE APPLAINCE

GB IE

QUANTITY DESCRIPTION

1 Burner tray assembly

1 Stone effect body

1 Bag of granular burner medium

13 Individually packaged ceramic pebbles

1 Set of manufacturers instructions

1 Screw and rawlplug pack

1 Inlet restrictor tap

1 Fitting template

' 2013 Focal Point Fires plc.

Turn on and test the gas supply up to the fire for any leaks, in accordance with current edition of BS6891.

The pilot is visible at the rear of the fuel bed. The control knob is located on the right hand side of the applaince. The fire features a ‘twin spark’ ignition system to aid lighting, Push the control knob in fully and turn anti-clockwise through both of the SPARK positions, keeping fully depressed, hold there for a few seconds. If the fire has not been used for some time, hold the knob in this position for longer, to allow any air in the pipes to be purged. Ensure the pilot has lit. If not, return the knob clockwise, and repeat. When the pilot lights after one of the two sparks, keep the knob depressed in the nine o’clock position for approximately ten seconds. Now release the knob and the pilot should stay alight. If the pilot is extinguished during use, wait three minutes before repeating the ignition procedure. To achieve the HIGH setting, push the control knob in slightly and continue turning anticlockwise to the high position. The main burner should light after a few seconds. To decrease the setting to LOW, push the knob in slightly and turn the control knob clockwise to the low setting. To turn to the pilot only position from the HIGH or LOW positions, press the control knob in, and return to the nine o’clock position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release.

The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to produce a good spark.

There should be no need to adjust this. If under any circumstances the electric spark fails, the pilot may be lit manually by proceeding with the ignition sequence as previously described, and after turning the control knob through the spark position, the knob should be held in and the pilot lit with a taper.

Release the pressure test point screw, and attach a pressure gauge. Light the fire on the HIGH setting. To commission the appliance, the operating pressure must be in accordance with the figures stated in section 2.0 of these instructions. The fire is factory set to achieve the correct flow rates at the specified inlet pressure. Any significant variation in the inlet pressure could indicate a supply problem. If the inlet pressure is too high, the gas supply meter/governor may be set incorrectly. This should be checked with the fire running and if necessary reset by the gas supplier. If the inlet pressure is too low, then check the meter/governor pressure with the appliance running. If this is less than the inlet pressure stated in section 2.0 of these instructions it will need to be reset by the gas supplier. If the inlet pressure is too low, but the meter/governor pressure is acceptable, then a problem in the supply pipework is to be suspected. Upon satisfactory checking of the inlet pressure, turn the fire off, disconnect the pressure gauge and refit the test point screw. Light the fire and check for gas soundness. In the event that the inlet pressure is not in accordance with the figures stated in the data section of these instructions, the appliance must not be commissioned, and the problem investigated and rectified.

This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason then several things may be suspected. If a door or window has been opened creating a draught, then pilot disturbance is the problem, and removal of the draught should resolve this. If a grommet seal has been left out of the firebox (if fitted) then this also will also cause intermittent shutdown. The gas pressure reaching the fire must also be checked. The thermocouple connection into the back of the gas control valve may also have worked loose during installation, simply tighten to remedy if this is the case.

12.1 FLUE SPILLAGE MONITORING SYSTEM

Figure 4

12.0 OPERATING PRESSURE

11.0 SPARK GAP

10.0 OPERATING THE FIRE

9.0 TESTING AND COMMISSIONING

GB IE

Figure 3

Spark gap

If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF, check the flue and carry out any remedial work required. Re-light the fire and carry out a spillage test. DO NOT allow the appliance to be used if it continues to fail a spillage test. The aeration hole of the pilot must be carefully cleaned out on each annual service to ensure continued function of the ODS. The spillage monitoring system shall not be adjusted, modified, or put out of operation by the installer. Any spare parts fitted MUST be of a type supplied for the purpose by the appliance manufacturer. If the fire is not spilling, then further guidance should be sought, using the Troubleshooting section as a guide.

Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for five minutes. Take a smoke match, light it, and using a smoke match tube, hold it at the top edge of the fire opening, 25mm down and 25mm in. Starting 50mm in from either side, run the smoke match across the opening. All the smoke should be drawn away up the flue. Any smoke returning into the room indicates that spillage is occurring. If the initial spillage test fails, run the fire for a further 10 minutes and repeat the test. When the test has been completed satisfactorily, repeat with any extractor fans in the premises running on the highest setting, and any communicating doors open. Finally, repeat with all doors open.

NOTE: If spillage is still indicated after undertaking all of the above, there may be a fault in the flue, or insufficient ventilation is present. If the problem cannot be rectified immediately, then expert advice should be sought. Inform the user, discon-

nect the fire, and attach an explanatory label.

All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire. After commissioning the appliance, the customer should be instructed on the safe use of the appliance and the need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least once annually. Scratched and other superficial damage to the matt black paintwork of the appliance can be covered with matching heatproof spray. Use only the manufacturers’ recommended spray paint. Paint only when the fire is OFF and cold. Always mask off the surrounding area to prevent contamination with overspray. Ventilate the room during the use of the spray.

Ensure that the fire is fully cold before attempting service. A suggested procedure for servicing is detailed below.

1. Lay out the dust sheet and tools.

2. Inspect the area around the top of the fireplace opening for signs of spillage.

3. Carefully remove the ceramic components and the upper decorative trim.

4. Carefully lift off the stone effect body.

5. Isolate the gas supply at the appliance inlet elbow, and disconnect the gas supply pipe.

6. Remove the four screws securing the burner to the hearth.

7. Remove the burner unit from the fireplace opening and empty the granular burner medium.

6. Check the base of the fireplace opening for rubble accumulation and remove. If debris is excessive, initiate remedial work on the flue.

7. Check the flue with smoke pellet for correct operation.

8. Strip off the burner pipes and clean thoroughly.

9. Clean out the injector and pilot assembly. DO NOT attempt to dismantle the pilot unit.

10. Ensure the injector is aligned squarely in the injector bracket. Re-assemble and re-fit the burner tray.

' 2013 Focal Point Fires plc.

13.0 SERVICING

12.3 BRIEFING THE CUSTOMER

12.1 FLUE SPILLAGE MONITORING SYSTEM - CON

GB IE

12.2 TESTING FOR SPILLAGE

Match

Crimp

Tube

Figure 5 : Cross section of smoke match tube

Make a smoke match tube from 10mm diameter tube. Seal off one end and crimp the tube to prevent the smoke match from sliding down inside.

Spillage test - Figure 6

A.25mm down from top of opening B. 25mm in from front of opening. C. Disregard outer 50mm either side of fireplace opening

Fireplace Opening

Smoke Match

In Tube

Figure 6

11. Re fit and replace the ceramics, using genuine spares where necessary.

12. Turn on the gas supply, and leak test.

13. Check any purpose provided ventilation is un-obstructed.

14. Light the fire and test for spillage.

15. Check setting pressure and safe operation of the appliance.

For specific servicing instructions, see the relevant sections.

CLEANING THE CERAMICS

Remove the ceramic components. Gently clean in the open air. Be careful not to create dust from the pebbles. Where necessary replace damaged components with genuine spares. Seal scrap components in plastic bags and dispose of at proper refuse sites as directed. Re-fit the pebbles carefully by referring to the relevant section of these instructions.

CLEANING THE STONE EFFECT BODY

The stone effect body may be cleaned using a soft dry brush or by using a mild water-based detergent and a cloth. If these methods of cleaning are unsuccessful, and as a last resort, stubborn marks may be removed by gently rubbing with a fine abrasive paper i.e. wet and dry paper. It is not recommended to use water unless the entire body can be removed from the fire and rinsed under a tap. Do not refit the body to the fire until completely dry. Whichever method of cleaning is to be employed, it is recommended that a small hidden area be tested before proceeding to clean the entire body. Do not use polish, wax or solvent based

cleaners or detergent as these may stain or discolour the body.

Remove the tray as previously described. The pilot unit can be removed by undoing the tubing nut, the thermocouple nut on the rear of the valve, lint arrestor, two securing screws, and lifting away. Remove the tubing nut from the valve end of the pilot pipe, and blow through to dislodge any debris that may be present. Clean the exterior of the pilot assembly with a soft brush and blow through the flame ports on the pilot head. Check the aeration holes are free from lint or dirt. The pilot assembly is a non-serviceable item, and should not be taken apart. The aeration hole must be absolutely clear internally for proper operation. A thoroughly cleaned (inside and out) oxypilot will cure a wide range of ignition faults. Remove the two tubing nuts on the ends of the gas pipe to the injector elbow. Release the screw through the supporting leg and lift assembly clear. The injector pipe can now be checked for debris. Remove the nut retaining the injector elbow. Blow through the elbow to remove any debris.

Fire sparks but pilot does not light No gas to fire, check isolators are open.

Pipework blockage, clean out. Air not fully purged, re-purge supply or wait longer. Spark earthing to metal work, reset gap correctly. Blocked pilot, clean out internally.

Pilot lights but then goes out Severe restriction in gas supply, clear obstruction.

Faulty thermocouple, replace pilot unit. Hold control knob in for longer.

Fire does not spark at pilot HT lead detached, refit.

Spark gap too large or small, reset correctly. Faulty piezo unit, replace. Debris shorting out electrode, clean.

Fire runs for a time and then cuts off Excessive room draught or flue pull, rectify.

Loose or faulty thermocouple, rectify. ODS system in operation. Lint in pilot aeration hole, clean thoroughly internally

Pilot flame shrinks when fire is on high Poor gas flow to fire, check pressure with fire on high.

If pressure is low, remove any restriction in pipework or valve. Check all isolators are adequately sized and fully open. Check meter pressure is adequate. Lint in pilot aeration hole, clean thoroughly internally.

Fire smells when first lit or in use Newness smell from brand new appliance.

Spillage occurring. Carry out spillage test and rectify any problems. Low temperature sealants or combustible materials used in incorrect positions.

14.0 TROUBLESHOOTING GUIDE

13.0 SERVICING - CONTINUED

GB IE

13.1 CLEANING

13.2 DISMANTLING THE BURNER UNIT

' 2013 Focal Point Fires plc.

• The installation and Servicing of this fire MUST only be carried out by a competent person in accordance with local Codes and/or Regulations, Building Regulations and the manufacturer's instructions. Failure to comply with these could lead to prosecution and invalidate the appliance warranty. In the event of gas leakage from the appliance, the gas supply must be turned off at the nearest isolating valve. This appliance is only suitable for the gas type for which it is supplied.

• Keep a note of the installer's name and address, GAS SAFE registration number and the original purchase receipt and the date of installation. Failure to produce this information may invalidate the warranty. The appliance should be serviced regularly to ensure continued safe operation. See the servicing section for further reference.

• Parts of this appliance become naturally hot during use. It is recommended that a suitable fireguard is used, especially where young children, pets, the elderly or infirm are concerned. The manufacturer of this appliance considers all surfaces as working surfaces with the exception of the control knob and ash pan door.

• As with any gas fire, a fire guard complying with BS 8423 must be used in presence of pets, children, and the elderly or infirm.

• The appliance should be serviced regularly to ensure continued safe operation. Frequency of service will depend on use, but

MUST be carried out at least once annually.

• Combustible items, such as flooring and furniture and soft wall coverings (such as blown vinyl or embossed paper), low temperature surrounds etc may discolour if fitted too close to the fire. See relevant section for further details on clearances to combustibles. No combustible materials or flooring should protrude onto the hearth.

• This appliance incorporates a combustion monitoring system (ODS).

• DO NOT burn any foreign material on this fire, the coals must be of the correct type and laid out in accordance with the rel-

evant section of these instructions. Failure to do so could create a hazard or lead to sooting.

• The fire is only suitable for use with the gas type for which it is supplied.

• This appliance is fitted with a flue blockage safety device which will shut down the fire if abnormal flue conditions occur. It is

NOT a substitute for an independently mounted Carbon Monoxide detector.

• This fire is supplied with a particular style of firefront. Use of the firefront will ensure an adequate airflow under the firebed for the correct functioning of this appliance. Use ONLY the firefront supplied with the appliance. Use of any other firefront could be dangerous.

• Should any home improvements be carried out to the property after the fire is installed, such as installation of extractor fans for example, the fire should be re-checked by a competent person for safe operation.

U S E R I N S T R U C T I O N S

2.0 CLEARANCES TO COMBUSTIBLES

Section Content Page No

1.0 Important Notes 1

2.0 Clearances to Combustibles 1

3.0 Fire guards 2

4.0 Ventilation 2

5.0 Operating Instructions 2

6.0 Flue Spillage Monitoring System 3

7.0 Fuel Bed Layout 3

8.0 Cleaning 5

9.0 List of Replacement Parts 5

10.0 Installation Details 5

11.0 Service History 6

A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given below.

A non-combustible shelf may be fitted to within 10mm of the top edge of the fireplace opening. Combustible materials, such as wood, may be fitted to within 100mm of either side of the fireplace opening, providing the forward projection does not exceed 100mm.

Any combustible side walls must be at least 500mm to the side of the radiant heat source.

As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock, blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch.

1.0 IMPORTANT NOTES

' 2013 Focal Point Fires plc.

GB IE

Maximum depth of shelf Minimum distance from finished hearth

surface to underside of shelf

100mm 745mm 150mm 845mm 203mm 895mm

The fireguards specified in BS 8423 are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.

Fireguards can be permanently fixed in position or can be moveable, and can incorporate open fires including combination grates, or closed fires, including room heaters and stoves. See figures 1 & 2 for fireguard examples.

The fireguards specified are not intended to reduce the risk of fires caused by flying particles, which are covered by BS 3248.

No purpose provided ventilation is normally required for this appliance. The requirements of other appliances operating in the same space or room, and the results of a spillage test must be taken into consideration when assessing ventilation requirements, this will have been carried out by your registered installer. For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.

WARNING : Ventilation openings (where fitted) must never be blocked or restricted in any way.

trol knob in fully and turn anti-clockwise through both of the SPARK positions, keeping fully depressed, hold there for a few seconds. If the fire has not been used for some time, hold the knob in this position for longer, to allow any air in the pipes to be purged. Ensure the pilot has lit. If not, return the knob clockwise, and repeat. When the pilot lights after one of the two sparks, keep the knob depressed in the nine o’clock position for approximately ten seconds. Now release the knob and the pilot should stay alight. If the pilot is extinguished during use, wait three minutes before repeating the ignition procedure. To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to the high position. The main burner should light after a few seconds. To decrease the setting to LOW, push the knob in slightly and turn the control knob clockwise to the low setting. To turn to the pilot only position from the HIGH or LOW positions, press the control knob in, and return to the nine o’clock position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release.

3.0 FIRE GUARDS

GB IE

Figure 1

Example of moveable fireguard for portable heating appliances

Key

1. Optional base section for total enclosure of a wall mounted appliance

2. Points for attachment to a wall.

Figure 2

Example of detachable fireguard

Key

1. Detachable fireguard

2. Screw eye

4.0 VENTILATION

5.0 OPERATING THE APPLIANCE

Figure 3

' 2013 Focal Point Fires plc.

This fire is fitted with a flue spillage safety device (ODS).

If the fire shuts down during use for no apparent reason then several reasons may be suspected. If a door or window has been opened creating a draught, then pilot disturbance could be the problem, and removal of the draught should resolve this. The fire can then be re-lit in accordance with the previous section.

If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF, call in your installer to check any ventilation and carry out any remedial work required. DO NOT allow the appliance to be used until the installation is passed as safe.

The appliance is supplied with 13 individually wrapped hand-finished ceramic pebbles and a bag of spherical ceramic beads - this is the granular burner medium, and the burner should be filled with this in the same way as a conventional vermiculite type burner. There is approximately twice as much burner medium as is required so the remainder should be retained by the user for future use, if required.

1. Fill the burner with the burner medium so it is flat and level with the rim of the burner. Do not spill any down

into the pilot well as this could cause ignition and or cross lighting problems.

2. Remove the pebbles from the protective packaging. On the bottom of the pebbles are the letters A to M. You will need to select the pebbles in alphabetic order beginning with ‘A’. Place the pebbles marked ‘A’, ‘B’ and ‘C’ as shown. The letters are on the bottom of the pebbles and should face downwards.

6.0 FLUE SPILLAGE MONITORING SYSTEM

GB IE

7.0 FUEL BED LAYOUT

' 2013 Focal Point Fires plc.

3. Next, place the pebbles marked ‘D’, ‘E’ and ‘F’ as shown. The letters are on the bottom of the pebbles and should face downwards.

4. Next, place the pebbles marked ‘G’ and ‘H’ as shown. The letters are on the bottom of the pebbles and should face downwards.

5. Next, place the pebbles marked ‘I’, ‘J’ and ‘K’ as shown. The letters are on the bottom of the pebbles and should face downwards.

6. Next, place the pebbles marked ‘L‘ and ‘M’ as shown. The letters are on the bottom of the pebbles and should face downwards. The fuel bed layout is now complete.

The fire is designed to operate correctly with the pebbles supplied when assembled according to the instructions. Never add to the thirteen pebbles, or change them for a different type. Never throw rubbish or other matter onto the fuel bed. Due to the light colour of the pebbles, some discolouration/sooting is to be expected during normal operation.

7.0 FUEL BED LAYOUT - CONTINUED

GB IE

' 2013 Focal Point Fires plc.

CLEANING THE CERAMICS

CLEANING THE STONE EFFECT BODY

cleaners or detergent as these may stain or discolour the body.

8.0 CLEANING

' 2013 Focal Point Fires plc.

GB IE

9.0 LIST OF REPLACEMENT PARTS

Polaris - All models

Item Part number

Burner assembly - complete F510007

Upper decorative trim F710691

Pack of 13 Pebbles & burner medium F550125

Main gas valve F730085

ODS F730057

Injector F730083

Stone body F830036

10.0 INSTALLATION DETAILS

Installer GAS SAFE registration No :

Model :

Fire serial No. :

Name & contact details of installer :

Supplied by :

Date installed :

The 3 year guarantee only covers products purchased on or after 1st February 2009. For all gas fires purchased the 3 year guarantee commences from the date of purchase, provided that the following 3 terms and conditions are adhered to:

Registration is not required.

1. For any claim to be made within the 3 years from date of purchase you will be required to provide and supply us with your proof of purchase.

2. Your gas fire must have been commissioned by a CORGI/Gas Safe* registered installer, evidence of which you must provide together with the CORGI/Gas Safe* registration number.

3. Your appliance must have been serviced annually, irrespective of use, by a CORGI/Gas Safe* registered installer, evidence of which must be provided, such as the receipt.

Please note all consumable items such as any ceramics including; coals, pebbles, the matrix, front strips, side cheeks, rear panels and tapered rear panels are not covered by the 3 year guarantee.For all Electric fires purchased the 3 year guarantee commences from the date of purchase, providing that you can supply the proof of purchase. This does not cover consumable items such as pebbles, coals or light bulbs.

Making a claim is easy.

If you wish to make a claim under our 3 year guarantee and all the terms and conditions for your product have been met then please submit the following information for the attention of the 3G Service Department to the address below. Alternatively, you can email or fax.Please note that this does not affect your statutory rights.

Focal Point Fires plc, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT. Alternatively email: 3g@focalpointfires.co.uk or fax. 01202 499326.

Details required:

1. Name, full address including post code and contact telephone number.

2. Receipt of purchase or credit card statement.

3. Original installers CORGI/Gas Safe* registration number and date of installation (gas fires only).

4. Annual service receipt for every 12 months (gas fires only).

*Gas Safe Register replaced CORGI as the gas registration body in Great Britain and the Isle of Man on 1st April 2009.

' 2013 Focal Point Fires plc.

11.0 SERVICE HISTORY

GB IE

Date of service Serviced by (name): GAS SAFE No. : Contact details of Engineer

As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right to amend details and/or specifications without prior notice.

Note : Gas Safe

registered operatives are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998.

F860019

Focal Point POLARIS Installation & User's Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
