Focal Point eko 3030, eko 3050, eko 3035, eko 3060, eko 3065 Installation And User Instructions Manual

installation and user instructions

All instructions must be handed to user for safekeeping

Revision A - 06/09

Country(s) of destination - GB/IE

eko 3030
eko 3035
eko 3040
eko 3050
eko 3060
eko 3065

fuel effect gas fire
manual - remote control - slide control

Eko 3030

Eko 3040

Eko 3050

Eko 3060

INSTALLATION INSTRUCTIONS

Preliminary Notes Before Installation

This appliance is an Inset Live Fuel Effect appliance that provides radiant
warmth utilising the latest type burner technology.

The fire is designed to fit various types of fireplaces and natural draught flues
as listed in the Installation Requirements.

The appliance must be installed by a competent

[1]

person in accordance with

Gas Safety (Installation and Use) Regulations 1998.

Read all these instructions before commencing installation.

This appliance must be installed in accordance with the rules in force and only
used in a sufficiently ventilated space.

The appliance is designed for installation on to a non-combustible hearth of at
least 300mm depth.

This appliance is factory set for operation on the gas type, and at the pressure
stated on the appliance data plate.

This appliance is available in either a manual control version, a battery powered
remote control version, or a slide control version with a number of fuel effect
options. These instructions cover all control options, and all fuel effect options.
See the relevant sections of these instructions for further details.

Manufactured by : Focal Point Fires plc.

Christchurch, Dorset BH23 2BT
Tel: [phone] Fax: [phone]
www.ekofires.co.uk
e-mail: [e-mail]

[1] GB - Gas SafeTMregistered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use)
Regulations 1998.

© 2009 Focal Point Fires plc.

IMPORTANT NOTES

This fire is an Inset Live Fuel Effect Gas Fire providing radiant warmth. It is designed to operate on Natural
Gas only.

It is the LAW that all gas appliances and fittings are installed by a competent

[1]

person and in accordance

with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards for Installation,
Codes of Practice and in accordance with the Manufacturers’ Instructions. The installation shall also be car­ried out in accordance with the following regulations:

The Building Regulations issued by the Department of the Environment, the Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.

BS 5871 part 2

BS 5440 part 1

BS 1251

BS 6891

BS 6461 part 1

Failure to comply with these regulations could lead to prosecution and deem the warranty invalid.

This appliance must be installed in accordance with the rules in force and used only in a sufficiently
ventilated space.

Consult all instructions before installation and use of this appliance.

This appliance is free from any asbestos material. Refractories and fuel beds are constructed from
ceramic fibre.

Note : Remote control models only

This appliance features a battery-opearated remote control system, and under normal usage will need new
batteries approximately every twelve months.
Remote control Handset requirements - 1 x ‘PP3’ type (9 volt)
Reciever/motor unit requirements - 4 x ‘AA’ type (1.5 volt)
Refer to the appropriate section of these instructions for details of how to change the batteries.

Note : Slide control models only

This appliance features a battery-operated slide control system, and under normal usage will need new bat­teries approximately every twelve months.
Requirements - 1 x ‘PP3’ type (9 volt)
Refer to the appropriate section of these instructions for details of how to change the battery.

1

Section

1.0

2.0

3.0

4.0

4.1

5.0

6.0

7.0

7.1

8.0

9.0

10.0

11.0

11.1

Contents

Important Notes
Appliance Data
Installation Requirements
Site Requirements
Debris Collection Space
Ventilation
Pre Fabricated Flue Boxes
Unpacking the Appliance
Component Checklist
Preparing the Appliance
Preparing the Opening
Gas Supply Routing
Fitting the Firebox
Installation by Cable Fixing Kit

Page

No.

1
2
2
3
4
4
4
5
5
5
6
6
7
7

Section

11.2

12.0

12.1

13.0

13.1

14.0

14.1

14.2

14.3

14.4

14.5

14.6

14.7

15.0

16.0

17.0

Contents

Fitting the Burner Unit
Fuel Bed Layout
Replacing the battery (slide control models)
Fitting the Firefront / Frame
Gas Connection
Testing and Commissioning
Operating the Fire (manual control)
Operating the Fire (remote control)
Operating the Fire (slide control)
Spark Failure
Setting Pressure
Flue Spillage Monitoring System
Testing for Spillage
Briefing the customer
Servicing
Troubleshooting Guide

Page No.

8
8
8
8
8
8
8
9
9
9

9
10
10
10
10

12

Note - For Republic of Ireland, reference should be
made to the relevant standards governing installa­tion, particularly in regard to flue sizing and ventila­tion. See IS813, ICP3, IS327 and any other rules in
force.

1.0

© 2009 Focal Point Fires plc.

[1] GB - Gas SafeTMregistered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998.

INSTALLATION REQUIREMENTS

This appliance MUST NOT be installed into a room containing a bath or shower, or where steam may be
present. The fire has been designed to fit into a builders’ opening or fireplace conforming to BS 1251 (and
meeting certain dimensional requirements), or a suitable flue box complying with the constructional
requirements of BS 715. The flue box must be installed onto a suitable non-combustible insulating surface
at least 12mm thick, covering the entire base area of the box.

The flue must have an effective height of at least three metres, as measured from the hearth to the top of
the flue. Any flue damper plates or restrictors should be removed and no other restriction fitted to the flue.
Where removal is not practical, the restriction must be fixed in the fully open position.

A natural draught flue system is required, and if previously used for solid fuel or oil burning, the flue and
chimney must be swept prior to appliance installation. The flue must be checked before installation by using
a smoke pellet or similar to ensure proper draw and that leakage is not evident at any joints. Repair and
re-test as necessary before the appliance is installed.

The flue must be connected to only one fireplace, and the flue must not vent more than one appliance (i.e.
not shared with a gas back boiler). There must be no opening in the flue apart from the one that the appli­ance is installed into, and the one venting the gases into the air. A suitable terminal may be fitted, such as
class GC1, as regulations allow.

Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only : This appliance has been tested for use in a pre­cast block flue complying with BS 1289. In accordance with BS 1289 part 1, pre-cast flues built with direct­ly plastered faces (front or rear) are not correctly installed as to ensure proper operation with any type of
gas fire. In some instances of this flue construction, temperature cracking of the surface plaster may occur
through no fault of the appliance. An air gap or some form of insulation material should be installed to pre­vent normal flue temperatures from damaging wall surfaces. Pre-cast flues must be checked for mortar fangs
and correct installation of joints, flue sections in loft space and terminals.

Eko 3030, Eko 3035, Eko 3040, Eko 3050, Eko 3060, Eko 3065 models : These appliances has been test­ed for use with circular flues of a minimum internal diameter of 125mm.

This appliance is suitable for use with a “lightweight” surround and back panel of 150

O

C minimum rating.

2

2.0

3.0

APPLIANCE DATA

Manual control models Remote control models Slide Control Version

Gas Group G20 Natural Gas CAT I2H G20 Natural Gas CAT I2H G20 Natural Gas CAT I2H

Inlet Pressure 20 mbar (+/- 2.0mbar) 20 mbar (+/- 2.0mbar) 20 mbar (+/- 2.0mbar)

Max Energy Input (gross) 6.8 kW 6.8 kW 6.8 kW

Min Energy Input (gross) 3.5 kW 3.5 kW 3.5 kW

Pilot Energy Input (gross) 166 W 166 W 166W

Setting Pressure (cold) 15.8 mbar (+/- 1.5mbar) 15.8 mbar (+/- 1.5mbar) 14.5 mbar (+/- 1.5mbar)

Main Injector Burner Stereo 81/Bray cat. 82/420 Stereo 81/Bray cat. 82/420 Stereo 82

Gas Inlet Connection 8mm Inlet Restrictor Elbow 8mm Inlet Restrictor Elbow 8mm Inlet Restrictor Elbow

Gas Control Valve Dungs BM 733/NGC6802 Mertik Maxitrol GV30 series Teddington TESA 3173/001

Ignition Integral Piezo spark Integral Piezo spark Integral Piezo spark

Spark Gap 3.5 to 4.5mm 3.5 to 4.5mm 3.5 to 4.5mm

Weight 20 Kg 22 Kg 21 Kg

Please see Data Badge affixed to appliance for current data.

This appliance is for use only with the gas type, and at the pressure stated on the appli-

ance Data Badge, and is for decorative purposes.

©

2009 Focal Point Fires plc.

SITE REQUIREMENTS

The fireplace opening should be inspected and repairs made where necessary. Any chair brick or fireback may
be left in situ, providing that the dimensional requirements for debris collection space and spigot clearances
are met. See diagram below.

Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only: The opening WIDTH and HEIGHT dimensions should
be between 375mm and 450mm wide, and 540mm (see note) to 575mm high. Note: The spigot outlet of the
fire is 560mm high, but should fit into the gather at the top of the fireplace as the appliance is fitted. Any
modifications to the fireplace opening must be to a height of 560mm min.Opening DEPTH should be 200mm
or greater for a clay/cement lined or pre-cast flue which is new, unused, or previously used only with a gas
appliance. DEPTH should be 240mm or greater for a flue used for solid fuel of oil burning appliances.
Opening DEPTHS include any plaster or infill panels which form part of the installation.

Eko 3060, Eko 3065 models only : The opening WIDTH and HEIGHT dimensions should be between 390mm
and 440mm wide, and 545mm to 575mm high. Opening DEPTH should be 267mm or greater for a
clay/cement lined flue which is new, unused, or previously used only with a gas appliance. DEPTH should be
307mm or greater for a flue which has been used for solid fuel of oil burning appliances. Opening DEPTHS
include any plaster or infill panels which form part of the installation.

All models : This appliance requires a natural draught flue system which may be one of the following;

225mm x 225mm (9in x 9in) brick or stone.
125mm (5in) minimum diameter lined brick or stone.
125mm (5in) minimum diameter twin wall flue conforming to BS 715.
Pre-cast block flue complying with BS 1289. (Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only)

Any existing under grate draught device must be sealed off. The opening wall must be non-combustible.
The appliance requires a hearth with non-combustible surface of at least 12mm thick. The top surface must
be at least 50mm above the surrounding floor level, or be surrounded by a raised edge or fender 50mm high.

To enable the products of combustion to be cleared properly up the flue, the outlet at the back of the appli­ance must have a 50mm minimum clearance between it and the back wall of the opening or any other
obstruction. The area immediately above the outlet must form a smooth path into the flue.
Any type of fire surround used with this appliance must be adequately sealed to the wall and floor.

A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions
given below.

3

A

C

D

B

E

F

4.0

G

H

X

Note : dimensions in italics refer only
to Eko 3060, Eko 3065 only.

A. Opening height: 540mm min/575 mm
max. (545mm min)
B. Opening width: 375mm min/450mm
max. (390mm min/440mm max)
C. Mounting depth: 180mm. (247mm)
D. Hearth must extend minimum of
150mm either side of the opening.
E. Hearth must extend minimum of
300mm in front of the opening.
F. Non-combustible hearth must be a min­imum of 50mm in height, or be sur­rounded by 50mm high fender.
G. 470mm, this area must be flat and ver­tical to ensure a good seal.
H. 585mm, this area must be flat and ver­tical to ensure a good seal.
X. Debris collection space - See section

4.1 on following page.

Maximum depth of shelf Minimum distance from finished hearth

surface to underside of shelf

100mm (4in) 745mm (29 1/4 in)

150mm (6in) 845mm (33 1/4 in)

203mm (8in) 895mm (35 1/4 in)

© 2009 Focal Point Fires plc.

SITE REQUIREMENTS (continued)

A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe. Combustible
materials, such as wood, may be fitted to within 100mm (4in) of either side of the fireplace opening, pro­viding the forward projection does not exceed 100mm (4in). Any combustible side walls must be at least
500mm to the side of the radiant heat source. As with all heating appliances, any decorations, soft fur­nishings, and wall coverings (i.e. flock, blown vinyl and embossed paper) positioned too close to the appli­ance may discolour or scorch.

DEBRIS COLLECTION SPACE

The mounting depth of this appliance is 180mm. In accordance with BS 5871 part 2, minimum debris col­lection volumes are required behind the installed appliance. These are shown in the table below and as
dimension X on the fireplace diagram shown previously.

CLAY/CEMENT LINES OR BLOCK FLUE WHICH IS NEW, UNUSED, OR PREVIOUSLY ONLY USED WITH A GAS FIRE.

X Dimension = 20mm

UNLINED FLUE OR CHIMNEY WHICH HAS BEEN PREVIOUSLY USED FOR A SOLID FUEL OR OIL BURNING APPLIANCE

X Dimension = 60mm

VENTILATION

No purpose provided ventilation is normally required for this appliance. The requirements of other

appliances operating in the same room or space must be taken into consideration when assessing ventila­tion.

If spillage is detected when commissioning the appliance, then amongst other problems there may be insuf­ficient natural ventilation for correct operation of the flue. If the appliance does not spill with the windows
open, but spillage is detected with the windows closed, this demonstrates a lack of natural ventilation. If
spillage is still detected with the windows open, the flue is at fault. Installation of an air brick is the best
solution to lack of ventilation. Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2.
Vents fitted under or within the immediate vicinity of the appliance must not be used as adverse effects to
the operation of the ODS may occur.

Spillage detected during commissioning is almost always a result of poor flue performance that cannot be
corrected by any amount of ventilation.

For Republic of Ireland ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.

PREFABRICATED FLUE BOXES

This appliance can be fitted into a number of proprietary flue boxes provided that the minimum dimensions
given in the diagram below are complied with.

Constructional Note: The frame of the fire,
any back panel or other infill panels, and the
flue box must be sealed together so that there
is no possibility of leakage between them.
Adequate clearances to combustible materials
(e.g. false chimney breast construction) must
be maintained.

The manufacturers’ instructions for fitting
the prefabricated box shall be complied with
at all times.

To fit the fire using the cable fixing kit, some
minor adaption may be necessary for certain
flue boxes. A check should be made to ensure
the firebox does not obscure the flue box out­let.

The firebox, base of the flue box, and hearth
below may be drilled to allow plugs and screws
to secure installation.

It is important that the sealing requirements of the appliance are met at all times and that the flue box is
well sealed to any back or infill panel.

Note: The DEPTH dimension is inclusive of any back or infill panel.

4

4.0

4.1

5.0

6.0

125mm min internal
dia twin wall flue

Eko 3030, Eko 3035 - Eko 3050 models : 375mm min opening width

Eko 3060, Eko 3065 models : 395mm min opening width

Eko 3030, Eko

3035 - Eko

3050 models :

250mm min

depth

Eko 3060, Eko
3065 models :

265mm min

depth

Eko 3030, Eko

3035 - Eko

3050 models :

560mm min

height

Eko 3060, Eko
3065 models :

545mm min

height

© 2009 Focal Point Fires plc.

UNPACKING THE APPLIANCE

Stand the carton the right way up, cut the strapping bands and remove the top endcap. Read all the instruc­tions before continuing to unpack or install this appliance.
Remove the box containing the firefront, and the bags containing the ceramic components. Remove the card­board packing pieces, and any other bags or boxes containing fittings or other parts. When all loose parts
have been removed, the outer sleeve may be lifted off to reveal the appliance. Check that the components
supplied correlate with the component checklist given in section 7.1. Please dispose of all the packaging
materials at your local recycling centre.

COMPONENT CHECKLIST

QUANTITY DESCRIPTION

1 Firebox and burner tray assembly
1 Decorative cast frame with integral control cover (Eko 3050 models only)
1 Decorative extruded frame with detachable control cover (Eko 3040 models only)
1 One piece decorative trim (Eko 3030, Eko 3035 & Eko 3060, Eko 3065 models only)
1 Cast firefront (Eko 3030, Eko 3035 & Eko 3060, Eko 3065 models only)
1 Moulded ceramic fibre combustion matrix
1 Moulded ceramic front strip

16 Individual ceramic coals (Coal models only)
16 Individual ceramic pebbles (Pebble models only)

9 Individual ceramic logs (Log models only)
3 Ceramic brick effect radiant panels (Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only)
2 Ceramic brick panel retaining clips (Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only)
1 Slide control knob and M4 Nyloc nut (Eko 3035 & 3065 Slide control models only)
1 Cable fixing kit; 2 cables, 2 tensioners, 2 cable clamps, 4 eyebolts
1 Sealing grommet
1 Battery (1 x ‘PP3’) (Eko 3035 & Eko 3065 Slide control models only)
3 Lengths of adhesive sealing strip
1 Self tapping screw pack; 4 No8 x 5/16
1 Set of manufacturers instructions
4 Fibre Rawl Plugs

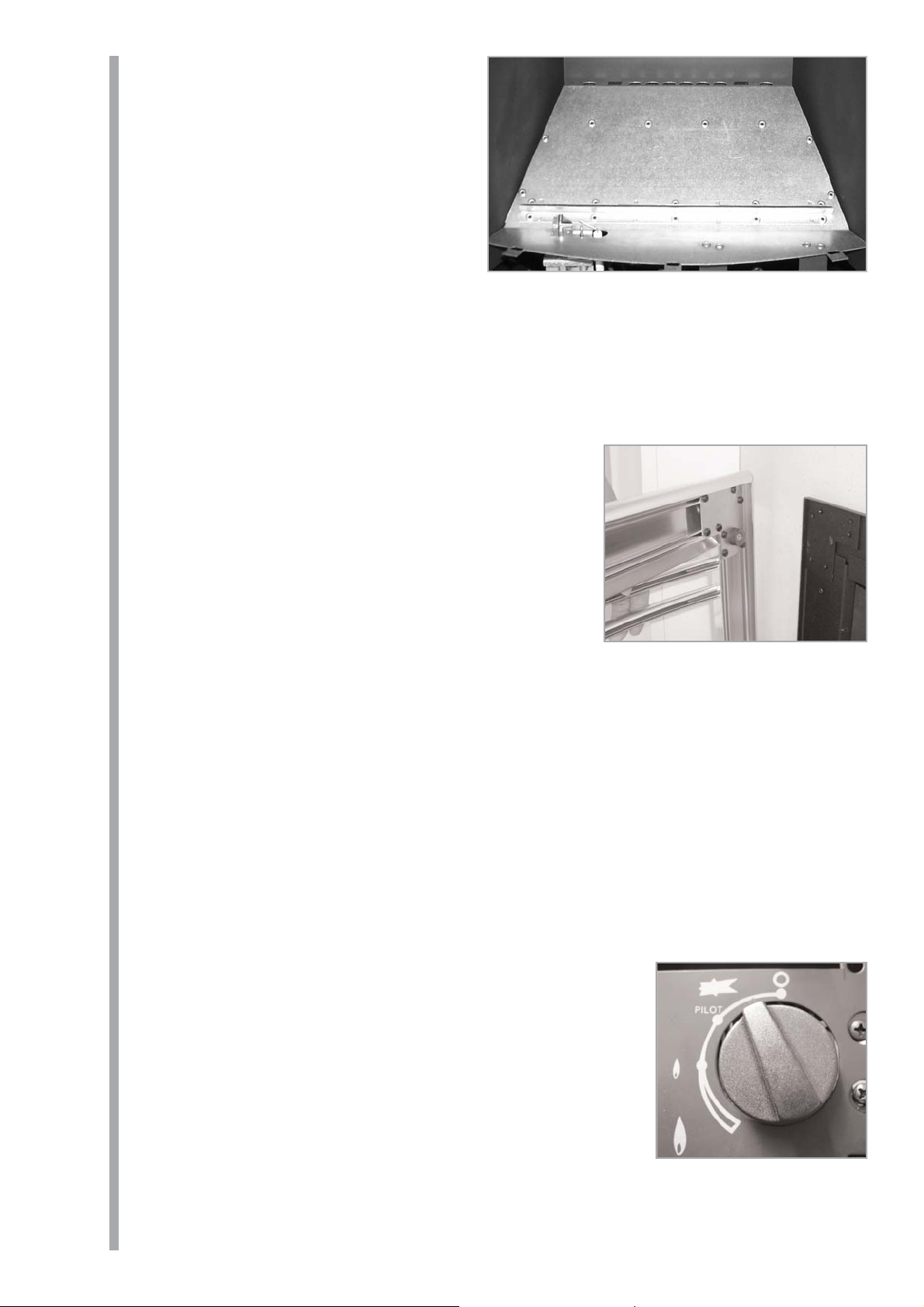

PREPARING THE APPLIANCE

Note: Ensure that the gas supply is isolated before com­mencing installation of the appliance.

The fireplace opening and environment must be in compliance
with specifications laid down in the appropriate sections of
these instructions.
Remove the appliance from it’s carton as described previous­ly and stand upon a dust sheet or similar. Place the decorative
frame, coals, ceramics and fixings safely to one side. Remove
the burner from the assembly by removing the retaining
screws. The tray is now free, and may be lifted away.

RADIANT PANELS (Eko 3030, Eko 3035, Eko 3040, Eko 3050
models only) : The three radiant panels may now be fixed inside the firebox. Select

the plain or patterned side of each panel and insert as follows; Lay the firebox on
it’s back. Lay the tapered panel onto the rear face of the firebox.
The side panels should be fitted by inserting their front edges into the pre-fitted
retaining brackets on the front face of the firebox. Gently align the side panels with
the side of the firebox as shown, over the top of the back panel already in place.

Make sure that the side panels are pushed up firmly to the roof of the firebox, and back firmly to retain the tapered
panel. Make small adjustments to line up the mortar lines if required. Secure the side panels using the small ‘L’
shaped brackets and screws provided (shown inset). The screws should locate into the pre-punched holes in the
sides of the firebox.

SUPPLY PIPE ENTRY (All models): Knockout holes are provided in the rear and sides of
the firebox for use where concealed pipework is required. Where necessary, knock out the
appropriate hole with a sharp tap from a hammer, and fit the rubber grommet supplied.
A small incision can now be made in the rubber to slip snugly around the outside of the
pipe and sleeving. Do not install or use the appliance without the seals in place. If a
hole is inadvertently opened, reseal with an intact grommet. Failure to fit the seal correctly
will cause flue suction to act upon the area under the burner, resulting in poor perform­ance and intermittent cutting out of the burner.

Eko 3035 & 3065 Slide controls models : The control knob is supplied as a loose part.
Insert the control knob into the hole in the top of the slide control spindle. Secure the con­trol knob in position using the M4 nyloc nut provided.

5

7.0

7.1

8.0

© 2009 Focal Point Fires plc.

PREPARING THE APPLIANCE
(continued)

SPIGOT RESTRICTOR (All models): If installing the fire into

a Class 1 or good Class 2 flue, simply bend up (stitch bend

join) the spigot restrictor into position in the flue outlet of

the fire. You MUST remove (or bend down fully) the spig-

ot restrictor and re-test if the appliance fails a spillage

test during commissioning.

SEALING STRIPS (All models) : Apply the self adhesive

sealing strips to the back of the fireframe to give a continu-

ous seal.

PREPARING THE OPENING

Before installing the fire, check the flue using a smoke pel­let. All of the smoke should travel up the flue and exit cor­rectly from the terminal. If problems are found, DO NOT fit
the fire until corrective action is completed.

Protect the decorative hearth whilst pushing the firebox in
and out of the opening. Part of the packaging will make an
ideal hearth saver pad.

Before running the gas supply into the opening, offer up the
firebox to the fireplace to check the fit is good. Angle the
firebox or adjust the spigot outlet as described in the Fitting
the Firebox section. Ensure that it slides in correctly, the
sealing face sits flat and square to the wall or infill panel, and
that the base is firm on the floor of the opening as no leaks
are permissible here.

At this stage it is essential to ensure that the spigot outlet of
the fire is not restricted in any way. Remove the firebox and
take any necessary measurements before making good and
preparing for final installation.

CABLE FIXING : For fixing of the fire by the cable method,
see the relevant section. The cable fixing locations should be
marked on the back of the opening and the holes drilled. Fit
the fibre rawlplugs and eyebolts to these holes. Note: Plastic

rawlplugs are NOT suitable for this application.

SCREW FIXING : For fixing by screw, mark and drill the fireframe or base, and the relevant points in the

opening or on the wall. Rawlplugs will again be required. Pre-punched holes are not provided for this pur­pose to allow you to choose the optimum positions.

GAS SUPPLY : Following preparation for the fixing method, the concealed gas supply, where required, can
now be put into place. Refer to the gas supply section for suggested pipe routes. The ends of the sleeving
in which the gas pipe is run should be sealed. The ends of the 8mm supply pipe should be temporarily sealed
to prevent the ingress of debris during fixing.

GAS SUPPLY ROUTING

When the opening is ready for installation of the fire, the gas supply can be routed as shown in the diagram
below.
IMPORTANT - Wherever a concealed connection is made a rubber grommet must be used to seal the firebox.
The gas pipe must be suitably protected where it passes through fireplace openings. Any sleeving should be
sealed to the pipe at its ends. This appliance is fitted with an inlet restictor elbow.

The open end of the supply pipe should be sealed temporarily during the installation of the firebox to pre­vent the ingress of dirt and dust.

6

8.0

Eko 3030, Eko 3035, Eko 3040, Eko 3050 models

Eko 3060, Eko 3065 models

All models - sealing strips

9.0

10.0

© 2009 Focal Point Fires plc.

GAS SUPPLY ROUTING (continued)

Eko 3030, Eko 3035 and Eko 3060, Eko 3065 models : The appliance firefront is notched to allow the gas

pipe to pass through when an over hearth supply is necessary.
Eko 3040 and Eko 3050 models : If an over hearth supply routing is necessary, then the supply pipe may
be routed beneath the control cover.

FITTING THE FIREBOX

Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only : To fit the firebox, firstly check the fire goes fully

back into the opening. If the fire will not fit straight in, tilt the unit backwards and insert the spigot first to
lead in to the gather at the top of the fireplace. If this is still not possible, remove the spigot outlet screws
using a screwdriver, bend it down and partly insert the firebox. Now push the outlet deflector back up to
the original position under the lip of the fireplace opening and secure with the screws. The fire is designed
to operate correctly with the deflector screwed in its original position and spillage problems may arise by
not realigning correctly once fitted.Secure the fire box by drilling and screwing down the frame or base of
the firebox, or use the cable fixing method.

Eko 3060, Eko 3065 models only : The firebox may be fitted to the opening by using screw fixing or by the
cable kit as described in the relevant section.Secure the fire box by drilling
and screwing down the frame or base of the firebox, or use the cable fix­ing method.

INSTALLATION BY CABLE FIXING KIT

Drill the four holes for the rawl plugs, as shown in the diagram. If the fire­place configuration does not allow the exact layout given, the eyebolts
should be positioned as close to the correct layout as possible.

Before finally fitting cables, ensure the self adhesive sealing strips are in
position on the back of the appliance frame. The fireframe must be sealed
evenly to the fireplace opening all around the periphery.

Thread the tensioning cables through the holes in the top of the firebox, then the eyelets, and finally through
the lower holes in the back of the firebox, as shown in the photographs.

Note: The burner tray MUST be removed as per relevant section to gain
access to the cable adjusters.

Push the appliance back into to fireplace, centralise, and pull the loose ten­sioning cables through the holes into the firebox. You may need to tem­porarily adjust the outlet deflector at this point as described in the Fitting
the firebox section. Thread the tensioner bolts onto the cables, with the nuts
screwed down close to the tensioner head. Slide the screwed nipple onto the
cable, pull cable tight, and tighten nipple.
The tension of the cable may now be adjusted by using a suitable spanner
on the tensioner nuts to pull the appliance tightly against the fireplace open­ing. Visually inspect the seal and reseat if necessary.

Note: DO NOT cut off excess cable. Surplus cable must not be cut off, as it
will be impossible to refit the fire after servicing. Coil up the surplus cable,
and locate at rear of firebox.

Note : If running a concealed gas supply, ensure grommets are secure around incom­ing pipes.

10.0

11.0

Grommets

Firebox

Fireplace opening

Gas valve

Manual control version

Grommets

Firebox

Fireplace opening

Gas valve

Remote control version

7

A. 250mm
B. 350mm
C. 60mm
Dimensions
+/-10mm

A

B

C

11.1

© 2009 Focal Point Fires plc.

FITTING THE BURNER UNIT

Important Note: Check the thermocouple nut
connection into the rear of the valve is secure.

Temporarily fit the burner unit and ensure a suit­able gas route can be achieved. Place the burner
unit into the firebox making sure that the rear
lugs locate properly on to the ledge in the firebox.
Fit the two securing screws through the burner
legs to secure the assembly.

FUEL BED LAYOUT

Please see the relevant section of the user instructions.

REPLACING THE BATTERY (slide control versions only)

Appliance - Ensure appliance is off and cool. The battery is located in the top of the ignition unit, on the left hand
side of the burner. Insert 1 x ‘PP3’ (9 volt) battery.

FITTING THE DECORATIVE FRAME /
FIREFRONT

Eko 3030, Eko 3035 & Eko 3060, Eko 3065 models ; The appliance is

supplied with a one piece decorative frame that is attached to the front
of the firebox with the magnets provided. Position the firefront in front
of the burner. The firefont supplied may be different from the one
shown in these instructions.
Eko 3040 models ; Remove the decorative frame from it’s protective
packaging. The frame is supplied with pre attached magnets. Simply
place the frame onto the front of the firebox. The control cover is
retained onto the frame with two hooks.
Eko 3050 models ; Remove the decorative frame from it’s protective
packaging. The frame is retained onto the firebox with three mounting
brackets, on at the top of the frame and one on each leg of the frame. The lower leg brackets may be adjusted to
achieve a good fit. The control cover is an integral part of the frame.

GAS CONNECTION

Purge the gas supply thoroughly to remove air and dirt/debris BEFORE connection. Now disconnect the inlet
restrictor elbow from the inlet pipe. Connect the previously installed gas supply to inlet restrictor elbow, and re-fit
the restrictor elbow to the inlet pipe of the appliance.
If using an across hearth connection, ensure the decorative fireframe and firefront will clear the supply route.
If the data/control plate is not already fitted, attach with two screws, ensuring the control knob is free to be
depressed fully.

TESTING AND COMMISSIONING

Turn on and test the gas supply up to the fire for any leaks, in accordance with current edition of BS6891.
When the appliance is first used, protective oils coating the firebox may burn off. It is advisable to ventilate the
room during this period for at least one hour.

OPERATING THE FIRE (manaul control models)

The pilot is visible through the left hand side of the front ceramic strip. Rotate
the coals or pebbles for good viewing. Push in and turn the control knob to the
SPARK position, and hold there for a few seconds.
Continue turning anti-clockwise through the spark click to the PILOT light posi­tion, ensuring the pilot has lit. If not, return the knob clockwise, and repeat.

When the pilot lights after the spark, keep the knob depressed for approxi­mately ten seconds. Now release the knob and the pilot should stay alight. If
the pilot is extinguished during use, wait three minutes before repeating the
ignition procedure. To achieve the HIGH setting, push the control knob in
slightly and continue turning anti-clockwise to the high position. The main
burner should light after a few seconds. To decrease the setting to LOW, turn the control knob clockwise to the
low setting.

To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot
position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release.

8

11.2

Eko 3040 frame

12.0

13.1

14.0

14.1

13.0

12.1

© 2009 Focal Point Fires plc.

OPERATING THE FIRE
(remote control models)

The pilot is visible through the left hand side of the front ceram­ic strip. Turn the main burner control (shown on left hand side of
control valve) knob fully anti-clockwise.
Turn ignition knob (shown on right hand side of control valve)
slightly left towards the ignition position until reaching the stop,
press down and hold for 5 seconds (only pilot gas is flowing)
Continue pressing down the knob while turning further to the left
to activate the piezo spark, continue to hold the knob down for a
further 10 seconds after the pilot has been lit. If the pilot does
not light repeat the previous steps.

Upon lighting and after the further 10 seconds, release the knob and turn further
to the left to the ON position. The main burner will light and be controlled in accor­dance with the main burner control knob setting. Adjust the main burner control
knob to the desired setting.

If the pilot is extinguished during use of the fire, you MUST wait ten minutes before
repeating the ignition procedure.
To turn the main burner OFF whilst keeping the pilot flame lit, turn the ignition con­trol knob to the pilot position then only the pilot will remain lit.
To shut the fire off completely, press the ignition control knob down and continue
turning to the right from the pilot position to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has
cooled sufficiently to allow the magnetic valve unit to reset itself.

The remote control unit allows operation of the main burner setting between max­imum and pilot only setting. It does not permanently turn the pilot on or off.
The remote control handset incorporates an inbuilt safety feature to prevent the
main burner being activated or turned up accidentally. It is necessary to press but­ton 1 and 2 (see illustration) simultaneously to turn the fire up.
To turn the fire down press button 3 only.

OPERATING THE FIRE (slide control versions)

The pilot is visible through the left hand side of the matrix. Rotate the coals or peb­bles for good viewing. Push the slide control knob fully downwards to the SPARK posi­tion, and hold there for a few seconds, until the pilot light stays on. When the pilot
light has established, release the slide control knob and it will return to the LOW
flame setting. If the pilot is extinguished during use, wait three minutes before
repeating the ignition procedure.
To achieve the HIGH setting, move the slide control knob upwards to the HIGH flame
setting. The fire can also be set to operate anywhere between HIGH and LOW by mov­ing the control knob to an intermediate position.
To turn the fire OFF, move the slide control knob upwards upwards fully to the posi­tion marked ‘O’.

SPARK FAILURE

The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to produce
a good spark. There should be no need to adjust this. If under any circumstances the
electric spark fails, the pilot may be lit manually by proceeding with the ignition
sequence as previously described, and after turning the control knob through the
spark position, the knob should be held in and the pilot lit with a taper.

SETTING PRESSURE

Remove the screw from the pressure test point.

The test point is situated on the main injector pipe

Attach a U gauge. Light the fire on the HIGH setting. The setting
pressure should be in accordance with the figures stated on page
2 of these instructions. The fire is factory set to achieve these
pressures, and any significant variation could indicate a supply
problem.If the pressure is too high, the gas supply meter may be
set incorrectly. This should be checked with the fire running and
if necessary reset by the gas supplier. If the pressure is too low,
then check the meter governor pressure with the appliance run­ning. If this is incorrect it will need to be reset by the gas suppli­er.If the setting pressure is too low, but the meter pressure is
acceptable, then a problem in the supply pipework is to be suspected. This will be dirt and debris, kinked or inad­equate size pipes, restriction in a fitting or solder flashing across a joint. (NOTE: you will not get an accurate read­ing of the inlet pressure with a pressure gauge on the end of the supply pipe - this is the static pressure in the sys­tem. You must use a T piece and measure the supply pressure with the fire on High - the dynamic pressure). Refit
and tighten the screw into the pressure test point when the test is complete.

9

14.3

14.4

1

2

3

14.2

14.5

© 2009 Focal Point Fires plc.

FLUE SPILLAGE MONITORING SYSTEM

This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent
reason then several things may be suspected. If a door or window has been opened creating a draught, then
pilot disturbance is the problem, and removal of the draught should resolve this. The gas pressure reaching
the fire must also be checked (again, recall your installer to check and rectify any problem). The thermo­couple connection into the back of the gas control valve may also have worked loose during installation, sim­ply get the installer to tighten.

If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance
OFF, check the flue and carry out any remedial work required. Relight the fire and carry out a spillage test.
DO NOT allow the appliance to be used if it continues to fail a spillage test.

The aeration hole of the pilot must be carefully cleaned out on each annual service to ensure continued func­tion of the ODS.
The spillage monitoring system shall not be adjusted, modified, or put out of operation by the installer. Any
spare parts fitted MUST be of a type supplied for the purpose by the appliance manufacturer. If the fire is
not spilling, then further guidance should be sought, using the Troubleshooting section as a guide.

TESTING FOR SPILLAGE

Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for five minutes.
Take a smoke match, light it, and using a smoke match tube, hold it at the top edge of the fire opening,
25mm down and 25mm in. Starting 50mm in from either side, run the smoke match across the opening.
All the smoke should be drawn away up the flue. Any smoke returning into the room indicates that spillage
is occurring. If the initial spillage test fails, run the fire for a further 10 minutes and repeat the test.
When the test has been completed satisfactorily, repeat with any extractor fans in the premises running on
the highest setting, and any communicating doors open. Finally, repeat with all doors open.

DO NOT allow the fire to be used until the test is satisfactorily passed.

BRIEFING THE CUSTOMER

All instructions must be handed to the user for safekeeping. Show the customer how to light and control the
fire. After commissioning the appliance, the customer should be instructed on the safe use of the appliance
and the need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least
once annually. Advise that cleaning of the fire may be achieved when the fire is cold using a damp cloth and
mild detergent on most surfaces.
Scratched and other superficial damage to the matt black paintwork of the appliance can be covered with
matching heatproof spray. Use only the manufacturers’ recommended spray paint. Paint only when the fire
is OFF and cold. Always mask off the surrounding area to prevent contamination with overspray. Ventilate
the room during the use of the spray. DO NOT attempt to spray paint the coals or ceramics, or wash them
in water.
Advise that the fire will emit a “newness” smell for a time after initial commissioning and that extra ventila­tion may be needed during this time. Advise that the fire is fitted with a spillage safety device (O.D.S.). If the
fire shuts down, this system may be in operation. If spillage is suspected, SWITCH APPLIANCE OFF and call
in the installer to investigate any problems.

SERVICING

Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested
procedure for servicing is detailed below.

1. Lay out the dust sheet and tools.

2. Carefully remove the ceramic components.

3. Remove the cast front fret (Eko 3030, Eko 3035 models), or remove the combined frame and
firefront (Eko 3040 and Eko 3050 models).

10

15.0

16.0

A.25mm down from

top of opening

B. 25mm in from

front of opening.

C. Disregard outer

50mm either side of

fireplace opening

Match

Crimp

Tube

Cross section of smoke match tube

Make a smoke match tube from 10mm diameter
tube. Seal off one end and crimp the tube to prevent
the smoke match from sliding down inside.

C

C

B

A

Fireplace Opening

Smoke Match In

Tube

14.6

14.7

© 2009 Focal Point Fires plc.

SERVICING (continued)

4. Remove the two screws that retain the data/control plate.

5. Disconnect the gas supply, and remove the two securing screws in the tray legs.

6. Remove the burner tray.

7. Remove firebox as described.

8. Check the fireplace opening for rubble accumulation and remove. If debris is excessive, initiate
remedial work on the flue.

9. Check the flue with smoke pellet for correct operation.

10. Refit firebox using new seals where necessary.

11. Strip off the burner pipes and clean thoroughly.

12. Clean out the injector, pilot assembly and burner tube. DO NOT remove the pilot injector.

13. Re-assemble and re-fit the burner tray.

14. Turn on the gas supply, and leak test.

15. Refit the decorative casting and ceramics.

16. Check any purpose provided ventilation is un-obstructed.

17. Light the fire and test for spillage.

18. Check setting pressure and safe operation of the appliance.

For specific servicing instructions, see the relevant sections.

CLEANING THE CERAMIC PARTS

Remove the firefront and place to one side. Remove the ceramic components. Gently clean in the open air.
Be careful not to create dust from the coals. Where necessary replace damaged components with genuine
spares. Seal scrap ceramic components in plastic bags and dispose at proper refuse sites as directed.
Re-fit the coals by referring to the relevant section of these instructions.

REMOVING THE BURNER TRAY

Remove the decorative front. Remove the ceramics and the data/control plate and place safely aside.
Slide control models - disconnect the slide control mechanism by removing the M4 nut on the slide control linkage.
Remove the two screws securing the tray legs to the firebox. Pull tray forward slightly and lift away.
Refitting is the reverse of above, being sure to engage the tray location lugs on the shelf at the rear of the
firebox.

DISMANTLING THE BURNER TRAY

Remove the tray as previously described. The pilot unit can be removed by withdrawing the tubing nut, the
thermocouple nut on the rear of the valve, and the two securing screws, and lifting away. Remove the tub­ing nut from the valve end of the pilot pipe, and blow through to dislodge any debris.
Remove the two tubing nuts on the ends of the gas pipe to the injector elbow and blow clear. Release the
screw through the supporting leg and lift assembly clear. The injector pipe can now be checked for debris.
Remove the nut retaining the injector elbow. Blow through the elbow to remove any debris.
The valve is not field serviceable, apart from the pilot filter. Remove the control knob by pulling it forwards,
then remove the largest of the three screws on the face of the valve. Slide the filter out and clean away any
debris that may have accumulated. The filter element should also be blown clean. This component should
not require replacement, however if signs of deterioration are evident then a genuine spare part must be
used. If a large amount of debris is present in the filter then the pipework and control should be thorough­ly cleaned before re-assembly.

PILOT ASSEMBLY

Remove the burner tray as in relevant section and pilot unit as described.
Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt
or lint. Clean thoroughly internally, the connection can be removed from the base of the pilot unit using
two spanners to make cleaning easier. Do not damage or try to remove the pilot injector. The unit is facto­ry set and the only check necessary is to ensure the spark gap is correct. See specifications for gap set­ting.

REMOVING THE FIREBOX

Remove the burner tray as described previously.
Protect the hearth from potential damage. Unroll the coiled tensioner cables from the rear of the firebox.
Remove the securing nipples and tensioner adjusters. The firebox is now released from the opening and
can be slid outward onto the hearth. Inspect the fireplace opening for debris and if excessive rectify the
flue before proceeding further. Check the seal around the fireframe and if necessary replace. Refitting of
the firebox is as described in the fitting section of these instructions.

11

16.0

16.1

16.2

16.3

16.4

16.5

© 2009 Focal Point Fires plc.

TROUBLESHOOTING GUIDE

Fire sparks but pilot does not light No gas to fire, check isolators are open.

Pipework blockage, clean out.

Air not fully purged, repurge supply or wait longer.

Spark earthing to metal work, reset gap correctly.

Blocked pilot, clean out internally.

Pilot lights but then goes out Severe restriction in gas supply, clear obstruction.

Faulty thermocouple, replace pilot unit.

Hold control knob in for longer.

Check control knob does not foul data plate.

Missing grommet seal in firebox, replace

Fire does not spark at pilot HT lead detached, refit.

Spark gap too large or small, reset correctly.

Faulty piezo unit, replace.

Debris shorting out electrode, clean.

Spark shorting to metalwork under tray, realign HT lead.

Fire runs for a time and then cuts off Excessive room draught or flue pull, rectify.

Loose or faulty thermocouple, rectify.

ODS system in operation.

Firebox grommet seal not fitted, rectify.

Lint in pilot aeration hole, clean thoroughly internally

Pilot flame shrinks when fire is on high Poor gas flow to fire, check pressure with fire on high.

If pressure is low, remove any restriction in pipework or valve.

Check all isolators are adequately sized and fully open.

Check meter pressure is adequate.

Air leak under base of firebox, rectify.

Lint in pilot aeration hole, clean thoroughly internally.

Firebox grommet seal missing, rectify

Fire smells when first lit or in use Newness smell from brand new appliance.

Spillage occurring. Carry out spillage test and rectify any problems

Low temperature sealants or combustible materials used in incorrect

positions.

Air leak under base of firebox, rectify

Firebox grommet seal missing, rectify.

12

17.0

© 2009 Focal Point Fires plc.

USER INSTRUCTIONS

IMPORTANT NOTES

The installation of this fire MUST only be carried out by a competent

[1]

person in accordance with the Gas Safety
(Installation and Use) Regulations 1998, the relevant British Standards, Codes of Practice, the Building Regulations
and the manufacturers’ instructions.

Failure to comply with the above recommendations could lead to prosecution and invalidate the appliance war­ranty.

Please ensure you are handed all of the manufacturers documents on completion of the installation. This will
include these instructions. Always keep a note of the installer’s name, address and Gas Safe

TM

registration number,

the original purchase receipt and the date of installation for future reference.

The fire and flue should be serviced regularly to ensure continued safe operation. See the servicing section for fur­ther details. Frequency of service will depend on use, but MUST be carried out at least once annually.

Parts of this appliance become naturally hot during use. It is recommended that a suitable fire guard conforming
to BS 8423 is used, especially where young children, the elderly, or infirm are concerned.

Combustible items, such as flooring and furniture, and soft wall coverings (such as blown vinyl or embossed paper)
may discolour if fitted too close to the fire. See relevant section for further details on clearances to combustibles.
No combustible material or flooring should protrude onto the hearth. DO NOT burn any foreign material on this
fire, the coals or pebbles must be of the correct type and laid out in accordance with the relevant section of these
instructions. Failure to do so could create a hazard or lead to sooting. Before the appliance is installed, the chim­ney should be swept. All flues should be checked by the installer to ensure there are no defects or obstructions
that may prevent the flow of combustion products.

This appliance is fitted with a flue blockage safety device which will shut down the fire if abnormal flue conditions
occur. It is NOT a substitute for an independently mounted Carbon Monoxide detector. The fire is only suitable for
use with the gas type for which it is supplied.

Note : Remote control models only

This appliance features a battery-opearated remote control system, and under normal usage will need new batter­ies approximately every twelve months.
Remote control Handset requirements - 1 x ‘PP3’ type (9 volt)
Reciever/motor unit requirements - 4 x ‘AA’ type (1.5 volt)
Refer to the appropriate section of these instructions for details of how to change the batteries.

Note : Slide control models only

This appliance features a battery-operated slide control system, and under normal usage will need new batteries
approximately every twelve months.
Requirements - 1 x ‘PP3’ type (9 volt)
Refer to the appropriate section of these instructions for details of how to change the battery.

FIREFRONT

This fire is supplied with a particular style of firefront. Use of the firefront will ensure an adequate airflow under
the firebed for the correct functioning of this appliance. Compliance with safety standards cannot be guaranteed

if another style of front is used.

1

Section

1.0

2.0

3.0

4.0

5.0

5.1

5.2

6.0

7.0

8.0

9.0

10.0

11.0

Contents

Important Notes
Firefront
Clearances to Combustibles
Ventilation
Fuel Bed Layout (coal versions)
Fuel Bed Layout (pebble versions)
Fuel Bed Layout (log versions)
Servicing
Operating Instructions
Flue Spillage Monitoring System
Cleaning
Cleaning the Ceramics
List of spare parts

Page No.

1
1
2
2
2
3
4
5
6
7
7
7
7

1.0

2.0

[1] GB - Gas SafeTMregistered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998.

© 2009 Focal Point Fires plc.

CLEARANCES TO COMBUSTIBLES

A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions
given below.

A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe.

Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the frame of the
appliance, providing the forward projection does not exceed 100mm (4in).

Any combustible side walls must be at least 500mm to the side of the radiant heat source.

As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock, blown vinyl
and embossed paper) positioned too close to the appliance may discolour or scorch.

VENTILATION

No purpose provided ventilation is normally required for this appliance. The requirements of other appli­ances operating in the same space or room, and the results of a spillage test must be taken into considera­tion when assessing ventilation requirements, this will have been carried out by your registered installer.

For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.

FUEL BED LAYOUT
(coal effect models)

1. Remove the combustion matrix from its protec­tive packaging, and position onto the burner tray
as shown. The front edge of the matrix should sit
snugly behind the back edge of the burner rails. Do
not fit the matrix on top of the burner rails.

2. Next, remove the front coal strip from its pro­tective packaging and position as shown. The rear
edge of the front coal strip should fit in front of the
burner rail. Again, do not to place on top of the
burner rails. When the front coal is in position bend
up the three metal tags at the front of the tray to
retain (inset).

2

3.0

4.0

5.0

Maximum depth of shelf Minimum distance from finished hearth

surface to underside of shelf

100mm (4in) 745mm (29 1/4 in)

150mm (6in) 845mm (33 1/4 in)

203mm (8in) 895mm (35 1/4 in)

Correct

Incorrect

© 2009 Focal Point Fires plc.

FUEL BED LAYOUT (coal effect models) - continued

3. Open the bag of 16 moulded coals. All of the
coals are the same. Take five coals and place them
as shown. Care should be taken to ensure that the
coals bridge the gap between the front coal and
the four coal supports at the front of the matrix.
Care should also be taken not to push the coals
right down between the coal supports, as this can
detract from the flame picture when the appliance
is running.

4. Take five more moulded coals and position as
shown to form the ‘second row’ of the fuel effect.
The coals may be rotated as desired to fit into the
gaps between the coal supports in order to create
a random, realistic effect. Again, remember not to
push the coals down too far into the valleys
between the coal supports as this can have a detri­mental effect to the flame picture.

5. Now take another four coals and place behind
the second row of coals, in order to complete the
third row. The coals may be orientated as desired
to achieve a realistic effect. Keep the spacing
between the coals even and uniform. The two coals
at the ends of the row may be placed rearwards,
towards the back corners of the fuel matrix.

6. Finally, take the two remaining coals and place
at the back of the fuel matrix, in the centre as
shown. Adding these coals should complete the
appearance of the fuel bed giving an even distri­bution of equally spaced coals.

The fire is designed to operate correctly with
the coals supplied when assembled according
to the instructions. Never add to the sixteen
coals, or change them for a different type. Never
throw rubbish or other matter onto the coal
bed.

FUEL BED LAYOUT
(pebble effect option)

1. Refer back to section 5.0 - Fuel bed layout (coal
effect option) and follow steps 1 and 2. The front
strip and fuel effect matrix used for pebble effect
versions are of the same design as coal effect ver­sions, but have a different surface finish.

3

5.1

5.0

© 2009 Focal Point Fires plc.

FUEL BED LAYOUT
(continued)

2. Open the bag of 16 ceramic pebbles. All of these
pebbles are the same size. Take five pebbles and
place them as shown. Care should be taken to
ensure that the pebbles bridge the gap between
the front strip and the four supports at the front
of the matrix. Care should also be taken not to
push the pebbles right down between the sup­ports, as this can affect the flame picture when the
appliance is running.

3. Take five more ceramic pebbles and position as
shown to form the ‘second row’ of the fuel effect.
The pebbles may be rotated as desired to fit into
the gaps between the supports in order to create
a random, realistic effect. Again, remember not to
push the pebbles down too far into the valleys
between the supports as this can have a detrimen­tal effect to the flame picture.

4. Now take another two pebbles and place behind
the second row of coals, next to each other in the
centre of the fuel bed. The pebbles may be orien­tated as desired to achieve a realistic effect. Keep
the spacing between the pebbles even and uni­form.

5. Finally, take the four remaining pebbles and
place at the back of the fuel matrix as shown.
Once again, the pebbles may be orientated as
desired in order to give a realistic effect. Avoid
pushing the pebbles down between the supports.
The fuel bed layout is now complete.

The fire is designed to operate correctly with
the pebbles supplied when assembled accord­ing to the instructions. Never add to the sixteen
pebbles, or change them for a different type.
Never throw rubbish or other matter onto the
fuel bed.
Due to the light colour of the pebbles, some discolouration/sooting is to be expected during normal
use.

FUEL BED LAYOUT - Eko 3030,
Eko 3035 models (Log effect
option)

1. Refer back to section 5.0 - Fuel bed layout (coal
effect option) and follow steps 1 and 2. The fuel
effect matrix used for log effect versions is the
same design as coal effect versions, but has a dif­ferent surface finish. The front log strip is of a dif­ferent design and must be handled with care.

4

5.2

5.1

© 2009 Focal Point Fires plc.

FUEL BED LAYOUT - Eko
3030, Eko 3035 models (Log
effect option) ­continued

2. Open the bag of 9 moulded ceramic logs. All of
the logs except two are the same. Take the largest
log (numbered 16) and place it as shown. Care
should be taken to ensure that the orientation is
correct and the log fits snugly into its position.

3. Take the two medium sized logs (numbered 15
and 8) position the log numbered 8 on the left
hand side ensuring correct orientation. Place the
log numbered 15 on the right hand side again
ensuring correct orientation. Both these logs will fit
securely into their allocated poisition, they may
require rotating slightly to ensure this.

4. Now take the remaining large log (numbered 4)
and position vertically as shown, ensuring correct
orientation. The base of this log must rest secure­ly on the front log strip. Take one of the smaller
logs (numbered 14) and position in between the
two vertically positioned logs ennsuring the orien­tation is correct. Keep the spacing between these
logs uniform.

5. Finally, take the remaining two medium sized
logs (numbered 5 and 7) and place in a horizontal
position shown, 5 first, resting on the front log
strip. 7 next resting on 5. Now take the smallest
log (numbered 12) and position in the orientation
shown ensuring the log does not fall into the
matrix but rests securely on the allocated sup­ports. Now take the final log (numbered 14) and
place in a horizontal position as shown. Ensure
there is even spacing between the logs and rotate
if necessary to provide a stable fit onto the matrix.
The fuel bed layout is now complete.

The fire is designed to operate correctly with the
logs supplied when assembled according to the
instructions. Never add to the nine logs, or change
them for a different type. Never throw rubbish or
other matter onto the fuel bed.

SERVICING

The fire and flue should be checked on an annual basis to ensure all of the product of combustion are enter­ing the flue and that there is no excessive build up of soot. The frequency of service will depend on usage,
but MUST be carried out at least once annually. Servicing must be carried out by a competent person.

Cleaning of the coals/pebbles may be carried out by following the instructions given in the Installation sec­tion. The Installation instructions carry full servicing details for the use of the installer.

If debris from the flue or other foreign matter is found on the fire it may indicate a need for servicing. Do
not use the fire until the source of the debris has been found and rectified. Air vents (where fitted) should
be checked periodically to ensure they are free from obstruction.

5

5.2

6.0

© 2009 Focal Point Fires plc.

OPERATING THE FIRE
(manaul control models)

The pilot is visible through the left hand side of the front ceramic strip.
Rotate the coals or pebbles for good viewing. Push in and turn the control
knob to the SPARK position, and hold there for a few seconds.
Continue turning anti-clockwise through the spark click to the PILOT light
position, ensuring the pilot has lit. If not, return the knob clockwise, and
repeat.

When the pilot lights after the spark, keep the knob depressed for approx­imately ten seconds. Now release the knob and the pilot should stay alight.
If the pilot is extinguished during use, wait three minutes before repeating the ignition procedure. To
achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to the high
position. The main burner should light after a few seconds. To decrease the setting to LOW, turn the control
knob clockwise to the low setting.

To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the
pilot position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and
release.

OPERATING THE FIRE
(remote control models)

The pilot is visible through the left hand side of the front
ceramic strip. Turn the main burner control (shown on left
hand side of control valve) knob fully anti-clockwise.

Turn ignition knob (shown on right hand side of control valve)
slightly left towards the ignition position until reaching the
stop, press down and hold for 5 seconds (only pilot gas is
flowing)
Continue pressing down the knob while turning further to the
left to activate the piezo spark, continue to hold the knob
down for a further 10 seconds after the pilot has been lit. If the pilot does not
light repeat the previous steps.

Upon lighting and after the further 10 seconds, release the knob and turn fur­ther to the left to the ON position. The main burner will light and be controlled
in accordance with the main burner control knob setting. Adjust the main
burner control knob to the desired setting.

If the pilot is extinguished during use of the fire, you MUST wait ten minutes
before repeating the ignition procedure.
To turn the main burner OFF whilst keeping the pilot flame lit, turn the ignition
control knob to the pilot position then only the pilot will remain lit.
To shut the fire off completely, press the ignition control knob down and con­tinue turning to the right from the pilot position to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple
has cooled sufficiently to allow the magnetic valve unit to reset itself.

The remote control unit allows operation of the main burner setting between
maximum and pilot only setting. It does not permanently turn the pilot on or
off.
The remote control handset incorporates an inbuilt safety feature to prevent the main burner being activat­ed or turned up accidentally. It is necessary to press button 1 and 2 (see illustration) simultaneously to turn
the fire up.
To turn the fire down press button 3 only.

OPERATING THE FIRE (slide control versions)

The pilot is visible through the left hand side of the matrix. Rotate the coals or
pebbles for good viewing. Push the slide control knob fully downwards to the
SPARK position, and hold there for a few seconds, until the pilot light stays on.
When the pilot light has established, release the slide control knob and it will
return to the LOW flame setting. If the pilot is extinguished during use, wait
three minutes before repeating the ignition procedure.
To achieve the HIGH setting, move the slide control knob upwards to the HIGH
flame setting. The fire can also be set to operate anywhere between HIGH and
LOW by moving the control knob to an intermediate position.
To turn the fire OFF, move the slide control knob upwards upwards fully to the
position marked ‘O’.

6

1

2

3

7.0

7.1

7.2

© 2009 Focal Point Fires plc.

FLUE SPILLAGE MONITORING SYSTEM

This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent
reason then several reasons may be suspected. If a door or window has been opened creating a draught,
then pilot disturbance could be the problem, and removal of the draught should resolve this. The fire can
then be re-lit in accordance with the previous section. A grommet seal may also be missing from the firebox
causing abnormal draught to shut down the pilot. Call your installer to check seals are properly fitted. If pilot
disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF, call
in your installer to check the flue and ventilation and carry out any remedial work required. DO NOT allow
the appliance to be used until the flue system is passed as safe.

CLEANING

Before carrying out any of the following operations, ensure that the fire is OFF and completely cold.

Debris that may form on the firebed should be periodically removed by a competent person. Large deposits
could indicate deterioration of the flue. This should be repaired by a competent person, and the fire serv­iced before further use.

FIREFRONT - Any dust accumulating in the firefront may be removed using a vacuum cleaner or dry cloth.
Heavy stains may be removed by using a damp cloth and mild household detergent. Brass parts of the fire­front may be cleaned using a suitable brass cleaner. Replace the front centrally against the fire after clean­ing.

PAINTED AREAS - These can be cleaned using a dry cloth.

CLEANING THE CERAMIC PARTS

Remove the firefront casting and place to one side. Remove the ceramic components. Gently clean in the
open air. Be careful not to create dust from the ceramics. Where necessary replace damaged components
with genuine spares. Seal scrap ceramic components in plastic bags and dispose at proper refuse sites as
directed.

Re-fit the ceramic parts by referring to the relevant section of these instructions.

LIST OF SPARES

PART NO. ITEM

F550038 Pack of 16 coals

F550050 Pack of 16 pebbles

F550079 Pack of 9 ceramic logs

F780008 Front ceramic strip - coal

F780017 Front ceramic strip - pebble

F780050 Front ceramic strip - Log

F780007 Ceramic combustion matrix - coal

F780016 Ceramic combustion matrix - pebble

F780051 Ceramic combustion matrix - Log

F550049 Ceramic pad set (includes rear pad and side pads)

Please Enquire Decorative Frame

Please Enquire Decorative Front

7

As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right to amend details and/or
specifications without prior notice.

9.0

10.0

11.0

F860620

8.0

[1] GB - Gas SafeTMregistered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under
the Gas Safety (Installation and Use) Regulations 1998.

© 2009 Focal Point Fires plc.
