Focal Point Blenheim Installation & User's Instructions

INSTALLATION & USER INSTRUCTIONS
MODELS COVERED BY THESE INSTRUCTIONS
LED INSET ELECTRIC FIRE
FRET AND FRAME OPTIONS AVAILABLE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
LED ELECTRIC FIRE
1
Revision A - 07/13
© 2013 Focal Point Fires plc.
GB IE

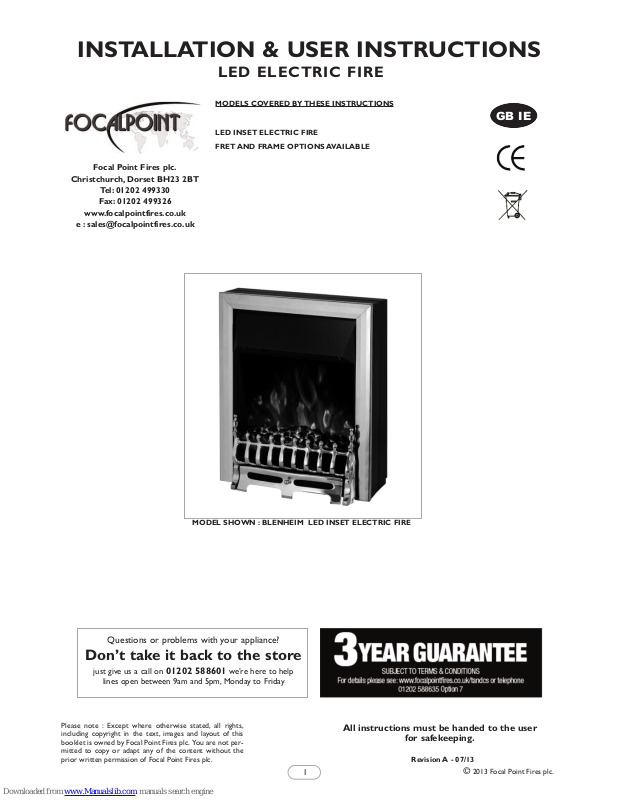

MODEL SHOWN : BLENHEIM LED INSET ELECTRIC FIRE
All instructions must be handed to the user
for safekeeping.
Please note : Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not per­mitted to copy or adapt any of the content without the prior written permission of Focal Point Fires plc.
Questions or problems with your appliance?
Don’t take it back to the store
just give us a call on 01202 588601 we’re here to help
lines open between 9am and 5pm, Monday to Friday
The appliance is designed for indoor use, and can be simply floor mounted in the majority of floor positions anticipated. It can be located in any household room, with the exception of bathrooms. Read all of the instructions before commencing installation. Retain for future reference and pass on as necessary to subsequent owners of the appliance.
DO NOT use this appliance immediately below a fixed socket outlet.
DO NOT use this appliance in the immediate vicinity of a bath, shower, swimming pool or other area where water/moisture could pres-
ent a hazard.
CAUTION: This appliance must not be used in conjunction with any timer, programmer or thermal control, or any other device that
will switch on the appliance automatically, as a fire risk may occur if the heaters are accidentally covered or displaced.
CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and
vunerable people are present.
WARNING: Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less
than 8 years shall only switch on/off the applaince provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when
they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. Do not allow the heater to be covered as this may cause overheating. The appliance must not be placed near curtains or similar material. A clearance space of at least one metre should be allowed in front of the appliance. The electrical socket that the appliance uses MUST be easily accessible. Do not route the supply cord directly over or above the heater unit. If the cord is damaged, it must be replaced by a service agent or competent person. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
The appliance is suitable for installation into all proprietary surrounds with an opening of 406mm by 559mm (16” by 22”). The appliance is sup­plied fitted with 2 spacer frames enabling it to be fitted with no need for a recess into a wall or surround back panel. Both spacer frames have a depth of 57mm. The appliance can be fully recessed if the opening depth is 113mm or greater and neither spacer is used. It may be installed directly into any proprietary surround which can house this size of rebate, without the need to recess the appliance into a wall opening or fab­ricate a false chimney breast.
This appliance should be positioned on a firm level surface and in a clean ‘dust free’ environment. If the fire is to be sited in a fire surround then the suitability of the surround for use with electrical heaters should be established with the fire surround manufacturer. If fitted into an open draught fireplace, it is advisable to blank off the chimney to reduce the risk of draught through the fire, which may cause the safety cut out system in the fan heater to operate.
1.0 PRELIMINARY NOTES
I N S TA L L AT I O N & U S E R I N S T R U C T I O N S
© 2013 Focal Point Fires plc.
2
GB IE
2.0 APPLIANCE DATA
Weight (kg): 14 kg Voltage (Volts): 220-240V a.c. 50Hz Rated Power 2 x 900W/ 2 x 1000W Supply Plug: BS 1363, 13A Fused Supply Cord: 1.7 Metres Location: Indoor Use LED Display: 25 Watts
Section Contents Page No.
1.0 Preliminary Notes 2
2.0 Appliance Data 2
3.0 Installation Requirements 2
4.0 Unpacking The Appliance 3
5.0 Component Checklist 3
6.0 Operating the Appliance 3
Section Contents Page No.
7.0 Safety Cut-Out System 3
8.0 Installing The Appliance 4
9.0 Removing the appliance spacer frames 5
10.0 Fitting The Decorative Frame And Front 6
10.1 Fitting The Loose Fuel Bed Options 6
11.0 Cleaning And Maintenance 6
12.0 Guarantee - Terms And Conditions 7
3.0 INSTALLATION REQUIREMENTS
DO NOT
- site in a position where curtains or drapes could cover the appliance.
- site in a position where other soft materials could cover e.g. below a coat rack.
- site behind an opening door where mechanical impact/damage could occur.
- site where the supply cable would become a trip hazard.
- sit, stand or forcefully pull on the appliance.
- obstruct, cover or force items into the openings.
- use the heater to dry clothes.
- site/use in an outdoor location(s).
- run the supply cable under carpets.
- Mount on a wall.
Read all the instructions before continuing to unpack or install this appliance. Carefully remove the appliance from its packaging and lay on the floor with it’s back surface downward. Note: DO NOT stand the appliance on its frame as this may cause distortion. Check that the remaining packaging contents correlate with the component checklist below. Please dispose of all packaging with care at your local recycling centre.
QUANTITY DESCRIPTION
1 Heater main body 1 Decorative Frame 1 Decorative Fret with aspan door 3 Neoprene securing strips 1 Loose coal set (only available with Lulworth model) 1 Loose pebble set (only available with Lulworth model) 1 Instruction Booklet
The heater is operated via the use of two switches, one situated on the left hand side of the canopy and one on the right. The switch on the left hand side towards the top, marked (0I), controls the main power to the appliance and switches on the LED display panel.
The next switch on the right hand side, with a “single bar” marked (I) and a “two single bars” marked (II) operates the low heat, (1kW) and the high heat (2kW).
To operate the fire in any of the above modes, the top switch marked (OI) must be switched to the “on” position.
This appliance has a safety cut-out system fitted which will activate if the air inlets or heater outlets are obstructed. For safety reasons the fire
WILL NOT switch on again automatically.
The following procedure must be carried out before the fire can be operated again:
1. Unplug the power supply cable at the outlet socket and place all switches to off at the appliance.
2. Leave the fire OFF for a period of not less than 15 minutes, ensuring any obstructions are removed.
3. Plug in the power supply cable at the outlet socket, and then switch on at the appliance.
If the appliance fails to operate correctly, repeat the above procedure. If an attempt to switch on is made before the safety cut-out has reset,
the heaters may cut-out for a further period of time. If the sequence has been followed correctly and the heaters still fail to function, check the
power supply cable plug is plugged in at the outlet socket. If this is not the cause, call an electrician.
3.0 INSTALLATION REQUIREMENTS - CONTINUED
GB IE
4.0 UNPACKING THE APPLIANCE
© 2013 Focal Point Fires plc.
3
5.0 COMPONENT CHECKLIST
6.0 OPERATING THE APPLIANCE
7.0 SAFETY CUT-OUT SYSTEM

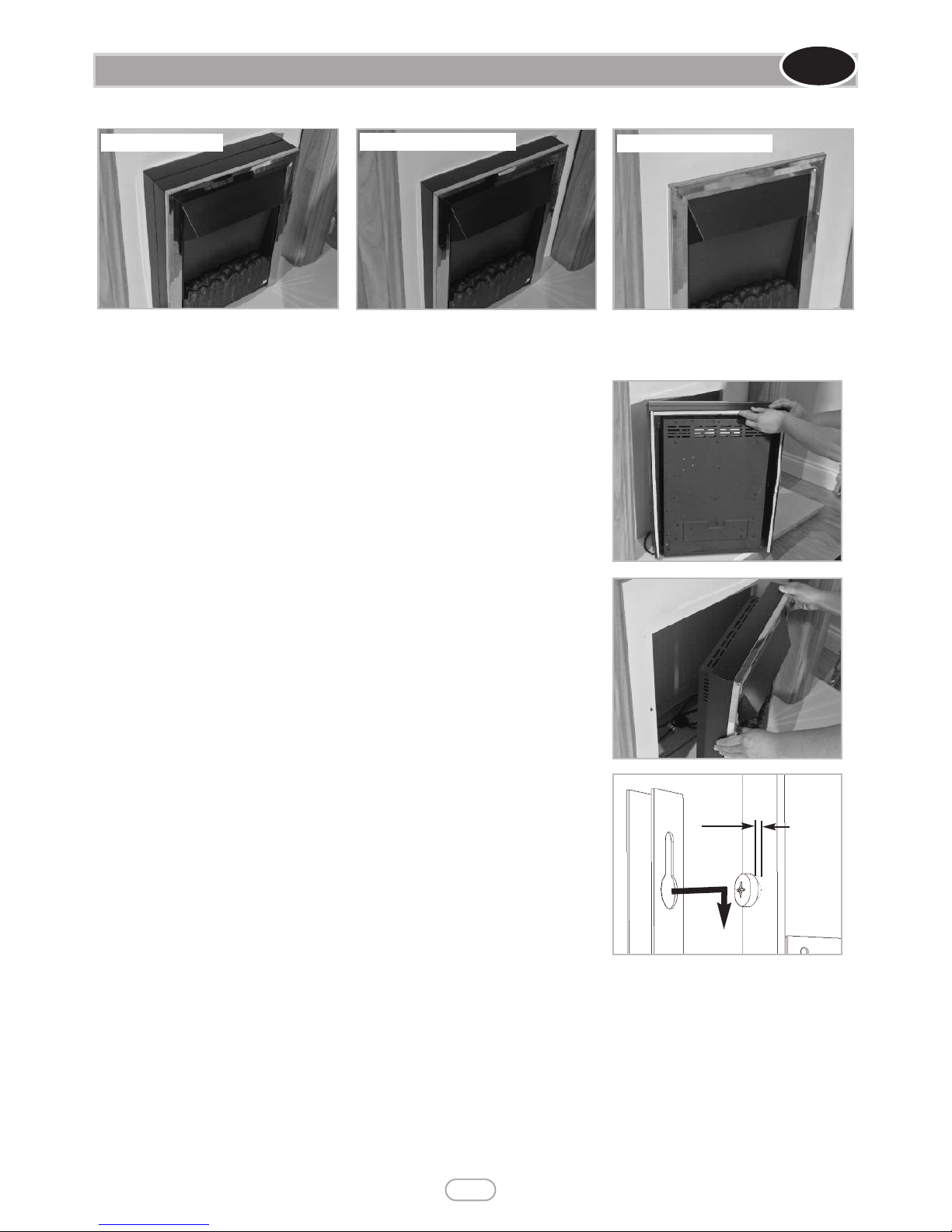

Dependent on your installation requirements, you may wish to install the appliance in three different ways.
1: Flat wall – If you are putting the fire against a wall with no recess, you will use both of the
spacers that are fitted to the fire. You will be able to use either the sticky double sided neo­prene strips, or, secure the fire to the wall using the key hole slots on the rear of the spacer frame with screws.
2: Semi recessed - If you are putting the fire against a wall with a recess of 60mm or more, you will be able to remove one of the spacers that are fitted to the fire, so that your fire can sit further back on the hearth. You will be able to use either the sticky double sided neoprene strips, or, secure the fire to the wall using the key hole slots on the rear of the spacer frame with screws. See section 9.0 Removing the appliace spacer frame.
Method 1 - Installation with spacer/s
Neoprene – To use the Double sided Neoprene strips, you will need to cut two pieces to
570mm and one piece to 430mm, the long pieces will run from the top to bottom of the rear facing spacer, and the short piece will run from left to right in between the two side pieces.
Method 2
Screw fixings. Using suitable fixings for your wall or surround, mark the centre of your open-
ing and measure 227mm to the left and then again to the right. From there measure from the floor 304mm up the wall. This will be the centre of the screw. Fit the screws leaving a 2mm gap
Once you have fitted the screws in place, offer the fire up to the hearth and lift the fire by a small amount to locate the two keyhole slots on the back of the fire over the screws. When you lower the appliance, it will now be locked in place.
4
© 2013 Focal Point Fires plc.
8.0 INSTALLING THE APPLIANCE
GB IE
Flat wall installation
Semi recessed installation
Fully recessed installation
2mm
3: fully recessed - If you are putting the fire against a wall with a recess of 120mm or more, you will be able to remove both of the spacers that are fitted to the fire, so that your fire can sit further back on the hearth. To secure the fire to the wall you will be able to use the key hole slots on the rear of the fire with screws. See section 9.0 Removing the appliace spacer frame.
Neoprene – To use the Double sided Neoprene strips, you will need to cut four pieces to to fit on the large and small brackets on the back of the appliance.
Screw fixings. Using suitable fixings for your wall or surround, mark the centre of your opening, measure 216mm to the left and then again to the right. From there measure from the floor 562mm up the wall. This will be the centre of the screw.
Once you have fitted the screws in place, offer the fire up to the hearth and lift the appliance onto the fixing points..

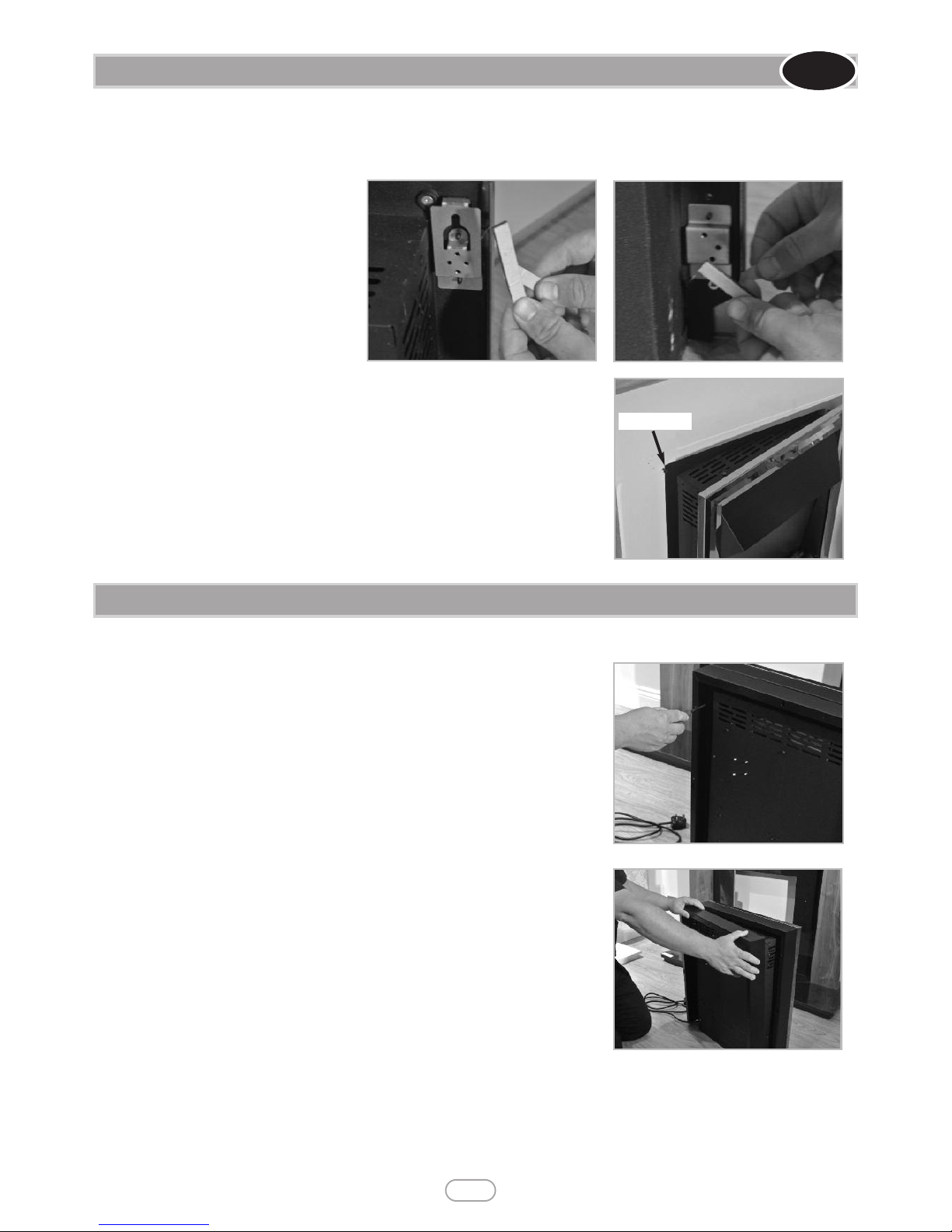

Tools required: Cross headed screwdriver.
Step 1: Ensure the appliance is disconnected at the supply socket before undertaking the
required work.
Step 2: Remove the four screws from the rear spacer located at the rear of the appliance.
Step 3: Remove the outer spacer frame.
Step 4: To remove the second spacer by repeating steps 1, 2 & 3.
5
© 2013 Focal Point Fires plc.
8.0 INSTALLING THE APPLIANCE - CONTINUED
GB IE
Fixing point
9.0 REMOVING THE APPLIANCE SPACER FRAMES
The appliance may be supplied with a decorative frame in a variety of finishes.
IMPORTANT : Due to the possibility of sharp edges, care should be taken when handling the frame components. The use of protective gloves is recommended.
All models : If not pre-fitted, the frame’s should be placed over the outer edges of the fireframe and fixed with magnets. The sides should be
fixed first, followed by the top bar, which overlaps the sides. Push firmly home. A plastic protective film may be applied to the outside of the frame and should be removed at this stage.
Cast frame models : Remove the decorative frame from it’s protective packaging. The frame is retained onto the firebox with a mounting
bracket at the top of the frame and three magnets on each leg of the frame.
IMPORTANT: Loose fuel bed options are only available with the Lulworth model.

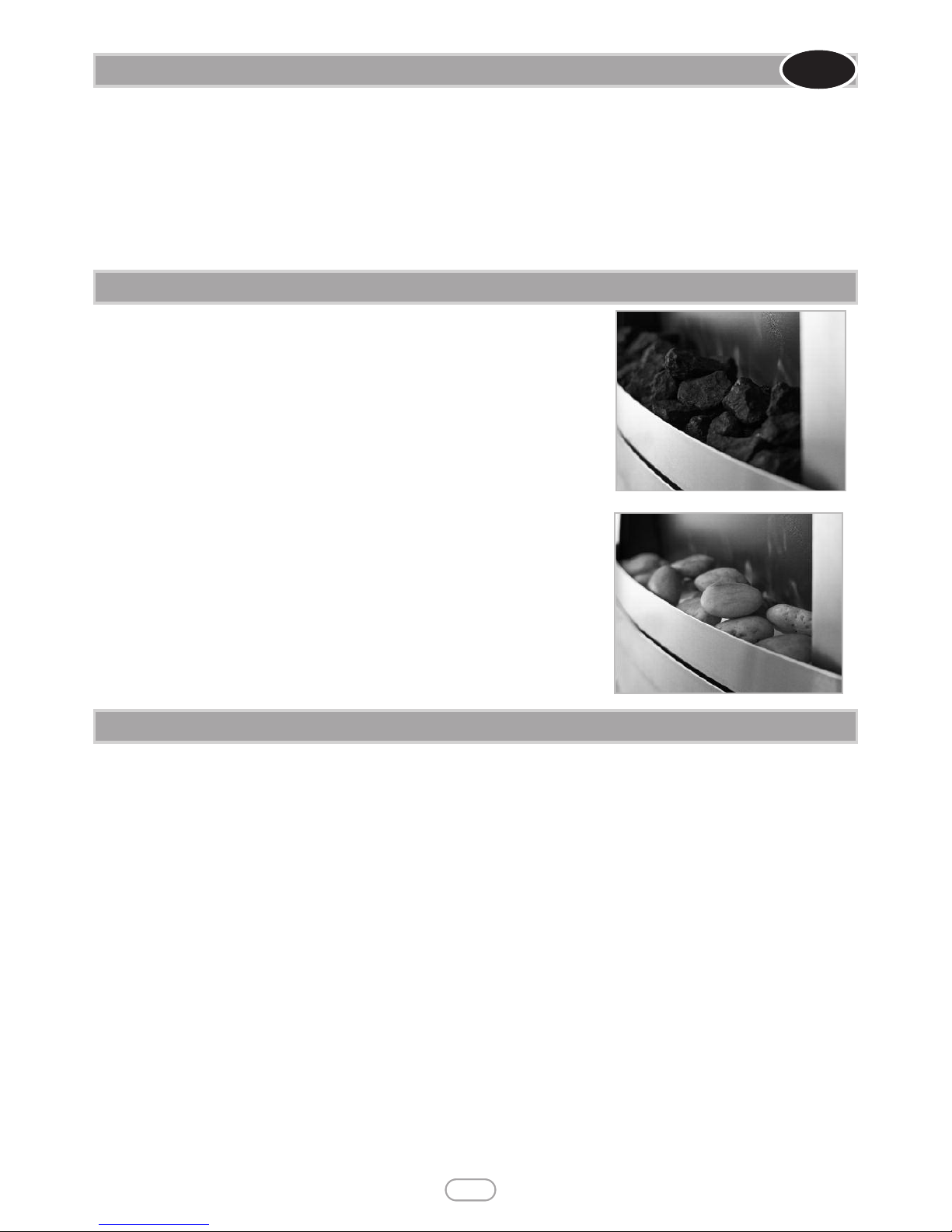

The Lulworth LED inset electric fire has the option of either a real coal or pebble fuel bed. Simply remove the coals or pebbles from their packaging and position the coals or pebbles onto the the plastic fuel bed, which is below the curved fascia panel.
ALWAYS DISCONNECT THE APPLIANCE AT THE SUPPLY OUTLET SOCKET BEFORE UNDERTAKING ANY CLEANING.
Except for periodic cleaning of dust, there are no specific requirements for care, other than regular cleaning of the general appliance. A wipe with a dry cloth is normally sufficient. DO NOT use abrasive cleaners as they can damage the finish. Make sure the heater outlet grille (locat­ed next to the switches), and the air inlet mesh grillesare kept clear of dust, pet hair and other airborne household matter. These should be vacuum cleaned periodically using a brush attachment.
The LED light strip is designed and tested to last. 20,000 hours however, should a problem occur with the LED light strip this can be replaced. The LED light strip can be purchased from Focal Point Fires (please see contact details on front cover). The light strip will be supplied with fit­ting instructions.
Check security of supply cable and connections. If the supply cable becomes damaged, it must be replaced by a service agent or competent per­son, such as a qualified electrician. The wires in the cable are coloured in accordance with the following code:
LIVE - Brown NEUTRAL - Blue EARTH - Green/Yellow
Refer to Section 2.0, Appliance Data for fuse specification. Excluding fuses, use only genuine manufacturers spare parts available from your sup­plier.
6
© 2013 Focal Point Fires plc.© 2013 Focal Point Fires plc.
10.0 FITTING THE DECORATIVE FRAME AND FRONT
GB IE
11.0 CLEANING AND MAINTENANCE
10.1 FITTING THE LOOSE FUEL BED OPTIONS
The 3 year guarantee only covers products purchased on or after 1st February 2009. For all gas fires purchased the 3 year guarantee commences from the date of purchase, provided that the following 3 terms and conditions are adhered to:
Registration is not required.
1. For any claim to be made within the 3 years from date of purchase you will be required to provide and supply us with your proof of purchase.
2. Your gas fire must have been commissioned by a CORGI/Gas Safe* registered installer, evidence of which you must provide together with the CORGI/Gas Safe* registration number.
3. Your appliance must have been serviced annually, irrespective of use, by a CORGI/Gas Safe* registered installer, evidence of which must be provided, such as the receipt.
Please note all consumable items such as any ceramics including; coals, pebbles, the matrix, front strips, side cheeks, rear panels and tapered rear panels are not covered by the 3 year guarantee.For all Electric fires purchased the 3 year guarantee commences from the date of purchase, providing that you can supply the proof of purchase. This does not cover consumable items such as pebbles, coals or LED light strips.
Making a claim is easy.
If you wish to make a claim under our 3 year guarantee and all the terms and conditions for your product have been met then please submit the following information for the attention of the 3G Service Department to the address below. Alternatively, you can email or fax.Please note that this does not affect your statutory rights.
Focal Point Fires plc, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT. Alternatively email: 3g@focalpointfires.co.uk or fax. 01202 499326.
Details required:
1. Name, full address including post code and contact telephone number.
2. Receipt of purchase or credit card statement.
3. Original installers CORGI/Gas Safe* registration number and date of installation (gas fires only).
4. Annual service receipt for every 12 months (gas fires only).
*Gas Safe Register replaced CORGI as the gas registration body in Great Britain and the Isle of Man on 1st April 2009.
12.0 GUARANTEE - TERMS AND CONDITIONS
GB IE
7
© 2013 Focal Point Fires plc.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. As our policy is one of continuous improvement and development, we therefore hope that you will understand we must retain the right to amend details and/or specifications without prior notice.
F861224
