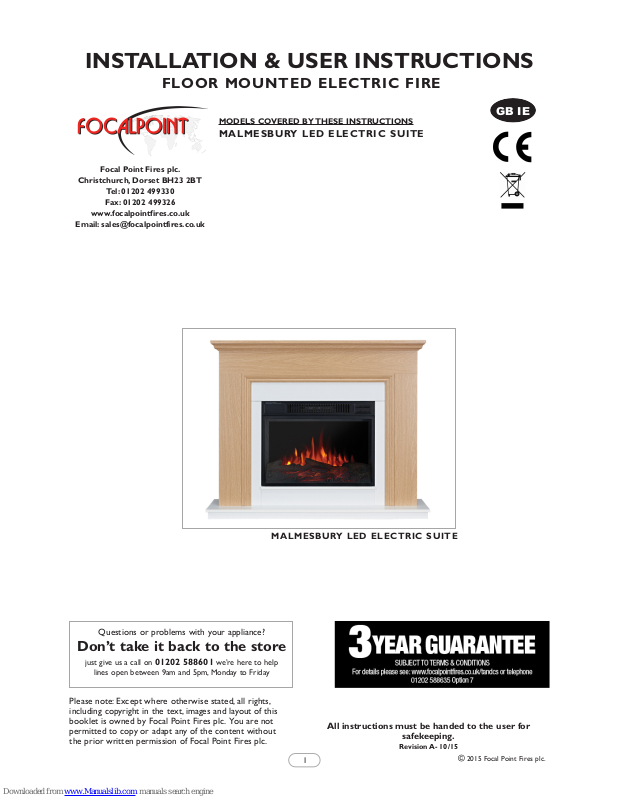

INSTALLATION & USER INSTRUCTIONS

All instructions must be handed to the user for

safekeeping.

MODELS COVERED BY THESE INSTRUCTIONS

MA LMESBURY LED ELECTRIC SUIT E

FLOOR MOUNTED ELECTRIC FIRE

Please note: Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not permitted to copy or adapt any of the content without the prior written permission of Focal Point Fires plc.

Revision A- 10/15

GB IE

Focal Point Fires plc.

Christchurch, Dorset BH23 2BT

Tel: 01202 499330

Fax: 01202 499326

www.focalpointfires.co.uk

Email: sales@focalpointfires.co.uk

Questions or problems with your appliance?

Don’t take it back to the store

just give us a call on 01202 588601 we’re here to help

lines open between 9am and 5pm, Monday to Friday

MA LM ES BURY LED EL EC TR IC SUITE

IMPORTANT - THESE INSTRUCTIONS SHOULD BE READ CAREFULLY

AND RETAINED FOR FUTURE REFERENCE.

When using this electrical appliance, basic precautions should be followed to reduce the risk of fire, electric shock and injury to person, including the following:

• This heater must be used on an AC supply only and the voltage marked on the heater’s rating label must correspond to the supply voltage.

• DO NOT switch the appliance on until it is properly installed as described in this manual.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• The heater must not be located immediately below a socket-outlet.

• DO NOT use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• WARNING: In order to avoid overheating, do not cover the heater.

• DO NOT use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• WARNING: This heater is not equipped with a device to control the room temperature.

• Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

• Keep furniture, curtains and other fabric material away from the appliance.

• DO NOT leave the appliance unattended during use.

I N S TA L L AT I O N & U S E R I N S T R U C T I O N S

GB IE

Section Contents Page No.

1.0 Important Notes 2

2.0 Installation Requirements 3

3.0 Appliance Data 3

4.0 Component Checklist 3

5.0 Site Requirements 3

6.0 Clearances To Combustibles 4

7.0 Unpacking The Appliance 4

Section Contents Page No.

8.0 Installation 4

9.0 Operating the Appliance 5

10.0 Safety Cutout System 6

11.0 Cleaning and Maintenance 6

12.0 Troubleshooting Guide 7

13.0 Servicing 7

14.0 Appliance Dimensions 8

15.0 Guarantee - Terms and Conditions 8

1.0 IMPORTANT NOTES

2.0 INSTALLATION REQUIREMENTS

The appliance is supplied with a pre-wired three pin plug (13 Amp fuse rated) and 1.8 metres of electrical cable. It is therefore necessary for a suitable electrical socket to be located within this distance and be easily accessible. This appliance is designed to be fixed to the wall, using the wall fixtures/fixings provided. DO NOT recess any part of appliance into the wall. This appliance is suitable for installation in static holiday/park homes.

1.0 IMPORTANT NOTES - CONTINUED

3.0 APPLIANCE DATA

Weight (kg): 36kg Dimensions: H 920 x W 1140 x D 330 (mm) Supply Voltage and Rating Power: 220-240V AC, 50Hz 1500W Fuse Rating: 13 Amp Heating Elements: 1500W Lighting: LED

This fire is fitted with LED’s (Light Emitting Diode) in place of conventional bulbs. LED’s generate the same light levels as conventional bulbs, but use a fraction of the energy consumed. LED’s are maintenance free and will not require replacing during the life of the product.

4.0 COMPONENT CHECKLIST

Quantity Description

1 Fire suite 1 Remote control handset 2 Wall plugs 2 Washers 2 Fixing screws

5.0 SITE REQUIREMENTS

It should be noted that the appliance creates warm convected air currents. These currents move heat from the room surroundings to, and up the wall surfaces adjacent to the heater. Installing the heater next to these types of wall coverings or operating the heater where impurities in the air, (such as tobacco smoke) exist, may slightly discolour wall finishing. If the appliance is to be secure on a dry lined or timber framed construction then the integrity and ability of the wall to secure the appliance must be confirmed. It is important in these circumstances that any vapour barrier and/or structural members of the house frame are not damaged. If you are unsure of the ability of the wall to secure the appliance and/or which type of wall fixing to use, you should take professional advice and obtain the correct fixings. Alternatively, find a more suitable wall location.

• From time to time, check the cord for damage. Never use the appliance if the cord or any part of the appliance shows signs of damage.

• DO NOT run the mains cable under carpets, rugs etc.

• DO NOT cover or obstruct the heater in any way. Overheating will result if it is accidentally covered.

• Never immerse the product in water or any other liquids.

• DO NOT use the appliance outdoors.

• Before cleaning the appliance, ensure it is unplugged from the power and that it is completely cool.

• DO NOT clean the appliance with abrasive chemicals.

• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

• DO NOT insert or allow foreign objects to enter the inlet or outlet vents as this may result in electric shock, fire or damage to the appliance.

• DO NOT install the fire using an extension cord.

• Unplug from the mains supply if the appliance is not to be used for long periods.

DO NOT

• recess any part of the appliance into the wall, or run the supply cable under carpets

• site in a position where curtains or drapes could cover the appliance, or other soft materials could cover e.g. below a coat rack

• site behind an opening door where mechanical impact/damage could occur

• site where the supply cable would become a trip hazard

• sit, stand or forcefully pull on the appliance

• obstruct, cover or force items into the openings

• use the heater to dry clothes

• site/use in an outdoor location(s) It is important that the following clearances are maintained from the appliance to combustible materials. These clearances are dependent on the securing location as defined below:

• The minimum distance to the front of the appliance is 900mm.

• There are no clearances for above or to the side of the appliance, apart from being clear of curtains and drapes.

5.0 SITE REQUIREMENTS - CONTINUED

GB IE

6.0 CLEARANCES TO COMBUSTIBLES

7.0 UNPACKING THE APPLIANCE

his applia

e is hea

s seek a

ssist

e w

hilst

unpa

king

nd/

dur

ing

inst

lla

lea

se rea

ll t

he inst

ns bef

re c

uing

unpa

k o

inst

ll applia

for

tar

g th

tal

ati

, p

fol

. T

tal

ati

t by

two ad

to a

or d

age

. I

for an

t i

too h

tai

tan

2. Whe

n l

ng the

ctri

c sui

te, alwa

ys k

p y

our back

strai

ght. Be

our l

gs and

not y

our back

twi

sti

ng at the

wai

st.

t i

s be

tte

r to r

posi

on y

our fe

uppe

r bod

y /

top he

vy be

ng.

Alwa

ys be

the

s rathe

r than the

wai

st. Do not l

an forward

or si

ways

whi

hand

ng the

ate

Alwa

ys gri

p the

ate

r wi

th the

pal

the

hand

. Do not use

the

ps of

nge

rs for support.

Alwa

ys k

p the

ate

r as cl

ose

to the

bod

y as possi

e. T

s wi

the

canti

r acti

on.

6. U

s to pr

add

onal

gri

7. U

npack

the

pack

age

and

t the

uct ge

ntly out of

the

box, put i

t on a f

at surf

ace

th the

ont pane

aci

ng forward

IMPORTANT - PLEASE READ COMPLETELY THROUGH THE INSTRUCTIONS AND VERIFY THAT ALL LISTED

PARTS ARE PRESENT BEFORE ASSEMBLY.

8.0 INSTALLATION

CAUTION: DO NOT CONNECT THE APPLIANCE TO THE

ELECTRICAL SUPPLY AT THIS TIME.

Focal Point Fires plc. assumes absolutely no responsibility for injuries and damages that may occur due to improper installation or handling.

Remove any protective film coatings from the finished/decorative surfaces of the appliance, if any. After having selected the final position of the appliance taking into account the integrity of the wall the electric suite may be secured to the wall.

To ensure customer safety, be sure to design the installation so that the strength of both the wall and any wall fixings used are sufficient. The appliance should not be installed until all wet plastering and/or dry wall sanding and wall painting has been completed. Do not block the ventilation holes of the appliance. The wall onto which the appliance is installed must be flat. Install only on a vertical surface. Avoid sloped surfaces. Installation onto anything other than a vertical wall may result in fire, damage or injury.

If the appliance is to be mounted on the inner leaf of a conventional cavity brick wall, or a solid wall, then the wall plugs and fixing screws provided may be used. Depending on the condition of the wall it may be necessary to use additional fixings. In this situation, any additional fixings and wall plugs should be of the same size and type as the ones provided.

The wall where the appliance is to be

installed must be capable of

long-term support of the total load of

the appliance. Measures should also

be taken to ensure sufficient strength

to withstand the force of

earthquakes, vibration and other

external forces. Plasterboard alone is

not considered to be a structural

material. It is not recommended to

rely on plasterboard fixings alone to

support the weight of the appliance.

WARNING

 

If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then efforts should be made to fix one position vertically, into one of the wooden studs, or supporting wooden members of the wall using the fixing screws provided. If this is not achievable then the wall should be strengthened using appropriate building materials.

Figure 1

8.0 INSTALLATION - CONTINUED

GB IE

Wall

A x 2

x 2

Installing the wall plugs into the wall.

1. Offer the appliance up to the wall in it’s desired location. Draw a mark where you wish to connect the straps in to the wall. Remove the appliance from the position and drill a hole (5.5mm diameter, 40mm deep) each side.

Please note: Before drilling into walls, always check that there are no hidden wires, pipes, etc. Make sure that screws and wall plugs supplied are suitable for supporting the unit in your surface. Consult a qualified person if you are not sure.

Inserting the wall plugs into the wall.

Gently hammer the wall plugs into position.

Installing the appliance to the wall.

Using a screw driver screw through the washers and the fixing straps and into the wall plugs you have just installed into the wall. Securing the appliance into position.

9.0 OPERATING THE APPLIANCE

The control panel is located at the top right hand side of the appliance.

When a function is changed from the control panel or remote there will be a corresponding indicator displayed. The indicator shows the function changed and the level selected. When the function is turned off, the corresponding indicator will fade off.

Figure 4

Figure 3

Figure 2

9.0 OPERATING THE APPLIANCE - CONTINUED

This button will not only put the fireplace insert in a standby mode, but also you can see the flame effect through the screen. This will turn off all functions at once. Note: Holding the POWER button for 3 seconds will turn on the Child safety lock. It disables or enables all functions on the con trol panel and remote control.

The fireplace contains a fan forced heater. The default setting temperature is 72°F (22°C). The thermostat setting range is 50°-86°F or 10°-30°C. The thermostat is adjustable by 2°F or 1°C increments. To change between °F and °C press and hold the HEATER button for 5 seconds.

Press the ECO button when the heater is on, to run the heater in a reduced wattage range. Note: Holding the ECO button for 3 seconds disables any heater functions.

To quickly heat up a cold room/space, press the BOOST button to run the heater at the full rated wattage. Pressing the BOOST button repeatedly will cycle through the following boost settings: 5 minutes, 10min, 15min, 20min, 25min, 30min and off.

Pressing the timer button repeatedly will cycle through the following timer settings: 30 minutes, 1 hr, 2 hr, 3 hr, 4 hr, 5 hr, 6 hr, 7 hr, 8 hr and off. The fireplace will automatically turn off when the timer reaches zero minutes.

This button controls the brightness of the flame effect.

GB IE

Remote Control

The fire is supplied with an IR multifunction remote.

Before the remote will operate the plastic insulating sheet needs to be removed.

Battery Replacement

Battery Requirements: CR2025

1. Locate and remove the battery bracket.

2. The battery has two sides, one with a button feature, and the other is flat.

3. Insert the battery with the button side down into the battery bracket, making sure the battery is firmly seated.

ALWAYS DISCONNECT THE APPLIANCE FROM THE MAINS SUPPLY OUTLET

SOCKET BEFORE UNDERTAKING ANY CLEANING OR MAINTENANCE!

For general cleaning use a soft clean duster - never use harsh abrasive or cleaners. The glass panels should be cleaned carefully with a soft cloth. If in doubt consult a qualified electrician. Refer to Section 3.0 Appliance Data for fuse specification. Excluding fuses, use only genuine manufacturers spare parts available from your supplier.

Replacing the remote control battery:

When the battery becomes weak, the range of the remote control becomes shorter. Replace the battery with a new CR2025 lithium battery. Note: Keep the lithium battery out of the reach of children.

11.0 CLEANING AND MAINTENANCE

Safety Control (Thermal Cut-Out): CAUTION: This product has one non-self-resetting overheat protection device. In the event that the heater stops working as a result of overheating take the following immediate steps: switch the electricity off at the socket and remove the plug. Remove any objects that are covering the product. CAUTION: Do not touch the heater as it will be hot. Set the heater switches to OFF and leave the heater to cool down fully. Once completely cool, reconnect the heater and switch it on. Do not open this product. There are no user-serviceable parts inside.

10.0 SAFETY CUTOUT SYSTEM

Figure 5

Fire is not switching on Ensure mains switch is on

Replace the fuse in the plug.

Pebbles glow but flame effect does not work

Check to see if the spinning motor is working. If not contact Focal Point Fires.

Heater doesn't work, but Power and Heater switches / buttons are in the "ON" position

Turn all switches / buttons to the "OFF" position and unplug the unit from the wall outlet for 5 minutes.

After 5 minutes plug the unit back into wall outlet, and operate as normally.

Fire seems noisy There is a level of noise when the flame effect is in use,

caused by a motor that helps generate the effect. This noise will be heard when there is no other background noise.

There is a higher level of noise associated with the heater motor; this is due to the air flow required when heat has been selected.

Remote is not operating Check or replace batteries.

12.0 TROUBLESHOOTING GUIDE

GB IE

13.0 SERVICING

There are no internal user serviceable parts.

Check regularly for security of wall fixings as appropriate. Also check security of supply cable and connections. If the supply cable becomes damaged, it must be replaced by a service agent or competent person, such as a qualified electrician.

This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse. Should the fuse require replacing, it must be replaced with a fuse rated at 13 Amp and approved to BS1362. In the event of the mains plug being removed/ replaced for any reason, please note : IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue - Neutral Brown - Live Green/ Yellow - Earth

As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings identifying the terminals in your plug, proceed as follows. The blue wire must be connected to the terminal marked with an N or coloured black. The brown wire must be connected to the terminal marked with an L or coloured red. The green/yellow wire must be connected to the earth terminal which is marked with an E or with the earth symbol.

WARNING: Never connect live or neutral wires to the earth terminal of the plug.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be

destroyed to prevent engaging into a socket.

Refer to Section 3.0, Appliance Data for fuse specification. Excluding fuses, use only genuine manufacturers spare parts available from your supplier.

Figure 6

14.0 APPLIANCE DIMENSIONS

Dimensions in mm

GB IE

15.0 GUARANTEE - TERMS AND CONDITIONS

Registration is not required.

Appliances purchased prior to 1st February 2009, and those specifically marked as '1 year guarantee' on this website, are guaranteed for one year from the date of purchase, provided that the following two terms and conditions are adhered to:

1. For any claim to be made within 1 year from date of purchase you will be required to provide and supply us with your original proof of purchase.

2. All appliances must have been installed and operated in accordance with the manufacturer’s instructions. 3 Year Guarantee Terms and Conditions Please be advised that the 3 year guarantee only covers products purchased on or after 1st February 2009. The 3 year guarantee is only applicable to purchases made through an authorised stockist/retailer. Please see our website for a list of authorised stockists. Any purchase(s) made through an unauthorised stockist(s) will be eligible for a statutory 1 year guarantee. Please note all consumable items such as any ceramics including; coals, pebbles, the matrix, front strips, side cheeks, rear panels and tapered rear panels are not covered by the 3 year guarantee. During the guarantee period any product or component which is proved to be faulty or defective in manufacture, will be repaired or replaced free of material and labour charges, providing that we have authorised or carried out the repair or replacement. We will not accept or reimburse the costs of any third party who undertakes any work carried on the product or fits parts, unless we have approved such work in advance of it being carried out. The guarantee period will not be extended even if we repair or replace any product or part. For all electric fires purchased the 3 year guarantee commences from the date of purchase, providing that you can supply the proof of purchase. This does not cover consumable items such as pebbles, coals or light bulbs. Purchase(s) must be made through an authorised stockist.

Making a claim:

Making a claim is easy. If you wish to make a claim under our guarantee and all the terms and conditions for your product have been met then please submit the following information for the attention of the 3G Service Department to the address below. Alternatively, you can email or fax. Focal Point Fires, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT. Email: 3g@focalpointfires.co.uk, Fax. 01202 588639.

Details required:

1. Name, full address including postal code and contact telephone number.

2. A copy of your proof of purchase e.g. receipt or bank statement.

3. Original installers Gas Safe registration number (gas fires only).

4. Annual service receipt for every 12 months (gas fires only). Please note that this does not affect your statutory rights.

F861317

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. As our policy is one of continuous improvement and development, we therefore hope that you will understand we must retain the right to amend details and/or specifications without prior notice.

Figure 7

920mm

330mm

1140mm

1115mm

260mm
