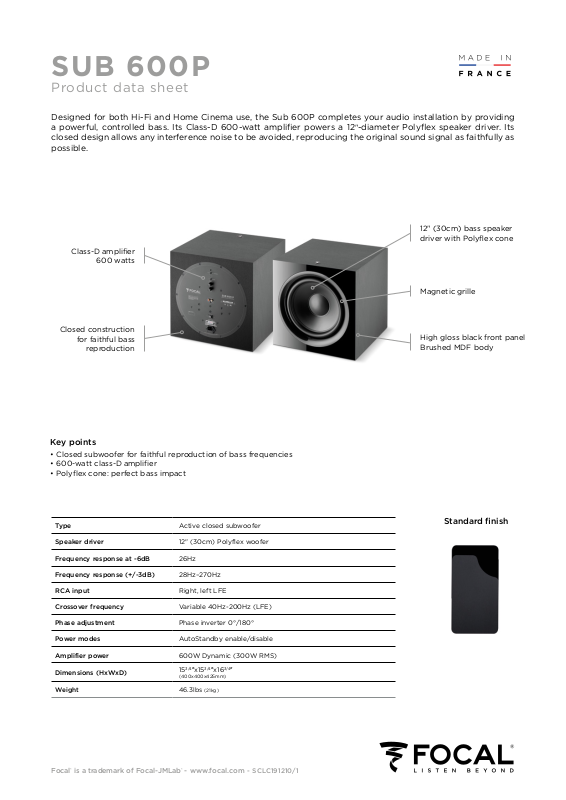

Focal SUB 600P Specification Sheet
SUB 600P
Product data sheet
Designed for both Hi-Fi and Home Cinema use, the Sub 600P completes your audio installation by providing
a powerful, controlled bass. Its Class-D 600-watt amplifier powers a 12"-diameter Polyflex speaker driver. Its
closed design allows any interference noise to be avoided, reproducing the original sound signal as faithfully as
possible.
12" (30cm) bass speaker
driver with Polyflex cone
Class-D amplifier
600 watts
Magnetic grille
Closed construction
for faithful bass
reproduction
Key points
• Closed subwoofer for faithful reproduction of bass frequencies
• 600-watt class-D amplifier
• Polyflex cone: perfect bass impact
Type Active closed subwoofer
Speaker driver 12" (30cm) Polyflex woofer
Frequency response at -6dB 26Hz
Frequency response (+/-3dB) 28Hz–270Hz
RCA input Right, left LFE
High gloss black front panel
Brushed MDF body
Standard finish
Crossover frequency Variable 40Hz-200Hz (LFE)
Phase adjustment Phase inverter 0°/180°
Power modes AutoStandby enable/disable
Amplifier power 600W Dynamic (300W RMS)
3/4
3/4
15
Dimensions (HxWxD)
Weight 46.3lbs (21kg)
Focal® is a trademark of Focal-JMLab® - www.focal.com - SCLC191210/1
″x15
(400x400x425mm)
″x16
3/4
″
