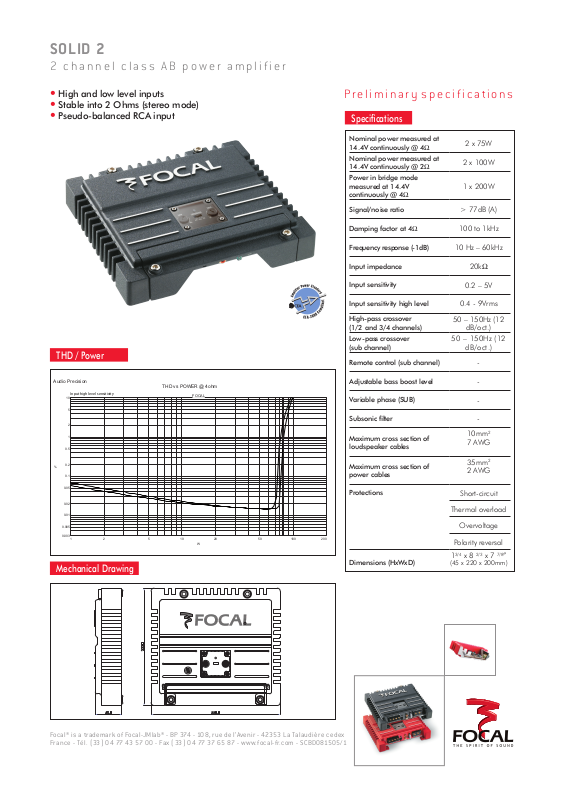

SOLID 2

A

udio Precision

THD vs POWER @ 4ohm

0.003

10

0.005

0.01

0.02

0.05

0.1

0.2

0.5

1

2

5

%

1 2002 5 10 20 50 100

W

FOCAL

Input high level sensitivity

2 channel class AB power amplifier

• High and low level inputs

• Stable into 2 Ohms (stereo mode)

• Pseudo-balanced RCA input

THD / Power

Preliminary specifications

Specications

Nominal power measured at

14.4V continuously @ 4Ω
Nominal power measured at

14.4V continuously @ 2Ω
Power in bridge mode

measured at 14.4V
continuously @ 4Ω

Signal/noise ratio

Damping factor at 4Ω

Frequency response (-1dB)

Input impedance

Input sensitivity

Input sensitivity high level

High-pass crossover
(1/2 and 3/4 channels)

Low-pass crossover
(sub channel)

Remote control (sub channel)

2 x 75W

2 x 100W

1 x 200W

> 77dB (A)

100 to 1kHz

10 Hz – 60kHz

20kΩ

0.2 – 5V

0.4 - 9Vrms

50 – 150Hz (12

dB/oct.)

50 – 150Hz (12

dB/oct.)

-

Mechanical Drawing

Focal® is a trademark of Focal-JMlab® - BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex
France - Tél. [phone] - Fax [phone] - www.focal-fr.com - SCBD081505/1

Adjustable bass boost level

Variable phase (SUB)

Subsonic lter

Maximum cross section of
loudspeaker cables

Maximum cross section of
power cables

Protections

Dimensions (HxWxD)

-

-

-

2

10mm

7 AWG

2

35mm

2 AWG

Short-circuit

Thermal overload

Overvoltage

Polarity reversal

3/4

2/3

1

x 8

(45 x 220 x 200mm)

x 7

7/8

”
