Pack contents

• 1 speaker with its fixing bracket

• 1 set of screws for fixing

Environment characteristics

• Ambient temperature: -25 °C to + 55 °C

• Water resistance: humid environment

Fixing and orientation principles n°1

English

A

Fixing and orientation principles n°2

C

B

D

SIBT

User manual

Fixing to a wall or ceiling

Before fixing to a wall, make sure there are no electric cables or pipes within the wall.

5

E

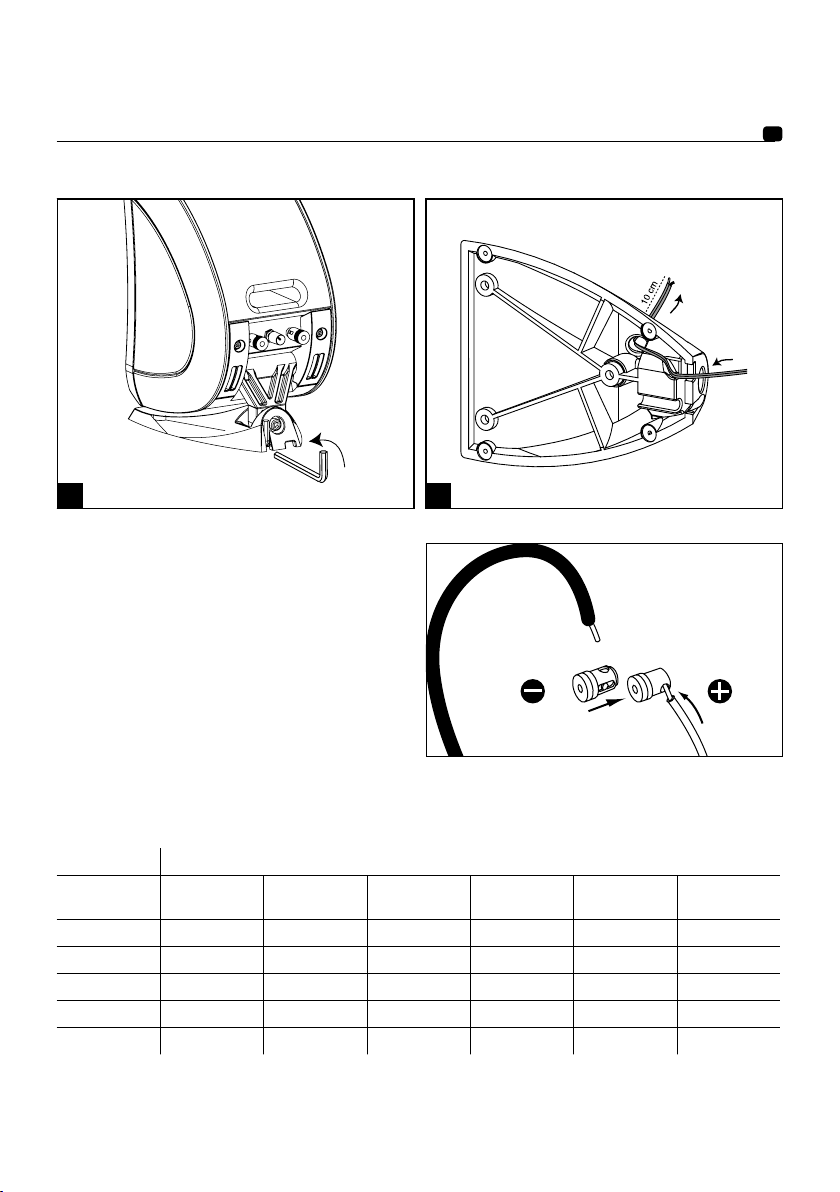

1. Use the Allen key supplied under the Sib-T base
to unscrew the bracket and separate it from the
speaker.

G

3. Place the bracket against the wall and mark the holes
to be drilled for the three fixing screws supplied.
Use a 6 mm Ø drill to drill the holes.
Use the three wall plugs supplied. Fix the bracket
with the three screws.

F

2. Sib-T wiring: see “wiring” chapter on page 6.
Route the speaker cable as indicated. Leave 10 cm for
wiring the Sib-T.

H

4. Unscrew the two clamps with the Allen key.

SIBT

User manual

6

I

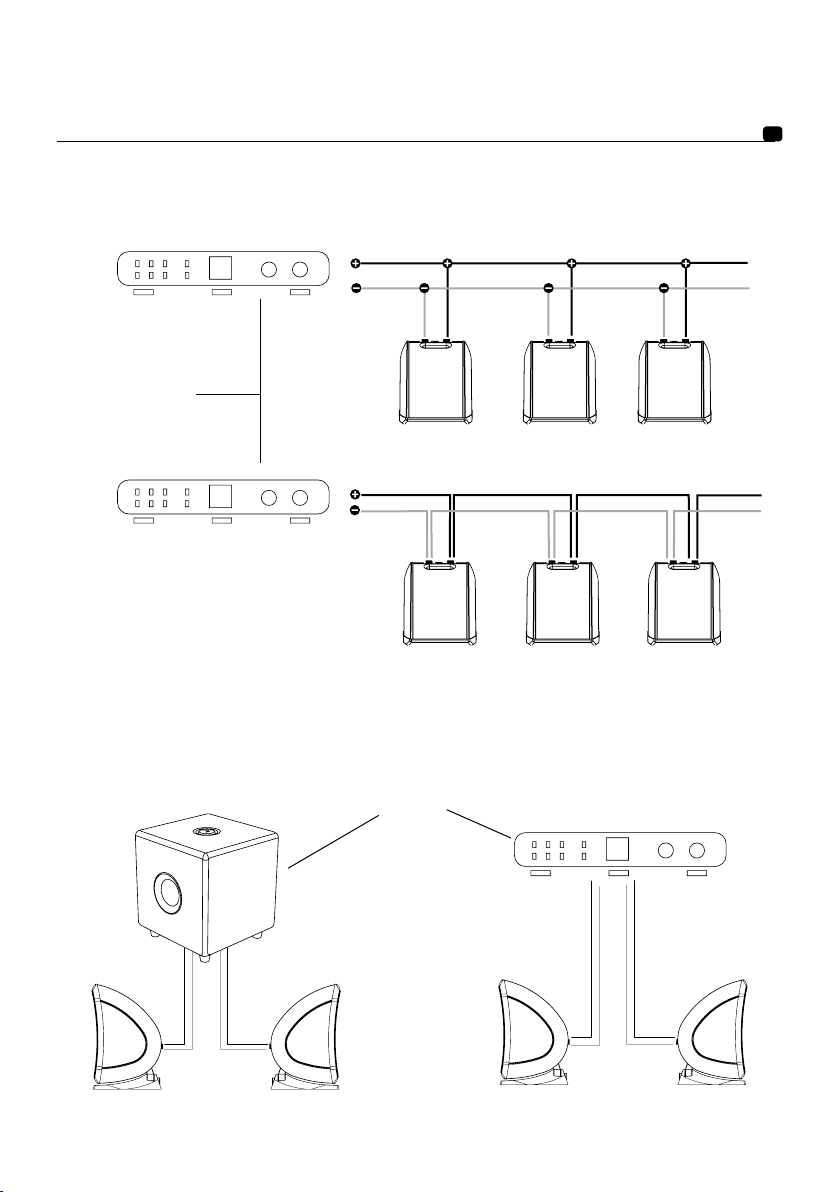

Connections

Respect the poles by connecting the red terminal
marked “+” on the amp to the red or “+” on the
corresponding speaker.
Then repeat the process for the black terminals
marked “-“.

Cable diameter to be used according to the power and the distance on 100 volts mode.

Power in Watts

Length
(in metres)

50 0,75mm 0,75mm 0,75mm 0,75mm 0,75mm 0,75mm

100 0,75mm 0,75mm 0,75mm 0,75mm 1,5mm 1,5mm

200 0,75mm 0,75mm 1,5mm 1,5mm 2mm 2,5mm

400 0,75mm 1,5mm 2mm 4mm 4mm

600 1,5mm 1,5mm 4mm 6mm

60 120 200 300 400 500
