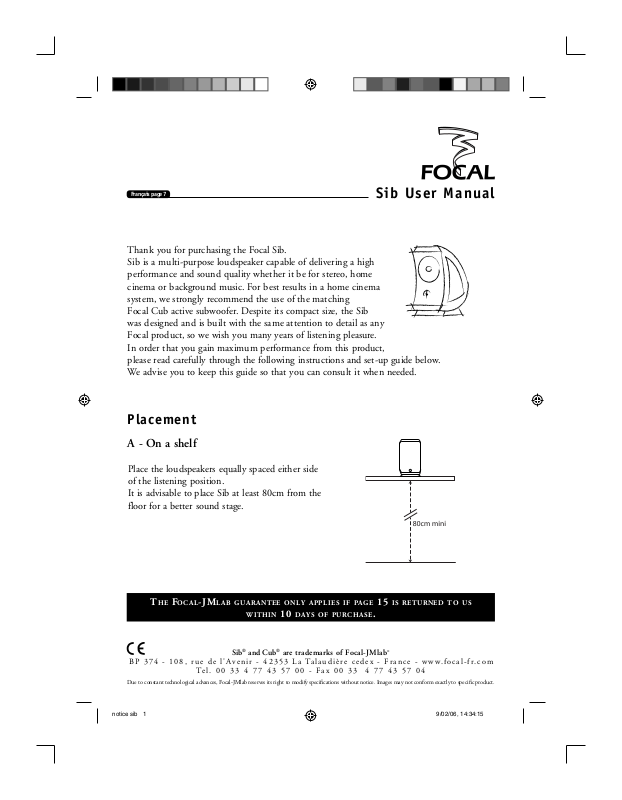

FOCAL Sib Jet User Manual [fr]

Français page 7

Sib User Manual

Thank you for purchasing the Focal Sib.
Sib is a multi-purpose loudspeaker capable of delivering a high
performance and sound quality whether it be for stereo, home
cinema or background music. For best results in a home cinema
system, we strongly recommend the use of the matching
Focal Cub active subwoofer. Despite its compact size, the Sib
was designed and is built with the same attention to detail as any
Focal product, so we wish you many years of listening pleasure.
In order that you gain maximum performance from this product,
please read carefully through the following instructions and set-up guide below.
We advise you to keep this guide so that you can consult it when needed.

Placement

A - On a shelf

Place the loudspeakers equally spaced either side
of the listening position.
It is advisable to place Sib at least 80cm from the
floor for a better sound stage.

THE FOCAL-JMLAB GUARANTEE ONLY APPLIES IF PAGE 15 IS RETURNED TO US

WITHIN 10 DAYS OF PURCHASE.

BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com

Sib® and Cub® are trademarks of Focal-JMlab

Tel. [phone] - Fax [phone]

Due to constant technological advances, Focal-JMlab reserves its right to modify specifi cations without notice. Images may not conform exactly to specifi c product.

®

2

Sib User Manual

B - Wall fixing

1. Before drilling any holes, check carefully that there are no electrical cables or pipes in
the wall.

2. Use the hexagonal key supplied in the base

of the Sib to unscrew the bolt that holds the
base to the support bracket

3. Connecting Sib : see section “connections”
page 4.
Feed the cable through the base piece as
indicated in the diagram.
Leave around 10cm of free cable to facilitate
connection.

4. Use the base as a template to mark the
position of the three fixing screws on the
wall. The three fixing holes should be drilled
with a 6mm masonry bit and the plastic wall
plugs firmly inserted until they are flush with
the wall surface.
Fix the base with the three screws supplied.

3

5. Unscrew the two fixing clamps.

6. Remove the silver support piece, turn it 180°,

and reposition the support so that it will fit
horizontally with the wall mounted base.

Sib User Manual

7. Re-mount the two clamps and screw them
firmly in place.

8. Connect up the loudspeaker cables and re-fix
the Sib onto its wall mounted base.

4

Connexion

As with any performance product, Sib should be
connected to the amplifier using a high quality
pure copper cable of at least Ø 1.5mm.

Connect the “+” from the amplifier to the “+”
on the Sib (red) and the “-” from the amplifier
to the “-” of the Sib (black).

Sib User Manual

5

Stereo configuration

Place the loudspeakers equally spaced either side
of the listening position.

Home theater configuration

Sib is magnetically screened, so can be placed
can be placed close, on or below a television
without distorting the picture.

Sib User Manual

The “SMALL” or “NARROW” setting should
be used on your AV amplifier for the Sib.

For the LFE or subwoofer channel
we recommend that you use the Focal Cub acti­ve subwoofer which was designed to acoustically
match the Sib. See Cub instruction manual.
