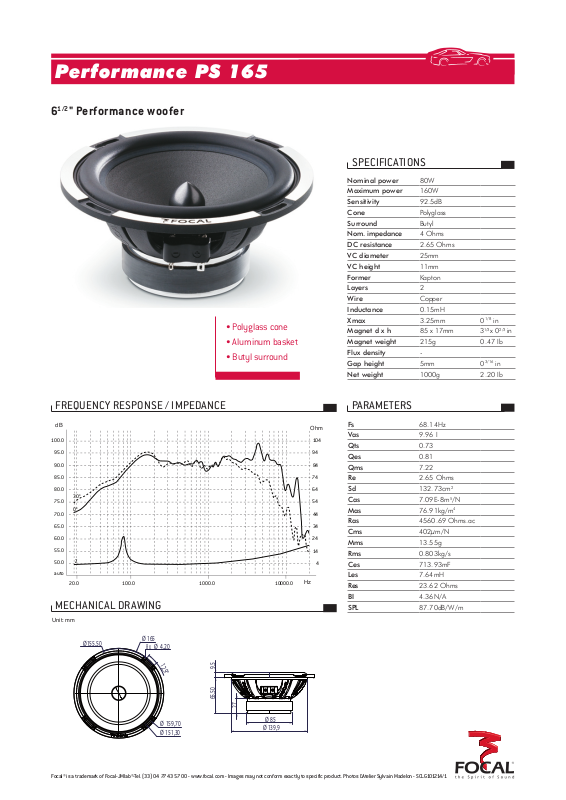

Focal PS165V1 Specifications

Ø165

Ø155,50

8 x Ø4,20

12,9°

Ø151,30

Ø159,70

9,5

Ø139,9

Ø85

27

65,50

Performance PS 165

100.0

95.0

90.0

85.0

80.0

75.0

70.0

65.0

60.0

55.0

50.0

auto

20.0 100.0 1000.010000.0

Z

30°

0°

4

14

24

34

44

54

64

74

84

94

104

1/2

6

" Performance woofer

• Polyglass cone

• Aluminum basket

• Butyl surround

SpecificationS

Nominal power 80W
Maximum power 160W
Sensitivity 92.5dB
Cone Polyglass
Surround Butyl
Nom. impedance 4 Ohms
DC resistance 2.65 Ohms
VC diameter 25mm
VC height 11mm
Former Kapton
Layers 2
Wire Copper
Inductance 0.15mH
Xmax 3.25mm 0
Magnet d x h 85 x 17mm 3
Magnet weight 215g 0.47 Ib
Flux density ­Gap height 5mm 0
Net weight 1000g 2.20 Ib

1/8

1/3

3/16

in

x 0

in

2/3

in

frequency reSponSe / impedance

dB

mechanical drawing

Unit: mm

Focal® is a trademark of Focal-JMlab®-Tel. [phone] - www.focal.com - Images may not conform exactly to specific product. Photos L’Atelier Sylvain Madelon - SCLG101214/1

parameterS

Ohm

Hz

Fs 68.14Hz
Vas 9.96 I
Qts 0.73
Qes 0.81
Qms 7.22
Re 2.65 Ohms
Sd 132.73cm

2

Cas 7.09E-8m5/N
Mas 76.91kg/m

4

Ras 4560.69 Ohms.ac
Cms 402µm/N
Mms 13.55g
Rms 0.803kg/s
Ces 713.93mF
Les 7.64mH
Res 23.62 Ohms
BI 4.36N/A
SPL 87.70dB/W/m
