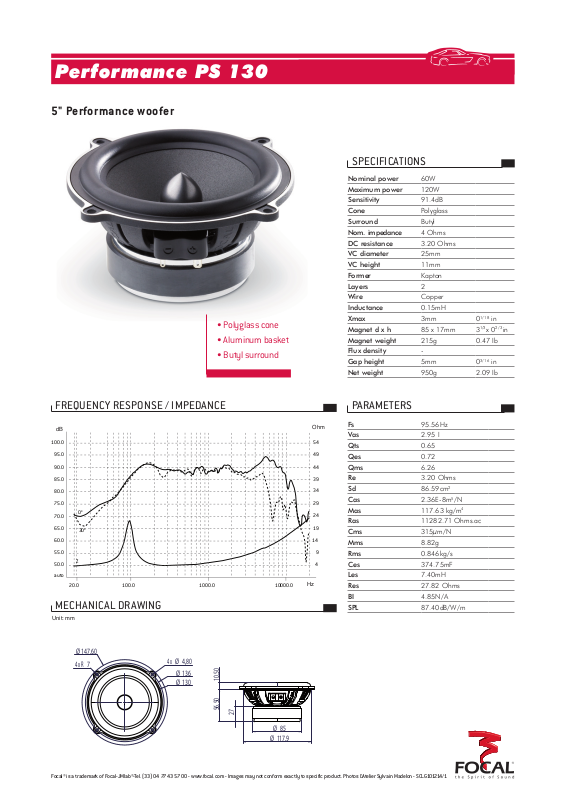

Focal PS130V1 Technical Sheet

Ø 147,60

Ø 136

4 x

Ø 4,80

Ø 130

4 x R

7

10,50

Ø 117,9

Ø85

27

56,50

Performance PS 130

100.0

95.0

90.0

85.0

80.0

75.0

70.0

65.0

60.0

55.0

50.0

auto

20.0 100.0 1000.010000.0

4

9

19

29

39

49

14

24

34

44

54

0°

Z

30°

5" Performance woofer

• Polyglass cone

• Aluminum basket

• Butyl surround

SpecificationS

Nominal power 60W
Maximum power 120W
Sensitivity 91.4dB
Cone Polyglass
Surround Butyl
Nom. impedance 4 Ohms
DC resistance 3.20 Ohms
VC diameter 25mm
VC height 11mm
Former Kapton
Layers 2
Wire Copper
Inductance 0.15mH
Xmax 3mm 0
Magnet d x h 85 x 17mm 3
Magnet weight 215g 0.47 Ib
Flux density ­Gap height 5mm 0
Net weight 950g 2.09 Ib

1/18

1/3

3/16

in

x 0

in

2/3

in

frequency reSponSe / impedance

dB

mechanical drawing

Unit: mm

Focal® is a trademark of Focal-JMlab®-Tel. [phone] - www.focal.com - Images may not conform exactly to specific product. Photos L’Atelier Sylvain Madelon - SCLG101214/1

parameterS

Ohm

Hz

Fs 95.56Hz
Vas 2.95 I
Qts 0.65
Qes 0.72
Qms 6.26
Re 3.20 Ohms
Sd 86.59cm

2

Cas 2.36E-8m5/N
Mas 117.63 kg/m

4

Ras 11282.71 Ohms.ac
Cms 315µm/N
Mms 8.82g
Rms 0.846kg/s
Ces 374.75mF
Les 7.40mH
Res 27.82 Ohms
BI 4.85N/A
SPL 87.40dB/W/m
