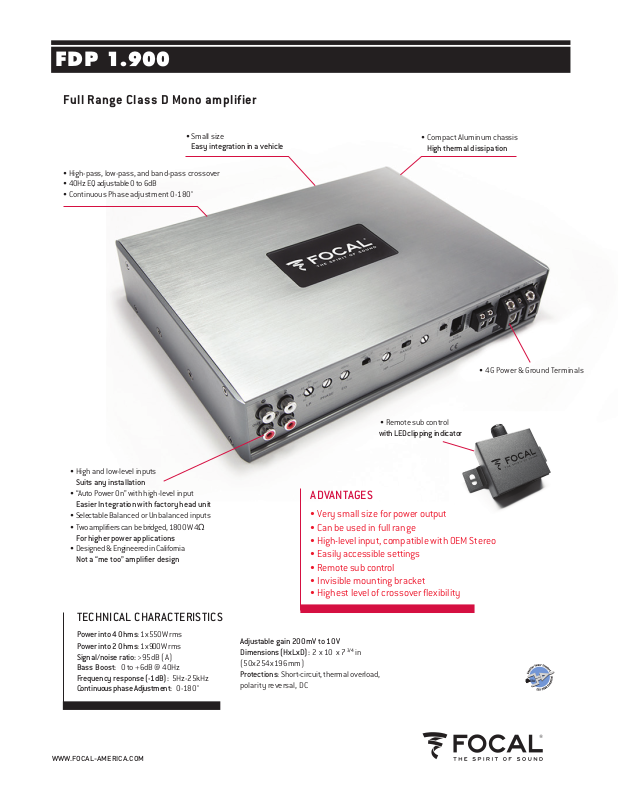

Focal FDP1.900 Specifications

FDP 1.900

Full Range Class D Mono amplifier

• Small size

Easy integration in a vehicle

• High-pass, low-pass, and band-pass crossover

• 40Hz EQ adjustable 0 to 6dB

• Continuous Phase adjustment 0-180°

• Compact Aluminum chassis

High thermal dissipation

• 4G Power & Ground Terminals

• Remote sub control

with LED clipping indicator

• High and low-level inputs

Suits any installation

• “Auto Power On” with high-level input

Easier Integration with factory head unit

• Selectable Balanced or Unbalanced inputs

• Two amplifiers can be bridged, 1800 W 4Ω

For higher power applications

• Designed & Engineered in California

Not a “me too” amplifier design

TECHNICAL CHARACTERISTICS

Power into 4 Ohms: 1x550W rms
Power into 2 Ohms: 1x900W rms
Signal/noise ratio: >95dB (A)
Bass Boost: 0 to +6dB @ 40Hz
Frequency response (-1dB): 5Hz-25kHz

Continuous phase Adjustment: 0-180°

WWW.FOCAL-AMERICA.COM

ADVANTAGES

• Very small size for power output

• Can be used in full range

• High-level input, compatible with OEM Stereo

• Easily accessible settings

• Remote sub control

• Invisible mounting bracket

• Highest level of crossover flexibility

Adjustable gain 200mV to 10V
Dimensions (HxLxD): 2 x 10 x 7

(50x254x196mm)
Protections: Short-circuit, thermal overload,
polarity reversal, DC

3/4

in
