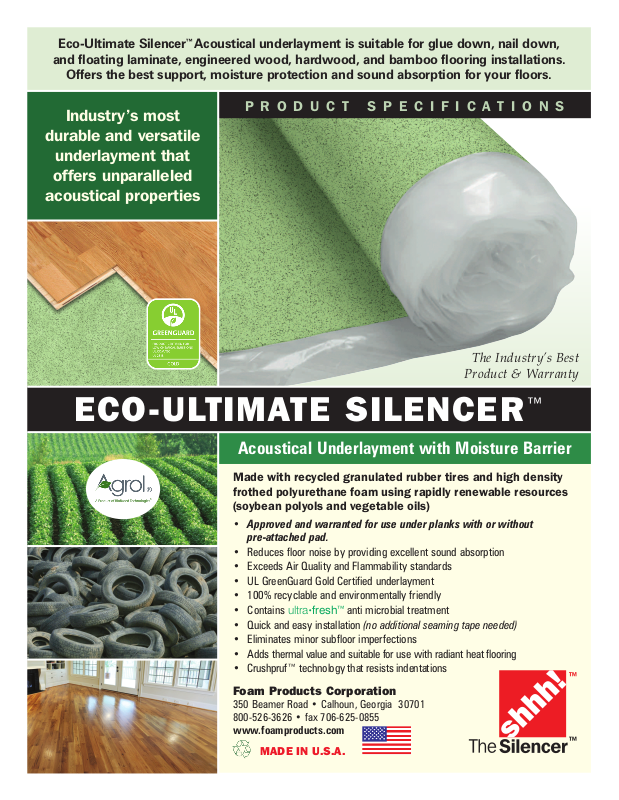

Page 1
Eco-Ultimate Silencer™Acoustical underlayment is suitable for glue down, nail down,
and floating laminate, engineered wood, hardwood, and bamboo flooring installations.
Offers the best support, moisture protection and sound absorption for your floors.
Industry’s most
durable and versatile
underlayment that
offers unparalleled
acoustical properties
P R O D U C T S P E C I F I C A T I O N S
The Industry’s Best
Product & Warranty
ECO-ULTIMATE SILENCER
Acoustical Underlayment with Moisture Barrier
Made with recycled granulated rubber tires and high density
frothed polyurethane foam using rapidly renewable resources
(soybean polyols and vegetable oils)
• Approved and warranted for use under planks with or without
pre-attached pad.
• Reduces floor noise by providing excellent sound absorption
• Exceeds Air Quality and Flammability standards
• UL GreenGuard Gold Certified underlayment
• 100% recyclable and environmentally friendly
• Contains
• Quick and easy installation (no additional seaming tape needed)
• Eliminates minor subfloor imperfections
• Adds thermal value and suitable for use with radiant heat flooring
• Crushpruf™ technology that resists indentations
Foam Products Corporation
350 Beamer Road • Calhoun, Georgia 30701
800-526-3626 • fax 706-625-0855
www.foamproducts.com
ultra•fresh™ anti microbial treatment
™
MADE IN U.S.A.
Page 2
P R O D U C T S P E C I F I C A T I O N S
The Eco-Ultimate Silencer™ maintains the beauty of your floor like nothing else.
The Eco-Ultimate Silencer™ underlayment can stand up to the pressure.
ADVANTAGES
• Eco-Ultimate Silencer™ is made with 100% post consumer recycled
granulated rubber tires and high-density polyurethane foam using
rapidly renewable resources (soybean polyols and vegetable oils)
• Suitable for floating, glue down, and nail down laminate,
solid hardwood, engineered wood, and bamboo flooring.
•
Approved and warranted for use under planks with or
without pre-attached pad.
• New revolutionary moisture barrier film for the best bond
strength, durability and moisture protection up to 4 lbs. of
pressure. In geographic areas where concrete subfloors are
subject to excessive moisture, a calcium chloride moisture test
is required. Vapor emission readings in excess of 4 lbs. per
1,000 square feet in 24 hrs. will require additional protection
such as concrete sealant or polyethylene sheeting.
• Contains
mold and mildew
• Crushpruf™ technology resists indentation that enables your
floors to perform to its fullest potential and last a lifetime
• Provides cushioned comfort under hard laminate flooring
• Eliminates minor subfloor imperfections
• Offers the industry’s best limited lifetime warranty
• Suitable for radiant heat flooring systems
ultra•fresh™
, an antimicrobial protection that resists
APPROVED SUBSTRATES
• Dry, completely cured concrete (at least 14 days old with
HVAC operating)
• ¾" interior plywood, OSB flooring, gypcrete (must be primed
before glue down)
• Waterproofing and crack-isolation membranes
• Cement backer units
• Existing vinyl, wood, and laminate floors
FLOOR PREPARATION
• Subfloor should be clean and dry
• Follow the wood manufacturer’s installation instructions for any
additional preparation
QUICK AND EASY INSTALLATION
Requires no additional seaming tape, cuts with a knife.
1. Install Eco-Ultimate Silencer™ Acoustical with film down against
concrete/subfloor.
2. For floating and nail down installations, roll out underlayment
with tape strip next to wall. Roll out next row in same manner
butting underlayment close to first row (do not overlap) and
covering the moisture barrier film. Remove the tape strip and
secure the overlapping moisture barrier film.
3. For double glue down installation for wood flooring, use a
urethane based adhesive (based on the adhesive manufacturer’s
recommendation) with a 1/16" – 3/32” trowel on the subfloor.
Trim off the excess overlapping film. Roll out underlayment
with tape strip next to wall. Roll out next row in same manner
butting underlayment close to first row (do not overlap). Roll with
a 75 -100 lb. roller to smooth out any air pockets and to secure
a good bond to the adhesive.
4. Install flooring according to the laminate/wood manufacturer’s
installation instructions.
PACKAGING
• Available in 3' x 33.34' (100 sq. ft.) rolls and
6' x 75' (450 sq. ft.) contractor size rolls
TECHNICAL DATA
100% High-Density Polyurethane foam underlayment blended
with post consumer recycled granulated rubber tires and
bonded to a moisture vapor film.
Thickness............................................................................ .075"
Density............................................................................ 25 LBS
Weight .................................................................... 2.35 oz/sq.ft.
Antimicrobial Treatment ....................................... ULTRA-FRESH™
Thermal Resistance.................................................... R-Value .17
Compression Resistance ASTM D3676............................... 20 psi
Compression Set ASTM D3574 .......................................... 8.3 %
Indoor Air Quality ................... GreenGuard Gold Certified UL 2818
Flammability Rating ................................................Passes Federal
Flammability Standards DOC-FF-1-70
Smoke Density ...................................................Passes, 110 max
Product Emissions.....................................Exceeds VOC emissions
requirements, environmentally friendly
SOUND ABSORPTION PROPERTIES
Impact Insulation Class (IIC) This method is to measure
the impact sound transmission performance of a floor-ceiling
assembly (sound transmission through the floor)
IIC Flooring Sub-Floor
73 Laminate/Engineered 8" concrete with ceiling assembly
70 Laminate/Engineered 6" concrete with ceiling assembly
58 Hardwood 6" concrete with ceiling assembly
52 Laminate/Engineered 6" concrete with NO ceiling assembly
Sound Transmission Class (STC) This method is to measure
the air-borne sound insolating property of a partition element
for effectiveness in blocking sound
STC Flooring Sub-Floor
73 Laminate/Engineered 6" concrete with ceiling assembly
77 Laminate/Engineered 8" concrete with ceiling assembly
53 Hardwood 6" concrete with ceiling assembly
51 Laminate/Engineered 6" concrete with NO ceiling assembly
Delta IIC The db rating difference between a floor measured
with an underlayment and with no underlayment
D IIC 22 (up to a 78% db sound reduction)
LEED CREDITS
MR 4.1 10% recycled content
MR 4.2 20% recycled content
MR 5.1 10% content manufactured within 500 miles of project
MR 5.2 20% content manufactured within 500 miles of project
MR 6 Rapidly renewable resource
EQ 4.3 low emitting VOC’s
ultra•fresh™ is a registered trademark of Thomson Research Associates Inc.
