Block out the sound.

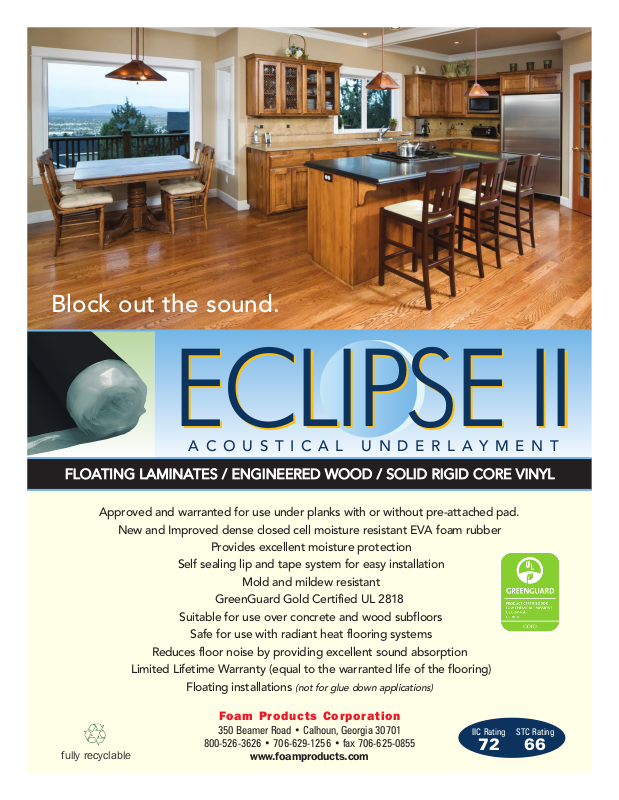

ECLIPSE II
ECLIPSE II
A C O U S T I C A L U N D E R L A Y M E N T
FLOATING LAMINATES / ENGINEERED WOOD / SOLID RIGID CORE VINYL
Approved and warranted for use under planks with or without pre-attached pad.
New and Improved dense closed cell moisture resistant EVA foam rubber
Provides excellent moisture protection
Self sealing lip and tape system for easy installation
Mold and mildew resistant
GreenGuard Gold Certified UL 2818
fully recyclable
Suitable for use over concrete and wood subfloors
Safe for use with radiant heat flooring systems
Reduces floor noise by providing excellent sound absorption
Limited Lifetime Warranty (equal to the warranted life of the flooring)
Floating installations
Foam Products Co rporation
350 Beamer Road • Calhoun, Georgia 30701
800-526-3626 • 706-629-1256 • fax 706-625-0855
www.foamproducts.com
(not for glue down applications)
IIC Rating
72
STC Rating
66
Page 2
ECLIPSE II maintains the beauty of your floor like nothing else.
ECLIPSE II underlayment can stand up to the pressure.
ECLIPSE II ACOUSTICAL UNDERLAYMENT
FOR FLOATING LAMINATES / ENGINEERED
WOOD / SOLID RIGID CORE VINYL
• New and Improved dense closed cell moisture resistant EVA foam rubber
• Approved and warranted for use under planks with or without
pre-attached pad.
• Provides excellent moisture protection
• Self sealing lip and tape system for easy installation
• Mold and mildew resistant
• Suitable for use over concrete and wood subfloors
• Limited Lifetime Warranty (equal to the warranted life of the flooring)
• Floating installations (not for glue down applications).
ADVANTAGES
• Reduces floor noise by providing excellent sound absorption
• Provides cushioned comfort under laminate and floating wood floors
• The Eclipse II has high density and compression resistance
properties that enable your floor to perform to its fullest potential
and last a lifetime
• The moisture barrier film and tape strip combine to lock out moisture
and allow for quick and easy installation
• Eliminates minor subfloor imperfections
• The Eclipse II adds insulation value with an R-value of .29
• Suitable for use with radiant heat flooring systems
• 100% recyclable, environmentally friendly, non allergenic and odorless
APPROVED SUBSTRATES
• Dry, completely cured concrete (at least 14 days old with HVAC operating)
• 3/4" interior plywood or OSB flooring
• Waterproofing and crack-isolation membranes
• Cement backer units.
SOUND ABSORPTION PROPERTIES
Impact Insulation Class (IIC) This method is to measure the impact
sound transmission performance of a floor-ceiling assembly (sound
transmission through the floor)
IIC Flooring Sub-Floor
72 Laminate 6" concrete with ceiling assembly
72 Engineered Wood 6” concrete with ceiling assembly
66 Solid Rigid Core Vinyl 6” concrete with ceiling assembly
53 Solid Rigid Core Vinyl 6” concrete NO ceiling assembly
Sound Transmission Class (STC) This method is to measure the
air-borne sound insolating property of a partition element for
effectiveness in blocking sound
STC Flooring Sub-Floor
66 Laminate 6” concrete with ceiling assembly
66 Engineered Wood 6” concrete with ceiling assembly
60 Solid Rigid Core Vinyl 6” concrete with ceiling assembly
50 Solid Rigid Core Vinyl 6” concrete NO ceiling assembly
Delta IIC The db rating difference between a floor measured with an
underlayment and with no underlayment
Δ IIC 25
INSTALLATION GUIDE NOTE
In geographic regions where concrete slabs may be subject to higher
moisture levels, a calcium chloride test is required. Vapor emission
readings in excess of 3 lbs/1000sf in less than 24 hours will require
additional protection such as a concrete sealant, moisture abatement,
or 6 mil poly-ethylene sheeting. (please follow flooring OEM's
instructions verbatim with regards to subfloor prep). It is mandatory to
properly prep the subfloor to meet/exceed OEM installation instructions
since the maximum value of most OEMs is 3 lbs MVTR with regards
to adding an extra moisture abatement before putting down the
underlayment (if on grade or below grade) and then the flooring
product. Since we offer the industry's best warranty and track record
and are willing to replace another company's floor parts and labor
should our product fail, a properly prepared subfloor that meets/
exceeds every major OEMs subfloor prep protocol is mandatory.
New construction installations should be performed only after the
building is completely enclosed and the climate control system is in
operation for a minimum of two weeks.
QUICK AND EASY INSTALLATION
1. Subfloor surface must be clean and dry before installation.
2. Start on a corner of room wall. Unroll Eclipse II underlayment (film
side down) over the subfloor. Be sure tape strip side is next to the
wall and overlapping film lip is toward the open room.
3. Roll out next row in the same manner butting foam close to first row
and covering overlapping plastic film lip. Do not overlap foam pad just
the overlapping plastic film lip.
4. Remove tape liner and secure the overlapping plastic film lip to it.
Continue with installation. Seal all open seams with aggressive
adhesive plastic tape.
5. Install flooring per manufacturer's instructions.
TECHNICAL DATA
100% closed cell moisture resistant EVA foam rubber
Thickness .................................................................................... .070”
Density .....................................................................................11.7 lbs
Weight ............................................................................ 5.5 lbs per roll
Moisture Protection ....................................................... closed cell foam
Thermal Resistance ............................................................. R-Value .29
Compression Resistance ASTM D3575 ..................................... 21.1 psi
Compression Set ASTM D3574 ................................................... 16.3%
Indoor Air Quality ............................. GreenGuard Gold Certified UL 2818
LEED CREDITS
EQ 4.3 ......................................................................Low emitting VOC’s
PACKAGING
• Available in 43" x 27.9' (100 sq. ft.) rolls and
43" x 279' (1000 sq. ft.) contractor size rolls
Foam Products Corporation
350 Beamer Road
Calhoun, Georgia 30701
800-526-3626 • fax 706-625-0855
foamproducts.com
