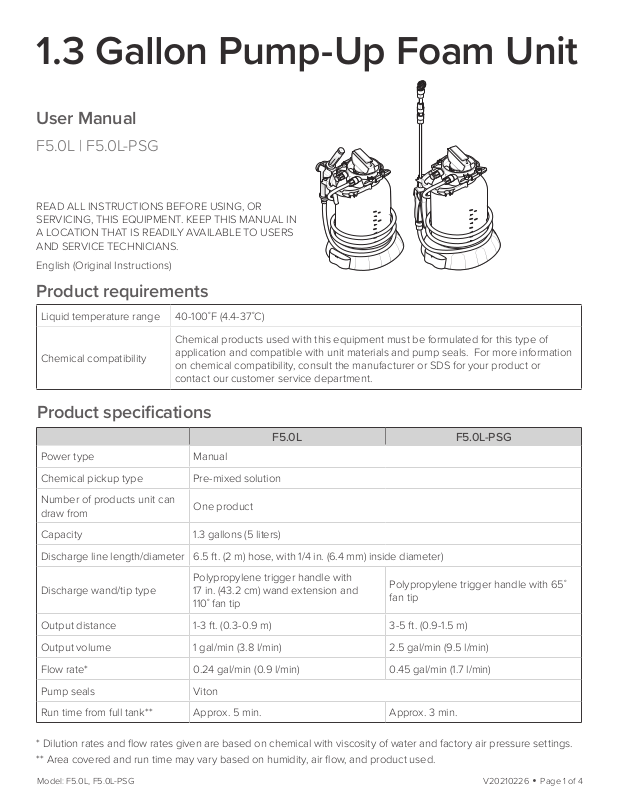

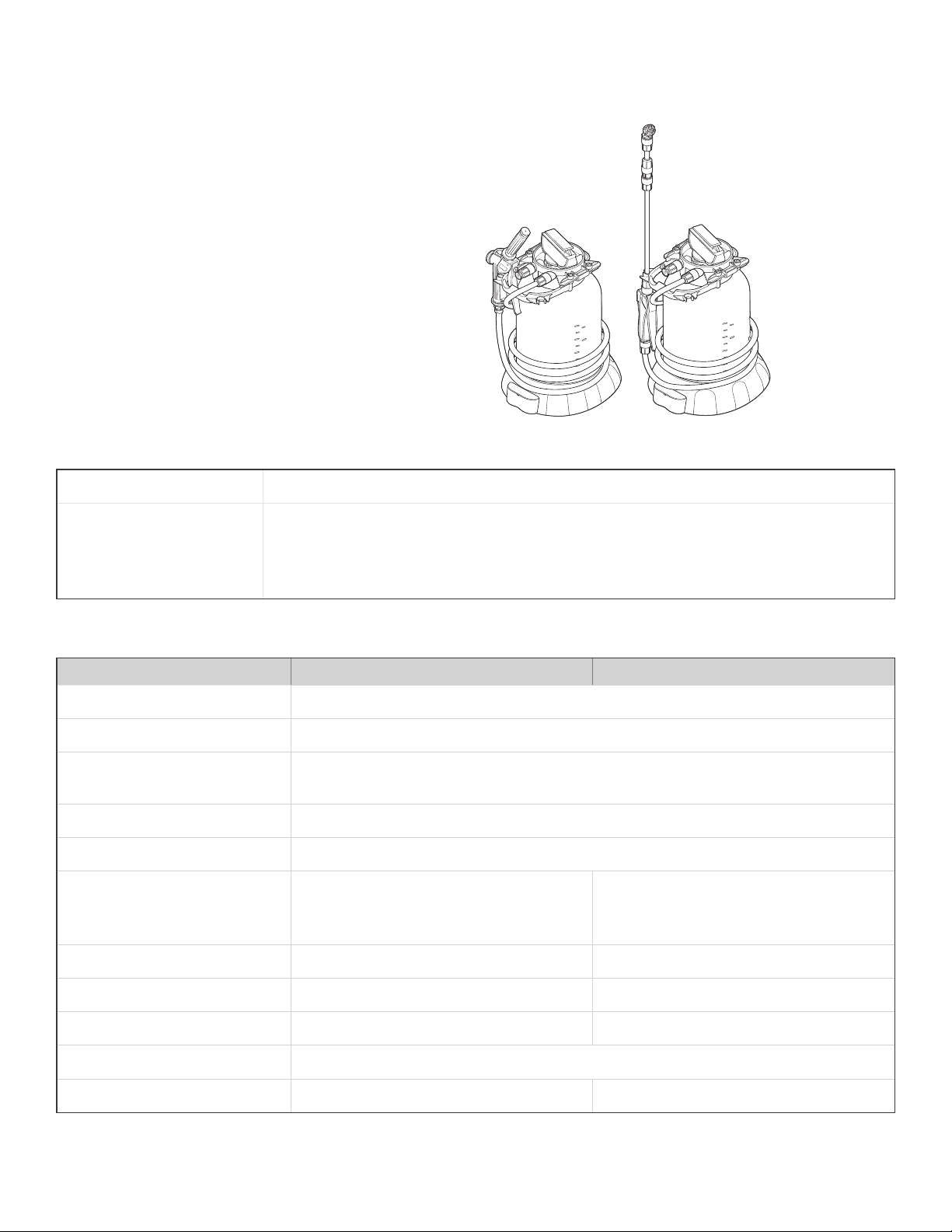

1.3 Gallon Pump-Up Foam Unit
User Manual
F5.0L | F5.0L-PSG
READ ALL INSTRUCTIONS BEFORE USING, OR
SERVICING, THIS EQUIPMENT. KEEP THIS MANUAL IN
A LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Product requirements
Liquid temperature range 40-100˚F (4.4-37˚C)
Chemical products used with this equipment must be formulated for this type of
Chemical compatibility
application and compatible with unit materials and pump seals. For more information
on chemical compatibility, consult the manufacturer or SDS for your product or
contact our customer service department.
Product specifications
F5.0L F5.0L-PSG
Power type Manual
Chemical pickup type Pre-mixed solution
Number of products unit can
draw from
Capacity 1.3 gallons (5 liters)
Discharge line length/diameter 6.5 ft. (2 m) hose, with 1/4 in. (6.4 mm) inside diameter)
Discharge wand/tip type
Output distance 1-3 ft. (0.3-0.9 m) 3-5 ft. (0.9-1.5 m)
Output volume 1 gal/min (3.8 l/min) 2.5 gal/min (9.5 l/min)
Flow rate* 0.24 gal/min (0.9 l/min) 0.45 gal/min (1.7 l/min)
Pump seals Viton
One product
Polypropylene trigger handle with
17 in. (43.2 cm) wand extension and
110˚ fan tip
Polypropylene trigger handle with 65˚
fan tip
Run time from full tank** Approx. 5 min. Approx. 3 min.
* Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
** Area covered and run time may vary based on humidity, air flow, and product used.
Model: F5.0L, F5.0L-PSG
V20210226 • Page 1 of 4
Page 2
1 Safety
!
WARNING
PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use of the chemical solution. Anyone handling, operating or using the unit must read, and
understand, the instructions in the manual. The buyer assumes all responsibility for safety and proper use
in accordance with the instructions.
Using, or servicing, the unit without proper protective clothing, gloves, and eye
wear may result in serious injury such as burns, rashes, eye, throat or lung damage
and death. Always wear protective clothing, gloves, and eye wear when using, or
servicing, the unit. Protect eyes, skin, and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled or
swallowed. Always read, and follow, all chemical safety precautions and handling instructions provided by
the chemical manufacturer and the Safety Data Sheet (SDS) associated with the chemical solution being
used before using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and cause
serious injury such as burns, rashes, eye damage, throat or lung damage and death. Always depressurize
and clean the unit after each use. Never leave the unit unattended while pressurized.
Using the unit with fluid temperatures above 100°F (37.77°C) may result in scalding, burns, serious injury or
death. DO NOT use a solution with a temperature above 100°F (37.77°C).
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious injury
or death. Never use the unit if it is damaged or leaking.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Using incoming air pressure exceeding 100 psi (7 bar) may result in pressure buildup, explosion, serious
injury or death. DO NOT exceed 100 psi (7 bar) incoming air pressure when operating the unit.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may cause
it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush the unit with
fresh water for five (5) minutes when switching from an alkaline to an acid or an acid to an alkaline.
NOTICE
Servicing, or modification, of this unit with parts not listed in this manual may cause the unit to operate improperly.
Do not use unauthorized parts when servicing the unit.
Use of an air lubricator before the unit may result in diminished performance and damage to the unit. Do not use an
air lubricator before the unit.
Moisture in the air lines may damage the pump and diminish the units life. The air must be filtered, clean, dry and
free of moisture. If needed, install an air dryer before the unit.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations.
Model: F5.0L, F5.0L-PSG
V20210226 • Page 2 of 4
Page 3

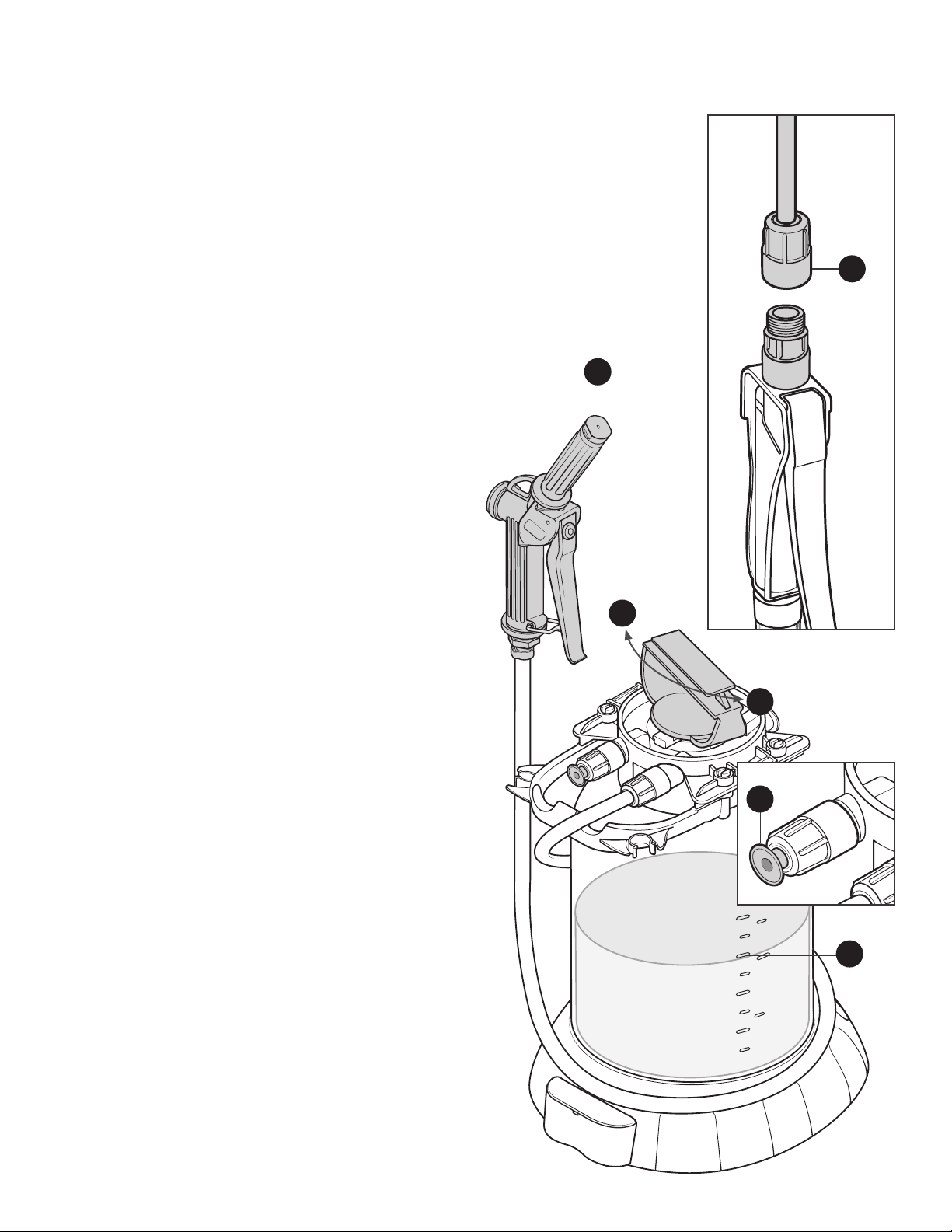

2 Operation
1. Remove all components from the packaging.
2. For F5.0L: Attach the wand assembly to the trigger
handle. For F5.0L-PSG: Continue to step 3.
3. Pull the green pressure release valve until the red
portion of the stem is showing to confirm the unit is
not pressurized.
F5.0L
4. With the pump handle pressed fully down, hold the
unit and unscrew the pump assembly from the tank
head to access the filler hole.
5. Follow all instructions from the chemical
manufacturer when filling the unit. Fill the tank 3/4 full
with pre-mixed solution. Do not overfill the tank.
6. With the pump handle pressed fully down, hold the
unit and screw the pump assembly back into the
tank head to close the unit.
7. To pressurize the tank, rotate the handle of the
pump assembly until it is free then pump up the unit.
The pressure relief valve will begin leaking air when
the tank is fully pressurized.
8. Once the desired pressure has been achieved, push
the handle of the pump assembly down and rotate to
lock it in place.
9. To start foaming, point the wand or trigger gun at
the area you wish to foam and squeeze the trigger
handle to discharge foam.
After Use Instructions
1. Disconnect the airline from the air fitting. Release air
pressure from unit after each use by activating the
pressure relief valve.
2
9
6
4
2. Flush the unit with fresh water. It is recommended to
always empty out remaining solution and run fresh
water through the unit to rinse all parts thoroughly
after each use and before storage.
Maintenance Instructions
To keep your unit operating properly, periodically
perform the following maintenance procedures:
• Check the pump assembly for wear and leaks.
• Check the suction line for debris and clean as
needed.
• Periodically lubricate the pump seal with food safe
lubricant. To lubricate the pump seal, raise the
handle of the pump assembly and apply 5-10 drops
of food safe lubricant between the pump and
pump sleeve.
Model: F5.0L, F5.0L-PSG
3
5
V20210226 • Page 3 of 4
Page 4

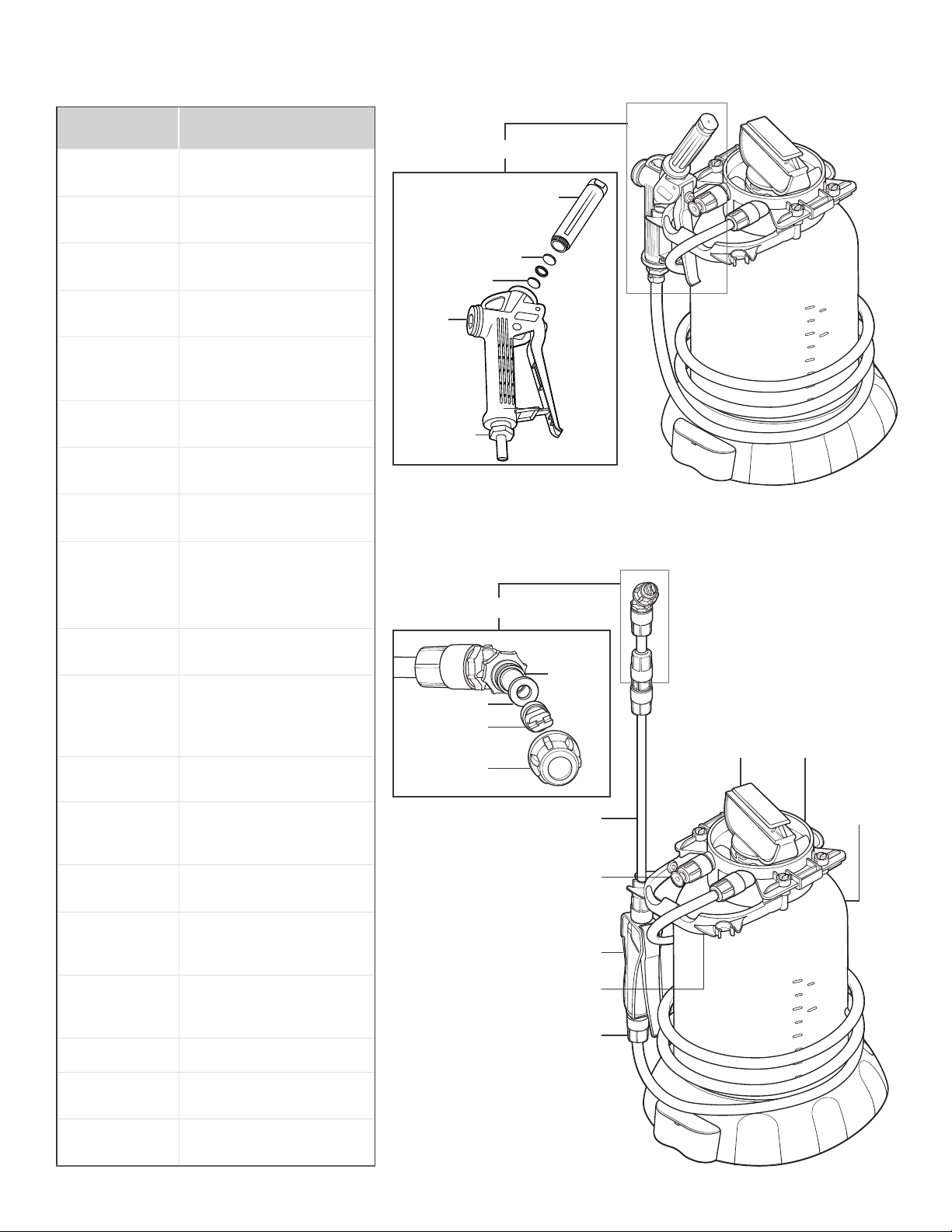

4 Parts
Item number Description
HBSS1214
LC-FGA-PSG12
Stainless hose barb 1/2
MPT x 1/4 barb
Foam gun assembly for
5L/10L with PSG12
LC-FGA-PSG12
PUWAND
LC- HA
LC-HNDL-CLP
LC- LLA
LC-PA
LC- PRV
LC- PSG
LC-SLA- F5.0L
LC-STB
LC-THA-F5.0L
LC-WA-OR
LC-WA-RN
LC-WD
Hose assembly for
5L/10L
Tank handle for 5L/10L
with clips
Long lance (10 in)
assembly for 5L/10L with
retaining nuts
Manual pump assembly
for 5L/10L-viton
Pressure relief valve for
5L/10L
Poly spray gun for
5L/10L-blue
Short lance (2 in.)
assembly for 5L/10L
foam unit-with wadding
and spray tip
Button spray tip for
1.5L/5L
Tank head assembly
for 5L foam unit-with
pressure relief valve and
tank handle
Oring in 1.5L/5L/10L
wand
Retaining nut for
1.5L/5L/10L wand
assembly
Wadding disk for
1.5L/5L/10L (1 piece)
WAAD-.625
WAAD-.5
PSG12
HBSS1214
LC-SLA- F5.0L
LC-WA-OR
LC-STB
LC-WA-RN
LC-WD
LC- LLA
LC- PRV
LC-PA
LC-THA-F5.0L
TANK5.0L
1/2 in. poly spray gun
PSG12
PUWAND
TANK5.0L 5 Liter tank
WAAD-.5
WAAD-.625
Model: F5.0L, F5.0L-PSG
with o-ring and gray
handle & 316SS
1/2 in. MPT poly wand
with integrated 65
degree fan tip
1/2 in. diameter wadding
for foam units
5/8 in. diameter wadding
for foam units
LC- PSG
LC-HNDL-CLP
LC- HA
V20210226 • Page 4 of 4
