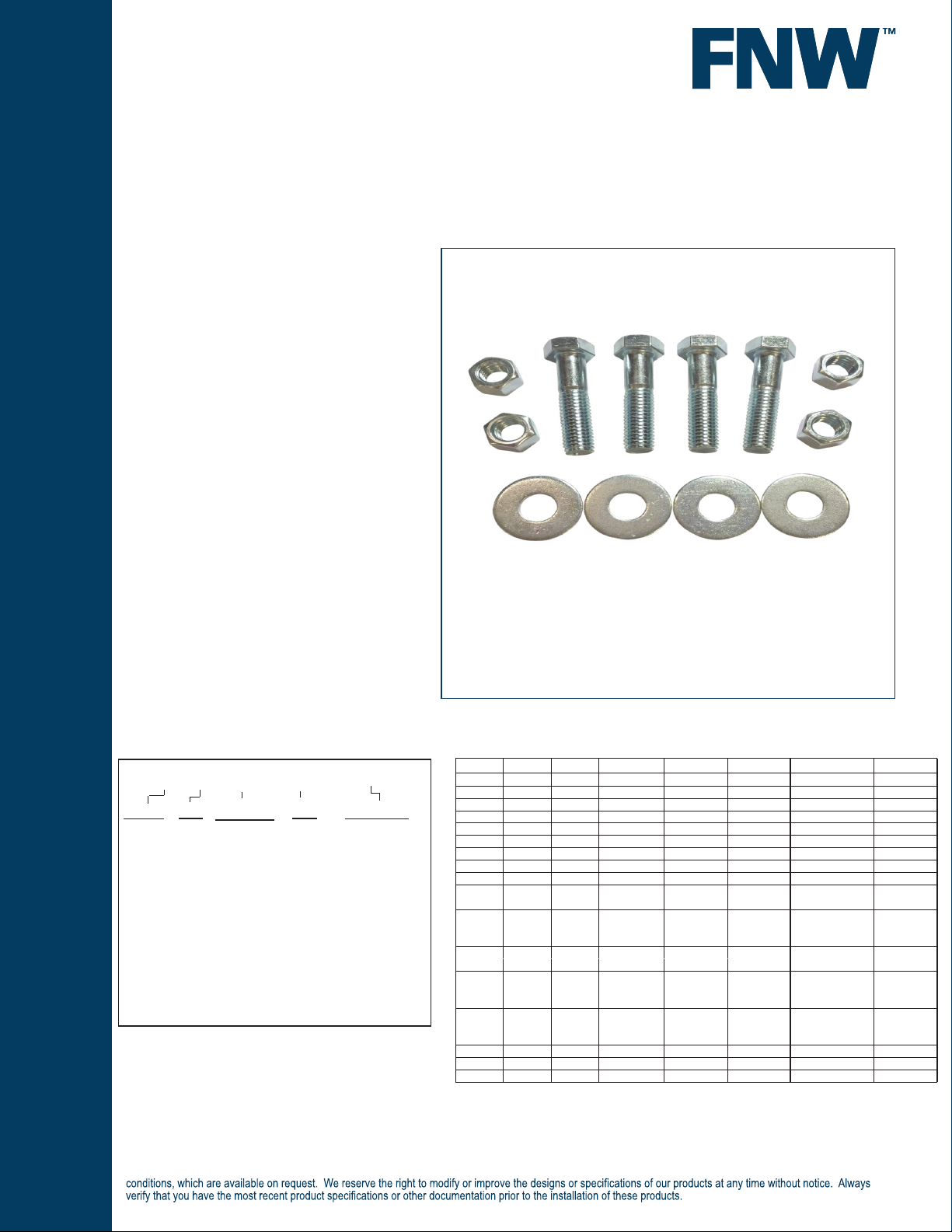

FNW ABKFAFLG User Manual

Figure ABKFAFLG
PIPING PRODUCTS
AQUATHERM FLANGE ADAPTER TO
FLANGE BOLT KIT
Features
For 150# ANSI Flanges
Lengths for Joining Flange Adapter to Flange
Material: Carbon Steel
Finish: Zinc Plated
*Sizes: 1” to 24”
Standards
Bolts:
Material - ASTM A307A Grade ADimensions - ASME B18.2.1Thread - Class 2A
Nuts:
Material - SAE J995 Grade 2Dimensions - ASME B18.2.2
Thread - Class 2B
Washers:
ASME B18.22.1
Bolt Properties
Tensile: 60 KSI Minimum
Elongation: 18% Minimum
Hardness: 69 - 100 Rb
* Based on 1/16” raised face and 1/8” gasket
* Excluding 3-1/2” and 22”
Figure Number Matrix
FNW A BK FA FLG Size
BK
A
Bolt KitAquatherm
Note SDR: 6” & up
FA
Flange Adapter
FLG
Flange
SIZE CODE
1/2 = D 3/4 = F
1 = G
1-1/4 = H
1-1/2 = J
2 = K
2-1/2 = L
3 = M
4 = P
5 = S
6 = U 8 = X
10 = 10
12 = 12
14 = 14
16 = 16
18 = 18
20 = 20
22 = 22 24 = 24
Pack Quantities & Bolt Sizes (inches)
Size Bolt Qty Nut Qty Washer Qty Diameter Bolt Length SDR Bolt Length Weight
1 4 4 4 1/2 2-3/4 0.40 1-1/4 4 4 4 1/2 3-1/4 0.45 1-1/2 4 4 4 1/2 3-1/4 0.45
2 4 4 4 5/8 3-1/2 0.78 2-1/2 4 4 4 5/8 4 0.86
3 4 4 4 5/8 4 0.86 3-1/2 8 8 8 5/8 4 1.72
4 8 8 8 5/8 4 1.72
6 8 8 8 3/4 4-1/2 2.95
8 8 8 8 3/4 5-1/2 3.29
- - - - - * 5 3.06
10 12 12 12 7/8 6-1/2 7.73
- -
- - - - - * 5-1/2 7.03
12 12 12 12 7/8 6-1/2 7.73
- - - - - * 5-1/2 7.03
14 12 12 12 1 8 12.21
- - - - - * 7 11.31
- - - - - * 6-1/2 10.41
16 16 16 16 1 7 15.08
- - - - - * 6-1/2 13.88
- - - - - * 7 19.74 20 20 20 20 1-1/8 7-1/2 25.94 22 20 20 20 1-1/8 7-1/2 25.94 24 20 20 20 1-1/8 8 26.58
-
- - * 6 7.49
DOC: FNWABKFAFLG Ver. 4/2016
© 2016 - FNW. All rights reserved. The FNW logo is a trademark of Ferguson Enterprises, Inc., PL Sourcing, PO Box 2778, Newport News, VA 23609 www.fnw.com
The contents of this publication are presented for information purposes only, and while effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, expressed or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and
