Post BasePost Base

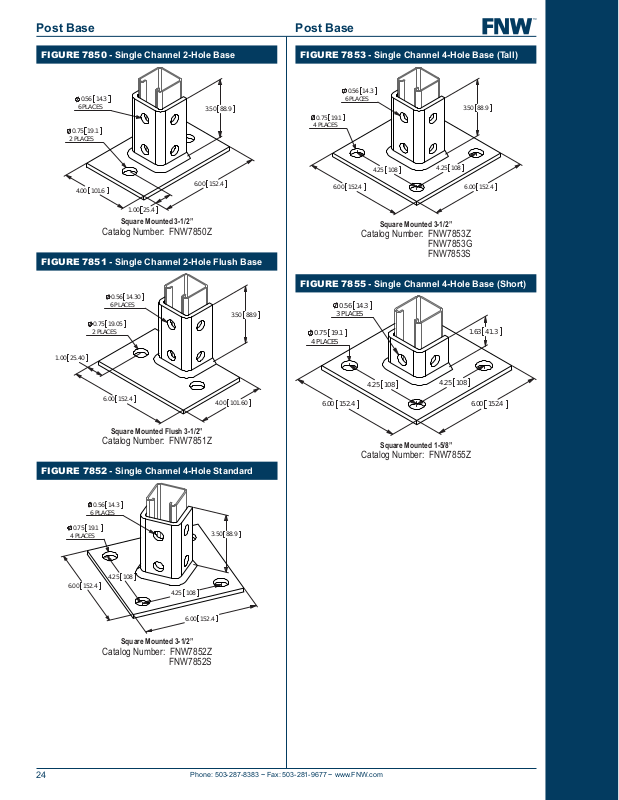

FIGURE 7850 - Single Channel 2-Hole Base
0.56 14.3
6 PLACES
0.75 19.1
2 PLACES
4.00 101.6
1.00 25.4
3.50 88.9
6.00 152.4
Square Mounted 3-1/2”
Catalog Number: FNW7850Z
FIGURE 7851 - Single Channel 2-Hole Flush Base
0.56 14.30
6 PLACES
3.50 88.9
1.00 25.40
0.75 19.05
2 PLACES
FIGURE 7853 - Single Channel 4-Hole Base (Tall)
0.56 14.3
0.75 19.1
4 PLACES
6.00
6 PLACES
4.25 108
152.4
4.25 108
3.50 88.9
6.00
152.4
Square Mounted 3-1/2”
Catalog Number: FNW7853Z
FNW7853G
FNW7853S
FIGURE 7855 - Single Channel 4-Hole Base (Short)
0.56 14.3
3 PLACES
0.75 19.1
4 PLACES
1.63 41.3
6.00 152.4
4.00 101.60
Square Mounted Flush 3-1/2”
Catalog Number: FNW7851Z
FIGURE 7852 - Single Channel 4-Hole Standard
0.56 14.3
6 PLACES
0.75 19.1
4 PLACES
6.00 152.4
4.25 108
4.25 108
Square Mounted 3-1/2”
3.50 88.9
6.00 152.4
Catalog Number: FNW7852Z
FNW7852S
4.25 108
4.25 108
Square Mounted 1-5/8”
Catalog Number: FNW7855Z
6.00 152.46.00 152.4
24
