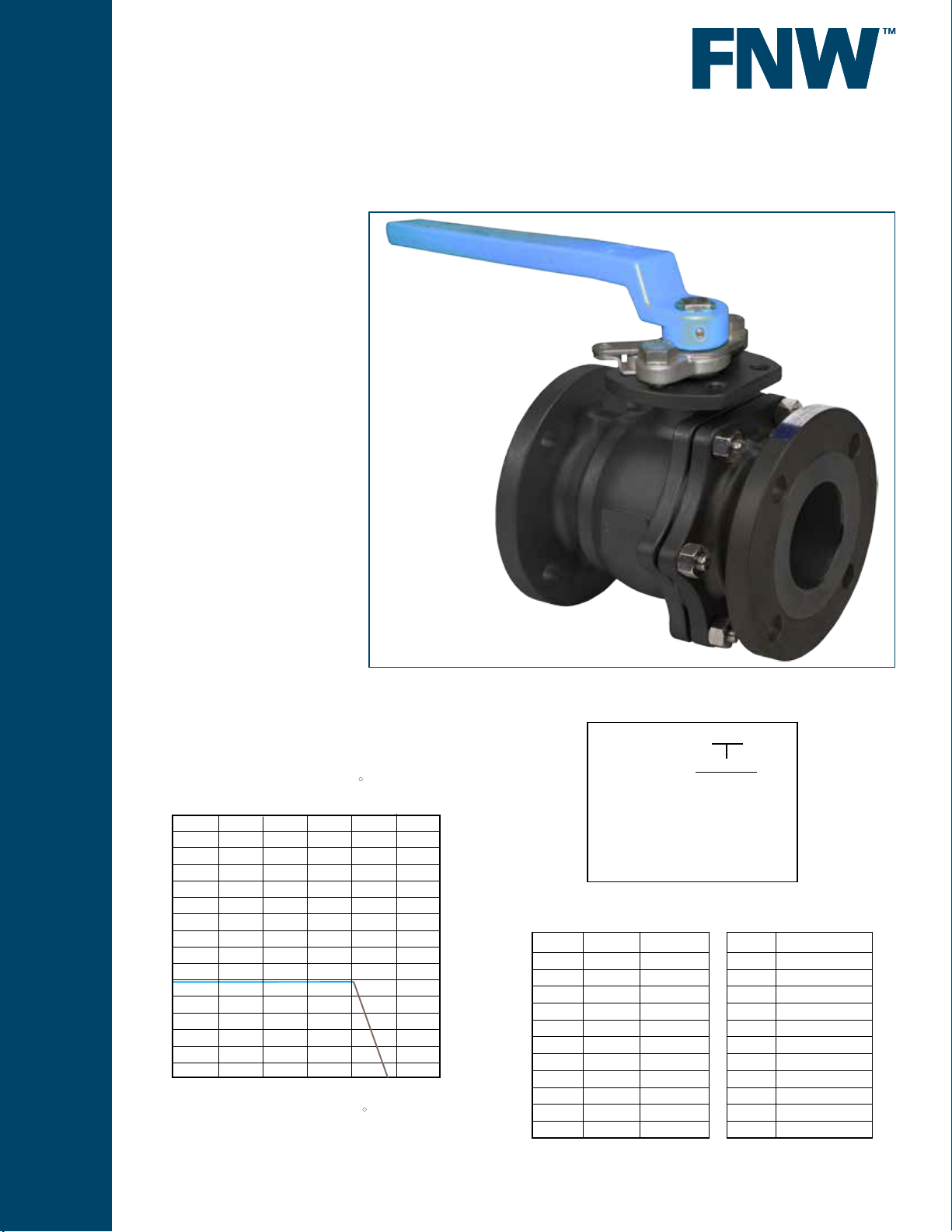

Figure 601A
TEMPERATURE C
TEMPERATURE F
)RAB( ERUSSERP
)ISP( ERUSSERP
CARBON STEEL BALL VALVES
2 PC FULL PORT 150# FLANGED
Features:
• Full Port
• 150 WSP
• Flanged Connection
• TFM Seats
• Stainless Steel Trim
• Anti Static Design
• Blow-out Proof Stem
• Investment Cast Body
• Adjustable Packing
• Locking Device
• Actuator Mounting Pad
• Manufactured Silicone Free
• Sizes 1/2” to 10”
Standards:
• Design: ASME B16.34
• Pressure Test: API 598
• Flange Dimensions: ASME B16.5
• Materials: ASME B16.34
• Mounting Pad: ISO 5211
Figure Number Matrix
FNW 601A Size
SIZE CODE
800
700
600
38
93
149
205
500
400
300
200
100
0
100
200
300
400
450
475
260
500
315
600
54
50
40
30
20
10
Cv & Weight
Size Cv Wt (lbs)
1/2 15 4.5
3/4 61 5
1 110 7.3
1-1/2 270 15
2 500 21.2
2-1/2 800 32
3 1,310 43
4 2,120 67
6 5,070 137
8 9,250 221
10 15,170 333
1/2 = D
3/4 = F
1 = G
1-1/2 = J
2 = K
2-1/2 = L
3 = M
4 = P
6 = U
8 = X
10 = 10
Torque
Size Torque (in-lbs)
1/2 53.1
3/4 79.7
1 141.6
1-1/2 221.3
2 354
2-1/2 442.6
3 531.1
4 1,017.9
6 2,389.8
8 4,425.5
10 7,080.8
2
www.fnw.com

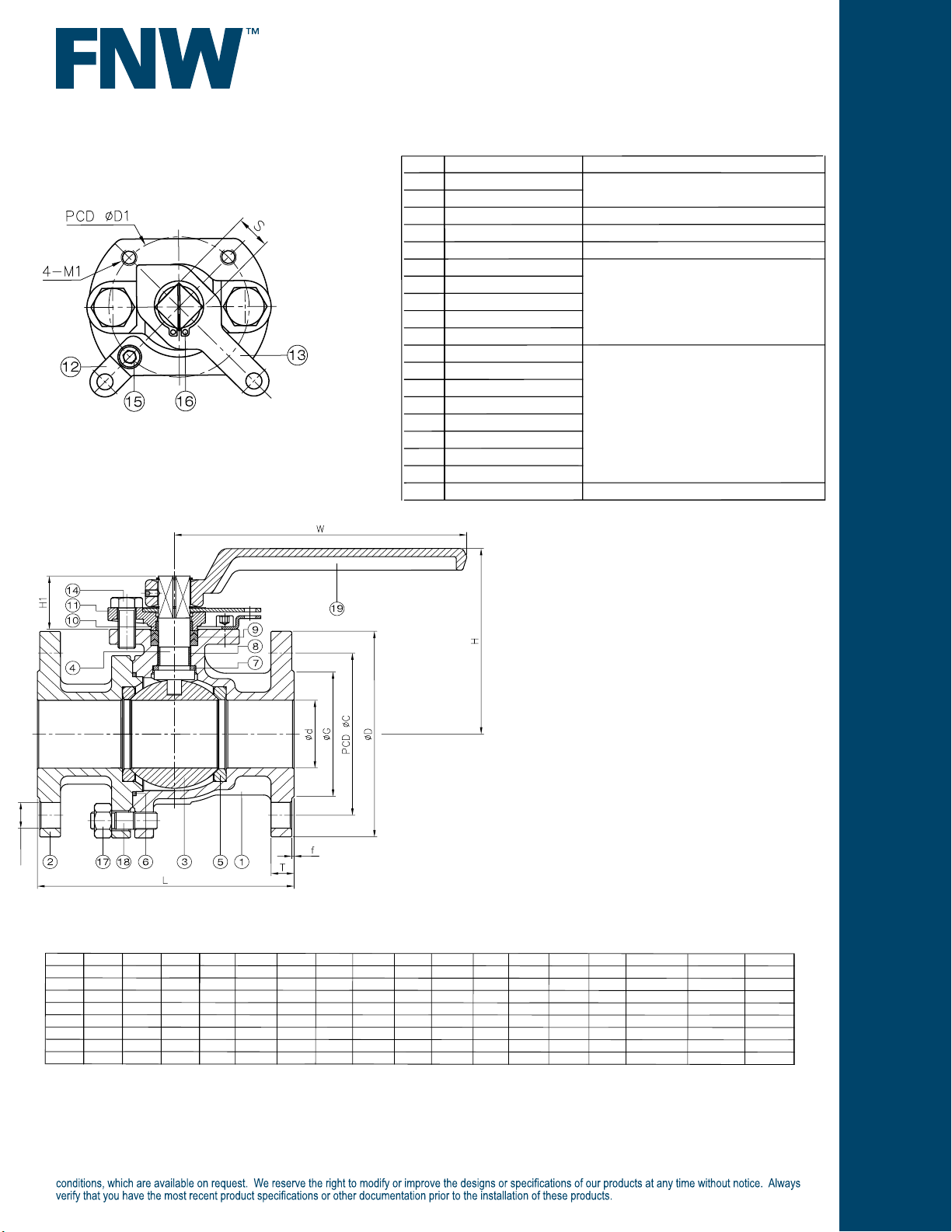

Figure 601A
19 HANDLE
ASTM A216-WCB
MATERIAL
ASTM A216-WCB
CARBON STEEL BALL VALVES
1/2”-4”
ITEM PARTS
1 BODY
2 CAP
3 BALL
4 STEM
5 BALL SEAT
6 BODY SEAL
7 THRUST WASHER 1
8 THRUST WASHER 2
9 PACKING
10 BUSHING
11 GLAND
12 BRACKET
13 STOPPER
14 BOLT
15 BOLT
16 SNAP RING
17 NUT
18 STUD
Standard Materials
ASTM A351-CF8M
ASTM A276-316
TFM 1600
AISI 304
PTFE
Dimensions
NPS d G C D L H H1 W T f N M S D1 M1 Torque (in-lb) Weight (lb)
1/2" 0.59 1.38 2.38 3.5 4.25 3.03 0.85 5.12 0.44 0.06 4 0.63 0.43 1.65 1/4"-20UNC 53 .1 4.5
3/4" 0.79 1.69 2.76 3.88 4.61 3.15 0.85 5.12 0.44 0 .06 4 0.63 0.43 1 .65 1/4" -20UNC 79 .7 5
1" 0.98 2.01 3.11 4.25 5 3 .54 1.06 6.42 0.44 0.06 4 0.63 0.55 1.97 1/4"-20UNC 141.6 7.3
1-1/2" 1.5 2.87 3 .88 5 6.5 5 .08 1.5 7.99 0.56 0.06 4 0.63 0.67 2.76 5/16"-18UNC 221.3 15
2" 1.97 3 .62 4.75 6 7.01 5.35 1.5 7.99 0.63 0.06 4 0.75 0.67 2.76 5/16"-18UNC 354 21.
2-1/2" 2.48 4.13 5.5 7 7.
3" 3.15 5 6 7.5 7.99 6.83 2.3 12 .87 0.75 0.06 4 0.75 0.87 4.02 3/8" -16UNC 531.1 43
4" 3.86 6.18 7.5 9 9.02 7.72 2.3 12.87 0.94 0.06 8 0.75 0.87 4.02 3/8"-16UNC 1017.9 67
DOC: FNW601A05 Ver. 01/2012
© 2012 - FNW. All rights reserved.
The FNW logo is a trademark of Ferguson Enterprises, Inc., PL Sourcing, PO Box 2778, Newport News, VA 23609
The contents of this publication are presented for information purposes only, and while effort has been made to ensure their accuracy, they are not to be construed as
warranties or guarantees, expressed or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and
48 6.26 1.5 7.99 0.69 0 .06 4 0.75 0.67 2.76 5/16"-18UNC 442.6 32
