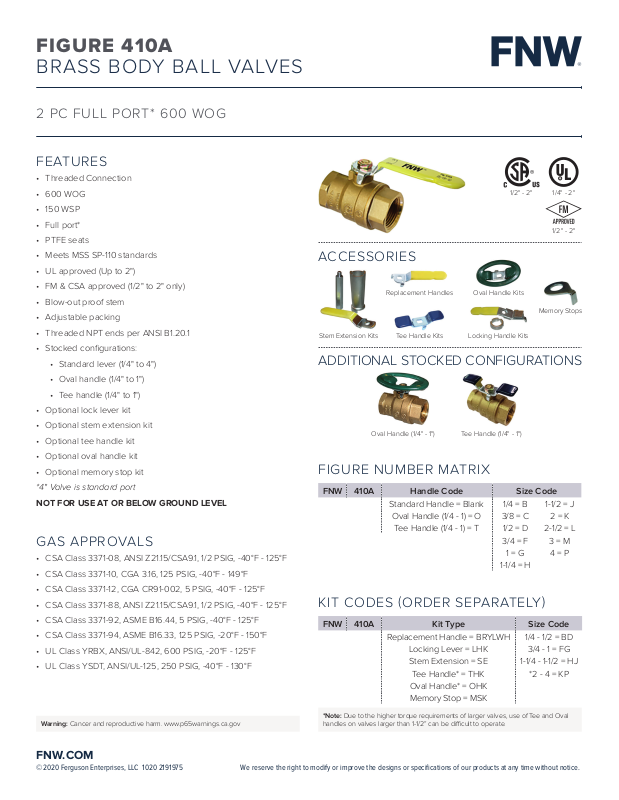

FIGURE 410A
BRASS BODY BALL VALVES
2 PC FULL PORT* 600 WOG
FEATURES
• Threaded Connection
• 600 WOG
• 150 WSP
• Full port*
• PTFE seats
• Meets MSS SP-110 standards
• UL approved (Up to 2")
• FM & CSA approved (1/2" to 2" only)
• Blow-out proof stem
• Adjustable packing
• Threaded NPT ends per ANSI B1.20.1
• Stocked configurations:
• Standard lever (1/4" to 4")
• Oval handle (1/4" to 1")
• Tee handle (1/4" to 1")
• Optional lock lever kit
• Optional stem extension kit
• Optional tee handle kit
• Optional oval handle kit
• Optional memory stop kit
*4" Valve is standard port
NOT FOR USE AT OR BELOW GROUND LEVEL
GAS APPROVALS
• CSA Class 3371-08, ANSI Z21.15/CSA9.1, 1/2 PSIG, -40°F - 125°F
• CSA Class 3371-10, CGA 3.16, 125 PSIG, -40°F - 149°F
• CSA Class 3371-12, CGA CR91-002, 5 PSIG, -40°F - 125°F
• CSA Class 3371-88, ANSI Z21.15/CSA9.1, 1/2 PSIG, -40°F - 125°F
• CSA Class 3371-92, ASME B16.44, 5 PSIG, -40°F - 125°F
• CSA Class 3371-94, ASME B16.33, 125 PSIG, -20°F - 150°F
• UL Class YRBX, ANSI/UL-842, 600 PSIG, -20°F - 125°F
• UL Class YSDT, ANSI/UL-125, 250 PSIG, -40°F - 130°F
Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
1/4" - 2"1/2" - 2"
1/2" - 2"
ACCESSORIES
Stem Extension Kits
Replacement Handles
Tee Handle Kits
Oval Handle Kits
Memory Stops
Locking Handle Kits
ADDITIONAL STOCKED CONFIGURATIONS
Oval Handle (1/4" - 1") Tee Handle (1/4" - 1")
FIGURE NUMBER MATRIX
FNW 410A Handle Code Size Code
Standard Handle = Blank 1/4 = B 1-1/2 = J
Oval Handle (1/4 - 1) = O 3/8 = C 2 = K
Tee Handle (1/4 - 1) = T 1/2 = D 2-1/2 = L
3/4 = F 3 = M
1 = G 4 = P
1-1/4 = H
KIT CODES ORDER SEPARATELY
FNW 410A Kit Type Size Code
Replacement Handle = BRYLWH 1/4 - 1/2 = BD
Locking Lever = LHK 3/4 - 1 = FG
Stem Extension = SE 1-1/4 - 1-1/2 = HJ
Tee Handle* = THK *2 - 4 = KP
Oval Handle* = OHK
Memory Stop = MSK
*Note: Due to the higher torque requirements of larger valves, use of Tee and Oval
handles on valves larger than 1-1/2” can be dicult to operate.
FNW.COM
©2020 Ferguson Enterprises, LLC 1020 2191975 We reserve the right to modify or improve the designs or specifications of our products at any time without notice.
Page 2
FIGURE 410A
BRASS BODY BALL VALVES
2 PC FULL PORT* 600 WOG
PARTS BREAKDOWN
STEM
EXTENSION KIT
LOCKING
LEVER KIT
TEE HANDLE KIT
OVAL HANDLE KIT
PRESSURE DROP/FLOW OF WATER
40
30
20
10
8
7
6
5
4
3
2
1
0.8
0.7
0.6
0.5
Pressure Drop (PSI)
0.4
0.3
0.2
0.1
1
4
3
2
5
7
8
6
10
Flow of Water (GMP)
1/43/8 1/2 3/4 1 11/211/4
CV
20
40
30
50
60
70
80
100
200
DIMENSIONS INCHES & WEIGHT
Size ØD A L
1/4 0.35 3.15 1.69 1.42 0.20 3.27 1.65 2.87 1.46 2.60 1.18 2.95 4.29
3/8 0.39 3.15 1.81 1.46 0.30 3.27 1.69 2.87 1.46 2.60 1.38 2.95 4.29
1/2 0.50 3.15 2.13 1.50 0.40 3.27 1.73 2.87 1.50 2.60 1.42 2.95 4.37
3/4 0.75 4.33 2.48 1.85 0.7 4 4.41 2.13 3.66 1.89 3.31 1.77 3.94 4.72
1 0.98 4.33 2.99 2.05 1.03 4.41 2.32 3.66 2.05 3.31 1.97 3.94 4.92
1-1/4 1.26 5.12 3.35 2.36 1.61 5.24 2.68 4.45 2.40 3.94 2.28 4.92 5.31
1-1/2 1.50 5.12 3.62 2.56 2.11 5.24 2.87 4.45 2.56 3.94 2.48 4.92 5.51
2
2-1/2
1.97 7.87
2.48 7.87
4.25 3.11
5.16 3.50
3 2.95 7.87 5.91 3.86 9.30 7.99 4.33 5.47 3.98 4.72 3.86 7.87 6.81
4 2.95 7.87 6.26 3.86 12.10 7.99 4.33 5.47 3.98 4.72 3.86 7.87 6.81
H
Wt. (Lbs)
AL
HL
AO
HO
AT
HT
3.83 7.99 3.58 5.47 3.27 4.72 3.11 7.87 6.10
6.30 7.99 3.98 5.47 3.62 4.72 3.50 7.87 6.50
AE
300
400
500
600
700
HE
800
2
21/2
3.4
1000
PART MATERIALS & QUANTITY
Ref # Description Material Qty Notes
1 Body
2 Ball
ASTM B124-C37700 Brass (Chrome Plated) 1 to 4 (Shell)
ASTM B124-C37700 Brass
ASTM B584-C85700 Brass 2 to 4
ASTM B16-C36000 Brass (Chrome Plated)
3 End Cap ASTM B124-C37700 Brass 1
4 Seat PTFE 2
1/4 to 1-1/2
1
1/4 to 3/4 (Solid)
1
PRESSURE/TEMPERATURE
700
600
500
400
300
6 Stem ASTM B16-C36000 1
Pressure (PSIG)
7 Stem Packing PTFE 1
8 Handle ASTM A283-D Steel 1 Zinc Plated
9 Handle Sleeve Vinyl 1
200
100
10 Thrust Washer PTFE 1 2 to 4
11 Packing Gland ASTM B16-C36000 1
13 Handle Nut AISI-1010 Steel 1 Zinc Plated
0 50 150 250 350
Temperature (F)
450
