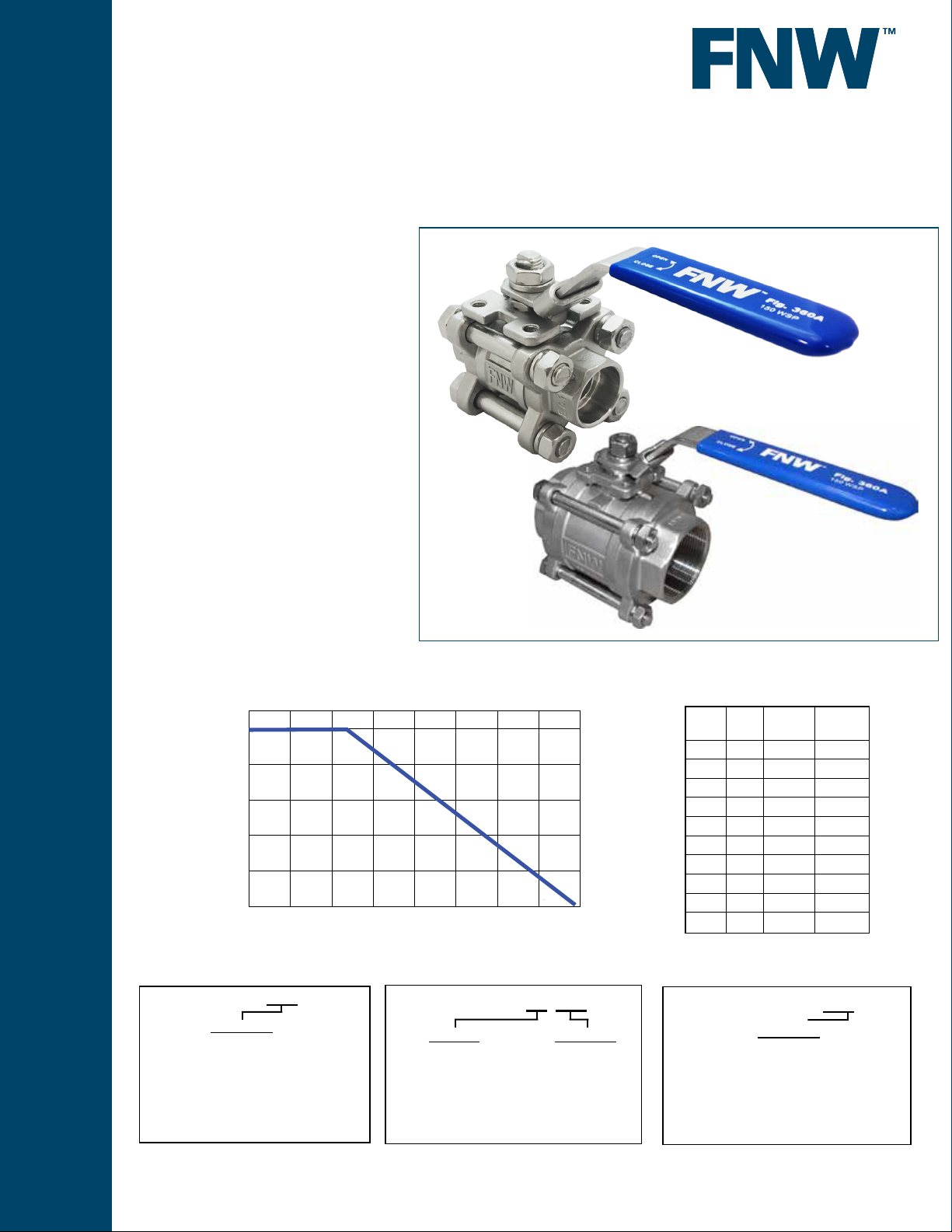

Figure 360A
Pressure (PSIG)
Temperature (F)
0
STAINLESS STEEL BALL VALVES
3 PC FULL PORT 1000 WOG
Features:
• 1000 WOG
• 150 PSI WSP
• Working Temp: -4°F - 392°F (-20°C-
200°C)
• Investment Cast Body
• Blow-out Proof Stem
• ISO 5211 Mounting Pad
• Stainless Steel Handle
• Locking Lever
• RTFE Seats
• Replacement Locking Handle
Kits Available
• Manufactured Silicone Free
• End Connections:
• Threaded
• Socket Weld
Standards:
• Design: With Reference to ASME B16.34,
MSS SP-110
• NACE MRO103 and MRO175 Approved
• End Connections: NPT-ASME B1.20.1
1000
800
600
400
200
0
50 100 150 200 250 300 350 40
Figure Number Matrix
FNW 360A Size
SIZE CODE
1/4 = B
3/8 = C
1/2 = D
3/4 = F
*Note 1/4”and 2-1/2” not offerd in SW
1 = G
1-1/4 = H
1-1/2 = J
2 = K
Kit Codes (Order Separately)
FNW 360A Kit Size
KIT TYPE
Locking Handle = LHK
Repair Kit = RK
SIZE CODE
1/4”~1/2” = BD
3/4” = F
1”~1-1/4” = GH
1-1/2”~2” = JK
3” = LM
Cv, Torque & Weight
Size Cv
1/4 21.9 66.4 0.8
3/8 25.4 66.4 0.8
1/2 36.6 66.4 1.1
3/4 67.7 66.4 1.6
1 110.3 110.6 2.3
1-1/4 184.7 132.8 3.6
1-1/2 266.6 177 5.3
2 485.3 221.3 7.7
2-1/2 791.6 566.4 14.8
3 1152 752.3 21.6
Torque
(in-lbs)
Wt (lbs)
Repair Kits (Order Separately)
FNW 360ARK Size
SIZE CODE
1/4” = B
3/8” = C
1/2” = D
3/4” = F
1” = G
1-1/4” = H
1-1/2” = J
2” = K
2-1/2” = L
3” = M
www.fnw.com
STAINLESS STEEL BALL VALVES
3 PC FULL PORT 1000 WOG
Figure 360A
Dimensions (inches)
NPS d L H W D A M M1 H1 H2 S
#10-
1/4" 0.46 2.56 2.3 3.94 1.42 1.57
3/8" 0.49 2.56 2.3 3.94 1.42 1.57
1/2" 0.59 2.56 2.44 3.94 1.42 1.84
3/4" 0.79 2.95 2.44 4.92 1.42 2.06
1" 0.98 3.35 3.03 5.87 1.65 2.29
1-1/4" 1.26 3.98 3.23 5.87 1.65 2.74
1-1/2" 1.5 4.41 3.94 7.48 1.97 3.06
2” 1.97 5.12 4.25 7.48 1.97 3.55
2-1/2” 2.48 6.38 5.39 9.84 2.76 4.51
3" 2.99 7.4 5.71 9.84 2.76 6.64
24UNC
#10-
24UNC
#10-
24UNC
#10-
24UNC
#10-
24UNC
#10-
24UNC
1/4”-
20UNC
1/4”-
20UNC
5/16”-
18UNC
5/16”-
18UNC
3/8"
0.76 0.53 0.2 F03 66.4 0.8 21.9
-24UNF
3/8"
0.76 0.53 0.2
-24UNF
3/8"
0.76 0.53 0.2
-24UNF
7/16"
0.88 0.63 0.26
-20UNF
7/16"
1.01 0.64 0.31 F04 110.6 2.3 110.3
-20UNF
7/16"
1.01 0.64 0.31
-20UNF
1/2"
1.17 0.79 0.39 F05 177 5.3 266.6
-20UNF
1/2”
1.17 0.79 0.39 F05 221.3 7.7 485.3
-20UNF
3/4"
1.55 1.08 0.47 F07 566.4 14.8 791.6
-10UNC
3/4"
1.55 1.08 0.47 F07 752.3 21.6 1152
-10UNC
ISO
Torque(lb) Weight
5211
F03 66.4 0.8 25.4
F032 66.4 1.1 36.3
F03 66.4 1.6 67.7
F03 132.8 3.6 184.7
CV(gal-
min)
Standard Materials
Item Parts Material
1 Body
2 Cap
3 Ball ASTM A351-CF8M
4 Stem ASTM A276-316
5 Seat RTFE
6 Seal
8 Thrust Washer
9 Gland Nut
10 Spring Washer
11 Stem Nut
12 Bolt
13 Nut
14 Spring Washer
15 Handle Stainless Steel
16 Handle Sleeve PVC
17 Locking Device Stainless Steel
ASTM A351-CF8M
PTFE 7 Packing
AISI 304
DOC: FNW360A11 Ver. 01/2018
© 2018 - FNW. All rights reserved. 23886
The FNW logo is a trademark of Ferguson Enterprises, Inc., PL Sourcing, PO Box 2778, Newport News, VA 23609
