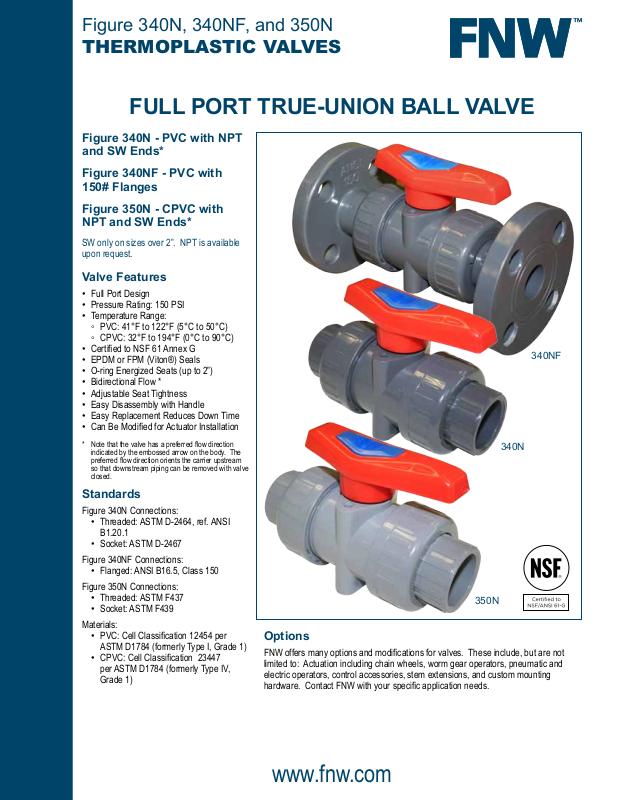

Figure 340N, 340NF, and 350N
THERMOPLASTIC VALVES
FULL PORT TRUE-UNION BALL VALVE
Figure 340N - PVC with NPT and SW Ends*
Figure 340NF - PVC with 150# Flanges
SW only on sizes over 2”. NPT is available upon request.
Valve Features
• Full Port Design
• Pressure Rating: 150 PSI
• Temperature Range: ◦ PVC: 41°F to 122°F (5°C to 50°C) ◦ CPVC: 32°F to 194°F (0°C to 90°C)
Certied to NSF 61 Annex G
• EPDM or FPM (Viton®) Seals
O-ring Energized Seats (up to 2”)
Bidirectional Flow *
Adjustable Seat Tightness
Easy Disassembly with Handle
Easy Replacement Reduces Down Time
Can Be Modied for Actuator Installation
* Note that the valve has a preferred ow direction
indicated by the embossed arrow on the body. The preferred ow direction orients the carrier upstream so that downstream piping can be removed with valve closed.
340NF
340N
Standards
Figure 340N Connections:
Threaded: ASTM D-2464, ref. ANSI
B1.20.1
Socket: ASTM D-2467
Figure 340NF Connections:
• Flanged: ANSI B16.5, Class 150
Figure 350N Connections:
Threaded: ASTM F437
Socket: ASTM F439
Materials:
PVC: Cell Classication 12454 per
ASTM D1784 (formerly Type I, Grade 1)
• CPVC: Cell Classication 23447
per ASTM D1784 (formerly Type IV, Grade 1)
350N
Options
FNW offers many options and modications for valves. These include, but are not limited to: Actuation including chain wheels, worm gear operators, pneumatic and electric operators, control accessories, stem extensions, and custom mounting hardware. Contact FNW with your specic application needs.
www.fnw.com
NOTE: 2-1/2” to 4” valves have a symmetrical single-piece ABS tee-handle
Dimensions (inches) Figure 340N and 350N
Size ØD E L L1 Ød1 Ød2 Ød3 T H1 H2 M2
1/2 0.512 3.03 4.49 2.36 0.84 0.85 1.82 0.87 1.81 0.83 1.18 3/4 0.709 3.74 5.31 2.87 1.05 1.06 2.19 1.00 2.24 1.02 1.30
1 0.906 4.33 5.87 3.11 1.31 1.32 2.62 1.13 2.76 1.30 1.57 1-1/4 1.181 5.00 6.69 3.46 1.66 1.67 3.23 1.25 2.95 1.54 1.85 1-1/2 1.496 5.63 6.93 3.74 1.89 1.91 3.88 1.38 3.70 1.61 2.05
2 1.890 6.46 8.15 4.49 2.37 2.39 4.72 1.50 4.45 2.09 2.76 2-1/2 2.402 7.09 10.83 5.35 2.87 2.89 5.51 1.75 4.57 * *
3 2.717 8.82 11.97 6.22 3.49 3.52 6.30 1.88 5.12 * *
4 3.898 10.94 13.07 6.93 4.49 4.52 8.86 2.25 7.01 * *
* 2-1/2” to 4” valves do not have bosses for mounting pad. Saddle mounts, sold separately, are available for actuation purposes.
