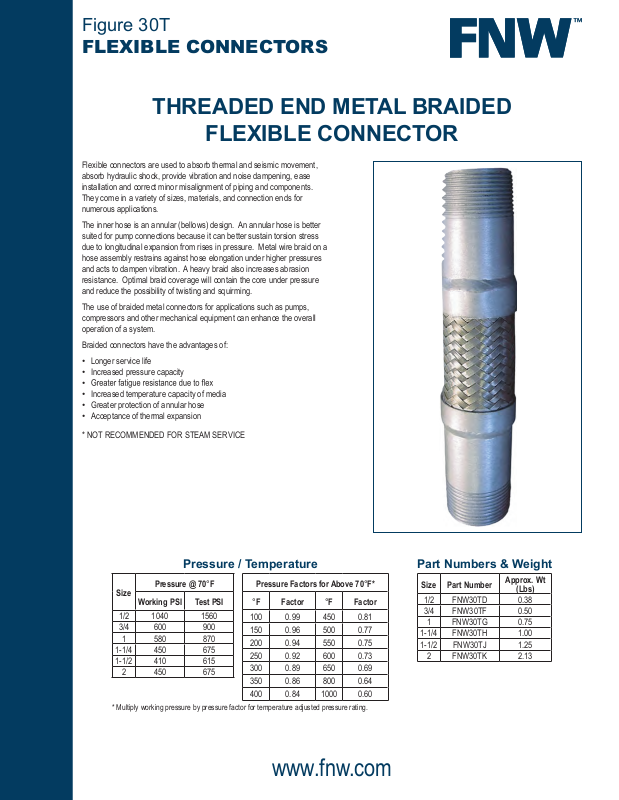

Figure 30T
FLEXIBLE CONNECTORS
THREADED END METAL BRAIDED
FLEXIBLE CONNECTOR
Flexible connectors are used to absorb thermal and seismic movement,
absorb hydraulic shock, provide vibration and noise dampening, ease
installation and correct minor misalignment of piping and components.
They come in a variety of sizes, materials, and connection ends for
numerous applications.
The inner hose is an annular (bellows) design. An annular hose is better
suited for pump connections because it can better sustain torsion stress
due to longitudinal expansion from rises in pressure. Metal wire braid on a
hose assembly restrains against hose elongation under higher pressures
and acts to dampen vibration. A heavy braid also increases abrasion
resistance. Optimal braid coverage will contain the core under pressure
and reduce the possibility of twisting and squirming.
The use of braided metal connectors for applications such as pumps,
compressors and other mechanical equipment can enhance the overall
operation of a system.
Braided connectors have the advantages of:
• Longer service life
• Increased pressure capacity
•
• Increased temperature capacity of media
• Greater protection of annular hose
• Acceptance of thermal expansion
* NOT RECOMMENDED FOR STEAM SERVICE
Pressure / Temperature
Size
Pressure @ 70°F
Working PSI Test PSI
1/2 1040 1560
3/4 600 900
1 580 870
1-1/4 450 675
1-1/2 410 615
2 450 675
* Multiply working pressure by pressure factor for temperature adjusted pressure rating.
Pressure Factors for Above 70°F*
°F Factor °F Factor
100 0.99 450 0.81
150 0.96 500 0.77
200 0.94 550 0.75
250 0.92 600 0.73
300 0.89 650 0.69
350 0.86 800 0.64
400 0.84 1000 0.60
Part Numbers & Weight
Size Part Number
1/2 FNW30TD 0.38
3/4 FNW30TF 0.50
1 FNW30TG 0.75
1-1/4 FNW30TH 1.00
1-1/2 FNW30TJ 1.25
2 FNW30TK 2.13
Approx. Wt
(Lbs)
www.fnw.com
Figure 30T
FLEXIBLE CONNECTORS
THREADED END METAL BRAIDED
FLEXIBLE CONNECTOR
Dimensions (inches)
Size ØC (NPT) ØD L1 L2 L3
1/2 1/2-14 0.55 6.5 2.56 1.18
3/4 3/4-14 0.75 7.0 2.67 1.38
1 1-11.5 0.95 8.0 3.28 1.58
1-1/4 1-1/4-11.5 1.26 8.5 3.38 1.77
1-1/2 1-1/2-11.5 1.50 9.0 3.49 1.97
2 2-11.5 1.97 10.5 4.99 1.97
Standard Materials
Ref.
Description Material
No.
1 Hose Braid 304 Stainless Steel
2 Corrugated Hose 321 Stainless Steel
3 Braid Band 304 Stainless Steel
4 Male Pipe Thread ASTM A53 Carbon Steel
5 Welding Grade er308 Stainless
Axial Compression
Transverse Movement
Axial Elongation
Angular Deection
Braid Limits
Maximum
Size
1/2 0.12” 0.12” ±0.08” 2°
3/4 0.12” 0.12” ±0.08” 2°
1 0.12” 0.12” ±0.08” 2°
1-1/4 0.12” 0.12” ±0.08” 1.5°
1-1/2 0.12” 0.12” ±0.08” 1.5°
2 0.16” 0.16” ±0.12” 1.5°
Axial
Compression
Maximum
Axial
Elongation
Maximum
Transverse
Movement
Maximum
Angular
Deection
DOC: FNW30T05 Ver. 3/2012
