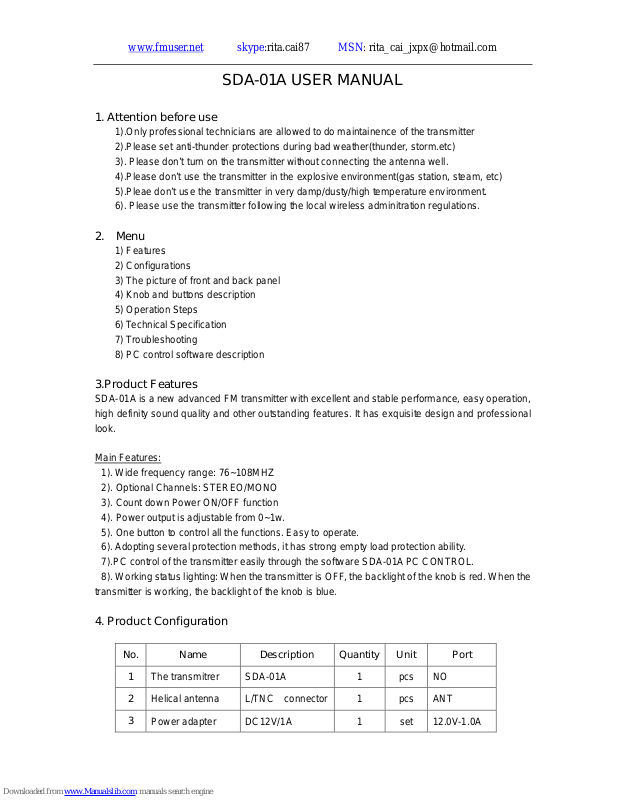

SDA-01A USER MANUAL
1. Attention before use
1).Only professional technicians are allowed to do maintainence of the transmitter
2).Please set anti-thunder protections during bad weather(thunder, storm.etc)
4).Please don’t use the transmitter in the explosive environment(gas station, steam, etc)
5).Pleae don’t use the transmitter in very damp/dusty/high temperature environment.
6). Please use the transmitter following the local wireless adminitration regulations.
2. Menu
1) Features
2) Configurations
3) The picture of front and back panel
4) Knob and buttons description
5) Operation Steps
6) Technical Specification
7) Troubleshooting
8) PC control software description
3.Product Features
SDA-01A is a new advanced FM transmitter with excellent and stable performance, easy operation, high definity sound quality and other outstanding features. It has exquisite design and professional look.
Main Features:
1). Wide frequency range: 76~108MHZ
2). Optional Channels: STEREO/MONO
3). Count down Power ON/OFF function
4). Power output is adjustable from 0~1w.
5). One button to control all the functions. Easy to operate.
6). Adopting several protection methods, it has strong empty load protection ability.
7).PC control of the transmitter easily through the software SDA-01A PC CONTROL.
8). Working status lighting: When the transmitter is OFF, the backlight of the knob is red. When the
transmitter is working, the backlight of the knob is blue.
4. Product Configuration
No.
Name Description Quantity Unit Port
1
The transmitrer SDA-01A 1 pcs NO
2
Helical antenna L/TNC connector
1 pcs ANT
3
Power adapter DC12V/1A 1 set 12.0V-1.0A
www.fmuser.net skype:rita.cai87 MSN: rita_cai_jxpx@hotmail.com
4
USB cable USB male to male
1 pcs PC Control
5
Audio cable 1
1to2 3.5mm to the Lotus plug
1 pcs LINE IN
6
Audio cable 2
3.5mm connector male to male
1 pcs
7
Microphone
3.5mm connector, Electret
1 set
8
Manual
Hardware and software manual
2 pcs NO

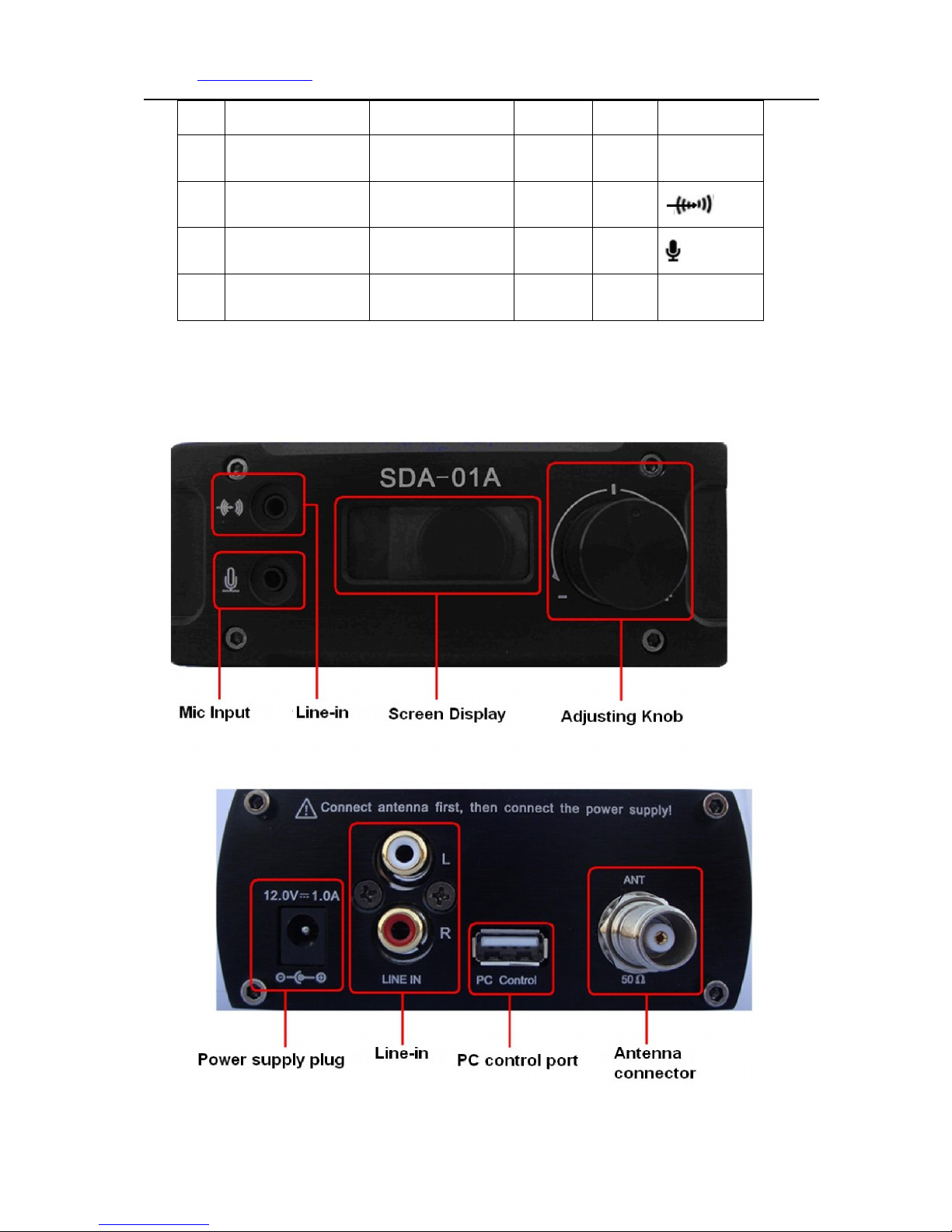

5. The Front and Back Panel of The Transmitter
1.Front Panel
2.Back Panel
www.fmuser.net skype:rita.cai87 MSN: rita_cai_jxpx@hotmail.com

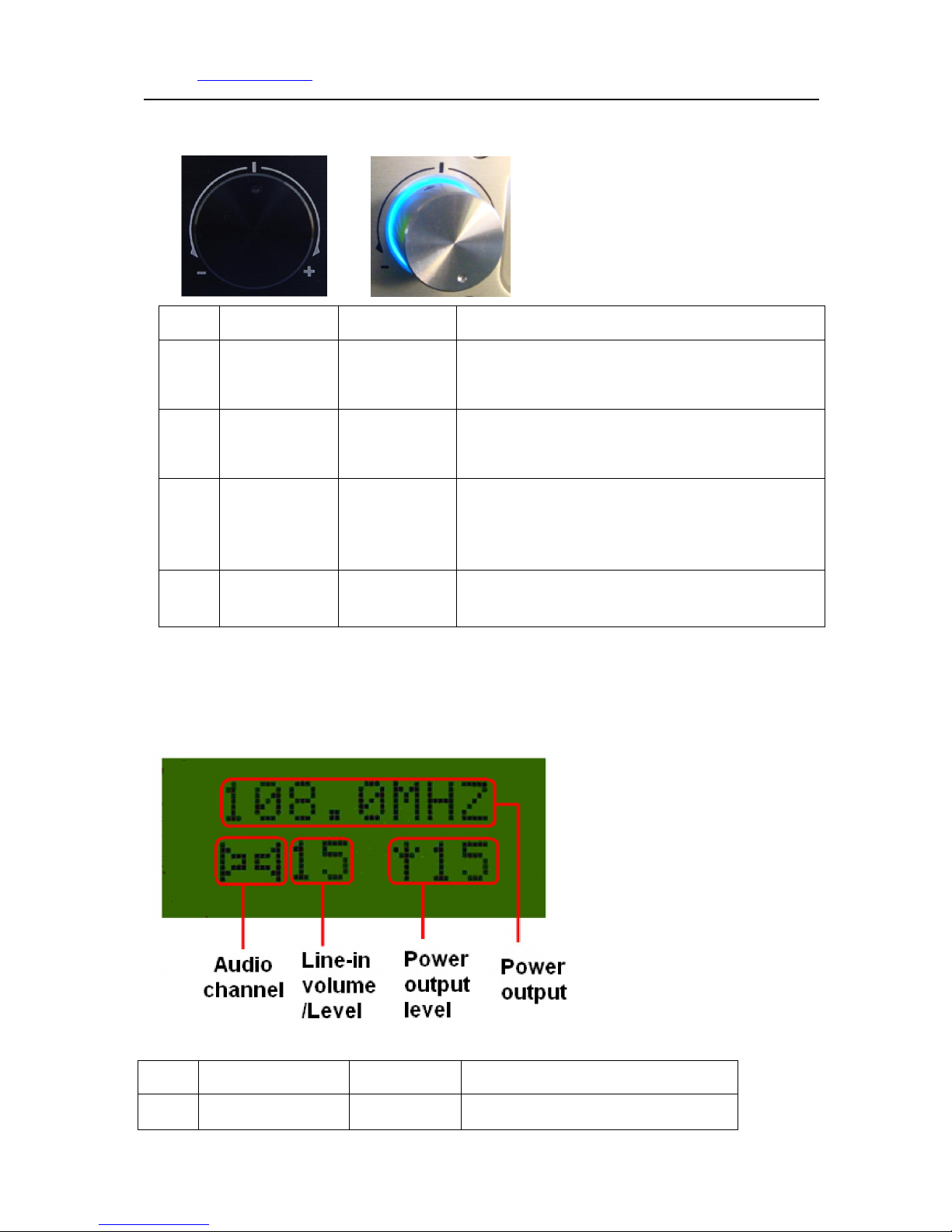

6.Knob Description
No. Operation Function Description
1 Turn Adjust
Shifting between the main page and parameter
adjusting pages, (clockwise direction means increase, Counterclockwise means reduce)
2 Short press Confirm
1Enter/Exit the adjusting page 2Restart the transmitter by short press the button at standby status.
3 Holding press
Confirm
1On the main page, press and hold the knob, the transmitter will shift to standby status. 2At standby status, press and hold the knob to enter the setting page
4 Knob backlight
Showing
working status
1 The light is red when standby 2 The light is blue when working normally
7. Operation Steps

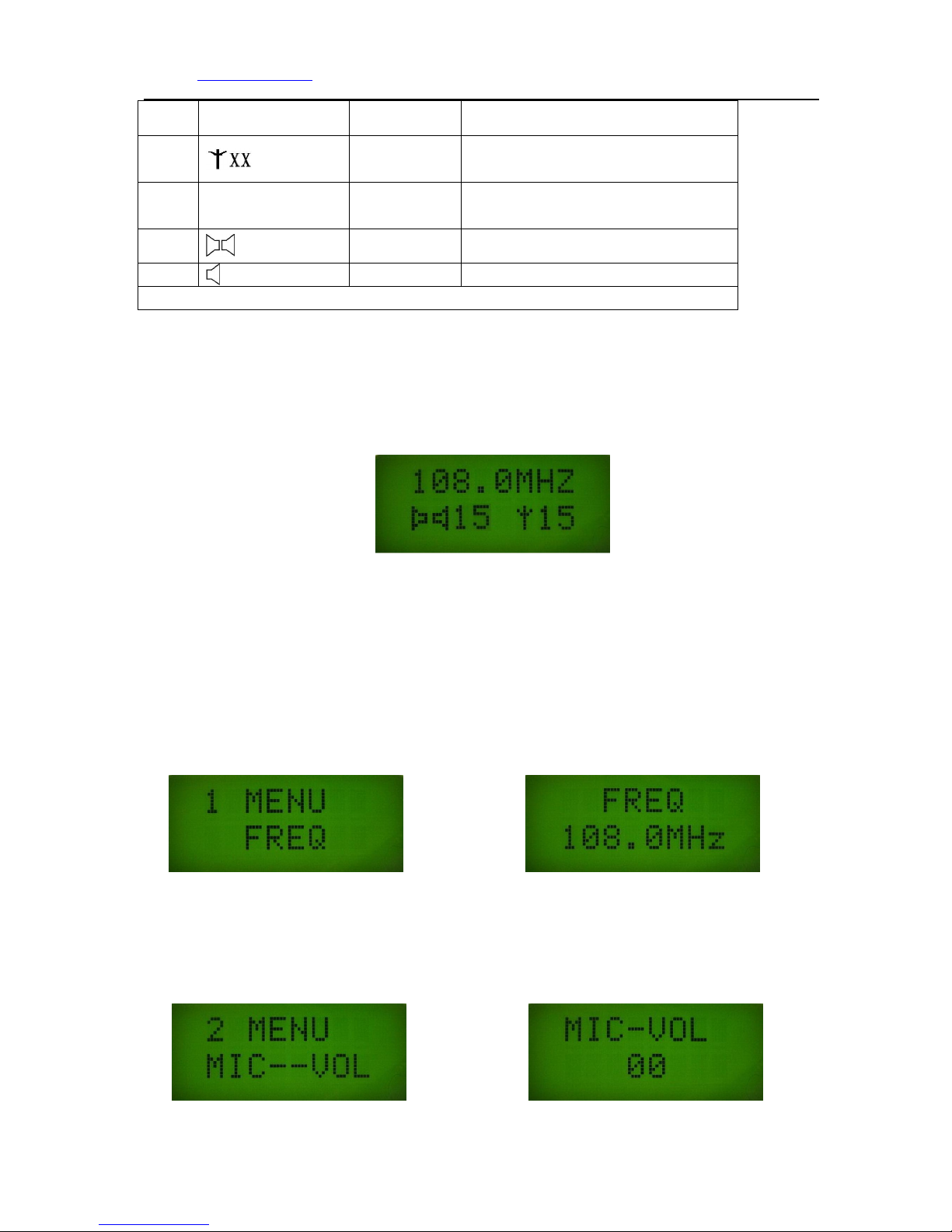

1) Main page display After power on the transmitter, the screen will show the following:
2) Main page symbol explanation
NO SYMBOL NAME DESCRIPTION
1
xxx.xMHz Frequency The current broadcasting frequency is
www.fmuser.net skype:rita.cai87 MSN: rita_cai_jxpx@hotmail.com
xxx.xMHz
2
Power Output Level
The current power output is x x level
5
x x
Line-in Volume Level
The volume of line in is x x level.
3
Stereo The audio channel is Stereo
4
Mono The audio channel is Mono
Remark: x stands for numerals
Remind: In the adjusting pages, if there is no action in 30seconds, the screen will
automatically goes back to main page.
3) Line-in Volume
When the screen is on main page(Piture-01), turn the knob between 00~
30 level to adjust the volume.
Picture-01
4) When the screen is on main page, press the knob to enter the parameter adjusting pages, there are 6 pages in total. When the screen shows 6 MENU EXIT, press the knob to exit and go back to main page.
5) Frequency adjusting1 MENU FREQ
At the page of1 MENU FREQon the screen(Picture-02), press the knob to enter frequency
adjusting page (Picture-03). Turn the knob between 76M~108M to set the frequency, press the knob to go back to the page of1 MENU FREQ】.
Picture-02 Picture-003
6) Microphone Volume Adjust2 MENU MIC
At the page of2 MENU MIC】(Picture-04),press the knob to adjust the microphone volume between 00~30 levels(picture-05), press the knob to go back to2 MENU MIC】after setting.
Picture-04 Picture-05
www.fmuser.net skype:rita.cai87 MSN: rita_cai_jxpx@hotmail.com

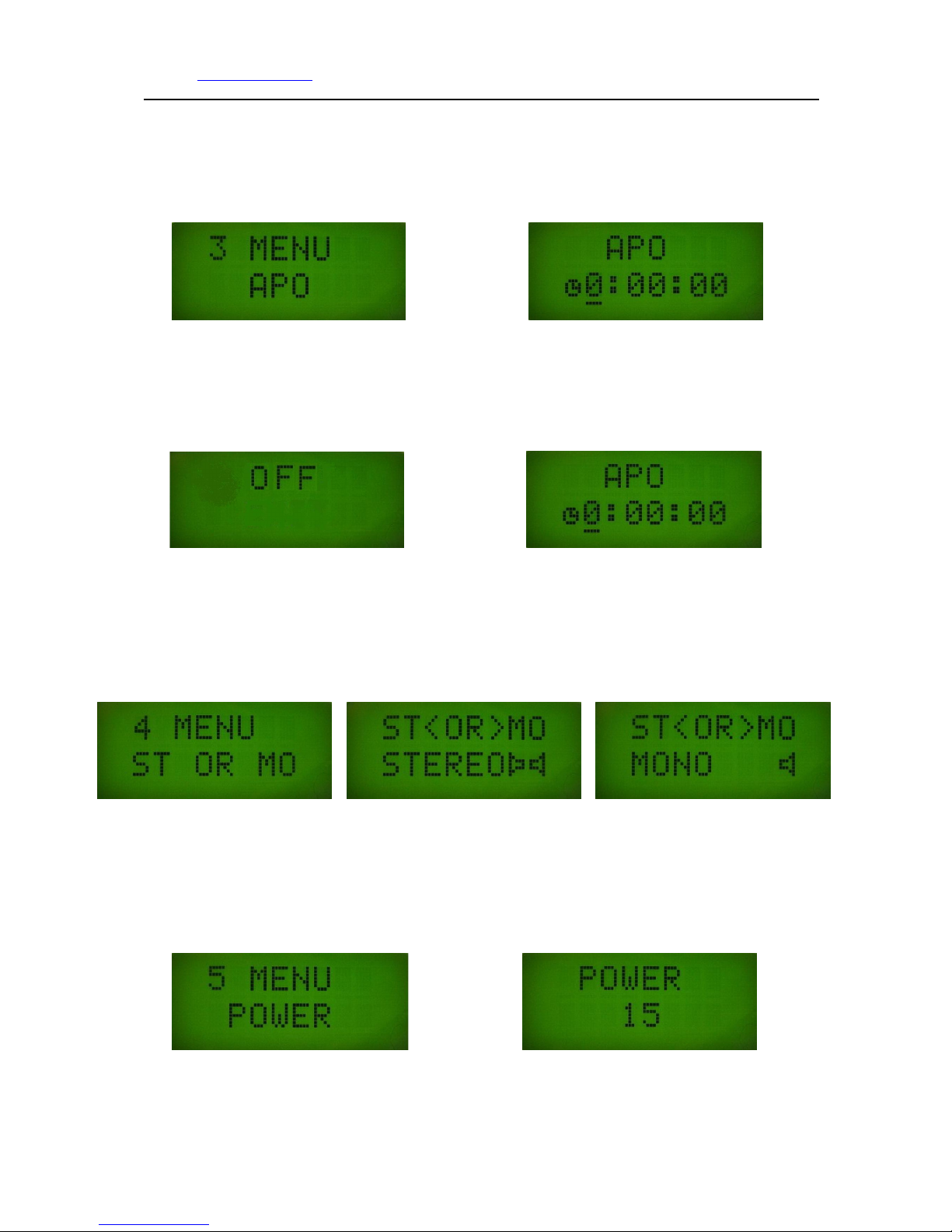

7). Scheduled Power ON/OFF【3 MENU APO
a) At the page of3 MENU APO(Picture-06),press the knob to enter scheduled Power OFF setting page,(picture-07), the time range is from 00:00:00~9:59:59(hour:minute:second).After setting, press the knob to go back to 3 MENU APOpage.
Picture-06 Picture-07
b) When the screen is showing OFF, it is in the standby status (piture-08), press and hold the knob to enter scheduled power ON page, the setting range is 00:00:00~9:59:59(hour:minute second),after setting, press the knob to confirm. The transmitter will begin scheduling power ON.
Picture-08 Picture-09
8). Audio channel shifting4 MENU ST OR MO
At the page of4 MENU ST OR MO(picture-10), press the knob to enter MONO/STEREO
shifting page(picture-11, picture-12). Turn the knob to set the channel and press it to confirm and go back to Menu page.
Picture-10 Picture-11 Picture-12
9). Power Output Adjusting5 MENU POWER
At the page of5 MENU POWER(Picture-13), press the knob to the power setting page(picture-14), turn the knob between level 00-15 to set the power output and press to confirm, then go back to the menu page.
Picture-13 Picture-14
10).Back to main page6 MENU EXIT
www.fmuser.net skype:rita.cai87 MSN: rita_cai_jxpx@hotmail.com

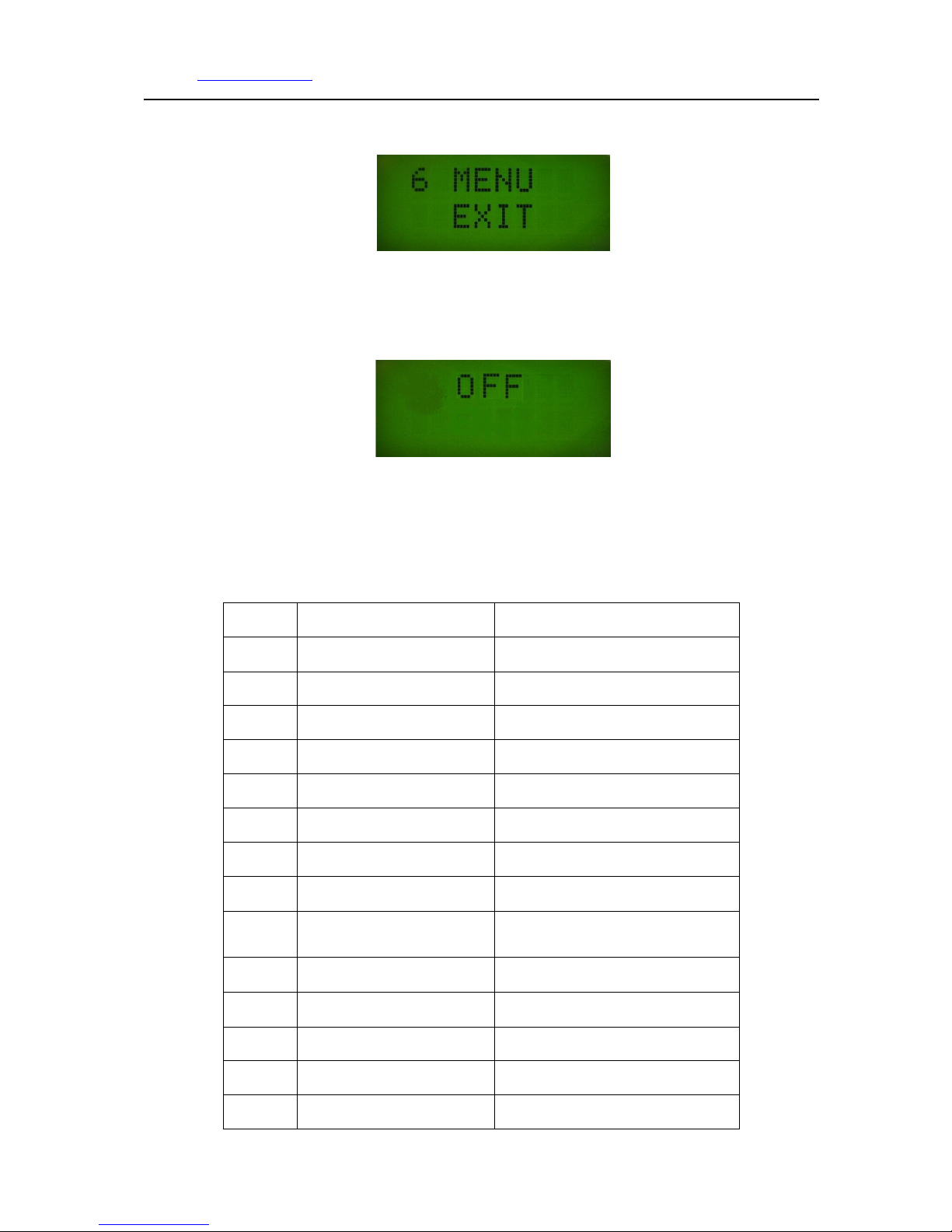

At the page of6 MENU EXIT(picture-15), press the knob to confirm and go back to main
page.
Picture-15
11). Power OFF/ON
a) At the main page, press and hold the knob to turn OFF the transmitter (picture-16).
Picture-16
b)When the transmitter is OFF, press the knob, the transmitter will return to previous working
status.
8. Technical Specification
No. Item Specification
1 Working Voltage DC12V 2 Working Current 0.5A 3 Frequency Range 76~108MHz 4 Frequency Stability ±10PPM 5 Frequency Stepping 100KHz 6 Environment Temperature
-10 ~℃ 50℃
7 Output Impedance 50Ω
8 RF power output 0W~1W
9
Harmonics, spurious
radiation
-50dB
10 Audio distortion 0.3% 11 Frequency Response 50Hz~15000Hz 12 Seperation 40 dB 13 Input level 15 dBV 14 Frequency Modulation ±75KHZ
www.fmuser.net skype:rita.cai87 MSN: rita_cai_jxpx@hotmail.com
15 SNR 60 dB
16 Size
140 ㎜(L*105㎜(W*43
H
Excluding protrusions
17 Weight 550g
9. Troubleshooting
No. Problems Possible Reasons
1
The transmitter can’t
be turned ON
1The socket is not with electricity 2Power adapter is not plugged well 3Power adapter is not standard 12V1A
2
Very short transmitting range
1Working environment is not good 2Power output is at small value 3The antenna is placed too low 4The frequency of transmitter doesn’t match that of antenna 5The reception of receiver is not good.
3
No power output
1The power output needs to be adjusted 2The transmitter is in OFF status.
4
Line-in with no sound
1The line-in volume is at low value 2The line-in signal is not normal 3The audio cable is not connected well.
5
Microphone with no sound
1The microphone is not working well 2The microphone volume is at low value 3The microphone is not Electret.
6
Audio quality is low
1The microphone has low quality
2) The audio cable has weak performance in anti-jamming 3The audio input effect is not good 4The antenna is not well installed 5The volume of audio input/transmitter/receiver is not adjusted properly.
10. PC Control software
When the transmitter is working well, use the USB cable(male to male) to connect the
transmitter and computer. Run the execute file, the transmitter will be under control of the software.
Please go to relative website to download the software and corresponding manual.
Attention: Since the antenna will be directed plugged on the transmitter, it is very near to the controlling computer, there might be interference to the computer and possibly cause non-function
www.fmuser.net skype:rita.cai87 MSN: rita_cai_jxpx@hotmail.com
of the software. Thus if this problem happens, please change to another computer with higher configuration, or use other indoor antennas to keep away from the transmitter and computer.
