FUTV4440B 4-in-1 QAM Modulator

User Manual

Version: 1.0

Date :2015.06.16

NMS Version: 5.12.3 SW: V1.04 HW: V1.8

FMUSER International Group Inc.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

2 / 57

Directory

Chapter 1 Product Outline ............................................................................... 3

1.1 Outlines ................................................................................................................. 3

1.2 Features ................................................................................................................. 4

1.3 Specifications ....................................................................................................... 5

2.1 Front panel ............................................................................................................ 6

2.2 Rear Panel: (The 4-in-1 QAM modulator can take various RF inputs of

DVB-S/DVB-C/DVB-S2 signals by installing the relevant build-in tuners or ASI

input optional.) ............................................................................................................ 6

Chapter 3 Installation Guide............................................................................ 9

3.1 Acquisition check ................................................................................................. 9

3.2 Installation Preparation ....................................................................................... 9

Chapter 4 Operation ....................................................................................... 14

4.1 Operation ............................................................................................................. 14

4.2 Main Interface ..................................................................................................... 14

Chapter 5 NMS Setting ................................................................................... 32

5.1 Installation ........................................................................................................... 32

5.2 Software Operation ............................................................................................ 32

5.3 FUTV4440B 4in1 QAM Modulator Operation ................................................... 39

Chapter 6 Troubleshooting ........................................................................... 56

Chapter 7 Packing List ................................................................................... 57

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

3 / 57

Chapter 1 Product Outline

1.1 Outlines

FUTV4440B 4 in 1 QAM is a cost effective integrated QAM modulator newly designed by FMUSER Company. This device is integrated up to 4 channel QAM modulating carrier outputs, in which each carrier has independent signal channel encoding and direct RF output. Therefore, the device is featured with excellent RF performance index. It supports 4 channel ASI inputs (4 QAM (J.83 A/B/C), 4 DVB-S tuner input or 4 DVB-S2 tuner input). Alternatively, this device can take various RF inputs of DVB-S/DVB-C/DVB-S2 signals by installing the relevant build-in tuners. Hence, one PCS 4 in 1 QAM modulator can work as 4 standalone QAM modulators, significantly reducing the

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

4 / 57

network operators’ head-end cost. FUTV4440B can also support local and remote control to set its working parameters.

1.2 Features

l Fully comply with DVB-C (EN300 429) and ITU-T J.83A/B/C; l 4 adjacent channel QAM carrier wave l 4 channels ASI input (4 QAM (J.83 A/B/C), 4 DVB-S tuner input or 4

DVB-S2 tuner input) and support 188/204 byte TS packet

l DVB-S/DVB-S2/DVB-C RF input (optional) l Support accurate PCR adjusting l Support five QAM constellation(ITU-T J.83A) modes: 16/32/64/128/256

QAM,

l Support QAM constellation(ITU-T J.83B/ITU-T J.83C) modes: 64

/256QAM

l Symbol rate adjustment range: 5.0Mbps~9.0Mbps l Support PSI/SI editing function l RF output range: 30MHz~960MHz in 1.0 kHz step l RF ATT range: -16dBbm~0dBm in 0.5dB step l Support input de-multiplexing and PSI/SI editing l Support LCD display and keyboard l Excellent RF output performance index, MER≥40db l Support network management(NMS/SNMP)

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

5 / 57

1.3 Specifications

Input

4 ASI input FUTV4440B-A 4 DVB-C tuner input FUTV4440B-C 4 DVB-S tuner input FUTV4440B-S

4 DVB-S2 tuner input FUTV4440B-S2

Modulation parameters

QAM channel 4 Standard DVB-C(EN300 429)and ITU-T J.83A/

ITU-T J.83B/ ITU-T J.83C Symbol rate 5.0~9.0Mbps, 1kbps stepping Constellation 16 / 32 / 64 / 128 / 256QAM FEC RS(204, 188)

RF Output

Interface F type, 75Ω impedance

Frequency range 30~960 MHz, 1khz stepping Output level

-16dbm~0dbm(per QAM carrier) 0.5db

stepping MER ≥ 40db ACLR − 55 dBc

System

Support LCD display, keyboard operation, and NMS/SNMP operation English and Chinese version interface conversion

Support Software Upgrading through Ethernet

General

Dimensions(W×L×H) 482mm×455mm×44.5mm

Approx weight 3.2Kg Temperature range 0~45℃(Operating),-20~80℃(Storage)

Power Requirements

AC 110V±10%, 50/60Hz

AC 220V±10%, 50/60Hz Power consumption

≈25W

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

6 / 57

Chapter 2 Appearance and Illustration

Indicator area: All the indicators will light on when the 4 in1 QAM modulator works at current state.

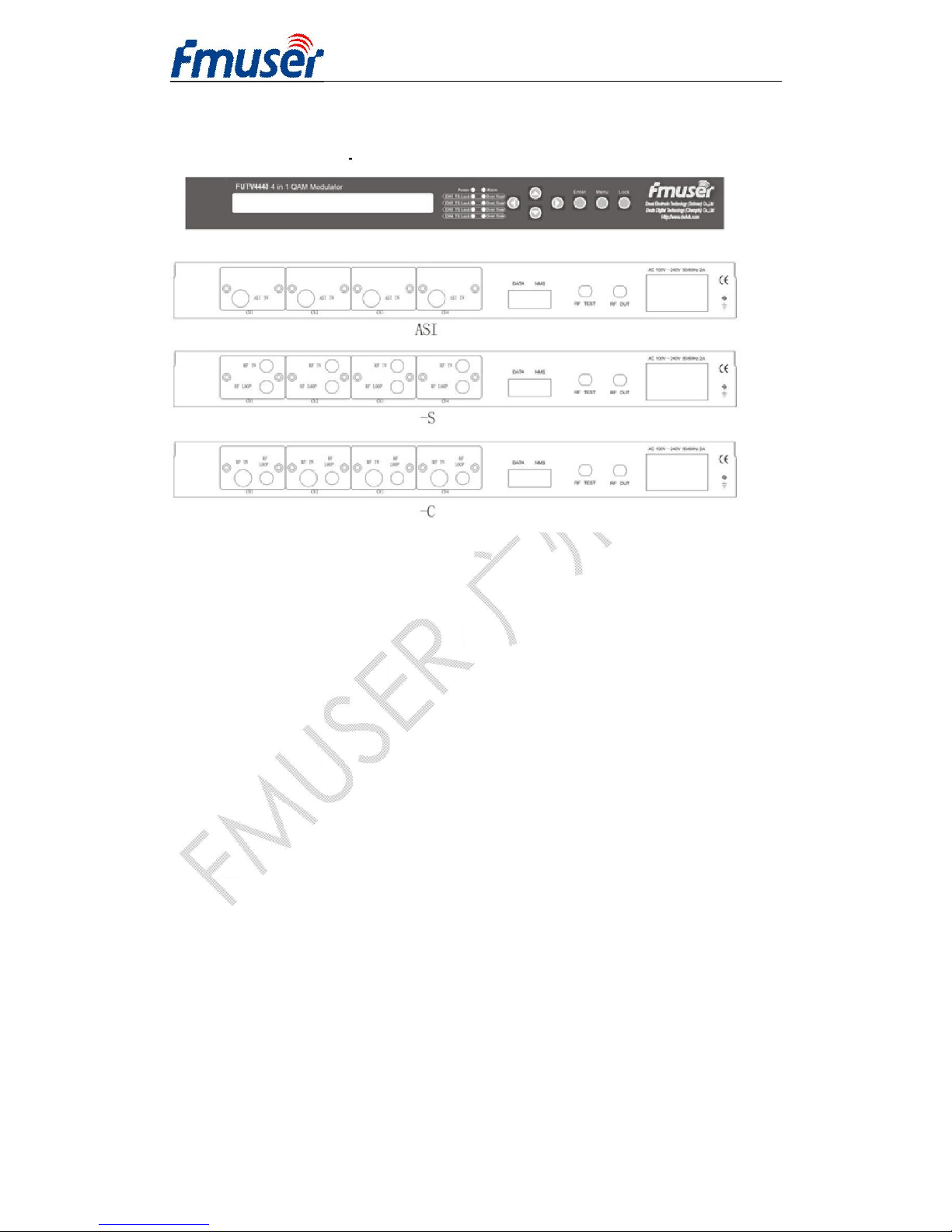

2.1 Front panel

2.2 Rear Panel

: (The 4-in-1 QAM modulator can take various

RF inputs of DVB-S/DVB-C/DVB-S2 signals by installing the relevant build-in tuners or ASI input optional.)

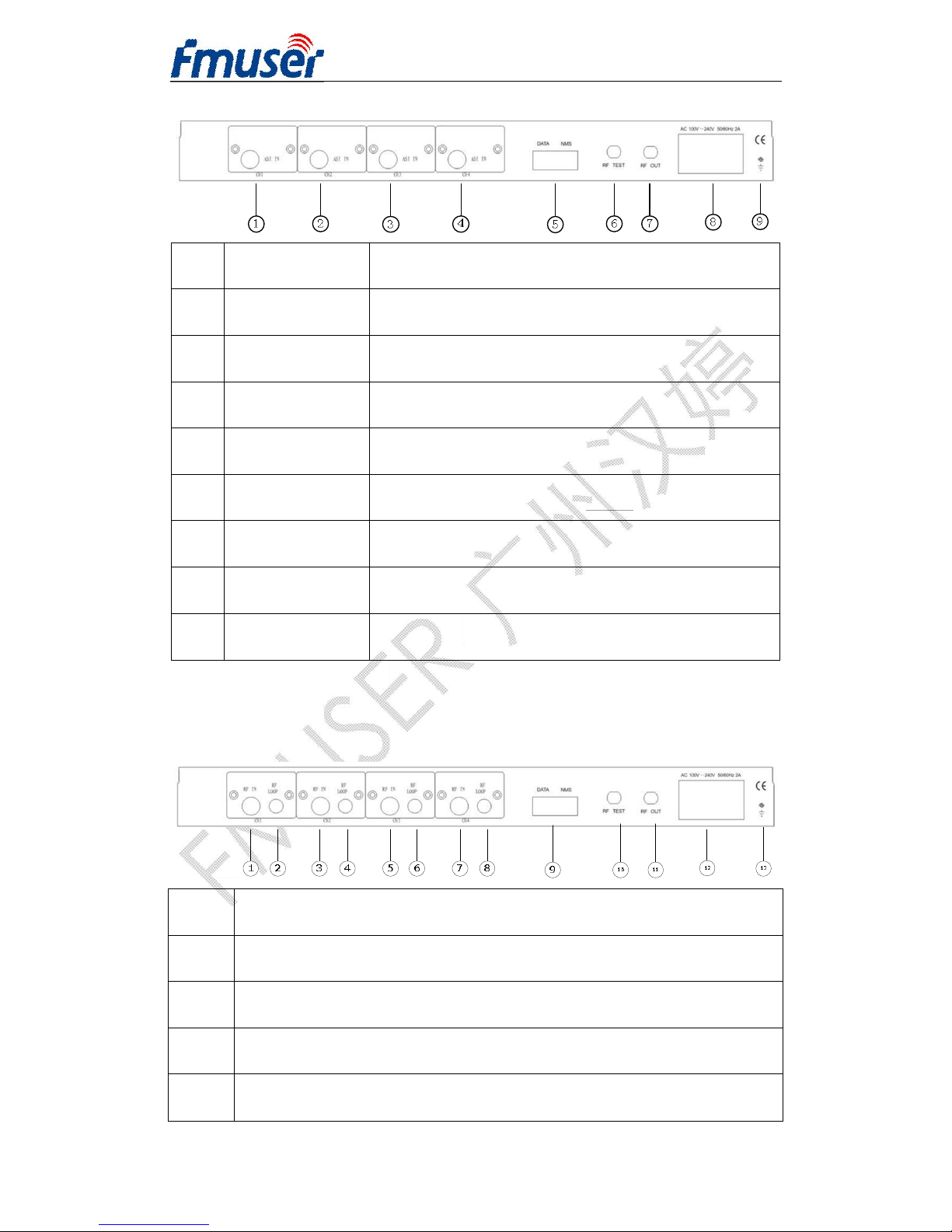

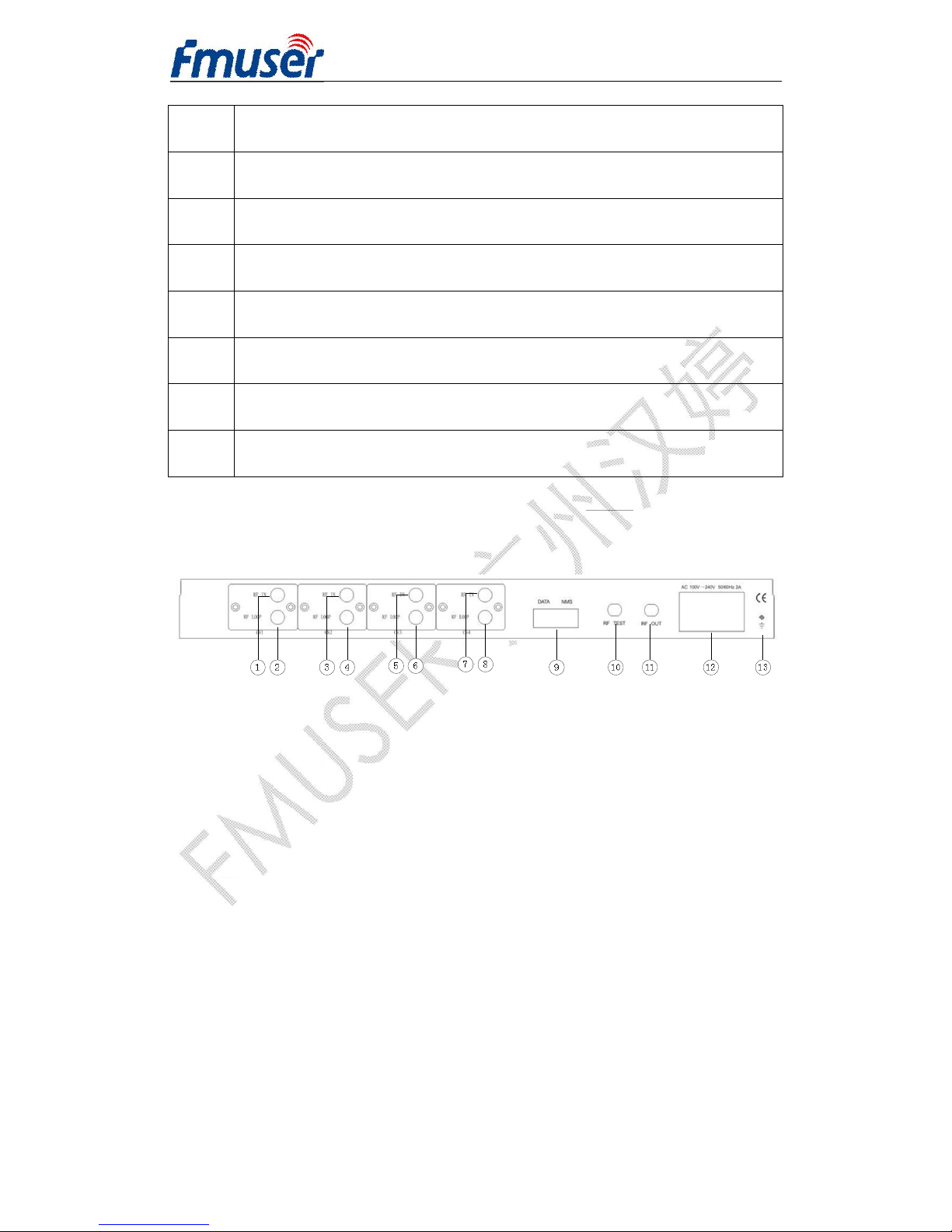

2.2.1 Rear Panel (ASI In)

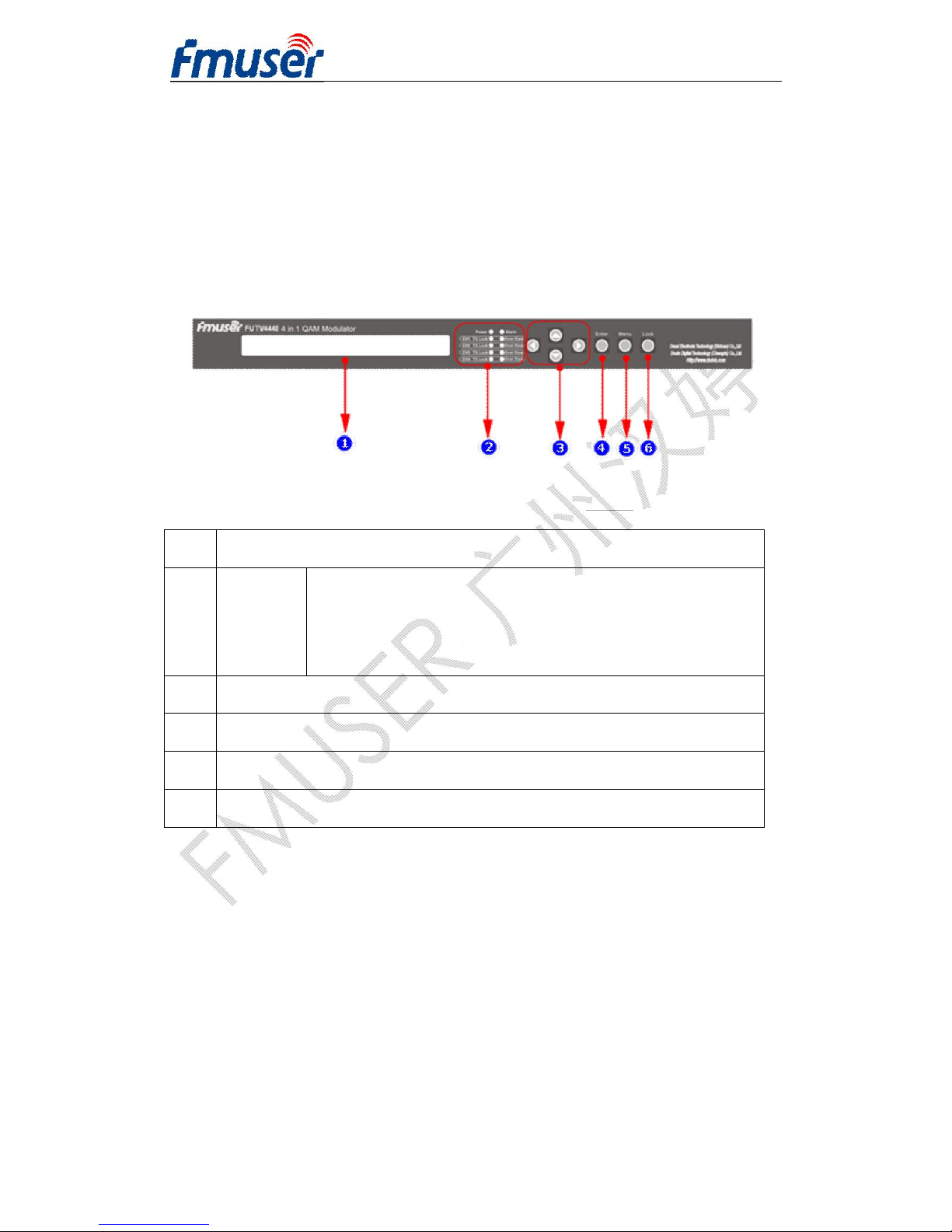

1 LCD Display

2

Indicator Area

POWER：Power Indicator

Alarm：Alarming Indicator CH1/2/3/4 TS Out：Transportation Stream Indicator CH1/2/3/4 Over flow：Over Flow Indicator

3 Up/Down/Left/Right Key 4

Enter：Confirmation Key 5 Menu Key 6 Locking Key

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

7 / 57

1

ASI IN 1 ASI Input Channel 1

2

ASI IN 2 ASI Input Channel 2

3

ASI IN 3 ASI Input Channel 3

4

ASI IN 4 ASI Input Channel 4

5

Ethernet DATA Port & NMS Port

6

RF TEST RF Test Interface

7

RF OUT RF Out Interface

8

Power Power Socket

9

Grounding Grounding Pole

2.2.2 Rear Panel (DVB-C In)

1 RF IN 1: RF In Channel 1 2 LOOP OUT 1: Loop Out Channel 1 3 RF IN 2: RF In Channel 2 4 LOOP OUT 2: Loop Out Channel 2 5 RF IN 3: RF In Channel 3

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

8 / 57

6 LOOP OUT 3: Loop Out Channel 3 7 RF IN 4: RF In Channel 4 8 LOOP OUT 4: Loop Out Channel 4 9 Ethernet: DATA Port & NMS Port 10

RF Test: RF Test Interface

11

RF out: RF output interface

12

Power Socket

13

Grounding pole

2.2.3 Rear Panel (DVB-S/S2 In)

The rear panel description is same as 2.2.2 DVB-C in.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

9 / 57

Chapter 3 Installation Guide

3.1 Acquisition check

When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:

l FUTV4440B 4IN1 QAM Modulator l User’s Manual l AC Power Cord l ASI/Tuner wire

If any item is missing, please inform local dealer.

3.2 Installation Preparation

When users install device, please follow the below steps. The details of installation will be described at the rest part of this chapter. Users can also refer rear panel chart during the installation. The main content of this chapter including: Checking the possible device missing or damage during the transportation Preparing relevant environment for installation Installing 4IN1 QAM modulator Connecting signal wires

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

10 / 57

Connecting communication port (if it is necessary)

3.2.1 Device’s installation flow chat illustrated as following

3.2.2 Environment Requirement

Item Requirement

Machine hall space

When user install machine frame array in one machine hall, the distance between 2 row of machine frames should be 1.2~1.5m and the distance to wall should be no less than 0.8m。

Machine hall floor

Electric Isolation, Dust Free Volume receptivity of ground anti-static material:1×10

7

~1×10

10Ω

,Grounding current

limiting resistance: 1MΩ。 Floor bearing should be greater than 450Kg/m2。

Environment temperature

5~40°C sustainable，0~45°C short time

installing air-conditioning is recommended Relative Humidity 20%~80% sustainable 10%~90% short time Pressure 86~105KPa

Door & window

Installing rubber strip for sealing door-gaps and

dual level glasses for window Wall

It can be covered with wallpaper, or bright less

paint. Fire protection Fire alarm system and extinguisher

Power

Requiring device power, air-conditioning power

and lighting power are independent to each

other. Device power requires AC power 220V

50Hz. Please carefully check before running.

3.2.3 Grounding Requirement

All function modules’ good grounding designs are the base of reliability and stability of device. Also, they are the most

Connecting

Grouding Wire and

Power

Cord

Acquisition

Check

Fixing

Device

Setting

Parameter

Running

Device

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

11 / 57

important guarantee of lightning arresting and interference rejection. Therefore, system must follow this rule:

1. Coaxial cable’s outer conductor and isolation layer should keep sound electric conducting with the metal housing of device.

2. Grounding conductor must adopt copper conductor in order to reduce high frequency impedance, and the grounding wire must be as thick and short as possible.

3. The 2 terminals of grounding wire must make sure for well electric conducting, and process for antirust.

4. It is prohibited that users use other devices as part of grounding wire’s electric circuit

3.2.3.1 Frame Grounding

All the machine frames should connect to protective copper strip. The grounding wire should be as short as possible and avoid circling. The section of the conjunction between grounding wire and grounding strip should be equal or greater than 25mm2.

3.2.3.2 Device Grounding

User can connect the device’s grounding rod to frame’s grounding strip with copper wire.

3.2.4 Wires’ Connection

The power supply outlet is located at the right of rear panel, and the power switch is just above it. The protective grounding wire

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

12 / 57

connective screw is located at the down-right side of power supply outlet.

1. Connecting power cord

2. User can insert one end into power supply outlet, while insert the other end to AC power.

3. Connecting grounding wire

4. When the device solely connects to protective ground, it should adopt independent way, say, sharing the same ground with other devices. When the device adopts united way, the grounding resistance should be less than 1Ω

F

Caution:

Before connecting power cord to 4IN1 QAM modulator, user should set the power switch to “OFF”.

3.2.4.1 Signal wire connection of ASI IN

The data input cable of 4IN1 QAM Modulator is ASI cable, while the output cable is the normal 75 Ω coaxial cable. The illustration is as below: (The device can only be operated through NMS.)

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

13 / 57

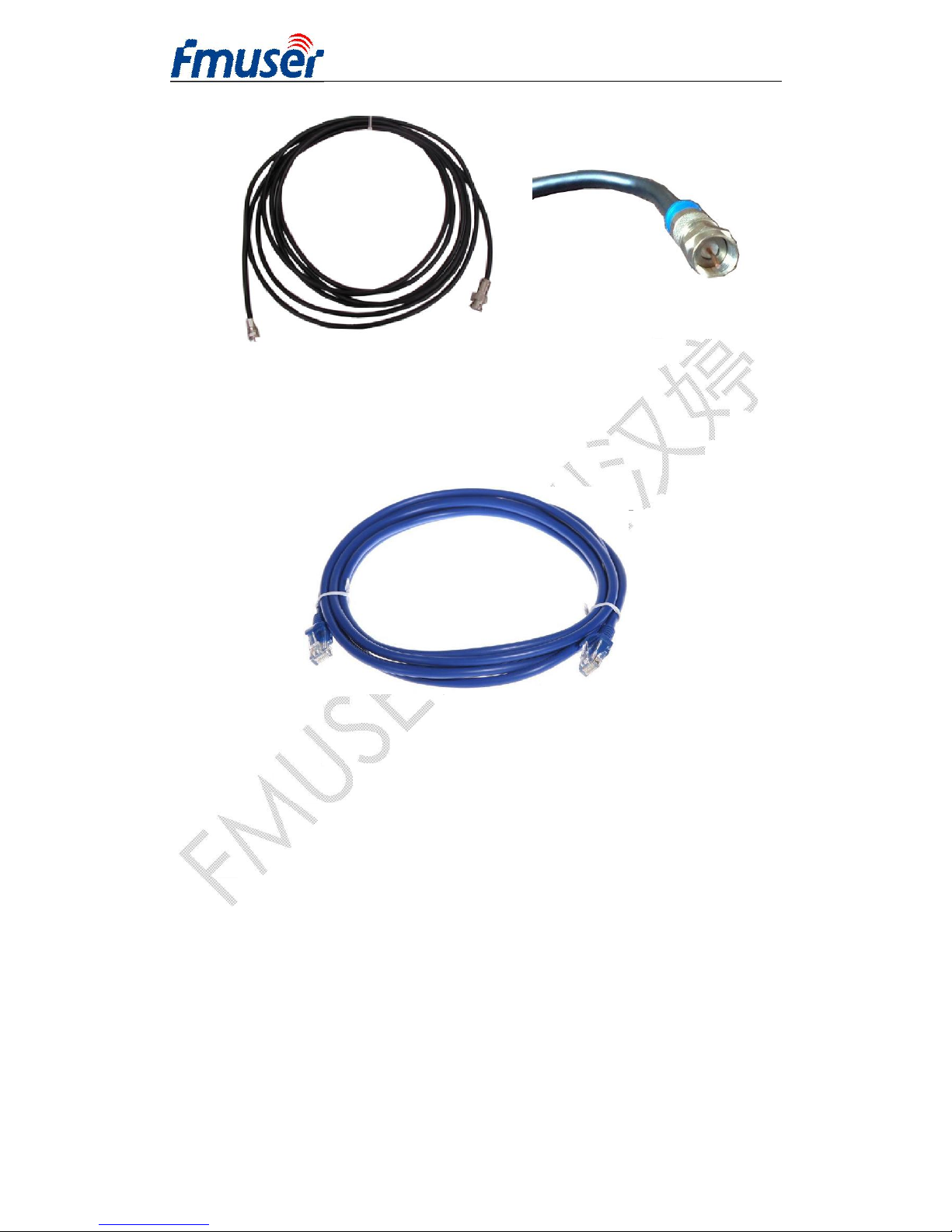

ASI cable coaxial cable (user-owned)

Network cable (user-owned)

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

14 / 57

Chapter 4 Operation

4.1 Operation

FUTV4440B 4in1 QAM modulator’s front panel is user operation interface. Before operating, user can decide whether directly use the default setting or customize the input and output parameters setting. The detail operations go as follows:

Keyboard Function Description:

MENU: Canceling presently entered value, resuming previous setting; Return to previous menu. ENTER: Activating the parameters which need modifications, or confirming the change after modification.

LEFT/RIGHT: To choose and set the parameters. UP/DOWN: Modifying activated parameter or paging up/down

when parameter is inactivated. LOCK: Lock the screen / cancel the lock state. After pressing “LOCK” key, the system will question the users to save present Setting or not. If not, the LCD will display the current Configuration state.

4.2 Main Interface

After switching on the modulator, the LCD will display the following page:

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

15 / 57

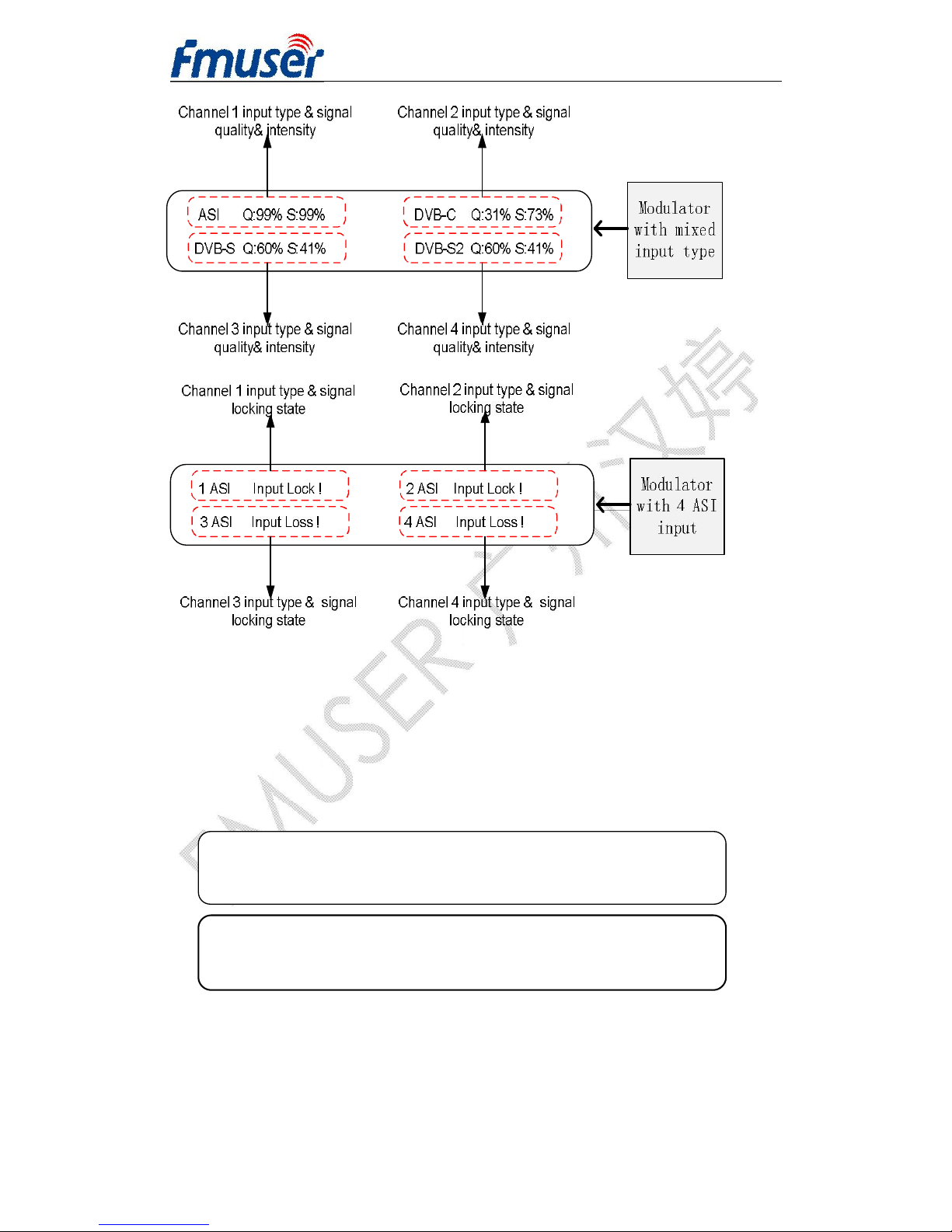

The main interface is at “Locking” state after starting up. The main interface and parameters are displayed as follows (figure 1 and figure 2): After switching on, the LCD will alternatively display the figure 1 and figure 2. User can press “Lock” key to enter into the main menu. As display shown, the first row is the output frequency and inputting real-time bit rate of channel 1 and channel 2, while the second row is channel 3 and channel 4’s.

Figure 1

Loading, please wait: >>>>>>>>>>>>>>>>

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

16 / 57

Figure 2

4.2.1 General Setting

Press “LOCK” key to enter the main menu, the LCD will display the following pages:

By pressing UP/DOWN/LEFT/DOWN key to choose the specified menu item, then pressing ENTER to enter the

►

1 System Setting 2 Channel Setting

3 Network Setting 4 Saving Config

►

5 Loading Config 6 Version

7 Language select

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

17 / 57

submenu.

4.2.2 System Setting

User can press ENTER to choose this item, UP/DOWN/LEFT/RIGHT to set the parameters of the output RF. The system displays following pages:

4.2.2.1 Frequency

It refers to “start frequency”. After entering the submenu by pressing ENTER key, user can set the start frequency by moving the UP/DOWN/LEFT/RIGHT key and then repressing ENTER to save.

The RF output range is from 48MHz~860MHz with 6/8M bandwidth. More details will be inllustrated in the NMS operation.

►

1.1 Frequency 1.2 Modulate Mode

1.3 Constellation 1.4 Symbol Rate

1.1.1 Frequency

586.00 MHz

1.1.1 Frequency

586.00 MHz

►

1.5 Bandwidth 1.6 RF Level

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

18 / 57

4.2.2.2 Modulate Mode

Press “Modulate Mode” to enter the interface to select one modulate standard according to the content displayed. As the FUTV4440B modulator supports J.83A/DVB-C, J.83B, and J.83C standard, the display shows as below:

4.2.2.3 Constellation

Press “Constellation” to enter the QAM modulation mode selection, ENTER to the specified setting. The display shows as below:

There possible options are different according to the different modulate standard set in 1.2. (J.83A/DVB-C: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM; J.83B: 64QAM and 256QAM; J.83C: 64QAM and 256QAM). User can press ENTER and move UP/DOWN key to choose the constellation as needed, and then repress ENETER after modification to confirm. Note: The more advanced QAM constellation mode, the higher transmission efficiency and TS coding rate which the device can

1.3.1 Constellation J.83A/DVB-C 64QAM

1.2.1 Modulate Standard [ J.83A/DVB-C ] J.83B J.83C

This is the modulate mode selected in menu 1.2. It displays different content according to the mode selected in menu 1.2.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

19 / 57

transport at the same symbol rate. Accordingly, with the TS coding rate increasing, the signals’ anti-jamming capability will become weaker. Hence, those wired network currently in effect usually adopt QAM modulation mode no exceeding 64QAM. What needs to be pointed out is, the effective coding rate this modulator can transport is limitary when the device works as different constellations and symbol rates. User can refer to the formula as below: Max_input_bitrate = Symb_rate*qam_bits*188/204 Max input bit rate: the maximum effective inputting coding rate Symb rate: the symbol rate Qam_bits: the QAM bit when device works as current constellation (user can refer to the following table when device works as 6.875Msps symbol rate):

Constellation

qam_bits

（bit/symb）

Symb_rate

（Msps）

Max_input_bitrate

（Mbps）

16 4

6.875

25.343

32 5 31.679

64 6 38.015

128 7 44.350

256 8 50.686

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

20 / 57

4.2.2.4 Symbol Rate

After entering the submenu by pressing ENTER key, user can set the symbol rate by moving the UP/DOWN/LEFT/RIGHT key and then repressing ENTER to confirm.

The symbol rate range is from 5.0~7.0 Msps in 1ksps step. Note: When users choose 6M as the frequency point bandwidth, the symbol rate should not exceed 5.217Msps; When users choose 8M as the frequency point bandwidth, the symbol rate should not exceed 6.956Msps.

4.2.2.5 Bandwidth

After entering the submenu by pressing ENTER key, user can set the bandwidth by moving the LEFT/RIGHT key and then repressing ENTER to confirm.

There are two possible options: 6MHz and 8MHz.

Therefore, the frequency interval should be integral multiple of

►

1.4.1 Symbol Rate

6

.875Msps

►

1.5.1 Bandwidth

*8MHz 6MHz

►

1.5.1 Bandwidth

?8MHz 6MHz

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

21 / 57

6MHz/8MHz. User can refer to the formula as below: RF_BW=symb_rate*(1+roll_off)

RF_BW：Frequency bandwidth symb_rate：Symbol rate roll_off：Roll off factor（according to EN300429/ITU-T J.83A， the roll off factor is 0.15） As the formula shown, user should set the symbol rate no exceeding 5.214Msps/6.956Msps to ensure the bandwidth for each channel no more than 6MHz/8MHz.

4.2.2.6 RF Level (Out Power/General attenuation setting)

After entering the submenu by pressing ENTER key, user can set the general attenuation by moving the UP/DOWN/LEFT/RIGHT key and then repressing ENTER to confirm.

The total level attenuation range is from 0~31.5db in 0.5db step.

4.2.3 Channel Setting

User can select “Channel setting” in the main interface and then press ENETR to set the channel. The display show as below:

►

1.6.1 Out Power

+00.0 dBm

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

22 / 57

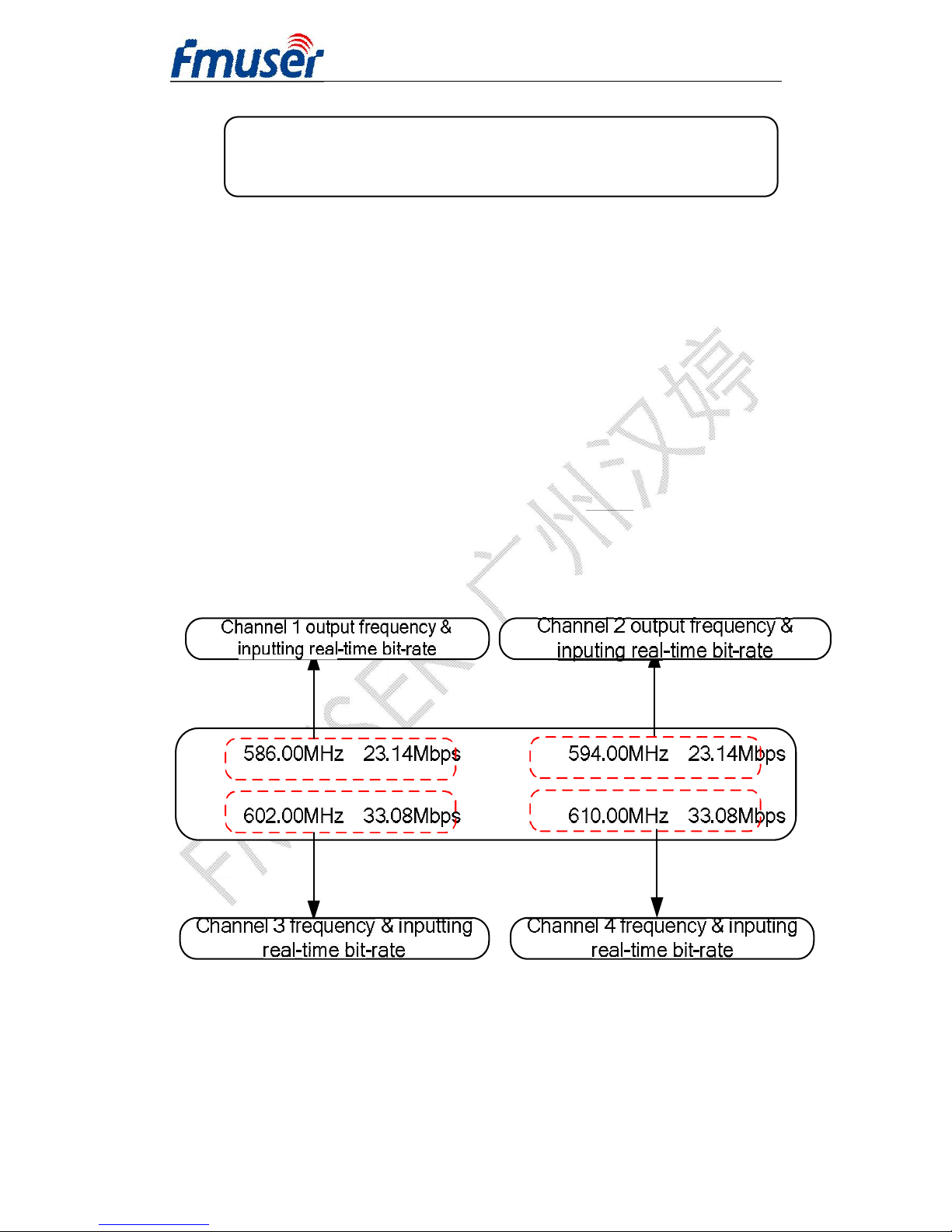

(To illustrate the 4 input options (ASI, DVB-C/S/S2), here we take channel 1 as ASI Input, channel 2 as DVB-C Input, channel 3 as DVB-S Input and Channel 4 as DVB-S2 Input.)

4.2.3.1 Channel 1 (ASI Input as an example)

User can choose channel 1 in the submenu by pressing ENTER, and the display shows as below:

4.2.3.1.1 Output carrier

User can decide whether to turn on the channel 1’s output carrier. By pressing ENTER after selecting the “Output Carrier”, moving the LEFT/RIGHT key to set, repressing ENTER to confirm.

Note: This submenu is used for turning on or turning off the carrier output of channel 1.

4.2.3.1.2 Output attenuation in channel 1

►

2.1 Channel 1 2.2 Channel 2

2.3 Channel 3 2.4 Channel 4

►

2.1.1 Output Carrier 2.1.2 Attenuation

2.1.3 NIT Insertion 2.1.4 PID Filtering

2.1.1.1 Output Carrier *On Off

2.1.1.1 Output Carrier ?On Off

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

23 / 57

By pressing ENTER to enter into the attenuation setting in channel 1 submenu, repressing ENTER and moving UP/DOWN/LEFT/RIGHT key to set the parameters. The display shows as below:

The channel 1 output level attenuation is from 0~16db in 0.5db step.

4.2.3.1.3 NIT insertion

By pressing ENTER to enter into the NIT Insertion in channel 1 submenu, repressing ENTER key and moving LEFT/RIGHT key to choose. The display shows as below:

Note: User can decide whether to make the inserted NIT table effective.

4.2.3.1.4 PID filtering

2.1.2.1 Attenuation

00.0 dB

2.1.2.1 Attenuation

00.0 dB

2.1.3.1 NIT Insertion On *Off

2.1.3.1 NIT Insertion On ?Off

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

24 / 57

PIDs can take up immense bandwidth when passing the signal channels. This device provides user the function to filter some redundant PIDs as need. The display shows as below: On: filtering Off: allow passing

User can move LEFT/RIGHT key to choose.

NOTE: User can decide whether to enable or disable the PID filtering function.

4.2.3.2 Channel 2 (DVB-C In as an example)

User can choose channel 2 in the submenu by pressing ENTER, and the display shows as below:

4.2. 3.2.1 Output Carrier

same as 4.2.3.1.1

4.2.3.2.2 Attenuation

same as 4.2.3.1.2

4.2.3.2.3 NIT Insertion

same as 4.2.3.1.3

2.2.1 Output Carrier 2.2.2 Attenuation

2.2.3 NIT insertion 2.2.4 PID filtering

2.1.4.1 PID Filtering *On Off

2.1.4.1 PID Filtering ?On Off

2.2.5 Frequency 2.2.6 QAM modulation mode

2.2.3 symbol rate

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

25 / 57

4.2.3.2.4 PID Filtering

same as 4.2.3.1.4

4.2.3.2.5 Frequency

By pressing ENTER to enter into the Frequency in channel 2 submenus, repressing ENTER key and moving LEFT/RIGHT key to choose. The display shows as below:

Note: The submenu is only for setting the frequency of DVB-C signal.

4.2.3.2.6 QAM modulation mode

By pressing “ENTER” to select the modulation mode via the “UP” and “DOWN” button. The optional mode is 16QAM, 32QAM, 64 QAM, 128 QAM, 256 QAM. After modifying, pressing the “Enter” button to confirm.

4.2.3.2.7 Symbol rate

After entering the symbol rate setting of channel 2, user can set

2.2.5 Frequency

586.00Mhz

2.2.5 Frequency

586.00Mhz

2.2.6 QAM modulation mode 64 QAM

2.2.6 QAM modulation mode

64QAM

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

26 / 57

the symbol rate by moving the UP/DOWN/LEFT/RIGHT key and then repressing ENTER to confirm.

Note: The submenu is only used for demodulating the symbol rate of DVB-C signal.

4.2.3.3 Channel 3 (DVB-S In as an example)

User can choose “channel 3” in the submenu by pressing ENTER, and the display shows as below:

4.2.3.3.1 Output Carrier

same as 4.2.3.1.1

4.2.3.3.2 Attenuation

same as 4.2.3.1.2

4.2.3.3.3 NIT Insertion

same as 4.2.3.1.3

4.2.3.3.4 PID filtering

same as 4.2.3.1.4

►

1.3.1 Symbol Rate

6.875Msps

►

1.3.1 Symbol Rate

6.875Msps

2.3.1 Output Carrier 2.3.2 Attenuation

2.3.3 NIT insertion 2.3.4 PID filtering

2.3.5 Downlink Frequency 2.3.6 LNB frequency

2.3.7 Symbol Rate 2. 3.8 LNB Voltage

2.3.9 22 KHZ switch

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

27 / 57

4.2.3.3.5 Downlink Frequency

By pressing ENTER to enter into the “Downlink Frequency” in channel 3 submenus, repressing ENTER key and moving LEFT/RIGHT key to choose. The display shows as below:

Note: The submenu is only for setting the downlink frequency of the DVB-S signal needed to be demodulated.

4.2.3.3.6 LNB Frequency

By pressing ENTER to enter into the “LNB Frequency” in channel 3 submenus, repressing ENTER key and moving LEFT/RIGHT key to choose. The display shows as below:

Note: The submenu is only for setting the LNB frequency of the DVB-S signal needed to be demodulated.

4.2.3.3.7 Symbol Rate

After entering the submenu of “ Channel 3” by pressing ENTER key,

2.3.5 Downlink Frequency 03840 MHz

2.3.6 LNB Frequency 05150Mhz

2.3.6 LNB Frequency 051500Mhz

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

28 / 57

user can set the symbol rate by moving the UP/DOWN/LEFT/RIGHT key and then repressing ENTER to confirm.

Note: the submenu is only for setting the symbol rate of the DVB-S signal needed to be demodulated.

4.2.3.3.8 LNB Voltage

By pressing ENTER to enter into the “LNB Voltage” in channel 3 submenus, repressing ENTER key and moving LEFT/RIGHT key to set. The display shows as below:

By pressing “Enter” key, the “*” state will be changed to the to be selected state.

Note: The submenu is only for setting the “LNB Voltage” of the DVB-S signal needed to be demodulated.

►

2.3.7 Symbol Rate

27.500Msps

►

2.3.7 Symbol Rate

27.500Msps

2.3.8 LNB Frequency * V (13V) H (18V)

2.3.8 LNB Frequency V (13V) * H (18V)

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

29 / 57

4.2.3.3.9 22KHZ Switch

By pressing ENTER to enter into the “22 KHZ Switch” in channel 3 submenu, repressing ENTER key and moving LEFT/RIGHT key to set. The display shows as below:

By repressing “Enter” key, the “*” state will be turned into the to be selected state “?”.

Note: The submenu is only for setting whether to enable or disable the “22KHZ Switch” of the DVB-S signal needed to be demodulated.

4.2.3.4 Channel4 (DVB-S2 IN as an example)

same as

4.2.3.3. (Channel 3)

4.2.4 Network Setting

Press “Up/Down” to choose this item, “Enter” and “Left/Right” to set the parameters. The system displays following pages.

3.1 IP Address 3.2 Subnet Mask

3.3 Gateway 3.4 Console

3.5 MAC Address 3.6 NMS Port

2.3.9 22KHZ Switch *OFF ON

2.3.9 22KHZ Switch OFF ？ON

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

30 / 57

Note: The MAC address is according to the factory setting, and it’s unique.

Under the following submenus, there are parameters which can be set manually; user can press “Up/Down” to choose this item. “Enter” and “Left/Right” to set the parameters. The system displays following pages.

4.2.5 Save configuration

User can choose to save the current configured parameters by pressing ENTER key. The system displays following page:

3.1 IP Address

192.168.000.137

3.2 Subnet Mask

255.255.255.000

3.3 Gateway

192.168.000.001

3.4 Console Address

192.168.000.211

3.5 MAC Address ffffffffffffffffffffff

3.6 NMS Port 02007

Saving, please wait: Erasing…….

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

31 / 57

4.2.6 Load configuration

At this menu, press LEFT/RIGHT key and ENTER to confirm.

User can restore the device into the last saved configuration by choosing “5.1” and restore the device into factory configuration by choosing “5.2”. When user chooses “5.1” to load saved configuration, the display shows as below:

When user chooses “5.2” to restore the device into factory configuration, the display will automatically return to the main menu as below:

4.2.7 Version No.

User can check the hardware version and software version of the equipment.

5.1 Load Saved CFG 5.2 Factory Default

Loading, please wait: >>>>>>>>>>>>>>>>

Company Name Electronic SW 1.04 HW 1.8

1 System Setting 2 Channel Setting 3 Network Setting 4 Saving Config

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

32 / 57

Chapter 5 NMS Setting

Network Management System Profile

Network management system is applied to digital TV equipment operation, control and management and parameters setting, etc. It centralizes digital TV equipment through network.

5.1 Installation

Both NMS (based on UDP protocol) and SNMP (based on SNMP protocol) can be applied to manage the device. The software doesn’t need special installation. User can just copy “Network Management Software X.XXY.exe” to the specified directory (X.XX is version number, Y represents language. For example: the version number of network management software 4.01E.exe is

4.01 English version) or place different versions of network management software to the same directory. When the network management software is running, it will generate two documents as follows: Network management software X.XXY.log (It preserves the log file.) Info. Bin (It’s the user configuration data.)

5.2 Software Operation

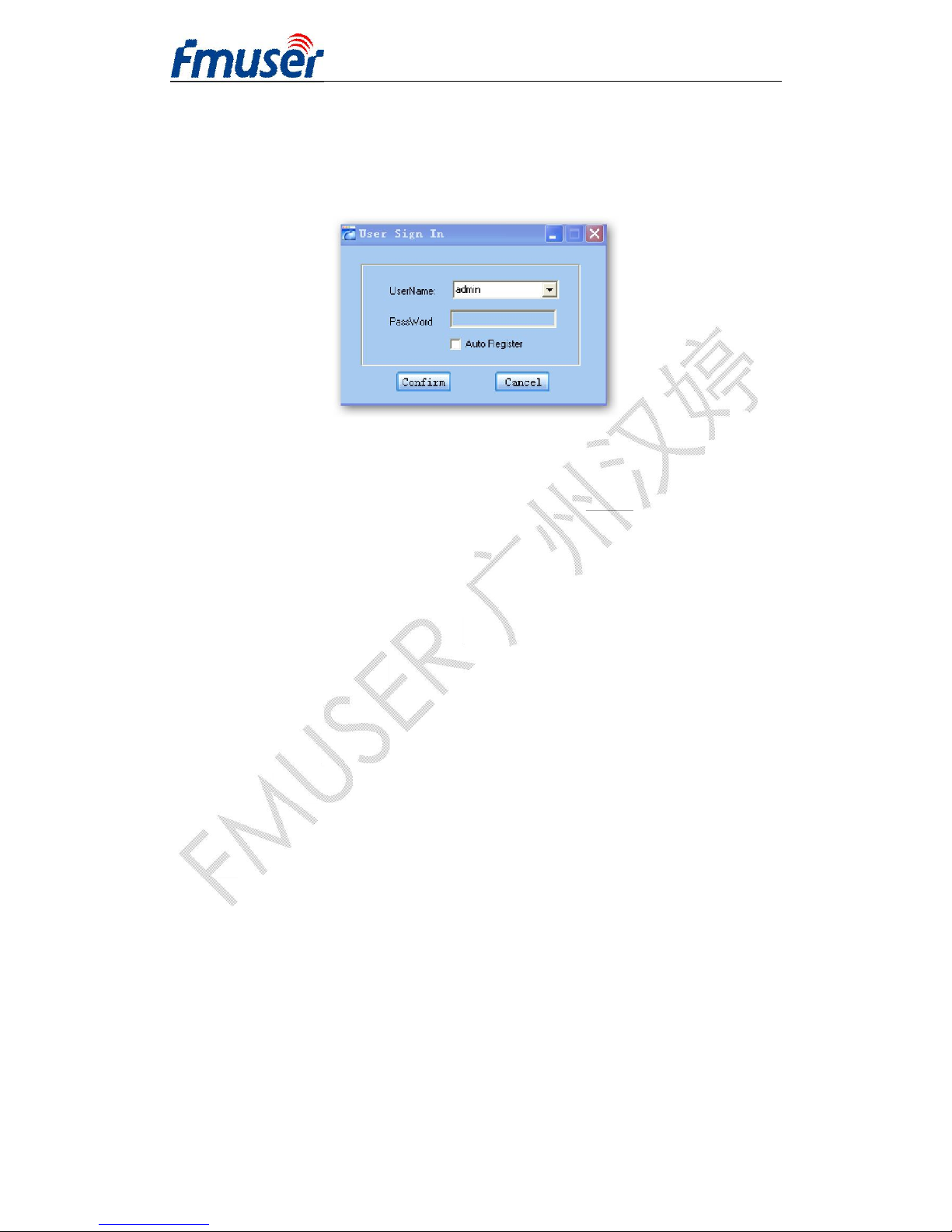

5.2.1 Login Interface

A login interface will pop up firstly when the software is running and

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

33 / 57

give user prompts to input user name and password, the menu shows as follows:

User can login the NMS by pressing Confirm key after inputting user name and password. Upon the inputs, the software will verify them with database record automatically. If both of them are correct, the main interface will appear. Both of the default user name and password are admin. (If the SNMP is applied, the default user name is admin, while no password needed.)

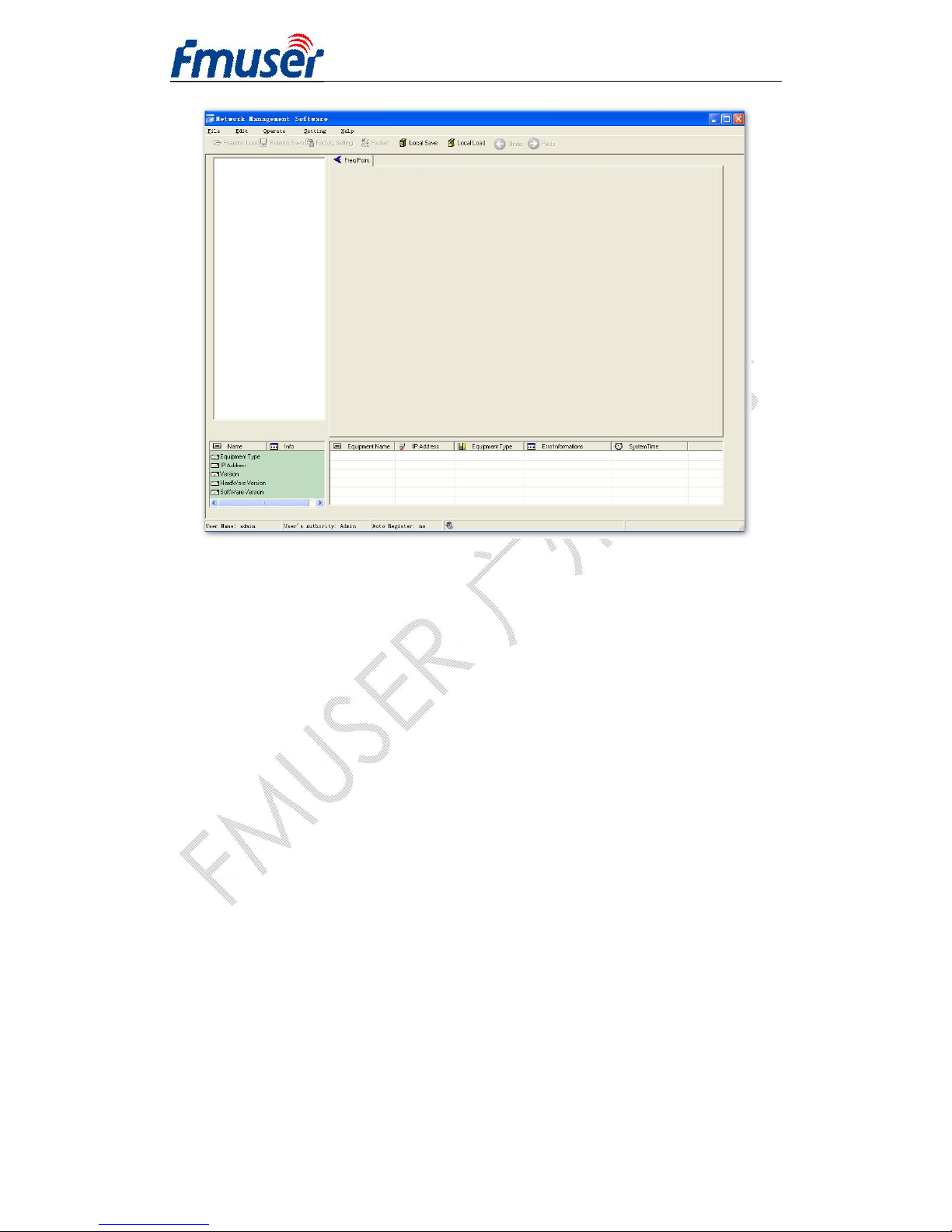

5.2.2 Main Interface

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

34 / 57

User can create a device node tree in the left column by adding, modifying and deleting the device node. This software provides a powerful node operation function, and the user can edit various parameters in the device tree for management and classification.

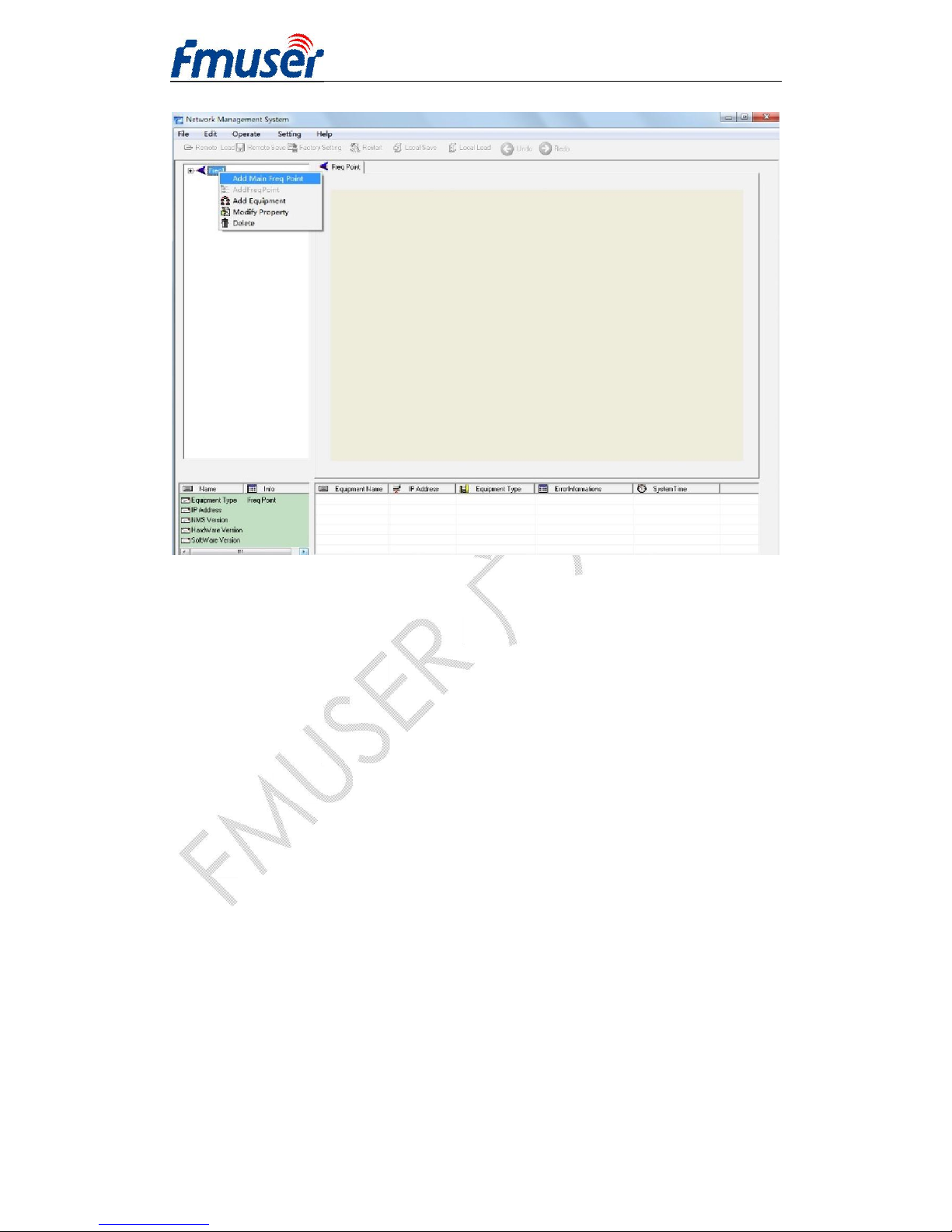

5.2.3 Adding Frequency Point

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

35 / 57

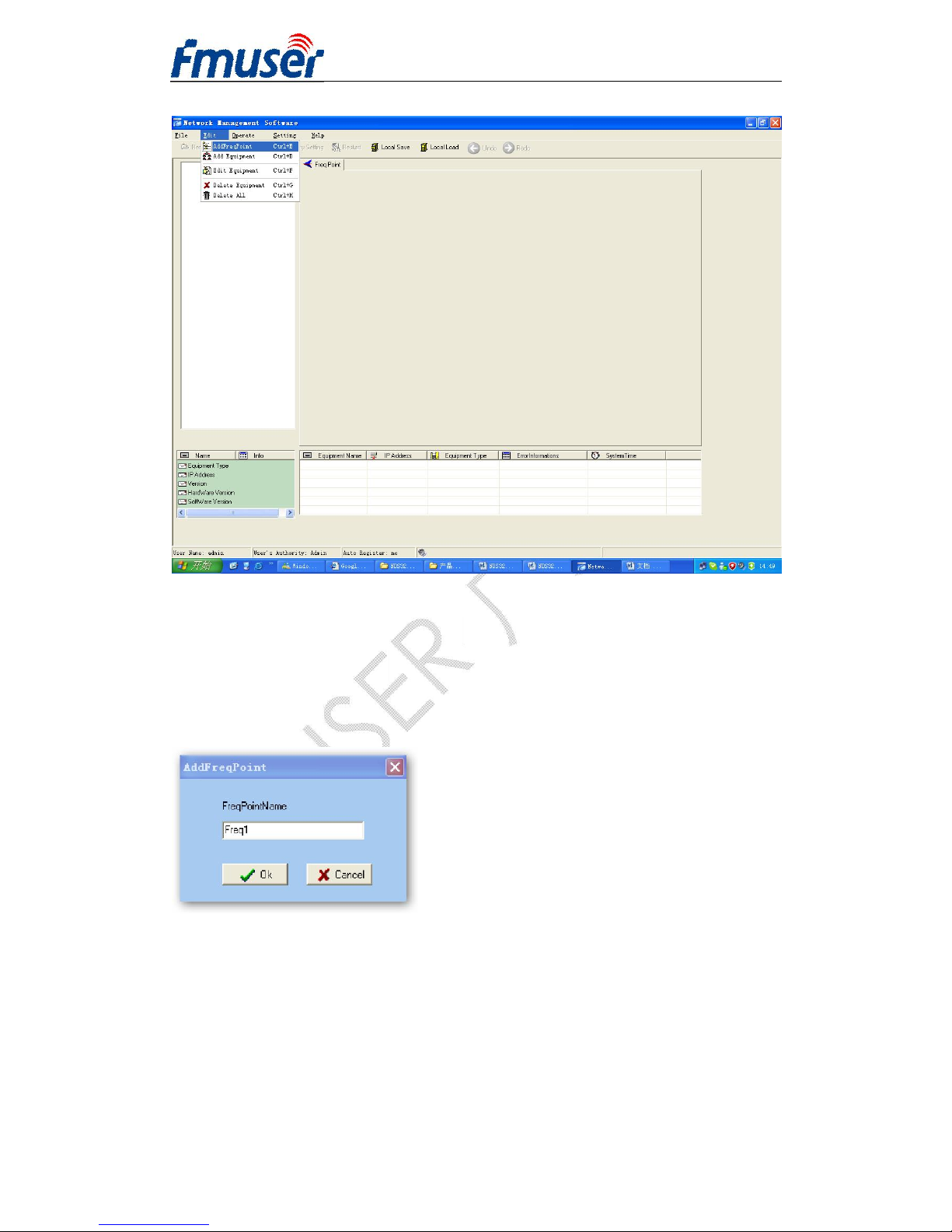

The Add Freq Point dialog box popes up when the user clicks the Add Freq Point item in the Edit pull down menu on the menu row. The device will confirm the given frequency while user clicks OK.

User can also click right mouse key to pop up the short-cut menu in device tree or in the left blank column, then the corresponding dialog box will pop up by choosing Add Main Freq Point. The device will confirm the given frequency while user clicks OK.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

36 / 57

5.2.4 Adding Equipment under Given Frequency Point

User should choose the frequency point in advance, and then the dialog box of Add Equipment will pop up when user clicks “Add Equipment” item in the Edit pull down menu on the menu row.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

37 / 57

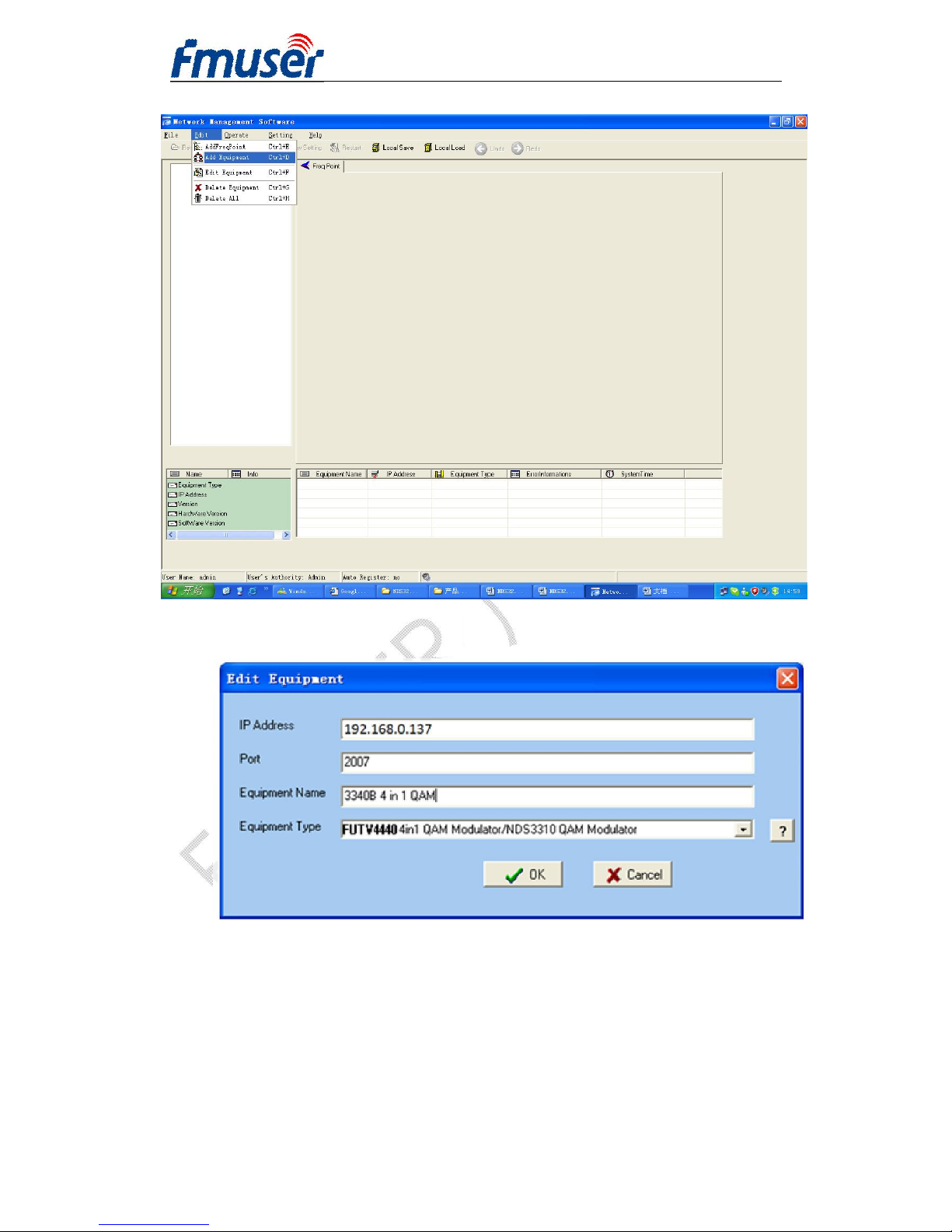

5.2.5 Edit Equipment Interface

User should follow the steps as below: Choosing the connected equipment type in drop down list of “Equipment Type” by clicking the “▼” l Inputting the Equipment Name

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

38 / 57

l Inputting the device IP Address l Inputting the device Port Number

5.2.6 Delete Equipment

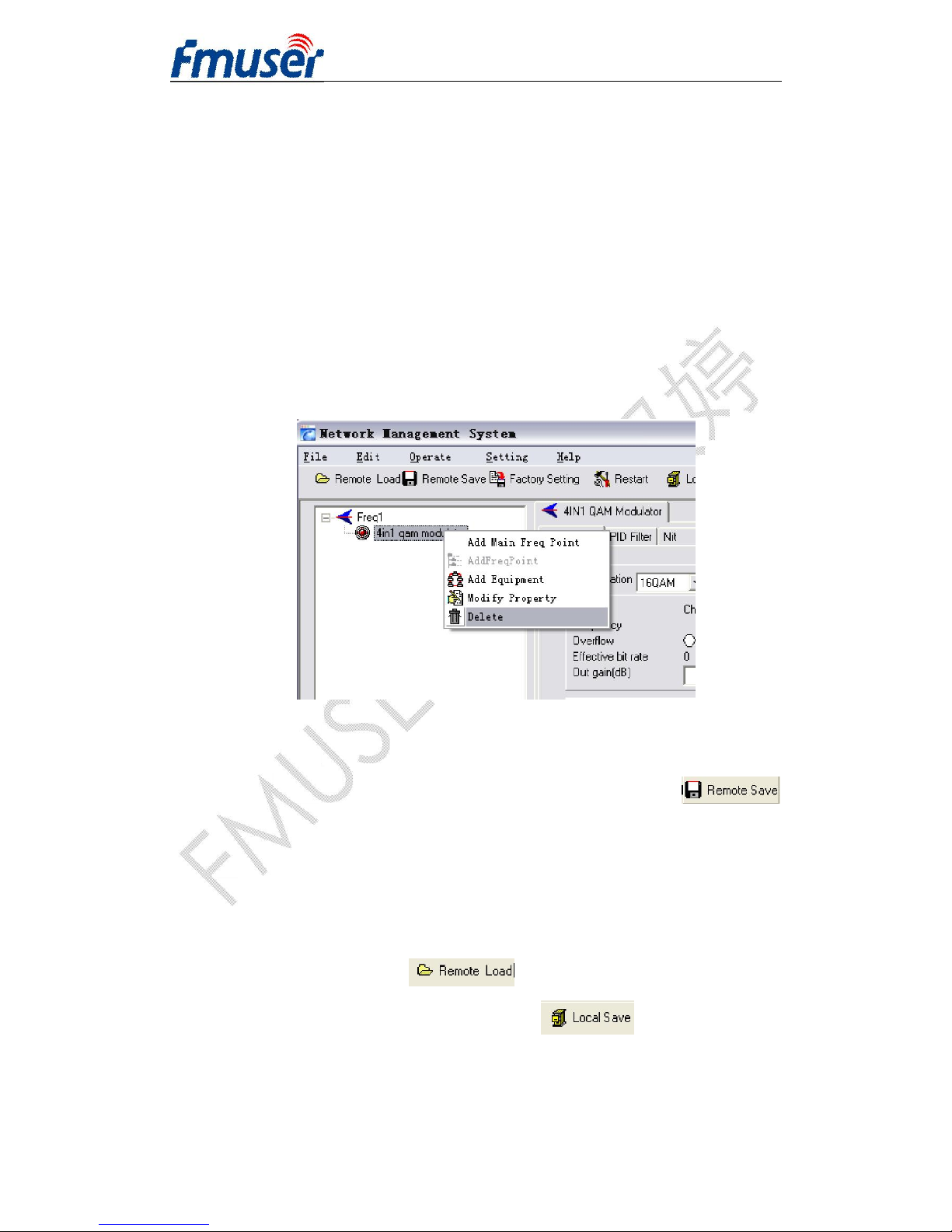

User can choose the equipment to be deleted in the left column, and then click the “delete” item in the pull down menu which appears by clicking the right mouse key.

5.2.7 Save Configuration

After finishing all the parameters setting, user can click button on the toolbar to save the modifications to the device’s flash,

while user can also reload the saved parameters from device’s flash and refresh the device’s parameters setting according to the

loaded values by clicking Alternatively, user can also click the button on the

toolbar to popup the “save file” dialog box, which gives prompts to save all the device’s parameters as binary files in the computer’s

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

39 / 57

hard disk.

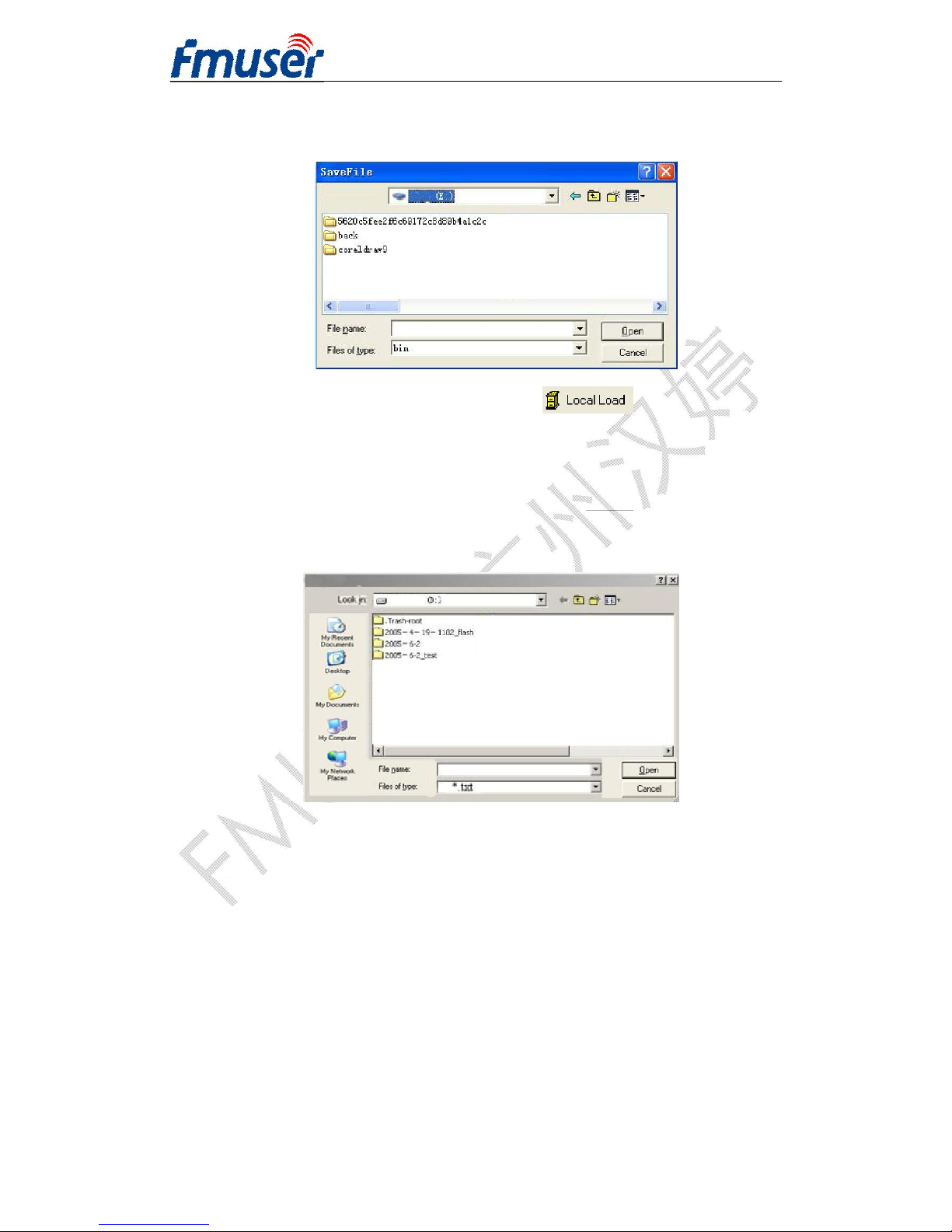

Similarly, user can choose to click the button on the toolbar to popup the read file dialog box, to read the stored binary

file and set the device’s parameters according to the loaded binary files.

5.3 FUTV4440B 4in1 QAM Modulator Operation

User can choose the “3340B 4 in 1 QAM” in the device tree. Set: making the current parameters shown in the NMS software, activate. Get: reading the current device’s activating parameters and show them on NMS software.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

40 / 57

5.3.1 Parameter

5.3.1.1 IN

NOTE:

Parameters

→

In

→

Channel 1/2/3/4: The channel interface presents different content automatically according to the signal-input ports. (see 5.3.1.1.1

→

5.3.1.1.4)

5.3.1.1.1 ASI In (Refer to 4.2.3.1)

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

41 / 57

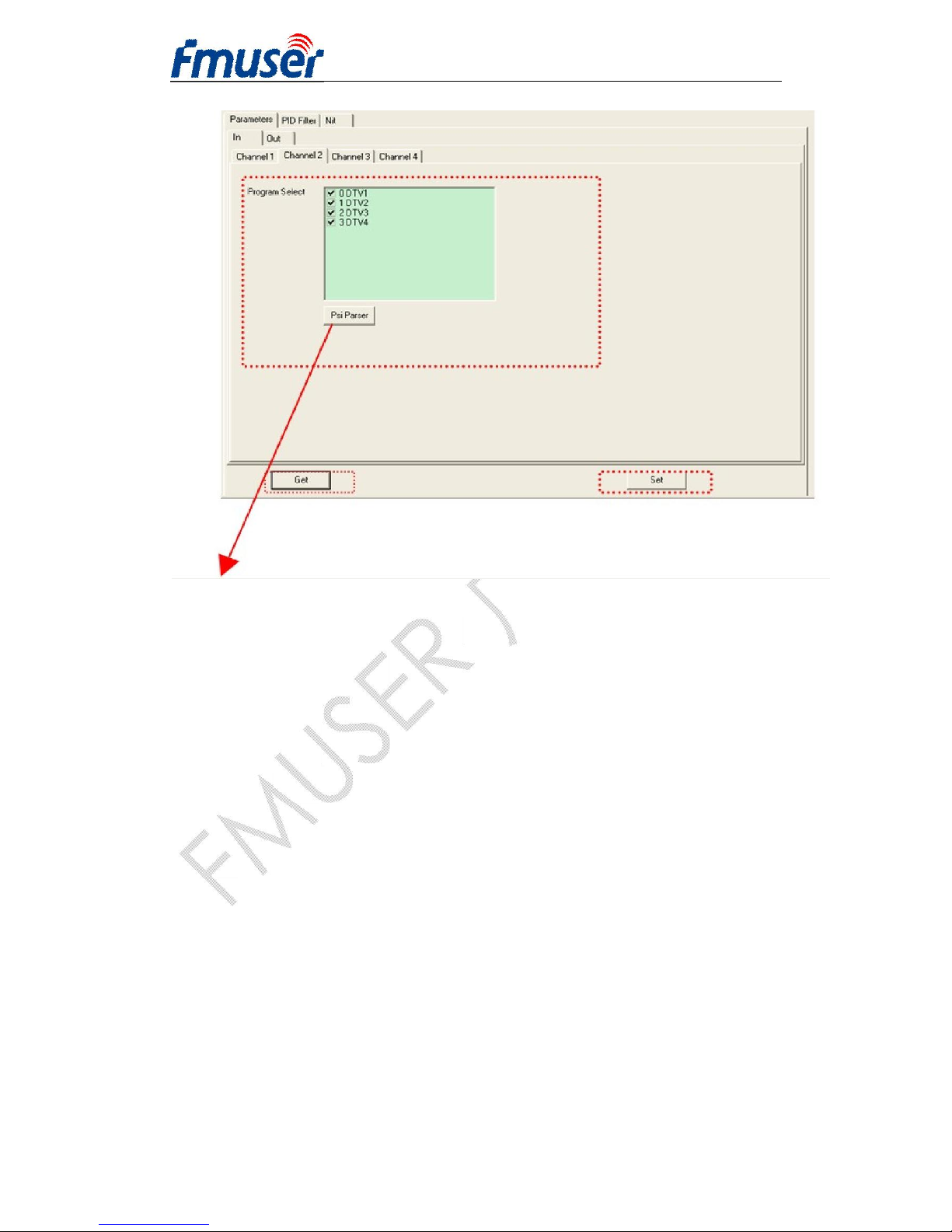

Program select: Selecting the programs that needed to output. PSI Parser: Pressing this button to analyze the input programs

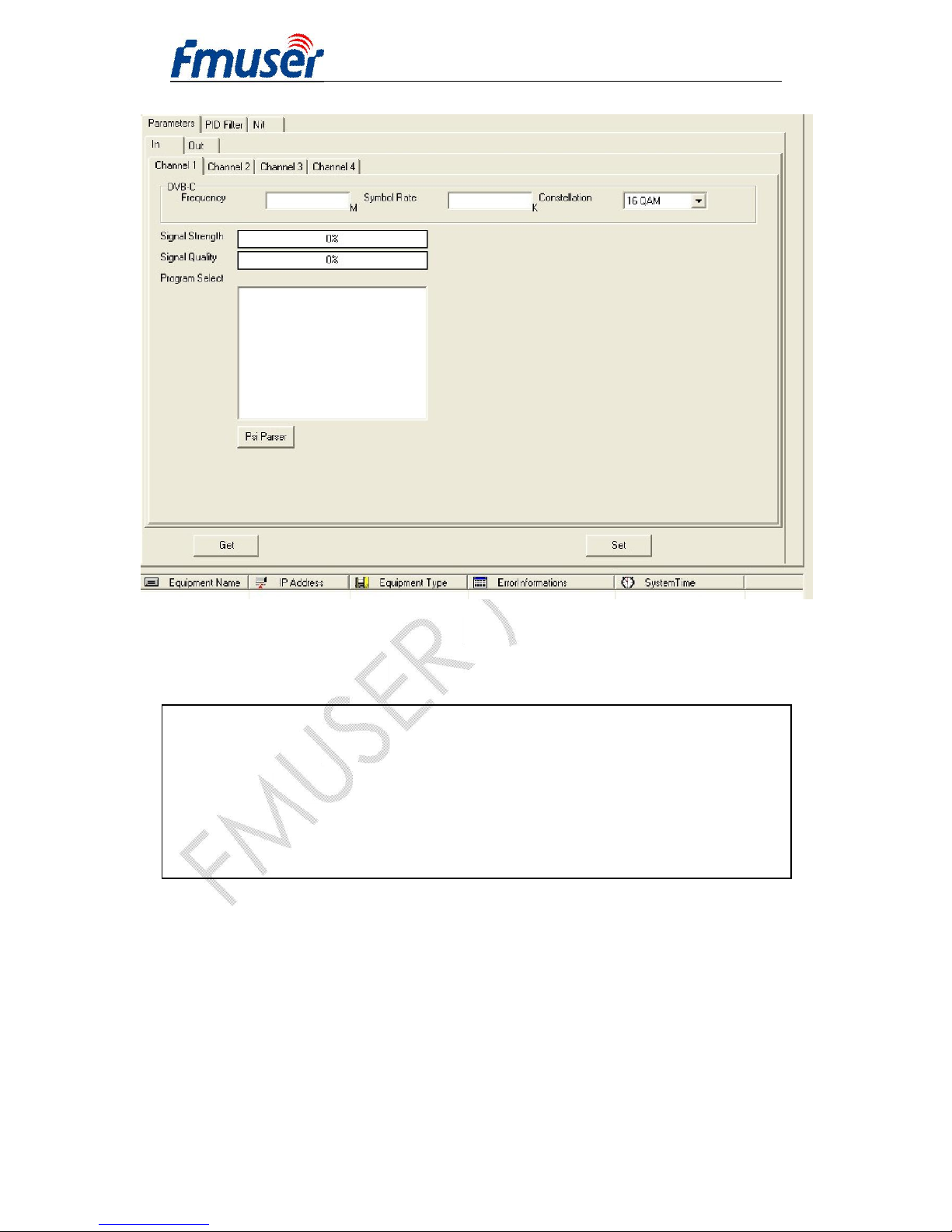

5.2.1.1.2 DVB-C in (Here taking channel 1 of DVB-C tuner input

as an example)

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

42 / 57

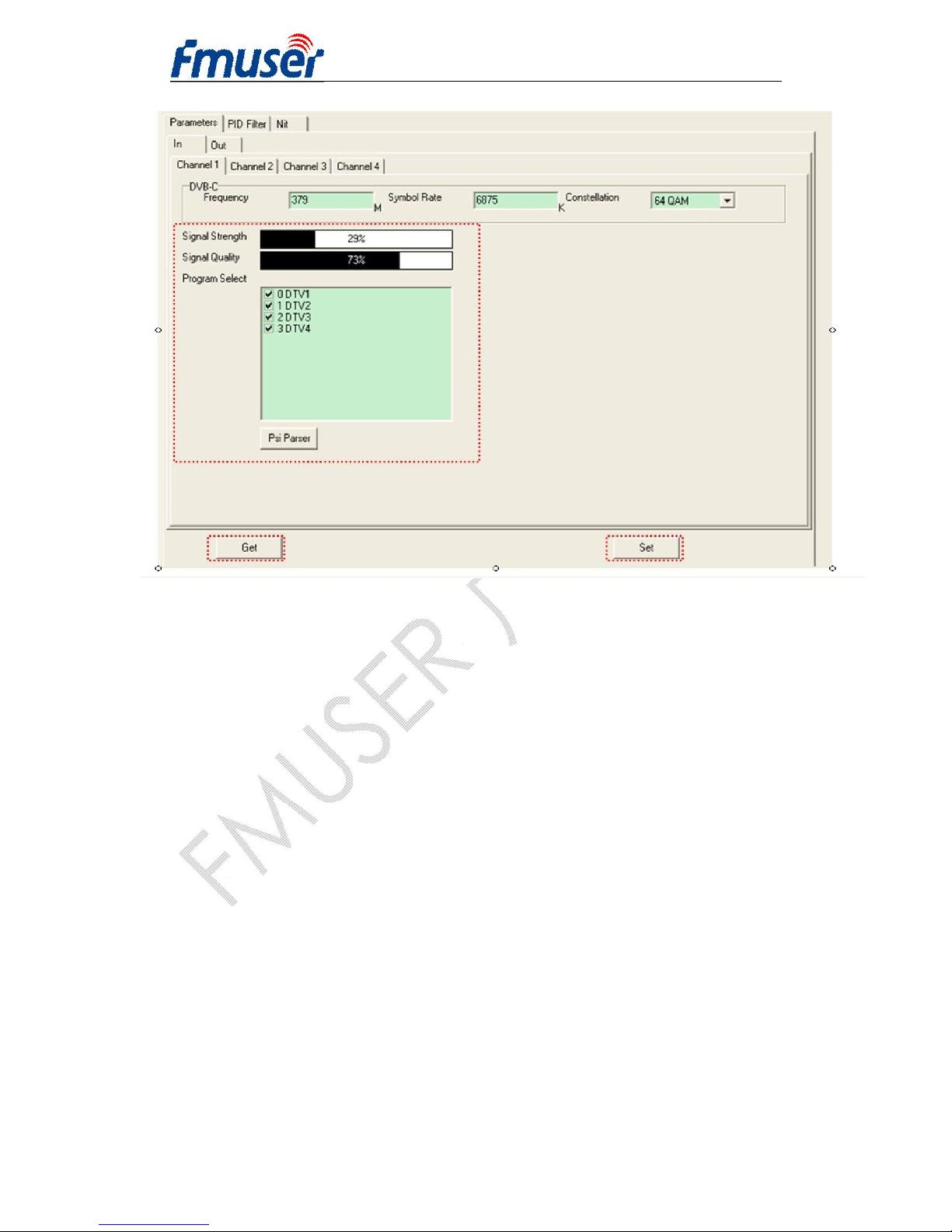

l Frequency & symbol rate & constellation (refer to

4.2.3.2.5&4.2.3.2.6&4.2.3.2.7)

l Signal strength: indicating the input signal intensity l Signal quality: indicating the input signal quality l Program select: Selecting the programs that needed to be

outputted

l PSI Parser: Pressing this button to analyze the input programs

5.2.1.1.3 DVB-S In

(Here taking channel 1 of DVB-S tuner input

as an example)

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

43 / 57

l Satellite freq&symbol rate: User should search the internet for

program satellite information before setting the frequency; the symbol rate will change as satellite frequency changed.

l LNB Polarization: here are 2 points for selecting V(13v) and

H(18v)

l Tuner 22 KHz: User can decide whether to switch the tuner

frequency by selecting ON/OFF.

l LNB frequency: User should check the tuner installed in the

satellite dish in advance to find the LNB frequency. It should be set equals to the frequency shows on tuner.

l Signal strength: indicating the input signal intensity l Signal quality: indicating the input signal quality

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

44 / 57

l Program select: Selecting the programs that needed to be

outputted

l PSI Parser: Pressing this button to analyze the input programs

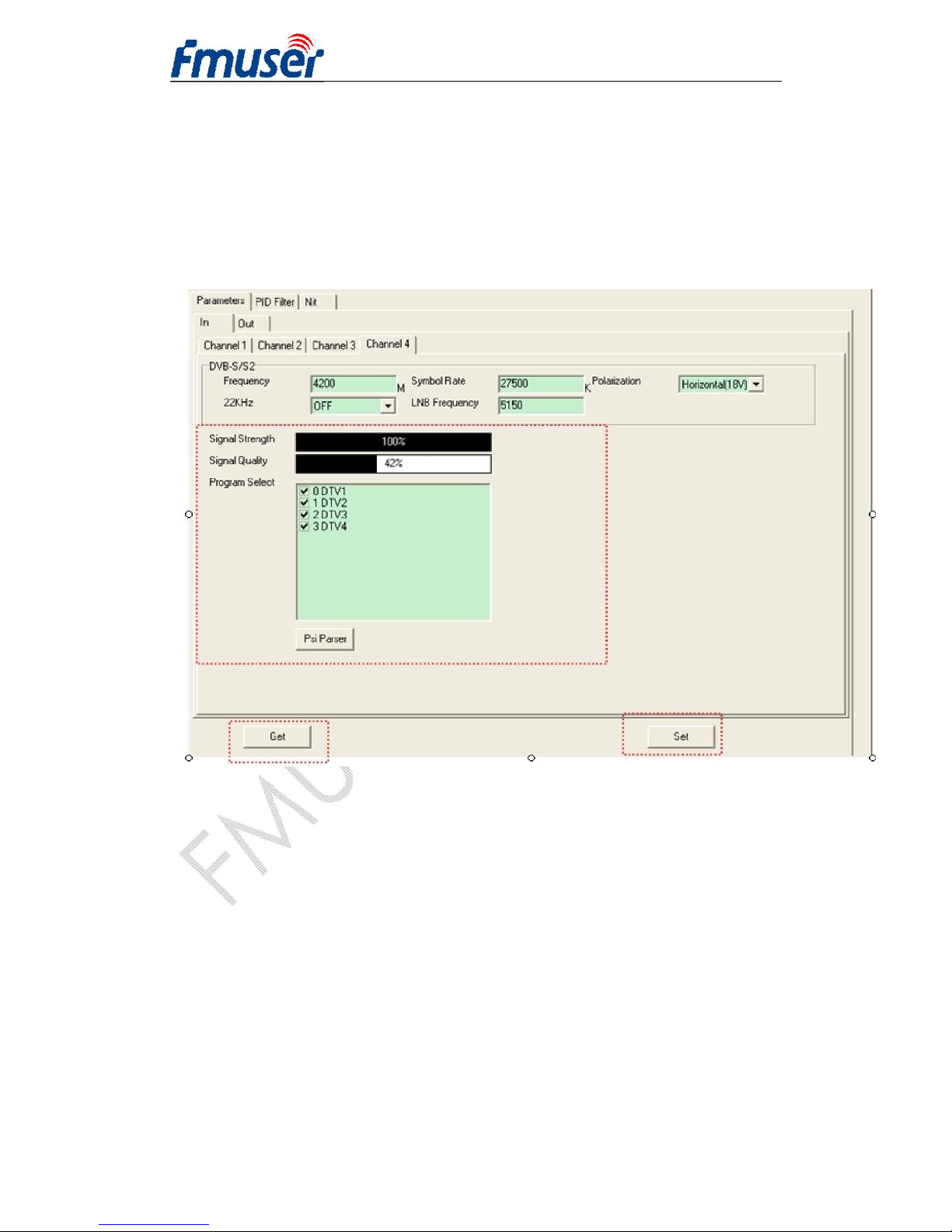

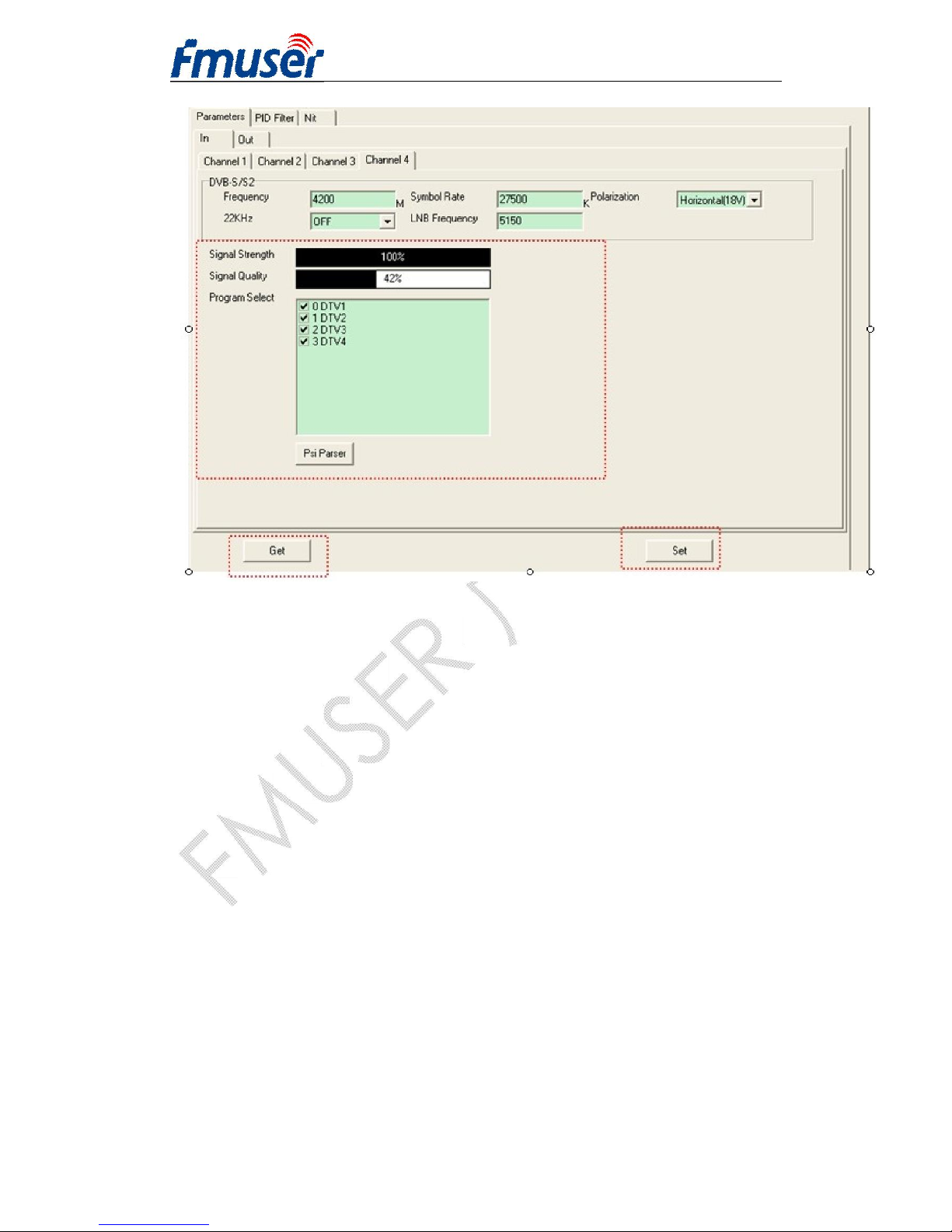

5.3.1.1.4 DVB-S2 In

l The description of DVB-S2 tuner input is the same as the

DVB-S tuner input.

5.3.1.2 OUT

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

45 / 57

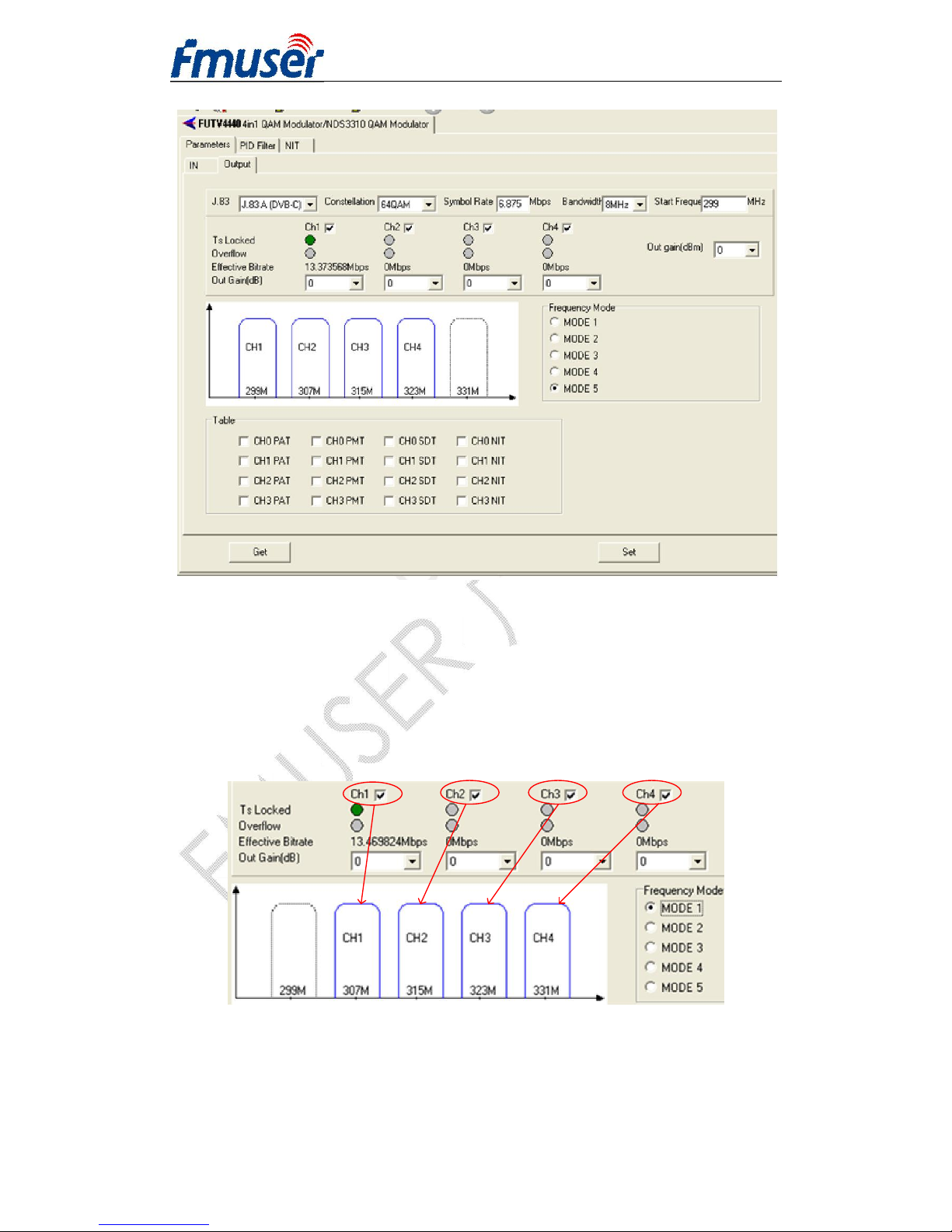

The 6 parameters here (J.83, constellation, symbol rate, bandwidth, start frequency and out gain) are general parameters, and effective for each channel.

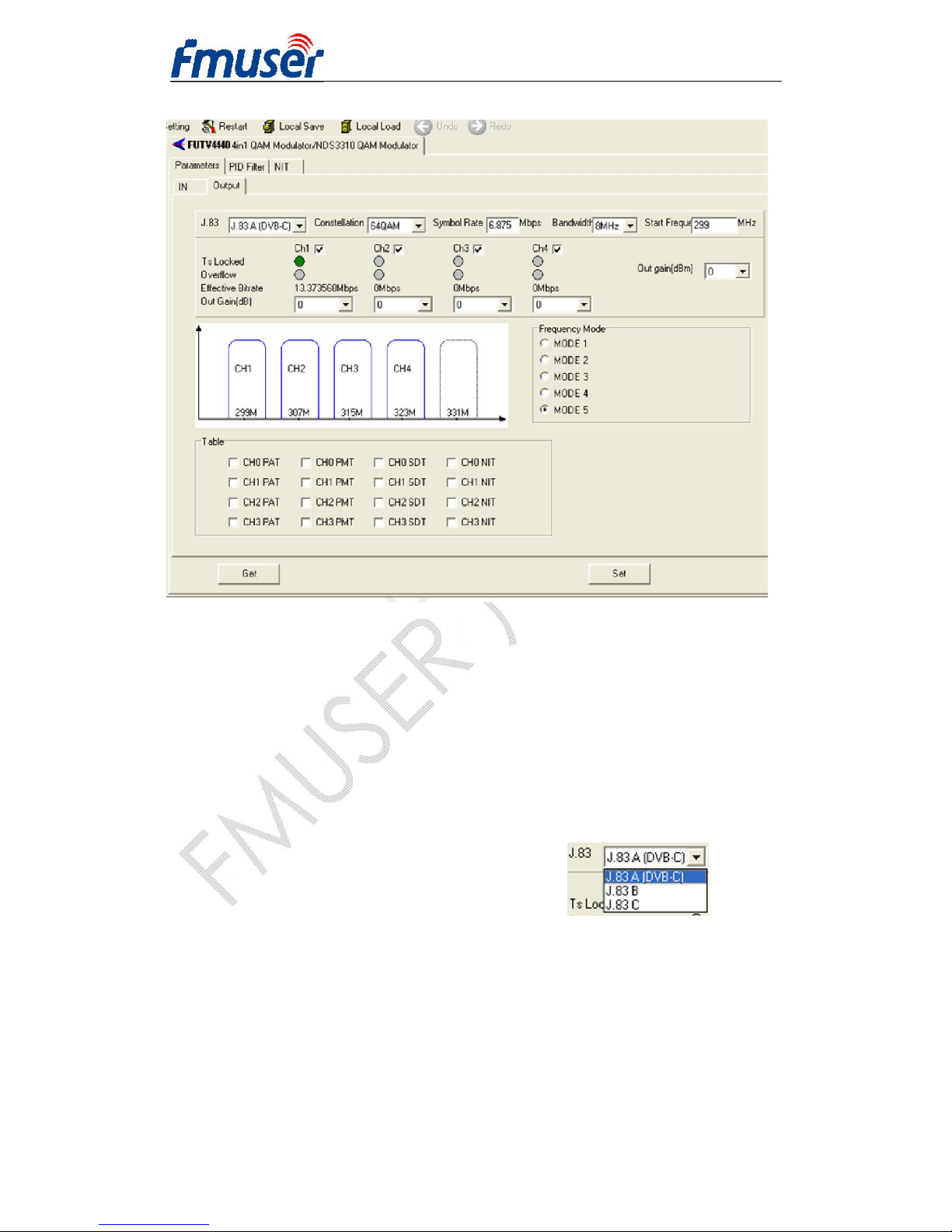

5.3.1.2.1 J.83

This item is for selecting the modulating standard this device

supports: J.83A/DVB-C, J.83B, and J.83C.

5.3.1.2.1 Constellation

(refer to 4.2.2.2)

QAM modulation mode： J.83A/DVB-C: 16QAM/32QAM/64QAM/128QAM/256QAM optional J.83B: 64QAM/256QAM optional

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

46 / 57

J.83C: 64QAM/256QAM optional

5.3.1.2.3 Symbol rate

(refer to 4.2.2.3)

5~7Msps

5.3.1.2.4 Bandwidth

(4.2.2.4)

Frequency point bandwidth：6M and 8M optional

5.3.1.2.5 Start Freq

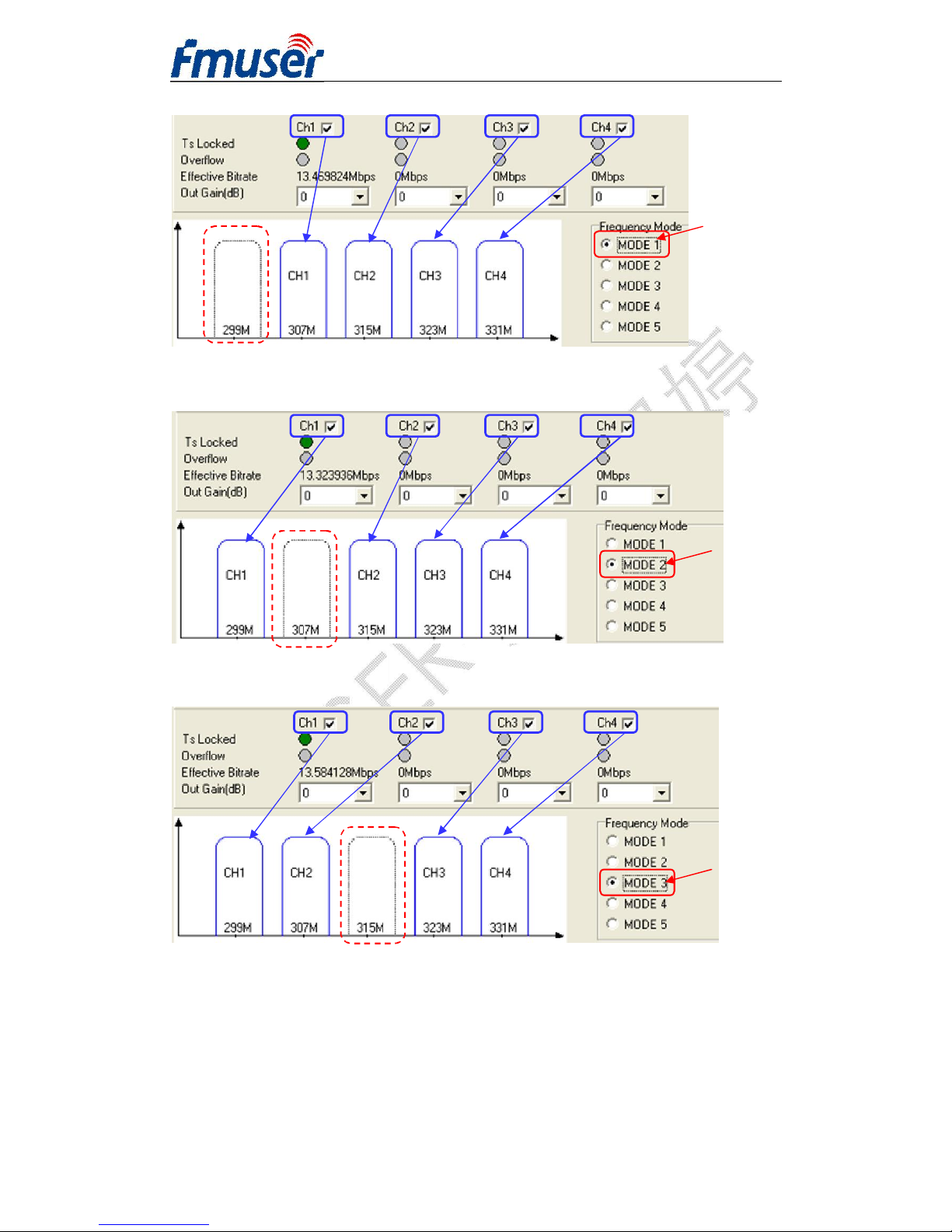

There are four activated channels with each one has its own center frequency. Here the start frequency points to the channel 1’s center frequency.

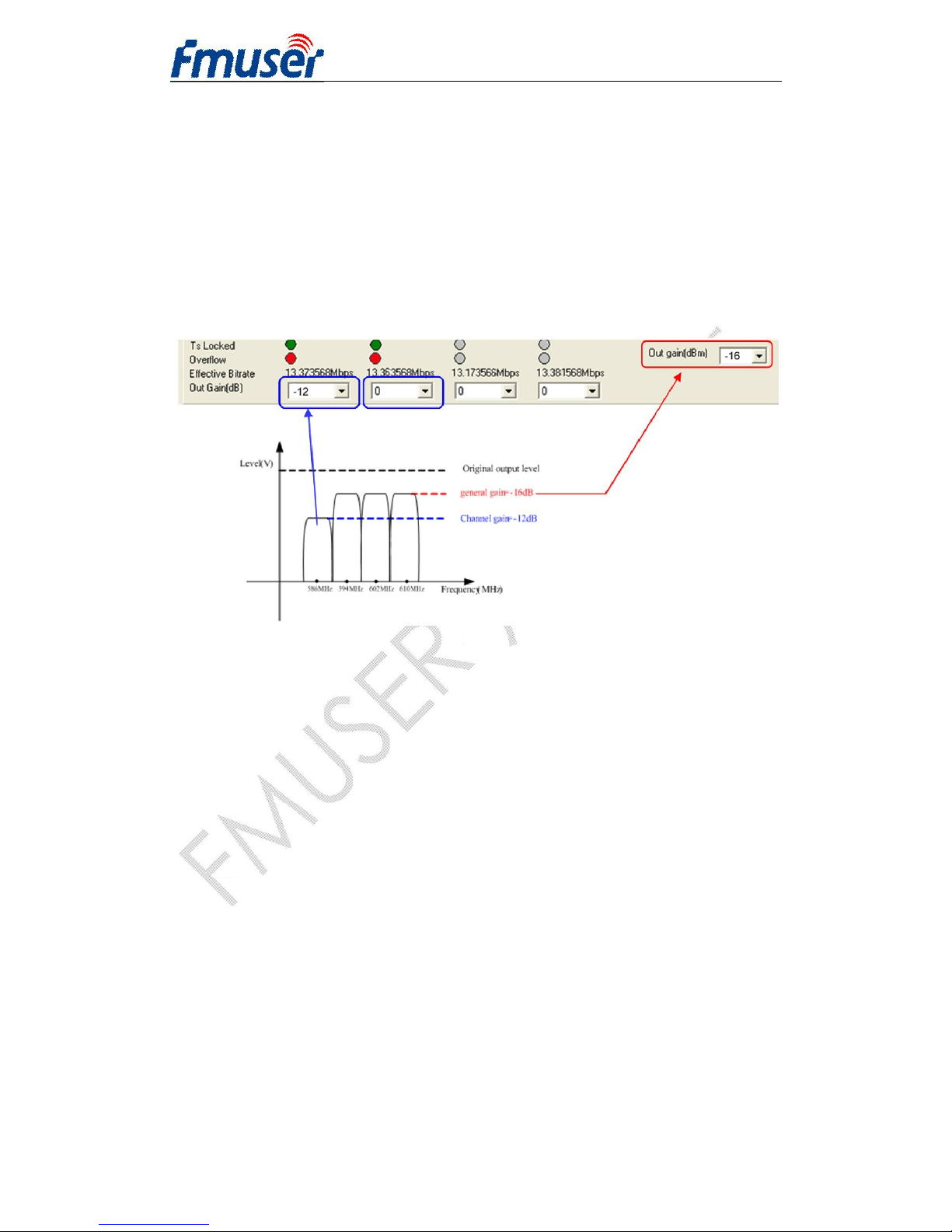

5.3.1.2.6 Outgain (refer to 4.2.2.5)

Total output level attenuation

User can see following description about start frequency:

The RF output frequency range is from 30MHz to 960MHz. Here the start frequency, namely actually, user often say the centre frequency of TS output. Therefore, user can only set the start frequency from 30MHz to 960MHz (considering the 6/8MHz bandwidth optional). Note: the start frequency discussed here means centre frequency The display shows as below:

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

47 / 57

5.3.2 Output carrier

(refer to 4.2.3.1.1)

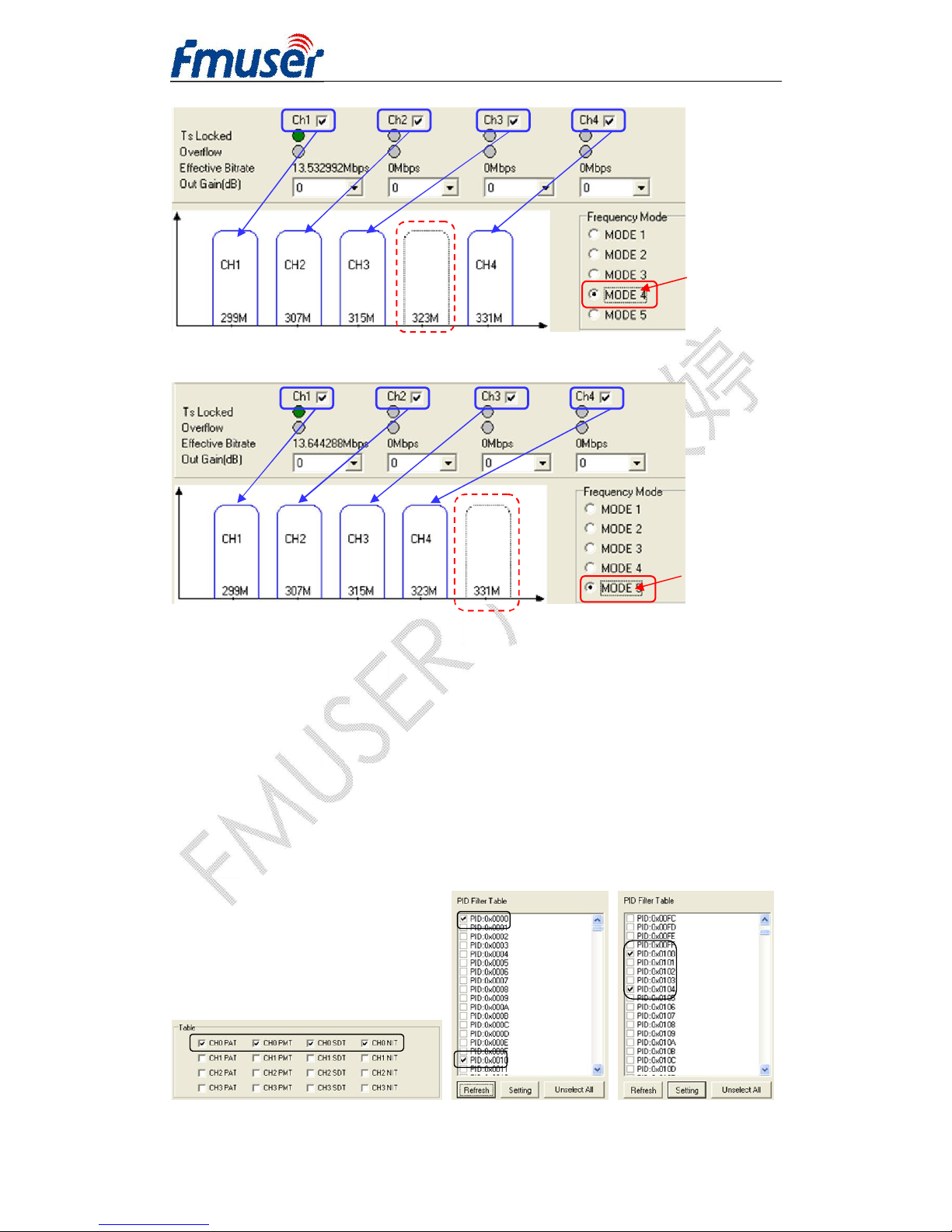

User can decide how many channels’ TS are being transported by selecting the checkbox, and the channel selected will be closed. The illustrations are as below:

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

48 / 57

5.3.3 TS Locked/Overflow

User can refer to the formula Max_input_bitrate = Symb_rate*qam_bits*188/204 to estimate whether the effective bit rate is above on the maximum value. If the input bit rate is exceeding, the over flow indicator will be light on.

5.3.4 Effective bit rate

User can also refer to the maximum bit rate formula and table. The current setting is 64 QAM constellations with 6.875Mbps symbol rate, so the maximum bit rate should be

6.875Msps*6*188/204≈38.015Mbps. Here user can see the current

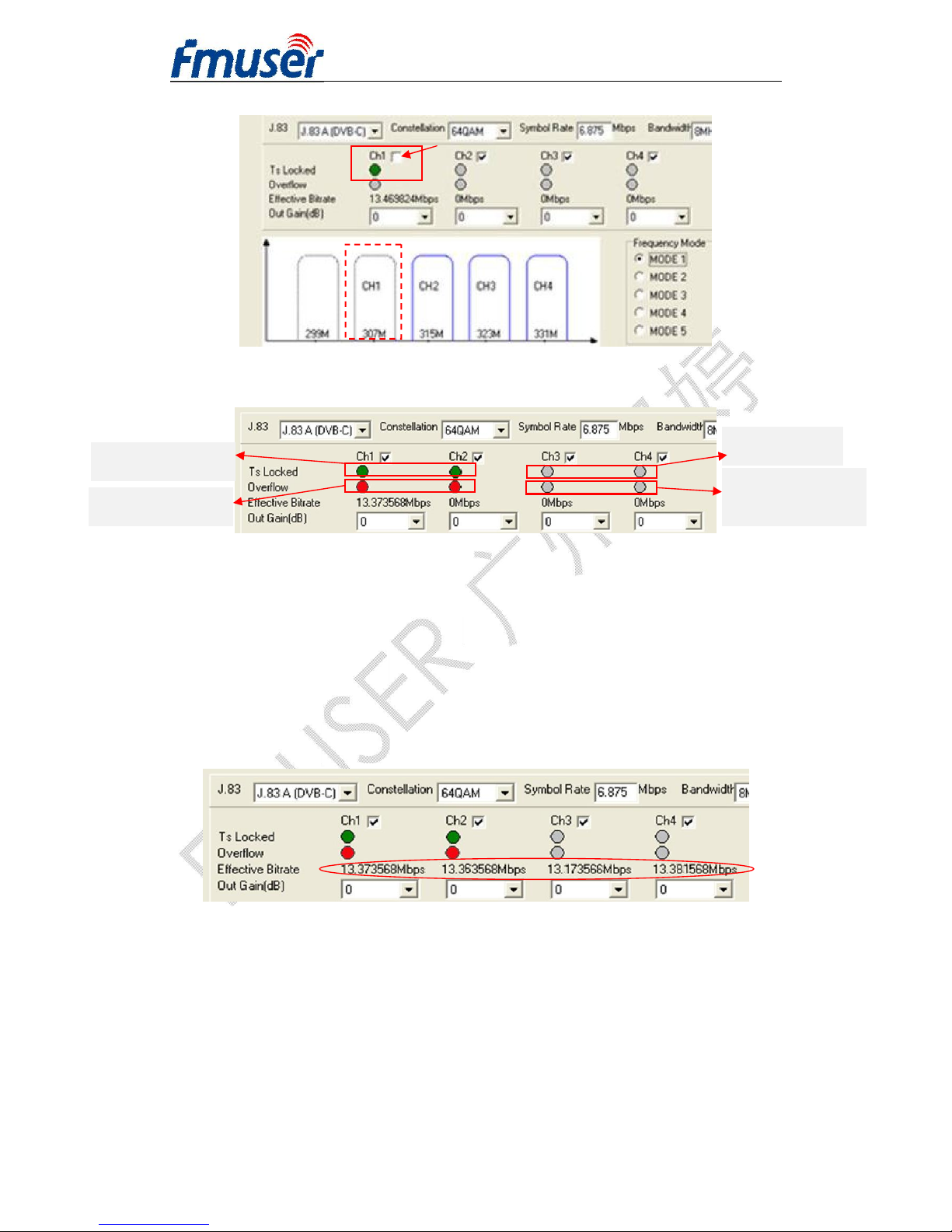

Green: TS Locked

Red: TS overflow

Grey: TS Loss

Grey: TS doesn’t overflow

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

49 / 57

input bit rate each channel is about 33.33, which can be named effective bit rate.

5.3.5 Output level attenuation

The level attenuation for each channel equals to RF general out gain pluses channel gain. The illustration shows as below:

Note: For each channel, its out gain equals to the general out gain (circled by red line) pluses the respective out gain (circled by blue line). For example, the channel 1 out gain in above illustration=-16+ (-12) = -28(db)

5.3.6 Freq mode（frequency mode）

There are 5 possible modes provided in the frequency mode area. User should close anyone of them by selecting the checkbox to ensure the other four channels unblocked. The displays show as below:

5.3.6.1 MODE 1

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

50 / 57

5.3.6.2 MODE 2

5.3.6.3 MODE 3

5.3.6.4 MODE 4

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

51 / 57

5.3.6.5

MODE 5

5.3.7 Tables

There are four PID tables provided for each channel to filter, mainly including PAT, PMT, SDT and NIT table. User can choose to filter the original PID as needed by selecting the checkboxes (left below), or they can also manually select the PID needs filtering in the PID filter table (right below).

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

52 / 57

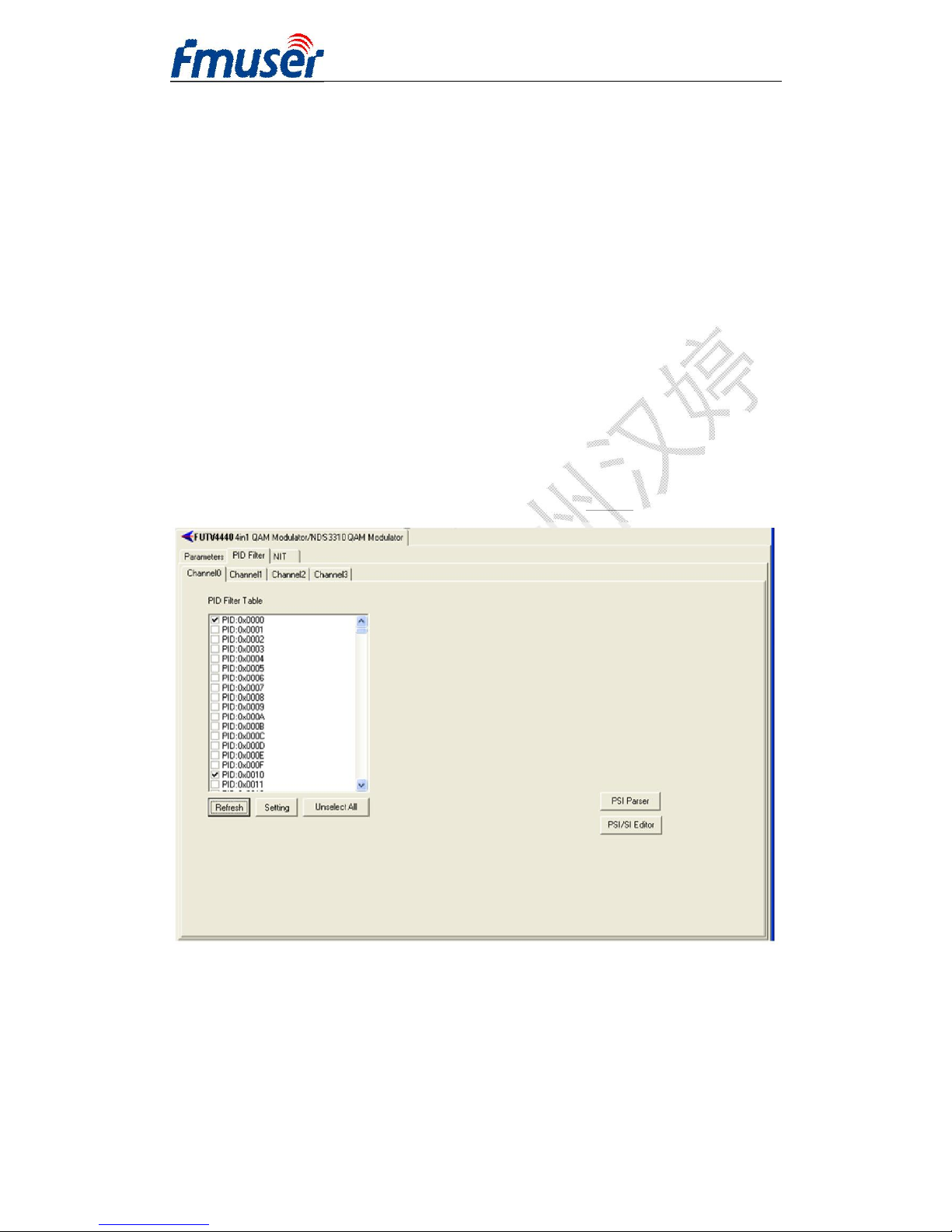

5.3.8 PID Filter (refer to 4.2.3.1.4)

User can finish the original table filtering and new table inserting by following the steps as below:

l clicking “Psi/si parser” to get the original data l clicking “Psi edit” to create new data l selecting the checkboxes in Parameters interface to confirm

filtering l clicking “set” to make the insertion/replacement effective The displays show as below:

5.3.8.1 Refresh

User can refresh the data by clicking this button before confirmation

5.3.8.2 Setting

User can click this button to make the selections effective

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

53 / 57

5.3.8.3 Unselect all

User can cancel all the PID data by clicking this button

5.3.8.4 Psi Parser

User should clicking this button before editing new table

5.3.8.5 Psi Edit

Use can edit new PID data by entering the editor interface

5.3.9 NIT (refer to 4.2.3.1.3)

NIT: Network Information Table. NIT table is a very important table for describing the network and TS. NDS 3340 4in1 QAM Modulator has the function of editing a NIT table for the output.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

54 / 57

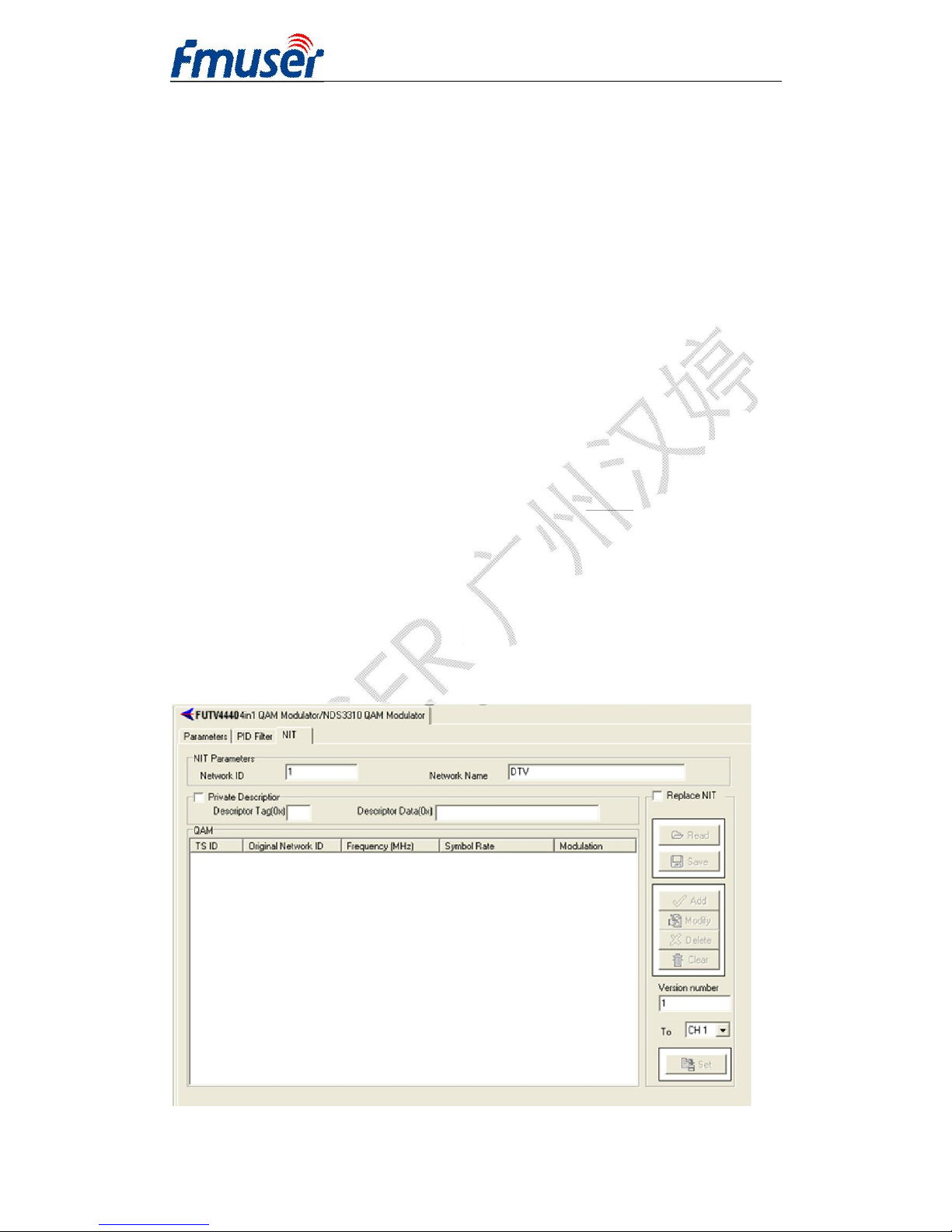

5.3.9.1 NIT Parameters

User can set the network ID and network name in the field. Network ID: the parameter describes the output TS’s network ID This is a 16-bit field which serves as a label to identify the delivery system, about which the NIT informs, from any other delivery system. Network Name: the parameter describes the output TS’s network name Private Descriptor: this checkbox allows user to insert the private descriptor into the output TS. The private descriptor includes two parts. One is descriptor tag, and the other is descriptor information. Descriptor tag: The descriptor tag is an 8-bit field which identifies each descriptor.

5.3.9.2 Editing NIT table

After selecting the checkbox, the NIT editing menu is active. And also the device will insert the NIT table into the output TS.

5.3.9.2.1 Read and Save

Those two buttons can trigger a window to load/save the saved NIT table file from/to a file on local computer hard disk. What’s more, user can also undo the lost or deleted NIT table by pressing READ button.

5.3.9.2.2 Add

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

55 / 57

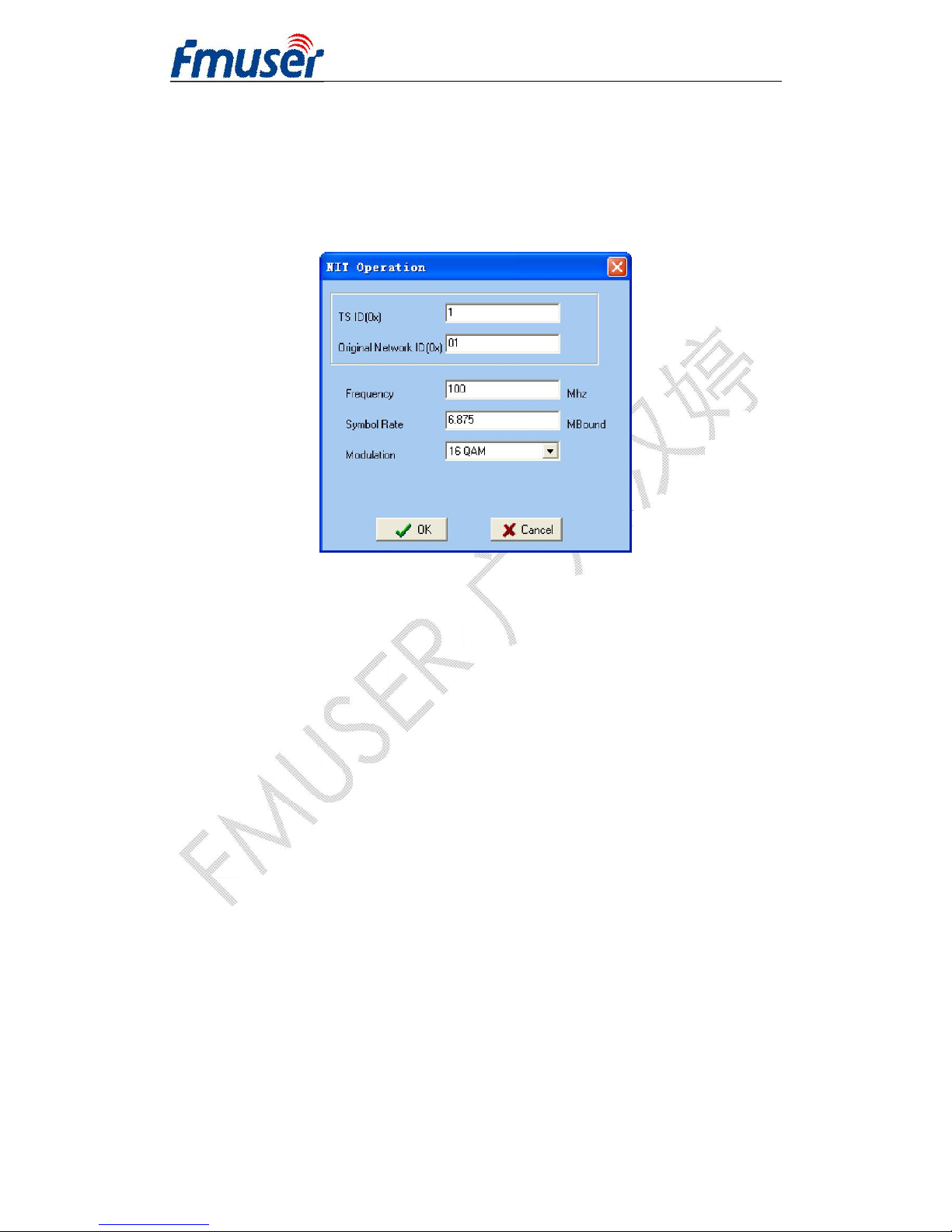

By pressing the “Add” button, it will trigger an editing window as below. User can input the reference information in the illustration as below, and then click OK to confirm the addition.

5.3.9.2.3 Modify

The modify button will trigger a modify window and allow user to modify the selected items in the NIT table.

5.3.9.2.4 Delete

The Delete button will remove the selected items in the NIT table.

5.3.9.2.5 Clear

The Clear button will remove all the items in the NIT table.

5.3.9.2.6 Version number

5.3.9.2.7 To Ch?

User can choose to which channel the NIT table will be sent.

5.3.9.2.8 Send

Select this button to send the saved NIT table files to the modulator.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

56 / 57

Chapter 6 Troubleshooting

FFor guarantee the products’ quality, reliability and stability,all FMUSER products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by FMUSER. To prevent potential hazard, please strictly follow the operation conditions.

Prevention Measure

l Installing the device at the place in which environment

temperature between 0 to 45 °C

l Making sure good ventilation for the heat-sink on the rear panel

and other heat-sink bores if necessary

l Checking the input AC voltage within the power supply working

range and the connection is correct before switching on device

l Checking the RF output level varies within tolerant range if it is

necessary

l Checking all signal cables have been properly connected l Frequently switching on/off device is prohibited; the interval

between every switching on/off must greater than 10 seconds.

Conditions need to unplug power cord

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物技术开发有限公司

57 / 57

l Power cord or socket damaged. l Any liquid flowed into device. l Any stuff causes circuit short l Device in damp environment l Device was suffered from physical damage l Longtime idle. l After switching on and restoring to factory setting, device still

cannot work properly.

l Maintenance needed

Chapter 7 Packing List

l FUTV4440B 4in1 QAM modulator 1pcs l User’s manual 1pcs l Power cord 1pcs l ASI wire 4pcs
