FUTV4318A 8 in 1 MPEG4 AVC/H.264 HD Encoder

User’s Manual

Date: 2015-04-29

Version: 1.0

NMS Version: 2.2.5
SW: 0.17F
HW: 0.8

FMUSER International Group Inc.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

DIRECTORY

CHAPTER 1 PRODUCT INTRODUCTION ................................................................................ 3

1.1 OUTLINE ............................................................................................................................ 3

1.2 MAIN FEATURES ............................................................................................................... 3

1.3 SPECIFICATIONS .............................................................................................................. 4

1.4 PRINCIPLE CHART ............................................................................................................ 5

1.5 APPEARANCE AND ILLUSTRATION................................................................................. 5

CHAPTER 2 INSTALLATION GUIDE........................................................................................ 7

2.1 ACQUISITION CHECK ....................................................................................................... 7

2.2 INSTALLATION PREPARATION......................................................................................... 7

2.3 WIRE’S CONNECTION ....................................................................................................... 9

2.4 SIGNAL CABLE CONNECTION ......................................................................................... 9

CHAPTER 3 OPERATION ...................................................................................................... 12

3.1 INITIALIZING .................................................................................................................... 12

3.2 GENERAL SETTING ........................................................................................................ 12

CHAPTER 4 SNMP OPERATION ........................................................................................... 23

4.1 INSTALLATION ................................................................................................................ 23

4.2 SOFTWARE OPERATION ................................................................................................ 23

4.3 FUTV4318A 8 IN 1 MPEG-4 AVC/ H.264 HD ENCODER OPERATION ............................. 28

4.4 OTHER SETTINGS ........................................................................................................... 38

CHAPTER 5 TROUBLESHOOTING ....................................................................................... 42

CHAPTER 6 PACKING LIST .................................................................................................. 43

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

3 / 43

Chapter 1 Product Introduction

1.1 Outline

The FMUSER FUTV4318A 8-in-1 MPEG-4 AVC/H.264 HD encoder is our newest
professional HD audio & video encoding and multiplexing device with powerful
functionality. It is equipped with 8 HDMI channels input supporting MPEG-4 AVC/H.264
High Profile code format & main Profile code format and 1 ASI input. It can multiplex
the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted
PSI/SI information. In conclusion, its high integration and cost-effective design make
this device widely used in variety of digital distribution systems such as CATV digital
head-end, satellite and terrestrial digital TV, etc.

1.2 Main Features

l Support 8 HDMI channels input & 1 ASI Input
l Support H.264/AVC high profile level 4.0 video encoding
l Support MPEG1 Layer 2 (HE-AAC (V2) or LC-AAC optional) audio encoding
l Support PSI/SI editing and inserting
l Support VBR or CBR video bitrate mode
l Support 720P, 1080I, 1080P HD video format
l Support ASI output MPTS or 8 SPTS
l Support IP Output MPTS and 8 SPTS
l Support IP null packet filter
l Support PID filter and transparent transport

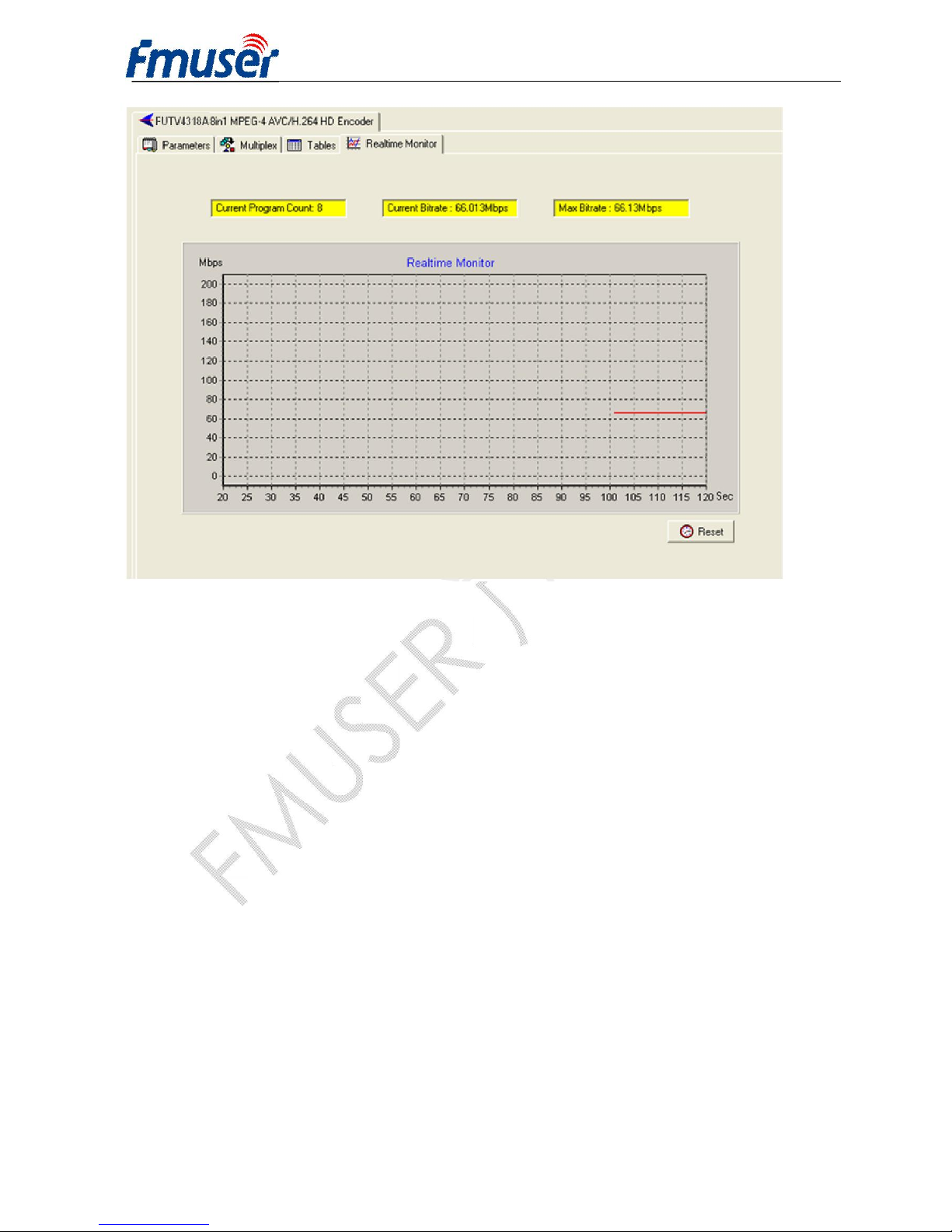

l Real-time output bit-rate monitoring
l Update device through NMS port
l Support LCD / keyboard operating, and network management (SNMP)

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

4 / 43

1.3 Specifications

Input

8 HDMI inputs
1 ASI input, BNC interface

Video

Resolution

1920×1080_60P, 1920×1080_50P
1920×1080_60i, 1920×1080_50i
1280×720_60P, 1280×720 _50P
720x576_50i, 720x480_59.95i

Encoding MPEG-4 AVC/H.264 high profile level 4.0

Bit-rate 0.8Mbps~19Mbps (each channel)

Rate Control CBR/VBR

GOP Structure IBBP

Advanced

Pretreatment

De-interlacing, Noise Reduction, Sharpening

Audio

Encoding MPEG-1 Layer II, HE-AAC (V2), LC-AAC

Sampling rate 48KHz

Resolution 24 bit

Bit-rate 64Kbps~384Kbps each channel

Multiplexing 1 ASI input multiplexed with local 8 channels of TS

Stream output

2*ASI output, BNC interface
MPTS and 8 SPTS over UDP, 1000 Base-T

Ethernet interface (UDP unicast / multicast)

System function

LCD/keyboard operating, NMS supporting
Chinese-English control interface
Ethernet software & hardware upgrade

Miscellaneous

Dimension (W× L× H) 440mm×410mm×44.5mm

Approx weight 4kg

Temperature

0~45℃(work), -20~80℃（Storage）

Power AC 100V-220V±10%, 50/60Hz

Consumption 25W

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

5 / 43

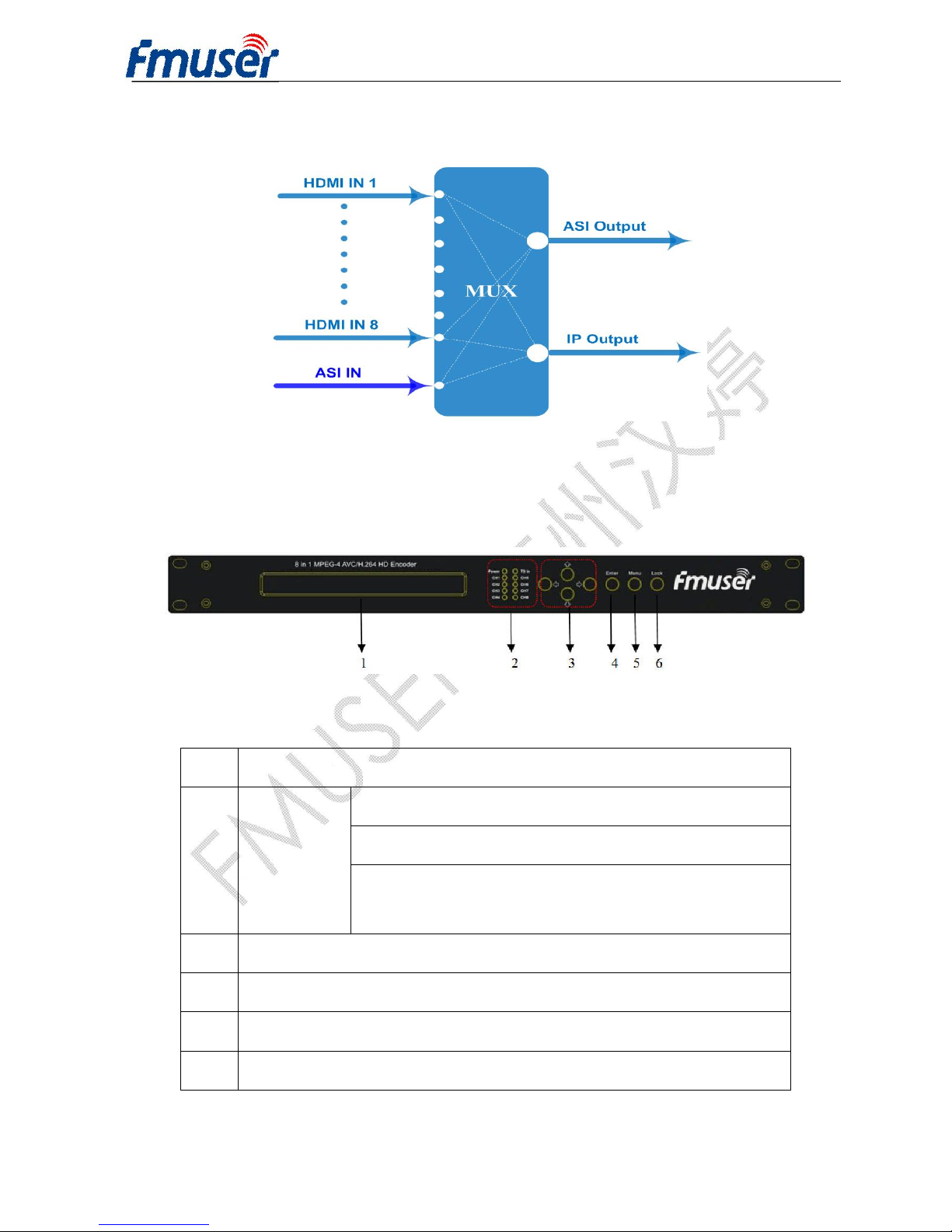

1.4 Principle Chart

1.5 Appearance and Illustration

Front Panel Illustration:

Indicate area: All indicators will light on when the device is on the current working state.

1 LCD Screen

2 Indicators

Power Indicator
TS In: Input Lock Indicator
CH1-CH8: When the program has been multiplexed,

the indicator will be on.
3 UP/ DOWN, LEFT/RIGHT Keys
4 Enter Key
5 Menu Key
6 Lock Key

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

6 / 43

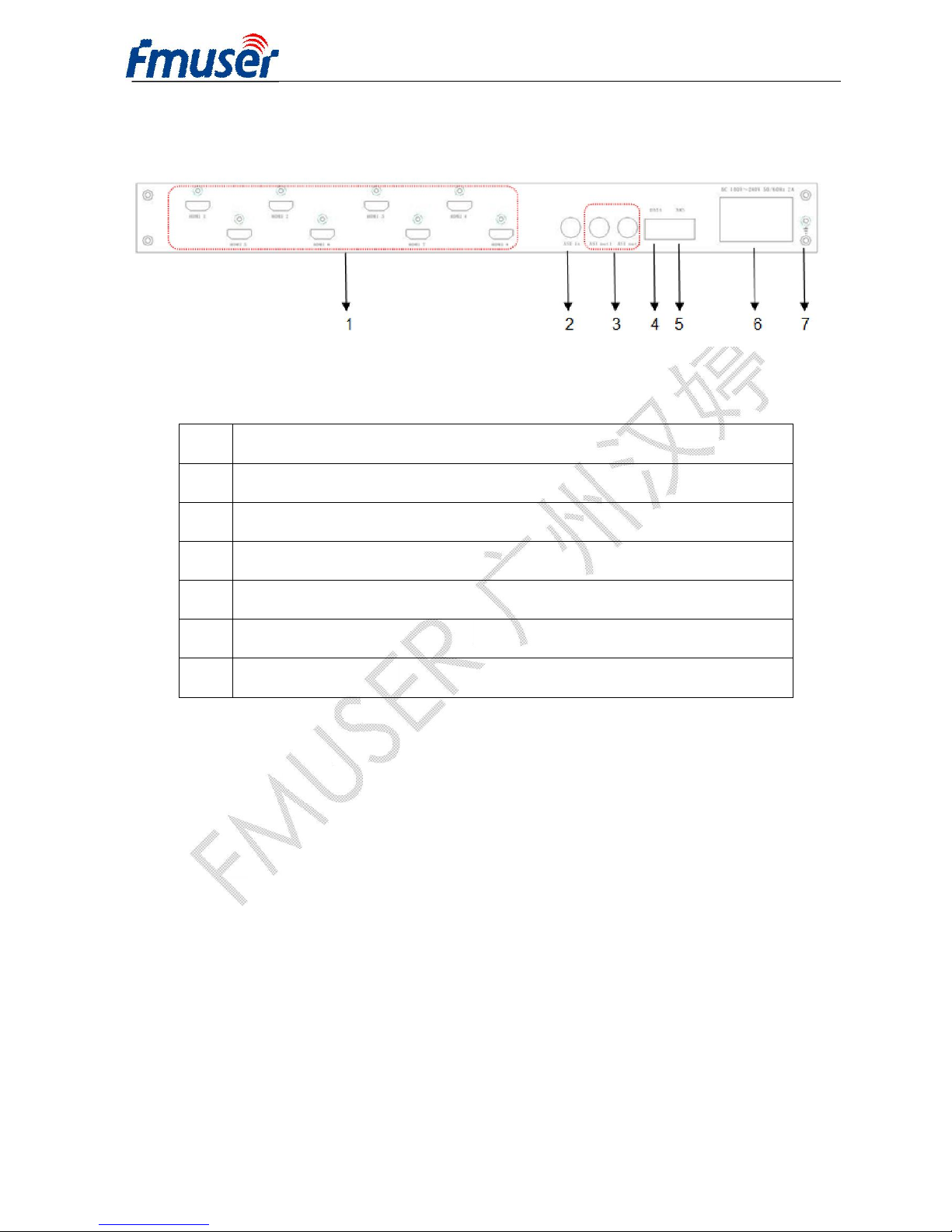

Rear Panel Illustration:

1

8 * HDMI Input Ports

2

ASI Input Port

3

2 * ASI Output Ports

4

Data Port (for IP Signal Output)

5

NMS (Network Management Port)
6 Power Switch and socket
7

Grounding Pole

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

7 / 43

Chapter 2 Installation Guide

2.1 Acquisition Check

When users open the package of the device, it is necessary to check items according to
packing list. Normally it should include the following items:

Ø FUTV4318A 8 in 1 MPEG-4 AVC/H.264 HD Encoder
Ø User’s Manual
Ø HDMI Cable
Ø ASI Cable
Ø Power Cord

If any item is missing or mismatching with the list above, please contact local dealer.

2.2 Installation Preparation

When users install device, please follow the below steps. The details of installation will be
described at the rest part of this chapter. Users can also refer rear panel chart during the
installation.
The main content of this chapter including:

Ø Checking the possible device missing or damage during the transportation
Ø Preparing relevant environment for installation
Ø Installing Encoder
Ø Connecting signal cables
Ø Connecting communication port (if it is necessary)

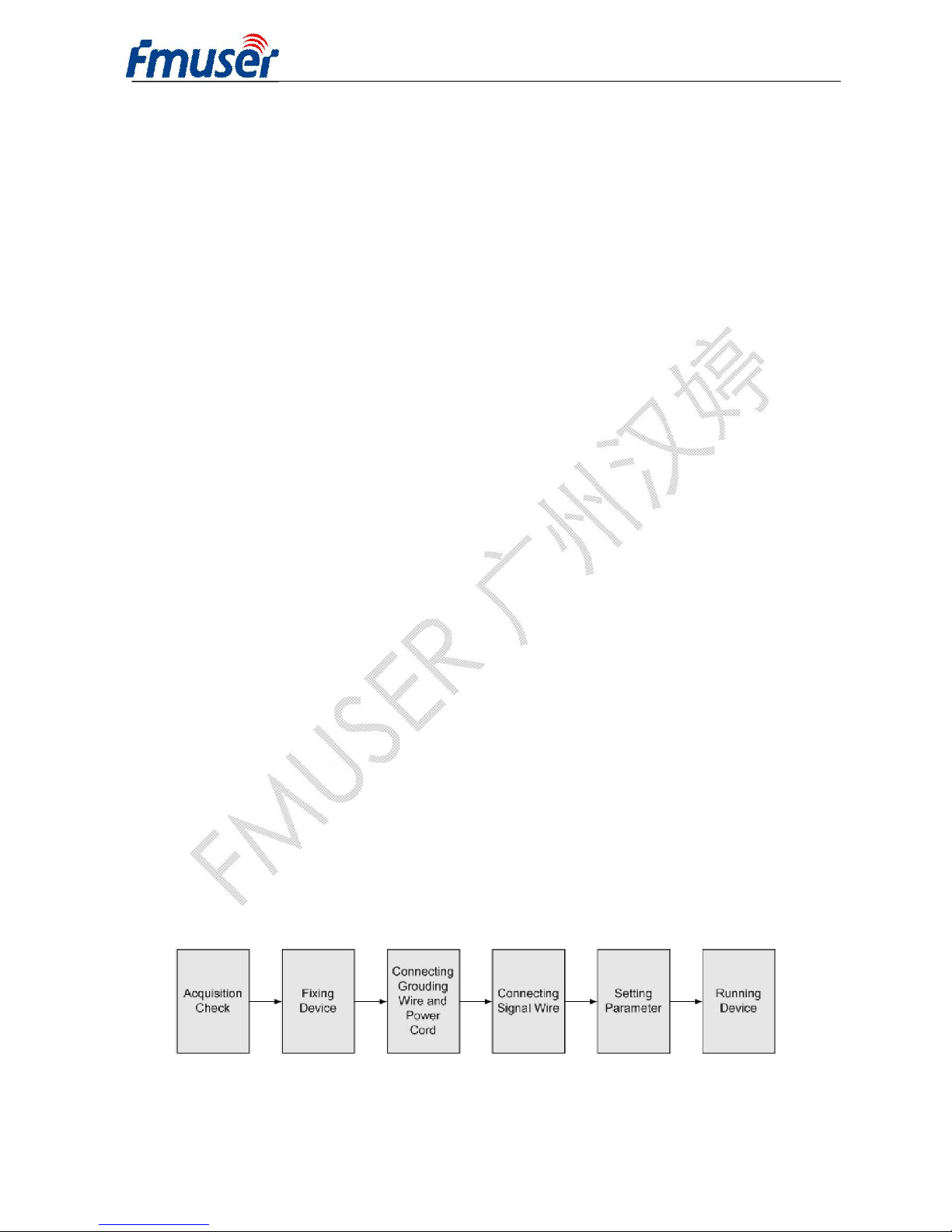

2.2.1 Device’s Installation Flow Chart is Illustrated as following：

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

8 / 43

2.2.2 Environment Requirement

Item Requirement

Machine Hall

Space

When user installs machine frame array in one
machine hall, the distance between 2 rows of machine
frames should be 1.2~1.5m and the distance against wall
should be no less than 0.8m.

Machine Hall

Floor

Electric Isolation, Dust Free

Volume resistivity of ground anti-static material:
1X107~1X10

10Ω

，Grounding current limiting resistance: 1M

(Floor bearing should be greater than 450Kg/㎡)

Environment

Temperature

5~40℃(sustainable )，0~45℃(short time)，

installing air-conditioning is recommended

Relative

Temperature

20%~80% sustainable 10%~90% short time

Pressure 86~105KPa
Door &

Window

Installing rubber strip for sealing door-gaps and dual
level glasses for window

Wall

It can be covered with wallpaper, or brightness less
paint.

Fire Protection

Fire alarm system and extinguisher

Power

Requiring device power, air-conditioning power and
lighting power are independent to each other. Device
power requires AC power 220V 50Hz. Please carefully
check before running.

2.2.3 Grounding Requirement

Ø All function modules’ good grounding designs are the basis of reliability and stability of

devices. Also, they are the most important guarantee of lightning arresting and
interference rejection. Therefore, the system must follow this rule.

Ø Coaxial cable’s outer conductor and isolation layer should keep proper electric

conducting with the metal housing of device.

Ø Grounding conductor must adopt copper conductor in order to reduce high frequency

impedance, and the grounding wire must be as thick and short as possible.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

9 / 43

Ø Users should make sure the 2 ends of grounding wire well electric conducted and be

antirust.

Ø It is prohibited to use any other device as part of grounding electric circuit
Ø The area of the conduction between grounding wire and device’s frame should be no

less than 25mm

2

.

2.2.4 Frame Grounding

All the machine frames should be connected with protective copper strip. The grounding
wire should be as short as possible and avoid circling. The area of the conduction between
grounding wire and grounding strip should be no less than 25mm

2

.

2.2.5 Device Grounding

Connecting the device’s grounding rod to frame’s grounding pole with copper wire.

2.3 Wire’s Connection

The grounding wire conductive screw is located at the right end of rear panel, and the
power switch, fuse, power supply socket is just beside ,whose order goes like this, power
switch is on the left ,power supply socket is on the right and the fuse is just between them.
Ø Connecting Power Cord

User can insert one end into power supply socket, while insert the other end to AC
power.

Ø Connecting Grounding Wire

When the device solely connects to protective ground, it should adopt independent way,
say, share the same ground with other devices. When the device adopts united way,
the grounding resistance should be smaller than 1Ω.

FCaution:
Before connecting power cord to FUTV4318A 8 in 1 MPEG-4 AVC/H.264 HD Encoder,
user should set the power switch to “OFF”.

2.4 Signal Cable Connection

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

10 / 43

The signal connections include the connection of input signal cable and the connection of
output signal cable. The details are as follows:

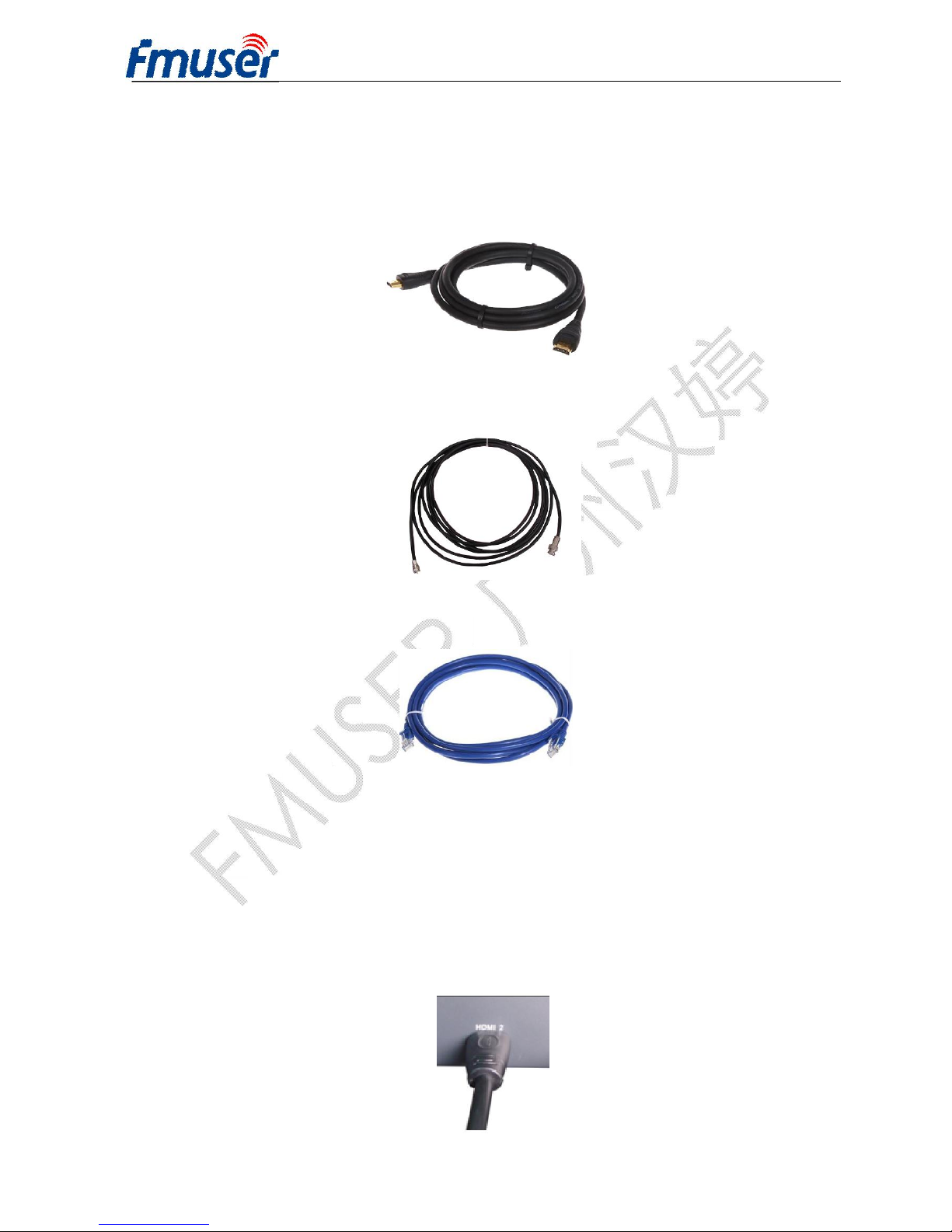

2.4.1 HDMI input cable illustration:

2.4.2 ASI output cable illustration:

2.4.3 Network Cable illustration (CAT5):

2.4.4 HDMI input interface connection

User can firstly find the HDMI interface on the device according to the connector mark
described on the rear panel illustration, and then connect the HDMI cable (in the
accessories). One end is connected to the head-end equipment while the other end to the
encoder’s HDMI input port. The encoder’s HDMI input port (HDMI1…HDMI8) and its
connection are illustrated as follows:

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

11 / 43

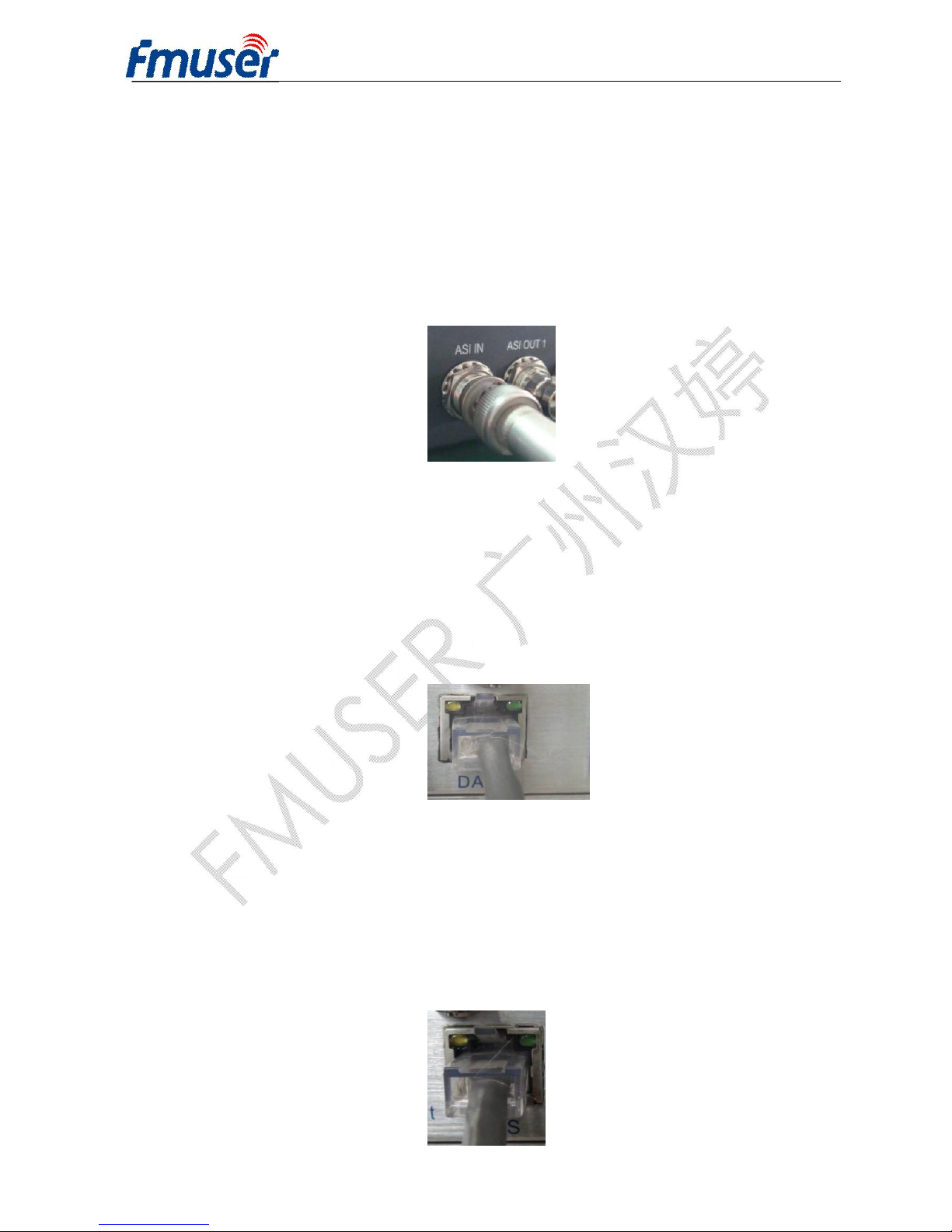

2.4.5 ASI output interface connection

User can firstly find the ASI output interface on the device according to the connector mark
described on the rear panel illustration, and then connect the ASI cable (in the accessories).
One end is connected to the encoder’s ASI out connector (ASI1, ASI2) while the other end
to the TS stream multiplexer or modulator’s ASI input port. The encoder’s ASI output
interface and its connection are illustrated as follow:

2.4.6 IP Output Interface connection

Users can firstly find the DATA interface on the device according to the connector mark
described on the rear panel illustration, and then connect the network (CAT5). One end of
the network cable is connected to the encoder’s DATA output connector, while the other
end to the TS stream multiplexer IP input port or other device which can input IP signal. The
encoder’s DATA connection is illustrated as follows:

2.4.7 NMS Connection

Users can firstly find the NMS interface on the device according to the connector mark
described on the rear panel illustration, and then connect the network (CAT5). One end of
the network cable is connected to the encoder’s NMS connecter, while the other end to the
computer or the PC. The encoder’s NMS connection is illustrated as follows:

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

12 / 43

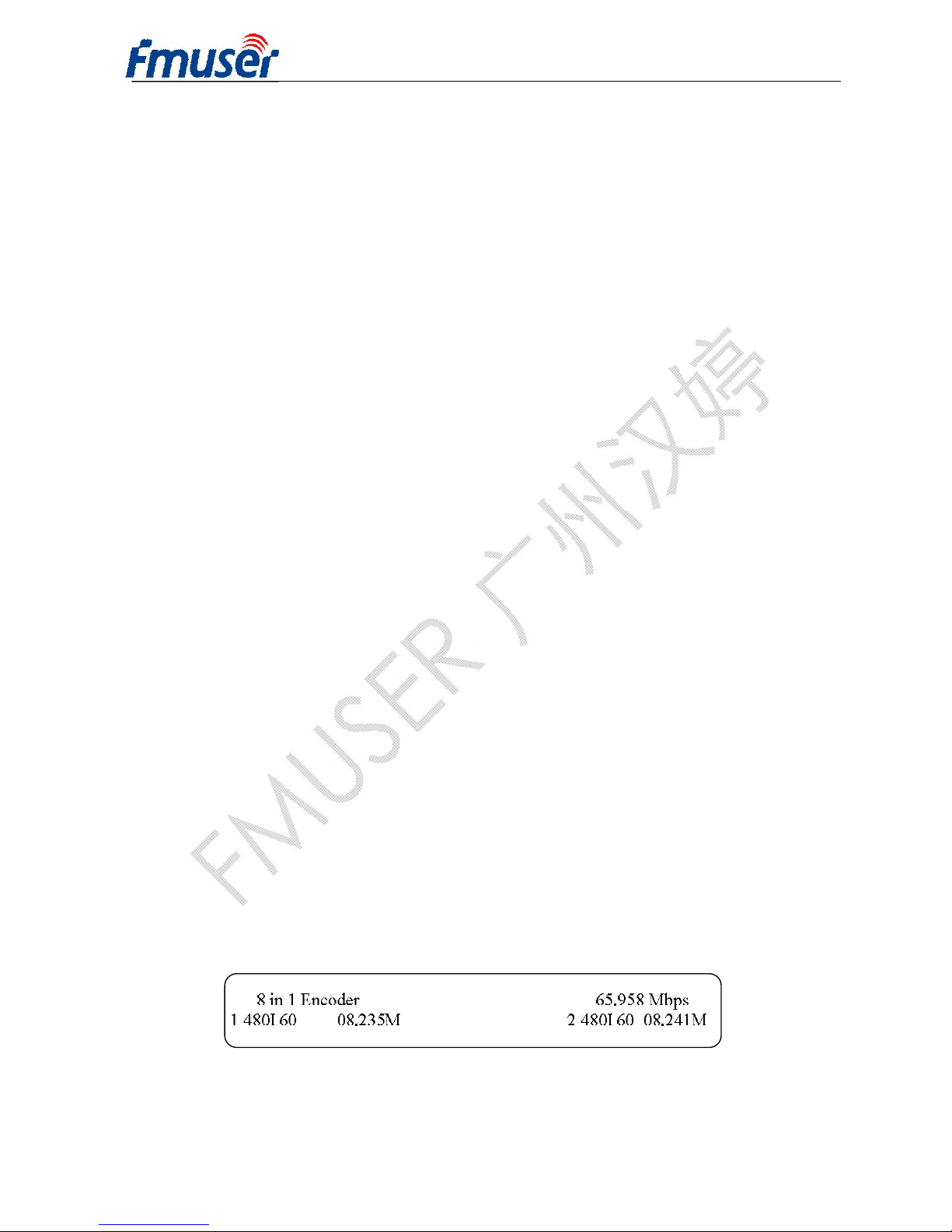

Chapter 3 Operation

FUTV4318A 8 in 1 MPEG-4 AVC/H.264 HD Encoder’s front panel is user operating
interface. Before operating, user can decide whether directly use the default setting or
customize the input and output parameters setting. The detail operations go as follows:

Keyboard Function Description:

ENTER: Activating the parameters which need modifications, or confirming the change

after modification.
MENU: To cancel presently entered value, resume previous setting and return to previous
menu.

LEFT/RIGHT: To move the “►” to choose or set the parameters.
UP/DOWN: To modify activated parameter or page up/down when parameter is

inactivated.
LOCK: To Lock the screen / cancel the lock state. After pressing lock key, the system will
question the users to save present setting or not. If not, the LCD will display the current
configuration state.

At the “Factory Configuration” page, user can press “ENTER” key to restore the factory
default configuration.

3.1 Initializing

After powering on the device，it will take a few seconds to initialize the system, and then the
LCD will show the device name and output real-time bit-rate in the first row, while the 8
channels’ respective input video resolution, frame rate and real-time encoding bit-rate in the
second row in turn. It shows as below:

3.2 General Setting

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

13 / 43

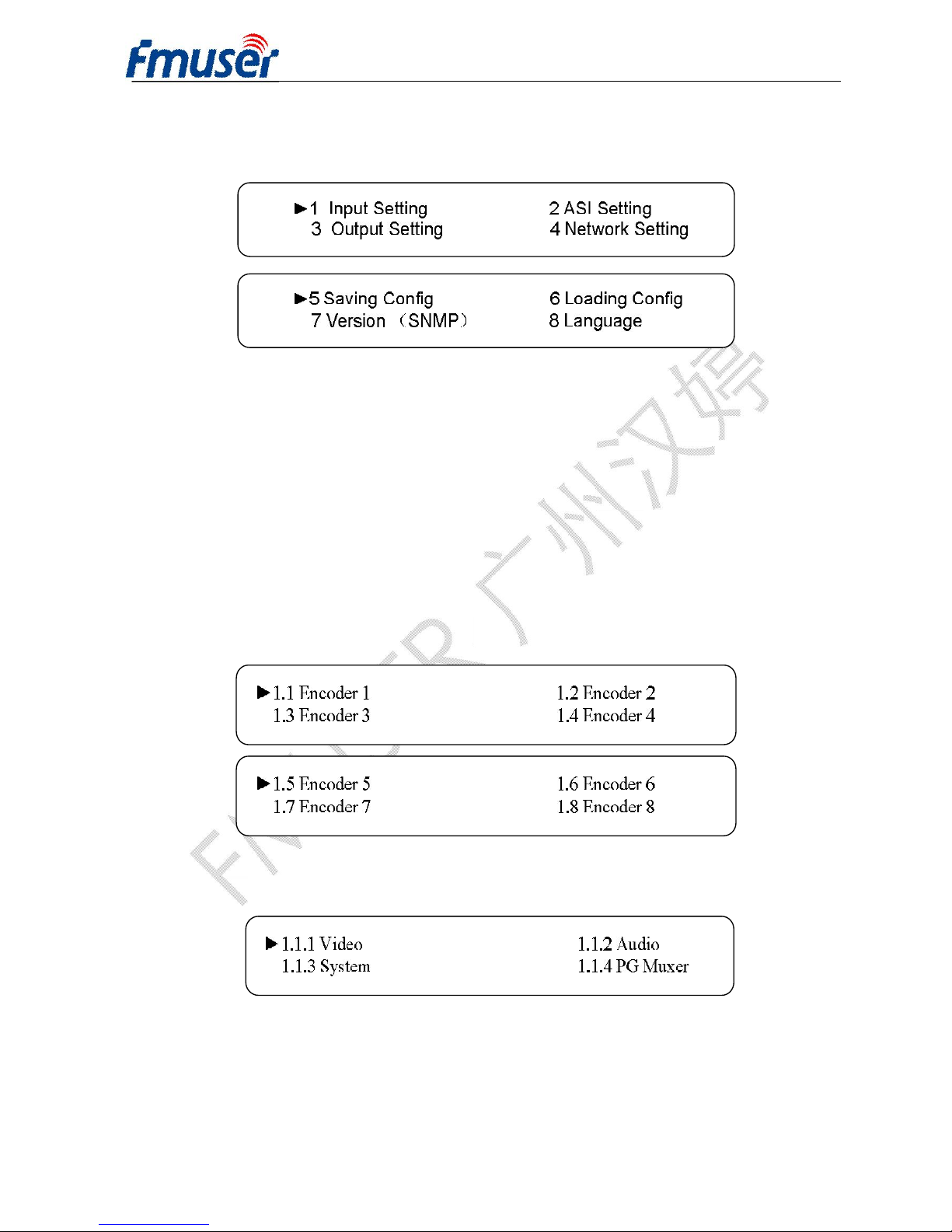

By pressing LOCK key, users can enter in the main menu and set the input and output
parameters in the following editing interfaces, the LCD will display the following pages:

The option with “►” is the current selection, users can press the ENTER key to enter the
specified submenu to modify the device parameter.

3.2.1 Input Setting

Under this menu, users can enter the corresponding encoding channel to set the relevant
audio and video input parameters, and select programs to multiplex. The LCD will display 8
submenus which from Encoding Channel 1 to Encoding Channel 8. The setting principle is
the same for Encoding Channel 1-8, so here this manual just takes one channel as the
example to explain. After pressing the enter key, the LCD will display the following pages:

After users enter the submenu, the interface will turn into the following pages, and then
users can enter the corresponding interface to modify the parameters.

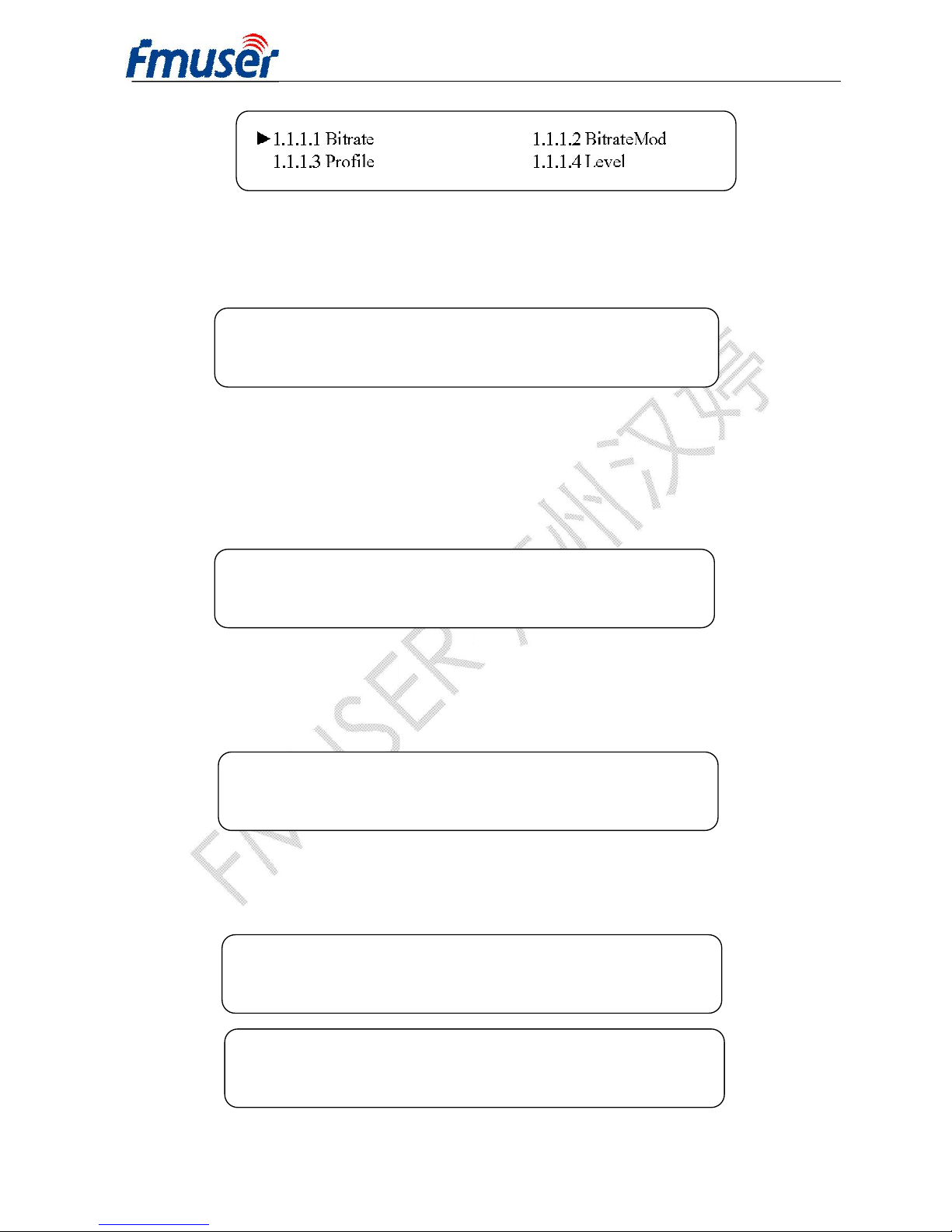

3.2.1.1 Video Setting

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

14 / 43

Ø Bitrate
By press “Enter” key, user can modify relevant parameter of encoding rate (adjustable
range: 0.8M~19M), the specific steps are displayed as follows:

Ø Bitrate Mode
User can choose CBR & VBR at this menu. CBR (Constant Bit-rate) means that the bit-rate
will be a constant value. VBR (Variable Bit-rate) means that the bit-rate will always change
along with the video scene changing.

Ø Profile
User can select the configuration of H.264 profile at this menu. There are H.264 High
Profile code format and main Profile code format.

Ø Level
User can select the H.264 level at this menu. The option with bracket is the current choice.

1.1.1.1 Bitrate

8.000Mbps

1.1.1.2 BitrateMod 01/01
[CBR] VBR

1.1.1.3 Profile 01/01
[HIGH] MAIN

1.1.1.4 Level 01/03
[1.2] 1.3 2.0 2.1

1.1.1.4 Level 02/03
[2.2] 3.0 3.1 3.2

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

15 / 43

3.2.1.2 Audio Setting

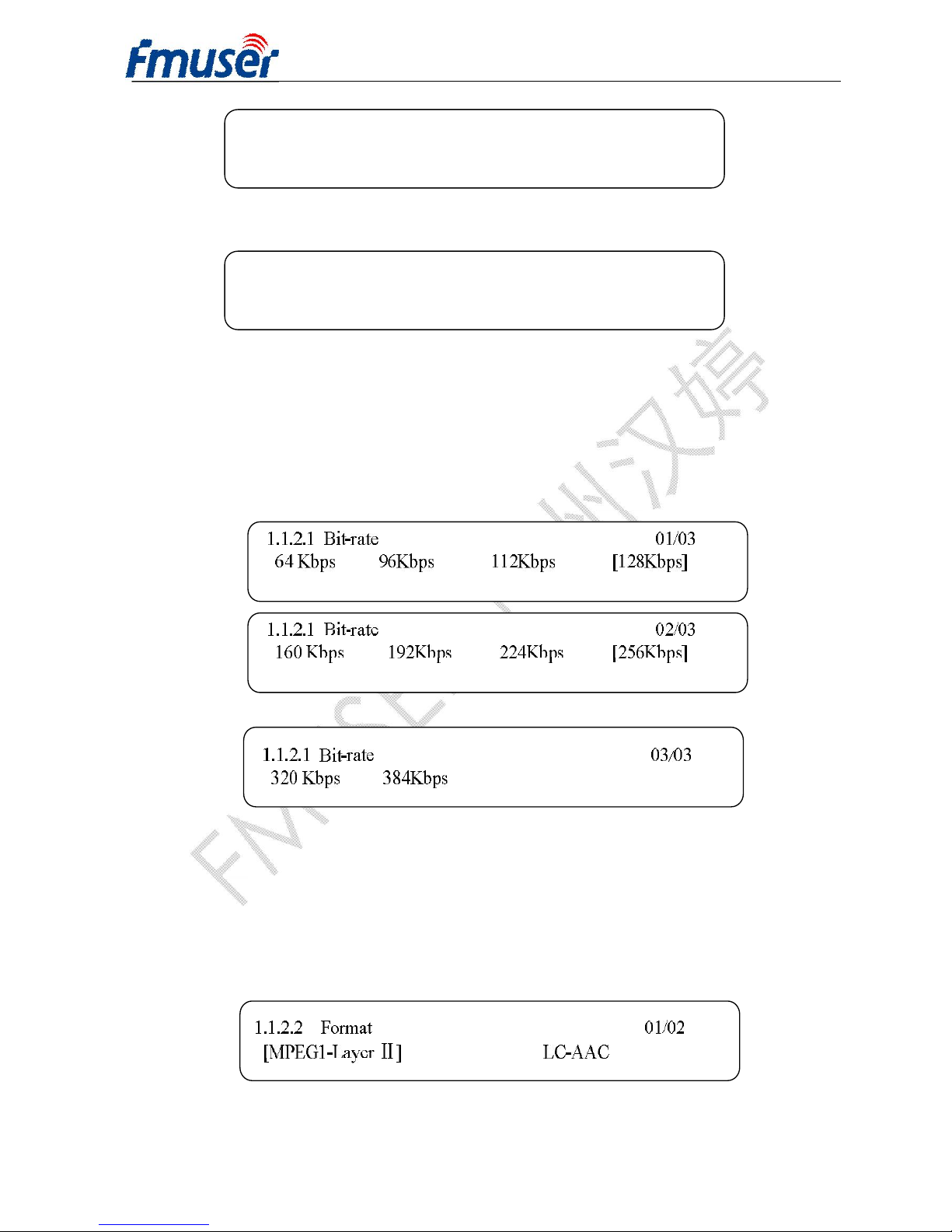

Ø Audio Bit Rate Setting
User can set the input audio bit-rate by pressing the enter key to enter the main editing
interface. And there are: 64Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps,
224Kbps, 256 Kbps, 320Kbps, and 384Kbps. After the modification, users can press enter
key again to take the modification into effect. The LCD will display the following pages:

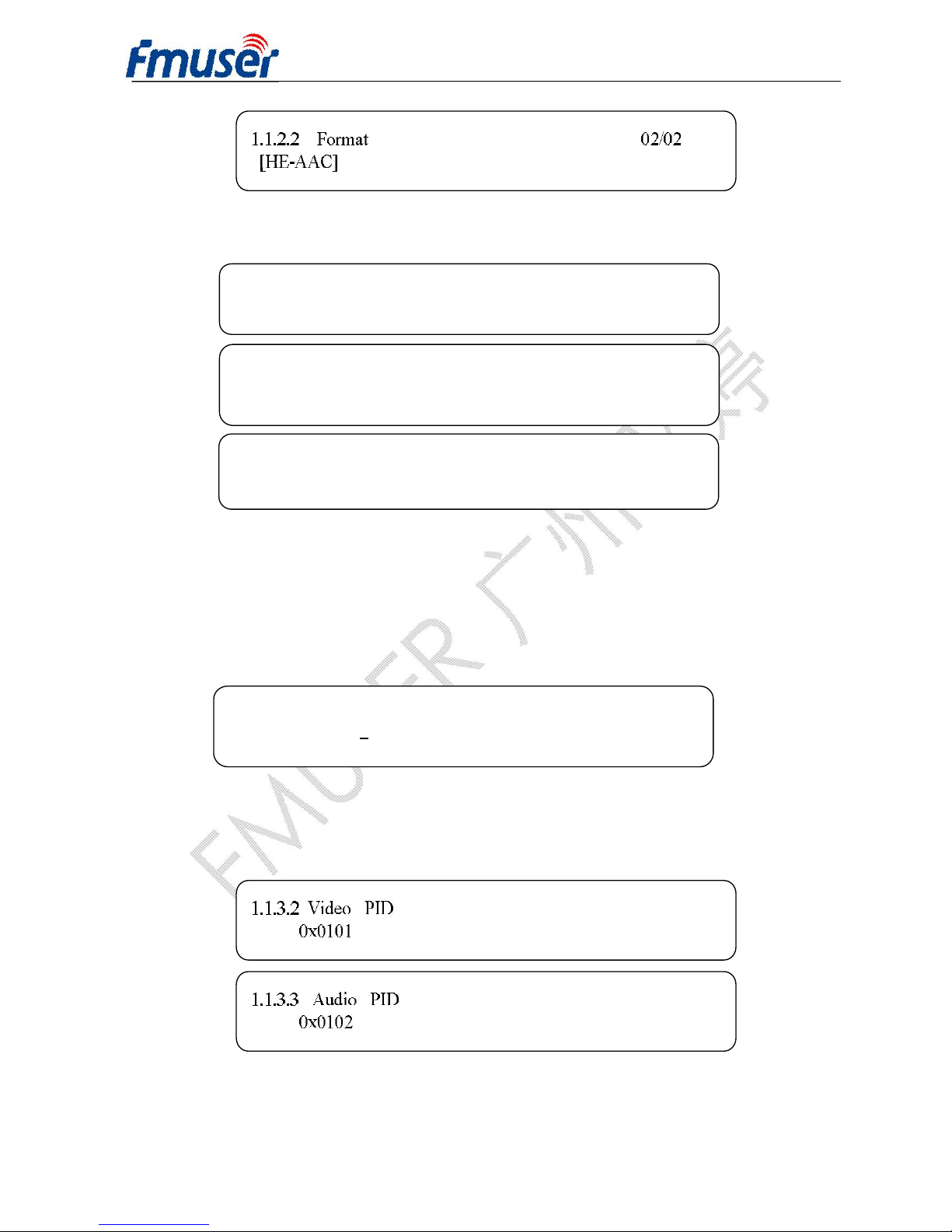

Ø Audio Format Setting
AAC: Advanced Audio Coding

Users can set the input audio format in this interface, and the 3 options are MPEG1 Layer
Ⅱ, LC-AAC, and HE-AAC. When users enter the main editing menu, the LCD will display
the following page:

1.1.2.1 Bit Rate 1.1.2.2 Format

1.1.1.4 Level 03/03

[4.0] 4.1 4.2

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

16 / 43

3.2.1.3 System Settings

Under this interface, users can set the corresponding system parameters, after the
modification, users can press enter key to take the modification into effect.
Ø Program Number Setting
Users can set the program number by pressing ENTER to enter this submenu. The LCD
will display as below:

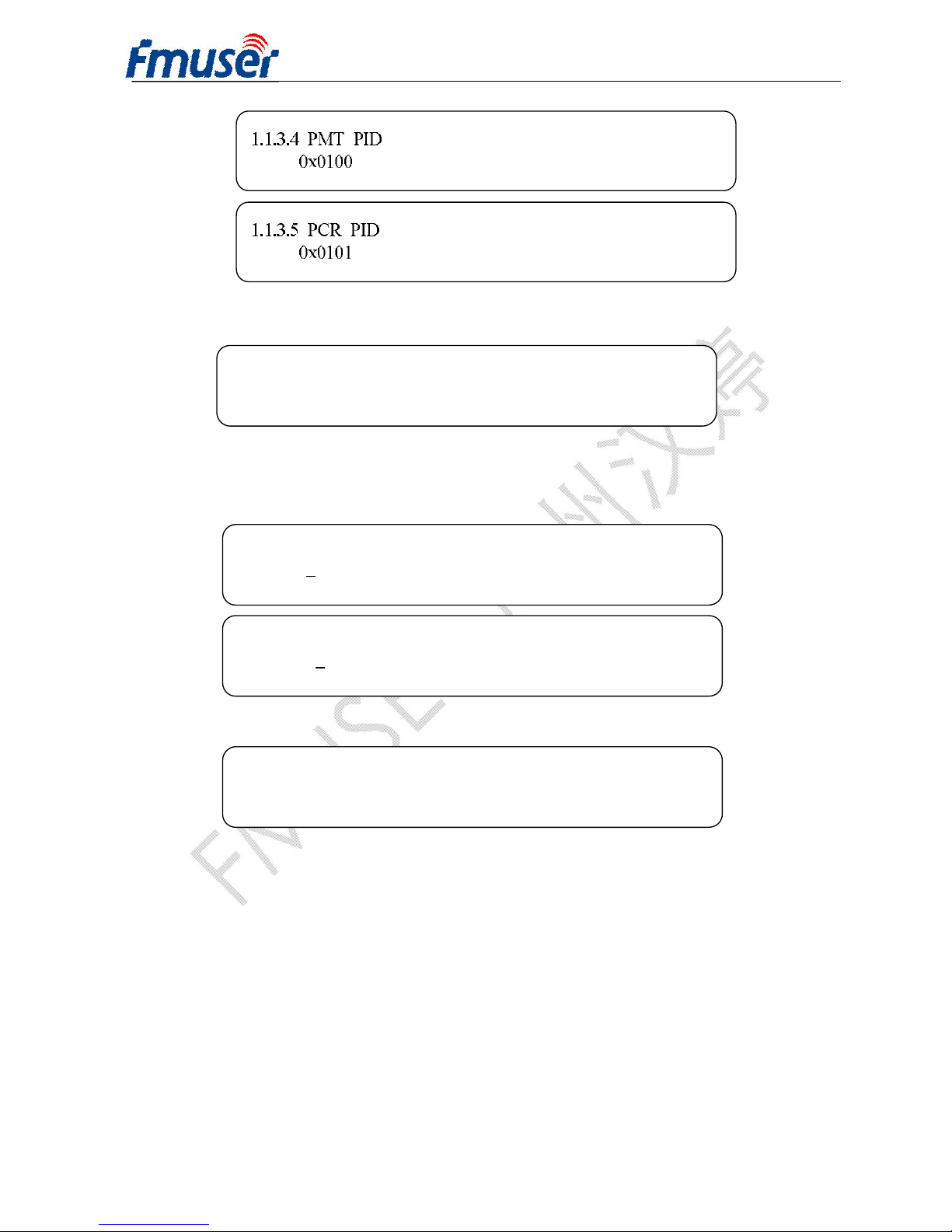

Ø Video/Audio/PMT/PCR PID Settings
Users can set these parameters by pressing ENTER to enter these submenus. The LCD
will display the following pages, and the maximum PID number cannot exceed 0x1fff.

►1.1.3.1 Prog Number 1.1.3.2 Video PID

1.1.3.3 Audio PID 1.1.3.4 PMT PID

►1.1.3.5 PCR PID 1.1.3.6 IP Enable

1.1.3.7 Out Address 1.1.3.8 Out Port

►1.1.3.9 Null PKT

1.1.3.1 Program Number
0x0101

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

17 / 43

Ø IP Enable

Ø Out Address/Out Port Setting

User can modify the out address and out port in below interfaces.

Ø Null Packet

Users can choose YES (filter the null packet) or NO (don’t filter null packet) to decide
whether to filter the null packet or not.

3.2.1.4 Program Mux Setting

Users can decide whether to open the multiplexing function of the device.

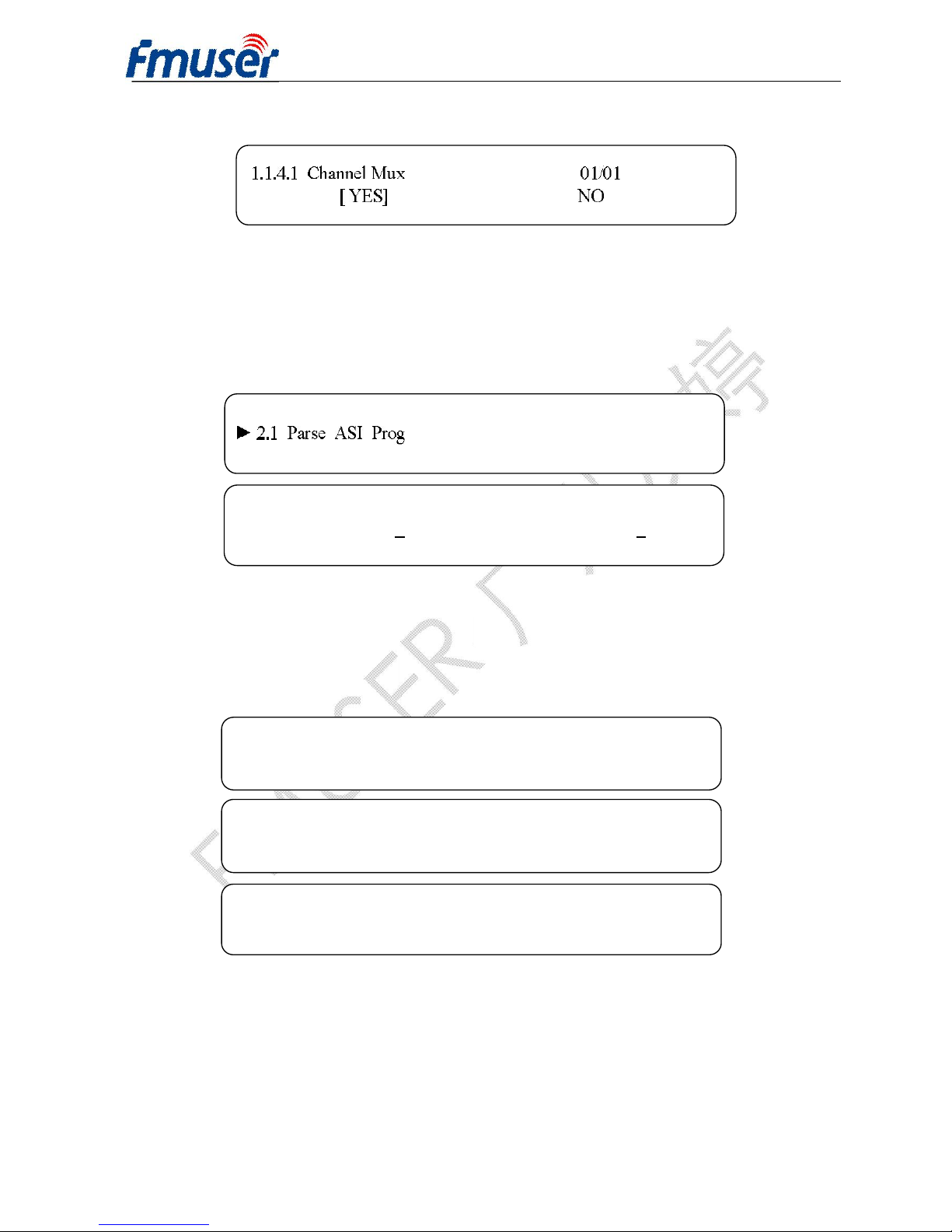

Ø Channel Mux
Under this interface, users can decide whether to multiplex the channel encoding stream.
YES means that the device multiplexes the encoding stream into the MPTS, while NO means
that the output program is SPTS. The LCD will display the following pages after pressing

1.1.3.6 IP Enable 01/01

YES [NO]

1.1.3.7 Out Address

224.002.002.002

1.1.3.8 Out Port
1002

1.1.3.9 Null Packet 01/01

YES [NO]

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

18 / 43

enter key.

3.2.2 ASI Setting

Users can check the ASI input program amount in this interface, and the LCD will display
the following page. Prog: 006 represents the input program is 6 and Out:003 represents 3
of the 6 programs have been multiplexed.

3.2.3 Output Setting

By press the enter key in the main editing interface, use can set the device output
parameter. The device will display the following page after users pressing the enter key.

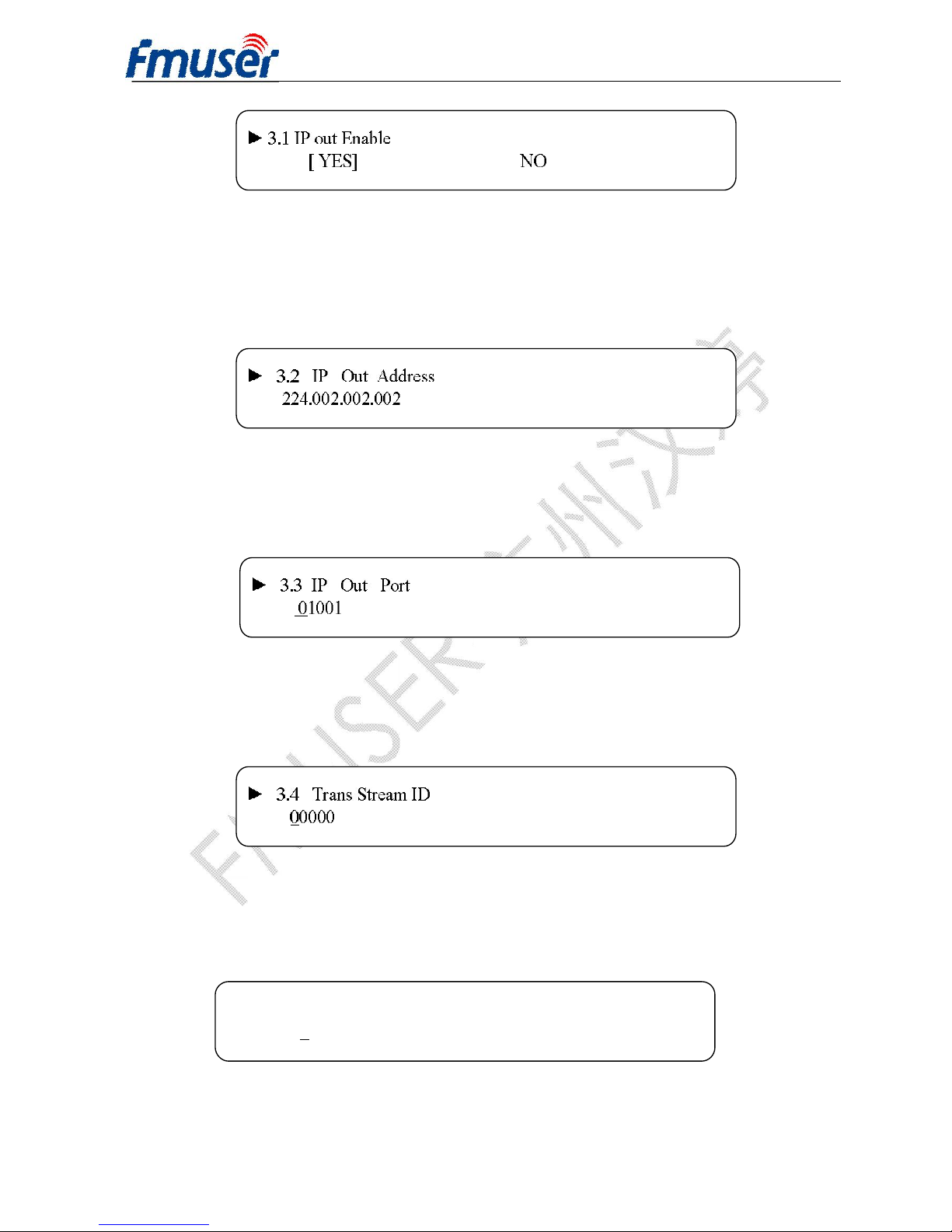

3.2.3.1 IP Out Enable

This is the new function of this encoder, user can decide whether to open the IP output
function by press the ENTER key in this menu, and the operating interface will show the
following page:

2.1 Parse ASI Prog Prog: 006 Out: 003
► 001 HK1 √ 002 HK2 X

► 3.1 IP Out Enable 3.2 IP Out Address

3.3 IP Out Port 3.4 Trans Stream ID

► 3.5 Output Stream 3.6 ASI Output

3.7 UTC Time Config 3.8 Null PKT

► 3.9 TS Package Num

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

19 / 43

3.2.3.2 IP Out Address

If users enable the IP output function, then users can set the device IP output address in
this interface. After users press the ENTER key, the operating interface will display the
following page:

3.2.3.3 IP Out Port

In this menu, users can set the encoder IP output port number by press the ENTER key to
enter the main editing interface.

3.2.3.4 Trans Stream ID

Users can set the device TS ID in this interface after pressing the ENTER key to enter the
main editing page.

3.2.3.5 Output Stream

Users can modify the bit rate of output stream in this interface after pressing the ENTER
key to enter the main editing page.

3.2.3.6 ASI Output

3.5 Output Stream

040.000 Mbps

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

20 / 43

Users can set the ASI output in this interface under this menu, and there are 9 options:
MPTS, Channel 1-8.

3.2.3.7 UTC Time

UTC refers to Universal Time Coordinated. User can enter this menu to set the time as
needed and it will then generate the TDT table and show in the user’s STB.

3.2.3.8 Null Packet

3.2.3.9 TS Package Num

User can set the amount of TS packages by entering into below interface.

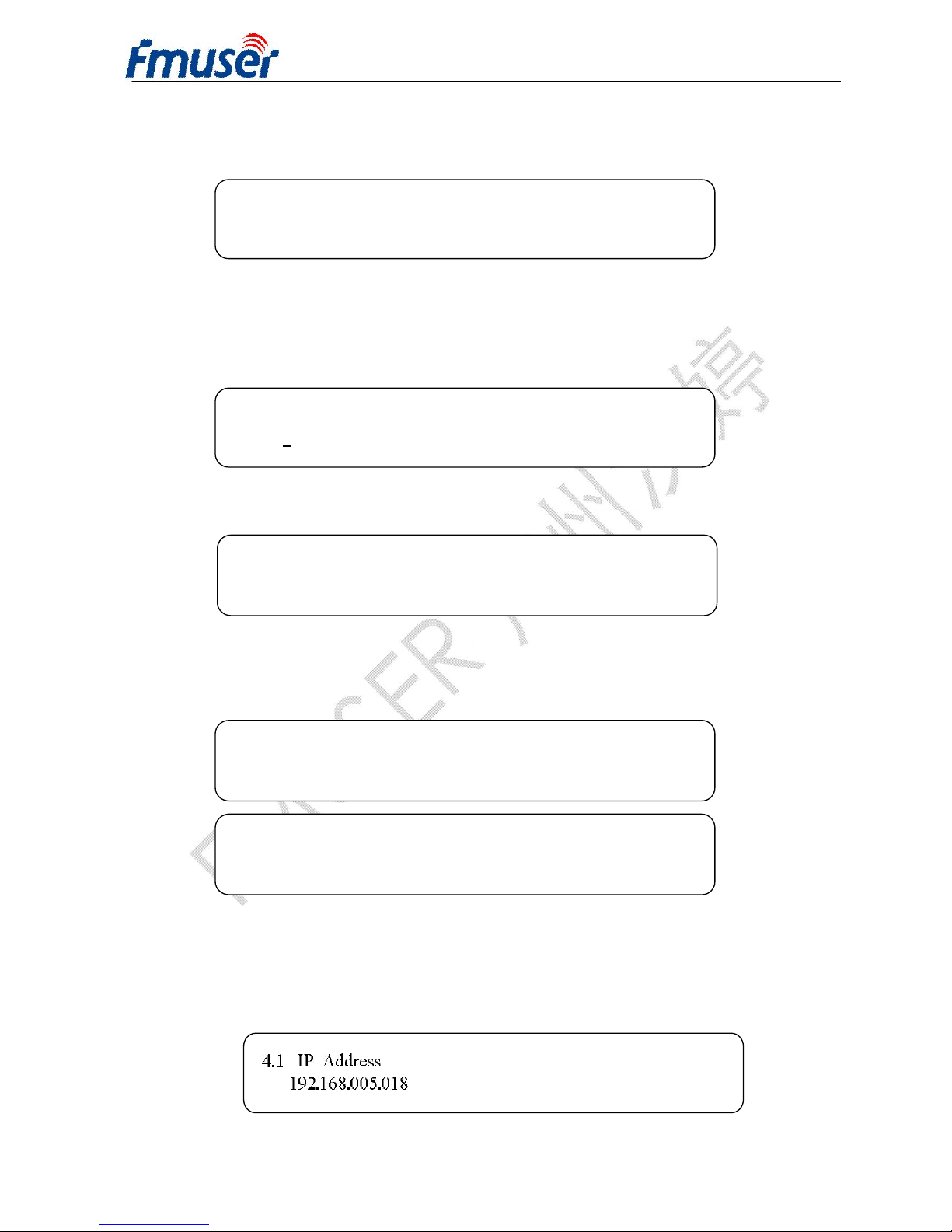

3.2.4 Network Setting

Users can set the network parameters by pressing the enter key, and the LCD will display
the following interfaces.

3.6 ASI Output 01/03
[MPTS] Channel 1 Channel 2 Channel 3

3.7 UTC Time Configuration
2

012-01-29 15:45:03

3.8 Null Packet 01/01

YES [NO]

3.9 TS Package Num 01/02

1 2 3 [4]

3.9 TS Package Num 02/02

[5] 6 7

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

21 / 43

The MAC address is read-only in the keyboard operation interface, so users can just check
the physical address under this interface, and the modification must be done in the network
updating tools.

NOTE: The MAC address is unique, and cannot be modified. When the MAC address
is ffffffffffff, users must modify the address through special software, otherwise, the
IP output data will be filter out when the IP stream passes through the router.

3.2.5 Saving Configuration

Users can save the modification by pressing the enter key, and it will display the following
interface when user press the enter key.

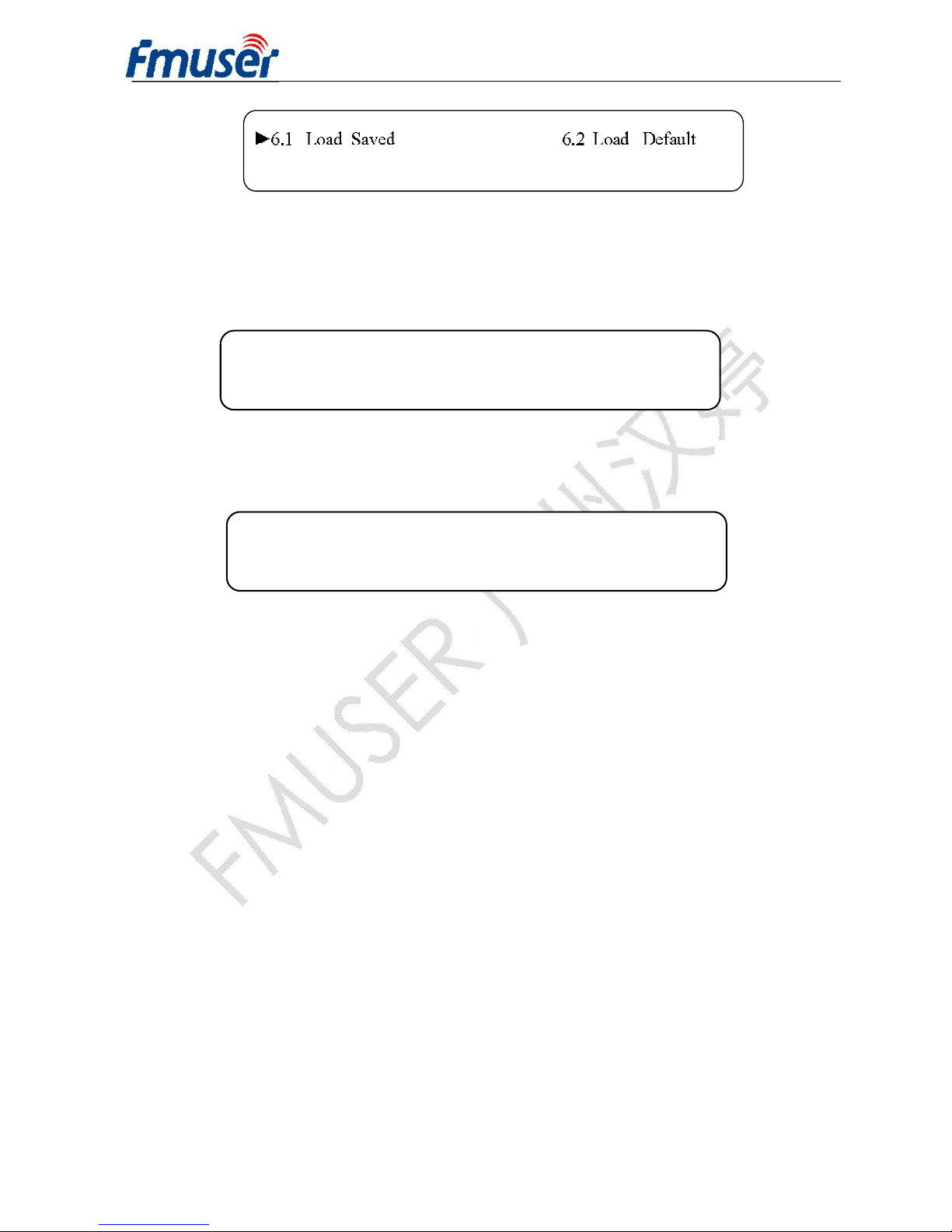

3.2.6 Loading Configuration

In this interface, users can select the modified configuration and the factory defaulted
configuration. Users can enter the corresponding menu to select the configuration. The
LCD will display the following interfaces:

4.5 MAC Address
201012345679

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

22 / 43

3.2.7 Version

Users can check the device software version and hardware version, and the LCD will
display the following interface when users press the ENTER key.

3.2.8 Language

User can select the needed language under this submenu:

8 Language

中文 [ENGLISH]

8 in 1 Encoder
SW 0.17F HW 08

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

23 / 43

Chapter 4 SNMP Operation

Network Management System

SNMP Network management system is applied to digital TV equipment operation, control
and management and parameters setting, etc. It centralizes digital TV equipment through
network.

4.1 Installation

The software doesn’t need special installation. User can just open the folder SnmpNMS

x.xy.z to find the icon and double click it to pop up the login interface.

4.2 Software Operation

4.2.1 Login Interface

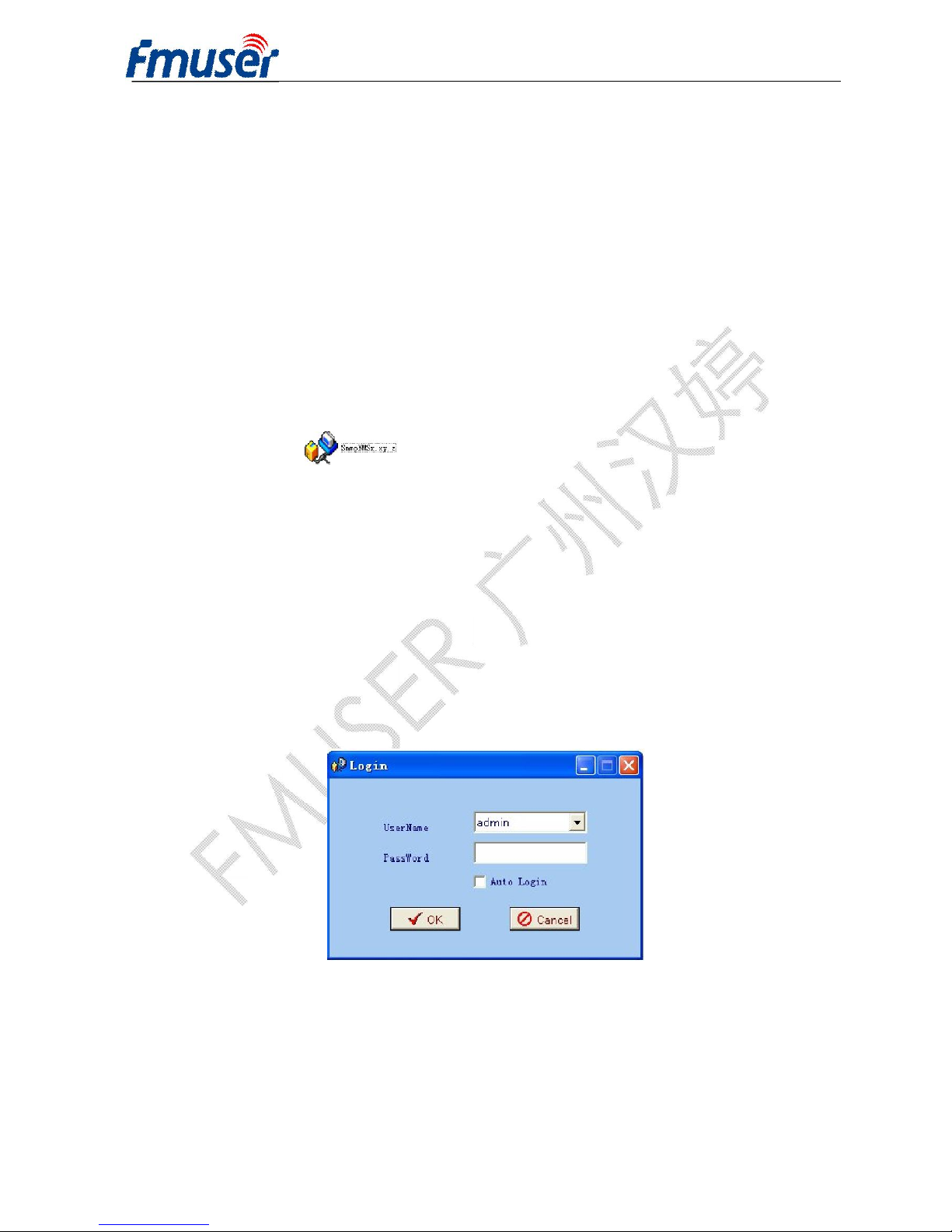

A login interface will pop up firstly when the software is running and give user prompts to
input user name and password (The default user name is admin and no password. User
can add users and passwords as needed. Details please refer to 4.4.3 in 4.4 Other
Settings.). The menu shows as follows:

User can login the NMS by pressing OK key after inputting user name. Upon the inputs, the
software will verify them with database record automatically and the main interface will
appear.

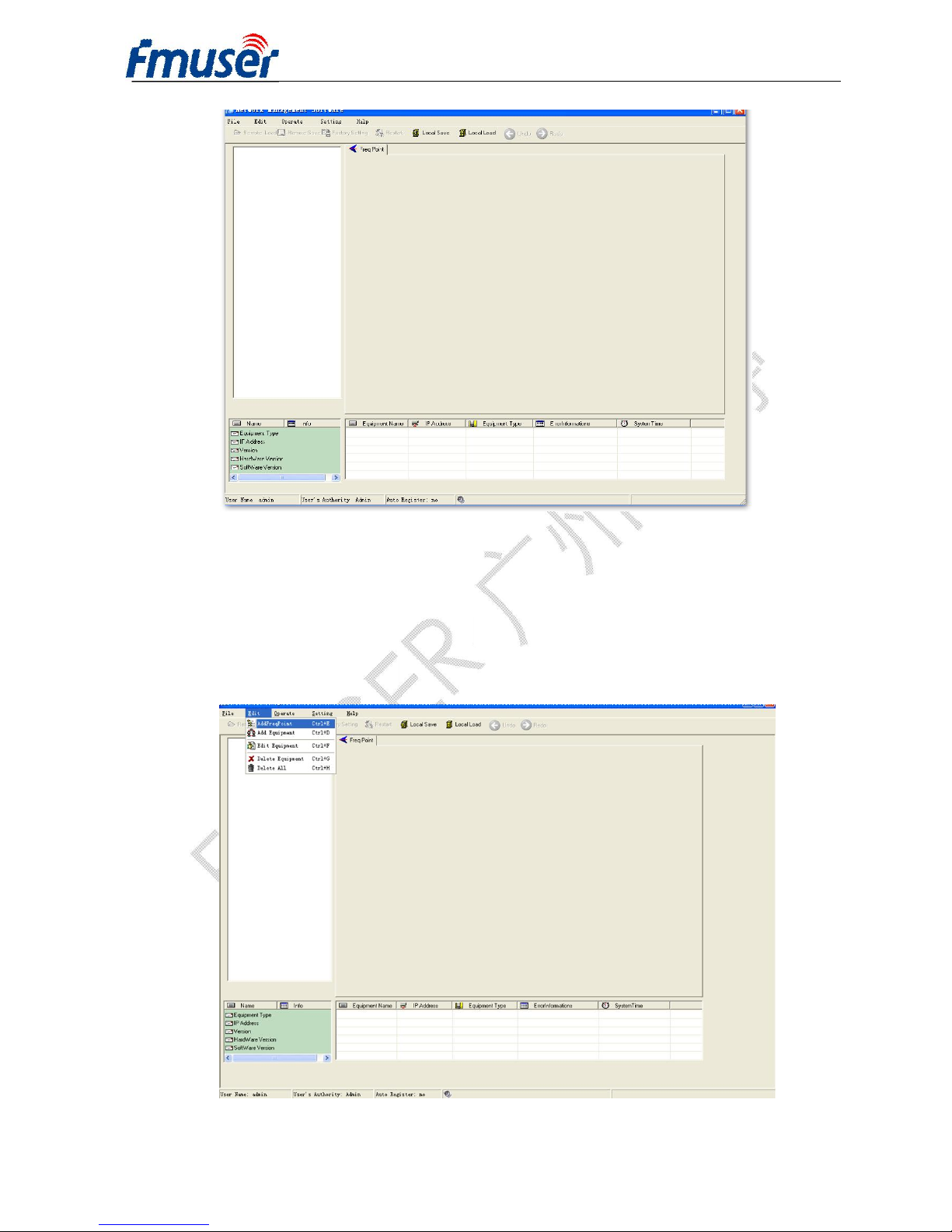

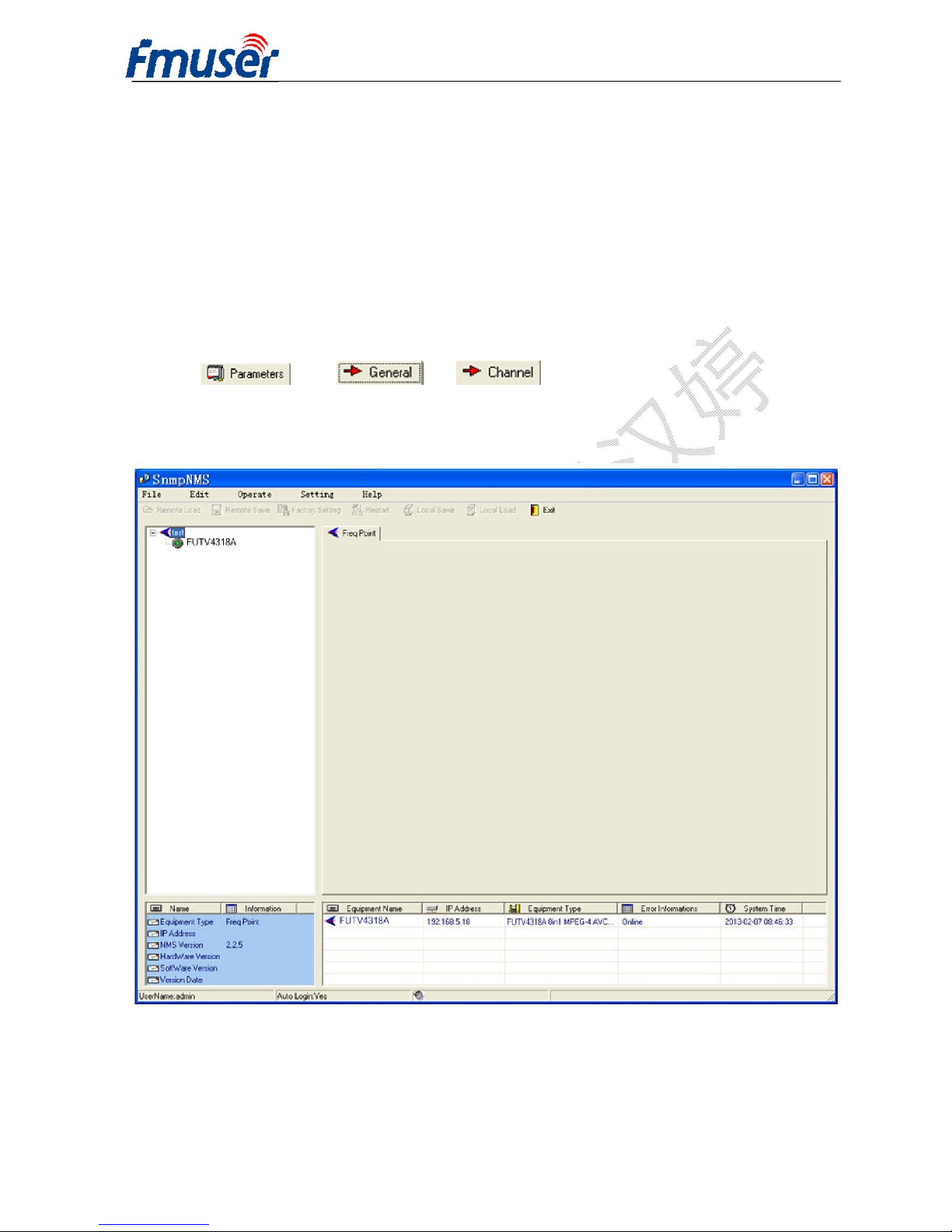

4.2.2 Main Interface

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

24 / 43

User can create a device node tree in the left column by adding, modifying and deleting the
device node. This software provides a powerful node operation function, and the user can
edit various parameters in the device tree for management and classification.

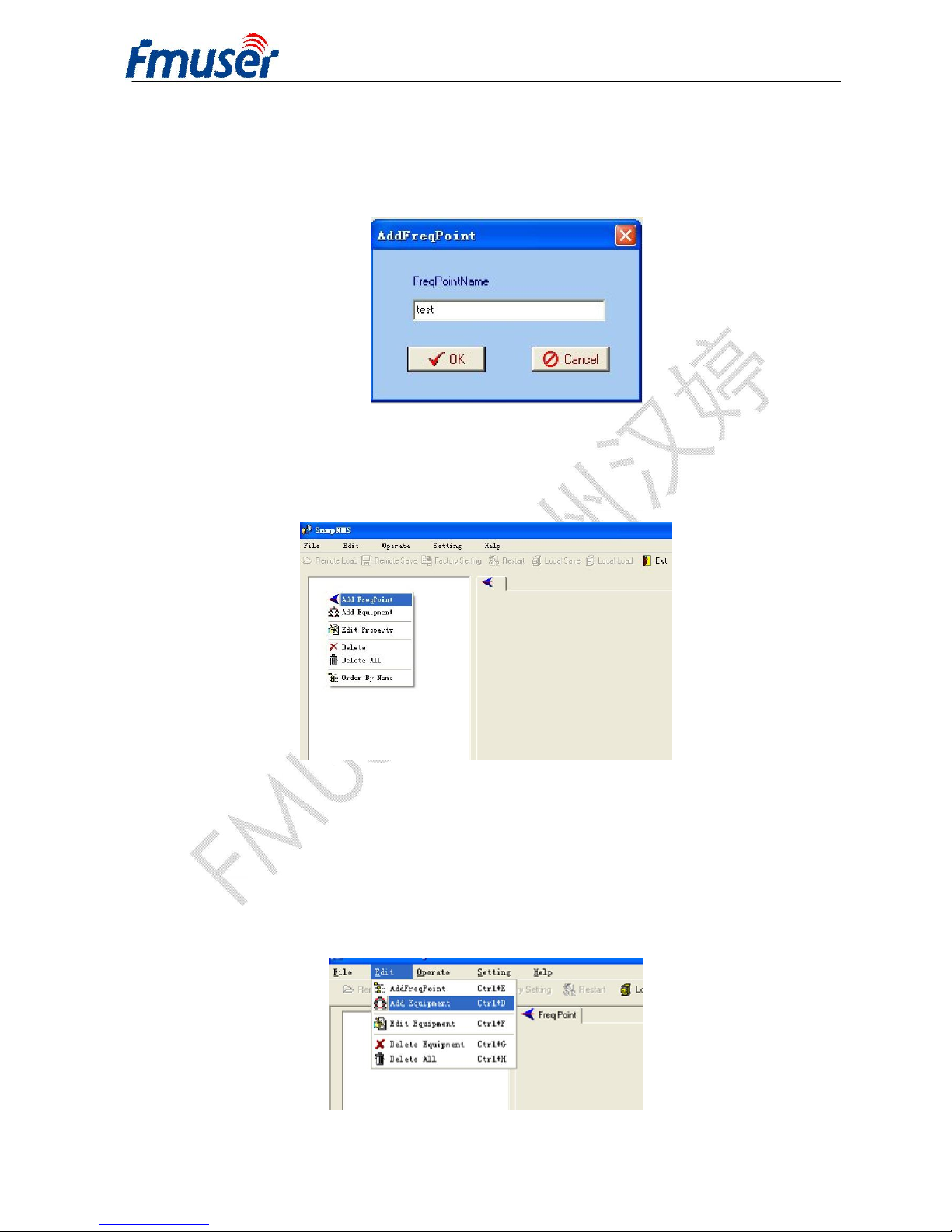

4.2.3 Adding Frequency Point

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

25 / 43

The Add Freq Point dialog box popes up when the user clicks the Add Freq Point item in the
Edit pull down menu on the menu row. The device will confirm the given frequency while
user clicks OK.

User can also click right mouse key to pop up the short-cut menu in device tree or in the left
blank column, then the corresponding dialog box will pop up by choosing Add Main Freq

Point. The device will confirm the given frequency while user clicks OK.

4.2.4 Adding Equipment under Given Frequency Point

User should choose the frequency point in advance, and then the dialog box of Add
Equipment will pop up when user clicks “Add Equipment” item in the Edit pull down menu
on the menu row.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

26 / 43

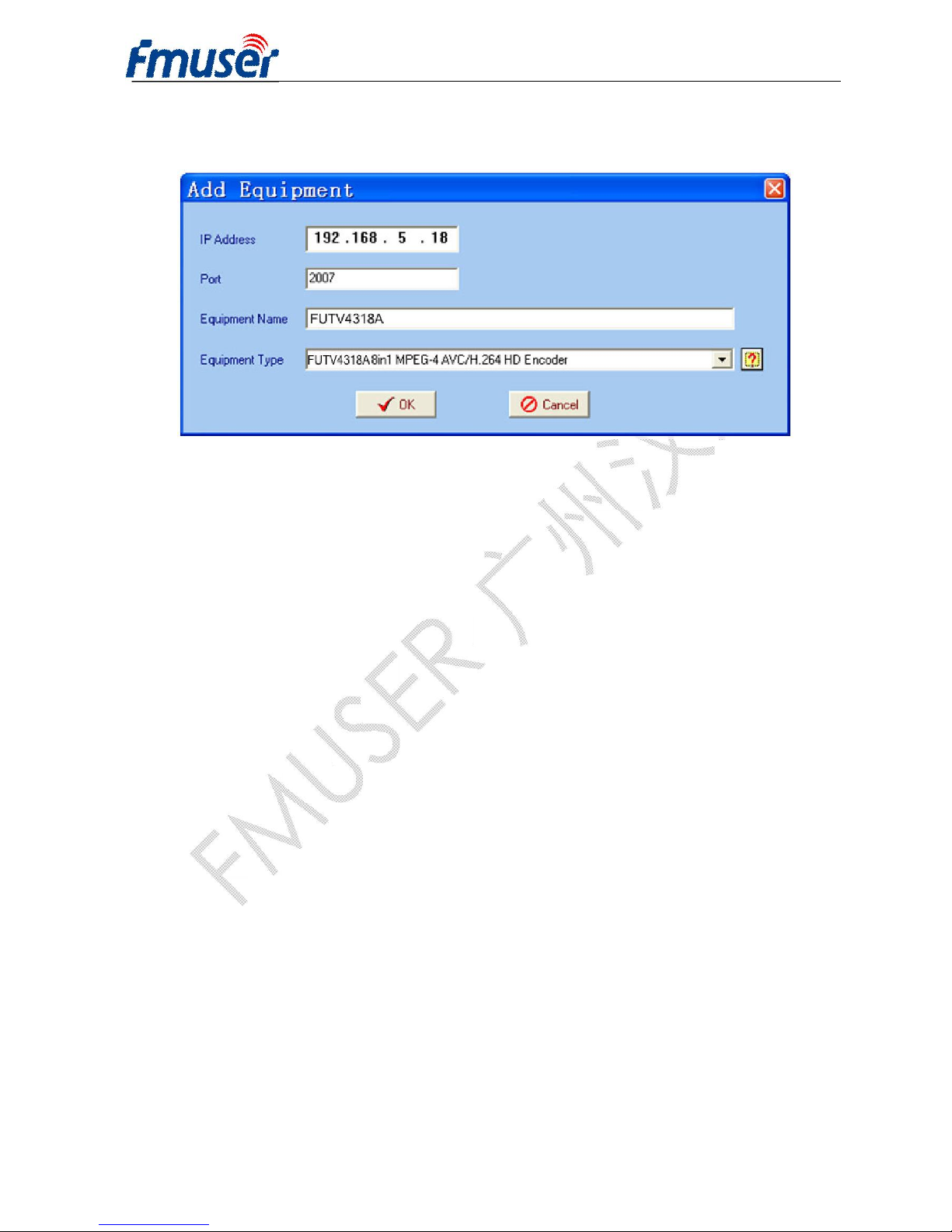

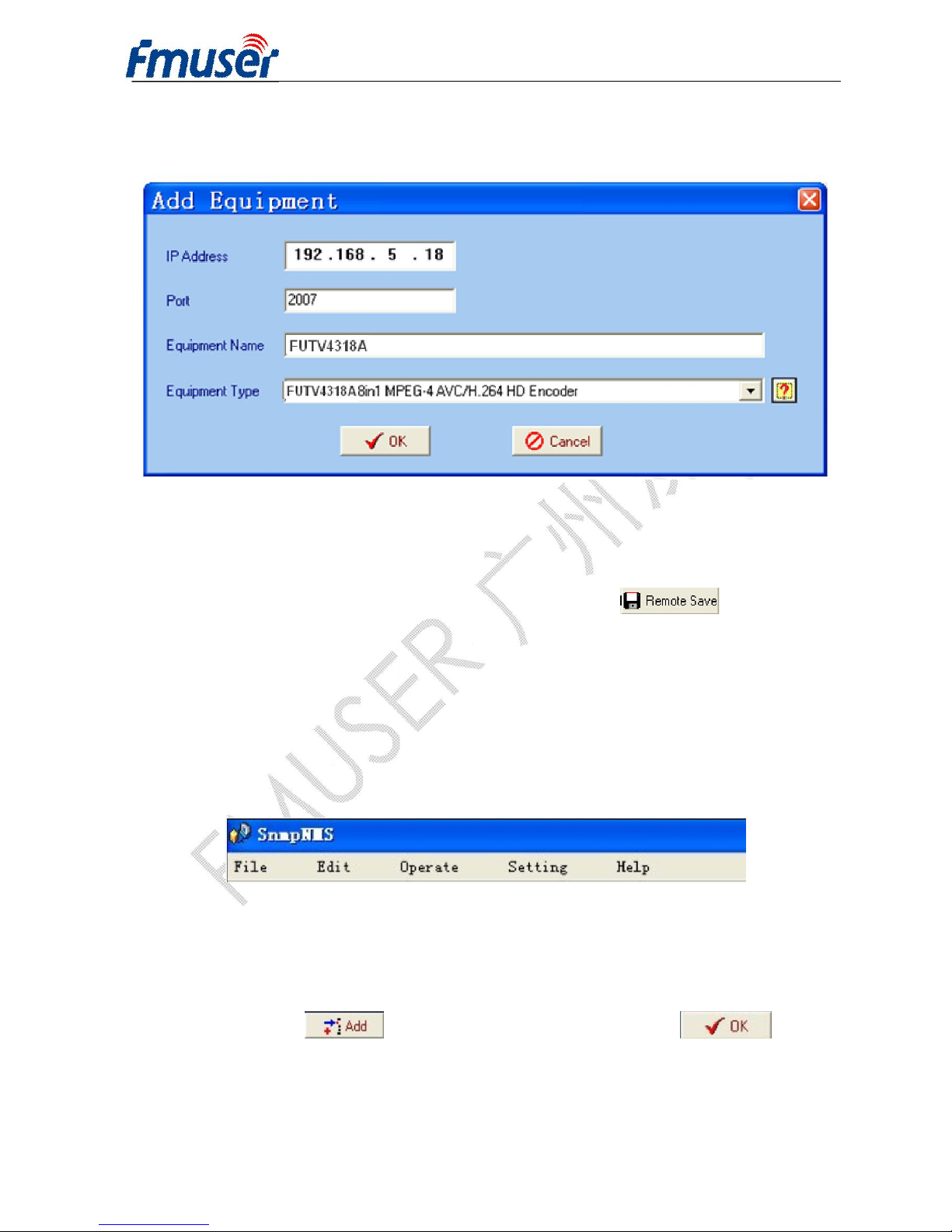

4.2.5 Edit Equipment Interface

User should follow the steps as below:

Ø Inputting the device IP Address
Ø Inputting the port
Ø Inputting the Equipment Name
Ø Choosing the connected equipment type in drop down list of “Equipment Type” by

clicking the “▼” Or Click “?” to auto search the type of device.

NOTE:

1.

The default IP of FUTV4318A Encoder is 192.168.0.136, also you can check its IP
address in the front panel of device in case the IP changed unexpected.

2. The PC IP address and device IP address should be in the same network. For example
the Device IP is 192.168.2.136, sub mask is 255.255.255.0. So the PC IP address
should be 192.168.2.X (1<X<255), sub mask is 255.255.255.0. User can use ping
command to confirm these two are in same network or not.

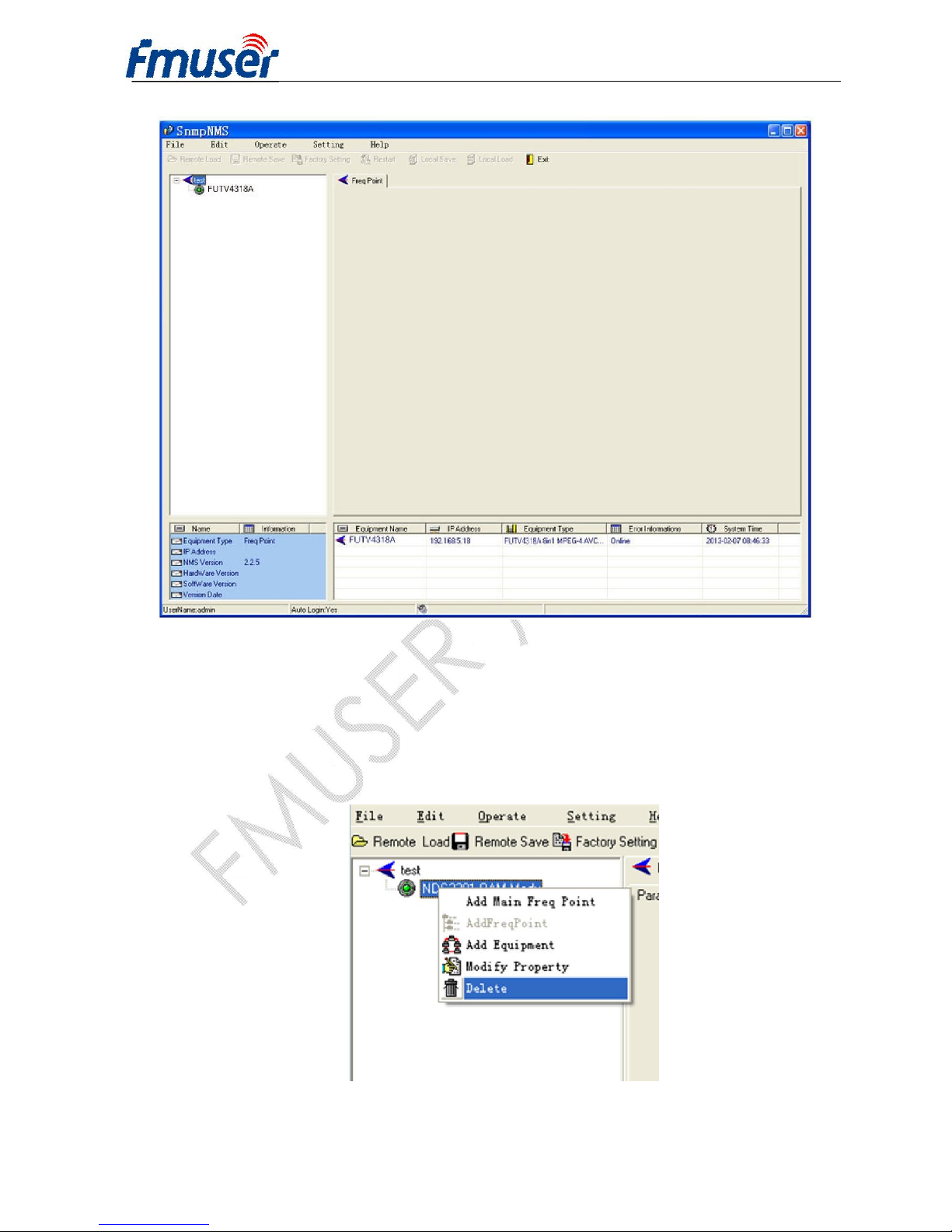

Click OK, it will appear as below:

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

27 / 43

4.2.6 Delete Equipment

User can choose the equipment to be deleted in the left column, and then click the “delete”
item in the pull down menu which appears by clicking the right mouse key.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

28 / 43

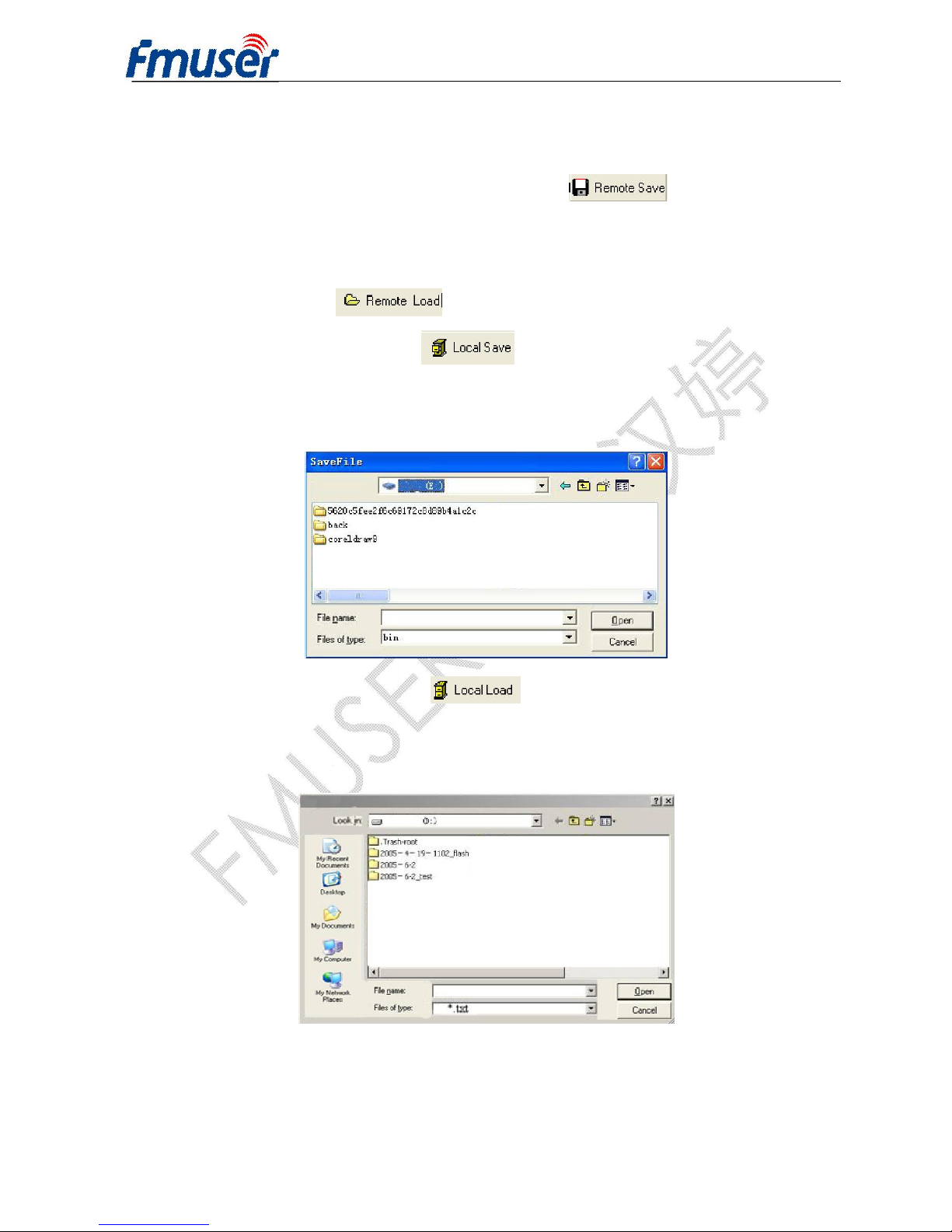

4.2.7 Save Configuration

After finishing all the parameters setting, user can click button on the toolbar
to save the modifications to the device’s flash, while user can also reload the saved
parameters from device’s flash and refresh the device’s parameters setting according to the

loaded values by clicking

Alternatively, user can also click the button on the toolbar to popup the “save
file” dialog box, which gives prompts to save all the device’s parameters as binary files in

the computer’s hard disk.

Similarly, user can choose to click the button on the toolbar to popup the read
file dialog box, to read the stored binary file and set the device’s parameters according to
the loaded binary files.

4.3 FUTV4318A 8 in 1 MPEG-4 AVC/ H.264 HD Encoder

Operation

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

29 / 43

User can choose the encoder in the device tree; the procedure will display the encoder
interface in operating area. The interface is mainly composed of encoding video
parameters, audio parameters and the encoding system parameters, output parameters
and etc.

4.3.1 Parameters Setting

Users can click Equipment Name on the node tree and enter in the Parameter interface by
clicking and or to configure the parameters.

4.3.1.1 General Parameters

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

30 / 43

Set: to make the current parameters shown in the SNMP software activate.
Get: to read the current device’s activating parameters and show them on SNMP software.

Ø IP Out Enable
Check the checkbox with “√”, then the IP output is enabled, otherwise it is not. Users can
decide whether to open the IP output function or not.Users can modify the IP address here
as well.
Ø IP Out Address/Service IP Address/Service Mask/Service Gateway
Users can set the address by modifying the value in these four fields.

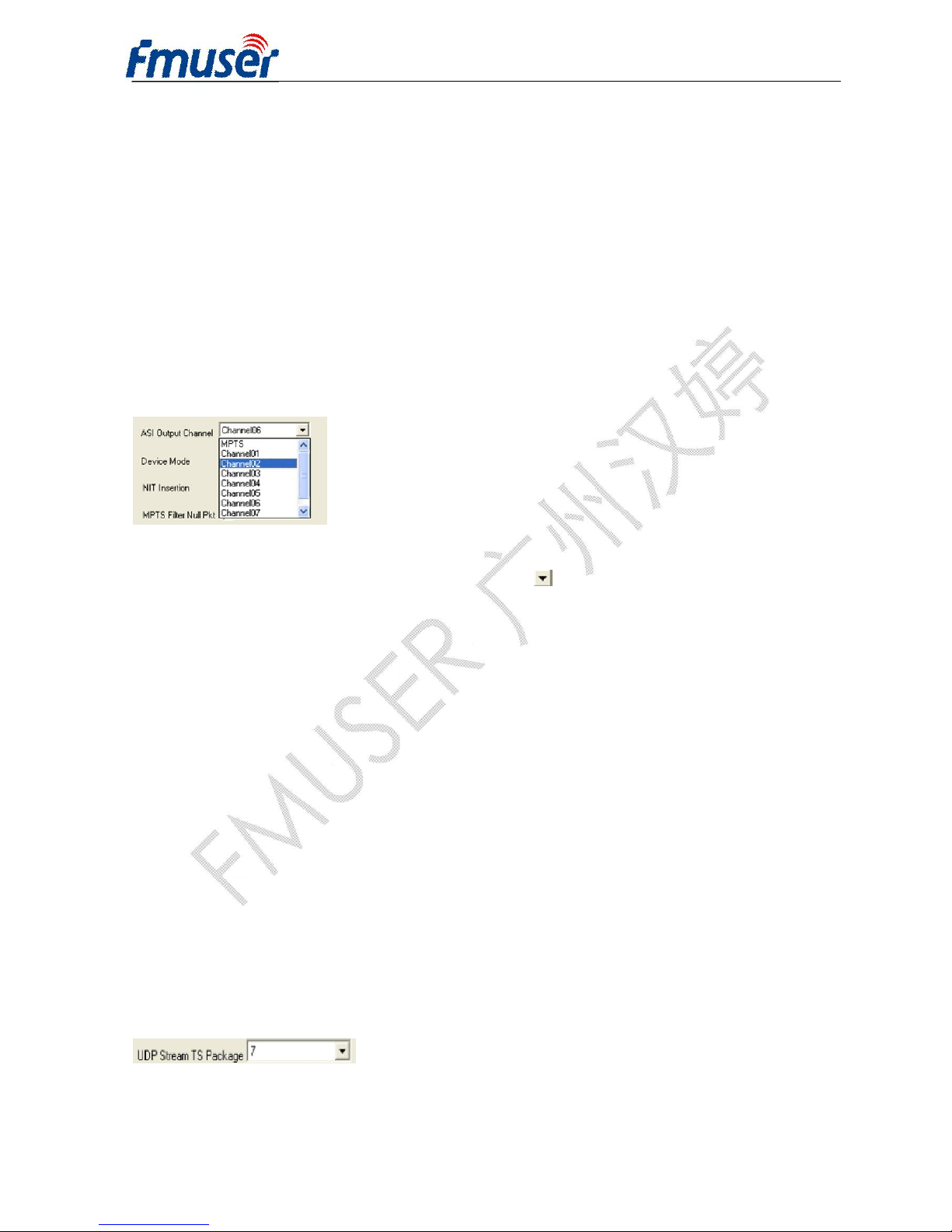

Ø ASI Output Channel

This device supports 1 MPTS (Multiple Programs Transport Stream) and 8 SPTS (Single
Programs Transport Stream) output. User can click

to triger a pull-down list to select the
output type.
Ø Output Port

To set the

output port

by modifying the value in this field.

Ø Original Network ID
This 16-bit field gives the label identifying the network ID of the originating delivery system.
The value ranges from 0 to 0xFFFF.
Ø Transport Stream ID
This is a 16-bit field which serves as a label for identification of this TS from any other
multiplex within the delivery system. The value ranges from 0 to 0xFFFF.
Ø Output Bit Rate (Mbps)
This includes the effective bit-rate of encoding channel 1-8, the effective bit-rate from ASI
input and the bit-rate of stuffed null packets.
Ø UDP Stream TS Package

Users can set the amount of TS packages here.

Ø NIT Insertion

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

31 / 43

In this field, users can decide whether to effect the NIT (Network Information Table)
insertion function.
Ø SDT Insertion
In this field, users can decide whether to effect the SDT insertion function.
Ø MPTS Filter Null Packet
If this function is effected, then the null packets in IP output stream will be filtered.
Ø PSI/SI Editor
This button will trigger the PSI/SI Editor for some users’ advanced usage. For more detail,
please refer to the manual of PSI/SI.

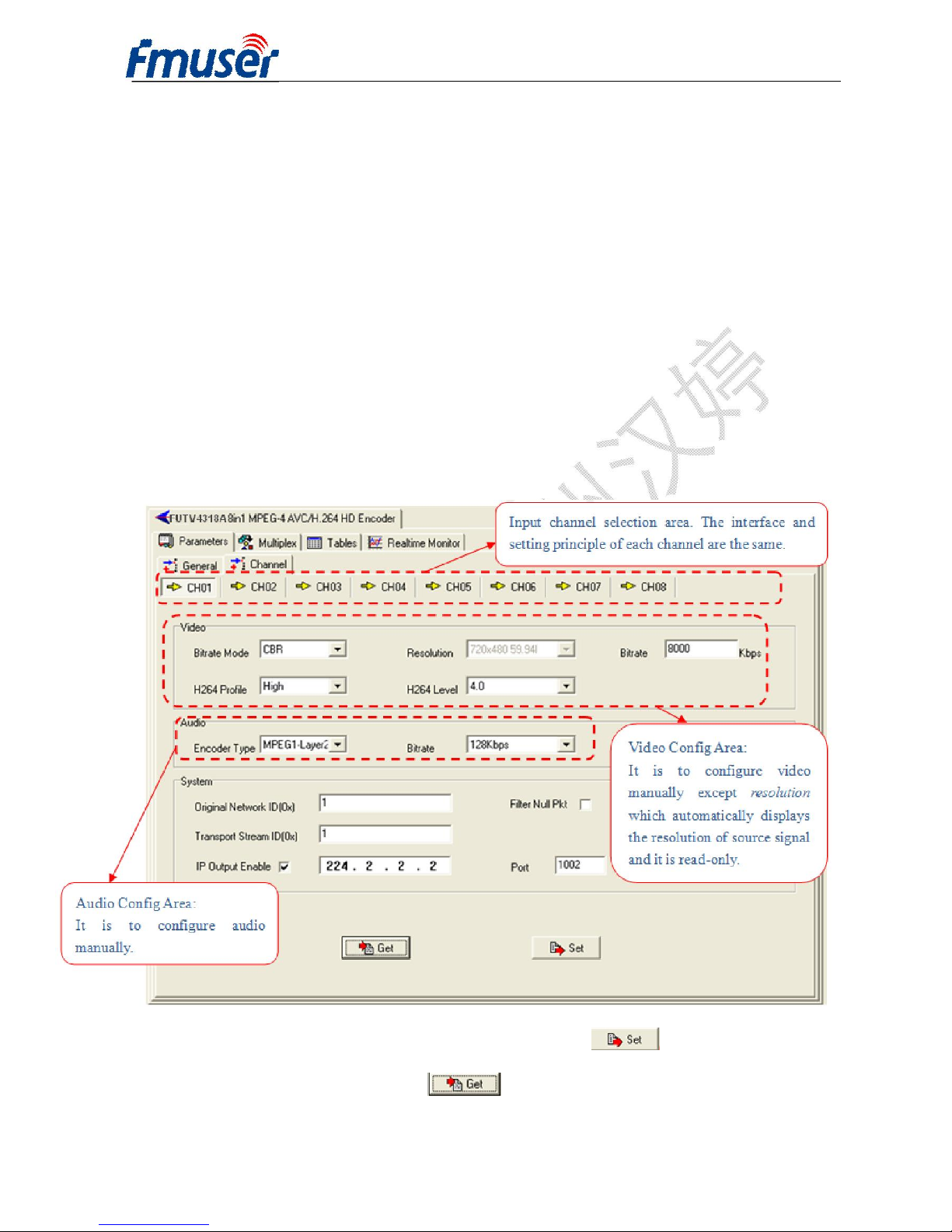

4.3.1.2 Video Parameters (Parameters->Channel->CH0X)

If any parameter is modified, it is supposed to click Set

to make the modified

parameters activate and click Get

to read and effect the current device’s

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

32 / 43

activating parameters.

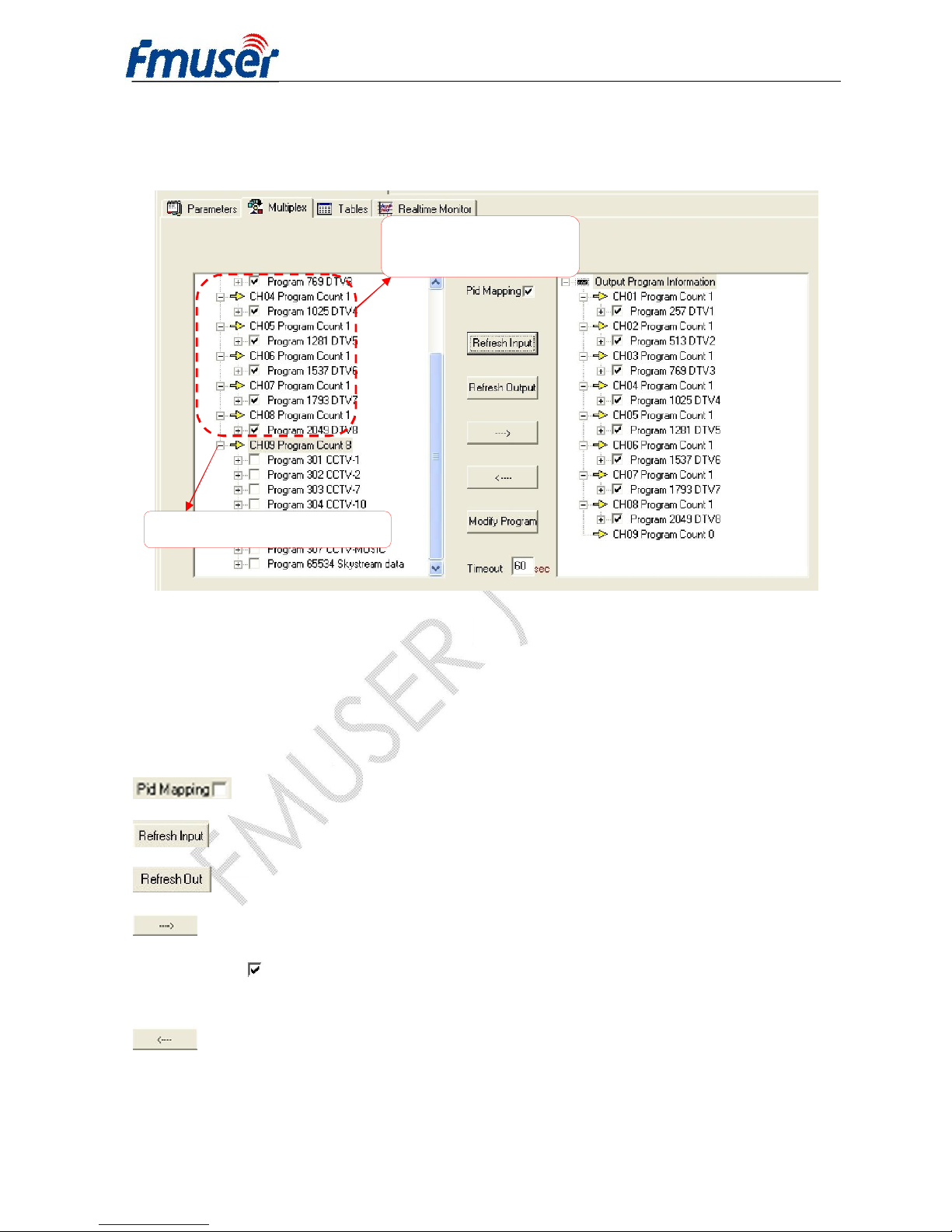

4.3.2 Multiplexing

The programs in the left column represent all input programs and which port they come
from, while the programs in the right column represent the output programs and from which
port they are from. User can parse the programs of each channel and multiplex those
programs to the output. Moreover, user can modify the output programs’ Program Name,
PMT, PCR, video, audio PID.

: Check this box the set the PID Mapping

: To refresh the inputting terminal and get the inputting information

: To refresh the outputting terminal and get the outputting information

: Multiplex the input programs to the output channels after selecting the target

program with . The system will automatically allot the program to the relevant output
channel.

: Cancel the multiplexed programs.

CH01-CH08: The 8 HDMI
Encoding Channels

CH09: The 1 ASI Input Channel

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

33 / 43

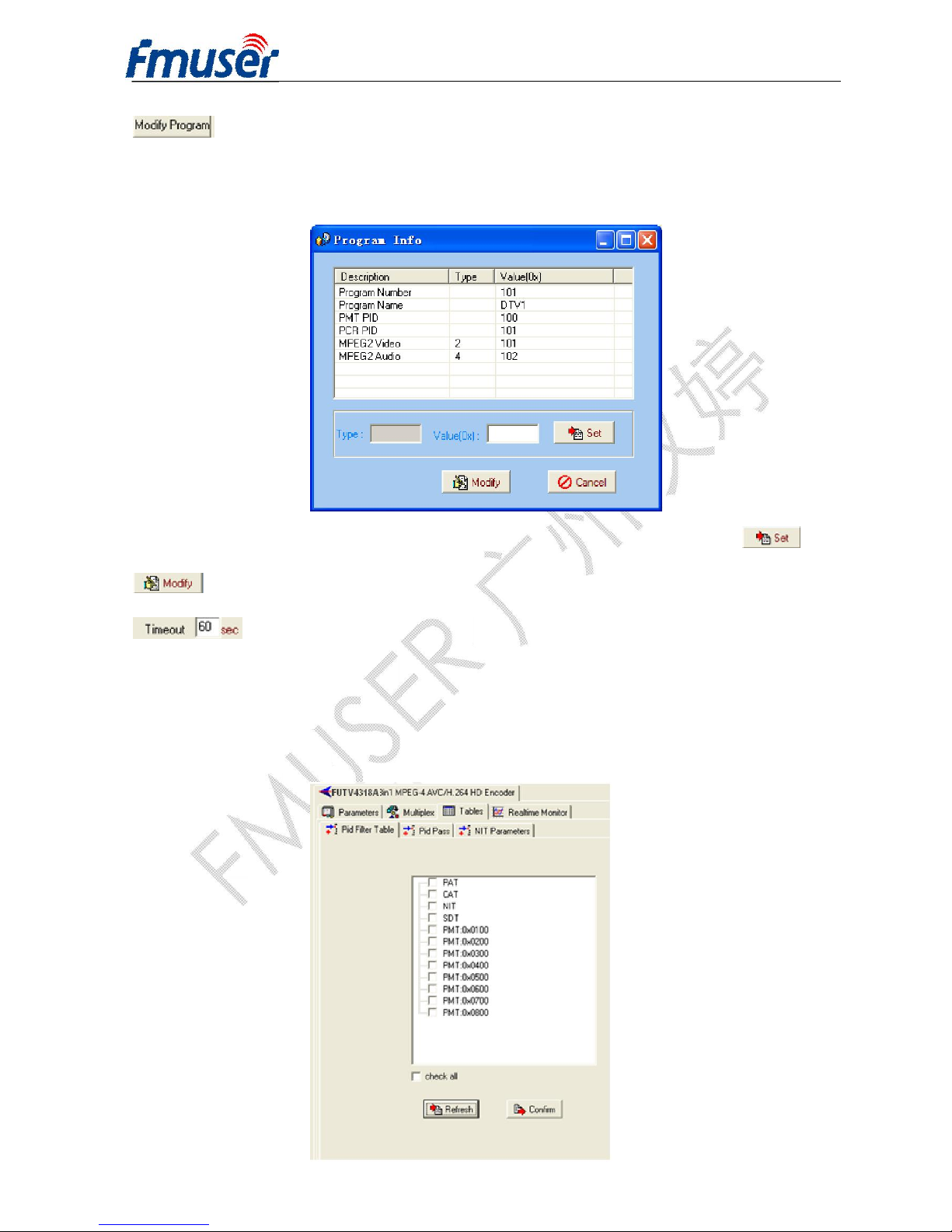

: To modify the output programs’ Program Name, PMT, PCR, video, or audio PID

as needed. To modify program information, user can select the target program in output
part first and click this button to pop up a dialog box as below:

Select the target item and input the new value in the box below, then click

and

to effect the modification.

: The parsing overtime value

4.3.3 Tables

4.3.3.1 PID Filter Table

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

34 / 43

Users can operate PID filter in this table by checking the check boxes of corresponding
items and click CONFIRM to effect.

Refresh: getting PID filter table from the device
Setting: submitting the PID filter table to the device
Check All: selecting all the selections of the list

After user selects one PID in the table, then the corresponding output PSI/SI table will not
be sent to the output stream.

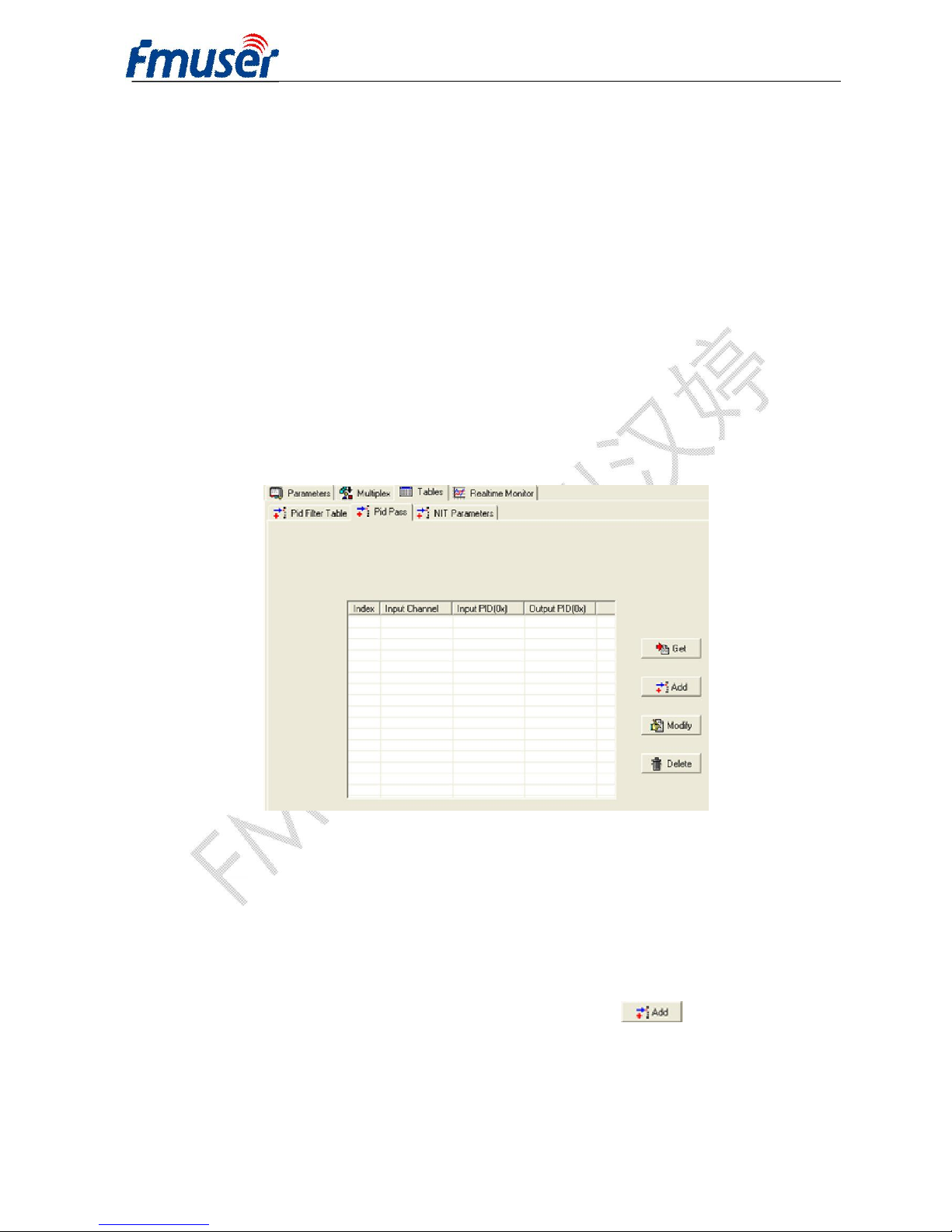

4.3.3.2 PID Pass

User can decide to bypass the inputting PID as needed in this interface.
In some occasions, there are some PIDs which won’t belong to any program, such as EPG,
NIT tables, and so on, but user just wants to pass them through the multiplexing module
without changing anything. This is the main purpose of this function.

The display will show as below when user clicks “Add” button.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

35 / 43

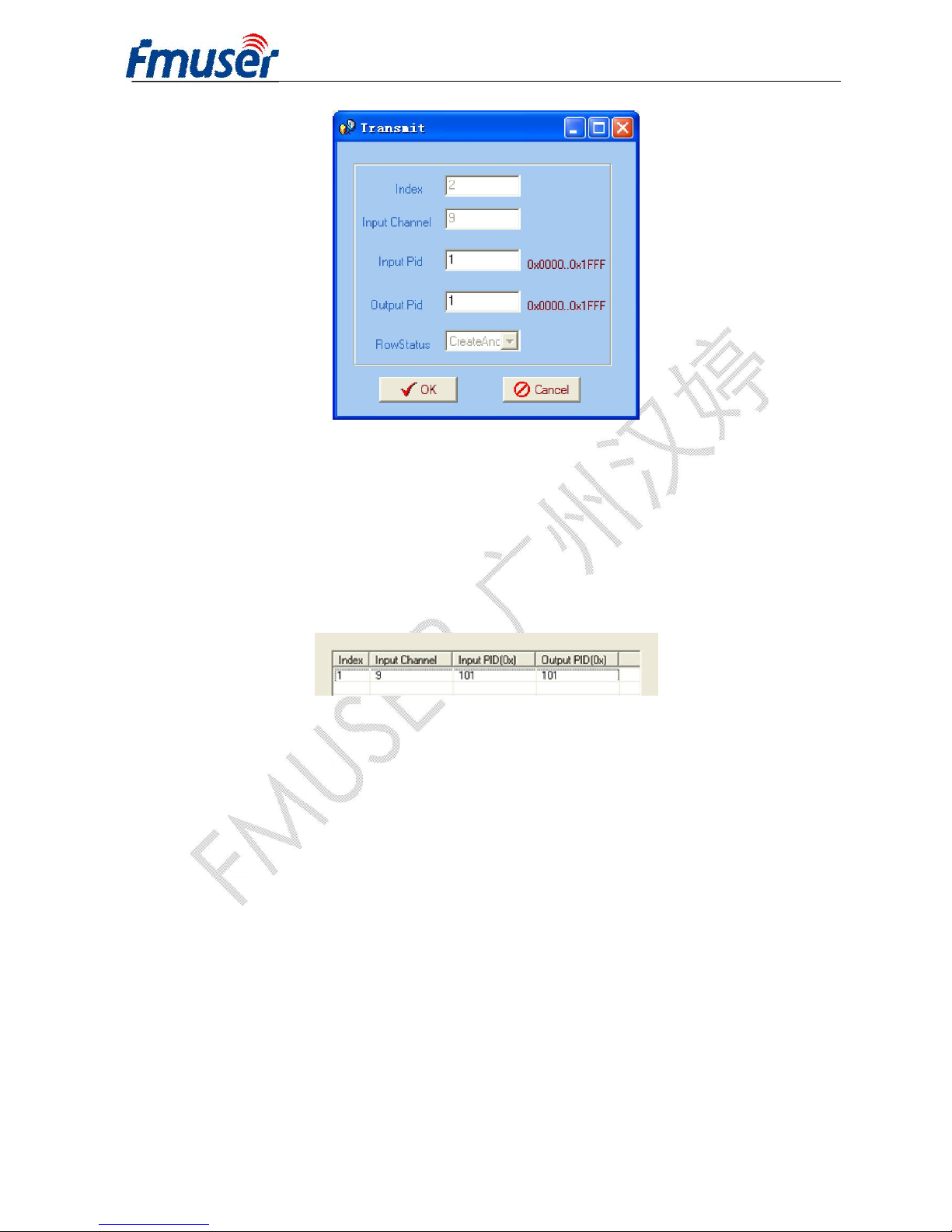

Input PID and Output PID

The Old (Input) PID is the PID number in the TS from given Port. The correspondent New
(output) PID number could be same as input PID number while it could be different if a PID
remapping is needed.
Modify the data as needed and click OK to confirm. The PID then will be bypassed and
listed in the table as below.

User can also modify or delete the added PID through the corresponding buttons at right.

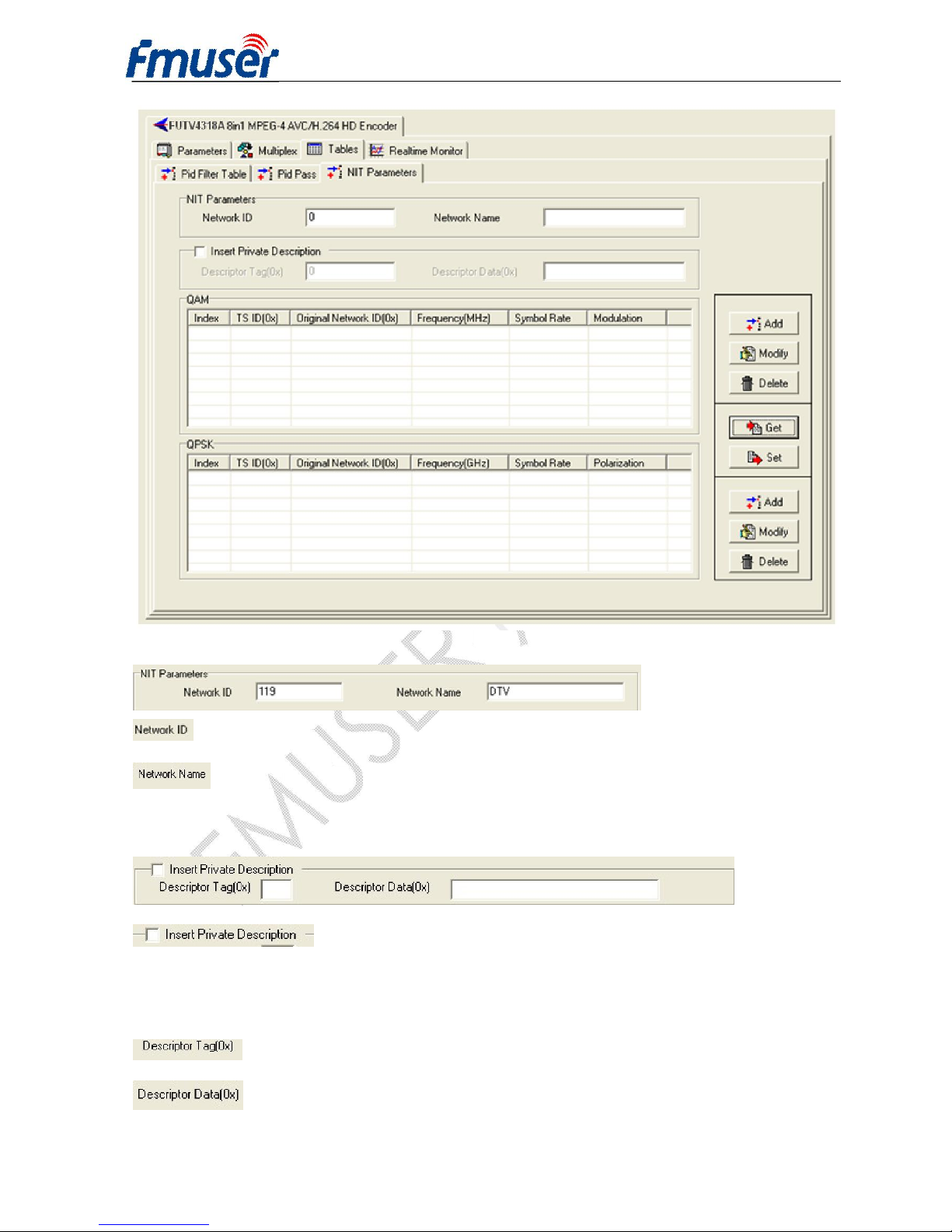

4.3.3.3 NIT Parameters

NIT: Network Information Table.

NIT table is a very important table for describing the network and TS. Users can set the parameters of
the output NIT table.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

36 / 43

：The parameter describes the output TS’s network ID

：The parameter describes the output TS’s network name.

Insertion private description

：This checkbox will allow user to insert the private descriptor into

the output TS. The private descriptor includes two parts. One is descriptor tag, and the
other is descriptor information.

：The Descriptor Tag is an 8-bit field which identifies each descriptor.

：The Descriptor Data is the detailed information of the private description.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

37 / 43

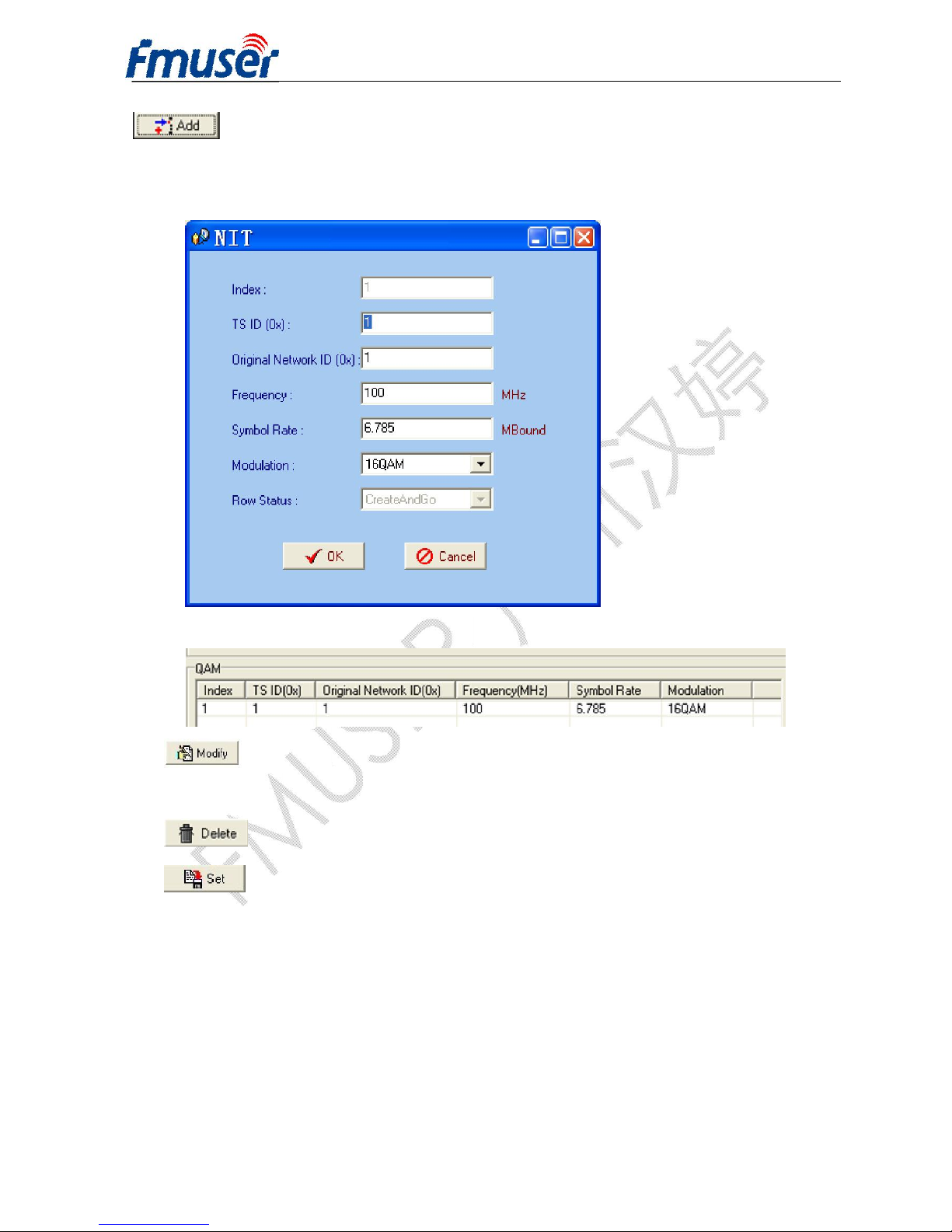

：Users can add the cable transmission descriptor in this Add button, and it will

pop up the following dialogue box, say, the added descriptor is apply for the DVB-C
network.

The interface will show as below after the NIT parameters being added：

：The “Modify” button will trigger a modify window and allow user to modify the

selected items in the NIT.

：The “Delete” button will remove the selected items in the NIT.

：The set “Button” will send the NIT to the chosen output Port.

4.3.4 Real-time Monitor

There will be a real-time bit rate chart generating in the monitor for users to check the bit
rate information.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

38 / 43

4.4 Other Settings

4.4.1 Difference between Set and Remote Save

In many cases during the configuration of parameters in NMS, users save the modified
configuration by clicking “Set”, in which way the configuration can only be saved temporarily
and will restore the last saved configuration if the device reboots. To save the configuration
permanently, it is required to operate through “Remote Save” on the toolbar explained in

4.2.7.
This is the difference between “Set” and “Remote Save”.

4.4.2 IP Modification

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

39 / 43

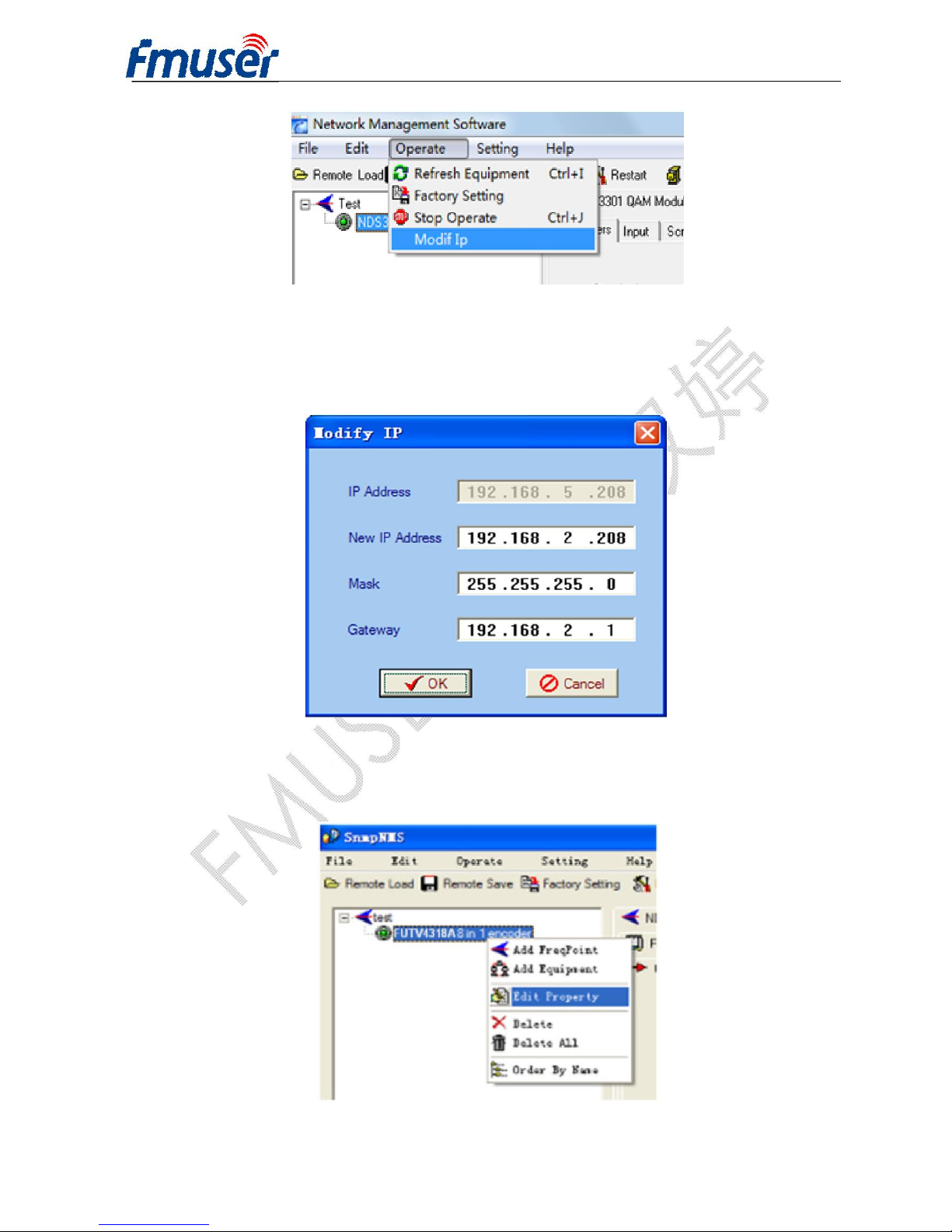

Users can click Operate and select Modify IP in the drop-down list, and a dialog box
presents itself as shown below. Users input the new NMS IP Address for the device and
click OK button to confirm.

Users can then note the indicator light turns red, which signifies the equipment has
disconnected. Users then can refer to below prompts to edit the property by inputting the
new IP to re-connect the equipment.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

40 / 43

Input the new IP Address in the box and click OK button, then the device will be connected
again.

After finishing all the parameters setting, user should click button on the
toolbar to save the modifications to the device’s flash.

4.4.3 User Add

When logging in, user will note that the default user name is admin and no password. User
can add users and passwords as needed.

User clicking “Setting” in the menu bar and selecting “User Setting” in the pull-down list, the
below dialog box will pop out as shown below. Select the “Edit Information” by marking the
check box with “√”, user can input the new username and new password as prompts below.

It is required to click to add the new user and then click to save
the new setting.

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

41 / 43

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

42 / 43

Chapter 5 Troubleshooting

FMUSER’s ISO9001 quality assurance system has been approved by CQC organization.
For guarantee the products’ quality, reliability and stability. All FMUSER products have been
passed the testing and inspection before ship out factory. The testing and inspection
scheme already covers all the Optical, Electronic and Mechanical criteria which have been
published by FMUSER. To prevent potential hazard, please strictly follow the operation
conditions.

Prevention Measure

Ø Installing the device at the place in which environment temperature between 0 to 45 °C
Ø Making sure good ventilation for the heat-sink on the rear panel and other heat-sink

bores if necessary

Ø Checking the input AC within the power supply working range and the connection is

correct before switching on device

Ø Checking the RF output level varies within tolerant range if it is necessary
Ø Checking all signal cables have been properly connected
Ø Frequently switching on/off device is prohibited; the interval between every switching

on/off must greater than 10 seconds.

Conditions need to unplug power cord

Ø Power cord or socket damaged.
Ø Any liquid flowed into device.
Ø Any stuff causes circuit short
Ø Device in damp environment
Ø Device was suffered from physical damage
Ø Longtime idle.
Ø After switching on and restoring to factory setting, device still cannot work properly.
Ø Maintenance needed

FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司

43 / 43

Chapter 6 Packing list

Ø FUTV4318A 8 in 1 MPEG-4 AVC/H.264 HD Encoder 1pcs
Ø User’s manual 1pcs
Ø HDMI cable 8pcs
Ø ASI cable 1pcs
Ø Power cord 1pcs
