Chapter 1 Product Outline
1.1 Outline
FUTV4207A Two channels IP output multiplexer is an enhanced TS
re-multiplexer for digital TV broadcasting head-end system. The
multiplexer has all the functions of normal TS multiplexer, including
programs multiplexing, PSI/SI editing, PID re-mapping, service filtering etc.
The multiplexer can insert EPG (Electronic Program Guide), CA
(Conditional Access) and data casting information into each output stream.
Different from normal multiplexer, this multiplexer has 8 ASI inputs, 2
separate ASI output ports and 1 Gigabit IP output with two separate
channel. The bit rate of output stream can be up to 216Mbps.
1.2 Features
l Fully complying with ISO13818 and EN300 468 standard
l Integrated demodulating and multiplexing functions
l 8 ASI (6 tuner and 2 ASI optional)（DVB-C/S/S2/T optional）inputs
l MPEG-2 transport stream re-multiplexing
l SPTS and MPTS code stream multiplexing
l PCR correcting and PID re-mapping
l Two groups of separate TS outputs (each group has 2 channels)
l Two IP outputs (the copies of 2 ASI outputs)
l PSI/SI editing
l Huge buffer memory for saving the overflowing code stream
l Supporting to multiplex one program to all outputs
l Alarming function
l Network long-distance upgraded
l With high reliability design and stability operation
l Full keyboard operation and LCD display
Page 4
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
3 / 41
l Network management system
1.3 Specifications
Input
interface
ASI
8 ASI (6 tuner and 2 ASI optional)
inputs (DVB/C/S/S2/T optional)
(Up to 214Mbps per channel)
Re-multiplex
MPEG-2 TS re-multiplex
PID re-mapping (auto/manual
optional)
PCR correction
Automatic generating PSI/SI table
Input Packet format 204/188 self-adaption
Output port
ASI
2 groups of separate outputs (each
group has 2 channels)
IP
2 channels of separate IP outputs
（share one GE Ethernet port）
PID
Output range 0000—1FFF
PID transparent
Any PID transparent and mapping
achievable
Amount of output
PID per input
256
NMS port Ethernet port 10/100M
General
Demission 482mm×410mm×44mm
Weight 6kg
Temperature
0~45 (operation)℃ ，
-20~80 (storage)℃
Power supply AC 110V±10%，50/60Hz
Page 5
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
4 / 41
Or AC 220V±10%，50/60Hz
Consumption 18W

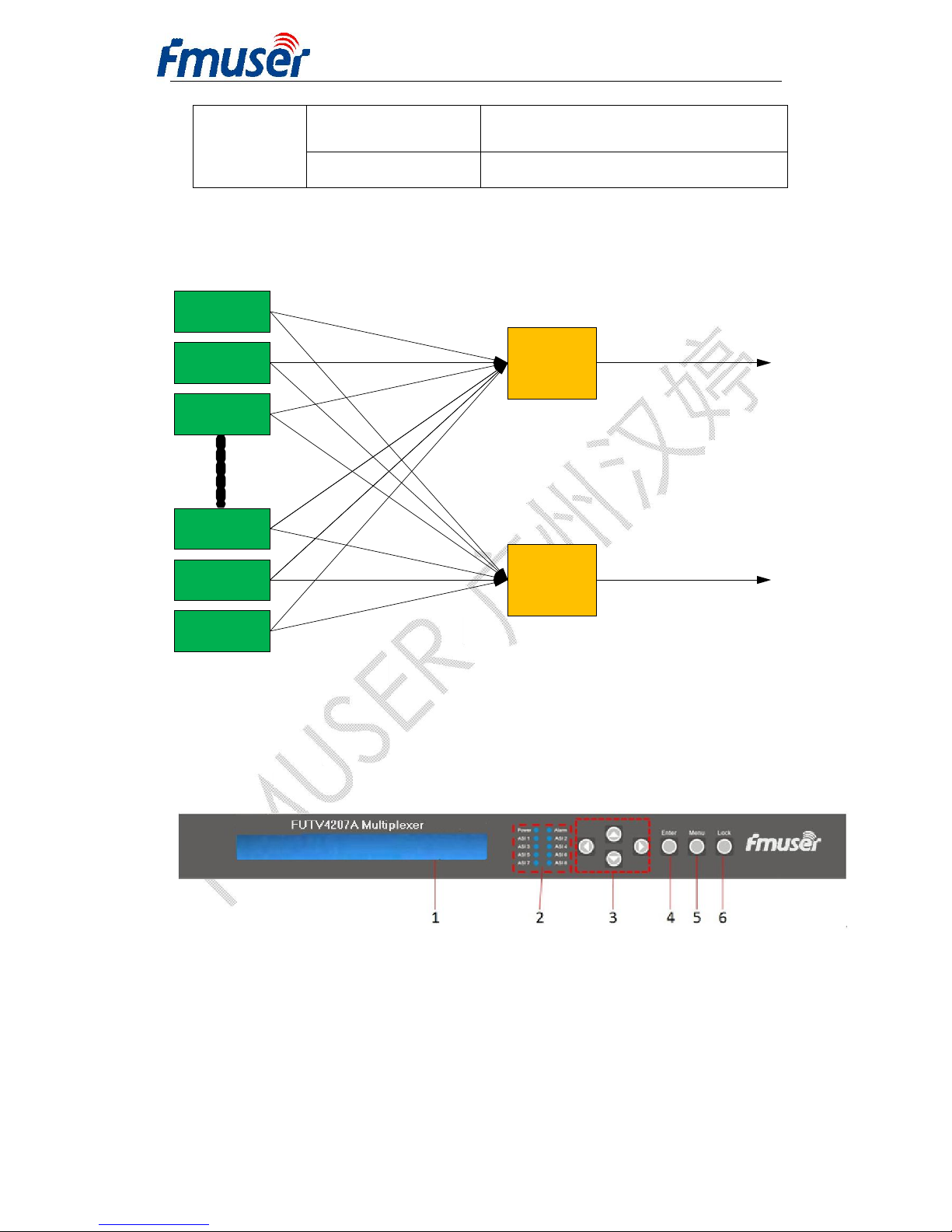

1.4 Principle Chart
ASI->TS 1
ASI->TS 2
ASI->TS 3
ASI->TS 8
MUX 1
ASI->TS 6
ASI->TS 7 MUX 2
ASI output
ASI output
IP output
IP output
1.5 Appearance and Description
Front panel Illustration:
Indicator area: All the indicators will light on when FUTV4207A multiplexer
works at its current mode.
Page 6
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
5 / 41
1 LCD Display
2
ASI IN
Power Indicator
Alarm Indicator
ASI 1: when the input signal of ASI 1 is locked, the light is
green. Otherwise it becomes red.
ASI 2: same as ASI 1
ASI 3: same as ASI 1
ASI 4: same as ASI 1
ASI 5: same as ASI 1
ASI 6: same as ASI 1
ASI 7: same as ASI 1
ASI 8: same as ASI 1
3 UP/ DOWN /LEFT/RIGHT Key
4 Enter: Confirmation key
5 MENU Key
6 LOCK Key

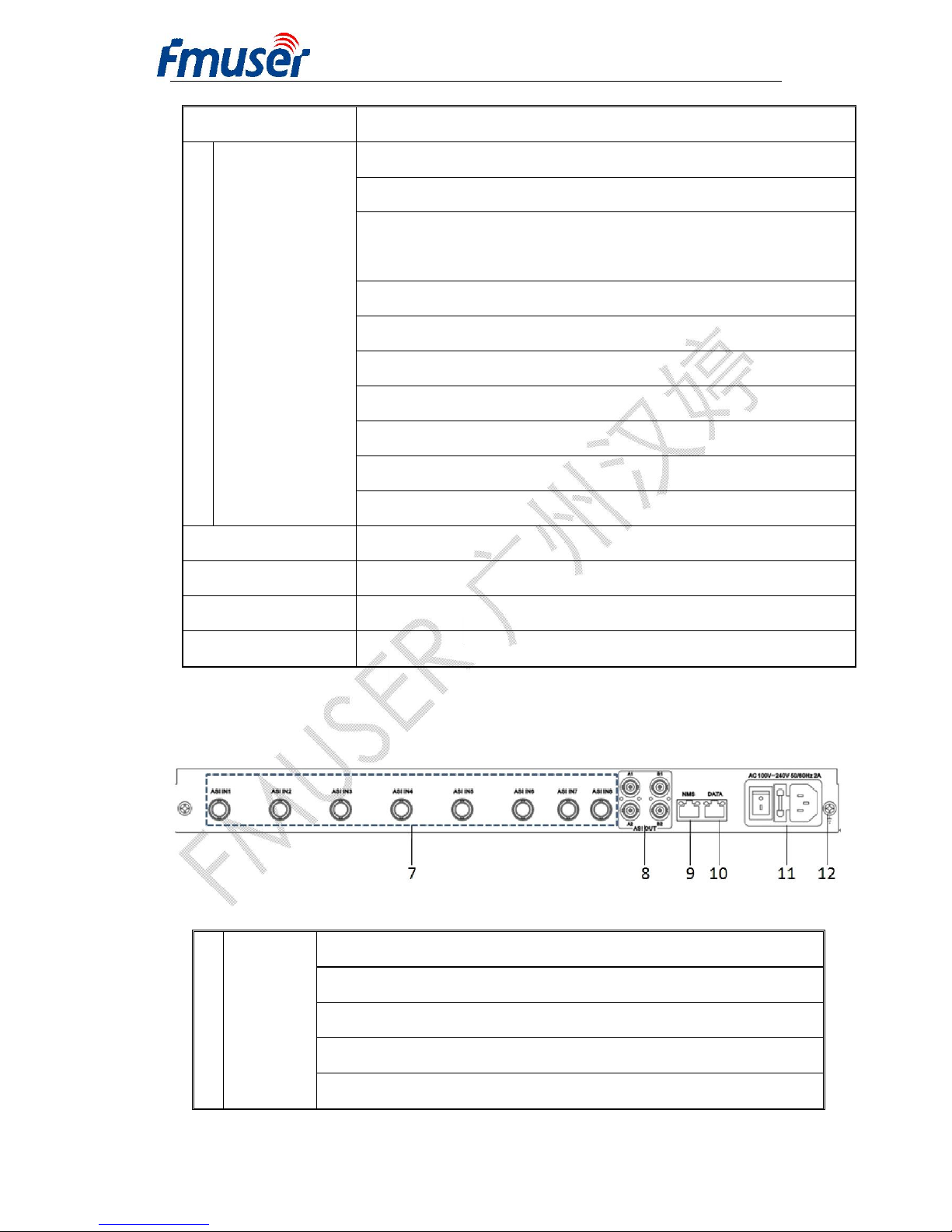

Rear panel Illustration:
7
ASI In
ASI IN1: TS input of port 1
ASI IN2: TS input of port 2
ASI IN3: TS input of port 3
ASI IN4: TS input of port 4
ASI IN5: TS input of port 5
Page 7
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
6 / 41
ASI IN6: TS input of port 6
ASI IN7: TS input of port 7
ASI IN8: TS input of port 8
8 ASI OUT
A1: TS output of port A1
A2: TS output of port A2
B1: TS output of port B1
B2: TS output of port B2
9 NMS Ethernet Port ( 10-100Mbps)
10 Data port: two Gigabits IP outputs port
11 Power switch, fuse, socket
12 Grounding pole
Page 8
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
7 / 41
Chapter 2 Installation Guide
2.1 Acquisition Check
When user opens the package of the device, it is necessary to check items
according to packing list. Normally it should include the following items:
l FUTV4207A ASI input Multiplexer
l User’s Manual
l ASI Cable
l Power Cord
If any item is missing or mismatching with the list above, please contact local
dealer.
2.2 Installation Preparation
When users install device, please follow the below steps. The details of
installation will be described at the rest part of this chapter. Users can also
refer rear panel chart during the installation.
The main content of this chapter includes:
l Checking the possible device missing or damage during the transportation
l Preparing relevant environment for installation
l Installing multiplexer
l Connecting signal cables
l Connecting communication port (if it is necessary)
2.2.1 Device’s Installation Flow Chart Illustrated as following：
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check
Fixing
Device
Setting
Parameter
Running
Device
Connecting
Signal Wire
Page 9
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
8 / 41
2.2.2 Environment Requirement
Item Requirement
Machine Hall
Space
When user installs machine frame array in one
machine hall, the distance between 2 rows of
machine frames should be 1.2~1.5m and the
distance against wall should be no less than 0.8m.
Machine Hall
Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010Ω ， Grounding current limiting
resistance: 1MΩ (Floor bearing should be greater
than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Humidity 20%~80% sustainable 10%~90% short time
Pressure 86~105KPa
Door & Window
Installing rubber strip for sealing door-gaps and dual
level glasses for window
Wall
It can be covered with wallpaper, or brightness less
paint.
Fire Protection Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and
lighting power are independent to each other. Device
power requires AC power 220V 50Hz. Please
carefully check before running.
Page 10
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
9 / 41
2.2.3 Grounding Requirement
l All function modules’ good grounding is the basis of reliability and stability
of devices. Also, they are the most important guarantee of lightning
arresting and interference rejection. Therefore, the system must follow this
rule.
l ASI cable’s outer conductor and isolation layer should keep proper electric
conducting with the metal housing of device.
l Grounding conductor must adopt copper conductor in order to reduce high
frequency impedance, and the grounding wire must be as thick and short
as possible.
l Users should make sure the 2 ends of grounding wire well electric
conducted and be antirust.
l It is prohibited to use any other device as part of grounding electric circuit
l The area of the conduction between grounding wire and device’s frame
should be no less than 25mm
2
.
2.2.4 Frame Grounding
All the machine frames should be connected with protective copper strip. The
grounding wire should be as short as possible and avoid circling. The area of
the conduction between grounding wire and grounding strip should be no less
than 25mm
2
.
2.2.5 Device Grounding
Connecting the device’s grounding rod to frame’s grounding pole with copper
wire.
2.3 Wire’s Connection
The grounding wire conductive screw is located at the right end of rear panel,
and the power switch, fuse, power supply socket is just beside ,whose order
Page 11
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
10 / 41
goes like this, power switch is on the left ,power supply socket is on the right
and the fuse is just between them.
l Connecting Power Cord
User can insert one end into power supply socket, while insert the other
end to AC power.
l Connecting Grounding Wire
When the device is solely connected to protective ground, it should adopt
independent way, say, share the same ground with other devices. When
the device adopts united way, the grounding resistance should be smaller
than 1Ω.
FCaution:
Before connecting power cord to FUTV4207A multiplexer, user should
set the power switch to “OFF”.
2.4 Signal Cable Connection
The signal connections include the connection of input signal cable and the
connection of output signal cable. The details are as follows:
2.4.1 ASI In and ASI out connection:
l ASI Input Connection
User can find ASI input port on the device according to connector mark
described in the rear panel illustration, and then connect the ASI cable (in the
accessories). One end is connected to the Multiplexer’s ASI input port, while
the other end is connected to Encoder’s ASI output port or ASI output port of
other equipment.
l ASI Output Connection
Page 12
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
11 / 41
User can find ASI output port on the device according to connector mark
described in the rear panel illustration, and then connect the ASI cable (in the
accessories); one end is connected to the Multiplexer’s ASI output port and the
other end to the Modulator’s ASI input port or ASI input of other equipment.

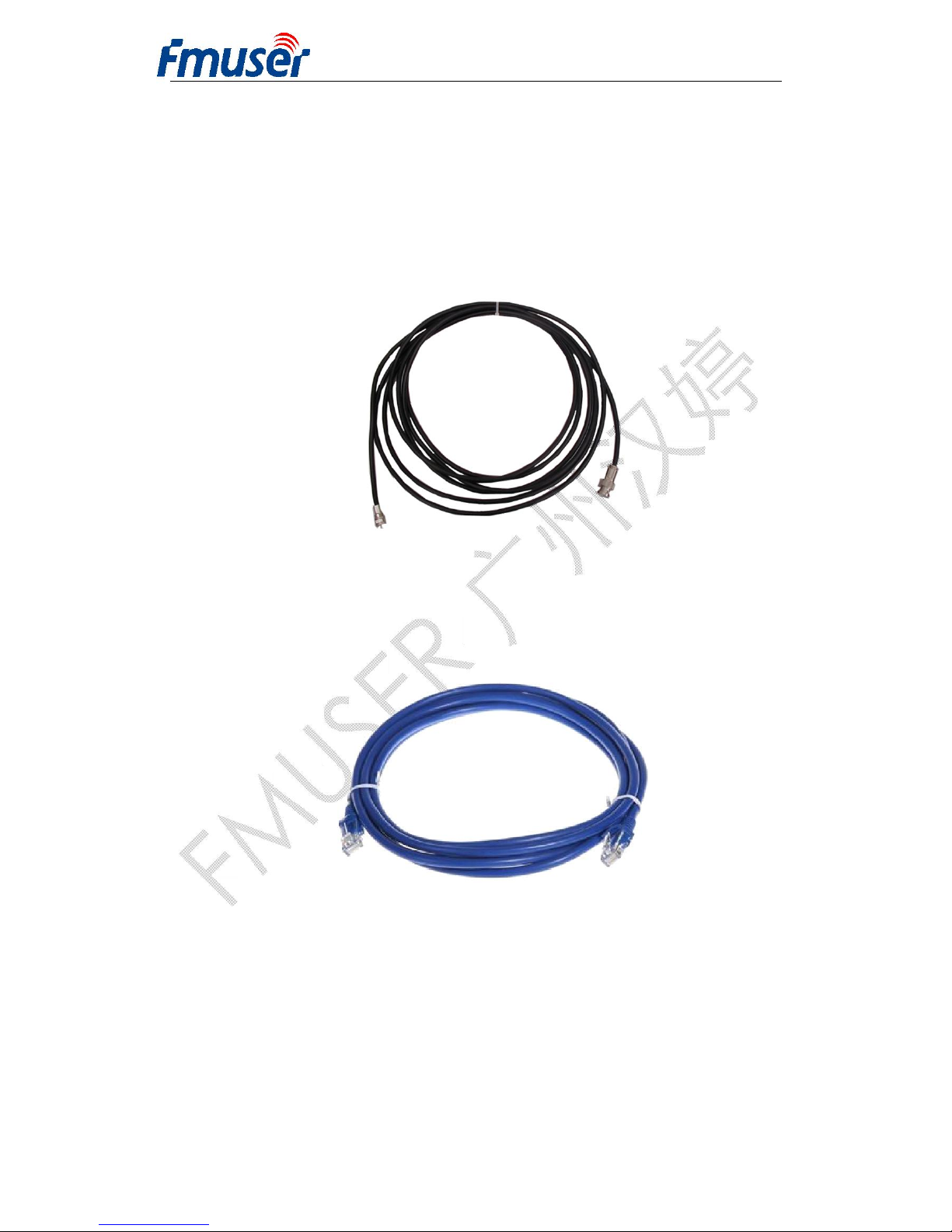

Multiplexer’s ASI cable illustrated as follows:
2.4.2 Network cable (Category 5) illustration:
Page 13
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
12 / 41
Chapter 3 Operation
FUTV4207A multiplexer’s front panel is user operation interface. The detailed
operations go as follows:
Keyboard Function Description:
MENU: Canceling presently entered value, resuming previous setting;
Return to previous menu.
ENTER: Activating the parameters which need modifications, or confirming
the change after modification.
LEFT/RIGHT: To choose and set the parameters.
UP/DOWN: Modifying activated parameter or paging up/down when
parameter is inactivated.
LOCK: Locking the screen / canceling the lock state. After pressing lock key,
the system will question the users to save present setting or not. If not, the
LCD will display the current configuration state.
At the page of 5.2 “Load default CFG”, user can firstly press “ENTER” key,
consequently system resumes factory parameter setting.
3.1 Main interface
After switching on the multiplexer, the LCD will display the company name and
the device name in the first row, while the output program amount and
real-time bit-rate of both output Ports are displayed in the second row.
XXX Mux
1:P 08 Out 000.000M 2:P 08 Out 000.000M
Page 14
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
13 / 41
3.2 General setting
By pressing “LOCK” key to enter the main menu, the LCD will display the
following pages:
3.2.1 Input Setting
User can press “Enter” key to enter into the menu of input setting.
Here we take port 1.1 port (ASI) as an example:
At the submenu 1.1.1, the first row displays the port number and the quantity of
programs, for example, Port 1 means the TS stream comes from port 1 and
the “Prog 8” means the quantity of the programs is 8.
The descriptions of rest ports with ASI in are the same.
5. Loading Config 6. Version
7. Language
1.1 Port (ASI) 1.2 Port (ASI)
1.3 Port (ASI) 1.4 Port (ASI)
1.5 Port (ASI) 1.6 Port (ASI)
1.7 Port (ASI) 1.8 ASI (ASI)
1.1.1 Prog Parse Port 1 Prog 8
1. Input Setting 2. Output Setting
3. Network Setting 4. Saving Config
Page 15
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
14 / 41
3.2.2 Output Setting
User can press “enter” key to enter into the menu of output setting.
User can set the parameters of ASI and IP output in this submenu.
3.2.2.1 Output 1
3.2.2.1.1 Output Stream
User can set the total output bit-rate at this menu. The value of this bit-rate
includes the following, the effective bit-rate of multiplexed programs from all
input ports and the bit-rate of stuffed null pockets.
3.2.2.1.2 TransStream ID
This is a 16-bit field which serves as a label for identification of the out TS. The
value ranges from 0 to 0xFFFF.
3.2.2.1.3 Output IP Enable
At this submenu, user can decide whether to enable or disable IP output of
port A.
2.1 Output 1 2.2 Output 2
2.3 UTC Time Confi
2.1.1 Output Stream 2.1.2 Trans Stream
2.1.3 Out IP Enable 2.1.4 Out Address
2.1.5 Out Port
2.1.3 Out Ip Enable
Yes *No
Page 16
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
15 / 41
3.2.2.1.4 Output Address
User can check and set the IP output address at this submenu.
3.2.2.1.5 Output Port
The description and settings of 2.2 PORT 2 are the same as the 2.1 PORT 1.
3.2.2.3 UTC Time Config
User can set the UTC time (Coordinated Universal Time) at this submenu.
3.2.3 Network Setting
2.1.4 Out Address
224.002.002.002
2.1.5 Output Port
01001
3.1 IP Address
192.168.000.136
3.2 Subnet Mask
255.255.255.000
3.3 Gateway
192.168.000.001
2.3 UTC Time Config
2000-01-01 00:00:80
Page 17
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
16 / 41
3.2.3.1 10/100M IP setting
The 10/100Mbps Network port is for NMS controlling only. User can set the
device’s NMS networking parameters in the series of submenus.
Note: The MAC address is according to the factory setting, and it’s unique.
3.2.3.6 NMS Port
This port can be used as communication port for NMS management.
3.2.4 Saving Config
User can choose NO or YES to save the current configuration parameters at
this menu.
3.2.5 Loading Config
3.5 MAC Address
ffffffffffff
3.6 NMS Port
02007
4.1 Saving Config
Yes * No
Saving, please wait:
>>>>>>>>>>>>>>>
5.1 Load Saved CFG 5.2 Load Default CFG
3.4 Console Address
224.002.002.002
Page 18
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
17 / 41
User can restore the device into the last saved configuration by choosing the
menu 5.1 “Load Saved CFG”, and also user can restore the device into factory
configuration by choosing the menu 5.2 “Load Default CFG”.
3.2.6 Version
User can check the device’s hardware version and software version at this
submenu:
3.2.7 Language
User can select the needed language at this submenu:
Loading, please wait:
>>>>>>>>>>>>>>>
XXX Electric
SW 1.23 HW 1.7
*ENGLISH
中文
Page 19
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
18 / 41
Chapter 4 SNMP Management
SNMP (Simple Network Management Protocol) Management System is
applied to digital TV equipment operation, control and management and
parameters setting, etc. It centralizes digital TV equipment through network.
4.1 Installation
The software doesn’t need special installation. User can just double-click
to run this application program.
4.2 Software Operation
4.2.1 Login Interface

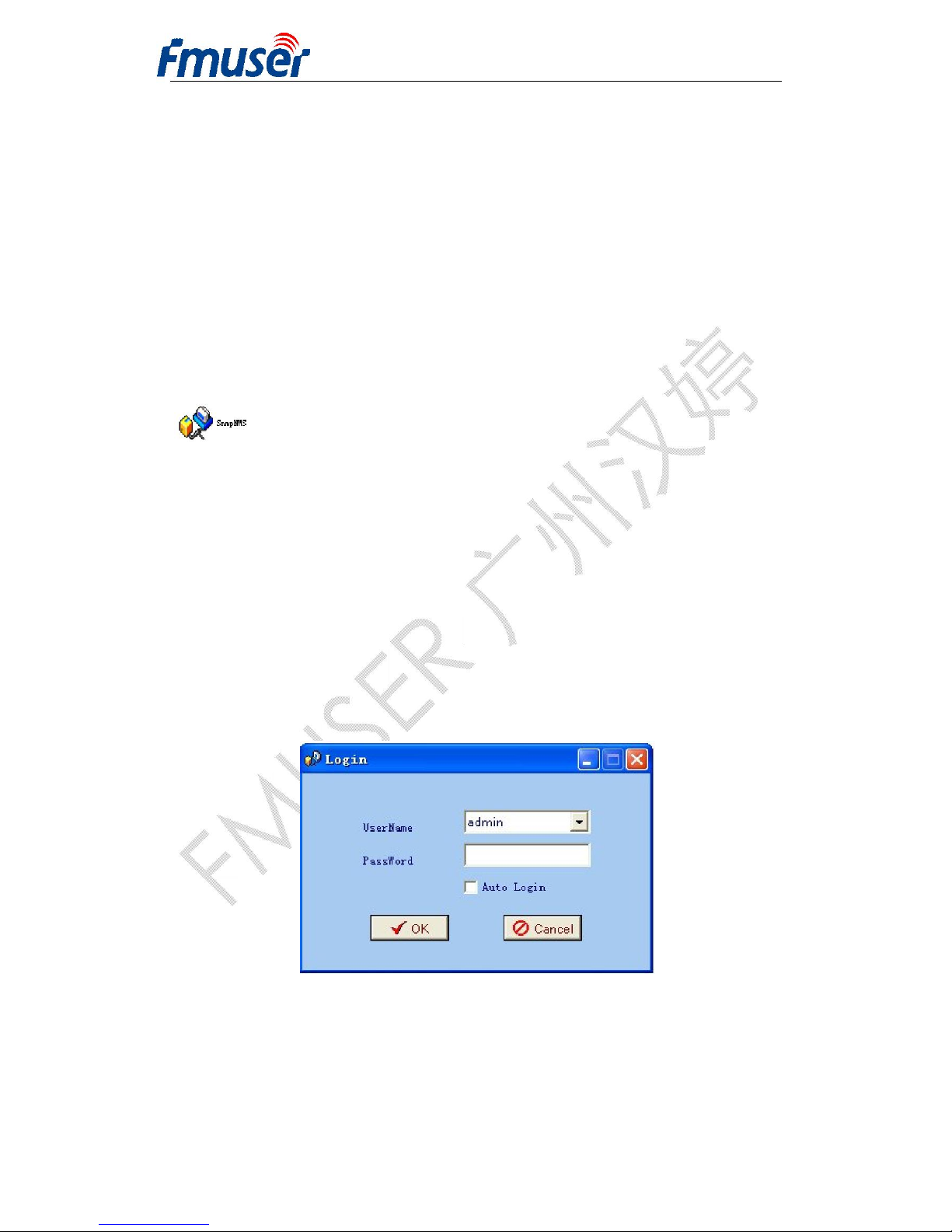

A login interface will pop up firstly when the software is running and give user
prompts to input user name and password (The default user name is admin
and no password. User can add users and passwords as needed. Details
please refer to 4.4.3 in 4.4 Other Settings.). The menu shows as follows:
User can login the main interface by pressing OK key after inputting user name.
The software will verify them with database record automatically and the main
interface will appear.
Page 20
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
19 / 41
4.2.2 Main Interface

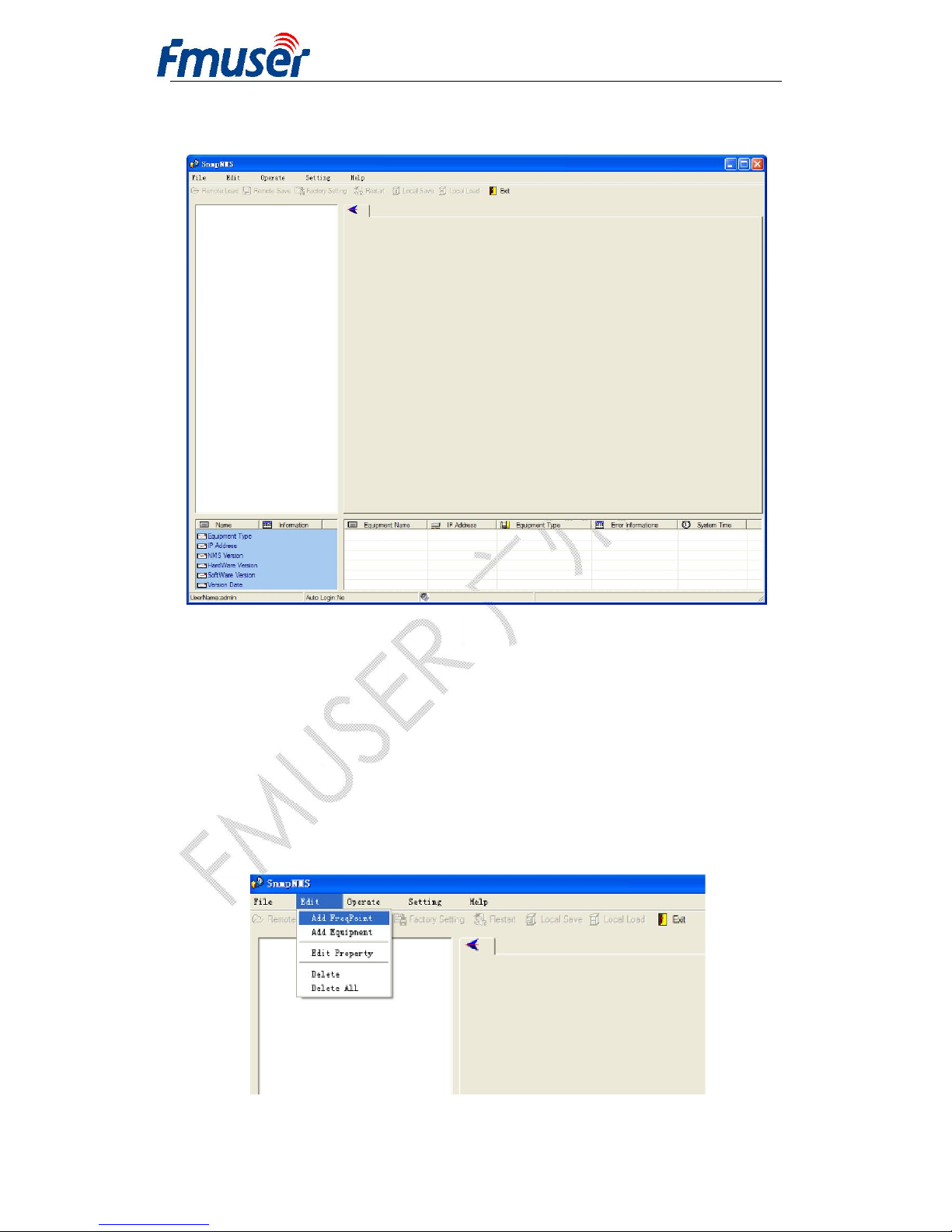

User can create a device node tree in the left column by adding, modifying and
deleting the device node. This software provides a powerful node operation
function, and the user can edit various parameters in the device tree for
management and classification.
4.2.3 Adding Frequency Point
Page 21
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
20 / 41

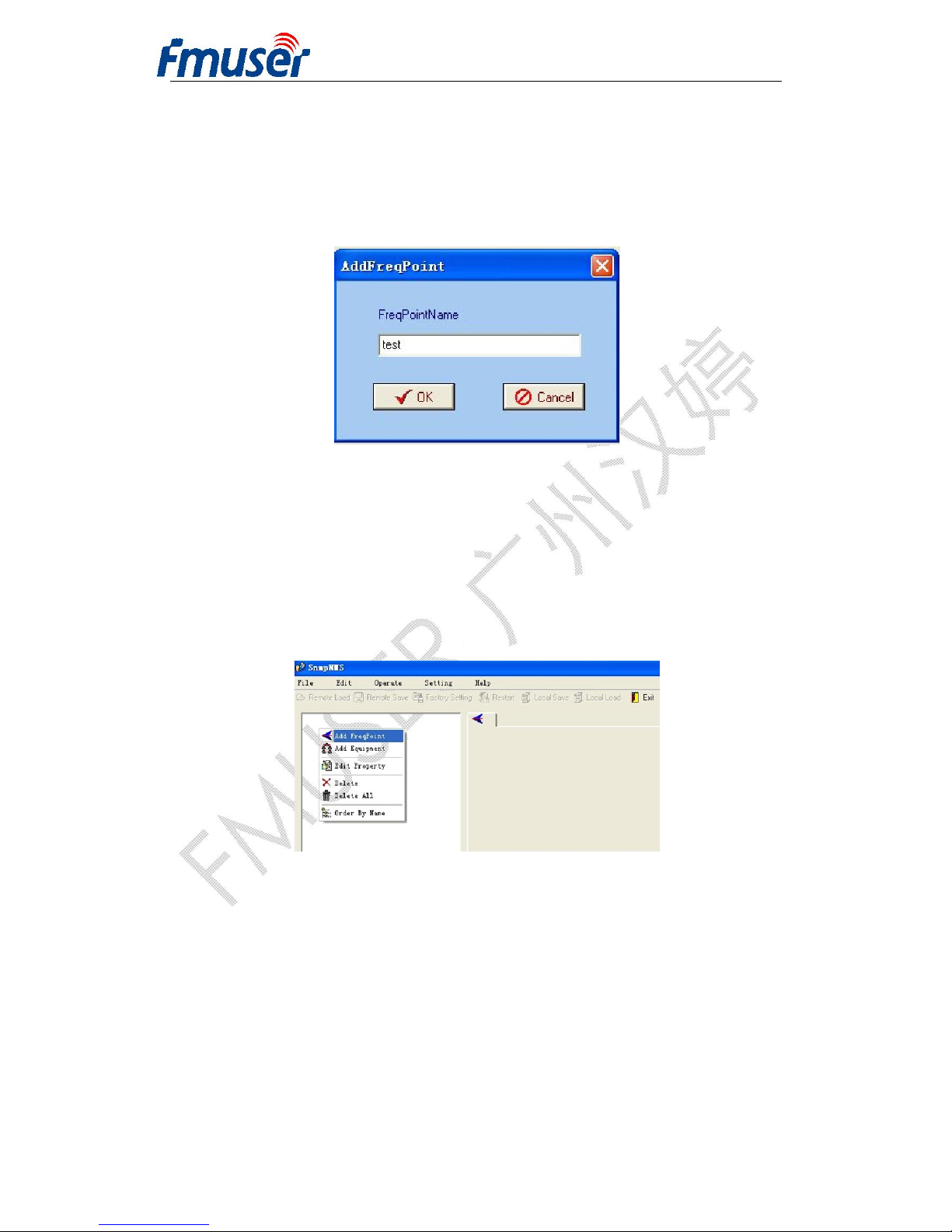

The Add Freq Point dialog box popes up when the user clicks the Add Freq
Point item in the Edit pull down menu on the menu row. The device will confirm
the given frequency while user clicks OK.
User can also click right mouse key to pop up the short-cut menu in device tree
or in the left blank column, then the corresponding dialog box will pop up by
choosing Add Main Freq Point. The device will confirm the given frequency
while user clicks OK.

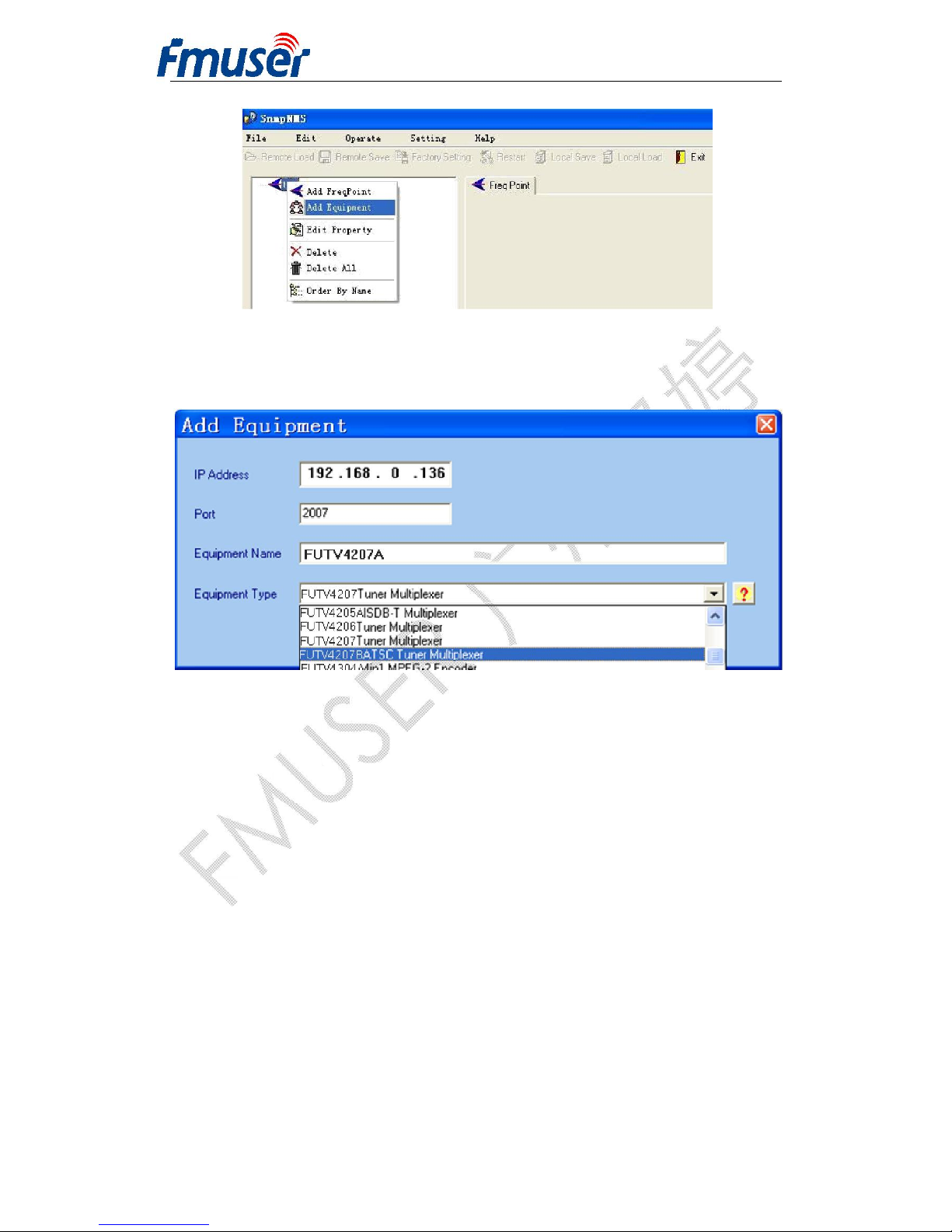

4.2.4 Adding Equipment under Given Frequency Point
User should choose the frequency point in advance, and then the dialog box of
Add Equipment will pop up when user clicks “Add Equipment” item in the Edit
pull down menu on the menu row.
Page 22
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
21 / 41

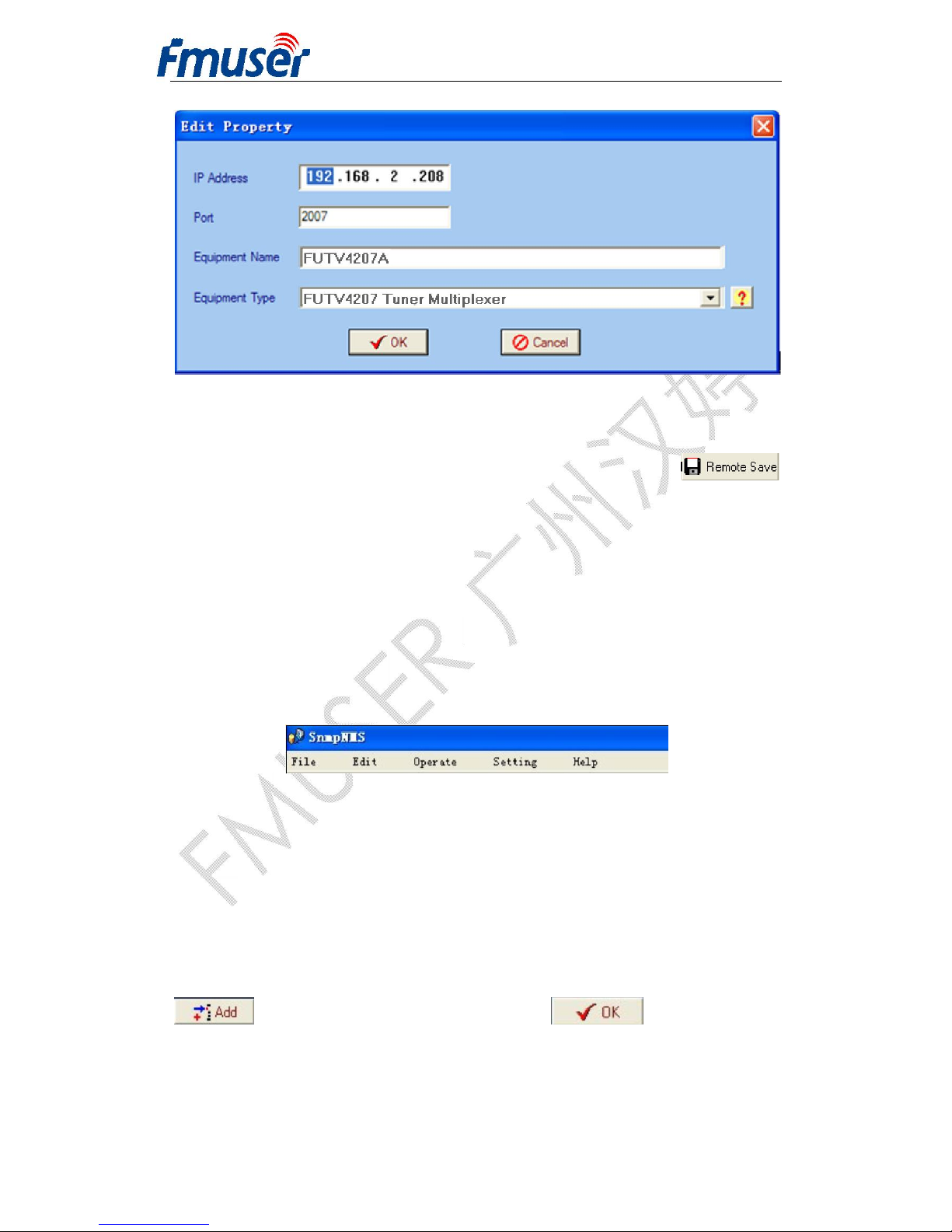

4.2.5 Edit Equipment Interface
User should follow the steps as below:
l Inputting the device IP Address
l Inputting the port
l Inputting the Equipment Name
l Choosing the connected equipment type in drop down list of “Equipment
Type” by clicking the “▼” Or Click “?” to auto search the type of device
NOTE:
1. The default IP of FUTV4207A is 192.168.0.136, also you can check its IP
address in the front panel of device in case the IP changed unexpected.
2. The PC IP address and device IP address should be in the same network.
Page 23
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
22 / 41
For example the Device IP is 192.168.0.136, sub mask is 255.255.255.0. So
the PC IP address should be 192.168.0.X (1<X<255), sub mask is
255.255.255.0. User can use ping command to confirm these two are in same
network or not.

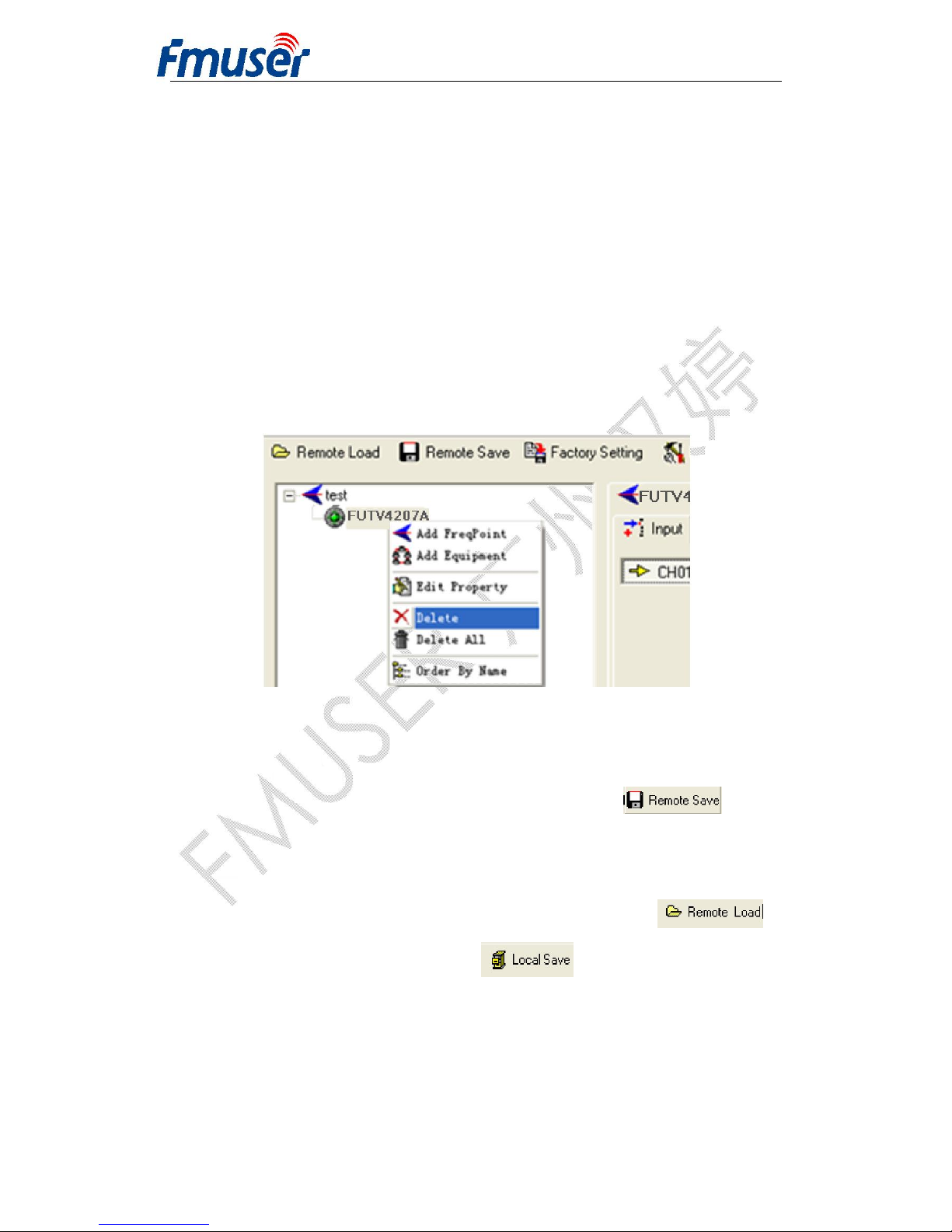

4.2.6 Delete Equipment
User can choose the equipment to be deleted in the left column, and then click
the “delete” item in the drop down menu which appears by clicking the right
mouse key.

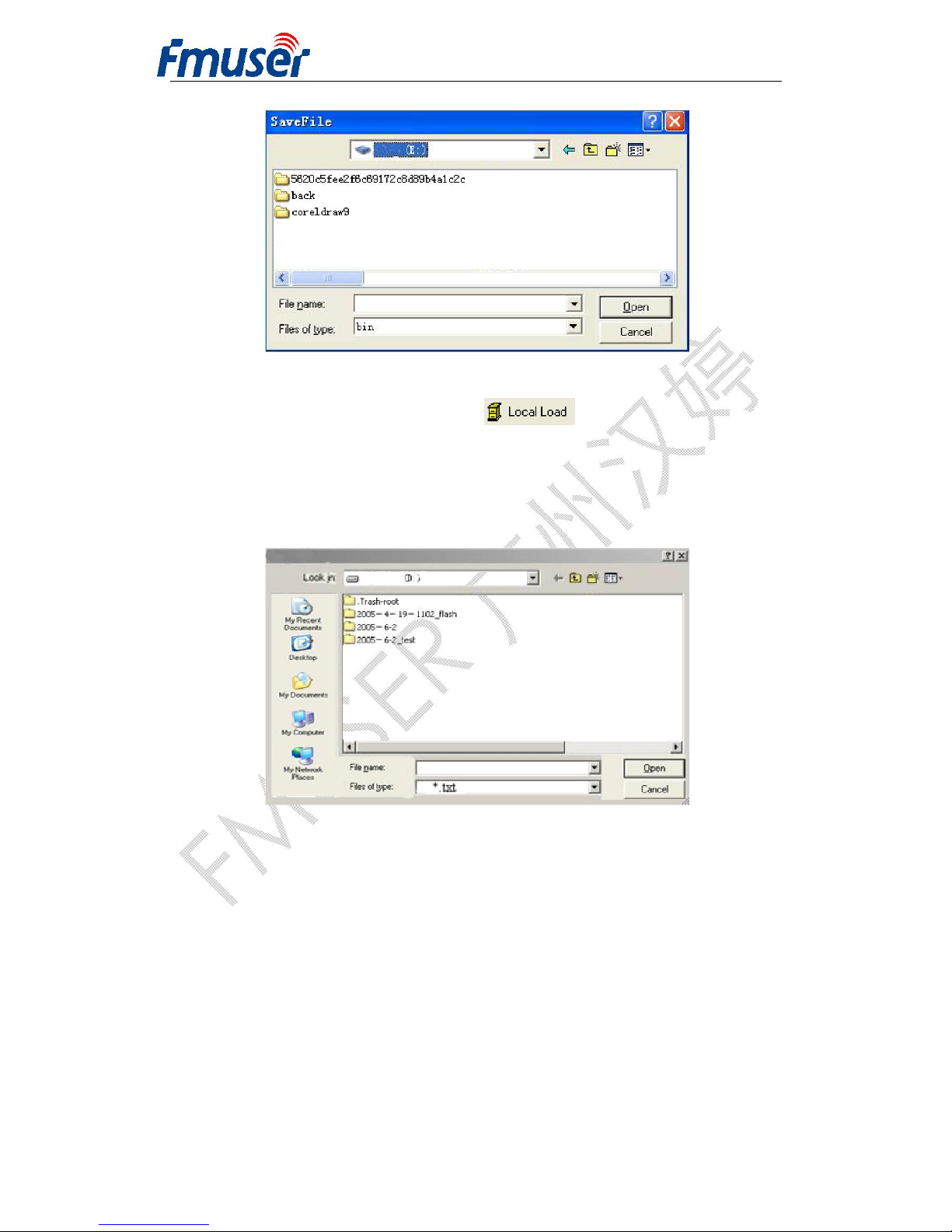

4.2.7 Save Configuration
After finishing all the parameters setting, user can click button
on the toolbar to save the modifications to the device’s flash, while user can
also reload the saved parameters from device’s flash and refresh the device’s
parameters setting according to the loaded values by clicking
Alternatively, user can also click the button on the toolbar to
popup the “save file” dialog box, which gives prompts to save all the device’s
parameters as binary files in the computer’s hard disk.
Page 24
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
23 / 41
Similarly, user can choose to click the button on the toolbar to
popup the read file dialog box, to read the stored binary file and set the
device’s parameters according to the loaded binary files.

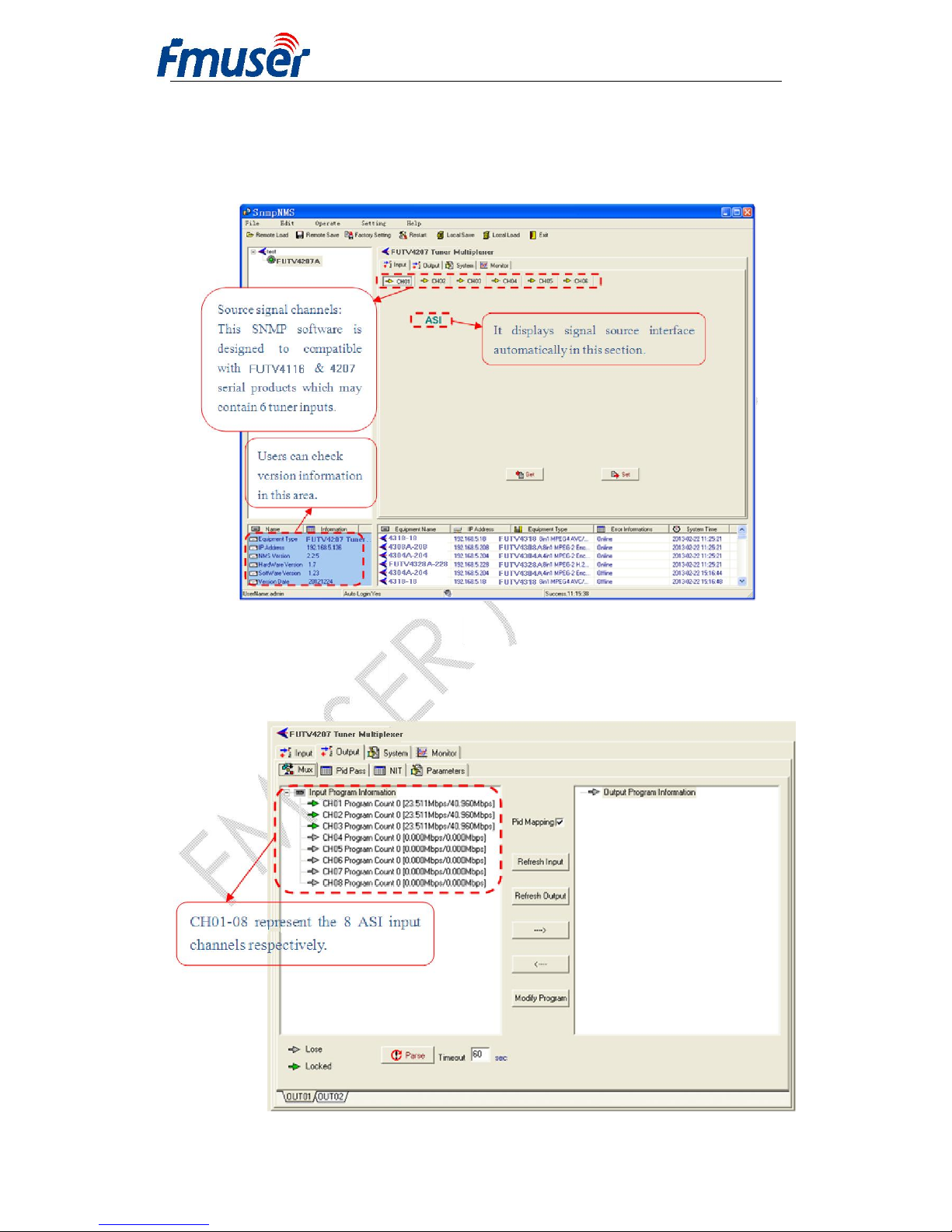

4.3 FUTV4207A Multiplexer Operation
User can choose the Tuner Input Multiplexer in the device tree;
Set: making the current parameters, which shows in the NMS software,
activate.
Get: reading the current device’s activating parameters and showing them
on NMS software.
Page 25
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
24 / 41
4.3.1 Input
FUTV4207A has 8 ASI inputs
4.3.2 Output Setting
4.3.2.1 Mux (Multiplex)
Page 26
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
25 / 41

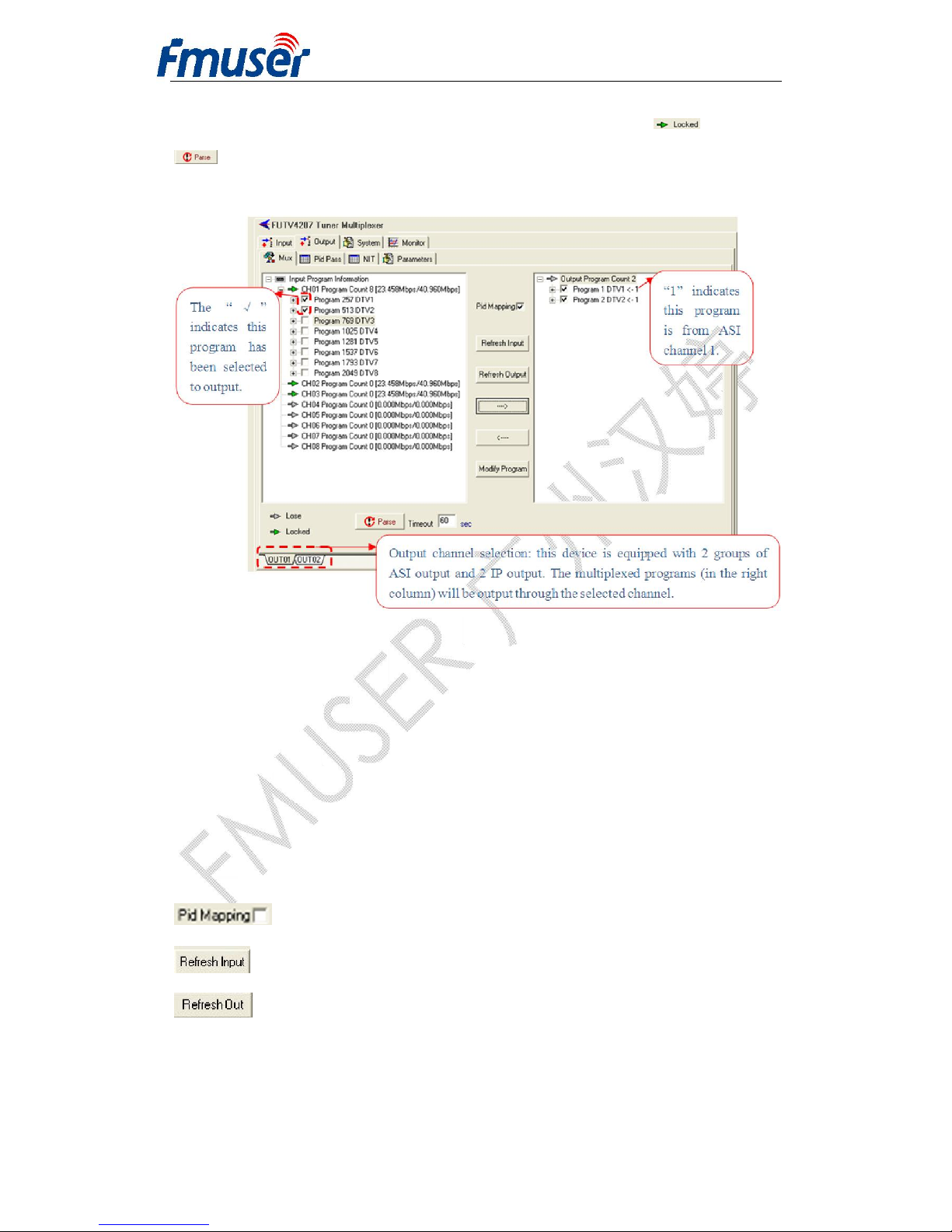

Choose one channel (with TS locked, marked by green arrow ) and click
to parse the input programs.
The programs in the left column represent all input programs and the port they
come from. The programs in the right column represent the output programs
and the input channel they are from. User can analyze the programs of each
input port and multiplex those programs to the output Port 1 or Port 2, or both
port 1 and Port 2. Moreover, user can modify the output programs’ Program
Name, PMT, PCR, video, audio PID.
: Check this box the set the PID Mapping
: To refresh the inputting terminal and get the inputting information
: To refresh the outputting terminal and get the outputting
information
Page 27
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
26 / 41
: To multiplex the input programs to the output channels after selecting
(clicking) the target program.
: Cancel the multiplexed programs.

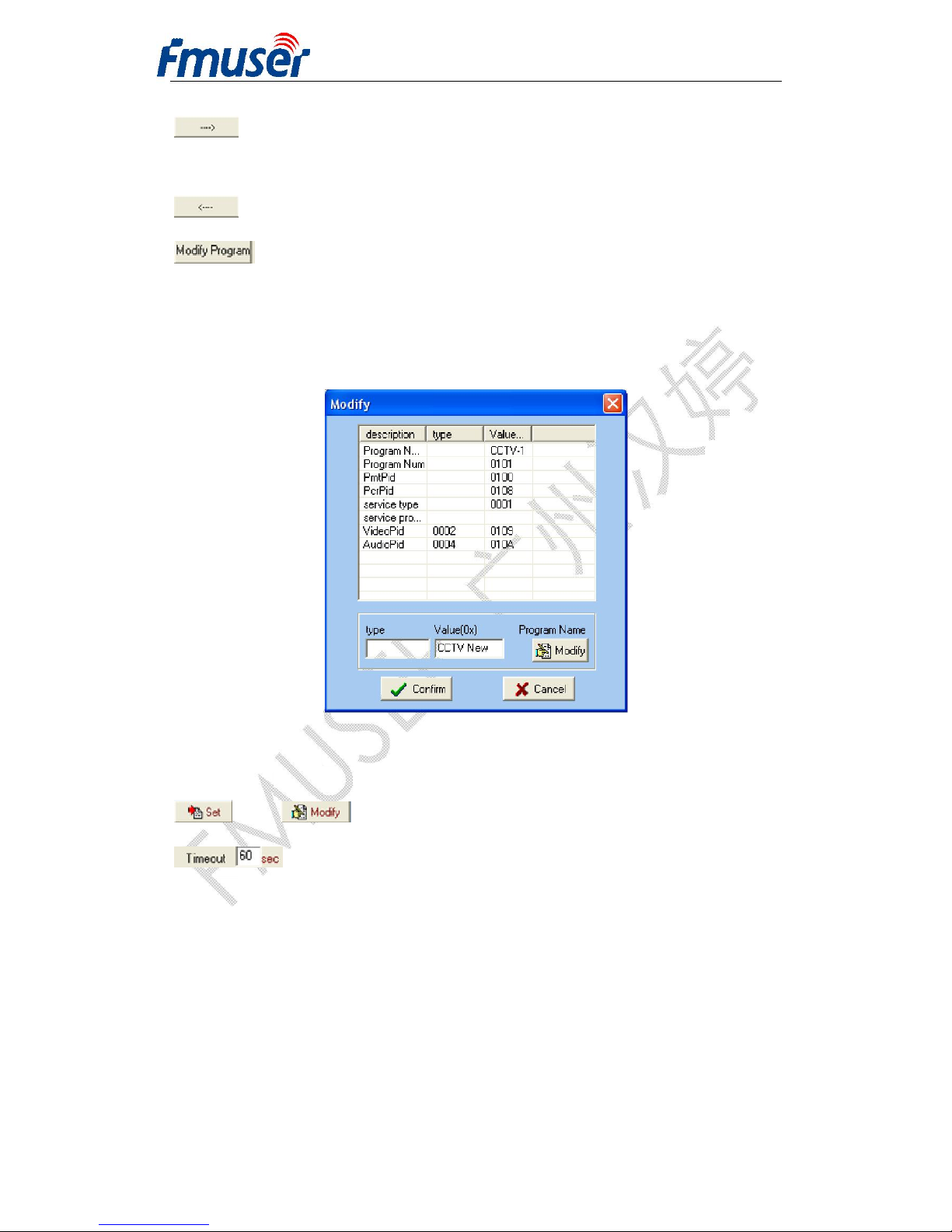

: To modify the output programs’ Program Name, PMT, PCR, video,
or audio PID as needed. To modify program information, user can select the
target program in output part first and click this button to pop up a dialog box
as below:
Select the target item and input the new value in the box below, then click
and to effect the modification.
: The parsing overtime value
The programs of input TS may be very complicated and it takes very long time
for device to analyze. Sometimes, it may take a short-time. The “Time Out”
field decides what time the device will give up if the analyzing is not finished
yet.
Page 28
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
27 / 41
4.3.2.2 PID Pass
User can decide to bypass the inputting PID as needed in this interface.
In some occasions, there are some PIDs which won’t belong to any program,
such as EPG, NIT tables, and so on, but user just wants to pass them through
the multiplexing module without changing anything. This is the main purpose of
this function.

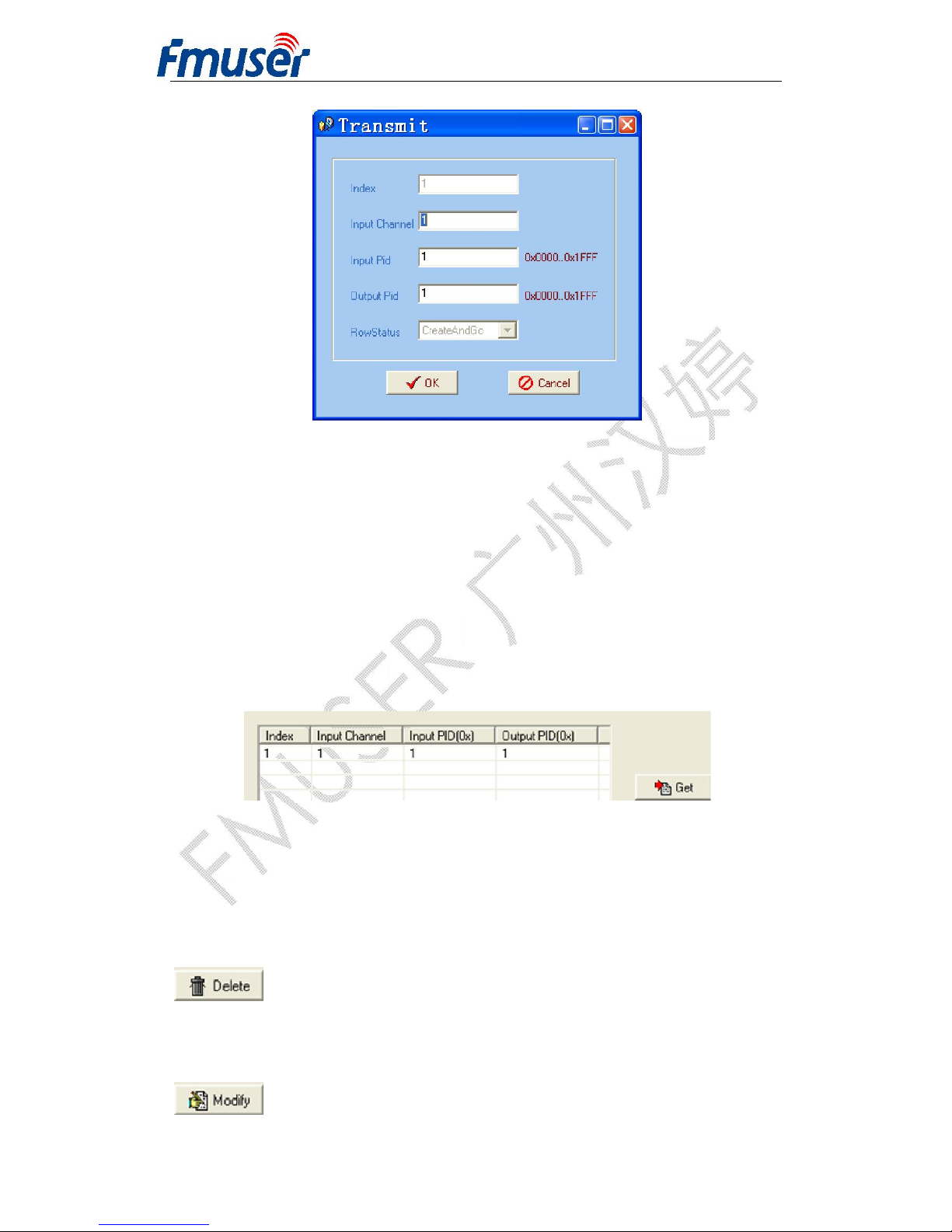

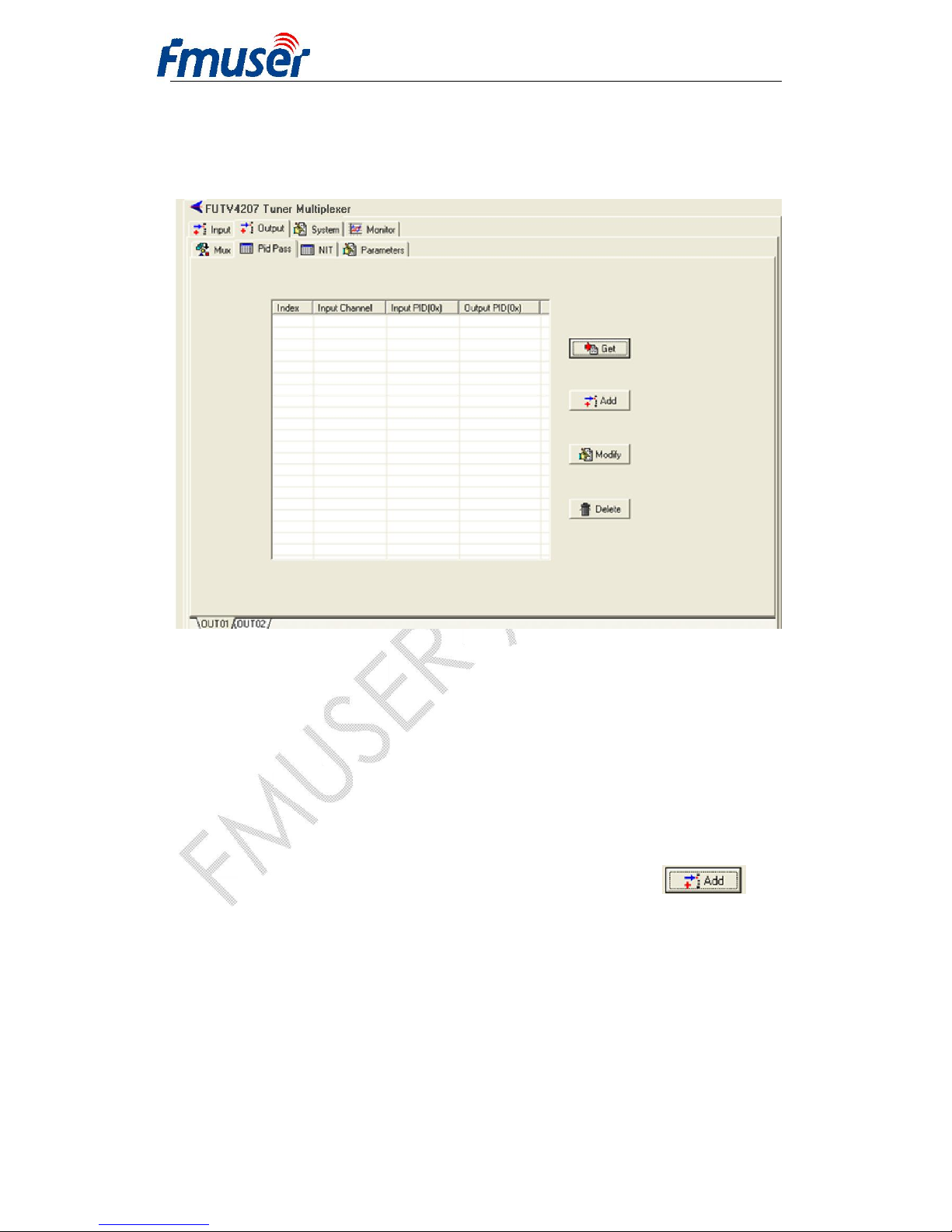

The display will show as below when user clicks “Add” button.
Page 29
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
28 / 41
Input PID and Output PID
The Old (Input) PID is the PID number in the TS from given Port. The
correspondent New (output) PID number could be same as input PID number
while it could be different if a PID remapping is needed.
Modify the data as needed and click OK to confirm. The PID then will be
bypassed and listed in the table as below.
Other functions:
User can also modify or delete the added PID through the corresponding
buttons at right.
User can click the selected PID and then click “delete” button to delete a
transparent pass PID from the “PID Pass”.
Page 30
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
29 / 41
User can click the selected PID and then click “modify” button to modify a
transparent pass PID’s information in the “PID Pass”.
To read the “PID Pass” from device
4.3.2.3 NIT Insertion
NIT: Network Information Table.
NIT table is a very important table for describing the network and TS. Users can set the
parameters of the output NIT table.
：The parameter describes the output TS’s network ID
：The parameter describes the output TS’s network name.
Page 31
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
30 / 41
Insertion private description
：This checkbox will allow user to insert the private
descriptor into the output TS. The private descriptor includes two parts. One is
descriptor tag, and the other is descriptor information.
：The Descriptor Tag is an 8-bit field which identifies each
descriptor.
：The Descriptor Data is the detailed information of the private
description.

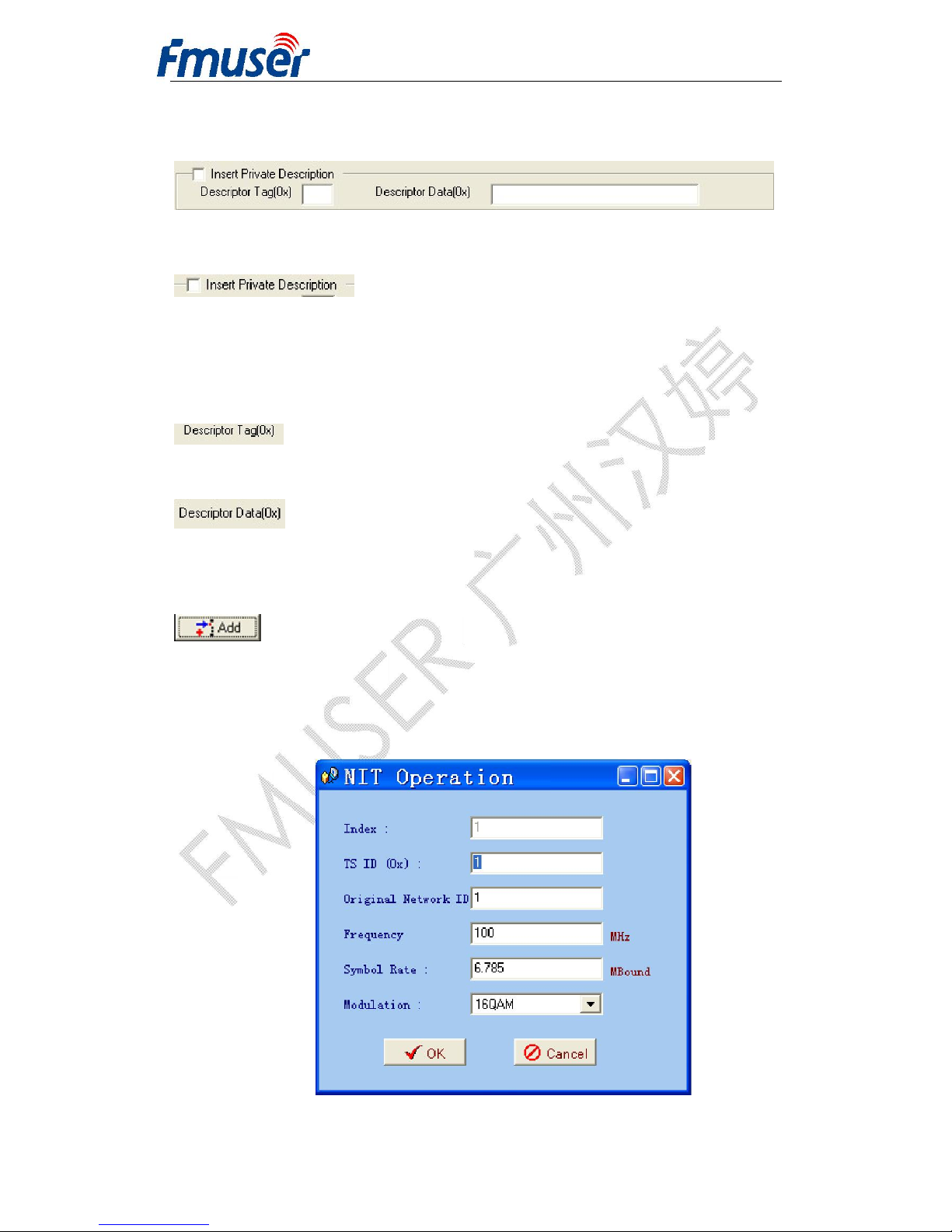

：Users can add the cable transmission descriptor in this Add button,
and it will pop up the following dialogue box, say, the added descriptor is apply
for the DVB-C network.
Page 32
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
31 / 41

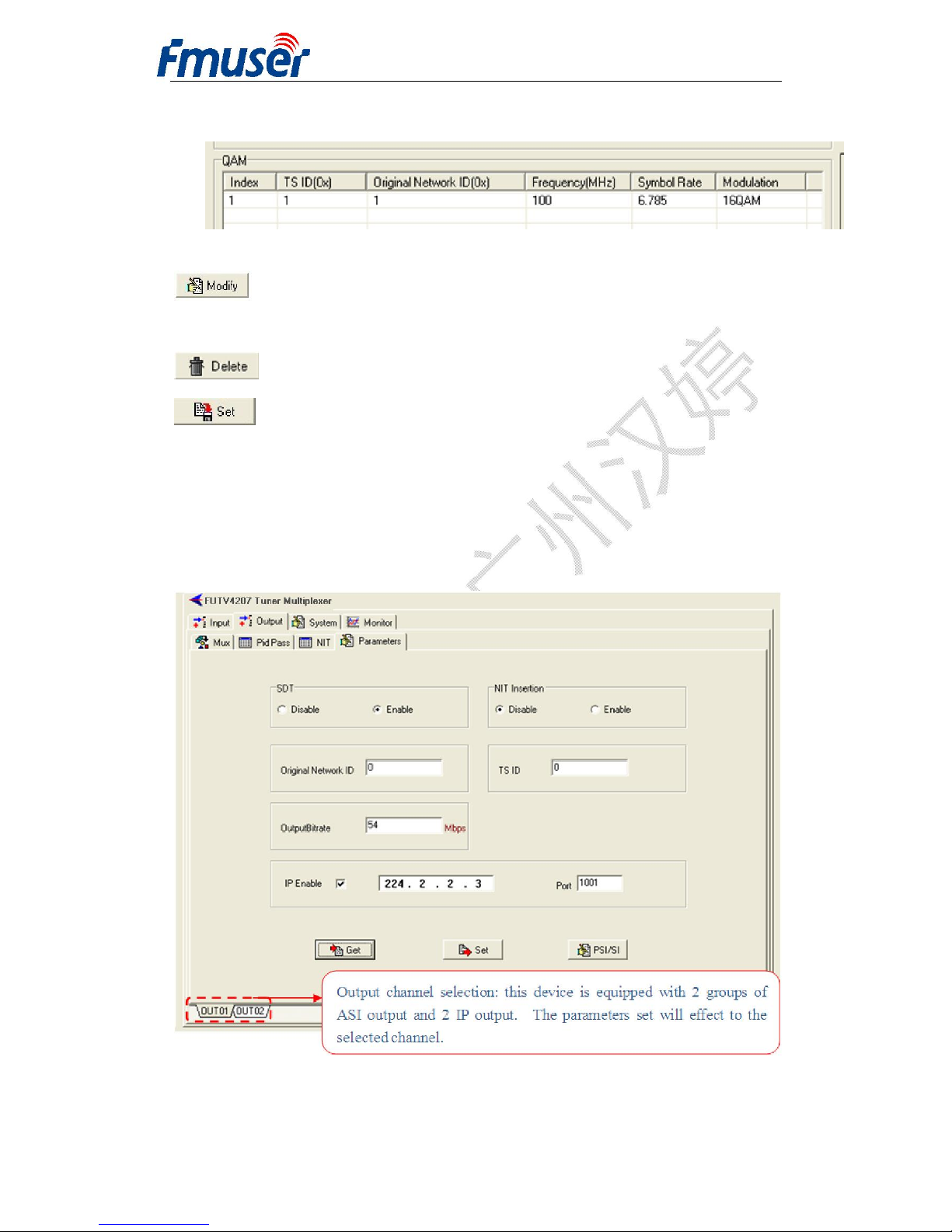

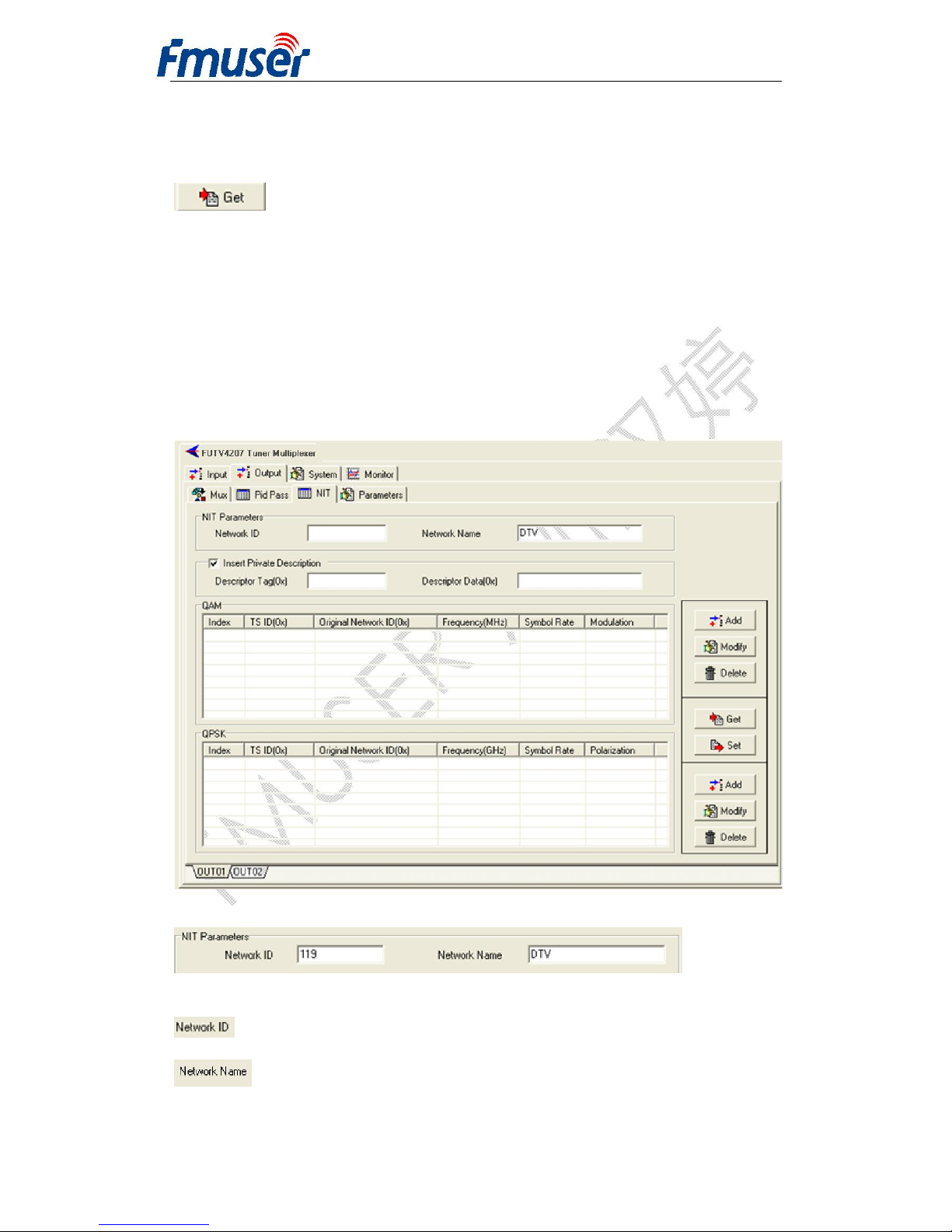

The interface will show as below after the NIT parameters being added：
：The “Modify” button will trigger a modify window and allow user to
modify the selected items in the NIT.
：The “Delete” button will remove the selected items in the NIT.
：The set “Button” will send the NIT to the chosen output Port
4.3.2.4 Output Parameters Setting
Page 33
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
32 / 41
SDT Insertion
User can decide whether to insert the SDT table in the output TS at this field.
NIT Insertion
User can decide whether to insert the NIT table in the output TS at this field.
Original Network ID
To set the original network ID from 0 to 0xFFFF
TS ID
User can set a 16-bit TS ID at this field which serves as a label for identification
of the out TS. The value ranges from 0 to 0xFFFF.
(Total) Output Bit-rate
User can set the total output bit-rate at this field. The value of this bit-rate
includes the following, the effective bit-rate of multiplexed programs from all
input ports and the bit-rate of stuffed null pockets.
IP Enable
User can decide whether to enable or disable the IP output at this filed.
Out IP address
User can set the output IP address at this field.
Output Port
User can set the IP output port here.
PSI/SI Editor
This button will trigger the PSI/SI Editor for some users’ advanced usage. For
more detail, please refer to the manual of PSI/SI.
PSI: Program Specific Information
SI: Service Information
Page 34
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
33 / 41

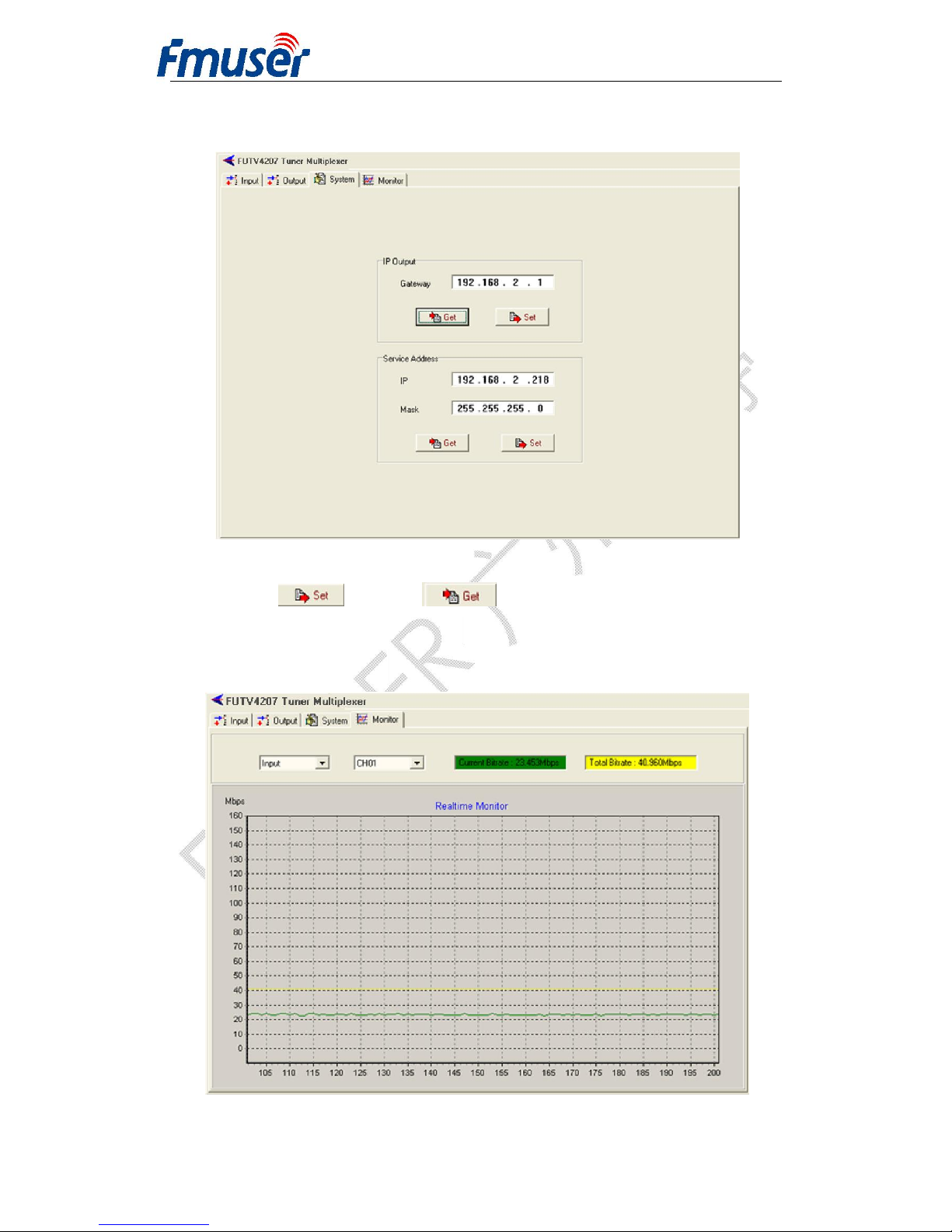

4.3.3 System
User can set the output IP gateway address and Service IP/Mask address in
this tag. Click and then to make it effective.
4.3.4 Real-time Monitor
Page 35
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
34 / 41
The real-time effective bit-rate of output stream will be directly displayed at this
chart. User can also clearly observe the output stream real-time effective
bit-rate changing on the following dynamic trend chart.
Current Bit-rate (Green line)
This field indicates the output TS’s real-time effective bit-rate of corresponding
channel.
Total Bit-rate (Yellow line)
This field indicates the maximum bit-rate of corresponding channel whose
real-time output effective bit-rate ever reached.
4.4 Other Settings
4.4.1 Difference between Set and Remote Save
In many cases during the configuration of parameters in NMS, users save the
modified configuration by clicking “Set”, in which way the configuration can
only be saved temporarily and will restore the last saved configuration if the
device reboots. To save the configuration permanently, it is required to operate
through “Remote Save” on the toolbar explained in 4.2.7.
This is the difference between “Set” and “Remote Save”.
4.4.2 IP Modification
Page 36
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
35 / 41

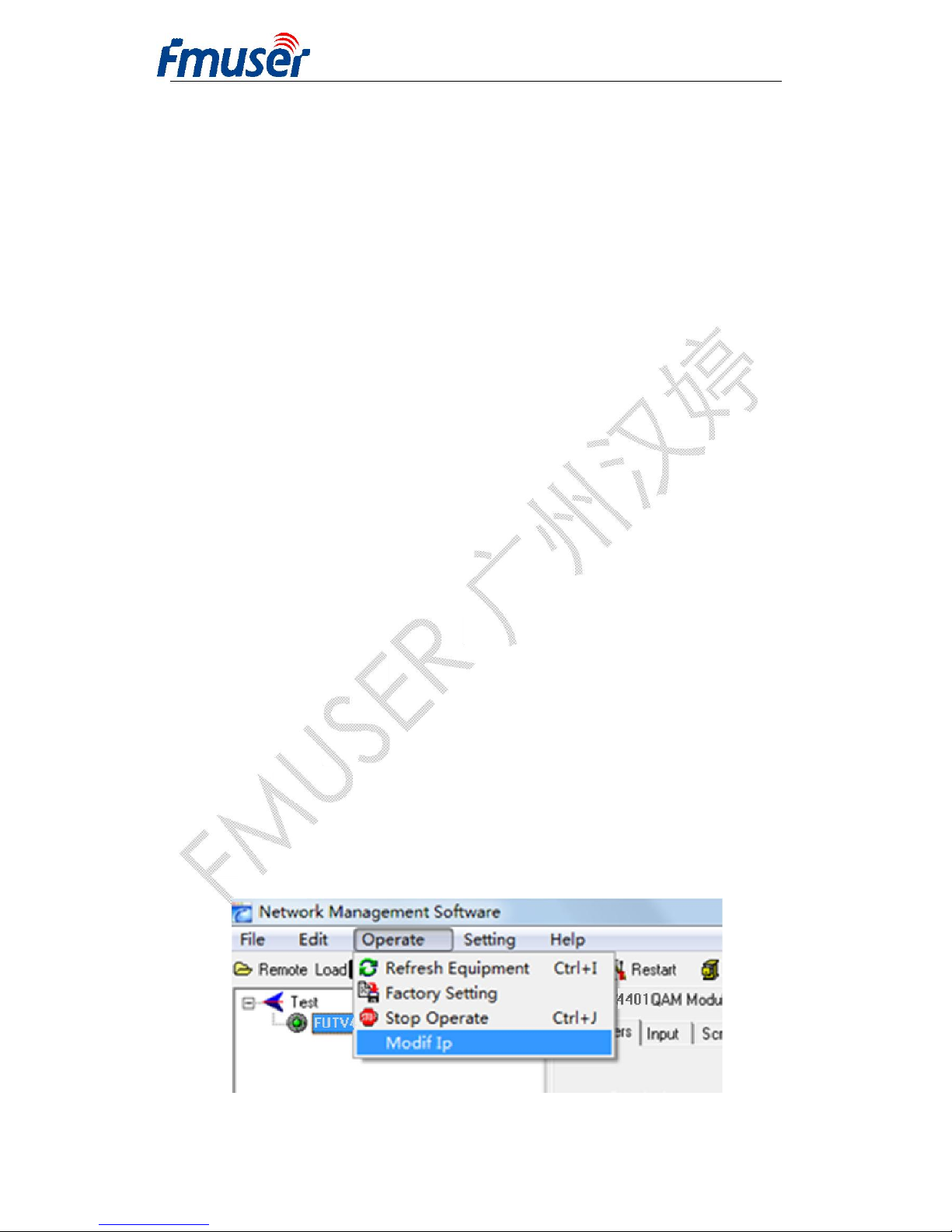

Users can click Operate and select Modify IP in the drop-down list, and a
dialog box presents itself as shown below. Users input the new NMS IP
Address for the device and click OK button to confirm.

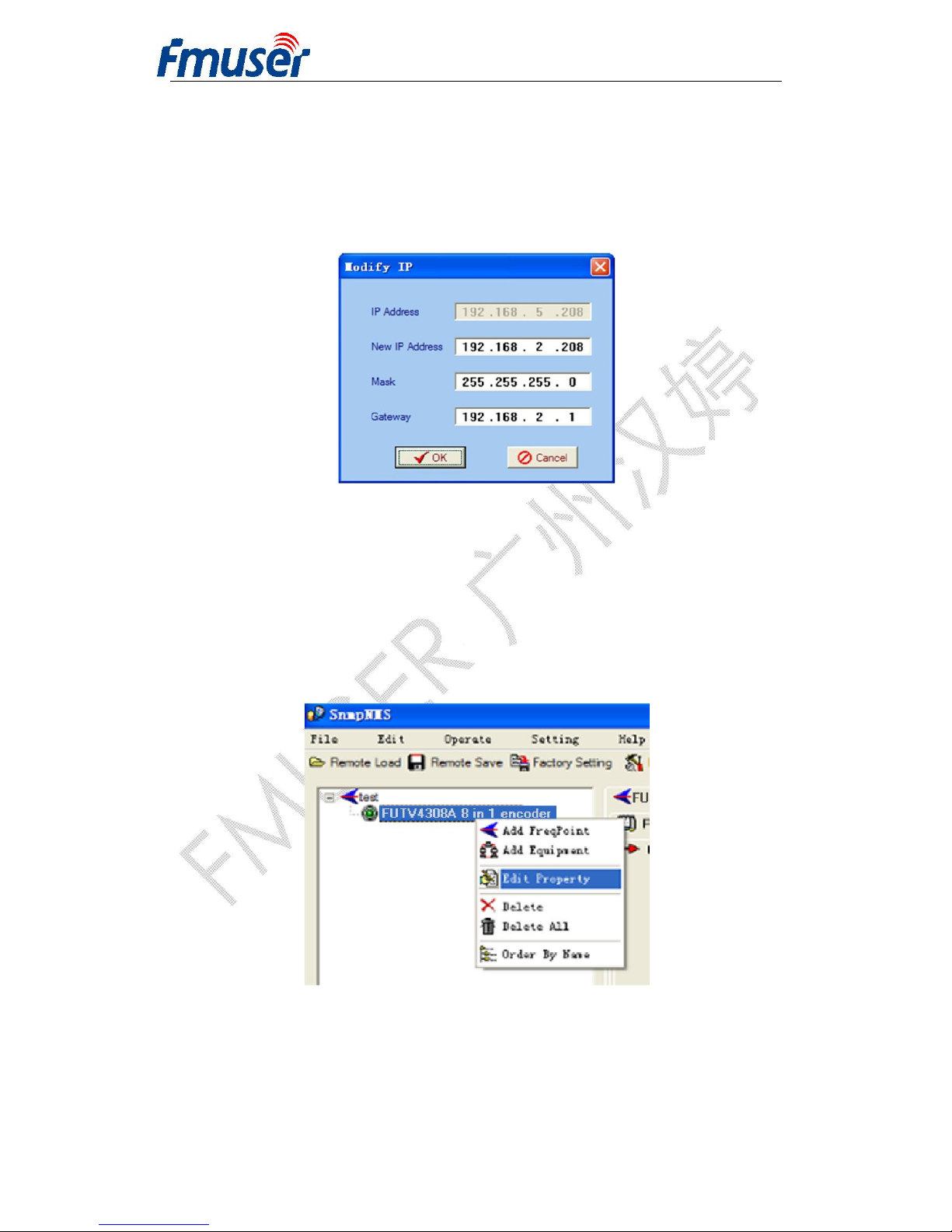

Users can then note the indicator light turns red, which signifies the equipment
has disconnected. Users then can refer to below prompts to edit the property
by inputting the new IP to re-connect the equipment.
Input the new IP Address in the box and click OK button, then the device will
be connected again.
Page 37
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
36 / 41
After finishing all the parameters setting, user should click
button on the toolbar to save the modifications to the device’s flash.
4.4.3 User Add
When logging in, user will note that the default user name is admin and no
password. User can add users and passwords as needed.

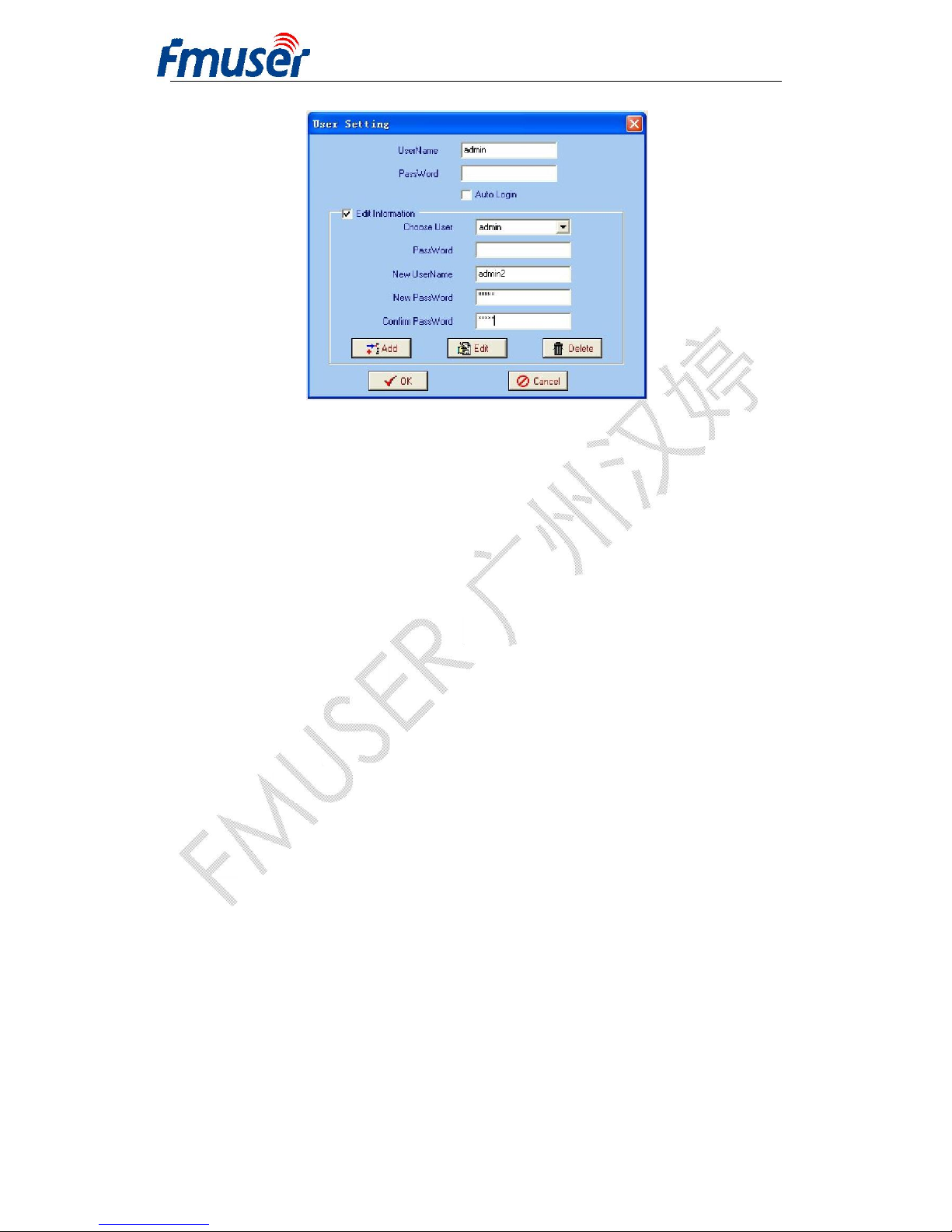

User clicking “Setting” in the menu bar and selecting “User Setting” in the
pull-down list, the below dialog box will pop out as shown below. Select the
“Edit Information” by marking the check box with “√”, user can input the new
username and new password as prompts below. It is required to click
to add the new user and then click to save the new
setting.
Page 38
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
37 / 41
Page 39
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
38 / 41
Chapter 5 Trouble Shooting
FMUSER’s ISO9001 quality assurance system has been approved by CQC
organization. For guaranteeing the products’ quality, reliability and stability, all
FMUSER products pass the testing and inspection before products are
shipped out factory. The testing and inspection scheme already covers all the
Optical, Electronic and Mechanical criteria which have been published by
FMUSER. To prevent potential hazard, please strictly follow the operation
conditions.
Preventive Measures
l Installing the device at the place in which environment temperature is between 0
to 45 °C
l Making sure good ventilation for the heat-sink on the rear panel and other
heat-sink bores if necessary
l Checking the input AC within the power supply working range and the
connection is correct before switching on device
l Checking the RF output level varies within tolerant range if it is necessary
l Checking all signal cables have been properly connected
l Frequently switching on/off device is prohibited; the interval between every
switching on/off must be greater than 10 seconds.
Conditions need to unplug the power cord
l Power cord or socket damaged.
l Any liquid flowed into device.
l Any stuff causes circuit short
l Device in damp environment
l Device was suffered from physical damage
l Longtime idle.
l After switching on and restoring to factory setting, device still cannot work
Page 40
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
39 / 41
properly.
l Maintenance needed
Page 41
FMUSER INTERNATIONAL GROUP INC. 广州市汉婷生物科技开发有限公司
40 / 41
Chapter 6 Packing list
l FUTV4207A ASI Input Multiplexer 1pcs
l User Manual 1pcs
l ASI Cable 8pcs
l Power Cord 1pcs
Loading...
