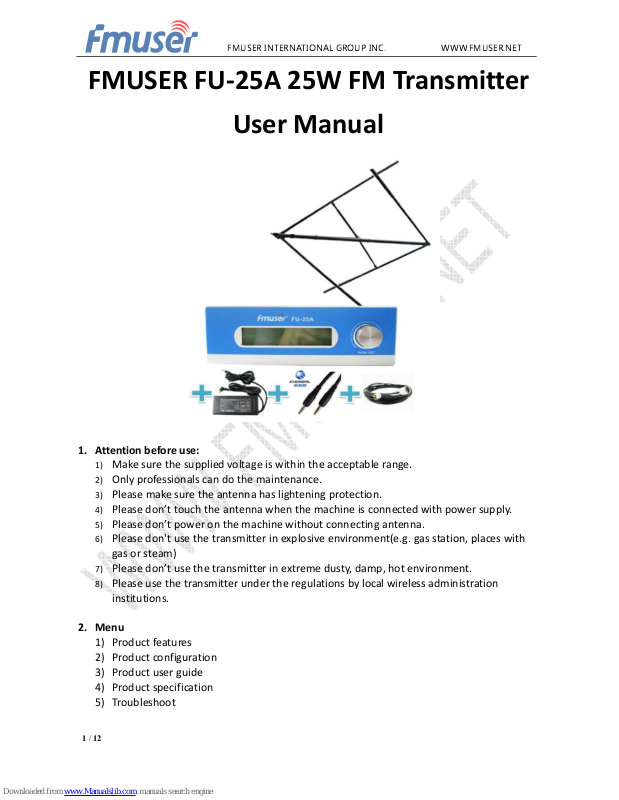

FMUSER FU-25A 25W FM Transmitter
User Manual
1. Attention before use:
1)
Make sure the supplied voltage is within the acceptable range.
2)
Only professionals can do the maintenance.
3)
Please make sure the antenna has lightening protection.
4)
Please don’t touch the antenna when the machine is connected with power supply.
5)
Please don’t power on the machine without connecting antenna.
6)
Please don't use the transmitter in explosive environment(e.g. gas station, places with
gas or steam)
7)
Please don’t use the transmitter in extreme dusty, damp, hot environment.
8)
Please use the transmitter under the regulations by local wireless administration
institutions.
2. Menu
1) Product features
2) Product configuration
3) Product user guide
4) Product specification
5) Troubleshoot
Page 2
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
2 / 12
3. Product Features
FU-25A is a multi-functional FM transmitter. It has stable structure, excellent performance ,
super good sound quality and is very easy to use.
*Main Features:
-Stereo/Mono optional
- RF output power is continuously adjustable from 0~25watt.
-One button controls all functions.
-SWR protection. When antenna is not well connected, the transmitter will turn to
protection mode automatically.
-Temperature protection. When the temperature of transmitter is too high, it will turn to
protection mode automatically.
4. Product configuration
NO NAME DESCRIPTION QTY UNIT
PORT
1 FM transmitter FU-25A 1 PCS NO
2
ALLUMINUM
ANTENNA
1/4 OR 1/2 WAVE 1 SET RF OUT
3 POWER ADAPTER DC12V/6A 1 SET 12.0V-6.0A
4 AUDIO CABLE 1 TO 2 - 3.5m TO RCA 1 PCS LINE IN
5 USER MANUAL ELECTRONIC VERSION 1 PCS NO
5. User Guide

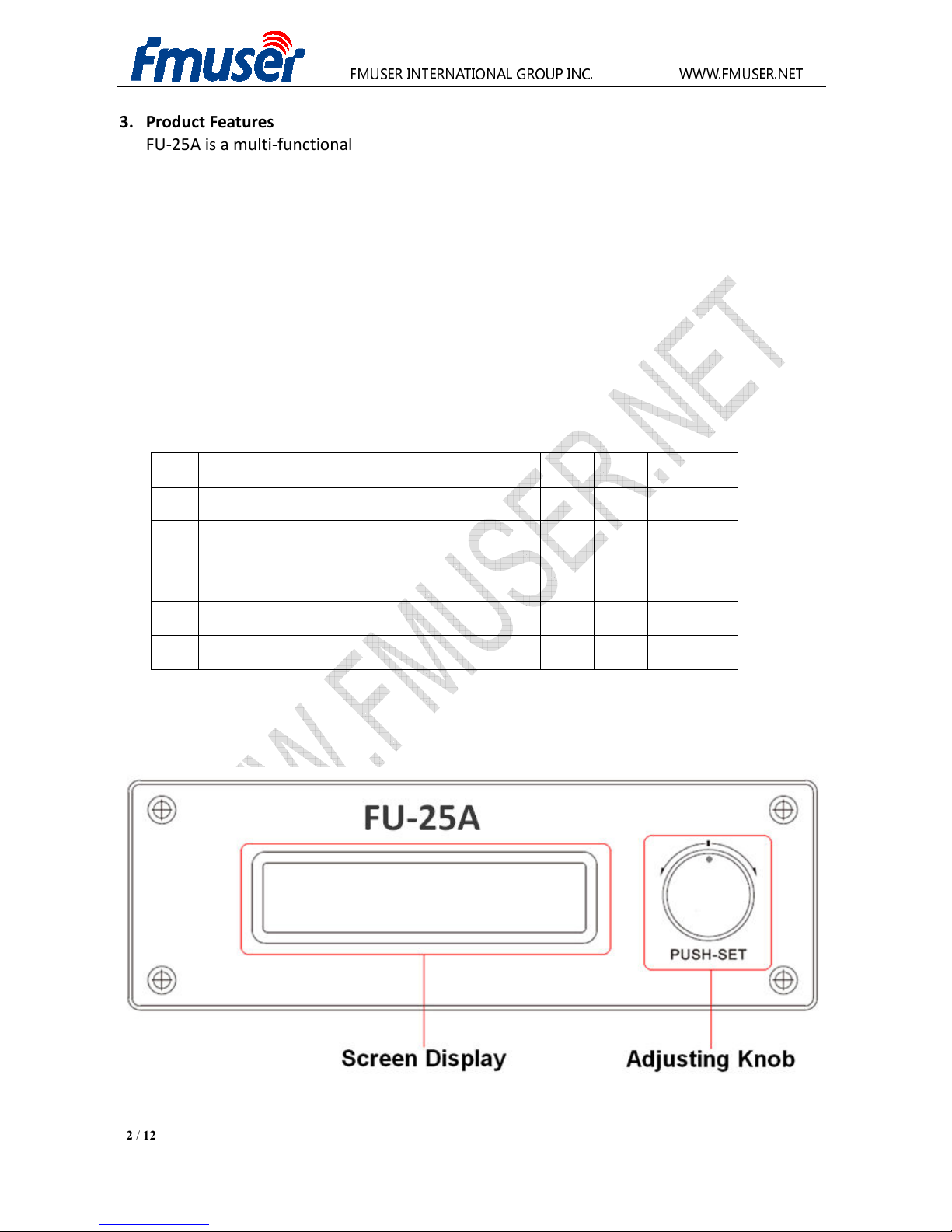

1) Panel description
Page 3
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
3 / 12

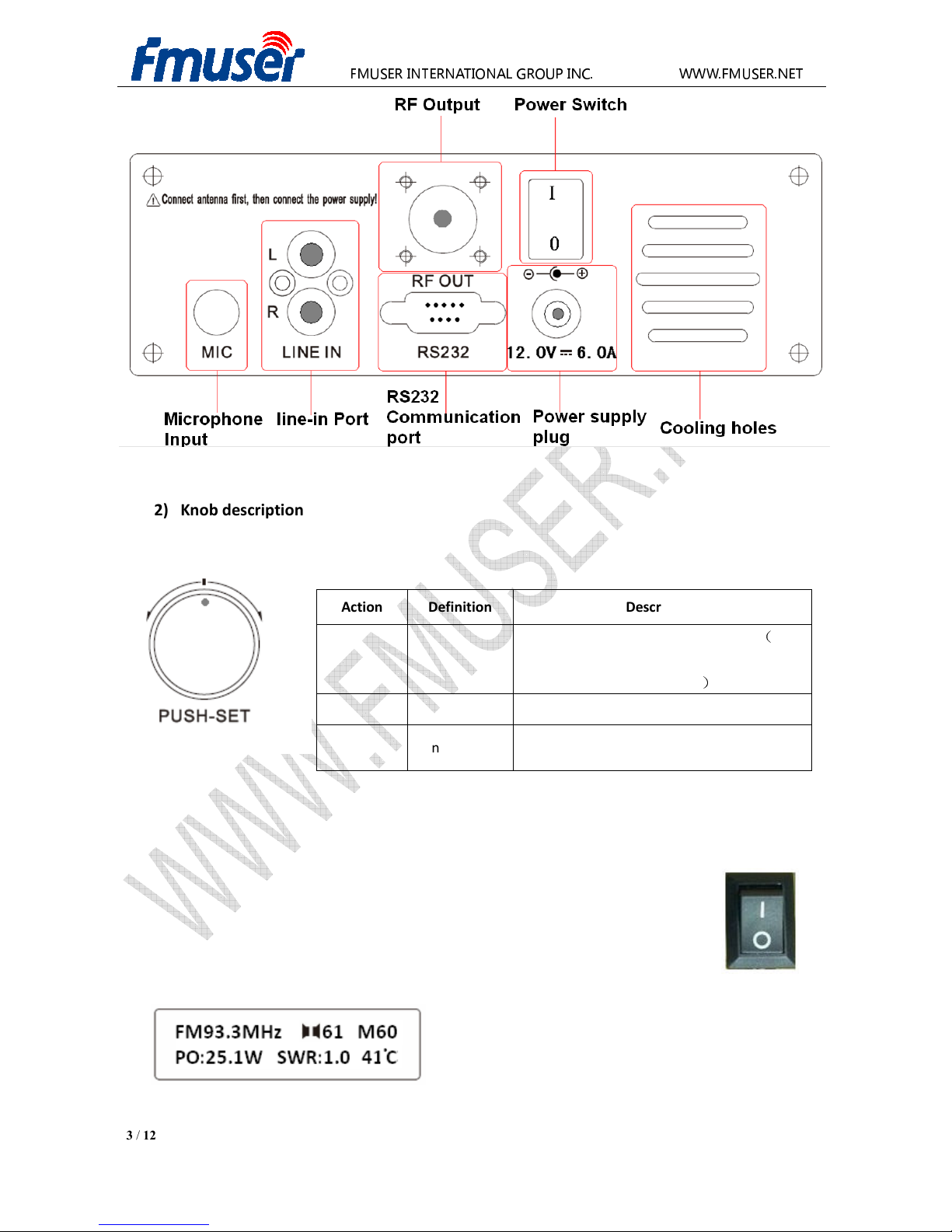

2) Knob description
Action Definition Description
Turn
left/right
Adjust, shift
Main page, adjusting page, shift（turn
clockwise to increase, turn
Counterclockwise to reduce）
Short press Confirm Enter/Exit Menu page
Press and
hold
Confirm On Main page, press and hold to enter Menu
3) Operation Instruction
a) Turn ON
Check the antenna first, make sure it’s well connected. Then connect the power cord to
home socket, press the power button to I position to turn ON the transmitter.
O position means OFF. See picture on the right.
After power on, the transmitter goes into working status.
Page 4
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
4 / 12

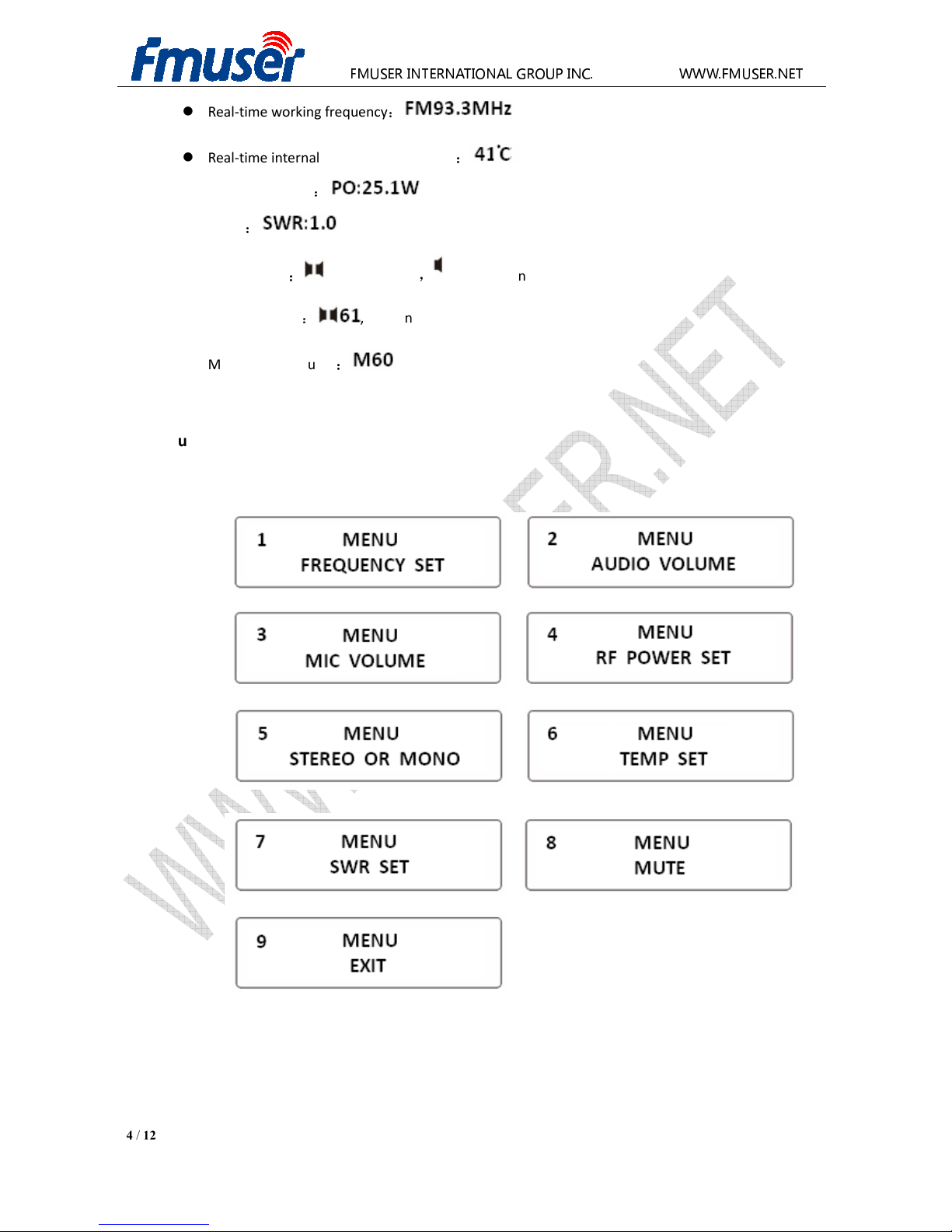

Real-time working frequency
：
Real-time internal working temperature
：
RF output power
：
SWR
：
Sound Mode
：
means Stereo， means Mono
Line-in Volume
：
, the range is 0~79
Microphone Volume
：
, the range is 0~79
b) Function and Parameter setting
Press the knob to enter Menu page. Turn the knob to shift pages. There are 9 pages altogether rotating on
the
screen.
Page 5
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
5 / 12

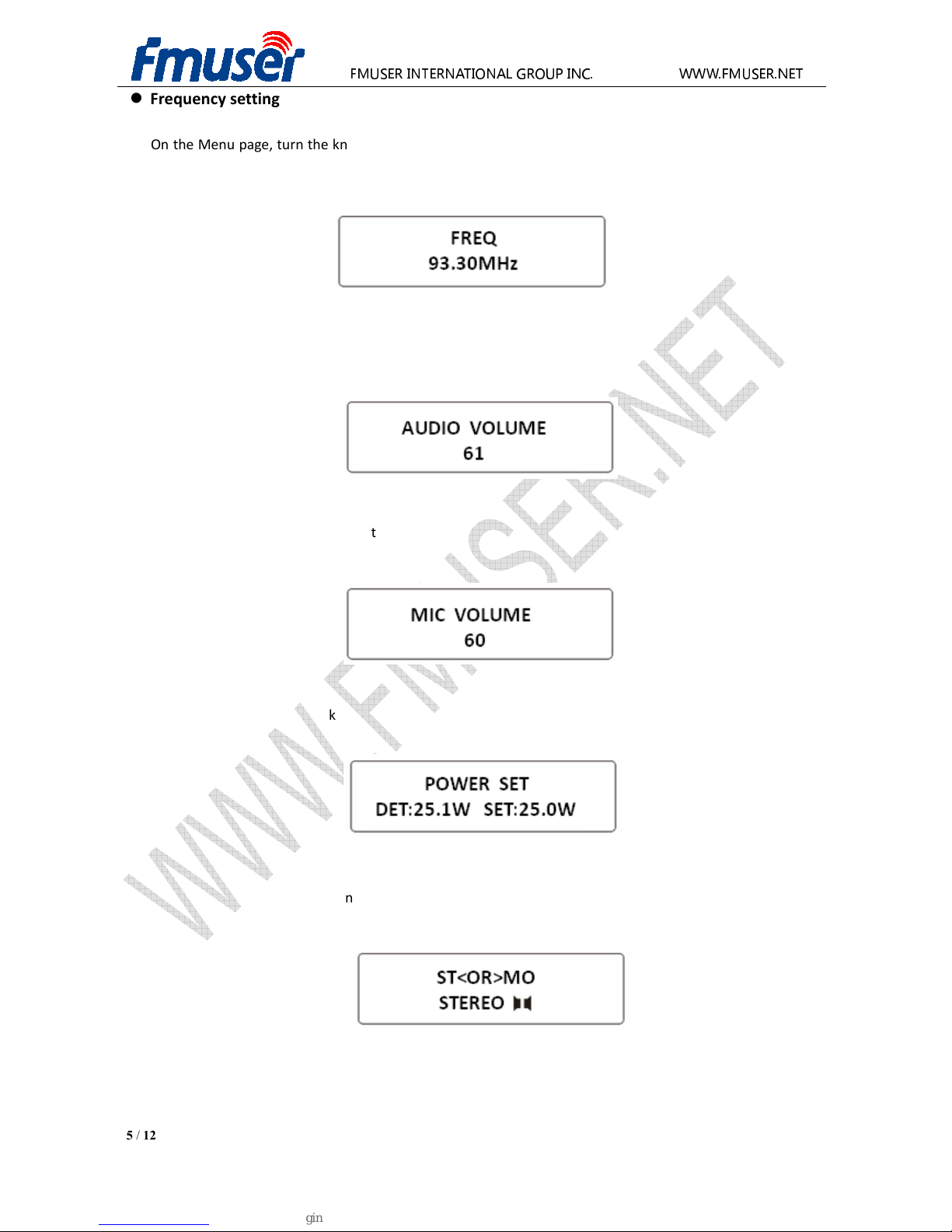

Frequency setting
On the Menu page, turn the knob to page 1 FERQ setting, press the knob to enter setting(the RF output will
be shut down temporarily). Turn the knob to adjust the frequency by stepping of 0.1MHz, then press the
knob to confirm setting and exit.
Line-in Volume setting
On the Menu page, turn the knob to page 2 LINE VOLUME setting, press the knob to enter setting. Turn the
knob to adjust the volume within the range of 0~79, then press the knob to confirm setting and exit.
MIC volume setting
On the Menu page, turn the knob to page3 MIC VOLUME setting, press the knob to enter setting. Turn the
knob to adjust the microphone volume within the range of 0~79, then press the knob to confirm setting and
exit.
RF output power setting
On the Menu page, turn the knob to page 4 RF POWER setting, press the knob to enter setting. Turn the knob
to adjust the output power within the range of 0~50w, then press the knob to confirm setting and exit.
Sound mode setting
On the Menu page, turn the knob to page 5 ST<OR>MO setting, press the knob to enter setting. Turn the
knob to shift the sound mode between Stereo and Mono, then press the knob to confirm setting and exit.
Page 6
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
6 / 12

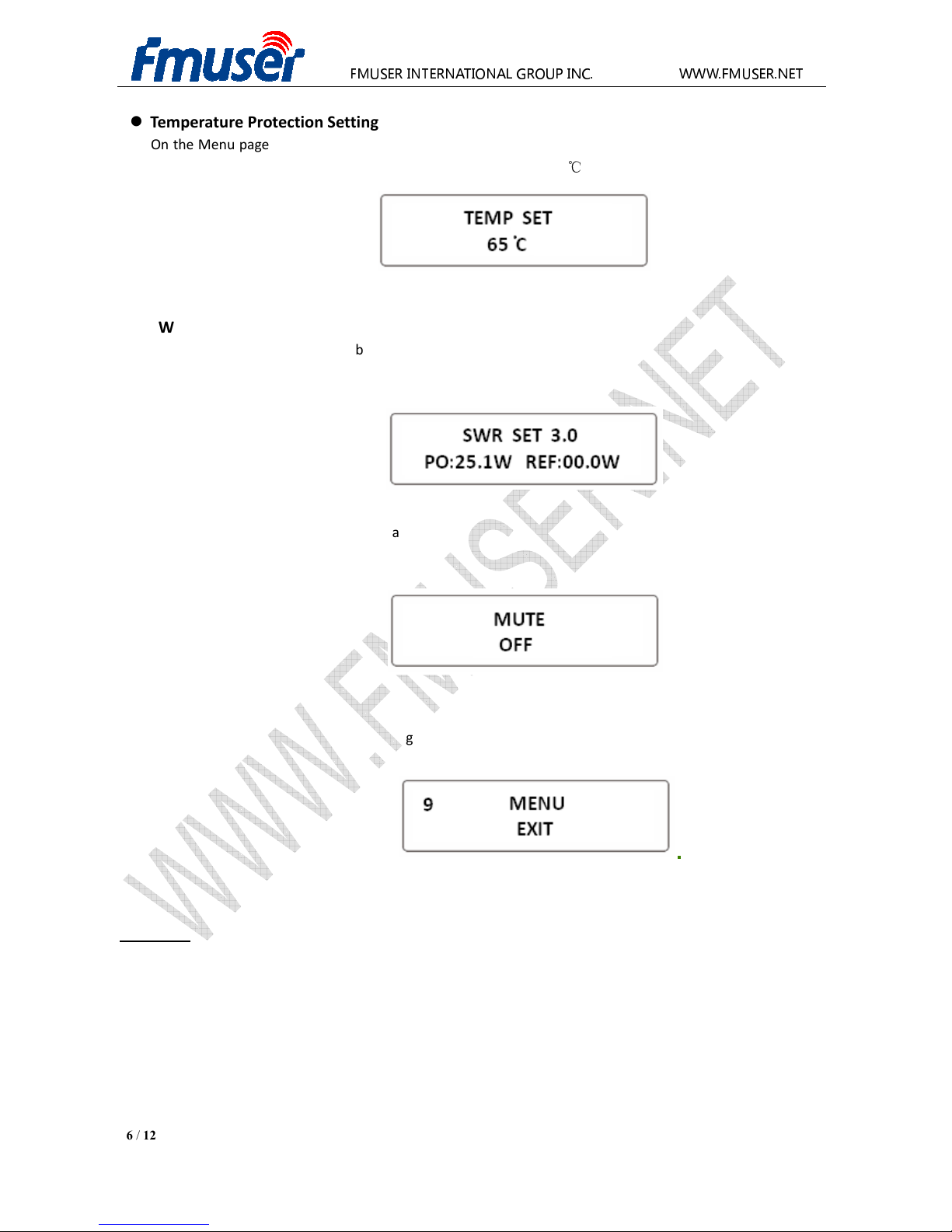

Temperature Protection Setting
On the Menu page, turn the knob to page 6 TEMP setting, press the knob to enter setting. Turn the knob to
adjust the protection temperature point within the range of 30~80℃, then press the knob to confirm setting
and exit.
SWR protection setting
On the Menu page, turn the knob to page 7 SWR SET setting, press the knob to enter setting. Turn the knob
to adjust the SWR protection point within the range of 1.0~5.0, then press the knob to confirm setting and
exit.
Line Mute setting
On the Menu page, turn the knob to page 8 MUTE setting, press the knob to enter setting. Turn the knob to
set Mute status, ON means the line-in is muted, OFF means the line-in is available. Press the knob to confirm
setting and exit.
Exit setting
On the Menu page, turn the knob to page 9 MENU EXIT, press the knob to exit setting and return to main
page.
Remark:
In the MENU page, if there is no action within 20 seconds, the system will return to Main
page automatically.
Page 7
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
7 / 12
6. Technical Specification
NO Item Specification
1 Working Voltage 12V
2 Working Current
﹤
5A
3 Frequency Range 87~108MHz
4 Frequency Stability ±10PPM
5 Frequency Stepping 100KHz
6 Environment temperature
-10℃~45℃
7 Output Impedance 50Ω
8 RF output power 0W~25W
9 Harmonic, clutter radiation
≤－60dB
10 Audio distortion 0.2%
11 Frequency Response 50Hz~15000Hz
12 Separation ≥35 dB
13 Input level ≤15 dBV
14 Frequency Modulation ±75KHZ
15 SNR ≥70dB
16 Size
210㎜（L）*174㎜（W）*59㎜（H
）
（
Exclude projected parts）
17 Net Weight About 1.5kg
Page 8
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
8 / 12
7. Troubleshooting
NO Problem description Possible Reasons
1 Unable to Power ON
1）Socket is not connected with electricity
2）Power cord is not well plugged.
3）The fuse is not working properly in socket.
2 SWR Alarm
1）Antenna is not well connected.
2）SWR value is too high because antenna doesn’t
match transmitter
3) There are too many reflecting objects close to
antenna.
3 Temperature Alarm
1）Fan is not working；
2）Antenna doesn't match transmitter, the SWR
value is too high, thus temperature rises up.
3）The fan holes are jammed.
4 SWR value is too high
1）Antenna not well connected.
2）SWR value is too high because antenna doesn’t
match transmitter
3) There are too many reflecting objects close to
antenna.
5
Short transmitting
distance
1）High loss of feeder cable.
2）Poor broadcasting environment.
3）Output power is low.
4）Antenna is not placed high enough.
5）Antenna and transmitter doesn’t match.
6）Radio receiver has low sensitivity.
6 No power output
1) RF output power needs to be adjust higher
2) Transmitter is powered OFF.
7 No audio output
1）Transmitter line-in volume is too low.
2）Line-in audio signal is abnormal.
8 No microphone output
1）Microphone is not working well.
2）Microphone volume is too low.
3）Microphone is dynamic type.
4）Microphone is not well plugged.
9 Poor sound quality
1）Microphone quality is low.
2）Audio source quality is low.
3）Antenna is not well assembled and connected.
4）Audio signal or transmitter line-in volume is
not adjusted well.
Page 9
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
9 / 12

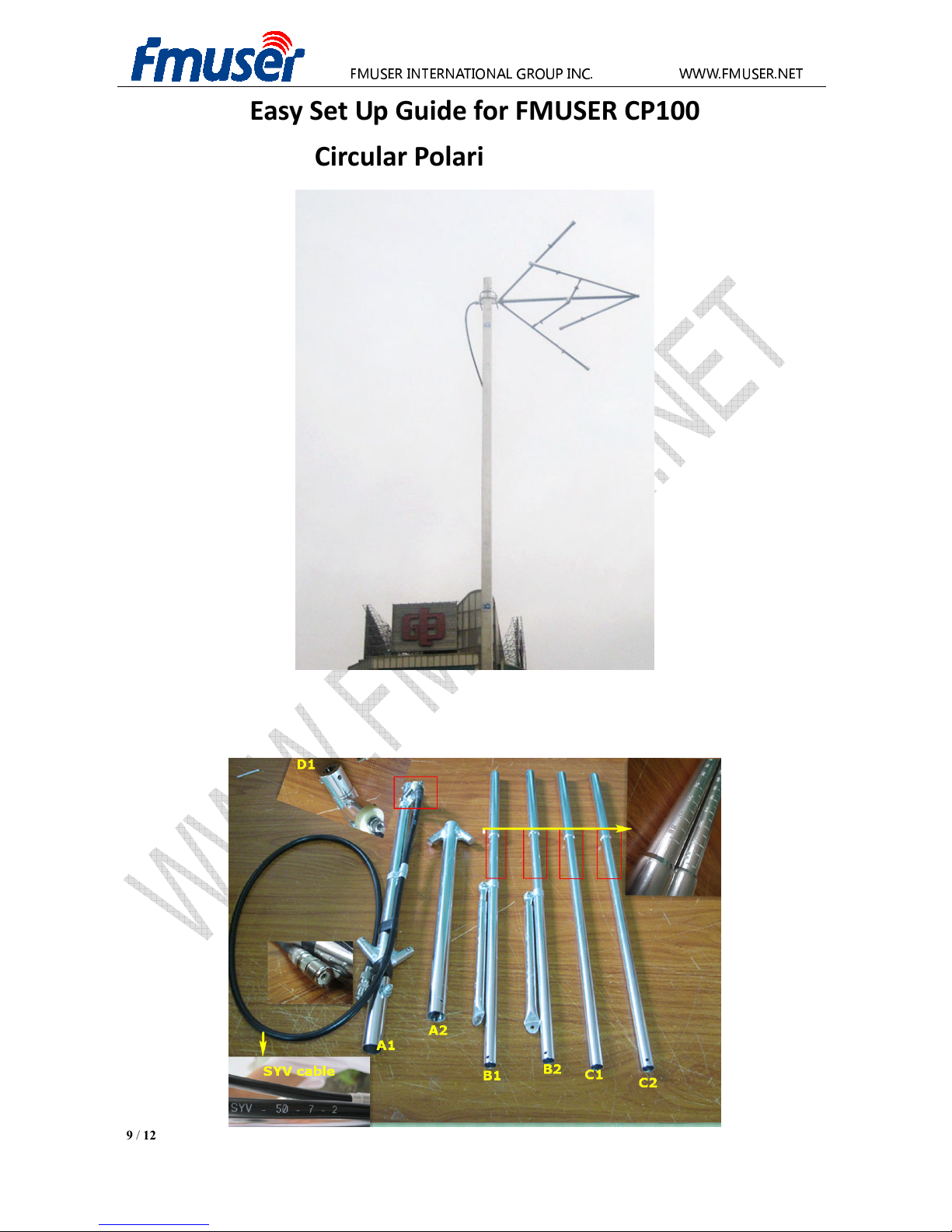

Easy Set Up Guide for FMUSER CP100
Circular Polarized Antenna
I. Check all parts of the antenna. After you have received the antenna package, check and make
sure the items shown in the picture below are received.
Page 10
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
10 / 12

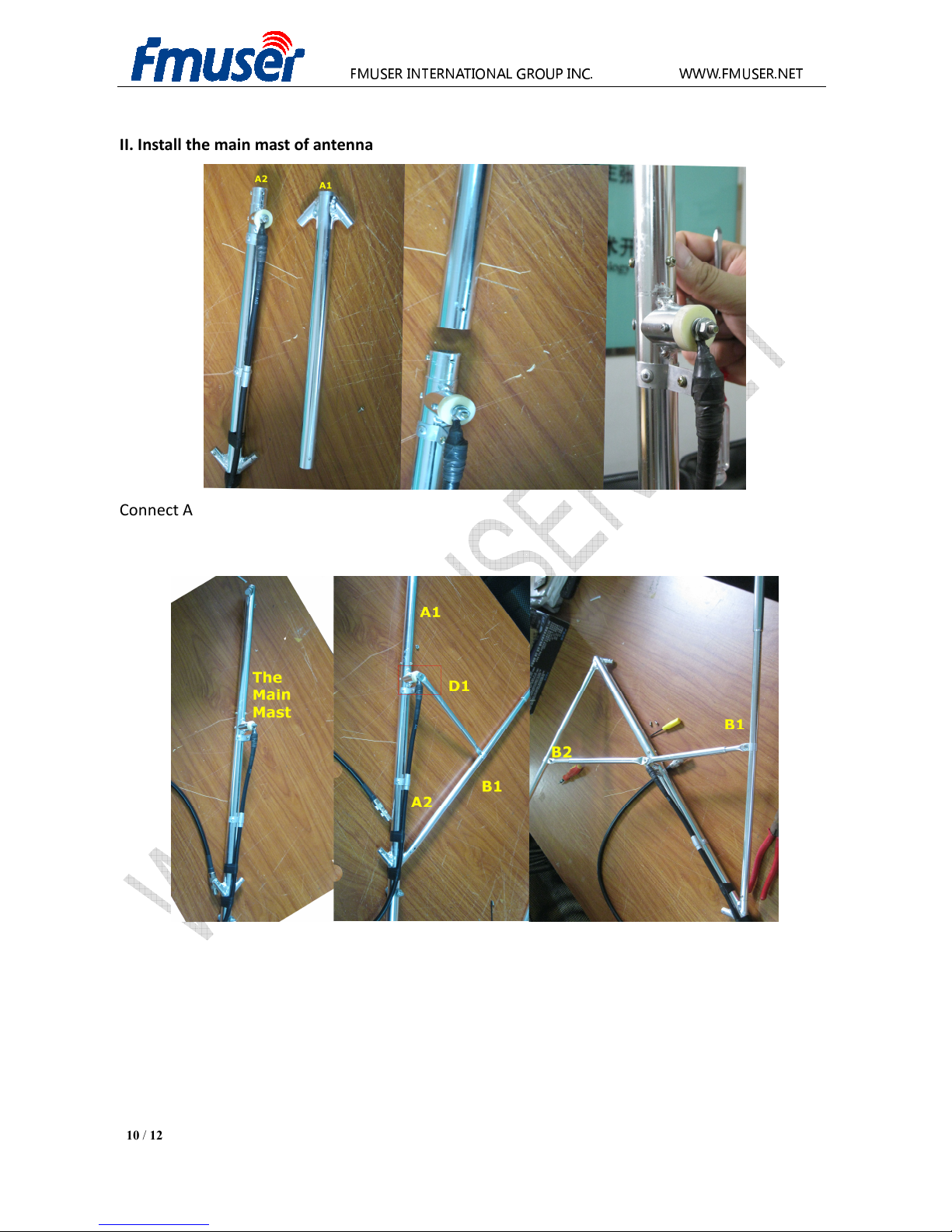

II. Install the main mast of antenna
Connect A1 and A2, A1 is upside and A2 is downside.
III. Lock B1 and B2 on the mainmast
Page 11
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
11 / 12

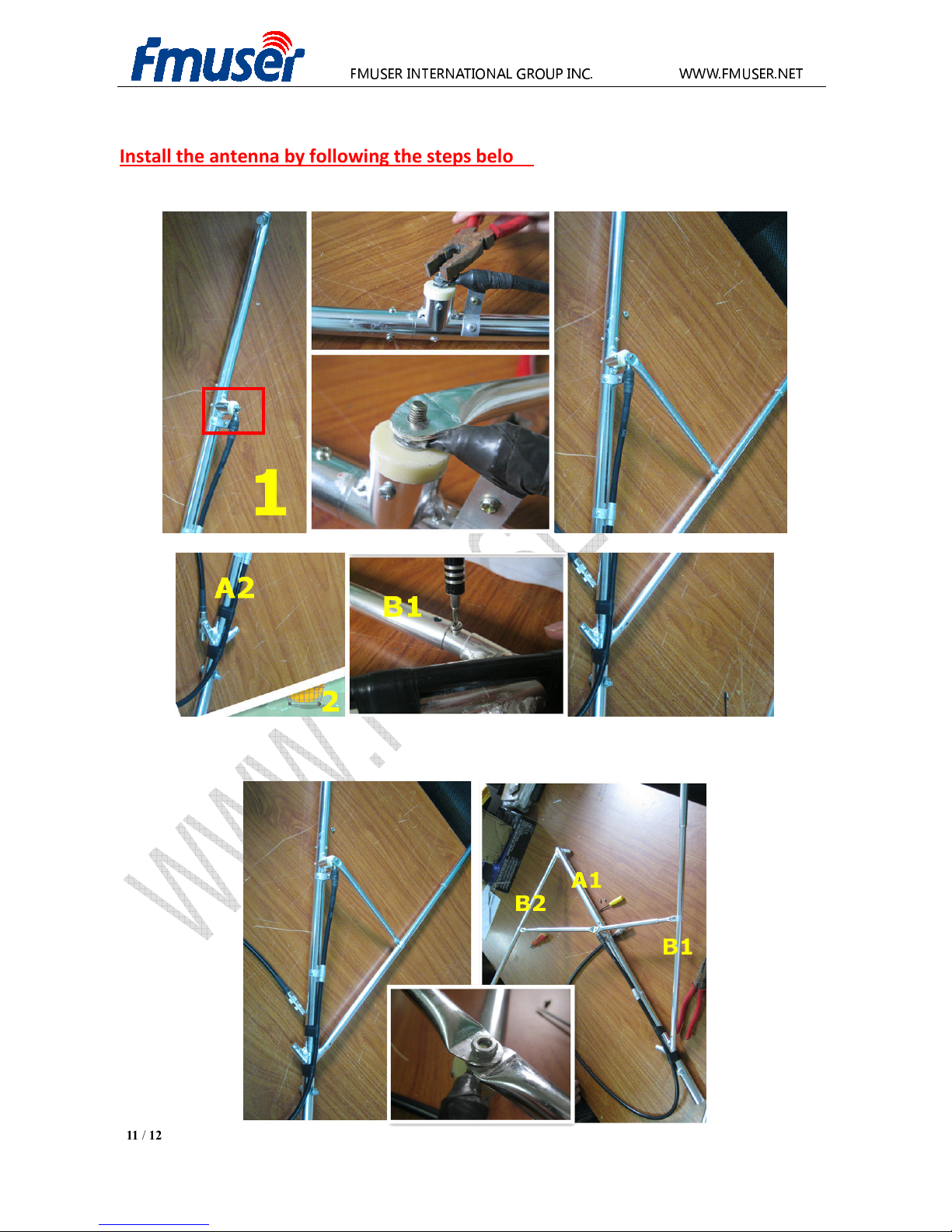

Install the antenna by following the steps below:
Step1: Unscrew the nut of connected parts on D1.Connect one end of B1 to D1
Step2: Connect another end of B1 to A2
D1
Page 12
FMUSER INTERNATIONAL GROUP INC. WWW.FMUSER.NET
12 / 12

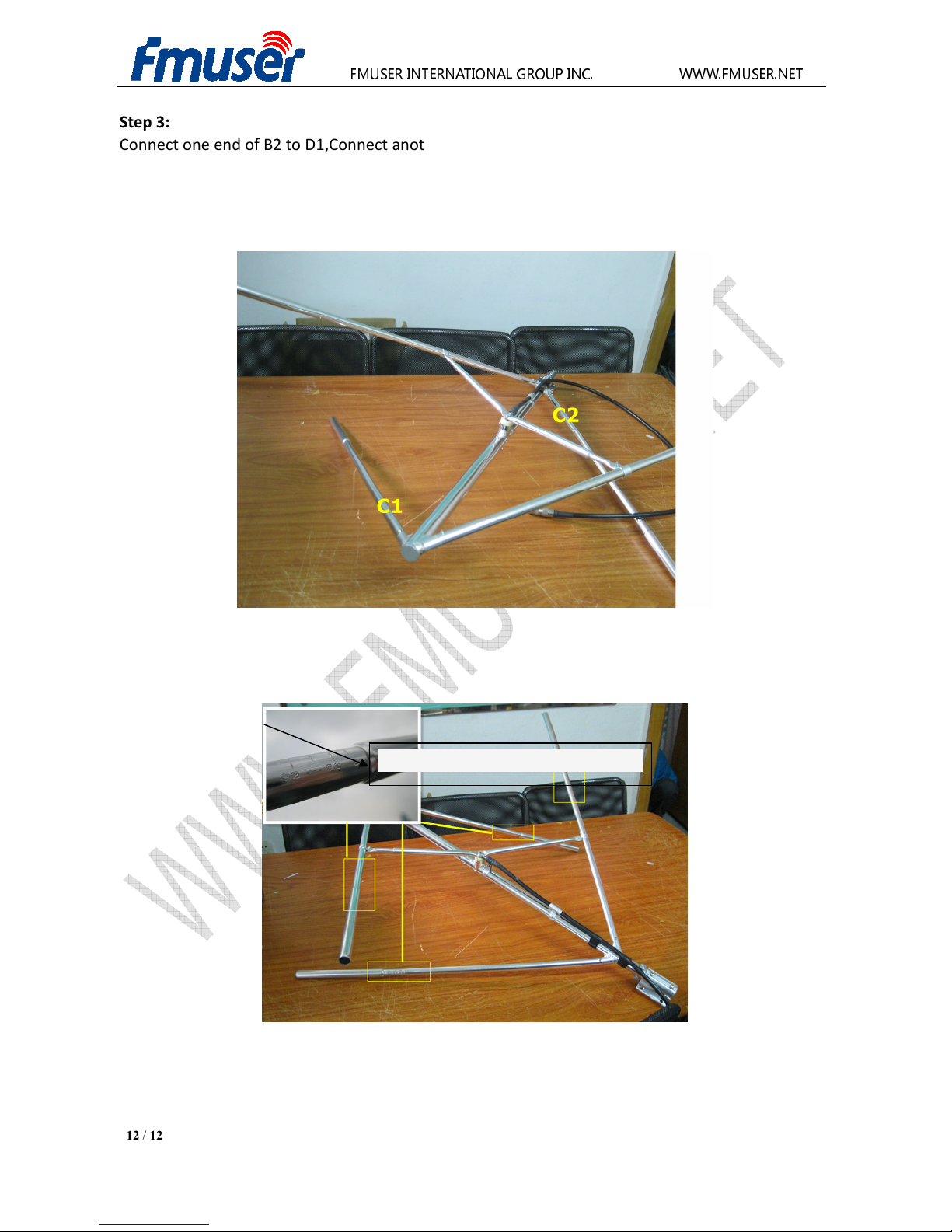

Step 3:
Connect one end of B2 to D1,Connect another end of B2 to A1
After that, lock nut and all screws
IV. Install C1 on A1 (C2 on A2)
By now, antenna installation is completed.
V. Frequency adjustment
Frequency adjustment tube, Make A1, A2, B1, B2 oscillators frequency be consistent with the
transmitter frequency
Frequency adjustment tube
