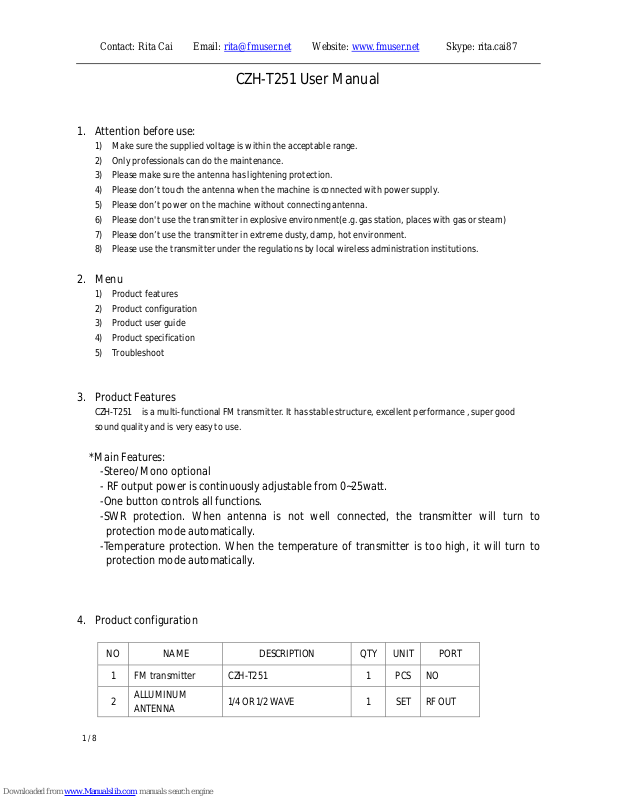

CZH-T251 User Manual
1. Attention before use:
1) Make sure the supplied voltage is within the acceptable range.
2) Only professionals can do the maintenance.
3) Please make sure the antenna has lightening protection.
4) Please don’t touch the antenna when the machine is connected with power supply.
5) Please don’t power on the machine without connecting antenna.
6) Please don't use the transmitter in explosive environment(e.g. gas station, places with gas or steam)
7) Please don’t use the transmitter in extreme dusty, damp, hot environment.
8) Please use the transmitter under the regulations by local wireless administration institutions.
2. Menu
1) Product features
2) Product configuration
3) Product user guide
4) Product specification
5) Troubleshoot
3. Product Features
CZH-T251 is a multi-functional FM transmitter. It has stable structure, excellent performance , super good
sound quality and is very easy to use.
*Main Features:
-Stereo/Mono optional
- RF output power is continuously adjustable from 0~25watt.
-One button controls all functions.
-SWR protection. When antenna is not well connected, the transmitter will turn to
protection mode automatically.
-Temperature protection. When the temperature of transmitter is too high, it will turn to
protection mode automatically.
4. Product configuration
NO NAME DESCRIPTION QTY UNIT
PORT
1 FM transmitter CZH-T251 1 PCS NO
2
ALLUMINUM
ANTENNA
1/4 OR 1/2 WAVE 1 SET RF OUT

2 / 8
3 POWER ADAPTER DC12V/6A 1 SET 12.0V-6.0A
4 AUDIO CABLE 1 TO 2 - 3.5m TO RCA 1 PCS LINE IN
5 USER MANUAL ELECTRONIC VERSION 1 PCS NO
5. User Guide

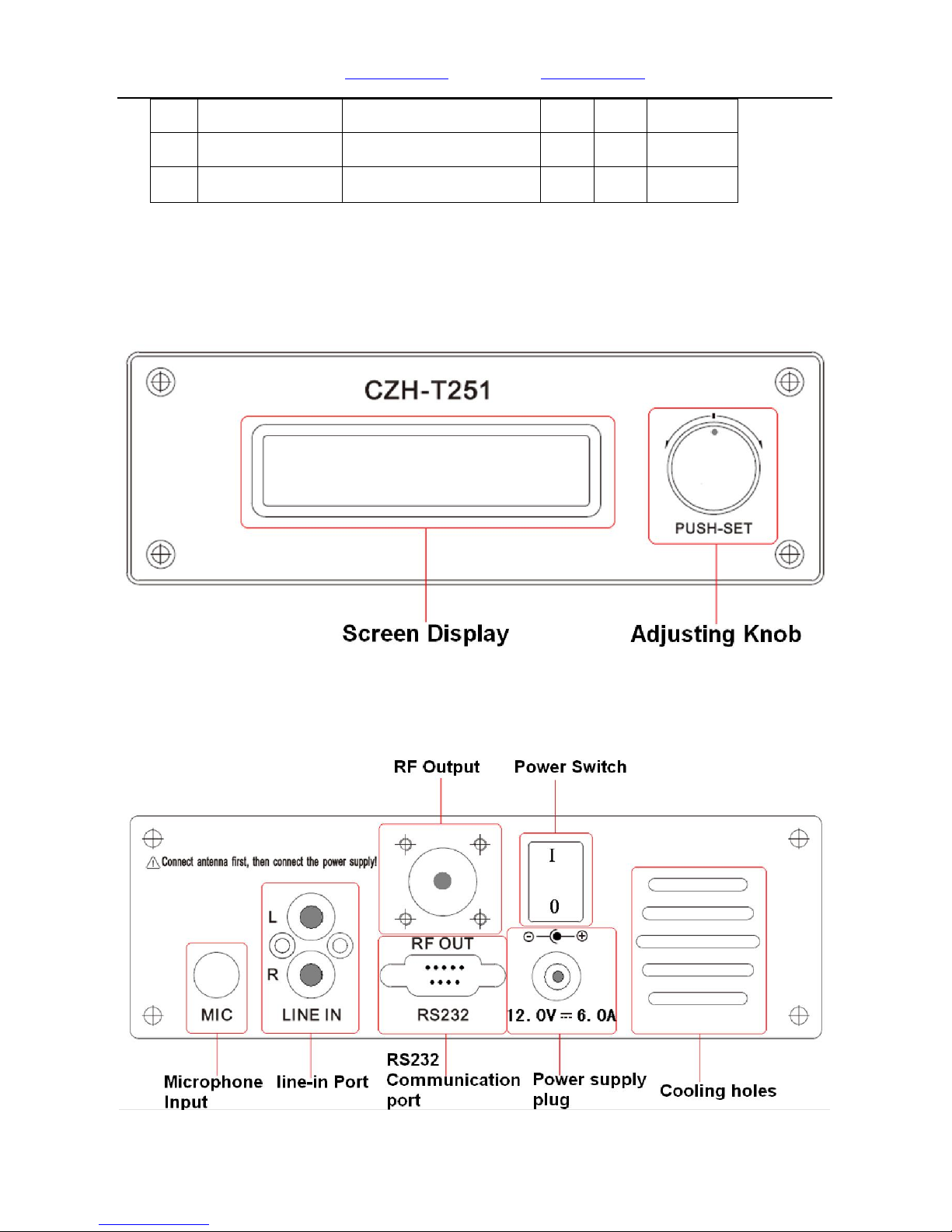

1) Front and Back Panel description
Front Panel
Back Panel

3 / 8

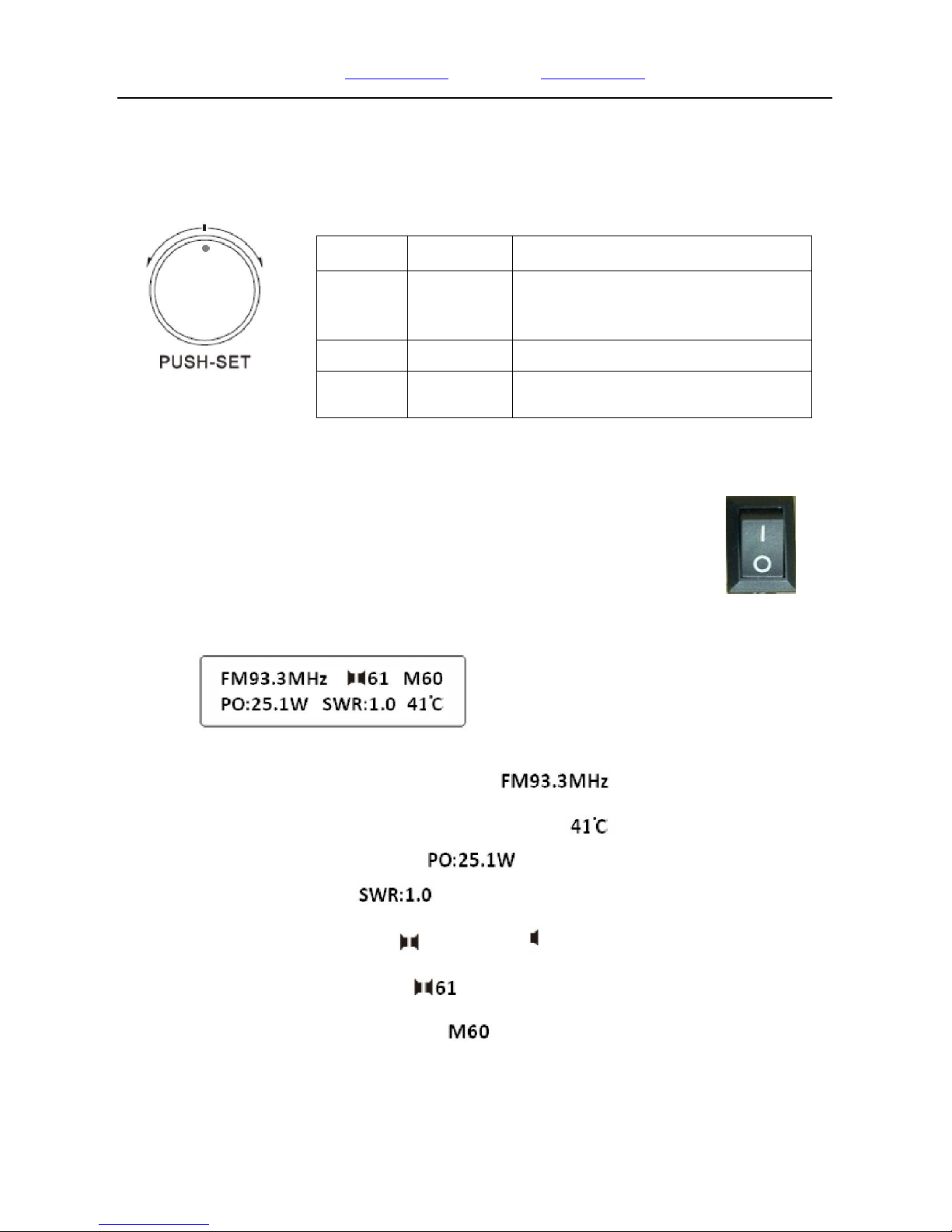

2) Knob description
Action Definition Description
Turn
left/right
Adjust, shift
Main page, adjusting page, shift ( turn
clockwise to increase, turn
Counterclockwise to reduce)
Short press Confirm Enter/Exit Menu page
Press and
hold
Confirm On Main page, press and hold to enter Menu
3) Operation Instruction
a) Turn ON
Check the antenna first, make sure it’s well connected. Then connect the power cord
to home socket, press the power button to I position to turn ON the transmitter.
O position means OFF. See picture on the right.
After power on, the transmitter goes into working status.
l Real-time working frequency:
l Real-time internal working temperature:
l RF output power:
l SWR:
l Sound Mode: means Stereo, means Mono
l Line-in Volume: , the range is 0~79
l Microphone Volume: , the range is 0~79

4 / 8
b) Function and Parameter setting

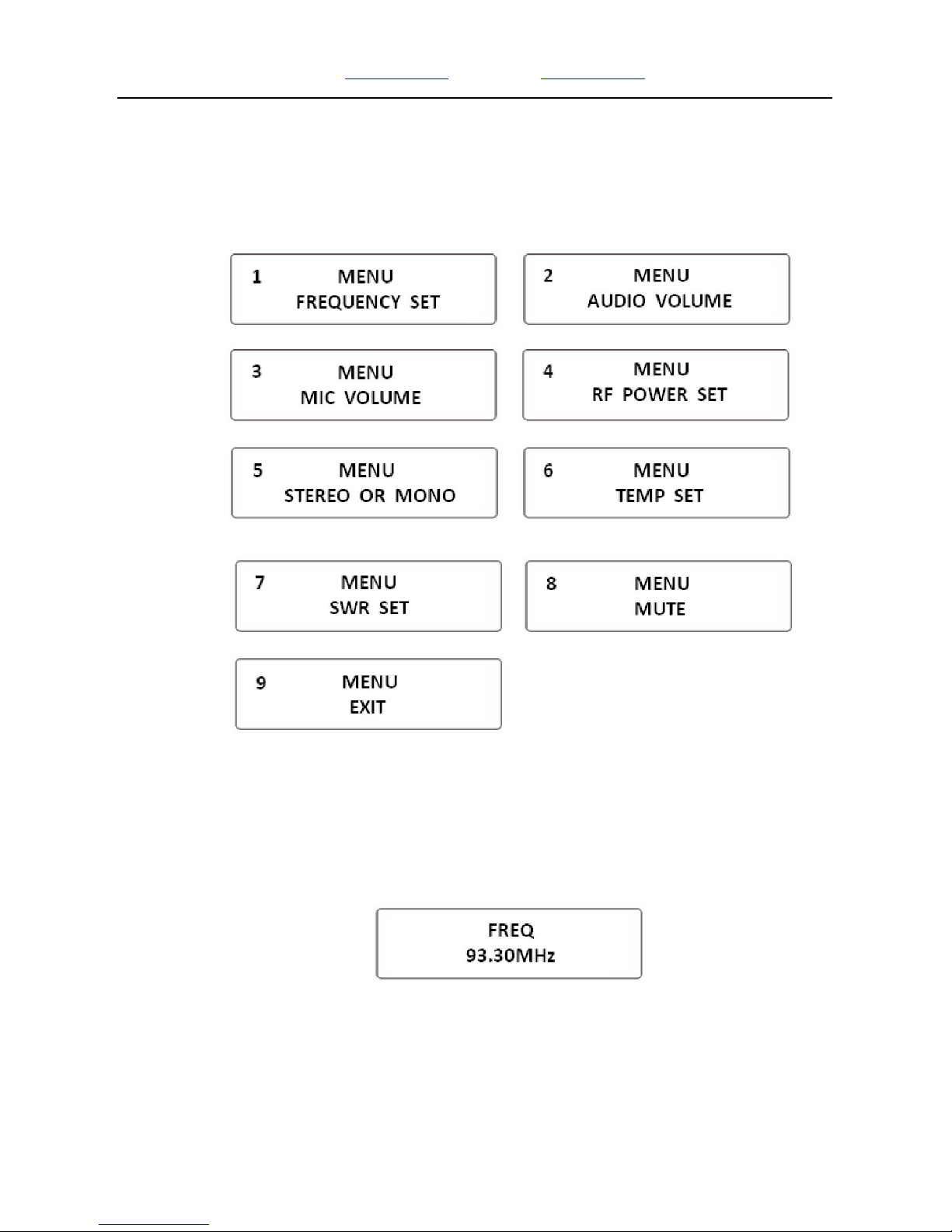

Press the knob to enter Menu page. Turn the knob to shift pages. There are 9 pages altogether rotating on
the screen.
l Frequency setting
On the Menu page, turn the knob to page 1 FERQ setting, press the knob to enter
setting(the RF output will be shut down temporarily). Turn the knob to adjust the frequency
by stepping of 0.1MHz, then press the knob to confirm setting and exit.

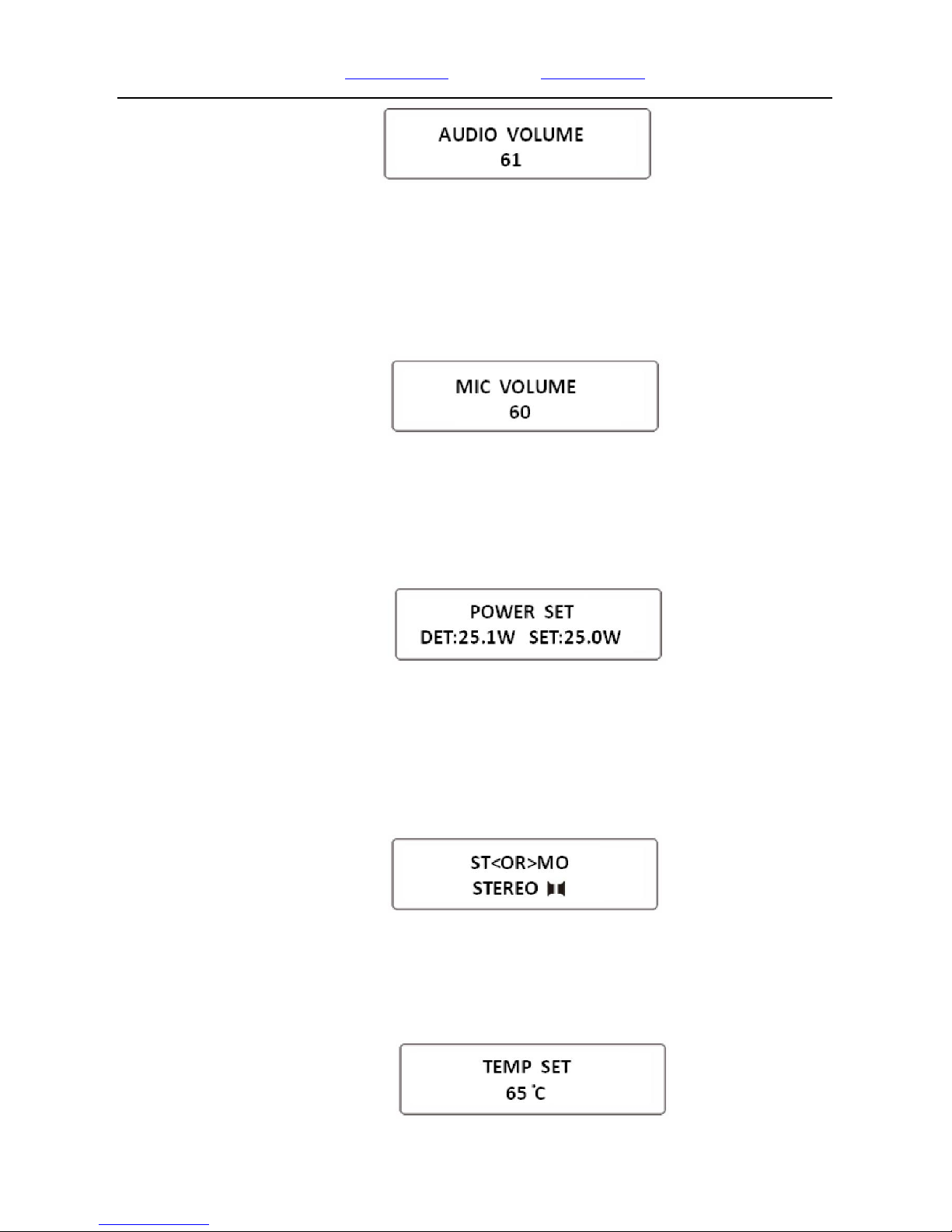

l Line-in Volume setting
On the Menu page, turn the knob to page 2 LINE VOLUME setting, press the knob to
enter setting. Turn the knob to adjust the volume within the range of 0~79, then press the
knob to confirm setting and exit.

5 / 8
l MIC volume setting
On the Menu page, turn the knob to page3 MIC VOLUME setting, press the knob to enter
setting. Turn the knob to adjust the microphone volume within the range of 0~79, then press
the knob to confirm setting and exit.
l RF output power setting
On the Menu page, turn the knob to page 4 RF POWER setting, press the knob to enter
setting. Turn the knob to adjust the output power within the range of 0~50w, then press the
knob to confirm setting and exit.
l Sound mode setting
On the Menu page, turn the knob to page 5 ST<OR>MO setting, press the knob to enter
setting. Turn the knob to shift the sound mode between Stereo and Mono, then press the
knob to confirm setting and exit.
l Temperature Protection Setting
On the Menu page, turn the knob to page 6 TEMP setting, press the knob to enter setting.
Turn the knob to adjust the protection temperature point within the range of 30~80℃, then
press the knob to confirm setting and exit.

6 / 8

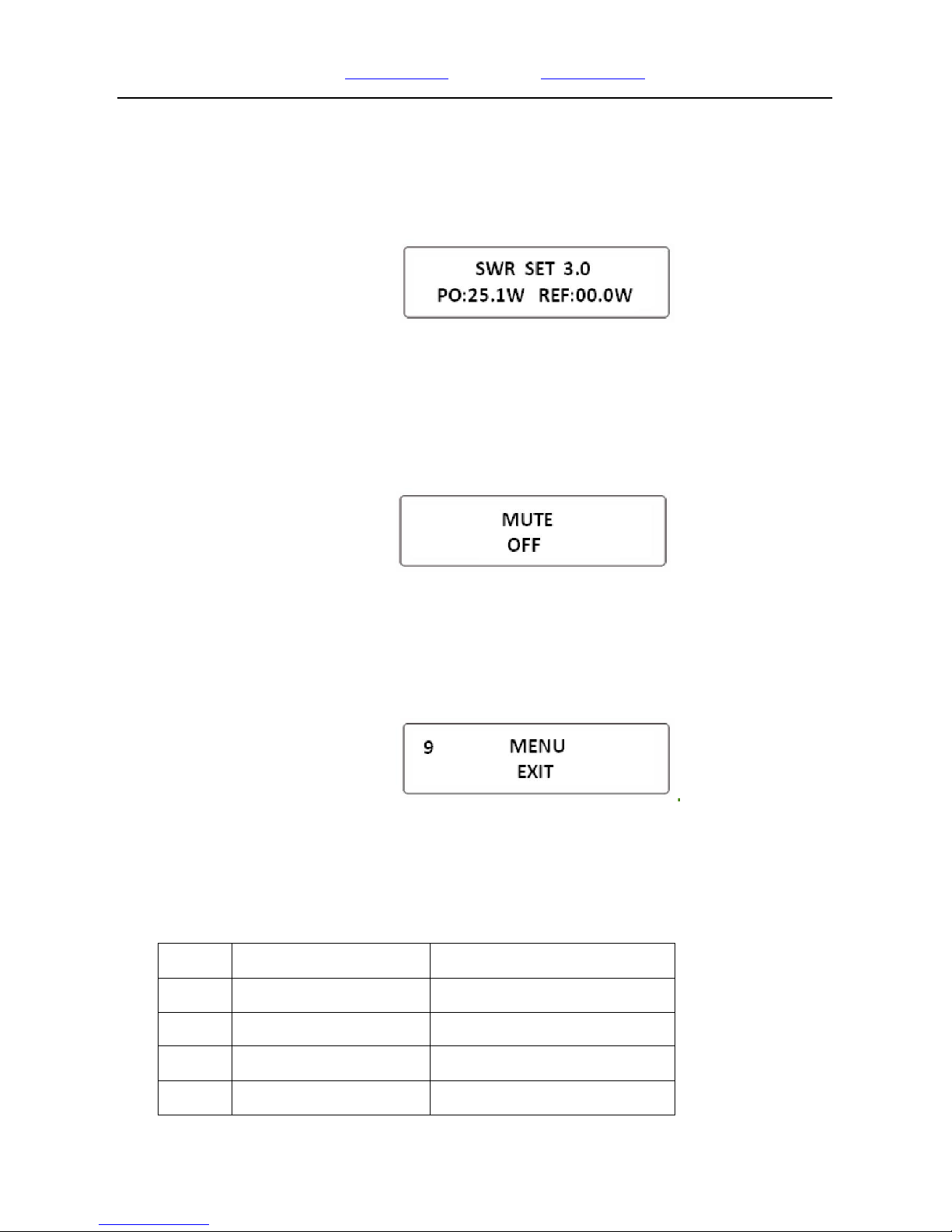

l SWR protection setting
On the Menu page, turn the knob to page 7 SWR SET setting, press the knob to enter
setting. Turn the knob to adjust the SWR protection point within the range of 1.0~5.0, then
press the knob to confirm setting and exit.
l Line Mute setting
On the Menu page, turn the knob to page 8 MUTE setting, press the knob to enter setting.
Turn the knob to set Mute status, ON means the line-in is muted, OFF means the line-in is
available. Press the knob to confirm setting and exit.
l Exit setting
On the Menu page, turn the knob to page 9 MENU EXIT, press the knob to exit setting
and return to main page.
Remark: In the MENU page, if there is no action within 20 seconds, the system will return
to Main page automatically.
6. Technical Specification
NO Item Specification
1 Working Voltage 12V
2 Working Current
﹤5A
3 Frequency Range 87~108MHz
4 Frequency Stability ±10PPM

7 / 8
5 Frequency Stepping 100KHz
6 Environment temperature
-10℃~45℃
7 Output Impedance 50Ω
8 RF output power 0W~25W
9 Harmonic, clutter radiation
≤-60dB
10 Audio distortion 0.2%
11 Frequency Response 50Hz~15000Hz
12 Separation ≥35 dB
13 Input level ≤15 dBV
14 Frequency Modulation ±75KHZ
15 SNR ≥70dB
16 Size
210 ㎜(L)*174㎜(W)*59 ㎜(H)
(Exclude projected parts)
17 Net Weight About 1.5kg
7. Troubleshooting
NO Problem description Possible Reasons
1 Unable to Power ON
1)Socket is not connected with electricity
2)Power cord is not well plugged.
3)The fuse is not working properly in socket.
2 SWR Alarm
1)Antenna is not well connected.
2)SWR value is too high because antenna doesn’t
match transmitter
3) There are too many reflecting objects close to
antenna.
3 Temperature Alarm
1)Fan is not working;
2)Antenna doesn't match transmitter, the SWR
value is too high, thus temperature rises up.
3)The fan holes are jammed.
4 SWR value is too high
1)Antenna not well connected.
2)SWR value is too high because antenna doesn’t
match transmitter
3) There are too many reflecting objects close to
antenna.

8 / 8
5
Short transmitting
distance
1)High loss of feeder cable.
2)Poor broadcasting environment.
3)Output power is low.
4)Antenna is not placed high enough.
5)Antenna and transmitter doesn’t match.
6)Radio receiver has low sensitivity.
6 No power output
1) RF output power needs to be adjust higher
2) Transmitter is powered OFF.
7 No audio output
1)Transmitter line-in volume is too low.
2)Line-in audio signal is abnormal.
8 No microphone output
1)Microphone is not working well.
2)Microphone volume is too low.
3)Microphone is dynamic type.
4)Microphone is not well plugged.
9 Poor sound quality
1)Microphone quality is low.
2)Audio source quality is low.
3)Antenna is not well assembled and connected.
4)Audio signal or transmitter line-in volume is
