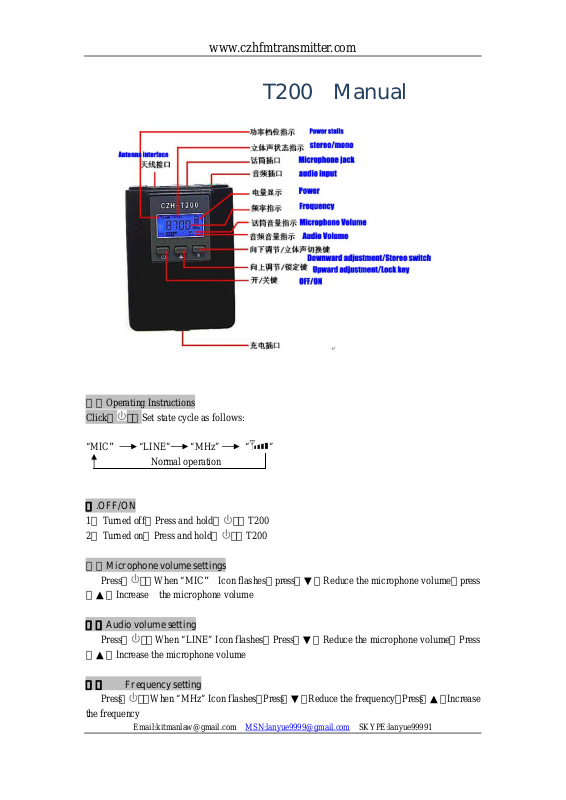

T200 Manual
一．Operating Instructions
Click【 】，Set state cycle as follows:
“MIC” “LINE” “MHz” “
Normal operation
二.OFF/ON
1、 Turned off，Press and hold【 】，T200
2、 Turned on，Press and hold【
三、Microphone volume settings
Press【 】，When “MIC” Icon flashes，press【▼】Reduce the microphone volume，press
【▲】Increase the microphone volume
四、Audio volume setting
Press【 】，When “LINE” Icon flashes，Press【▼】Reduce the microphone volume，Press
【▲】Increase the microphone volume
五、 Frequency setting
Press【 】，When “MHz” Icon flashes，Press【▼】Reduce the frequency，Press【▲】Increase
the frequency
Email:[email protected] MSN:[email protected] SKYPE:lanyue99991
】，T200
”
Page 2
www.czhfmtransmitter.com
六、 Transmit power jumper settings
Press【 】，When “ ” Icon flashes，press【▼】Reduce the power，按【▲】increase the
power
七、 Key lock / Unlock
1、 In normal working condition，press and hold【▼】，show“
two keys are locked.The key lock state，press and hold【▼】，Key lock is released
八、 Stereo/Mono
In normal working condition，press and hold【▲】，Switch Stereo / Mono transmit mode.
Stereo like this“ ”
九、 Battery charging
1、 through the supplied USB transfer T-mouth (MINI), the T200 with USB type power
connector，“ ” Icon flashes，start charging
2、 charging is completed,，“ ” Icon stop flashes
Tip: boot, shutdown state, can be charged, should pay attention to：
a、when“
b、Turned on, charging, transmitting power gear auto-tune for the smallest file
c、Off mode charging, display the corresponding display
d、The machine when not in for a long time, remove the batteries, put a cool, dry place
” Icon display space, battery power is low, it is timely charge
”，except【▼】，The other
Product Features
CZH-T200 is a demand for mobile broadcast professional products, reasonable structure, excellent
performance and reliable, simple operation, excellent sound quality, the main features are as
follows:
1, the sound quality is excellent
Professional-grade transmitter chip, and audio and microphone inputs, each with a separate jack
I nput signal, respectively, targeted treatment, to minimize the loss of sound quality;
2, using a dedicated transmitting antenna
Launch distance is independent of antenna shake emission frequency changes affect
3, the long working hours
Full 1000MA lithium battery, to ensure adequate long working hours
4, reasonable structure
Chassis using a special mold, regardless of the hand or hung on the belt is very convenient,
comfortable
5, clutter, harmonic
Noise, harmonics ≤ 60DB, far more than similar products, meet professional standards, to avoid
clutter, the harmonic frequency of neighboring interference of the instrument
6, the transmit power 4 stalls adjustable
7, stereo/ mono mode optional
Email:[email protected] MSN:[email protected] SKYPE:lanyue99991
Page 3
www.czhfmtransmitter.com
T200
The main parameters
NO. Project Technical parameters
1 Working power BL－5C 3.7V
2 Frequency range 87~108MHz
2 Frequency stability ±10PPM
4 Frequency step 100KHz
5 Transmit power
6 Ideal distance
7 Working time
8 Charging time About 5 hours, charging voltage 5V
9
Harmonics,spurious
radiation
（1 Level /2 Level /3 Level /4 Level
power）
0.01mW/10mW/100mW/200mW
（1 Level /2 Level /3 Level /4 Level
power）
10m/100m/300m/500m
（1 级/2 级/3 级/4 级功率）
16 小时/10 小时/8 小时/6 小时
≤－60dB
10 Audio distortion ≤0.2%
11 Frequency response 50Hz~15000Hz
12 Input level ≤－15 dBV
13 Frequency Modulation ±75KHz
14 Signal to Noise Ratio ≥60 dB
15 Size
16 Weight 67g（not include battery）
Cautions
1、Maintenance only by professional and technical personnel to operate；
2、Do not boot in case of missed antenna;
3、Do not use in explosive environments (such as gas stations, gas, steam, etc.) under；
4、Do not place the transmitter is placed in extremely dusty, humid, hot place；
5、Please comply with local radio management organizations require the use of。
82*60*22mm
