Page 1
FMUSER INTERNATIONAL GROUP INC. Web:www.fmuser.org Email:[email protected]

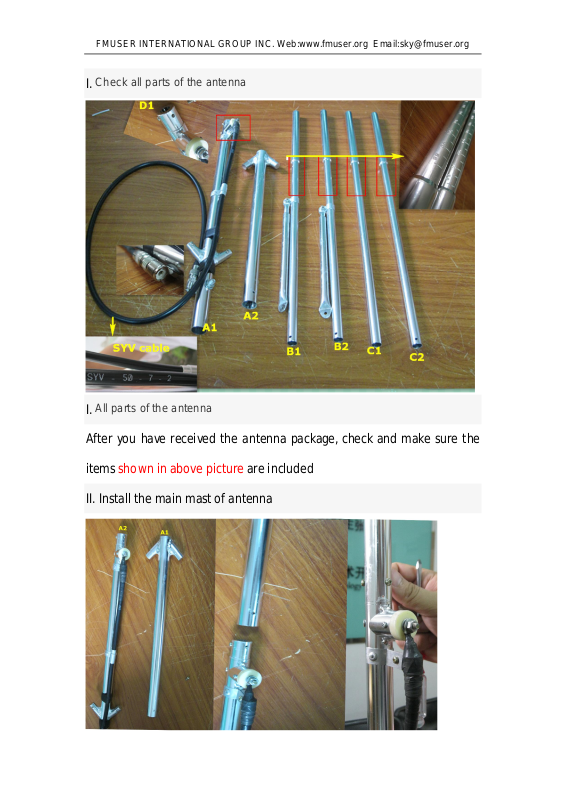

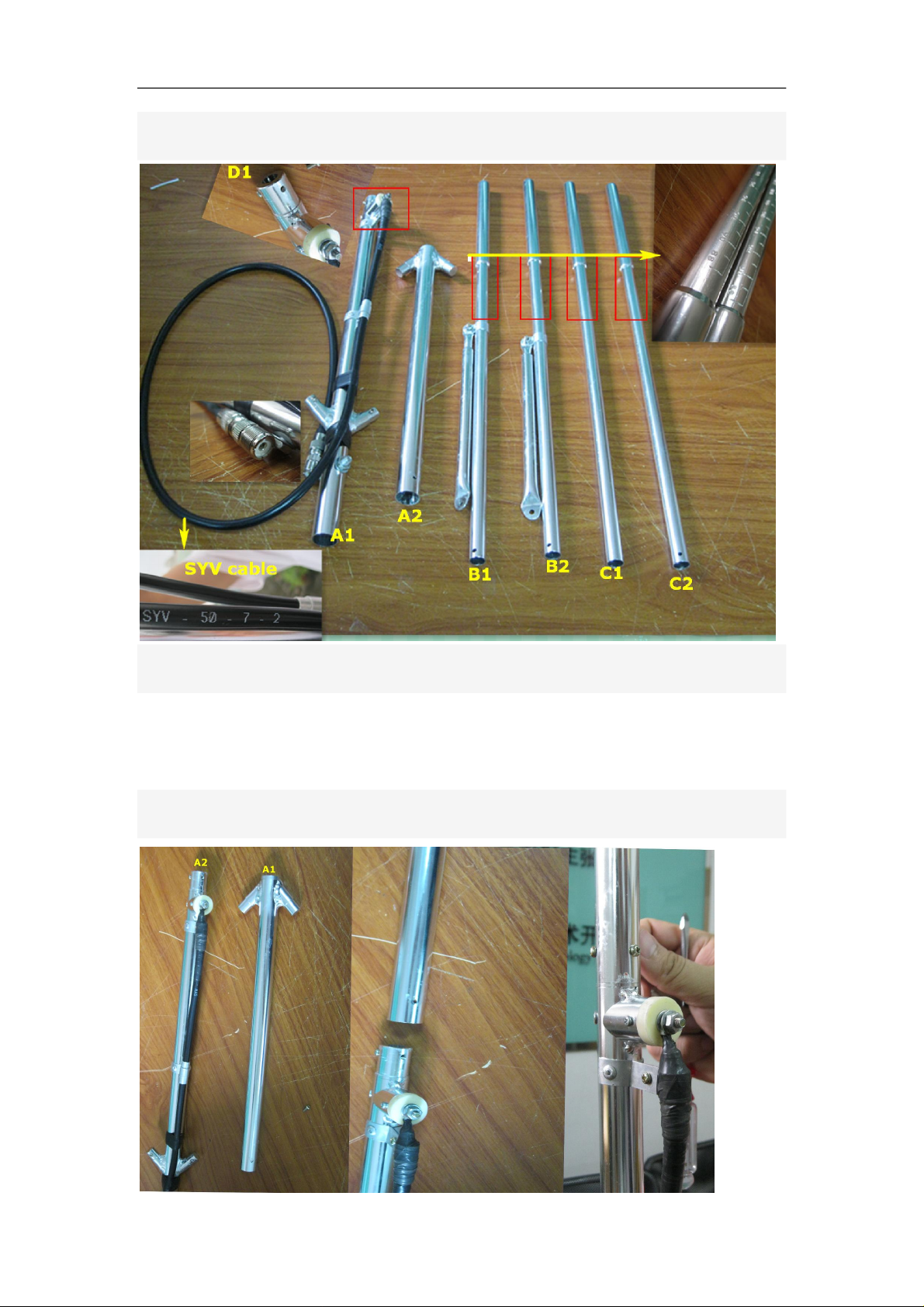

Check all parts of the antenna
I.
All parts of the antenna
I.
After you have received the antenna package, check and make sure the
items shown in above picture are included
II. Install the main mast of antenna
Page 2
D1
FMUSER INTERNATIONAL GROUP INC. Web:www.fmuser.org Email:[email protected]

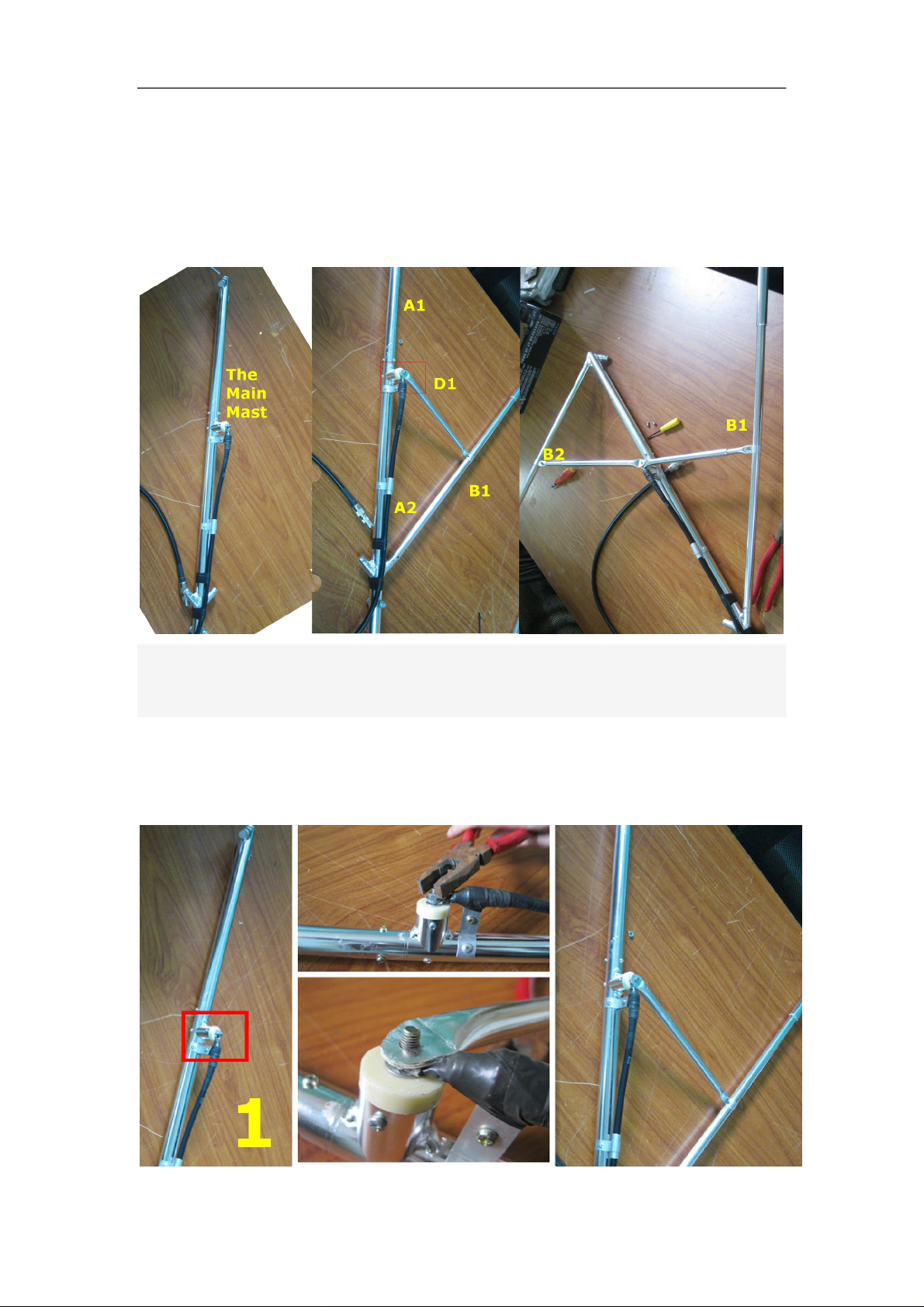

Connect A1 and A2. A1 is up and A2 is down.
III. Lock B1 and B2 on the mainmast
We can install the antenna by following the steps below:
Step1: Unscrew the nut of connected parts on D1.Connect one end of B1
to D1
Page 3
FMUSER INTERNATIONAL GROUP INC. Web:www.fmuser.org Email:[email protected]

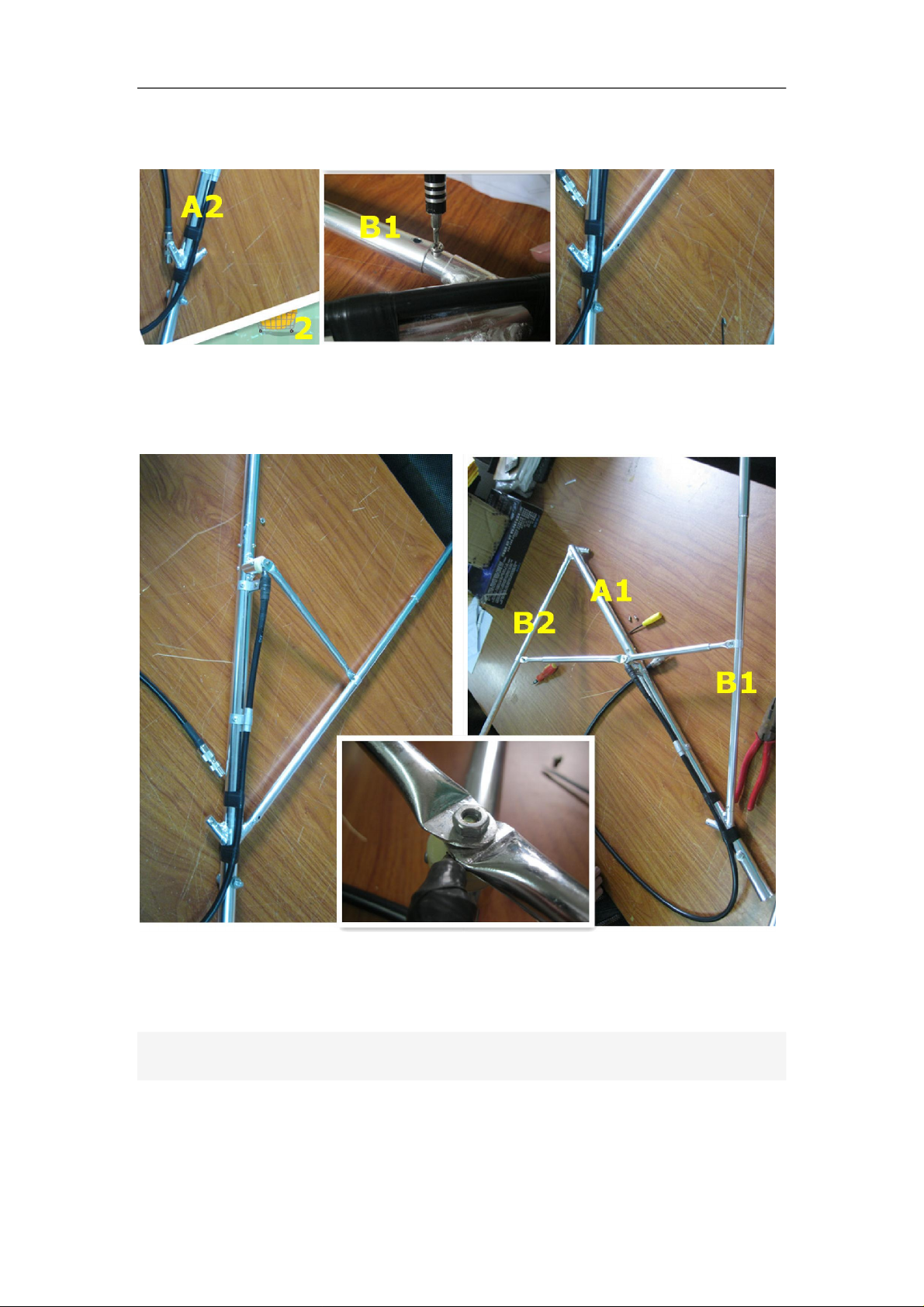

Step2: Connect another end of B1 to A2
Step 3:
Connect one end of B2 to D1,Connect another end of B2 to A1
After that, lock nut and all screws
Page 4
FMUSER INTERNATIONAL GROUP INC. Web:www.fmuser.org Email:[email protected]

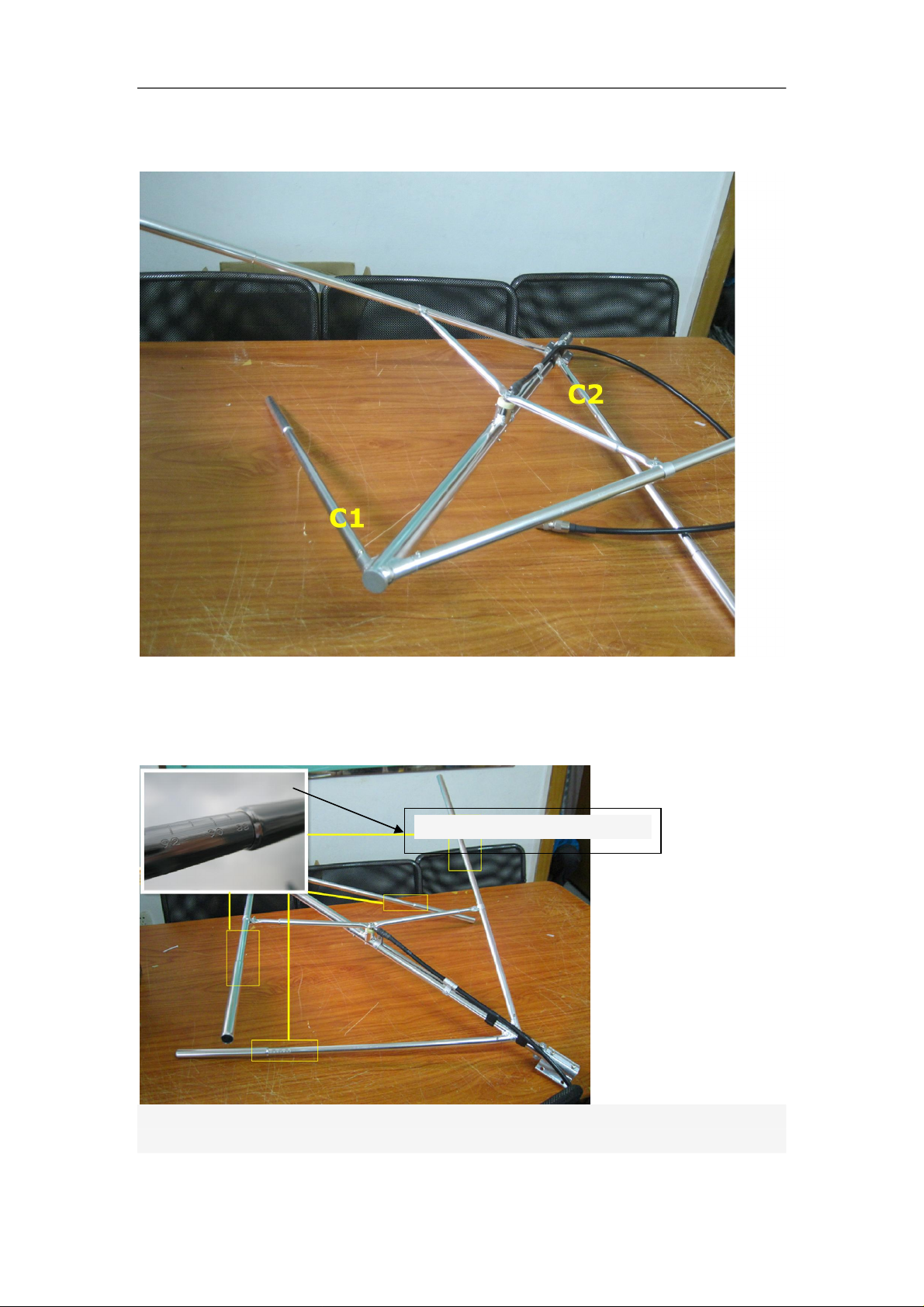

IV. Install C1 on A1 (C2 on A2)
By now, antenna installation is completed.
V.
Frequency adjustment
Frequency adjustment tube
Frequency adjustment tube, Make A1, A2, B1, B2 oscillators frequency be
consistent with the transmitter frequency
