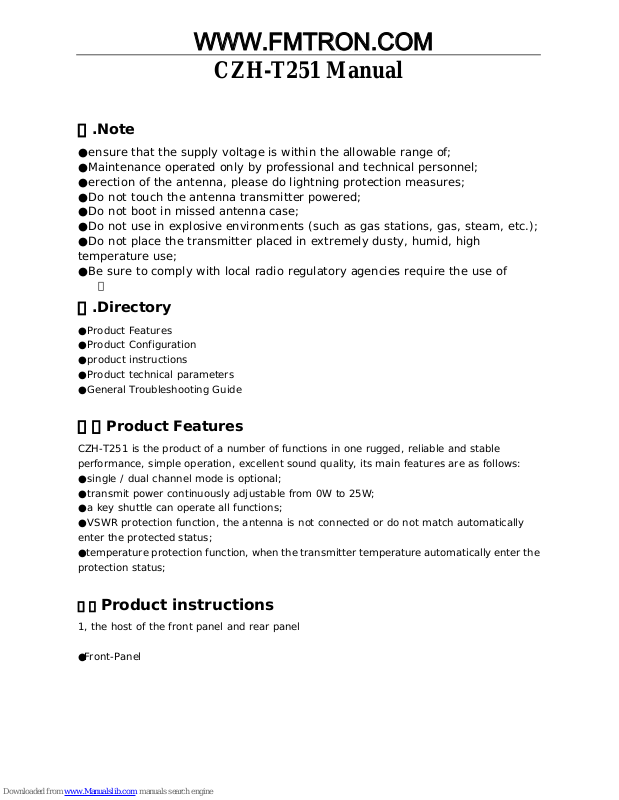

CZH-T251 Manual

一.Note

● ensure that the supply voltage is within the allowable range of;

● Maintenance operated only by professional and technical personnel;

● erection of the antenna, please do lightning protection measures;

● Do not touch the antenna transmitter powered;

● Do not boot in missed antenna case;

● Do not use in explosive environments (such as gas stations, gas, steam, etc.);

● Do not place the transmitter placed in extremely dusty, humid, high

temperature use;

● Be sure to comply with local radio regulatory agencies require the use of

。

二.Directory

● Product Features

● Product Configuration

● product instructions

● Product technical parameters

● General Troubleshooting Guide

三、Product Features

CZH-T251 is the product of a number of functions in one rugged, reliable and stable
performance, simple operation, excellent sound quality, its main features are as follows:

● single / dual channel mode is optional;

● transmit power continuously adjustable from 0W to 25W;

● a key shuttle can operate all functions;

● VSWR protection function, the antenna is not connected or do not match automatically

enter the protected status;

● temperature protection function, when the transmitter temperature automatically enter the
protection status;

四、

Product instructions

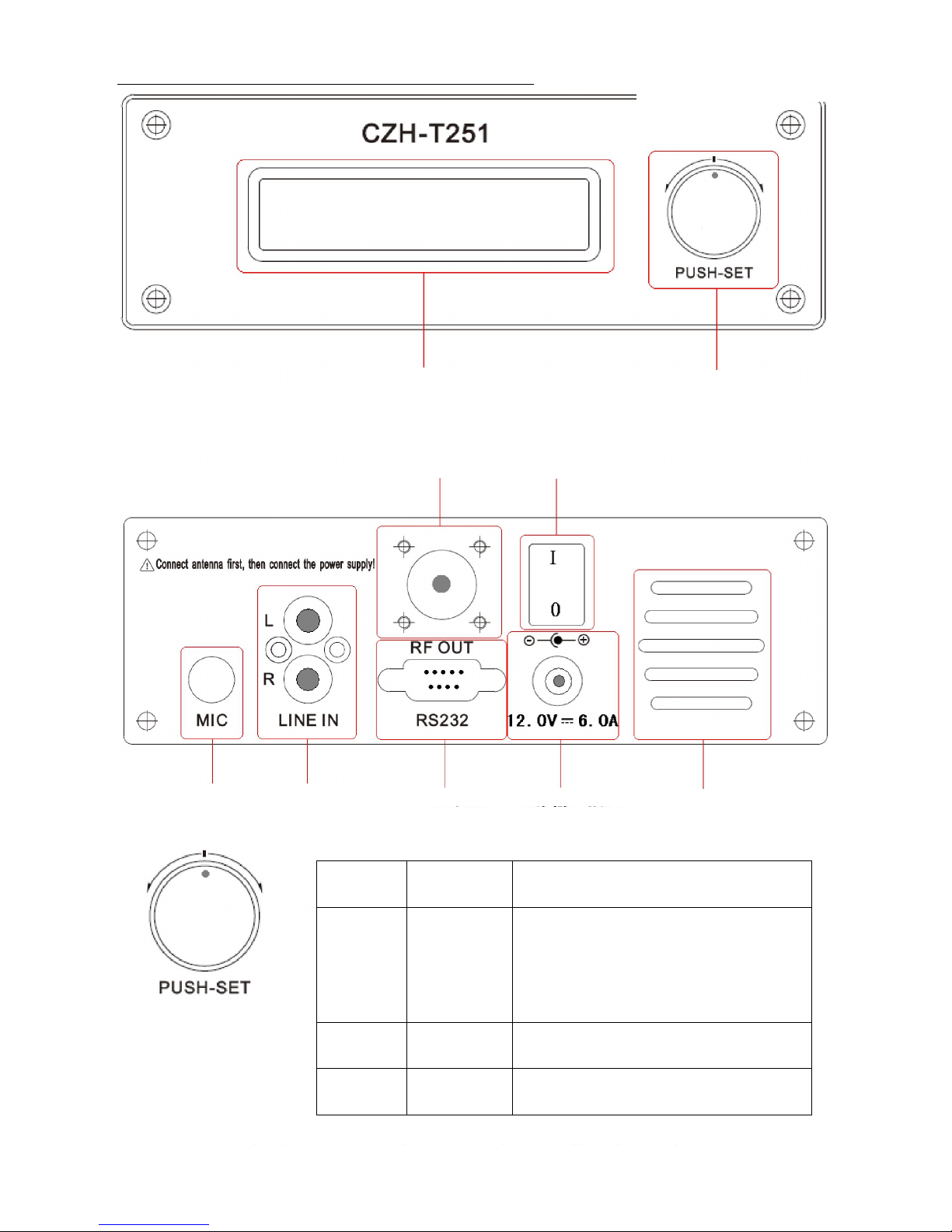

1, the host of the front panel and rear panel

●Front-Panel

WWW.FMTRON.COM

www.czhfmtransmitter.com

Skype:lanyue99991 MSN:[e-mail] Email:[e-mail]

●Rear panel

2、

Knob operational definition and description

Mode of
operation

Definition Description

Rotation

Adjustment
switch

Menu interface setting regulator,
switch
(To reduce the counterclockwise
rotation, clockwise rotation is

increased)
Short
press

Confirm Menu options interface to enter, exit

Long
press

Standby

The main interface, long press the

knob to enter standby

FMTRON

DISPLAY AREA

FUNCTION KNOB

RF N ANTENNA

POWER SWITCH

MIC IN

AUDIO IN RS232 COMM.

POWER LINE

HEATING FAN

WWW.FMTRON.COM

www.czhfmtransmitter.com

Skype:lanyue99991 MSN:[e-mail] Email:[e-mail]

3、

Instructions

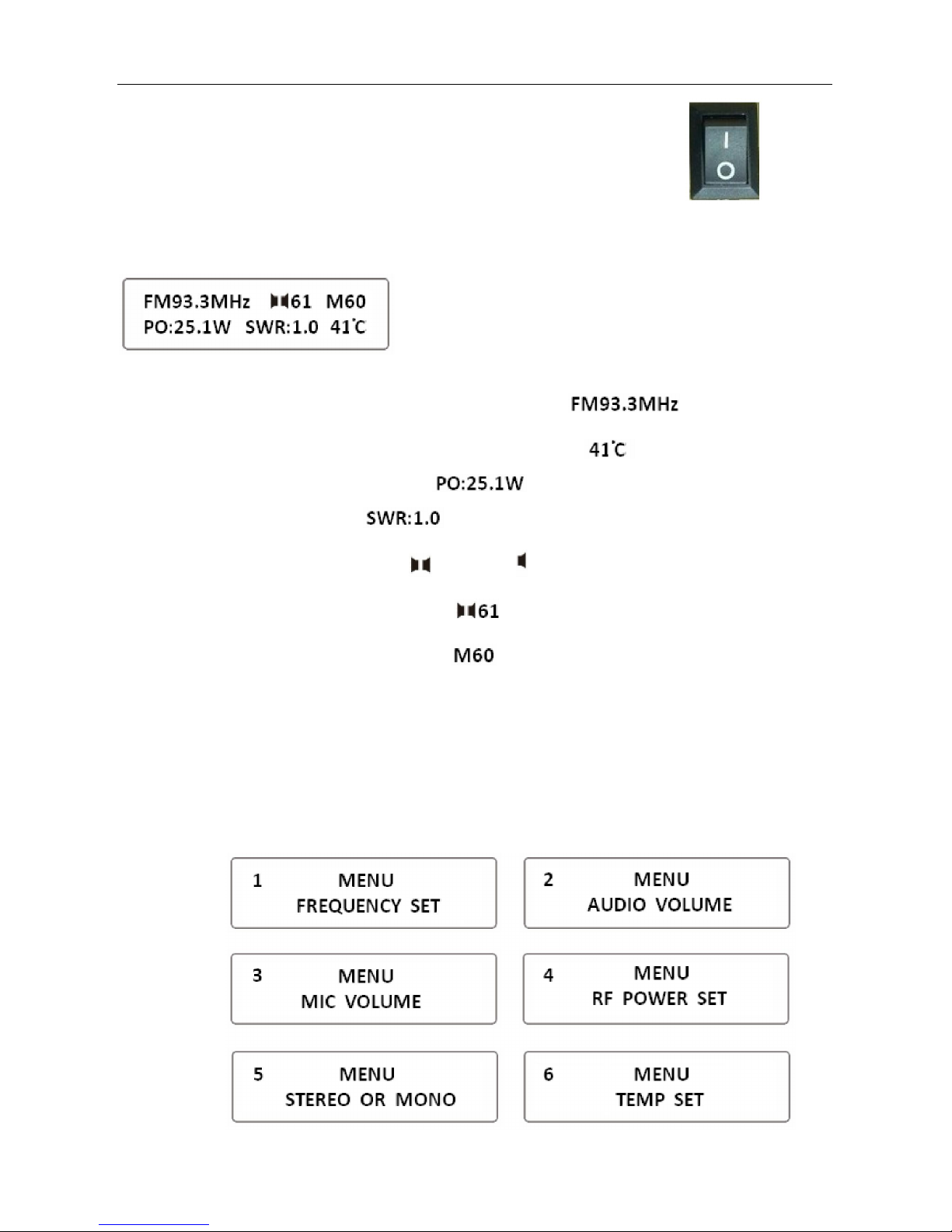

by the （1）First, check the antenna and reliable connection, followed
market power, pull the power switch to the "I" position Boot,
"O" position for the shutdown, as shown at right：

Boot the machine into the working status display interface.

l The current operating frequency：

l real-time the internal temperature：
l Output power：

l SWR：

l audio mode： STEREO， MONO

l line volume value： ，volume range value 0~79

l MIC volume value： ，The microphone volume range value 0~79

（2）

Function with parameters set

short rotation the Bian code switch, enter the menu options interface. Turn the rotary
encoder switch menu options, a total of nine cycle is displayed on the display：

www.fmtron.com

www.czhfmtransmitter.com

Skype:lanyue99991 MSN:[e-mail] Email:[e-mail]

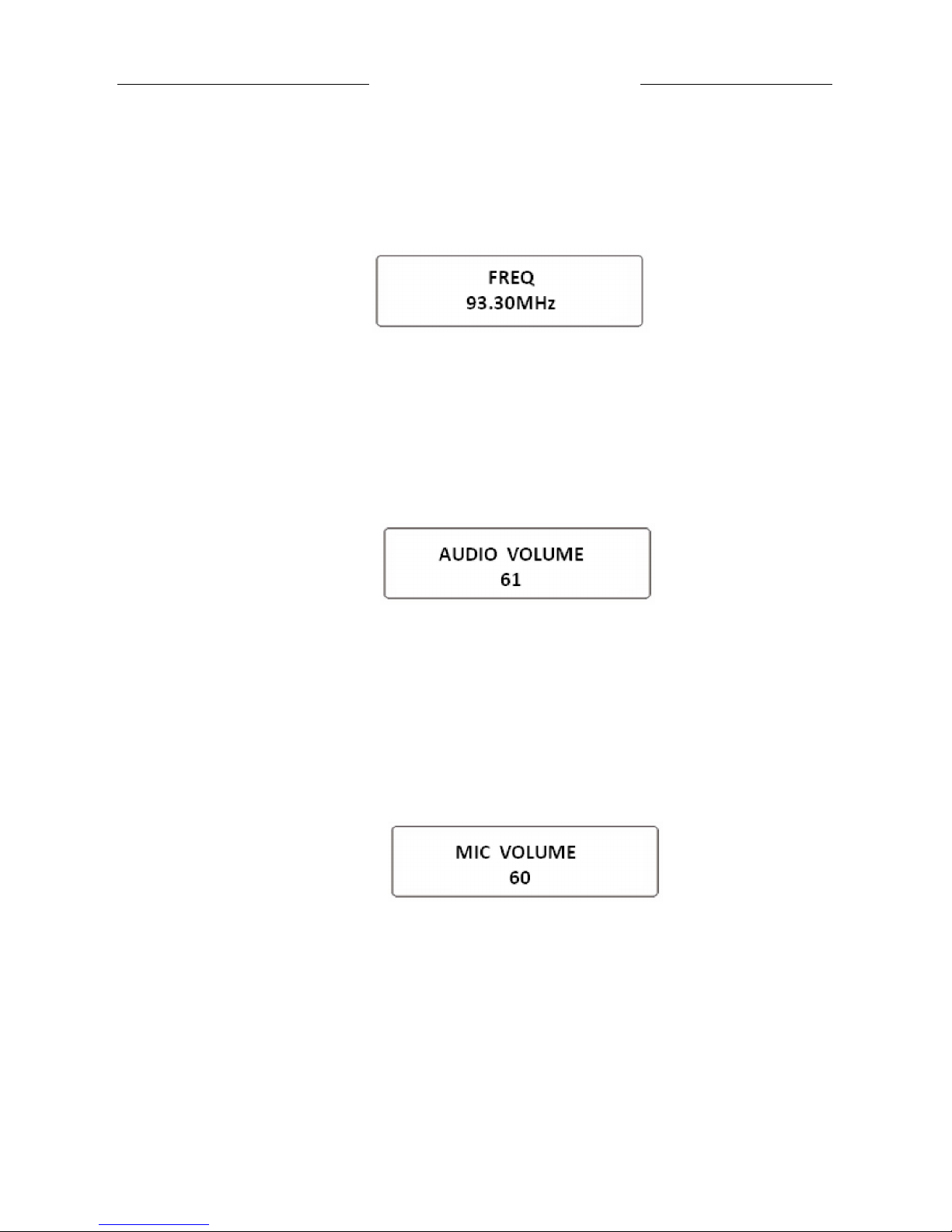

Frequency setting

Rotation the Bian code switch, the first choice of a menu, "MENU FREQUENCY SET", then
press the encoder switch to confirm the selection. Will enter the frequency setting state
(output power amplifier will be temporarily closed), appears as follows:

Rotary coding switch, you can set the frequency, the frequency will be 0.1MHz
frequency of plus or minus. After the setup is complete, press the encoder
switch to confirm and exit the frequency setting state.

Line volume setting

By rotating the Bian code switch menu options interface, the first choice of two menu MENU
AUDIO VOLUME ", then press the encoder switch to confirm the selection. In this case, will
enter the line volume setting status display as follows：

At this point, the rotary coding switch can be line volume setting can be set

to a value range of 0 to 79. After the setup is complete, press the encoder
switch to confirm and exit line volume setting state.

Microphone volume setting

By rotating the Bian code switch menu options interface, the first choice of three menu MENU
MIC VOLUME ", then press the encoder switch to confirm the selection. At this point, enter the
microphone volume setting state, is shown below：

In this case, the rotary coding switch, microphone volume settings can be

set in the range of 0 to 79. After the setup is complete, press the encoder
switch to confirm and exit the microphone volume setting status.

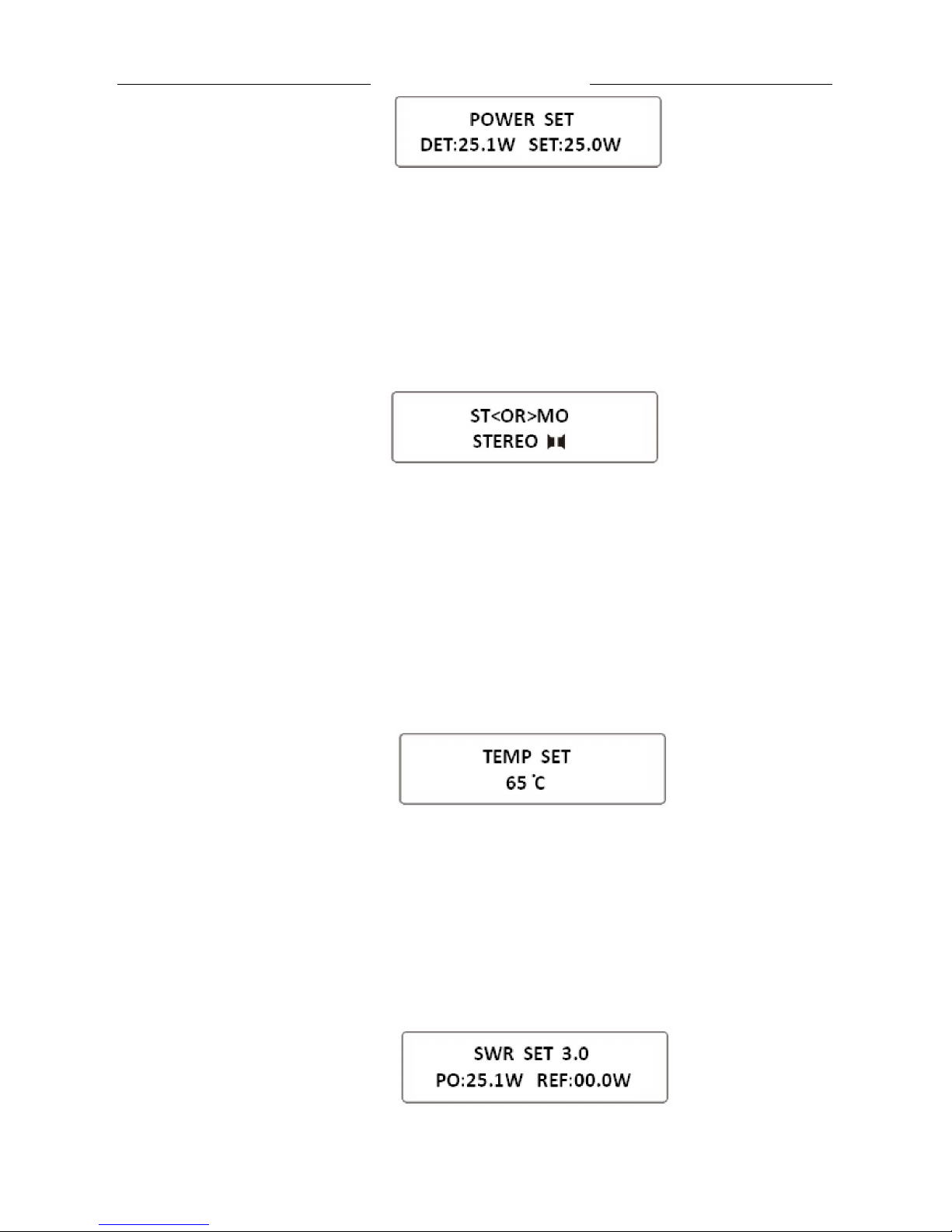

Transmission power setting

By rotating the Bian code switch menu options interface, the first choice of four menu "MENU
RF POWER SET", then press the encoder switch to confirm the selection. At this point, the
power setting state is shown below：

WWW.FMTRON.COM

www.czhfmtransmitter.com

Skype:lanyue99991 MSN:[e-mail] Email:[e-mail]

Rotary coding switch, power setting, the range of values that can be set

from 0 ~~ 25W. After the setup is complete, press the encoder switch to
confirm and exit the power setting state.

Audio mode set

By rotating the Bian code switch menu options interface, the first choice 5 menu "MENU ST
<OR> MO", then press the encoder switch to confirm the selection. At this point, the audio
mode setting state, appears as follows：

Rotary coding switch mode setting, STEREO for stereo mode, MONO for mono mode. After

the setup is complete, press the encoder switch to confirm and exit audio
mode setting state.

The temperature protection settings

First choice menu options interface, by rotating the the Bian code switch the six menu the the
MENU TMPE SET, then press the encoder switch to confirm the selection. At this point, enter
the temperature protection setting state is shown below：

At this time, the rotary encoder switch, temperature setting, the

temperature range that can be set to 30 to 80 ° C. After the setup is complete,
press the encoder switch to confirm and exit temperature protection set state.

Standing wave protection settings

By rotating the Bian code switch menu options interface, the first choice the seven menu
"MENU SWR SET", then press the encoder switch to confirm the selection. At this point, enter
the standing wave protection setting status display as follows:

WWW.FMTRON.COM

www.czhfmtransmitter.com

Skype:lanyue99991 MSN:[e-mail] Email:[e-mail]

Rotary coding switch, can standing wave protection settings can be set in the range of 1.0

to 5.0, the setting is completed, press the encoder switch to confirm and exit
the setting state of the standing wave protection.

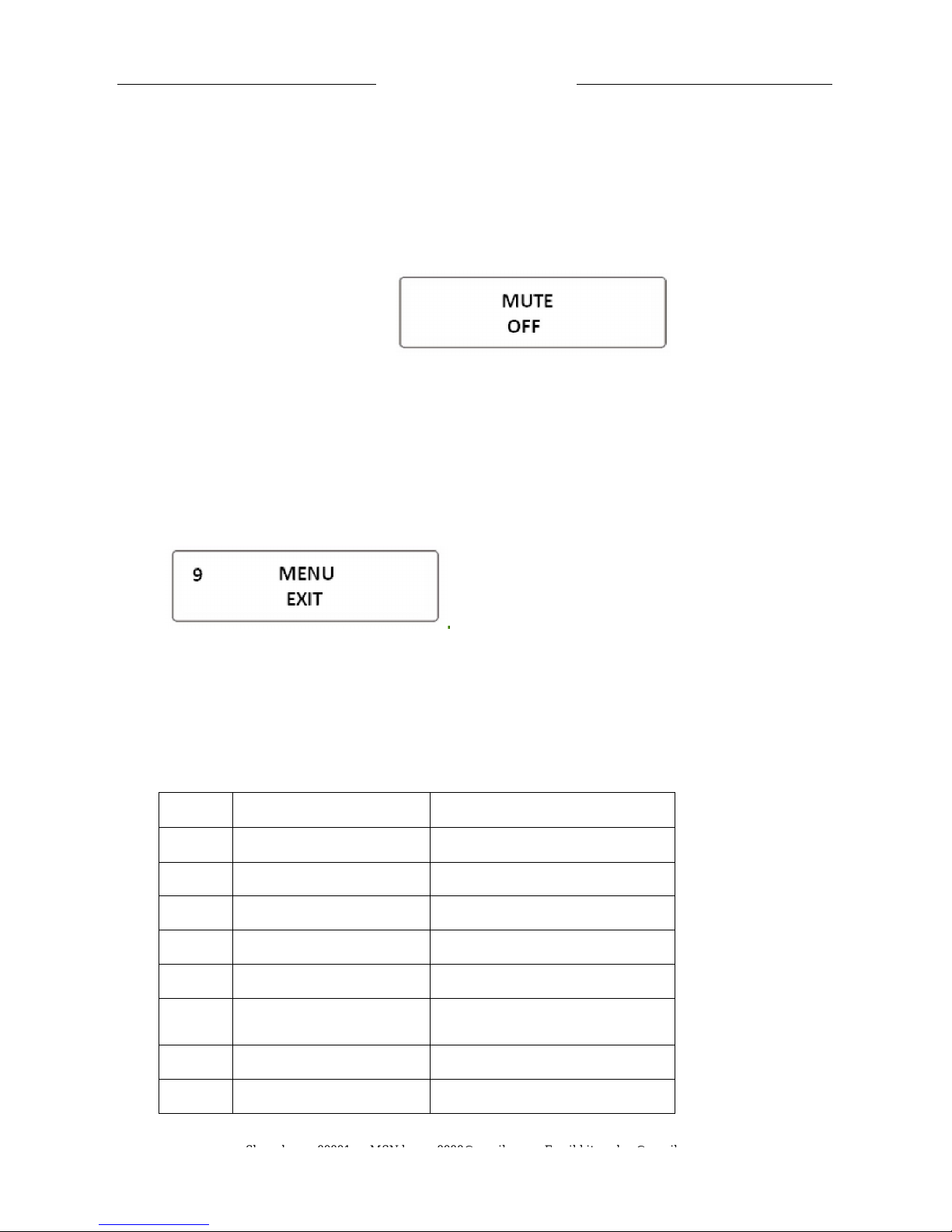

Line mute setting

By rotating the Bian code switch menu options interface, the first choice 8 menu "MENU
MUTE", then press the encoder switch to confirm the selection. In this case, will enter the line
the mute setting state, appears as follows：

In this case, the rotary coding switch can line mute setting OFF normal state, line

input open;ON line mute state line input off, the setup is complete, press the
encoder switch to confirm and exit line mute settingstatus.

Return to the main interface

By rotating the Bian code switch menu options interface, the first choice of nine menu
MENU EXIT "to confirm the selection, then press the encoder switch. Return to the main
interface appears as follows:

Tip: menu options interface, no operation within 20 seconds, T251

automatically return to the main interface state。

五、Product technical parameters

No. Project Technical parameters

1

Operating voltage

12V

2

Operating current

﹤5A

3

Frequency Range

87~108MHz

4

Frequency stability

±10PPM

5

Frequency step

100KHz

6

Environment Operating
Temperature

-10℃~45℃

7

Output impedance

50Ω

8

RF output power range

0W~25W

WWW.FMTRON.COM

www.czhfmtransmitter.com

Skype:lanyue99991 MSN:[e-mail] Email:[e-mail]

9 Harmonic, clutter radiation ≤－60dB

10 Audio distortion 0.2%

11 Frequency Response 50Hz~15000Hz
12 Separation ≥35 dB
13 Input level ≤15 dBV
14 Frequency Modulation ±75KHZ
15 Signal-to-noise ratio ≥70dB

16 Machine size

210㎜（L）*174㎜（W）*59㎜（H）

17 The weight of the machine About 1500g

六、

General Troubleshooting Guide

NO.

Negative phenomena

Reason

1

Can not boot

1) outlet has power;

2) whether the power cord is plugged in;

3) The power adapter is normal.

2

Standing wave alarm

1) antenna not connected;

2) antenna mismatch, resulting in too large VSWR;

3) antenna installation location next to the
reflection of matter too much.

3

Temperature alarm

1) The fan does not turn;

2) antennas does not match the VSWR is too large,
resulting in the temperature rise;

3) inlet and outlet is obstructed, the air flow is
blocked.

4

Standing wave value

1) The antenna is not connected;

2) antennas does not match;

3) next to the reflector in the antenna mounting
position too.

5

Transmitter closer

1) feeder loss;

2) poor launch environment;

3) The output power not turn up;

4) antenna mounting height is not high enough;

5), the antenna does not match;

6) The receiver sensitivity is low.

6

No power output

1) The output power not turn up;

2) The machine is standby or not boot.

WWW.FMTRON.COM

www.czhfmtransmitter.com

Skype:lanyue99991 MSN:[e-mail] Email:[e-mail]

7

Audio muting

1) The host volume not turn up;

2) the input audio signal is normal.

8

Microphone silent

1) microphone is normal;

2) The microphone volume not turn up;

3) microphone moving coil microphone;

4) the microphone is plugged.

9

Sound quality is poor

1) microphone quality is not good;

2) Enter the audio quality is not good;

3) antenna installation method is not correct;

4) audio signal or machine volume is not adjusted.
