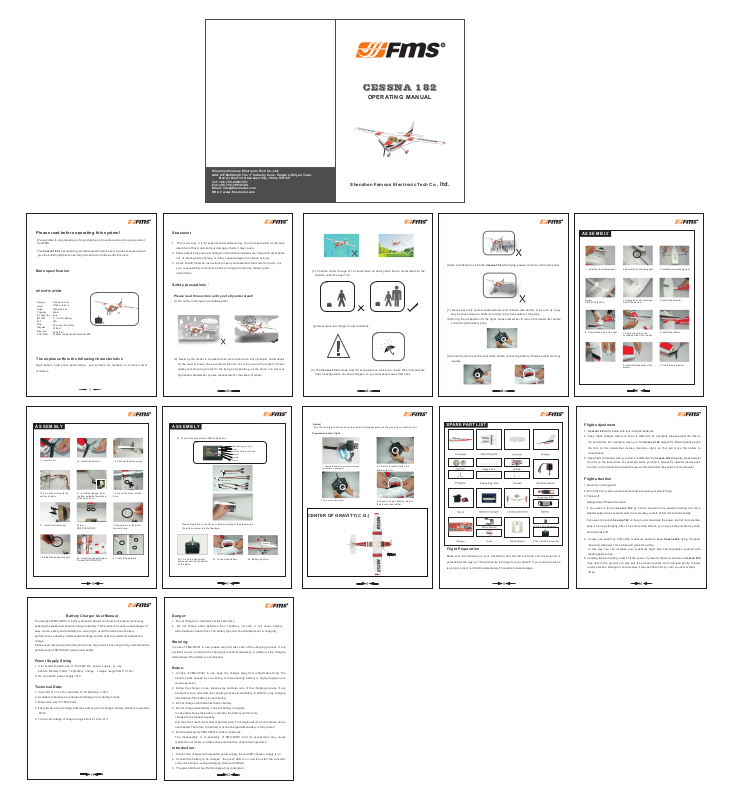

Page 1
CESSNA 182
OPERATING MANUAL
Please read before operating this system!
We would like to congratulate you for purchasing an innovative and exciting new product
from FMS.
This Cessna 182 is designed to give optimum performance over a wide envelope and will
give the budding RC pilot an exciting introduction into the world of trainers.
.
Shenzhen Famous Electronic Tech Co.,Ltd.
Add: 4/F,Building5,The 3 Industry Zone, Tangtou, Shiyan Town,
rd
Bao'an District, Shenzhen City, China 518105
Tel: +86-755-29681351
Fax: +86-755-29512328
Email: info@fmsmodel.com
Http:// www.fmsmodel.com
Statement
1 This is not a toy. lt is for experienced modelers only. You are responsible for the safe
operation of this model and any damage or harm it may cause;
2 Please adjust this plane according to instruction and make sure finger and other parts
out of rotating parts of plane, or it may cause damage to the plane or injury.
Shenzhen Famous Electronic Tech Co., ltd.
A S S E M B LY
Main specification
SPECIFICATION
Wingspan
Length
Weight
CG position
Est. Flying Time
BATTERY
ESC
Motor
Wing Area
Wing Load
RC SYSTEM
: 1410mm /55.5 in
: 1100mm /43.3 in
: 1520g /53.6 oz
: 60mm
: 6min
: 11.1V Li-Po Battery
: 30A
: Outrunner Brush less
: 27.0dm
: 56.3g/dm
: 6 Channel 6 Servos And 1 Brushless ESC
2
2
3 Users should follow all instructions properly and assemble the model correctly. it is
your responsibility to insure the battery's charged correctly, following the
instructions.
Safety precautions！
Please read this section until you fully understand!
(1) Do not fly in strong wind or bad weather
(3) Children under the age of 12 should have an adult guide. Never recommend for the
children under the age of 14.
(4) Never leave the charger in wet conditions.
Do not attempt to catch the while flying, please do not touch the propeller.
(6) Cessna 182
(7) Never leave this system unattended around children with battery in the unit, as injury
may be caused due to children's turning on the transmitter or the plane.
(8) During the preparation for the flight, please remember to turn on the transmitter before
connecting the battery pack.
1. Install the front landing gear.
Screw
PM3.0X16(4PCS)
6. Connect the wire of the li ght.
2. Secure the front landing gear.
4. Apply glue on the combine d
side of the elevator.
7. Apply the glue on the
combined side of the rudd er.
3. Install the main landing gear.
5. Install the elevator.
8. Install the rudder.
The airplane offers the following characteristics
High speed, high scale performance, and suitable for mediate or a above level
modelers.
1
(2) Never fly the model in crowded areas, where there are lots of people, automobiles
on the road or power lines overhead. Also do not to fly around the airport. Please
make yourself enough room for the flying and operating, as the plane can travel at
high speed. Remember you are responsible for the safety of others.
2
(5) The Cessna 182 is made from PA and polythene which are tinder. When it meets the
heat, transfiguration can easily happen, so you must keep it away from heat.
3
(9) Close the throttle on the transmitter before connecting battery otherwise the motor may
operate.
4
9. Install the back plate of the
spinner.
5
10. Install the propell er.
A S S E M B LY
11. Install the nut .
14. Tie up the wires with the
self-lock ribbon.
12. Install the spinner.
15. Install the linkage r od of
the flap inside the lowes t hole
of the servo horn.
13. Connect the main wing s.
16. Insert the wires into t he
hole.
A S S E M B LY
21. Connect the signal wi res (F MS radio show).
C
H6
C
H5
C
H4
C
H3
C
H2
C
H1
H
C 5
H
C 1
Aileron(2 *S er vo )
H
C 6
LED(5PCS)
LED( N aviga tion Li ghts)
Flap s
Stee ring Wh eel And Ru dder
Thro ttle
Elev ator
Aile ron
Flaps(2*S er vo )
Notice!
Don't fly the airplane un til on e hour later after finishing asse mbly, as the glue may not function well.
Preparation bef ore fl ight
1. Charge the ba tte ry, gree n lig ht means
the battery is c har gin g.
3.Turn o n the t ransmitter.
2. Th r o tt le i n lo we s t le ve l, t he
sam e w it h tr im .
4.Connect powe r battery, adjust
the elevator and rudder.
Linkage Rod
Supporting Bar
LED Set
Flight adjustment
Cessna 182
1. will fly better with fully-charged batteries.
2. Keep flight straight: when you find it is difficult to fly straightly, please adjust the trim on
the transmitter. For example, when you find always fly leftward please push
Cessna 182
the trim on the transmitter inverse direction---right, as this will move the rudder to
compensate.
3. Keep flight horizontal: when you find it is difficult to fly straightly, please adjust
Cessna 182
the trim on the transmitter. For example, when you find it always fly upward; please push
the trim on the transmitter toward the top, as this will adjust the position of the elevator.
Flight attention
1. Never fly in strong wind.
2. Do not fly at any place where another same-frequency model is flying.
3. Taking off:
Always take off toward the wind;
17. Install the main wing .
19.Install the supporting part.
Screw
PM4.0X25(2PCS)
20. Install the support ing ba r
Screw PM3.0X8(4PCS)
18. Apply glue in the slot of
the main wing.
21. Install the antenna .
Please plug in the connec tors c orrectly according to the signa l wire s.
(Push the receiver into t he fus elage).
22. Turn on the transmitte r
before connecting the b atte ry
on the plane.
23. Connect the battery.
24. Battery position.
CENTER OF GRAVITY (C.G.)
6CH 2.4GHz Receiver
6CH 2.4GHz Transmitter
Flight Preparation
Make sure that batteries in your transmitter and aircraft are fresh and the antenna is
extended all the way up. This will ensure full range for your aircraft. lf you notice the plane
is going to crash, cut throttle immediately. This will minimize damage.
lf you want to launch by hands, maximize the power(including the micro
Cessna 182
adjustment)and run several meters to accelerate yourself, at last throw it horizontally.
lf you want to launch on the ground, maximize the power and let it accelerate,
Cessna 182
keep it running straightly, after it runs more than 60 feet, you can pull the elevator joy stick,
and it will take off.
4. Course: you need only 30% of the maximum power to keep flying. lt is good
Cessna 182
idea to fly with power for a while and glide for a while .
In this way You can increase your maximum flight time and familiarize yourself with
landing approaches.
5. Landing: Before landing, switch off the power, fly toward the wind, and when
Cessna 182
flies near to the ground, you may pull the elevator joystick and it will land gently. It really
needs practice, although it sounds easy. it may be difficult for yo until you do this many
times.
6
Battery Charger User Manual
The design of FMS-08001 Li-battery balance charger conforms to the latest technology,
enabling the stable and balance charge to battery. This product has various advantages of
easy-to-use, safety and reliability etc, ensuring to avoid the reduction of battery
performance caused by unbalanced discharge and the risks resulted from unbalanced
charge.
Please read this manual carefully prior to use this product, ensuring to fully understand the
performance of FMS-08001 and product safety.
7
Danger:
1. Do not charge 2 or 3 batteries at the same time.
2. Do not charge other batteries than Li-battery. Or else, It will cause battery
abnormal(over-heat or fire). The battery type must be validated prior to charging,
Warning:
In case of FMS-08001 in use, please stay and take care of the charging process .If any
accident occurs, terminate the charging process immediately. In addition, stop charging
8
9
10
Power Supply Sizing
1. It is recommended to use 11-14V,20W,DC power supply, or use
Vehicle Battery>15AH, 12V(safety charge voltage range from 11V14V).
2. Do not use DC power supply>14V.
Technical Data:
1. Input: DC 11v-14v,1A,output:DC 12.6V,800mA (+-10%).
2. Available to balanced or unbalanced charge 2 or 3 battery blocks.
3. Dimension size:73×50×25mm.
4. The typical value of voltage difference among 3 full-charged battery blocks is lower than
40mV.
5. The cut-off voltage of charger ranges from 4.19V-4.21V.
immediately if the battery is overheating.
Notes:
1. In case of FMS-08001 in use, keep the charger away from inflammable thing. The
electric spark caused by connecting or disconnecting battery is highly dangerous to
cause explosion.
2. During the charger in use, please stay and take care of the charging process. If any
accident occurs, terminate the charging process immediately. In addition, stop charging
immediately if the battery is overheating.
3. Do not charge other batteries than Li-battery.
4. Do not charge immediately in case of battery in tepidity.
In case that charge the battery in tepidity, the battery can't be fully
charged to the highest capacity,
and thus can't reach the maximal performance. This maybe result into the failure due to
overheated. Therefore, the battery must be charged after battery is fully cooled.
5. Do not disassembly FMS-08001 and its accessories.
The disassembly or re-assembly of FMS-08001 and its accessories may cause
malfunction or failure, and also cause malfunction of abnormal operation.
Introduction:
1. Connect the charger with regulated power supply, the red LED of power supply is on.
2. Connect the battery to be charged , the green LED is on, and then start the constant-
current-restricted –voltage charging mode with 800mA.
3. The green LED will be off after charge fully completed.
11
