FMN WZ LSA 70-3/O Quick Reference Manual

Quick reference guide

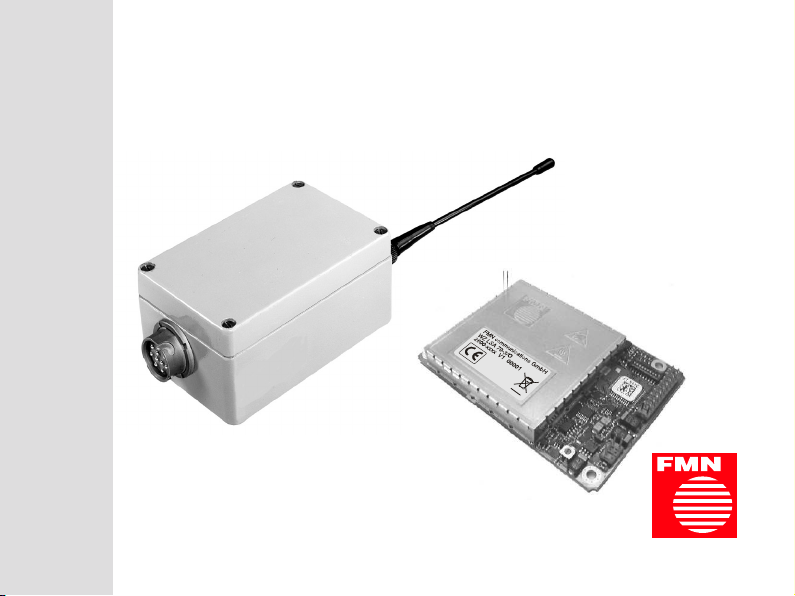

WZ LSA 70-3/O

Radio receiver in the 70 cm-band

3

1. Safety precautions

ATTENTION!

• Do not operate the units in rooms with explosive atmosphere, damp

environments or rooms with aggressive air or increased electromagnetic requirements.

• Mind the instructions for putting the device into operation.

• Fuse the unit at the voltage supply input UB_IN of the user interface by

means of a fuse (min. 250 mA, max. 1 A).

• In case there is the danger of touching conductive parts due to improper use of the unit, the power supply has to be disconnected immediately.

• Do not open the unit, only permit repairs by the manufacturer.

2

ESD protection measures

Comply with the ESD protection measures according to DIN EN 61340-5-1/2 when opening the unit (potential equalization between body and ground of the unit via high-value resistance (approx. 1 MOhm) e. g. over a usual wrist band).

Read the user manual carefully to be able to use the wealth of features of your new WZ LSA 70-3. You can also nd further information on our website http://www.fmncom.com

Information regarding the used trademarks

Microsoft® and Windows® are registered trademarks of the Microsoft Corporation. All other trademarks and product names are trademarks or registered trademarks of the relevant company.

Copyright

All rights reserved. Duplication of this user manual or parts thereof by any reproduction method whatsoever is not permitted without prior permission of the manufacturer. Amendments may be published without prior notication. Notwithstanding the above declaration, the manufacturer accepts no liability for errors in these instructions or their consequences.

.

3

Safety precautions

5

2. General instructions

• The compliance with the operating instructions and the instructions for putting the device into operation is also part of the intended use. Every other use is considered as not intended. The manufacturer assumes no liability for damages resulting from such use.

• All connection cables have to be equipped with an earth-connected shielding. The connection cable for the antenna has to be equipped with a

wave impedance of 50 Ohm.

• The manufacturer recommends to mount devices in PCB version into a metal housing.

• Corresponding mechanisms are to be used for the detection of single bit errors during a data transmission (e. g. protocol with creation of check sum).

4

3. General product description

Pin 2

Pin 20

Pin 1

20-pole

user interface

Pin 19

Pin 3

Pin 1

Pin 5

GND

antenna connection

Pin 2

Pin 6

6-pole

user interface

DIL 1

DIL 10

DIL switch

3.1 Designation of the functional elements

Figure 3-1: Designation of the functional elements (PCB version)

General instructions / Product description

5

7

antenna connection TNC socket

Pin2

Pin6

Pin1

Pin5

Pin3

B

D

C

E

F

H

K

J

L

A

NF socket U-79/U

c

M

N

c

m

n

i

a

t

i n

s

G

m

b

H

F o

m

u

o

V

8

0 -

x

1

0

1

2

0

x

0

A

Z

S

7

3

/

O

G

W

L

0

-

(

)

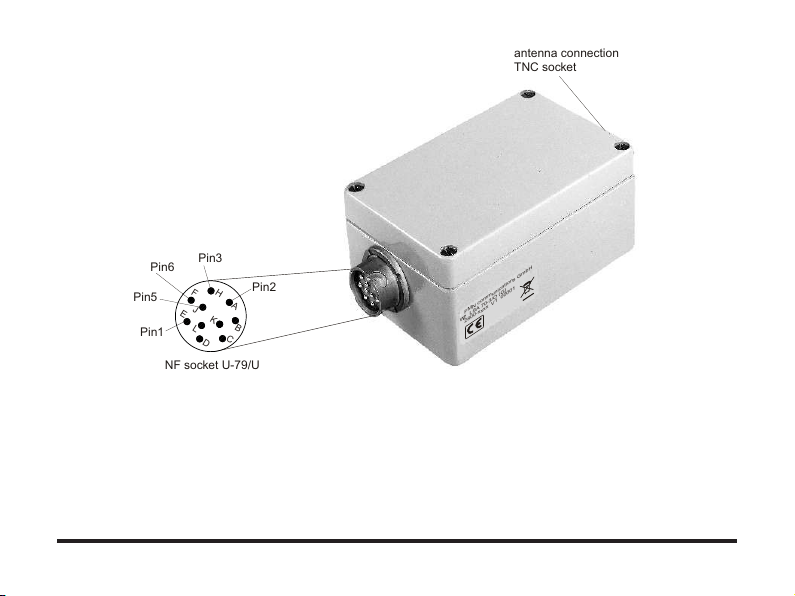

Figure 3-2: Designation of the 6-pole user interface (IP65 housing)

6

3.2 Interfaces at the unit

3.2.1 Pin assignment of the 6-pole user interface

(IP65 housing)

Pin Assinment Function

UB_IN

1

GND

2

NF_OUT

3

4 not used

RSSI

5

GND

6

Table 3-1

Input (9 ... 15 V)

Ground

Output, analogue

Ground

Product description

7

9

3.2.2 Pin conguration of the 20-pole user interface

(PCB version)

Pin Assignment Function

UB_IN

1

GND

2

RSSI

3

RX_BB

4

AF_INT

5

6 reserved

DIL7

7

DIL8

8

9 not used

GND

10

DIL9

11

DIL1

12

Input (9 ... 15 VDC)

Ground

Output, analogue

Input, digital

Ground

Input, digital

8

Pin Assignment Function

DIL2

13

DIL3

14

DIL4

15

DIL5

16

DIL6

17

GND

18

19 reserved

GND

20

Table 3-2

Input, digital

Ground

Product description / Putting into operation

9

4. Putting the unit into operation

4.1 Initial state of the unit after starting

see user manual WZ LSA 70-3

4.2 Memory selection at the user interface

see attached conguration list

10

5. Conformity

Herewith, the FMN communications GmbH declares that the unit WZ LSA 70-3 complies with the essential requirements and the other relevant provisions of the directive 1999/5/EG (R&TTE directive).

The unit WZ LSA 70-3 can be operated in the countries of the European Union (EU). Outside the EU, the national regulations of the respective country apply.

The complete declaration of conformity can be found in the Internet under http://www.fmncom.com.

Conformity

11

For protection of the environment! Printed on paper bleached without chlorine, with a maximum waste paper content of 50 %.

FMN communications GmbH

Grimmelallee 4 99734 Nordhausen Germany P. O. Box 10 04 65 99724 Nordhausen Germany

Phone: +49 (36 31) 56-34 41 Fax: +49 (36 31) 56-32 24 Email [email protected] Internet www.fmncom.com

Subject to change WZ LSA 70-3/O: 8204.3.0071.01 Edition: No. 01/07 (1112-0906)
