FMG SLK10, SLK20, SLK15 Operator's Manual

EQUIPMENT

LLP FARM MACHINERY GROUP OY

LEVYTIE 4 ● 74510 IISALMI

PUH. [phone] ● FAX. [phone]

OPERATORS MANUAL

SLK10 / SLK15 / SLK20

ORIGINAL

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 2

ORIGINAL

EY-VAATIMUSTENMUKAISUUSVAKUUTUS TUOTTEESTA

LLP Farm Machinery Group Oy vakuuttaa, että markkinoille saatettu kone täyttää direktiivin
2006/42/EY ja standardit SFS-EN ISO 12100 ja SFS-ISO730-1.

FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

LLP Farm Machinery Group Oy försäkrar härmed att tillförda maskin uppfyller
maskindirektivet 2006/42/EY och standard SFS-EN ISO 12100 och SFS-ISO730-1.

CERTIFICATE OF CONFORMITY FOR A PRODUCT

LLP Farm Machinery Group Oy certifies that the following machine, which has been brought into
the market, conforms to directives 2006/42/EY and standards SFS-EN ISO 12100 and SFS-ISO730-1.

SAMSVARSERKLÆRING FOR MASKIN

LLP Farm Machinery Group Oy bekrefter herved at følgende maskin, som er sendt ut på markedet, er i
samsvar med direktivene 2006/42/EF, SFS-EN ISO 12100 og SFS-ISO730-1.

Tuote / Produkt / Product / Produkt:
Valmistusnumero / Tillverkningsnummer

/ Serial number / Serienummer:
Teknisen tiedoston kokoaja / Teknisk

dokumentation samlare / Technical file collector: Sakari Ruotanen

Valmistaja / Tillverkare / Manufacturer LLP Farm Machinery Group Oy
/ Produsent:

Osoite / Adress / Address / Adresse: Levytie 4, FIN-74510 Iisalmi
Puhelin / Telefon / Telephone: [phone]

Paikka / Ort / Place / Sted: Iisalmi
Aika / Datum / Date / Dato:
Allekirjoitus / Underskrift / Signature

/ Signatur:

Nimenselvennys / Namnförtydligande Markku Lappalainen
/ Clarification of signature
/ Tydeliggjøring av signatur:

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 3

WARRANTY TERMS

All the products produced by LLP Farm Machinery Group Oy have twenty four (24) months
warranty.

During the warranty period all the defects in material and in workmanship will be covered, in
practical life FMG will replace defected parts with the new parts. Travelling expenses and
freight of parts are not included in warranty.

Warranty will start in the beginning of usage of the product, if nothing else has been agreed.
Warranty is not covering damages due to misuse of product or use in the purposes where it

has not been designed, lack of services or product has been modified without the permission of
FMG.

Wearing of the normal usage is not covered by the warranty.
Losses in income, costs and loosen working hours caused by the defected part is not covered

by the warranty.
Warranty repairs should be done by the FMG service dealer or service dealer appointed by the

manufacturer.
In case the defects shown in reclamation is not valid or if case otherwise is not in the warranty

area FMG has right to reject from the compensation.
Warranty reclamation should be done in written form by the FMG seller within one (1) month

after notifying the defect.
In case of defect procedure is as follows:

- clarify the defect and defected area

- be prepared to deliver defected parts to the manufacturer

- contact FMG seller and make reclamation as follows:

• type of the product and serial number

• delivery date of the product (invoicing date)

• date of the damage

• description of the damage and pictures

• description of the working conditions and the type of the base machine

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 4

TO THE OPERATOR

The purpose of this is manual is to provide support and instructions to flipper bucket users.
Manual contains detailed instructions for driving, operating and maintaining the flipper bucket.
Make sure that your new flipper bucket is always handled and maintained in the correct way in
order to ensure reliability and economical operation for many years.

We recommend that you read the manual thoroughly. Follow the maintenance and service
program carefully and include the daily maintenance in your normal routine. This is both you
and your tractor interest.

Maintenance, repairs and adjustments which are not described in this Operator Manual require
the use of special tools and exact technical data. In case of that kind need please contact your
FMG seller or factory.

Use only genuine FMG spare parts for optimum performance from your tractor and flipper
bucket. Spares will be sold through the FMG seller.

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 5

TABLE OF CONTENT

1. SAFETY INSTRUCTIONS ......................................................................................................................... 6

2. CONSTRUCTION ...................................................................................................................................... 8

3. TECHNICAL SPECIFICATION ................................................................................................................. 9

4. FLIPPER BUCKET USE ........................................................................................................................... 9

4.1. USE AREA ........................................................................................................................................ 9

4.2. INSTRUCTIONS ................................................................................................................................ 9

5. SERVICE ................................................................................................................................................. 10

5.1. DAILY SERVICE ............................................................................................................................. 10

5.2. WEEKLY SERVICE ......................................................................................................................... 10

5.3. SERVICE AFTER 500 HOURS ....................................................................................................... 10

5.4. ANNUAL SERVICE ......................................................................................................................... 10

5.5. LUBRICATION POINTS .................................................................................................................. 11

6. COUPLING OF THE ELECTRIC VALVE ............................................................................................... 12

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 6

1. SAFETY INSTRUCTIONS

This section summarizes the regulations that must always be followed when working with the
flipper bucket. However, these regulations do not exempt the driver from statutory and other
national regulations regarding traffic safety and occupational health and safety. Safety regula­tions that apply to different types of working sites and existing road traffic laws must always be
observed. Tractor safety regulations accepted by the Finnish occupational safety and health
administration have already been taken into account in the equipment design. The following
section describes general safety precautions that must be observed regarding the use of the
flipper bucket.

IMPORTANT
Do not use the flipper bucket for other purposes than it has been de-

signed. Please read this manual carefully before using the implement.

IMPORTANT
Before driving, make sure that all movements and functions work cor-

rectly.

DANGER
When testing different movements of the plough make sure that there is

no one close to tractor. Safety distance 5 meters.

IMPORTANT
Advise other users on the use of the implement and ask them to read the

manual.

DANGER
Do not operate a faulty implement.

IMPORTANT
Use the rotary beacon while working.

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 7

WARNING
Observe the manufacturer's instructions while working.

WARNING
Pay attention to other road users.

IMPORTANT
Always lower the implement and stop the engine before leaving the cab.

IMPORTANT
Never service or clean an implement that is resting on the hydraulics.

Use mechanical support. Always stop the engine for maintenance.

WARNING
Do not disconnect, connect or tighten pressurized hydraulic plugs.

WARNING
Do not inhale oil mist if a pressurized component becomes damaged. If

oil comes into contact with the eyes, rinse with plenty of water and con­tact a doctor immediately.

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 8

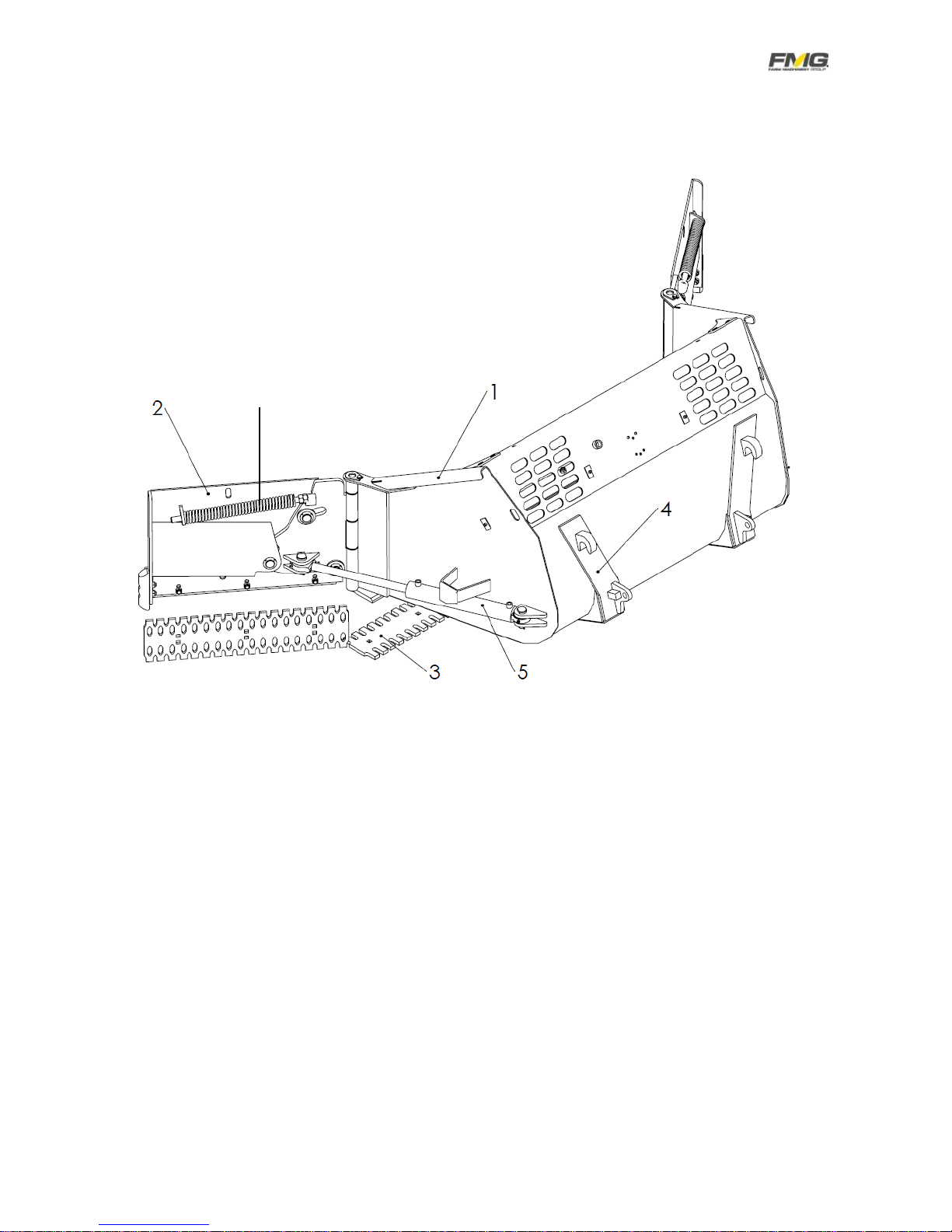

2. CONSTRUCTION

1. Bucket frame

2. Wing

3. Blade

4. Bracket

5. Cylinder

6. Wing suspension

6

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 9

3. TECHNICAL SPECIFICATION

Noise level is less than 70 dB (A).

4. FLIPPER BUCKET USE

4.1. USE AREA

Flipper bucket has been designed to snow cleaning from the yards and terminals.
Buckets acts like normal bucket in loading and you can also move snow when
needed.

4.2. INSTRUCTIONS

Before use take care that bucket is correctly and fully engaged and all the locking´s
are fully done.

TAKE CARE THAT HOSE FROM THE SCHOCK VALVE IS COUPLED TO
THE FREE TANK LINE!

Test drive bucket and take care that it is fully working. In case of reparation in hy­draulic system or if bucket is totally new take care that air doesn´t make any impetu­ous movement.

When using bucket take care that you have fully sight to the working area and there
are nobody in that area.

When disengage bucket take care that hydraulic couplings will have its protective
caps.

In case of leaving bucket to the outdoor storage take care that ground is balanced to
help next engage.

In case of long term storage take care that cylinder rods are lubricated with
CORRSHIELD VPCI-369 or other storage lubrication oil.

Model

Width (cm)

Working

width (cm)

Height (cm)

Volume

(l)

Weight

(kg)

Width of the

wing

SLK10

204

204-370

95

1000

530

84

SLK15

246

246-408

95

1600

555

84

SLK20

260

260-426

100

2000

580

84

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 10

5. SERVICE

Service done in the correct time is one of the most import things to ensure bucket
working and long life. Service costs are small compared to the repairing costs due to
the incomplete service. Service below includes all the lubrications, adjustments and
services.

5.1. DAILY SERVICE

- Check blades wearness

- Check the tightness of the blade

- Check all the movements

- Clean the equipment after the working day

5.2. WEEKLY SERVICE

- Lubricate all the nozzles

- Check all the hydraulic couplings

5.3. SERVICE AFTER 500 HOURS

- Check all the pins

- Check tightness of the screws

5.4. ANNUAL SERVICE

Check all above mentioned. Lubricate all the nozzles when leaving equipment to
the long term storage.

NB:
When serving take care that all the mentioned services in that list

will be done!

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 11

NB!
The tightness of the screws should be checked also after the first

use!
NB!
In case of long term storage take care that cylinder rods are lubri-

cated!

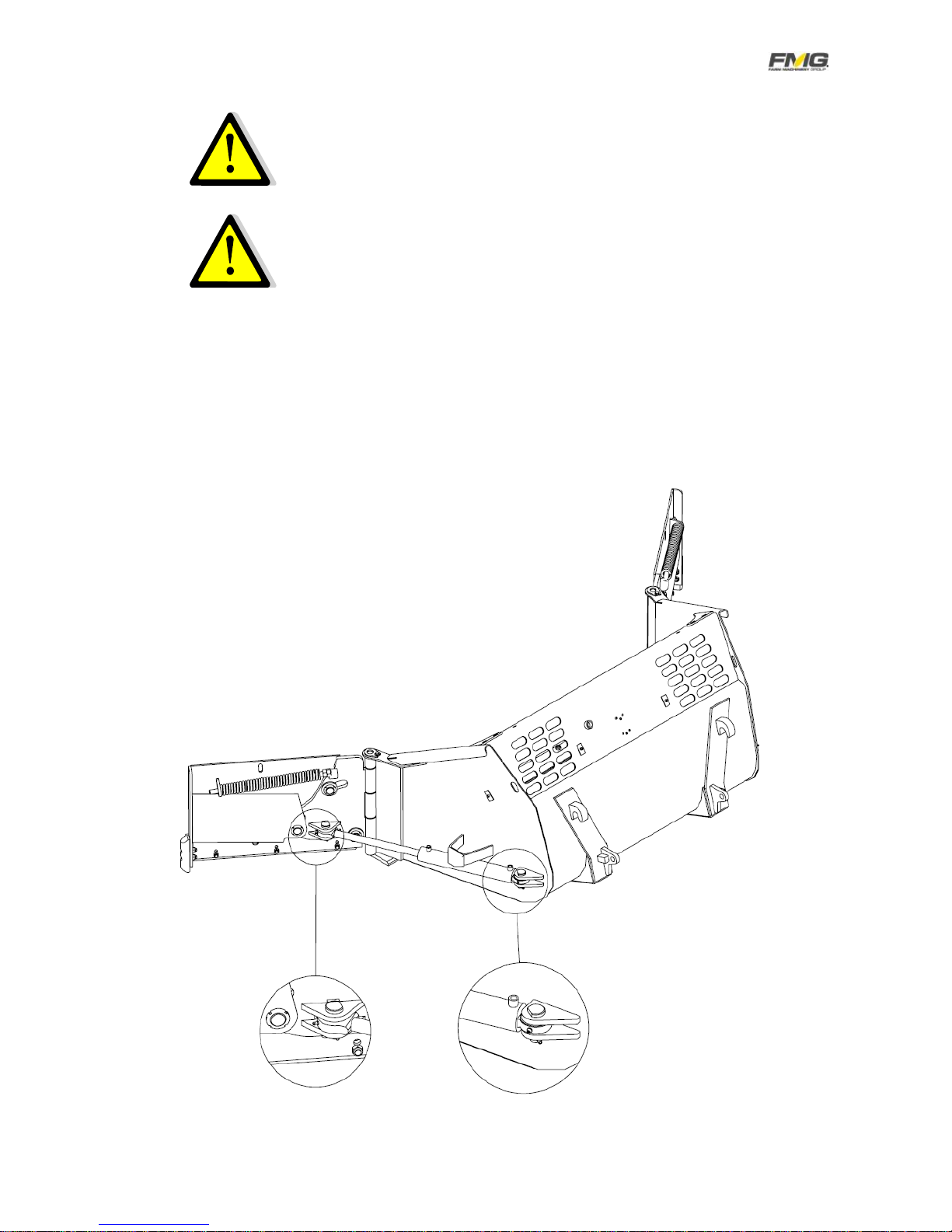

5.5. LUBRICATION POINTS

Lubricate nozzles shown in the picture in weekly basis. Clean the
nozzle top before lubrication.

- Nozzles of the cylinders (4 units)

OPERATORS MANUAL D00016EN_D
FLIPPER BUCKET

Page 12

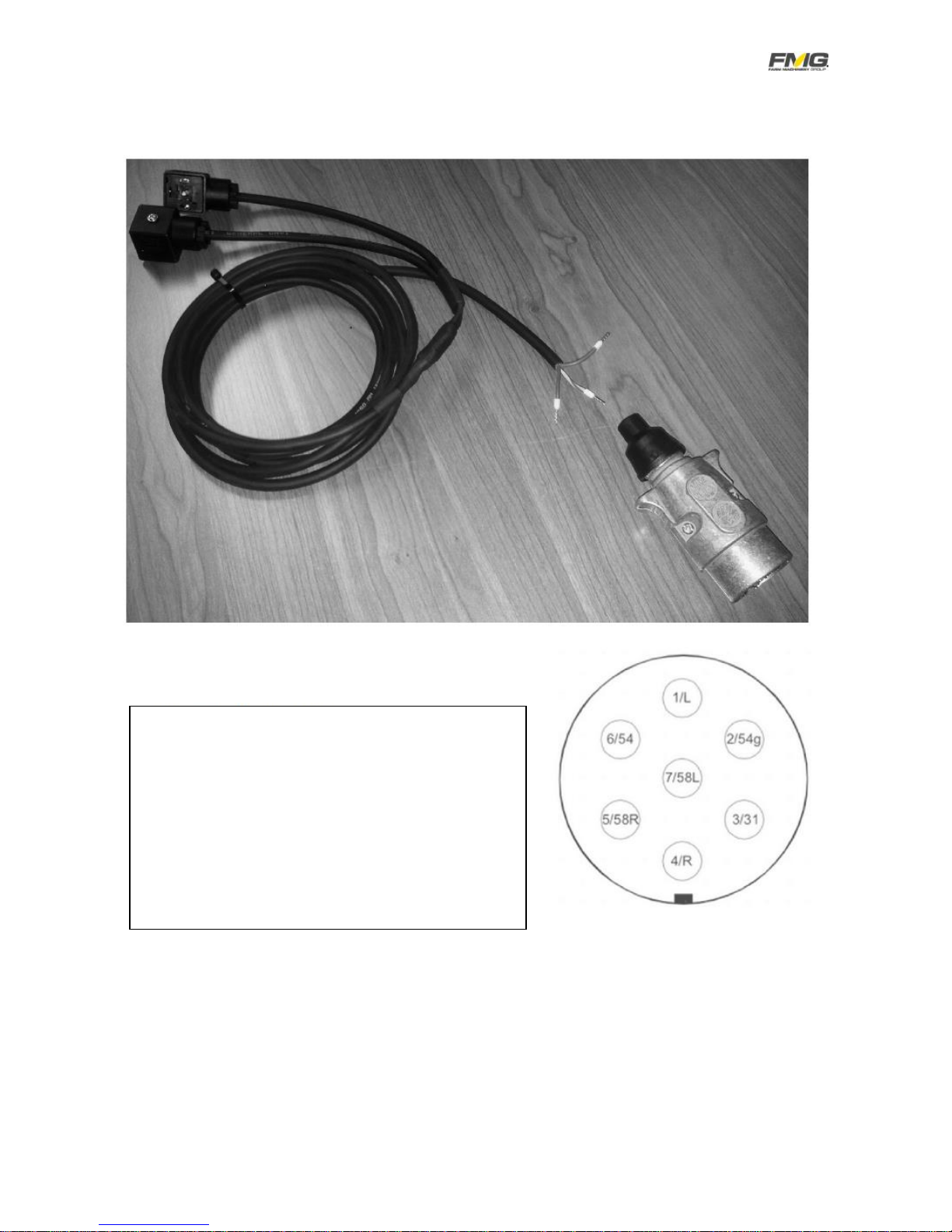

6. COUPLING OF THE ELECTRIC VALVE

Connection for 8/3 valve:
Yellow-greenground 3/31

Bluesupply for valve 1 2/54g
Brownsupply for valve 2 4/R

Connection for 6/2 valve:
Ground 3/31
Supply for valve 1 2/54g
