Electronic Preset Delivery System

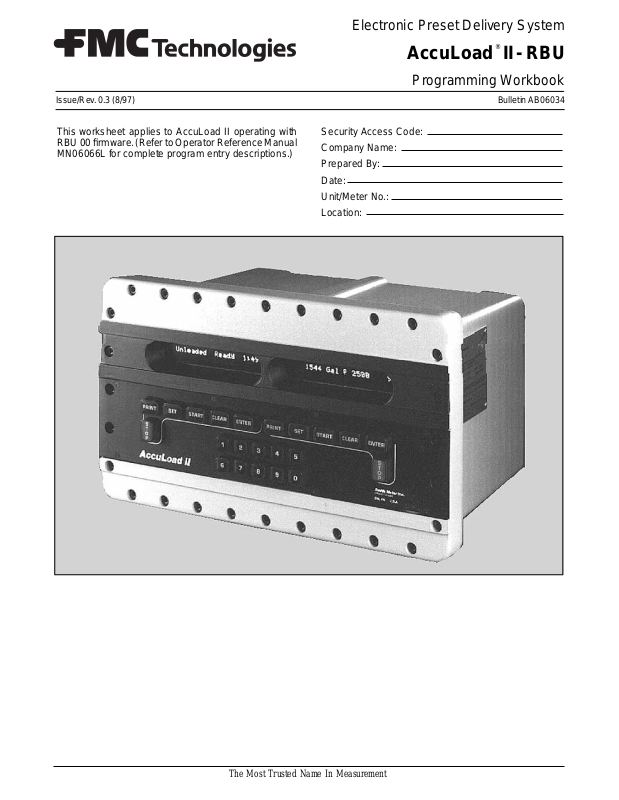

AccuLoad®II - RBU
Programming W orkbook
Issue/Rev . 0.3 (8/97) Bulletin AB06034
This worksheet applies to AccuLoad II operating with
RBU 00 fi rmware. (Refer to Oper ator Reference Manual
MN06066L for complete program entry descriptions.)
Security Access Code:
Company Name:
Prepared By:
Date:
Unit/Meter No.:
Location:
The Most Trusted Name In Measurement
Page 2
Table of Contents
Syste m Di r ec t o ri e s ....................................................................................................................................................... 1
System General Purpose Directory ........................................................................................................................ 21
System Fl o w C on t ro l D ir e ct or y............................................................................................................................... 26
System V ol um e Ac cu ra cy Di re c to ry ....................................................................................................................... 28
System Te m pe ra t ur e & D en si t y D ir ec t or y .............................................................................................................. 32
System P re ssu r e D ir ec t or y .................................................................................................................................... 33
System Read Only Directory .................................................................................................................................. 33
System Co mm u ni ca t i on Di re ct o ry .......................................................................................................................... 34
System I np ut / O ut p ut Di r ec to ry ............................................................................................................................... 43
System Diagnostic Directory .................................................................................................................................. 50
Product Directories .................................................................................................................................................... 54
Product General Purpose Directory ....................................................................................................................... 54
Product Flow Control Directory .............................................................................................................................. 54
Product Volume Accuracy Directory ...................................................................................................................... 56
Product Temperature & Density Directory .............................................................................................................. 59
Product Pressure Directory .................................................................................................................................... 61
Product Read Only Directory ................................................................................................................................. 64
Product Communications Directory ........................................................................................................................ 65
Inputs & Outputs Directory ..................................................................................................................................... 66
Diagnostics Directory ............................................................................................................................................. 66
Blend Recipe Directories............................................................................................................................................ 67
Blend Recipe # __ Directory .................................................................................................................................. 67
i
Page 3
Page 4
Table of Contents
i
Page 5
Page 6
Program Program
Code Function Code Description Entry Code
System Directories
000 System Configuration Directory 000
001 Number of Products Enter: "1" One Product 001
"2" Two Products
"3" Three Products
"4" Four Products __
002 Number of Additive Enter: "0" No Additive Injectors 002
Injectors "1" One Additive Injector
"2" Two Additive Injectors
"3" Three Additive Injectors
"4" Four Additive Injectors
"5" Five Additive Injectors
"6" Six Additive Injectors
"7" Seven Additive Injectors
"8" Eight Additive Injectors __
003 A/C Output Relay 1 Enter: "00" No Assignment (N/A) 003
Terminals 89 & 90 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR) __ __
Note: When using three or four products this relay must be programmed "00" (No Assignment).
Issue/Rev. 0.3 (8/97) 1
Page 7
Program
Code
Function Code
Description
Entry
Program
Code
004 A/C Output Relay 2 Enter: "00" No Assignment (N/A) 004
Terminals 91 & 92 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR) __ __
Note: When using three or four products this relay must be programmed "00" (No Assignment).
005 A/C Output Relay 3 Enter: "00" No Assignment (N/A) 005
Terminals 93 & 94 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR)
"22" General Relay (GEN) __ __
2 Issue/Rev. 03 (8/97)
Page 8
Program Program
Code Function Code Description Entry Code
006 A/C Output Relay 4 Enter: "00" No Assignment (N/A) 006
Terminals 95 & 96 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR)
“22” General Relay (GEN)
007 A/C Output Relay 5 Enter: "00" No Assignment (N/A) 007
Terminals 87 & 88 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR)
"18" Pump-Product 1 (PMP1)
"19" Pump-Product 2 (PMP2)
"20" Pump-Product 3 (PMP3)
"21" Pump-Product 4 (PMP4) __ __
Issue/Rev. 0.3 (8/97) 3
Page 9
Program Program
Code Function Code Description Entry Code
008 A/C Output Relay 6 Enter: "00" No Assignment (N/A) 008
Terminals 84 & 85 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR)
"18" Pump-Product 1 (PMP1)
"19" Pump-Product 2 (PMP2)
"20" Pump-Product 3 (PMP3)
"21" Pump-Product 4 (PMP4) __ __
009 A/C Output Relay 7 Enter: "00" No Assignment (N/A) 009
Terminals 124 & 125 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR) __ __
Note: When using four products this relay must be programmed "00" (No Assignment).
4 Issue/Rev. 03 (8/97)
Page 10
Program Program
Code Function Code Description Entry Code
010 A/C Output Relay 8 Enter: "00" No Assignment (N/A) 010
Terminals 126 & 127 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR) __ __
Note: When using four products this relay must be programmed "00" (No Assignment).
011 A/C Output Relay 9 Enter: "00" No Assignment (N/A) 011
Terminals 128 & 129 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR)
"22" General Relay (GEN) __ __
Issue/Rev. 0.3 (8/97) 5
Page 11
Program Program
Code Function Code Description Entry Code
012 A/C Output Relay 10 Enter: "00" No Assignment (N/A) 012
Terminals 130 & 131 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR)
"22" General Relay (GEN) __ __
013 A/C Output Relay 11 Enter: "00" No Assignment (N/A) 013
Terminals 121 & 122 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR)
"18" Pump-Product 1 (PMP1)
"19" Pump-Product 2 (PMP2)
"20" Pump-Product 3 (PMP3)
"21" Pump-Product 4 (PMP4) __ __
6 Issue/Rev. 03 (8/97)
Page 12
Program Program
Code Function Code Description Entry Code
014 A/C Output Relay 12 Enter: "00" No Assignment (N/A) 014
Terminals 119 & 120 "01" Additive Relay 1 (ADD1)
"02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Additive Pump 1 (ADP1)
"10" Additive Pump 2 (ADP2)
"11" Additive Pump 3 (ADP3)
"12" Additive Pump 4 (ADP4)
"13" Additive Pump 5 (ADP5)
"14" Additive Pump 6 (ADP6)
"15" Additive Pump 7 (ADP7)
"16" Additive Pump 8 (ADP8)
"17" Alarm Relay (ALR)
"18" Pump-Product 1 (PMP1)
"19" Pump-Product 2 (PMP2)
"20" Pump-Product 3 (PMP3)
"21" Pump-Product 4 (PMP4) __ __
015 D/C Output Relay 1 Enter: "00" No Assignment (N/A) 015
Terminals 9 & 10 "01" Additive Relay 1 (ADD1)
(w/o Quad OPV) "02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
Terminals 11 & 10 "04" Additive Relay 4 (ADD4)
(on Quad OPV) "05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Pulse Output (POT1) __ __
016 D/C Output Relay 2 Enter: "00" No Assignment (N/A) 016
Terminals 57 & 58 "01" Additive Relay 1 (ADD1)
(w/o Quad OPV) "02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
Terminals 15 & 14 "04" Additive Relay 4 (ADD4)
(on Quad OPV) "05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Pulse Output (POT2) __ __
Issue/Rev. 0.3 (8/97) 7
Page 13
Program Program
Code Function Code Description Entry Code
017 D/C Output Relay 3 Enter: "00" No Assignment (N/A) 017
Terminals 13 & 12 "01" Additive Relay 1 (ADD1)
on Quad OPV "02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Pulse Output (POT3) __ __
Note: This code is only available for use if the Quad OPV option has been purchased with the AccuLoad II.
018 D/C Output Relay 4 Enter: "00" No Assignment (N/A) 018
Terminals 17 & 16 "01" Additive Relay 1 (ADD1)
on Quad OPV "02" Additive Relay 2 (ADD2)
"03" Additive Relay 3 (ADD3)
"04" Additive Relay 4 (ADD4)
"05" Additive Relay 5 (ADD5)
"06" Additive Relay 6 (ADD6)
"07" Additive Relay 7 (ADD7)
"08" Additive Relay 8 (ADD8)
"09" Pulse Output (POT4) __ __
Note: This code is only available for use if the Quad OPV option has been purchased with the AccuLoad II.
019 A/C Input 1 Enter: "00" No Assignment (N/A) 019
Terminals 98 & 101 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
8 Issue/Rev. 03 (8/97)
Page 14
Program Program
Code Function Code Description Entry Code
020 A/C Input 2 Enter: "00" No Assignment (N/A) 020
Terminals 99 & 101 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
021 A/C Input 3 Enter: "00" No Assignment (N/A) 021
Terminals 100 & 101 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
Issue/Rev. 0.3 (8/97) 9
Page 15
Program Program
Code Function Code Description Entry Code
022 A/C Input 4 Enter: "00" No Assignment (N/A) 022
Terminals 103 & 105 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
Note: For "Remote Start" operation either this code or code 028 must be programmed "11" (Permissive 1 Contact), code 807 must be
programmed "5" ("Remote Start") and jumpers must be installed as shown in the Installation Manual (MN06064).
023 A/C Input 5 Enter: "00" No Assignment (N/A) 023
Terminals 104 & 105 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
Note: For "Remote Stop" operation this code must be programmed "12" (Permissive 2 Contact), code 811 must be programmed "5" ("Remote
Stop" and jumpers must be installed as shown in the Installation Manual (MN06064).
10 Issue/Rev. 03 (8/97)
Page 16
Program Program
Code Function Code Description Entry Code
024 A/C Input 6 Enter: "00" No Assignment (N/A) 024
Terminals 73 & 74 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
025 A/C Input 7 Enter: "00" No Assignment (N/A) 025
Terminals 106 & 109 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
Issue/Rev. 0.3 (8/97) 11
Page 17
Program Program
Code Function Code Description Entry Code
026 A/C Input 8 Enter: "00" No Assignment (N/A) 026
Terminals 107 & 109 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
027 A/C Input 9 Enter: "00" No Assignment (N/A) 027
Terminals 108 & 109 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
12 Issue/Rev. 03 (8/97)
Page 18
Program Program
Code Function Code Description Entry Code
028 A/C Input 10 Enter: "00" No Assignment (N/A) 028
Terminals 110 & 112 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
Note: For "Remote Start" operation either this code or code 028 must be programmed "11" (Permissive 1 Contact) code 807 must be programmed
"5" (Remote Start) and jumpers must be installed as shown in the Installation Manual (MN06064).
029 A/C Input 11 Enter: "00" No Assignment (N/A) 029
Terminals 111 & 112 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
Issue/Rev. 0.3 (8/97) 13
Page 19
Program Program
Code Function Code Description Entry Code
030 A/C Input 12 Enter: "00" No Assignment (N/A) 030
Terminals 75 & 76 "01" Additive Feedback 1 (AFB1)
"02" Additive Feedback 2 (AFB2)
"03" Additive Feedback 3 (AFB3)
"04" Additive Feedback 4 (AFB4)
"05" Additive Feedback 5 (AFB5)
"06" Additive Feedback 6 (AFB6)
"07" Additive Feedback 7 (AFB7)
"08" Additive Feedback 8 (AFB8)
"09" First/Second High Flow (FSC)
"10" Printer Tray Switch (PTS)*
"11" Permissive 1 Contact (PRC1)
"12" Permissive 2 Contact (PRC2)
"13" Valve Power (VPW)
"14" Valve Stem-Product 1 (VST1)
"15" Valve Stem-Product 2 (VST2)
"16" Valve Stem-Product 3 (VST3)
"17" Valve Stem-Product 4 (VST4) __ __
*
Note: Or can be used for Master Reset.
031 RTD #1 Enter: "0" RTD Not Used 031
Terminals 14, 15, "1" Product 1
16, & 17 "2" Product 2
"3" Product 3
"4" Product 4 __
032 RTD #2 Enter: "0" RTD Not Used 032
Terminals 62, 63, "1" Product 1
64, & 65 "2" Product 2
"3" Product 3
"4" Product 4 __
14 Issue/Rev. 03 (8/97)
Page 20
Program Program
Code Function Code Description Entry Code
033 4-20 Channel #1 Enter: Two digit number indicating 033
Terminals 19 & 20 the use of this 4-20 Channel.
First digit:
"0" Channel Not Used
"1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4
Second digit:
"0" Channel Not Used
"1" Temperature
"2" Pressure
"3" Density
(e.g., 11 indicates that this channel
would be used by product 1 for a temperature
input). __ __
34 4-20 Channel #2 Enter: Two digit number indicating 034
Terminals 22 & 23 the use of this 4-20 Channel.
First digit:
"0" Channel Not Used
"1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4
Second digit:
"0" Channel Not Used
"1" Temperature
"2" Pressure
"3" Density
(e.g., 11 indicates that this channel
would be used by product 1 for a temperature
input). __ __
035 4-20 Channel #3 Enter: Two digit number indicating 035
Terminals 68 & 69 the use of this 4-20 Channel.
First digit:
"0" Channel Not Used
"1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4
Second digit:
"0" Channel Not Used
"1" Temperature
"2" Pressure
"3" Density
(e.g., 11 indicates that this channel
would be used by product 1 for a temperature
input). __ __
Issue/Rev. 0.3 (8/97) 15
Page 21
Program Program
Code Function Code Description Entry Code
036 4-20 Channel #4 Enter: Two digit number indicating 036
Terminals 71 & 72 the use of this 4-20 Channel.
First digit:
"0" Channel Not Used
"1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4
Second digit:
"0" Channel Not Used
"1" Temperature
"2" Pressure
"3" Density
(e.g., 11 indicates that this channel
would be used by product 1 for a temperature
input). __ __
037 Additive Injector Enter: Four digit number indicating 037
#1 Plumbing the products that this additive
injector is plumbed into.
1st digit - Product #1
2nd digit - Product #2
3rd digit - Product #3
4th digit - Product #4
A zero in the digit indicates
that the injector is not plumbed
into that product, a one indicates
that the injector is plumbed
into that product. (e.g., 1110
indicates that the injector is
plumbed into products 1, 2,and 3.) __ __ __ __
Note: If that additive injector output is configured for use and this entry is "0000" the indication is that it is plumbed into the loading arm downstream
of the metering system.
16 Issue/Rev. 03 (8/97)
Page 22
Program Program
Code Function Code Description Entry Code
038 Additive Injector Enter: Four digit number indicating 038
#2 Plumbing the products that this additive
injector is plumbed into.
1st digit - Product #1
2nd digit - Product #2
3rd digit - Product #3
4th digit - Product #4
A zero in the digit indicates
that the injector is not plumbed
into that product, a one indicates
that the injector is plumbed
into that product. (e.g., 1110
indicates that the injector is
plumbed into products 1, 2,and 3.) __ __ __ __
Note: If that additive injector output is configured for use and this entry is "0000" the indication is that it is plumbed into the loading arm downstream
of the metering system.
039 Additive Injector Enter: Four digit number indicating 039
#3 Plumbing the products that this additive
injector is plumbed into.
1st digit - Product #1
2nd digit - Product #2
3rd digit - Product #3
4th digit - Product #4
A zero in the digit indicates
that the injector is not plumbed
into that product, a one indicates
that the injector is plumbed
into that product. (e.g., 1110
indicates that the injector is
plumbed into products 1, 2,and 3.) __ __ __ __
Note: If that additive injector output is configured for use and this entry is "0000" the indication is that it is plumbed into the loading arm
of the metering system.
downstream
Issue/Rev. 0.3 (8/97) 17
Page 23
Program Program
Code Function Code Description Entry Code
040 Additive Injector Enter: Four digit number indicating 040
#4 Plumbing the products that this additive
injector is plumbed into.
1st digit - Product #1
2nd digit - Product #2
3rd digit - Product #3
4th digit - Product #4
A zero in the digit indicates
that the injector is not plumbed
into that product, a one indicates
that the injector is plumbed
into that product. (e.g., 1110
indicates that the injector is
plumbed into products 1, 2,and 3.) __ __ __ __
Note: If that additive injector output is configured for use and this entry is "0000" the indication is that it is plumbed into the loading arm
of the metering system.
downstream
041 Additive Injector Enter: Four digit number indicating 041
#5 Plumbing the products that this additive
injector is plumbed into.
1st digit - Product #1
2nd digit - Product #2
3rd digit - Product #3
4th digit - Product #4
A zero in the digit indicates
that the injector is not plumbed
into that product, a one indicates
that the injector is plumbed
into that product. (e.g., 1110
indicates that the injector is
plumbed into products 1, 2,and 3.) __ __ __ __
Note: If that additive injector output is configured for use and this entry is "0000" the indication is that it is plumbed into the loading arm
of the metering system.
downstream
18 Issue/Rev. 03 (8/97)
Page 24
Program Program
Code Function Code Description Entry Code
042 Additive Injector Enter: Four digit number indicating 042
#6 Plumbing the products that this additive
injector is plumbed into.
1st digit - Product #1
2nd digit - Product #2
3rd digit - Product #3
4th digit - Product #4
A zero in the digit indicates
that the injector is not plumbed
into that product, a one indicates
that the injector is plumbed
into that product. (e.g., 1110
indicates that the injector is
plumbed into products 1, 2,and 3.) __ __ __ __
Note: If that additive injector output is configured for use and this entry is "0000" the indication is that it is plumbed into the loading arm
of the metering system.
downstream
043 Additive Injector Enter: Four digit number indicating 043
#7 Plumbing the products that this additive
injector is plumbed into.
1st digit - Product #1
2nd digit - Product #2
3rd digit - Product #3
4th digit - Product #4
A zero in the digit indicates
that the injector is not plumbed
into that product, a one indicates
that the injector is plumbed
into that product. (e.g., 1110
indicates that the injector is
plumbed into products 1, 2,and 3.) __ __ __ __
Note: If that additive injector output is configured for use and this entry is "0000" the indication is that it is plumbed into the loading arm downstream
of the metering system.
Issue/Rev. 0.3 (8/97) 19
Page 25
Program Program
Code Function Code Description Entry Code
044 Additive Injector Enter: Four digit number indicating 044
#8 Plumbing the products that this additive
injector is plumbed into.
1st digit - Product #1
2nd digit - Product #2
3rd digit - Product #3
4th digit - Product #4
A zero in the digit indicates
that the injector is not plumbed
into that product, a one indicates
that the injector is plumbed
into that product. (e.g., 1110
indicates that the injector is
plumbed into products 1, 2,and 3.) __ __ __ __
Note: If that additive injector output is configured for use and this entry is "0000" the indication is that it is plumbed into the loading arm downstream
of the metering system.
045-089 Unassigned at Present 045-089
090 Input/Output Enter: "1" One Product 090
Configuration "2" Two Products
"3" Three Products
"4" Four Products __
Warning: If you have already programmed codes 001 through 045, do not program this code. It may change what
you have already programmed.
Note: Entering the above number will program the AccuLoad II to a typical Input and Output configuration for the number of products selected.
Refer to manual MN06066L for input and output assignments when using this method of configuring the AccuLoad II-RBU.
091 Print Enter: Press "ENTER". The output configuration 091
Configuration will be displayed. Press "ENTER". The
input configuration will be displayed.
Press "ENTER" again to print the
configuration report.
092-099 Unassigned at Present 092-099
20 Issue/Rev. 03 (8/97)
Page 26
Program Program
Code Function Code Description Entry Code
100 System General Purpose Directory 100
101 System Alarm Check/Reset Read only, Press E to clear None 101
Available Alarms
A2: Print Cover Open E4: Printer Error
A4: Print Cover Open F1: Add 1 Feedback
B2: Buffer Overflow F2: Add 2 Feedback
B4: Buffer Overflow F3: Add 3 Feedback
CL: Clean Line F4: Add 4 Feedback
CM: Communication F5: Add 5 Feedback
DA: EEProm Bad F6: Add 6 Feedback
DA: Ram Bad F7: Add 7 Feedback
DA: Rom Uxx Bad F8: Add 8 Feedback
DA: Watchdog Alarm H2: Printer Hardware
DA: Display Error H4: Printer Hardware
DA: Data Retention I2: Printer Not Responding
DA: Display Boot Required I4: Printer Not Responding
DA: Control Module OA: Overrun
DA: Security Code O2: Printer Paper Out
DA: Software Version O4: Printer Paper Out
DA: Internal Temperature PA: Power Failure*
DA: Keypad Alarm P2: Printer Communication
DA: Keypad Mismatch P4: Printer Communication
DA: Program Code SF: Storage Full
D2: Printer Deselected SP: Shared Printer
D4: Printer Deselected TK: Ticket Alarm
E2: Printer Error ZF: Zero Flow**
*Note: This alarm applies to RBU-07 and above firmware only.
**Note: This alarm applies to RBU-08 and above firmware only.
102 Product 1 Alarm Check/Reset Read only, Press E to clear None 102
Available Alarms
BH: Blend High LF: Low Flow
BL: Blend Low LP: Low Pressure
BP: Back Pressure LT: Low Temperature
CF: Not Configured Flow OA: Overrun
DA: Program Code PR: Pressure Transducer
DR: Density Transducer PS: Pulse Security
HD: High Density PT: Pulse Transmission Alarm
HF: Excess High Flow TP: Temperature Probe
HP: High Pressure UF: Unauthorized Flow
HT: High Temperature VF: Valve Fault
LD: Low Density ZF: Zero Flow
Issue/Rev. 0.3 (8/97) 21
Page 27
Program Program
Code Function Code Description Entry Code
103 Product 2 Alarm Check/Reset Read only, Press E to clear None 103
Available Alarms
BH: Blend High LF: Low Flow
BL: Blend Low LP: Low Pressure
BP: Back Pressure LT: Low Temperature
CF: Not Configured Flow OA: Overrun
DA: Program Code PR: Pressure Transducer
DR: Density Transducer PS: Pulse Security
HD: High Density PT: Pulse Transmission Alarm
HF: Excess High Flow TP: Temperature Probe
HP: High Pressure UF: Unauthorized Flow
HT: High Temperature VF: Valve Fault
LD: Low Density ZF: Zero Flow
104 Product 3 Alarm Check/Reset Read only, Press E to clear None 104
Available Alarms
BH: Blend High LF: Low Flow
BL: Blend Low LP: Low Pressure
BP: Back Pressure LT: Low Temperature
CF: Not Configured Flow OA: Overrun
DA: Program Code PR: Pressure Transducer
DR: Density Transducer PS: Pulse Security
HD: High Density PT: Pulse Transmission Alarm
HF: Excess High Flow TP: Temperature Probe
HP: High Pressure UF: Unauthorized Flow
HT: High Temperature VF: Valve Fault
LD: Low Density ZF: Zero Flow
22 Issue/Rev. 03 (8/97)
Page 28
Program Program
Code Function Code Description Entry Code
105 Product 4 Alarm Check/Reset Read only, Press E to clear None 105
Available Alarms
BH: Blend High LF: Low Flow
BL: Blend Low LP: Low Pressure
BP: Back Pressure LT: Low Temperature
CF: Not Configured Flow OA: Overrun
DA: Program Code PR: Pressure Transducer
DR: Density Transducer PS: Pulse Security
HD: High Density PT: Pulse Transmission Alarm
HF: Excess High Flow TP: Temperature Probe
HP: High Pressure UF: Unauthorized Flow
HT: High Temperature VF: Valve Fault
LD: Low Density ZF: Zero Flow
106 Recipe Alarms Check/Reset Read only, Press E to clear None 106
Available Alarms
DA: Program Code
107 Transaction Alarms To be read only None 107
108 Ready Mode Alarms To be read only None 108
109 Set Time Enter: Five digits. Two digits 109
for hours, Two digits for minutes
and one to indicate military,
time, AM or PM. The last digit will
be "0" = AM, "1" = PM and
"2" = Military (e.g., 01:130) __ __ __ __ __
110 Set Date Enter: Six digits. Two digits for 110
month followed by two digits for
day, followed by digits for
year (e.g., 011288) __ __ __ __ __ __
111 Dynamic Display Enter: Two digits in seconds 111
Time-out of time-out (e.g., 15)
"00" Display will remain till
the "CLEAR" key is pressed
"99" will disable the dynamic displays. __ __
Issue/Rev. 0.3 (8/97) 23
Page 29
Program Program
Code Function Code Description Entry Code
112-139 Unassigned at Present 112-139
140 Protection of Program Enter: "0" for Weights and Measures Mode 140
Codes 180-189 "1" for Program Mode __
141 Local Mode Alarm Enter: One digit from one to 141
Clearing nine indicates the number
of alarms that can be cleared
during a transaction when
in the Run Mode. (e.g., 3) __
142 Decimal or Comma Enter: "0" Decimal 142
Selection "1" Comma __
143 Alarm Relay Enter: "0" Alarm Relay on Valve Fault 143
"1" Alarm Relay on Any Fault
"2" No Alarm Relay __
144 Run & Ready Mode Enter: "0" English 144
Initialization "1" Portuguese __
Note: This code applies to RBU-05 and above firmware.
145 Ready/Run Mode Enter: The number of the alarm that is to 145
Clearable Alarms be changed (see Appendix for the
Selection alarms, associated numbers and recording
entries). When the alarm is displayed
enter a "0" if the alarm is allowed to be
cleared in the Ready/Run Mode. Enter a "1"
if the alarm is not allowed to be cleared in
the Ready/Run Mode.
Note: 1. If code 141 is set to "0" the message "No Alarm Clearing" will be displayed and no entries will be allowed.
2. This code applies to RBU-08 and above firmware.
146-179 Unassigned at Present 146-179
180 Programming Access Enter: Four digit number permits 180
Code entry in to the Program or Weights
and Measures Mode (e.g., 1234) __ __ __ __
24 Issue/Rev. 03 (8/97)
Page 30
Program Program
Code Function Code Description Entry Code
181 Transaction Security Enter: Eight digit transaction 181
ID ID number (e.g., 12345678)
"00000000" disables this feature
__ __ __ __ __ __ __ __
182 Transaction Security Enter: Up to 20 characters 182
Prompt Message for a prompt message
(e.g., Enter ID Number)
____________________
183 Auto Reset Timer Enter: Two digit number in 183
minutes that the AccuLoad II
will remain in the a mode of
operation before automatically
returning to the Ready Mode (e.g., 05)
"00" disables this feature __ __
184 Ready Mode Enter: Up to 15 characters 184
Message for a prompt message
(e.g., Load Arm #1) _________________
185 Run & Ready Mode Enter: The number of the display 185
Customized Display that you want to change.
Press "ENTER" the default
display will appear for that
number or you can scroll through
the displays by pressing the
"ENTER" key. The display can be
changed using the character set
resident in the AccuLoad II. (See
Appendix for entry numbers and to
record translation.)
Note: This code applies to RBU-05 and above firmware.
186 Power Failure Alarm Enter: "0" No Power Failure Alarm 186
"1" Power Failure Alarm
(No Local Clearing)
"2" Power Failure Alarm
(Local Clearing Allowed) __
Note: This code applies to RBU-07 and above firmware.
187-199 Unassigned at Present 187-199
Issue/Rev. 0.3 (8/97) 25
Page 31
Program Program
Code Function Code Description Entry Code
200 System Flow Control Directory 200
201 Low Flow Start Volume Enter: Four digits in whole 201
units (e.g., 0100) __ __ __ __
Note: The larger of the volumes as programmed in this code or calculated in code 202 will be used as the low flow start volume.
202 Low Flow Start Enter: Two digits in whole percentage 202
Percentage indicating the percentage of the preset
to be delivered during low flow start
(e.g., 10%) __ __
Note: The larger of the volumes as calculated using the percentage entered in this code or the volume entered in code 201 will be used as the low
flow start volume.
203 Low Flow Start Rate Enter: Four digits in whole 203
units per minute (e.g., 0150)
"0000" entry will not allow
the valve to open. __ __ __ __
204 Low Flow Start Enter: "0" Low Flow Start always after 204
zero flow.
"1" Low Flow Start at beginning
of batch only. ___
205 System First High Enter: Four digits in whole units 205
Flow Rate (e.g., 0600) "0000" Entry will not
allow the valve to open. __ __ __ __
206 System Second High Enter: Four digits in whole units 206
Flow Rate (e.g., 0300) "0000" Entry will not
allow the valve to open if configured
for 1st/2nd High Flow. __ __ __ __
207 Overrun Alarm Limit Enter: Two digits in whole 207
units (e.g., 15)
"00" disables the alarm __ __
208 Zero Flow Timer Enter: Two digits in seconds (e.g., 15) 208
"00" disables this option __ __
26 Issue/Rev. 03 (8/97)
Page 32
Program Program
Code Function Code Description Entry Code
209 Start Delay After Stop Enter: Three digits in whole seconds 209
of delay time from when the "STOP"
is pressed until the "START" can be
pressed. (e.g., 020) __ __ __
210 Pump Relay Time Enter: Two digits in seconds of 210
Delay delay time for opening the pump
relay after "STOP".
(e.g., 09) __ __
211 Valve Delay To Open Enter: Two digits in seconds of 211
delay time to open the valve
after "START" is pressed. (e.g., 07)
"00" disables option __ __
212 Zero Flow Alarm Enter: "0" Zero Flow Alarm Disabled 212
"1" Zero Flow Alarm Enabled __
Note: This code applies to RBU-08 and above firmware.
213-239 Unassigned at Present 213-239
240 Protection of Program Enter: "0" for Weights and Measures Mode 240
Codes 280-289 "1" for Program Mode __
280 Clean Line Product Enter: "1" for Product 1 280
"2" for Product 2
"3" for Product 3
"4" for Product 4 __
Note: If a recipe of 100% of the Clean Line Product is being loaded the AccuLoad II will not shut down and restart to add the Clean Line Product.
This note applies to RBU-08 and above firmware.
281 Clean Line Volume Enter: Three digits in whole 281
units of product to be left
in the clean line at the end of
the batch. (e.g., 050) __ __ __
Issue/Rev. 0.3 (8/97) 27
Page 33
Program Program
Code Function Code Description Entry Code
282 Clean Line Alarm Enter: Two digits in volume 282
Limit of under delivery of the
clean line volume allowed.
(e.g., 10) __ __
283 Ratio Adjustment Enter: Three digits in tenths to 283
Factor speed up response of blend values
(e.g., 20.0) __ __ . __
Note: This adjustment factor must not be set to 00.0.
284 Ratio Adjustment Enter: Two digits in seconds to set 284
Timer amount of time between ratio flow
adjustments.
(e.g., 01) __ __
Note: This adjustment must not be set to 00.
285-299 Unassigned at Present 285-299
300 System Volume Accuracy Directory 300
301 Transaction Control Enter: "0" Local Tray Switch 301
"1" Print Key
"2" Remote
"3" Master Reset __
302 Maximum Preset Enter: Five digits in whole units 302
Volume (e.g., up to 99,999 units)
"00000" disables option __ __ __ __ __
303 Minimum Preset Enter: Five digits in whole units 303
Volume (e.g., up to 99,999 units)
"00000" disables option __ __ __ __ __
304 Auto Preset Enter: Five digits in whole units 304
(e.g., 99,999 units)
"00000" disables option __ __ __ __ __
28 Issue/Rev. 03 (8/97)
Page 34
Program Program
Code Function Code Description Entry Code
305 Auto Preset Increment Enter: Four digits in whole units 305
to increment the auto preset.
(e.g., 0100 units)
"0000" disables option __ __ __ __
306 Blank Downcounter Enter: "0" Downcounter to be Displayed 306
"1" No Downcounter Displayed __
307 Volumes for Local Enter: Four digit number indicating 307
Storage the volumes that will be stored in
local storage along with the Gross
Volume (GR).
Note: A maximum of three volumes
will be stored including the Gross.
1st digit - Raw Volumes (RW)
2nd digit - Gross at Standard Temperature
Volumes (GT)
3rd digit - Net Volumes (NT)
4th digit - Mass Totals (MA)
A zero in the digit indicates
that the volume will not be
saved in local storage, a one
indicates the volume will be
saved in local storage. (e.g.,
1100 indicates the raw volumes
and the Gross at standard
temperature volumes will be stored
along with the gross volumes.) __ __ __ __
308-339 Unassigned at Present 308-339
340 Protection of Program Enter: "0" for Weights and Measures Mode 340
Codes 380-389 "1" for Program Mode __
341 Display Units Enter: Three character message 341
identifying the display units
(e.g., GAL) __ __ __
342 Corrected Display Enter: "0" No Correction 342
Indicator "1" Correct Delivery Display
"2" Corrected Preset Display
"3" Corrected Delivery & Preset __
Issue/Rev. 0.3 (8/97) 29
Page 35
Program Program
Code Function Code Description Entry Code
343 Display Resolution Enter: "0" Whole Unit Display 343
"1" Tenth Unit Display
"2" Hundredth Unit Display
"3" Tens Unit Display __
344 Proving Modes Enter: "0" Not Proving 344
"1" Weights and Measures Proving
"2" High-Speed Proving __
345 Proving Output Enter: "0" No Prover Output 345
"1" Product #1 Prover Output
"2" Product #2 Prover Output
"3" Product #3 Prover Output
"4" Product #4 Prover Output __
346 Proving Output Units Enter: "0" Raw Prover Output (Raw) 346
"1" Gross Prover (Grs)
"2" Gross Prover at Standard Temperature (Gst)
"3" Gross Prover at Standard Temperature
and Pressure Preset (Net)
"4" Mass Preset (Whole Units) __
347 Recipes Per Enter: "0" Single Recipe/Transaction 347
Transaction "1" Multiple Recipes/Transaction __
348 Blend Tolerance Enter: Two digits in tenths of a 348
(Percentage) percentage for the tolerance allowed
for all delivered blends.
(e.g., 5.0 = 5 %) __ . __
Note: The larger of the tolerances as calculated using the percentage entered in this code or the volume entered in code 349 will be used to
determine when a blend alarm should be triggered.
349 Blend Tolerance Enter: Three digits of Volume for 349
(Volume) Blend Tolerance in tenths of units.
(e.g., 10.0) __ __.__
Note: The larger of the tolerances as programmed in this code or calculated in code 348 will be used to determine when a blend alarm should be
triggered.
30 Issue/Rev. 03 (8/97)
Page 36
Program Program
Code Function Code Description Entry Code
350 Combinated Pulse Enter: "0" Raw Pulse Output 350
Output "1" Gross Pulse Output
"2" Gross @ Standard
Temperature Output
"3" Net Output
"4" Mass Output __
Note: This code applies to RBU-02 and above firmware.
351 Combinated Pulse Enter: Six digits defining the 351
Output Resolution pulse output resolution
(units/pulse) in thousandths
of units, 000.000 disables
this feature (e.g., 010.0) __ __ __ . __ __ __
Note: This code applies to RBU-02 and above firmware.
352 Combinate Pulse Enter: Three digits representing 352
Frequency will be output by the
combinated pulse output.
The range of this code is
004 to 999 (e.g., 500 Hz.). __ __ __
Note: This code applies to RBU-02 and above firmware.
353 Resolution of Enter: "0" Whole Units 353
Volumetric Totals "1" Tenth Units
on a Printed Report "2" Hundredth Units __
Note: This code applies to RBU-08 and above firmware.
354 Number of Batches Enter: A single digit representing the 354
per Transaction number of batches allowed to be
run per transaction. The range of
this code is 1 through 6 (e.g., 1) __
Note: This code applies to RBU-11 and above firmware.
355-389 Unassigned at Present 355-389
390 Input Pulse Type Enter: "0" Active Pulse Input 390
"1" Contact Type Input __
391-399 Unassigned at Present 391-399
Issue/Rev. 0.3 (8/97) 31
Page 37
Program Program
Code Function Code Description Entry Code
400 System Temperature & Density Directory 400
401-439 Unassigned at Present 401-439
440 Protection of Program Enter: "0" for Weights and Measures Mode 440
Codes 480-489 "1" for Program Mode __
441 Temperature Units Enter: "0" No Temperature Used 441
"1" Fahrenheit
"2" Celsius __
442 Reference Enter: Four digit reference 442
Temperature temperature in tenth degrees
(e.g., 060.0) __ __ __ . __
443 Density Units Enter: "0" No Density Units 443
"1" Lbs/Ft
"2" Kgs/M
3
.
3
. __
444 Volume/Mass Enter: "0" Gallons per Density Units 444
Conversion "1" Dekaliters per Density Units
"2" Liters per Density Units
"3" Barrels per Density Units
"4" Cubic Meters per Density Units __
445 Mass Units Enter: Three character message 445
identifying the mass units
(e.g., Lbs) __ __ __
446-499 Unassigned at Present 446-499
32 Issue/Rev. 03 (8/97)
Page 38
Program Program
Code Function Code Description Entry Code
500 System Pressure Directory 500
501-539 Unassigned at Present 501-539
540 Protection of Program Enter: "0" for Weights and Measures Mode 540
Codes 580-589 "1" for Program Mode __
541 Pressure Units Enter: "0" No Pressure Used 541
"1" Psi
"2" Bar
"3" Kgcm __
542-599 Unassigned at Present 542-599
600 System Read Only Directory 600
601 Injector 1 To be read only None 601
Non-resettable
Volumes
602 Injector 2 To be read only None 602
Non-resettable
Volumes
603 Injector 3 To be read only None 603
Non-resettable
Volumes
604 Injector 4 To be read only None 604
Non-resettable
Volumes
605 Injector 5 To be read only None 605
Non-resettable
Volumes
606 Injector 6 To be read only None 606
Non-resettable
Volumes
Issue/Rev. 0.3 (8/97) 33
Page 39
Program Program
Code Function Code Description Entry Code
607 Injector 7 To be read only None 607
Non-resettable
Volumes
608 Injector 8 To be read only None 608
Non-resettable
Volumes
609 Local Storage To be read only None 609
Transactions
610-639 Unassigned at Present 610-639
640 Protection of Program Enter: "0" for Weights and Measures Mode 640
Codes 680-689 "1" for Program Mode __
641-699 Unassigned at Present 641-699
700 System Communication Directory 700
701 EIA-232 Enter: "0" No Communications 701
Communication "1" for EIA Type Terminal
Type "2" for EIA Type Minicomputer __
702 EIA-232 Enter: "0" for Poll Only 702
Communication "1" for Poll and Authorize
Control "2" for Remote Control
"3" for Auto Out Printer (one AccuLoad II per printer)
"4" for Shared Auto Out Printer
(up to 16 AccuLoad IIs per printer) __
34 Issue/Rev. 03 (8/97)
Page 40
Program Program
Code Function Code Description Entry Code
703 EIA-232 Baud Rate Enter: "0" for 110 Baud 703
"1" for 150 Baud
"2" for 300 Baud
"3" for 600 Baud
"4" for 1200 Baud
"5" for 2400 Baud
"6" for 3600 Baud
"7" for 4800 Baud
"8" for 7200 Baud
"9" for 9600 Baud __
704 EIA-232 Data Format Enter: "0" EIA-232 7 Bits Even 704
"1" EIA-232 7 Bits Odd
"2" EIA-232 7 Bits None
"3" EIA-232 8 Bits Even
"4" EIA-232 8 Bits Odd
"5" EIA-232 8 Bits None __
705 EIA-485 Enter: "0" No Communications 705
Communication "1" EIA Type Terminal
Type "2" EIA Type Minicomputer __
706 EIA-485 Enter: "0" for Polling Only 706
Communication "1" for Poll and Authorize
Control "2" for Remote Control
"3" for Auto Out
"4" for Shared Auto Out __
707 EIA-485 Baud Rate Enter: "0" for 110 Baud 707
"1" for 150 Baud
"2" for 300 Baud
"3" for 600 Baud
"4" for 1200 Baud
"5" for 2400 Baud
"6" for 3600 Baud
"7" for 4800 Baud
"8" for 7200 Baud
"9" for 9600 Baud __
Issue/Rev. 0.3 (8/97) 35
Page 41
Program Program
Code Function Code Description Entry Code
708 EIA-485 Data Format Enter: "0" EIA-485 7 Bits Even 708
"1" EIA-485 7 Bits Odd
"2" EIA-485 7 Bits None
"3" EIA-485 8 Bits Even
"4" EIA-485 8 Bits Odd
"5" EIA-485 8 Bits None __
709 Communication Enter: Two digit number to 709
Address identify the unit location
for communications, range
01 to 99 (e.g., 25) __ __
710 Printer Output Enter: Up to 20 characters 710
Message #1 for prompt message
(e.g., Smith Meter Inc.)
_______________
711 Printer Output Enter: Up to 20 characters 711
Message #2 for printer message
(e.g., P. O. Box 10428)
_______________
712 Printer Output Enter: Up to 20 characters 712
Message #3 for printer message
(e.g., 1602 Wagner Ave.) _______________
713 Printer Output Enter: Up to 20 characters 713
Message #4 for printer message
(e.g., Erie, Pa.) _______________
714 Printer Output Enter: Up to 20 characters 714
Message #5 for printer message
(e.g., Erie Terminal) _______________
715 Prompt Message #1 Enter: Up to 20 characters 715
for prompt message
(e.g., Enter Driver ID) _______________
36 Issue/Rev. 03 (8/97)
Page 42
Program Program
Code Function Code Description Entry Code
716 Prompt Message #2 Enter: Up to 20 characters 716
for prompt message
(e.g., Enter Company ID) _______________
717 Prompt Message #3 Enter: Up to 20 characters 717
for prompt message
(e.g., Enter Trailer No) _______________
718 Prompt Message #4 Enter: Up to 20 characters 718
for prompt message
(e.g., Enter Carrier ID) _______________
719 Prompt Message #5 Enter: Up to 20 characters 719
for prompt message
(e.g., Connect Ground) _______________
720 Meter ID Enter: Up to 20 characters 720
for meter identification
(e.g., XX12) _______________
721 Print Summary Enter: "0" Summary w/Report 721
"1" No Summary w/Report
"2" Summary only
*"3" User Configured Report __
Note: * This Selection applies to RBU-01 and above firmware.
722 Print Volumes Enter: "0" Print all volumes 722
"1" Print recipe volumes only
"2" Print product volumes only __
723 Report Summary Enter: "1" Product 1 723
HM Classification "2" Product 2
"3" Product 3
"4" Product 4 __
724 Delivery Report To be read only. Displays the current None 724
Display setup of the Delivery Report.
Note: This code applies to RBU-01 and above firmware.
Issue/Rev. 0.3 (8/97) 37
Page 43
Program Program
Code Function Code Description Entry Code
725-739 Unassigned at Present 725-739
740 Protection of Program Enter: "0" for Weights and Measures Mode 740
Codes 780-789 "1" for Program Mode __
741 Communication Link Enter: "0" for No Program Code Values 741
Programming "1" for Program Values Only
"2" for Program and Weights and
Measures Values
"3" for Alarm Reset Only __
742 Communications Enter: Three digits in seconds 742
Time-out that communication polling may
be absent (e.g., 060)
"000" disables the Communications
Alarm Mode __ __ __
743 Communications Enter: "0" Standby Mode 743
Alarm Mode "1" Communications Alarm Mode
"2" Standby and Communications
Alarm Mode __
744 Prompt Time-out Enter: Three digits in seconds 744
of time-out allowed with each
prompt (e.g., 015) __ __ __
Note: Minimum time-out is 10 seconds.
745 Prompt Data Entry #1 Enter: Two digits representing 745
the prompt data response.
First digit "0" = Displayed
First digit "1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry (e.g., 04) __ __
746 Prompt Data Entry #2 Enter: Two digits representing 746
the prompt data response.
First digit "0" = Displayed
First digit "1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry (e.g., 15) __ __
38 Issue/Rev. 03 (8/97)
Page 44
Program Program
Code Function Code Description Entry Code
747 Prompt Data Entry #3 Enter: Two digits representing 747
the prompt data response.
First digit "0" = Displayed
First digit "1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry (e.g., 15) __ __
748 Prompt Data Entry #4 Enter: Two digits representing 748
the prompt data response.
First digit "0" = Displayed
First digit "1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry (e.g., 16) __ __
749 Prompt Data Entry #5 Enter: Two digits representing 749
the prompt data response.
First digit "0" = Displayed
First digit "1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry (e.g., 16) __ __
750 Start Key Enter: "0" Start Key Enabled 750
Enable/Disable "1" Start Key Disabled __
751 Shared Printer Enter: "0" for No SP Alarm 751
Out Alarm "1" for Local SP Alarm
"2" for Program SP Alarm __
752 Shared Printer Out Enter: Two digits in minutes 752
Timer of time that the AccuLoad II
will wait before Alarming. __ __
753 EIA-232 Printer Enter: "0" No 232 Security 753
Security "1" XON/XOFF
"2" DEC Protocol
"3" PTB - FX Protocol
"4" PTB - LQ Protocol __
Note: Options 3 and 4 of this code apply to RBU-02 and above firmware.
Issue/Rev. 0.3 (8/97) 39
Page 45
Program Program
Code Function Code Description Entry Code
754 EIA-485 Printer Enter: "0" No 485 Security 754
Security "1" XON/XOFF
"2" DEC Protocol
"3" PTB - FX Protocol
"4" PTB - LQ Protocol __
Note: Options 3 and 4 of this code apply to RBU-02 and above firmware.
755 Shared Printer Enter: "0" No Security Alarm 755
Security Alarm "1" Local Security Alarm
"2" Prg Security Alarm __
Note: Used with DEC Security.
756 Select Volumes to Enter: Five digit number indicating 756
Print the totals that will be printed
on the Product Receipt Ticket.
1st digit - Raw Totals
2nd digit - Gross Totals
3rd digit - Gross at Standard
Temperature Totals
4th digit - Net Totals
5th digit - Mass Totals
A zero in the digit indicates
the total will not be printed,
a one indicates the total
will be printed. (e.g., 01100
indicates that Gross totals
and the Gross at Standard
Temperature will be printed
on the Product Receipt Ticket.) __ __ __ __ __
Note: The current load ticket can have all five of the volumes printed on it. However, any reprint of that load ticket will only contain the totals that
have been selected for local storage in code 307 and in this program code.
40 Issue/Rev. 03 (8/97)
Page 46
Program Program
Code Function Code Description Entry Code
757 Select Load Enter: Three digit number indicating 757
Parameters to Print the load averages that will be printed
on the Product Receipt Ticket.
1st digit - Load Average Temperature
2nd digit - Load Average Density
3rd digit - Reference Density
A zero in the digit indicates
the load average will not be printed,
a one indicates the load average will
be printed. (e.g., 110 indicates that the
Load Average Temperature and the Load
Average Density will be printed on the
Product Receipt Ticket.) __ __ __
758 Select the Additive Enter: Eight digit number indicating 758
Volumes to Print the additive volumes that will be printed
on the Product Receipt Ticket.
1st digit - Additive Volume #1
2nd digit - Additive Volume #2
3rd digit - Additive Volume #3
4th digit - Additive Volume #4
5th digit - Additive Volume #5
6th digit - Additive Volume #6
7th digit - Additive Volume #7
8th digit - Additive Volume #8
A zero in the digit indicates
the additive volume will not be printed,
a one indicates the additive volume will
be printed. (e.g., 10100000 indicates
that Additive Volume #1 and Additive
Volume #3 will be printed on the Product
Receipt Ticket.) __ __ __ __ __ __ __ __
Issue/Rev. 0.3 (8/97) 41
Page 47
Program Program
Code Function Code Description Entry Code
759 Define Delivery Enter: Ten digits in the form of 759
Report four digits for the current line
(0000), three digits for the column
number that the data will start at
(000), and the item that will be
printed (000) on the delivery
report. Refer to Appendix II for
item numbers. (e.g., 0134, 016, 135)
__ __ __ __, __ __ __, __ __ __
Note: To delete information from the delivery report move to the entry number field by pressing "ENTER" and enter a zero and press "ENTER"
Note: This code applies to RBU-01 and above firmware.
again.
760-779 Unassigned at Present 760-779
780 Number of Prompts Enter: One digit between 0 and 5 780
representing the number of
prompts used in the Standby Mode (e.g., 4)
"0" disables prompts in the Standby Mode __
781 Print Transaction Enter: Three digit Transaction 781
Number to print the transaction
data desired. (e.g., 010 will
print the tenth transaction back
from the current transaction.) __ __ __
782 Prompts Printed Enter: "0" Standby Blank 782
"1" Standby Print
"2" Always Print __
783-789 Unassigned at Present 783-789
790 High-Security Enter: "0" No High-Security Programming 790
Communications through communications
Programming "1" High-Security Programming
through communications __
Note: High-Security Programming refers to the codes in the configuration directory and any codes in other directories that have a second digit of
nine.
791-799 Unassigned at Present 791-799
42 Issue/Rev. 03 (8/97)
Page 48
Program Program
Code Function Code Description Entry Code
800 System Input/Output Directory 800
801 Additive Injector Stop Enter: "0" Additive stop at end 801
of batch (Option 1)
"1" Additive stop at programmed
stop volume with no recalculation
of Additive. (Option 2)
"2" Additive stop at programmed
stop volume with recalculation
of additive (Option 3) __
802 Additive Injector Enter: Three digits in whole units 802
Stop Volume of remaining system volume to
be loaded when the Additive Injectors
will be stopped (e.g., 75). __
803 Additive Injector Enter: "0" for Raw output 803
Output "1" for Gross output
"2" for Gst output
"3" for Net output __
804 Manual/Auto Enter: "0" for Auto Injectors 804
Additive Injector "1" for Manual Injectors
Selection when in the Standby Mode.
"2" for Manual Injectors
per transaction.
"3" for Manual Injectors
per batch. __
805 Restart After Enter: "0" Manual Valve Start 805
Valve Power "1" Auto Valve Start __
Restored
806 Valve Power Sense Enter: Up to 20 characters 806
Permissive Message for prompt message
(e.g., Permissive Not Met) _______________
Issue/Rev. 0.3 (8/97) 43
Page 49
Program Program
Code Function Code Description Entry Code
807 Permissive #1 Enter: "0" No Permissive 1 807
"1" Permissive 1 Transaction start only
"2" Permissive 1 Continuously
"3" Start Permissive 1
"4" Batch Permissive 1
"5" Remote Start __
Note: Option 5 requires hardware jumpers (see installation manual).
808 Permissive #1 Enter: Up to 20 characters 808
Message for prompt message
(e.g., Connect Ground) _______________
809 Restart After Enter: "0" Man Perm. 1 Start 809
Permissive #1 Met "1" Auto Perm. 1 Start __
810 Prompt Message Enter: Up to 20 characters 810
for prompt message if no
AC power is detected on the
AC Input Programmed for
Printer Tray Switch or
Master Reset (e.g.,
Please Insert Ticket) _______________
811 Permissive #2 Enter: "0" No Permissive 2 811
"1" Permissive 2 Transaction start only
"2" Permissive 2 Continuously
"3" Start Permissive 2
"4" Batch Permissive 2
"5" Remote Stop __
Note: Option 5 requires hardware jumpers (see Installation Manual).
812 Permissive #2 Enter: Up to 20 characters 812
Message for prompt message
(e.g., Connect Vapor) _______________
813 Restart After Enter: "0" Man Perm. 2 Start 813
Permissive #2 Met "1" Auto Perm. 2 Start __
814 Additive #1 Message Enter: Up to nine characters 814
for Additive #1 Message on
the Product Receipt Ticket.
(e.g., Dye) _______________
44 Issue/Rev. 03 (8/97)
Page 50
Program Program
Code Function Code Description Entry Code
815 Additive #2 Message Enter: Up to nine characters 815
for Additive #2 Message on
the Product Receipt Ticket.
(e.g., Dye) _______________
816 Additive #3 Message Enter: Up to nine characters 816
for Additive #3 Message on
the Product Receipt Ticket.
(e.g., Dye) _______________
817 Additive #4 Message Enter: Up to nine characters 817
for Additive #4 Message on
the Product Receipt Ticket.
(e.g., Dye) _______________
818 Additive #5 Message Enter: Up to nine characters 818
for Additive #5 Message on
the Product Receipt Ticket.
(e.g., Dye) ________________
819 Additive #6 Message Enter: Up to nine characters 819
for Additive #6 Message on
the Product Receipt Ticket.
(e.g., Dye) ________________
820 Additive #7 Message Enter: Up to nine characters 820
for Additive #7 Message on
the Product Receipt Ticket.
(e.g., Dye) _______________
821 Additive #8 Message Enter: Up to nine characters 821
for Additive #8 Message on
the Product Receipt Ticket.
(e.g., Dye) ________________
822-839 Unassigned at Present 822-839
840 Protection of Program Enter: "0" for Weights and Measures Mode 840
Codes 880-889 "1" for Program Mode __
Issue/Rev. 0.3 (8/97) 45
Page 51
Program Program
Code Function Code Description Entry Code
841 Additive Injector #1 Enter: "0" No Injector 1 Feedback 841
Feedback "1" Injector 1 Feedback/Control
"2" Injector 1 Feedback Only __
842 Additive Injector #1 Enter: Six digits defining 842
Volume per Cycle the volume of product to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
843 Additive Injector #2 Enter: "0" No Injector 2 Feedback 843
Feedback "1" Injector 2 Feedback/Control
"2" Injector 2 Feedback Only __
844 Additive Injector #2 Enter: Six digits defining 844
Volume per Cycle the volume of product to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
845 Additive Injector #3 Enter: "0" No Injector 3 Feedback 845
Feedback "1" Injector 3 Feedback/Control
"2" Injector 3 Feedback Only __
846 Additive Injector #3 Enter: Six digits defining 846
Volume per Cycle the volume of product to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
847 Additive Injector #4 Enter: "0" No Injector 4 Feedback 847
Feedback "2" Injector 4 Feedback Only __
848 Additive Injector #4 Enter: Six digits defining 848
Volume per Cycle the volume of product to be
injected for each Additive Injector
cycle (e.g., 010.000) __ __ __ . __ __ __
849 Additive Injector #5 Enter: "0" No Injector 5 Feedback 849
Feedback "1" Injector 5 Feedback/Control
"2" Injector 5 Feedback Only __
46 Issue/Rev. 03 (8/97)
Page 52
Program Program
Code Function Code Description Entry Code
850 Additive Injector #5 Enter: Six digits defining 850
Volume per Cycle the volume of product to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
851 Additive Injector #6 Enter: "0" No Injector 6 Feedback 851
Feedback "1" Injector 6 Feedback/Control
"2" Injector 6 Feedback Only __
852 Additive Injector #6 Enter: Six digits defining 852
Volume per Cycle the volume of product to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
853 Additive Injector #7 Enter: "0" No Injector 7 Feedback 853
Feedback "1" Injector 7 Feedback/Control
"2" Injector 7 Feedback Only __
854 Additive Injector #7 Enter: Six digits defining 854
Volume per Cycle the volume of product to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
855 Additive Injector #8 Enter: "0" No Injector 8 Feedback 855
Feedback "1" Injector 8 Feedback/Control
"2" Injector 8 Feedback Only __
856 Additive Injector #8 Enter: Six digits defining 856
Volume per Cycle the volume of product to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
857 Injector Units Enter: Three character message 857
identifying the injector units
(e.g., Ozs) __ __ __
Issue/Rev. 0.3 (8/97) 47
Page 53
Program Program
Code Function Code Description Entry Code
858 Additive Injector Enter: Ten digits for converting the 858
Conversion Factor additive injector units (oz, cc etc.,) to
volume units (gal, liter, etc.,) when using
downstream additive injection. The first seven
digits are the base number, the eighth unit is
the exponent sign and the last two digits
are the exponent. The exponent sign is
entered as a zero for positive and a
one for negative. (e.g., 7.812500E-03
conversion for ounce to gallon.)
Note: If set to zero the AccuLoad II will not add the Additive volumes to the delivered product volumes.
__ . __ __ __ __ __ __ E __ __ __
859 Additive Injector Enter: Two digits defining 859
Feedback Errors the number of errors before alarming __ __
860 Injector #1 Feedback Enter: Three digits in seconds 860
Delay allowed between feedbacks before
an alarm. __ __ __
861 Injector #2 Feedback Enter: Three digits in seconds 861
Delay allowed between feedbacks before
an alarm. __ __ __
862 Injector #3 Feedback Enter: Three digits in seconds 862
Delay allowed between feedbacks before
an alarm. __ __ __
863 Injector #4 Feedback Enter: Three digits in seconds 863
Delay allowed between feedbacks before
an alarm. __ __ __
864 Injector #5 Feedback Enter: Three digits in seconds 864
Delay allowed between feedbacks before
an alarm. __ __ __
48 Issue/Rev. 03 (8/97)
Page 54
Program Program
Code Function Code Description Entry Code
865 Injector #6 Feedback Enter: Three digits in seconds 865
Delay allowed between feedbacks before
an alarm. __ __ __
866 Injector #7 Feedback Enter: Three digits in seconds 866
Delay allowed between feedbacks before
an alarm. __ __ __
867 Injector #8 Feedback Enter: Three digits in seconds 867
Delay allowed between feedbacks before
an alarm. __ __ __
868 Minimum Units Enter: Five digits in tenth units 868
4-20 Channel #1 for minimum units at 4 mA
(e.g., 0100.0) __ __ __ __ . __
Note: If the channel is selected for temperature the first digit entered is the sign + or -. Where 0 = +, 1 = -.
869 Maximum Units Enter: Five digits. For 869
4-20 Channel #1 maximum units at 20 mA in
tenth units (e.g., 1600.0) __ __ __ __ . __
Note: If the channel is selected for temperature the first digit entered is the sign + or -. Where 0 = +, 1 = -.
870 Minimum Units Enter: Five digits in tenth units 870
4-20 Channel #2 for minimum units at 4 mA.
(e.g., 160.0) __ __ __ __ . __
Note: If the channel is selected for temperature the first digit entered is the sign + or -. Where 0 = +, 1 = -.
871 Maximum Units Enter: Five digits in tenth units 871
4-20 Channel #2 for maximum units at 20 mA.
(e.g., 160.0) __ __ __ __ . __
Note: If the channel is selected for temperature the first digit entered is the sign + or -. Where 0 = +, 1 = -.
872 Minimum Units Enter: Five digits in tenth 872
4-20 Channel #3 units for minimum units at 4 mA.
(e.g., 160.0) __ __ __ __ . __
Note: If the channel is selected for temperature the first digit entered is the sign + or -. Where 0 = +, 1 = -.
Issue/Rev. 0.3 (8/97) 49
Page 55
Program Program
Code Function Code Description Entry Code
873 Maximum Units Enter: Five digits in tenth 873
4-20 Channel #3 units for maximum units at 20 mA.
(e.g., 450.0) __ __ __ __ . __
Note: If the channel is selected for temperature the first digit entered is the sign + or -. Where 0 = +, 1 = -.
874 Minimum Units Enter: Five digits in tenth 874
4-20 Channel #4 units for minimum units at 4 mA.
(e.g., 160.0) __ __ __ __ . __
Note: If the channel is selected for temperature the first digit entered is the sign + or -. Where 0 = +, 1 = -.
875 Maximum Units Enter: Five digits in tenth 875
4-20 Channel #4 units for maximum units at 20 mA.
(e.g., 450.0) __ __ __ __ . __
Note: If the channel is selected for temperature the first digit entered is the sign + or -. Where 0 = +, 1 = -.
876-899 Unassigned at Present 876-899
900 System Diagnostic Directory 900
901 Diagnostic Display Test None 901
902 Diagnostic Keypad Test None 902
903 Diagnostic RTD #1 & #2 Test None 903
904 Diagnostic 4 - 20 mA Channel 1 & 3 None 904
905 Diagnostic 4 - 20 mA Channel 2 & 4 None 905
906 Diagnostic Internal Temperature None 906
907 Diagnostic Power Supply Test None 907
908 Diagnostic Firmware Version None 908
50 Issue/Rev. 03 (8/97)
Page 56
Program Program
Code Function Code Description Entry Code
909 Diagnostic AccuLoad II Model Number Read Only 909
910 Diagnostic ACM Model Number Read Only 910
911 Diagnostic System Messages Read Only 911
912 Diagnostic Calibration Event Counter None 912
Note: This code applies to RBU-10 and above firmware.
913 Diagnostic Configuration Event Counter None 913
Note: This code applies to RBU-10 and above firmware.
914-939 Unassigned at Present 914-939
940 Protection of Program Enter: "0" for Weights and Measures Mode 940
Codes 980-989 "1" for Program Mode __
941 Diagnostic Communication Test - EIA-232 None 941
No Echo Back
942 Diagnostic Communication Test - EIA-232 None 942
With Echo
943 Diagnostic Communication Test - EIA-485 None 943
No Echo Back
944 Diagnostic Communication Test - EIA-485 None 944
With Echo
945 Diagnostic Meter Pulse Channel 1 Active None 945
946 Diagnostic Meter Pulse Channel 1 Contact None 946
947 Diagnostic Meter Pulse Channel 2 Active None 947
Issue/Rev. 0.3 (8/97) 51
Page 57
Program Program
Code Function Code Description Entry Code
948 Diagnostic Meter Pulse Channel 2 Contact None 948
949 Diagnostic Meter Pulse Channel 3 Active None 949
950 Diagnostic Meter Pulse Channel 3 Contact None 950
951 Diagnostic Meter Pulse Channel 4 Active None 951
952 Diagnostic Meter Pulse Channel 4 Contact None 952
953 Diagnostic Contact Input Test None 953
954 Diagnostic High-Speed Prover Product 1 None 954
955 Diagnostic High-Speed Prover Product 2 None 955
956 Diagnostic High-Speed Prover Product 3 None 956
957 Diagnostic High-Speed Prover Product 4 None 957
958 Diagnostic Pulse Out 1 Test None 958
959 Diagnostic Pulse Out 2 Test None 959
960 Diagnostic Pulse Out 3 Test None 960
961 Diagnostic Pulse Out 4 Test None 961
962 Diagnostic Clear Local Storage None 962
963 Diagnostic Contact Output None 963
52 Issue/Rev. 03 (8/97)
Page 58
Program Program
Code Function Code Description Entry Code
964 Diagnostic Clear Configurable Report None 964
Note: This code applies to RBU-04 and above firmware.
965-990 Unassigned at Present 965-990
991 Diagnostic Relay Test None 991
992 Diagnostic Ram Test None 992
993 Diagnostic Power-up Diagnostics None 993
994 Diagnostic See Operator Reference Manual None 994
995 Diagnostic See Operator Reference Manual None 995
996 Diagnostic Watchdog None 996
997 Diagnostic Relay Select Test #1 None 997
998 Diagnostic Relay Select Test #2 None 998
999 Diagnostic See Operator Reference Manual None 999
Issue/Rev. 0.3 (8/97) 53
Page 59
Program
Code
Function
Code Description Prod 1 Prod 2 Prod 3 Prod 4
Product Directories
100 Product General Purpose Directory
101-139 Unassigned at Present
140 Protection of Program Enter: "0" for Weights and Measures Mode
Codes 180 - 189 "1" for Program Mode __ __ __ __
141 Product Selection Enter: "0" for Product in Use
"1" for Product Not in Use __ __ __ __
142-179 Unassigned at Present
180 Product Message Enter: Up to nine characters
for meter or product
identifier (e.g., Regular) Prod 1___________________________
Prod 2___________________________
Prod 3___________________________
Prod 4___________________________
181-199 Unassigned at Present
200 Product Flow Control Directory
201 Excess Flow Rate Enter: Two digits as a percentage
(e.g., 10) "00" Disables the High
Flow Alarm __ __ __ __ __ __ __ __
202 Overrun Alarm Limit Enter: Two digits in whole
units (e.g., 15)
"00" disables the alarm __ __ __ __ __ __ __ __
203 Minimum Flow Rate Enter: Three digits in whole units
(e.g., 080) __ __ __ __ __ __ __ __ __ __ __ __
204 High Flow Rate Enter: Four digits in whole units
(e.g., 0600) "0000" Entry will not
allow the valve to open _____ _____ _____ _____
54 Issue/Rev. 03 (8/97)
Page 60
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
205 Flow Tolerance Enter: One digit as a percentage of
First High Flow Rate (e.g., 7) __ __ __ __
206 Zero Flow Timer Enter: Two digits in seconds (e.g., 15)
"00" disables the alarm __ __ __ __ __ __ __ __
207 First Trip Volume Enter: Four digits in whole units
(e.g., 0050) _____ _____ _____ _____
208 Final (Second) Trip Enter: Three digits in tenth units
Volume (e.g., 01.0) ___._ ___._ ___._ ___._
209 Final (Second) Trip Enter: One digit which defines
Auto Adjust the number of runs to average.
(e.g., 3) __ __ __ __
210 Low Flow Rate Alarm Enter: Three digits in whole
Limit units per minute (e.g., 050)
"000" disables the alarm ____ ____ ____ ____
211 PT/VF Time Delay Enter: Two digits in seconds
of time delay (e.g., 15)
Entry must not be "00" __ __ __ __ __ __ __ __
212-239 Unassigned at Present
240 Protection of Program Enter: "0" for Weights and Measures Mode
Codes 280-289 "1" for Program Mode __ __ __ __
241 Flow Control Valve Enter: "0" for No Security
Security "1" for Security __ __ __ __
242-279 Unassigned at Present
280 Flow Adjustment Enter: Two digits as a +/- percentage
Tolerance of the programmed or calculated flow
rate. (e.g.,+/-3.0). __ . __ __ . __ __ . __ __ . __
Note: This code is used in conjunction with code 281, if code 281 is programmed "000" this function is disabled.
Issue/Rev. 0.3 (8/97) 55
Page 61
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
281 Flow Adjustment Enter: Three digits in tenths of a second
Timer for the flow rate adjustment tolerance
to be in effect (e.g., 03.0). __ . __ __ . __ __ . __ __ . __
Note: This code is used in conjunction with code 280, if code this code is programmed "000" this function is disabled.
282-299 Unassigned at Present
300 Product Volume Accuracy Directory
301 Minimum Batch Enter: Five digits in
Volume whole units (e.g., up
to 99,999 units) _______ _______ _______ _______
302-339 Unassigned at Present
340 Protection of Program Enter: "0" for Weights and Measures Mode
Codes 380-389 "1" for Program Mode __ __ __ __
341 Flow Rate for Enter: Four digits in whole units
Meter Factor #1 per minute (e.g., 0600) _____ _____ _____ _____
342 Meter Factor #1 Enter: Five digits as one whole
number followed by four
decimals (e.g., 1.0033) _._____ _._____ _._____ _._____
343 Flow Rate for Enter: Four digits in whole units
Meter Factor #2 per minute (e.g., 0400) _____ _____ _____ ______
Note: If flow rate is set at zero the AccuLoad II will ignore codes 344 through 348.
344 Meter Factor #2 Enter: Five digits as one whole
number followed by four
decimals (e.g., 1.0040) _._____ _._____ _._____ _._____
345 Flow Rate for Enter: Four digits in whole units
Meter Factor #3 per minute (e.g., 0150) _____ _____ _____ _____
Note: If flow rate is set at zero the AccuLoad II will ignore codes 346 through 348.
56 Issue/Rev. 03 (8/97)
Page 62
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
346 Meter Factor #3 Enter: Five digits as one whole
number followed by four
decimals (e.g., 1.0048) _._____ _._____ _._____ _._____
347 Flow Rate for Enter: Four digits in whole units
Meter Factor #4 per minute (e.g., 0080) _____ _____ _____ _____
Note: If flow rate is set at zero the AccuLoad II will ignore code 348.
348 Meter Factor #4 Enter: Five digits as one whole
number followed by four
decimals (e.g., 1.0058) _._____ _._____ _._____ _._____
349 Meter Factor % Enter: Five digits representing
Change/Deg. the meter factor percent
change per degree of unit
temperature in percentage,
(e.g., 0.0012) _._____ _._____ _._____ _._____
350 Meter Factor Enter: Four digits representing
Reference the temperature that the percent
Temperature meter factor variation was determined,
Three whole units and one
decimal in degrees (e.g., 120.1) _____._ _____._ _____._ _____._
351 Pulse Output Enter: "0" Raw Pulse Out 1
"1" Gross Pulse Out 1
"2" Gst Pulse Out 1
"3" Net Pulse Out 1
"4" Mass Pulse Out 1 __ __ __ __
352 Pulse Resolution Enter: Six digits defining
Output the printer output resolution
(units/pulse) in thousandths of units,
"000000" Disables this feature
(e.g., 010.0) __ __ __ . __
Note: Input pulses must be 2.5 times greater than the output pulses (e.g., 100 output pulses/unit volume requires at least 250 input pulses/unit
volume.
353 Input Resolution Enter: Four digit number representing
the number of pulses per unit of
registration (e.g., 0100)
Entry must be between 0025
and 9999. _______ _______ _______ _______
Issue/Rev. 0.3 (8/97) 57
Page 63
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
354 Dual Pulse Error Enter: Three digits indicating
Count the number of error counts
from the dual pulse Comparator
prior to alarming. (e.g., 050) ______ ______ ______ ______
Note: "000" disables the error counting.
355 Dual Pulse Error Enter: "0" No DPC Error Reset
Reset "1" Reset at the End of Transaction Only
"2" Reset Upon Power-up Only
"3" Reset Upon Power-up and
at the End of Each Transaction __ __ __ __
356 Dual Pulse Flow Enter: Three digits defining
Rate Cutoff the flow rate that the
Dual Pulse errors will begin
to be counted. _ _ _ _ _ _ _ _ _ _ _ _
357-389 Unassigned at Present
390 Master Meter Factor Enter: Five digits as one
whole number followed by
four decimals (e.g., 1.0040)
Restricts meter factors 1
through 4, program codes 353, 355,
357, and 359 to +/- 2% of this
entry. Enter 0.0000 to disable
this feature. _._____ _._____ _._____ _._____
391 Linearized Factor Enter: Three digits in
Deviation a percentage, one whole number
followed by two decimals
(e.g., 3.40). Restricts deviation
between adjacent meter
factors. Enter 0.00 to disable
this feature. _.___ _.___ _.___ _.___
392 Meter Factor Variation Enter: "0" No Meter Factor Variation
"1" Yes Meter Factor Variation __ __ __ __
58 Issue/Rev. 03 (8/97)
Page 64
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
393 Transmitter Type Enter: "0" Single Channel
"1" Dual Channel __ __ __ __
394-399 Unassigned at Present
400 Product Temperature & Density Directory
401-439 Unassigned at Present
440 Protection of Program Enter: "0" for Weights and Measures Mode
Codes 480-489 "1" for Program Mode __ __ __ __
441 API Table & Product Enter: "00" No API Table "12" API Table 24A
"01" API Table 5A "13" API Table 24B
"02" API Table 5B "14" API Table 24D
"03" API Table 5D "15" API Table 53A
"04" API Table 6A "16" API Table 53B
"05" API Table 6B "17" API Table 53D
"06" API Table 6C "18" API Table 54
"07" API Table 6D "19" API Table 54A
"08" API Table 23A "20" API Table 54B
"09" API Table 23B "21" API Table 54C
"10" API Table 23D "22" API Table 54D
"11" API Table 24 ___ ___ ___ ___
442 Reference Density Enter: Five digit density
with floating decimal.
(e.g., 0999.9 to 0.9999
Depending on selection in
code 441). _______ _______ _______ _______
443 Low Temperature Enter: Four digits. The
Alarm first digit indicates polarity.
First digit "0" = Positive
First digit "1" = Negative
The last three digits
indicate temperature in whole
degrees. (e.g., 0020 = + 020)
Temperature units are dependent
on entry made in code 441
An entry of -999 will disable
this feature. _____ _____ _____ _____
Issue/Rev. 0.3 (8/97) 59
Page 65
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
444 High Temperature Enter: Four digits. The
Alarm first digit indicates polarity.
First digit "0" = Positive
First digit "1" = Negative
The last three digits
indicate temperature in whole
degrees. (e.g., 0250 = + 250)
Temperature units are dependent
on entry made in code 441
An entry of 0999 (+999) will
disable this feature. _____ _____ _____ _____
445 Maintenance Temperature Enter: Five digits. The
first digit indicates polarity.
First digit "0" = Positive
First digit "1" = Negative
The last four digits
indicate temperature in tenths
of degrees. An entry of -999.9
will disable this feature.
(e.g., 0085.0 = + 85.0) _____._ _____._ _____._ _____._
446 Temperature Offset Enter: Three digits. First digit
must be "0" or "1" (0 = positive,
1 = negative). Second and third
digits represent the offset temperature
in tenth degrees (e.g., 10.5 entered
will display at -0.5 degrees offset) __ __.__ __ __.__ __ __.__ __ __.__
447 Low Density Alarm Enter: Four digits. The
range is from 0000 to 9999.
Density units are dependent
on entry made in code 445
of the Systems Directory
An entry of 0000 will disable
this feature. _____ _____ _____ _____
448 High Density Alarm Enter: Four digits. The
range is from 0000 to 9999.
Density units are dependent
on entry made in code 445
of the Systems Directory
An entry of 0000 will disable
this feature. _____ _____ _____ _____
449-499 Unassigned at Present
60 Issue/Rev. 03 (8/97)
Page 66
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
500 Product Pressure Directory
501 Minimum Back Enter: Four digits to select
Pressure Flow the minimum flow rate allowed
Rate Setting during back pressure operation in
whole units per minute. (e.g., 0100)
"0000" disables the alarm _____ _____ _____ _____
502 Differential Pressure Enter: Three digits of differential
pressure in units of psia, bars, or
kg/cm
2
that is to be maintained above
the vapor pressure or back pressure
(e.g., 060). Unit selection is
made in code 541 of the Systems
Directory. ____ ____ ____ ____
503 Minimum Back Enter: Two digits in seconds
Pressure Flow Rate to achieve a desired flow rate
Timer Setting (e.g., 20).
"00" disables this minimum flow rate
timer and the back pressure reduction
in code 504. ___ ___ ___ ___
504 BP Reduction Enter: Two digits in % reduction of
flow rate for back pressure flow
control and AFO (e.g., 90) ___ ___ ___ ___
505 Low Pressure Alarm Enter: Four digits indicating
the pressure reading that will
generate a low pressure alarm.
The range is from 0000 to 9999.
Pressure units are dependent
on entry made in code 541
of the Systems Directory.
An entry of 0000 will disable
this feature. _____ _____ _____ _____
506 High Pressure Alarm Enter: Four digits indicating
the pressure reading that will
generate a high pressure alarm.
The range is from 0000 to 9999.
Pressure units are dependent
on entry made in code 541
of the Systems Directory.
An entry of 0000 will disable
this feature. _____ _____ _____ _____
Issue/Rev. 0.3 (8/97) 61
Page 67
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
507-539 Unassigned at Present
540 Protection of Program Enter: "0" for Weights and Measures Mode
codes 580-589 "1" for Program Mode __ __ __ __
541 Compressibility Factor Enter: Five digit compressibility factor
used in calculating the CPL
(e.g., 39600 entered
represents 0.000039600) _______ _______ _______ _______
542 Vapor Pressure Enter: "0" Straight Line Approximation
Calculation "1" GPA Table TP-15 __ __ __ __
543 Low Vapor (P1) Enter: Four digits indicating
Pressure the low vapor pressure in PSIA, Bars
or kg/cm2 in tenths of pressure
units, (e.g., 006.0)
Pressure units are dependent
on entry made in code 541
of Systems Directory ____._ ____._ ____._ ____._
544 Low Product Vapor Enter: Four digits in Degrees
Pressure (P1) C or Degrees F that corresponds
Temperature to the low vapor pressure
in code 543.
First digit "0" = Plus Degrees
First digit "1" = Minus Degrees
(e.g., 1150=-150). Temperature units are
dependent on entry made in code 441
of the Systems Directory _____ _____ _____ _____
545 Middle Vapor Enter: Four digits indicating
Pressure (P2) the middle vapor pressure in PSIA, Bars
or kg/cm
2
in tenths of pressure
units, (e.g., 020.0)
Pressure units are dependent
on entry made in code 541
of the Systems Directory. ____._ ____._ ____._ ____._
Note: This entry must exceed the entry made is 543 or it will be ignored.
62 Issue/Rev. 03 (8/97)
Page 68
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
546 Middle Product Vapor Enter: Four digits in Degrees
Pressure (P2) C or Degrees F that corresponds
Temperature to the middle vapor pressure
in code 545.
First digit "0" = Plus Degrees
First digit "1" = Minus Degrees
(e.g., 0030 = +030). Temperature units are
dependent on entry made in code 441
of the Systems Directory _____ _____ _____ _____
547 High Vapor Enter: Four digits indicating
Pressure (P3) the high vapor pressure in PSIA, Bars
or kg/cm
2
in tenths of pressure
units, (e.g., 100.0)
Pressure units are dependent
on entry made in code 541
of the Systems Directory. ____._ ____._ ____._ ____._
Note: This entry must not exceed the entry made in 545 or it will be ignored.
548 High Product Vapor Enter: Four digits in Degrees
Pressure (P3) C or Degrees F that corresponds
Temperature to the high vapor pressure
in code 546.
First digit "0" = Plus Degrees
First digit "1" = Minus Degrees
(e.g., 0600 = +060). Temperature units are
dependent on entry made in
code 441 of the Systems
Directory _____ _____ _____ _____
549 Maintenance Pressure Enter: Four digit maintenance
pressure to be used when a pressure
transducer is not installed,
in tenths of units (e.g., 150.0)
Pressure units dependent on
selection made in code 541
of the Systems Directory.
"0000" disables this feature. ____.__ ____.__ ____.__ ____.__
550-599 Unassigned at Present
Issue/Rev. 0.3 (8/97) 63
Page 69
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
600 Product Read Only Directory
601 Raw Non-resettable To be read only None None None None
Volume
602 Gross Non-resettable To be read only None None None None
Volume
603 Gross at Standard To be read only None None None None
Temp. Non-resettable
Volume
604 Net Non-resettable To be read only None None None None
Volume
605 Mass Non-resettable To be read only None None None None
Totals
606 Load Average To be read only None None None None
Temperature
607 Load Average To be read only None None None None
Pressure
608 Load Average Density To be read only None None None None
609 Load Average To be read only None None None None
Meter Factor
610-639 Unassigned at Present
640 Protection of Program Enter: "0" for Weights and Measures Mode
Codes 680-689 "1" for Program Mode __ __ __ __
641-699 Unassigned at Present
64 Issue/Rev. 03 (8/97)
Page 70
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
700 Product Communications Directory
701 HM Classification Enter: First 20 characters of
for Printout the classification.
Prod1______________________________
Prod2______________________________
Prod3______________________________
Prod4______________________________
702 HM Classification Enter: Second 20 characters of
for Printout the classification.
Prod1______________________________
Prod2______________________________
Prod3______________________________
Prod4______________________________
703 HM Classification Enter: Third 20 characters of
for Printout the classification.
Prod1______________________________
Prod2______________________________
Prod3______________________________
Prod4______________________________
704 HM Classification Enter: Last 20 characters of
for Printout the classification.
Prod1______________________________
Prod2______________________________
Prod3______________________________
Prod4______________________________
705-739 Unassigned at Present
740 Protection of Program Enter: "0" for Weights and Measures Mode
Codes 780-789 "1" for Program Mode __ __ __ __
741-799 Unassigned at Present
Issue/Rev. 0.3 (8/97) 65
Page 71
Program
Code
Function
Code Description Prod 1
Prod 2 Prod 3 Prod 4
800 Product Inputs & Outputs Directory
801-839 Unassigned at Present
840 Protection of Program Enter: "0" for Weights and Measures Mode
Codes 880-889 "1" for Program Mode __ __ __ __
841-899 Unassigned at Present
900 Product Diagnostics Directory
901-939 Unassigned at Present
940 Protection of Program Enter: "0" for Weights and Measures Mode None
Codes 980-989 "1" for Program Mode __ __ __ __
941-999 Unassigned at Present
66 Issue/Rev. 03 (8/97)
Page 72
Program
Code
Function Code Description
Entry
Program
Code
Blend Recipe Directories
__00 Blend Recipe # __ Directory __00
__01 Blend Recipe Enter: "0" Recipe disabled __01
"1" Recipe enabled __
__02 Blend Recipe Name Enter: Up to nine characters for __02
recipe identifier. _______________
__03 Recipe Raw Non-resettable To be read only None __03
Volume
__04 Recipe Gross Non-resettable To be read only None __04
Volume
__05 Recipe Gross at Standard To be read only None __05
Temp. Non-resettable Volume
__06 Recipe Net Non-resettable To be read only None __06
Volume
__07 Recipe Mass Non-resettable To be read only None __07
Total
__08 HM Classification Enter: "1" Product 1 __08
"2" Product 2
"3" Product 3
"4" Product 4 __
__09 Minimum Preset To be read only __09
__10 Product #1's high, To be read only __10
2nd high and low flow rates
__11 Product #2's high, To be read only __11
2nd high and low flow rates
67 Issue/Rev. 03 (8/97)
Page 73
Program
Code
Function Code Description
Entry
Program
Code
__12 Product #3's high, To be read only __12
2nd high and low flow rates
__13 Product #4's high, To be read only __13
2nd high and low flow rates
__14-__39 Unassigned at Present __14-__39
__40 Protection of Program Enter: "0" for Weights and Measures Mode __40
Codes __80-__89 "1" for Program Mode __
__41 Blend Preset Display Enter: "0" Raw Preset (Raw) __41
"1" Gross Preset (Grs)
"2" Gross Preset at Standard Temperature (Gst)
"3" Gross Preset at Standard Temperature
and Pressure (Net)
"4" Mass Preset __
__42 Blend Deliver Display Enter: "0" Raw Delivery (Raw) __42
"1" Gross Delivery (Grs)
"2" Gross Delivery at Standard Temperature (Gst)
"3" Gross Delivery at Standard Temperature
and Pressure (Net)
"4" Mass Delivery __
__43 Product #1 Enter: Four digits in tenth __43
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes __43, __44, __45, and __46 must add up to 100 %.
__44 Product #2 Enter: Four digits in tenth __44
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes __43, __44, __45, and __46 must add up to 100 %.
__45 Product #3 Enter: Four digits in tenth __45
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes __43, __44, __45, and __46 must add up to 100 %.
68 Issue/Rev. 03 (8/97)
Page 74
Program
Code
Function Code Description
Entry
Program
Code
__46 Product #4 Enter: Four digits in tenth __46
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes __43, __44, __45, and __46 must add up to 100 %.
__47 Product using Enter: Four digit number indicating __47
Injector #1 the products this injector
is used with.
1st digit - Product 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero in the digit indicates
the injector will not be used
with that product, a one
indicates the injector will be
used with that product. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__48 Product using Enter: Four digit number indicating __48
Injector #2 the products this injector
is used with.
1st digit - Product 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero in the digit indicates
the injector will not be used
with that product, a one
indicates the injector will be
used with that product. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
Issue/Rev. 0.3 (8/97) 69
Page 75
Program
Code
Function Code Description
Entry
Program
Code
__49 Product using Enter: Four digit number indicating __49
Injector #3 the products this injector
is used with.
1st digit - Product 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero in the digit indicates
the injector will not be used
with that product, a one
indicates the injector will be
used with that product. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__50 Product using Enter: Four digit number indicating __50
Injector #4 the products this injector
is used with.
1st digit - Product 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero in the digit indicates
the injector will not be used
with that product, a one
indicates the injector will be
used with that product. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__51 Product using Enter: Four digit number indicating __51
Injector #5 the products this injector
is used with.
1st digit - Product 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero in the digit indicates
the injector will not be used
with that product, a one
indicates the injector will be
used with that product. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
70 Issue/Rev. 03 (8/97)
Page 76
Program
Code
Function Code Description
Entry
Program
Code
__52 Product using Enter: Four digit number indicating __52
Injector #6 the products this injector
is used with.
1st digit - Product 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero in the digit indicates
the injector will not be used
with that product, a one
indicates the injector will be
used with that product. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__53 Product using Enter: Four digit number indicating __53
Injector #7 the products this injector
is used with.
1st digit - Product 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero in the digit indicates
the injector will not be used
with that product, a one
indicates the injector will be
used with that product. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__54 Product using Enter: Four digit number indicating __54
Injector #8 the products this injector
is used with.
1st digit - Product 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero in the digit indicates
the injector will not be used
with that product, a one
indicates the injector will be
used with that product. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
Issue/Rev. 0.3 (8/97) 71
Page 77
Program
Code
Function Code Description
Entry
Program
Code
__55 Recipe Correction Enter: Five digits as one whole number __55
Factor followed by four decimals
(e.g., 1.1000) __. __ __ __ __
__80 Clean Line Enter: "0" Not Used __80
Deduct "1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4 __
__81 Additive Injector Enter: Three digits in whole units __81
Pulser No. 1 of delivered liquid per injector pulse
(e.g., 040) __ __ __
__82 Additive Injector Enter: Three digits in whole units __82
Pulser No. 2 of delivered liquid per injector pulse
(e.g., 040) __ __ __
__83 Additive Injector Enter: Three digits in whole units __83
Pulser No. 3 of delivered liquid per injector pulse
(e.g., 040) __ __ __
__84 Additive Injector Enter: Three digits in whole units __84
Pulser No. 4 of delivered liquid per injector pulse
(e.g., 040) __ __ __
__85 Additive Injector Enter: Three digits in whole units __85
Pulser No. 5 of delivered liquid per injector pulse
(e.g., 040) __ __ __
__86 Additive Injector Enter: Three digits in whole units __86
Pulser No. 6 of delivered liquid per injector pulse
(e.g., 040) __ __ __
__87 Additive Injector Enter: Three digits in whole units __87
Pulser No. 7 of delivered liquid per injector pulse
(e.g., 040) __ __ __
__88 Additive Injector Enter: Three digits in whole units __88
Pulser No. 8 of delivered liquid per injector pulse
(e.g., 040) __ __ __
72 Issue/Rev. 03 (8/97)
Page 78
Code Recipe 1 Recipe 2 Recipe 3 Recipe 4
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 Read Only Read Only Read Only Read Only
__04 Read Only Read Only Read Only Read Only
__05 Read Only Read Only Read Only Read Only
__06 Read Only Read Only Read Only Read Only
__07 Read Only Read Only Read Only Read Only
__08 _____________ ______________ _____________ _____________
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 _____________ ______________ _____________ _____________
__11 _____________ ______________ _____________ _____________
__12 _____________ ______________ _____________ _____________
__13 _____________ ______________ _____________ _____________
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__44 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__45 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__48 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__49 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__50 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__51 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__52 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__53 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
73 Issue/Rev. 03 (8/97)
Page 79
Code Recipe 1 Recipe 2 Recipe 3 Recipe 4
__54 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__55 __.__ __ __ __ __.__ __ __ __ __.__ __ __ __ __.__ __ __ __
__80 __ __ __ __
__81 __ __ __ __ __ __ __ __ __ __ __ __
__82 __ __ __ __ __ __ __ __ __ __ __ __
__83 __ __ __ __ __ __ __ __ __ __ __ __
__84 __ __ __ __ __ __ __ __ __ __ __ __
__85 __ __ __ __ __ __ __ __ __ __ __ __
__86 __ __ __ __ __ __ __ __ __ __ __ __
__87 __ __ __ __ __ __ __ __ __ __ __ __
__88 __ __ __ __ __ __ __ __ __ __ __ __
Note: Codes __09, __10, __11, __12 and __13 are Read Only codes. Space has been provided to record the flow rates for each product in the
recipe.
74 Issue/Rev. 03 (8/97)
Page 80
Code Recipe 5 Recipe 6 Recipe 7 Recipe 8
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 Read Only Read Only Read Only Read Only
__04 Read Only Read Only Read Only Read Only
__05 Read Only Read Only Read Only Read Only
__06 Read Only Read Only Read Only Read Only
__07 Read Only Read Only Read Only Read Only
__08 _____________ ______________ _____________ _____________
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 _____________ ______________ _____________ _____________
__11 _____________ ______________ _____________ _____________
__12 _____________ ______________ _____________ _____________
__13 _____________ ______________ _____________ _____________
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__44 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__45 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__48 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__49 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__50 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__51 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__52 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__53 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
75 Issue/Rev. 03 (8/97)
Page 81
Code Recipe 5 Recipe 6 Recipe 7 Recipe 8
__54 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__55 __.__ __ __ __ __.__ __ __ __ __.__ __ __ __ __.__ __ __ __
__80 __ __ __ __
__81 __ __ __ __ __ __ __ __ __ __ __ __
__82 __ __ __ __ __ __ __ __ __ __ __ __
__83 __ __ __ __ __ __ __ __ __ __ __ __
__84 __ __ __ __ __ __ __ __ __ __ __ __
__85 __ __ __ __ __ __ __ __ __ __ __ __
__86 __ __ __ __ __ __ __ __ __ __ __ __
__87 __ __ __ __ __ __ __ __ __ __ __ __
__88 __ __ __ __ __ __ __ __ __ __ __ __
Note: Codes __09, __10, __11, __12 and __13 are Read Only codes. Space has been provided to record the flow rates for each product in the
recipe.
76 Issue/Rev. 03 (8/97)
Page 82
Code Recipe 9 Recipe 10 Recipe 11 Recipe 12
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 Read Only Read Only Read Only Read Only
__04 Read Only Read Only Read Only Read Only
__05 Read Only Read Only Read Only Read Only
__06 Read Only Read Only Read Only Read Only
__07 Read Only Read Only Read Only Read Only
__08 _____________ ______________ _____________ _____________
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 _____________ ______________ _____________ _____________
__11 _____________ ______________ _____________ _____________
__12 _____________ ______________ _____________ _____________
__13 _____________ ______________ _____________ _____________
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__44 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__45 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__48 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__49 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__50 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__51 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__52 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__53 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
77 Issue/Rev. 03 (8/97)
Page 83
Code Recipe 9 Recipe 10 Recipe 11 Recipe 12
__54 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__55 __.__ __ __ __ __.__ __ __ __ __.__ __ __ __ __.__ __ __ __
__80 __ __ __ __
__81 __ __ __ __ __ __ __ __ __ __ __ __
__82 __ __ __ __ __ __ __ __ __ __ __ __
__83 __ __ __ __ __ __ __ __ __ __ __ __
__84 __ __ __ __ __ __ __ __ __ __ __ __
__85 __ __ __ __ __ __ __ __ __ __ __ __
__86 __ __ __ __ __ __ __ __ __ __ __ __
__87 __ __ __ __ __ __ __ __ __ __ __ __
__88 __ __ __ __ __ __ __ __ __ __ __ __
Note: Codes __09, __10, __11, __12 and __13 are Read Only codes, space has been provided to record the flow rates for each product in the
recipe.
78 Issue/Rev. 03 (8/97)
Page 84
Code Recipe 13 Recipe 14 Recipe 15 Recipe 16
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 Read Only Read Only Read Only Read Only
__04 Read Only Read Only Read Only Read Only
__05 Read Only Read Only Read Only Read Only
__06 Read Only Read Only Read Only Read Only
__07 Read Only Read Only Read Only Read Only
__08 _____________ ______________ _____________ _____________
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 _____________ ______________ _____________ _____________
__11 _____________ ______________ _____________ _____________
__12 _____________ ______________ _____________ _____________
__13 _____________ ______________ _____________ _____________
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__44 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__45 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__48 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__49 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__50 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__51 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__52 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__53 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
79 Issue/Rev. 03 (8/97)
Page 85
Code Recipe 13 Recipe 14 Recipe 15 Recipe 16
__54 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__55 __.__ __ __ __ __.__ __ __ __ __.__ __ __ __ __.__ __ __ __
__80 __ __ __ __
__81 __ __ __ __ __ __ __ __ __ __ __ __
__82 __ __ __ __ __ __ __ __ __ __ __ __
__83 __ __ __ __ __ __ __ __ __ __ __ __
__84 __ __ __ __ __ __ __ __ __ __ __ __
__85 __ __ __ __ __ __ __ __ __ __ __ __
__86 __ __ __ __ __ __ __ __ __ __ __ __
__87 __ __ __ __ __ __ __ __ __ __ __ __
__88 __ __ __ __ __ __ __ __ __ __ __ __
Note: Codes __09, __10, __11, __12 and __13 are Read Only codes, space has been provided to record the flow rates for each product in the
recipe.
80 Issue/Rev. 03 (8/97)
Page 86
Code Recipe 17 Recipe 18 Recipe 19 Recipe 20
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 Read Only Read Only Read Only Read Only
__04 Read Only Read Only Read Only Read Only
__05 Read Only Read Only Read Only Read Only
__06 Read Only Read Only Read Only Read Only
__07 Read Only Read Only Read Only Read Only
__08 _____________ ______________ _____________ _____________
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 _____________ ______________ _____________ _____________
__11 _____________ ______________ _____________ _____________
__12 _____________ ______________ _____________ _____________
__13 _____________ ______________ _____________ _____________
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__44 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__45 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__48 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__49 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__50 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__51 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__52 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__53 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
81 Issue/Rev. 03 (8/97)
Page 87
Code Recipe 17 Recipe 18 Recipe 19 Recipe 20
__54 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__55 __.__ __ __ __ __.__ __ __ __ __.__ __ __ __ __.__ __ __ __
__80 __ __ __ __
__81 __ __ __ __ __ __ __ __ __ __ __ __
__82 __ __ __ __ __ __ __ __ __ __ __ __
__83 __ __ __ __ __ __ __ __ __ __ __ __
__84 __ __ __ __ __ __ __ __ __ __ __ __
__85 __ __ __ __ __ __ __ __ __ __ __ __
__86 __ __ __ __ __ __ __ __ __ __ __ __
__87 __ __ __ __ __ __ __ __ __ __ __ __
__88 __ __ __ __ __ __ __ __ __ __ __ __
Note: Codes __09, __10, __11, __12 and __13 are Read Only codes, space has been provided to record the flow rates for each product in the
recipe.
82 Issue/Rev. 03 (8/97)
Page 88
Code Recipe 21 Recipe 22 Recipe 23 Recipe 24
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 Read Only Read Only Read Only Read Only
__04 Read Only Read Only Read Only Read Only
__05 Read Only Read Only Read Only Read Only
__06 Read Only Read Only Read Only Read Only
__07 Read Only Read Only Read Only Read Only
__08 _____________ ______________ _____________ _____________
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 _____________ ______________ _____________ _____________
__11 _____________ ______________ _____________ _____________
__12 _____________ ______________ _____________ _____________
__13 _____________ ______________ _____________ _____________
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__44 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__45 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__48 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__49 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__50 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__51 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__52 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__53 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
83 Issue/Rev. 03 (8/97)
Page 89
Code Recipe 21 Recipe 22 Recipe 23 Recipe 24
__54 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__55 __.__ __ __ __ __.__ __ __ __ __.__ __ __ __ __.__ __ __ __
__80 __ __ __ __
__81 __ __ __ __ __ __ __ __ __ __ __ __
__82 __ __ __ __ __ __ __ __ __ __ __ __
__83 __ __ __ __ __ __ __ __ __ __ __ __
__84 __ __ __ __ __ __ __ __ __ __ __ __
__85 __ __ __ __ __ __ __ __ __ __ __ __
__86 __ __ __ __ __ __ __ __ __ __ __ __
__87 __ __ __ __ __ __ __ __ __ __ __ __
__88 __ __ __ __ __ __ __ __ __ __ __ __
Note: Codes __09, __10, __11, __12 and __13 are Read Only codes, space has been provided to record the flow rates for each product in the
recipe.
84 Issue/Rev. 03 (8/97)
Page 90
Appendix I
RBU Display Customization Entry Table
Entry Number Entry Description Translation
*001 Alarm - See Manager 22
*002 Alarm Press "CLEAR" 22
*003 Alarm Press "PRINT" 22
*004 Alarm - Remove Ticket 22
005 Press CLEAR to Continue 24
006 Press START to Continue 24
007 ** Remove Ticket ** 24
008 Please Wait 24
009 Report Pending to Print 24
010 No Local Start Allowed 24
011 Select Recipe 13
**012 Recipe No 10
013 No Recipes Available 20
Output
Length
014 Current Recipe 15
**015 Current Products 17
016 Recipe Avg Dens 15
017 Recipe Ld Temp 14
018 LdTmp 5
019 Load Avg Tmp 12
**020 Ld 3
**021 Avg Pres 8
**022 Avg Den 7
023 Load Avg Mfac 13
024 Enter Preset Amount 19
025 AccuLoad II RBU 15
026 **Batch Limit Reached** 23
027 ** Error Press CLEAR ** 24
028 Recipe 6
029 System 6
85 Issue/Rev. 03 (8/97)
Page 91
Entry Number Entry Description Translation
Output
Length
030 Alarm 5
031 Product 1 9
032 Product 2 9
033 Product 3 9
034 Product 4 9
035 Product 7
036 Summary 7
037 Dyn Display 12
**038 Restart in 11
**039 Valve Delay = 14
040 ** Not Authorized ** 24
041 Flow 4
042 Flow = 7
043 Flow* = 7
044 Flow+ = 7
045 Flow- = 7
046 /Min 4
047 /Hr 3
**048 Temperature = 15
**049 Ref Density 12
**050 Rel Density = 18
**051 Meter Factor = 18
052 Raw 3
053 Grs 3
054 Gst 3
055 Net 3
056 Mass 4
057 Mas 3
058 Raw Transaction 15
059 Grs Transaction 15
060 Gst Transaction 15
86 Issue/Rev. 03 (8/97)
Page 92
Entry Number Entry Description Translation
Output
Length
061 Net Transaction 15
062 Mas Transaction 15
063 Add 1 = 7
064 Add 2 = 7
065 Add 3 = 7
066 Add 4 = 7
067 Add 5 = 7
068 Add 6 = 7
069 Add 7 = 7
070 Add 8 = 7
071 Injector 8
072 Select Injector# 16
073 Inj On=# 8
074 No Injectors Selected 24
075 Select Injectors 16
076 Inj 3
077 Prg 3
078 Cal 3
079 Density 7
080 Total 5
**081 Valve Requested 17
082 Open 4
083 Closed 6
084 Lock 4
085 Off 3
086 On 3
087 Secs. 5
088 Current 7
089 Desired 7
090 % of Batch 10
87 Issue/Rev. 03 (8/97)
Page 93
Entry Number Entry Description Translation
Output
Length
091 Batch 5
092 Trans 5
093 Preset Completed 16
094,095,**096 Preset batch volume exceeds
3 * 24
the maximum permitted.
097,098,**099 Preset batch volume is below
3 * 24
the minimum required.
100,**101 The minimum preset for this
2 * 24
recipe is
102,103,
104,105,
106,107,
108
Warning: Premature batch
termination will result in out of
blend delivery. If you desire to
terminate anyway, press
7 * 24
ENTER otherwise, press
CLEAR to continue.
109,110 Invalid ID Number. Press
2 * 24
CLEAR to enter.
111,112,113 Recipe selected is not
3 * 24
available. Press CLEAR to
continue.
114,115,**116 The preset volume will cause
3 * 24
the max transaction volume to
be exceeded.
117,**118 Fatal: Entry is out of specified
2 * 24
range.
119 Prv Err 7
120 Load Completed 16
121 Load Terminated 16
Note: The output length of each table entry signifies the maximum number of characters allowable for that particular message even though the
default message may not take up all spaces allowed.
Note: * An entry number flagged with an asterisk (*), designates that the entry description should have a leading space in the message. This
will allow for display concatenation without running words together.
Note: ** An entry number flagged with two asterisks (**), designates that the entry description should have a trailing space in the message.
This will allow for display concatenation without running words together.
Note: Any table entry that has more than one entry number are 24 character messages each. They are concatenated together to form a
scrolling message.
88 Issue/Rev. 03 (8/97)
Page 94
Appendix II
The following table provides the entry number, description of the data entry, the code reference (if any), the
number of columns required for the data, and the bytes that the item will require when saved in local storage. The
following designations are used in the byte column of the table:
* - The entry is programmable via a program code entry and is never saved in local storage. Thus,
this entry has no effect on the size of local storage.
** - The entry is always saved.
*** - Recipe volumes are never stored in local storage. They are calculated from the product
volumes. If the corresponding product volumes are not saved, these volumes will print
as zero.
**** - Transaction volumes are never saved in local storage. They are calculated from the batch
volumes. If the corresponding batch volumes are not saved in local storage, the transaction
volumes will print as zeros.
4 ** - This entry is always saved but the number of bytes depends on the number of batches
per transaction.
Items not marked are user selectable to be saved or not saved in local storage.
DELIVERY REPORT CONFIGURABLE ENTRY TABLE
Entry Description Code Ref Columns Bytes
1 Alarm History Alarm Codes 60 **
2 Transaction Completion Time and Date 8 **
3 Transaction Number 4 **
4 Response to Prompt Message One 9 4
5 Response to Prompt Message Two 9 4
6 Response to Prompt Message Three 9 4
7 Response to Prompt Message Four 9 4
8 Response to Prompt Message Five 9 4
9 Recipe Name for the First Batch Run R_ _02 9 *
10 Recipe Name for the Second Batch Run R_ _02 9 *
11 Recipe Name for the Third Batch Run R_ _02 9 *
12 Recipe Name for the Fourth Batch Run R_ _02 9 *
13 Recipe Name for the Fifth Batch Run R_ _02 9 *
14 Recipe Name for the Sixth Batch Run R_ _02 9 *
89 Issue/Rev. 03 (8/97)
Page 95
Entry Description Code Ref Columns Bytes
15 First User Selected Volume for the Recipe Volume
for the First Batch Run
16 First User Selected Volume for the Recipe Volume
for the Second Batch Run
17 First User Selected Volume for the Recipe Volume
for the Third Batch Run
18 First User Selected Volume for the Recipe Volume
for the Fourth Batch Run
19 First User Selected Volume for the Recipe Volume
for the Fifth Batch Run
20 First User Selected Volume for the Recipe Volume
for the Sixth Batch Run
21 Second User Selected Volume for the Recipe
Volume for the First Batch Run
22 Second User Selected Volume for the Recipe
Volume for the Second Batch Run
23 Second User Selected Volume for the Recipe
Volume for the Third Batch Run
24 Second User Selected Volume for the Recipe
Volume for the Fourth Batch Run
6 ***
6 ***
6 ***
6 ***
6 ***
6 ***
6 ***
6 ***
6 ***
6 ***
25 Second User Selected Volume for the Recipe
Volume for the Fifth Batch Run
26 Second User Selected Volume for the Recipe
Volume for the Sixth Batch Run
27 Third User Selected Volume for the Recipe
Volume for the First Batch Run
28 Third User Selected Volume for the Recipe
Volume for the Second Batch Run
29 Third User Selected Volume for the Recipe
Volume for the Third Batch Run
30 Third User Selected Volume for the Recipe
Volume for the Fourth Batch Run
31 Third User Selected Volume for the Recipe
Volume for the Fifth Batch Run
32 Third User Selected Volume for the Recipe
Volume for the Sixth Batch Run
33 Recipe Name for the First Recipe Run for the
Transaction
6 ***
6 ***
6 ***
6 ***
6 ***
6 ***
6 ***
6 ***
R__02 9 *
90 Issue/Rev. 03 (8/97)
Page 96
Entry Description Code Ref Columns Bytes
34 Recipe Name for the Second Recipe Run for the
Transaction
35 Recipe Name for the Third Recipe Run for the R__02 9 *
36 Recipe Name for the Fourth Recipe Run for the
Transaction
37 Recipe Name for the Fifth Recipe Run for the
Transaction
38 Recipe Name for the Sixth Recipe Run for the
Transaction
39 Transaction Volume of the First Recipe Run, First
User Selected Volume
40 Transaction Volume of the Second Recipe Run,
First User Selected Volume
41 Transaction Volume of the Third Recipe Run, First
User Selected Volume
42 Transaction Volume of the Fourth Recipe Run,
First User Selected Volume
43 Transaction Volume of the Fifth Recipe Run, First
User Selected Volume
R__02 9 *
R__02 9 *
R__02 9 *
R__02 9 *
6 ****
6 ****
6 ****
6 ****
6 ****
44 Transaction Volume of the Sixth Recipe Run, First
User Selected Volume
45 Transaction Volume of the First Recipe Run,
Second User Selected Volume
46 Transaction Volume of the Second Recipe Run,
Second User Selected Volume
47 Transaction Volume of the Third Recipe Run,
Second User Selected Volume
48 Transaction Volume of the Fourth Recipe Run,
Second User Selected Volume
49 Transaction Volume of the Fifth Recipe Run,
Second User Selected Volume
50 Transaction Volume of the Sixth Recipe Run,
Second User Selected Volume
51 Transaction Volume of the First Recipe Run, Third
User Selected Volume
52 Transaction Volume of the Second Recipe Run,
Third User Selected Volume
6 ****
6 ****
6 ****
6 ****
6 ****
6 ****
6 ****
6 ****
6 ****
91 Issue/Rev. 03 (8/97)
Page 97
Entry Description Code Ref Columns Bytes
53 Transaction Volume of the Third Recipe Run,
Third User Selected Volume
54 Transaction Volume of the Fourth Recipe Run,
Third User Selected Volume
55 Transaction Volume of the Fifth Recipe Run, Third
User Selected Volume
56 Transaction Volume of the Sixth Recipe Run,
Third User Selected Volume
57 Additive Number One Name S814 9 *
58 Additive Number Two Name S815 9 *
59 Additive Number Three Name S816 9 *
60 Additive Number Four Name S817 9 *
61 Additive Number Five Name S818 9 *
62 Additive Number Six Name S819 9 *
63 Additive Number Seven Name S820 9 *
64 Additive Number Eight Name S821 9 *
65 Additive Injector # 1 Volume for the First Batch
Run
6 ****
6 ****
6 ****
6 ****
9 4
66 Additive Injector # 1 Volume for the Second Batch
Run
67 Additive Injector # 1 Volume for the Third Batch
Run
68 Additive Injector # 1 Volume for the Fourth Batch
Run
69 Additive Injector # 1 Volume for the Fifth Batch
Run
70 Additive Injector # 1 Volume for the Sixth Batch
Run
71 Additive Injector # 2 Volume for the First Batch
Run
72 Additive Injector # 2 Volume for the Second Batch
Run
73 Additive Injector # 2 Volume for the Third Batch
Run
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
92 Issue/Rev. 03 (8/97)
Page 98
Entry Description Code Ref Columns Bytes
74 Additive Injector # 2 Volume for the Fourth Batch
Run
75 Additive Injector # 2 Volume for the Fifth Batch
Run
76 Additive Injector # 2 Volume for the Sixth Batch
Run
77 Additive Injector # 3 Volume for the First Batch
Run
78 Additive Injector # 3 Volume for the Second Batch
Run
79 Additive Injector # 3 Volume for the Third Batch
Run
80 Additive Injector # 3 Volume for the Fourth Batch
Run
81 Additive Injector # 3 Volume for the Fifth Batch
Run
82 Additive Injector # 3 Volume for the Sixth Batch
Run
83 Additive Injector # 4 Volume for the First Batch
Run
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
84 Additive Injector # 4 Volume for the Second Batch
Run
85 Additive Injector # 4 Volume for the Third Batch
Run
86 Additive Injector # 4 Volume for the Fourth Batch
Run
87 Additive Injector # 4 Volume for the Fifth Batch
Run
88 Additive Injector # 4 Volume for the Sixth Batch
Run
89 Additive Injector # 5 Volume for the First Batch
Run
90 Additive Injector # 5 Volume for the Second Batch
Run
91 Additive Injector # 5 Volume for the Third Batch
Run
92 Additive Injector # 5 Volume for the Fourth Batch
Run
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
93 Issue/Rev. 03 (8/97)
Page 99
Entry Description Code Ref Columns Bytes
93 Additive Injector # 5 Volume for the Fifth Batch
Run
94 Additive Injector # 5 Volume for the Sixth Batch
Run
95 Additive Injector # 6 Volume for the First Batch
Run
96 Additive Injector # 6 Volume for the Second Batch
Run
97 Additive Injector # 6 Volume for the Third Batch
Run
98 Additive Injector # 6 Volume for the Fourth Batch
Run
99 Additive Injector # 6 Volume for the Fifth Batch
Run
100 Additive Injector # 6 Volume for the Sixth Batch
Run
101 Additive Injector # 7 Volume for the First Batch
Run
102 Additive Injector # 7 Volume for the Second Batch
Run
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
103 Additive Injector # 7 Volume for the Third Batch
Run
104 Additive Injector # 7 Volume for the Fourth Batch
Run
105 Additive Injector # 7 Volume for the Fifth Batch
Run
106 Additive Injector # 7 Volume for the Sixth Batch
Run
107 Additive Injector # 8 Volume for the First Batch
Run
108 Additive Injector # 8 Volume for the Second Batch
Run
109 Additive Injector # 8 Volume for the Third Batch
Run
110 Additive Injector # 8 Volume for the Fourth Batch
Run
111 Additive Injector # 8 Volume for the Fifth Batch
Run
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
9 4
94 Issue/Rev. 03 (8/97)
Page 100
Entry Description Code Ref Columns Bytes
112 Additive Injector # 8 Volume for the Sixth Batch
Run
113 Additive Injector #1 Transaction Volume 9 ****
114 Additive Injector #2 Transaction Volume 9 ****
115 Additive Injector #3 Transaction Volume 9 ****
116 Additive Injector #4 Transaction Volume 9 ****
117 Additive Injector #5 Transaction Volume 9 ****
118 Additive Injector #6 Transaction Volume 9 ****
119 Additive Injector #7 Transaction Volume 9 ****
120 Additive Injector #8 Transaction Volume 9 ****
121 Product Name of Product One P180 9 *
122 Product Name of Product Two P180 9 *
123 Product Name of Product Three P180 9 *
124 Product Name of Product Four P180 9 *
125 First User Selected Volume for Product One, First
Batch
9 4
6 **
126 First User Selected Volume for Product One,
Second Batch
127 First User Selected Volume for Product One, Third
Batch
128 First User Selected Volume for Product One,
Fourth Batch
129 First User Selected Volume for Product One, Fifth
Batch
130 First User Selected Volume for Product One, Sixth
Batch
131 First User Selected Volume for Product Two, First
Batch
132 First User Selected Volume for Product Two,
Second Batch
133 First User Selected Volume for Product Two, Third
Batch
134 First User Selected Volume for Product Two,
Fourth Batch
135 First User Selected Volume for Product Two, Fifth
Batch
6 4 **
6 4 **
6 4 **
6 4 **
6 4 **
6 **
6 4 **
6 4 **
6 4 **
6 4 **
95 Issue/Rev. 03 (8/97)
Loading...
