INSTALLATION OF THE AIRCORE MODULE
Refer to the instructions included with each airframe for
removal of the battery hatch.

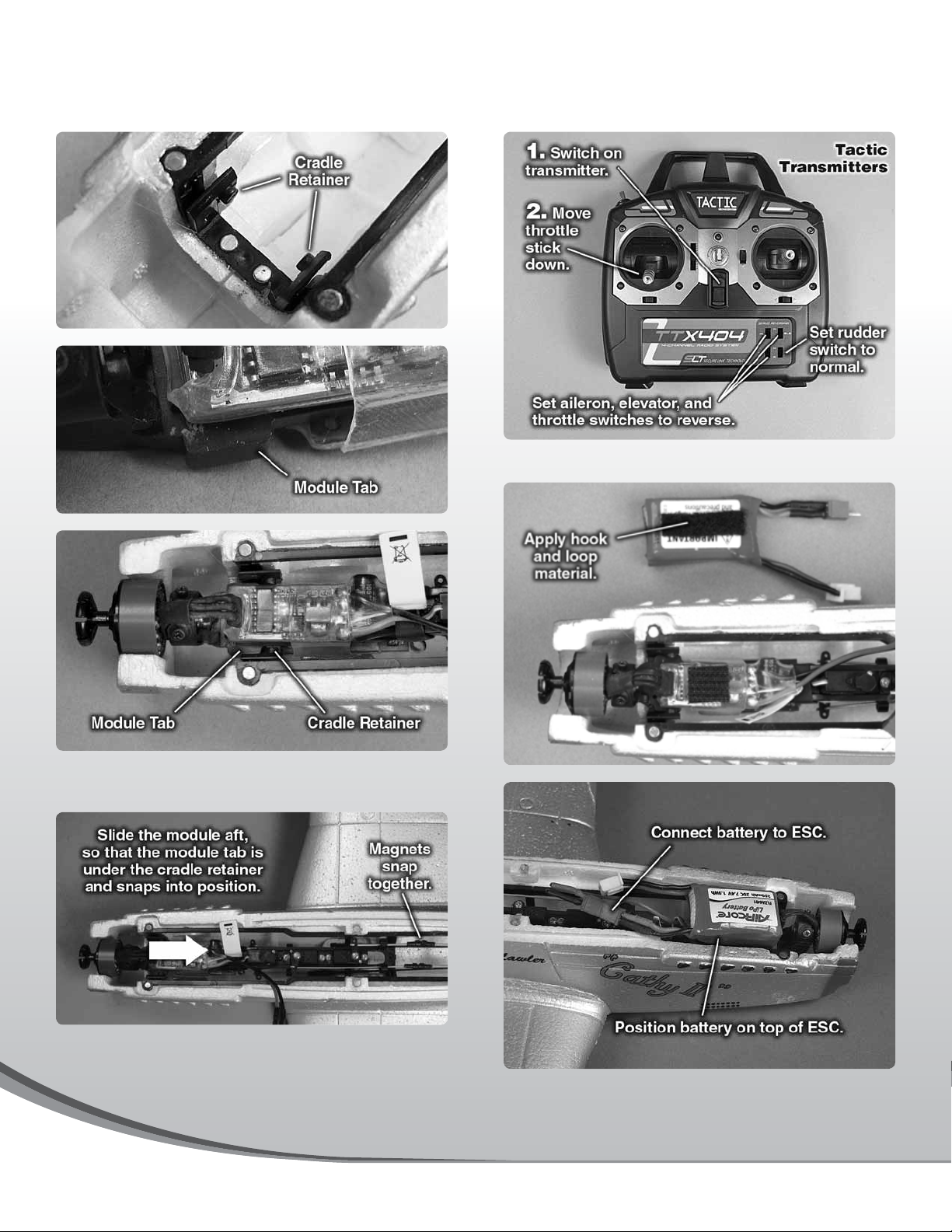

BIND THE TRANSMITTER TO THE PLANE
IMPORTANT: Once the battery is connected to the ESC
the motor will start if the throttle stick is moved up.
Place the transmitter near the plane.
Position the module so that the tab is in front of the
cradle retainer.
If any of the control surface pushrods do not connect, gently
move the control surfaces until the pushrods snap together.
If the motor starts to beep rapidly, adjust the throttle
trim down.
™
CHECK THE CONTROL SURFACE
DIRECTION
CENTER THE CONTROL SURFACES
Because the AirCore Module can be used in more than one
plane, we recommend making sure the control surfaces
are as close to center as possible on each plane. Make
sure the trims are centered on your transmitter.
Check that the elevator and rudder are centered on the
airplane. If they are not, use needle nose pliers to gently
squeeze or spread the “U” bend in the pushrods to center
the control surfaces.
INSTALL THE PROPELLER
CAUTION: Do not install the propeller until the plane is
ready to fl y. Once the battery is connected, the motor
will start if the throttle stick is moved up.
Disconnect the battery and snap the propeller onto the
propeller adapter.
yzoneplanes.com
FLZA6400

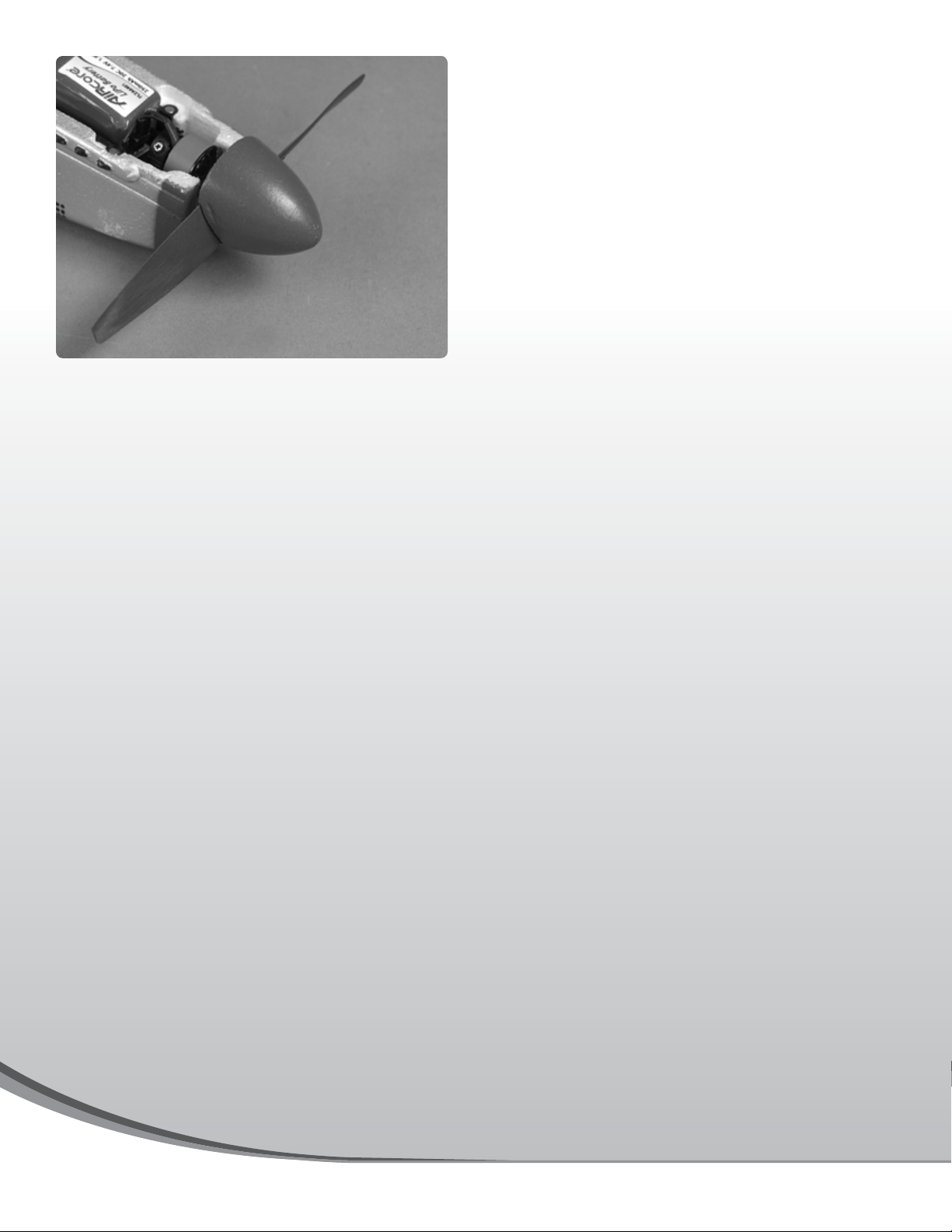

Slide the spinner on the propeller adapter.
See the instructions included with each airframe for control
throws, C.G. and fl ight recommendations.
REPLACEMENT PARTS
To order replacement parts for the AirCore Module, use
the order numbers in the list below. Replacement parts
are available only as listed. Replacement parts are not
available from Product Support, but can be purchased from
hobby shops or mail order/Internet order fi rms. If you need
assistance locating a dealer to purchase parts from, contact:
Product Support Phone: 217-398-0007
Fax: 217-398-7721
E-mail: productsupport@hobbico.com
Stock No. Description
● FLZA6433 AirCore 6A Electronic Speed Control
● TACL0424 Tactic 4-Channel Micro Receiver
● FLZA6432 AirCore Motor
● FLZA6402 AirCore Prop and Prop Adapter
● TACM0190 Tactic 1.9g Servo
● FLZA6429 AirCore Power Core Cradle
● FLZA6430 AirCore Power Core Frame
● FLZA6431 AirCore Power Pushrod Set
