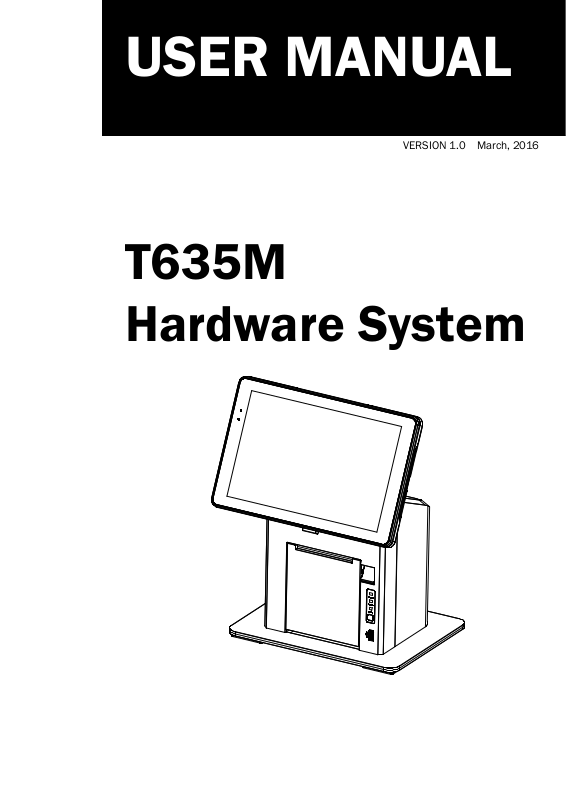

USER MANUAL
VERSION 1.0 March, 2016
T635M
Hardware System
Copyright 2016
All Rights Reserved
Manual Version 1.0
Part Number:
The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not limited
to, the implied warranties of merchantability and fitness for a particular purpose.
We shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced or translated
to another language without the prior written consent of the manufacturer.
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrical power supply, turn off the power switch
and remove the power cord plug from the wall socket. The wall socket must be easily
accessible and in close proximity to the machine.
2. Read these instructions carefully. Save these instructions for future reference.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation
to ensure reliable operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface. This product should
never be placed near or over a radiator or heat register or in a built-in installation
unless proper ventilation is provided.
7. This product should be operated from the type of power indicated on the marking label.
If you are not sure of the type of power available, consult your dealer or local power
company.
8. Do not allow anything to rest on the power cord. Do not locate this product where
persons will walk on the cord.
9. Never push objects of any kind into this product through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in a re or electric
shock. Never spill liquid of any kind on the product.
CE MARK
This device complies with the requirements of the EEC directive 2004/108/EC with
regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”.
ii
FCC
FCC Radiation Exposure Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• This device complies with FCC SAR exposure limits set forth for an uncontrolled
environment.
Caution!
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with FCC SAR exposure limits set forth for an uncontrolled
environment.
Safety Caution
Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related
legislation, peripherals shall be 4.7.3.2 “Materials for re enclosure” compliant.
4.7.3.2 Materials for re enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material of a
FIRE ENCLOSURE, in the thinnest signicant wall thickness used, shall be of V-1 CLASS
MATERIAL or shall pass the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all STATIONARY
EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest significant wall
thickness used, shall be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1
This product should not be mixed with other commercial wastes for disposal.
iii
LEGISLATION AND WEEE SYMBOL
2012/19/EU Waste Electrical and Electronic Equipment Directive on the treatment,
collection, recycling and disposal of electric and electronic devices and their
components.
The crossed dust bin symbol on the device means that it should not be disposed of
with other household wastes at the end of its working life. Instead, the device should
be taken to the waste collection centers for activation of the treatment, collection,
recycling and disposal procedure.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government ofce, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of
the purchase contract.
iv
Revision History
Changes to the original user manual are listed below:
Revision Description Date
1.0 • Initial release March, 2016
v
Table of Contents
1. Packing List .................................. 1
1-1. Standard Accessories .....................................................1
2. System View .................................. 2
2-1. Touch Panel .....................................................................2
2-2. Touch Pamel with Printer Stand ..................................... 3
2-3. Dimensions ...................................................................... 4
2-4. IO Port View .....................................................................5
3. System Assembly & Disassembly 6
3-1. Install Touch Panel to Printer Stand...............................6
3-2. Install the Power Adapter ................................................6
3-3. Connect iPad Jacket to Printer Stand ............................8
3-4. Remove Touch Panel from Printer Stand .......................8
3-5. Load the Thermal Printer Paper ....................................12
4. Specications .............................. 13
5. Jumper Settings ........................... 14
Appendix: API Information ............... 15
vi
The page is intentionally left blank.
vii
1. Packing List
1-1.
Standard Accessories
a. T635M System
b. Power adapter
c. Power cord
d. RJ45-DB9 cable (x2)
1
2. System View
2-1.
Touch Panel
3
Item No. Description
1 Expansion dummy cover
2 Camera hole
3 Hand strap
4 Speaker
5 Charging slot
6 Expansion dummy cover
1 2
6
4
5
2
2-2.
7
Touch Pamel with Printer Stand
1
2
4
3
5
6
Item No. Description
1 Touch panel
2 Lock button of printer stand
3 Thermal printer
4 Release button
5 Printer indicator (power, error, and paper) & Paper feed button
6 USB
7
3
(IO board and thermal printer inside)
System box
2-3.
Dimensions
261 mm
261 mm
28 mm
24 mm
164 mm
338 mm
188.9 mm
4
2-4.
IO Port View
a
Item No. Description
a Cash drawer
b COM2/COM1
c DC 19V in
d Micro USB
e USB 2.0
f LED(power)
g LED(paring)
h Paring button
b
c
d
e
g
f
h
5
3. System Assembly & Disassembly
3-1.
Install Touch Panel to Printer Stand
1. Directly put the touch panel into the
cradle of printer stand.
3-2.
Install the Power Adapter
1. Use both hands to pull the cover of the system box upward to release the
cover from the system box.
6
2. Place the system face down to access the bottom of the stand.
3. Thread the power adapter cable through the hole of the stand as shown in the picture.
4. Find the power connector on the right of the I/O panel (refer to chapter 2-4 c.) and
connect the power adapter to the DC-IN connector.
5. Finally arrange and x the cable by using the hook as shown in the picture.
Warning:
• Please follow the direction to plug the adapter and make sure it is fully connected
into the I/O port.
• When attaching or detaching the cable, do so by holding the connector, not the
cable itself.
• DO NOT pull or rotate the cable which may cause damage to the tting.
7
3-3.
Connect iPad Jacket to Printer Stand
1. After the power adapter is installed,
remember to push the paring button
on the IO port so that the touch panel
and the printer stand will be connected.
3-4.
Remove Touch Panel from Printer Stand
1. Push the release button on the
printer stand and then pull the touch
panel upward to release it from the
printer stand.
* Please note you can remove the touch
panel from the printer stand only on the
condition that the switch panel on the
printer stand shows "unlock". See the
enlarged part in the picture.
8
When the switch panel on the printer stand shows “Lock“, you can not push the
release button to remove the iPad Jacket. Use the provided key or APP to unlock
printer stand. Please follow the below steps:
• Manually unlock
1. Open the cover of the system box.
2. You will nd the key on the top of the printer.
3. Insert the key and then pull the touch
panel upward to release it from the
printer stand.
9
• APP unlock (demo APP)
1. Use the Touch ID to login the APP
program.
2. Enter password to login the APP
program if the device is not equipped
with the fingerprint sensor. Default
password:1234.
3. Click "BLE Cong".
10
4. Click the device to connect.
5. The BLE is now connected, then click
"DOCK"
5. Use the Touch ID or enter the
password to login again.
6. Now the device is unlock, push the
lock button to release the iPad Jacket
from the printer stand.
11
3-5.
Load the Thermal Printer Paper
Note: Do not switch off the system. The printer must be powered on when
replacing the printer paper.
1. Press the button at the right side to
open the thermal printer module.
Cut away the first five (5) cm of
*
the paper, to obtain a straight
edge and remove the label at the
end of the roll.
2. Place the paper roll inside the
printer slot, pull out a 2 or 3 cm
length and then close the cover.
3. The paper will feed automatically
through the printer (the system
must be powered on).
12
4. Specications
Model T635M
CPU support
System memory
LCD touch panel
LCD size 10.1
Maximal resolution 1280 x 800
Touch screen type P-CAP 5 points Multi-touch
Wireless communication
Wireless LAN 802.11 a/b/g/n , 2.4G / 5GHz
Bluetooth 4.0+LE (Class 2, 10 meters)
Cellular Network 3G/LTE (Option)
NFC
Expansion I/O ports
DC input 8 pad
Audio
Built in speaker 1W x 2
Battery & Power
Battery 4100 mAh, 3.7V, 15.1 Wh, Battery life 4hr
Power adapter 90W/19V
Control / Indicator
Power button 1
Sensor G-sensor
LED Indicator 1 (Battery status indicator)
Peripherals
Rear Camera 5MP
Built- in hand strap 1
EMV certied module MSR/ smart card reader combo module (Option)
Docking Station
I/O board USB I/O Board ,BT I/O Board , 4 COM I/O Board
Environment
Sealing IP54 (Display side)
EMC & Safety FCC Class B / CE Mark / LVD / SAR
Operating temperature
Storage temperature -10°C ~ 45°C (14°F ~ 114°F)
Humidity 20% ~ 85% RH non condensing
ESD
Dimension (W x D x H)
Weight (N.W./G.W.)
OS support Window 8.1 with Bing / Windows 8.1 Industry Pro / Android 4.4.4
* This specication is subject to change without prior notice.
Tablet: 8kV Contact discahrge, 15kV Air dischargeDocking station: 4kV Contact
NFC reader I2C MSN09 40x50 W/NXP NPC100 antenna module
0°C ~ 35°C (32°F ~ 95°F)(charging mode)
0°C ~ 40°C (32°F ~ 104°F)(none charging mode)
261 x 169 x 24.0mm (10.3” x 6.7” x 0.94”)
Baytrail - T CR Z3735F
2G / 32G / Windows (TBD)
1G / 16G / Android (TBD)
(SM-MSN09-C03) smart appr
discahrge, 8kV Air discharge
13
5. Jumper Settings
Cash Drawer Power Setting
Function JP2
+12V
▲+24V
COM Power Setting
Function JP3
▲+0V
+5V
+12V
▲ = Manufacturer Default Setting
1 3
2
1 3
2
1 3
2
1 3
2
1 3
2
4
4
4
4
4
1
2
Jumper open
1
2
Jumper short
14
Appendix: API Information
Please contact your service provider for more detailed informaiton on software
porting guide.
15
Loading...
