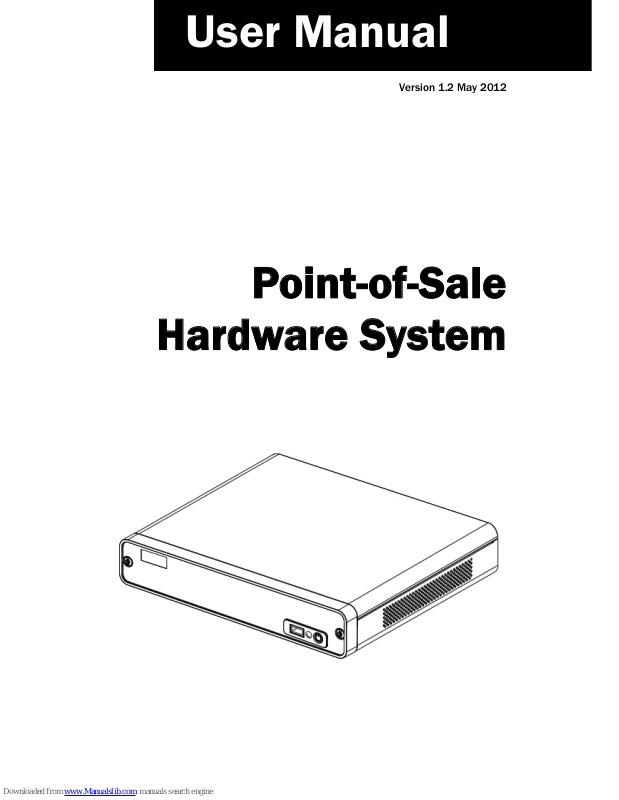

Version 1.2 May 2012
Point-of-Sale
Hardware System
User Manual
i
Copyright 2012
All Rights Reserved
Manual Version 1.2
Part Number:3LMPP8000112
The information contained in this document is subject to change
without notice.
We make no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. We shall not be liable for errors
contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced or translated to another language without
the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel®
Corporation. Microsoft® and Windows® are registered trademarks of
Microsoft Corporation.
Other trademarks mentioned herein are the property of their
respective owners.
ii
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrical Power Supply, turn
off the power switch and remove the power cord plug from the wall
socket. The wall socket must be easily accessible and in close
proximity to the machine.
2. Read these instructions carefully. Save these instructions for future
reference.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the product
and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface.
This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is
provided.
7. This product should be operated from the type of power indicated
on the marking label. If you are not sure of the type of power
available, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
9. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a fire or electric shock. Never spill liquid of any
kind on the product.
CE MARK
This device complies with the requirements of the EEC directive
2004/108/EC with regard to “Electromagnetic compatibility” and
2006/95/EC “Low Voltage Directive”
FCC
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation
iii
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer’s
instructions.
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type.
Dispose of used battery according to the local disposal instructions.
Safety Caution
Note: To comply with IEC60950-1 Clause 2.5 (limited power sources,
L.P.S) related legislation, peripherals shall be 4.7.3.2 "Materials for fire
enclosure" compliant.
4.7.3.2 Materials for fire enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding
18kg.the material of a FIRE ENCLOSURE, in the thinnest significant
wall thickness used, shall be of V-1 CLASS MATERIAL or shall pass
the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg
and for all STATIONARY EQUIPMENT, the material of a FIRE
ENCLOSURE, in the thinnest significant wall thickness used, shall
be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1
LEGISLATION AND WEEE SYMBOL
2002/96/EC Waste Electrical and Electronic Equipment Directive on the
treatment, collection, recycling and disposal of electric and electronic
devices and their components.
iv
The crossed dustbin symbol on the device means that it should not be
disposed of with other household wastes at the end of its working life.
Instead, the device should be taken to the waste collection centers for
activation of the treatment, collection, recycling and disposal
procedure.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details of
where and how they can take this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
This product should not be mixed with other commercial wastes for
disposal.
v
Revision History
Changes to the original user manual are listed below:
Revision Date Description
V 1.0 November, 2011 Initial release
V 1.1 December, 2011 C46 M/B updated to v1.3
V1.2 May, 2012
C56 M/B and C65M/B
added
vi
Table Contents
1 Item Checklist ........................................................1
1-1 Standard Items............................................................................... 1
1-2 Optional Items ................................................................................ 2
2 System View............................................................3
2-1 Front View ....................................................................................... 3
2-2 Side View ........................................................................................ 4
2-3 I/O View........................................................................................... 4
3 System Assembly & Disassembly .........................8
3-1 Remove the Top Cover ................................................................... 8
3-2 Replace the HD ..............................................................................9
3-3 Remove the RAM Module............................................................10
4 Peripheral Installation ........................................ 12
4-1 Wall Mounting Kits Installation ...................................................12
4-2 Cash Drawer Installation..............................................................13
5 Specification........................................................ 15
6 Jumper Settings................................................... 19
6-1 C46 Motherboard Layout............................................................. 19
6-2 C56 Motherboard.........................................................................25
6-3 C65 Motherboard.........................................................................30
Appendix.................................................................. 36
vii
This page is intentionally left blank
1
1 Item Checklist
Take the unit out of the carton. Remove the unit from the carton by holding it by the
foam inserts. The following contents should be found in the carton:
1-1 Standard Items
a.
b.
c.
d.
a. System
b. COM cable (x1)
c. Power adapter
d. Driver CD
2
1-2 Optional Items
a.
a. Wall Mount Kits (x2)
3
2 System View
2-1 Front View
C46/C56 Motherboard
Number Description
1 Front cover
2 Slotted screw
C65 Motherboard
Number Description
1 Front cover
2 Slotted screw
3 USB
4 Indicator LED (Green)
5 Power button
2
1
1
2
3
4
5
4
2-2 Side View
Number Description
1 Ventilation hole
2-3 I/O View
C46 Motherboard
Number Description
1 USB x2
2 Cash drawer port
3 USB x 4
4 LAN
5 COM1~4 (from left to right)
6 VGA
7 DC IN 19V
8 Power button
9 Cable clamp
10 Kensington lock
11 Indicator LED (Green)
Note: The maximum current that can be drawn from each COM port is 500 mA.
1
5
C56 Motherboard
Number Description
1 Parallel
2 Cash drawer port
3 USB x4
4 LAN
5 COM1~4 (from left to right)
6 VGA
7 DC IN 19V
8 Power button
9 Antenna hole
10 PS/2
11 USB x2
12 Indicator LED (Green)
13 Cable clamp
14 Kensington lock
Note: The maximum current that can be drawn from each COM port is 500 mA.
6
C65 Motherboard
Number Description
1 DC IN 19V
2 PS/2
3 Cash drawer port
4 VGA
5 COM1~4 (from left to right)
6 USB x4
7 Line-out
8 LAN
9 Power button
10 Antenna hole
11 Cable clamp
12 DVI-D
13 Parallel
14 USB x2
15 Kensington lock
Note: The maximum current that can be drawn from each COM port is 500 mA.
7
C65 Motherboard (with power USB)
Number Description
1 DC IN 19V
2 PS/2
3 Cash drawer port
4 VGA
5 COM1~4 (from left to right)
6 USB x4
7 Line-out
8 LAN
9 Power button
10 Antenna hole
11 Cable clamp
12 DVI-D
13 Parallel
14 DC OUT 24V
15 Power USB x3
16 LAN
17 US B x2
18 Kensington lock
Note: The maximum current that can be drawn from each COM port is 500 mA.
8
3 System Assembly & Disassembly
3-1 Remove the Top Cover
1. Remove the screws (x2) to release the front cover.
2. Remove the screws (x2).
3. Slide the top cover outwards.
9
3-2 Replace the HD
C46 Motherboard
To replace the HD, please remove the top cover as described in Chapter 3-1
1. Remove the screw (x1).
2. Pull the HD away from the system.
C56 Motherboard
To replace the HD, please remove the top cover as described in Chapter 3-1
2. Remove the screw (x1).
3. Pull the HD away from the system.
10
C65 Motherboard
To replace the HD, please remove the top cover as described in Chapter 3-1
1. Remove the screws (x3) to separate
the HD module from the system.
2. Remove the screws (4) and replace the
HD.
3-3 Remove the RAM Module
C46 Motherboard
To replace the RAM, please remove the top cover as described in Chapter 3-1
1. Flip the ejector clips outwards to
remove the memory module from the
memory slot.
2. To install a RAM module, slide the
memory module into the memory slot
and press down until the ejector clips
snap in to place.
11
C56 Motherboard
To replace the RAM, please remove the top cover as described in Chapter 3-1
1. Flip the ejector clips outwards to remove
the memory module from the memory
slot.
2. To install a RAM module, slide the
memory module into the memory slot
and press down until the ejector clips
snap in to place.
C65 Motherboard
To replace the RAM, please remove the top cover as described in Chapter 3-1
1. Flip the ejector clips outwards to remove
the memory module from the memory
slot.
2. To install a RAM module, slide the
memory module into the memory slot
and press down until the ejector clips
snap in to place.
12
4 Peripheral Installation
4-1 Wall Mounting Kits Installation
1. Turn over the system and fasten the screws (x4) as shown in the picture.
13
4-2 Cash Drawer Installation
You can install a cash drawer through the cash drawer port. Please verify the pin
assignment before installation.
Cash Drawer Pin Assignment
Cash Drawer Controller Register
The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.
Register Location: 48Ch
Attribute: Read / Write
Size: 8bit
BIT BIT7 BIT6 BIT5
BIT4 BIT3 BIT2 BIT1 BIT0
Attribute Reserved Read
Reserved Write Reserved
7 6 5 4 3 2 1 0
X X X X X
Reserved
Cash Drawer “DOUT bit0” pin output control
Cash Drawer “DOUT bit1” pin output control
Reserved
Cash Drawer “DIN bit0” pin input status
Reserved
Pin Signal
1 GND
2 DOUT bit0
3 DIN bit0
4 12V / 19V
5 DOUT bit1
6 GND
14
Bit 7: Reserved
Bit 6: Cash Drawer “DIN bit0” pin input status.
= 1: the Cash Drawer closed or no Cash Drawer
= 0: the Cash Drawer opened
Bit 5: Reserved
Bit 4: Reserved
Bit 3: Cash Drawer “DOUT bit1” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 2: Cash Drawer “DOUT bit0” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 1: Reserved
Bit 0: Reserved
Note: Please follow the Cash Drawer control signal design to control the Cash
Drawer.
Cash Drawer Control Command Example
Use Debug.EXE program under DOS or Windows98
Command Cash Drawer
O 48C 04 Opening
O 48C 00 Allow to close
Set the I/O address 48Ch bit2 =1 for opening Cash Drawer by “DOUT
bit0” pin control.
Set the I/O address 48Ch bit2 = 0 for allow close Cash Drawer.
Command Cash Drawer
I 48C Check status
The I/O address 48Ch bit6 =1 mean the Cash Drawer is opened or not
exist.
The I/O address 48Ch bit6 =0 mean the Cash Drawer is closed.
15
5 Specification
C46/C56 Motherboard
Model Name POS 8000 POS 8000
Motherboard C46M C46H C56
CPU
Intel Pineview D525 processors 1.8G, L2
1M, Dual-Core, 13W
Intel CedarView D2550 processor 1.86GHz 1MB
Cache, 32nm, 4 threads, 10W
Chipset Intel® ICH8M Intel® NM10
System Memory
DDR3, SO-DIMM x
1, 2 GB, 800MHz
DDR3, SO-DIMM x 1, 2
or 4 GB, 800MHz
DDR3, SO-DIMM x1, 2 or 4 GB, 1067MHz
Graphic Memory
Integrated in CPU, Shared system memory up
to 256MB
DX9, Graphic core speed at 640MHz
Storage
HDD 1 x slim HDD holder support SATA HDD
Flash Memory SSD (without HDD, option)
External I/O Ports
USB 2.0 6
Serial / COM
4 x RJ-45 COM connectors
( COM1 & COM2 standard RS-232 W/O power; COM3/COM4 power enable/disable by BIOS,
default BIOS setting w/o power; jumper setting COM3 at +5V & COM4 at +12V)
Line out N/A 1 (option) 1
Parallel N/A 1
GigaLAN (10/100/1000) 1
DC Jack 1
VGA 1
DVI-D N/A
Cash Drawer Port RJ-11 x 1 (12V/24V)
PS/2 N/A 1(option) 1
Kensington Lock 1
Power
Power External 19V/65W power adapter
Control / Indicator
Power Button 1
16
Indicator LED (Green) 1
Expansion
Power USB module N/A
Wireless LAN N/A half-size miniCARD type (PCI-E), 802.11 b/g/n wireless LAN card & antenna
Wall Mount Kit 1
Environment
EMC & Safety FCC Class A, CE, LVD
Operating Temperature 0oC~ 35 oC (32oF ~ 95 oF)
Storage Temperature -20 oC ~ 60 oC (-4 oF ~ 140 oF)
Operating Humidity 20% ~ 85% RH non condensing
Storage Humidity 20% ~ 85% RH non condensing
Dimension (W x D x H) 270 X 220 x 50mm
Weight (N.W./G.W.) 1.6Kg / 2.6kg 1.9Kg / 2.9kg
OS Support
Windows® XP Professional, POSReady 2009, Windows XP Embedded, Windows XP Professional
for Embedded, Windows 7, Linux, POSReady7
17
C65 Motherboard
Model Name POS 8000
Motherboard C65M C65H
CPU
Intel Sandy Bridge CPU, LGA 1155-pin, 32nm
Pentium G620T 2.2G, L2 3M, 35W
Intel Sandy Bridge CPU, LGA 1155-pin, 32nm
i5-2390T 2.7G, L2 6M, TDP 35W,
i3-2120 3.3G, L2 3M, TDP 65W,
Pentium G850 2.9G, L2 3M, 65W
G620 2.6G, L2 3M, 65W
Chipset
Intel® PCH Cougar Point
H61 (SATA Generation 2.0/ No RAID)
Intel® PCH Cougar Point
Q67 (SATA Generation 3.0/ RAID 0/1 )
System Memory DDR3, Long-DIMM x1, 2 or 4 GB, 1066/1333MHz
Graphic Memory Intel HD Graphics, Integrated in CPU, frequency 850MHz, (dynamic frequency up to 1.1G)
Storage
HDD 1 x slim HDD holder support SATA HDD 2 x slim HDD holder support SATA HDD
Flash Memory SSD (without HDD, option)
External I/O Ports
USB 2.0 7
Serial / COM
4 x RJ-45 COM connectors
( COM1 & COM2 standard RS-232 W/O power; COM3/COM4 power enable/disable by BIOS,
default BIOS setting w/o power; jumper setting COM3 at +5V & COM4 at +12V)
Line out 1
Parallel 1 (option) 1
GigaLAN (10 /100/1000) 1
DC Jack 1
VGA 1
DVI-D 1 (option) 1
Cash Drawer Port RJ-11 x 1 (12V/24V)
PS/2 1
Kensington Lock 1
Power
Power External 19V/120W power adapter
Control / Indicator
Power Button 1
Indicator LED (Green) 1
Expansion
Power USB module N/A
5 USB ports (24Vx1 / 12Vx2 /normal 5Vx2) &
24V DC jack out / 2nd LAN connector
18
Wireless LAN
half-size miniCARD type (PCI-E), 802.11 b/g/n wireless
LAN card & antenna
half-size miniCARD type (PCI-E), 802.11
b/g/n wireless LAN card & antenna
(Choose either wireless or 2nd LAN)
Wall Mount Kit 1
Environment
EMC & Safety FCC Class A, CE, LVD
Operating Temperature 0oC~ 35 oC (32oF ~ 95 oF)
Storage Temperature -20 oC ~ 60 oC (-4 oF ~ 140 oF)
Operating Humidity 20% ~ 85% RH non condensing
Storage Humidity 20% ~ 85% RH non condensing
Dimension (W x D x H) 270 X 220 x 50mm
Weight (N.W./G.W.) 2.6Kg / 3.6Kg
OS Support
Windows® XP Professional, POSReady 2009, Windows XP Embedded, Windows XP Professional
for Embedded, Windows 7, Linux, POSReady7
19
6 Jumper Settings
6-1 C46 Motherboard Layout
6-1-1 Motherboard Layout
Version: C46 v1.3
20
6-1-2 Connectors & Functions
Connector Function
CN3 USB CONN
CN4 Speaker and MIC CONN
CN5 HDD Power CONN
CN6 USB CONN
CN12 PS2 Keyboard CONN
CN18 Power LED CONN
CN22 Power Button CONN
CN25 Battery CONN
PWR3 DC-JACK
CN25 Battery CONN
DDR3_A1 DDR3 SO-DIMM1
RJ11_3 Cash Drawer Port
RJ45_3 LAN Port
RJ45_4 COM1~4 Port
SATA1 7+15 Pin SATA CONN
PWR BUT Power Button
VGA3 VGA Port
USB3 USB Port
USB4 USB Port
JP3 Cash Drawer power selection
JP8 CRT Power Settin
g
JP9 COM Power Settin
g
21
6-1-3 Jumper Settings
Cash Drawer Power Setting
Function JP3 (1-2) (3-4)
▲19V
12V
CRT Power Ctrl
Function JP8 (1-2)
12V output
▲ Control by BIOS
▲ = Manufacturer Default Setting OPEN SHORT
22
COM3 & COM4 Power Setting
COM3 and COM4 can be set to provide power to your serial device.
The voltage can be set to +5V or 12V by setting jumper JP9 on the motherboard.
When enabled, the power is available on pin 10 of the RJ45 serial connector.
If you use the serial RJ45 to DB9 adapter cable, the power is on pin 9 of the DB9
connector. By default, the power option is disabled in the BIOS.
Enable COM3/COM4 power in BIOS
1. Power on the system, and press
the <DEL> key when the system
is booting up to enter the BIOS
Setup utility.
2. Select the Advanced tab
3. Select Power Configuration
COM/VGA Ports and press
<Enter> to go to display the
available options.
4. To enable the power, select
COM3 Power Setting or COM4
Power setting and press
<Enter>. Select Power and
press <Enter>.
Save the change by pressing
F10.
23
COM Power Setting
Function JP9 (1-2) (3-4) (5-6) (7-8)
▲COM3 5V
COM3 12V
COM4 5V
▲COM4 12V
▲ = Manufacturer Default Setting OPEN SHORT
24
2nd VGA Power Setting
VGA port power must be on through BIOS/Utility for default is “No Power“
1. Power on the system, and press the
<DEL> key when the system is
booting up to enter the BIOS Setup
utility.
2. Select the Advanced tab
3. Select "Power Configuration
COM/VGA Ports" and press <Enter>
to go to display the available
options.
4. To switch on the power, select
"+12V" press <Enter>. Please Save
the change by pressing F10
25
6-2 C56 Motherboard
6-2-1 Motherboard Layout
Version: C56 v0.9
26
6-2-2 Connectors & Functions
Connector Function
CN4 Power LED CONN
CN6 Speaker & MIC CONN
CN8 HDD Power CONN
CN10 Printer Port CONN
CN11/12 USB CONN
CN14 PS2 Keyboard CONN
CN17 Power Button CONN
CN18 TO Front I/O Board
PWR1/2 DC-JACK
RJ11_1 Cash Drawer Port
RJ45_1 LAN Port
RJ45_2 COM1~4 Port
DDR3_A1 DDR3 SO-DIMM
SATA1 SATA CONN
SATA2 7+15 Pin SATA CONN
USB1 USB Port
USB2 USB Port
VGA1 VGA Port
SW1 Power Button
JP5 COM2 Power Setting
JP6 COM3/COM4 Power Setting
JP9 CASH DRAWER Power Setting
27
6-2-3 Jumper Settings
Cash Drawer Power Setting
Function JP9 (1-2) (3-4)
▲19V
12V
28
COM2/COM3/COM4 Power Setting
COM2, COM3 and COM4 can be set to provide power to your serial device.
The voltage can be set to +5V or +12V by setting jumper JP9 on the motherboard.
When enabled, the power is available on pin 10 of the RJ45 serial connector.
If you use the serial RJ45 to DB9 adapter cable, the power is on pin 9 of the DB9
connector. By default, the power option is disabled in the BIOS.
Enable COM2/ COM3/COM4 power in
BIOS
1. Power on the system, and press
the <DEL> key when the system is
booting up to enter the BIOS Setup
utility.
2. Select the Advanced tab.
3. Select VGA/COM Power and LCD
Brightness Configuration Ports
and press <Enter> to go to display
the available options.
4. To enable the power, select
COM2 , COM3 or COM4 Power
setting and press <Enter>. Select
Power and press <Enter>. Save
the change by pressing F10.
COM2 Power Setting
Function JP5 (1-2) (3-4)
▲COM2 +5V
COM2 +12V
29
COM 3 & COM4 Power Setting
Function JP6 (1-2) (3-4) (5-6) (7-8)
▲COM3 +5V
COM3 +12V
COM4+ 5V
▲COM4 +12V
▲
= Manufacturer Default Setting OPEN SHORT
30
6-3 C65 Motherboard
6-3-1 Motherboard Layout
Version: C65 V1.0
31
6-3-2 Connectors & Functions
Connector Function
CN6/CN7 HDD Power CONN
CN8 Power Button
CN10 DVI CONN
CN11 To Front I/O Board
CN12 USB CONN
CN18 Printer CONN
CN19 Line Out
CN20 Battery CONN
DDR3_A1 DDR3 DIMM1
FAN_CPU3
FAN CONN
FAN_SYS3 FAN CONN
PS1 PS2 Port
PWR3/4/5
DC-JACK
RJ11_3 Cash Drawer Port
RJ45_3 COM1~4 Port
RJ45_4 LAN Port
SATA1/2 SATA CONN
SATA3 To SATA Docking Board
SW3 Power Button
USB4/5 USB Port
VGA3 VGA Port
JP3 Cash Drawer Power Settin
g
JP4 System Indicator
JP5 COM3/COM4 Power Settin
g
JP12 ME Update
32
6-3-3 Jumper Settings
Cash Drawer Power Setting
Function JP3 (1-2) (3-4)
▲19V/24V
12V
System Indicator
Function JP4 (1-2) (3-4) (5-6) (7-8)
▲Disable
Enable
▲ = Manufacturer Default Setting OPEN SHORT
33
COM3 & COM4 Power Setting
COM3 and COM4 can be set to provide power to your serial device.
The voltage can be set to +5V or 12V by setting jumper JP9 on the motherboard.
When enabled, the power is available on pin 10 of the RJ45 serial connector.
If you use the serial RJ45 to DB9 adapter cable, the power is on pin 9 of the DB9
connector. By default, the power option is disabled in the BIOS.
Enable COM3/COM4 power in BIOS
1. Power on the system, and
press the <DEL> key when the
system is booting up to enter
the BIOS Setup utility.
2. Select the Advanced tab
3. Select Power Configuration
COM/VGA Ports and press
<Enter> to display the
available options.
4. To enable the power, select
COM3 Power Setting or COM4
Power setting and press
<Enter>. Select Power and
press <Enter>.
Save the change by pressing
F10.
34
COM3~COM4 Power Setting
Function JP5 (1-2) (3-4) (5-6) (7-8)
▲COM3 5V
COM3 12V
COM4 5V
▲COM4 12V
▲ = Manufacturer Default Setting OPEN SHORT
35
ME update
Function JP12 (1-2)
▲Lock
Un-Lock
▲ = Manufacturer Default Setting OPEN SHORT
36
Appendix
Driver Installation:
The shipping package includes a Driver CD. You can find every individual driver and
utility that enables you to install the drivers in the Driver CD.
Please insert the Driver CD into the drive and double click on the “index.htm” to
pick up the models. You can refer to the drivers installation guide for each driver in
the “Driver/Manual List”.
Loading...
