Flytech POS 500, POS 505 Technical Manual

Download

Page 1

POS500/505 with B55/B65 M/B Installation Guide

Part No：48200014 January 2004 (V2.1)

Point-of-Sale

Hardware System

Page 2

Safety

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions carefully. Save these instructions for future reference.

2. Follow all warnings and instructions marked on the product.

3. Do not use this product near water.

4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

5. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

6. This product should be ope rated from the type of po wer in dica ted on th e mark ing l abel. If you are not sure of the type of power available, consult your dealer or local power company.

7. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

8. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the following two condition: (1)This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.

Caution on Lithium Batteries

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Page 3

Index

Safety.............................................................................................................. 3

1.Accessory .................................................................................................... 5

2.I/O Function ................................................................................................. 7

2.1Front View............................................................................................ 7

2.2I/O port................................................................................................. 7

3.Specification................................................................................................. 8

3.1System Memory Combination.............................................................. 9

4.Peripherals Installation................................................................................. 9

4.1Install External FDD............................................................................. 9

4.2 Install External IDE Device ................................................................11

4.3 Install MCR Module (Optional)...........................................................11

4.4 Install Pole Display Module (Optional).............................................. 12

4.5 Install a Compact Flash Card............................................................ 13

4.6 Install Cash Drawer........................................................................... 13

4.7 Install Second display (Differential of connector board).................... 15

5. Driver Installation...................................................................................... 18

5.1 Netmos ............................................................................................. 18

5.2 Elo_Touch......................................................................................... 19

5.3 LAN-driver......................................................................................... 21

5.4 VGA.................................................................................................. 22

6. Jumper Setting.......................................................................................... 24

6.1 B65(POS500) Jumpers and DIP Switches Locations....................... 24

6.2 B55(POS500/505) Jumpers.............................................................. 28

7.B55 I/O Board Jumper Setting................................................................... 29

7.1 Pin1/Pin9 Function of COM Port Selection: JP1............................ 29

7.2 Cash Drawer Power Selection: JP2............................................... 29

Page 4

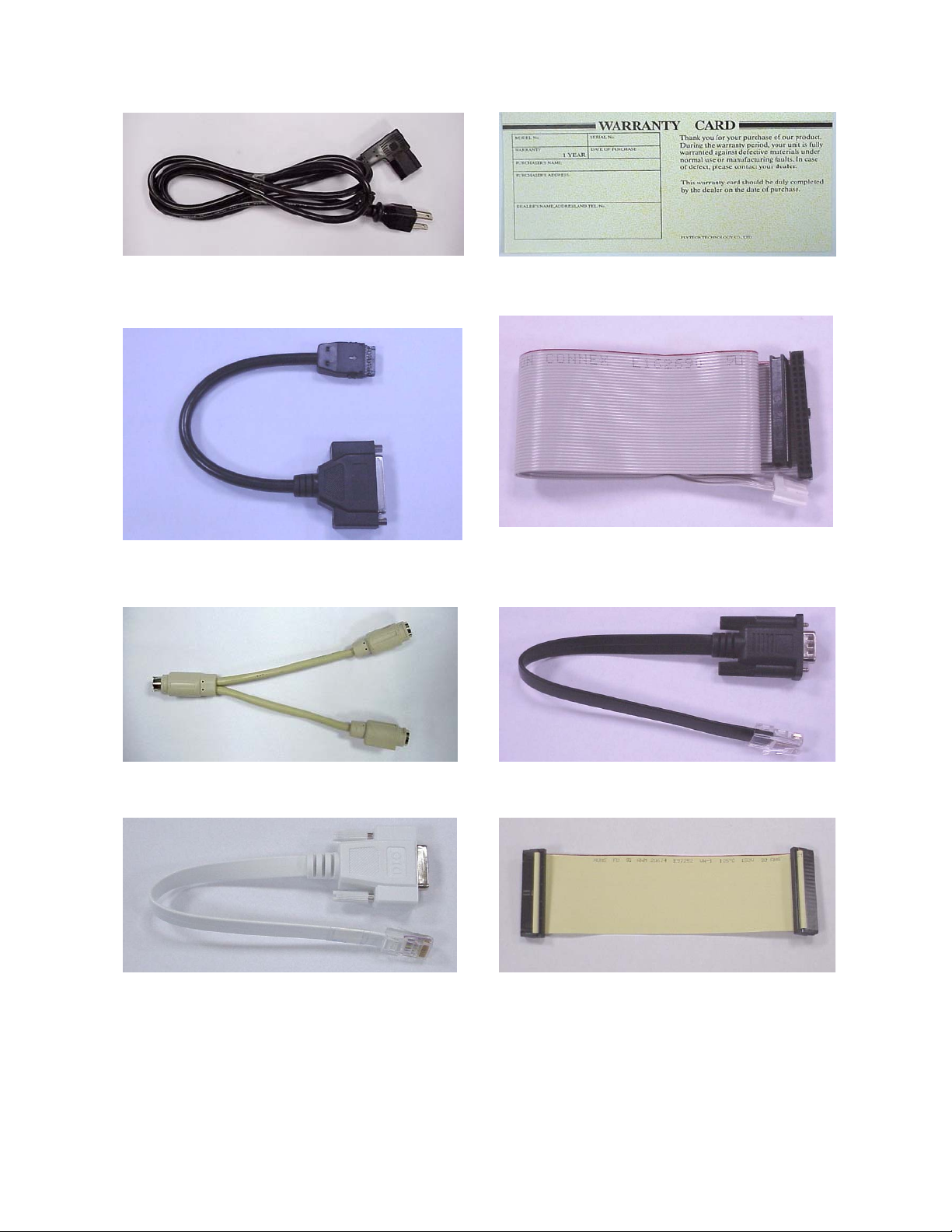

1.Accessory

Power Cord Warranty Card

Printer Cable FDD Cable

Y Cable (Keyboard & Mouse) Serial Cable

DIO Cable External IDE Cable

Page 5

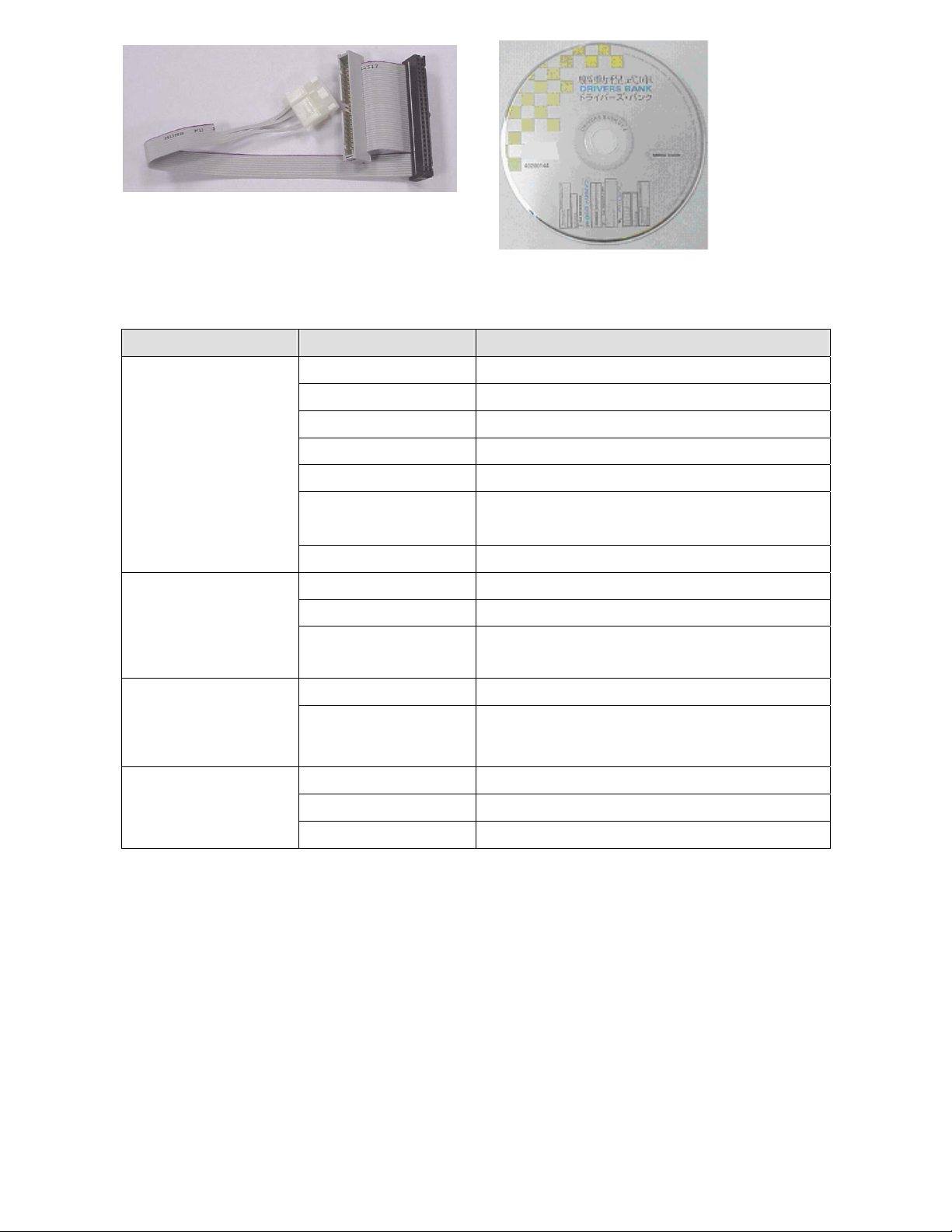

External IDE Cable Drivers Bank

The following drivers in the folders of Driver Bank are necessary for driver installation:

Folder Driver Function

Acrobat Acrobat Reader Installation

BIOS Tool BIOS Update Tool

Common

CDROMDrv CDROM driver installation (for DOS)

Elo_Touch Touch screen driver Installation LAN_drive LAN driver installation

＊Netmos

Enable COM5/COM6

Smart Card Smart Card driver installation

Audio Audio driver Installation

B55

UDMA UDMA driver installation

VGA VGA driver installation

(POS500/505)

Doc2000 Doc2000 driver installation

B65

VGA_69000 VGA driver installation

(POS500)

Card Reader Card Reader Test Program

Test Utility

Cash Drawer Cash Drawer Test Program

VFD Customer Display Test Program

＊ When using B55 Mainboard, the Touchscreen was set on COM5. The Netmos driver

must be loaded to enable COM5 & COM6 before installing ELO touch driver to COM5.

Page 6

2.I/O Function

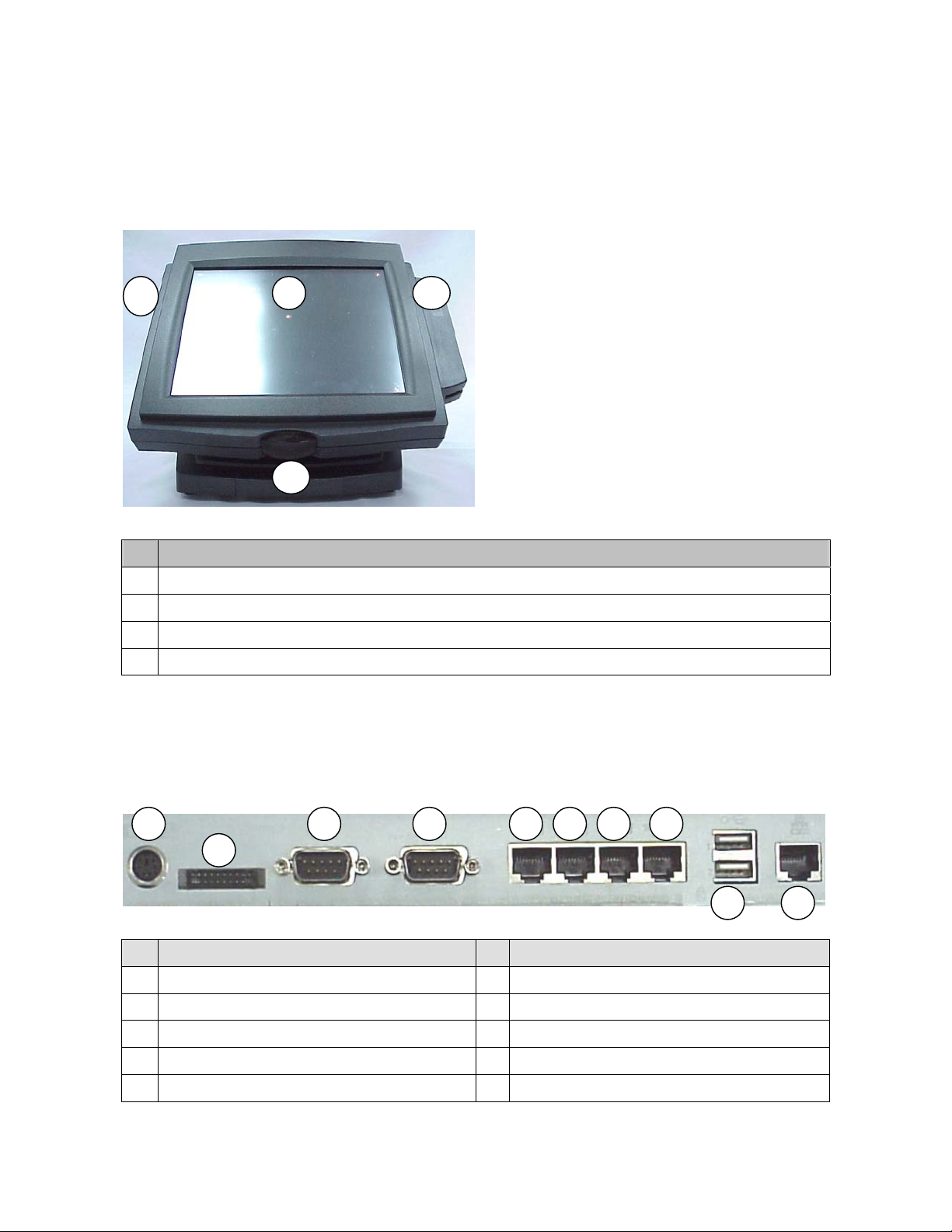

2.1Front View

# Function 1 LCD Touch Module 2 Power Switch & External IDE Connector 3 Card Reader 4 External FDD Connector & Compact Flash Socket

2.2I/O port

# Function # Function 1 KB / Mouse 6 COM4 2 LPT 7 COM6 3 COM1 8 Cash Drawer 4 COM2(optional 2nd VGA port) 9 USB1&2 5 COM3 10 LAN

8 6

Page 7

3.Specification

Item POS500 POS500/505 Main Board B65 B55 CPU Supports SK 370

Celeron / PIII FSB 66/100Mhz

Support s SK 370 Celeron / PIII

FSB 66/100/133Mhz Co-processor Built-in CPU Internal Cache Built-in CPU External Cache Built-in CPU System Memory 2 x 168pin DIMM socket,

support up to 512 MB

2 x 168pin DIMM socket,

support up to 1GB BIOS Award PnP BIOS Core Logic Intel FW82443BX SiS 630ST Single Chip VGA Display C&T69000 Chip

2MB RAM on chip

LCD Panel POS500 12.1” TFT 800x600 180 cd/m

POS505 15” TFT 1024x768 250 cd/m Viewing angle 0

~60

IDE Controller PCI IDE supports ATA

PIO/UDMA33

Built-in SiS630ST

SMA 8M/16M/32M/64MB

Touch resistive type

PCI IDE supports ATA

PIO/UDMA33/66/100 Hard Disk Drive One 3.5” HDD drive by Primary IDE (HDD option) I/O controller SMSC37C602 support one

40-pin

Built-in Core Logic SiS 630ST

W83697HF / W83697HF

NetMos PCI 9835 x1 FDD controller 40-pin 2.54mm pitch pin-header with power I/O Port DB-9M COM x 2 (COM1&2) ,10-pin RJ-45 COM x 3 (COM3/4/6)

(COM5 default for Touch Screen),RJ-45 LAN x 1, RJ-45 Cash

Drawer x 1, USB x 2 LAN port Intel 82559ER LAN Chip RTL8139C ROM disk DiskOnChip Socket supported Card Reader Keyboard/Serial (3-Track) types supported (20pin)

Can also bundle Barcode Card Reader & Magnetic Card Reader Compact Flash Type 1 Compact Flash Socket Supported Customer Display

Options Fix type customer display supports LED/VFD/LCD type

Pole display supports LED/VFD/LCD type Second display Optional 8.4”/10.4”/12.1” TFT LCD display Power Supply FT8007 Int. AT 75W

FT8150 Int. ATX 150W Factory optional FT8150 Int. ATX 150W

Operation Temperature

5℃~ 35℃

Page 8

EMI/EMS CE (Class-A) System Dimension(WxDxH) System Weight (Net) 7.5 Kgs. (16.5 Lbs.) Note: The control Chip of B55 (Netmos NM9835)/B65(IMP16C552)of COM5 & COM6 is PCI 2.1 protocol which not support system standby mode.

POS500 12.1” 33 x 32 x 24cm POS505 15” 37.9x34.5~36.1x20.1~31.2cm

3.1System Memory Combination

B65(POS500) RAM Size Slot

DIMM1 X 128 128 256 X 256 512 X DIMM2 128 X 128 X 256 256 X 512

B55(POS500/505) RAM Size Slot

128MB 256MB 512MB 1024MB

128MB 256MB 512MB

DIMM1 X 128 128 256 X 256 512 X 512 DIMM2 128 X 128 X 256 256 X 512 512

Note: Please note that DIMM1 of POS500 does not support RAM over 29 mm in height.

4.Peripherals Installation

4.1Install External FDD

a. Connect the FDD cable from 40 pin FDD

connector left side of LCD module..

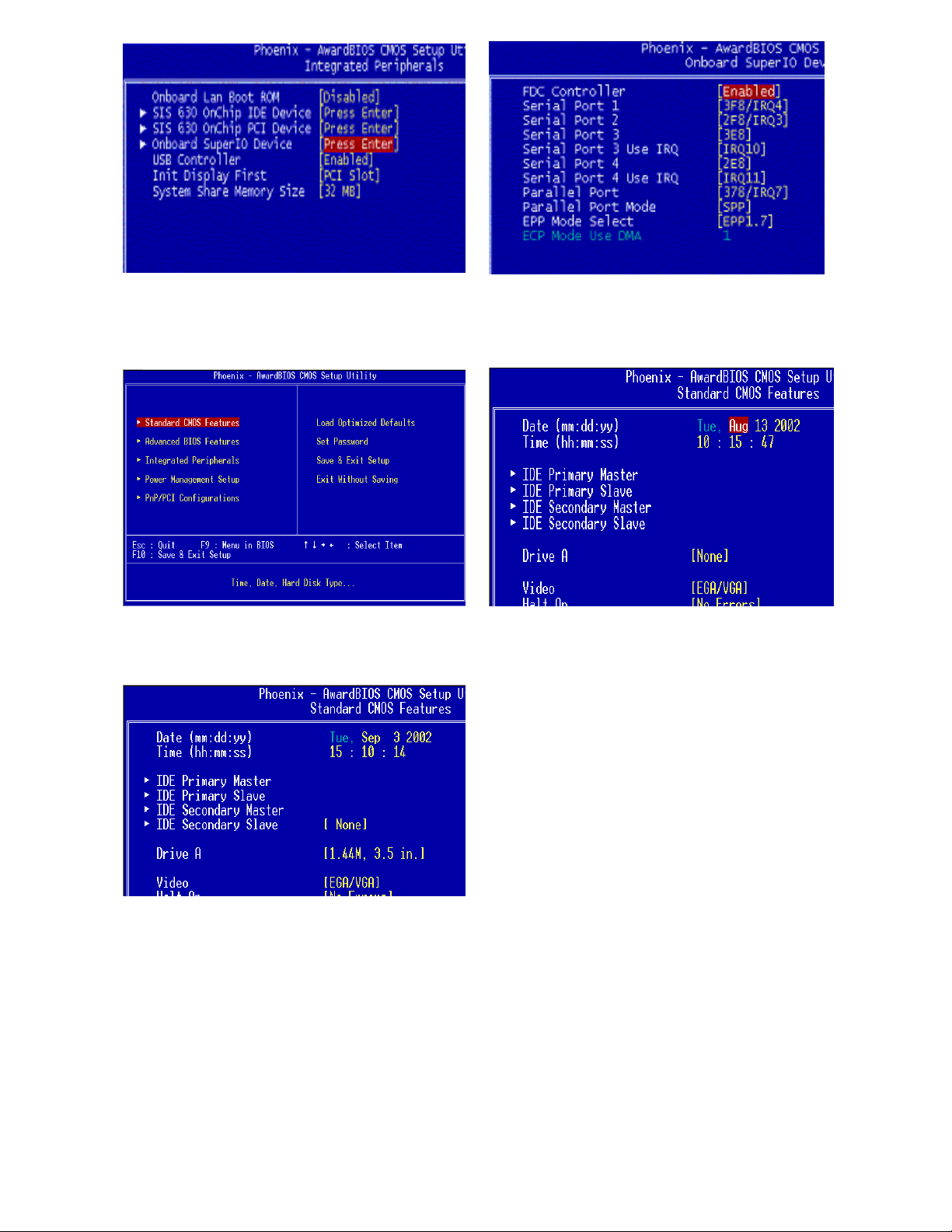

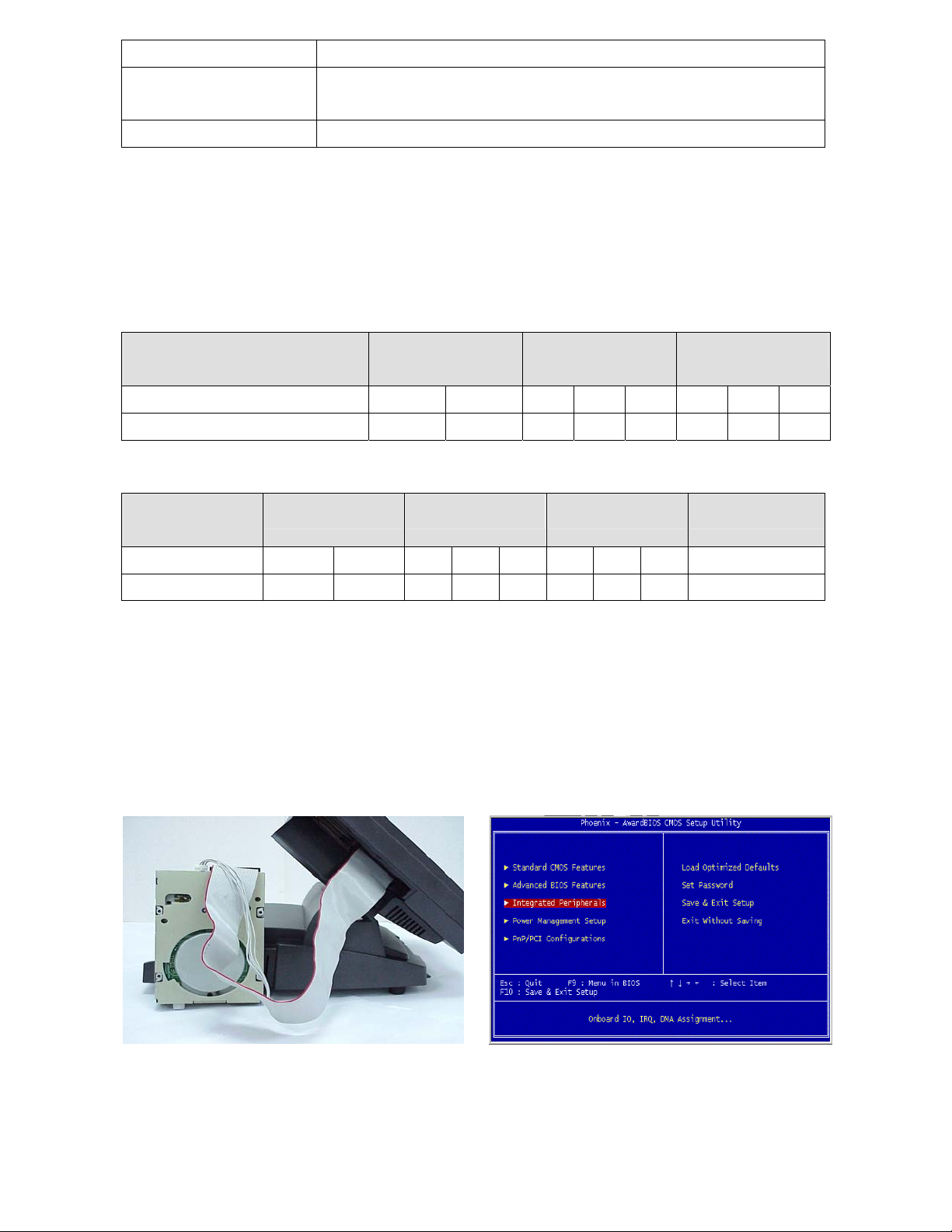

b. Enter "Integrated Peripherals" of the Main

Menu of BIOS CMOS Setup Utility.

Page 9

c.Move the arrow key downward to the

"Onboard Super IO Device" item

e. Enter "Standard CMOS Features" of the

Main Menu of BIOS CMOS Setup Utility.

d. Move the arrow key downward to the

"FDC Controller" item. Use "Page Up" or "Page Down" key change to “Enable”

f. Move the arrow key downward to the

"Drive A" item.

g. Use "Page Up" or "Page Down" key for

FDD Installation. Make sure you save the changes by pressing F10 key or moving to "Save & Exit Setup."

Page 10

4.2 Install External IDE Device

a. Take out the manufacturer’s IDE cable

provided in the accessory bag, connect the second HDD or CD-ROM drive to the 50-pin Header as hidden in the Front Cover of the Base Stand.

b. Connect the IDE cable from either the

second HDD or CD-ROM drive to the 50 pin Header hidden in the Front Cover of the Base Stand.

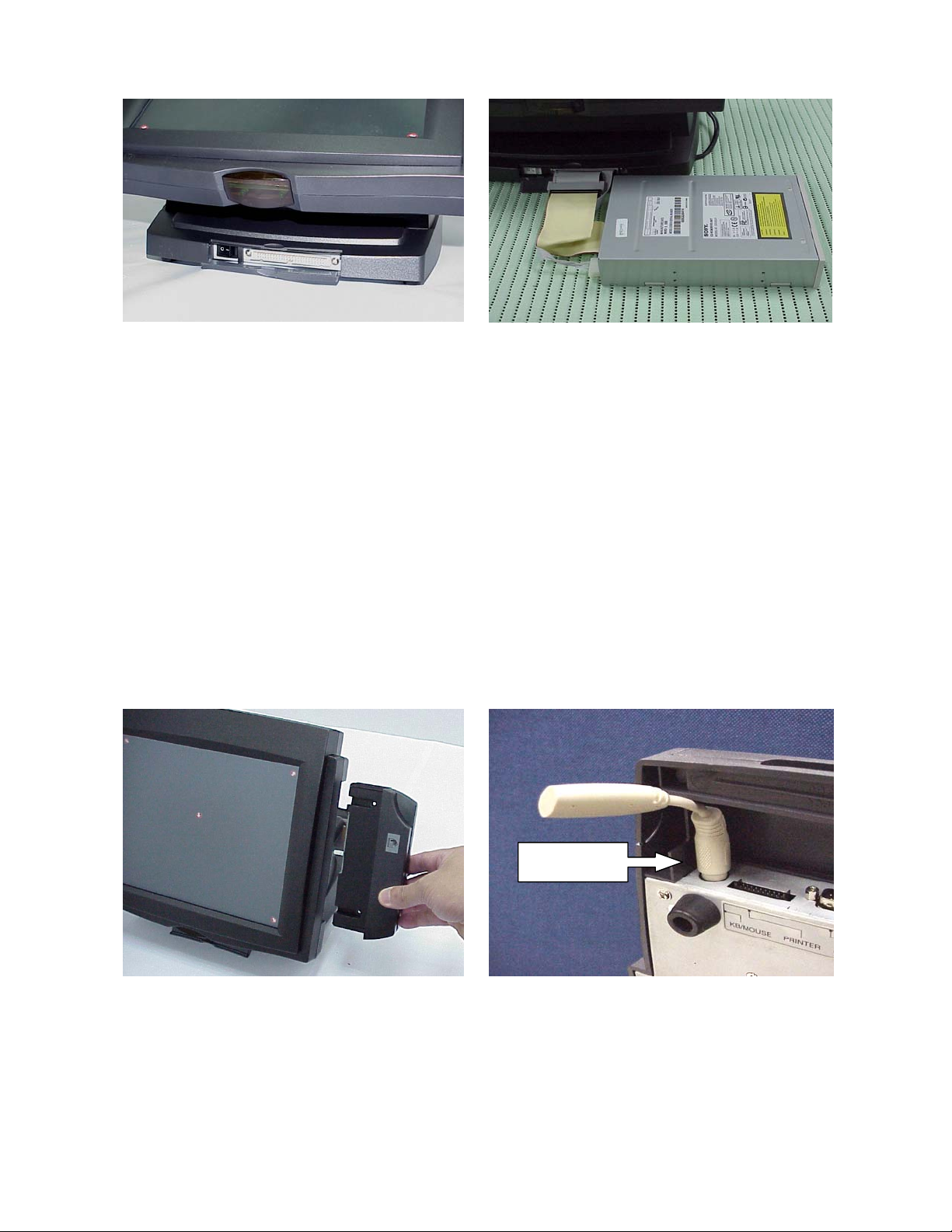

4.3 Install MCR Module (Optional)

The optional MCR (Magnetic Card Reader) unit is tested and can be supplied at your request. This MCR is removed during transportation and can be connected by the user. The manufacturer offers two types of MCR Module, either by the Serial type or keyboard type.

Terminator

a. Install the MCR module to the right side of

System Bay Module and lock it with two screws.

Note: We have a new version that enhances the Keyboard type MCR. When you select a

keyboard type MCR, does not connect a standard P/S2 keyboard or insert the Terminator.

b. If you select a keyboard type MCR and

the system does not connect a standard P/S2 keyboard, please insert the Terminator for simulate and instead of the P/S2 Keyboard.

Page 11

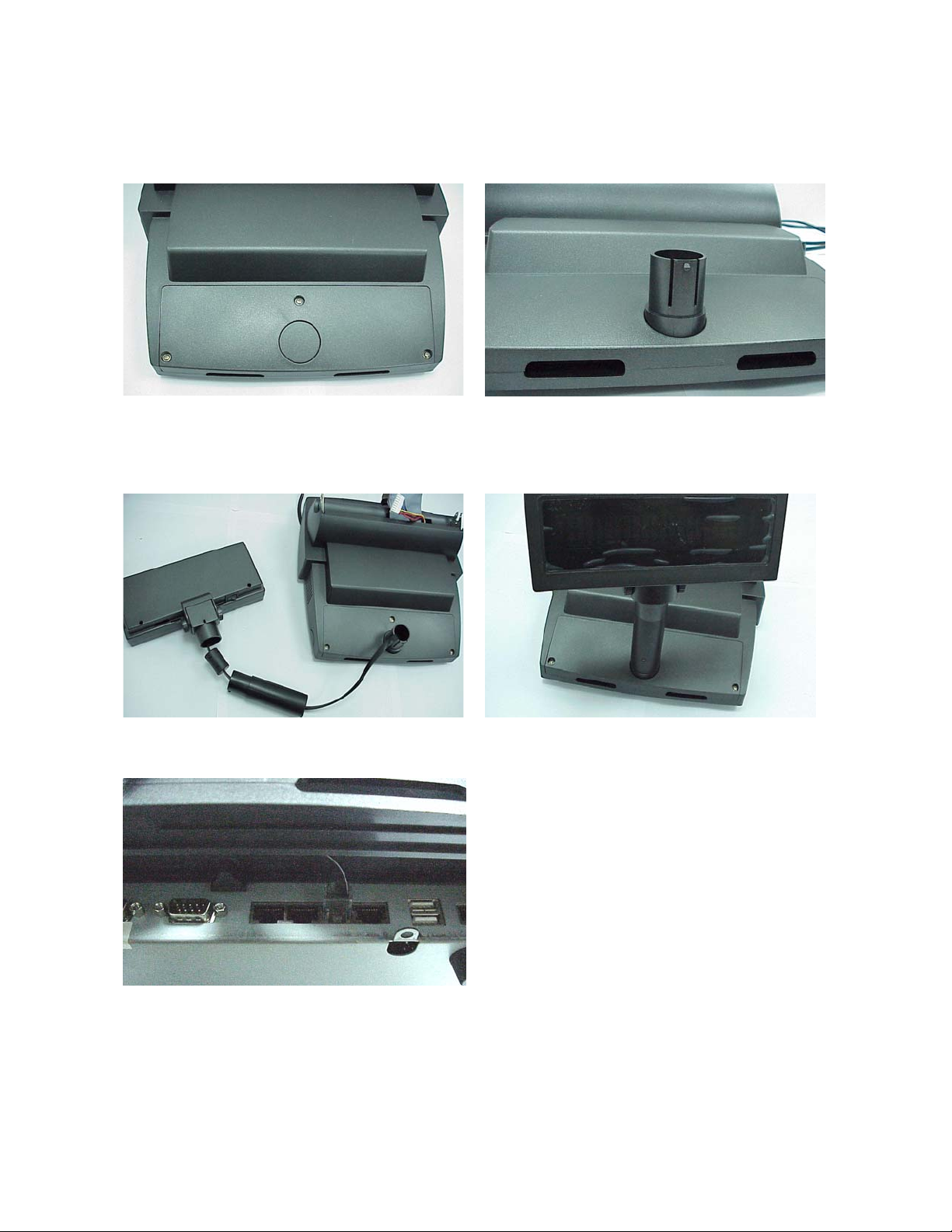

4.4 Install Pole Display Module (Optional)

The POS system is equipped with an interface for a connection to a Pole Display Module. Please refer to COM6 of CN7 of jumper setting section.

a. Remove Pole Display cover from POS

system unit by f in g er s .

c. Install Pole Display flat cable inside Pole Display Tube. Use either two or one tube.

b. Install Pole Display cover kit onto POS

system unit.

d. Connect Pole Display cable RJ-45 connector to COM6 of POS system.

Page 12

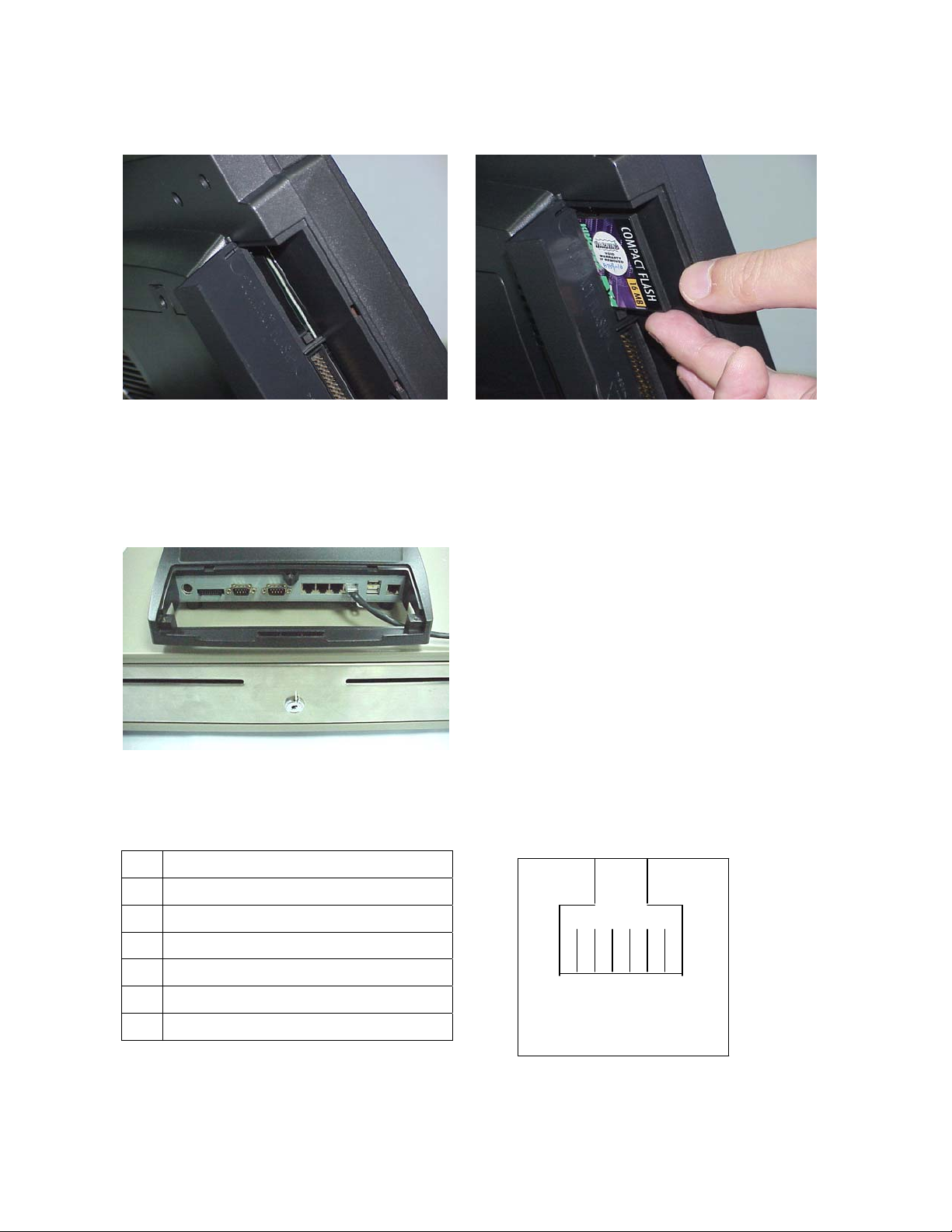

4.5 Install a Compact Flash Card

You can install a compact flash card At the left side of the LCD panel.

4.6 Install Cash Drawer

You can install a cash drawer through the Cash Drawer port.

4.6.1 Cash Drawer Pin Assignment

Pin Signal

1 GND 2 DOUT bit0 3 DIN bit0 4 12V/24V 5 DOUT bit1 6 GND

6 1

Page 13

4.6.2 Cash Drawer Controller register

The Cash Drawer Controller use two I/O addresses to control Cash Drawer –Cash Drawer Control Register and Cash Drawer S tatus Register.

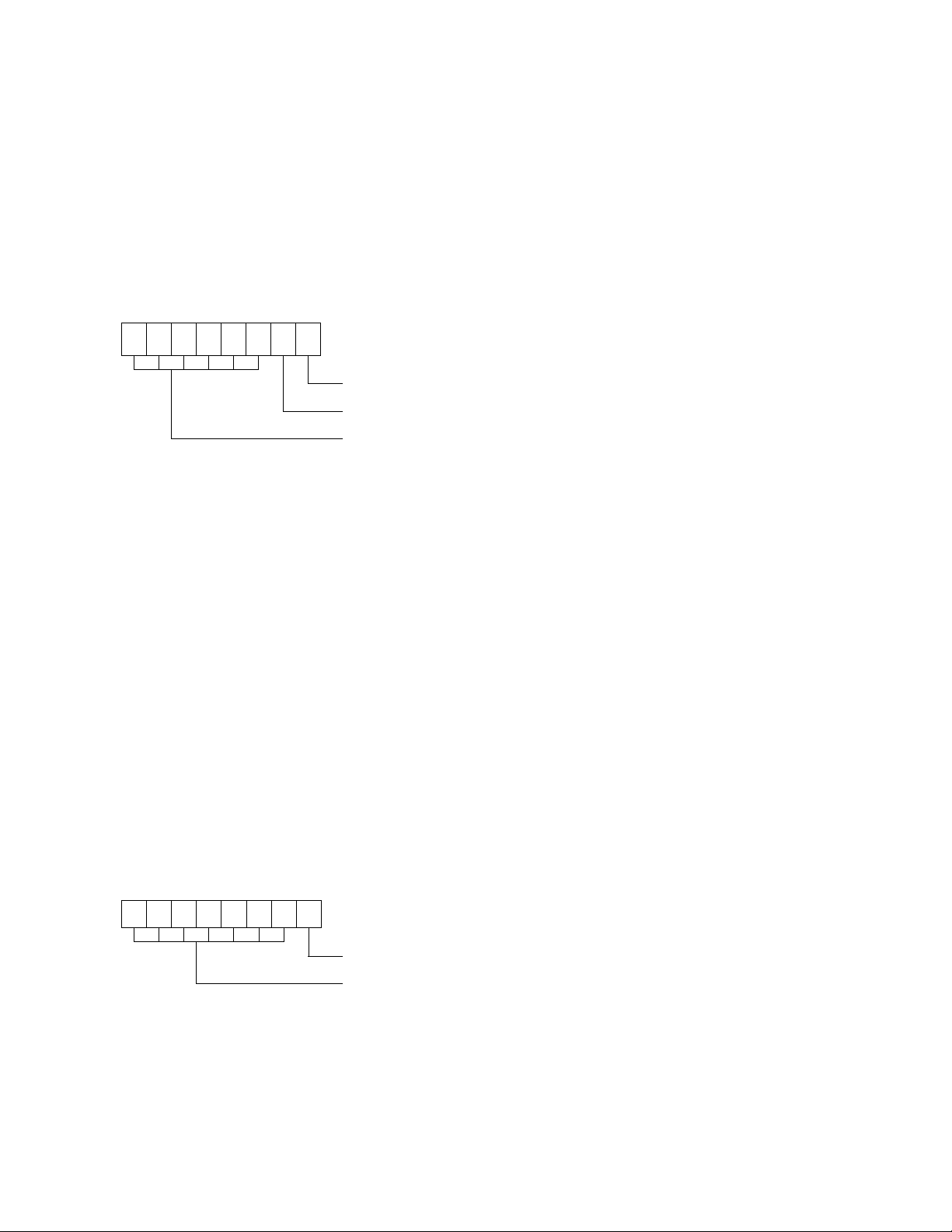

4.6.2.1 Cash Drawer Control Register

7 6 5 4 3 2 1 0

X X X X X X

Bit 7-2: Reserved Bit 1: Cash Drawer “DOUT bit1” pin output control. = 1: Opening the Cash Drawer = 0: Allow close the Cash Drawer Bit 0: Cash Drawer “DOUT bit0” pin output control. = 1: Opening the Cash Drawer = 0: Allow close the Cash Drawer

Note: Please follow the Cash Drawer control signal design to control the C ash Drawer.

Suggest control the bit1/0 at the same time.

Cash Drawer “DOUT bit0” pin output control Cash Drawer “DOUT bit1” pin output control Reserved

4.6.2.2 Cash Drawer Status Register

7 6 5 4 3 2 1 0 X X X X X X X

Cash Drawer “DIN bit0” pin input status Reserved

Bit 7-1: Reserved Bit 0: Cash Drawer “DIN bit0” pin input status. = 1: the Cash Drawer opened or not exists. = 0: the Cash Drawer closed.

Page 14

4.6.3 Cash Drawer control command example

Use Debug.EXE program under DOS or Windows98

Command Cash Drawer

O 200 01 Opening O 200 00 Allow to close

¾ Set the I/O address 200h bit0 =1 for opening Cash Drawer by “DOUT bit0” pin control. ¾ Set the I/O address 200h bit0 = 0 for allow close Cash Drawer.

Command Cash Drawer

I 201 Check status

¾ The I/O address 201h bit0 =1 mean the Cash Drawer is opened or not exist. ¾ The I/O address 201h bit0 =0 mean the Cash Drawer is closed.

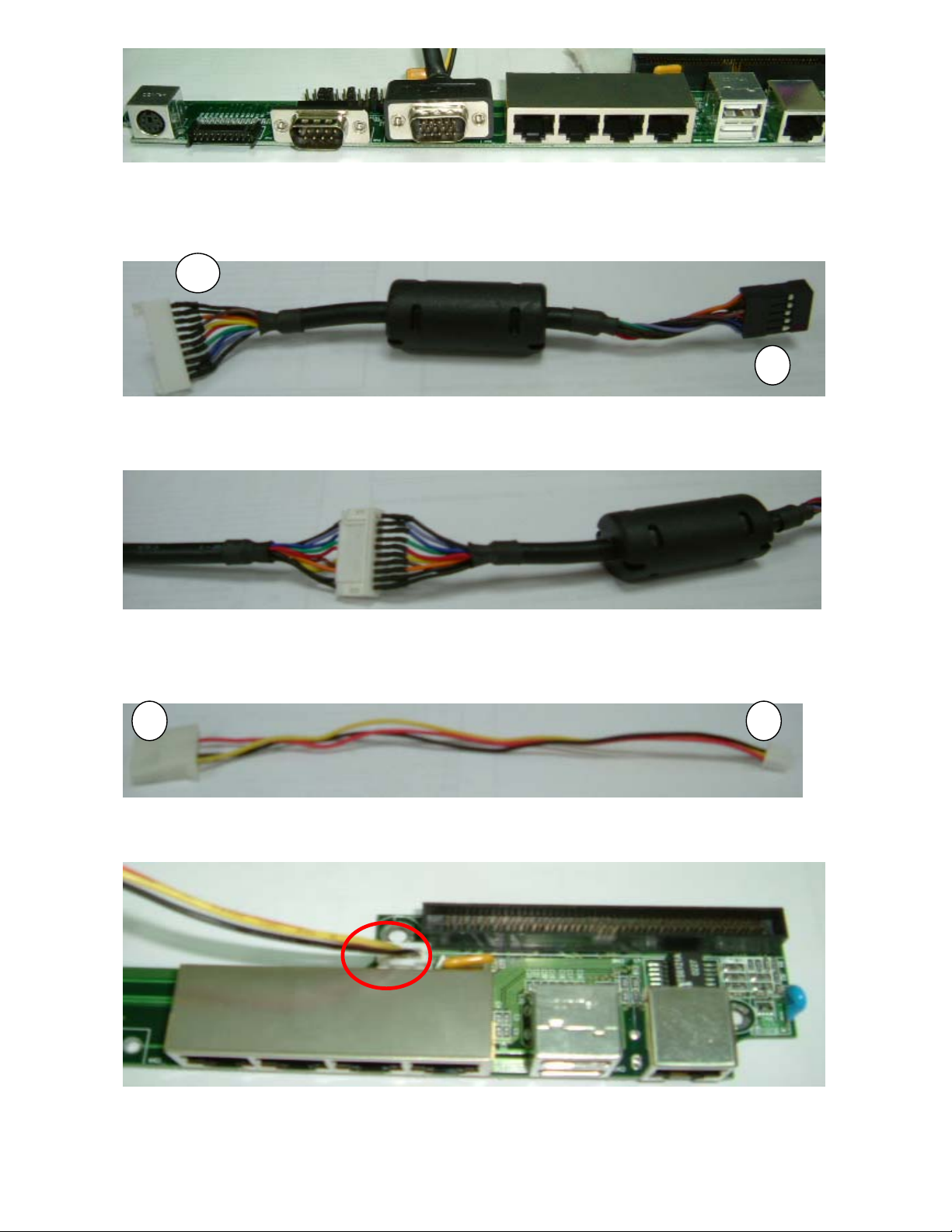

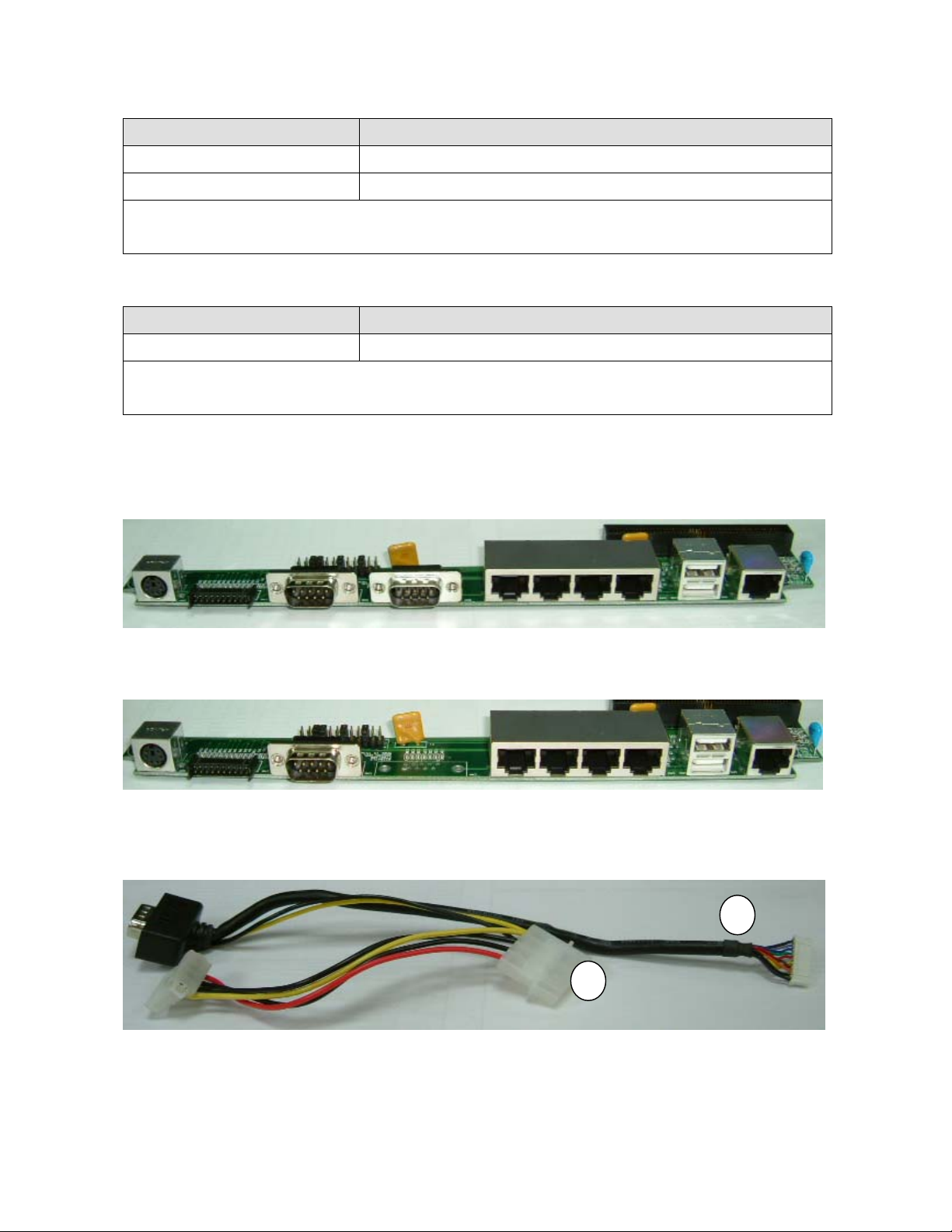

4.7 Install Second display (Differential of connector board)

a. St andard connector board.

b. Second display connector board.

c. Second display VGA cable 1

Page 15

d. Install second display VGA cable replace COM2

e. Second display VGA cable 2

f. A of second display VGA cable 1 connect to D of second display VGA cable 2

g. Power cable of connector board

h. E of power cable connected to connector board.

Page 16

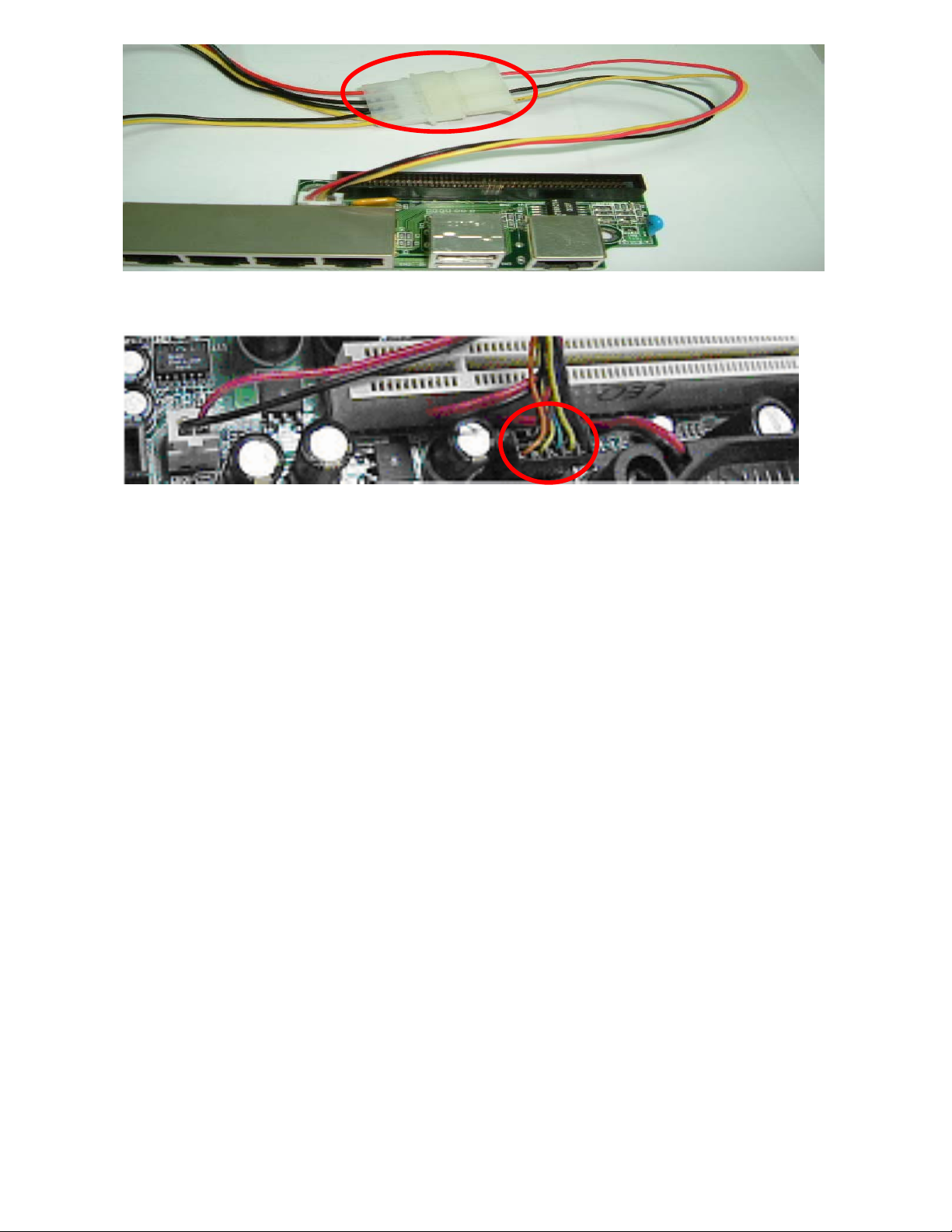

i. B of second display cable 1 connected to F of power cable.

j. C of second display cable 2 connected to main board.

Page 17

5. Driver Installation

The following procedures are for Windows 2000. Other platforms are si milar.

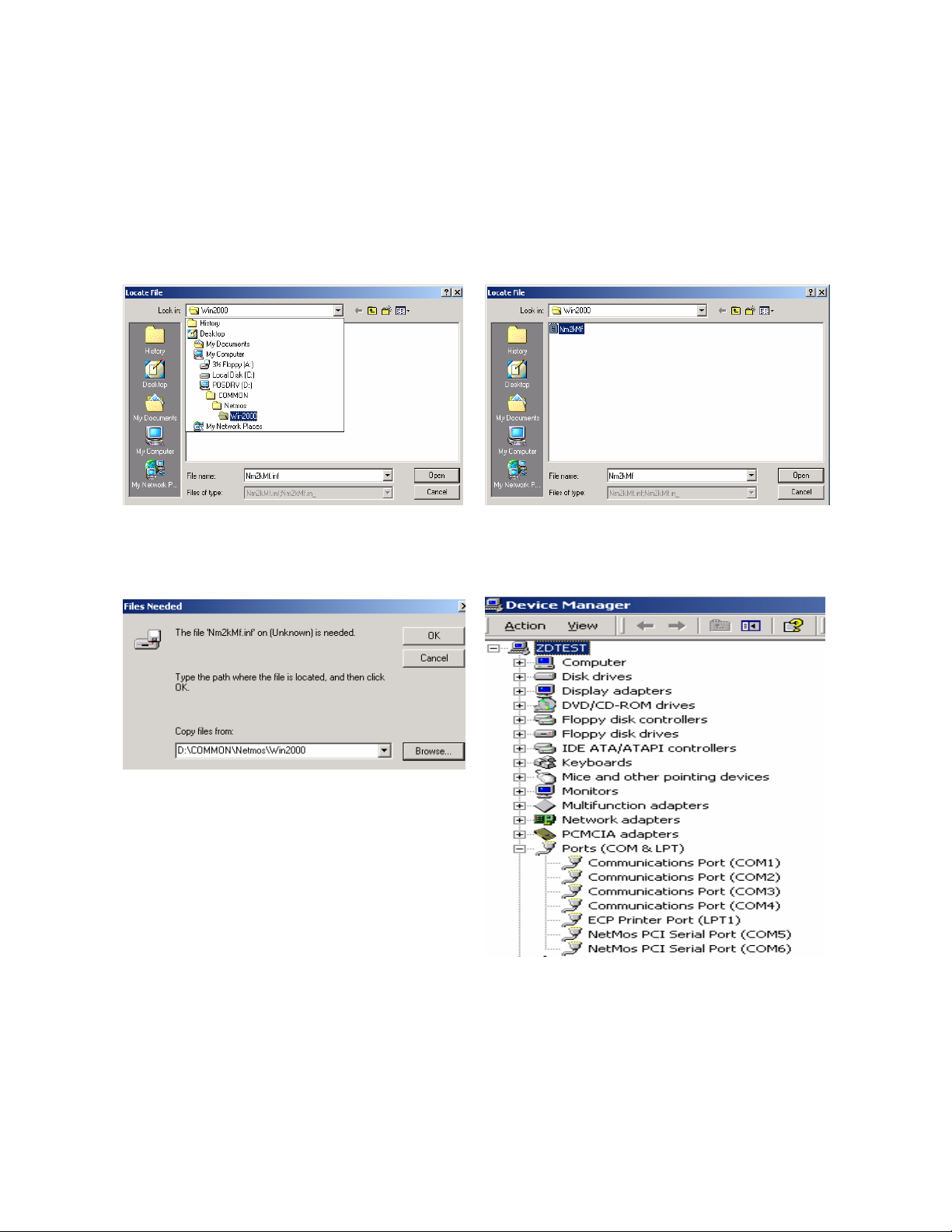

5.1 Netmos

a. Indicate the location of the Netmos driver b. Choose “Nm2kMf” in the Locate File

window.

c. Click “OK” on the Files Needed window. d. Now the Netmos driver is installed.

Page 18

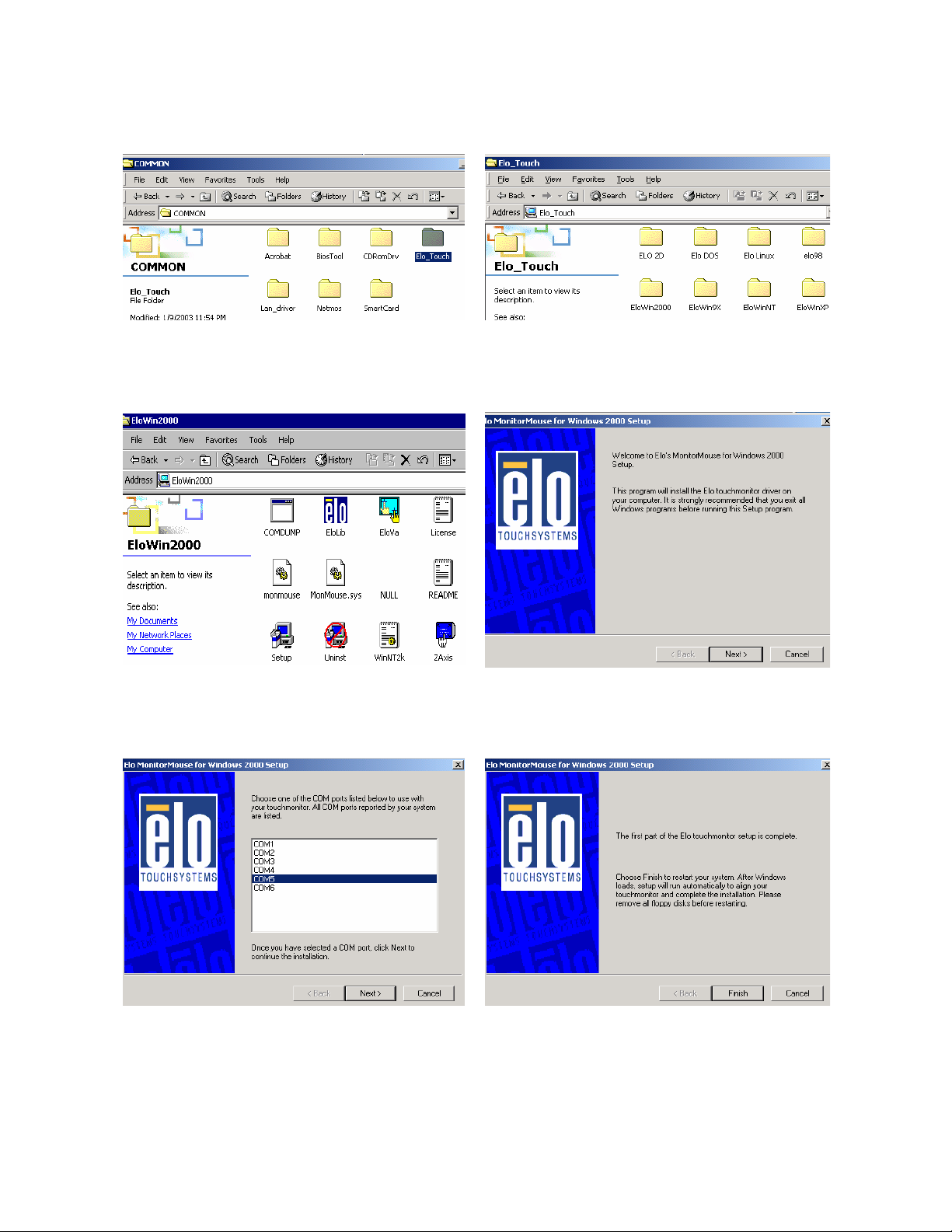

5.2 Elo_Touch

a. Click "COMMON" on the POS driver window.

b. Click "Elo_Touch" on the COMMON

window.

d. Click “Setup” on the EloWin2000 window. e. Click “Next” on the Elo MonitorMouse for

c. Choose the OS to be installed with Elo

_Touch driver.

Windows 2000 Setup window.

d. Choose “COM5” and click “Next” on the

Elo MonitorMouse for Windows 2000 Setup window.

e. Click “Finish” on the Elo MonitorMouse for

Windows 2000 Setup window.

Page 19

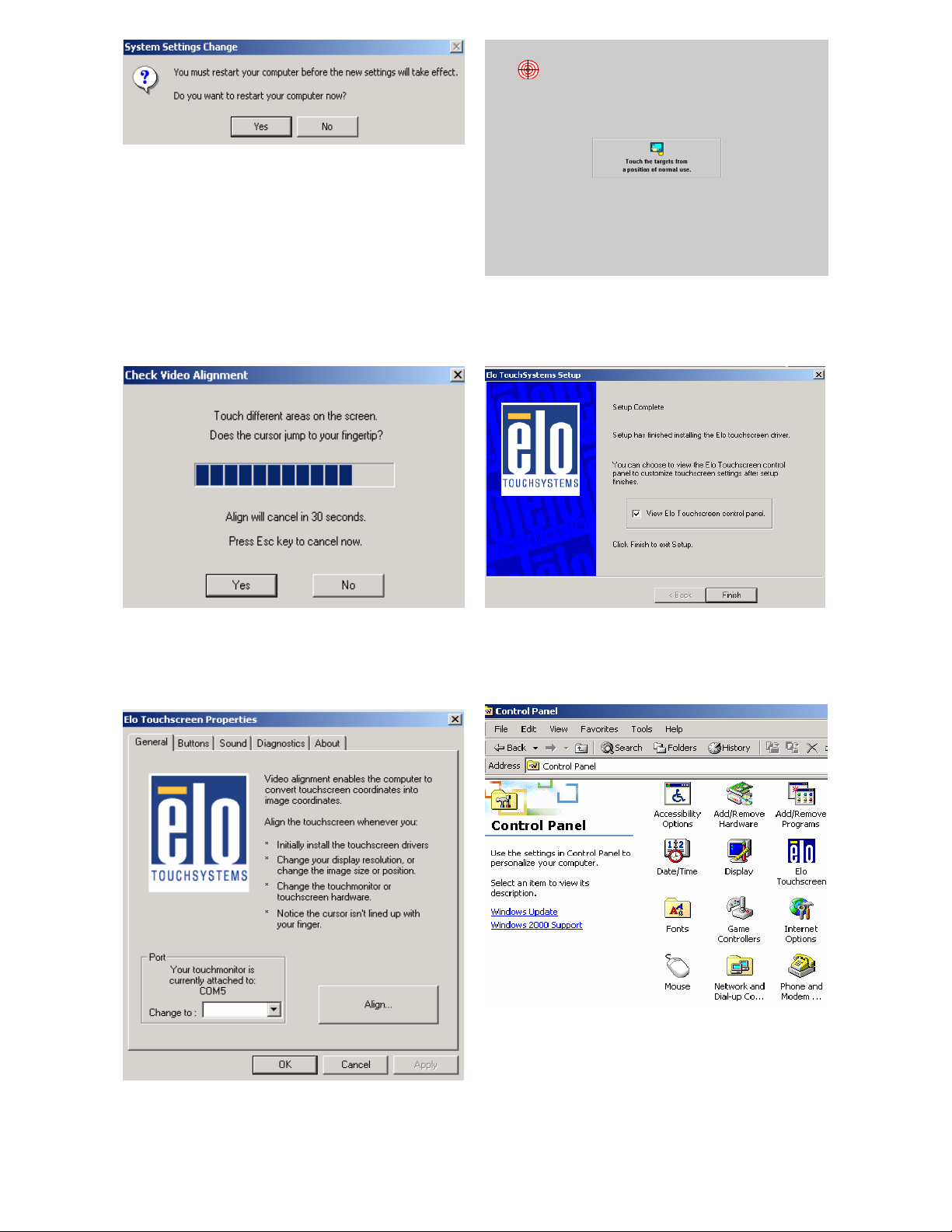

f. Click “Yes” on the System Settings

Change.

g. After the computer restarte d, touch the

targets with your finger for alignm ent.

h. Click “Yes” on the Check Video Alignment

window.

i. Click “Finish” on the “Elo TouchSystem

Setup window.

j. If the cursor is not in sync with your finger

tip, click “Align…” to exe cute the alignment procedure again, or click “OK”

k. Now the Elo_Touch driver is installed.

Page 20

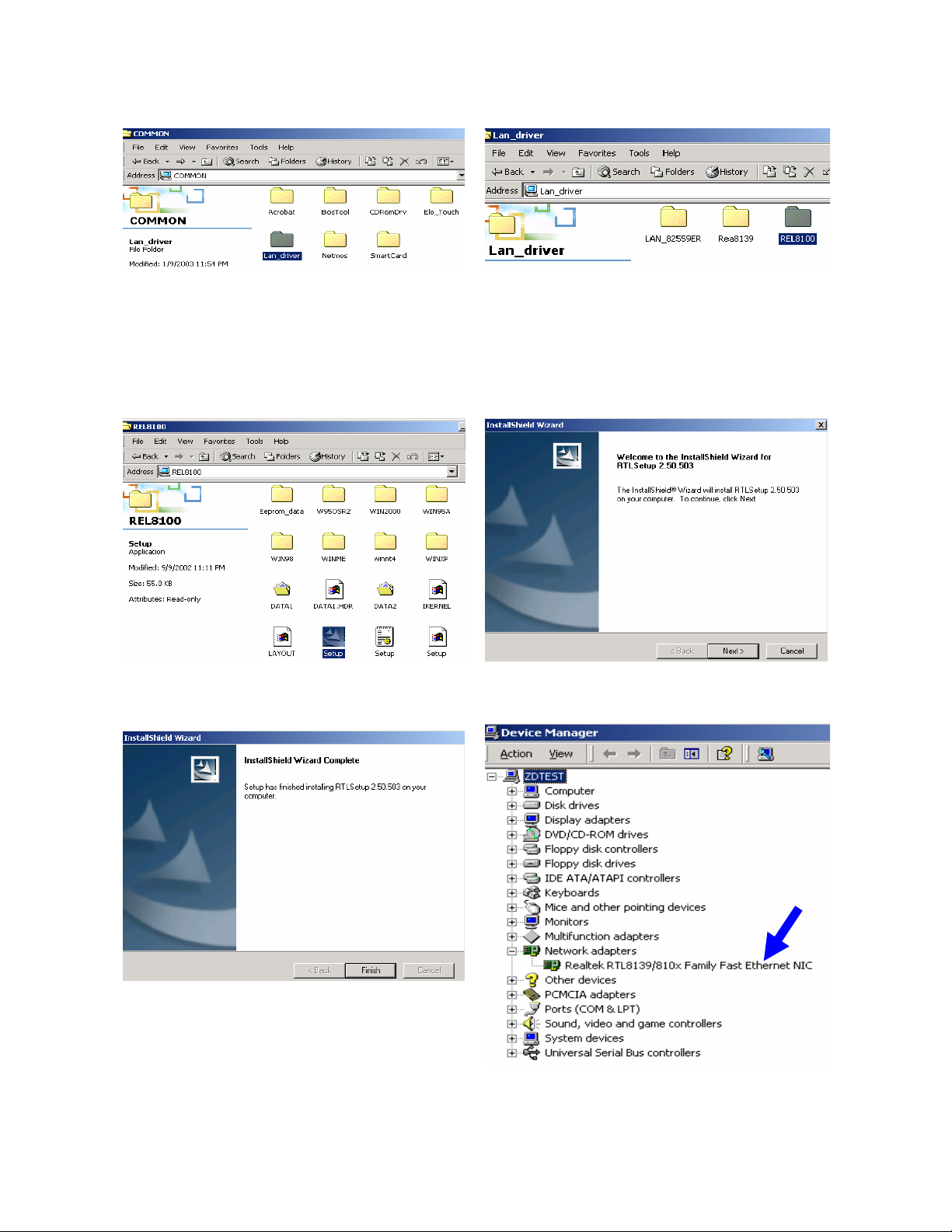

5.3 LAN-driver

a. Click "COMMON" on the POS driver

window.

b. Click “Lan_driver” on the COMMON

window.

d. Click “Setup” on the REL8100 window. e. Click “Next” on the InstallShieild W izard.

c. Click “REL8100” on the Lan_driver

window.

f. Click “Finish” on the InstallShield Wizard. g. Now the Lan_driver is installed.

Page 21

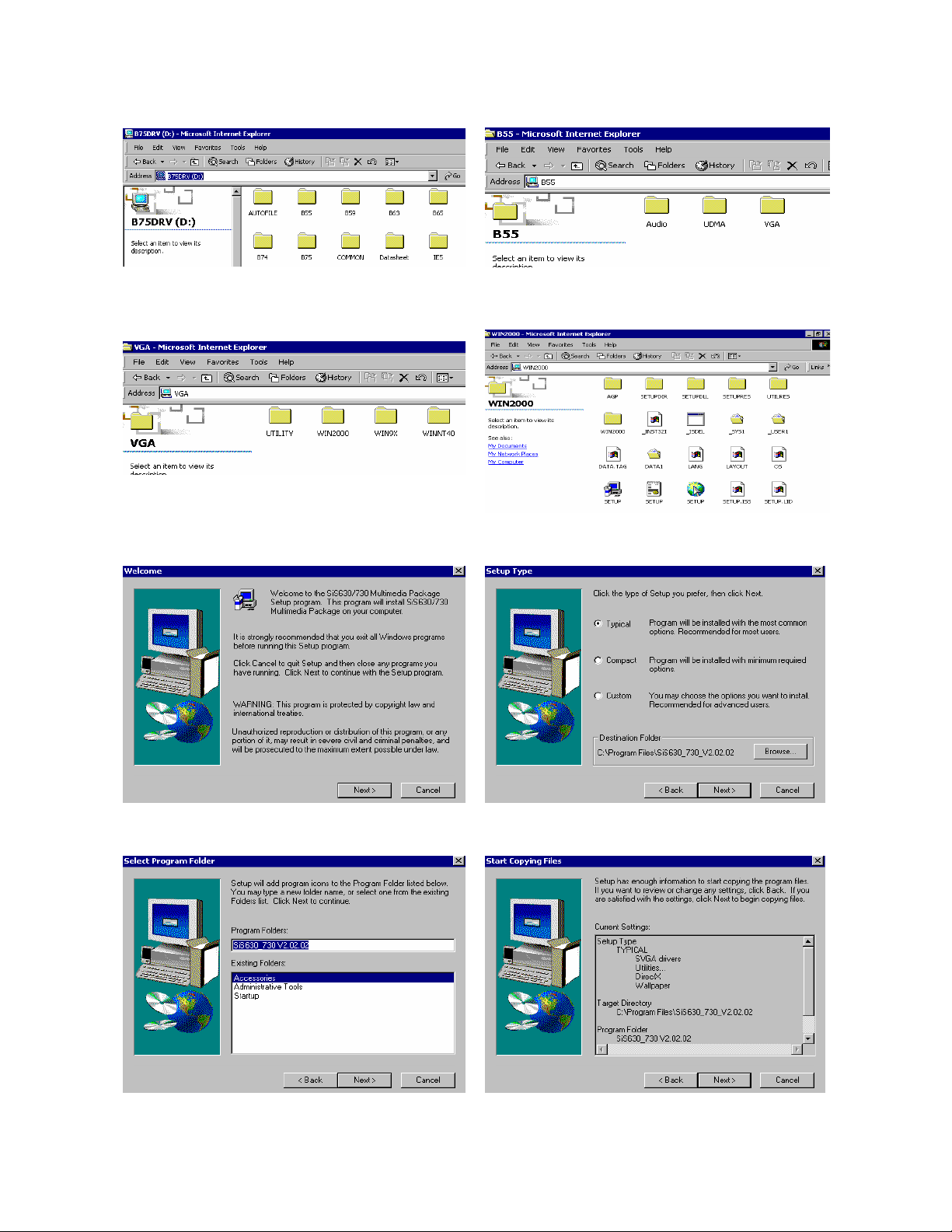

5.4 VGA

a. Click “B55” on the POS driver window. b. Click “VGA” on the B55 window.

c. Click “Win2000” on the VGA window. d. Click “SETUP” On the VGA2000 window.

e. Click “Next” on the Welcome window. f. Click "Next" on the Setup Type window.

g. Click "Next" on the Select Program Folder window..

h. Click "Next" on the Select Copying Files

window.

Page 22

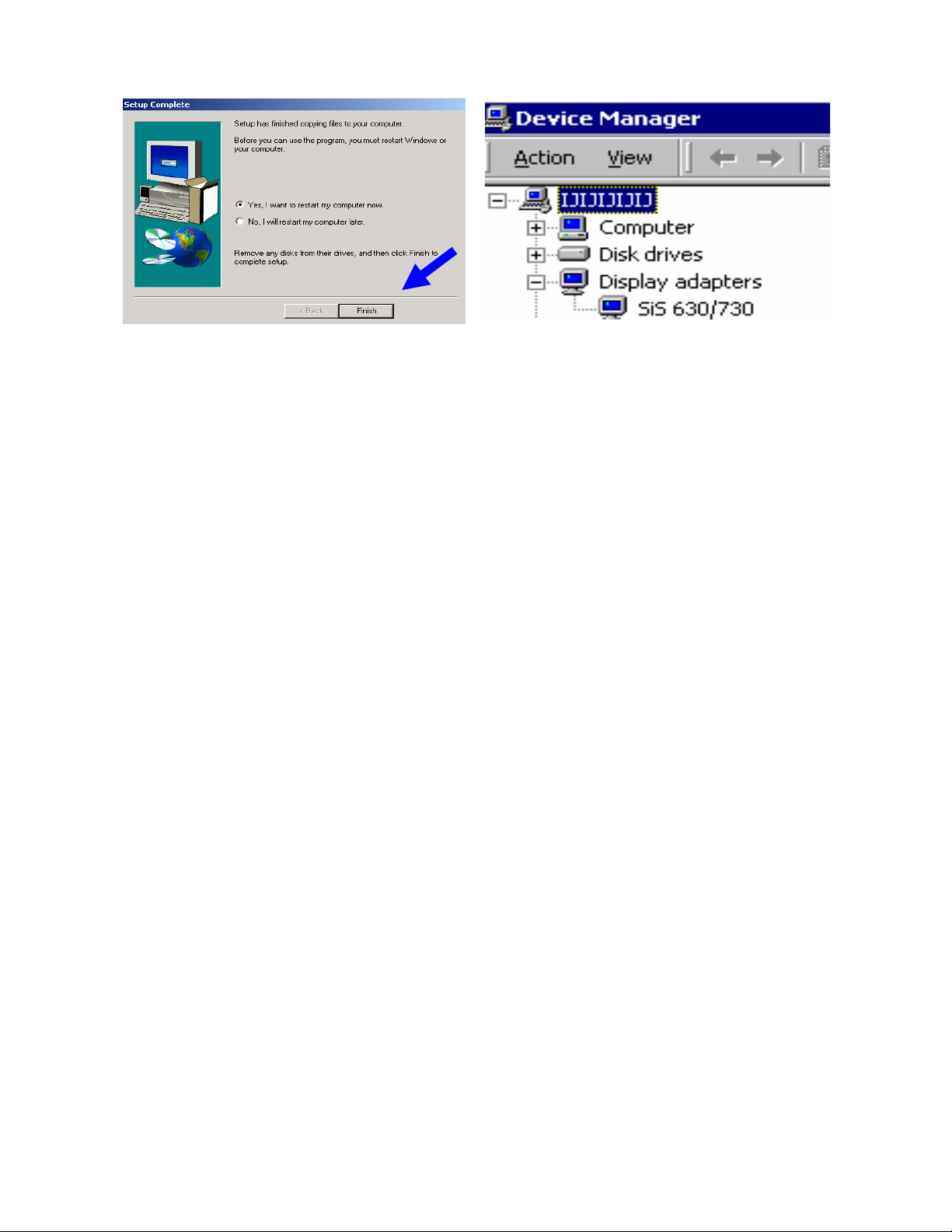

i. Click "Finish" on the Setup Complete

window.

j. Now the VGA driver is installed.

Page 23

6. Jumper Setting

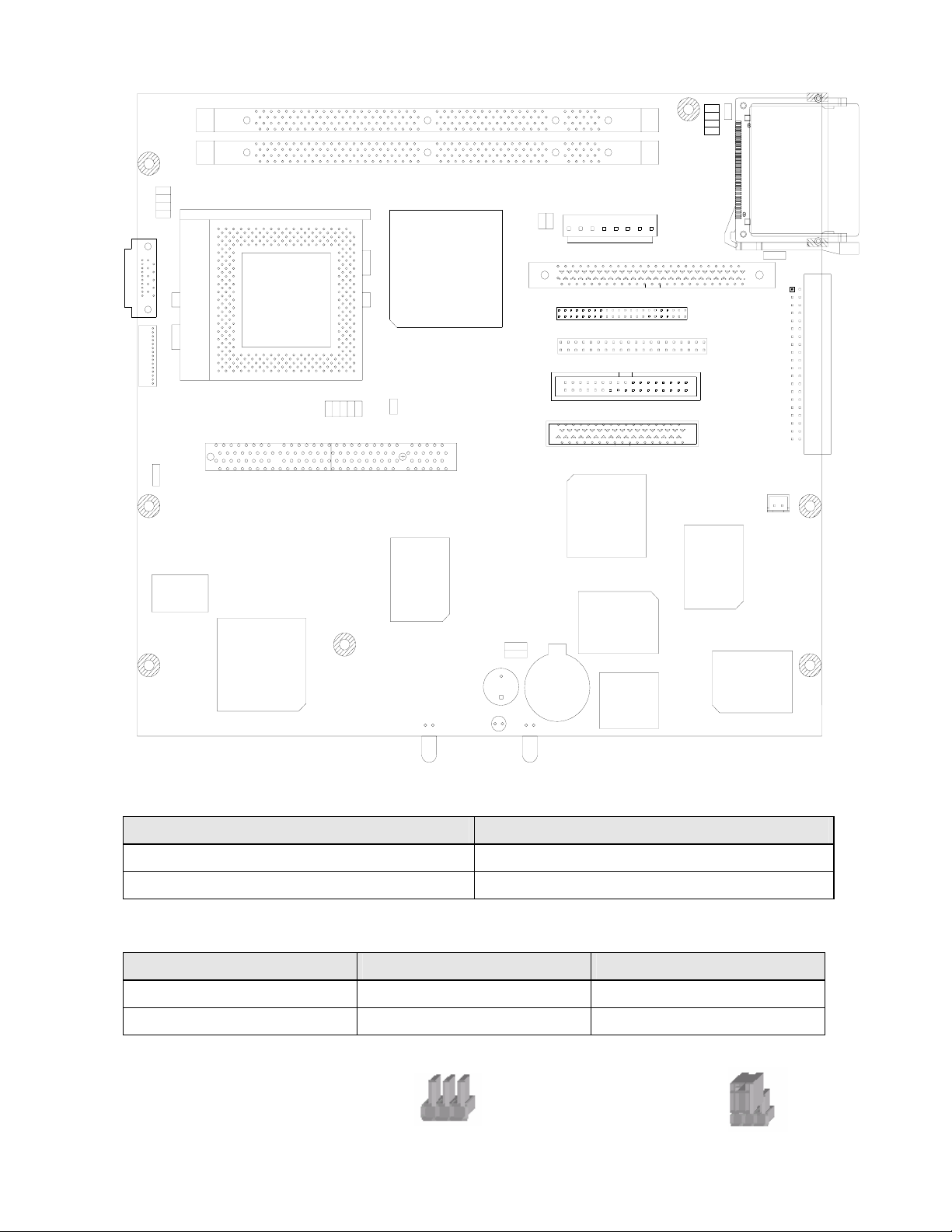

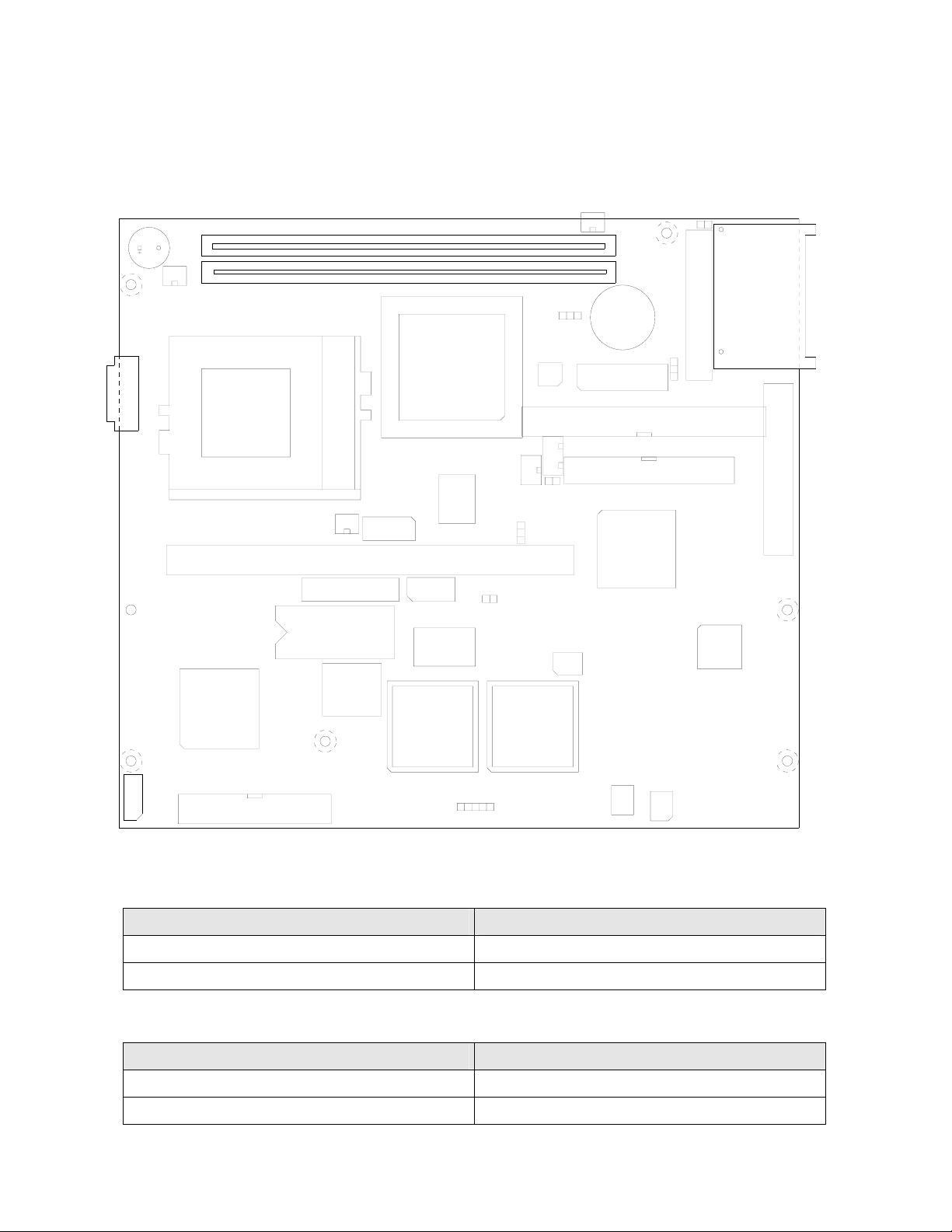

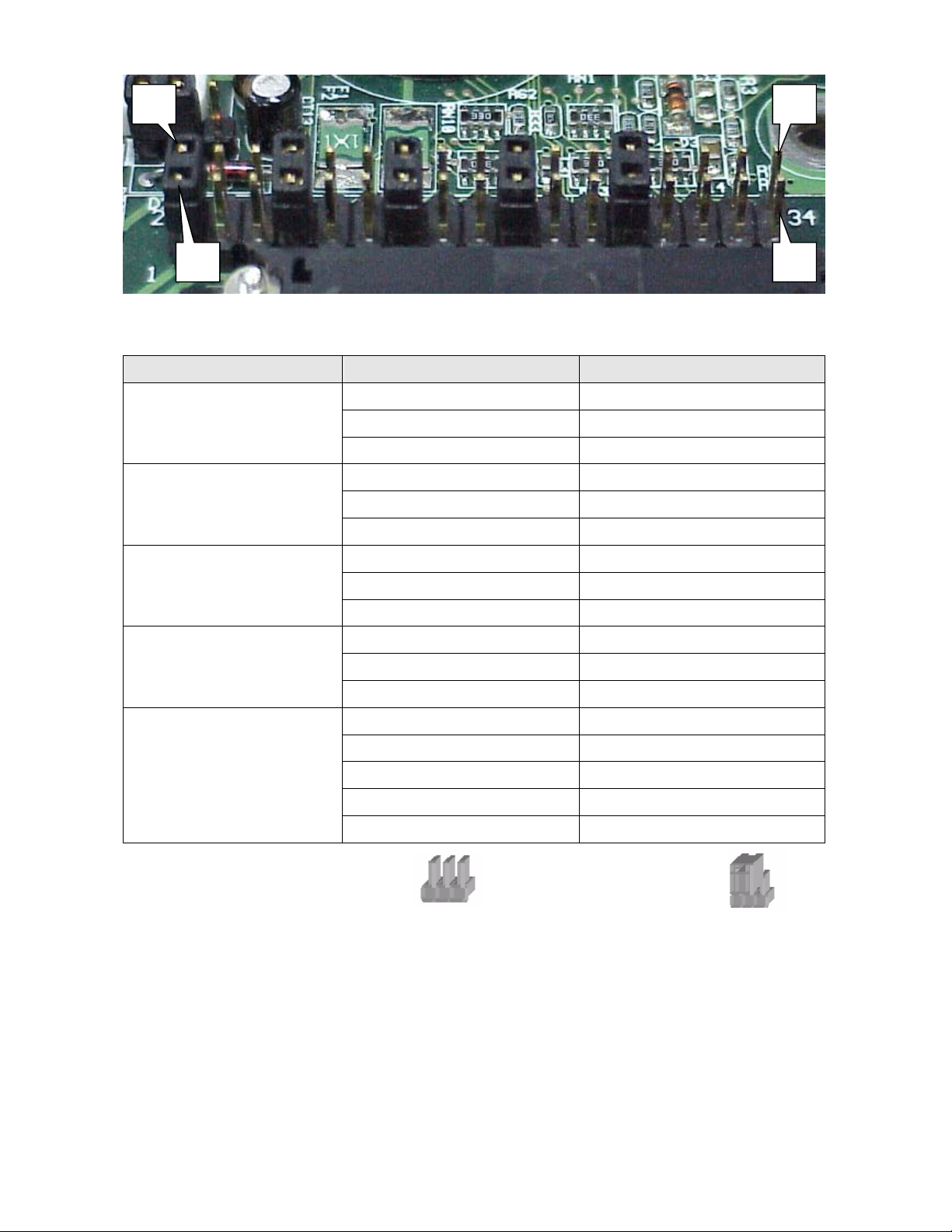

6.1 B65(POS500) Jumpers and DIP Switches Locations

BZ1

CN4

JP5

JP1

CN7

CN3

CN8

CN9

CN1

CN2

0 7

CN10

A G P

JP9

11 12

9 3

F D 8

JP10

1 2

JP7

JP2

JP3

JP8

BT1

JP4

CN5

CN6

39 40

Intel

PCIset

U21

210

JP12

U15

JP13

JP14

26 1

U19

JP11

U13

2 1

BIOS

U24

U25 U26

CN13

JP15 JP16

1 2

U42

JP17

6 2

5 1

6.1.1 Compact Flash CS Selection * Factory Default Function JP1

*Master OPEN

Slave SHORT

6.1.2 CMOS Op eration Mode Function JP2 (SHORT)

*CMOS Normal 2-3

CMOS Reset 1-2

Page 24

6.1.3 Card Re ader Selection Function JP3

*Serial 1-2, 3-4 SHORT

Keyboard 1-2, 3-4 OPEN

6.1.4 Power Mode Function JP5 JP8

ATX Power 2-3 OPEN

*AT Power 1-2 SHORT

6.1.5 System Clock Selection: JP9

CPU Clock

PCI Clock

JP9 (SHORT)

FS0 FS1 FS2 FS3

100.3MHz 33.43 (/3) MHz 1-3 7-9 2-4 10-12 *66.8MHz *33.40 (/2) MHz 1-3 7-9 4-6 10-12

6.1.6 PCI VSB Se l ection: JP10 Function JP10 (SHORT)

*USER 5VSB 2-3

USER 3VSB 1-2

6.1.7 COM5 / COM6 IRQ Selection: JP11

IRQ

5 9 10 11 12 15

COM

COM5

*1-2 3-4 5-6 7-8 9-10 11-12

Touch Screen

COM6

13-14 *15-16 17-18 19-20 21-22 23-24

Pole Display

6.1.8 M-Systems Disk On Chip

Address: JP12

Address JP12 (SHORT)

0CC00 - 0CDFF 1-2 9-10

0D000 - 0D1FF 3-4 7-8

*0D400 - 0D5FF 3-4 9-10

0D800 - 0D9FF 5-6 7-8

0DC00 - 0DDFF 5-6 9-10

6.1.9 RAM Backup Address Setting: JP14

RAM DATA Address JP14(SHORT)

*D800 : 0 1-2

D000 : 0 3-4

NC 5-6

Page 25

6.1.10 Watch Dog Timer List: JP17

Input / Output Address JP17

Output 205W Watch Dog ON

Input 205R Watch Dog WDI Input 204R Watch Dog OFF

6.1.11 Watch Dog Timer Programming:

This jumper is designated to do the setting of the W atch Dog Time.

Time 1-2 3-4 5-6

0.1 sec SHORT SHORT SHORT

0.5 sec SHORT SHORT OPEN

1.0 sec SHORT OPEN SHORT

*1.6 sec SHORT OPEN OPEN

10 sec OPEN SHORT SHORT

1 min OPEN SHORT OPEN

10 min OPEN OPEN SHORT

1hr OPEN OPEN OPEN

Note:

OPEN

SHORT

Page 26

6.1.12 Pin1 function of COM port selection: CN7

COM Function Jumper (SHORT)

*DCCD 1-2

+5V 3-4

+12V 5-6

*DCCD 7-8

+5V 9-10

+12V 11-12

Note:

OPEN

*DCCD 13-14

+5V 15-16

+12V 17-18

*DCCD 19-20

+5V 21-22

+12V 23-24

*DCCD 25-26

+5V 27-28

+12V 29-30

NC 31-32 NC 33-34

SHORT

Page 27

6.2 B55(POS500/505) Jumpers

JP3

CN4

CN12

JP8

ISL6524

JP9

PCI1

U19

U25

SIS630ST

JP10

0 1

U33

5 3 8 9 M N

1 1

BZ1

JP13

JP15

JP1

DIMM2

DIMM1

JP4

1 39

CN6

CN7

CN9

CN10

RICOH

JAPAN

R5C475II

1AY 750

CN5

JP2

CN1

JP6

CN8

JP17

F H 7 9 6 3 8 W

W83697HF

3 3

RTL8139C

BIOS

BAT1

U30

U27

6.2.1 Power Supply Type * Factory Default Setting Function JP6

*ATX Power

2-3 (SHORT)

AT Power 1-2 (SHORT)

6.2.2 CMOS Op eration Mode

Function JP13 (SHORT) JP15 (SHORT)

*CMOS Normal 1-2 1-2

CMOS (Cle ar) 2-3 2-3

Note:

OPEN

SHORT

Page 28

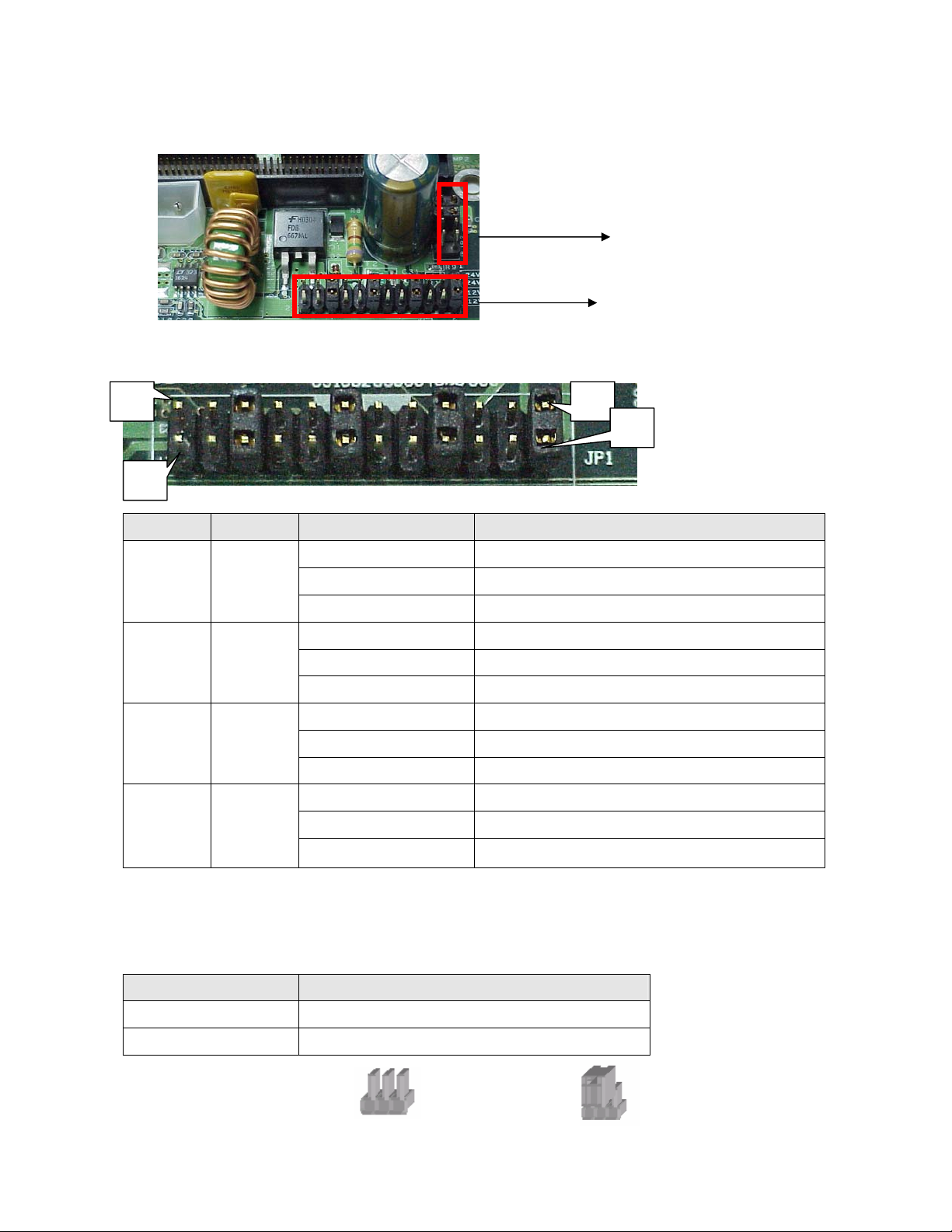

7.B55 I/O Board Jumper Setting

JP2

JP1

7.1 Pin1/Pin9 Function of COM Port Selection: JP1

COM PIN Function Jumper (SHORT)

*DCCD 1-2

1 1

1 9

6 1

12V 3-4

5V 5-6

*RI 7-8

12V 9-10

5V 11-12

*DCCD 13-14

12V 15-16

* Factory Default Setting

5V 17-18

*RI 19-20

6 9

12V 21-22

5V 23-24

7.2 Cash Drawer Power Selection: JP2

Function Jumper (SHORT)

*24V 1-2, 3-4

12V 5-6, 7-8

Note:

OPEN

SHORT
