POS 5000
User Manual
2007 July V1.0
Page 2
2
Copyright 2007 July
All Rights Reserved
Manual Version 1.0
The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose. We shall not be liable
for errors contained herein or for incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced or translated to another
language without the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation. Microsoft® and
Windows® are registered trademarks of Microsoft Corpora tion. ELO Touch is the registered
trademark of ELO Touch Systems.
Page 3
3
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrial power supply, turn off the power switch and
remove the power cord plug from the wall socket. The wall socket must be easily accessible
and in close proximity to the machine.
2. Read these instructions carefully. Save these instructions for future reference.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. Do not place this product on an unstable cart,stand,or table.The product may fall, causing
serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation;to
ensure reliable operation of the product and to protect it from overheating. These openings
must not be blocked or covered.The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface.This product should never be placed
near or over a radiator or heat register,or in a built-in installation unless proper ventilation is
provided.
7. This product should be operated from the type of power indicated on the marking label.If you
are not sure of the type of power available, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this product where persons
will walk on the cord.
9. Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock.Never
spill liquid of any kind on the product.
CE MARK
This device complies with the requirements of the EEC directive 2004/108/EC
with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”.
FCC
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly. Replace only with the same
Page 4
4
or equivalent type recommended by the manufacturer. Discard used batteries according to the
manufacturer’s instructions.
LEGISLATION AND WEEE SYMBOL
2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment,
collection, recycling and disposal of electric and electronic devices and their
components.
The crossed dustbin symbol on the device means that it should not be disposed of with other
household wastes at the end of its working life. Instead, the device should be taken to the
waste collection centres for activation of the treatment, collection, recycling and disposal
procedure. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract.
This product should not be mixed with other commercial wastes for disposal.
Page 5
5
Table of Contents
1. ITEM CHECKLIST ..................................................................................................................................................... 6
2. SYSTEM VIEW........................................................................................................................................................... 7
2.1. FRONT VIEW .................................................................................................................................................7
2.2. REAR VIEW...................................................................................................................................................8
3. DRIVER INSTALLATION.......................................................................................................................................... 9
3.1. DRIVER LIST ................................................................................................................................................. 9
3.2. CHIPSET DRIVER INSTALLATION.......................................................................................................................9
3.3. VGA DRIVER INSTALLATION ..........................................................................................................................10
3.4 AUDIO DRIVER INSTALLATION......................................................................................................................... 11
3.5 LAN DRIVER INSTALLATION ........................................................................................................................... 12
3.6 SATA RAID DRIVER INSTALLATION.................................................................................................................13
4. PERIPHERALS INSTALLATION.............................................................................................................................16
4.1. CASH DRAWER INSTALLATION .......................................................................................................................16
5. SYSTEM DISASSEMBLY........................................................................................................................................18
5.1. REMOVING THE FRONT COVER...................................................................................................................... 18
5.2 REMOVING THE TOP COVER ..........................................................................................................................18
5.3 REPLACING THE HDD...................................................................................................................................19
5.4. REPLACING THE DVD-ROM.........................................................................................................................20
5.5. REPLACING THE POWER SUPPLY...................................................................................................................21
5.6. REPLACING THE I/O & PCI EXTENSION MODULE .............................................................................................22
5.7. REPLACING THE MEMORY............................................................................................................................. 23
5.8. REPLACING THE MOTHERBOARD ...................................................................................................................23
6. SPECIFICATION.......................................................................................................................................................25
7. JUMPER SETTINGS................................................................................................................................ ................27
8. RAID BIOS SETTINGS................................................................................................................................ .............31
8.1. BIOS SETUP UTILITY................................................................................................................................... 31
8.2. STARTING THE BIOS SETUP.........................................................................................................................31
8.3. WHEN A PROBLEM OCCURS.......................................................................................................................... 31
8.4. BIOS MAIN MENU .......................................................................................................................................31
8.5. ENABLING RAID IN THE BIOS....................................................................................................................... 33
8.6. RAID VOLUME CREATION.............................................................................................................................34
Page 6
6

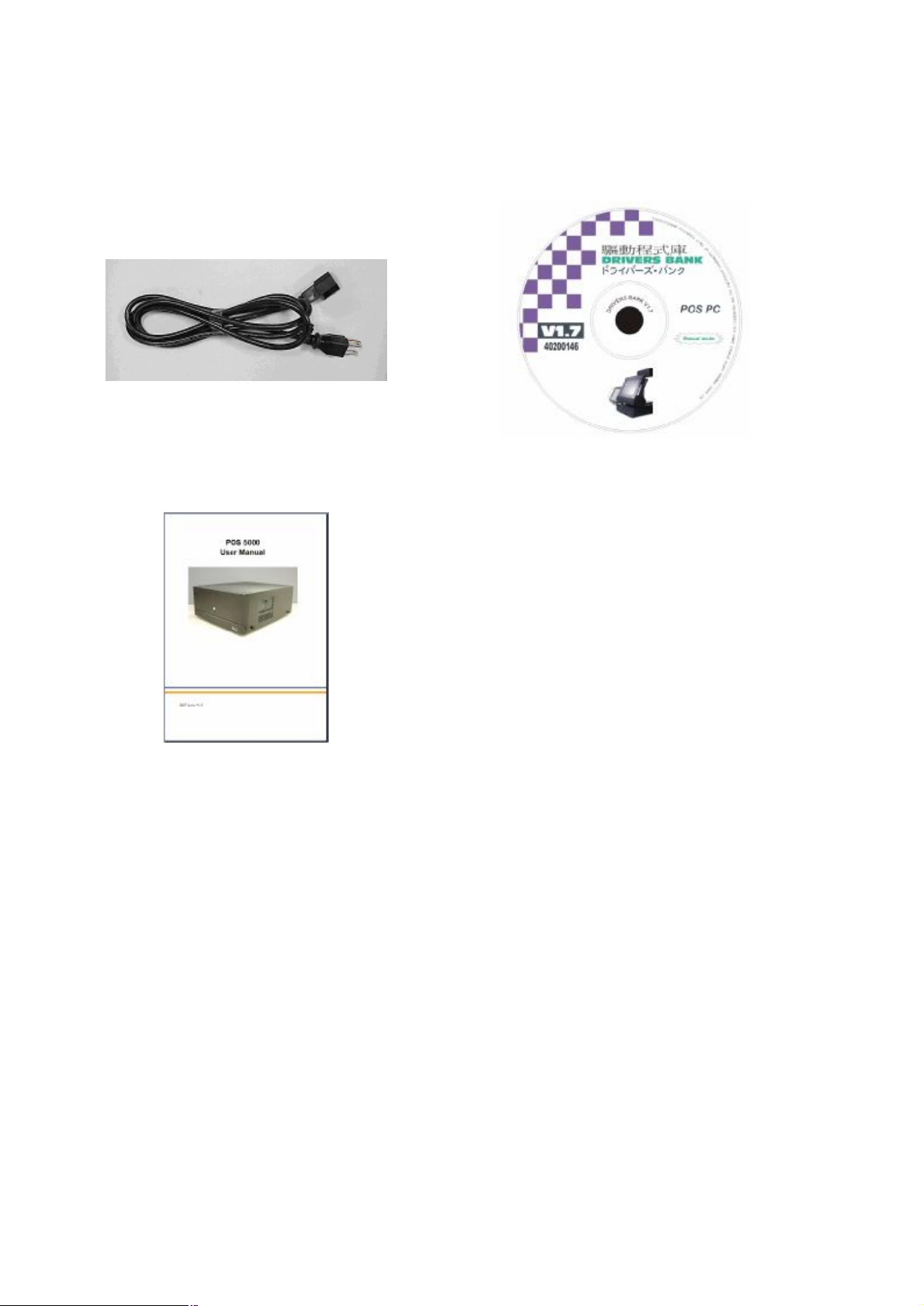

1. Item Checklist
Take the system unit out of the carton. Remove the unit from the carton by holding it by the
foam inserts. The following contents should be found in the carton:
a. Power Cord b. Driver CD
c. Manual
Page 7
7
2. System View

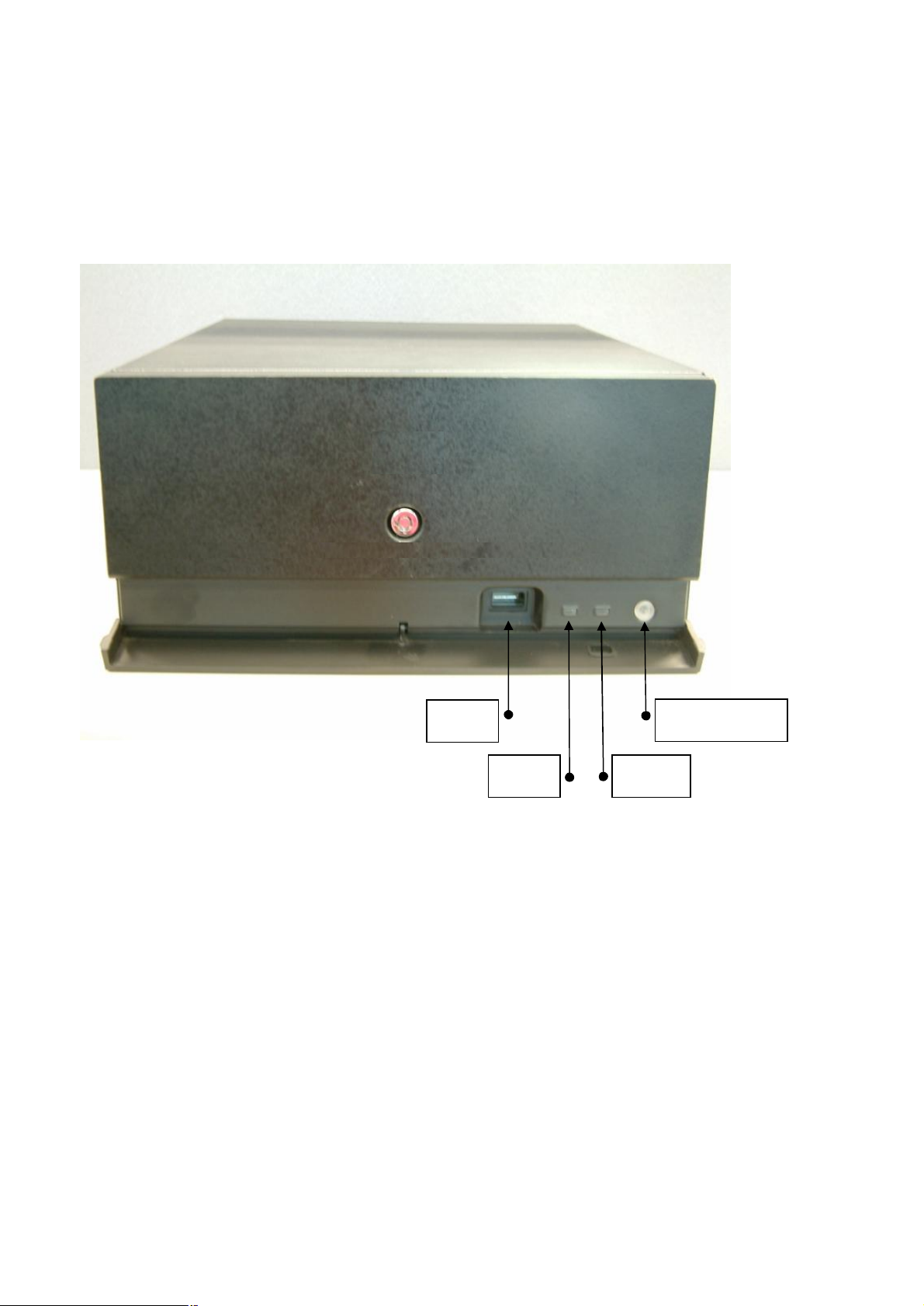

2.1. Front View
USB
HDD Power
Power Button
Page 8
8
LPT VGA
COM 1
COM 2 & 4
COM 3 & 5
COM 6
USB
Line Out

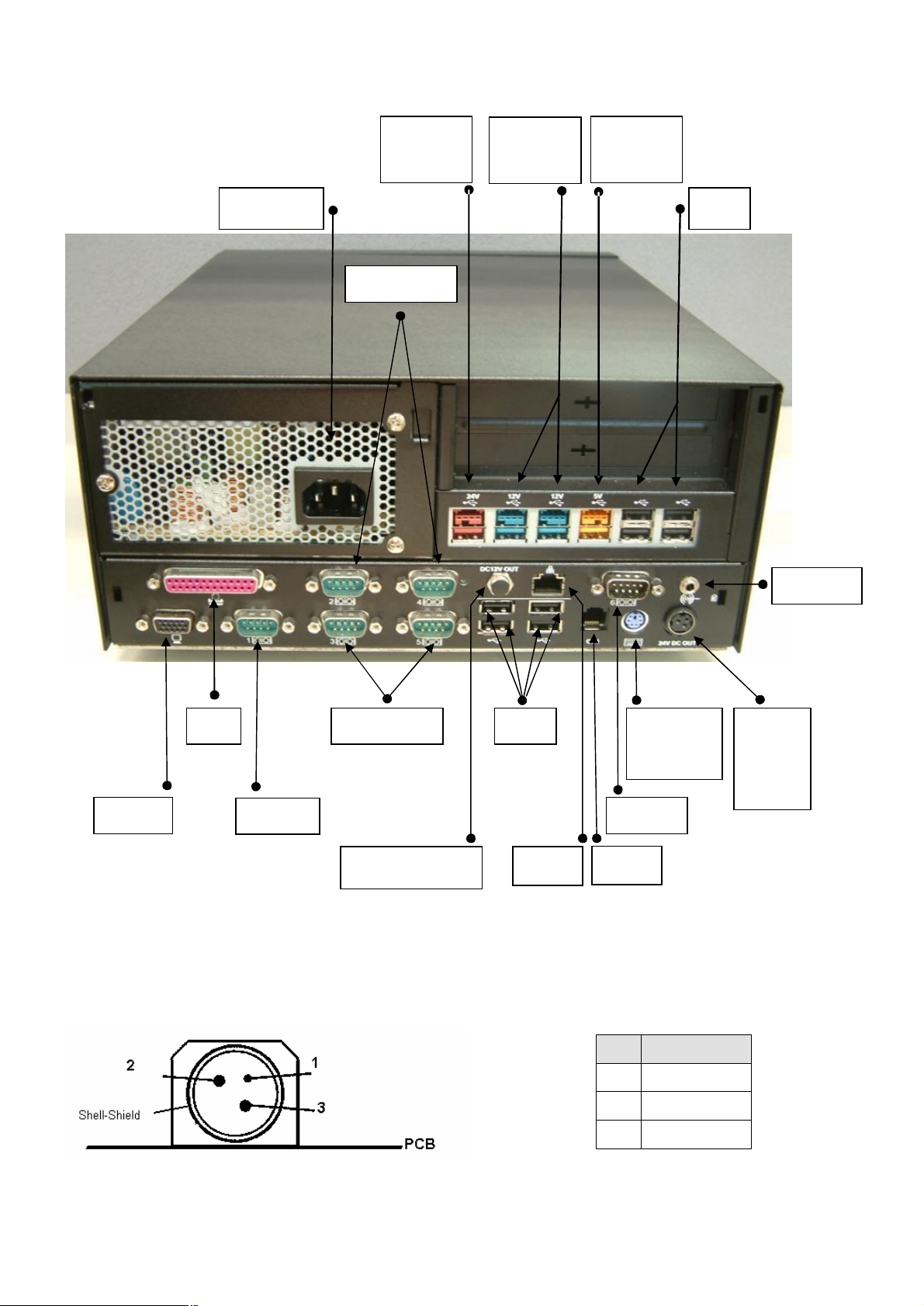

2.2. Rear View
AC Power
Power
USB 24V
Power
USB 12V
Power
USB 5V
USB
PS/2
Keyboard
DC output 12V LAN
CD 1
Note: The maximum current that can be drawn from each COM port is 500 mA.
DC output 24 V Pin Assignment
Pin Assignment
1 NC
DC
output
24V
2 + 24V DC
3 Ground
Page 9
9
3. Driver Installation
3.1. Driver List
Folder/File File Description
<CD>:\B99.htm B99 Driver List
<CD>:\Common\INTEL\Chipset\i9xx Chipset Driver
<CD>:\Common\INTEL\VGA\i94x VGA Driver
<CD>:\Common\INTEL\VGA\RAID\ICH7R SATA RAID Driver
<CD>:\Common\Ac97_codec\Realtek\ALC202A Audio Driver
<CD>:\Common\Lan_driver\R8139_810x LAN Driver
The following procedures are for Windows XP, other platforms are similar.
3.2. Chipset Driver Installation

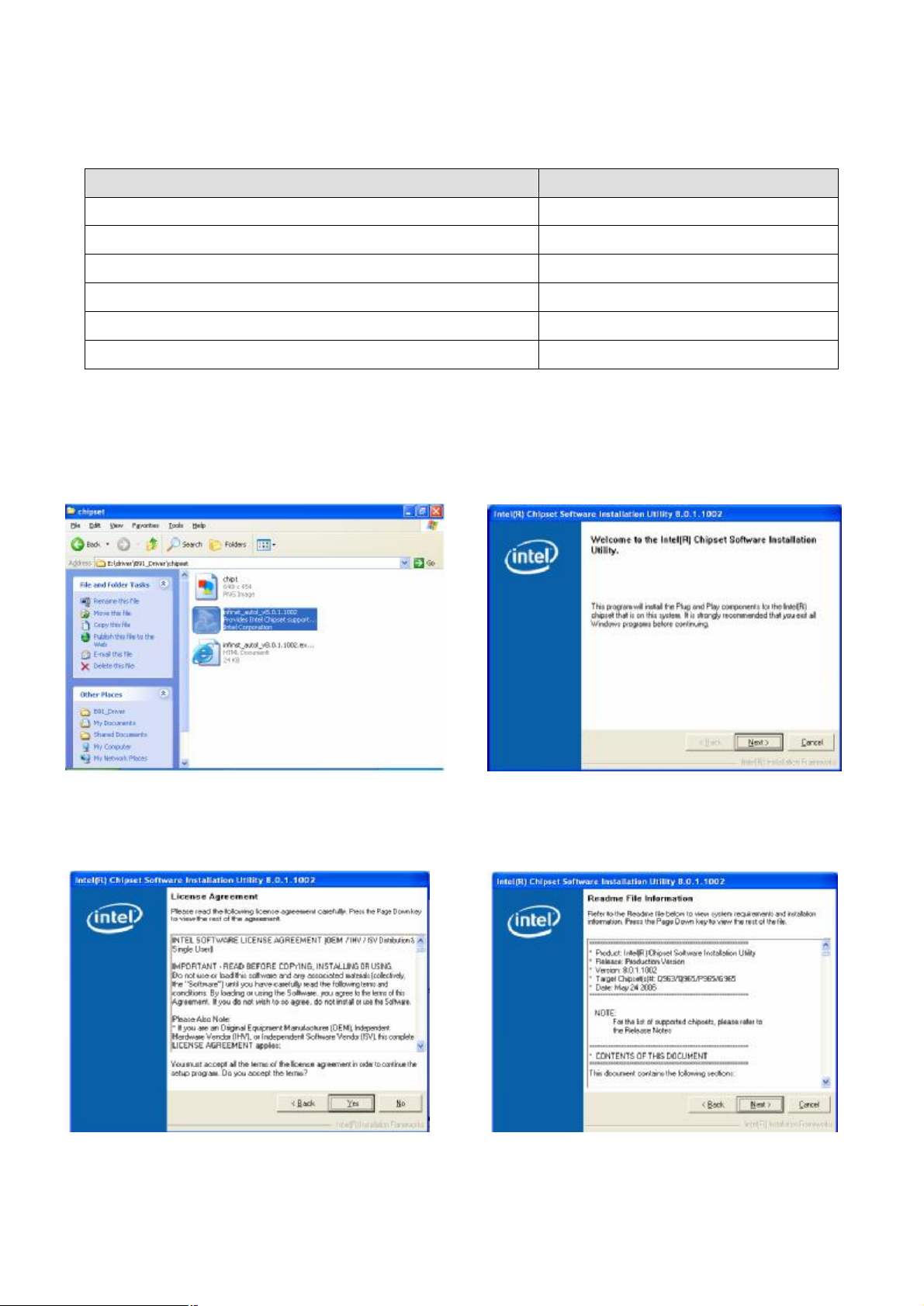

a. Double click "infinst_autol_v8.0.1.1002” on
the My Computer window.
c. Click the "Yes" button on the License
Agreement window.
b. Click the "Next" button on the Welcome
window.
d. Click the ”Next” button on the Readme
Information window.
Page 10
10

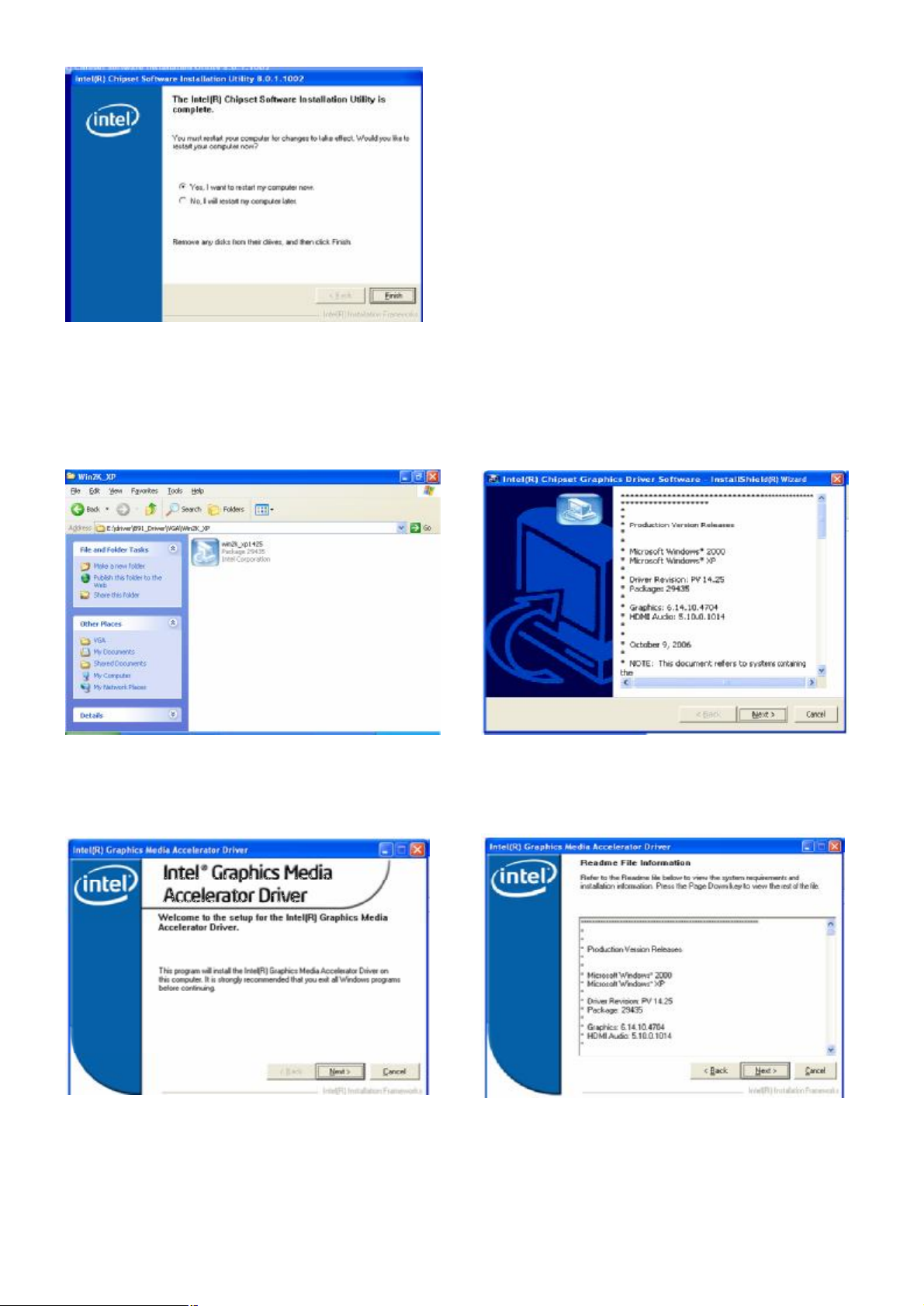

e. Click the “Finish” button and restart your
system.
3.3. VGA Driver Installation
a. Double click "win2k_xp1425" on the My
Computer window.
b. Click the "Next" button on the Welcome
window.
c. Click the ”Next” button on the Welcome
d. Click the ”Next” button on the Readme
window.
Information window.
Page 11
11

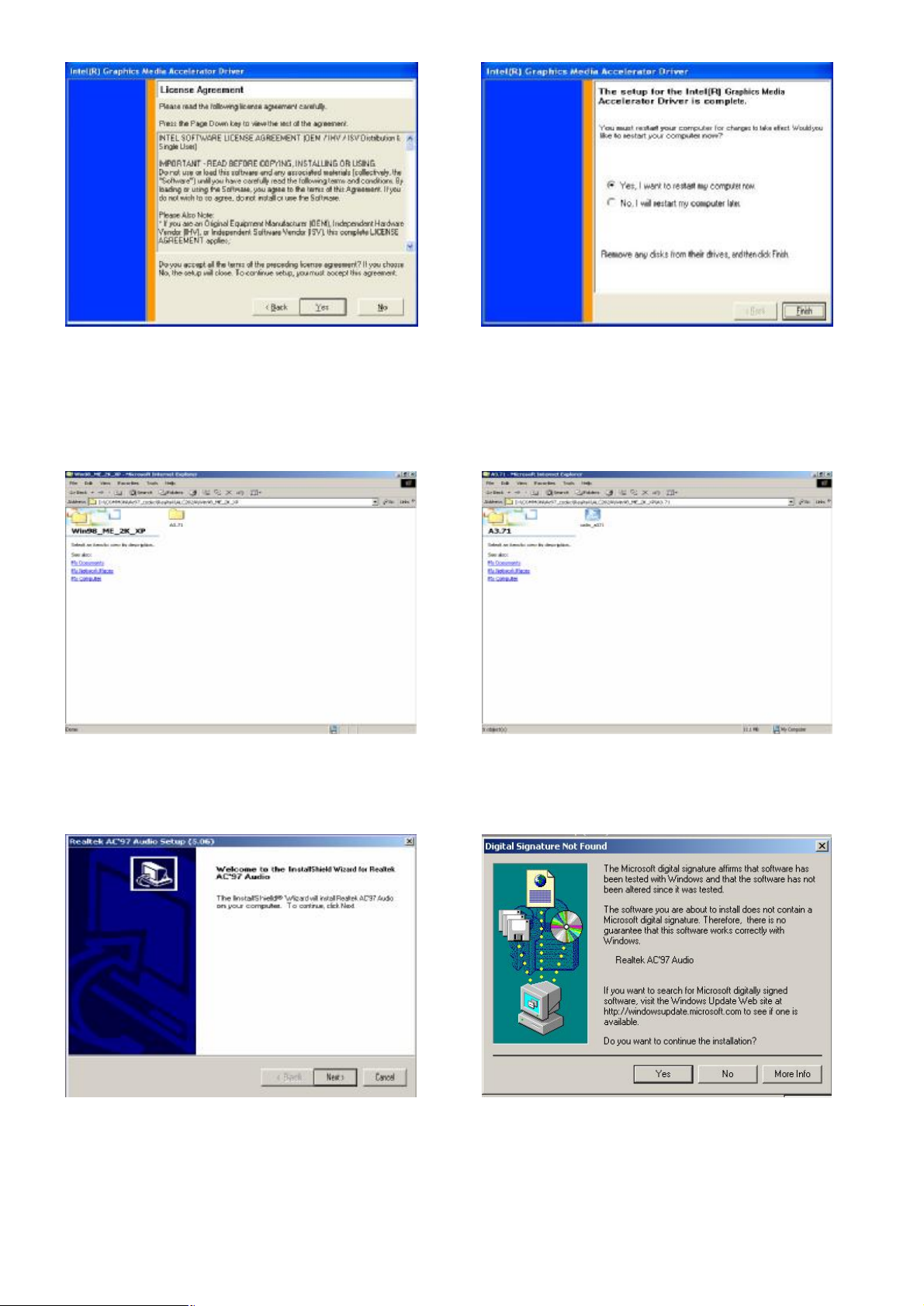

e. Click the ”Yes” button on the License
Agreement window.
3.4 Audio Driver Installation
a. Click “A3.71” on the My Computer window.
f. Click the ”Finish” button and restart your
system.
b. Double click “wdm_a371” on the My Computer
c. Click “Next” button on the Realtek AC’97 Audio
Setup window.
window.
d. Click “Yes” button on the Digital Signature Not
Found window.
Page 12
12

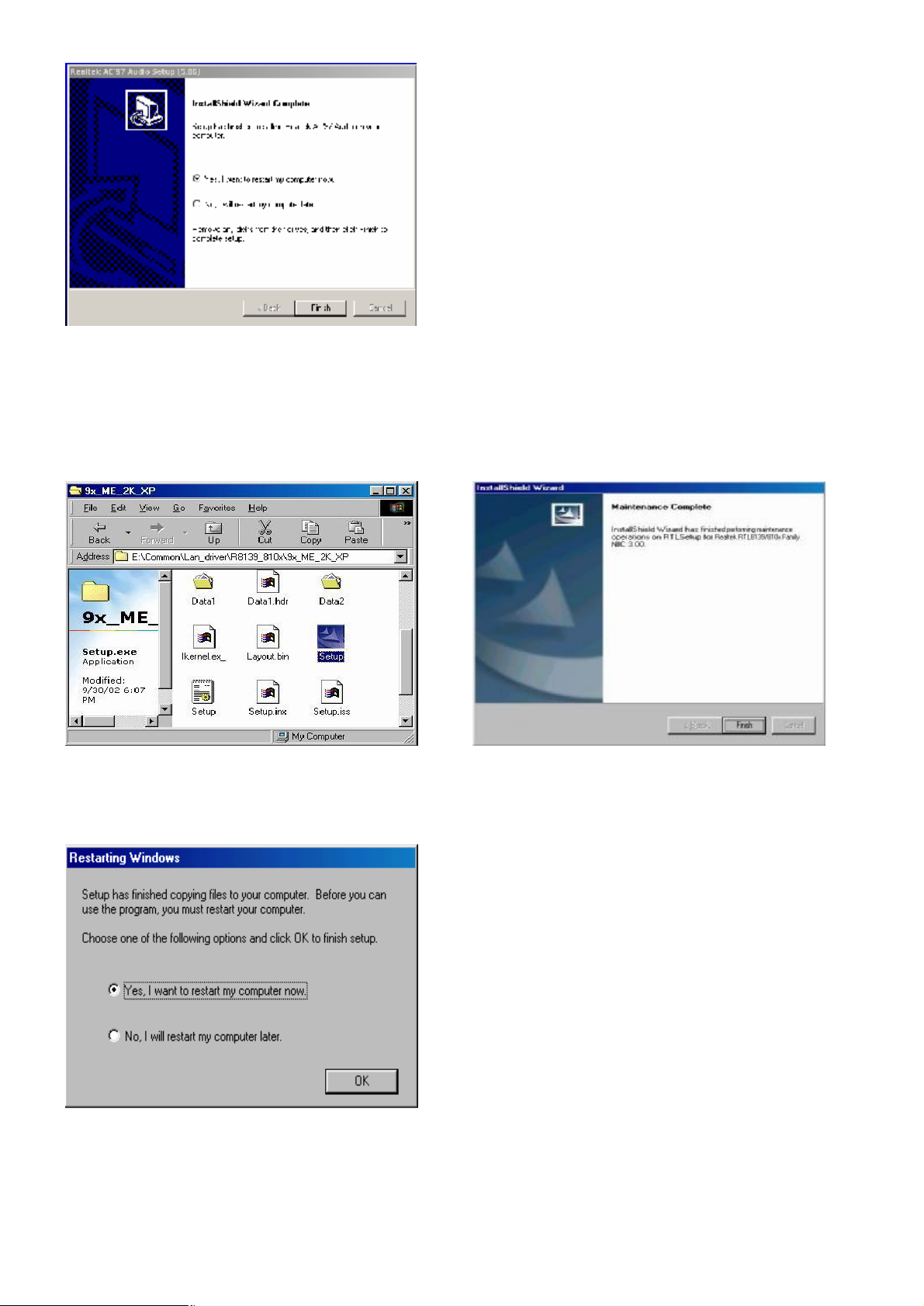

e. Click “Finish” button on the Realtek AC’97 Audio
Setup window.
3.5 LAN Driver Installation
a. Double click ”Setup” on the My Computer
window.
b. Click the "Finish" button on the
Maintenance complete window.
c. Click the ”OK” button and restart your
system.
Page 13
13
3.6 SATA RAID Driver Installation
Before the SATA RAID driver installation, please refer to chapter 8.5 ”Enabling RAID in the
BIOS” and chapter 8.6 “RAID Volume Creation”.
3.6.1. Create F6 driver disk
The SATA RAID Driver is for users who plan to install Windows on SATA HDDs with RAID
functions. To use RAID functions, you need to make a SATA RAID Driver floppy disk before
you install the operation system, such as Windows XP. If you do not plan to use RAID functions,
it is not necessary to make a SATA RAID Driver floppy disk.
Connect a USB-FDD to the system, then follow below steps to make a SATA RAID Driver
floppy disk.

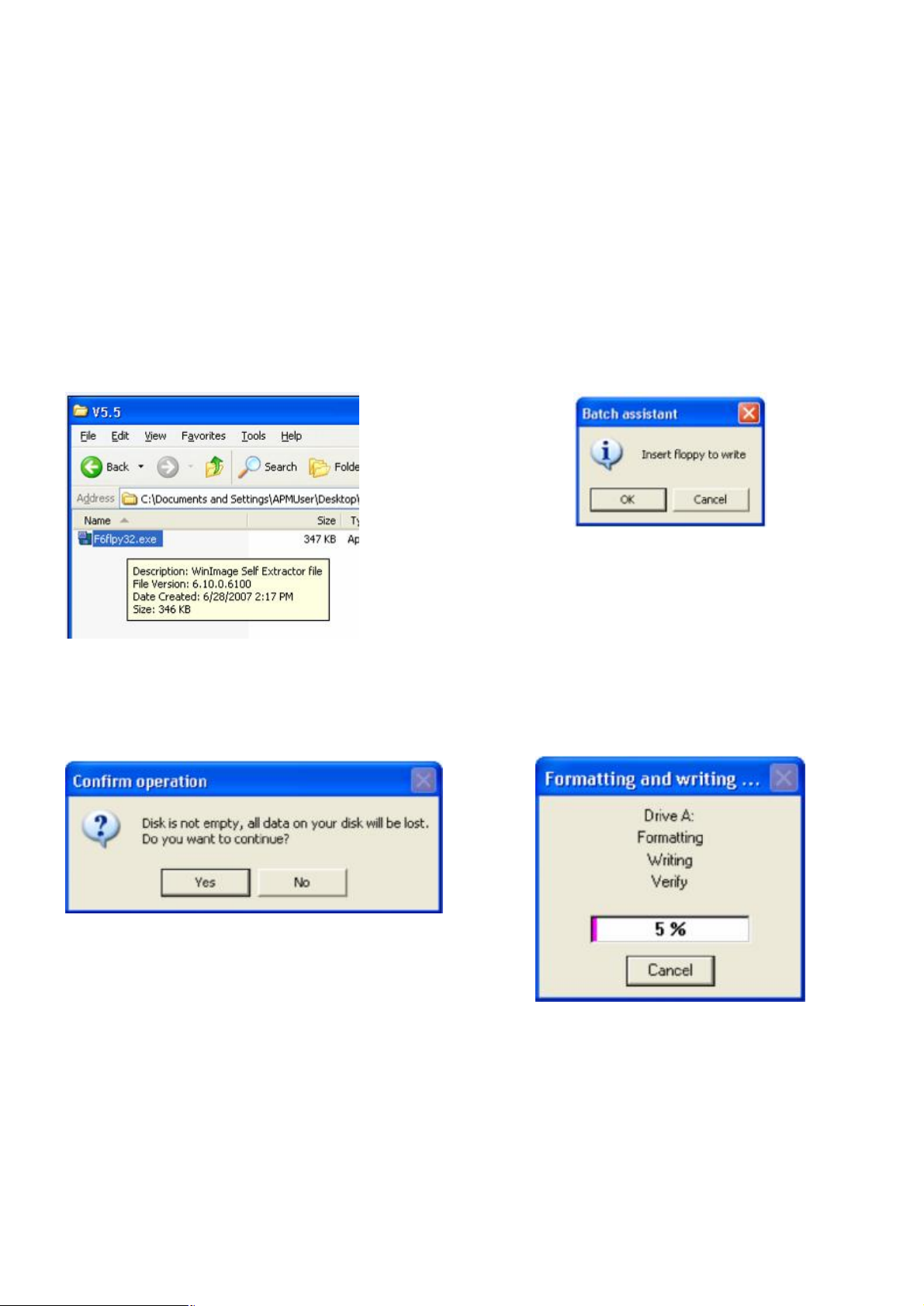

a. Double click “F6flpy32.exe” on the My
computer window.
b. Insert a blank floppy disk into the FDD,
and click on the "OK" button in the "Batch
assistant" window.
c. Click the “Yes” button on the “Confirm
d. Wait for the driver disk to be written.
operation” window.
3.6.2. F6 driver installation
1. Press the F6 key when prompted in the status line with the Press F6 if you need to install a third
party SCSI or RAID driver message. This message appears at the beginning of Windows XP
setup (during text-mode phase).
Page 14
14
Note: Nothing will happen immediately after pressing F6. Setup will temporarily continue
loading drivers. You will then be prompted with a screen asking you to load support for mass
storage device(s).
2. Press the S key to Specify Additional Device.
3. You will be prompted to Please insert the disk labeled Manufacturer-supplied hardware support
disk into Drive A: When prompted, insert the floppy disk containing the following files:
IAAHCI.INF, IAAHCI.CAT, IASTOR.INF, IASTOR.CAT, IASTOR.SYS, and TXTSETUP.OEM
and press the Enter key.
4. After pressing Enter, you should be presented with a list of available SCSI Adapters. Select your
controller from the list. The up and down arrow keys can be used to scroll through the list as all
controllers may not be visible. The list may include:
o Intel® 82801ER SATA RAID Controller
o Intel® 82801FR SATA RAID Controller
o Intel® 82801GR/GH SATA RAID Controller
o Intel® 82801GHM SATA RAID Controller
o Intel® 631xESB/632xESB SATA RAID Controller
o Intel® 82801R/DO/DH SATA RAID Controller
5. The next screen should confirm your selected controller. Press the Enter key again to continue.
6. At this point, you have successfully F6'ed in the Intel® Matrix Storage Manager driver and
Windows setup should continue. Leave the floppy disk in the floppy drive until the system
reboots. Windows setup will need to copy the files from the floppy again to the Windows
installation folders. Once Windows setup has copied these files again, you should then remove
the floppy diskette so that Windows setup can reboot as needed.
7. During Windows setup, create a partition and file system on the RAID volume as you would on
any physical disk.
3.6.3. RAID Manager Utility installation
Page 15
15

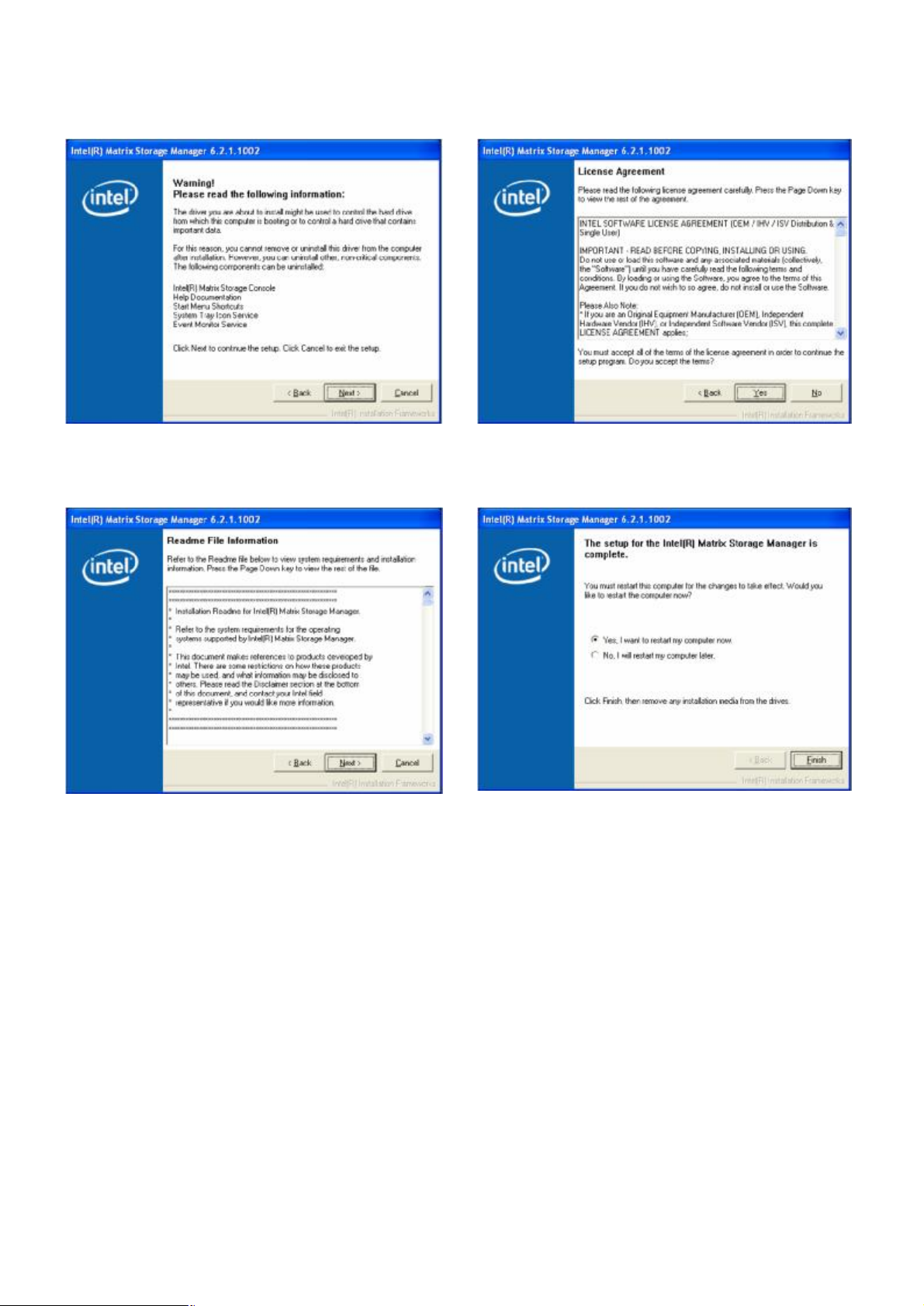

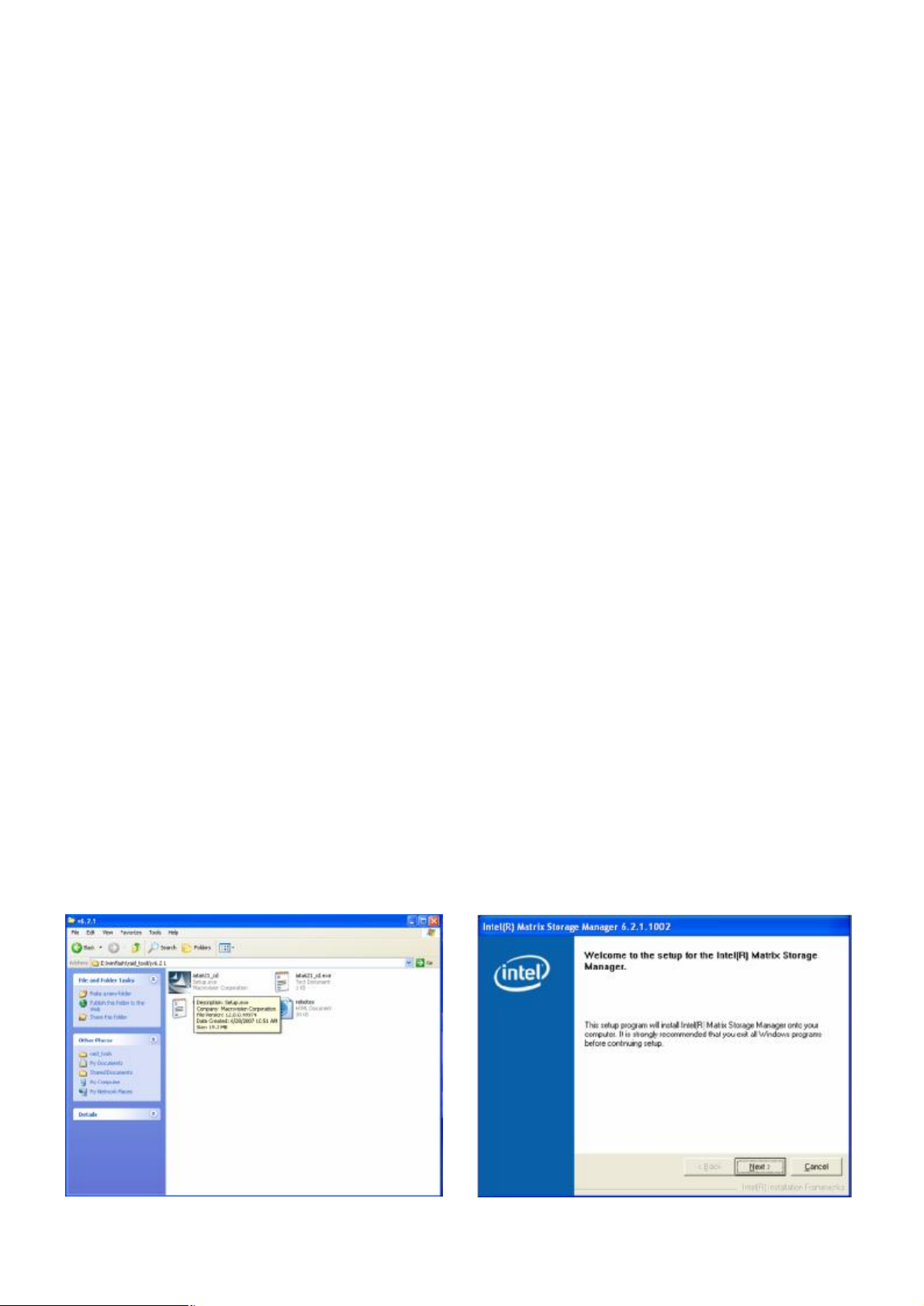

a. Select “iata621_cd” on the My Computer
Window
c. Click the “Next” button on the Warning
window
b. Click the “Next” button on the Welcome
window
d. Click the “Yes” button on the License
Agreement window
e. Click the “Next” button on the Readme
window
f. Select “ Yes, I want to restart my computer
now” and click the “ Finish” button to
complete the installation
Page 16
16
4. Peripherals Installation
4.1. Cash Drawer Installation
You can install a cash drawer through the Cash Drawer port. Please verify the pin assignment
before installation.
4.1.1. Cash Drawer Pin Assignment
Pin Signal
1 GND
2 DOUT bit0
3 DIN bit0
4 12V/24V
5 DOUT bit1
6 GND
4.1.2. Cash Drawer Controller Register
The Cash Drawer Controller use one I/O address to control the Cash Drawer.
Register Location: 48Ch
Attribute: Read / Write
Size: 8 bits
7 6 5 4 3 2 1 0
X X X X X
Reserved
Cash Drawer “DOUT bit0” pin output control
Cash Drawer “DOUT bit1” pin output control
Reserved
Cash Drawer “DIN bit0” pin output control
Reserved
Bit 7: Reserved
Bit 6: Cash Drawer “DIN bit0” pin input status.
= 1: the Cash Drawer closed or no Cash Drawer
= 0: the Cash Drawer opened
Bit 5: Reserved
Bit 4: Reserved
Bit 3: Cash Drawer “DOUT bit1” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 2: Cash Drawer “DOUT bit0” pin output control.
Page 17
17
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 1: Reserved
Bit 0: Reserved
Note: Please follow the Cash Drawer control signal design to control the Cash Drawer.
4.1.3. Cash Drawer Control Command Example
Use Debug.EXE program under DOS or Windows98
Command Cash Drawer
O 48C 01 Opening
O 48C 00 Allow to close
Ø Set the I/O address 48Ch bit2 =1 for opening Cash Drawer by “DOUT bit0” pin control.
Ø Set the I/O address 48Ch bit0 = 0 for allow close Cash Drawer.
Command Cash Drawer
I 48C Check status
Ø The I/O address 48Ch bit6 =1 mean the Cash Drawer is opened or not exist.
Ø The I/O address 48Ch bit6 =0 mean the Cash Drawer is closed.
Page 18
18
5. System Disassembly

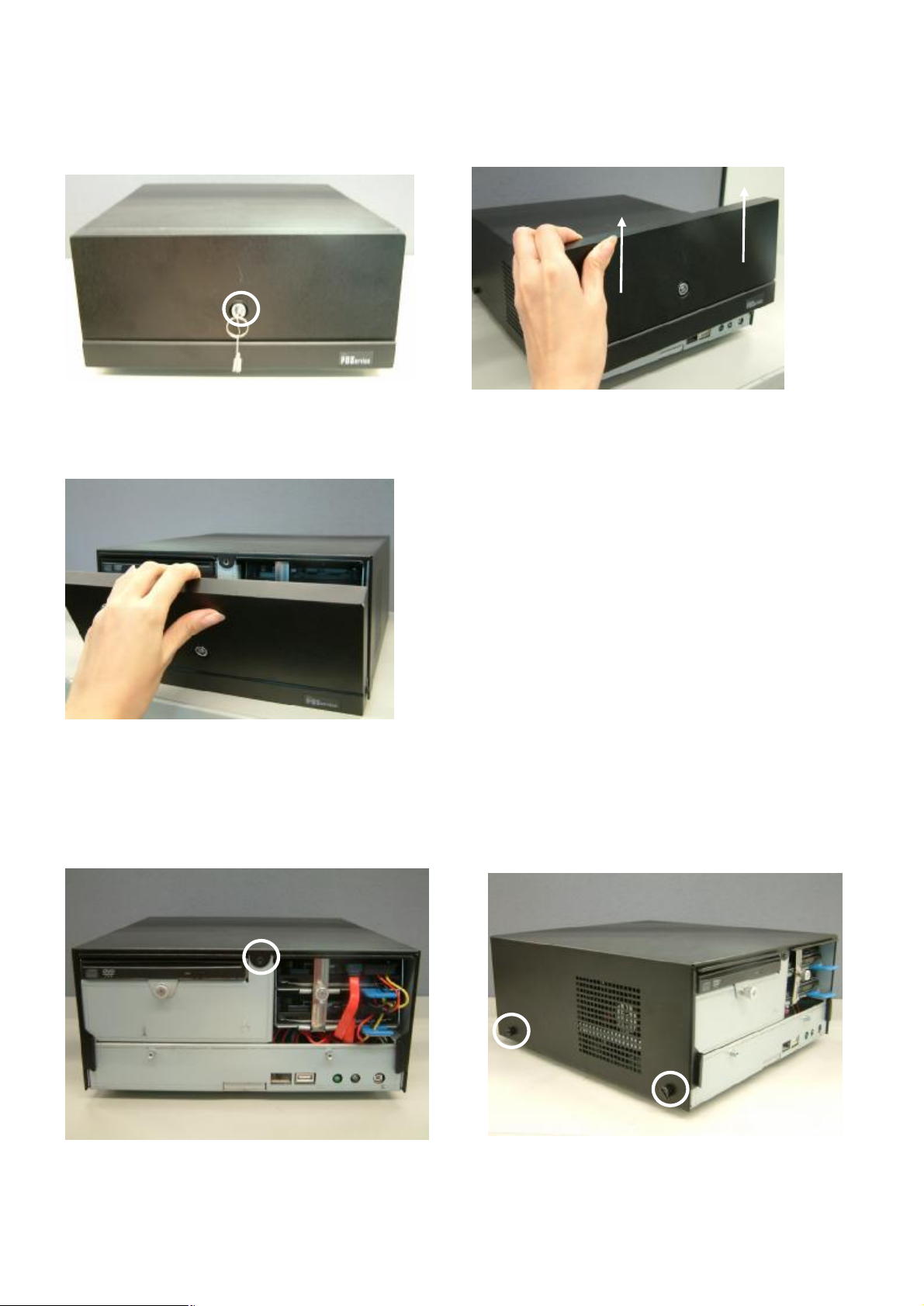

5.1. Removing the Front Cover
a. Use the key to unlock the front cover b. Lift the front cover up in the direction as
shown by the arrows
c. Remove the front cover
5.2 Removing the Top Cover
To remove the top cover, please follow the steps as described in chapter 5.1.
a. Remove the screw (1) b. Loosen the thumb screws (4) (two from
each side) to release the top cover from
the system.
Page 19
19

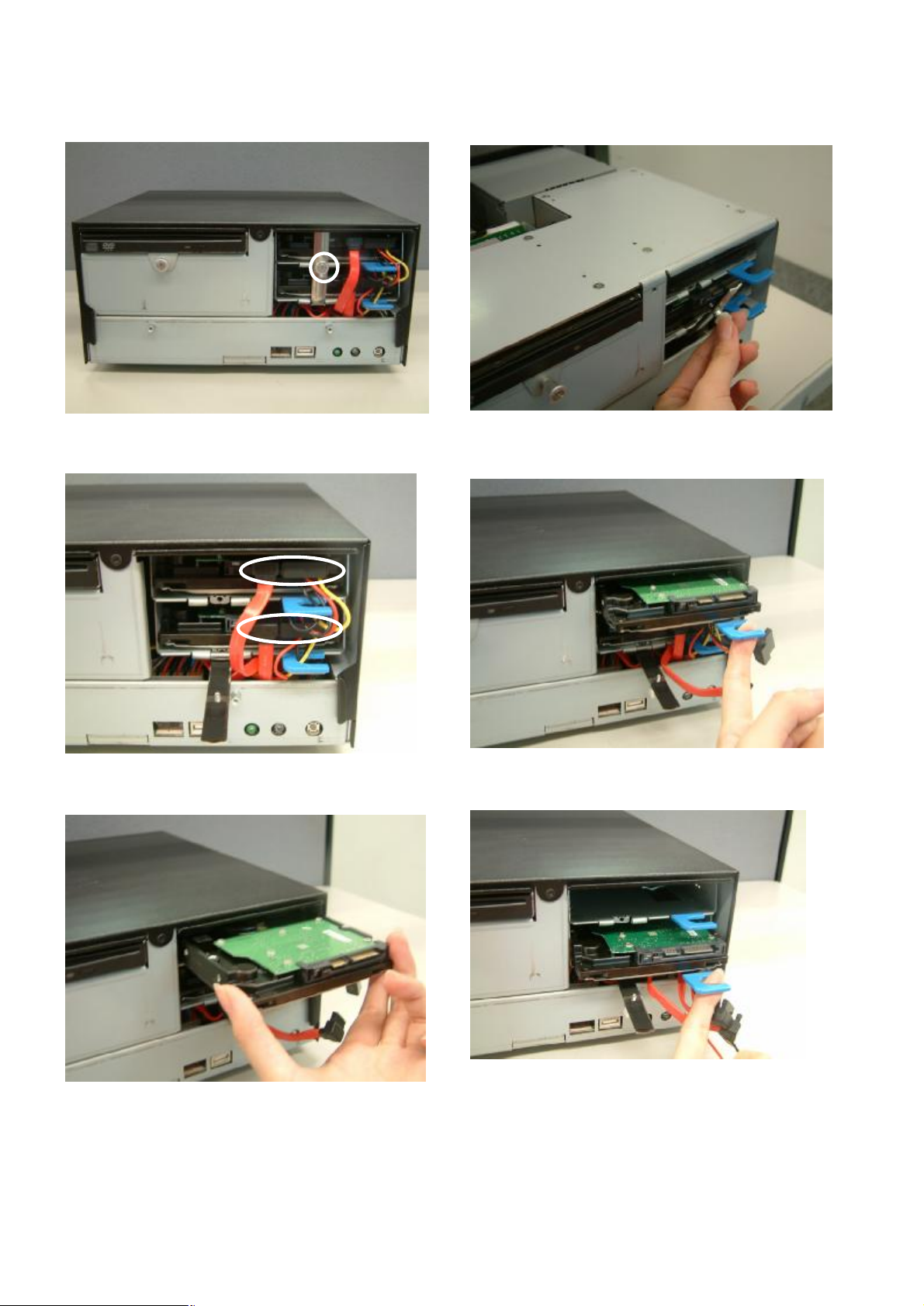

5.3 Replacing the HDD
To replace the front cover, please follow the steps as described in chapter 5.1.
a. Loosen the thumb screw (1).
c. Disconnect the cables (4).
b. Loosen the locking bar (1).
d. Use your finger to pull the HDD holder out.
e. Remove the HDD.
f. Repeat the step d. and e. to remove the
other HDD.
Page 20
20
5.4. Replacing the DVD-ROM
To replace the front cover, please follow the steps as described in chapter 5.1.

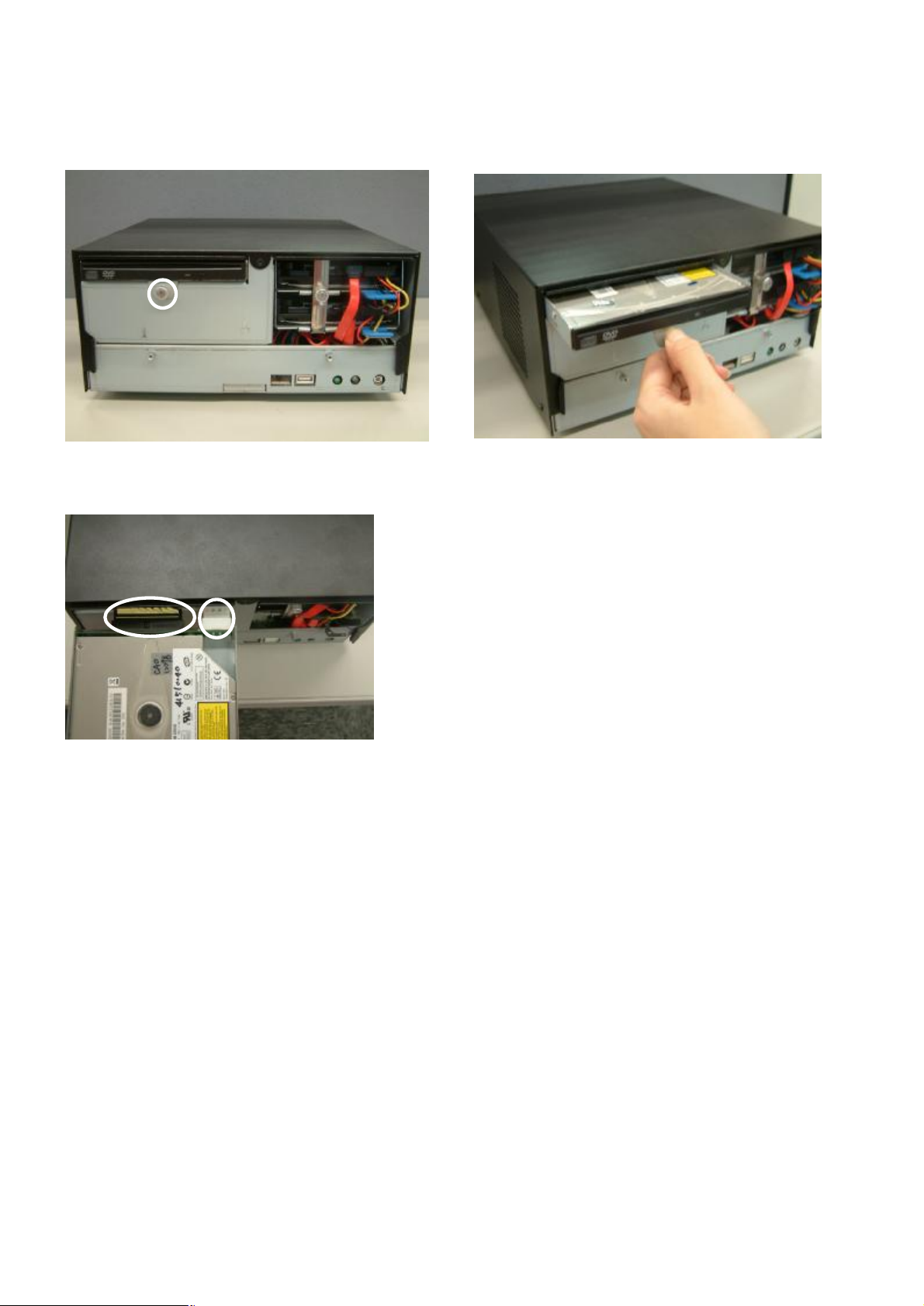

a. Loosen the thumb screw (1) b. Pull the DVD-ROM holder out
c. Disconnect the cables (2) to remove the
DVD-ROM
Page 21
21

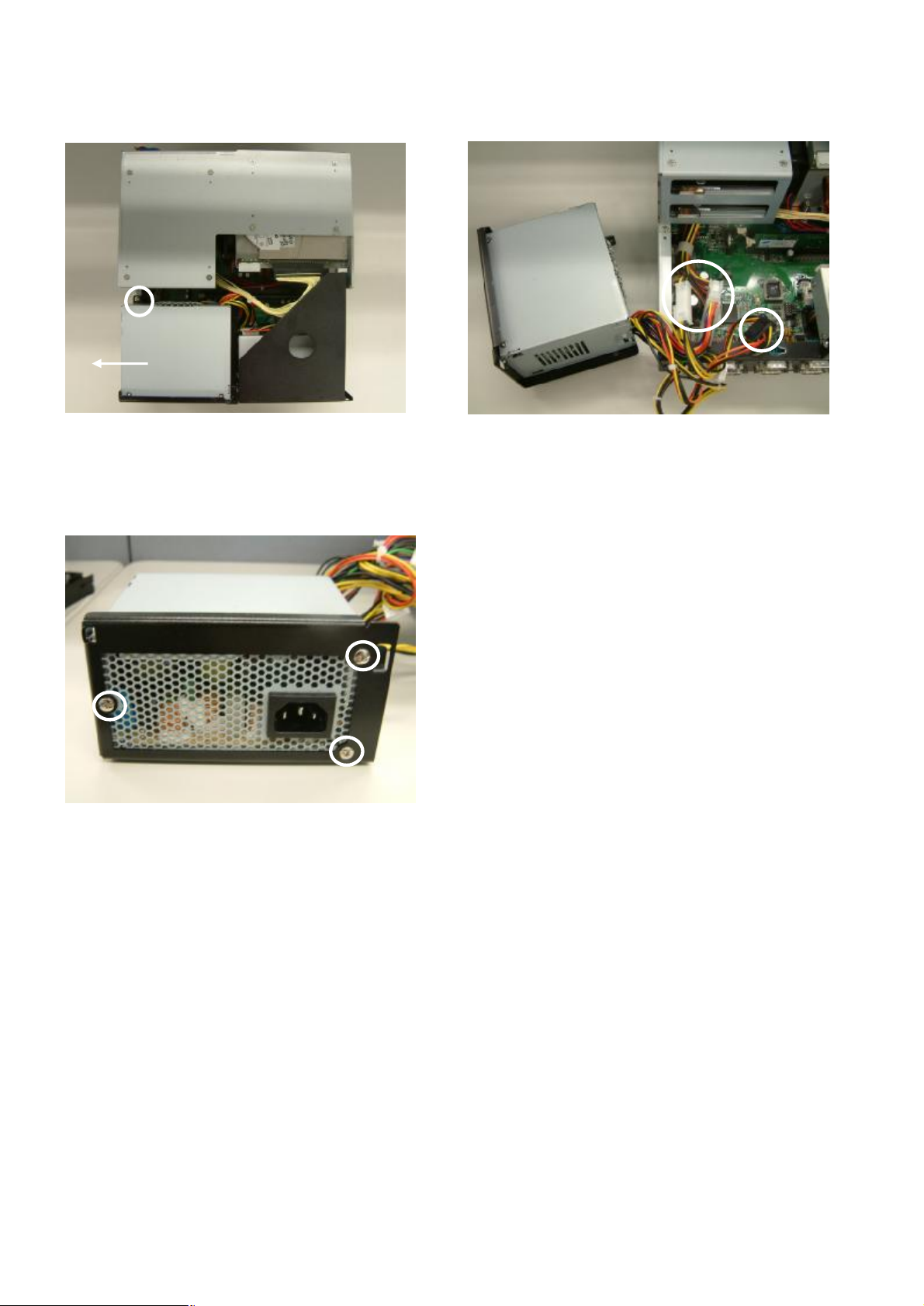

5.5. Replacing the Power Supply
To replace the power supply, please follow the steps as described in chapter 5.1 and 5.2
a. Remove the screw (1) and slide the
power supply holder in the direction as
shown by the arrow.
c. Remove the screws (3) to separate the
power supply from the holder.
b. Disconnect the cables (3) to release the
power supply holder from the system.
Page 22
22
5.6. Replacing the I/O & PCI Extension Module
To replace the I/O and PCI extension module, please follow the steps as described in chapter
5.1 and 5.2

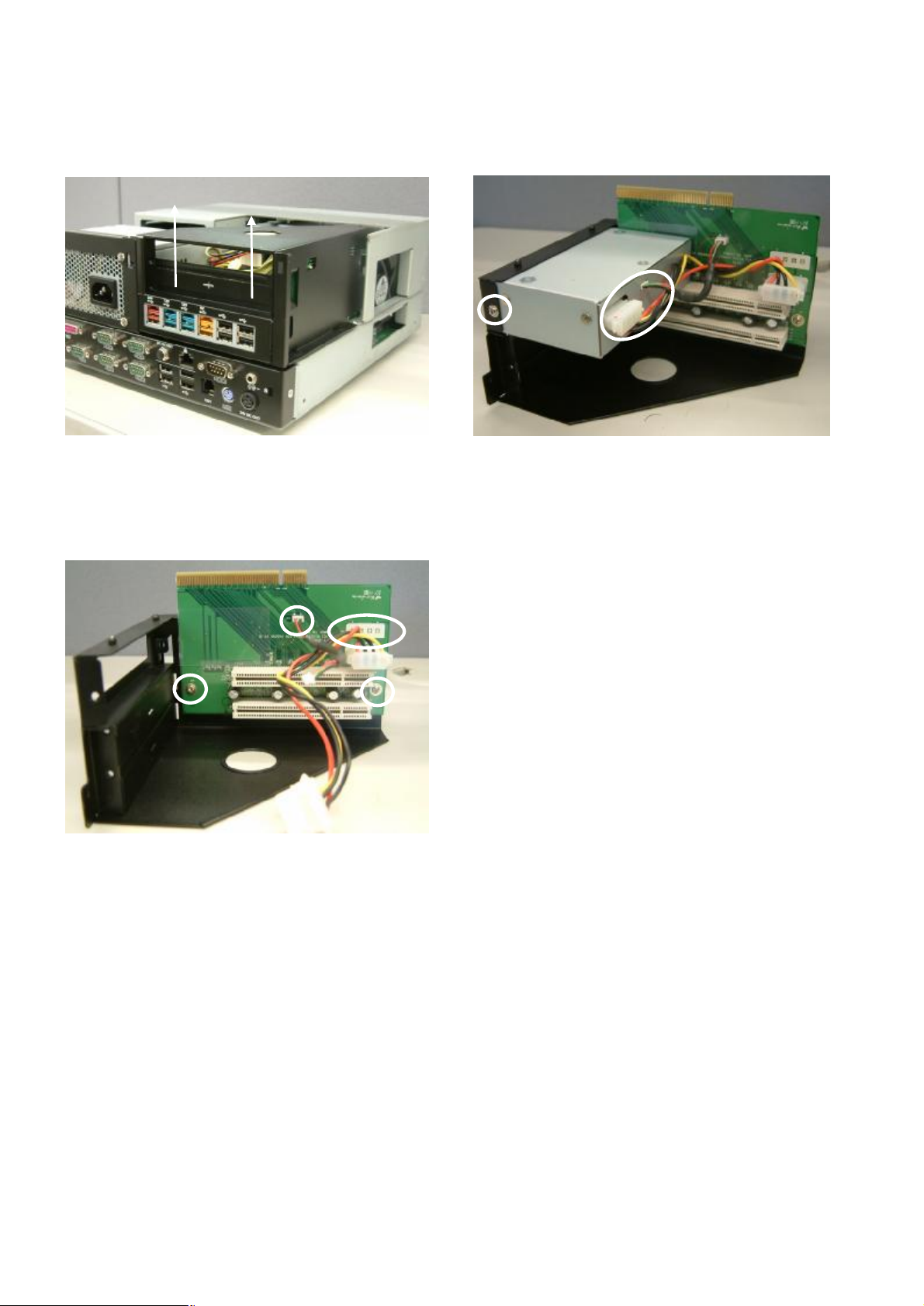

a. Remove the extension module by gently
b. Disconnect the cables (3) and remove the
pulling it upwards, taking care not to
damage the connector.
c. Disconnect the cables (2) and remove the
I/O module from the holder.
screws (2) to release the PCI riser card
from the holder.
Page 23
23
5.7. Replacing the Memory
To replace the memory, please follow the steps as described in chapter 5.1, 5.2 and 5.5(a)
a. Use your finger to push the DIMM slot
b. Remove the memory module from the slot.
ejector clips into the down position.
5.8. Replacing the Motherboard
To replace the motherboard, please follow the steps as described in chapter 5.1, 5.2, 5.5(a)
and 5.6(a)

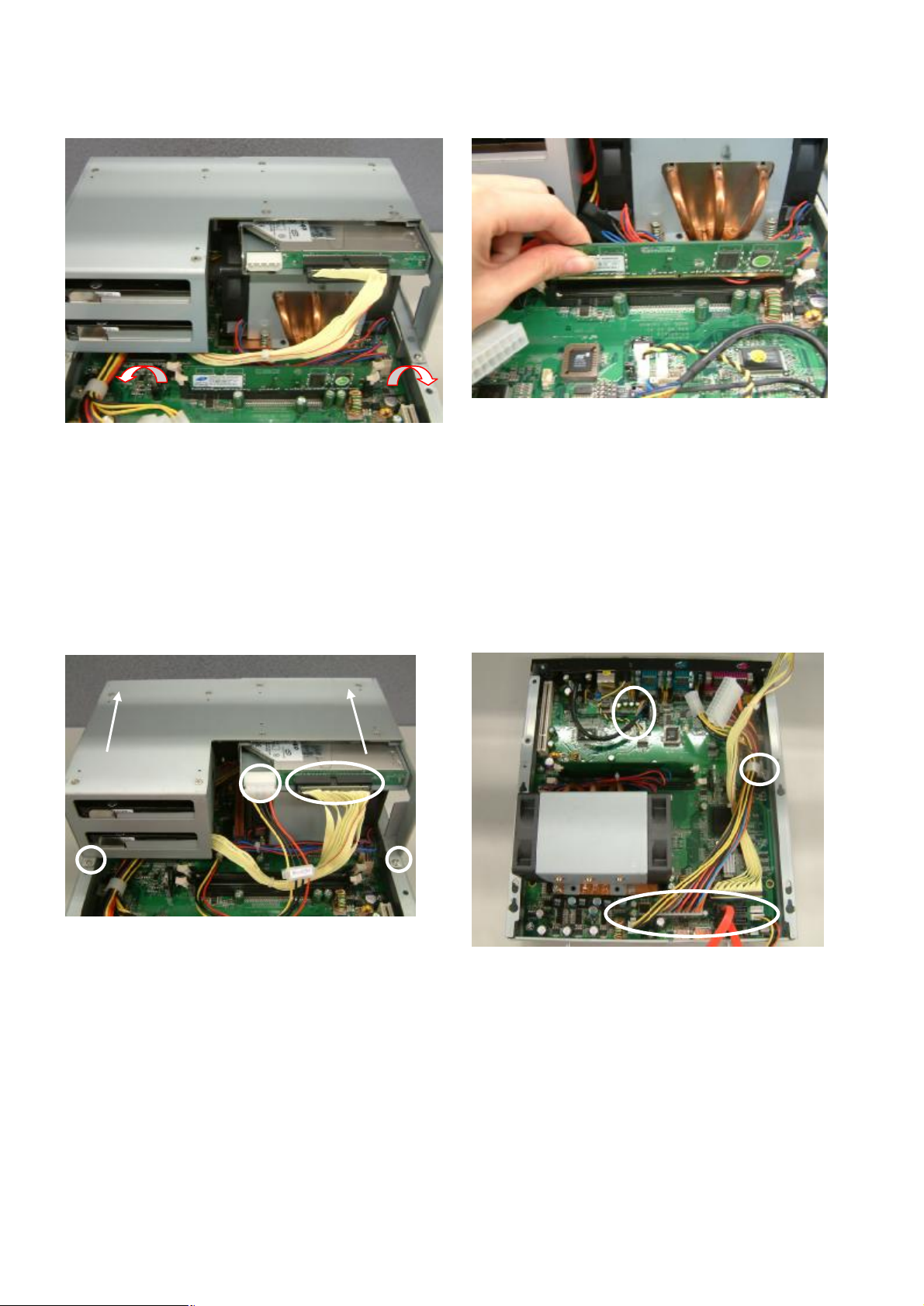

a. Disconnect the cables (2), remove the
b. Remove the screw (1) and disconnect the
screws (2) and slide the HDD module in
the direction as shown by the arrows to
release the module from the motherboard
Chassis
cables (9) as shown in the picture.
Page 24
24

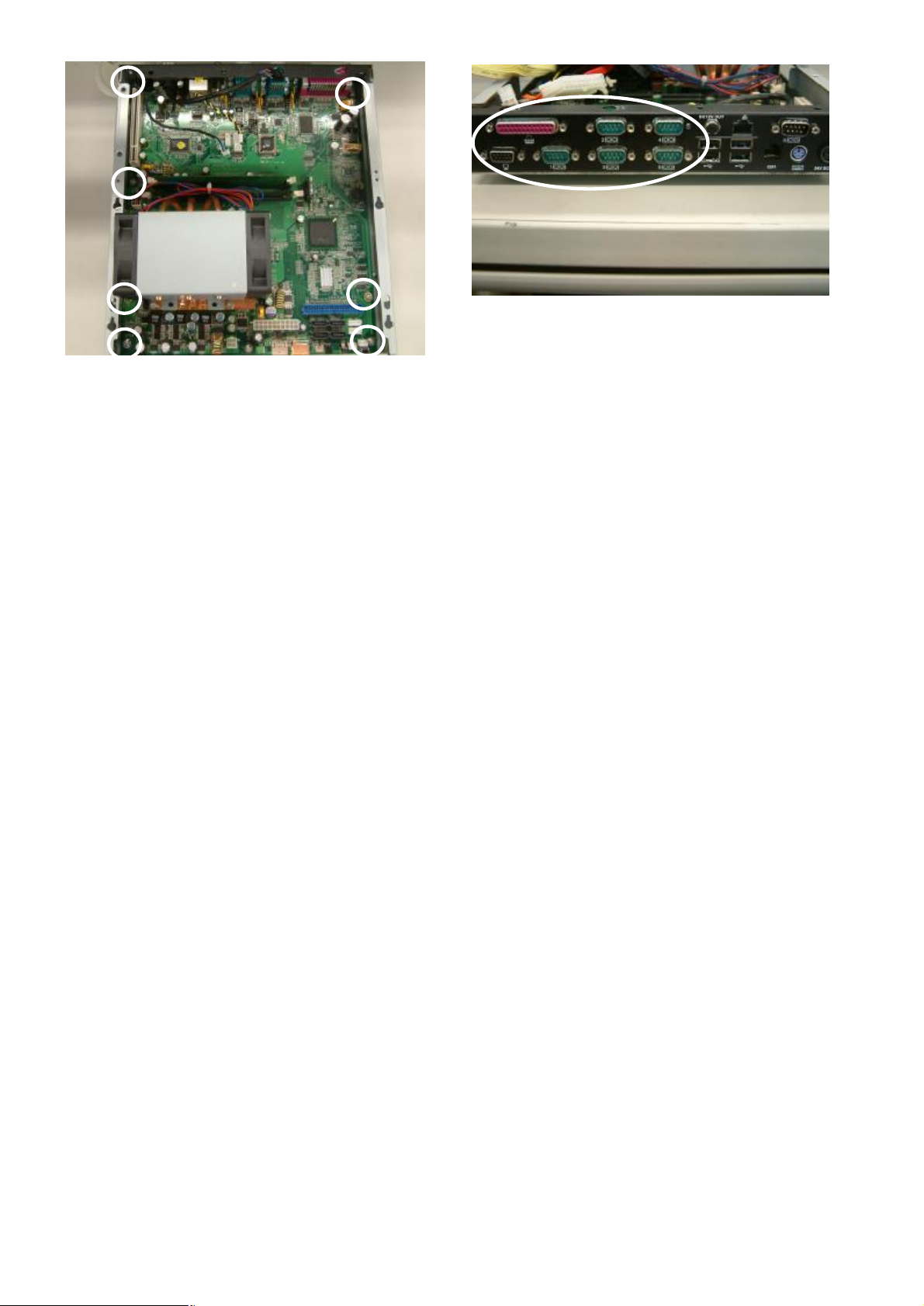

c. Remove the screws (7) d. Remove the hex screws (14) to release the
motherboard from the chassis
Page 25
25
6. Specification
Model Name POS 5000
Mainboard B99
CPU Support Intel 352 Celeron D 3.2G FSB533Mhz L2 512K ( Core 2 Duo)
Chipset INTEL 945G + ICH7R
System Memory Up to 4GB DDR ll RAM, 2 RAM-DIMM
Storage
HDD 2 x 3.5" SATA
ODD 1 x PATA Slim CD-ROM / CD-RW / DVD-ROM Drive Bay
(optional)
Expansion
PCI Slot 2 slots support from riser card
External I/O Ports
Front I/O
USB 1
Power Button 1
Rear I/O
PS/2 Keyboard 1
USB 4 (USB1~ 4)
Powered Serial/COM 2 (COM1 / COM2)
Serial_RS232 3 (COM3, COM4, COM5 )
Serial_RS485/RS422) 1 (COM6)
Parallel 1
Giga LAN 1
VGA 1 ( DB15 )
Line- out 1
Cash Drawer Port 1
DC 24V output 1
DC 12V output 1
Control / Indicators
Power Button 1 (Front)
LED_HDD/Power 2
Internal Header
USB 4 ( USB5~8)
Power Button 1 ( pin header)
Peripherals ( special feature)
Second HDD (hot swap) 80GB (optional)
RAID Supports RAID 0, RAID 1 for 2 SATA HDDs
Page 26
26
Option Module ( Connectivity)
Powered USB (12V) 2
Powered USB (24V) 1
Powered USB (5V) 1
USB 4
Environment
EMC & Safety FCC Class A, CE, LVD
Operating Temperature 5°C~ 35°C (41°F ~95°F)
Storage Temperature -10°C~ 60°C (14°F ~140°F)
Storage Temperature 10% - 90% RH non condensing
Storage Humidity 10% - 90% RH non condensing
Dimension
270 x 300 x 120mm
(W x D x H) System Box
Power Supply 230W
Page 27
27
7. Jumper Settings

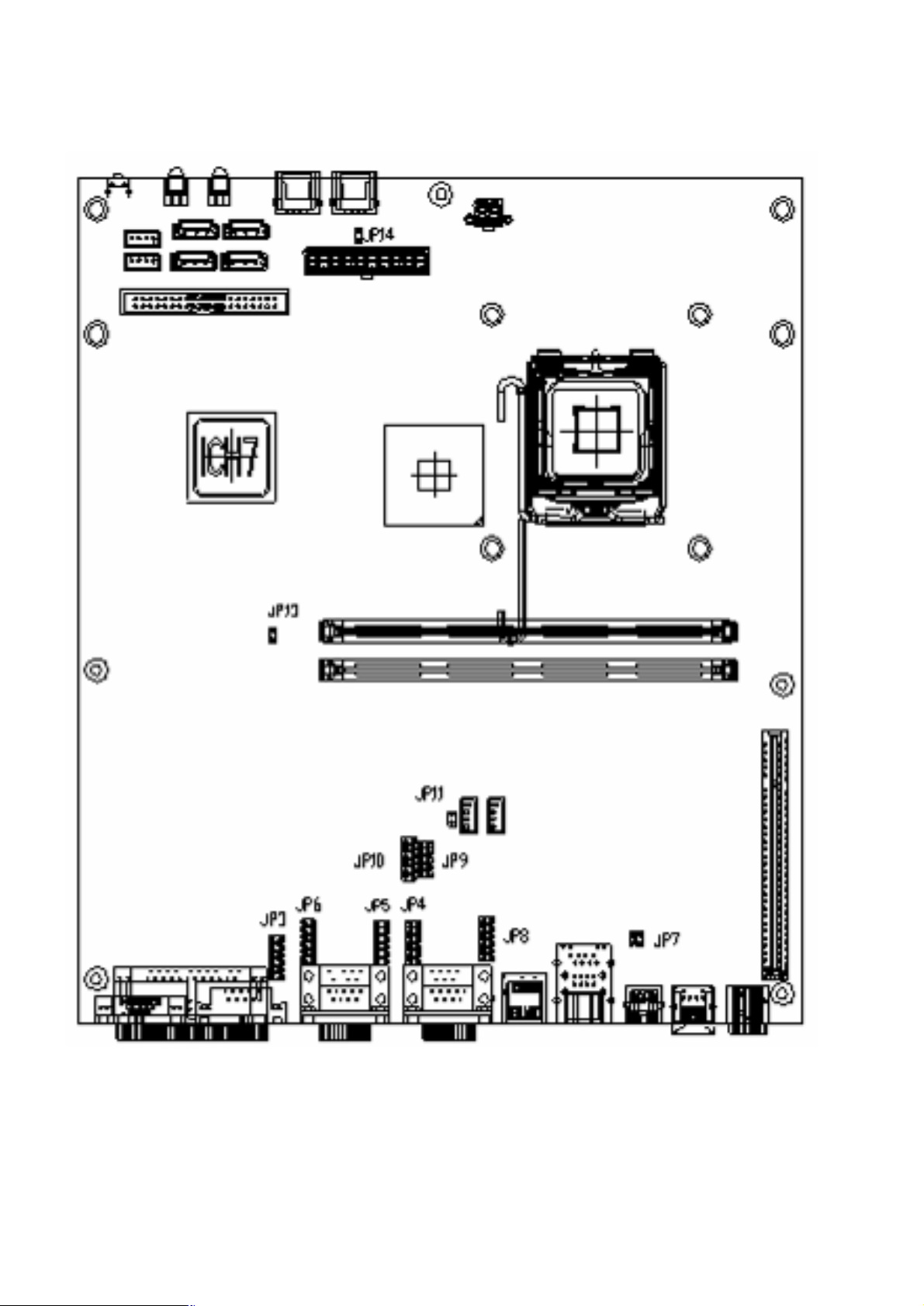

B99 Motherboard
Page 28
28
1. COM 1 Power Setting ◎Factory Default Setting
Pin Function JP4 (SHORT)
1
9
2. COM 2 Power Setting
Pin Function JP8 (SHORT)
1
9
◎DCD#
1-2
VCC 3-4
+12V 5-6
◎RI#
7-8
+5V 9-10
+12V 11-12
◎DCD#
1-2
VCC 3-4
+12V 5-6
◎RI#
7-8
VCC 9-10
+12V 11-12
3. COM 3 Power Setting
Pin Function JP6 (SHORT)
1
9
4. COM 4 Power Setting
Pin Function JP5 (SHORT)
1
◎DCD#
1-2
VCC 3-4
+12V 5-6
◎RI#
7-8
VCC 9-10
+12V 11-12
◎DCD#
1-2
VCC 3-4
+12V 5-6
9
◎RI#
VCC 9-10
7-8
+12V 11-12
Page 29
29
5. COM 5 Power Setting
Pin Function JP3 (SHORT)
1
9
6. COM 6 RS232/ 485/ 422 Setting
Function
JP9 (1-2) v
JP9 (3-4) v
JP9 (4-6) v
JP9 (5-7) v
JP9 (7-8) v
JP9 (9-10) v
◎DCD#
VCC 3-4
+12V 5-6
◎RI#
VCC 9-10
+12V 11-12
◎RS232
1-2
7-8
RS485 RS422
JP10 (1-2)
JP10 (3-4) v
JP10 (5-6) v v
JP10 (7-8) v
JP10 (9-10) v
JP10 (10-11) v
7. 2ND Display Power Setting
Function JP11 (SHORT)
+12V 1-2
◎NC
8. CMOS Operation Mode Setting
Function JP13 (SHORT)
1
◎COMS Normal
N/C
COMS Reset 1-2
Page 30
30
9. Power Mode Setting
Function JP14 (SHORT)
◎ATX Power
AT Power 1-2
10. Cash Drawer Power Setting
Voltage JP7 (SHORT)
◎+12V
+ 24V 3-4
Note:
OPEN
SHORT
N/C
1-2
Page 31
31
8. RAID BIOS Settings
8.1. BIOS Setup Utility
The BIOS setup defines how the system is configured. You need to run this program the first
time you configure this product. You may need to run it again if you change the configuration.
You need to connect a PC keyboard to the keyboard connector to run the BIOS setup utility.
8.2. Starting the BIOS Setup
1. Turn on or reboot this product.
2. Press the DEL key immediately after the product is turned on, or press the DEL key when
the following message is displayed during POST (the Power on Self-Test).
Press DEL to enter SETUP.
3. The main menu of the BIOS setup is displayed.
4. If the supervisor password is set, you must enter it here.
8.3. When a Problem Occurs
If, after making and saving system changes with the Setup utility, you find that this product no
longer boots, start the BIOS setup and execute the following.
Load Optimized Defaults

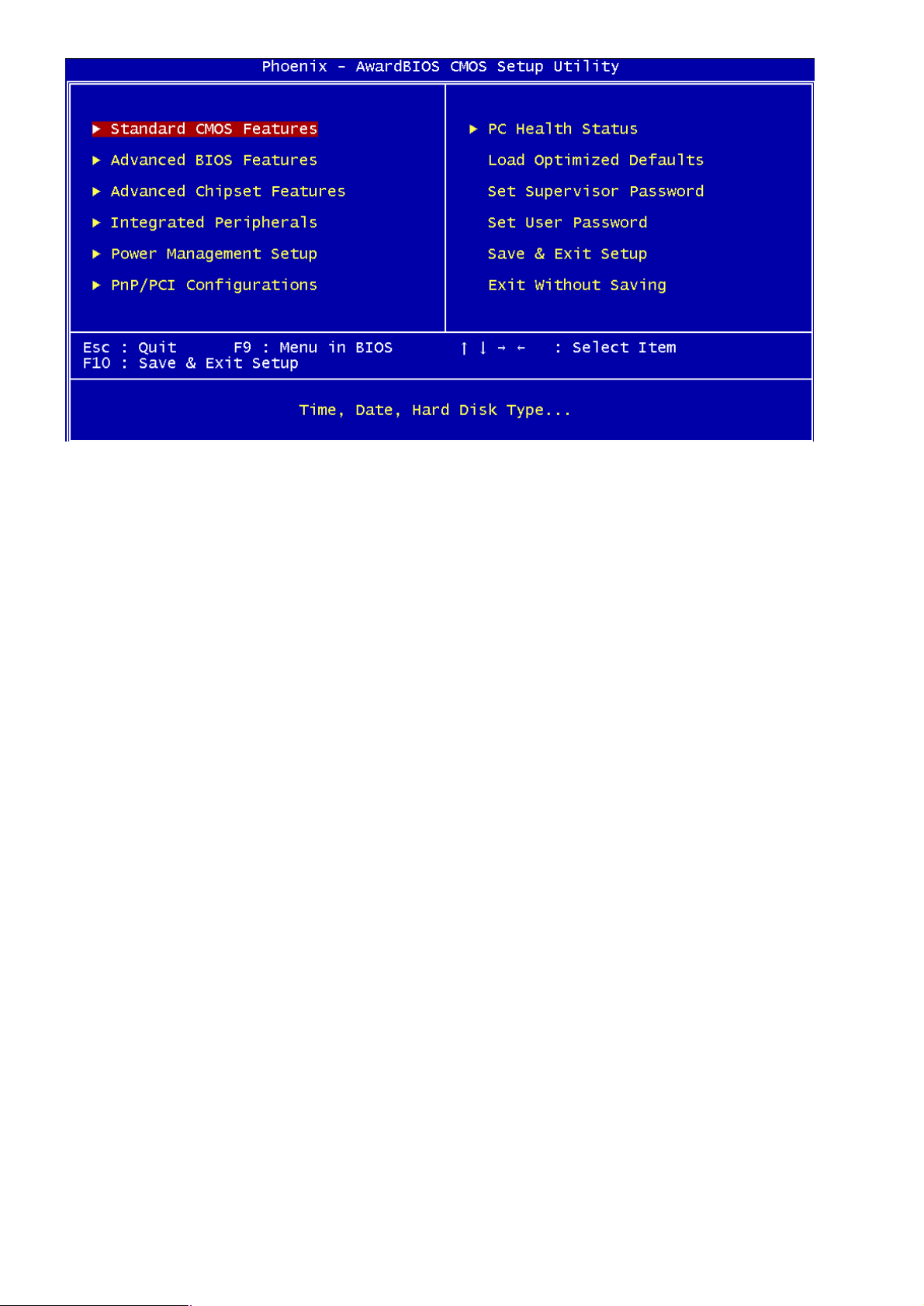

8.4. BIOS Main Menu
When the BIOS Main Menu is displayed, the following items can be selected. Use the arrow
keys to select items and the Enter key to accept and enter the sub-menu.
Note: The BIOS menu below is from B99 RAID BIOS version B990V10.BIN. If you have a
different BIOS version, the contents of the menu may different.
Page 32
32
Standard CMOS Features
Use this menu for basic system configuration.
Advanced BIOS Features
Use this menu to set the Advanced Features available on the system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize the system’s
performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management setup
Use this menu to specify your settings for power management.
PnP/PCI Configurations
This entry appears if your system supports Plug and Play and PCI Configuration.
PC health status
Displays CPU, System Temperature, Fan Speed, and System Voltages Value.
Load Optimized Defaults
Use this menu to load the BIOS default values, i.e., factory settings for optimal performance
system operations. While Award has designed the custom BIOS to maximize performance, the
factory has the option to change these defaults to meet their needs.
Set Supervisor Password
Page 33
33
Enables you to change, set, or disable the supervisor or user password.
Set Password
Change, set, or disable the password. It allows you to limit access to the system and to the
setup, or just to the setup.
Save & exit setup
Save CMOS value changes to CMOS and exits setup.
Exit without saving
Ignores all CMOS value changes and exits setup.
8.5. Enabling RAID in the BIOS
Enter the BIOS Setup program by pressing the DEL key.

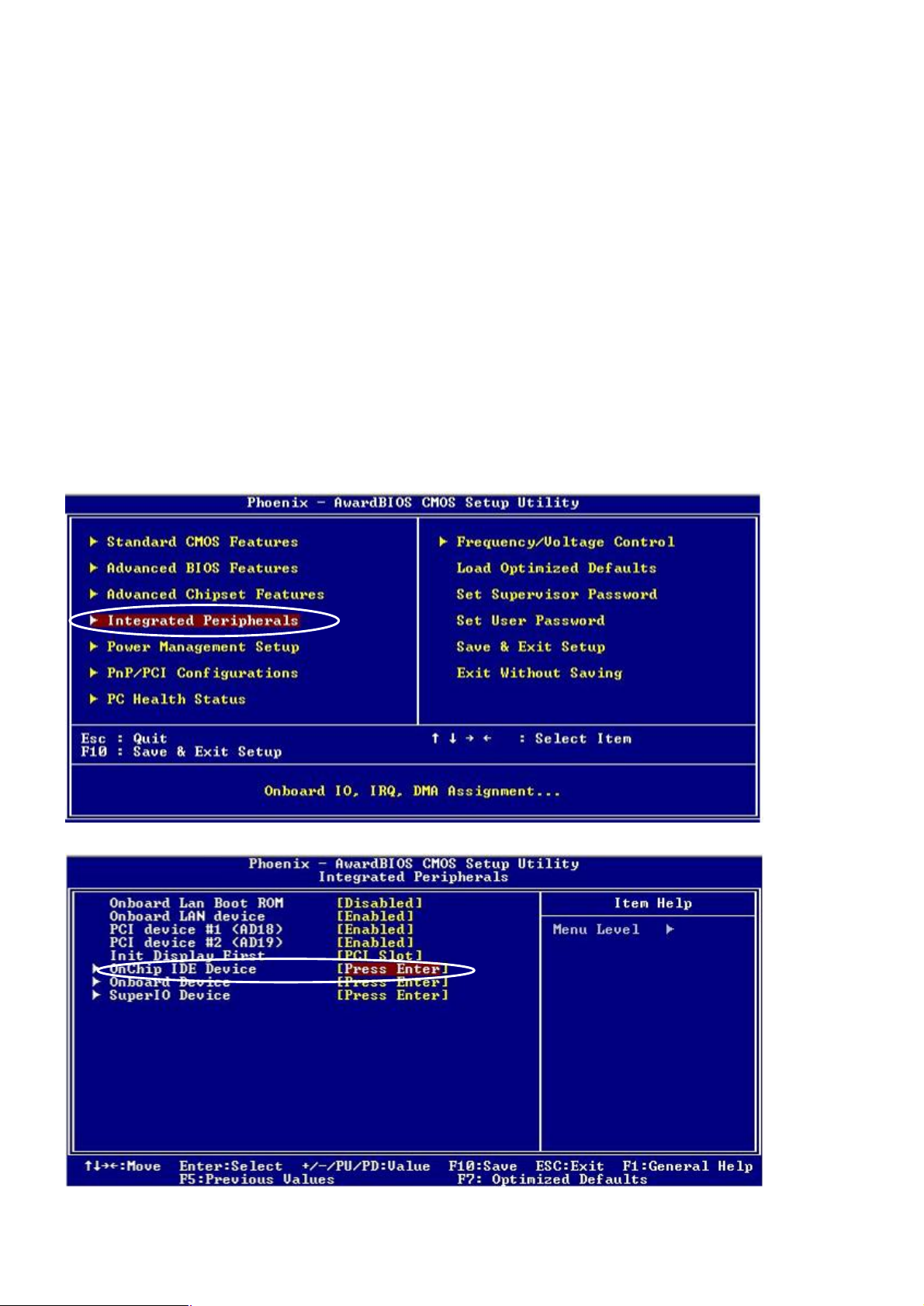

Select Integrated Peripherals, and then press “Enter”
Select OnChip IDE Device, and then press “Enter”
Page 34
34

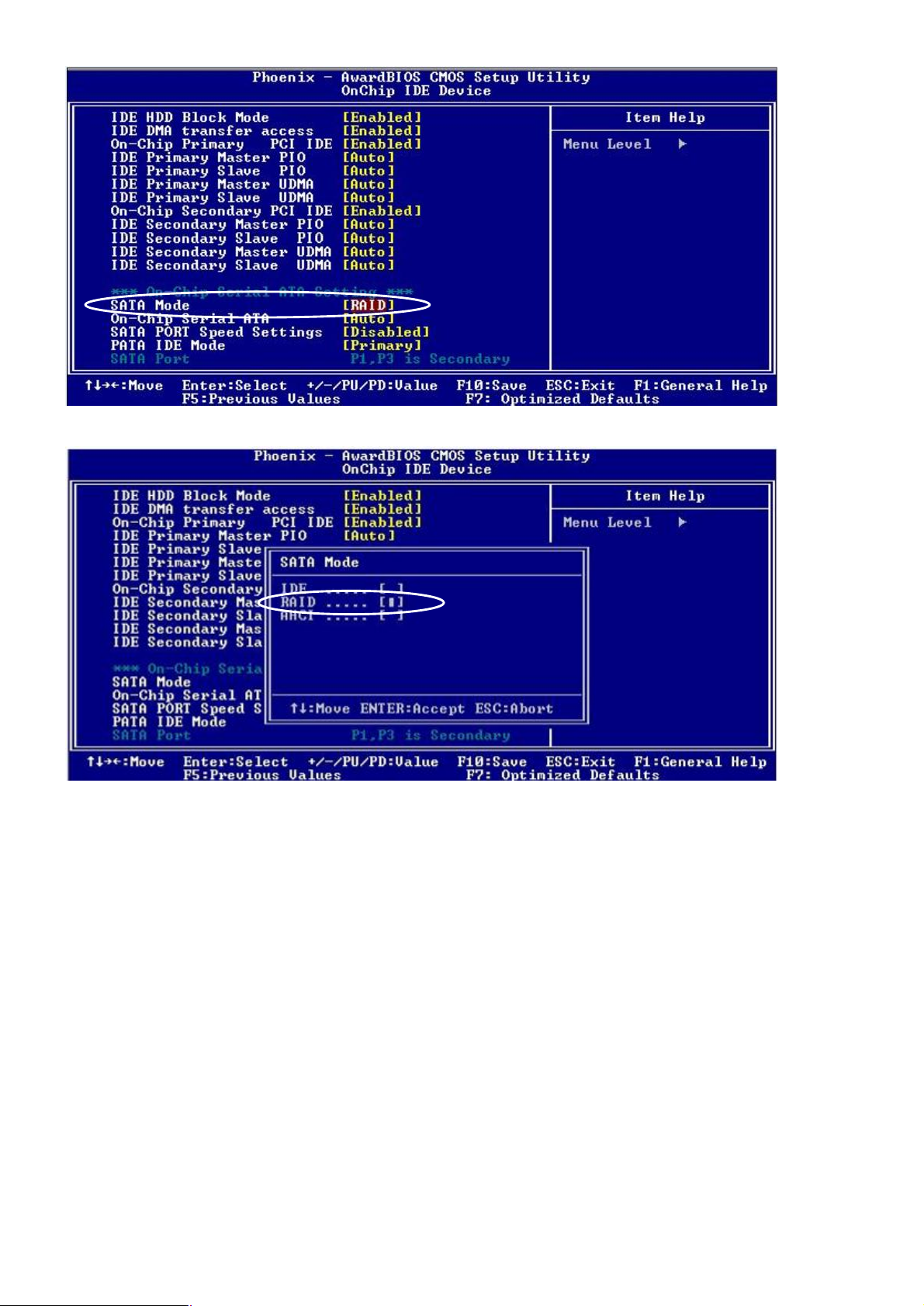

Select SATA Mode, and then press “Enter”
Select RAID, and then press “Enter”
Press the F10 key to save the BIOS settings and exit the BIOS Setup program.
8.6. RAID Volume Creation
1. When the Intel® Matrix Storage Manager option ROM status screen appears during POST,
press the Ctrl and i keys at the same time to enter the Intel Matrix Storage Manager option
ROM user interface.
2. Select Option 1: Create RAID Volume and press the Enter key.
3. Use the up or down array keys to select the RAID level and press the Enter key.
4. Unless you have selected RAID 1, use the up or down arrow keys to select the strip size and
press the Enter key.
Page 35
35
5. Press the Enter key to select the physical disks.
6. Select the appropriate number of hard drives by using the up or down arrow keys to scroll
through the list of hard drives and pressing the Space key to select the drive. When finished,
press the Enter key.
7. Select the volume size and press the Enter key.
8. Press the Enter key to create the volume. At the prompt, press the Y key to confirm volume
creation.
9. Select Option 4: Exit and press the Enter key. Press the Y key to confirm exit.
Loading...
