Page 1

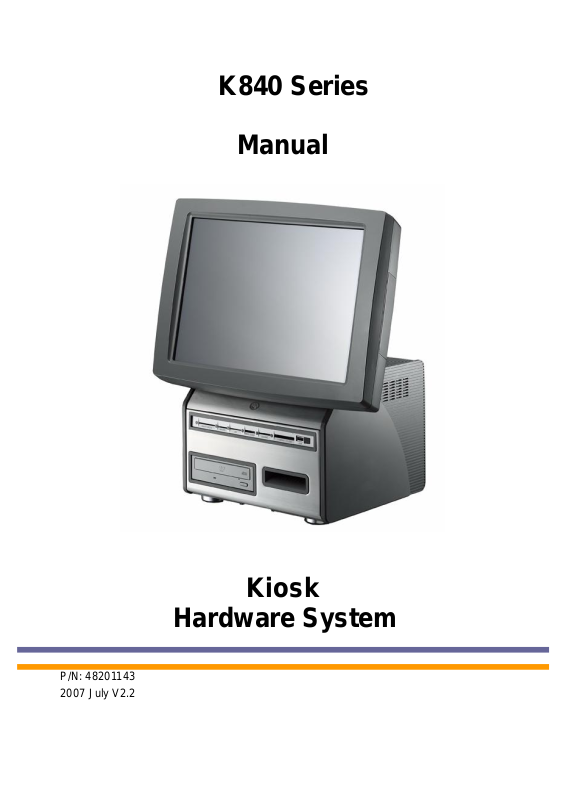

K840 Series

Manual

P/N: 48201143 2007 July V2.2

Kiosk

Hardware System

Page 2

The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced or translated to another language without the prior written consent of the manufacturer.

TRADEMARK

Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation. Microsoft® and Windows® are registered trademarks of Microsoft Corporation. ELO Touch is the registered trademark of ELO Touch Systems.

Page 3

Safety

IMPORTANT SAFETY INSTRUCTIONS

1. To disconnect the machine from the electrial power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine.

2. Read these instructions carefully. Save these instructions for future reference.

3. Follow all warnings and instructions marked on the product.

4. Do not use this product near water.

5. Do not place this product on an unstable cart,stand,or table.The product may fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation;to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered.The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.This product should never be placed near or over a radiator or heat register,or in a built-in installation unless proper ventilation is provided.

7. This product should be operated from the type of power indicated on the marking label.If you are not sure of the type of power available, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

9. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.Never spill liquid of any kind on the product.

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation.

CE MARK

This device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”.

Page 4

CAUTION ON LITHIUM BATTERIES

There is a danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

LEGISLATION AND WEEE SYMBOL

2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components.

The crossed dustbin symbol on the device means that it should not be disposed of with other household wastes at the end of its working life. Instead, the device should be taken to the waste collection centres for activation of the treatment, collection, recycling and disposal procedure. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Page 5

Cleaning

Cleaning your Kiosk components and peripherals helps keep the machine in good working condition. Make sure your Kiosk is turned off before you begin the cleaning process.

Case:

The plastic case can be cleaned with a lint free cloth that has been slightly dampened with water. For stubborn stains, add a little household detergent to the cloth. Do not use a solvent cleaner on plastics.

Touch Panel:

Use a soft lint free cloth with isopropyl alcohol and wiping slowly without excessive pressure.

Laser Scanner:

Use a clean soft, dry, lint-free cloth and wiping gently without excessive pressure. Do not use isopropyl alcohol. Do not touch the laser scanner window with your fingers.

DVD-ROM Drive:

Use DVD laser lens cleaner and follow the product instructions to clean the DVD-ROM Drive.

Page 6

Table of Contents

1. Item Checklist..............................................................................................................8

1.1 Standard Items...................................................................................................8

1.2 Optional Items....................................................................................................8

2. System View................................................................................................................9

2.1 Front view (Type P, A, B, C) ...............................................................................9

2.3 Media Device Module....................................................................................... 11

2.4 Rear View.........................................................................................................12

3. Drivers Installation.....................................................................................................14

3.1 Driver List.........................................................................................................14

3.2 Chipset Driver Installation ................................................................................ 15

3.3 VGA Driver Installation..................................................................................... 17

3.4 Audio Driver Installation.................................................................................... 20

3.5 LAN Driver Installation...................................................................................... 21

3.6 USB2.0 Driver Installation................................................................................22

3.7 ELO Touch Screen Driver Installation............................................................... 25

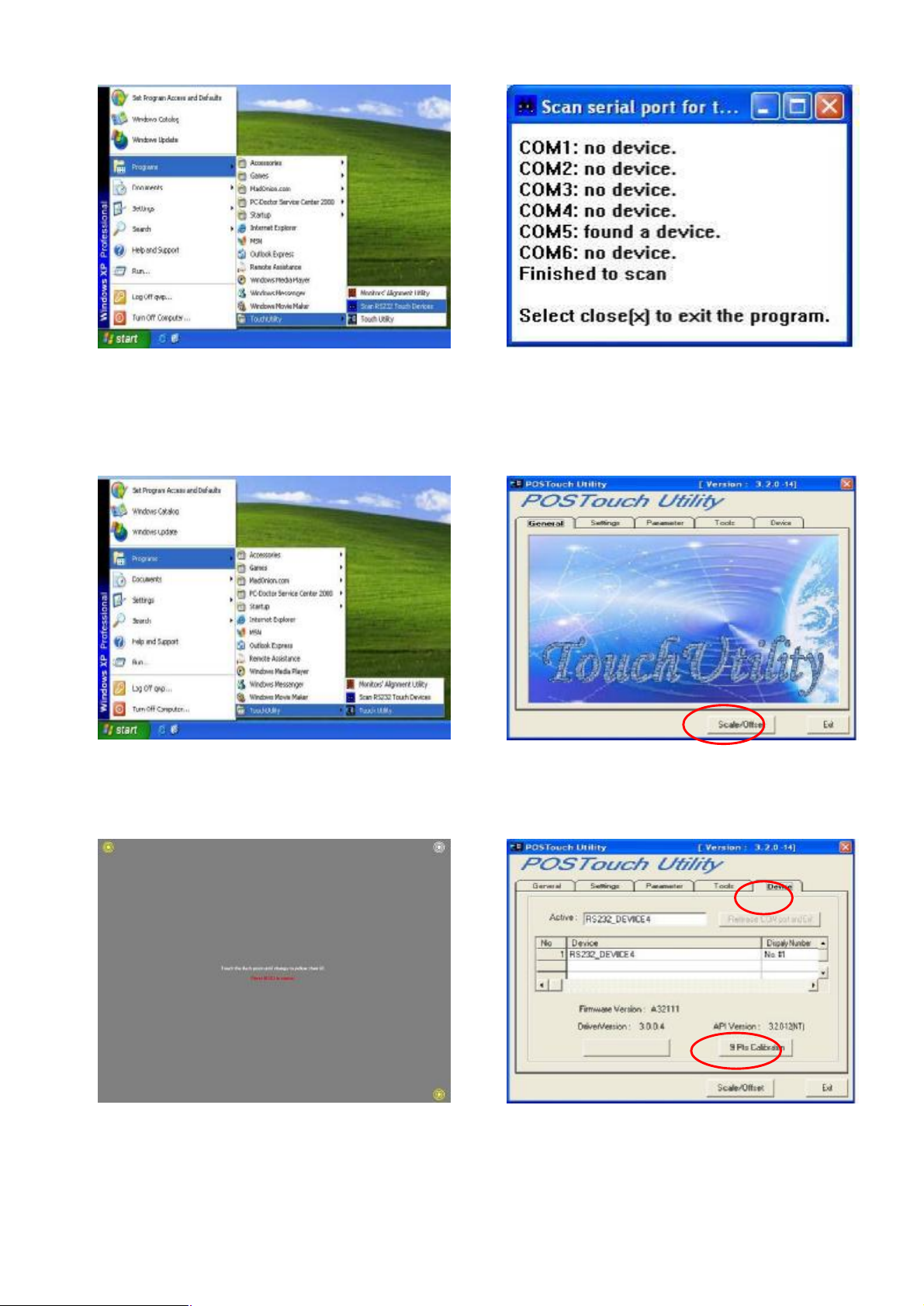

3.8 POSTouch Touch Screen Driver Installation.....................................................27

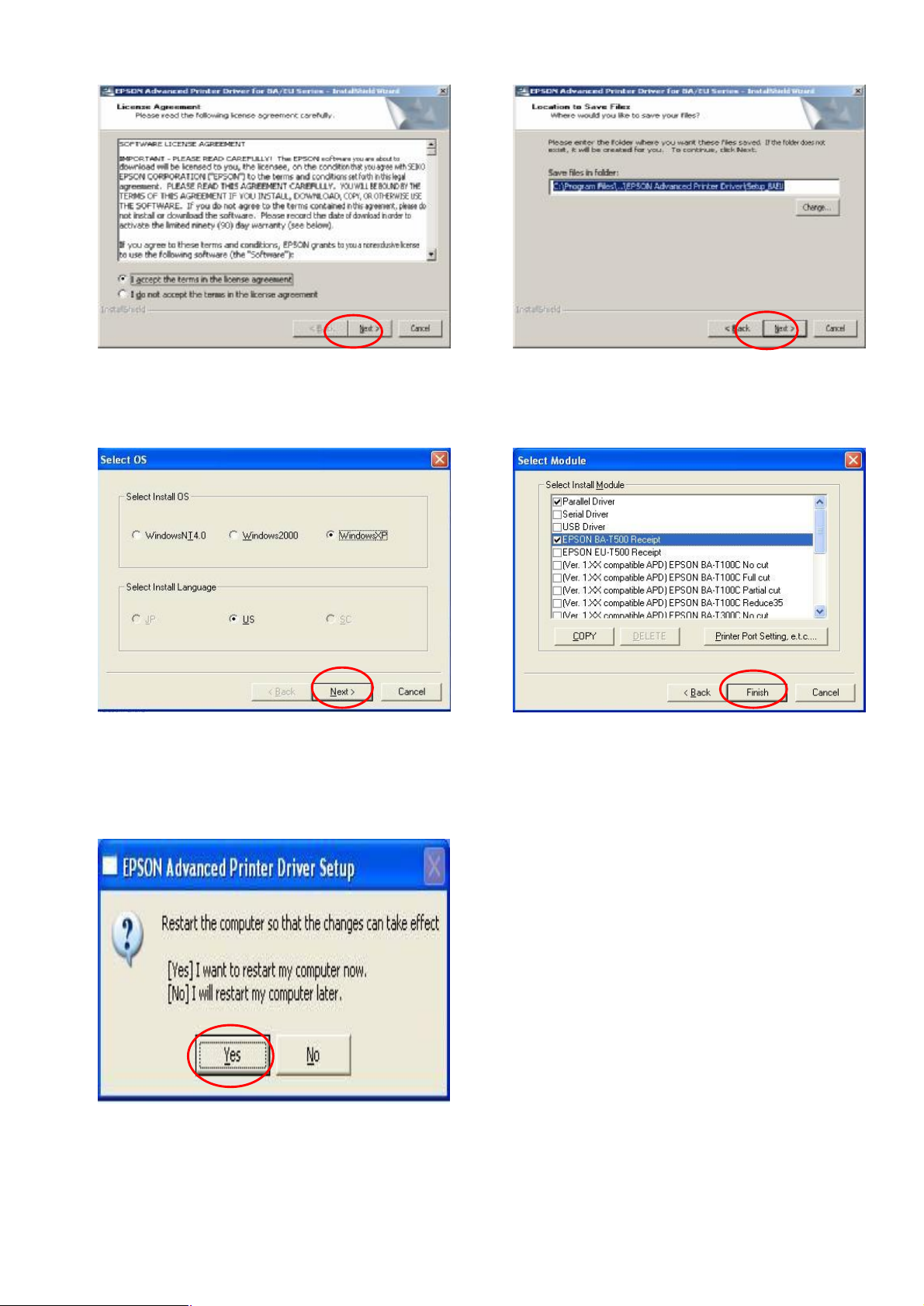

3.9 EPSON-BA-500 Thermal Printer Driver Installation ......................................... 30

3.10 ProGearXM-14U Media Card Driver Installation ............................................32

3.11 Smart Card Reader Driver Installation............................................................34

4. Peripherals Installation.............................................................................................. 35

4.1 Magnetic Card Reader / I-Button Installation.................................................... 35

4.2 Cash Drawer Installation..................................................................................36

4.3 Wireless LAN and Bluetooth USB Dongles Installation....................................39

5. System Disassembly.................................................................................................41

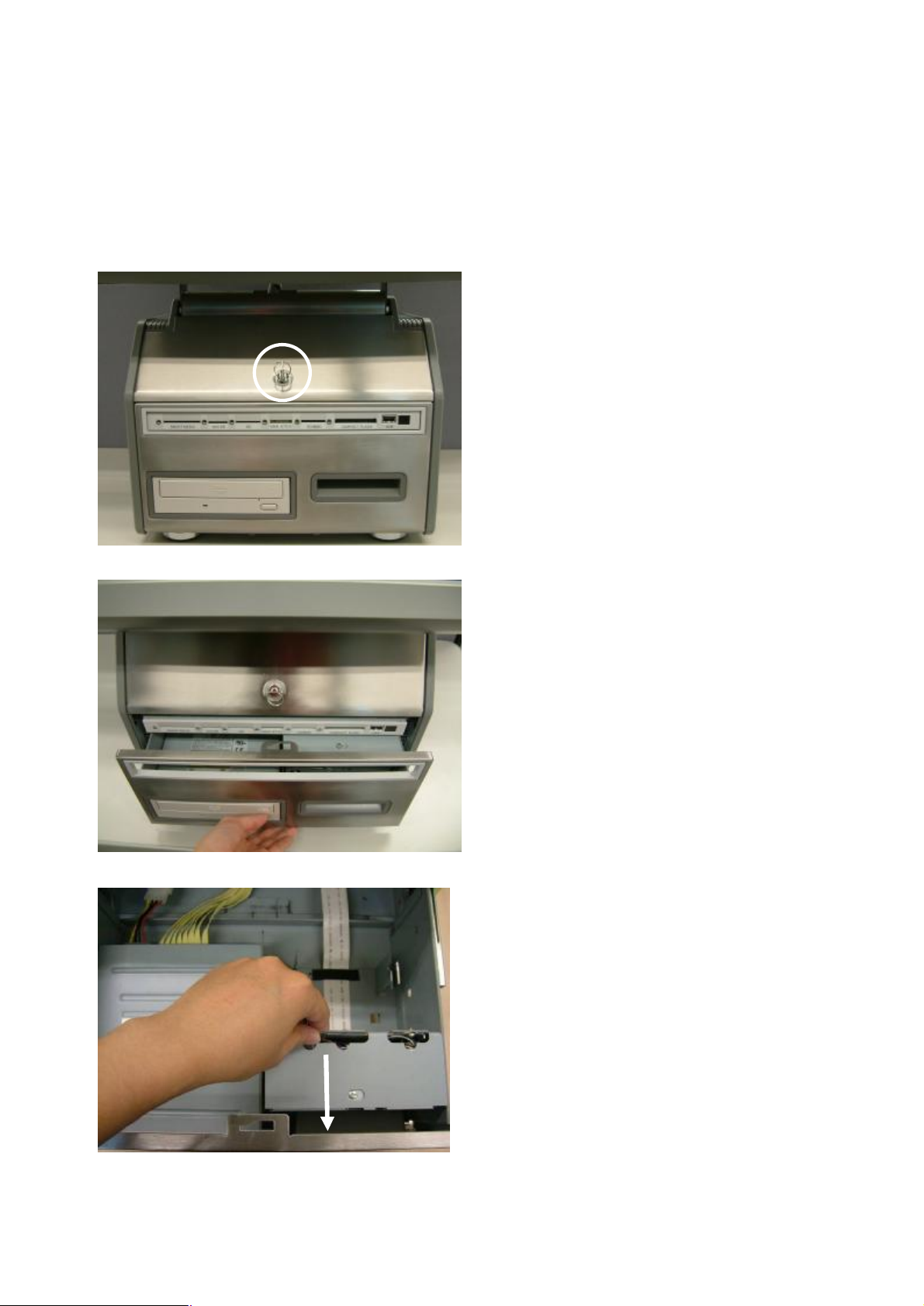

5.1 Opening the Chassis Box.................................................................................41

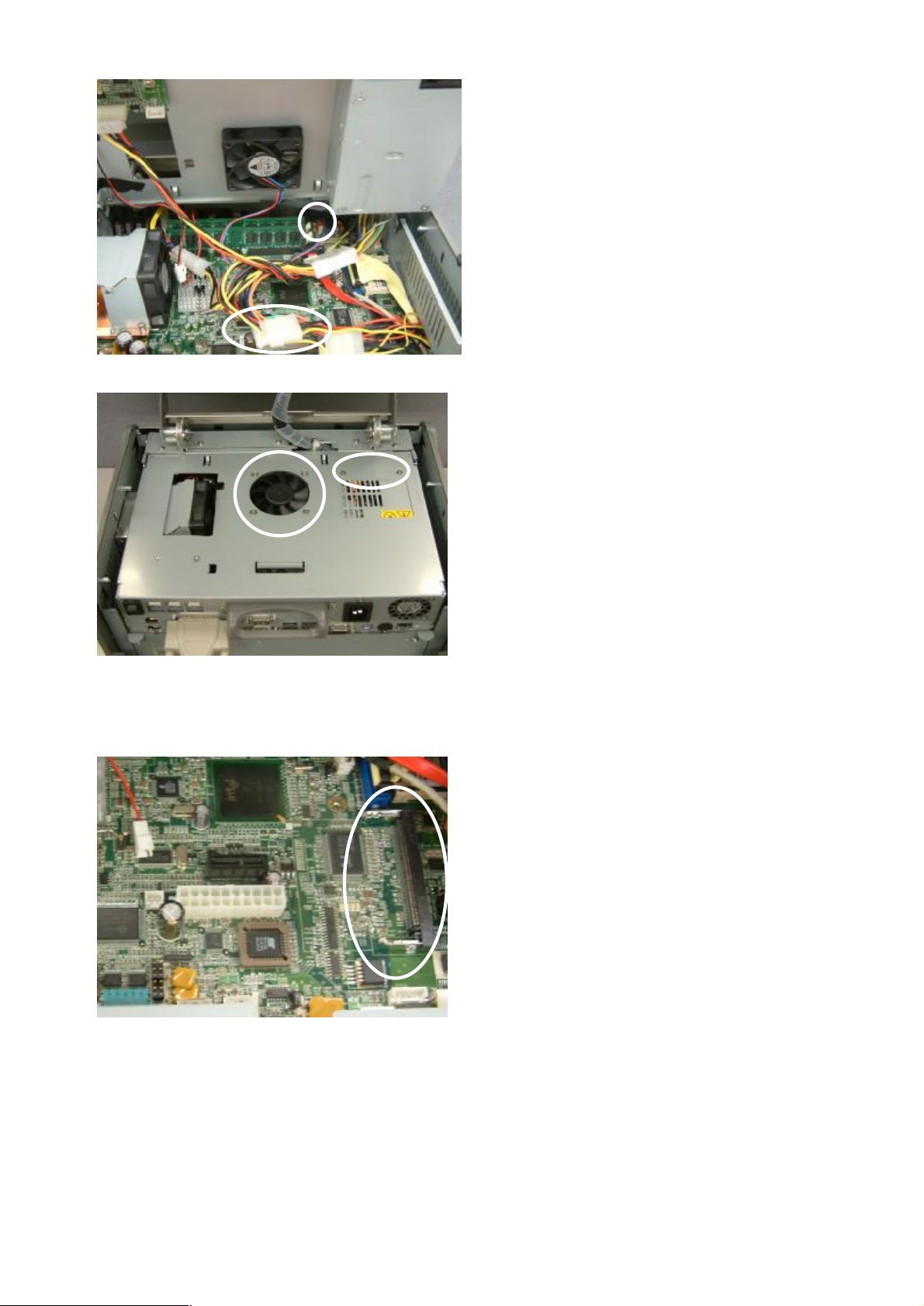

5.2 Replacing the Power Supply and the System Fan ...........................................42

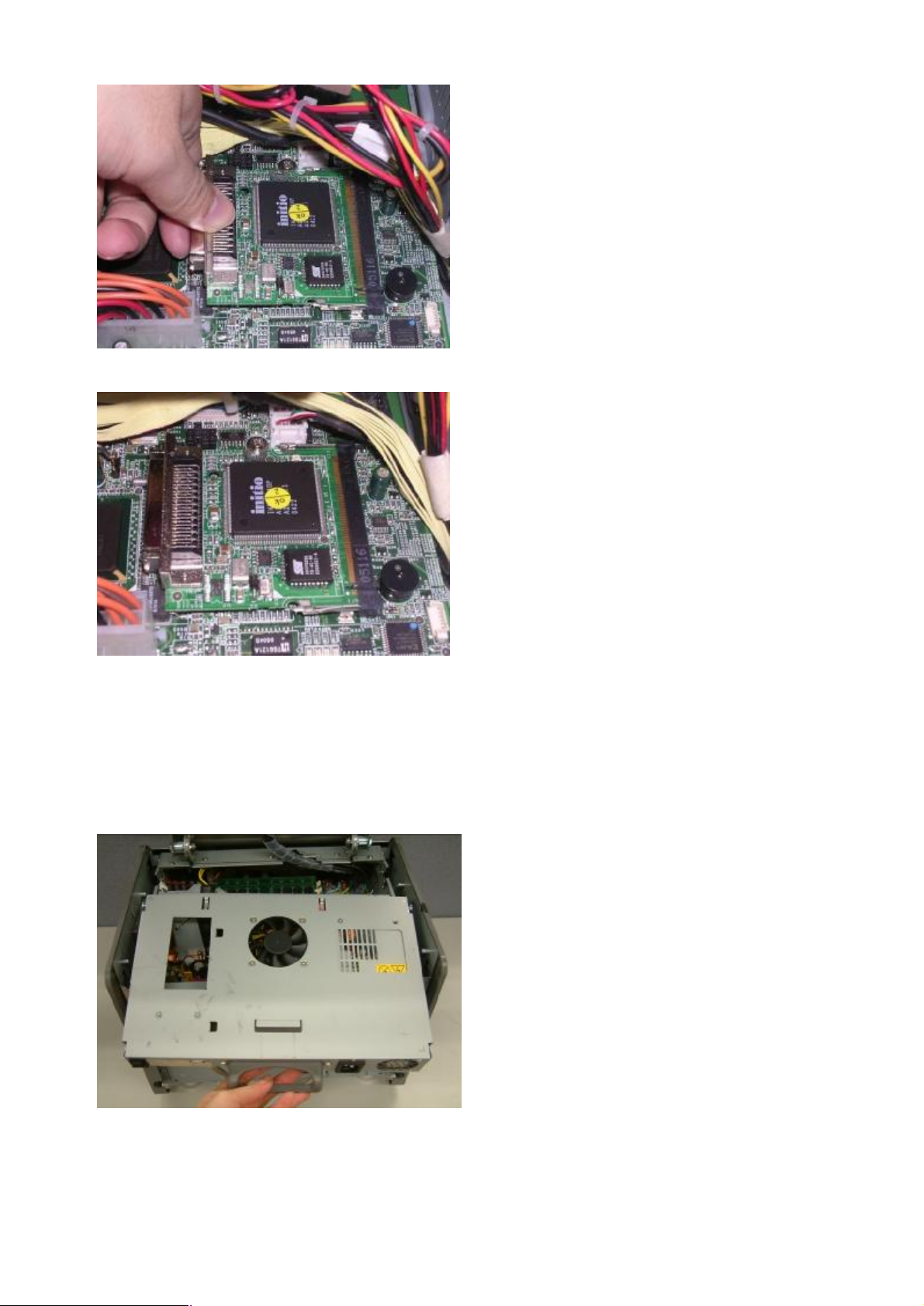

5.3 Installing the Mini PCI Card.............................................................................. 43

Page 7

5.4 Replacing the Memory .....................................................................................44

5.5 Replacing the Motherboard Tray......................................................................46

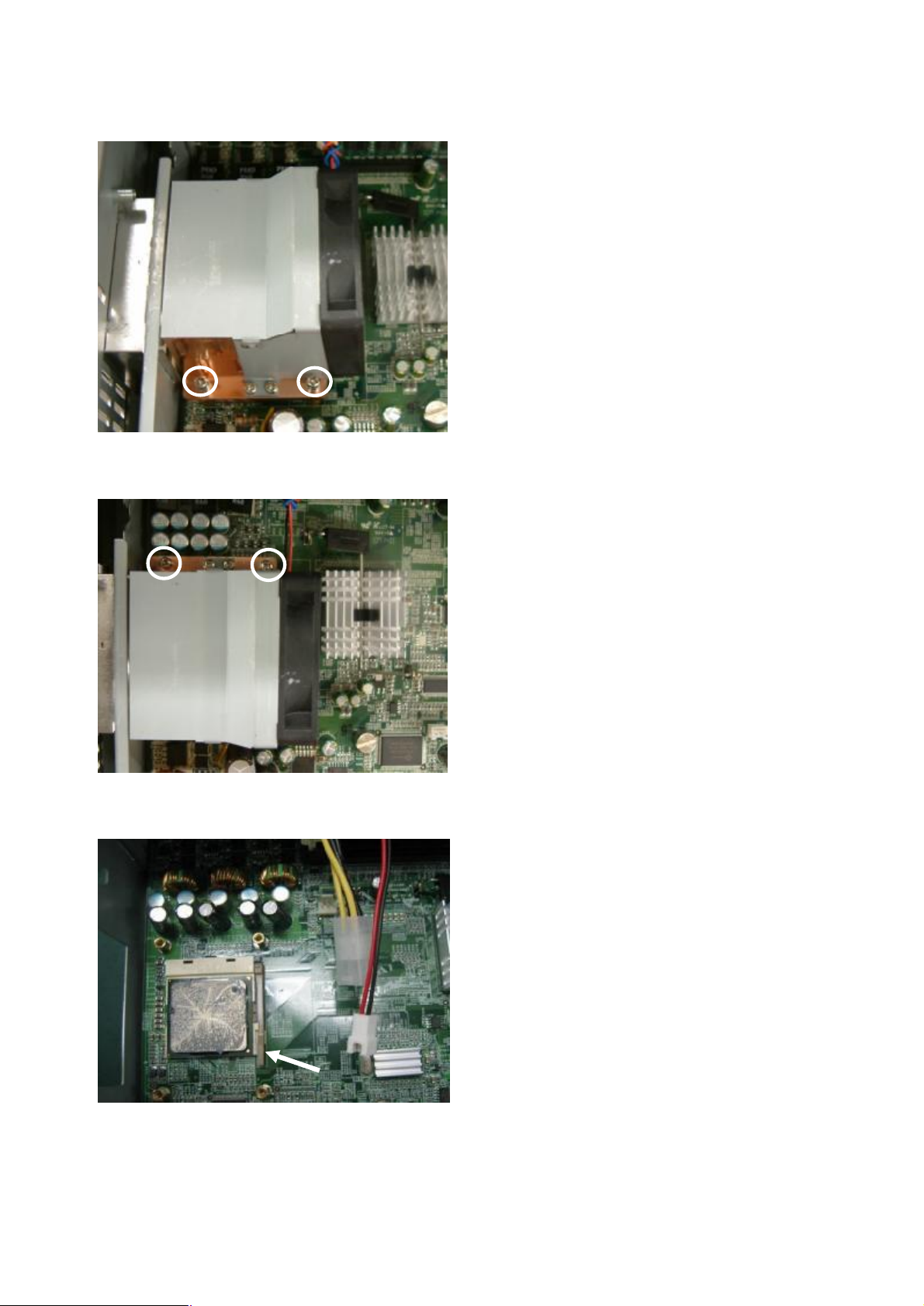

5.6 Replacing the CPU and the Cooler ..................................................................48

5.7 Replacing the HDD ..........................................................................................50

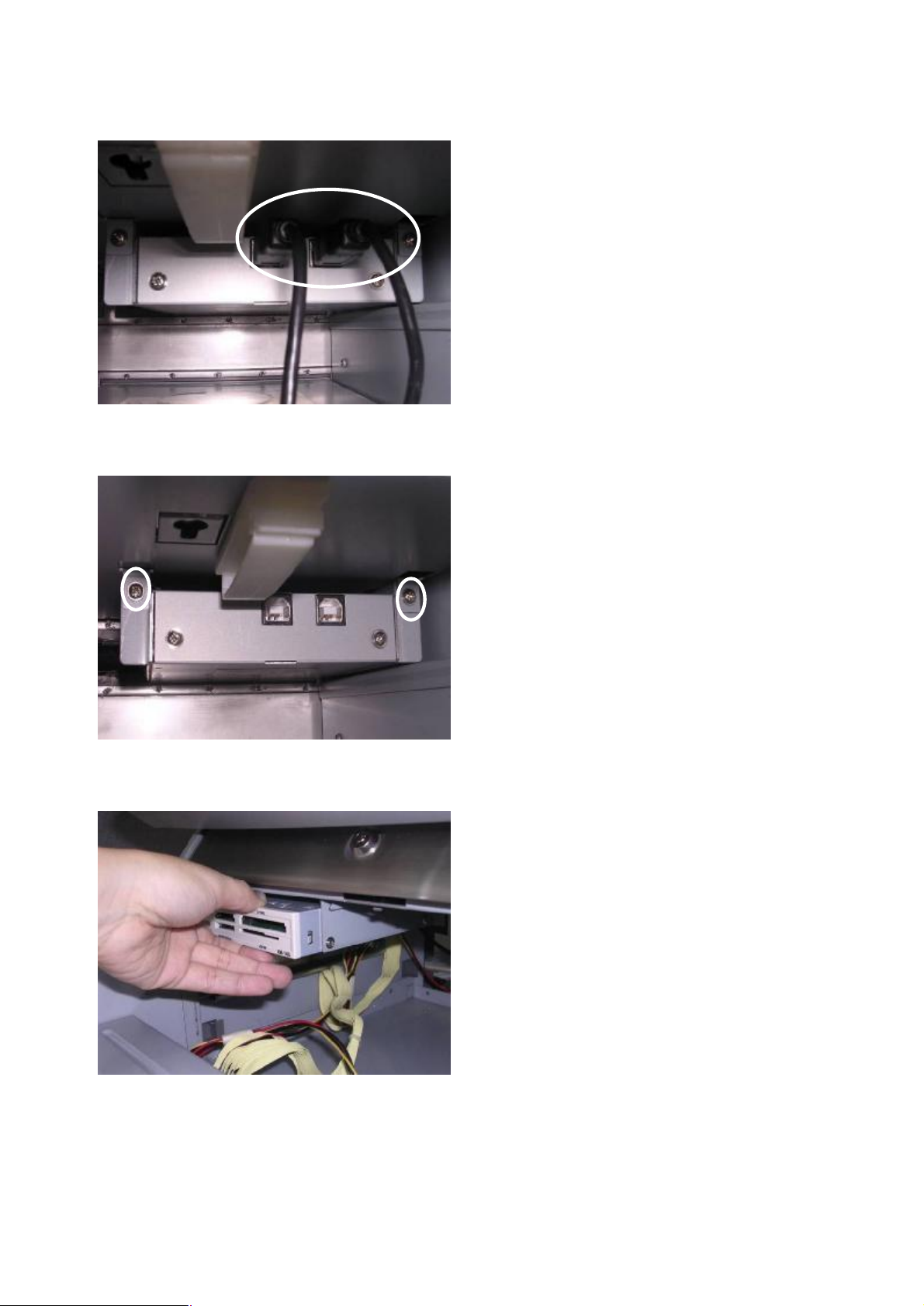

5.8 Replacing the Media Card Reader...................................................................50

5.9 Replacing the IrDA and Slim Combo................................................................ 54

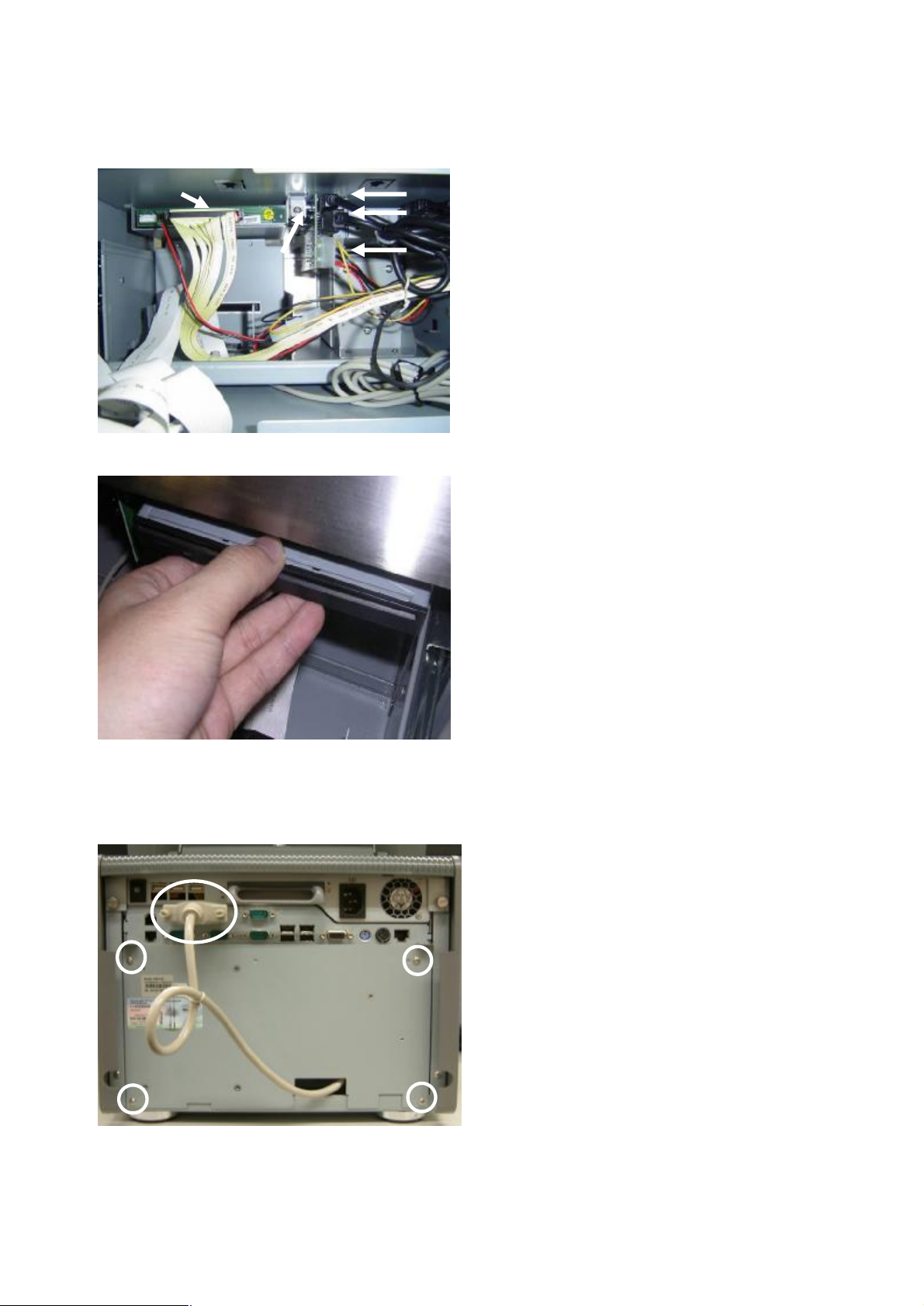

5.10 Replacing the 3” Thermal Printer ...................................................................54

5.11 Replacing the Laser Scanner .........................................................................57

5.12 Replacing the 5.25” DVD ROM...................................................................... 57

5.13 Removing the Main Modular Box ...................................................................59

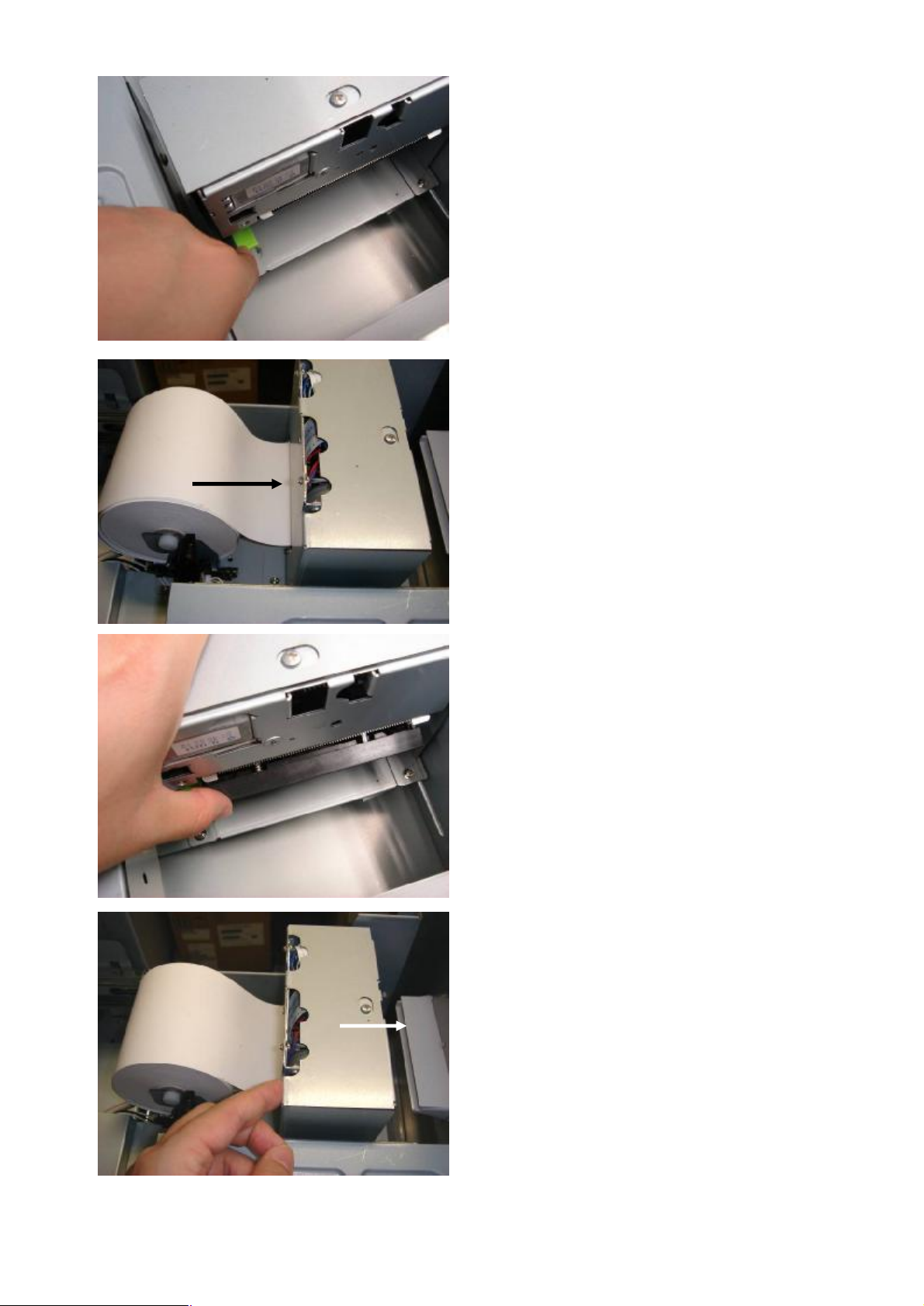

5.14 Loading the Thermal Printer Paper ................................................................ 60

5.15 Adjusting the Thermal Printer Paper............................................................... 62

Appendix A: Specification..............................................................................................64

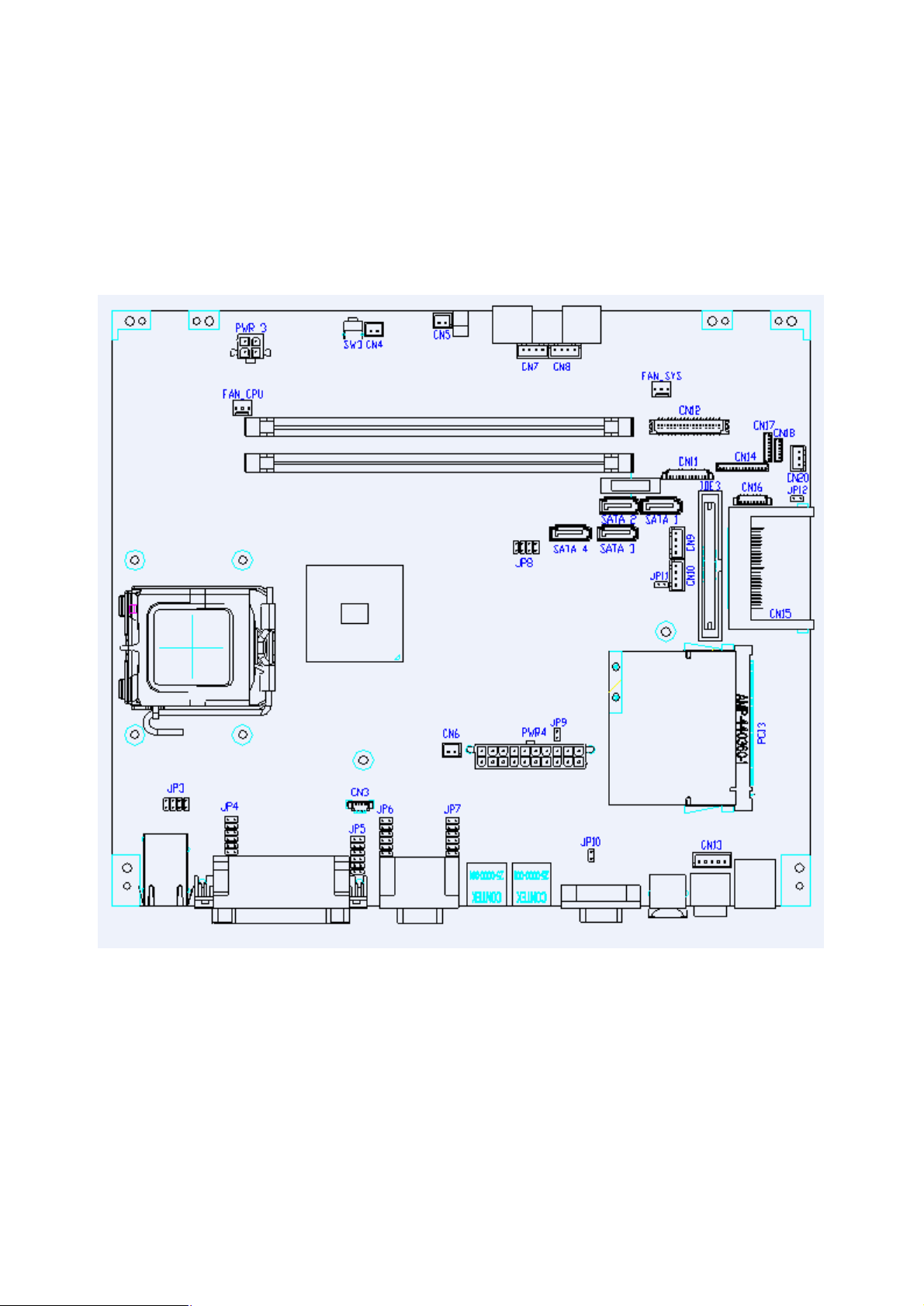

Appendix B: Jumper Settings & Connectors .................................................................66

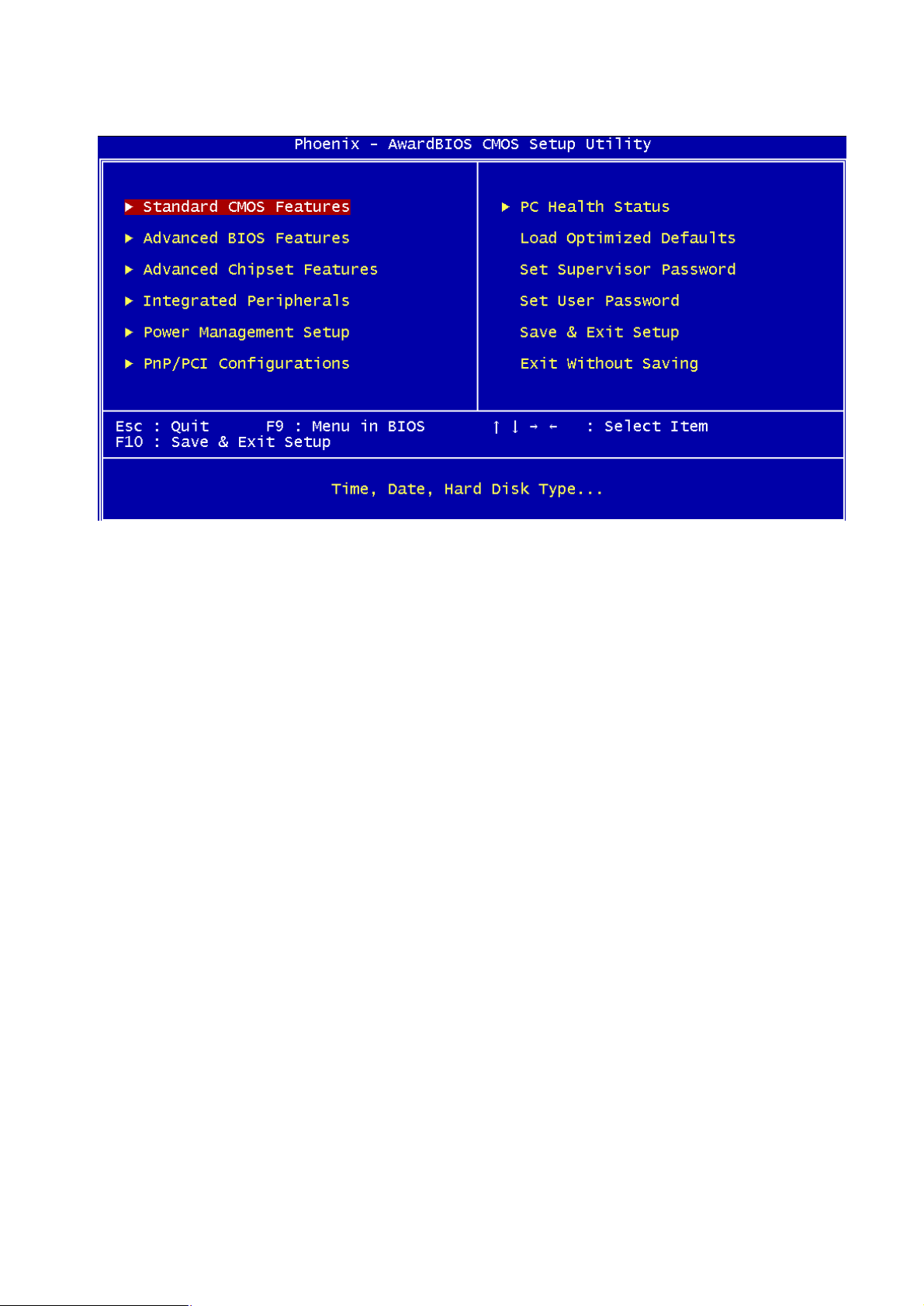

Appendix C: BIOS Settings ........................................................................................... 74

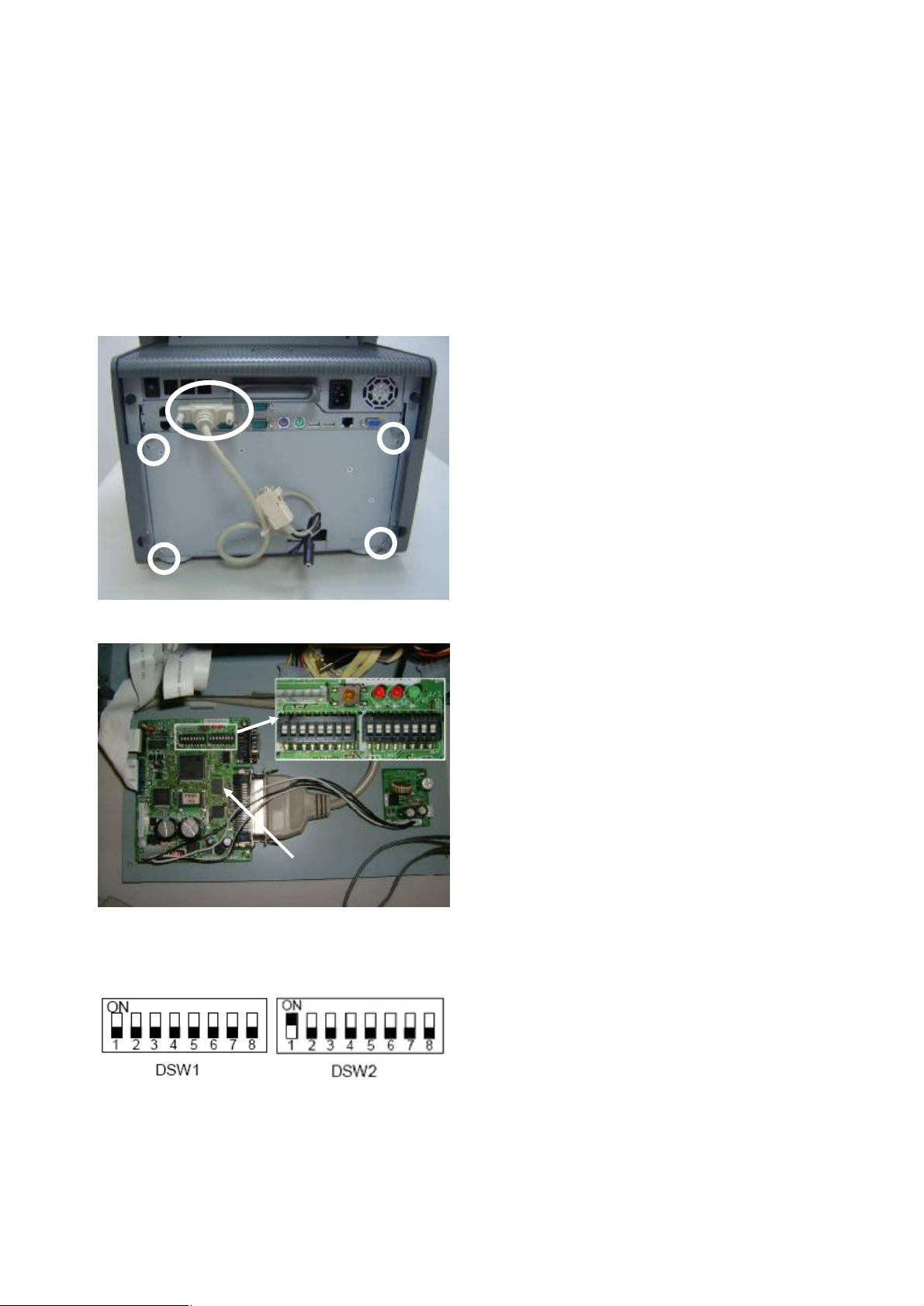

Appendix D: EPSON-BA-500 Thermal Printer DIP Switch settings............................... 77

Page 8

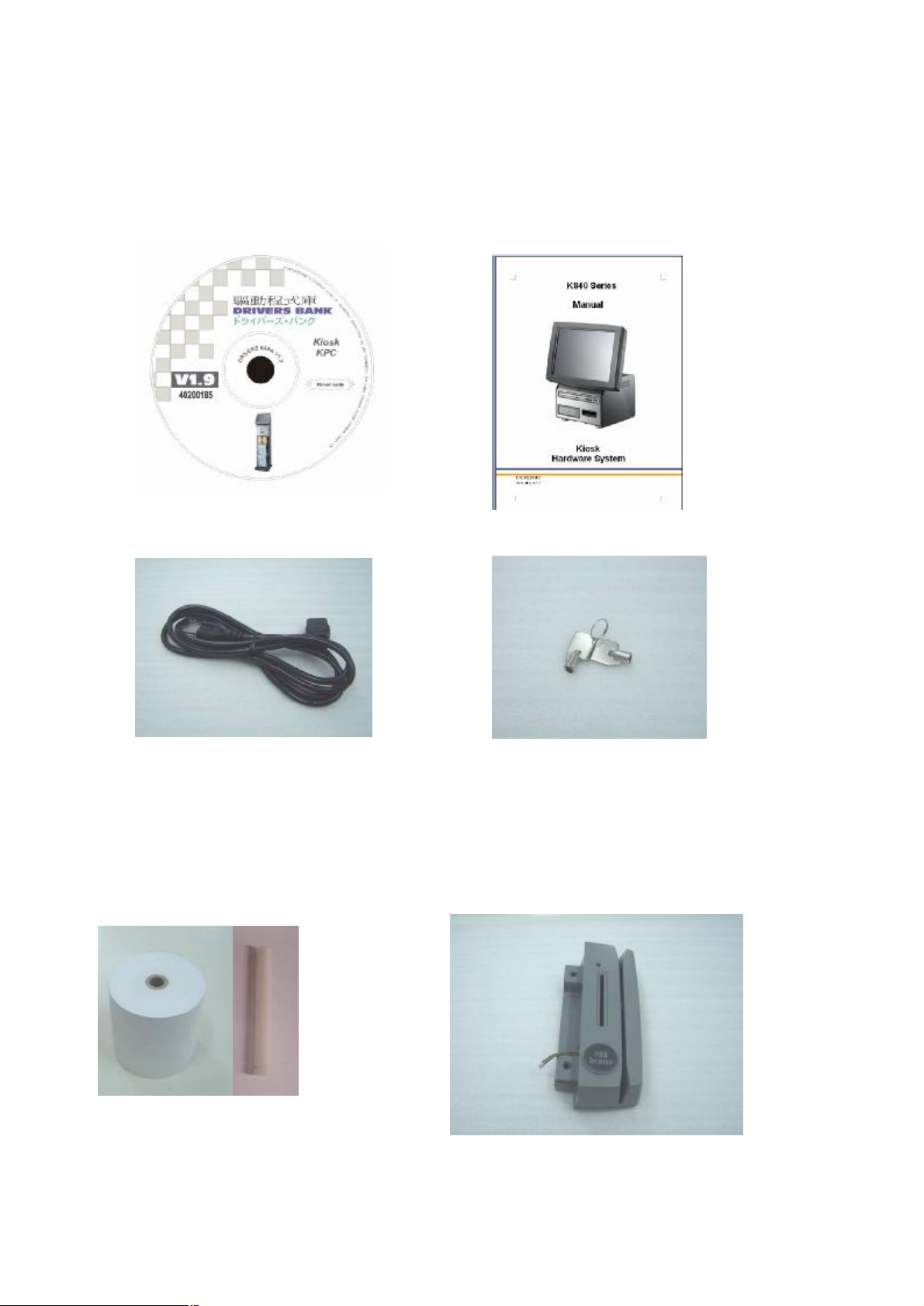

1. Item Checklist

Take the system unit out of the carton. Remove the unit from the carton by holding it by the foam inserts. The following contents should be found in the carton:

1.1 Standard Items

a. Driver CD b. Manual

c. Power Cable d. 2 Keys

1.2 Optional Items

Depending on the configuration of your product, you may find the additional items below in the box.

a. Thermal Paper & Paper Holder b. Magnetic Card Reader / I-Button

Module

Page 9

2. System View

IrDA

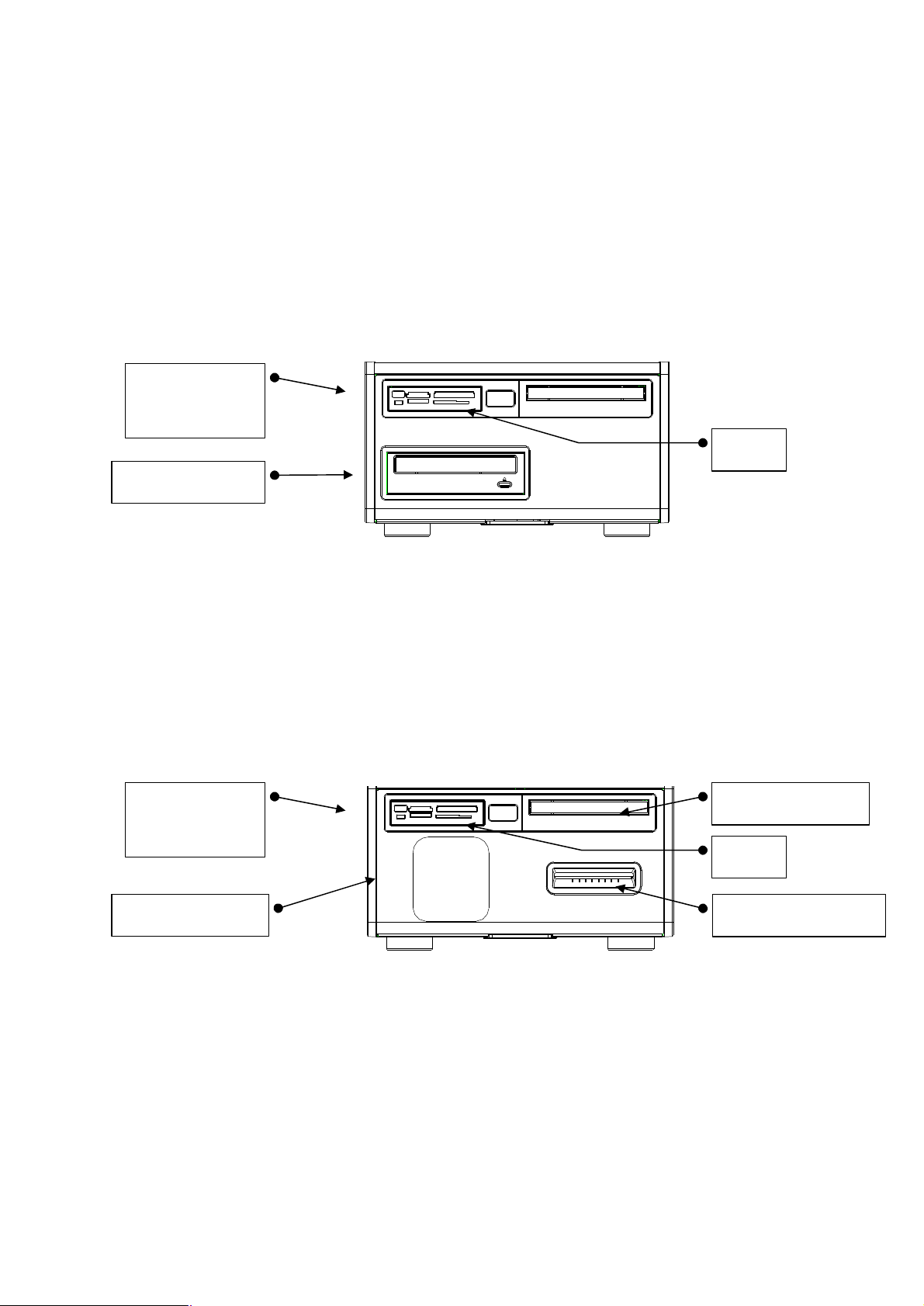

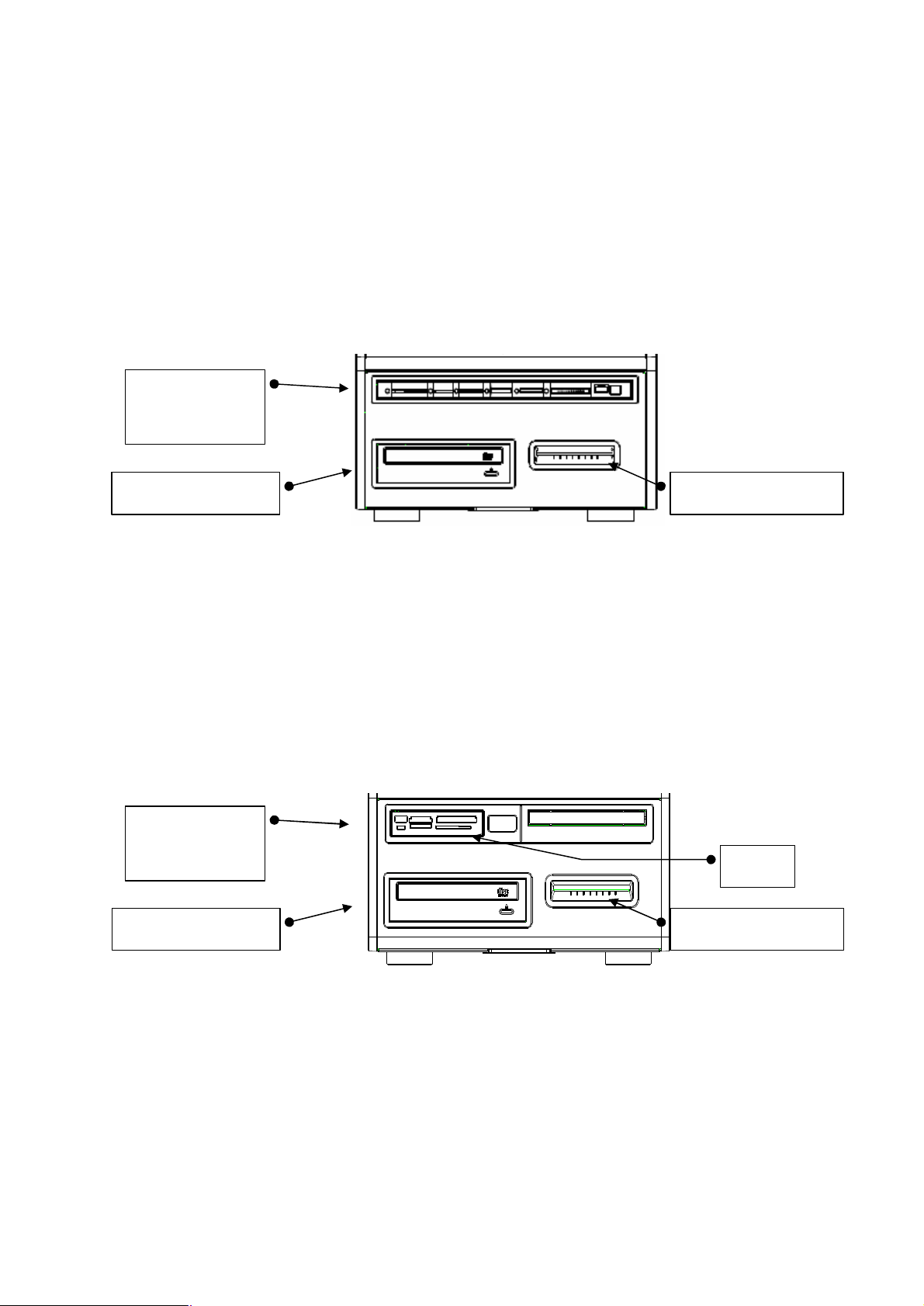

2.1 Front view (Type P, A, B, C)

Type P: Planar Media Card Reader, 5.25” DVD-ROM, 3” Thermal Printer

Planar Media card reader

5.25” DVD-ROM

Type A: 28-in-1 Media Card Reader, IrDA, 5.25” DVD-ROM, 3” Thermal Printer

28-in-1 Media card reader

5.25” DVD-ROM

3” Thermal Printer

IrDA

3” Thermal Printer

Page 10

Type B: 28-in-1 Media Card Reader, IrDA, 5.25” DVD-ROM

28-in-1 Media card reader

5.25” DVD-ROM

IrDA

Type C: 28-in-1 Media Card Reader, IrDA, 3” Thermal Printer, Slim COMBO, Laser Scanner

28-in-1 Media card reader

Laser Scanner

Slim Combo

IrDA

3” Thermal Printer

Page 11

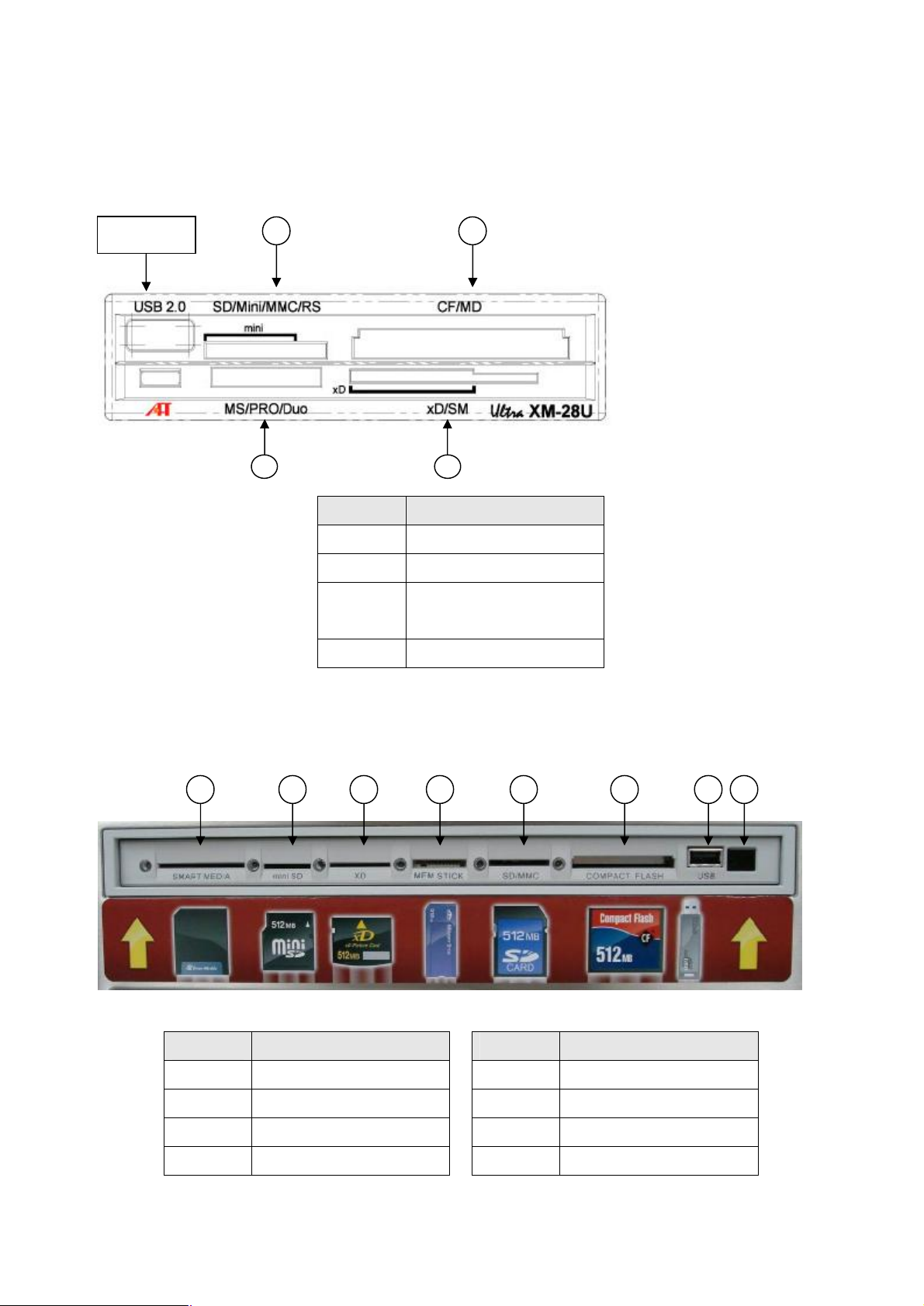

2.3 Media Device Module

2 1 3 4 5 6 7 8

2 1

2.3.1 3.5” Media Card Reader

USB 2.0

NO Function

1 SD / MMC 2 Compact Flash 3 Memory Stick

Memory Stick PRO

4 SmartMedia

2.3.2 Planer Media Device Module

NO Function

1 SMART MEDIA 2 Mini SD 3 XD 4 MEM. STICK

5 SD / MMC 6 COMPACT FLASH 7 USB 8 IrDA (Option)

Page 12

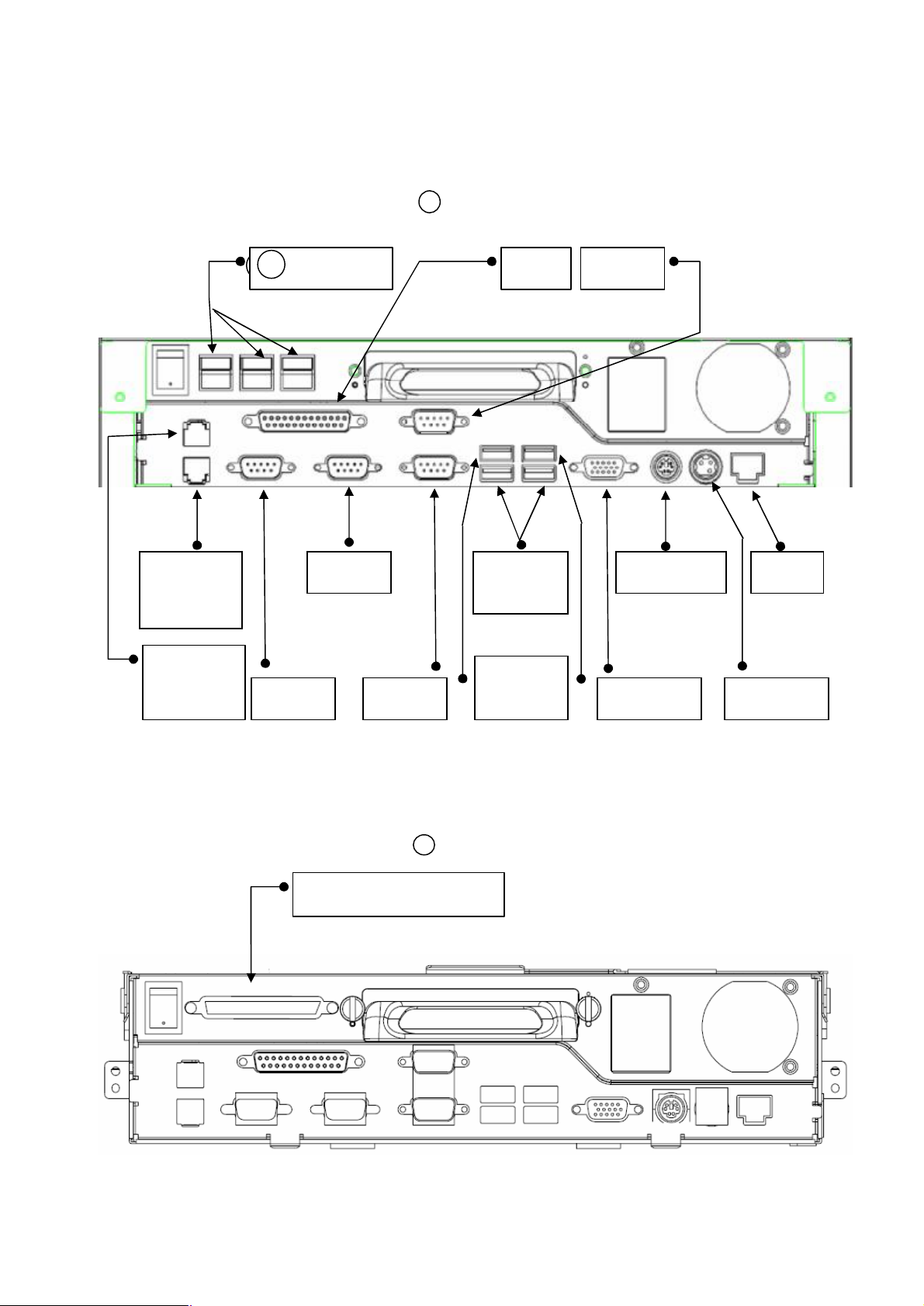

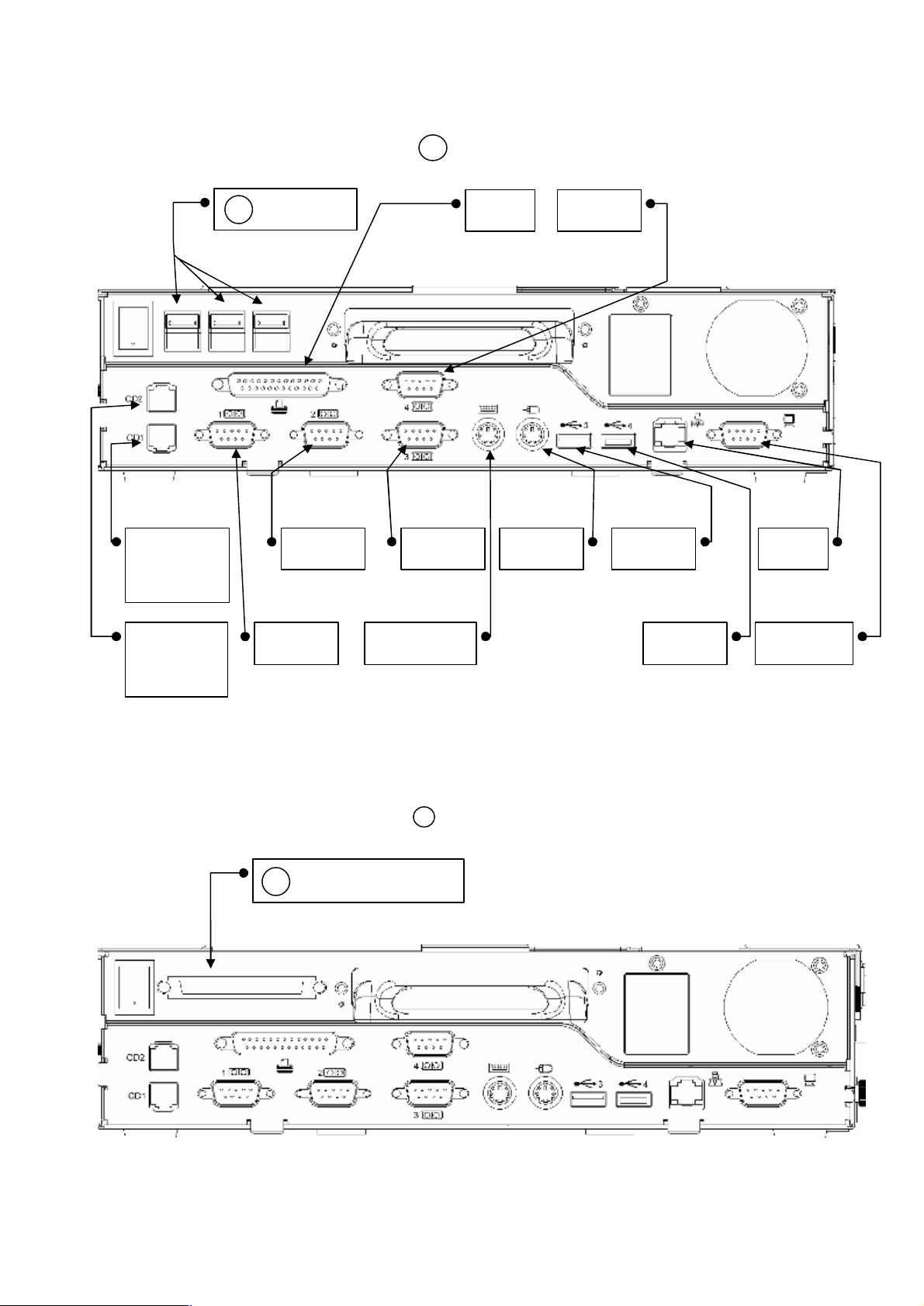

2.4 Rear View

4 & 6

3 & 5

Picture 1:

Depending on your configuration, the USB Hubs are located at the rear of the system, as shown below in figure .

USB HUB

Cash

Drawer 1

COM 2

Cash

Drawer 2

COM 1

COM 3

LPT

USB

COM4

Keyboard

2nd VGA 24V OUT

LAN

Picture 2:

Depending on your configuration, your system may be equipped with a Mini PCI SCSI card. The I50 connector of the SCSI interface is located at the rear of the system, as shown below in figure .

SCSI Connector

Page 13

Picture 3:

Depending on your configuration, the USB Hubs are located at the rear of the system, as shown below in figure .

Cash Drawer 1

Cash Drawer 2

USB HUB

COM1

COM3 COM2

Keyboard

LPT

Mouse LAN

COM4

USB3

USB4

VGA

Picture 4:

Depending on your configuration, your system may be equipped with a Mini PCI SCSI card. The I50 connector of the SCSI interface is located at the rear of the system, as shown below in figure .

SCSI Connector

Note: The maximum current that can be drawn from each COM port is 500 mA.

Page 14

3. Drivers Installation

3.1 Driver List

B91

Folder/File File Description

<CD>:\K84X_B91.htm B91 Driver List <CD>:\Common\INTEL\Chipset\i9xx Chipset Driver <CD>:\Common\INTEL\VGA\i94x VGA Driver <CD>:\common\Ac97_codec\Realtek\ALC202A Audio Driver <CD>:\Common\Lan_driver\R8139_810x 10/100Mb LAN Driver <CD>:\Common\Elo_Touch ELO Touch Screen Driver <CD>:\Common\POS_Touch POSTouch Touch Screen Driver <CD>:\Common\Printer\EPSON BA -T500 EPSON Thermal Printer Driver <CD>:\Common\Multi-Card Reader\ProGearXM-14U Pro-Gear XM Media Card

Reader Driver

<CD>:\Common\SmartCard Smart Card Reader Driver

B81

Folder/File File Description

<CD>:\K84X_B81.htm B81 Driver List <CD>:\Common\INTEL\Chipset\i8xx Chipset Driver <CD>:\Common\INTEL\VGA\i85x VGA Driver <CD>:\Common\Lan_driver\R8139_810x 10/100Mb LAN Driver <CD>:\Common\INTEL\USB20 USB 2.0 Driver <CD>:\Common\Elo_Touch ELO Touch Screen Driver <CD>:\Common\POS_Touch POSTouch Touch Screen Driver <CD>:\Common\Printer\EPSON BA -T500 EPSON Thermal Printer Driver <CD>:\Common\Multi-Card Reader\ProGearXM-14U Pro-Gear XM Media Card

Reader Driver <CD>:\Common\SmartCard Smart Card Reader Driver The following procedures are for Windows 2000/XP, other platforms are similar.

Page 15

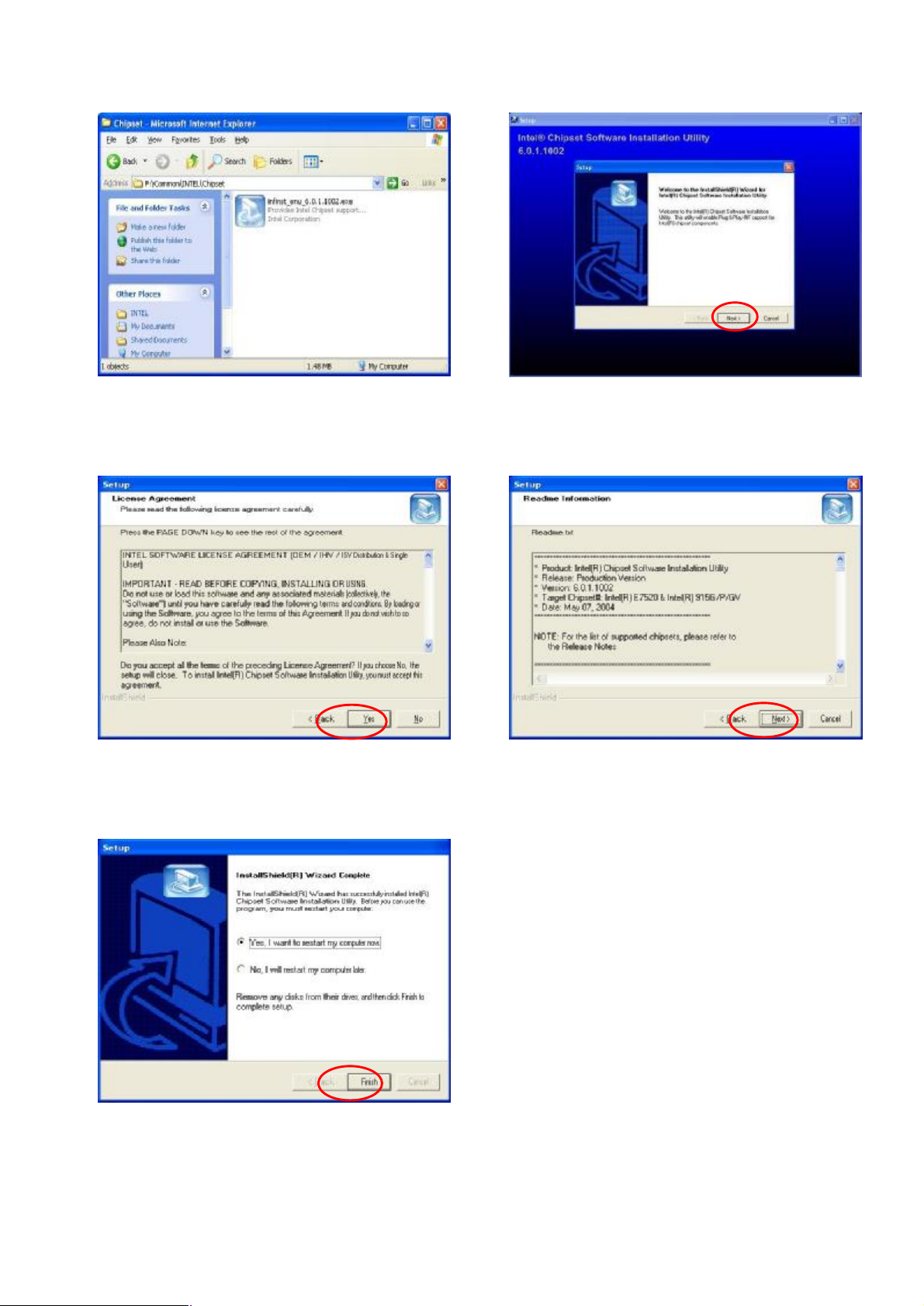

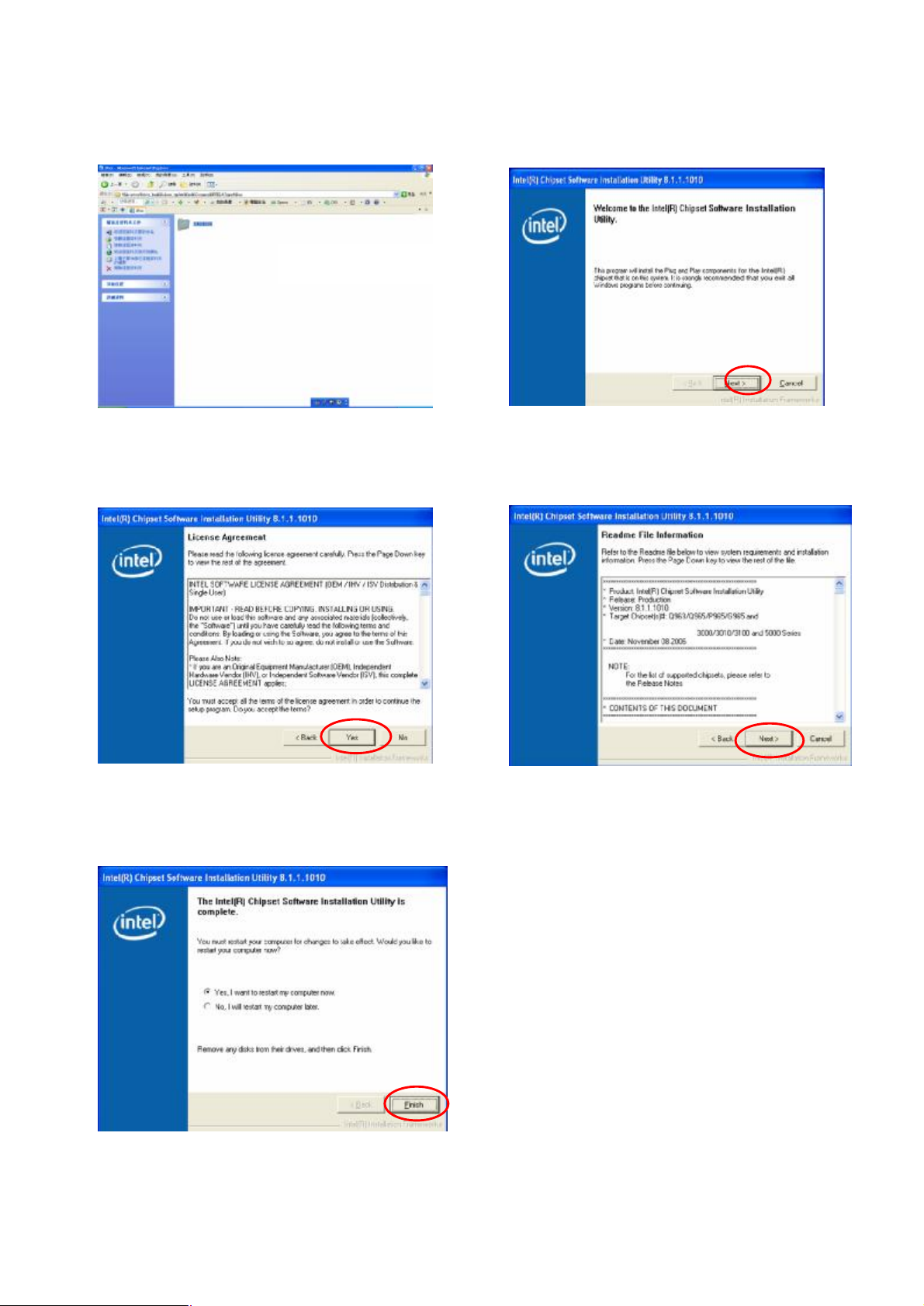

3.2 Chipset Driver Installation

B91

a. Double click “infinst_Autol_v8.1.1013” on

the “My Computer” window.

c. Click the “Yes” button on the “License

Agreement” window.

b. Click the “Next” button on the “Welcome”

window.

d. Click the ”Next” button on the “Readme

Information” window.

e. Click the “Finish” button and restart your

system.

Page 16

B81

a. Double click “infinst_enu_6.0.1002” on the

“My Computer” window.

c. Click the “Yes” button on the “License

Agreement” window.

b. Click the “Next” button on the “Welcome”

window.

d. Click the ”Next” button on the “Readme

Information” window.

e. Click the “Finish” button and restart your

system.

Page 17

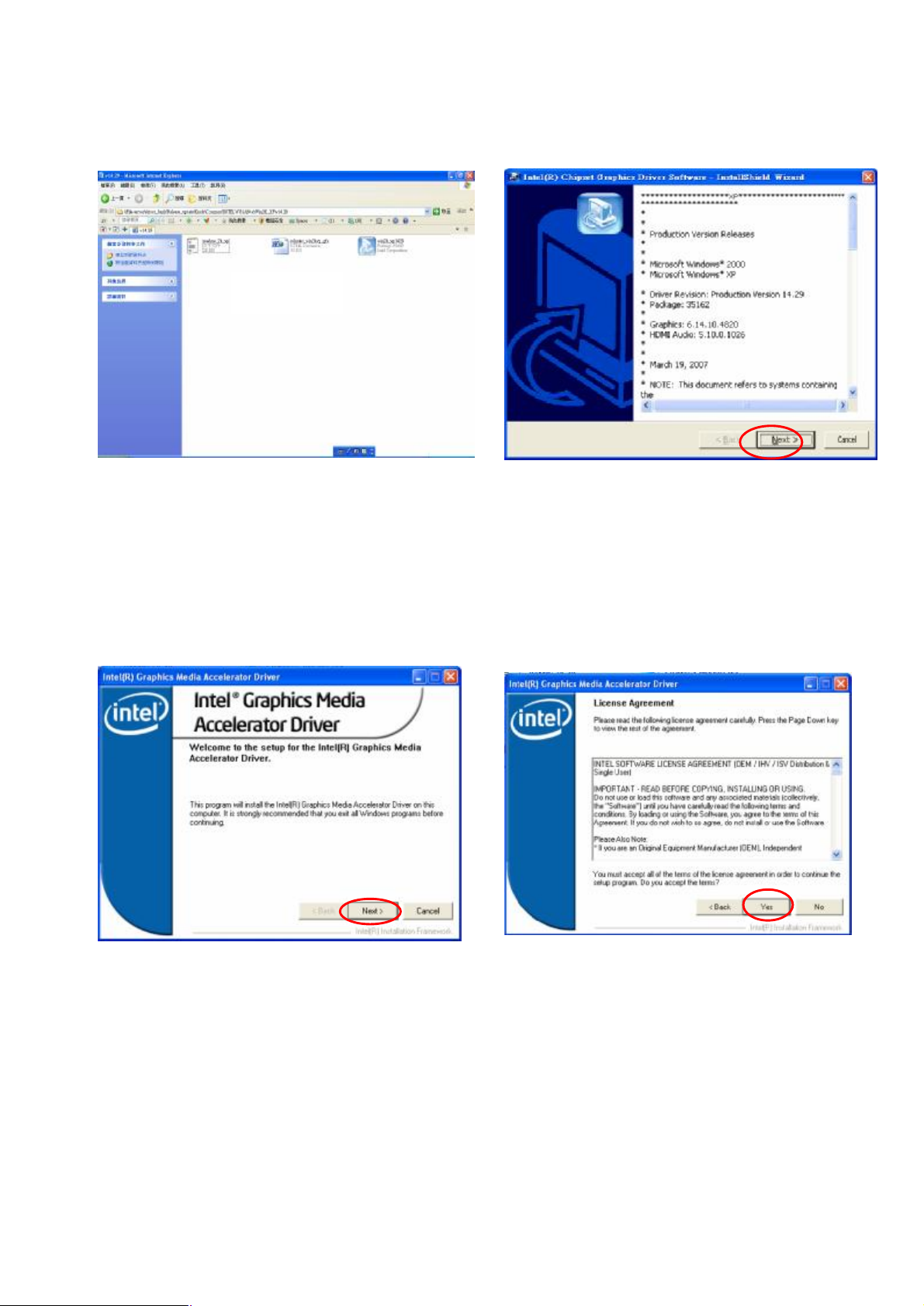

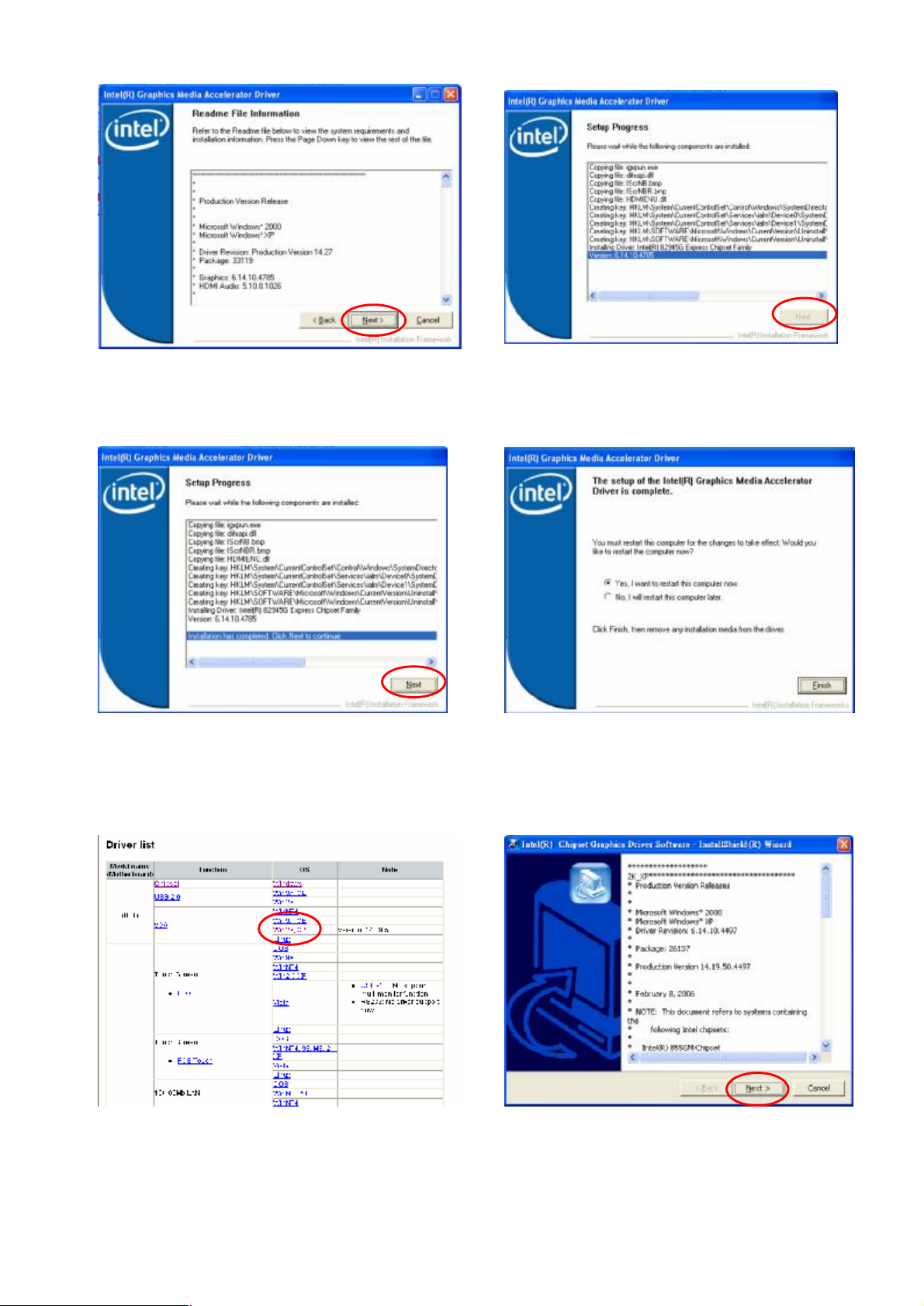

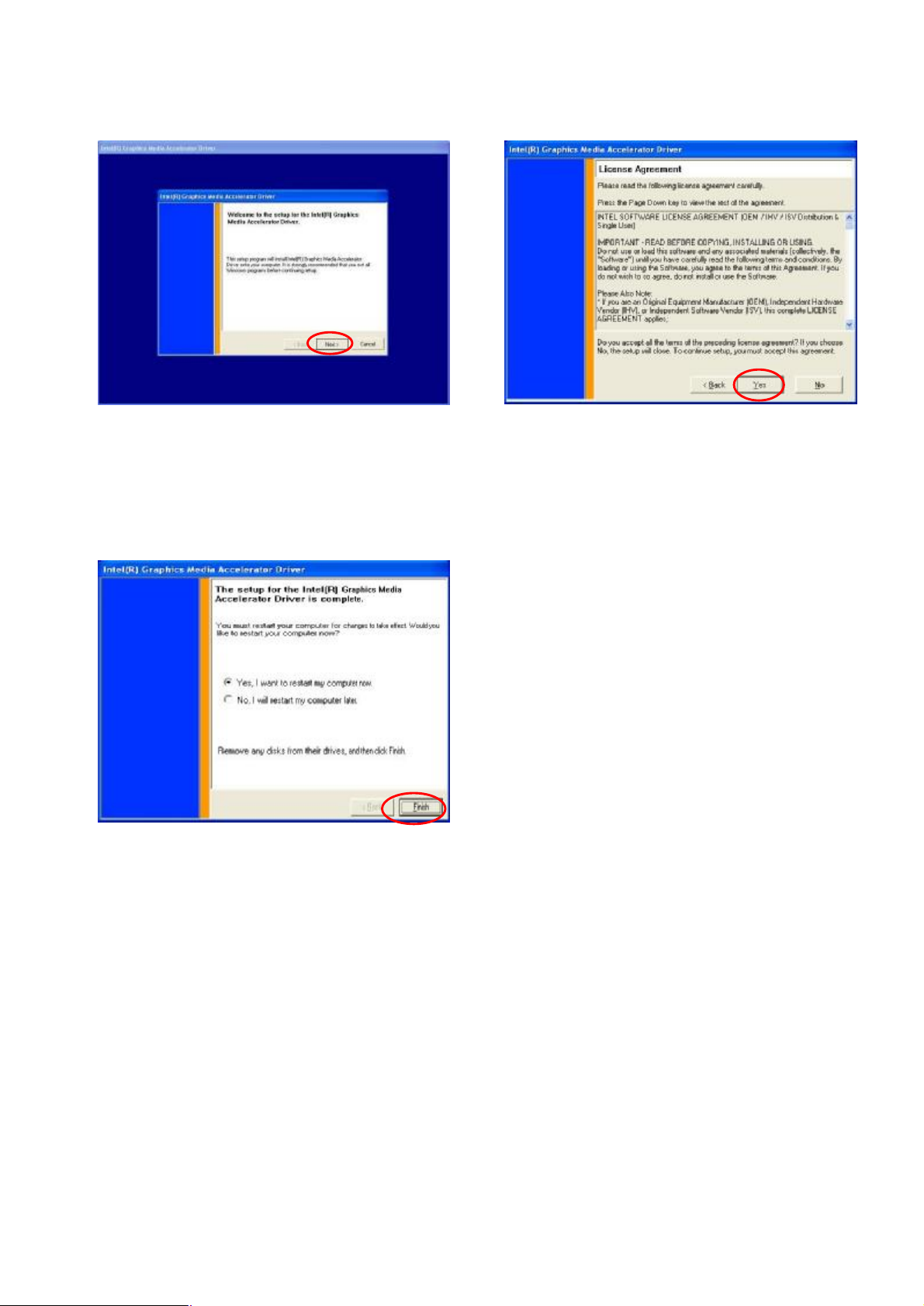

3.3 VGA Driver Installation

B91

a. Double click “win2k_xp14.29” on the “My

Computer” window.

c. Click the”Next” button on the “Welcome

b. Click the “Next” button on the “Welcome”

d. Click the ”Yes” button on the “License

window.

window”.

Agreement” window.

Page 18

e. Click the ”Next” button on the “Readme

f. Click the ”Next” button on the “Setup

Information” window.

g. Click the ”Next” button on the “Setup

h. Click the ”Finish” button and restart your

Progress” window.

system.

B81

a. Double click “win2k_xp14.19.50” on the “

Computer” window.

b. Click the “Next” button on the “Welcome”

window.

Page 19

c. Click the ”Next” button on the “Welcome

d. Click the ”Yes” button on the “License

window”.

e. Click the ”Finish” button and restart your

Agreement” window.

system.

Page 20

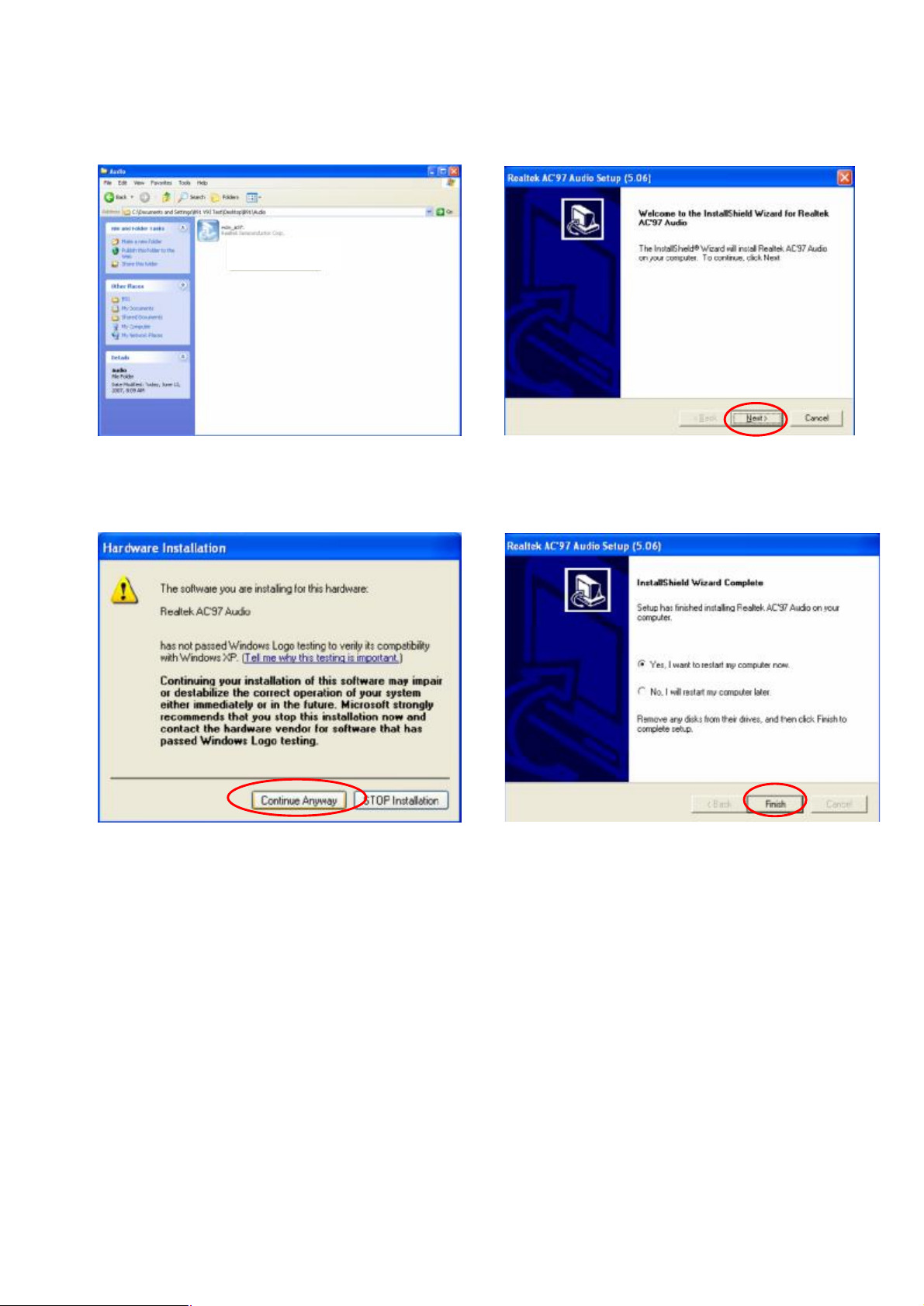

3.4 Audio Driver Installation

a. Double click “wdm_a371” on the “My

b. Click the “Next” button on the “Welcome”

Computer” window.

c. Click the ”Continue Anyway” button to

d. Click the”Finish” button and restart your

install the driver

window.

system.

Page 21

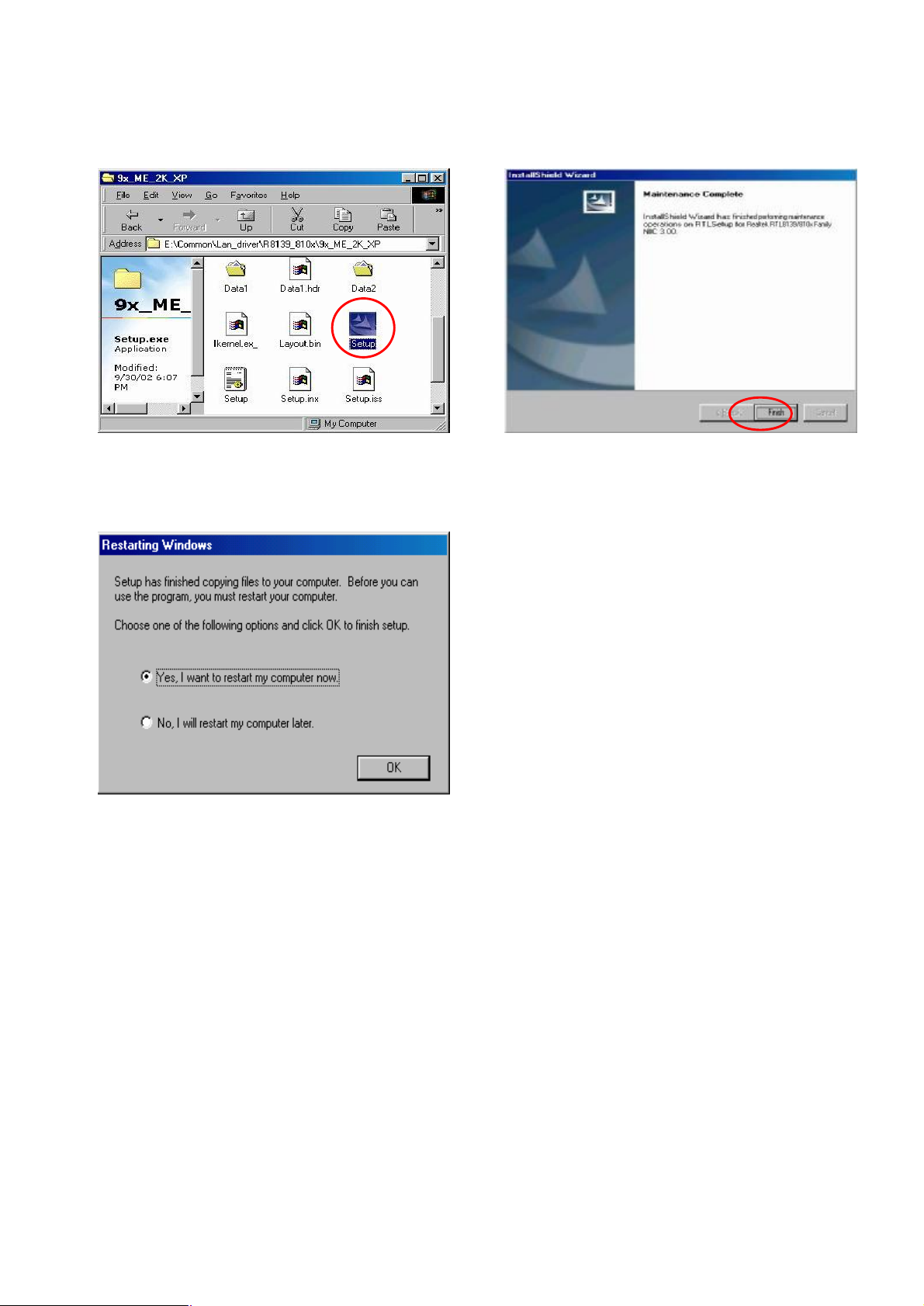

3.5 LAN Driver Installation

a. Double click the”Setup” on the “My

Computer” window.

c. Click the”OK” button and restart your

system.

b. Click the “Finish” button on the

“Maintenance complete” window.

Page 22

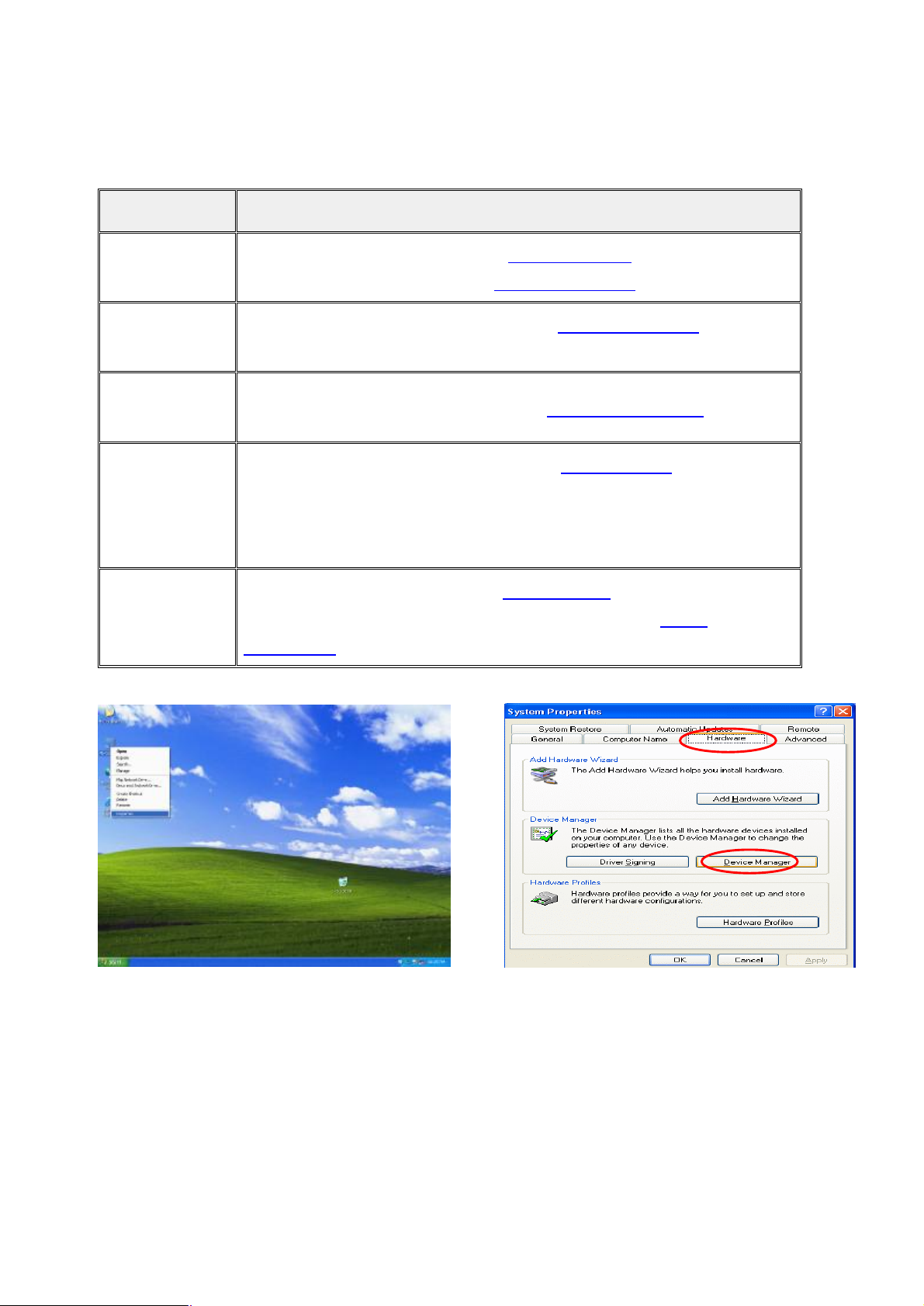

3.6 USB2.0 Driver Installation

OS Requirements

OS USB 2.0 requirements

Windows XP

Windows 2000

Windows 98SE/Me

Windows 98 (Retail)

Linux

USB 2.0 drivers are provided in Service Pack 1 (SP1) for Windows XP, which is available through Windows Update.

USB 2.0 drivers are available through Windows Update or Service Pack 4.

USB 2.0 drivers are available on the Intel developer site.

Developers and OEMs should contact Orange Ware. For end-users, if your device does not ship with Windows 98 drivers, contact your device or system manufacturer. If USB 2.0 drivers are not available, your device will operate at USB 1.1 speeds

USB 2.0 support is available in kernel 2.4.19 or later development kernels, or in the 2.4.19 or later production kernel. More

information.

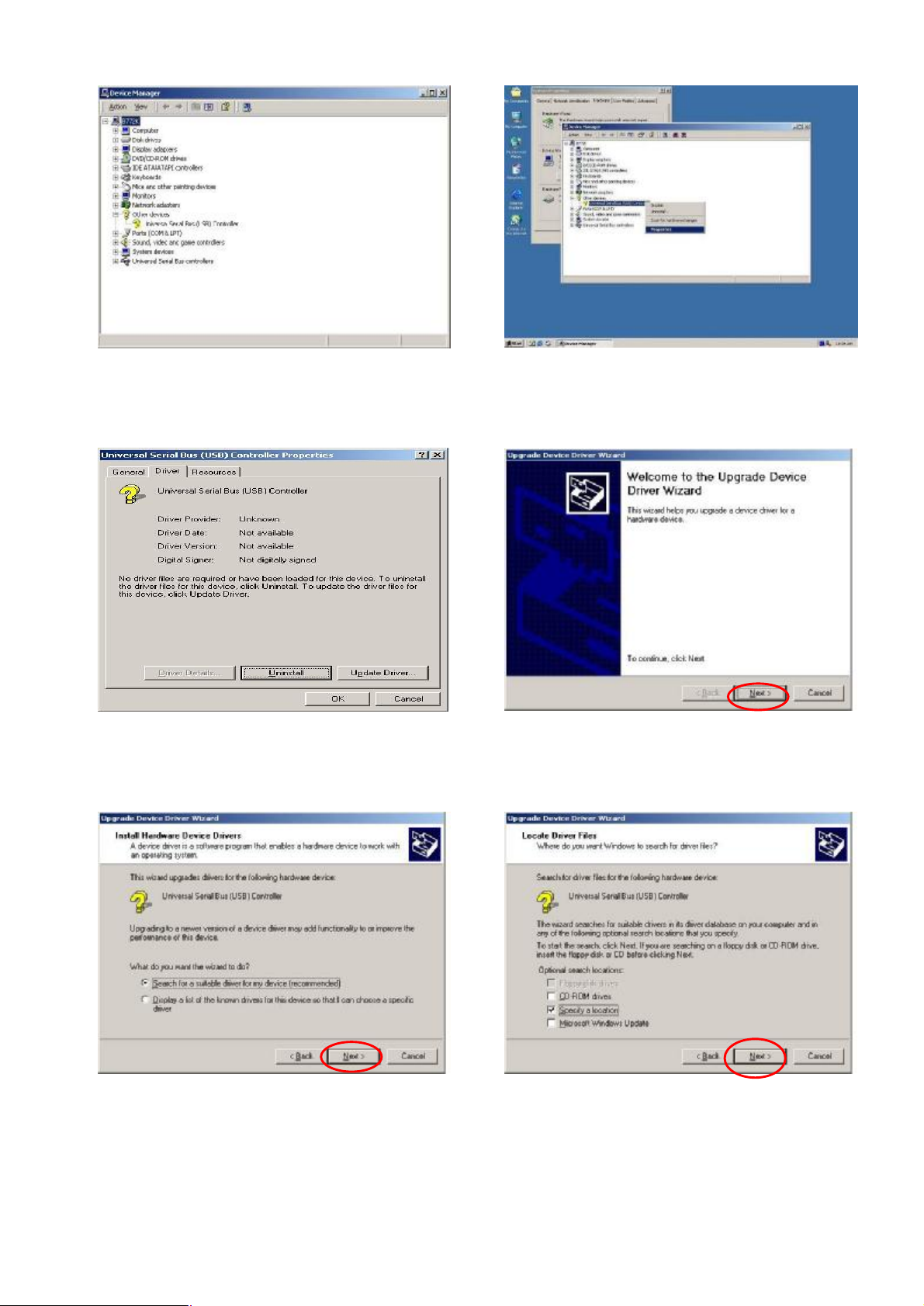

a. Right click “My Computer” on the desktop

and select “properties”.

b. Select “Hardware”à”Device Manager” on

system properties.

Page 23

c. Select” Other Devices” à “Universal Serial Bus (USB) Controller” à”Properties” in the

Device Manager.

d. Select “Device”à “Update Driver…”. e. Click the ”Next” button on the “Welcome”

window.

f. Select “Search for a suitable…”and click

g. Select “Specify a location” and click the the “Next” button on the “Install Hardware Device Drivers” window.

“Next” button on the “Locate Driver Files” window.

Page 24

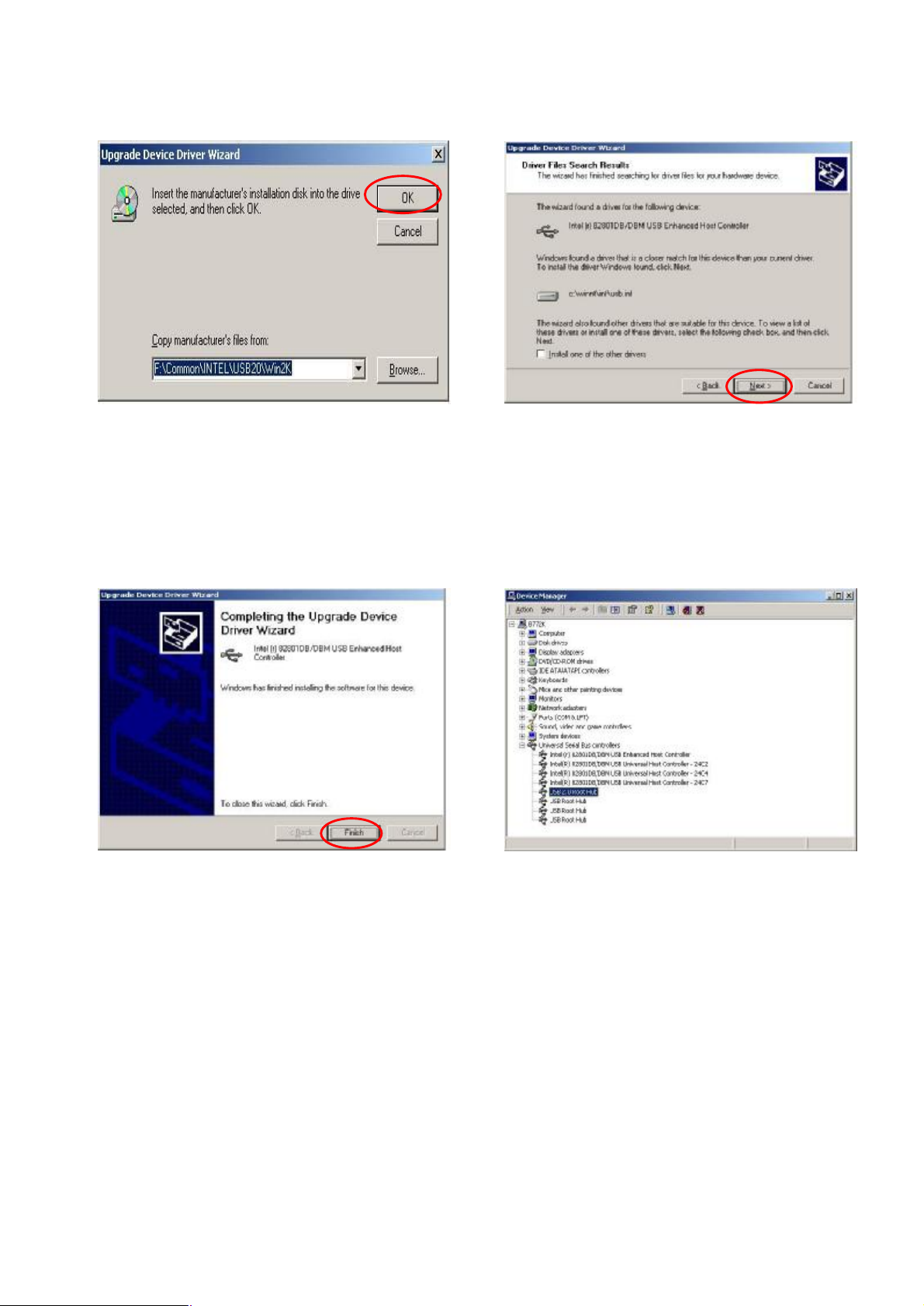

The Driver Files

h. Press “Browse” to select the driver and

i. Click the “Next” button on “ then click the “OK” button to go to the next page.

Search Results” window.

j. Click the “Finish” button to complete this

process.

k. Finished.

Page 25

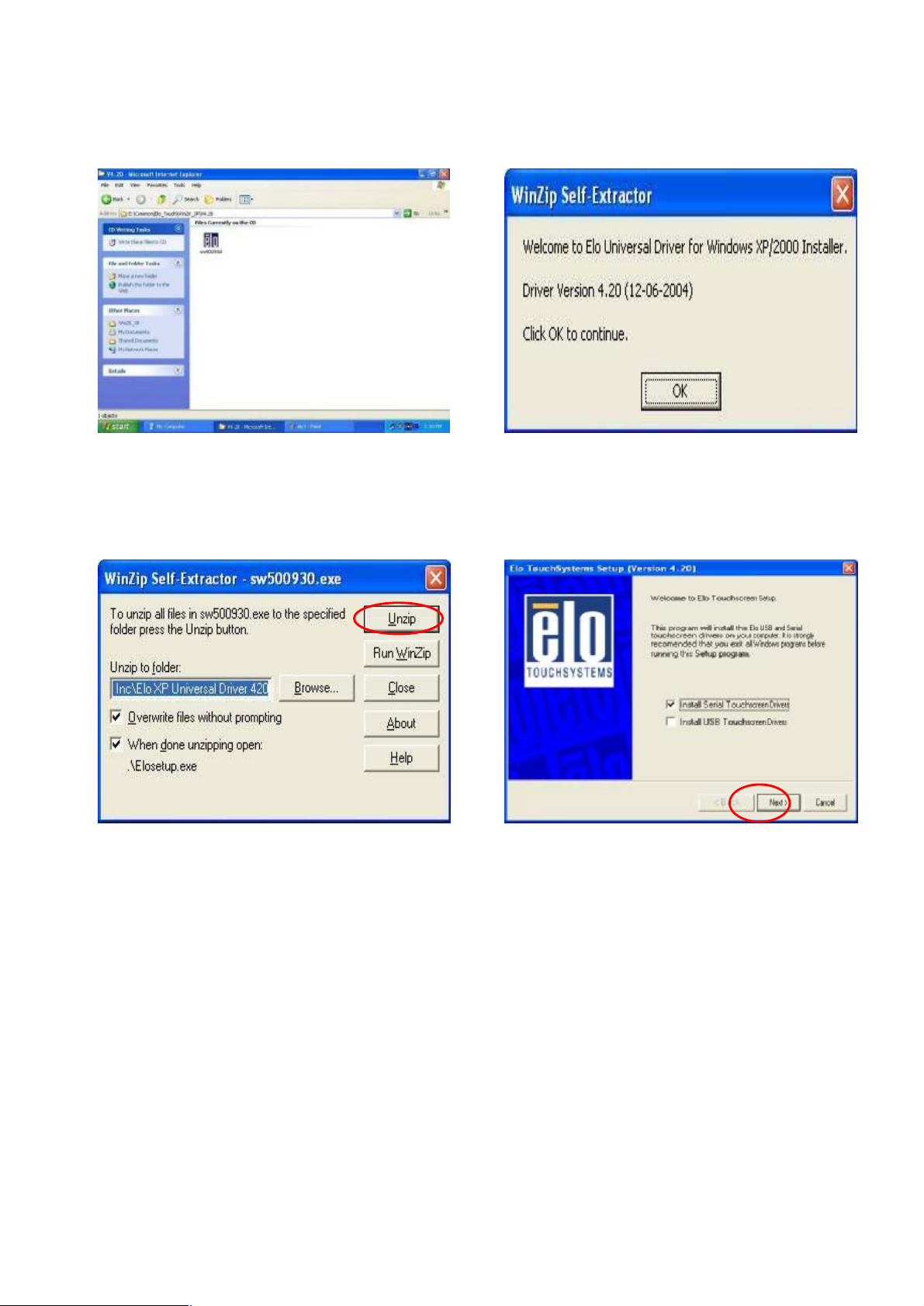

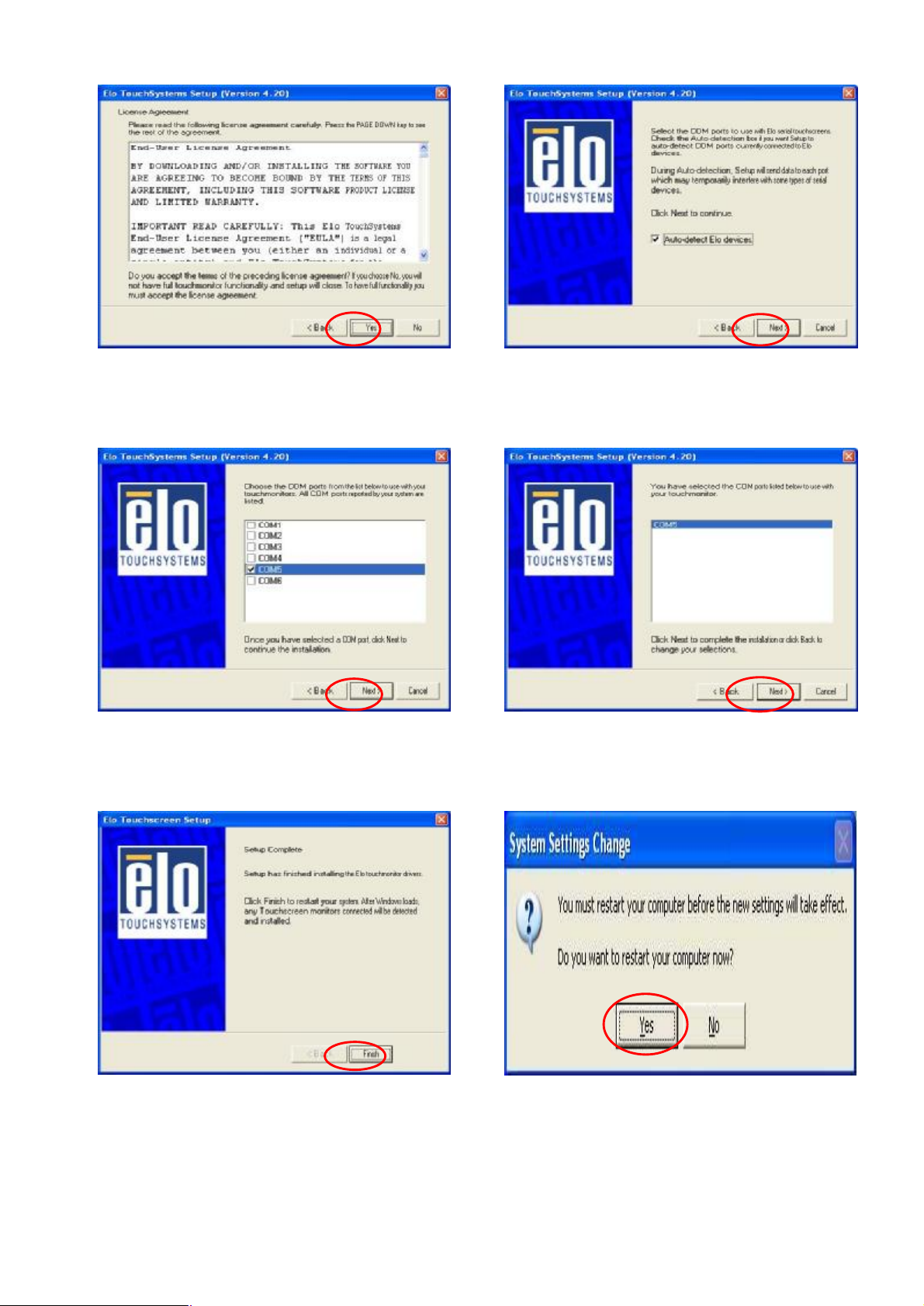

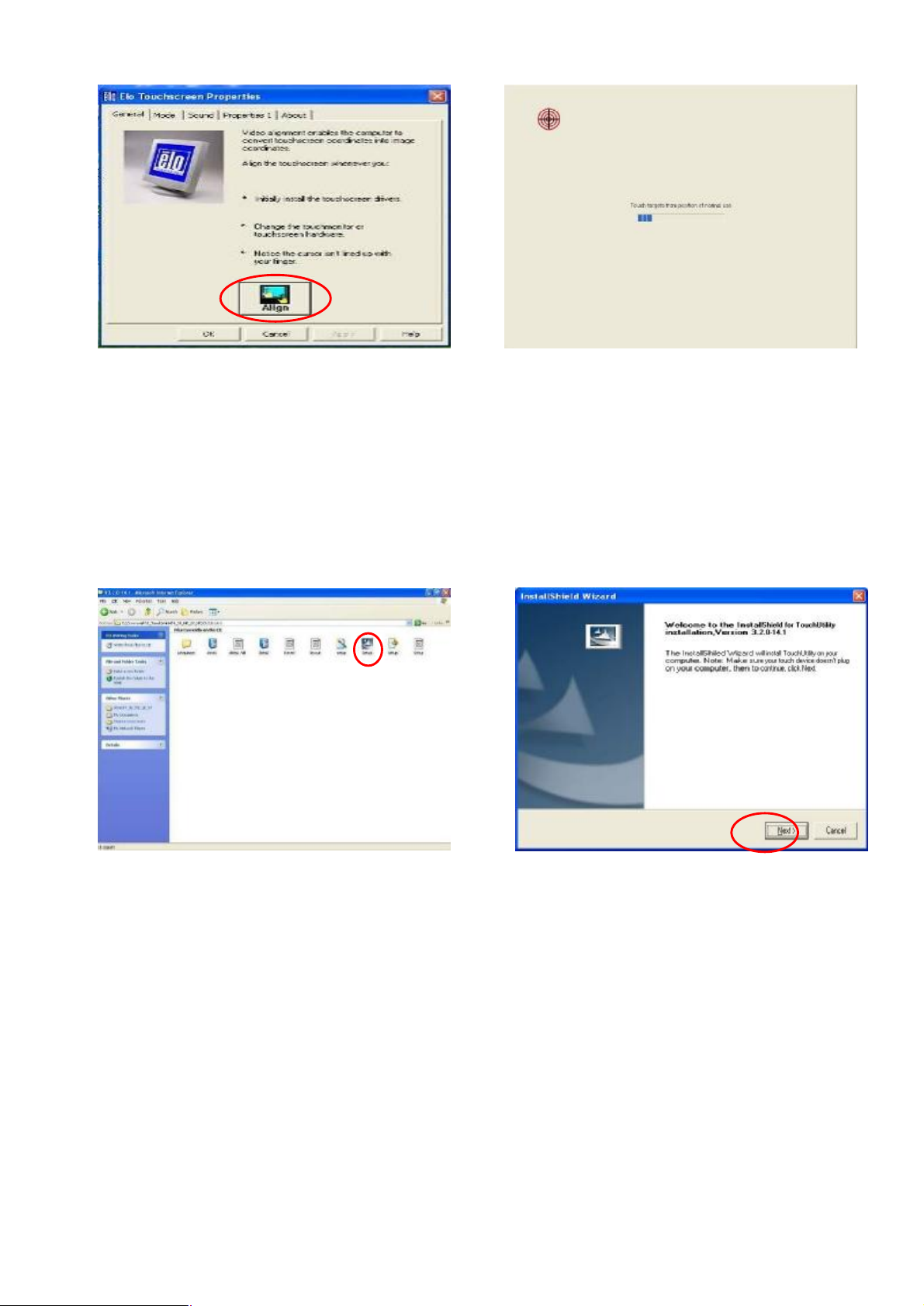

3.7 ELO Touch Screen Driver Installation

a. Click”sw500930” on the “My Computer”

b. Click the “OK” button on the WinZip window.

c. Click the ”Unzip” button on the “WinZip

d. Select “Install Serial Touchscreen Drivers” Self-Extractor” window.

Self-Extractor “Welcome” window.

and then click the “Next” button on the “Welcome” window.

Page 26

e. Click the “Yes” button on the “License

f. Click the “Next” button on the on the Agreement” window.

g. Select “COM5” and click the “Next” button

h. Click the “Next” button on the “You have on the “Choose the COM ports…” window.

“Select the COM ports…” window.

selected the COM ports…” window.

i. Click the “Finish” button on the “Setup

j. Click the “Yes” button and restart your Complete” window.

system.

Page 27

k. After the computer has restarted, click

“Align” on the Elo Touchscreen Properties

l. Follow the instruction on the screen to

calibrate the touch panel.

window.

3.8 POSTouch Touch Screen Driver Installation

a. Double click the ”Setup” on the “My

b. Click the “Next“ button on the “Welcome

Computer” window.

window”.

Page 28

button on the

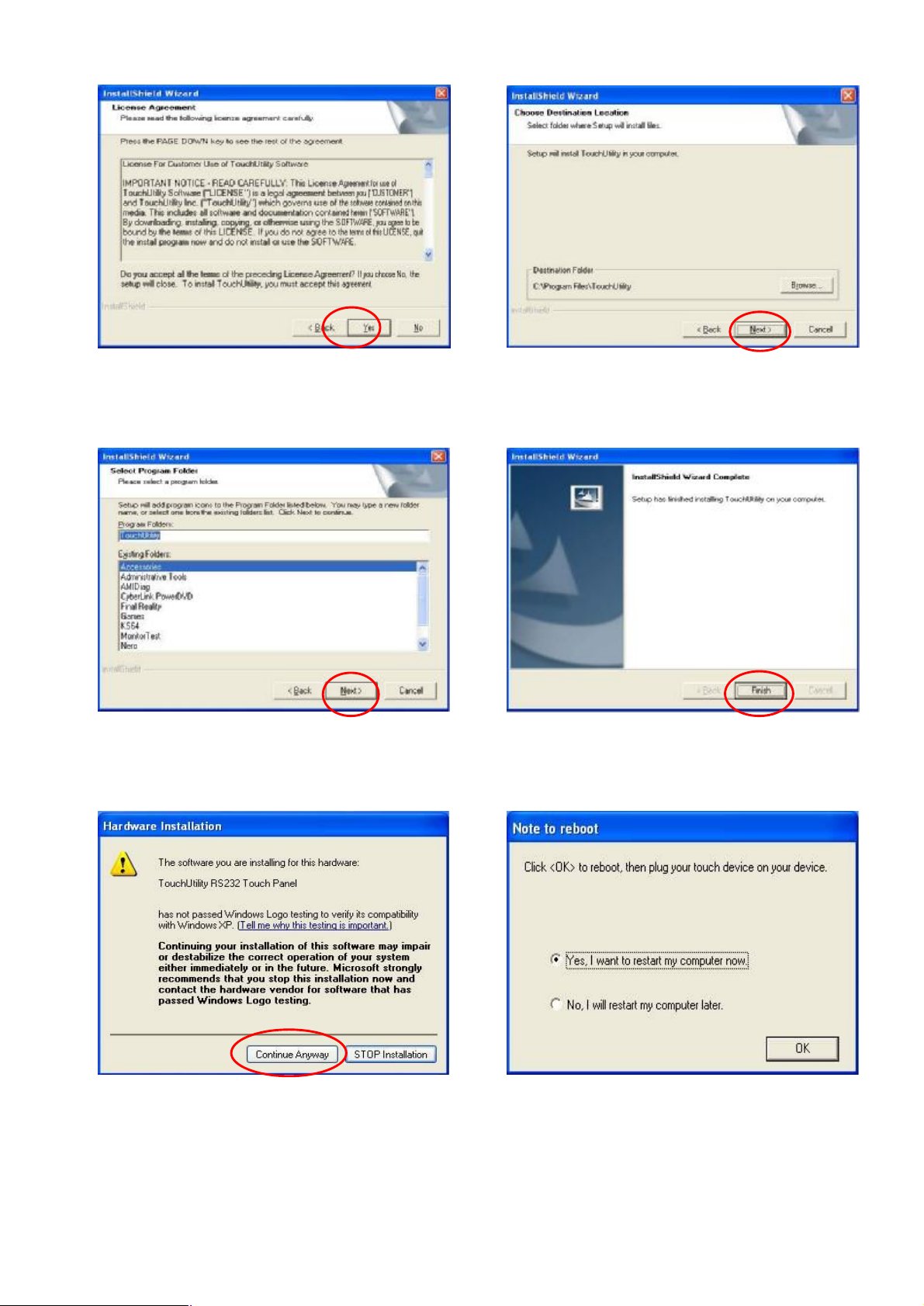

c. Click the ”Yes” button on the “License

d. Click the ”Next” button on the “Choose

Agreement” window.

e. Click the “Next” button on the “Select

f. Click the “Finish” button on the “Install

Program Folder” window.

Destination Location” window.

Shield Wizard Complete” window.

g. Click the “Continue Anyway “

h. Select the “Yes” and click the ”OK” button

“Hardware Installation” window.

and restart your system.

Page 29

Follow the instructions on the screen to do

i. After the computer has restarted, select

j. The serial ports are scanned for a touch “Programs àTouchUtility àScan RS232 Touch Device”.

k. Select “Programs àTouchUtility àTouch

l. Click “Scale / Offset” on the POSTouch Utility”.

device.

Utility window.

n. Select “Device à9Pts Calibration” on the a three point calibration of the touch panel.

POSTouch Utility window.

Page 30

Follow the instructions on the screen to do

panel.

a nine point calibration of the touch

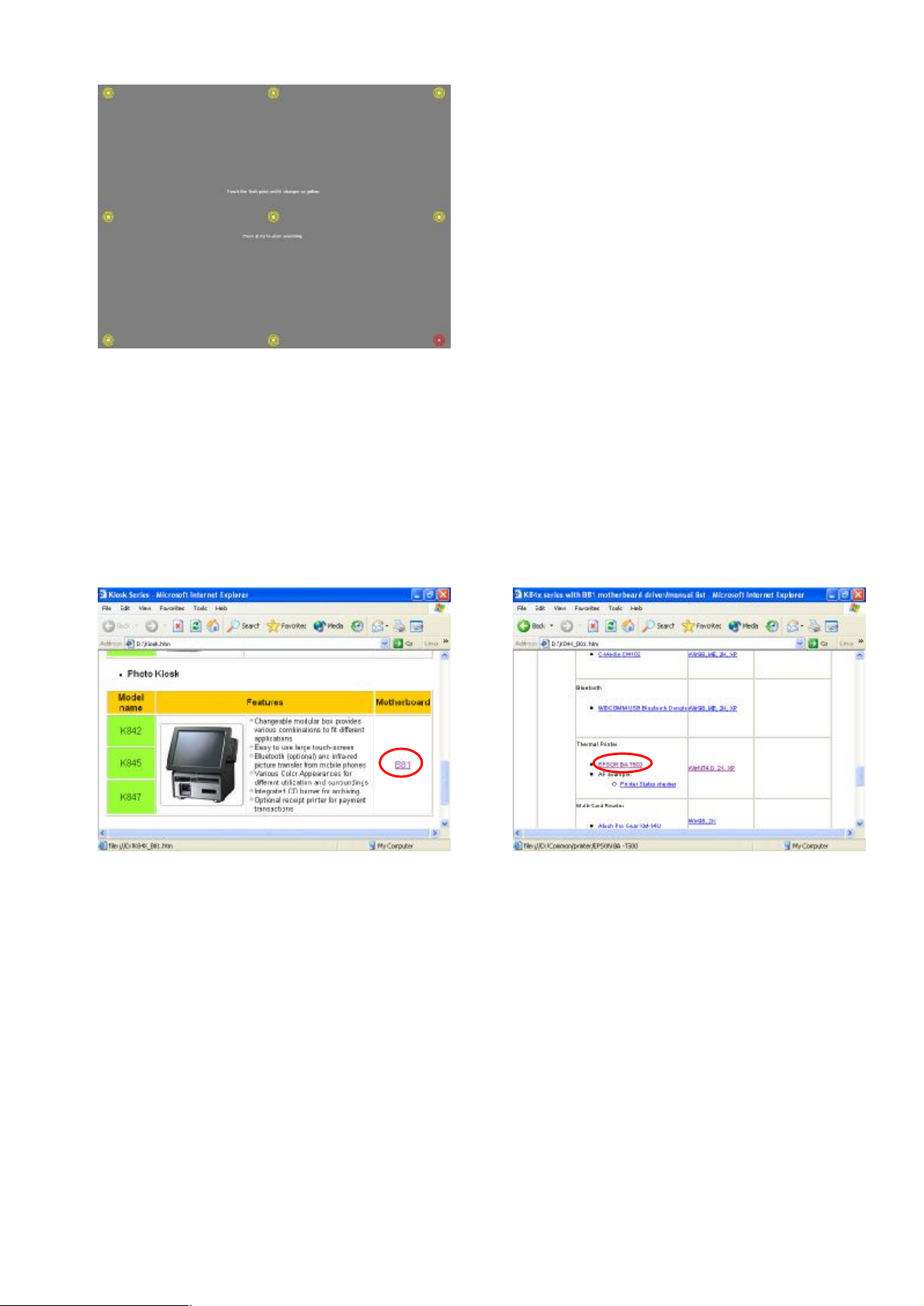

3.9 EPSON-BA-500 Thermal Printer Driver Installation

a. Click on the “B81” link. b. Click on the “EPSON-BA-T500” link on

the window.

Page 31

c. Select “I accept…” and click the “Next”

d. Click the ”Next” on the “Location to Save button on the “License Agreement” window.

e. Select your Operating system and click

f. Select “Parallel Driver” and “EPSON “Next” on the “Select OS window”.

Files” window.

BA-T500” Receipt and click “Finish” on the “Select Module” window.

g. Click the ”Yes” button and restart your

system

Page 32

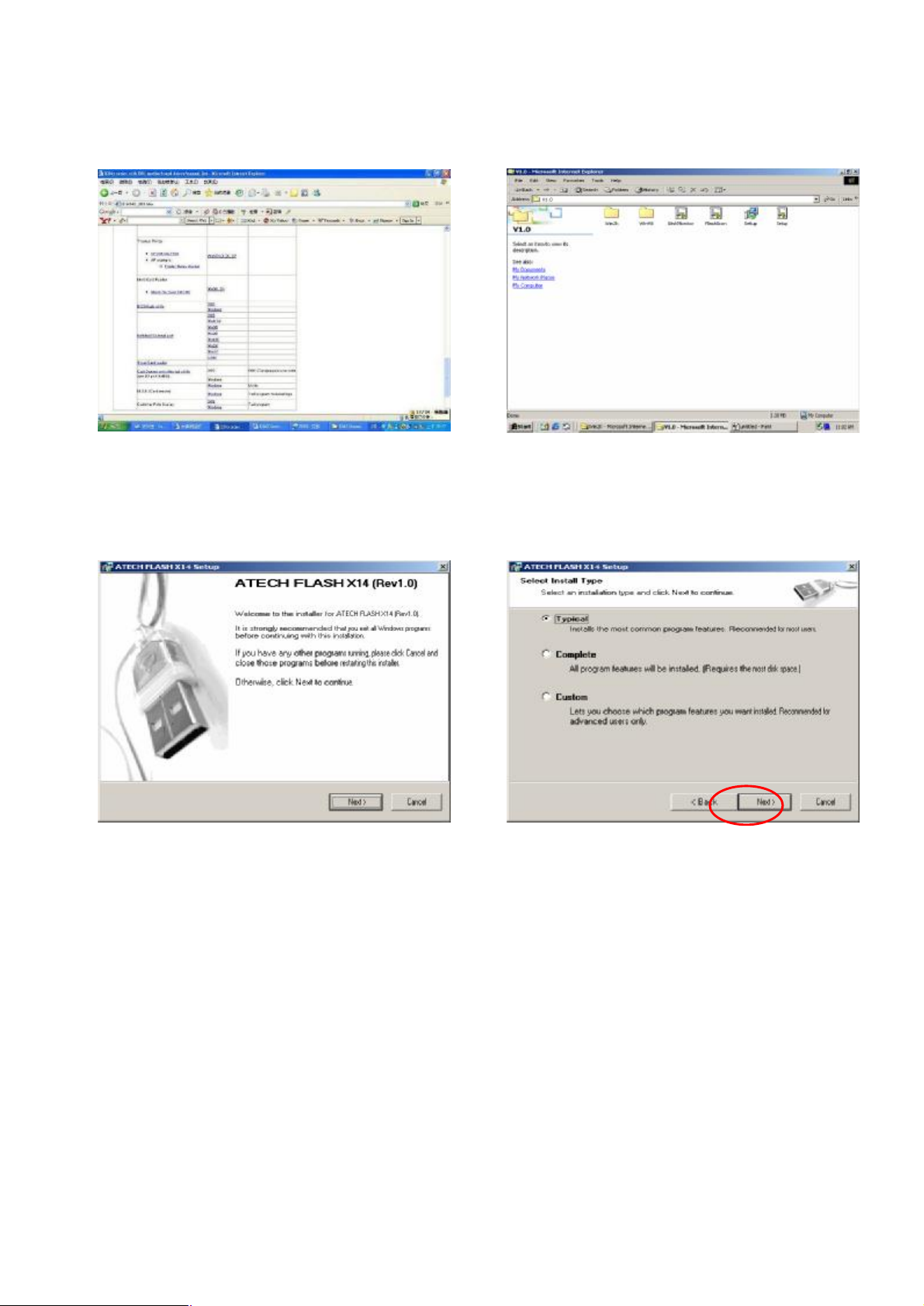

3.10 ProGearXM-14U Media Card Driver Installation

a. Click the “ATECH PRO GEAR x14” link in

the window.

c. Click the “Next “button on the “Welcome

window”.

b. Click on the ”SETUP” icon.

d. Select “Typical “and click “Next” on the

“Select Install Type” window.

Page 33

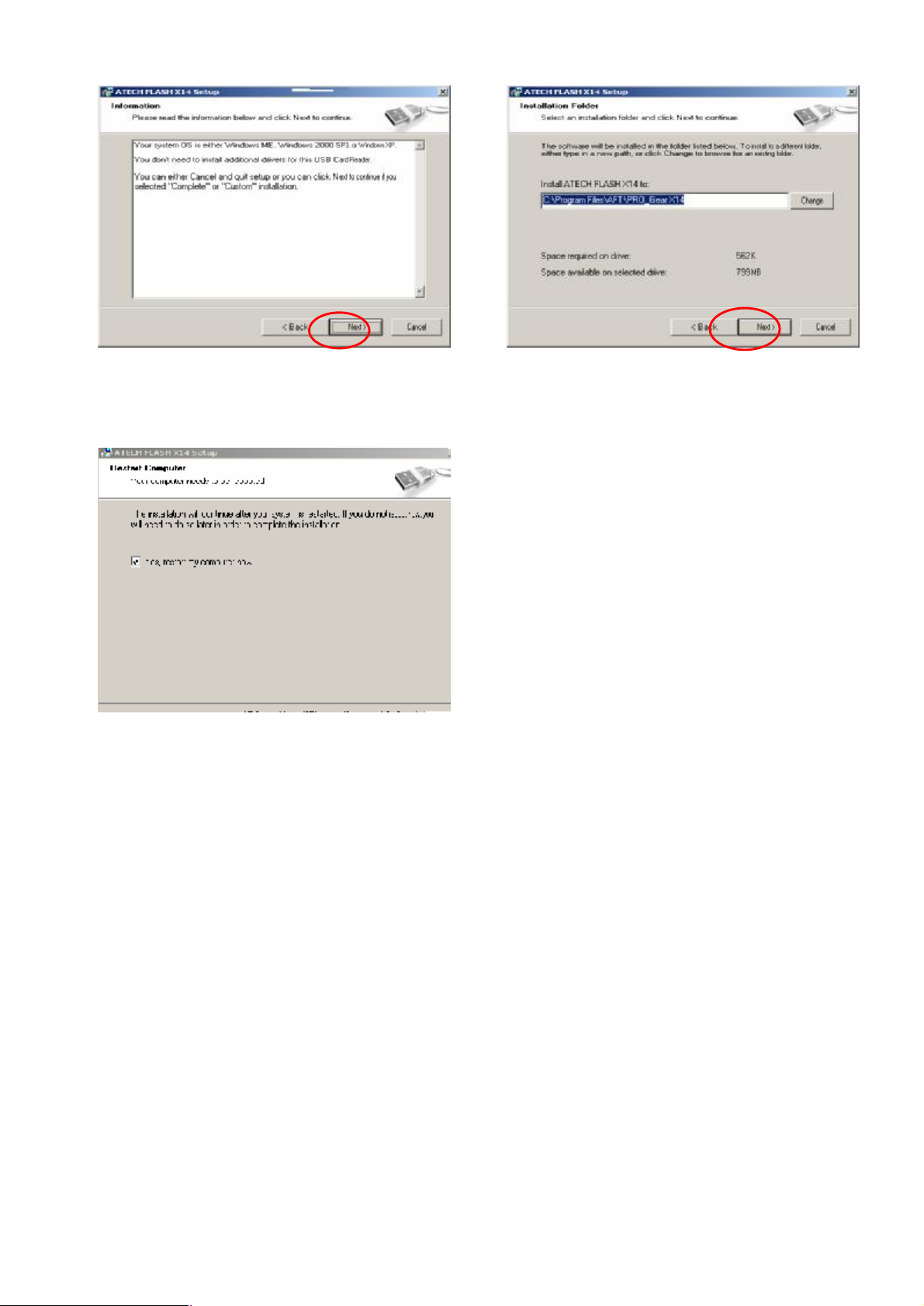

Click the “Next” button on the “Information”

window.

g. Click the ”Yes” button and restart your

system.

f. Click “Next” button on the “Installation

Folder” window.

Page 34

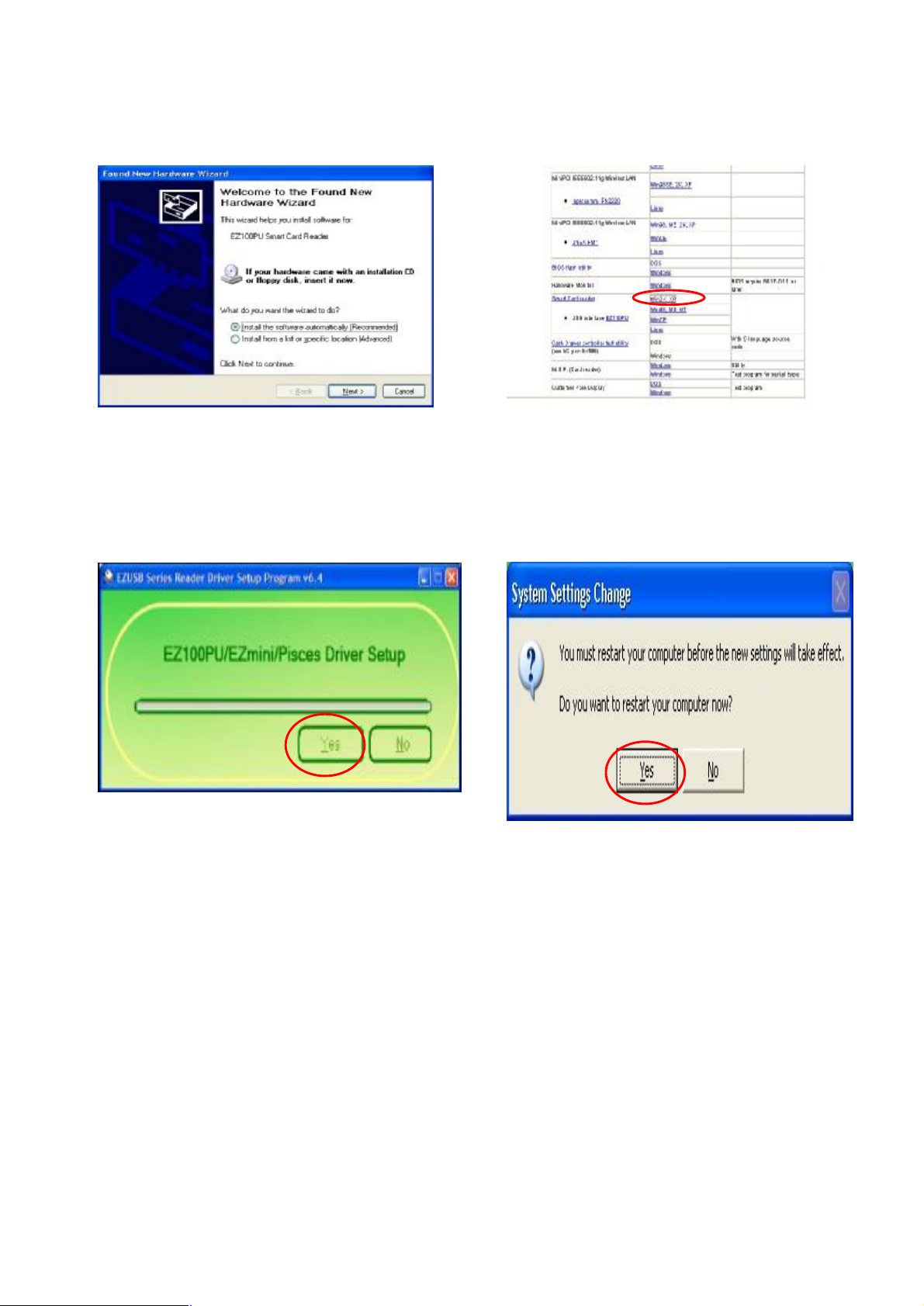

3.11 Smart Card Reader Driver Installation

a. Plug the EZUSB Smart Card Reader into

b. Choose the “ Smart Card Reader”. Click your computer and Click the "Cancel" button if the "Found New Hardware Wizard" dialog appears.

e. Click the "Yes" button on “EZUSB Series

f. Click the ”Yes” button and restart your

“ Win2K, XP” on the window.

Reader Driver Setup Program v.6.4”

system.

window.

Page 35

4. Peripherals Installation

4.1 Magnetic Card Reader / I-Button Installation

The module is tested and can be supplied at your request. This module is removed during transportation and can be connected by the user.

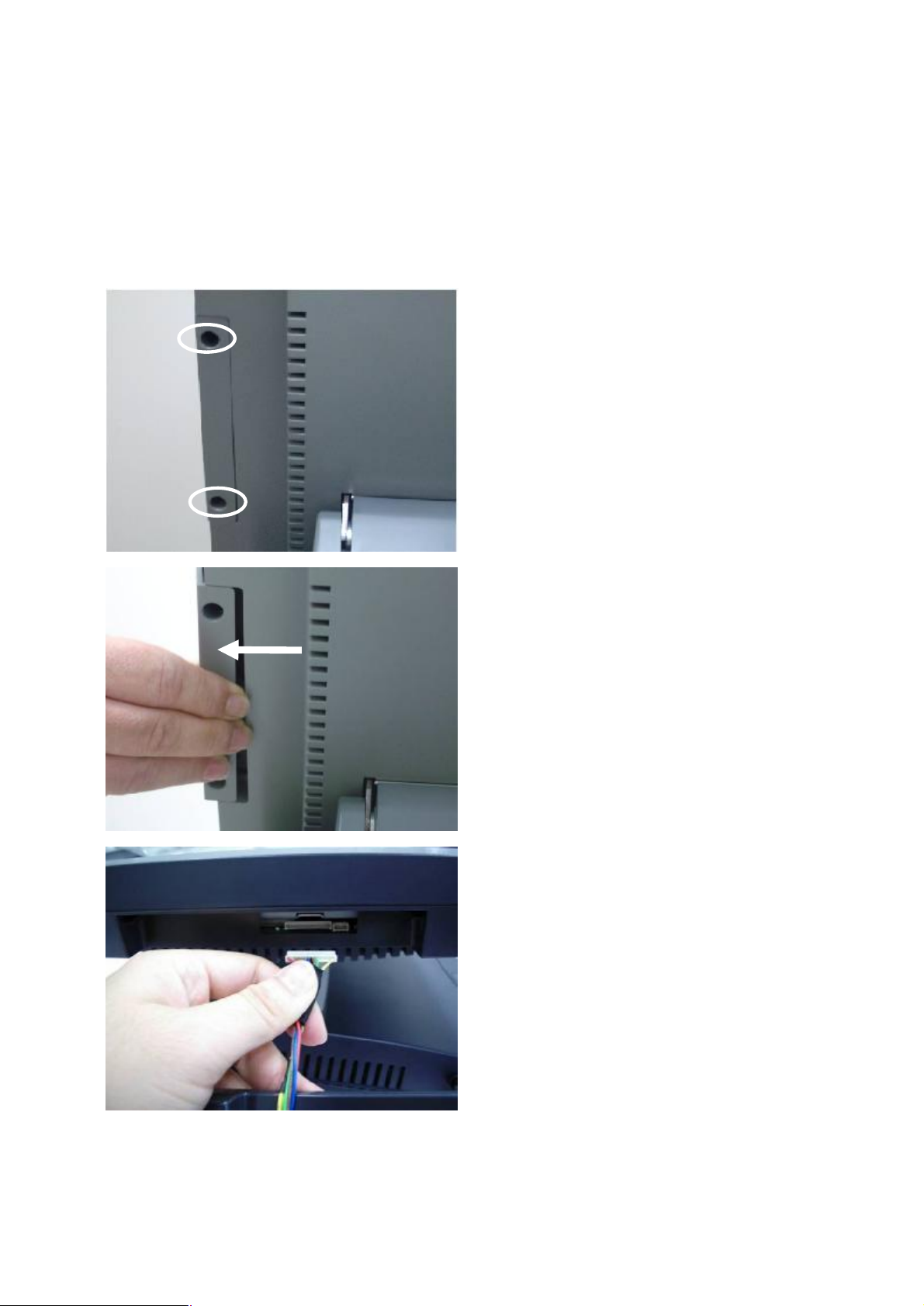

a. Remove the screws (2) of the

plastic cover on the right side of the display.

b. Slide the cover out as shown

in the picture.

c. Connect the module connector

on the right side of the system.

Page 36

d. Slide the module into position

as shown in the picture, and fasten it to the display housing by tightening the screws (2).

4.2 Cash Drawer Installation

You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation.

4.2.1 Cash Drawer Pin Assignment

Pin Signal Pin Signal 1 GND 7 GND 2 DOUT bit0 8 DOUT bit2 3 DIN bit0 9 DIN bit1 4 12V / 24V 10 12V / 24V 5 DOUT bit1 11 DOUT bit3 6 GND 12 GND

4.2.2 Cash Drawer Controller Register

The Cash Drawer Controller use two I/O addresses to control the Cash Drawer – The Cash Drawer Control Register and the Cash Drawer Status Register.

4.2.2.1 Cash Drawer Control Register and Cash Drawer Status Register

Page 37

B91

X X

BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 Attribute Read Read Write Write Write Write Reserved Reserved

7 6 5 4 3 2 1 0

Reserved Cash Drawer 1 “DOUT bit0” pin output control Cash Drawer 1 “DOUT bit1” pin output control Cash Drawer 2 “DOUT bit2” pin output control Cash Drawer 2 “DOUT bit3” pin output control Cash Drawer 1 “DOUT bit0” pin output control Cash Drawer 2 “DOUT bit1” pin output control

Bit 7: Cash Drawer2 “DIN bit2” pin input status = 1: the Cash Drawer2 closed or no Cash Drawer = 0: the Cash Drawer2 opened Bit 6: Cash Drawer1 “DIN bit0” pin input status = 1: the Cash Drawer1 closed or no Cash Drawer = 0: the Cash Drawer1 opened Bit 5: Cash Drawer2 “DOUT bit3” pin output control. = 1: Opening the Cash Drawer2 = 0: Allow close the Cash Drawer2. Bit 4: Cash Drawer2 “DOUT bit2” pin output control. = 1: Opening the Cash Drawer2. = 0: Allow close the Cash Drawer2. Bit 3: Cash Drawer1 “DOUT bit1” pin output control. = 1: Opening the Cash Drawer1 = 0: Allow close the Cash Drawer1 Bit 2: Cash Drawer1 “DOUT bit0” pin output control. = 1: Opening the Cash Drawer1 = 0: Allow close the Cash Drawer1

Bit 1: Reserved Bit 0: Reserved

Note: Please follow the Cash Drawer control signal design to control the Cash Drawer.

Page 38

B81

BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 Attribute Reserved Reserved Read Read Write Write Write Write

Bit 7: Reserved. Bit 6: Reserved.

Bit 5: Cash Drawer2 “DIN bit1” pin input status. = 1: the Cash Drawer2 closed or no Cash Drawer. = 0: the Cash Drawer2 opened. Bit 4: Cash Drawer1 “DIN bit0” pin input status. = 1: the Cash Drawer1 closed or no Cash Drawer. = 0: the Cash Drawer1 opened. Bit 3: Cash Drawer2 “DOUT bit3” pin output control. = 1: Opening the Cash Drawer2 = 0: Allow closing the Cash Drawer2 Bit 2: Cash Drawer2 “DOUT bit2” pin output control. = 1: Opening the Cash Drawer2 = 0: Allow closing the Cash Drawer2 Bit 1: Cash Drawer1 “DOUT bit1” pin output control. = 1: Opening the Cash Drawer1 = 0: Allow closing the Cash Drawer1 Bit 0: Cash Drawer1 “DOUT bit0” pin output control. = 1: Opening the Cash Drawer1 = 0: Allow closing the Cash Drawer1

Note: Please follow the Cash Drawer control signal design to control the Cash Drawer.

4.2.3 Cash Drawer control command example

Use Debug.EXE program under DOS or Windows98

B91

Command Cash Drawer

O 48C 01 Opening O 48C 00 Allow to close

Ø Set the I/O address 4B8h bit2 =1 for opening the Cash Drawer1 by “DOUT bit0” pin

control.

Ø Set the I/O address 4B8h bit2 = 0 to allow closing Cash Drawer1.

Command Cash Drawer

I 48C Check status

Ø The I/O address 48Ch bit6 =1 means the Cash Drawer1 is opened or not exist. Ø The I/O address 48Ch bit6 =0 means the Cash Drawer1 is closed.

Page 39

B81

Command Cash Drawer

O 4B8 01 Opening O 4B8 00 Allow to close

Ø Set the I/O address 4B8h bit0 =1 for opening the Cash Drawer1 by “DOUT bit0” pin

control.

Ø Set the I/O address 4B8h bit0 = 0 to allow closing Cash Drawer1.

Command Cash Drawer

I 4B8 Check status

Ø The I/O address 4B8h bit4 =1 means the Cash Drawer1 is closed or no Cash

Drawer.

Ø The I/O address 4B8h bit4 =0 means the Cash Drawer1 is open.

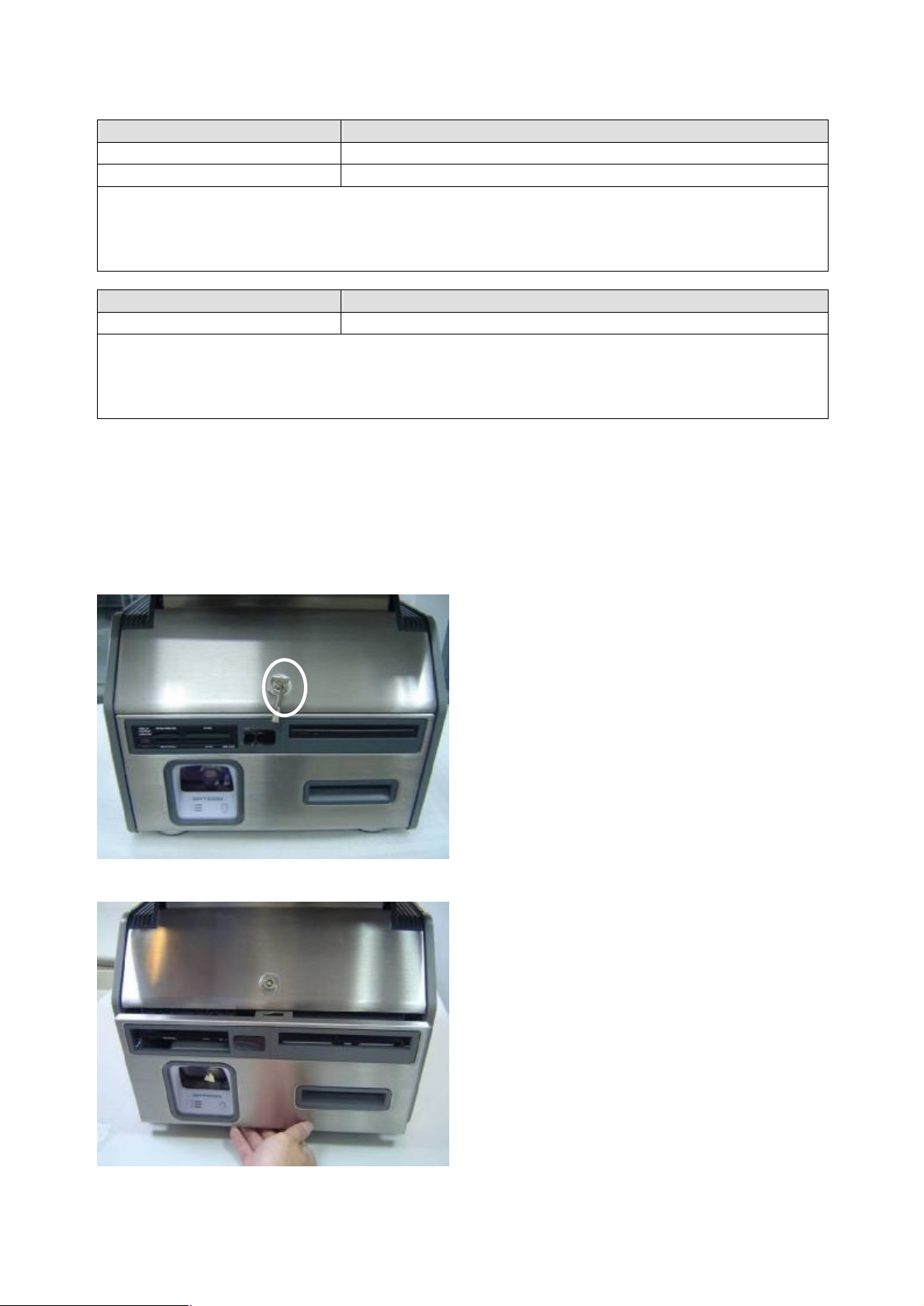

4.3 Wireless LAN and Bluetooth USB Dongles Installation

The USB Wireless LAN and USB Bluetooth Dongles are connected to the USB connector which is on the IrDA board .

a. Use the key to unlock the main

modular box.

b. Open the main modular box.

Page 40

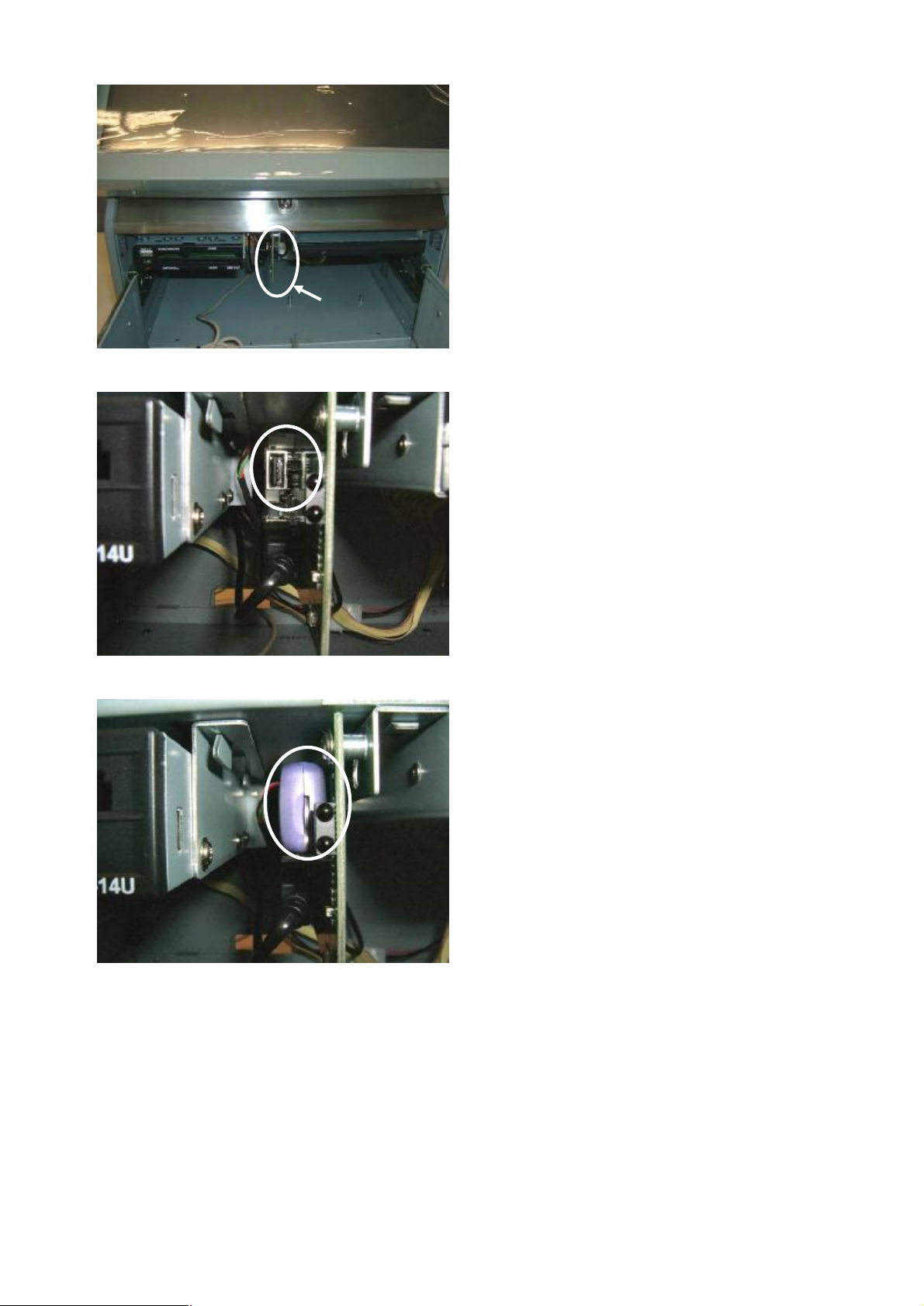

IrDA board

c. The IrDA board is located to

the right of the Media Card Reader.

d. Connect the USB dongle

device (Wireless LAN or Bluetooth) to the USB connector.

e. Installed Bluetooth USB

dongle. The Wireless LAN Dongle is similar and is installed in the same way (no picture shown).

Page 41

5. System Disassembly

The HDD, CPU + Cooler, Memory and Mini PCI SCSI Card can be replaced by opening the chassis box, which is located in the top part of the main modular box. The Power Supply, Media Card Reader, IrDA module, Slim Combo modules are located in the bottom part of the main modular box.

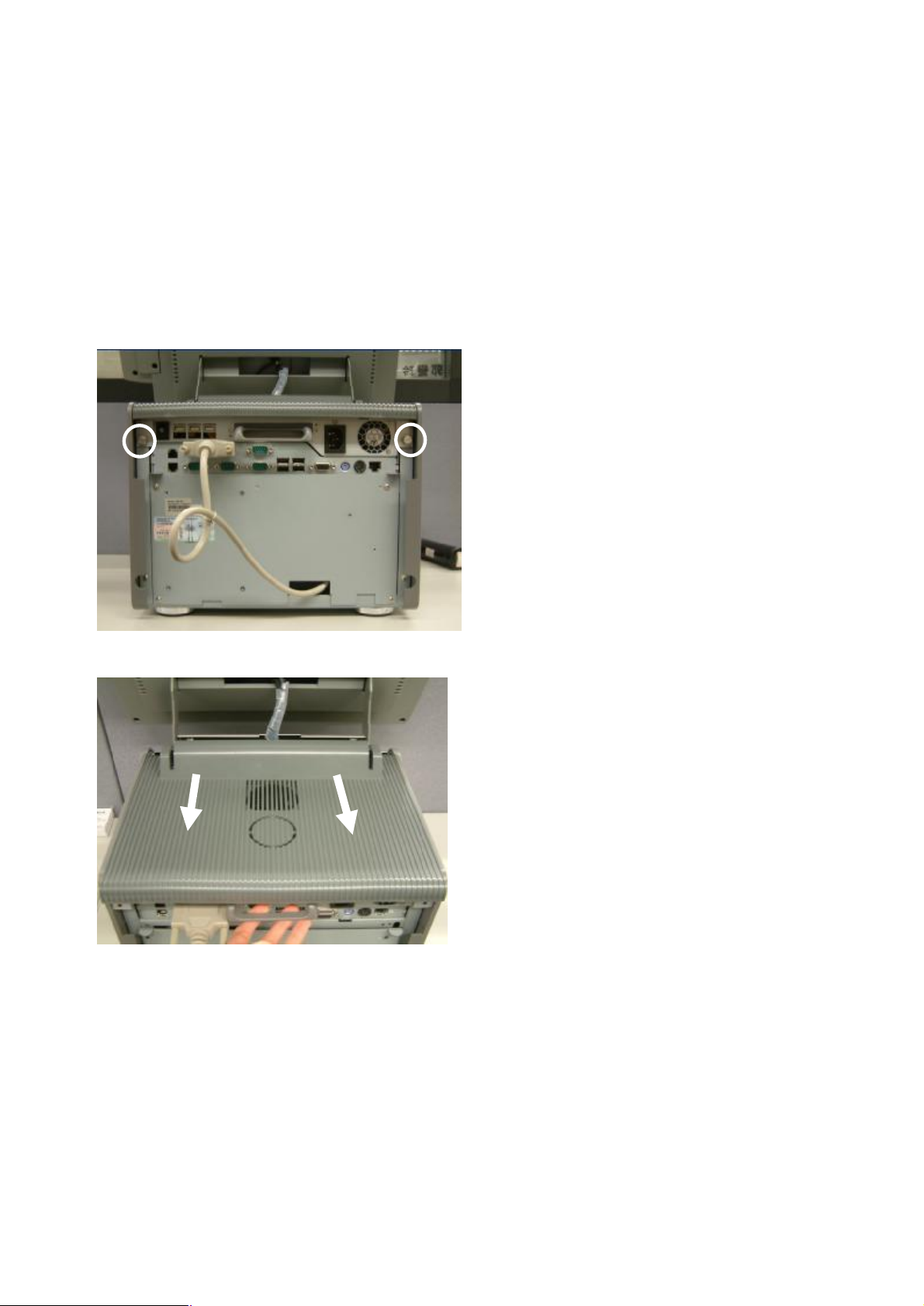

5.1 Opening the Chassis Box

a. Remove the thumbscrews (2).

b. Slide the cover towards you

and remove it from the main modular box.

Page 42

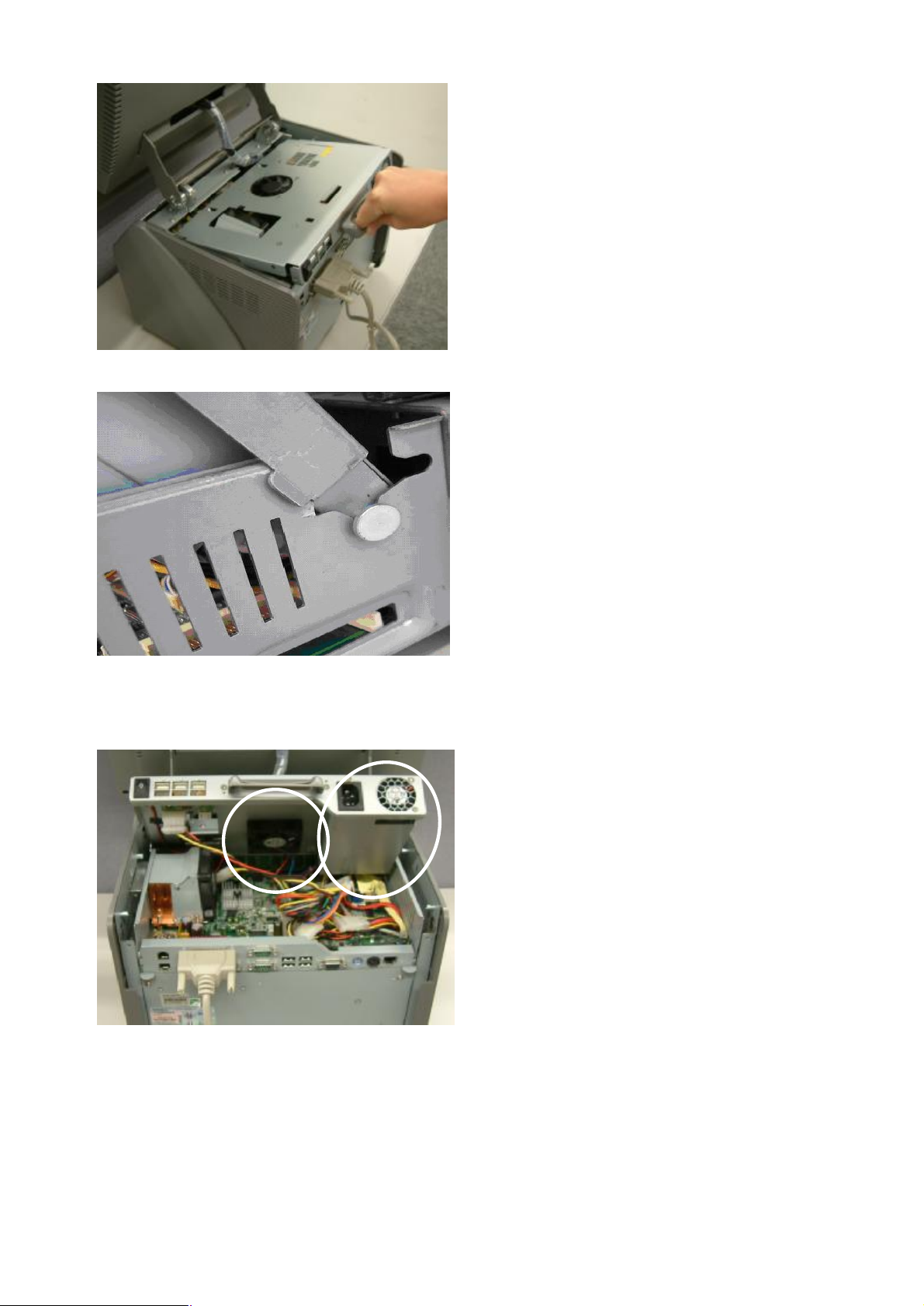

c. Pull the chassis box cover

towards you by the handle, and lift it up.

d. Fix the chassis box cover in

the open position as shown in the picture.

5.2 Replacing the Power Supply and the System Fan

a. The System Fan is on the left

System

Fan

Power Supply

side and the power supply is on the right side of the chassis cover.

Page 43

b. Disconnect the cables (2) as

shown in the picture.

c. To remove the power supply,

remove the screws (2) at the back as shown in the picture. To remove the System Fan, remove the screws (4) in the middle of the chassis box

5.3 Installing the Mini PCI Card

cover.

a. The Mini PCI Card slot is

located at the right front side of the mainboard.

Page 44

b. Install the Mini PCI Card by

inserting it into the slot.

c. Push the card down gently

until the two metal latches on the side of the slot click into place.

5.4 Replacing the Memory

The memory slots are located at the rear of the motherboard. To access the slots, it is necessary to remove the chassis box cover. Open the chassis box as described in chapter 5.1.

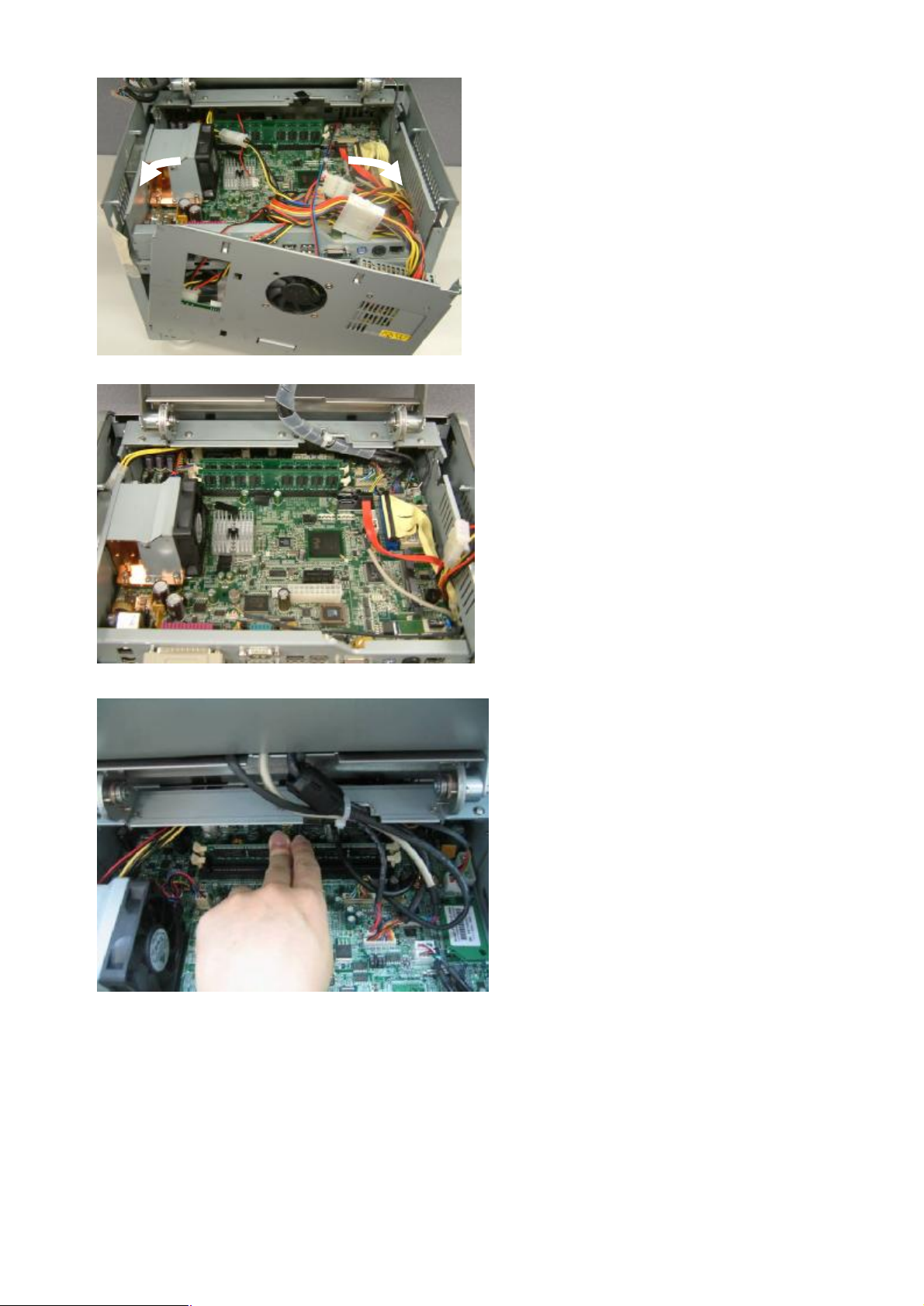

a. Lift the chassis box cover to

disengage it from the chassis box.

Page 45

b. Place the chassis box cover in

front of the box, taking care not to stretch the cables which are still connected to it.

c. The memory slots are located

at the back of the mainboard. To remove the memory module, use your finger to push the DIMM slot ejector clips into the down position. Remove the memory module from the slot.

d. Installing a memory module:

Do not touch the gold colored contacts as this can damage the Ensure memory that the notches in the memory module line up with the DIMM slot keys.

Gently but firmly push the memory into the slot until it is seated fully. The ejector clips should rise to the vertical position and click in place.

Page 46

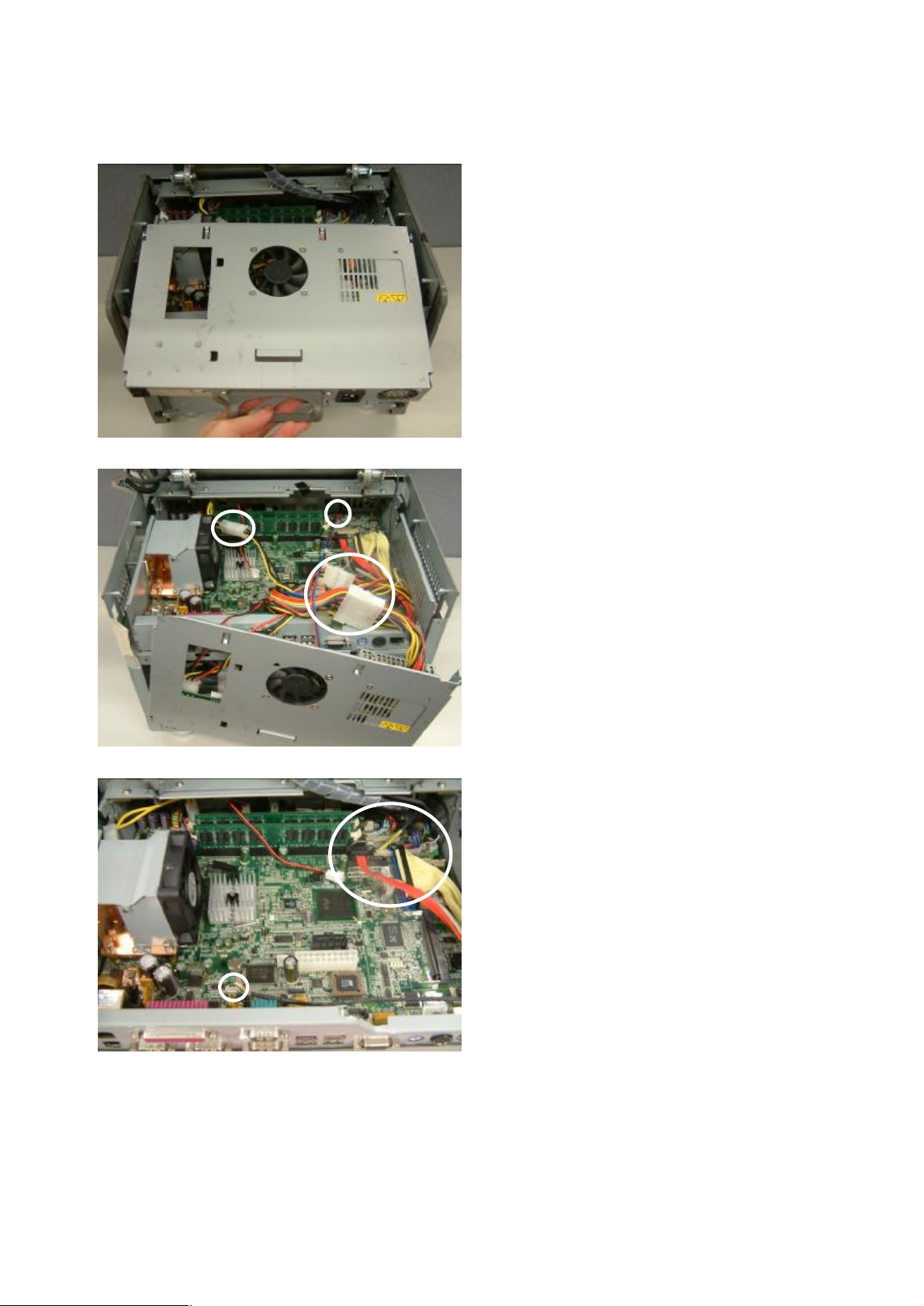

5.5 Replacing the Motherboard Tray

Open the chassis box as described in chapter 5.1.

a. Lift the chassis box cover to

disengage it from the chassis box.

b. Disconnect the cables (6) to

release the chassis box cover from the system

c. Disconnect all cables (4)

Page 47

d. Remove the screws(2) to

release the side covers(2) from the system

e. Remove the thumb screw (1)

f. Remove the printer cable (1)

and remove the screws (4) to remove the main modular box back panel.

Page 48

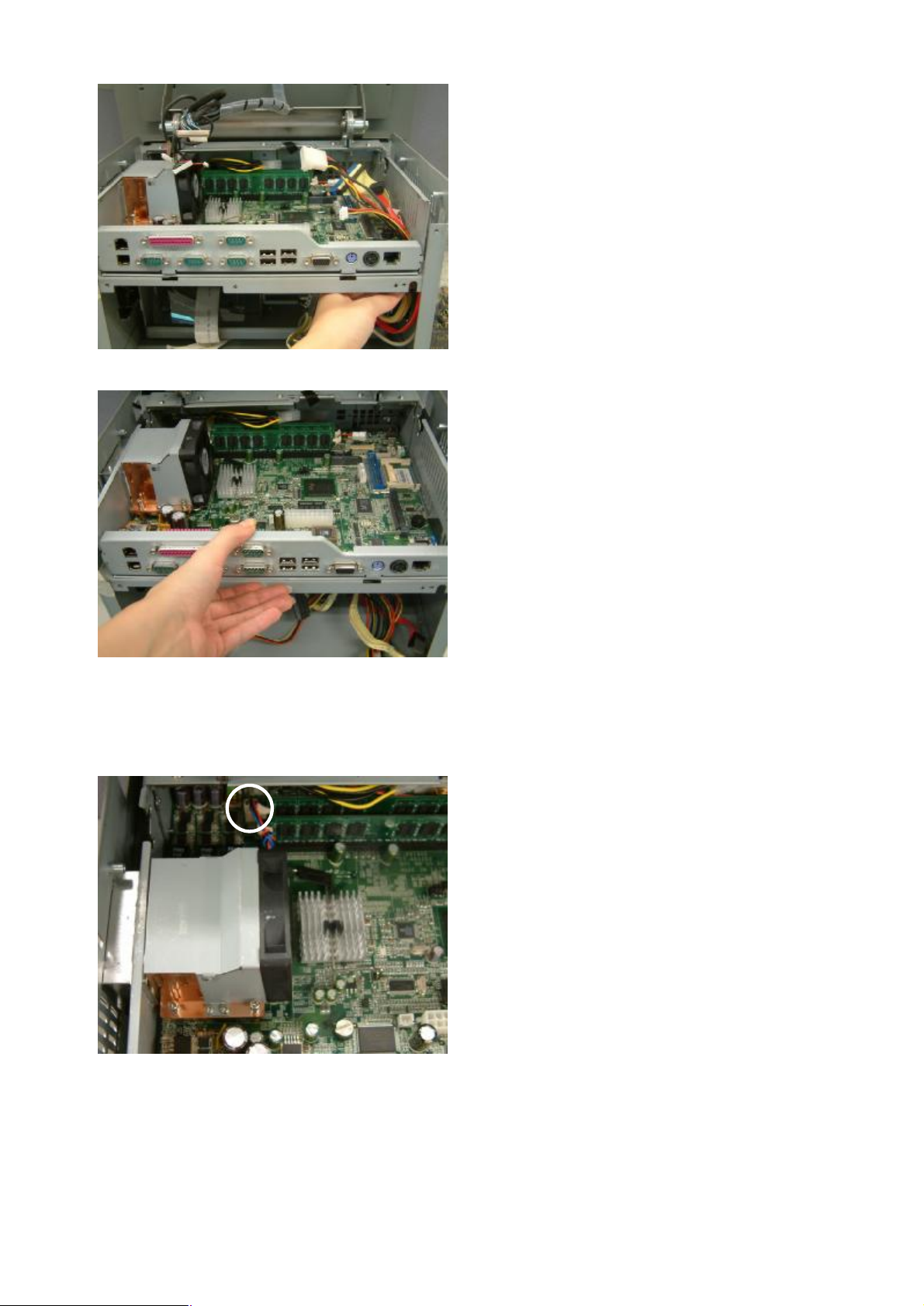

g. Pull the cables one by one

from the modular box as shown in the photo

h. Slide the motherboard tray

towards you and remove it.

5.6 Replacing the CPU and the Cooler

a. Disconnect the fan cable (1)

from the mainboard.

Page 49

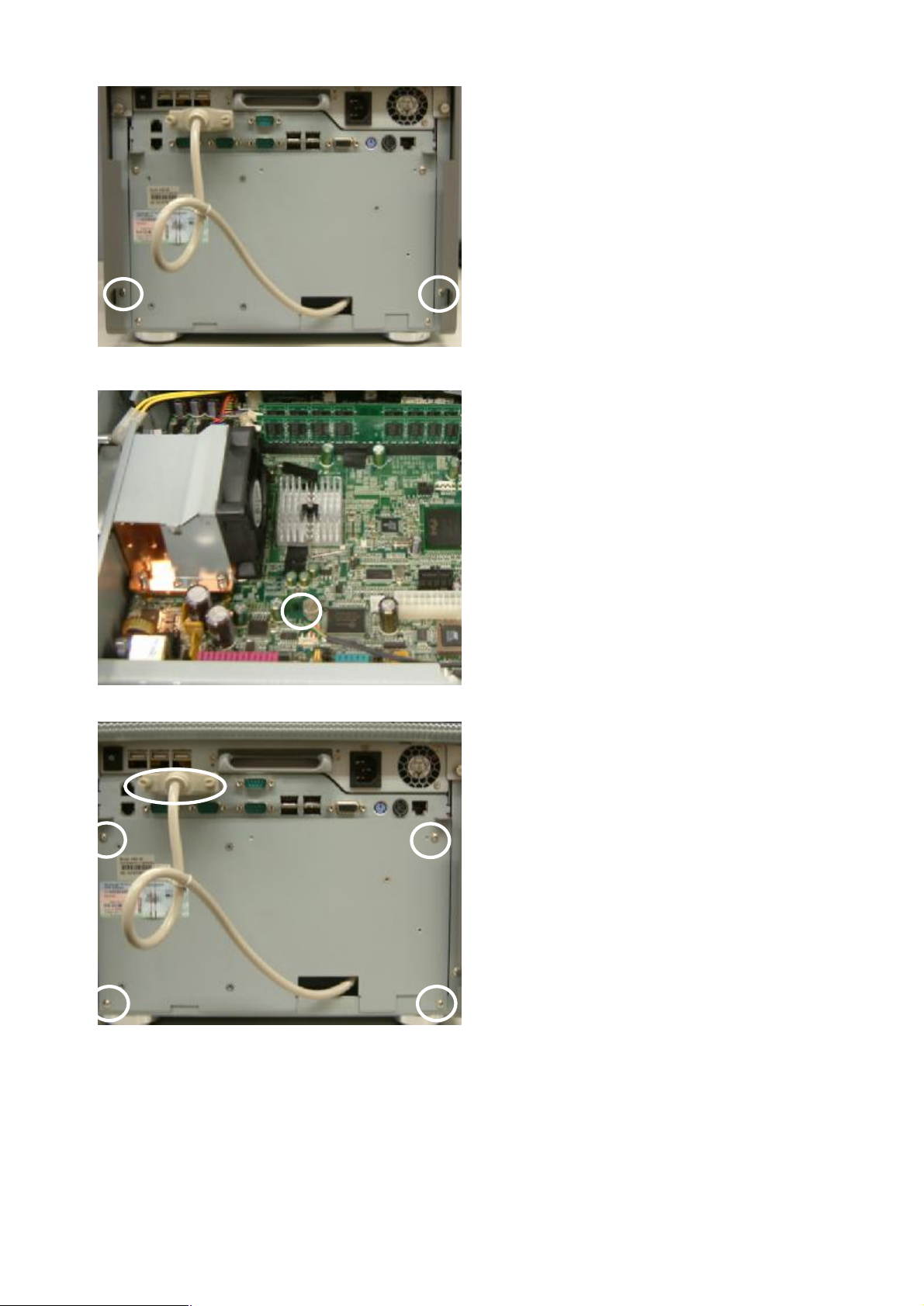

b. Remove the screws (2) as

shown in the picture.

c. Remove the screws (2) to

remove the cooler.

d. To remove the CPU, push the

CPU socket lever down and away from the socket, and lift it up. The CPU can now be removed from the socket.

Page 50

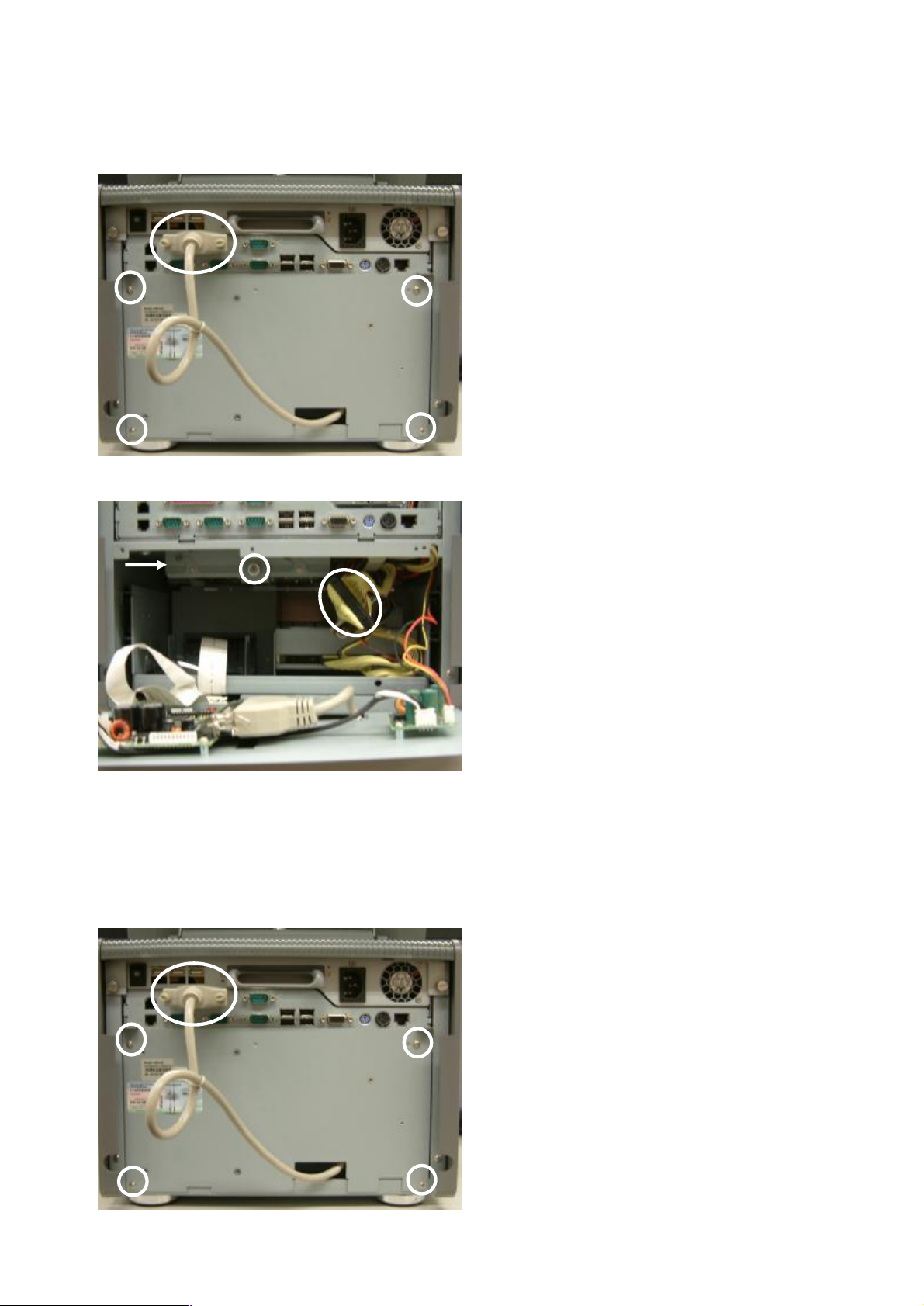

5.7 Replacing the HDD

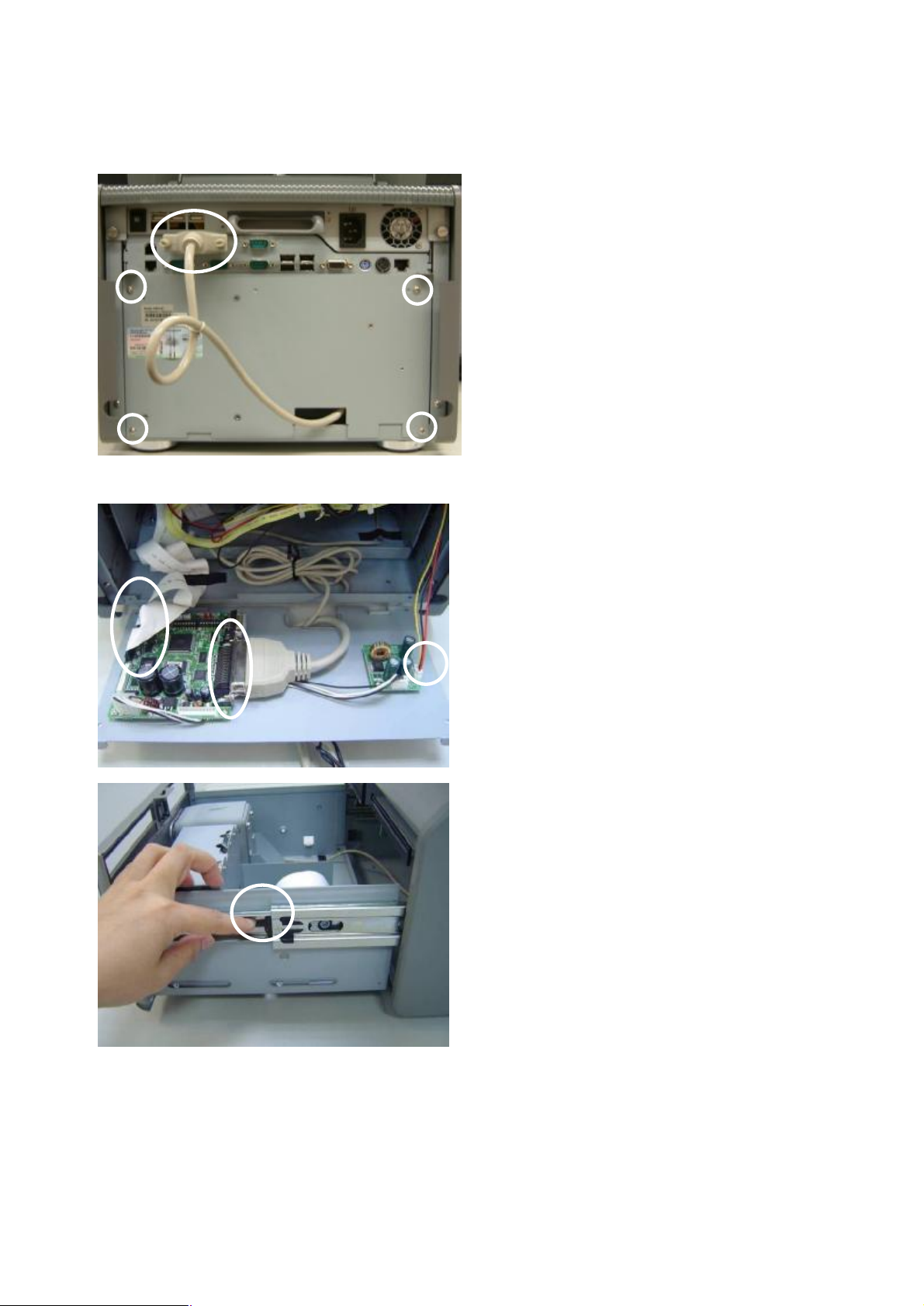

a. Remove the printer cable (1)

and remove the screws (4) to remove the main modular box back panel.

b. Disconnect the IDE cable and

loosen the thumbscrew (1). Push the HDD holder in the

5.8 Replacing the Media Card Reader

5.8.1 Replacing the 3.5” Media Card Reader

direction as shown by the arrow to remove it from the system

a. Remove the printer cable (1)

and remove the screws (4) to remove the main modular box back panel.

Page 51

b. Disconnect the cables (2)

from the Media Card Reader.

c. Remove the screws (2).

d. Pull the media card reader

towards the front and then downward to remove it from the system. Remove the Media Card Reader from the system.

Page 52

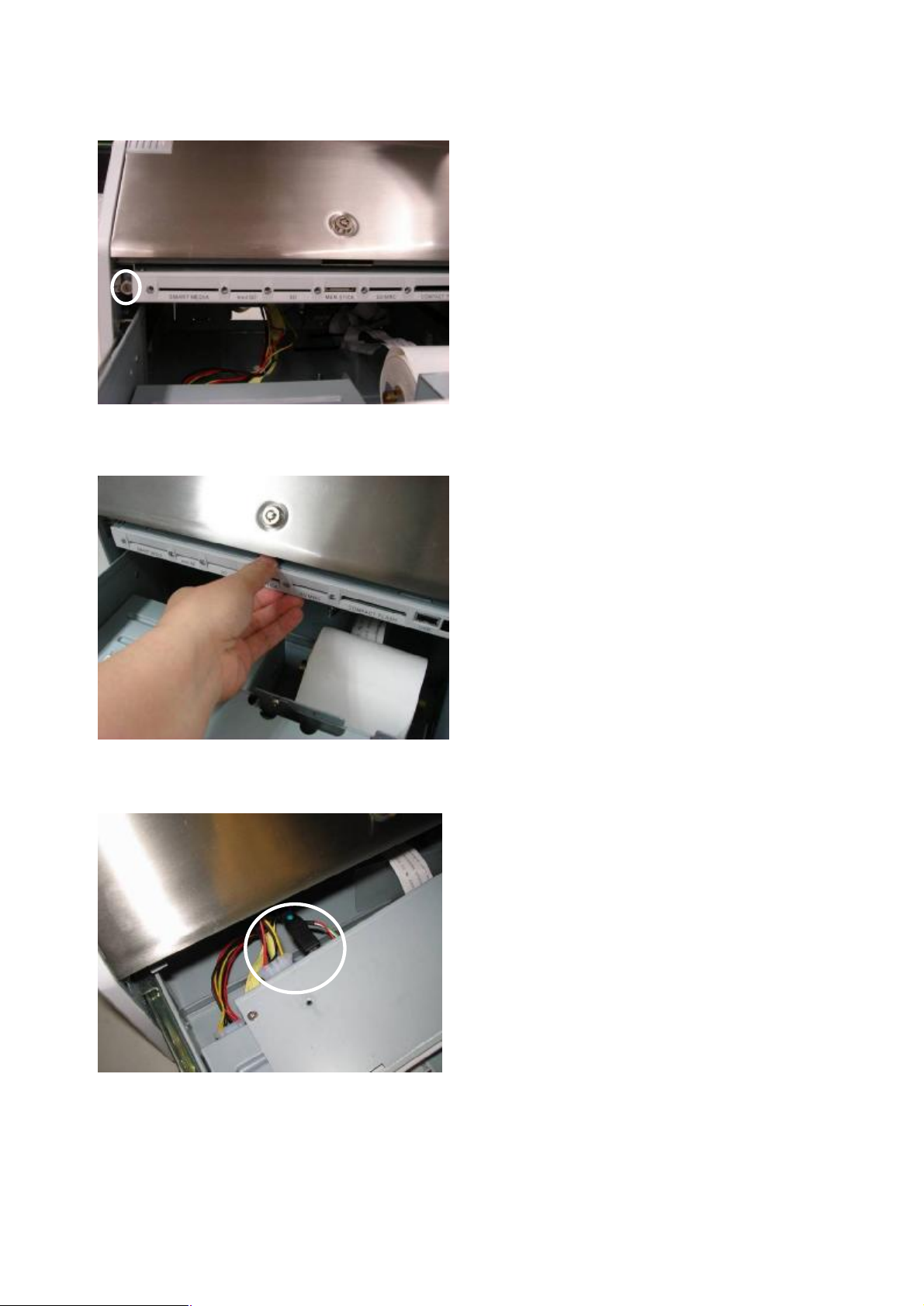

5.8.2 Replacing the Planar Media Card Reader

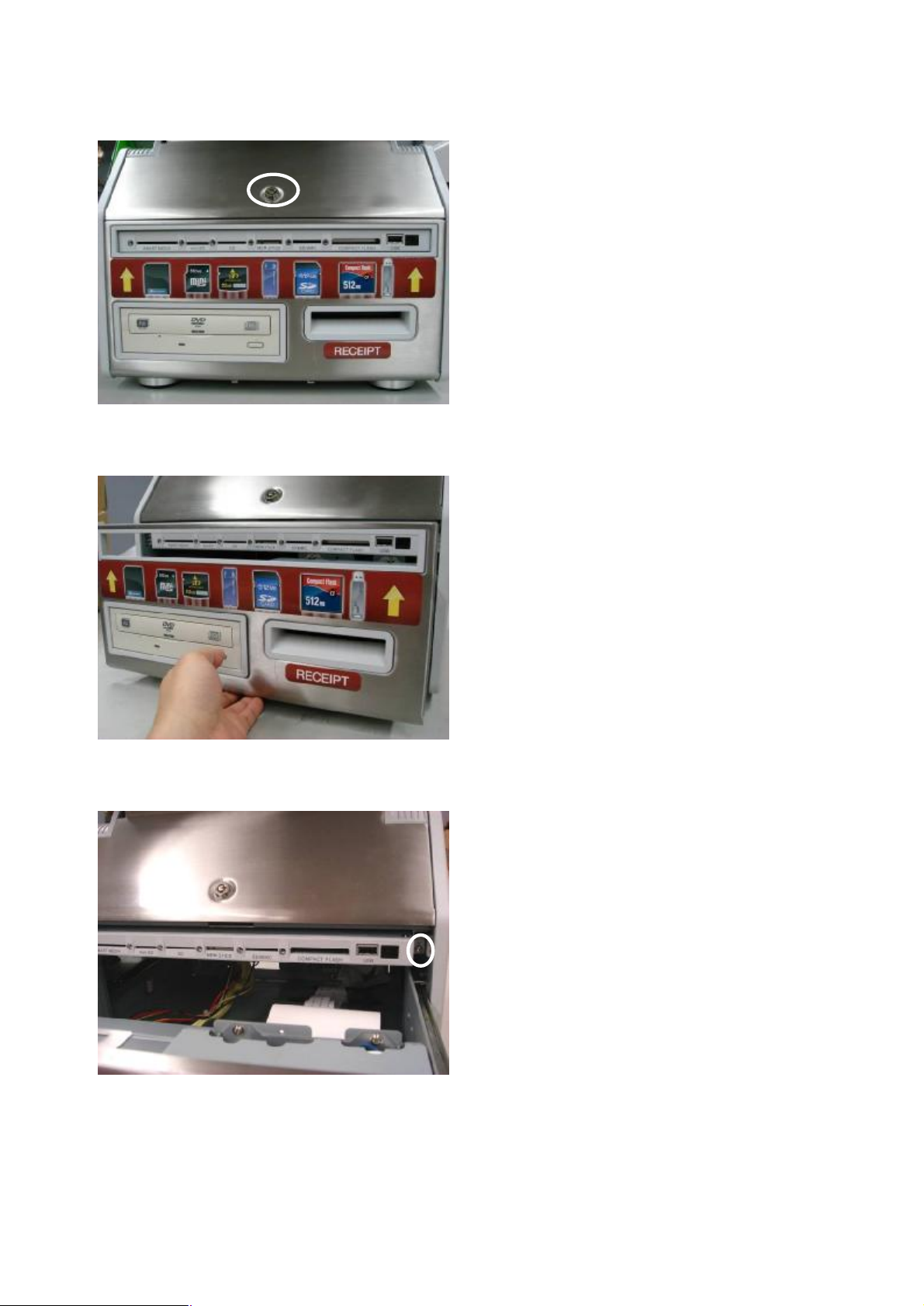

a. Use the key to unlock the

b. Open the main modular box.

main modular box.

c. Remove the screw (1).

Page 53

d. Remove the screw (1).

e. Pull the Media Device

Module towards the front.

Note: Take care not to stretch

the cables which are still connected.

f. Disconnect the cables (2) to

replace the media device module.

Page 54

Cables

5.9 Replacing the IrDA and Slim Combo

a. Disconnect the cables (4)

Cable

Screw

and remove the screw (1).

b. Pull the IrDA / Slim COMBO

towards the front and then downward to remove it from

5.10 Replacing the 3” Thermal Printer

the system.

a. Remove the thermal printer

cable (1) and the screws (4).

Page 55

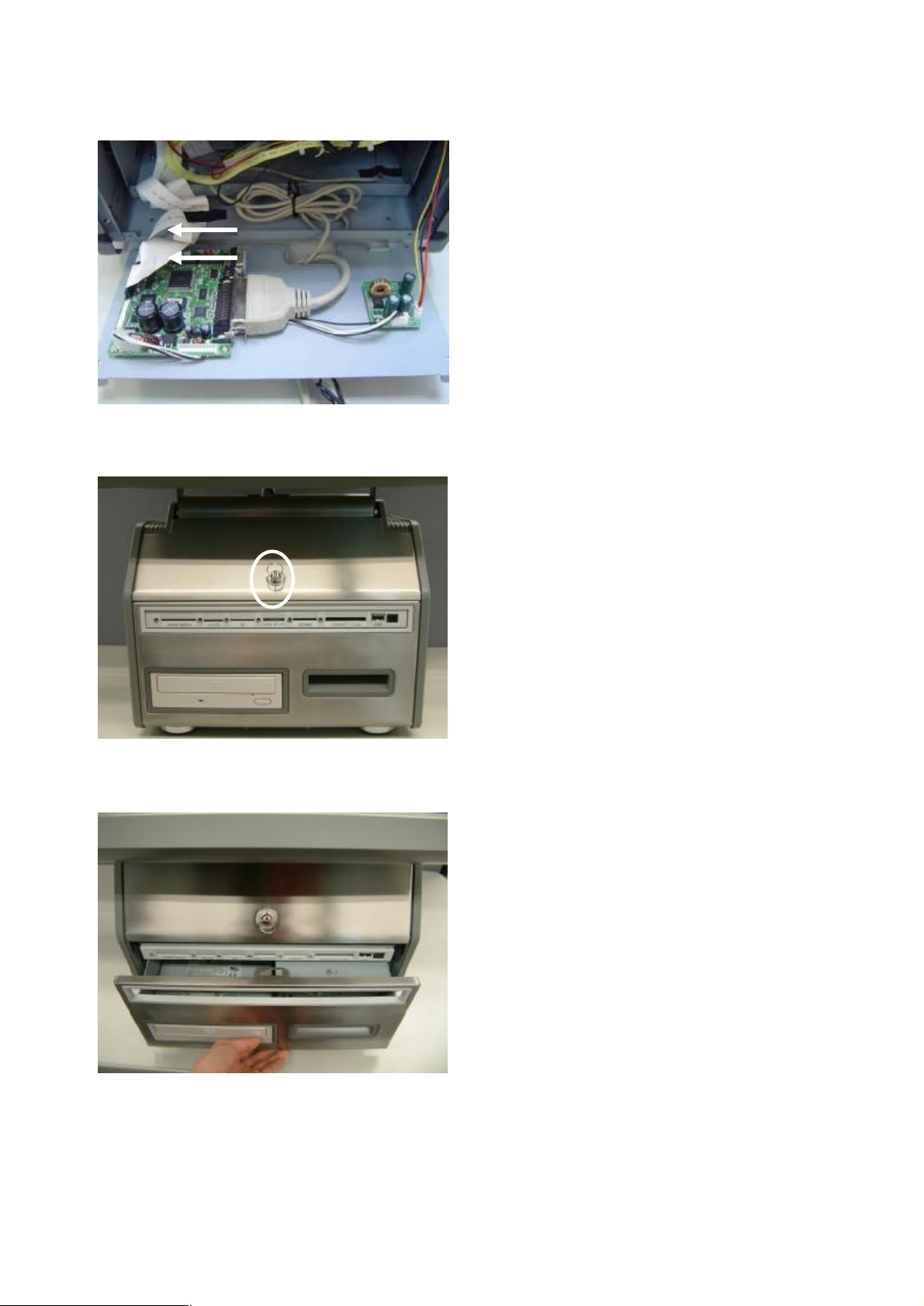

c. Disconnect the ribbon

cables (2) from the printer control board.

d. Use the key to unlock the

main modular box.

e. Open the main modular box.

Page 56

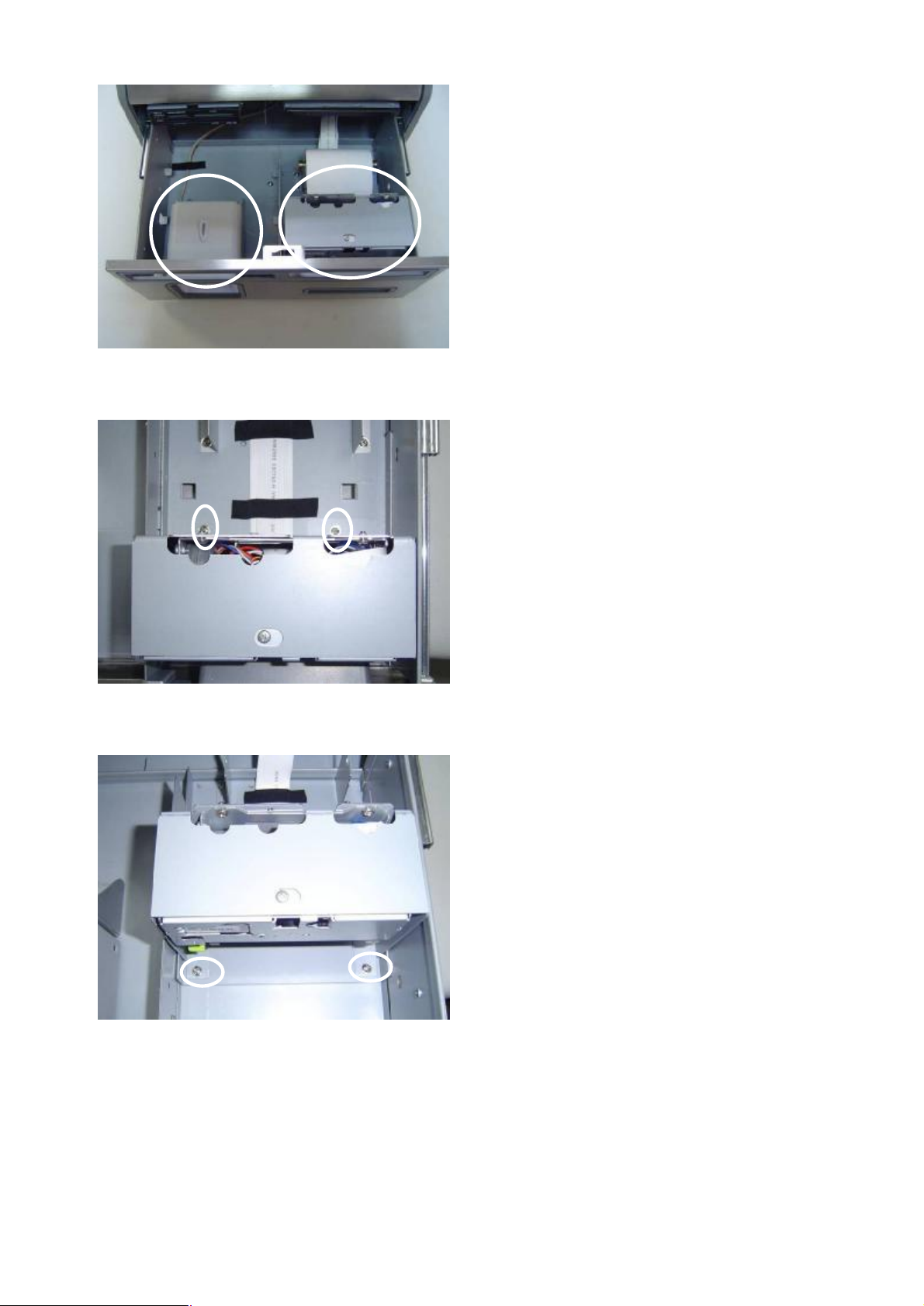

f. Depending on your

configuration, you will have one or more of the following devices:

Ø 3” Thermal Printer Ø 5.25” DVD drive Ø Laser Scanner

Scanner

Thermal Printer

f. Remove the screws (2) at

the back of the printer.

PRINTER MODULE

g. Slide the printer towards the

back of the system and remove the screws (2) at the front of the printer module. Take out the thermal printer.

Page 57

5.11 Replacing the Laser Scanner

5.12 Replacing the 5.25” DVD ROM

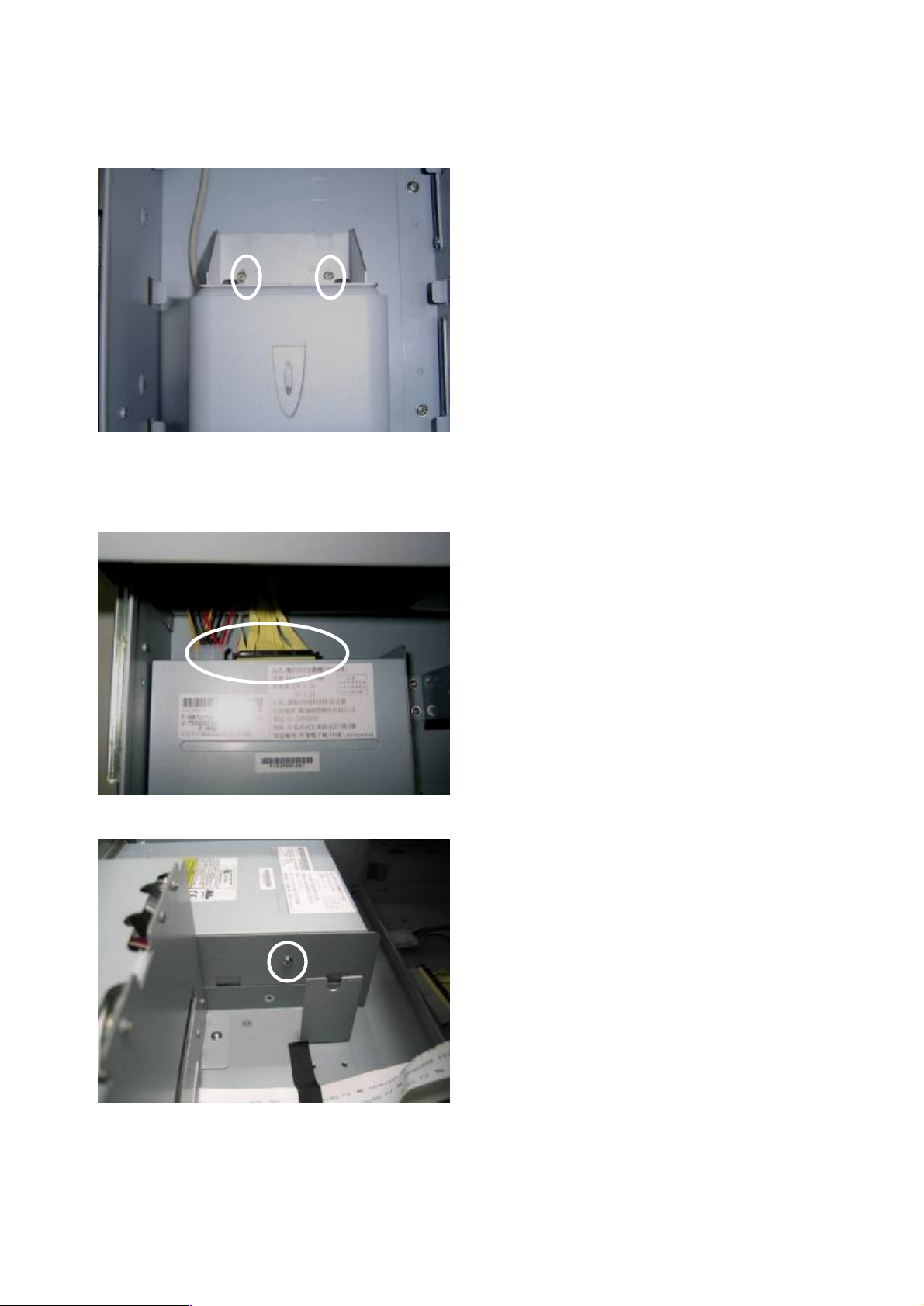

a. Remove the screws (2) at

the back of the scanner. Take the laser scanner out of the system.

a. Disconnect the cables (2)

from the DVD drive.

b. Remove the screw (1) on the

right side of the DVD drive.

Page 58

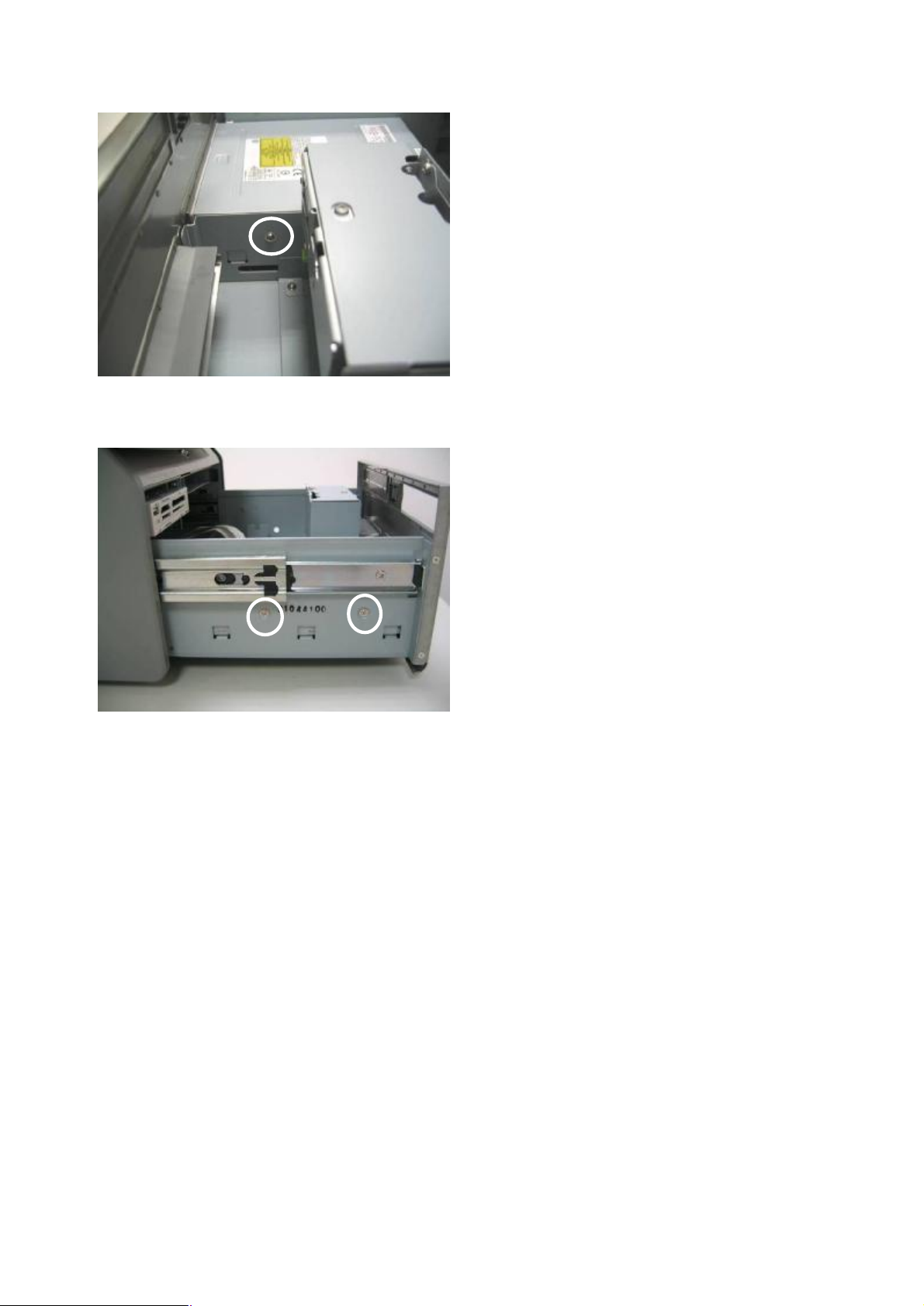

c. Slide the thermal printer box

towards the back of the system. Remove the other screw (1) on the right side of the DVD drive.

d. Remove the screws (2) on

the left side of the drive. Take the DVD-ROM drive out of the system.

Page 59

5.13 Removing the Main Modular Box

a. Disconnect the thermal

printer cable (1) and remove the screws (4).

b. Disconnect all the cables (4).

c. Open the main modular box.

Press the black plastic release levers on the rail mechanism and remove the main modular box from the system. The right side lever should be pressed downwards, and the left side lever should be pressed upwards.

Page 60

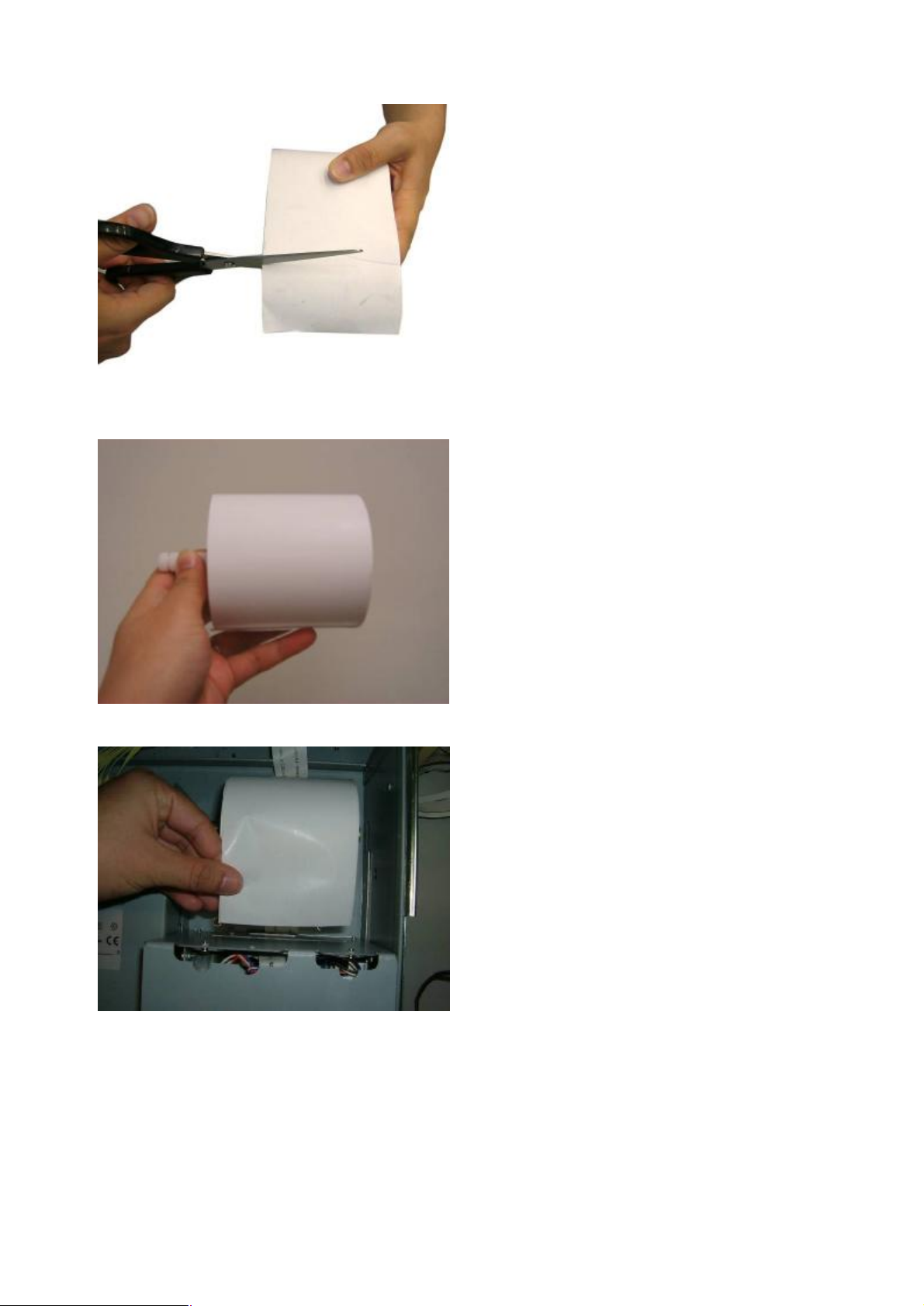

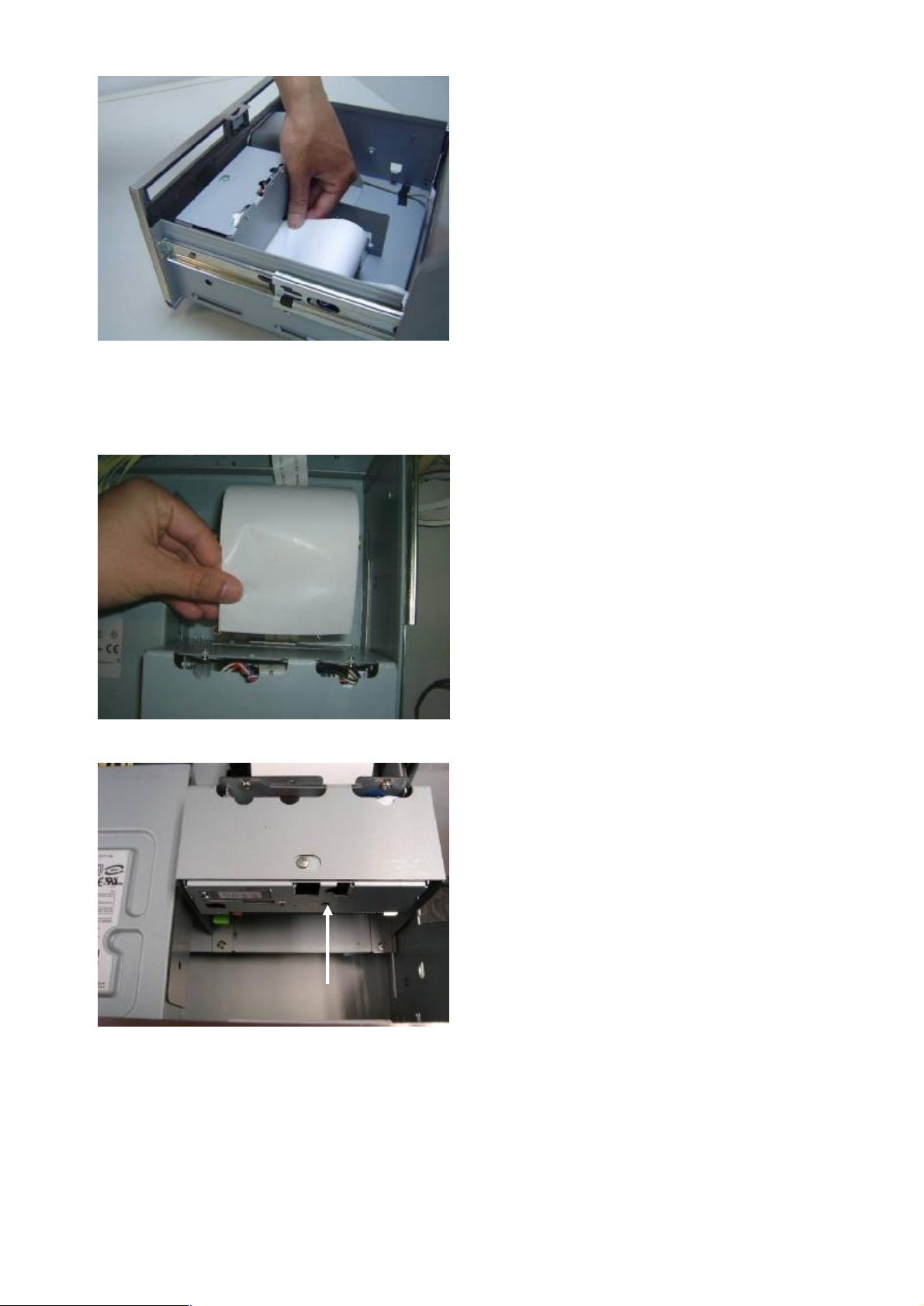

5.14 Loading the Thermal Printer Paper

You can load thermal printer paper through the main modular box. Do not switch off the system. The printer must be switched on when replacing the printer paper.

a. Use the key to unlock the

main modular box.

b. Pull out the main modular

box.

Notice: Do not pull the

printer cover as shown in the picture.

c. Slide the thermal printer

box towards to you.

Page 61

d. Cut away the first five (5)

cm of the paper, to obtain a straight edge and remove the label at the end of the roll.

e. Put the paper holder

through the paper roll.

f. Keep the paper flat to load

the paper into the printer slot. Do not fold the paper.

Page 62

g. The paper will feed

automatically through the printer (the system must be powered on).

5.15 Adjusting the Thermal Printer Paper

a. Keep the paper flat to load

the paper into the printer slot. Do not fold the paper.

b. Slide the thermal printer

box away from the drawer.

Page 63

c. Push the green button to

loosen the paper lock.

d. Pull the paper out of the

presenter. Keep the paper flat to load the paper into the presenter. Do not fold the paper.

e. Pull the black button up to

fix the paper location.

f. Slide the thermal printer

box towards the front of the drawer.

Page 64

Appendix A: Specification

Model Name K845 K847

Motherboard B81 B91

CPU Support

Chipset Intel 852GME + ICH4 Intel 945G + ICH7R

System Memory

Graphic Memory BIOS Award PnP

Storage Devices

HDD 1 X 3.5” HDD Drive Bay 1 X 3.5” SATA HDD Drive Bay

Expansion

PCI Slot N/A Mini-PCI Socket 1

LCD / Touch Panel

LCD Size 15” TFT 17” TFT Brightness (nits) Maximal Resolution 1024 x 768 1280 x 1024

P4 / Celeron processor

mP478-pin

2 x 240-pin DIMM socket up to 2

Shared System Memory

250 cd/㎡ 400 cd/㎡

P4 / Celeron processor LGA775

2 x 240-pin DIMM socket up to 4

GB DDR2 667/800 Mhz

Touch Screen Type Resistive / SAW (by request) Tilt Angle (Degrees)

External I / O Ports

Rear I / O

PS / 2 Keyboard 1 PS/2 Mouse 1 USB 4 (V1.1/V2.0) Serial/COM 4 (pin 1 / pin 9 with 5V / 12V) LAN (10 / 100) 1 2nd VGA Output 1 x female type connector with power Parallel 2 (12V/ 24V) 24V receipt print 1 Audio Jack N/A

Mic in N/A Internal Speaker 1W x2

Internal Interface

0° ~ 90°

USB USB 5/6 USB 7/8 COM COM5 for touch, COM6 for MSR 2nd VGA 1

Page 65

Audio CD-in, Line-in, Line-out, MIC

Operating Temperature

Control/ Indicator

Power Button 1

Power

Power Supply 250W ATX

Environment

EMC & Safety FCC, Class A, CE, LVD

5 ℃ ~ 35℃ (41℉ ~ 95℉)

Storage Temperature

-20℃ ~ 60℃ (-4℉ ~ 140℉) Operating Humidity 20% - 80% RH non condensing Storage Humidity 20% - 85% RH non condensing

Planar

Media

Main Modular Box

Card

Reader

3.5”

Media

Card

Reader

IrDA DVD-ROM

3” Thermal

printer

Slim

COMBO

P Type v v v v A Type v v v v B Type v v v C Type v v v v v

Optional Module

Smart Card Reader Half-Insert type Magnetic Card Reader

3 Tracks (RS-232 / PS2 interface) Customer Display VFD / LCD / Pole Display I-Button Dallas Key (PS2)

Laser

Scanner

ODD CD-ROM / COMBO ; Slim CD-ROM /DVD-ROM Wireless LAN USB Dongle Bluetooth USB Dongle, Class I/II Mini PCI Card Mini PCI SCSI Card, supported SCSI I 50 pins

Supports 3 x USB2.0 ports

USB Hub Board (Rear)

(either one option with Mini PCI SCSI card)

Dimensions

378~427 x 316 x 437~448 408~457 x 322 x 469~480

(W x D x H) mm

14.8~16.8x12.4x

16.0~17.9x12.6x

(W x D x H) in

17.2x17.6

18.4x18.8

Weight 13Kg / 28.6lbs 15KG/ 33lbs

Windows XP, WEPOS, XP Embedded, XP professional Embedded,

OS Support

WIN 2000 professional Embedded, WIN NT 4.0, Redhat 7.2

‧This specification is subject to change without prior notice.

Page 66

Appendix B: Jumper Settings & Connectors

Motherboard B91

Page 67

1. Jumper Setting:

1.1. Compact Flash Master/Slave Setting

Function JP12 (SHORT)

Master

Slave N/C

1.2. CMOS Operation Mode

Function JP11( SHORT)

CMOS Normal

CMOS Reset 1-2

1.3. Cash Drawer Power Setting

Function JP3 (SHORT)

Cash Drawer 1

Cash Drawer 2

1.4. COM1 Power Setting

+12 V

+24V 3-4

+12 V

+24V 7-8

◎1-2

◎N/C

◎1-2

◎5-6

Pin Function JP4 (SHORT)

1.5. COM2 Power Setting

Pin Function JP5(SHORT)

DCD#

+5V 3-4

+12V 5-6

RI#

+5V 9-10

+12V 11-12

DCD#

+5V 3-4

+12V 5-6

RI#

+5V 9-10

+12V 11-12

◎1-2

◎7-8

◎1-2

◎7-8

Page 68

SHORT

1.6. COM3 Power Setting

Pin Function JP7 (SHORT)

1.7. COM4 Power Setting

Pin Function JP6 (SHORT)

DCD#

◎1-2

+5V 3-4

+12V 5-6

RI#

◎7-8

+5V 9-10

+12V 11-12

DCD#

◎1-2

+5V 3-4

+12V 5-6

RI#

◎7-8

+5V 9-10

+12V 11-12

1.8. LCD ID Setting

Resolution

Number

1 1024 x 768 2 1280 x 1024 3 Reserve 4 Reserve

LVDS JP8 Panel

Bits Channel

24 Single N/A N/A

24 Dual N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

1.9. Second Display Power Setting

Function JP10 (SHORT)

+12V 1-2

1-2 3-4 5-6 7-8

OPEN

◎1

Page 69

1.10. Power Mode Setting

Function JP9 (SHORT)

ATX Power

AT Power 1-2

Note:

OPEN SHORT

◎N/C

Page 70

Motherboard B81

JP6

JP3

JP15

JP14

JP10

JP11

JP9

JP5

JP13

JP12

JP4 JP2 JP1

Page 71

1. Jumper Settings

1.CPU Frequency Setting ◎ Factory Default Setting

Function JP4 (SHORT)

FSB400 FSB533 3-4

2. Compact Flash Master/Slave Setting

Function JP3 (SHORT)

Master

Slave N/C

3. CMOS Operation Mode

Function JP6 (SHORT)

CMOS Normal

CMOS Reset 1-2

To clear the CMOS:

1) Remove AC power from the unit.

2) Open the cabinet.

3) Change the JP6 jumper setting from N/C to 1-2.

◎1-2, 3-4

◎1-2

◎N/C

4) Wait 1 minute.

5) Change the JP6 jumper setting back to N/C.

6) Close the cabinet.

7) Apply AC power and continue.

4. POWER USB Power Setting (Reserved)

Function JP14 (SHORT)

+24V 1-2 +12V 3-4

5. Cash Drawer Power Setting

Function JP8 (SHORT)

Cash Drawer 1

+12 V

+24V 3-4

Cash Drawer 2

+12 V

+24V 7-8

◎1-2

◎5-6

Page 72

6. COM1 Power Setting

Pin Function JP9(SHORT)

7. COM2 Power Setting

Pin Function JP11(SHORT)

DCD#

◎1-2

+5V 3-4

+12V 5-6

RI#

◎7-8

+5V 9-10

+12V 11-12

DCD#

◎1-2

+5V 3-4

+12V 5-6

RI#

◎7-8

+5V 9-10

+12V 11-12

8. COM3 Power Setting

Pin Function JP10(SHORT)

9. COM4 Power Setting

Pin Function JP12(SHORT)

DCD#

◎1-2

+5V 3-4

+12V 5-6

RI#

◎7-8

+5V 9-10

+12V 11-12

DCD#

◎1-2

+5V 3-4

+12V 5-6

RI#

◎7-8

+5V 9-10

+12V 11-12

Page 73

SHORT

10. CPU Voltage Setting

CPU Type JP1 (SHORT) JP2 (SHORT)

◎P4

P4-M (1.3V) N/C 3-4, 9-10

11. LCD ID Setting

Resolution

Number

0 640 x 480 1 800 x 600 2 1024 x 768 3 1280 x 1024 4 1024 x 768 5 800 x 600

Bits Channel

18 Single

24 Dual

24 Single

12. Second Display Power Setting

1-2, 3-4, 5-6, 7-8, 9-10, 11-12 N/C

LVDS JP5 Panel

1-2 3-4 5-6 7-8

SHORT

OPEN OPEN OPEN OPEN

OPEN OPEN

OPEN

Function JP15 (SHORT)

+12V 1-2

N/C

13. Power Mode Setting

Function JP13 (SHORT)

ATX Power

AT Power 1-2

Note:

OPEN SHORT

◎1

◎N/C

Page 74

Appendix C: BIOS Settings

1. BIOS Setup Utility

The BIOS setup defines how the system is configured. You need to run this program the first time you configure this product. You may need to run it again if you change the configuration. You need to connect a PC keyboard to the keyboard connector to run the BIOS setup utility.

2. Starting the BIOS Setup

1. Turn on or reboot this product.

2. Press the DEL key immediately after the product is turned on, or press the DEL key when the following message is displayed during POST (the Power on Self-Test).

Press DEL to enter SETUP.

3. The main menu of the BIOS setup is displayed.

4. If the supervisor password is set, you must enter it here.

3. When a Problem Occurs

If, after making and saving system changes with the Setup utility, you find that this product no longer boots, start the BIOS setup and execute the following.

Load Optimized Defaults

4. BIOS Main Menu

When the BIOS Main Menu is displayed, the following items can be selected. Use the

arrow keys to select items and the Enter key to accept and enter the sub-menu.

Page 75

Note: The BIOS menu below is from B81 BIOS version B81FV10D.BIN. If you have a different BIOS version, the contents of the menu may different.

Standard CMOS Features

This setup page includes the standard CMOS features.

Advanced BIOS Features

This setup page includes the enhanced AWARD BIOS features.

Advanced Chipset Features This setup page includes the Chipset features

Integrated Peripherals

Change, set, or disable on board super I/O functions.

Power Management setup

This category determines the system power consumption of the system.

PNP/PCI Configurations

This category specifies the value (in units of PCI bus clocks) of the latency timer for the PCI bus master and the IRQ level for PCI devices.

PC health status

This page shows hardware monitor information.

Load Optimized Defaults

Page 76

BIOS defaults indicate the most appropriate value of the system parameters for a standard system performance. .

Set Supervisor Password

Change, set, or disable password. It allows the supervisor to change BIOS settings.

Set Password

Change, set, or disable the password. It allows you to limit access to the system and to the setup, or just to the setup.

Save & exit setup

Save CMOS value changes to CMOS and exit setup.

Exit without saving

Discard all CMOS value changes and exit setup.

Page 77

Appendix D: EPSON-BA-500 Thermal Printer DIP

DSW2

DSW

1 Printer Control board

Switch settings

1. DIP Switches

There are two DIP switches on the printer control board, which is mounted on the rear panel of the system. To access the switches, please follow the instructions below

a. Remove the thermal printer cable

and loosen the four rear panel screws. Remove the panel.

b. The two DIP switches are located in

the top right part of the printer control board.

The DIP switch number is printed on the board.

c. The illustration shows the layout of

the DIP switches.

Page 78

2. DIP Switch 1 (DSW1)

Factory

Function ON OFF

No.

setting 1 Black Mark sensor Enabled Disabled Off 2 Off

Interface selection Refer to Table 2.1.

Off

DTR/DSR or

4 Serial interface handshaking XON/XOFF

Off (*1)

CTS/RTS

5 Serial interface parity check Yes No Off (*1)

Serial interface parity

Even Odd Off (*1)

selection

7 Off (*1)

Serial interface baud rate

Refer to Table 2.2.

selection

Off (*1)

(*1) Effective only when the serial interface is selected.

Table 2.1 Interface Selection

Interface

Switch number

2 3

Parallel interface (IEEE 1284)

Off Off Serial interface (RS-232) Off On Optional interface On On or Off

Table 2.2 Baud Rate Selection

Switch number

Transmission Speed (bps)

7 8 4800 On On 9600 Off On 19200 On Off 38400 Off Off bps: bits per second

Page 79

3. DIP Switch 2 (DSW2)

Function ON OFF

No.

1 On

Model type selection Refer to Table 3.1

2 3 Off

Print density selection Refer to Table 3.2

4 5 Operation mode selection Refer to Table 3.3 Off 6 Factory use Off 7 I/F pin 6 reset signal-1 Enabled Disabled Off 8 I/F pin 6 reset signal-2 Enabled Disabled Off

Table 3.1 Model selection

Switch Number

Model

1 2 M-T540 (82.5 mm paper-width model) (640 dots, 3.25") Off Off M-T530 (79.5 mm paper-width model) (576 dots, 3.15") (*1) On Off

Factory

setting

Off

M-T520 (60 mm paper-width model) (448 dots. 2.36") Off On M-T510 (58 mm paper-width model) (432 dots. 2.28") On On (*1) The K84x is supplied with the M-T530 printer

Table 3.2 Print Density Selection

Level Print Density 1 Slightly Light On On

2 Normal Off Off 3 Slightly dark On Off 4 Dark Off On

Table 3.3 Operation Mode Selection

Switch Number

Operation mode Hexadecimal dump Off

Switch Number

3 4

Normal Off
