Flytech B77 Technical Manual

POS 43X Series

B77

User Manual

P/N: 48201090 2006 August V1.0

Point-of-Sale

Hardware System

Manual Version 1.0

The information contained in this document is subject to change without notice.

We make no warranty of any kind with regard to this material, including, but not limited to,

the implied warranties of merchantability and fitness for a particular purpose. We shall not

be liable for errors contained herein or for incidental or consequential damages in

connection with the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are

reserved. No part of this document may be photocopied, reproduced or translated to

another language without the prior written consent of the manufacturer.

TRADEMARK

Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation. Microsoft®

and Windows® are registered trademarks of Microsoft Corporation. ELO Touch is the

registered trademark of ELO Touch Systems.

2

Safety

IMPORTANT SAFETY INSTRUCTIONS

1. To disconnect the machine from the electrial power supply, turn off the power switch

and remove the power cord plug from the wall socket. The wall socket must be easily

accessible and in close proximity to the machine.

2. Read these instructions carefully. Save these instructions for future reference.

3. Follow all warnings and instructions marked on the product.

4. Do not use this product near water.

5. Do not place this product on an unstable cart,stand,or table.The product may fall,

causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation;to

ensure reliable operation of the product and to protect it from overheating. These

openings must not be blocked or covered.The openings should never be blocked by

placing the product on a bed, sofa, rug, or other similar surface.This product should

never be placed near or over a radiator or heat register,or in a built-in installation

unless proper ventilation is provided.

7. This product should be operated from the type of power indicated on the marking

label.If you are not sure of the type of power available, consult your dealer or local

power company.

8. Do not allow anything to rest on the power cord.Do not locate this product where

persons will walk on the cord.

9. Never push objects of any kind into this product through cabinet slots as they may

touch dangerous voltage points or short out parts that could result in a fire or electric

shock.Never spill liquid of any kind on the product.

CE MARK

This device complies with the requirements of the EEC directive

89/336/EEC with regard to “Electromagnetic compatibility” and 73/23/EEC

“Low Voltage Directive”.

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received, including interference that may

cause undesired operation.

3

CAUTION ON LITHIUM BATTERIES

There is a danger of explosion if the battery is replaced incorrectly. Replace only with the

same or equivalent type recommended by the manufacturer. Discard used batteries

according to the manufacturer’s instructions.

LEGISLA TION AND WEEE SYMBOL

2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components.

The crossed dustbin symbol on the device means that it should not be disposed of with

other household wastes at the end of its working life. Instead, the device should be taken

to the waste collection centers for activation of the treatment, collection, recycling and

disposal procedure.

To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate this from other types of wastes and recycle it responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or

their local government office, for details of where and how they can take this item for

environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the

purchase contract.

This product should not be mixed with other commercial wastes for disposal.

4

Table of Contents

1. Item Checklist......................................................................................................6

2. System View........................................................................................................6

3. Driver Installation.................................................................................................8

3.1. Driver List.........................................................................................................8

3.2. Chipset Driver Installation ................................................................................8

3.3. USB 2.0 Driver Installation ...............................................................................9

3.4. VGA Driver Installation ...................................................................................12

3.5. Audio Driver Installation .................................................................................13

3.6. ELO Touch Screen Driver Installation ............................................................ 14

3.7. POSTouch Touch Driver Installation............................................................... 16

3.8. LAN Driver Installation ...................................................................................18

4. Peripherals Installation ...................................................................................... 19

4.1. Customer Display Installation.........................................................................19

4.2. Cash Drawer Installation ................................................................................23

5. System Disassembly .........................................................................................25

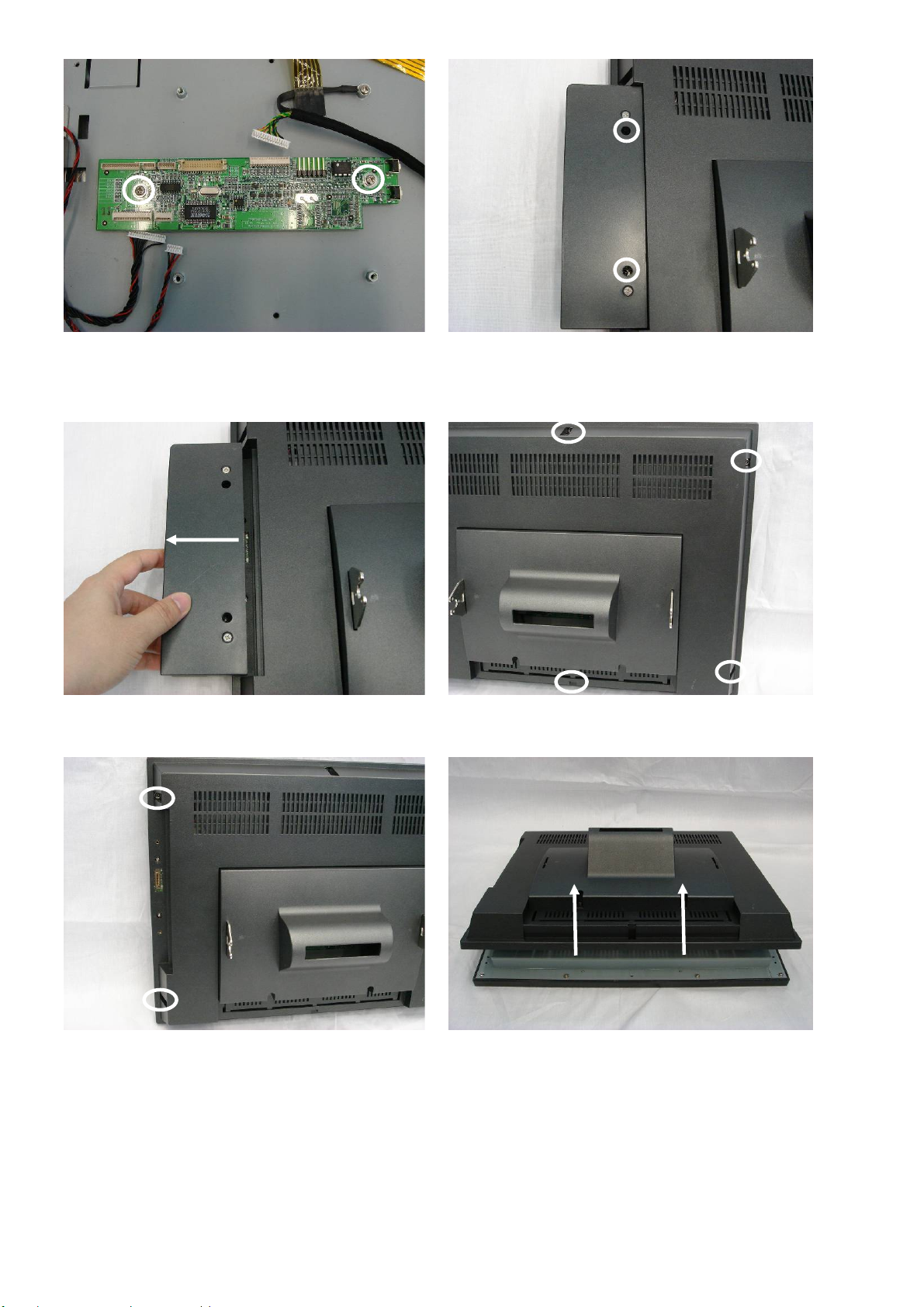

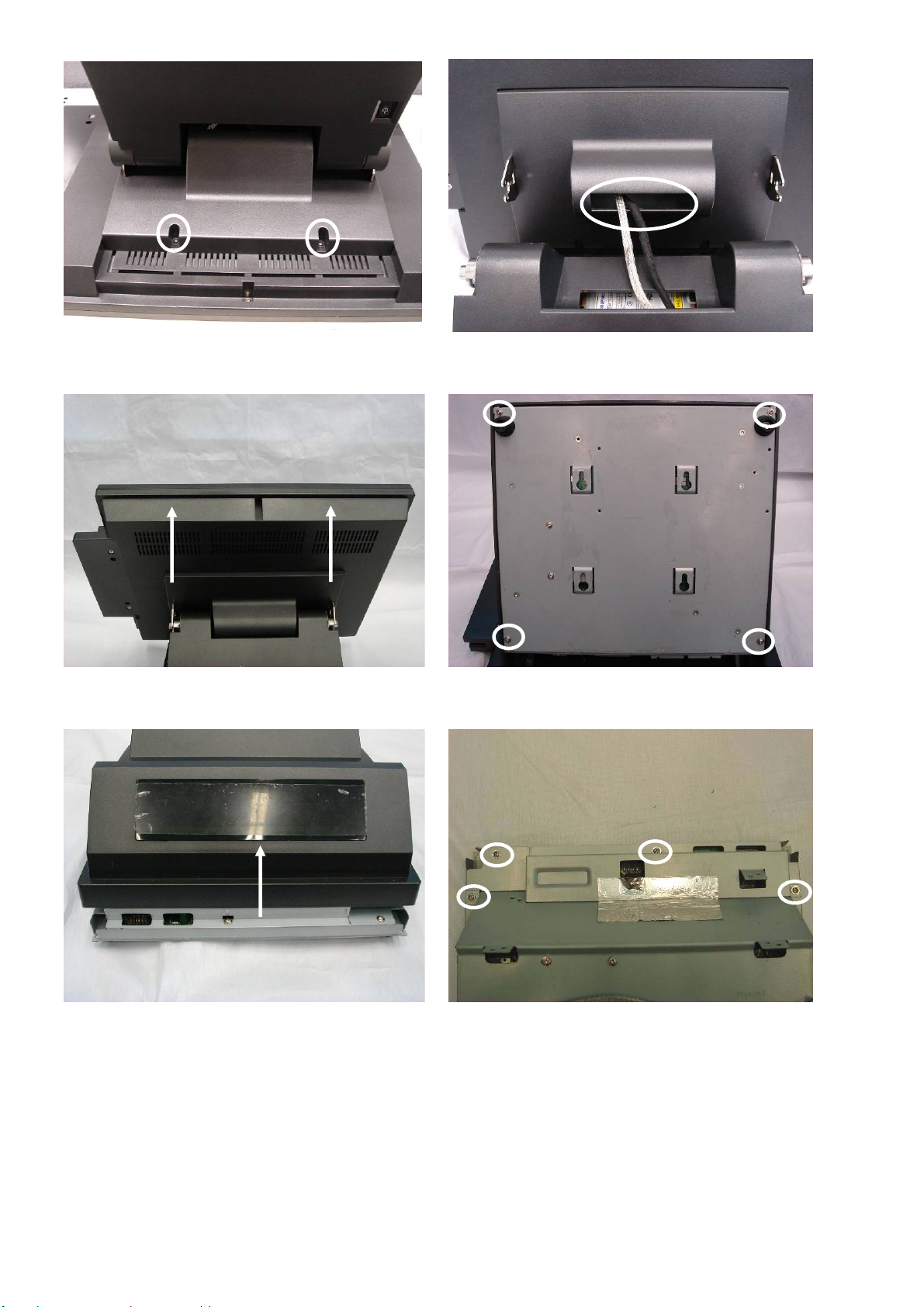

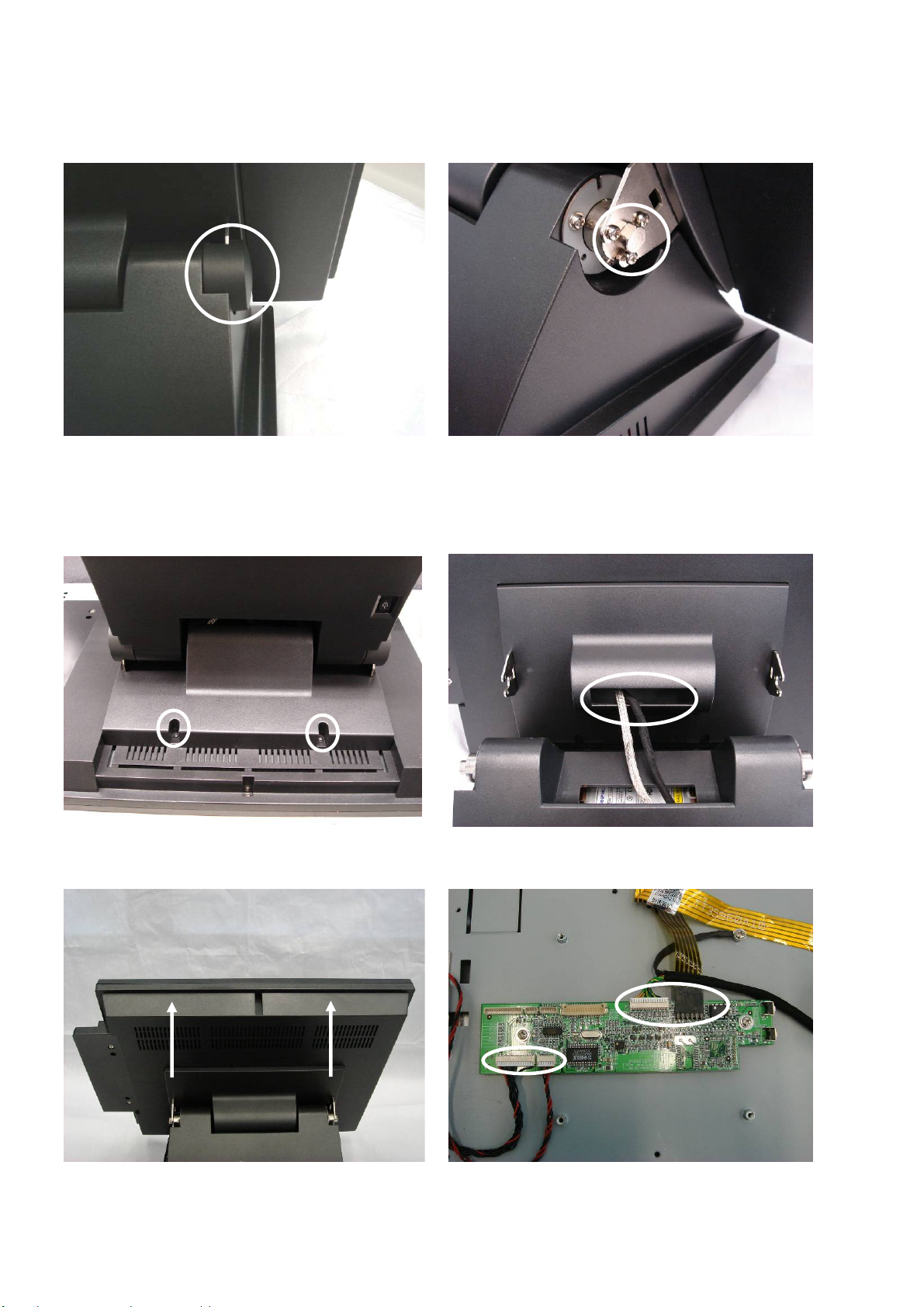

5.1. Replace the Touch Board, Inverter Board and MSR Board............................25

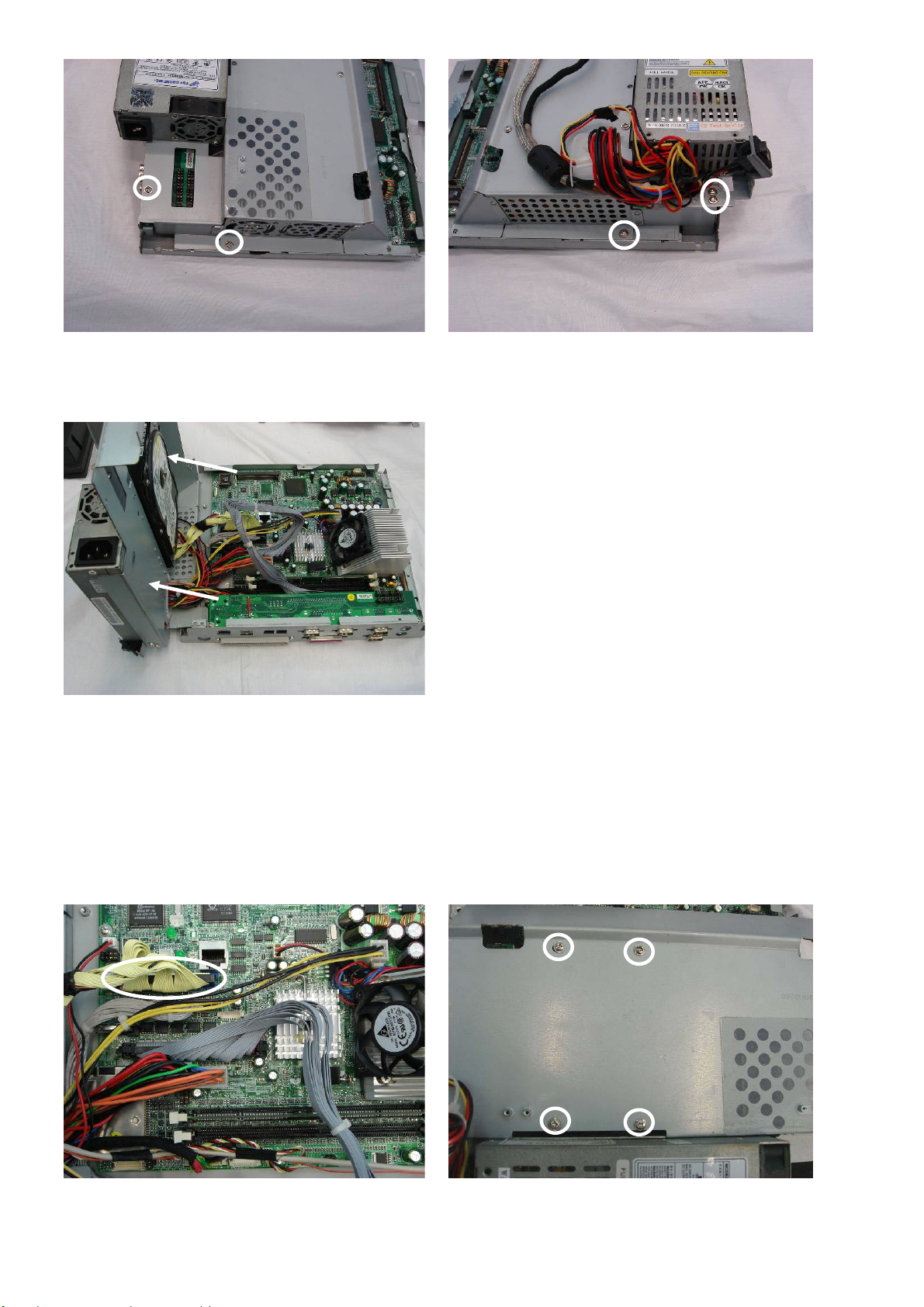

5.2. Open the Back Bracket ..................................................................................27

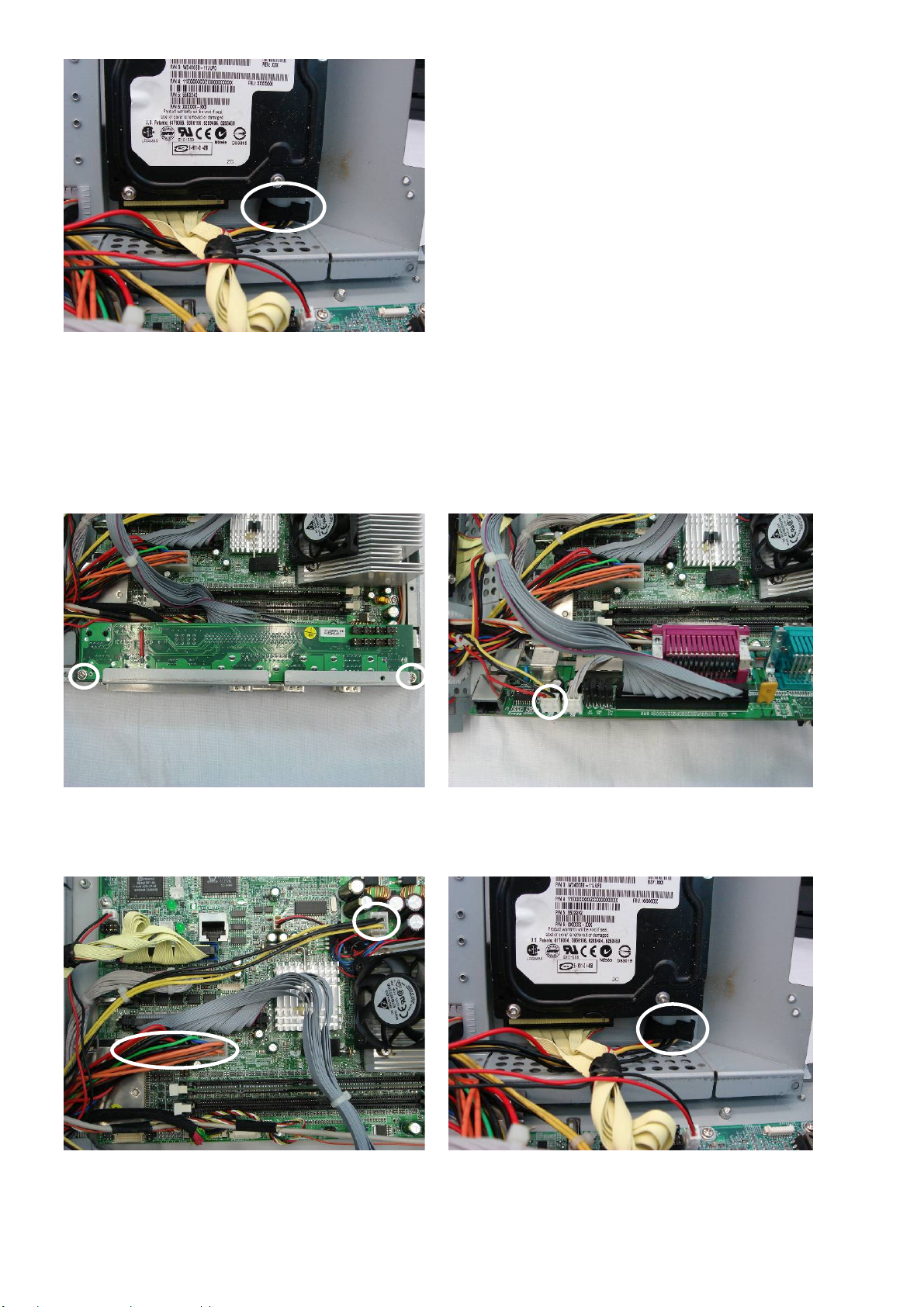

5.3. Replace the HDD ...........................................................................................29

5.4. Replace the Power Supply.............................................................................30

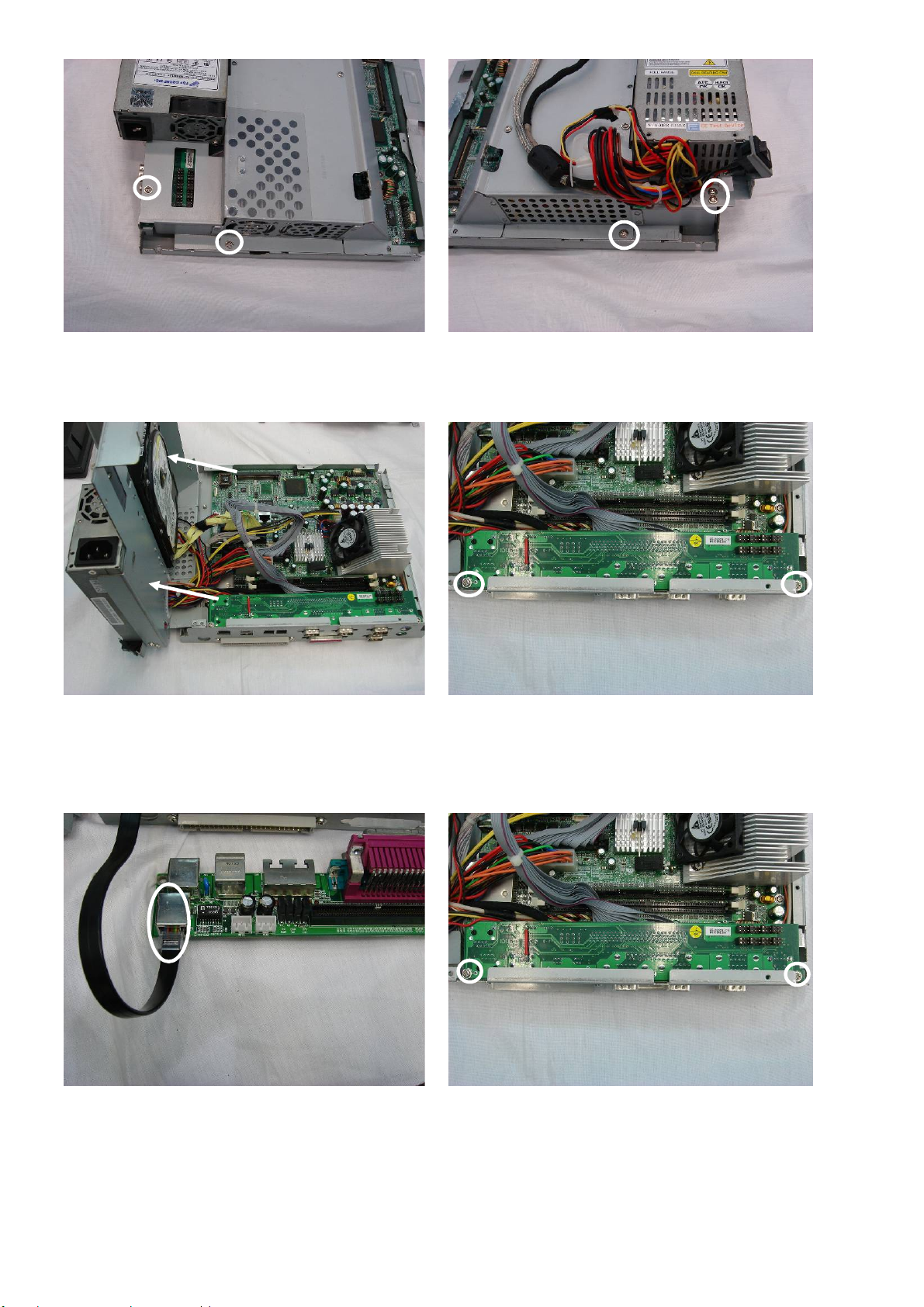

5.5. Replace the Motherboard...............................................................................31

6. Specification ......................................................................................................33

7. Connectors & Jumper Settings.......................................................................... 35

8. BIOS Settings....................................................................................................39

1. Item Checklist

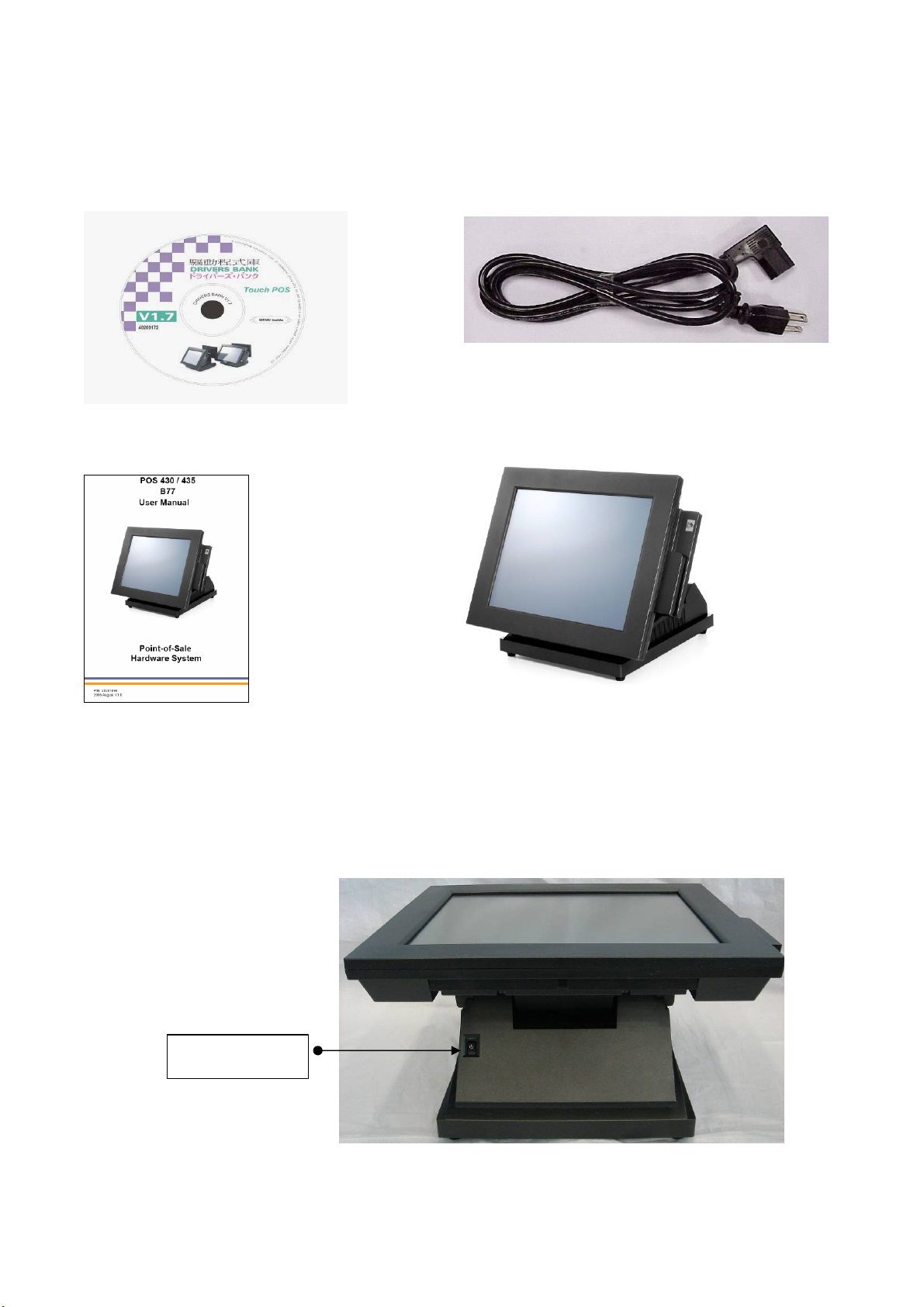

Take out the system unit from the carton. Remove the unit by carefully clutching the

foam inserts and remove slowly to protect the system. The following contents should

be found in the carton:

a. Drivers Bank b. Power Cable

c. User Manual d. System

2. System View

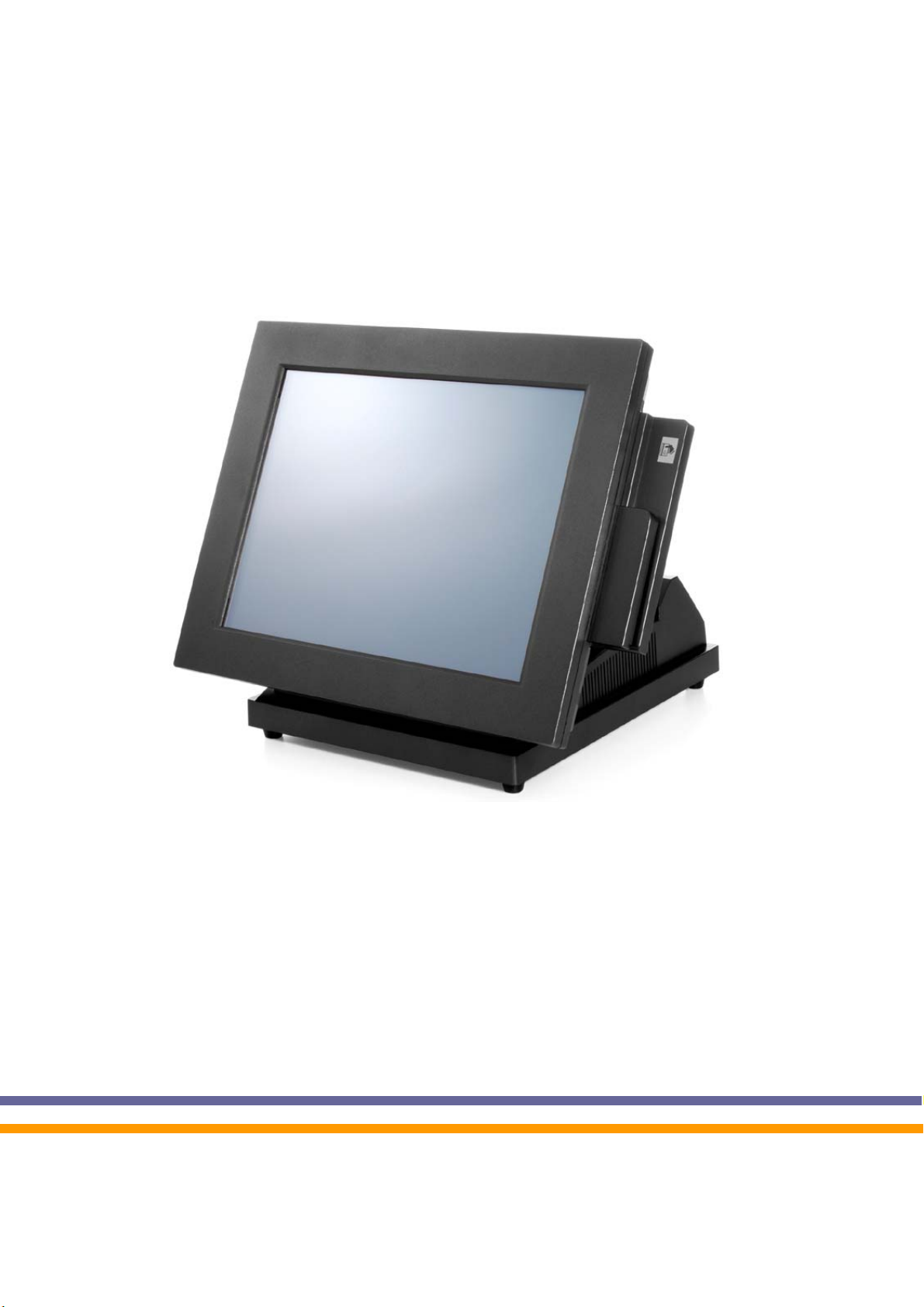

2.1. Front View

Power Switch

/ 41

6

2.2 Side View

Magnetic Card Reader

Customer Display

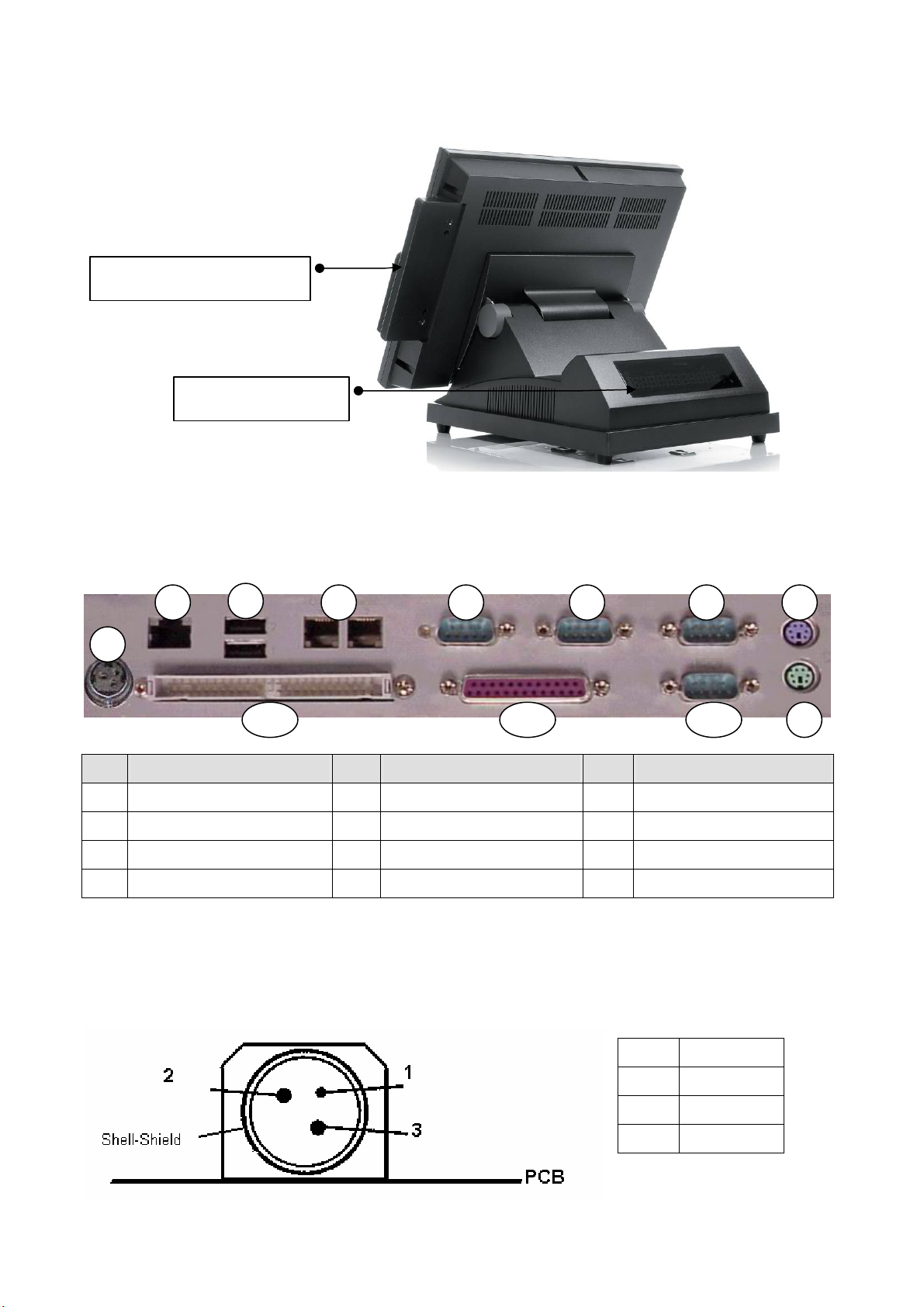

2.2. Rear View

2

3

1

1112

NO Function NO Function NO Function

1 DC Output 24V (Option) 5 COM1 9 PS/2 Mouse

2 LAN 6 COM2 10 COM3

3 USB1&2 7 COM4 11 LPT

4 Cash Drawer 1&2 8 PS/2 Keyboard 12 IDE

Note: The maximum current that can be drawn from each COM port is 500 mA.

Note: DC Output 24 V Pin Assignment

654

10

87

9

/ 41

7

Pin Assignment

1 NC

2 + 24V DC

3 Ground

3. Driver Installation

3.1. Driver List

Folder/File File Description

<CD>:\B77.htm B77 Driver List

<CD>:\COMMON\INTEL\Chipset Chipset Driver

<CD>:\COMMON\INTEL\USB 20 USB 2.0 Driver

<CD>:\COMMON\INTEL\VGA\i85x VGA Driver

<CD>:\COMMON\Ac97_codec\Realtek\ALC202A Audio Driver

<CD>:COMMON\ELO_Touch ELO Touch Screen Driver

<CD>:\COMMON\POS_Touch POSTouch Screen Driver

<CD>:\COMMON\Lan_driver\R8139_810x 10/100Mb LAN Driver

-The following procedures are for Windows 2000/XP, other platforms are similar.

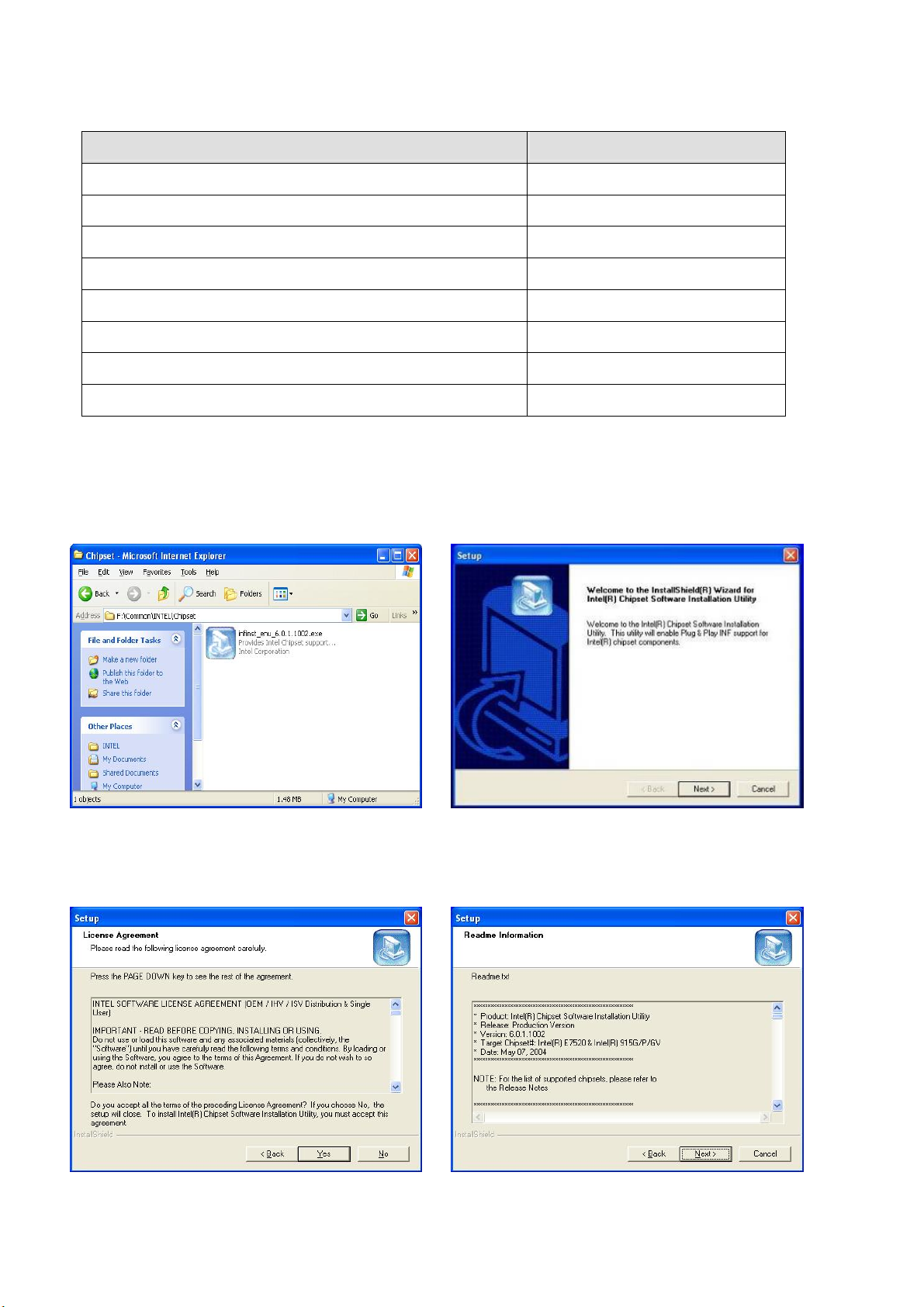

3.2. Chipset Driver Installation

a. Double click “infinst_enu_6.0.1.1002”

on the My computer window.

c. Click the “Yes” button on the License

Agreement window.

/ 41

b. Click the “Next” button on the

Welcome window.

d. Click the ”Next” button on the Readme

Information window.

8

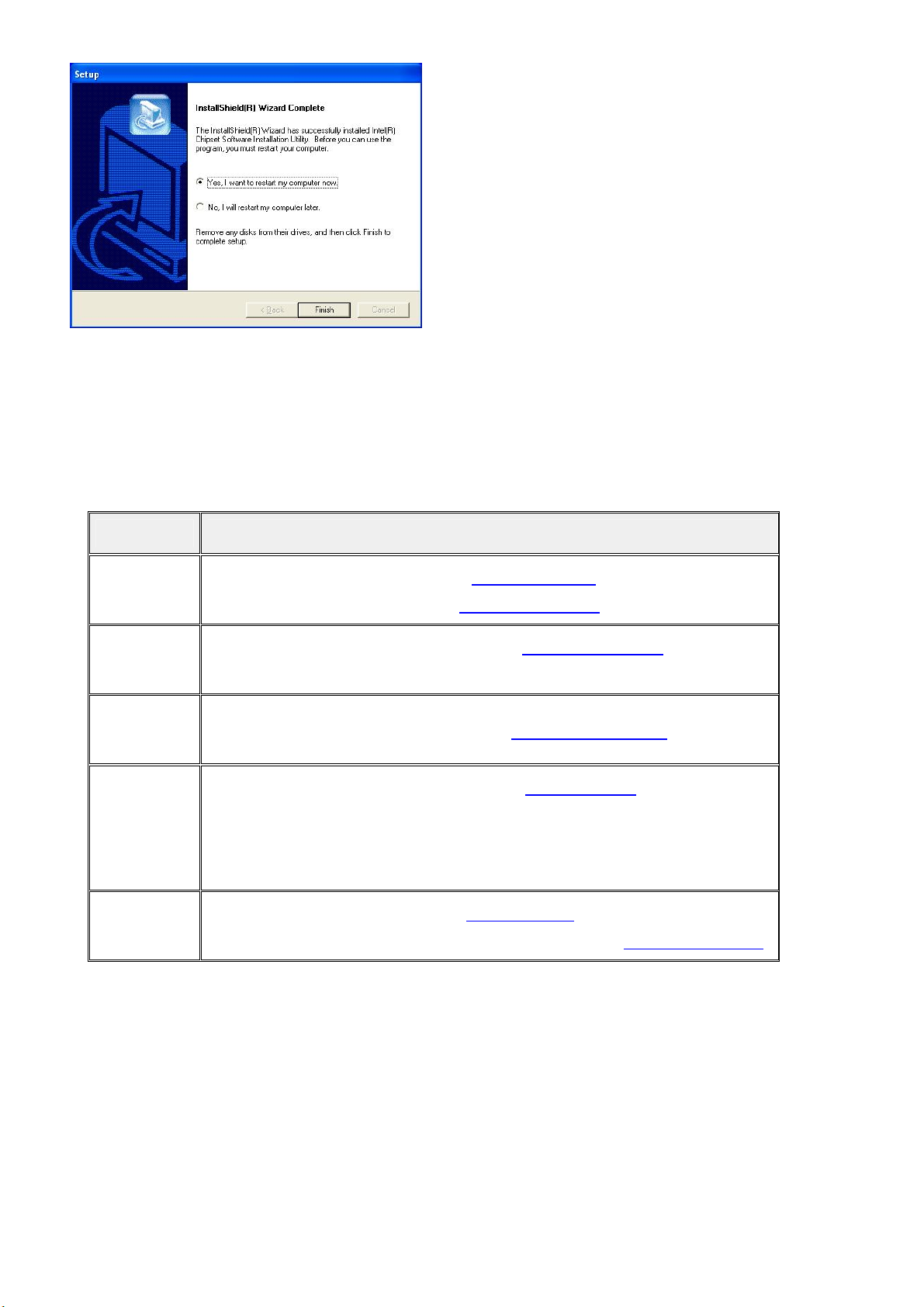

e. Click the “Finish” button and restart

your system.

3.3. USB 2.0 Driver Installation

OS Requirements

OS USB 2.0 requirements

Windows

XP

Windows

2000

Windows

98SE/Me

USB 2.0 drivers are provided in Service Pack 1 (SP1) for Windows

XP, which is available through Windows Update.

USB 2.0 drivers are available through Windows Update or Service

Pack 4.

USB 2.0 drivers are available on the Intel developer site.

Developers and OEMs should contact Orange Ware. For end-users,

Windows

98 (Retail)

if your device does not ship with Windows 98 drivers, contact your

device or system manufacturer. If USB 2.0 drivers are not available,

your device will operate at USB 1.1 speeds

USB 2.0 support is available in kernel 2.4.19 or later development

Linux

kernels, or in the 2.4.19 or later production kernel. More information.

/ 41

9

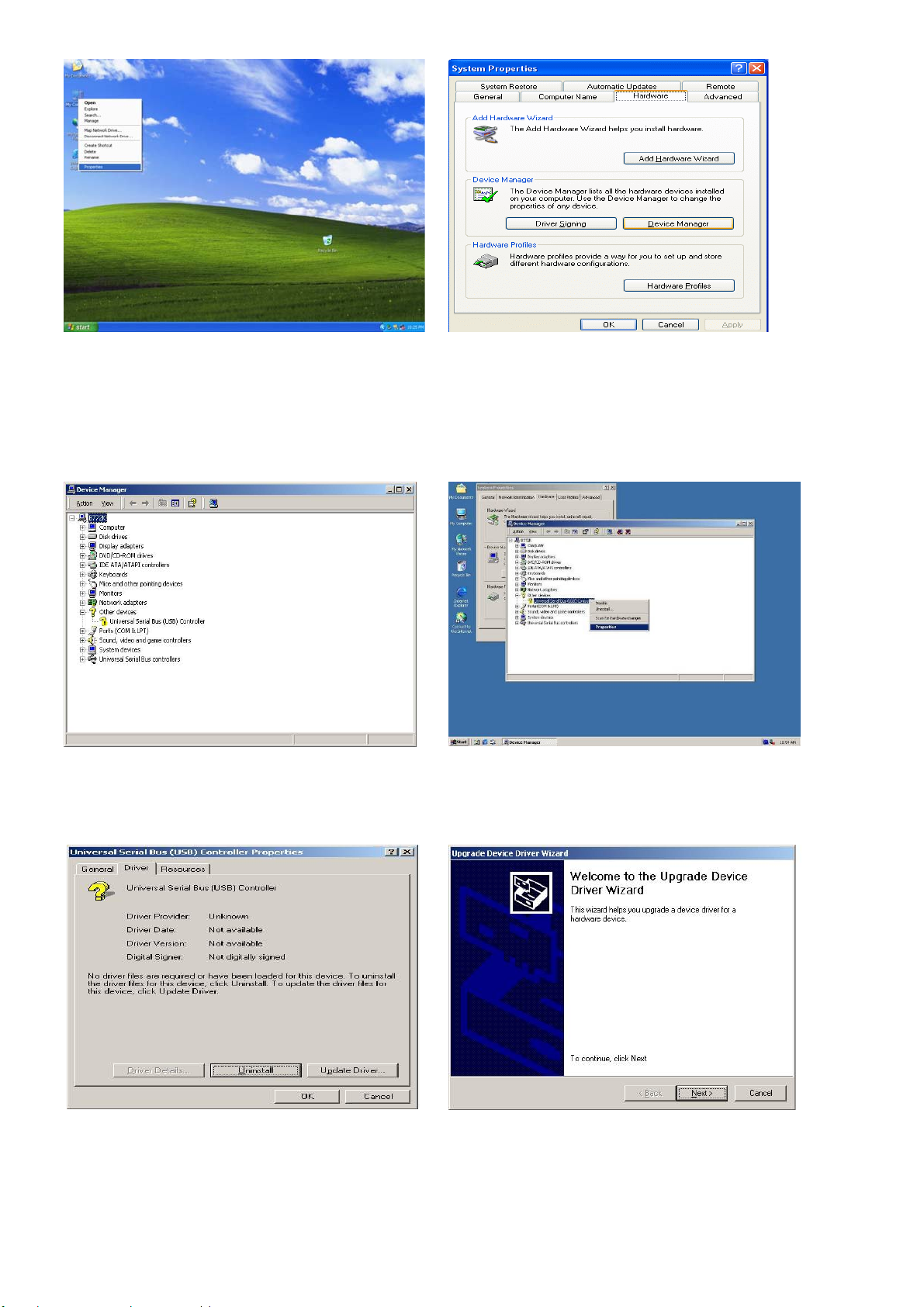

a. Right click My Computer on the

windows desktop and select

b. Select “Hardware”Æ”Device Manager”

on system properties.

“properties”

c. Select ”Other Devices” Æ “Universal Serial Bus (USB) Controller” Æ”Properties” on

Device Manager.

d. Select “Device”Æ “Update Driver…”. e. Click the ”Next” button on the welcome

window.

/ 41

10

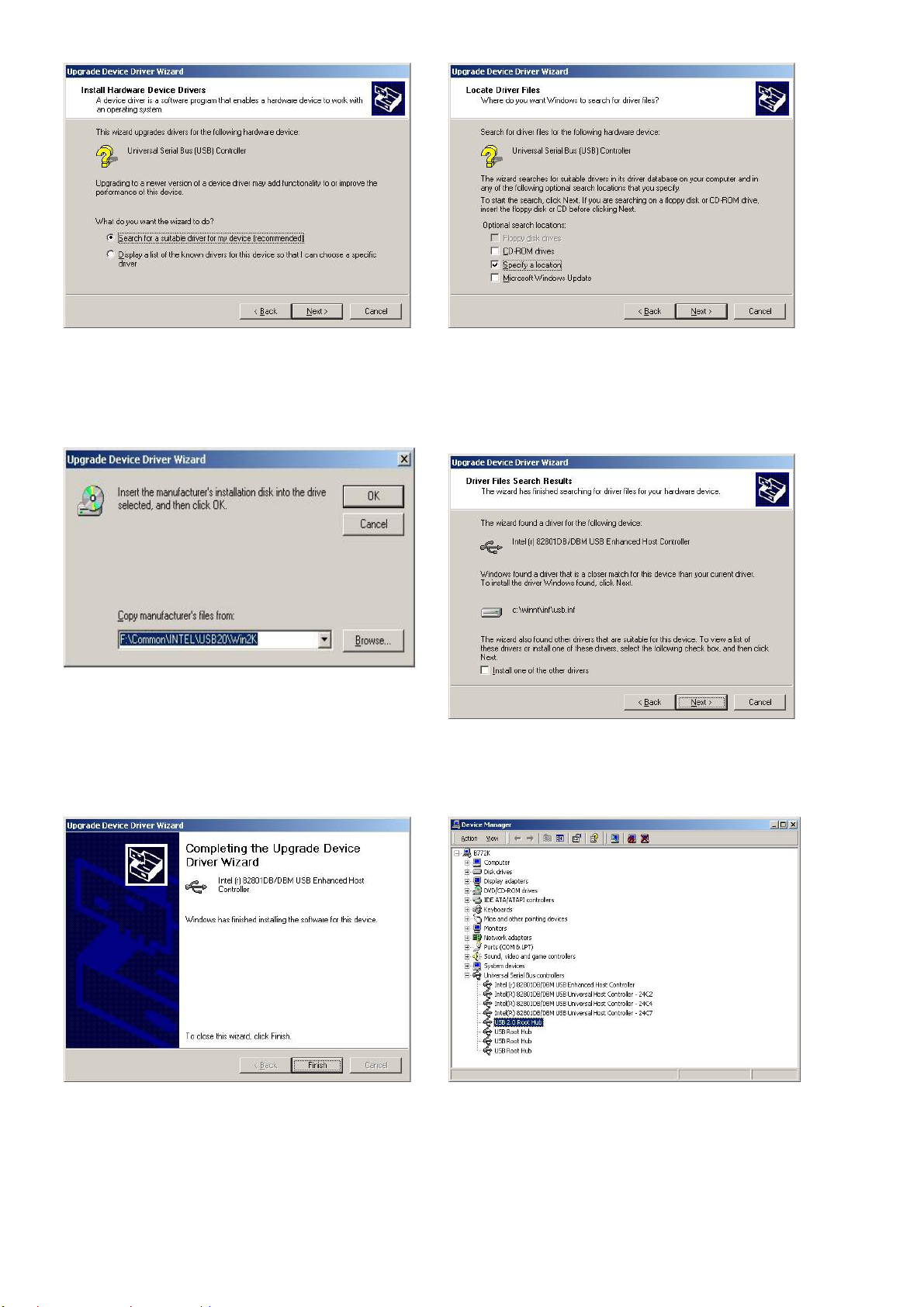

f. Select “Search for a suitable…”and

click the “Next” button on the Install

Hardware Device Drivers window.

g. Select “Specify a location” and click the

“Next” button on the Locate Driver Files

window.

h. Press “Browse” to select driver and

then click the “OK” button to next page.

i. Click the “Next” button on Driver Files

Search Results window.

j. Click the “Finish” button to complete

k. Finished.

this process.

/ 41

11

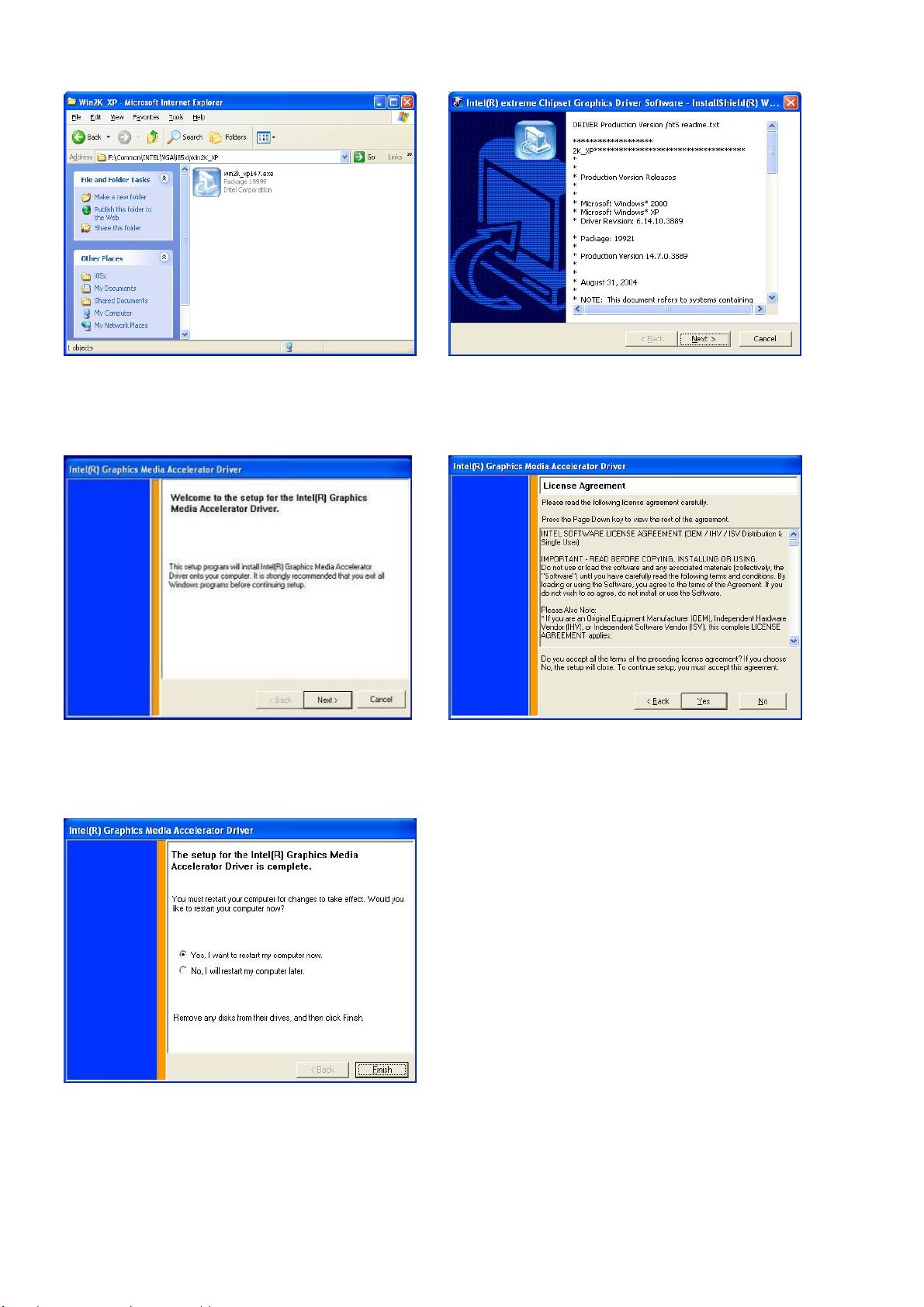

3.4. VGA Driver Installation

a. Double click “win2k_xp147” on the My

Computer window.

c. Click the ”Next” button on the Welcome

window.

b. Click the “Next” button on the Welcome

window.

d. Click the ”Yes” button on the License

Agreement window.

e. Click the ”Finish” button and restart your

system.

/ 41

12

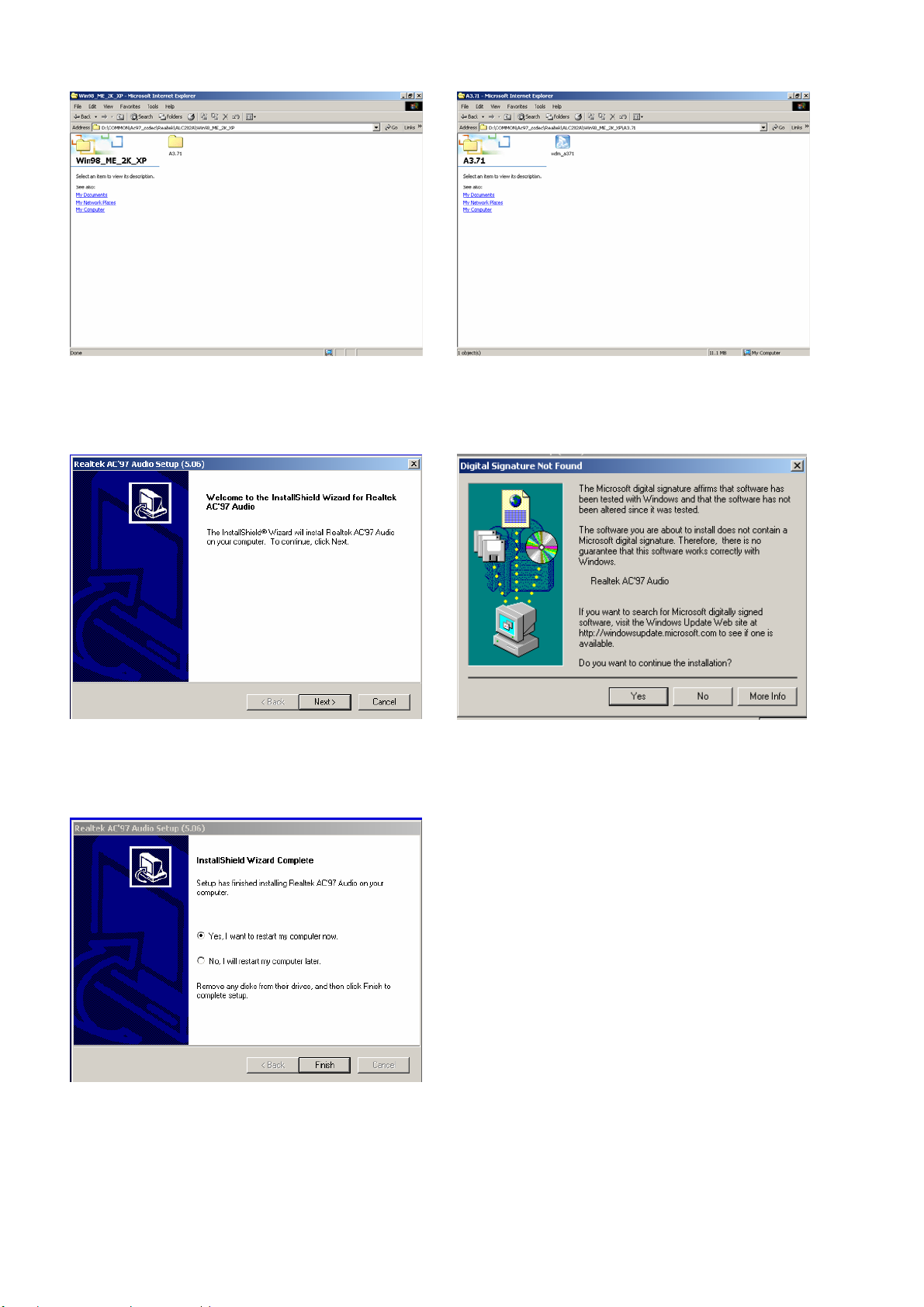

3.5. Audio Driver Installation

a. Click “A3.71” on the My Computer

window.

c. Click “Next” button on the Realtek

AC’97 Audio Setup window.

b. Double click “wdm_a371” on the My

Computer window.

d. Click “Yes” button on the Digital

Signature Not Found window.

e. Click “Finish” button on the Realtek

AC’97 Audio Setup window.

/ 41

13

3.6. ELO Touch Screen Driver Installation

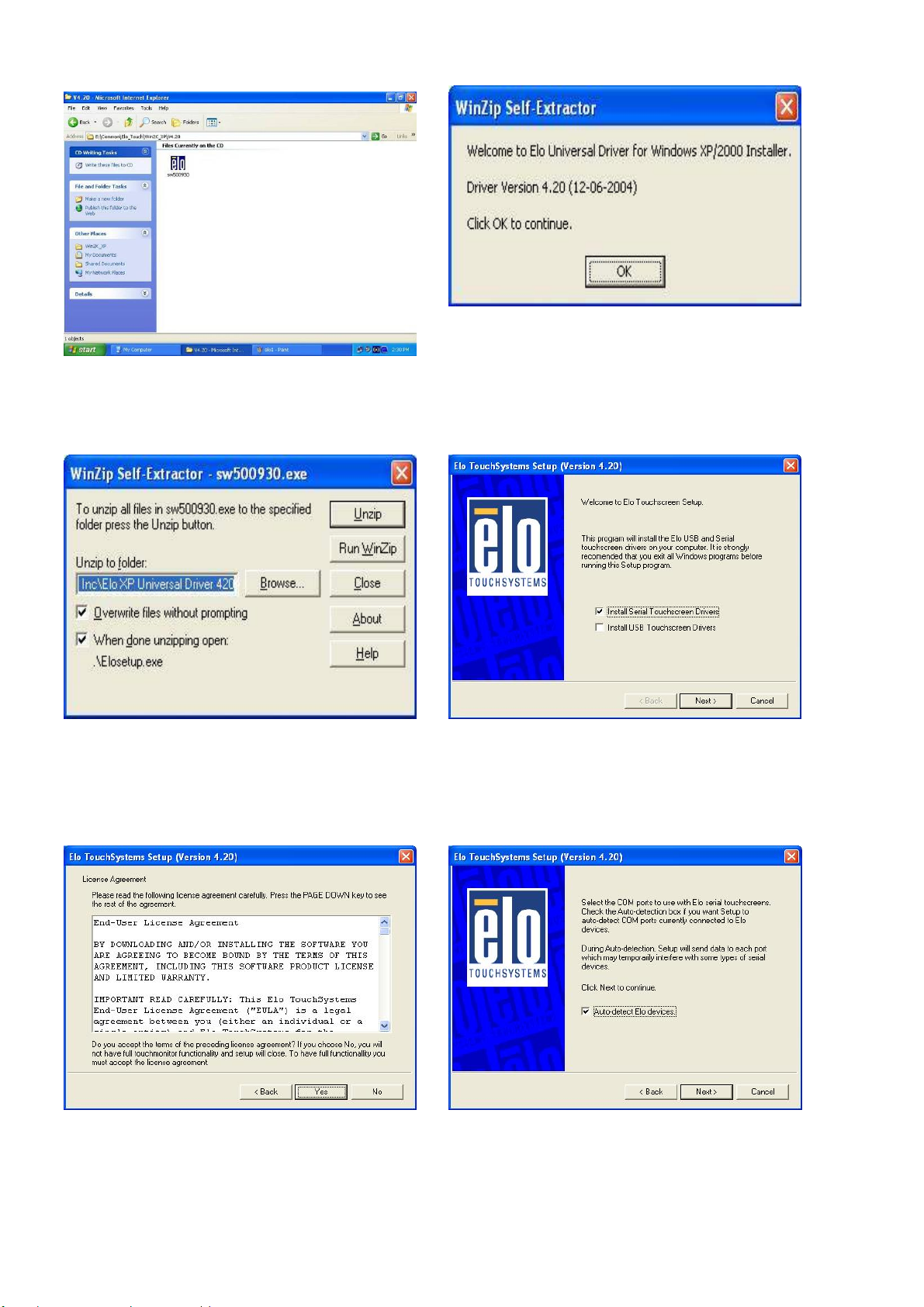

a. Click ”sw500930” on the My computer

window.

c. Click the ”Unzip” button on the WinZip

Self-Extractor window.

b. Click the “OK” button on the Welcome

window.

d. Select “Install Serial Touchscreen

Drivers” and then click the “Next” button

on the Welcome window.

e. Click the “Yes” button on the License

Agreement window.

/ 41

f. Click the “Next” button on the on the

“Select the COM ports…” window.

14

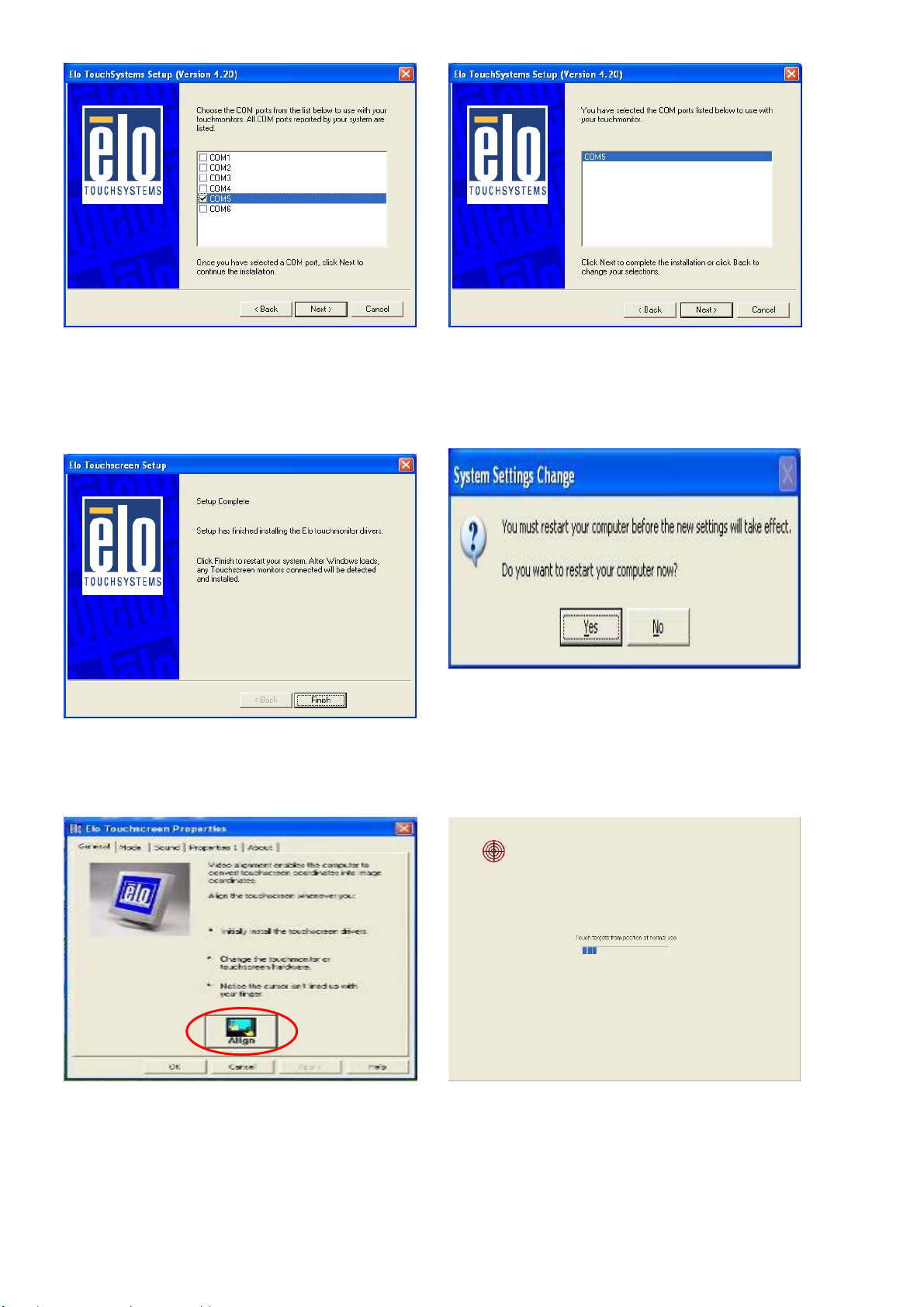

g. Select “COM5” and click the “Next”

button on the Choose the COM ports…

h. Click the “Next” button on the You have

selected the COM ports…window.

window.

i. Click the “Finish” button on the Setup

Complete window

j. Click the “Yes” button and restart your

system.

k. After the computer restarted, click

l. Calibrate three red points.

“Align” on the Elo Touchscreen

Properties window.

/ 41

15

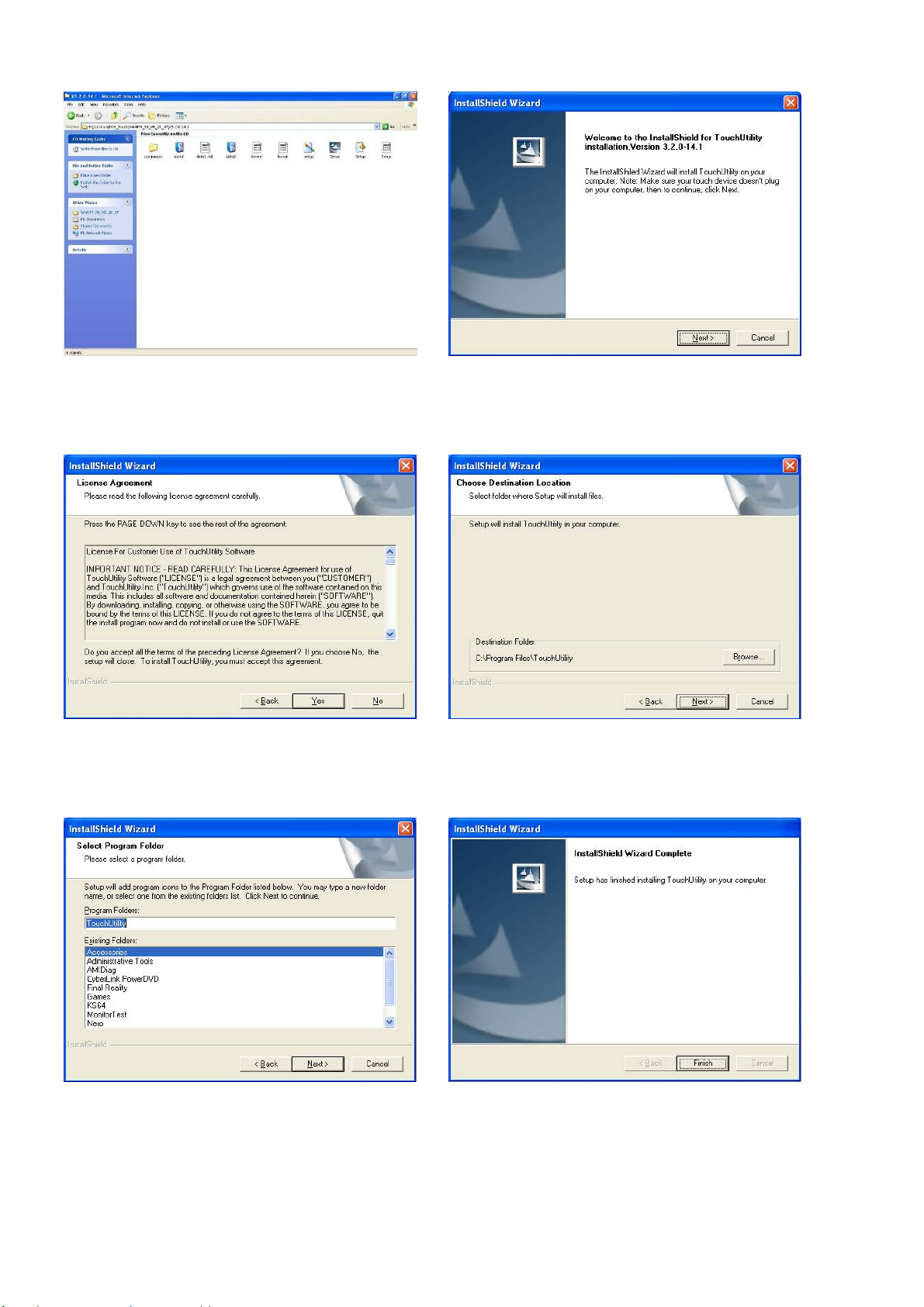

3.7. POSTouch Touch Driver Installation

a. Double click ”Setup” on the My

computer window.

c. Click ”Yes” button on the License

Agreement window.

b. Click the “Next“ button on the Welcome

window.

d. Click ”Next” button on the Choose

Destination Location window.

e. Click the “Next” button on the Select

Program Folder window.

/ 41

f. Click the “Finish” button on the

16

InstallShield Wizard Complete window.

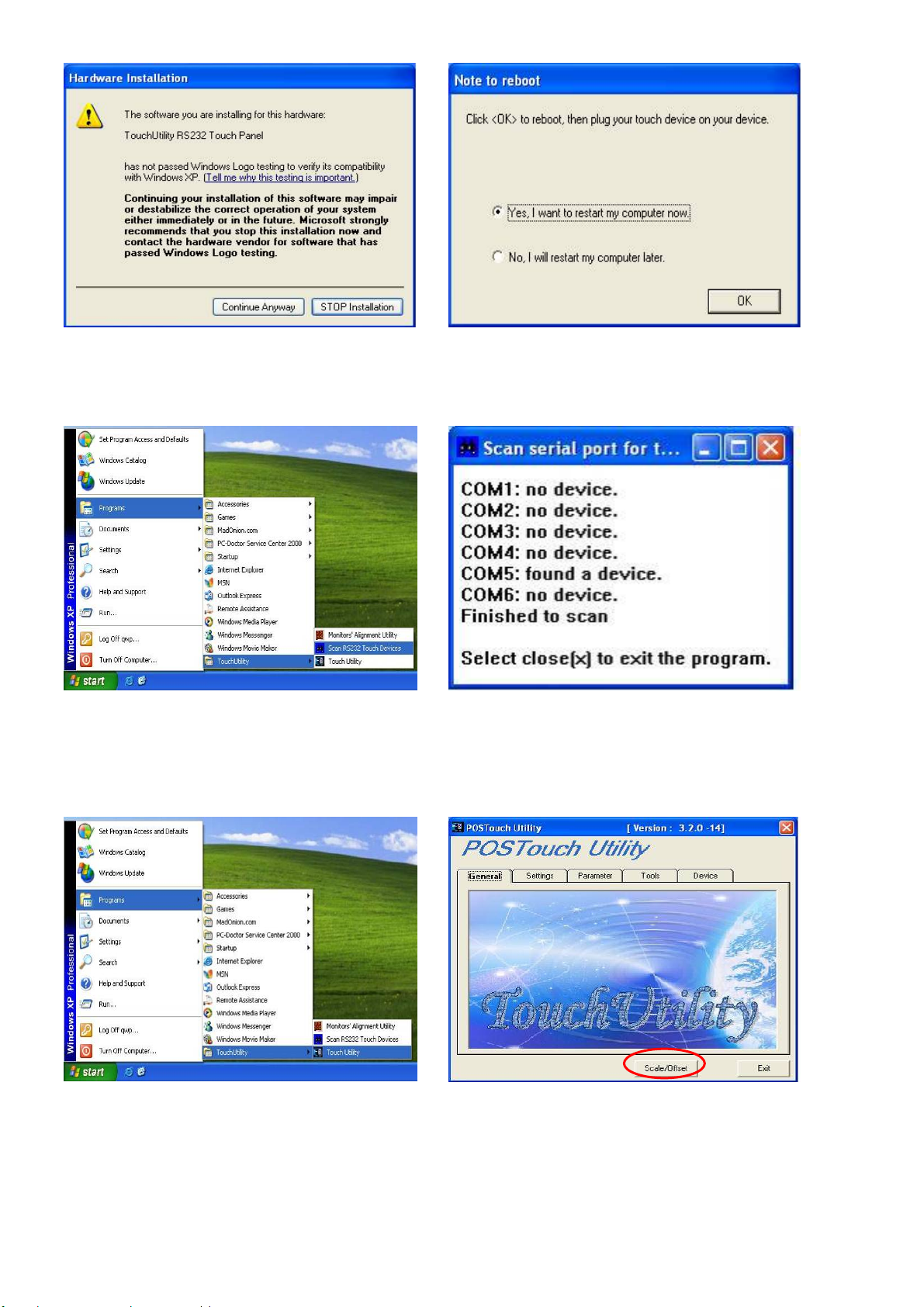

g. Click the “Continue Anyway“ button on

the Hardware Installation window

h. Click the ”OK” button and restart your

system

i. After the computer restarted, select

j. Automatically scan serial port for touch.

“Programs ÆTouchUtility ÆScan RS232

Touch Device”.

k. Select “Programs ÆTouchUtility ÆTouch

l. Click “Scale / Offset” on the POSTouch

Utility”.

/ 41

17

Utility window.

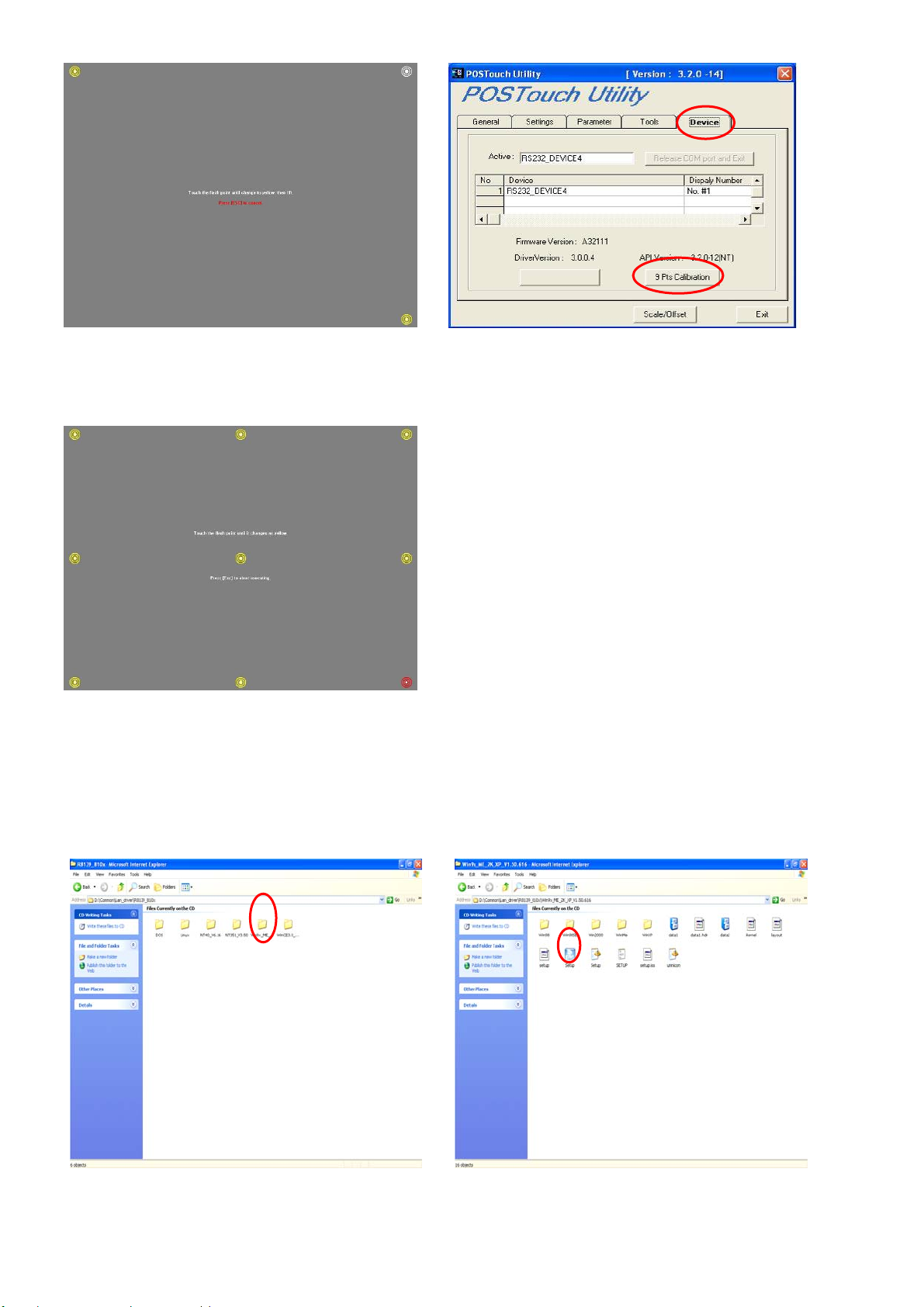

m. Calibrate three red flashing points. n. Select “Device Æ9Pts Calibration” on the

POSTouch Utility window.

o. Calibrate nine red flashing points. Then,

click “Exit” on the POSTouch Utility

window.

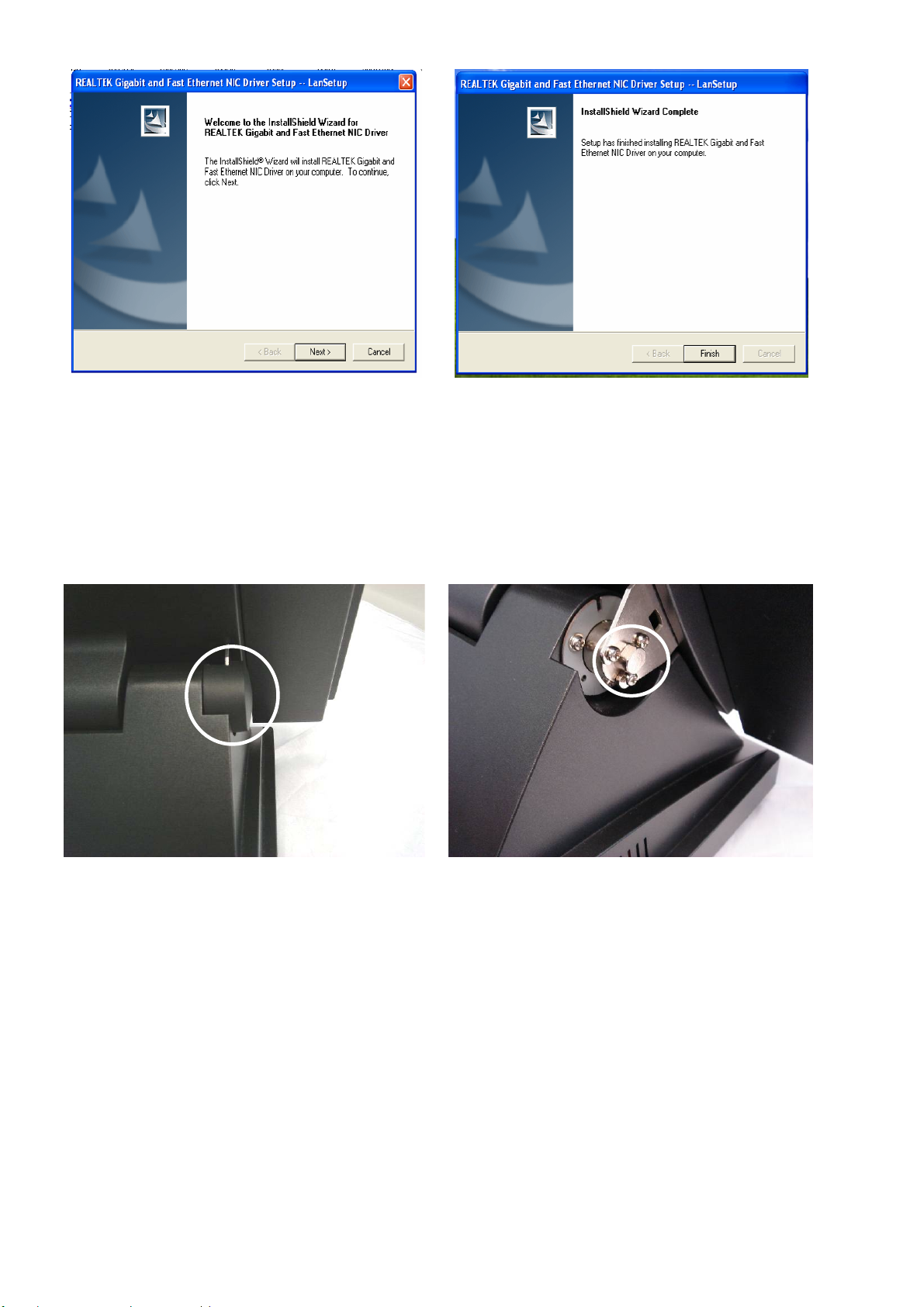

3.8. LAN Driver Installation

a. Click the ”Win9x_ME_...” on the

“Rtl8139_810x” window.

/ 41

18

b. Click the "Setup" button on the

“Win9x_ME_2K_XP_...” window.

c. Click the “Next” on the “REALTEX

d. Click the “Finish” on the “REALTEX

Gigabit and Fast Ethernet NIC Driver

Setup” window.

4. Peripherals Installation

4.1. Customer Display Installation

a. Remove the hinge covers on both sides

Gigabit and Fast Ethernet NIC Driver

Setup” window.

b. Remove the screws (6) (three on each

using a screwdriver or finger to push the

clip.

/ 41

19

side).

c. Remove the screws (2).

d. Disconnect the cables (2).

e. Lift the LCD module up.

f. Remove the screws (4).

g. Lift the base cover up and remove it. h. Remove the screws (4) that secure the

front bracket.

/ 41

20

i. Remove the screws (2) that secure the

back bracket.

j. Remove the screws (3) that secure the

back bracket.

k. Lift the chassis box up, taking care not

to stretch the cables which are still

l. Remove the screws (2) that secure the

I/O board.

connected.

m. Connect the cable (1) on the I/O board. n. Tighten the screws (2).

/ 41

21

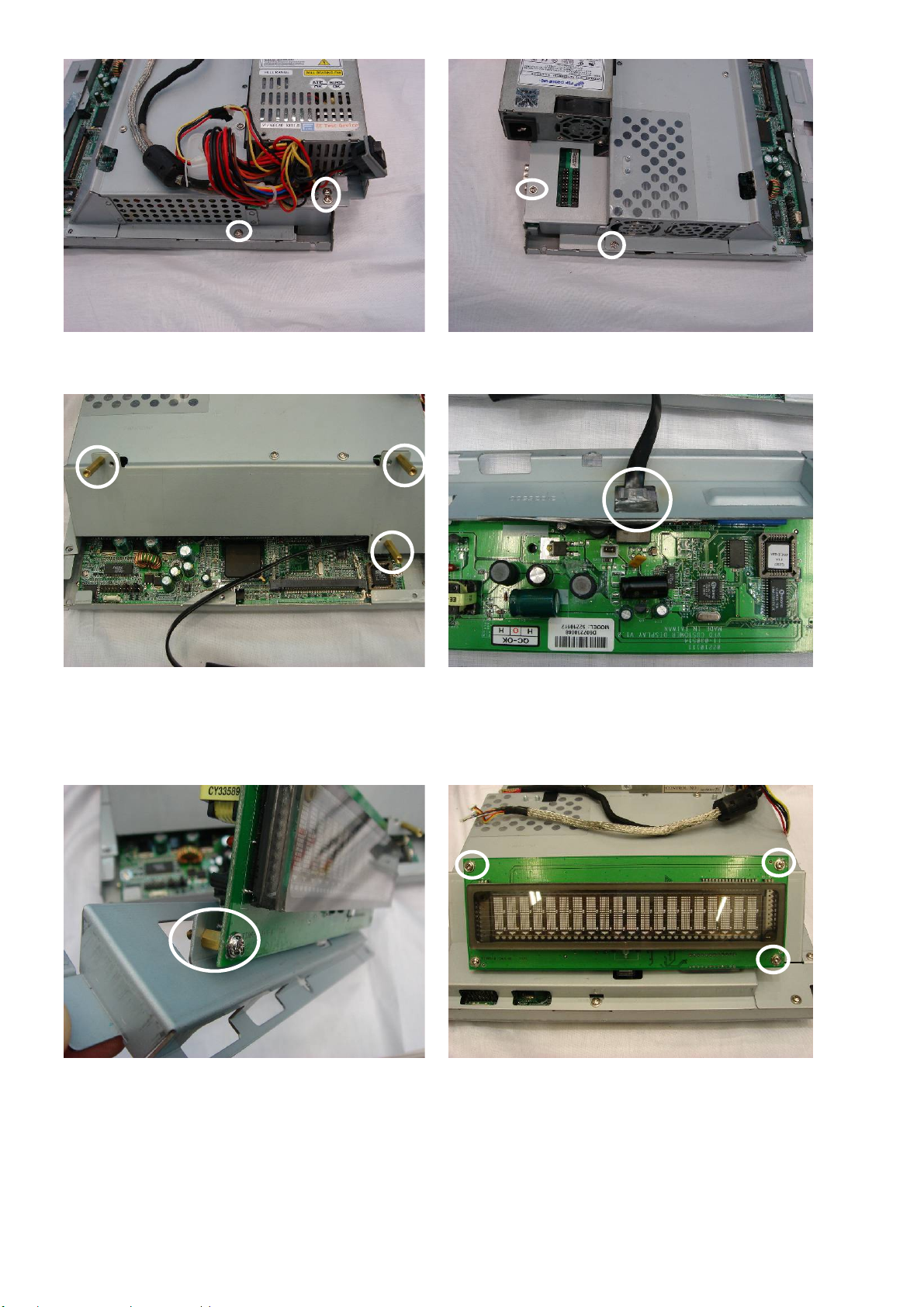

o. Tighten the screws (3). p. Tighten the screws (2).

q. Tighten the brass hex screws (3). r. Pass the cable through the front bracket

and then connect the cable (1) to the

MSR board.

s. Tighten the brass hex screw (1) on the

t. Tighten the screws (3)

front bracket.

/ 41

22

u. Tighten the screws (4).

4.2. Cash Drawer Installation

You can install a cash drawer through the cash drawer port. Please verify the pin

assignment before installation.

4.2.1 Cash Drawer Pin Assignment

12

4.2.2 Cash Drawer Controller Register

The Cash Drawer Controller use two I/O addresses to control the Cash Drawer –

The Cash Drawer Control Register and the Cash Drawer Status Register.

1

7

6

Pin Signal Pin Signal

1 GND 7 GND

2 DOUT bit0 8 DOUT bit2

3 DIN bit0 9 DIN bit1

4 12V / 24V 10 12V / 24V

5 DOUT bit1 11 DOUT bit3

6 GND 12 GND

4.2.2.1 Cash Drawer Control Register and Cash Drawer Status Register

Register Location: I/O port 4B8h

Attribute: Write / Read

Size: 8bit

/ 41

23

BIT

BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

Attribute

Reserved Reserved Read Read Write Write Write Write

Bit 7: Reserved. Bit 6: Reserved. Bit 5: Cash Drawer2 “DIN bit1” pin input status. = 1: the Cash Drawer2 closed or no Cash Drawer. = 0: the Cash Drawer2 opened. Bit 4: Cash Drawer1 “DIN bit0” pin input status. = 1: the Cash Drawer1 closed or no Cash Drawer. = 0: the Cash Drawer1 opened. Bit 3: Cash Drawer2 “DOUT bit3” pin output control. = 1: Opening the Cash Drawer2 = 0: Allow closing the Cash Drawer2 Bit 2: Cash Drawer2 “DOUT bit2” pin output control. = 1: Opening the Cash Drawer2 = 0: Allow closing the Cash Drawer2 Bit 1: Cash Drawer1 “DOUT bit1” pin output control. = 1: Opening the Cash Drawer1 = 0: Allow closing the Cash Drawer1 Bit 0: Cash Drawer1 “DOUT bit0” pin output control. = 1: Opening the Cash Drawer1 = 0: Allow closing the Cash Drawer1

Note: Please follow the Cash Drawer control signal design to control the Cash

Drawer.

4.2.3 Cash Drawer control command example

Use Debug.EXE program under DOS or Windows98

Command Cash Drawer

O 4B8 01 Opening O 4B8 00 Allow to closing

¾ Set the I/O address 4B8h bit0 =1 for opening the Cash Drawer1 by “DOUT bit0”

pin control.

¾ Set the I/O address 4B8h bit0 = 0 to allow closing Cash Drawer1.

Command Cash Drawer

I 4B8 Check status

¾ The I/O address 4B8h bit4 =1 means the Cash Drawer1 is closed or no Cash

Drawer.

¾ The I/O address 4B8h bit4 =0 means the Cash Drawer1 is open.

/ 41

24

5. System Disassembly

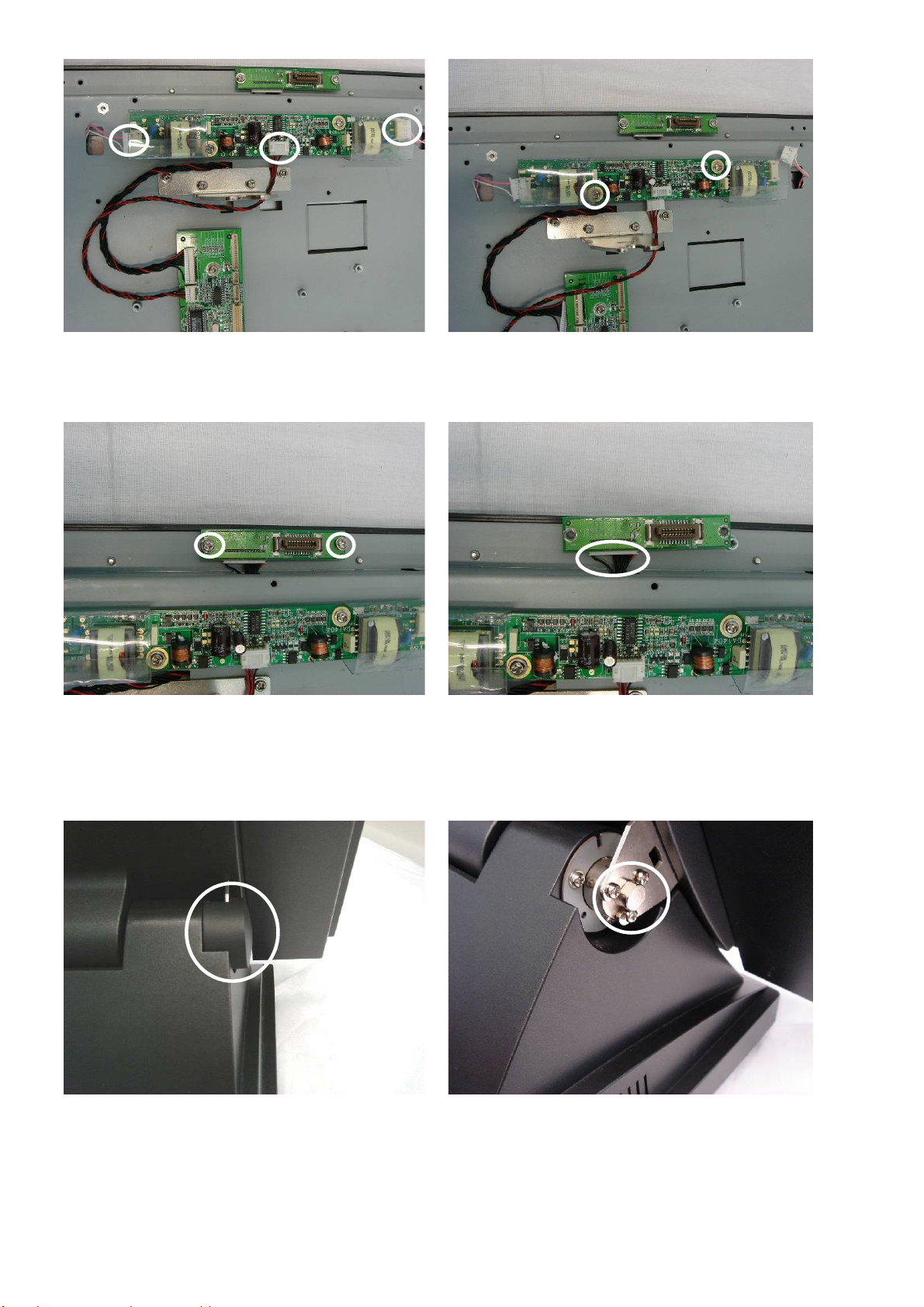

5.1. Replace the Touch Board, Inverter Board and MSR Board

a. Remove the hinge cover on both sides

using a screwdriver or finger to push the

clip.

c. Remove the screws (2).

b. Remove the screws (6) (three on each

side).

d. Disconnect the cables (2).

e. Lift the LCD module up.

/ 41

f. Disconnect the cables (4).

25

g. Remove the screws (2) to replace the

h. Remove the screws (2).

touch board.

i. Remove the MSR cover. j. Remove the screws (4).

k. Remove the screws (2). l. Lift the LCD cover up.

/ 41

26

m. Disconnect the cables (3). n. Remove the screws (2) to replace the

inverter board.

o. Remove the screws (2). p. Disconnect the cable (1) to replace the

MSR board.

5.2. Open the Back Bracket

a. Remove the hinge covers on both sides

using a screwdriver or finger to push the

b. Remove the screws (6) (three on each

side).

clip.

/ 41

27

c. Remove the screws (2).

e. Lift the LCD module up.

d. Disconnect the cables (2).

f. Remove the screws (4).

g. Lift the base cover up and remove it. h. Remove the screws (4) that secure the

front bracket.

/ 41

28

i. Remove the screws (2) that secure the

back bracket.

k. Lift the back bracket up, taking care not

to stretch the cables which are still

connected.

j. Remove the screws (3) that secure the

back bracket.

5.3. Replace the HDD

To replace the HDD, please first follow the steps in chapter 5.2.

a. Disconnect the IDE2 cable (1). b. Remove the screws (4).

/ 41

29

c. Disconnect the cable (1) to replace the

HDD.

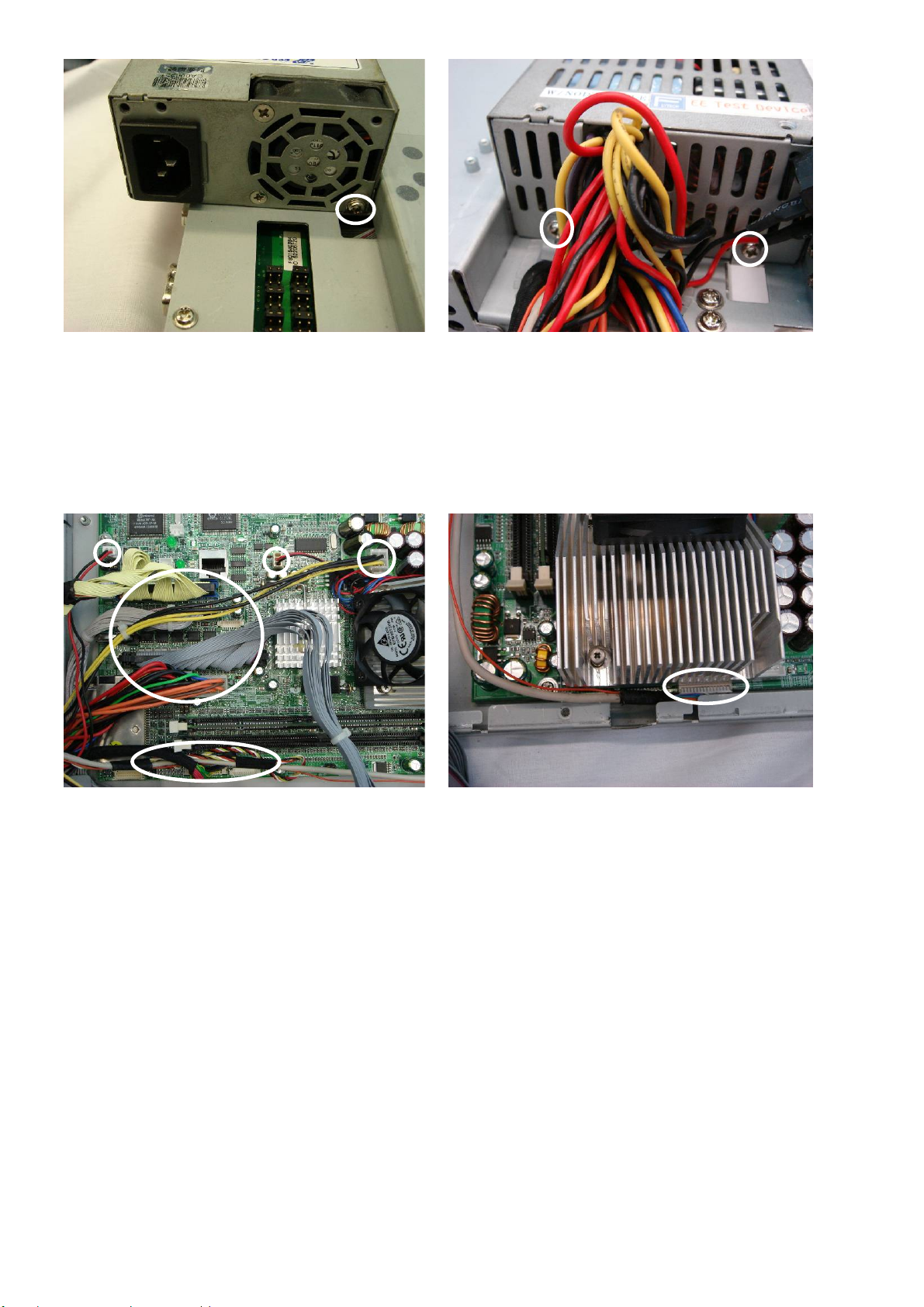

5.4. Replace the Power Supply

To replace the power supply, please first follow the steps in chapter 5.2.

a. Remove the screws (2) that secure

the I/O board.

c. Disconnect the cables (2): 40pin cable

and PWR2.

b. Disconnect the cables (1).

d. Disconnect the cable (1).

/ 41

30

e. Remove the screw (1). f. Remove the screws (2) to replace the

power supply.

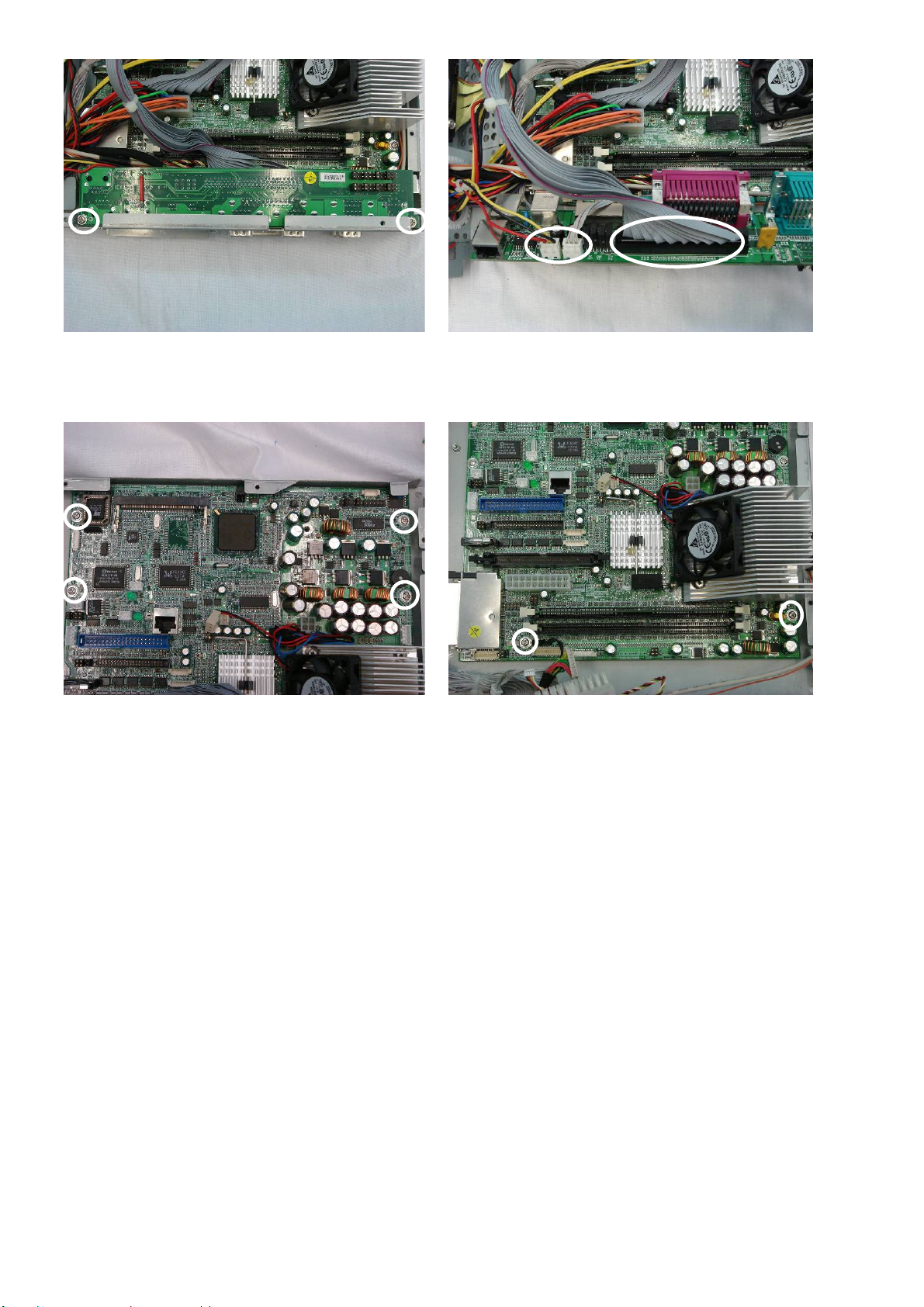

5.5. Replace the Motherboard

To replace the motherboard, please first follow the steps in chapter 5.2.

a. Disconnect the cables (9): power switch

cable (CN11), fan cable, IDE1, IDE2,

100pin cable, 40pin cable, PWR2, LCD

interface (CN3), and inverter power

cable (CN6).

b. Disconnect the card reader cable

(CN12).

/ 41

31

c. Remove the screws (2) that secure the

I/O board.

d. Disconnect the cables (3): 100pin cable,

power cable and LED cable.

e. Remove the screws (4). f. Remove the screws (2) to replace the

motherboard.

/ 41

32

6. Specification

Mainboard B77

CPU Supports Intel P4 FSB 400 MHz

Chipset Mobile Celeron 1.2G / Intel 852GM

System Memory 2 x DIMM up to 2GB DDR

Graphic Memory Built-in chipset AGP 4 x SMA up to 64MB

Storage

HDD 1 x 3.5” Drive Bay

LCD Touch Panel

LCD Size 15” TFT LCD

Brightness

Maximal Resolution 1024 x 768

Touch Screen Type Resistive

Tilt Angle (Degree)

External I/O Ports

USB 2

Serial / COM 4 x COM pin1/pin 9 with power

Parallel Port 1

LAN (10 / 100) 1 x RJ45

Cash Drawer 2 x RJ11

POS Printer Power Port +24V DC output (Optional)

Power

Power Supply Internal 180W ATX switching mode power supply

Environment

EMC & Safety FCC Class A, CE, LVD

Up to 250 cd/㎡

-10° ~ 65°

Operating Temperature

Storage Temperature

Operating Humidity 20% - 80% RH non condensing

Storage Humidity 20% - 85% RH non condensing

Peripheral

Magnetic Card Reader 3 Tracks (RS-232 / PS 2 interface)

Customer Display VFD / LCD flush mount type

Mounting Support VESA mount 100 x 100 mm

Dimension (W x D x H)

Weight

/ 41

5℃ ~ 35℃ (41℉ ~ 95℉)

-20℃ ~ 60℃ (-4℉ ~ 140℉)

390 x 368 x 226 ~ 347mm

15.4” x 14.5” x 8.9” ~ 13.7”

N.W. 9 kgs / 4.10 lbs / G.W. 10 kgs / 4.55 lbs

33

OS Support

Windows XP, WEPOS, XP Embedded, XP

Professional Embedded, WIN 2000 professional

Embedded, WIN NT 4.0, Linux

/ 41

34

7. Connectors & Jumper Settings

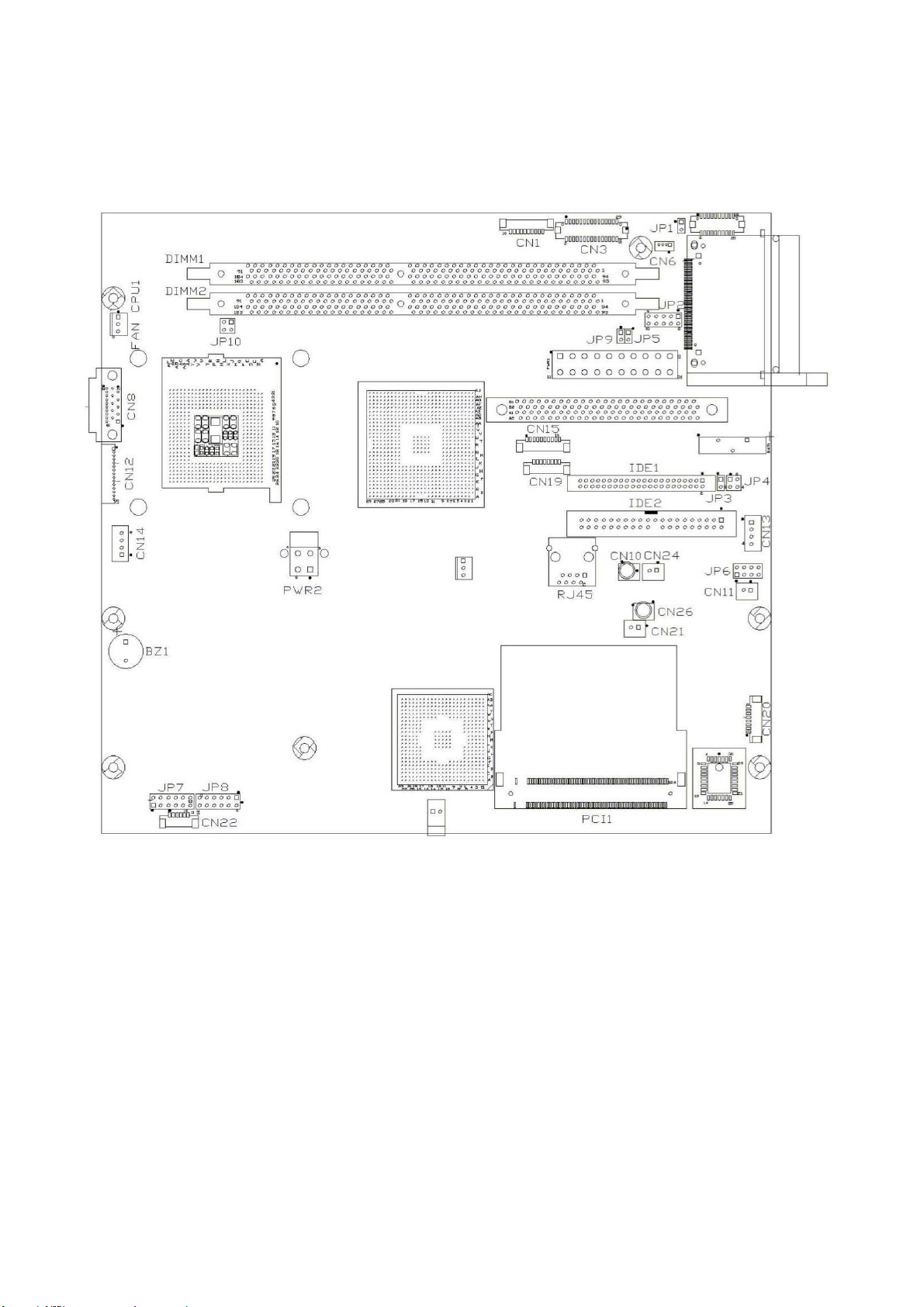

B77 Main Board

/ 41

35

1. Connectors

Connector Function Connector Function

CN1 COM5 for Touch CN14 USB 5

CN3 Single Channel LCD

Interface

CN6 Inverter Power CN18/

CN10 IDE ACT LED CN20 I-Button

CN11 Power Switch CN21 Hardware Reset

CN12 Card Reader CONN CN22 XC9536 Modify Port

Cn13 USB 6 CN24 Power LED CONN

CN15 AC97+Power BT to Front

Side I/O Bd

USB 3 / USB 4

CN19

2. Jumper Settings

1. Compact Flash Setting ◎Factory Default Setting

Function JP1 (SHORT)

Master

Slave N/C

◎1-2

2. ACPI Mode Setting

Function JP3 (SHORT)

Disable 1-2

Enable

3. I- Button Setting

Function JP4 (SHORT)

Use I-BUTTON N/C

No I-BUTTON

4. CMOS Operation mode

Function JP5 (SHORT)

CMOS Normal

COMS Reset 1-2

5. Power Mode Setting

◎N/C

◎1-2, 3-4

◎N/C

Function JP9 (SHORT)

ATX Power

AT Power 1-2

◎N/C

/ 41

36

6. CPU Voltage Setting

CPU Type JP7 (SHORT)

1-2, 3-4, 5-6,

P4◎

7-8, 9-10, 11-12

P4-M (1.3V)

PERF MODE

N/C

Note 1,2,3

Note 1, 2, 3

Note 1: P4-M (1.4GHz +) PERF MODE is 1.3V

Note 2: P4-M (1.2GHz) PERF MODE is 1.2V

Note 3: P4-M GHI# Setting

z Pull up is Battery MODE

z Pull down is PERF MODE

7. LCD ID Setting

Resolution

Number

LVDS JP6 Panel

Bits Channel 1-2 3-4 5-6 7-8

JP8 (SHORT)

N/C

3-4, 9-10

0 640 x 480

1 800 x 600

2 1024 x 768

3 1280 x 1024

4 1024 x 768

5 800 x 600

Note:

OPEN

18 Single

24 Dual

24 Single

SHORT

SHORT SHORT SHORT SHORT

SHORT SHORT SHORT OPEN

SHORT SHORT OPEN SHORT

SHORT SHORT OPEN OPEN

SHORT OPEN SHORT SHORT

SHORT OPEN SHORT OPEN

/ 41

37

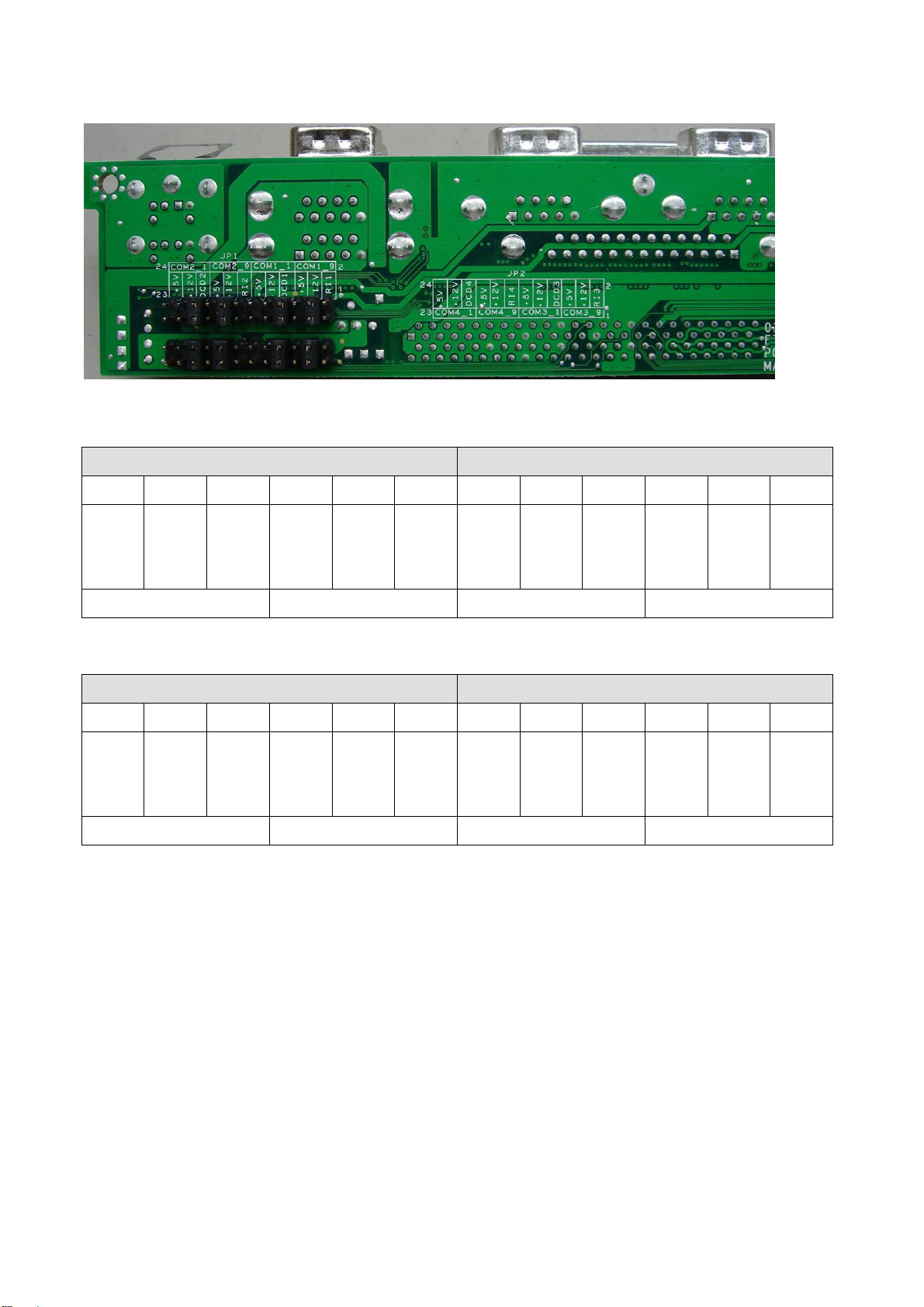

3. I/O Jumper Settings

1. COM1/COM2 Jumper Setting：JP1 ◎Factory Default Setting

COM1 COM2

1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16 17-18 19-20 21-22 23-24

RI-1

◎

2. COM3/COM4 Jumper Setting：JP2

1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16 17-18 19-20 21-22 23-24

RI-3

◎

+12V +5V DCD-1

◎

PIN9 PIN1 PIN9 PIN1

COM3 COM4

+12V +5V DCD-3

◎

PIN9 PIN1 PIN9 PIN1

+12V +5V RI-2

◎

+12V +5V RI-4

◎

+12V +5V DCD-2

◎

+12V +5V DCD-4

◎

+12V +5V

/ 41

38

8. BIOS Settings

1. BIOS Setup Utility

The BIOS setup defines how the system is configured. You need to run this program

the first time you configure this product. You may need to run it again if you change

the configuration.

You need to connect a PC keyboard to the keyboard connector to run the BIOS setup

utility.

2. Starting the BIOS Setup

1. Turn on or reboot this product.

2. Press the DEL key immediately after the product is turned on, or press the DEL

key when the following message is displayed during POST (the Power on

Self-Test).

Press DEL to enter SETUP.

3. The main menu of the BIOS setup is displayed.

4. If the supervisor password is set, you must enter it here.

3. When a Problem Occurs

If, after making and saving system changes with the Setup utility, you find that this

product no longer boots, start the BIOS setup and execute the following.

Load Optimized Defaults

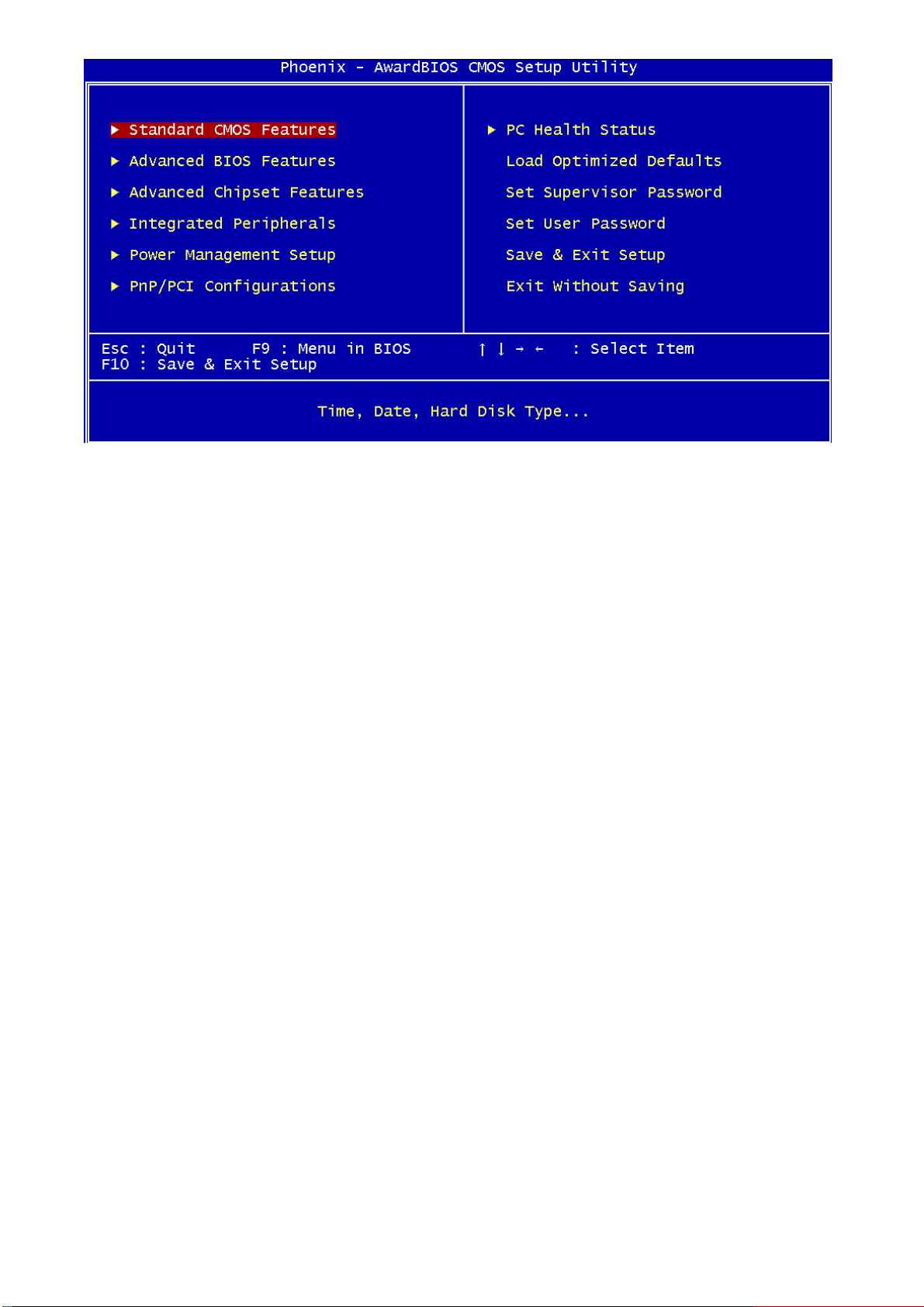

4. BIOS Main Menu

When the BIOS Main Menu is displayed, the following items can be selected. Use the

arrow keys to select items and the Enter key to accept and enter the sub-menu.

Note: The BIOS menu below is from B77 BIOS version B77FV 10C.BIN. If you have a

different BIOS version, the contents of the menu may different.

/ 41

39

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on the system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize the system’s

performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management setup

Use this menu to specify your settings for power management.

PnP/PCI Configurations

This entry appears if your system supports Plug and Play and PCI Configuration.

PC health status

Displays CPU, System Temperature, Fan Speed, and System Voltages Value.

Load Optimized Defaults

Use this menu to load the BIOS default values, i.e., factory settings for optimal

performance system operations. While Award has designed the custom BIOS to

maximize performance, the factory has the option to change these defaults to meet

their needs.

/ 41

40

Set Supervisor Password

Enables you to change, set, or disable the supervisor or user password.

Set Password

Change, set, or disable the password. It allows you to limit access to the system and

to the setup, or just to the setup.

Save & exit setup

Save CMOS value changes to CMOS and exits setup.

Exit without saving

Ignores all CMOS value changes and exits setup.

/ 41

41
