USER’S MANUAL

BOOK PC 3000 SERIES

(B64 M.B.)

48200470

BOOK PC 3000 User’s Manual

This Manual was written for installation purposes. It is to provide the information about the Book PC 3000 series with B64 all -in-one motherboard for users.

1.Bookmarks

The words and phrases showing on the left side of this screen are the bookmarks (subject of an operation) covering all topics in this manual.

2.Choosing a topic

Select and find any desired topic by using the scroll bar next to the bookmarks. Click a bookmark to jump instantly to its topic that you wish to read. (If you wish, you can also increase the size of the bookmark area by dragging the dividing bar to the right.)

3.Magnifying the Page display

Select and use the Zoom tools to magnify or reduce the page display.

4.Finding a term

Click the Find button if you want to search for a particular term. (However, using the bookmarks is usually quicker.)

Complete online documentation for Acrobat® Reader is located in the Help directory for Acrobat® Reader.

November 2001, V1.0

Part No. 48200470

All rights reserved. The information contained in this guide has been validated and reviewed for accuracy. No patent liability is assumed with respect to the use of the information contained herein. While every precaution has been taken in the preparation of this guide, the Manufacturer assumes no responsibility for errors or omissions.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Manufacturer.

TRADEMARK

Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation. Microsoft® and Windows® are registered trademarks of Microsoft Corporation. AWARD is a trademark of AWARD software INC.

General Notice: Other products and company names used herein are for identification purposes only and may be trademarks of their respective companies.

NOTICE

The contents of this manual are subject to change without notice.

FEDERAL COMMUNICATIONS COMMISSION NOTICE

This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Subpart B of Part 15 of FCC Rules. Only peripherals (computer input/output devices, monitors, printers, etc.) certified to comply with the Class A limits may be attached to this computer. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

NOTICE: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with this user's manual, may cause interfere nce to radio and television reception. It has been type tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a resident ial installation. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna

• Relocate the computer with respect to the receiver

• Move the computer away from the receiver

• Plug the computer into a different outlet so that computer and

receiver are on different branch circuits.

If necessary, the user should consult the supplier or an experienced radio/television technician for additional suggestions.

The user may find the following booklet prepared by the Federal Communications Commission helpful :

"How to identify and Resolve Radio-TV Interference Problems". This book is available from the US Government Printing Office, Washington, D.C. 20402

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

iii

BATTERY REPLACEMENT

F WARNING:

Your computer is provided with a battery -powered Real-Time Clock circuit. There is a danger of explosion and risk of personal injury if the battery is incorrectly replaced or mistreated. Do not attempt to disassemble the battery, immerse it in water or dispose of it in fire.

Contents

CHAPTER 1. PRECAUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

1.1 CHECK THE LINE VOLTAGE . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2. ENVIRONMENTAL CONDITIONS . . . . . . . . . . . . . . . . . . . . . . 1-1

1.3. HANDLE THE SYSTEM CAREFULLY . . . . . . . . . . . . . . . . . . . 1-2

CHAPTER 2. GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

2.1. UNPACKING THE PACKAGE . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

2.2. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

2.3. BOOK PC 3000 SERIES OUTLOOKING. . . . . . . . . . . . . . . . . .2-3

2.3.1. The Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.3.2. The Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

2.4. SETUP BOOK PC 3000 SERIES. . . . . . . . . . . . . . . . . . . . . . . .2-7

2.4.1. Removing the System Case . . . . . . . . . . . . . . . . . . . . . . 2-8

2.4.2. Setting Jumpers and DIP Switches. . . . . . . . . . . . . . . . . 2-9

2.4.3. Installing a CPU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

2.4.4. Installing a DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-16

2.4.5. Installing HDD/FDD/CD-ROM Drive . . . . . . . . . . . . . . . 2-17

2.4.6. Installing an ISA/PCI Board . . . . . . . . . . . . . . . . . . . . . .2-19

2.4.7. Installing Other Peripherals. . . . . . . . . . . . . . . . . . . . . . 2-22

2.5. SYSTEM ASSEMBLIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-26

CHAPTER 3. TECHNICAL SPECIFICATION. . . . . . . . . . . . . . . . . . . . . 3-1

3.1. SPECIFICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2. CONNECTOR PIN ASSIGNMENTS. . . . . . . . . . . . . . . . . . . . . 3-2

CHAPTER 4. SYSTEM UTILITY SETUP. . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.1. SYSTEM UTILITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

4.2. BIOS SETUP – VIA VT82C693 CHIPSET. . . . . . . . . . . . . . . . . 4-2

4.2.1. Starting the BIOS Setup. . . . . . . . . . . . . . . . . . . . . . . . . .4-2

4.2.2. Control Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4.2.3. Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4

4.2.4. Standard CMOS Setup. . . . . . . . . . . . . . . . . . . . . . . . . . .4-6

4.2.5. BIOS Features Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4.2.6. Chipset Feature Setup . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

4.2.7. Power Management Setup. . . . . . . . . . . . . . . . . . . . . . 4-22

4.2.8. PnP/PCI Configuration. . . . . . . . . . . . . . . . . . . . . . . . . .4-27

4.2.9. Integrated Peripherals. . . . . . . . . . . . . . . . . . . . . . . . . . 4-30

4.2.10 Password Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-32

4.3. BIOS SETUP – VIA VT82C693 CHIPSET. . . . . . . . . . . . . . . . 4-34

4.3.1. Starting the BIOS Setup. . . . . . . . . . . . . . . . . . . . . . . . .4-34

4.3.2. Control Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

4.3.3. Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-36

4.3.4. Standard CMOS Setup. . . . . . . . . . . . . . . . . . . . . . . . . .4-38

4.3.5. BIOS Features Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42

4.3.6. Chipset Feature Setup . . . . . . . . . . . . . . . . . . . . . . . . . 4-49

4.3.7. Power Management Setup. . . . . . . . . . . . . . . . . . . . . . 4-54

4.3.8. PnP/PCI Configuration. . . . . . . . . . . . . . . . . . . . . . . . . .4-59

4.3.9. Integrated Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . .4-62

4.3.10 Password Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-65

Appendix A. Fast Ethernet PCI Bus Controller. . . . . . . . . . . . . . . . . . . . I

1. The Feature of Intel 82559 ER Fast Ethernet PCI Controller. . . . . . I

2. The Feature of Intel 82559 Fast Ethernet PCI Controller. . . . . . . . . I

3. The Feature of Reltek8139C Fast Ethernet PCI Controller. . . . . . . .I

1-1

Chapter 1. Precaution

This section is written to protect both user and the system. In order to lengthen the service life of the system, please read this section carefully.

1.1 Check the Line Voltage

The operating voltage for the 3000 series (B64) use an internal micro ATX power supply FT-8015 should cover the range of 115V / 230V AC, otherwise the system may be damaged.

Rating Line Voltage Frequency

115 / 230V AC 90~132 / 180 ~ 264V AC 47/63 Hz

ê Caution: The power supply use a voltage selector switch to select AC input

voltage of 115V or 230V. The switch will be set to the customer required voltage position before being shipped.

1.2 Environmental Conditions

Place your 3000 series on a solid, level surface. Be sure to allow enough space on each side so that you can have an easy access.

Avoid installing this system in an extremely hot or cold environment. Avoid putting this system in a place exposed to direct sunlight, in a closed car in the summer time, or near a heating device such as a stove.

Temperature: Operating Temperature: 5 °C ~ 35 °C.

Storage Temperature: -10 °C ~ 60 °C. Do not use the system that has been left outdoors on a cold winter day. The operating lowest ambient temperature is 5 °C.

Avoid moving the system rapidly from a hot place to a cold place or vice versa. Otherwise, condensation may be caused form inside the system.

1-2

Keep the system away from damp air, water and dust. The operating ambient humidity is 20 ~ 80% (non - condensing). The Non - operating Relative Humidity is 20% ~ 80% (non-condensing). Avoid putting a water-filled container such as a vase on or near the system.

Do not put the system in a place of strong vibration which may cause serious damage to the hard disk inside the system( if a hard disk is installed inside).

Do not place the system too close to a radio, television, or other communication systems to avoid interference.

1.3. Handle the System Carefully

Do not put heavy objects on the system except a small light monitor. Do not turn the system upside down. Otherwise, the disk drive may not

work properly. When transport the system outdoors, it is always advisable to protect it

from damage by inserting a protective diskette into the disk drive. When the system is not in use, remember to cover the system and store

it with care. When the system is not in use, remember to cover the system and store

it with care. When Operation is faulty, double check the operation procedure, if the

problem persists, contact your supplier.

2-1

Chapter 2. Getting Started

This chapter explains how to set up your new Book PC. It helps you unpack the computer, identify all the parts, and put it all together.

2.1. Unpacking the package

Upon unpacking the 3000 series (B64) system, make sure that you have the following items in good condition:

hAccessory Bag h3000 Series System Unit

hAC Power Cord hCD Driver Bank

JUMER SETTING

If any of the above items are damaged or missing, please contact your supplier immediately.

After you have removed all items, put the packing material and plastic wraps into the packing box and move it to a storage area. Save them for use when moving or shipping the computer.

2-2

2.2. Introduction

The main board used in the 3000 series Book PC is an B64 all-in-one motherboard which contains CPU, RAM, ROM BIOS, floppy disk drive controller, IDE hard disk controller, VGA chip, etc. The Dimension for Book PC 3000 series is 300 (W) x320 (L) x90(H)mm.

hOutside the System Unit The system unit is the main body of a PC system. Its equipment and structures define almost all of the features & functions of the PC system. It is a box -like structure with a metal casing enclosing all its electronic components.

The outside of the system unit has LED indicating lights and input /output connectors on it. The casing is made of metal so as to help with heat dissipation to assure the proper function of the inside components.

2-3

2.3. Book PC 3000 Series Outlooking

2.3.1. The Front View

1. IR Port (option) This infrared port complies with IrDA 1.0, IrDA 1.1 (SIR), and ASK Standards which allow you to use wirelessly communication peripherals such as a keyboard or mouse that comply with the standards Floppy Disk Drive

2. Power indicator When this green LED is lit, it indicates that system power is on. When the LED is blinking, it indicates in suspend mode.

3.Hard Disk Drive Access LED This glows when the computer is accessing the hard disk

2-4

4.LAN LED indicator When lit this green LED indicates that the system is currently online or connected to the Network.

5.Reset button Press this button to reset your computer

6.Power /Suspend button

•When the computer is in soft -off mode, pressing this button turns on the computer power.

•When the computer power is fully on, pressing this button briskly (less than 4 seconds) puts the system into Suspend mode and pressing it briskly again ends Suspend mode.

•When the computer power is on, pressing this button for more than 4 seconds turns the computer power OFF (soft -off).

7.Slim CD-ROM Drive This is the CD-ROM drive of your computer, often configured as drive D. The indicator on the drive glows when the system is accessing the CD-ROM drive.

8.Floppy disk drive This is the 3.5-inch floppy disk drive (FDD) of your computer, refereed to as driver A. The indicator on the FDD glows when the system is accessing the floppy disk drive.

2-5

2.3.2. The Bac k View

1. Power Connector This is for connection the AC power cord

2. AC Input Selection This is switch for selection 115 / 230V AC voltage.

3.USB Port The Universal Serial Bus Port is for connecting the USB devices.

4. Microphone Connector This can be connected to an external microphone

5. Line-In Connector (Audio Input Connector ) This can be connected to the line -out connector of any Hi-Fi set, radio set, CD player, synthesizer, walkman, etc.

6. Line-Out Connector (Audio Output Connector ) This can be connected to a set of headphones, external speakers with amplifier or an audio recording device.

2-6

7.PS2 Keyboard Port This 6-pin mini-Din port is for connecting a PS2 keyboard.

8. PS2 Mouse Port This 6-pin mini-Din port is for connecting a PS2 mouse.

9. VGA Port This 15-pin analog port is for connecting a display monitor

10. Parallel Port This 25-pin port is for connecting a parallel port device such as parallel printer.

11.Serial Port (COM2) This 9-pin po rt is for connecting a serial device.

12. Serial Port (COM1) This 9-pin port is for connecting a serial device.

13. RJ-45 LAN Connector (option) This is for plugging the LAN cable into the connector.

14. Expansion slots Behind this cover are three (3) expansion slots for installing expansion cards.

15.TV Composite Port (option) This port is for connecting to the AV terminal of TV

16. System Cooling Fan (option) This is a 50mm x 50mm x 15 (height)mm DC fan built-in system.

17.Modem Port (option) This is a RJ11 phone jack for connecting a internal modem.

2-7

2.4 Setup Book PC 3000 Series

Setup the Book PC 3000 Series according to the following steps as listed below. If you don't use the specified options, skip that step.

Step

2.4.1 Removing a Case

2.4.2 Setting the Jumpers and DIP Switches

2.4.3 Installing a CPU

2.4.4 Installing DIMMs

2.4.5 Installing a HDD/FDD/CD-ROM Drive

2.4.6 Installing a ISA/PCI Board

2.4.7 Installing Other Peripherals

2.4.7.1. Installing a Game Cable

2.4.7.2. Installing a Modem Daughter Card

2.4.7.3. Installing a TV Function

ê Caution : Whenever you connect or disconnect any component, be sure that your computer turned off and that your computer is disconnected from its

power sources. Plugging or unplugging any item when the computer is receiving power can cause power surges and damage your computer.

2-8

2.4.1 Removing the System Case

Before installing any component, you would have to remove the case of the system unit. The procedures are illustrated below:

1.Use a screw driver to remove the two screws on both sides of the system unit and three screws on the rear panel side of the system unit.

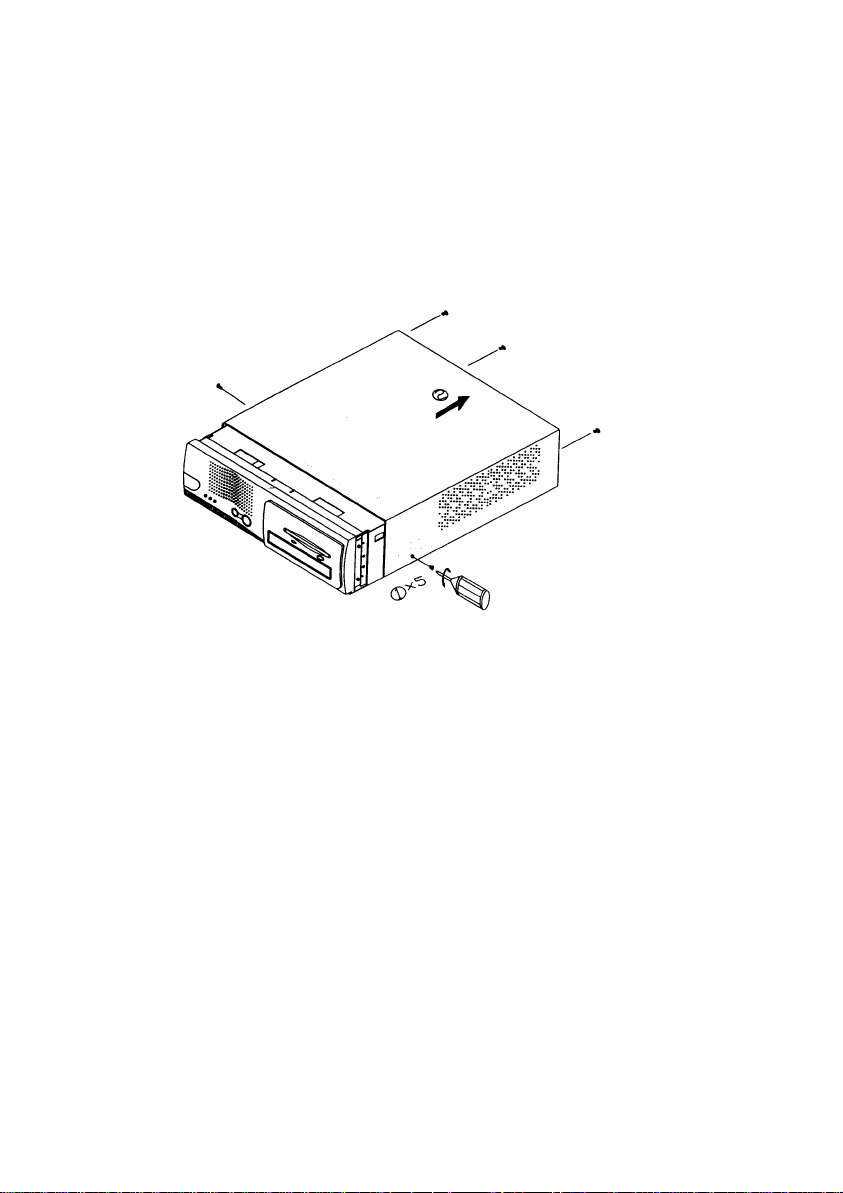

2. Slide off the system casing. ( See below figure )

When finish disassembly, reverse the steps. to secure the support chassis to main system and slid back the system case.

2-9

2.4.2 Setting Jumpers and DIP Switches

There are jumpers and DIP switches on the board of Book PC 3000. You can set them to control how the system operates.

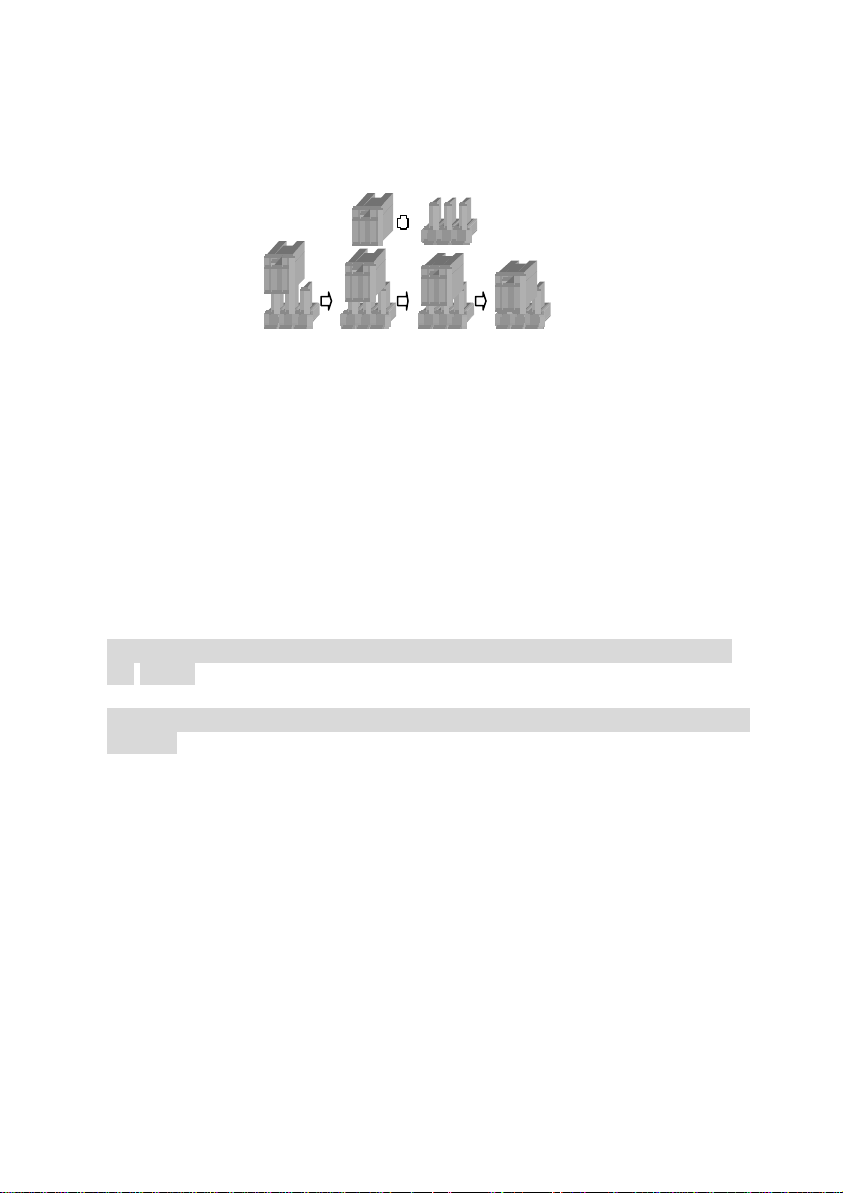

For three -pin jumpers, the jumper setting is 1-2 when the jumper connects pins 1 and 2. The setting is 2-3 when pins 2 and 3 are connected. You see a 1 and a 3 printed on the circuit board to identify these pins. Also, one of the lines surrounding jumpers is thick, which indicates pin NO.1.

To move a jumper from one position to another, use needle-nose pliers or tweezers to pull it off the pins and move it to the desired position.

ê Caution Be careful not to bend the jumper pins or damage any components on

the board. Do not change settings for jumpers and DIP switches not covered in this

manual.

2-10

nJumpers and DIP Switches Locations

The figure below shows the location of jumpers and the DIP switches on the Book PC 3000 main board - B64 version 1.x.

CN1 CN2 CN3 CN4 CN7 CN8

CN5

CN6

JP3

JP4

5126

1256125

U15

PCI SLOT1

BIOS

JP7

BAT1

82443BX-A

PCI SLOT2

JP1 JP2

U18

INTEL

U30

JP5

VIA

JP6

FW82371EB

VT82C596B

CN10

1 8

CN17CN16

CN11

CN13

1 1

U19

RAGE1284XL

2 1

JP8

12 11

CN14

CN15

1516

CN30

CN19

CN20

CN22

CN18

CN21

CN23

1211

JP9

PGA370

CN24

1 1

CN26

U33 CPU

CN25

168-PIN DIMM RAM SOCKET-DIMM 1

168-PIN DIMM RAM SOCKET-DIMM 2

781

CN28 CN29

CN27

* Jumper and Connector (Black area indicates pin 1).

2-11

8065 AT Internal power supply

nTable for Jumper Location Description: Use the information in the following table to change the jumpers and the

DIP switches.

Jumpers Functions

JP3, JP4

M-System DiskOnChip JP5,JP6 AT/ATX Power Mode JP7 CMOS Operation Mode JP8, CPU Frequency Selection U20,U23,U26,U28 8MB VGA RAM Configuration U16,U22,,U25,U27 32MB VGA RAM Configuration DIMM1,DIMM2 System RAM Configuration JP1,JP2 COM port pin1, power selection

h.M-System DiskOnChip: JP3, JP4

Address JP 3 JP 4 0C800-0C9FF 1-2 1-2 0CC00 - 0CDFF 1-2 3-4 0D000 - 0D1FF 3-4 1-2 0D400 - 0D5FF 3-4 3-4 0D800 - 0D9FF 5-6 1-2 0DC00 - 0DDFF (Default) 5-6 3-4

h.ATX / AT Power Mode: JP5, JP6

Function JP5 JP6 FTATX power supply (default) 2-3 Open

1-2 Close

h.CMOS Operation Mode: JP7

Function JP7 CMOS Normal (Default) 2-3 CMOS Reset 1-2

2-12

hCPU Frequency Selection: JP8

JP8 CPU Clock PCI Clock

133 33.3(/4) 1-3 7-9 2-4 8-10 133 44.33( /3) 3-5 7-9 2-4 10-12

100.3 33.43( /3) 1-3 7-9 2-4 10-12

66.8 33.4( /2) 1-3 7-9 4-6 10-12

83.3 41.65( /2) 3-5 7-9 4-6 10-12 75 37.5( /2) 1-3 9-11 4-6 10-12 150 37.5(/4) 1-3 9-11 2-4 8-10 103 34.33( /2) 3-5 9-11 2-4 10-12 120 40.00 ( /3) 3-5 9-11 4-6 8-10 105 35( /3 ) 1-3 7-9 4-6 8-10 110 36.67 (/3) 3-5 7-9 4-6 8-10 124 41.33( /3) 3-5 9-11 4-6 10-12

140 35 (/4) 3-5 9-11 2-4 8-10 *Intel Pentium II /III PPGA/FC-PGA CPU will detect jumper automatically

hVGA Memory Configuration

Capacity U20 U23 U26 U28 Video SDRAM 8MB Close Close Close Close 1M*16 TSOP

Capacity U16 U22 U25 U27 Video SDRAM Type 32MB Close Close Close Close 4M*16 TSOP

FS0 FS1 FS2 FS3

Type

2-13

hSystem Memory Configuration

Capacity DIMM 1 DIMM 2 16MB 16MB None 32MB 16MB 16MB 32MB 32MB None 32MB None 32MB 64MB 32MB 32MB 64MB 64MB None 64MB None 64MB 80MB 16MB 64MB 80MB 64MB 16MB 128MB 64MB 64MB 128MB 128MB None 128MB None 128MB 256MB 128MB 128MB 256MB 256MB None 256MB None 256MB 512MB 256MB 256MB

2-14

2.4.3 Installing a CPU

Lever

Notch

The Book PC 3000 Series (B64) contains a Socket 370, which can accept the following CPU types.

l Intel® PPGA / FC-PGA processor. Be sure to attach a CPU cooling fan to the CPU included in the package after you install the CPU. It prevents the CPU from overheating.

ê Caution To avoid generating static electricity and damaging the CPU, ground

yourself by touching a grounded metal surface before you touch the CPU.

Do not remove the heat dissipation under the CPU cooling fan. Do not touch the pins of the CPU. Dirt may cause a malfunction.

Follow these steps to install the CPU:

1.Check and confirm that the jumpers are correctly set for the CPU you are going to install.

2.Lift the release lever of the Socket 370.

3.Align the pins of the CPU to the pin holes of the Socket 370. Be sure to pay attention to the orientation of the CPU.

4.Push down the CPU into the Socket 370.

5.Push down the release lever and lock it.

6.Hook the hole in EIF clip for the CPU cooling fan onto the notch on the socket 370.

7. Place the CPU cooling fan atop the CPU surface.

8.Push down the opposite side of the ZIF clip and hook it.

2-15

9. Slide the head of the clip to left and lock it.

10. Co nnect the cooling fan cable to the socket. Be careful not to place the cable on the CPU cooling fan.

Removing a CPU: ê Caution

Before removing the CPU, turn off the system power; then wait for about 20 minutes until the heat radiation plate of the cooling fan and the CPU cools down.

The CPU and the heat radiation plate are hot. They may cause burns. To remove the CPU, reverse the installation steps.

2-16

2.4.4 Installing a DIMM

Pull

The main board contains two DIMM sockets. You can insert one DIMM or two DIMMs. However, it is recommended that you use two DIMMs of the same type and same access speed.

ê Caution To avoid generating static electricity and damaging the DIMM, ground yourself by touching a grounded metal surface or using a ground scrap

before you touch the DIMM. Do not touch the connector of the DIMM. Dirt may cause a malfunction. Follow these steps to install the DIMMs:

1. Hold the DIMM with its notch to the front side of the Book PC and insert it completely into the socket. A DIMM should be inserted into the inner socket first. Guiding the hole at each end of the DIMM over the retaining post at each end of the DIMM socket.

2. If you install two DIMMs, install the second DIMM using the same procedure as above.

Note: If DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

ê Caution Make sure the DIMM is properly installed and locked by the tabs on both sides of the socket.

Removing a DIMM: To remove the DIMM, use your fingers or a small screwdriver to carefully push away the plastic tabs that secure the DIMM at each end. Lift it out of the socket.

2-17

2.4.5 Installing HDD/FDD /CD -ROM Drive

You can install a 3.5 inches hard disk drive, a 3.5” Floppy disk and a slim type CD -ROM in the Book PC 3000 series (B64) system.

ê Caution Handle the HDD/FDD/CD-ROM drive gently. Do not bump or drop them.

Small shocks or vibrations could damage the drive. h Follow these steps for the installation.

1.Remove four screws on both sides of Front Panel from the Book PC

3000.

2.Remove HDD/FDD/CD -ROM metal frame by loosen three screws on front side bracket and one screw on right side of system bracket.

3.Fit the hard disk drive, floppy disk drive and CD-ROM into metal frame and secure them with retaining screws.

HDD

FDD

CD-ROM

4.Slide the metal frame with HDD/FDD/CD -ROM back to Book PC 3000. Fix the CD -ROM function board to back side of CD-ROM drive with two screws.

2-18

5. Connect the HDD/FDD/CD -ROM flat cable and its corresponding power cable.

Removing a HDD/FDD/CD-ROM drive To remove the hard disk drive, reverse the installation steps.

2-19

2.4.6 Installing an ISA/PCI Board

The Book PC 3000 supports three expansion slots; one PCI, one ISA/PCI, and one ISA slot. The manufacture provides following three Riser card for selection. .

1. Riser Card without LAN: (standard bundled from manufacture )

2. Riser Card with RTL8139 LAN :(option)

3.Riser Card with Intel 82559 LAN: (option)

2-20

ê Caution

Before installation, please note the maximum dimension of the interface card to be fixed in the system housing is that : upper ISA – 120x185mm, lower ISA – 120 x 155mm, upper PCI – 75 x 155mm, lower PCI-75x155mm.

hFollow the steps on how to install an ISA/PCI board.

1. Please remove screws which fixed the expansion slot card on the chassis and lift up the expansion slot card.

2. Lift up the expansion bracket next to the rear panel and take the metal strips off by unfastening the screws.

2-21

3.Replace metal stripe and fasten all the screws back to its proper position . ( See below figure )

4.Press the expansion bracket which with new interface card back to the system unit.

5.Press the expansion slot card back to the EISA slot on the main board and insert the interface card into the expansion slot card.

2-22

2.4.7. Installing Other Peripherals

The Book PC 3000 series (B64) system supports Game, Modem, and TV functions. You can expand the functions by contacting your supplier.

2-23

2.4.7.1. Installing a Game Cable

1.Lift up metal strips off from rear panel by unfastening the screws.

2.Replace metal strip to bracket of the Game cable’s and fasten with two screws

3. Connect Game cable to main board CN30 of the system unit.

GAME CABLE

CN30

2-24

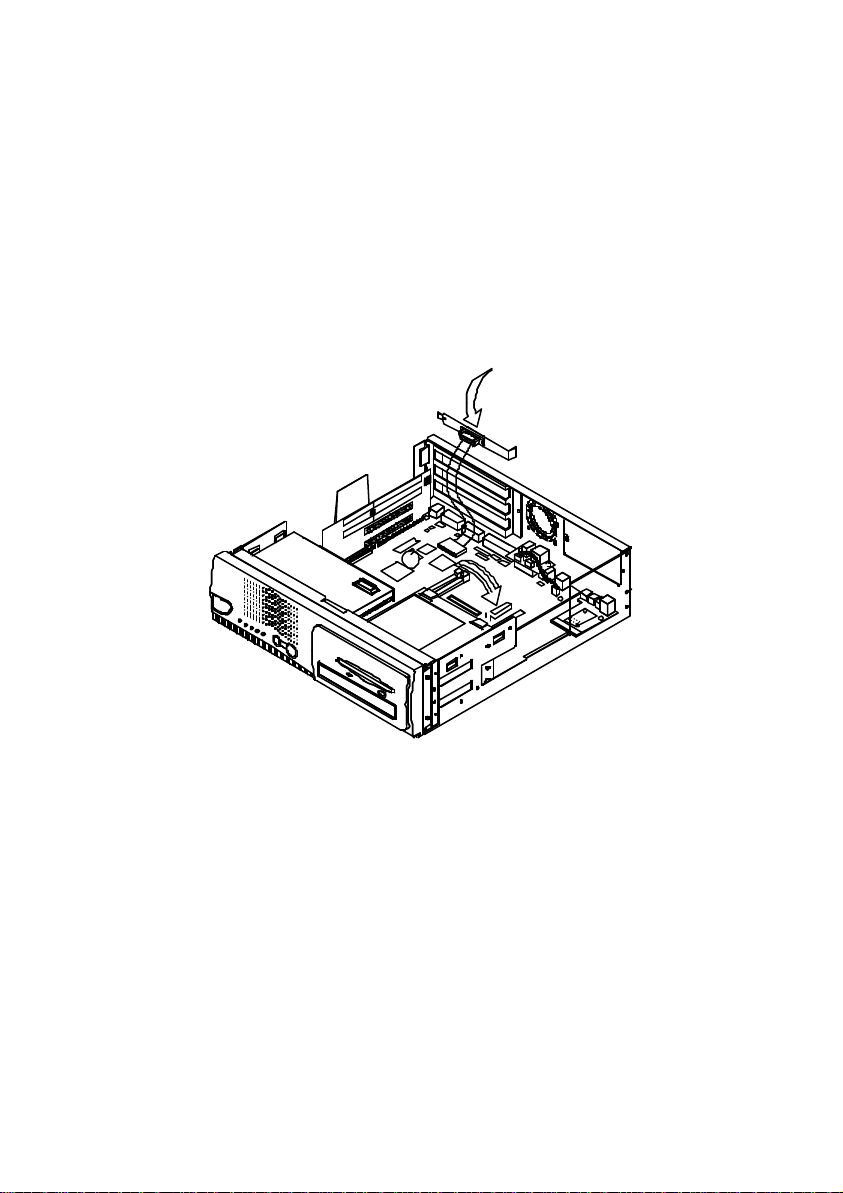

2.4.7.2. Installing a Modem Daughter Card

Remove internal power supply by loosen 3pcs screws on rear panel of the system unit.

2. Remove 2pcs screws fixed the Audio/USB/MDC board and system.

3. Connect phone cable to modem daughter card and fix modem daughter card to Audio/USB/MDC board by fastening 2pcs copper stud and retaining screws

4. Fix AV board with one bracket and connect to rear panel.

5. Connect phone cable from modem daughter card to AV board J2, secure the retaining screws for the power supply unit.

AV BOARD(J2)

MODEM CARD(J2)

2-25

2.4.7.3. Installing a TV function

1. First ensure the system main board bundled with TV chipset.

2. Fasten the AV board with metal bracket and fix to rear panel.

3. Connect AV cable from AV board J1 to system main board CN15.

AV BOARD(J1)

CN15

2-26

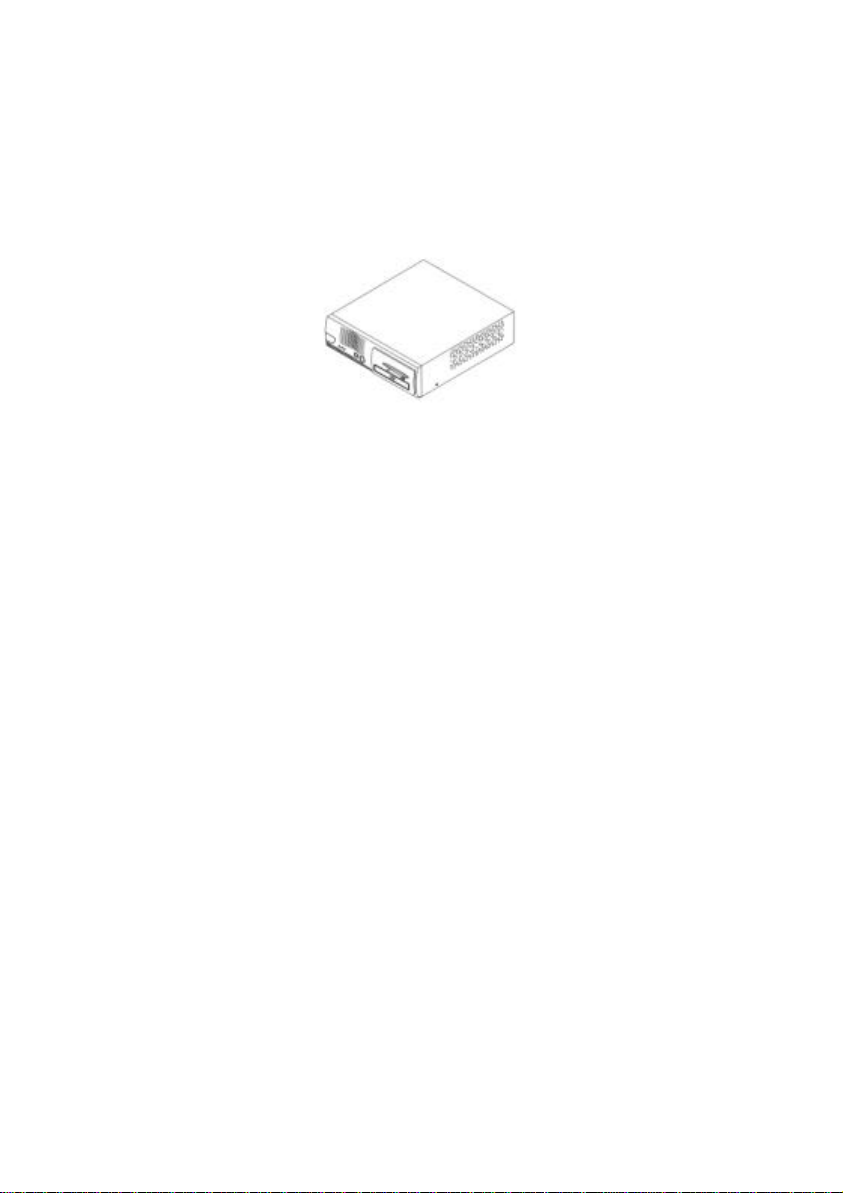

2.5 System Assemblies

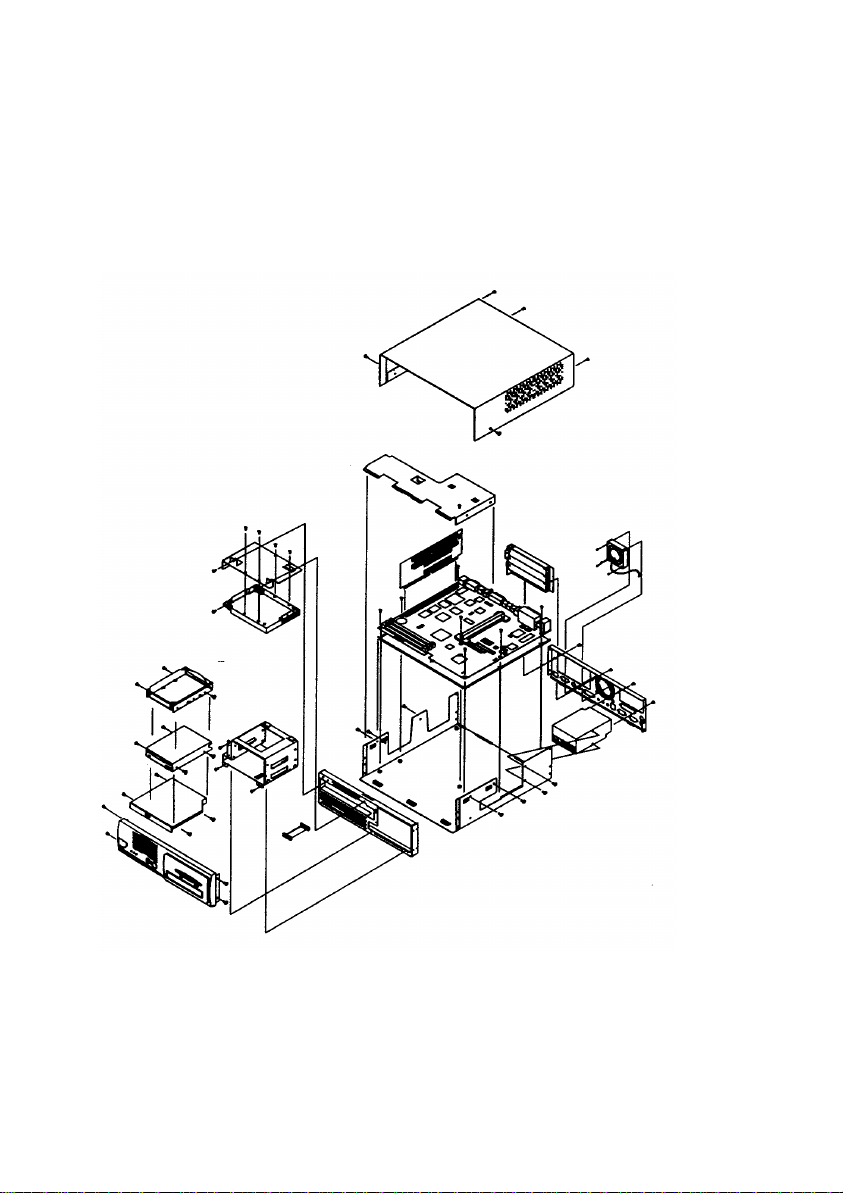

Following figure shows the various components of Book PC 3000 Series. .

3-1

Chapter 3. Technical Specification

3.1. Specification The Book PC 3000 Series was installed with a “B64” Socket 370

all-in-one main board. Following is the technical detail of the “B64” main board.

Technical Specification for “B64” Main Board

Main Board “B64” all-in-one M/B CPU Intel PPGA/ FC -PGA Processor Co-processor Built-in CPU Internal Cache Built-in CPU External Cache Built-in CPU System RAM 2 x 168pin DIMM sockets, support up to 512 MB BIOS AWARD PnP BIOS Core Logic Intel FW82443BX 66/100MHz FSB /

VIA VT82C693 66/100/133MHz FSB Video Display On Board ATI Rage Pro 128, AGP 4X Video RAM 8MB/32MB SDRAM Audio ESS1989 3D support sound and software modem I/O Controller SMSC37C602 HDD Controller Support one 40 -pin 2.54 pitch IDE pin-header FDD Controller SMSC37C602 support one 40-pin 2.54mm

pitch pin-header with power I/O Port 2 xSerial Port (FIFO) / 1 x Parallel Port

(EPP/ECP/SPP) Keyboard & Mouse Port LAN port 1x RJ -45 LAN Jack / LAN Riser Card option :

USB port 2 x USB ports ROM disk DiskOnChip Socket supported TV-Out Port Option Modem Port Option Expansion Slot on board Power Supply Internal ATX 150W (FT-8015)

The content of this specification is subject to change without notice.

1 x PS2 Keyboard / 1x PS2 Mouse Port

FT-7365 Intel 82559C support WOL

FT-7366 Intel GD82559ER

FT-7329 RTL8139

FT standard on board 1xPCI/ISA

3-2

3.2. Connector Pin Assignments Use the information in the following table to change the connector.

Connectors Functions JP1 COM1 VCC & 12V Selection: JP2 COM2 VCC & 12V Selection CN1,CN2 COM Port Power 5V/12V Selection (pin1) CN3 Print Connector CN4 VGA Connector CN5 LAN CN6 EXT-LAN Connector CN7 PS2-Mouse CN9 PS2 Keyboard CN10,CN17 Power Connector CN11 HDD Power Header CN13 FDD Power Header CN14 Power Push Button CN15 AV Board Connector CN18 MDC & Audio & USB Board Connector CN16,CN23 System Fan Connector CN19,CN22 IDE Connector CN20 Floppy Disk Connector CN21 CD-IN CN27 Ext. USB Connector CN28,CN29 USB Connector CN24,CN25,CN26 LED Connector (CN26 Supports Book PC 3000

W M/B64)

CN30 EXT-GAME Port

3-3

hCOM1 VCC & 12V Selection: JP1

Assignment JP1 Default 1-2 VCC 3-4 +12V 5-6

hCOM2 VCC & 12V Selection: JP2

Assignment JP2 Default 1-2 VCC 3-4 +12V 5-6

hSerial Port 1: CN1 /Serial Port 2: CN2

Pin # Assignment 1 Data carrier detect 2 Receive data 3 Transmit data 4 Data Terminal ready 5 Signal Ground 6 Data set ready 7 Request to send 8 Clear to send 9 Ring indicator 10 NC

Figure

3-4

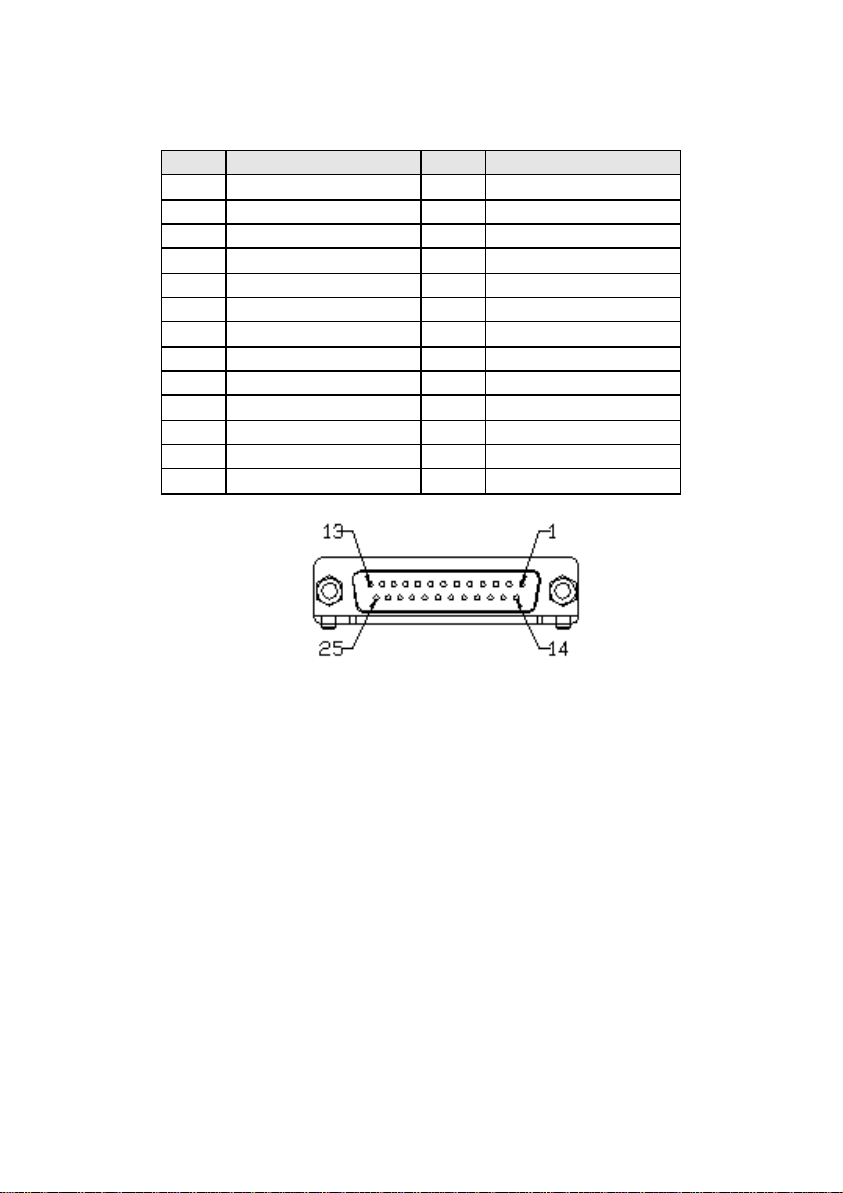

hParallel Port (D-SUB 25pin Female Connector): CN3

Pin # Assignment Pin # Assignment 1 Strobe (-) 14 Auto feed (-) 2 Data bit 0 15 Error (-) 3 Data bit 1 16 INIT (-) 4 Data bit 2 17 SLCT IN (-) 5 Data bit 3 18 Signal Ground 6 Data bit 4 19 Signal Ground 7 Data bit 5 20 Signal Ground 8 Data bit 6 21 Signal Ground 9 Data bit 7 22 Signal Ground 10 ACK (-) 23 Signal Ground 11 Busy 24 Signal Ground 12 Paper empty 25 Signal Ground 13 SLCT Figure

3-5

Figure

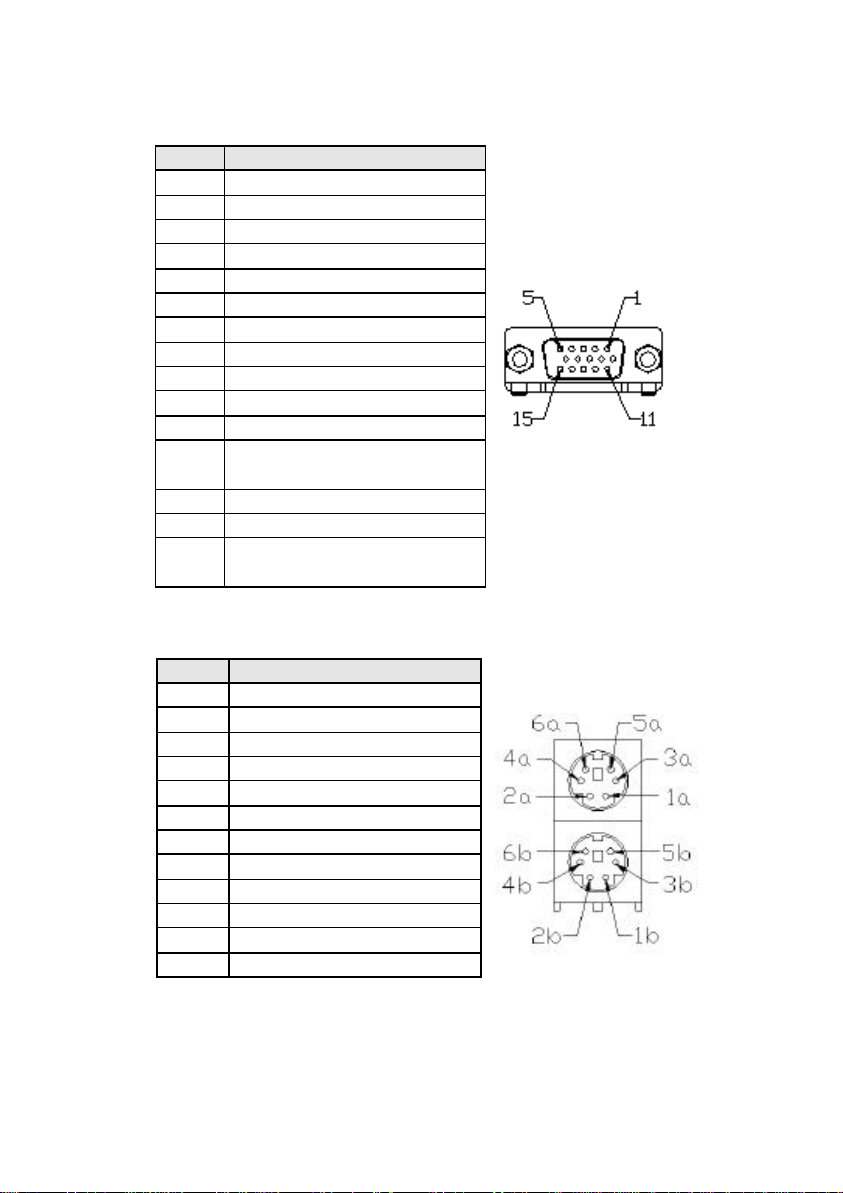

h VGA Connector (D -SUB 15-pin Female Connector): CN4

Pin # Assignment 1 Red signal 2 Green signal 3 Blue signal 4 NC 5 Ground 6 Red Ground 7 Green Ground 8 Blue Ground 9 +5V (via polyfuse) 10 Ground 11 NC 12 Data of monitor ID

(with 10K Ω pull high) 13 H Sync. 14 V Sync. 15 Clock of monitor ID

(with 10K Ω pull high)

hPS2 Mouse /PS2 Keyboard (Mini Din 6 Pin): CN8, CN9

Pin # Assignment 1a Mouse data 2a NC 3a Ground 4a +5V via Poly-fuse 5a Mouse clock 6a NC 1b Keyboard data 2b NC 3b Ground 4b +5V via Poly-fuse 5b Keyboard clock 6b NC

Figure

Keyboard

Mouse

3-6

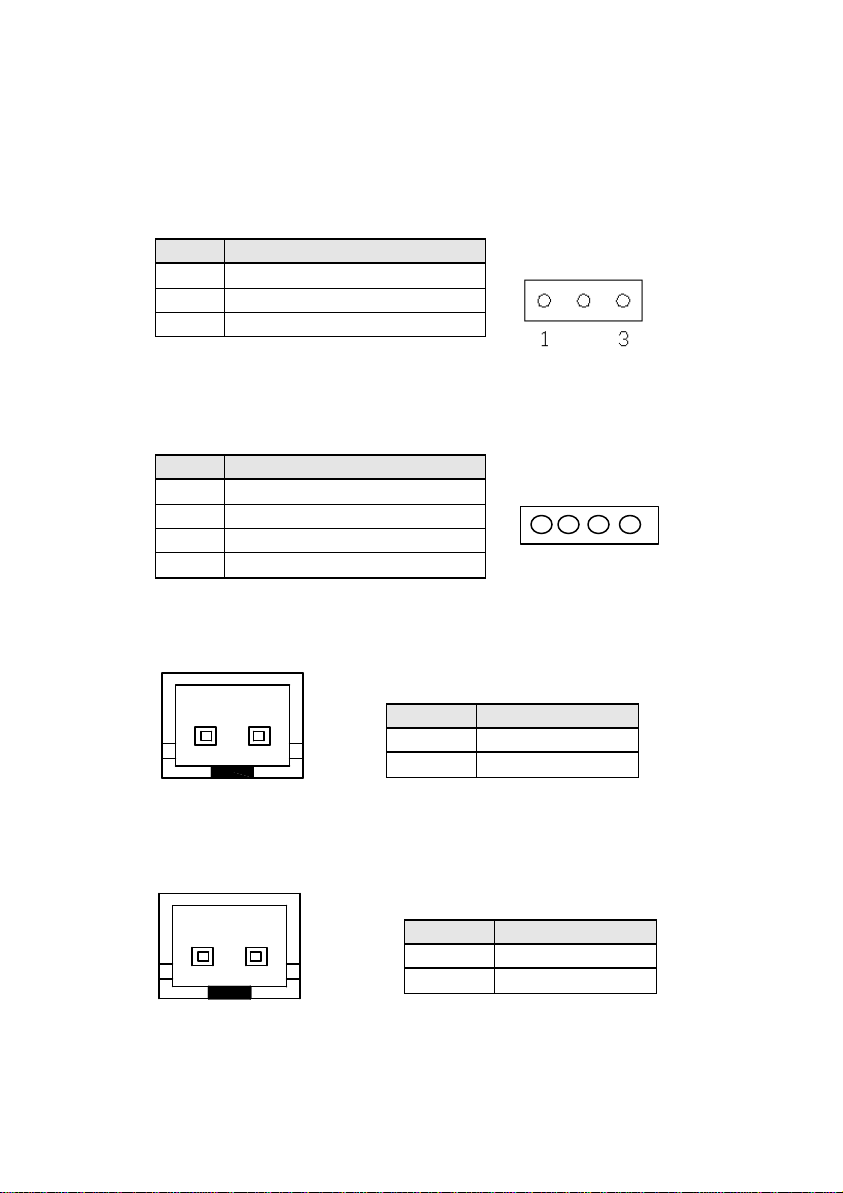

hPower Connector: CN10 for ATX Power ( FT-8015 ),3000 CN17 for AT Power (FT-8065 ),4000

h.HDD Power Header: CN11

Pin # Assignment 1 VCC 2 +12V 3 Ground

hFDD Power Header: CN13

Pin # Assignment 1 VCC 2 Ground 3 Ground 4 +12V

.hPower Push Button: CN14

Figure

1 4

1 2

hAV Board Connector: CN15

Pin # Assignment

1 Ground 2 PWRBT#

Pin # Assignment

1 COMP 2 Ground

3-7

hMDC & Audio & USB Board Connector: CN18

Pin # Assignment Pin # Assignment Pin # Assignment 1 LOULT 13 USB1GB 25 MONO OUT 2 LINL 14 USBP1-R 26 SDFS2 3 ADGND 15 OC#0B 27 1988V3.3 4 LINR 16 USB2GB 28 GND 5 LOUTR 17 GND 29 SDO2 6 ADGND 18 OC#1B 30 MC97_DI 7 GND 19 1988_AVDD 31 ADGND 8 LMIC1 20 GND 32 ADGND 9 USBP0+R 21 SCLK2 33 PCIRST# 10 GND 22 PHONE 34 SDI2 11 USBP0-R 23 3VSB 12 USBP1+R 24 GND Figure

3-8

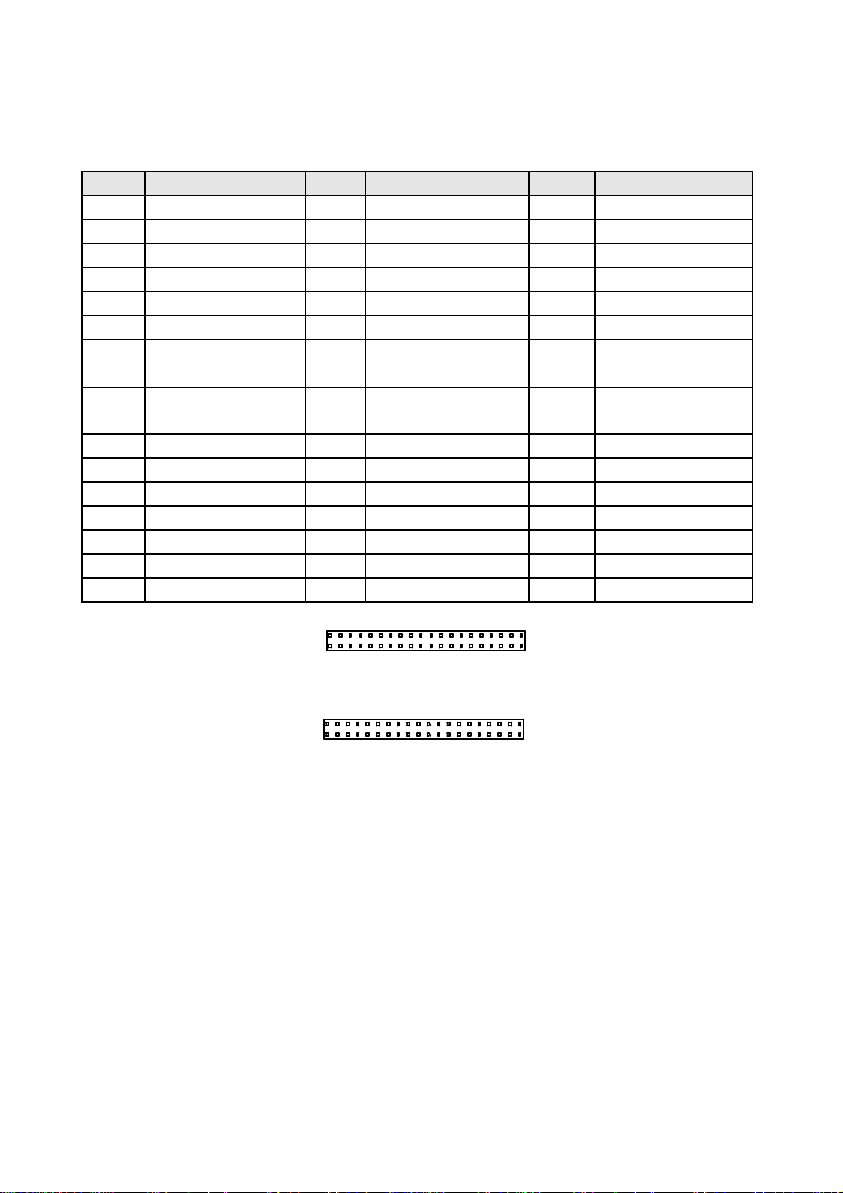

hIDE Connector Primary：CN19 40pin 2.54mm, Primary: CN22 44pin 2.0mm

Pin # Assignment Pin # Assignment Pin # Assignment 1 Reset 16 Data bit 14 31 IRQ 14 2 Ground 17 Data bit 0 32 NC 3 Data bit 7 18 Data bit 15 33 Disk address 1 4 Data bit 8 19 Ground 34 NC 5 Data bit 6 20 NC 35 Disk address 0 6 Data bit 9 21 IDE DRQ 36 Disk address 2 7 Data bit 5 22 Ground 37 Disk chip select

8 Data bit 10 23 Disk Write 38 Disk chip select

1 9 Data bit 4 24 Ground 39 Disk LED 10 Data bit 11 25 Disk read 40 Ground 11 Data bit 3 26 Ground 41 VCC 12 Data bit 12 27 Disk ready 42 VCC 13 Data bit 2 28 NC 43 Ground 14 Data bit 13 29 IDE DACK 44 Ground 15 Data bit 1 30 Ground Figure

CN19

CN22

43 1

3-9

hFloppy Disk Connector (34pin 2.54mm Pitch Pin-Header with

Housing): CN20

Pin # Assignment Pin # Assignment Pin # Assignment 1 Ground 13 Ground 25 Ground 2 Density select 14 Driver select 2 26 Track 00 3 Ground 15 Ground 27 Ground 4 Vcc 16 Motor on 1 28 Write protected 5 Ground 17 Ground 29 Ground 6 Vcc 18 Data direction 30 Read data 7 Ground 19 Ground 31 Ground 8 Index 20 Step motor active 32 Head select 9 Ground 21 Ground 33 Ground 10 Motor on 0 22 Write data 34 Disk change 11 Ground 23 Ground

12 Driver select 1 24 Write gate Figure

hFan Connector: CN16, CN23

Pin # Assignment

1 +12V (Default) 2 Ground

Figure

1 2

3-10

hExt. USB Port Connector (Pin -Header 8 Pin): CN27

Pin Assignment Pin Assignment 1 Vcc via Ploy -fuse 2 Vcc via Poly-fuse 3 USBPO - 4 USBP1 5 USBP0 + 6 USBP1 + 7 Signal ground 8 Signal ground Figure

3-11

hUSB Port Connector: CN28, CN29

Pin Assignment Pin Assignment 1a Vcc via Ploy -fuse 1b Vcc via Poly-fuse 2a USBPO 2b USBP1 3a USBP0 + 3b USBP1 + 4a Signal ground 4b Signal ground Figure

Chapter 4. System Utility Setup

4.1.System Utility

This product provides following utility programs in system ROM and in the CD disk driver bank.

BIOS Setup, for defining the configuration of the system

RTL8139 LAN configuration utility

DiskOnChip Configuration Utility

4-1

4.2.BIOS Setup– Intel 815EB Chipset

Remark: We select the following model as sample to analysis how to setup System BIOS. For other model or updated BIOS information, please check with your supplier.

MODEL NET PC NC1 Series CPU Intel Pentium II /III / SOCKET 370 M / B B61 supports Intel 815EB BIOS AWARD

For above models of the NET PC NC1 computer's BIOS is supplied by AWARD SOFTWARE, INC. AWARD'S BIOS Flash ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery -backed RAM of CMOS chipset so that it retains the Setup information when the power is turned off.

4.2.1 Starting the BIOS Setup

Power on the computer and press <Del> immediately will allow you to enter Setup. The other way to enter Setup is to power on the computer, when the below message appears briefly at the bottom of the screen during the POST (Power On Self Test), press <Del> key or simultaneously press <Ctrl>, <Alt>, and <Esc> keys.

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> OR <DEL> KEY

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to,

PRESS <F1> TO CONTINUE, <CTRL -ALT-ESC> OR <DEL> TO ENTER SETUP

4-2

4.2.2.Control Keys

Control Keys Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item to the left side Right arrow Move to the item to the right side Esc key Main Menu: Quit and do not save changes to CMOS.

Except Main Menu:

Exit current BIOS screen and return to Main Menu. PgUp / “+” key Increase the numeric value or make changes PgDn / “ −“ key F1 key General help, only for Status Page Setup Menu and

F2,(Shift+F2) key F3 key Reserved F4 key Reserved F5 key Restore the previous CMOS value from CMOS,

F6 key Load the default CMOS value from BIOS default table, F7 key Load the Setup default, only for Option Page Setup F8 key Reserved

F9 key Reserved F10 key Save all the CMOS value changes, only for Main Menu

Decrease the numeric value or make changes

Option Page Setup Menu

Change color from total 16 colors. F2 to select color

forward, (Shift + F2) to select color backward

only for Option Page Setup Menu

Description

4-3

4.2.3 Main Menu

When the Main Menu is displayed, the following items can be selected. Use arrow keys to select items and the Enter key to accept and enter the sub-menu.

Standard CMOS setup This setup page includes all the items in standard compatible BIOS.

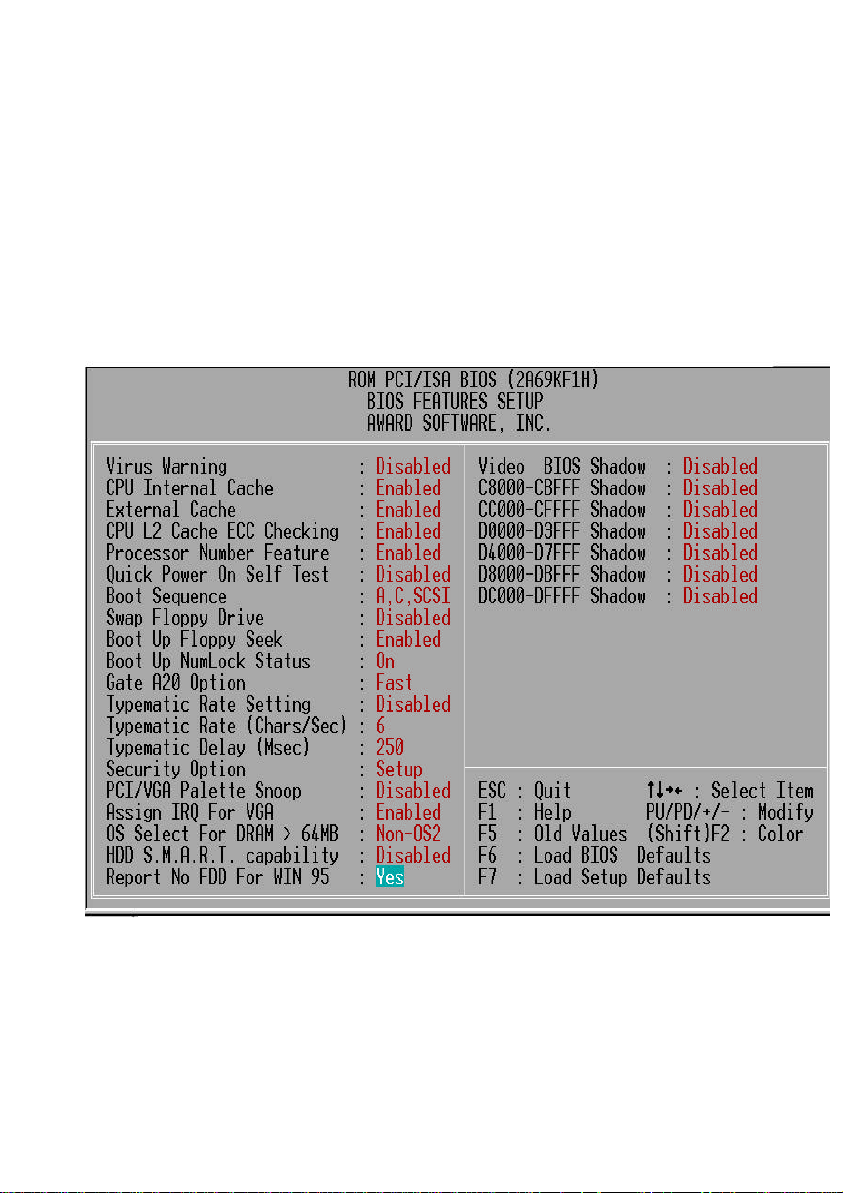

BIOS features setup This setup page includes all the items of AWARD special enhanced features.

Chipset features setup This setup page includes all the items of chipset special features.

4-4

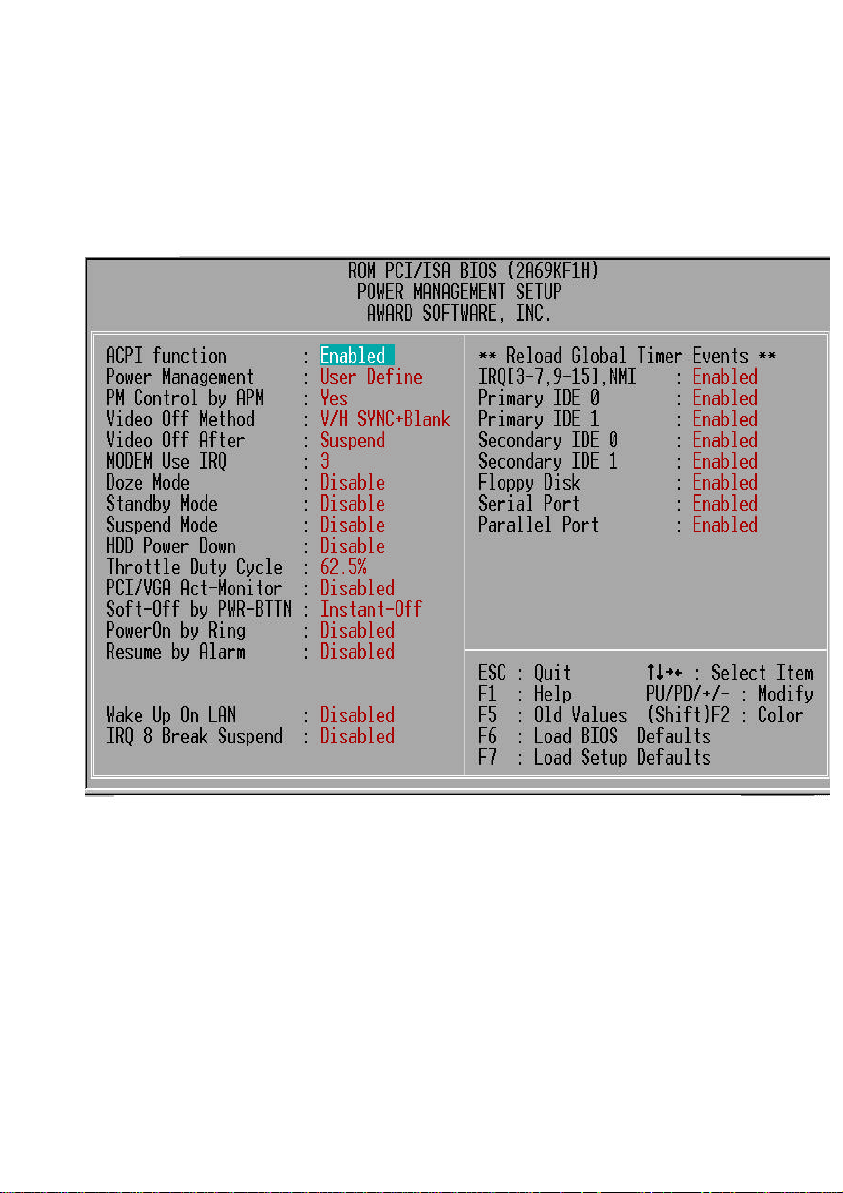

Power Management setup This category determines how much power consumption for system after selecting below items. Default value is Disable.

PNP/PCI Configuration This category specifies the value (in units of PCI bus clocks) of the latency timer for this PCI bus master and the IRQ level for PCI device.

Load BIOS defaults BIOS defaults indicates the most appropriate value of the system parameter which the system would be in minimum performance.

Load setup defaults Setup defaults indicates the values required by the system for the maximum performance.

Integrated Peripherals Change, set, or disable on board supers I/O function.

Supervisor password & Password setting Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.

IDE HDD auto detection Automatically configure hard disk parameters.

Save & exit setup Save CMOS value changes to CMOS and exit setup.

Exit without save Abandon all CMOS value changes and exit setup.

4-5

4.2.4 Standard CMOS Setup

In the standard CMOS menu, you can set the system clock and calendar, record disk drive parameters and the video subsystem type, and select the type of errors that stop the POST ( Power On Self Test).

Date The date format is <day>, <date> <month> <year>. Press <F3> to show the calendar.

4-6

Item Description Day The day of week, from Sun to Sat, determined by the BIOS is

read only

Date The date, from 1 to 31 (or the max imum allowed in the

month), can key in the numerical / function key Month The month, Jan. through Dec. Year The year, depend on the year of BIOS

Time The time format is <hour> <minute> <second>. Which accepts both function keys or numerical keys The time is calculated based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.

Primary master / Primary slave / Secondary master / Secondary slave The categories identify the types of hard disk drive C or drive D that has been installed in the computer. There are 45 predefined types and 1 user definable types and 1 automatic type for Normal BIOS. Type 1 to Type 45 are predefined. Type User is user-definable. Type Auto is auto-definition by your computer.

Press PgUp/<+> or PgDn/<−> to select a numbered hard disk type or type the number and press <Enter>. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed in 1 to 45, you can use Type User or Auto to define your own drive type manually or automatically.

If you select Type User, related information is asked to be entered to the following items. Enter the information di rectly from the keyboard and press <Enter>. This information should be provided in the documentation from your hard disk vendor or the system manufacturer.

If the controller of HDD interface is ESDI, the selection shall be “Type 1”. If the controller of HDD interface is SCSI, the selection shall be “None”. If the controller of HDD interface is CD-ROM, the selection shall be “None”.

4-7

Item Description CYLS. number of cylinders HEADS number of heads PRECOMP write precom LANDZONE landing zone SECTORS number of sectors MODE HDD access mode

If a hard disk has not been installed select NONE or Auto and press <Enter>.

Drive A / Drive B The category identifies the types of floppy disk drive A or drive B that have been installed in the computer.

Item Description None No floppy drive installed 360K, 5.25 in

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity 720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

Video The category selects the type of adapter used for the primary system

monitor that must match your vid eo display interface and monitor. Item Description EGA/VGA Enhanced Graphics Adapter/video Graphics Array. For

CGA 40 Color Graphics Adapter, power up in 40 column mode CGA 80 Color Graphics Adapter, power up in 80 column mode MONO Monochrome adapter, includes high resolution monochrome

5-1/4 inch PC-type standard drive; 360 kilobyte capacity

EGA, VGA, SVGA, or PGA monitor adapters.

adapters

4-8

Halt on

The category determines whether the computer will stop if an error is

detected during power up. Item Description

No errors Whenever the BIOS detects a non-fatal error the system will

stop and you will be prompted. All errors The system boot will stop for any error that may be detected. All, But Keyboard All, But Diskette All, But Disk/Key

Memory The category is display -only which is determined by POST (Power On Self Test) of the BIOS.

Base Memory The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard, or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1MB in the CPU's memory address map.

Other Memory This refers to the memory located in the 640K to 1024K address space. This is memory that can be used for different applications. DOS uses this area to load device drivers to keep as much base memory free for application programs. Most use for this area is Shadow RAM.

The system boot will not stop for a keyboard error; it will stop

for all other errors.

The system boot will not stop for a disk error; it will stop for

all other errors.

The system boot will not stop for a keyboard or disk error; it

will stop for all other errors.

4-9

Total Memory System total memory is the sum of basic memory, extended memory, and other memory.

4.2.5 BIOS Features Setup

This menu sets up the BIOS feature.

Virus Warning This category flashes on the screen. During and after the system boots up, any attempt to write to the boot sector or partition table of the hard disk drive will halt the system and the following error message will appear, in the mean time, you can run an anti-virus program to locate the problem.

4-10

WRNING ! Disk boot sector is to be modified

Type "Y" to accept write or "N" to abort write AWARD Software, Inc.

Item Description Enabled Activates automatically when the system boots up causing a

warning message to appear when anything attempts to

access the boot sector or hard disk partition table. Disabled No warning message to appear when anything attempts to

access the boot sector or hard disk partition table.

! Note: This function is available only for DOS and other OSes that do not trap INT13.

CPU Internal Cache / External Cache These two categories speed up memory access. However, it depends on CPU/chipset design. The default value is Enable. If your CPU is without Internal Cache then this item “CPU Internal Cache” will not appear.

Item Description Enabled Enable cache Disabled Disable cache

Quick Power On Self Test This category speeds up Power On Self Test (POST) after you power on the computer. If it is set to Enable, BIOS will shorten or skip some check items during POST.

Item Description Enabled Enable quick POST Disabled Normal POST

4-11

Boot Sequence This category determines which drive computer searches first for the disk operating system (i.e., DOS). Default value is A, C.

Item Description A, C, SCSI System will first search the floppy disk drive then hard

disk drive for booting purpose

C, A, SCSI System will first search the hard disk drive then floppy

disk drive for booting purpose

C, CDROM, A System will first search the harddisk drive then CDROM

drive and the next is floppy disk drive for booting purpose

CDROM, C, A System will first search the CDROM drive then harddisk

drive and the next is floppy disk drive for booting purpose

D, A, SCSI System will first search the hard disk D drive then

floppy disk dri ve for booting purpose

E, A, SCSI System will first search the hard disk E drive then floppy

disk drive for booting purpose

F, A, SCSI System will first search the hard disk F drive then floppy

disk drive for booting purpose

SCSI, A, C System will first search the SCSI hard disk drive then

floppy disk drive for booting purpose

SCSI, C, A System will first search the SCSI hard disk drive then

hard disk drive for booting purpose

C only System only search the hard disk drive for booting

purpose

LS/ZIP, C System will first search the LS120 drive then hard disk

drive for booting purpose

Swap Floppy Drive

Item Description Enabled Enable Floppy Drives A and B Swap function Disabled Disable Floppy Drives A and B Swap function

Boot Up Floppy Seek During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 720K, 1.2M and 1.44M are all 80 tracks.

4-12

Item Description Enabled BIOS searches for floppy disk drive to determine if it is 40 or

80 tracks. Note that BIOS can not tell from 720K, 1.2M or

1.44M drive type as they are all 80 tracks.

Disabled BIOS will not search for the type of floppy disk drive by track

number. Note that there will be no warning message if the

drive installed is 360K.

Boot Up NumLock Status The default value is On.

Item Description On Keypad is number keys after boot -up Off Keypad is arrow keys after boot -up

Gate A20 Option This entry allows you to select how the gate A20 is handled. The gate A20 is a device used to address memory above 1 Mbytes. Initially, the gate A20 was support, it is more common, and much faster, for the chipset to provide support for A20.

Item Description Normal Handling gate A20 by keyboard

Fast Handling gate A20 by chipset

Typematic Rate Setting This determines the typematic rate .

Item Description Enabled Enable typematic rate and typematic delay programming Disabled Disable typematic rate and typematic delay programming.

The system BIOS will use default value of this 2 items and

the default is controlled by keyboard.

Typematic Rate (Chars/Sec) When the typematic rate setting is enabled, this selection allows you select the rate at which the key is accelerated.

4-13

Item Description 6 6 characters per second

8 8 characters per second 10 10 characters per second 12 12 characters per second 15 15 characters per second 20 20 characters per second 24 24 characters per second 30 30 characters per second

Typematic Delay (Msec) When the typematic rate setting is enabled, this selection allows you to select the delay between when the key was first depressed and when the acceleration begins.

Item Description 250 250 msec

500 500 msec 750 750 msec 1000 1000 msec

Security Option This category allows you to limit access to the system and Setup, or just to Setup.

Item Description System The system will not boot and access to Setup will be denied

if the correct password is not entered at the prompt.

Setup The system will boot, but access to Setup will be denied if

the correct password is not entered at the prompt.

! Note: To disable security, select PASSWORD SETTING at Main Menu and then you will be asked to enter password. Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely.

4-14

PCI/VGA Palette Snoop It determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA or not.

Item Description Enable When PCI/GA works with MPEG ISA/VESA VGA card Disable When PCI/VGA doesn‘t work with MPEG ISA/VESA

card

Assign IRQ For VGA This item allows you to assign an IRQ for VGA use.

Item Description Enabled Allowed

Disabled Restricited

OS Select For DRAM > 64MB This item allows you to access the memory that over 64MB in OS2.

Item Description Non-OS2 OS2 cannot access the memory address

over 64MB

OS2 OS2 can access the memory address

over 64MB

HDD S.M.A.R.T. Capability Enable, support hard disk drive quick start up function when re -boot system. The Choice: Enable, Disable

Report No FDD for WIN 95

Item Description Yes Release IRQ channel for system after disable FDD function No Without release IRQ channel for system after disable FDD

function

4-15

Video BIOS Shadow BIOS Shadow It determines whether system BIOS will be copied to RAM or the system BIOS is always shadow to support LBA HDD.

Item Description Enabled System shadow is enabled

Disabled System shadow is disabled

Video ROM Shadow It determines whether video ROM will be copied to RAM, however, it is optional from chipset design. Video Shadow will increase the video speed.

Item Description Enabled Video shadow is enabled

Disabled Video shadow is disabled

C8000 - CBFFF Shadow / CC000 - CFFFF Shadow / D0000 - D3FFF Shadow / D5000 - D7FF Shadow /D8000 - DBFFF Shadow / DC000 DFFFF Shadow These categories determine whether optional ROMs will be copied to RAM. An example of such option ROM would be support of SCSI add-on card.

Item Description Enabled Optional shadow is enabled Disabled Optional shad ow is disabled

4-16

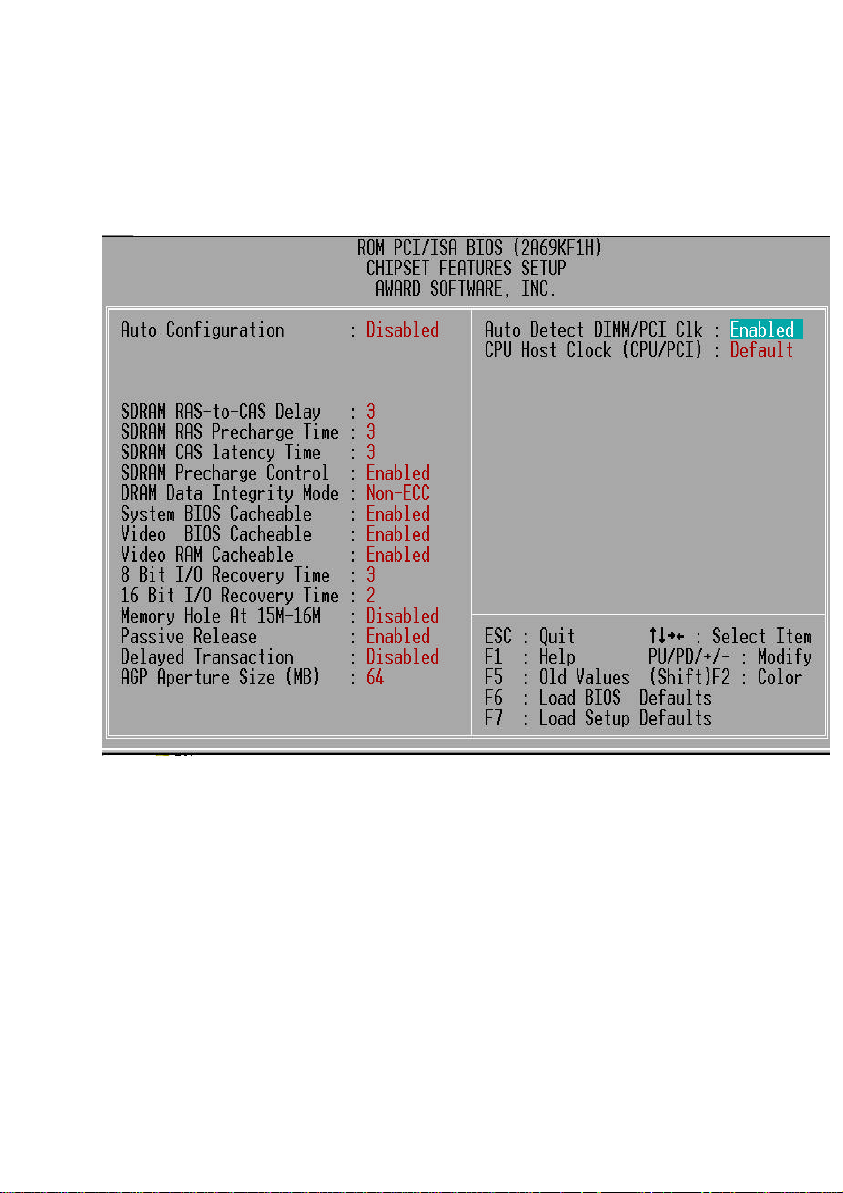

4.2.6 Chipset Feature Setup

In the chipset feature setup menu, you can set the following items for chipset feature.

Auto Configuration Auto Configuration selects predetermined optimal values of chipset parameters.

When Disabled, chipset parameters revert to setup information stored in CMOS. Many fields in this screen are not available when Auto Configuration is Enabled.

The Choice: Enabled, Disabled.

4-17

EDO DRAM Speed Selection

Item Description 50ns DRAM Timing Type.

60ns DRAM Timing Type.

EDO CASx# MA Wait State You could select the wait state timing control type of EDO DRAM CAS MA (memory address bus).

The choice: 1, 2.

EDO RASx# Wait State You could select the wait state timing control type of EDO DRAM CAS MA (memory address bus).

The choice: 1, 2. SDRAM RAS-to-CAS Delay

You can select RAS to CAS Delay time in HCLKs of 2/2 or 3/3. The system board designer should set the values in this field, depending on the SDRAM installed. Do not change the values in this field unless you change specifications of the installed SDRAM or the installed CPU.

The Choice: 2, 3. SDRAM RAS Precharge Time

Defines the length of time for SDRAM Row Address Strobe is allowed to precharge.

The Choice: 2, 3.

SDRAM CAS latency Time Define the length of time for SDRAM CAS latency time.

The Choice: 2, 3.

4-18

SDRAM Precharge Control Defines the length of time for Row Address Strobe is allowed to precharge.

The Choice: Disable, Enable.

DRAM Data Integrity Mode Select Parity or ECC (error-correcting code), according to the type of installed DRAM.

The Choice: Non -ECC, ECC.

System BIOS Cacheable Select Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.

Item Description Enabled BIOS access cached Disabled BIOS access not cached

Video BIOS Cacheable Select Enabled allows caching of the video BIOS ROM at C0000h-F7FFFh, resulting in better video performance. However, if any program writes to this memory area, a system error may result.

Item Description Enabled Video BIOS access cached Disabled Video BIOS access not cached

Video RAM Cacheable Select Enabled allows caching of the video RAM, resulting in better system performance. However, if any program writes to this memory area, a system error may result.

8 Bit I/O Recovery Time The recovery time is the length of time, measured in CPU clocks, which the system will delay after the completion of an input/output request.

4-19

This delay takes place because the CPU is operating so much faster than the input/output bus that the CPU must be delayed to allow for the completion of the I/O.

This item allows you to determine the recovery time allowed for 8 bit I/O. Choices are from NA, 1 to 8 CPU clocks.

16 Bit I/O Recovery Time This item allows you to determine the recovery time allowed for 16 bit I/O. Choices are from NA, 1 to 4 CPU clocks.

Memory Hole At 15M -16M In order to improve performance, cert ain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space location 15-16MB.

Item Description Enabled Memory hole supported. Disabled Memory hole not supported.

Passive Release When Enabled, CPU to PCI bus accesses is allowed during passive release. Otherwise, the arbiter only accepts another PCI master access to local DRAM.

The Choice: Enabled, Disabled.

Delay Transaction The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.

The Choice: Enabled, Disabled.

4-20

AGP Aperture Size (MB) Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. See

www.agpforum.org for AGP information.

The Choice: 4, 8, 16, 32, 64, 128, 256

4-21

4.2.7 Power Management Setup

In the power management menu, you can set the following items for power management.

Power Management This category allows you to select the type (or degree) of power saving and is directly related to the following modes:

1. Doze Mode

2. Standby Mode

3. Suspend Mode

4. HDD Power Down There are four selections for Power Management, three of which have

fixed mode settings.

4-22

Item Description Disable

(default) Min. Power Saving Max. Power Saving User Defined

PM Control By APM The option of power management is subject to the operation system which supports APM (Advanced Power Management ) function; e.g. WIN 95 /WIN 98.

When enabled, an Advanced Power Management device will be activated To enhance the Max. Power Saving mode and stop the CPU internal clock. If the Max. Power Saving is not enabled, this will be preset to No.

No power management. Disables all four modes

Minimum power management. Doze Mode = 1 hr.

Standby Mode = 1 hr., Suspend Mode = 1 hr., and HDD

Power Down = 15 min.

Maximum power management -- ONLY AVAILABLE FOR

SL CPU’S. Doze Mode = 1 min., Standby Mode = 1 min.,

Suspend Mode = 1 min., and HDD Power Down = 1 min.

Allows you to set each mode individually. When not

disabled, each of the ranges are from 1 min. to 1 hr. except

for HDD Power Down which ranges from 1 min. to 15 min.

and disable.

4-23

Video Off Method

This determines the manner in which the monitor is blanked. Item Description V/H SYNC+Blank

Blank Screen This option only writes blanks to the video buffer. DPMS Initial display power management signaling.

Video Off After

When enabled, this feature allows the VGA adapter to operate in a power

saving mode. Item Description

N/A Monitor will remain on during power saving modes. Suspend Monitor blanked when the system enters the Suspend mode. Standby Monitor blanked when the system enters Standby mode. Doze Monitor blanked when the system enters any power saving

MODEM Use IRQ

Name the interrupt request (IRQ) line assigned to the modem (if any) on

your system. Activity of the selected IRQ always awakens the system.

The choices: NA, 3, 4, 5, 7, 9, 10, 11

Doze Mode

When enabled and after the set time of system inactivity, the CPU clock

will run at slower speed while all other devices still operate at full speed.

Standby Mode

When enabled and after the set time of system inactivity, the CPU clock

will run at lower speed and the video would be shut off while all other

devices still operate at full speed.

Suspend Mode

When enabled and after the set time of system inactivity, all devices

except the CPU will be shut off.

This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer.

mode.

4-24

HDD Power Down

When enabled and after the set time of system inactivity, the hard disk

drive will be powered down while all other devices remain active.

Throttle Duty Cycle

When the system enters Doze mode, the CPU clock runs only part of the

time. You may select the perc ent of time that the clock runs.

The Choice: 12.5%, 25.0%, 37.5%, 50.0%, 62.5%, 75.0%

PCI/VGA Act Monitor

When Enabled, any video activity restarts the global timer for Standby

mode.

The Choice: Enabled, Disabled.

Soft-Off by PWR-BTTN

When Enabled, turning the system off with the on/off button places the

system in a very low -power-usage state, with only enough circuitry

receiving power to detect power button activity or Resume by Ring

activity.

The Choice: Instant -Off, Delay 4 Sec.

PowerOn by Ring

An input signal on the serial Ring Indicator (RI) line (in other words, an

incoming call on the modem) awakens the system from power off state.

The Choice: Enabled, Disabled.

Resume by Alarm

To set Date and Time to resume the system.

Wake Up On LAN

An input signal on the mainboard control by LAN chip awakens the

system from power off state. The W-O-L will function when this system

connected to ATX power supply.

The Choice: Enabled, Disabled.

4-25

IRQ 8 Break Suspend

You can Enable or Disable monitoring of IRQ8 so it does not awaken the

system from Suspend mode.

The Choice: Enabled, Disabled.

Reload Global Timer Events

When Enabled, an event occurring on each device listed below restarts

the

global time for Standby mode.

IRQ[3 -7, 9-15], NMI

Primary IDE 0

Primary IDE 1

Secondary IDE 0

Secondary IDE 1

Floppy Disk

Serial Port

Parallel Port

4-26

4.2.8. PnP/PCI Configuration

This section describes configuring the PCI bus system. PCI, or Personal

Computer Interconnect, is a system which allows I/O devices to operate

at speed nearing the speed the CPU itself uses when communicating with

its own special components. This section covers some very technical

items and it is strongly recommended that only experienced users should

make any changes to the default settings.

4-27

PnP OS Installed

Select “Yes” if the system-operating environment is Plug-and-Play aware

(e.g., Windows 95).

The Choice: Yes and No.

Resource Controlled by

The Award Plug and Play BIOS can automatically configure all the boot

and Plug and Play -compatible devices. If you select Auto, all the

interrupt request (IRQ) and DMA assignment fields disappear, as the

BIOS automatically assign them.

The choice: Auto and Manual.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset

Extended System Configuration Data (ESCD) when you exit Setup if you

have installed a new add-on and the system reconfiguration has caused

such a serious conflict that the operating system cannot boot.

The choice: Enabled and Disabled.

IRQ n Assigned to

When resources are controlled manually, assign each system interrupt as

one of the following types, depending on the type of device using the

interrupt:

Legacy ISA Devices compliant with the original PC AT bus specification,

requiring a specific interrupt (such as IRQ4 for serial port 1).

PCI/ISA PnP Devices compliant with the Plug and Play standard, whether

designed for PCI or ISA bus architecture.

DMA n Assigned to

PCI/ISA PnP Devices compliant with the Plug and Play standard, whether

designed for PCI or ISA bus architecture. When resources are

controlled manually, assign each system DMA channel as one of the

following types, depending on the type of device using the interrupt:

Legacy ISA Devices compliant with the original PC AT bus specification,

requiring a specific DMA channel.

4-28

PCI/ISA PnP Devices compliant with the Plug and Play standard, whether

designed for PCI or ISA bus architecture.

Used MEM base addr

Select a base address for the memory area used by any peripheral that

requires high memory.

The Choice: C800, CC00, D000, D500, D800, DC00, N/A.

Assign IRQ for USB

Enable / Disable system to assign IRQ channel to USB devices.

4-29

4.2.9.Integrated Peripherals

The menu sets up the connections between the CPU and the I/O ports

and the hard disk controllers.

The printer unit specialized for the POS 500 uses COM3 and is assigned

to 3E8h/IRQ 11.

The touch panel uses COM4 and is assigned to 2E8h/IRQ 10.

IDE HDD Block Mode

This allows your hard disk controller to use the fast block mode to transfer

data to and from your hard disk drive (HDD).

Item Description Enabled IDE controller uses block mode. Disabled IDE controller uses standard mode.

4-30

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input / Output) fields let you set a PIO

mode (0-4) for each of the four IDE devices that the onboard IDE

interface supports.

Modes 0 through 4 provide successively increased performance. In

Auto mode, the system automatically determines the best mod e for each

device.

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive

supports it and the operating environment includes a DMA driver

(Windows 95 OSR2 or a third -party IDE bus master driver). If your hard

drive and your system software both support Ultra DMA/33, select Auto to

enable BIOS support.

The Choice: Auto, Disabled

On-Chip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with support

for two IDE channels. Select Enabled to activate each channel

separately.

USB Keyboard support

Select Enabled if your system contains a Universal Serial Bus (USB)

controller and you have a USB keyboard.

The Choice: Enabled, Disabled.

Onboard FDD Controller

This should be enabled if your system has a floppy disk drive (FDD)

installed on the system board and you wish to use it. Even when so

equipped, if you add a higher performance controller, you will need to

disable this feature.

The Choice: Enabled, Disabled.

4-31

Onboard Serial Port 1/Port 2

This item allows you to determine access onboard serial port 1/port 2

controller with which I/O addresses.

The Choice: 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

Onboard Parallel Port

Select a logical LPT po rt name and matching address for the physical

parallel (printer) port.

The choice: 378H/IRQ7, 278H/IRQ5, 3BCH/IRQ7, Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel port. Select Compatible

or Extended unless you are certain both your hardware and software

support EPP or ECP mode.

The choice: SPP, ECP + EPP1.7, EPP1.7 + SPP, EPP1.9 + SPP, ECP,

ECP + EPP1.9, and Normal.

ECP Mode Use DMA

Select a DMA channel for the port. Choices are 3, 1.

4.2.10 Password Setting

When you select this function, a message appears at the center of the

screen:

ENTER PASSWORD:

Type a password, up to eight characters, and press the Enter key.

Typing a password clears any previously entered password from CMOS.

Now the message changes:

CONFIRM PASSWORD:

Again, type the password and press the Enter key.

To clear the password, simply press the Enter key when asked to enter a

password. Then the password function is disabled.

4-32

To abort the process at any time, press the Esc key.

In the Security Option item in the BIOS Features Setup screen, select

System or Setup:

Item Description System

Enter a password each time the system boots and whenever you enter setup.

Setup IDE controller uses standard mode.

4-33

4.3.BIOS Setup – VIA VT82C693 Chipset

Remark: We select the following model as sample to analysis how to

setup System BIOS. For other model or updated BIOS information,

please check with your supplier.

MODEL BOOK PC 3000 (B64) Series CPU Intel Pentium II /III SOCKET 370 M / B B64 support VT82C693 BIOS AWARD

For above models of the 3000 series computer's BIOS is supplied by

AWARD SOFTWARE, INC. AWARD'S BIOS Flash ROM has a built-in

Setup program that allows users to modify the basic system configuration.

This type of information is stored in battery -backed RAM of CMOS

chipset so that it retains the Setup information when the power is turned

off.

4.3.1 Starting the BIOS Setup

Power on the computer and press <Del> immediately will allow you to

enter Setup. The other way to enter Setup is to power on the computer,

when the below message appears briefly at the bottom of the screen

during the POST (Power On Self Test), press <Del> key or

simultaneously press <Ctrl>, <Alt>, and <Esc> keys.

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> OR

<DEL> KEY

If the message disappears before you respond and you still wish to enter

Setup, restart the system to try again by turning it OFF then ON

pressing the "RESET" button on the system case. You may also restart

by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do

not press the keys at the correct time and the system does not boot, an

error message will be displayed and you will again be asked to,

PRESS <F1> TO CONTINUE, <CTRL -ALT-ESC> OR <DEL> TO ENTER

SETUP

4-34

4.3.2.Control Keys

Except Main Menu:

Exit current BIOS screen and return to Main Menu. PgUp / “+” key Increase the numeric value or make changes PgDn / “ −“ key F1 key General help, only for Status Page Setup Menu and

F2,(Shift+F2) key F3 key Reserved F4 key Reserved F5 key Restore the previous CMOS value from CMOS,

F6 key Load the default CMOS value from BIOS default table, F7 key Load the Setup default, only for Option Page Setup F8 key Reserved

F9 key Reserved F10 key Save all the CMOS value changes, only for Main Menu

Decrease the numeric value or make changes

Option Page Setup Menu

Change color from total 16 colors. F2 to select color

forward, (Shift + F2) to select color backward

only for Option Page Setup Menu

Description

4-35

4.3.3 Main Menu

When the Main Menu is displayed, the following items can be selected. Use arrow keys to select items and the Enter key to accept and enter the sub-menu.

Standard CMOS setup This setup page includ es all the items in standard compatible BIOS.

BIOS features setup This setup page includes all the items of AWARD special enhanced features.

Chipset features setup

4-36

This setup page includes all the items of chipset special features.
