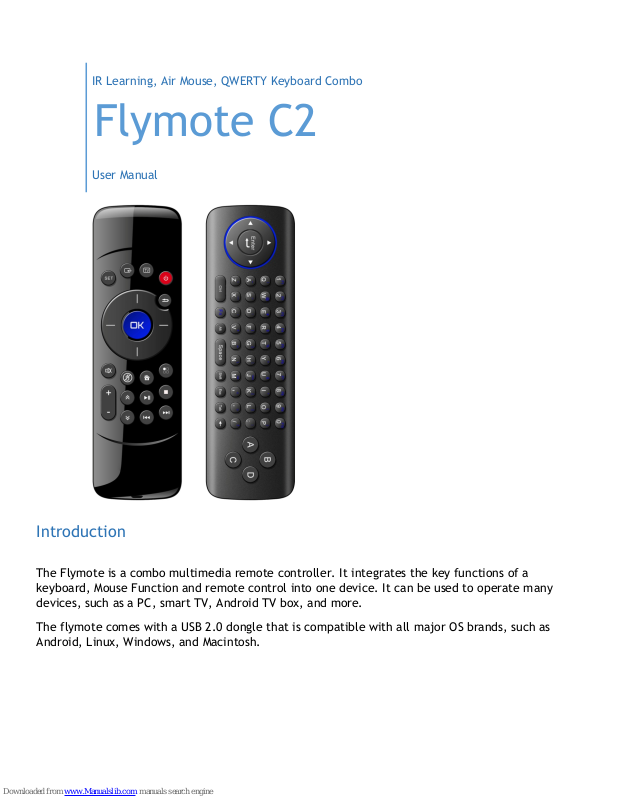

IR Learning, Air Mouse, QWERTY Keyboard Combo
Flymote C2
User Manual
Introduction
The Flymote is a combo multimedia remote controller. It integrates the key functions of a
keyboard, Mouse Function and remote control into one device. It can be used to operate many
devices, such as a PC, smart TV, Android TV box, and more.
The flymote comes with a USB 2.0 dongle that is compatible with all major OS brands, such as
Android, Linux, Windows, and Macintosh.
Setup
1. Charge before use
There is Lithium rechargeable battery in the flymote, the battery is not fully charged in
production. Charge the flymote with the micro usb cable before use.
2. Plug the USB dongle
Plug the USB dongle into the USB port of the device to be used with the flymote.
Learning Function
The flymote can learn the ones of various kinds of household electrical appliances with infrared
control function in any interface. Eg. TV, VCR, DVD player, TV Box.
Those 4 keys are for IR learning Fuctions.
‘Set’ key, to enter into Learning Mode
Key to be learnt
Key to be learnt
Key to be learnt
1. Press the ‘Set’ Key for 3 seconds, the green indicator Turns on.
2. Press any of the keys to be learnt, then the green indicator starts to blink.
3. Aim horizontally the remote controller to be learnt at the top of this flymote within a distance
between 1 – 3 cm.
4.
Press a certain function key on the target remote controller to send out its code, then the green
indicator on the flymote blinks quickly for three times and turns on. Then press ‘set’ key to exit
from IR learning mode. Indicator turns off and the learning is successful.
5. If there’s no correct operation in any step, the flymote will quit learning mode after 15 seconds.
Then you can start over.
Mouse function
The flymote is integrated with 6 axis motion sense, with those sensors, it brings you free space
experience of air mouse.
1.
The air mouse function is on as default. Press any key to wake up the mouse cursor. The mouse
has memory function, that means It keeps the cursor status after waking up from hibernation.
The ‘OK’ key is ENTER function which you can use it with navigation bars to enter menu options.
2. Press the ‘Mouse Switch’ key to turn on/off the air mouse function, The ‘OK’ key becomes
the mouse left click function in mouse cursor mode.
Specifications
Sensors
3-axis Gravity sensor, 3-axis Gyroscope
Communication
2.4 Ghz
Controller Range
8-10m
Frequency
2.400-2.483Ghz
Working Current
<<16mA
Standby Current
<<10uA
Battery
Rechargeable lithium battery
Indicator
1 LED indicator
Product Size
165*50*15mm (L*B*H)
Receiver Size
18.58*14.59*6.7mm (L*B*H) mini receiver
Weight
96g or 0.2lbs
USB
USB2.0
System
Compatible for Windows, Mac OS, Linux,
Android
Note: The range of the remote will depend on the environment surrounding it.

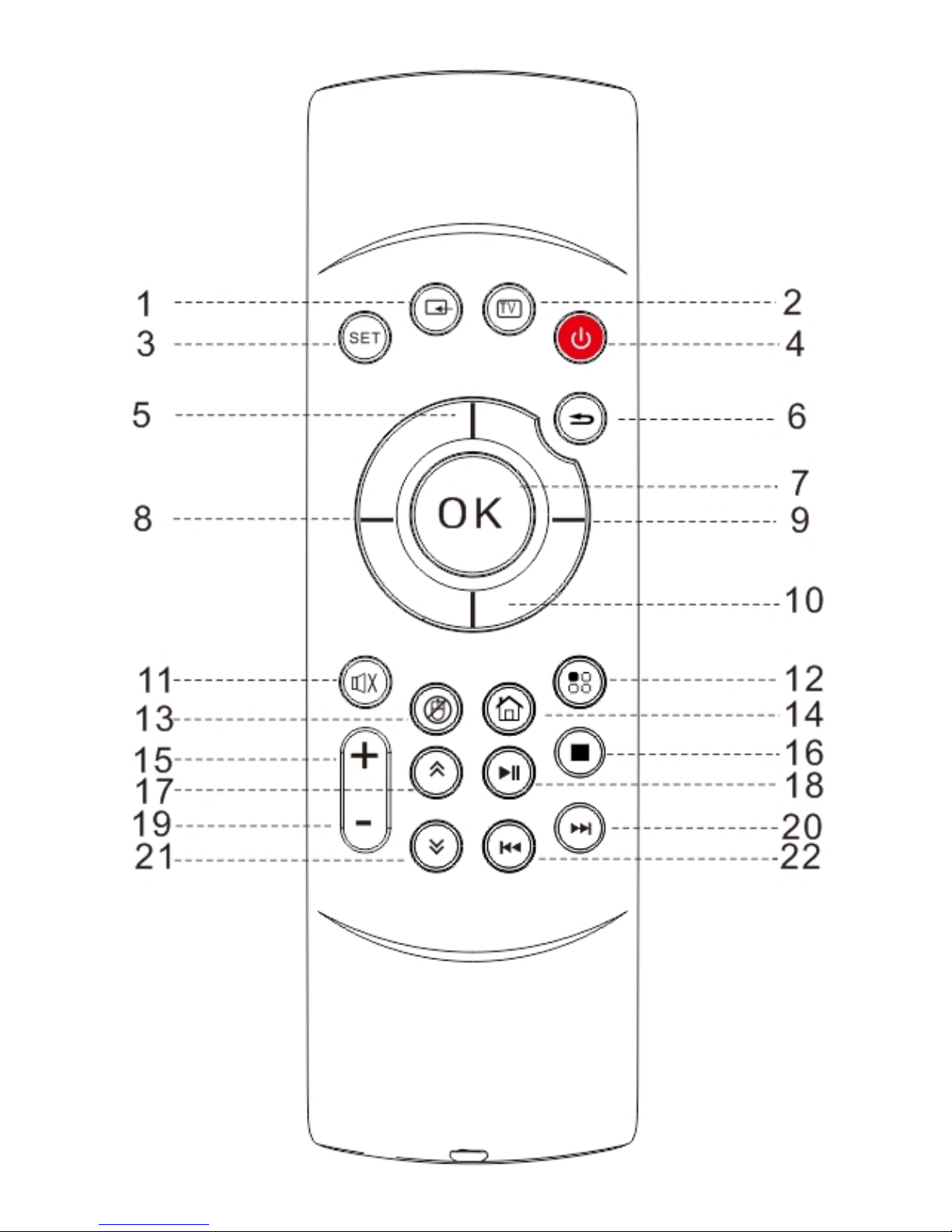

Key Functions
No.
Function
Description
1
IR Learning Key
Key to be learnt
2
IR Learning Key
Key to be learnt
3
IR Learning Key
Set Key
4
IR Learning Key
Key to be learnt
5
Up
Keyboard Up
6
Back
Mouse Right Click
Back Function in Android OS
7
Enter
Enter; Mouse Left Click
function in Mouse Cursor On mode.
8
Left
Keyboard Left
9
Right
Keyboard Right
10
Down
Keyboard Down
11
Mute
Mute
12
Menu
Menu
13
Mouse Switch
To turn on/off Mouse Cursor
14
Home
Home
15
Volume Up
Volume Up
16
Stop
Stop
17
Page Up
Page Up
18
Play/Pause
Play/Pause
19
Volume Down
Volume Down
20
Next Chapter
Next Chapter
21
Page Down
Page Down
22
Previous Chapter
Previous Chapter
Troubleshooting
1. If the cursor sometimes floats (or drags), hold the “Back” and “Home” buttons at the same
time for 3 seconds to re-sync the controller. The indicator will begin blinking quickly. Set
the remote down and keep the remote control absolutely still while the remote syncs to
the USB receiver. When the indicator turns on, the remote has been re-synced.
2. If the remote controller does not work and the blue indicator begins blinking when the USB
receiver is correctly plugged in, you can solve this problem by re-pairing the device.
Keep the distance between the remote control and the pc within 1m. Hold the “Vol
Down” and “Mouse Switch” keys for 2 seconds and when the blue indicator starts blinking
quickly, set the remote on a flat surface. When the blue indicator stops blinking and
turns on, the pairing is complete.
