Flycomos TK02A User Manual

FUZHOU CANWELL IMPORT & EXPORT CO., LTD.

Tel:[phone] Fax:[phone] E-mail:[e-mail]

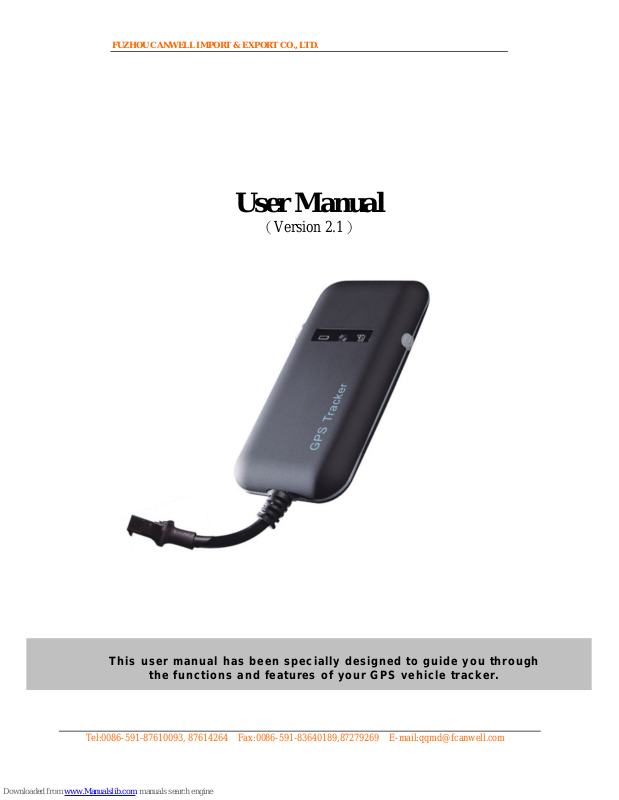

User Manual

（Version 2.1）

This user manual has been specially designed to guide you through

the functions and features of your GPS vehicle tracker.

FUZHOU CANWELL IMPORT & EXPORT CO., LTD.

Tel:[phone] Fax:[phone] E-mail:[e-mail]

1. Accessories

Charging cable (Standard)

2. Specification

Dimension 90(L) x 45(W) x 13.5(H) mm
Weight 45g
Operation T em perature -30 ℃ - 70℃
Operation Voltage 9-36vDC
Humidity 20% - 80%
GSM Frequencies 850/900/1800/1900 MHz
GPRS Class 12
GPS Sensitivity -159dBm
Acquisition Sensitivity -144dBm
Position Accuracy 10m

Cold Start: ＜38s
Warm Start: ＜32s

TTFF （Open Sky）

Hot Start: ＜2s
GSM/GPS Antenna Built-in design
LED Indicator GSM-green, GPS-blue, Power-red
Data Transmit TCP, SMS
Non-movement Detection Movement alarm based on built-in 3D

motion sensor
Mileage Report Track by time/distance interval

FUZHOU CANWELL IMPORT & EXPORT CO., LTD.

Tel:[phone] Fax:[phone] E-mail:[e-mail]

3. Quick Operation Instructions

Change APN parameter by sending SMS “APN,666666,APN name#” and

“SERVER,666666,1,www

”to the device.

3.1 Locate current position by GPRS/SMS

3.2 GPS tracking platform:

3.3 Track by time interval via GPRS

Send SMS “TIMER,666666,,time(second)#” to device. 10s in minimum

while 18000s(5 hours) in maximum.

3.4 Change password

The default password is 666666. Send SMS “PASSWORD,old password

(6 numbers),new password (6 numbers)#” to the device.

3.5 Real-time Location Tracking via SMS

3.5.1 Send SMS “WHERE,666666#” to the device, you will get the

current location of the device.

3.5.2 Send SMS “URL,666666#” to the device, you will get the URL of

the current location by maps.google.com

.
