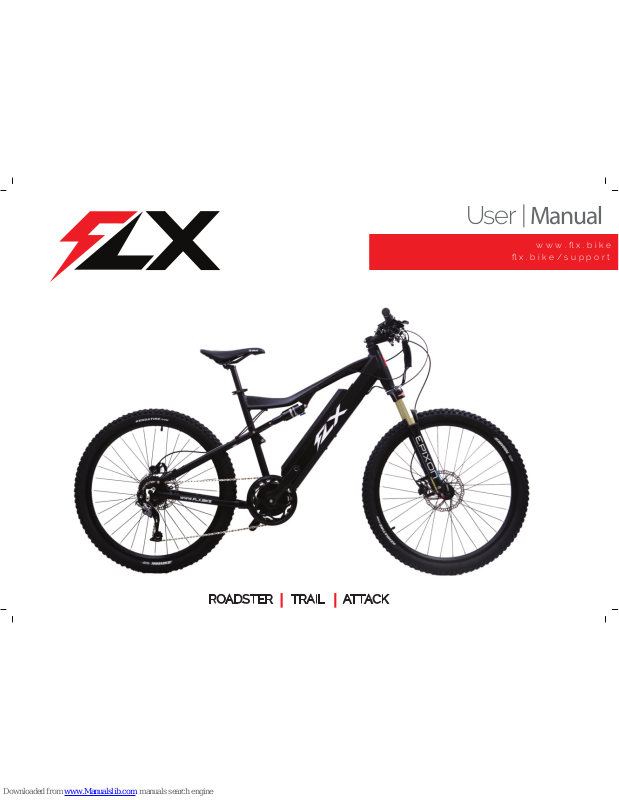

FLX ROADSTER, TRAIL, ATTACK User Manual

User |

Manual

www.fl x . b i k e

flx.bike/support

ROADSTER TRAIL ATTACK

Table of Contents:

02
03
05
10
11
14
18
19
20
21
22
23
24
25

01

Dear Customer,
Quick Start Guide
Components
Proper Use & Safety Info
Technical Specs
LCD Screen
LCD Screen: Error Codes
Battery Care
Cleaning & Care
Useful Tips
Legal Requirements
Legal Disclaimer
Legal Details

Terms & Conditions

02

Dear Customer

First off, welcome to the FLX family! We’re so happy you’re here. We want to thank you from
the bottom of our hearts for buying a FLX bike. You’ve picked a top-of-the-line model and in
this manual we’re going to break down the basics to make sure that your bike remains in top
shape and performs to the highest standard. You’re about to experience the ride of your life.
In order to get you out and having fun as quickly and as safely as possible please read the
chapters: Quick-Start Guide, Useful Tips, and Safety Information. Also we highly recommend
familiarizing yourself with local laws for e-bikes and the components of the model that you
have before your first ride.
Having trouble sleeping? Check out the chapter Legal Requirements, Disclaimer & Details,
we promise it will put you right out.
FLX assumes that all persons involved in: using, repairing, maintaining, cleaning, or disposing
of this or any FLX product must have fully read and understood the content and meaning of
these operating instructions. Additionally FLX claims no responsibility for any injury or
damage resulting in improper use of any FLX product.

Ready to get started? Let’s ride!

--Team FLX

x.bike

03

04

Quick-Start Guide

1. Completely charge the battery before the first use

2. Assemble the Handle Bars

3. Attach the Pedals

4. Mount the Front Wheel

flx.bike/manual

( Red light is on when battery is charging, green when

fully charged. 13Ah batteries take approx 4.5 hours to charge,
17Ah take approx 5.5 hours. )

Beware: The left hand pedal has a reverse thread.
To tighten, please turn anti-clockwise.

05

Components Pt.1

06

07

Components Pt.3

08

Proper Use

&

Always ensure before riding that all components are attached
properly, as neglecting to ensure this may cause issues in the future.
Always abide by the local laws of the areas that you ride in.
Here at FLX we’re always concerned with your safety, comfort,
and happiness. We can’t stress enough the use of proper safety
equipment in addition to the correct use of any FLX product. While the
use of pads and a helmet may not be required by law they will provide
an extra layer of protection, and we highly recommend their use.
Always wear appropriately bright clothing during the day and use
head- and tail- lights at night to increase visibility. Learn and use proper
cycling hand signals and always use caution when riding on the road
whether or not there is a bike lane.
FLX products were built for high intensity and heavy use, they
can stand up to quite a bit of punishment. Please take care of them as
rust, dents and other damage can affect the performance. For cleaning
information see Cleaning and Care.
Most adjustments to any FLX product can be performed with a
basic set of hex wrenches and other basic tool. Larger issues should be
handled by a qualified mechanic.

Safety Info

flx.bike/faq

Technical Specs: Roadster

09

Frame

19” 6 series
aluminum alloy,
integrated battery
housing, internal
cable routing,
accessory mounts

Fork

Custom aluminum
alloy, fender eyelets

Tires

Kenda Nevegal

27.5 x 1.5 wire bead

Wheels

Samson 27.5” alloy

-

Motor

650w (peak) Bofeili
brushless mid motor

Battery

36V 13A (468WH)
lithium ion,
Panasonic cells

LED charge
indicator

Lockable
USB Port

Display

Backlit LCD with
thumb controls

Assist

5 level pedal assist
Thumb throttle

Brakes

Tektro hydraulic
Disc with power
cutoff

180mm rotors

Rear Derailleur

Shimano Alvio 9
speed

Cassette

Shimano 9 speed
11-34t

Chain

KMC 9 speed

Chainring

48t

10

Technical Specs:

Trail

Frame

19” 6 series
aluminum alloy,
integrated battery
housing, internal
cable routing,
accessory mounts

Fork

SR Suntour XCR coil
suspension

Tires

Kenda Nevegal

27.5 x 2.25 wire bead

Wheels

Samson 27.5” alloy

-

Motor

650w (peak) Bofeili
brushless mid motor

Battery

36V 13A (468WH)
lithium ion,
Panasonic cells

LED charge
indicator

Lockable
USB Port

Display

Backlit LCD with
thumb controls

Assist

5 level pedal assist
Thumb throttle

Brakes

Tektro hydraulic
Disc with power

cutoff

180mm rotors

Rear Derailleur

Shimano Alvio 9
speed

Cassette

Shimano 9 speed
11-34t

Chain

KMC 9 speed

Chainring

48t

Technical Specs:

11

Attack

Frame

19” 6 series
aluminum alloy,
integrated battery
housing, internal
cable routing,
accessory mounts

Fork

SR Suntour Epixon
air suspension with
remote lock out

Tires

Kenda Nevegal

27.5 x 2.25 wire bead

Wheels

Samson 27.5” alloy

Rear Suspension

SR Suntour air shock
with lock out

Motor

650w (peak) Bofeili
brushless mid motor

Battery

36V 17A (612WH)
lithium ion,
Panasonic cells

LED charge
indicator

Lockable
USB Port

Display

Backlit LCD with
thumb controls

Assist

5 level pedal assist
Thumb throttle

Brakes

Tektro hydraulic
Disc with power

cutoff

180mm rotors

Rear Derailleur

Shimano Alvio 9
speed

Cassette

Shimano 9 speed
11-34t

Chain

KMC 9 speed

Chainring

48t

12

LCD Screen

Our LCD has many functions, and we are just going
to cover the basics. For more information visit King Meter
SW-LCD Manual. The computer in each screen has already
been adjusted for the wheel size of the model that it is
mounted on, and that way you can get out and
ride as soon as you want!

flx.bike/manual

LCD Screen:

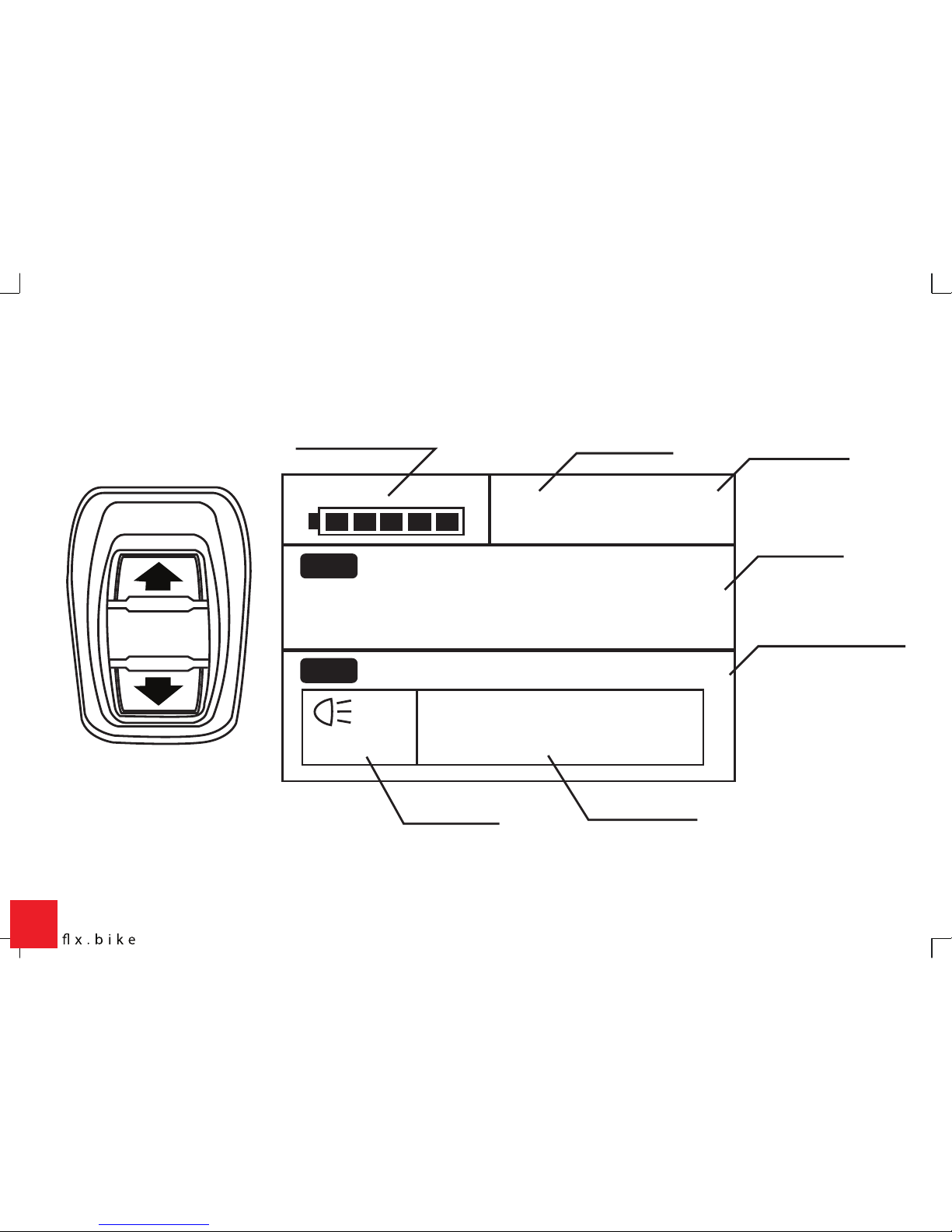

Screen & Controls

13

MODE

88:88

AVG SPEED
MAX SPEED

TRIP
ODO

F E

PAS

Error
WATT

Maintain
DST. TO GO

ECO STD POWER SPEED HANDLE WALK

Mile
Km

888.8

MPH
Km/h

SPEED

MODE

8

888

Battery indicator

Distance

Distance Unit

Speed Unit

Push Cruise Control

Error Code

Power Level

14

LCD Screen:

Instructions

To start the computer press and hold the “MODE” button for 1.5
seconds. Once this is done the “Power Level” section of the screen will
display the current level of pedal assist active. Default is 0, and
maximum is 5. The level of pedal assist can be adjusted by pressing the
“UP” or “DOWN” buttons as appropriate. When active the throttle will
also be active, and this can be triggered regardless of the level of pedal
assist by depressing the throttle lever found on the right-hand grip of
the handlebars.
Additionally a walk-assist mode can be activated by pressing
“DOWN” for 2.5 seconds. This is a single-speed designed to be an
average walking pace, NOT FOR RIDING.
When full, the “Battery Indicator” will show 5 segments, when the
battery is low there will be one segment, and to indicate that it needs
to be charged the segment will flash at 1Hz.

The headlight, taillight and backlight on the LCD screen can be
activated by pressing the “UP” and “MODE” buttons for 3 seconds,

similarly it can be turned off by holding the “UP” and “MODE” buttons

for 3 seconds. For USB charging, insert the USB cable into the display
before turning the display on to activate USB charging mode.

LCD Screen: Programming

15

Please check the default settings on your bike to ensure they are
correct and in compliance with local laws. It is possible to change these
defaults by entering the “Programming Mode” by holding both the “UP”
and “DOWN” buttons for 2.5 seconds. The options can be cycled through
and adjusted as you see fit. To save and exit press the “MODE” button for
3 seconds. You are able to change the settings for:
Wheel Diameter
Maximum Speed
Backlight Brightness
Display Unit (Metric system / British system)

16

LCD Screen:

Error Codes

There is a possibility of error codes appearing on the screen, and
this will prevent the motor and computer from functioning until the
error is addressed.

Code Number Definition

21
22
23
24
25
30

Abnormal Current

Throttle Fault

Motor Phase Problem

Motor Hall Defect

Brake Failed

Abnormal Communication

Battery Care

17

Removing the battery from the bike when storing it for a long
period of time is recommended. In this case store it in a cool, dry area
away from water. The charge left in the battery should be 50%-75% for
long storage times.
Cleaning the battery and battery housing should only be done
while disconnected and powered off. Use a dry rag, and if need be a
lightly damp rag. DO NOT spray with high-pressured water to prevent
damage or possible short-circuiting.
Only charge the battery with the supplied charger as others may
not function properly, and this increases the possibility of fire or
explosion. Charging the battery during the day in a dry space with a
smoke/fire alarm is recommended, while placing the battery on a
non-flammable surface. Do not store the charger or battery in a wet
place or in direct sunlight. Lithium-ion batteries are meant to be
recharged with 10%-15% of the charge remaining to prevent damage to
the cells. Keep both the battery and charger out of the reach of children
and p
Note that based on IATA regulations you are not allowed to ship
Lithium batteries of such size by air. Please consult a land or sea fright
for transportation of the battery.

ets while charging or during ‘storage.

If there appears to be an issue with the charger or battery, stop use

immediatley and contact either the manufacturer or us at hello@flx.bike.

Battery Indicator

Power Button

Charging Port

USB Port

18

Cleaning & Care

Whenever you service, be sure to first remove the battery.

Keeping the chain, shifter, and gear cassette properly
lubricated will help prolong the life of your bike. The greatest enemy of
any bike is rust, so make sure to dry it off after a wet ride and store it in
a dry place. In general, wiping down your bike after a rough ride with

some soap and water should be plenty to keep it looking great, just
make sure to take special care around the electronics.

Useful Tips

19

Do not turn on the bike when the brake levers are depressed as this
will trigger the faulty brake sensor and disable the motor.
Inspect the bolts on a regular basis, to ensure that they are tight
and all components are secure. This is especially important if you are
riding in demanding conditions. As with all bikes pay particular attention
to the crank bolts, as they are subject to more loosening forces than any
other bolt.
Regularly check the brake pads, the provided Tektro pads should
be replaced if they have:
Been contaminated
Less than .8mm of material
Cracks or deformation
To replace the brake pads or perform other maintenance take it to
a qualified professional at your local bike shop.
The bike has a powerful mid-motor which places more stress on
the gears than a regular bike. Reducing the force placed on the pedals
whilst shifting will prolong the life of the drivetrain.
Properly inflate your tires according to riding conditions.
Under-inflated tires are prone to pinch flats, especially if riding off-road
o
Check the throttle connection underneath the neoprene sleeve
if the throttle doesn’t work initially.

r over sharp edges. If you are unsure of the proper pressure, read the tire.

20

Legal Requirements

The regulations for electric bicycles are constantly

being revised
and may change at any time. Obtain information regarding the current
legal requirements at both a general and local levelto ensure compliance.

For FLX e-bikes, special legal provisions apply for their limit of
use. As an e-bike they can be used both as a purely mechanical bicycle
or as a motor assisted means of transportation, in essence they can
operate as a bicycle at times and not at other times. Before riding on
public roads or trails with a FLX e-bike the user must inform themselves
properly on legal requirements enforced in the user’s country,
state/territory, and city. This information can be acquired by visiting
local e-bike retailers, and bicycle or e-bike associations.
The currently valid, national and local regulations also pertain to
age restrictions and specify the minimum age a user must be to drive
on which part of the road and whether certain driving permits are
required. The regulations for children riding on public roads are also
found here. It will be made clear if a helmet is required by law, what if
any head- or tail- lights are required.

Legal Disclaimer

21

FLX Bike (the Seller) holds no liability whatsoever for any damage

- regardless of what type - or injury to any party involved in improper
use, handling, or storage of any FLX electric bicycle, or any of their
components.
Additionally, the Seller holds no liability whatsoever for any
damage - regardless of what type - or injury to any party involved in the
improper maintenance of any FLX electric bicycle, or any component
therein.
The Seller holds no liability whatsoever if the use of any
attachments or additional components (modification/s), either
proprietary or third-party, result in any damage - regardless of what
type - or injury to any party. This provision extends beyond modifications
sold by the Seller and to any modifications, especially in the case that the
user does not ensure that the modifications are meant to be used with
FLX electric bike or any of the Seller’s other products. In the case that a
modification approved by the Seller malfunctions due to user error,
improper installation, lack of proper maintenance, improper use or use
for anything other than the intended use as explained by the manual of
the aforementioned modifications and/or the Seller, the Seller holds no
liability whatsoever for any damage - regardless of what type - or injury
to any party.

22

Legal Details

Technical details in the text and illustrations of the translation of these
operating instructions are subject to change. The most current form of
this FLX User Manual visit flx.bike/manual or email hello@flx.bike.

Any liability whatsoever by the publisher, editor and other third parties
for contributions to this document, FLX User Manual, and any resulting
damage - regardless of what type - is hereby fully excluded unless it
involves a case of gross negligence.

Copyright
No part of this publication may be reprinted, translated, copied or
transmitted in any form or by any means, electronic, mechanical, by
hand or otherwise for another business purpose without prior written
permission of the author or publisher.

Terms & Conditions

23

These terms and conditions shall apply to all orders entered into by and between any distributor or any end-user of the Goods, whichever the case may be (“Buyer”) and FLX BIKE
(“Seller”). These terms and conditions and any Seller quotation form submitted herewith or separately shall be collectively referred to hereinafter as the “Agreement.” Seller shall
accept orders, sell Goods, and do business onl

y upon these terms and conditions. Any additional or different terms in Buyer’s purchase order or other purchase documentation are
deemed material alterations to this Agreement, and Seller hereby gives notice of its objection to them. The term “Goods” means all items sold and/or provided by Seller to Buyer.
**Price.** All prices are subject to change. Prices also do not include any federal, state, or l

ocal taxes or other governmental charges upon or with respect to the sale, purchase,
manufacture, delivery, storage, processing, use, or consumption of any of the Goods provided hereby. Prices are stated in U.S. dollars. PayPal and all major credit cards are
accepted.
**Specifications.** Seller may, at its option, make changes in the designs, specifications or components of the Goods to improve the safet

y of such Goods, or if in Seller’s judgment,
such changes will be beneficial to their operation, use, or image. FLX BIKE makes every effort to ensure that posted specifications, images, pricing and product availability are as
correct and timely as possible. FLX BIKE reserves the right to make any and all changes deemed necessary in the course of business including but not limited to pricing, product
sp

ecifications, quantities, and product availability.
**Shipping and Delivery.** FLX BIKE can ship anywhere there is a notable shipping service (i.e. UPS Ground, FedEx, DHL, etc.). FLX BIKE will not provide information about
customs and international fees. Buyer is responsible for researching additional charges for customs and international delivery. Buyer is subject to these additional shipping charges.
Title to and risk of loss for the Goods shall pass to Buyer upon delivery of the Goods by Seller to the common carrier for delivery. All time frames provided by Seller, whether
verbally or in writing, are good faith estimates of the expected delivery date for the Goods. Seller shall use commercially reasonable efforts to fill Buyer’s orders within the time
stated but in no event shall Seller be liable

for any damages associated with Seller’s inability to meet any such time frames or deadlines, including but not limited to incidental or
consequential damages arising there from.
**Force Majuere.** Seller shall not be responsible for any delay in the delivery of, or failure to deliver, Goods due to causes beyond Seller’s reasonable control including, without
limitation, acts of God, acts of war or ter

rorism, enemy actions, hostilities, strikes, labor difficulties, embargoes, non-delivery or late delivery of materials, parts and equipment or
transportation delays not caused by the fault of Seller, delays caused by civil authorities, governmental regulations or orders, fire, lightening, natural disasters or any other cause
beyond Seller’s reasonable control. In the event of any such delay, performance

will be postponed by such length of time as may be reasonably necessary to compensate for the
delay.
**Assembly.** If Buyer purchases any Goods that require assembly, Buyer shall, at its expense, make all arrangements and connections necessary to install and operate the Goods
properly. Buyer shall assemble the Goods in accordance with any Seller instructions or recommendations and shall indemnify Se

ller against any and all damages, demands, suits,
causes of action, claims and expenses (including actual attorneys’ fees and costs) arising directly or indirectly out of Buyer’s failure to properly install the Goods.
**Use of Goods.** Buyer is responsible for using and maintaining the Goods properly and safely in accordance with any required laws and/or as set forth in manuals and instruction
sheets furnis

hed by Seller.

24

Terms & Conditions

**Warranty.**
FLX BIKE warrants that all new FLX products are warranted to the Buyer against manufacturing defects in materials and/or workmanship for a period of (1) year from the date of
delivery. The warranty period is calculated from the point of delivery. The original receipt of purchase is required to establish proof of purchase and must be provided to FLX BIKE
for all warranty cla

ims. FLX BIKE will require the customer to complete a MANDATORY standard procedure for warranty claims that will involve media such as photos and videos to
help FLX BIKE after sales staff establish the fault with the product.
Only the individual components themselves are covered by the warranty. The removal, assembly, and tuning requirements of the component is borne by the customer making the
claim. The

costs/inconvenience caused by the loss of use of the product, is not covered whilst the warranty procedure takes place. The warranty for replacement components will
be based on the date of delivery. Under no circumstance will a replacement component have a warranty date different than the original date of delivery. If a replacement is
necessary due to a defect in materials and/or workmanship, then upon return to FLX, the component will be replaced during the warranty period.
FLX will have no obligation under this limited warranty in the event the product is damaged or destroyed as a result of any of the following events: component use on a non FLX
product, damage or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as wind, lightning, hail,

etc.; any willful or
negligent act; penetration, or opening of the product casings in any manner. Replacement will be honored only by FLX.
This is FLX’s exclusive warranty. No party is granted express or implied authority to change or annul this warranty in any manner. Implied warranty including that of merchant-ability
and fitness for a particular purpose are expressly limited in duration to the durat

ion of this warranty. FLX disclaims any liability for special, incidental or consequential damages.
This warranty is not meant to suggest or imply that the products cannot be broken or will last forever. It does mean that the product is covered subject to the terms of the warranty.
This warranty applies only to the original Buyer of the product and is not transferable to subsequent owners or any other party. This warranty is void if the product is subjected to
abuse, neglect, improper repair, improper maintenance, alteration, modification, an accident or other abnormal, excessive, or improper use, at the sole discretion of FLX.
**Warranty Exclusions.**
This warranty does not cover:

• normal wear and tear

• damage or failure from abuse, neglect, misuse, or accident

• damage from stunt riding, ramp jumping,

acrobatics, competitive events, such as bicycle racing, bicycle motocross racing, or similar activities or any activity that is not consistent

with the intended use of the product

• damages resulting from improper charging of the battery pack or use of any charger not supplied by FLX

• installation of any parts, accessories, or electrical component(s) not originally intended for or compatible with the pr

oduct as sold, or any modification of the frame or any
component(s) originally supplied; tires, brake pads, chains, lights, motors, battery packs, displays, or vehicle controllers that have been opened for any purpose whatsoever, other
than by FLX

• All warranties are void if the product is used for any purpose other than the reasonable intended use of the product. Additionally, this warranty does not c

over damage associated

with commercial use.

• Aftermarket components or modifications
All implied warranties, including the warranties of merchantability and fitness for a particular purpose, are limited in duration to that of the express warranties stated above.

Terms & Conditions

25

These terms and conditions shall apply to all orders entered into by and between any distributor or any end-user of the Goods, whichever the case may be (“Buyer”) and FLX BIKE
(“Seller”). These terms and conditions and any Seller quotation form submitted herewith or separately shall be collectively referred to hereinafter as the “Agreement.” Seller shall
accept orders, sell Goods, and do business only upon these terms and conditions. Any additional or

different terms in Buyer’s purchase order or other purchase documentation are
deemed material alterations to this Agreement, and Seller hereby gives notice of its objection to them. The term “Goods” means all items sold and/or provided by Seller to Buyer.
**Price.** All prices are subject to change. Prices also do not include any federal, state, or local taxes or other governmental charges upon or with respect to the sale, purchase,
manuf

acture, delivery, storage, processing, use, or consumption of any of the Goods provided hereby. Prices are stated in U.S. dollars. PayPal and all major credit cards are
accepted.
**Specifications.** Seller may, at its option, make changes in the designs, specifications or components of the Goods to improve the safety of such Goods, or if in Seller’s judgment,
such changes will be beneficial to their operation, use, or image. FLX BIKE

makes every effort to ensure that posted specifications, images, pricing and product availability are as
correct and timely as possible. FLX BIKE reserves the right to make any and all changes deemed necessary in the course of business including but not limited to pricing, product
specifications, quantities, and product availability.
**Shipping and Delivery.** FLX BIKE can ship anywhere there is a notable shipping service (i.e. UPS Ground, FedEx, DHL, etc.). FLX BIKE wil

l not provide information about
customs and international fees. Buyer is responsible for researching additional charges for customs and international delivery. Buyer is subject to these additional shipping charges.
Title to and risk of loss for the Goods shall pass to Buyer upon delivery of the Goods by Seller to the common carrier for delivery. All time frames provided by Seller, whether
verbally or in writing, are good faith estimates of the expec

ted delivery date for the Goods. Seller shall use commercially reasonable efforts to fill Buyer’s orders within the time
stated but in no event shall Seller be liable for any damages associated with Seller’s inability to meet any such time frames or deadlines, including but not limited to incidental or
consequential damages arising there from.
**Force Majuere.** Seller shall not be responsible for any delay in the delivery of, or failure to deliver, Goods due to causes

beyond Seller’s reasonable control including, without
limitation, acts of God, acts of war or terrorism, enemy actions, hostilities, strikes, labor difficulties, embargoes, non-delivery or late delivery of materials, parts and equipment or
transportation delays not caused by the fault of Seller, delays caused by civil authorities, governmental regulations or orders, fire, lightening, natural disasters or any other cause
beyond Seller’s reasonable contr

ol. In the event of any such delay, performance will be postponed by such length of time as may be reasonably necessary to compensate for the
delay.
**Assembly.** If Buyer purchases any Goods that require assembly, Buyer shall, at its expense, make all arrangements and connections necessary to install and operate the Goods
properly. Buyer shall assemble the Goods in accordance with any Seller instructions or recommendations and shall indemn

ify Seller against any and all damages, demands, suits,
causes of action, claims and expenses (including actual attorneys’ fees and costs) arising directly or indirectly out of Buyer’s failure to properly install the Goods.
**Use of Goods.** Buyer is responsible for using and maintaining the Goods properly and safely in accordance with any required laws and/or as set forth in manuals and instruction
sheets furnished by Seller.

26

Terms & Conditions

**Warranty Procedure.**
Proof of purchase must be provided. To qualify for warranty services, a Warranty Product Return Authorization Number (“WPRAN”) must be obtained by the original purchaser from
FLX. The original Purchaser must contact a FLX representative to discuss the problem with the product and to obtain a WPRAN. Upon issuance of a WPRAN, the product
component(s) must be returned to FLX. The original Purchaser is responsible for

the return of the product, undamaged in transit, to FLX for warranty work and for the costs
associated with shipping the component(s) when returning them. If FLX BIKE determines a warranty claim is valid and conforms with this warranty, FLX will provide replacement
component(s).
For valid warranty claims hereunder, FLX will reimburse the original Purchaser for shipping costs incurred as a result of returning the product to FLX for warranty work at standar

d
ground shipping rates, and FLX will pay for shipping costs to return the product to the original.
**Limited Remedy.** Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole
discretion of FLX BIKE. In no event shall FLX BIKE be responsible for direct, incidental or consequential damages, including, without limitation, damages for personal injury,
property damage, or econ

omic losses, whether based on contract, warranty, negligence, product liability, or any other theory.
**Cancellation.** Buyer has a 10 day period to cancel an order for a full refund. After the cancellation period, no refunds will be awarded. The Goods will be delivered with no
returns.
**Modification. **Buyer has a 10 day period to modify an order at no additional cost beyond the published price of Goods. After the modification period, B

uyer is subject to a
minimum $100 administration fee at manufacturer’s discretion. All modifications are subject to availability. There is no guarantee these modifications can be made unless approved
by FLX BIKE. To file a modification claim, email hello@flx.bike with your original order confirmation.
**Returns.**
Our extensive quality control means that our products are thoroughly tested and ultra-reliable by industry standards. All products are

warranted to work as described on arrival and
for the warranty period. If there is a warranty claim, it will be assessed by FLX BIKE and new parts will be delivered upon claim’s approval. FLX BIKE will accept the return of
warranted components. If there is a major fault with the product, contact FLX BIKE immediately. FLX BIKE will not accept returns for change of mind.

Contact Us!

flx. b i k e
flx.bike/suppor t

flx.bike/manual

facebook.com/flxbik e

28
