Page 1
FLUSHMA TE
®
IV
FLUSHOMETER - TANK
SYSTEM
Owner’s Service Manual
504 Series
A Division of Sloan Valve Company
30075 Research Drive • New Hudson, MI 48165
800-533-3450 • 248-446-5300
http://www.flushmate.com
504 Series - English
Page 2
FLUSHMATE®504 SERIES____________________________________________________________________________________
FLUSHMA TE
®
A Division of Sloan Valve Company
Manufactured under one or more of the following U.S. patents:
3,817,279: 3,817,286; 3,817,489; 3,820,171,754; and
4,233,698. Also covered by various foreign patents (country
and number available upon request) and other patents pending.
The Sloan FLUSHMATE®Flushometer - Tank System provides the highest performance capability available today in the ULF (Ultra-Low Fixture) category . That means
it consumes less than 1.1 gallons/4 liters of water per flush. It achieves this remarkable performance by using compressed air inside the tank, which creates a turbo-
charged flushing action for effective bowl cleaning. Compared to other types of low
consumption water closets, FLUSHMA
TE offers many distinct advantages.
Outstanding FLUSHMATE®Features:
• Positive Bowl Extraction (No Double Flushing)
• Stronger Flushing Action Improves Drainline Carry &
Leaves Bowl Cleaner
• Large Water Spot for Reduced Housekeeping
• Uses less than 1.1 gallons per flush
• Larger Trapway to Eliminate Stoppages
• No Water Leakage Between Flushes
• Non-Sweating Tank Enclosure

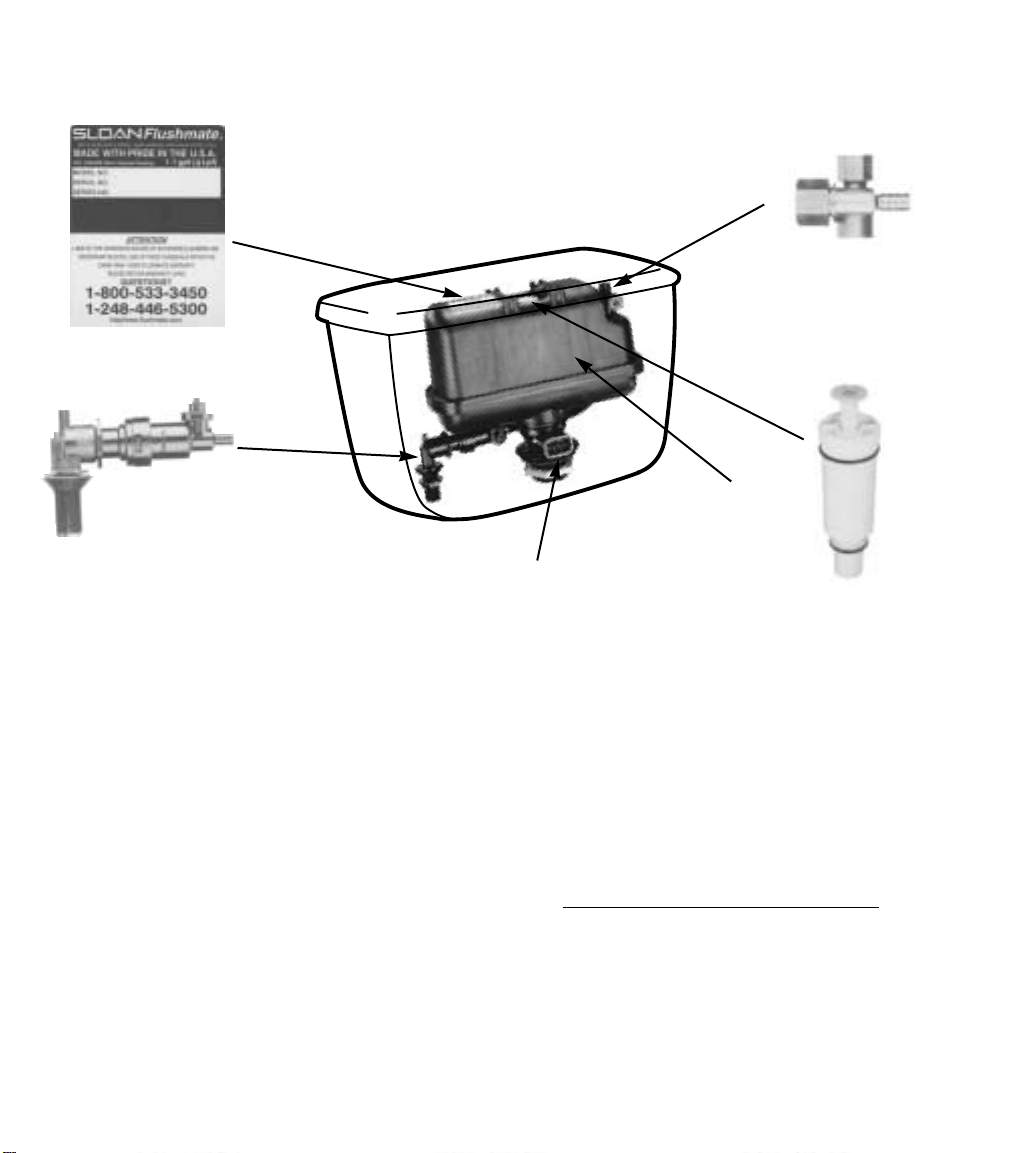

List of Components for 504 Series:
1. Lower Supply Group w/Hose BL100504-3
(A) Supply Shank with Screen
(B) Pressure Regulator w/Back Check
(C) Relief Valve
2. Upper Supply Group w/Hose BU100505
(D) Air Inducer
(E) Vacuum Breaker
3. Name Plate w/Serial Number
4. Flush Valve Cartridge Assembly C-100500
(F) Actuator w/setscrew
5. Vessel
6. Discharge Extension w/Drain
(F)
❹
❻
❺
❶
❷
❸
(D)
(E)
(A)
BL100504-3
(B)
(C)
Page 3
INSTALLATION ____________________________________________________________________________________
The Sloan FLUSHMATE
®
Flushometer -Tank System Fixture installs in the same manner as other water closets. Please follow
the instructions provided by the fixture manufacturer.
Using the gasket, washer and nuts provided with the fixture, assemble the tank to the bowl. Before connecting the supply to the
tank, be sure the supply line is flushed clean. Do this by running water from the supply stop into a bucket until water flows clear.
After connecting the supply line to the tank, turn on the water again and check for leaks. You may be required to make adjust-
ments to the actuator for either pushbutton type or trip lever type units. Please follow the instructions provided by the fixture
manufacturer .
TROUBLESHOOTING________________________________________________________________________________
CONDITION: Water runs on and will not shut off.
A newly installed toilet that does not shut off may be caused by inadequate or low pressure, and is usually the result of an insufficient water supply flow rate into the FLUSHMATE Vessel. (NOTE: The recommended static pressure range by code is 25 P.S.I. to
125 P.S.I.).
If sufficient supply pressure has been verified and the toilet continues to run, the following steps may be required:
Step 1. Make sure supply stop is fully open.
Step 2. Check the Supply Shank Screen for any obstruction that would restrict the supply .
Step 3. Check the Actuator adjustment (see Installation Procedure). The linkage rod
or push button should not interfere with the flush. On Pushbutton type units,
loosen the setscrew on the actuator (See Number 4F on the component list)
and rotate the Actuator up or down until proper clearance is obtained (1/8”).
For trip lever units, gently lift the actuator rod and observe proper clearance is
maintained (approximately 1/8” gap between rod and actuator) See Figure 1.
Step 4. Check the Flush Valve Cartridge Assembly for proper installation. Proceed as
follows:
a)Turn off the water supply and flush the toilet.
b)Remove the Flush Valve Cartridge Assembly using pliers’ handles as shown
in Figure 2. NOTE: You may be required to disconnect the Actuator Linkage
Rod to remove the Flush Valve Cartridge Assembly.
c)Inspect the “O” Rings on the Flush V alve Cartridge and the seating ar ea inside
the tank for wear and/or improper seating.
Step 5. Reinstall the Flush Valve Cartridge Assembly.
First, insert the cartridge into vessel and, while gently pushing down on the
cartridge, turn the cartridge counter-clockwise until you hear an audible
click, indicating that the threads are now aligned. Screw cartridge clockwise
into place until two black threads of the vessel are showing. Next, turn on the
water and continue to turn cartridge until the water stops running. Do not
over-tighten.
WARNING: When servicing or replacing components to the FLUSHMATE
Flushometer-Tank System, make certain that the water supply is turned OFF
and the
toilet is then flushed to relieve pressure in the vessel.
NEVER
use lubricants on any of the components unless otherwise noted in this manual.
NEVER
use corrosive disinfectants, bowl cleaners or deoderant blocks on FLUSH-
MATE products.

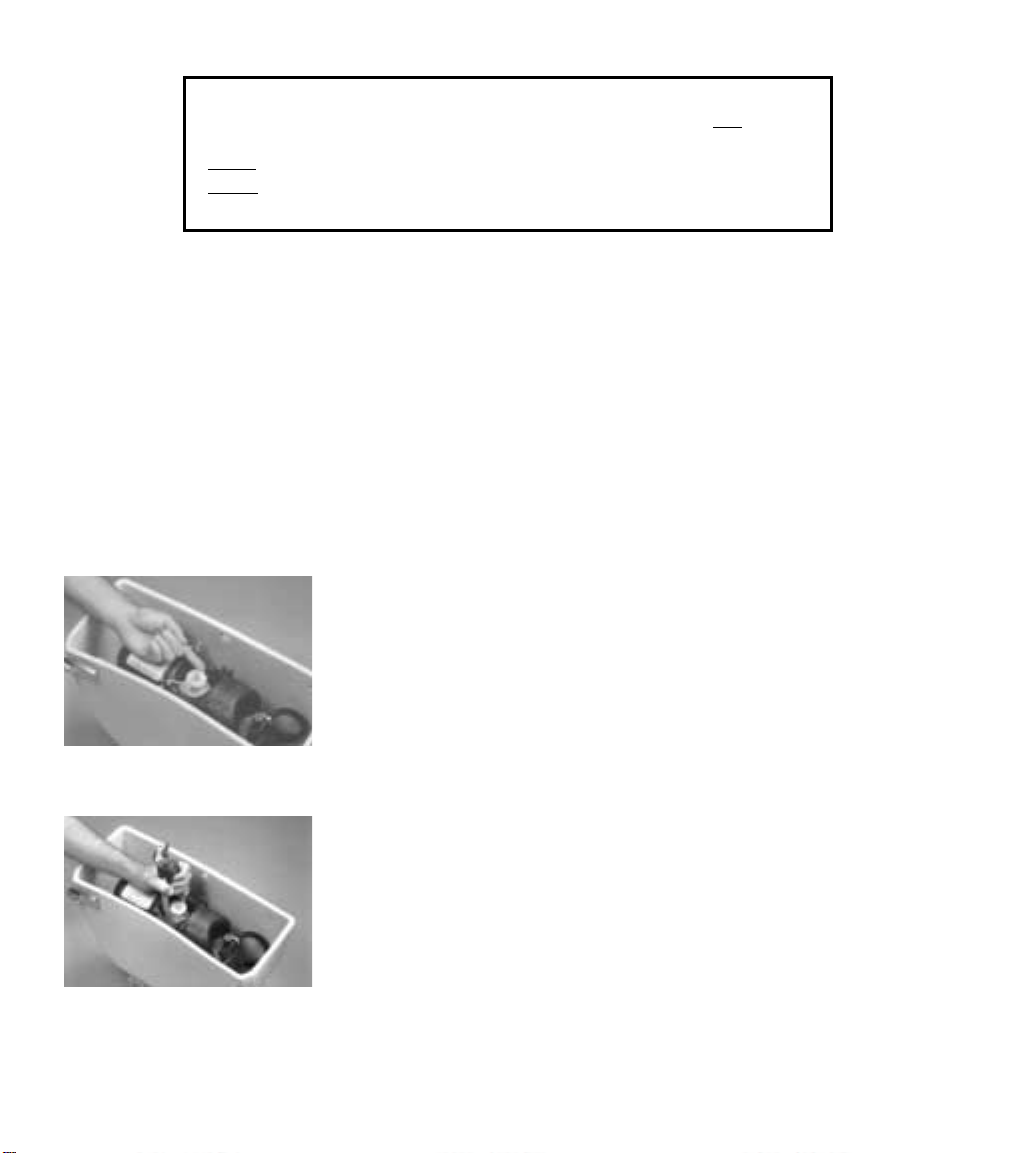

FIGURE 1
FIGURE 2
Page 4
Step 6. If the Tank continues to run-on, push down lightly on the Flush Valve Actuator. If the water stops running, it is an
indication that the Flush Valve Cartridge requires tightening (clockwise). If water still runs on while pushing down on the
actuator, the Flush Valve Cartridge requires loosening (counter-clockwise).
NOTE: Adjust the Flush Valve Cartridge Assembly in quarter to half turn increments until the water stops running. Always
turn the water supply off for all adjustments.
Step 7. If replacement of the Flush Valve Cartridge is necessary, follow the instructions in Step 5.
CONDITION: Weak or Sluggish Flush.
Step 1. Check the water pressure (25 psi - 125 psi recommended). If OK, then check
the Flush System by removing the tank Cover and tripping the Actuator. While the unit
is flushing, gently raise the Actuator. Water should flow freely and wash away any
debris in the supply line and Vessel.
Step 2. Check the Air Inducer for sufficient air draw. The Air Inducer is designed to
draw air during the refill cycle. To test the Air Inducer, place a small amount of water
(2 to 3 drops) in the orifice of the Air Inducer cap and flush the toilet. If the Air Inducer
is functioning properly the water will be drawn in. If not, it will need to be cleaned and
tested again.
TO CLEAN AIR INDUCER: (Figures 3 & 4)
a) Turn off the water supply and trip the Actuator.
b) Unscrew the Air Inducer Cap, clean thoroughly and remove any
obstructions. Reassemble. (Hand-tighten ONLY.)
c) Turn on water supply. Wait for the Vessel to refill (30 to 60 seconds.)
Repeat Step 2 above. If the Air Inducer does not function properly,
replace the Upper Supply Assembly.
Step 3. Check the Flush Valve Cartridge for leaks. Turn the water supply off and drain
the vessel by tripping the Actuator and holding it down until completely drained. Next,
pour a cup of water onto the Cartridge Housing area as shown in Figure 5. Turn on the
water supply. If a leak is detected (a steady flow of bubbles from the center of the
Cartridge Area), the Cartridge should be replaced.
Step 4. Check Lower Supply. Turn the water off and relieve the Vessel pressure by
flushing the toilet. Remove the supply line connection to the shank. Remove any
obstruction in the supply shank screen. If necessary, you can use a small brush to
gently brush the screen. Reattach the supply line to the supply shank and observe connections to assure no leakage. IMPORTANT: If you are still experiencing a weak or
sluggish flush after this point, it is recommended you replace the entire Lower Supply
group.
Step 5. Check the following:
1. water line pressure (25-125psi)
2. obstruction in the bowl trapway
3. obstruction in the drain
4. proper drain ventilation
Consult a professional for recommendations if any of these conditions exist. If the
drain and drain vent are clear, and the flush has not been improved, replace the Lower
Supply Assembly.

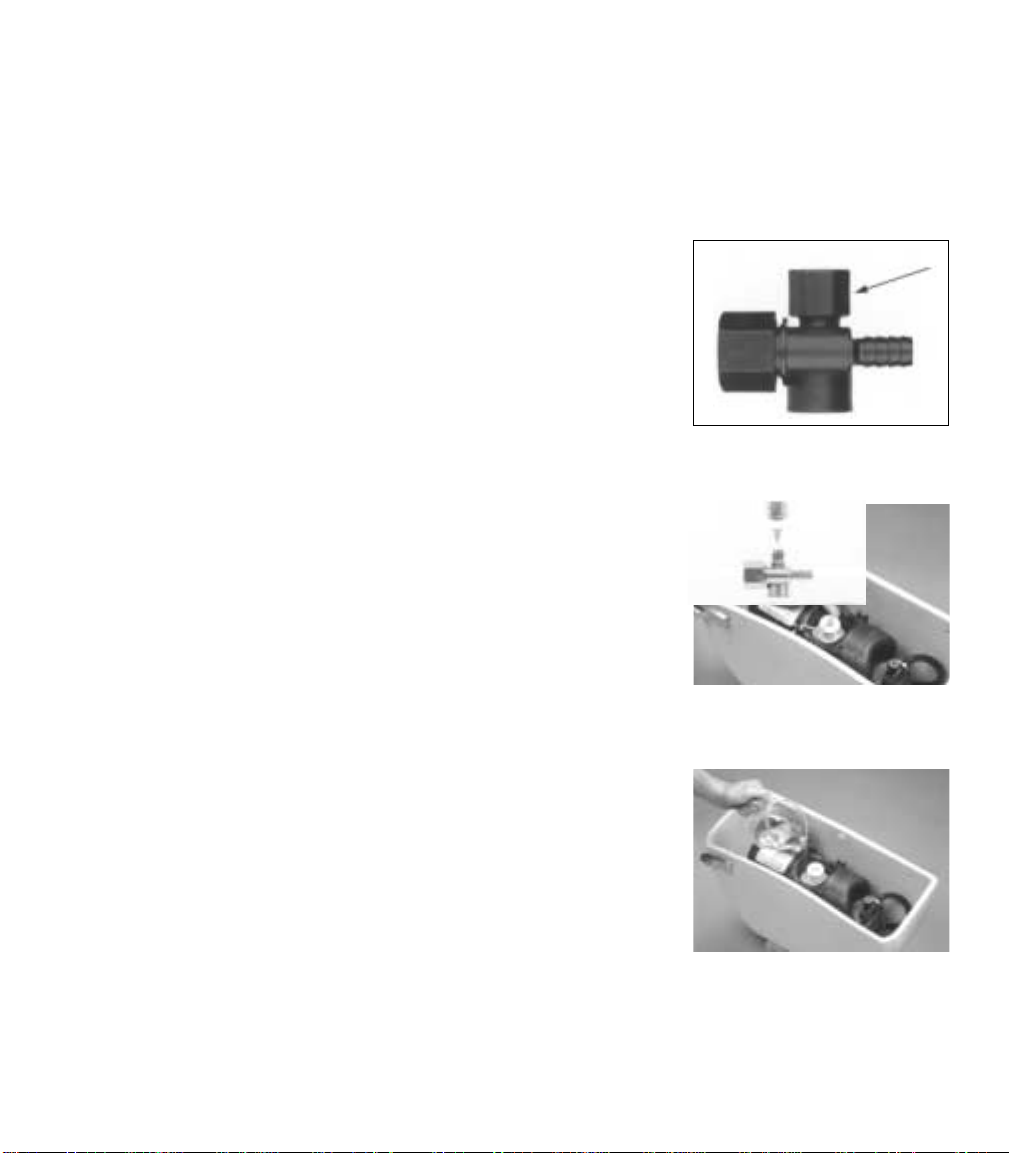

FIGURE 3
FIGURE 4
FIGURE 5
Air Inducer Cap
Page 5
TROUBLESHOOTING___________________________________________________________________________________
CONDITION: No Flush
Step 1. Check the water pressure (25 psi to 125 psi).
Step 2. Check the Air Inducer for sufficient air draw. Refer to Step 2of “Weak or Sluggish Flush.”
Step 3. Review all of Step 3 and Step 4 covered in “Weak or Sluggish Flush” Condition.
Step 4. Replace the Flush Valve Cartridge. NEVER use lubricant on the “O” Ring (Arrow - Figure 6).
CONDITION: Relief Valve Discharging
This is a sign that the Lower Supply Group (Number 1 from list of components) is not working properly and should be replaced.
Follow the procedures outlined:
REPLACEMENT PROCEDURE FOR LOWER SUPPLY (FIGURE 7):
Step 1. Turn the water supply off. Flush the fixture to relieve pressure in the vessel and disconnect the
water supply from the shank.
Step 2. Remove the China Tank from the China Bowl by removing the nuts/washers or wings nuts from
the bottom of the China Tank.
Step 3. Unscrew the plastic locknut that holds the shank to the bottom of the China tank and remove the
tank to bowl gasket.
Step 4.
Unscrew the plastic nut that holds the vessel to the bottom of the China Tank and carefully remove the entire vessel from the China Tank.
Step 5.
Remove the Lower Supply Assembly by pulling in a downward motion. WHEN REMOVING OR REPLACING THE LOWER SUPPLY, DO NOT
WIGGLE THE LOWER SUPPLY FROM SIDE TO SIDE AS YOU MAY BREAK THE POST THAT THE LOWER SUPPLY SLIDES ONTO. THIS IS A PRESS
FIT AND ONLY MINIMUM DOWNWARD OR UPWARD FORCE IS REQUIRED. DO NOT PROCEED TO STEP 6 UNTIL STEP 5 IS COMPLETE.
Step 6.
Cut the hose just above the barbed fitting (about (1/4” above clamp) on the Lower Supply. Discard old Lower Supply.
Step 7. Insert the new Lower Supply into hose and secure with new Hose Clamp.
Step 8. Push the new Lower Supply onto the post using an upward motion.
Step 9. Reassemble vessel to China tank, tighten securely, reconnect water supply and check for leaks.
WINTERIZING ________________________________________________________________________________________
The Sloan FLUSHMATE
®
, when installed in a summer home, cottage or cabin, can be winterized to allow for periods for non-
use especially when the dwelling is subject to frigid conditions. Follow the procedures outlined below.
NOTE: A sponge, a pail and adjustable channel locks will be useful.
Tank Procedure:
Step 1. Turn off the water supply line valve and remove the Toilet Tank Cover.
Step 2. Push the Actuator on top of the Vessel to flush and discharge the water.
Step 3. Disconnect the supply line coupling nut from the Lower Supply located under the Toilet Tank Housing. NOTE: A small
amount of water will drip out of the Shank. Be prepared to collect it in a bucket or sponge it up. Remove the Supply Shank and
drain the water from the bottom of the china tank into a bucket.
Step 4. Push down on the Actuator one more time, then pull it up momentarily to allow air into the Vessel.
Bowl Procedure:
After flushing out the Vessel, remove the remaining water from the bowl or add from 1 pint to 1 quart of antifreeze or RV
antifreeze to the water remaining in the bowl.
NOTE: Refer to fixture manufacturer’s instructions for procedures to winterize bowl.

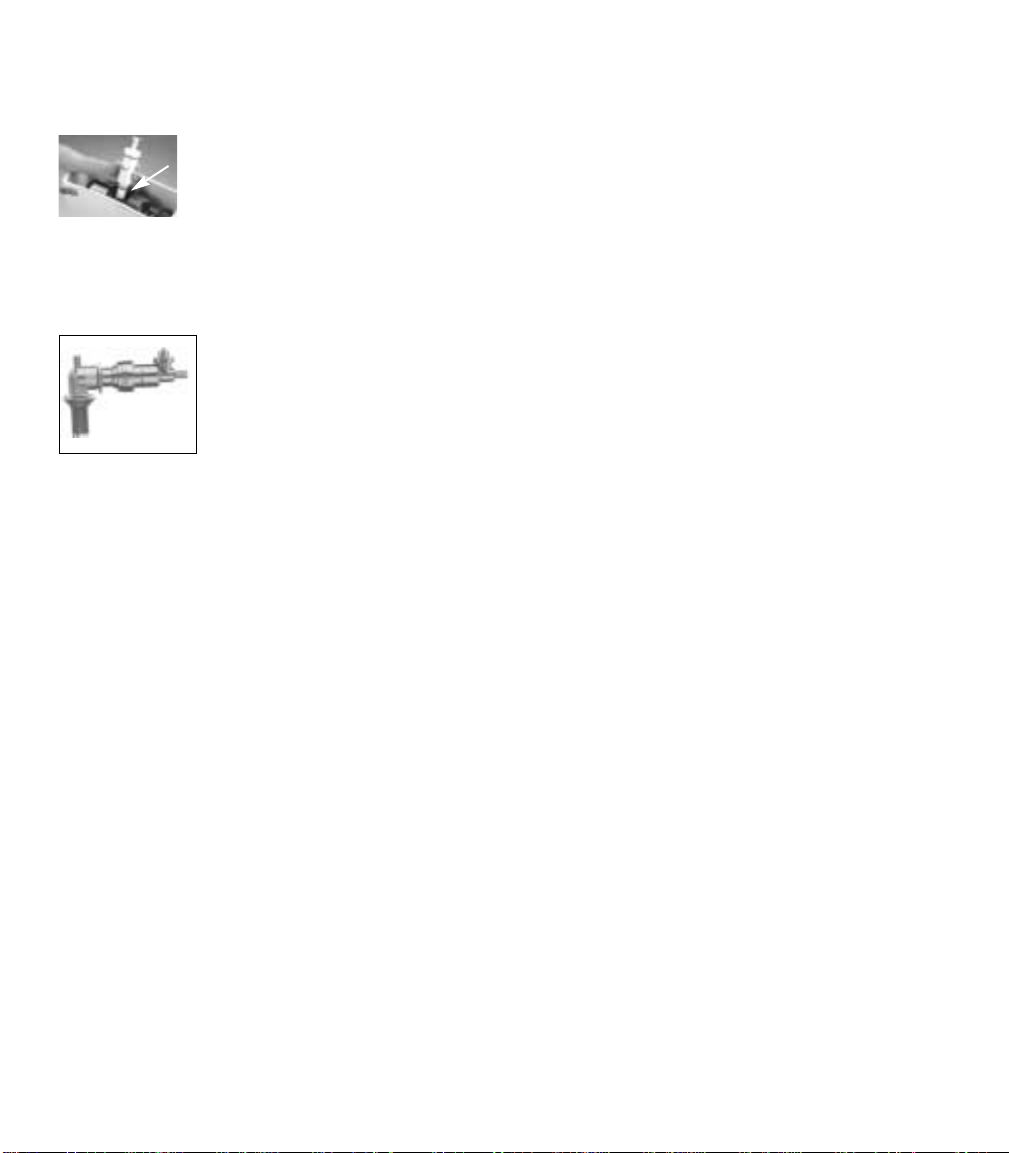

FIGURE 6
FIGURE 7
Page 6
POINTS TO REMEMBER _____________________________________________________________________________
Safety Notice
• When servicing any component, the water supply should be turned OFF and the Actuator tripped to relieve
the pressure in the Vessel.
• The Flush Valve Cartridge Assembly can be removed by inserting the handles of a pair of pliers into the top of
the Cartridge and turning counter-clockwise.
• NEVER use any corrosive disinfectants, bowl cleaners or deoderant blocks on FLUSHMATE®products or in the china tank.
The Sloan FLUSHMATE
®
Flushometer-Tank System has been engineered to provide reliable performance year after year.
However , if servicing is ever required, it is recommended that you follow the instructions included in this brochure. If you would
like additional information or require technical assistance, write to us at the address below or call us toll free at 1-800-533-3450.
ATTENTION OWNER
THIS IS YOUR WARRANTY REGISTRATION
Sloan FLUSHMATE
®
(the “Company”), warrants the FLUSHMATE®flushometer tank operating system (the “unit”), to be
free of defects in material and workmanship for a period of five (5) years from the date of installation and the Company
promises to replace any part of this product that proves, upon our inspection and within five years from date of installation,
to be defective in material or workmanship. All labor and transportation costs or charges incidental to warranty service are
to be borne by the purchaser-user.
This warranty is subject to the following:
Specific Conditions to Warranty
A Warranty Registration card has been fully completed and mailed by the purchaser (the “user”) to the Company within thirty (30) days of the date of installation.
The unit has been subject to proper installation, operation and maintenance as outlined in the installation instructions that
were supplied with the unit. Note carefully that this warranty is void if the unit is installed and operated subject to water
supply line pressures greater than 125 psi (static) or less than 25 psi (static).
Service and repairs may only be performed by authorized representatives of the Company or by others upon specific
approval by the Company. Unauthorized repairs or alterations shall specifically void the warranty.
Use of chemical disinfectant or corrosive household cleaners on FLUSHMATE
®
products or in the china tank will void this
warranty. Proof of purchase is required.
Exclusions
IN NO EVENT SHALL THE COMPANY BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR DAMAGES
RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT, ABUSE OR ALTERATION. ALL
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE ARE LIMITED TO A PERIOD OF FIVE (5) YEARS FROM DATE OF INSTALLATION.
Some states do not allow limitations on the duration of an implied warranty and some states do not allow exclusions or limitations regarding incidental or consequential damages, so the above limitations may not apply to you. This warranty gives
you specific legal rights and you may have other rights which vary from state to state.
No person is authorized to change, add to, or create any warranty or obligation other than that set forth herein.
T o obtain warranty service contact Consumer Services toll free 1-800-533-3450 (outside North America, call 248-446-5300)
or write to us at:
FLUSHMATE
®
A DIVISION OF SLOAN VALVE CO.
30075 Research Drive
New Hudson, MI 48165 U.S.A.
1-800-533-3450 • 248-446-5300
http://www.flushmate.com
Installation Date___________________________________________________________________________________
Serial Number ____________________________________________________________________________________
FLU6073 08/01
Loading...
