USER INSTRUCTIONS
Countertop Ice & Water Dispenser
FDFD10502
SAFETY INSTRUCTIONS ----------------------------2
FEATURES & SPECIFICATIONS --------------------4
USE OF DISPENSER --------------------------------6
DISPENSER CARE -----------------------------------7
INSTALLATION INSTRUCTIONS ------------------10
TROUBLESHOOTINGS------------------------------12
SERVICE & IMPORTANT NOTICE -----------------15
GENERAL OPERATING INSTRUCTION
Read these instructions before use and save them for future reference.
Let the unit rest and unplugged for 24 hours before use.
Remove all external and internal packaging materials. Be sure that all parts
have been included before discarding any packaging materials. You may
want to keep the packaging materials for use at a later date.
Upon receipt and inspection of the unit, the power cord must be replaced if
it is damaged.
Contact customer service at 800-433-9938 or info@fluridaappliances.com
www.fluridaappliances.com
SAFETY INSTRUCTIONS
Electrical Safety
DANGER
This appliance is equipped with a 3-prong grounding-
type plug, and shall be plugged into a properly
connected grounding-type outlet.
It is required to use a 3–prong grounding-type
electrical outlet properly grounded in accordance with
the National Electrical Code and local codes and
ordinances.
A separate adequately fused and grounded circuit
shall be used for this appliance. The voltage rating
must match the rating label on the unit.
Do not use an adapter or an extension cord.
Do not under any circumstances cut or remove the third ground prong from
the power cord.
Never unplug the appliance by pulling the power cord. To disconnect the
unit, always grip the plug firmly and pull straight out from the wall outlet.
Do not operate the appliance if the appliance housing is removed or
damaged.
Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this manual. All other servicing shall be
referred to a qualified technician.
To protect against electric shock, do not immerse appliance, plug or cord
into water or other liquids.
Child Safety
Exercise caution and use reasonable supervision when appliance is used
near children. Never allow children to operate, play with or crawl inside the
unit. Keep packing materials away from children.
Keep fingers out of pinch point areas and be careful when closing doors if
children are around.
Cleaning
DANGER
Improper use of the power cord plug can result in the risk of
electrical shock, property damage and personal injury or death.
To reduce the risk of injury when cleaning your appliance, follow
these basic precautions.
Unplug the appliance or disconnect power before performing any
maintenance or cleaning.
2
info@fluridaappliances.com
Do not clean appliance with flammable fluids. Do not store or use gasoline
or other flammable vapors or liquids in the vicinity of this or any other unit.
The fumes can create a fire hazard or explosion.
Do not use solvent-based cleaning agents or abrasives on the interior or
exterior of the appliance. These cleaners may damage or discolor the
appliance.
Do not operate the appliance with wet hands, while standing on a wet
surface or while standing in water.
Moving
DANGER
To reduce the risk of injury when moving your appliance, follow
these basic precautions.
Exercise caution when moving and installing the appliance. The unit is
heavy, to prevent strain or injury, it may require two or more people to
move the unit.
Remove all ice, empty water and secure all loose shelves before you
transport the unit. Use protective materials to prevent the glass shelves
from being damaged.
Disposing
When disposing of refrigerated appliances, special handling is
DANGER
often required. It is the consumer’s responsibility to comply with
federal and local regulations when disposing of this product.
Keep the carton, plastic bags and any exterior wrapping materials in a safe
place where children cannot reach them. If you don’t need these materials,
destroy or recycle them. These items may cause suffocation to children.
To avoid entrapment and suffocation, before you discard this appliance,
remove the doors and leave the shelves in place, so that children may not
climb inside.
24412 Main St. Suite 105, Carson, CA 90745
3
FEATURES & SPECIFICATIONS
Overview
This countertop ice and water dispenser features a touch operated automatic
ice and water dispensing system. The freezer keeps 9 lbs of crescent ice cold
and available anytime. Filtered water system creates the flexibility to place it
anywhere in the office, break room, hotel and home. Stainless or black doors
with silver accents give a sleek and modern appearance.
Features and Parts
4
1. Freezer Door
2. Icemaker (located inside)
3. Ice Bin (located inside)
4. Display Panel
5. Ice Dispenser
6. Water Dispenser
7. Drip Tray
8. Filtered Water Inlet Connector
9. Condenser Fan
10. Power Cord
info@fluridaappliances.com
The dispenser allows you to enjoy ice and water with the touch of a button.
The two-evaporator cooling system and ice freezer keep ice from melting
and produce ice quicker.
Filtered water supply provides you with clean and great tasting water
.
Touch control brings you the simplicity to select and dispense your
preferred ice or water.
Specifications and Dimensions
Model No. FDFD10502
Ice Type Crescen t
Ice Production Capacity
(70°F Air / 50°F Water)
Ice Bin Capacity 9 lb
Water Type Cook
Operating Temperatu re for
Ice
Water Supply Filtered Water
Electrical Rating 115V/60HZ/2.5A
Unit Dimensions
Depth w/ Door Open 90
Degree
Net Weight 90 lb
18-1/8”W x 22-3/8”D x 31-
11 lb / 24 h
50~110 °F
1/2”H
39-3/8”
24412 Main St. Suite 105, Carson, CA 90745
5
USE OF DISPENSER
CAUTION
NOTE
NOTE
Do not store food and drink in the ice freezer.
For the first time use, allow 24 hours to produce the first batch of
ice. Discard the first three batches of ice produced.
For the first time use or after connecting a filtered water source or
after replacing the water filters, flush the water system by
dispensing several cups of water, then discarding them. Repeat
until water is clear and tasting good.

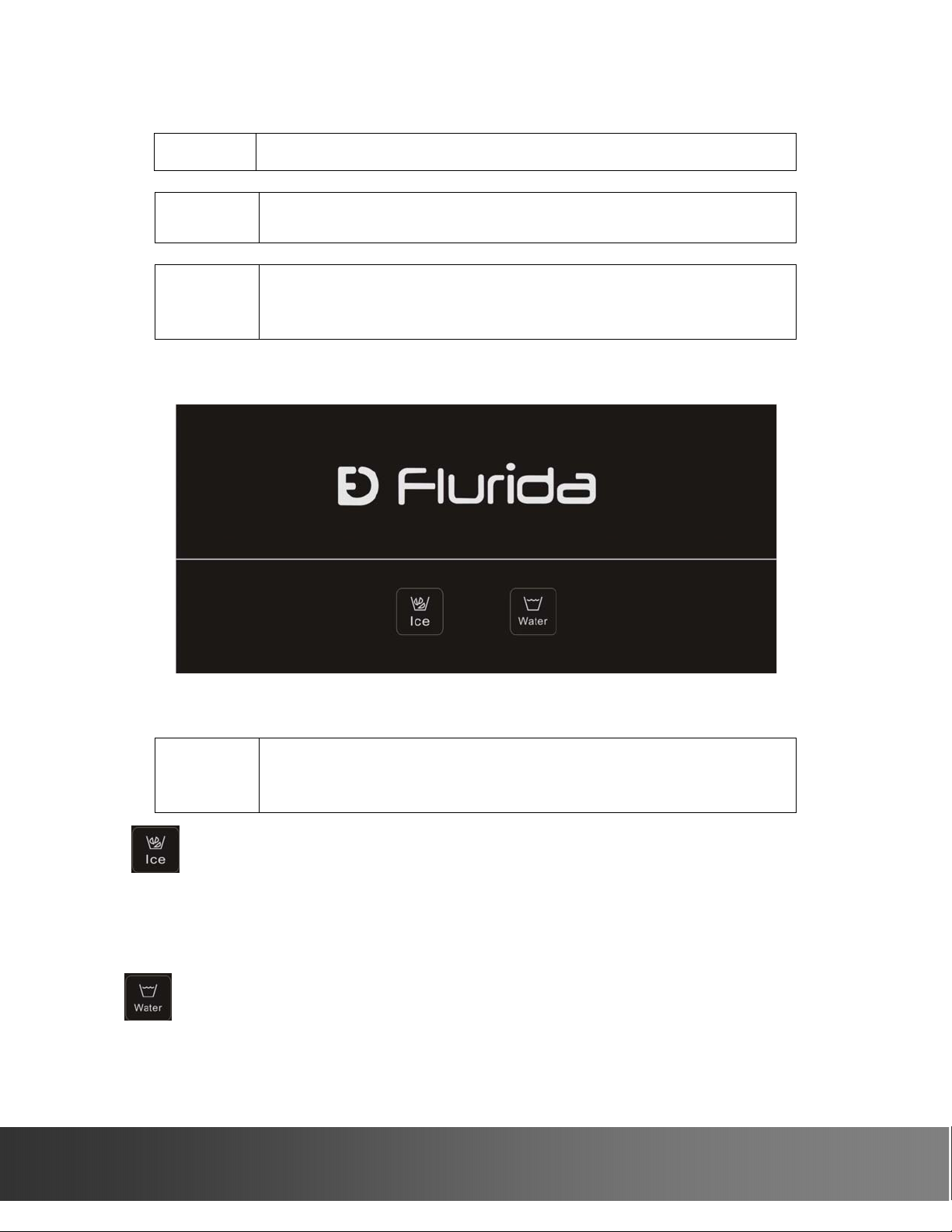

Display Functions
Dispensing ice
Ice dispenser will stop working while the freezer door is open.
NOTE
If ice cubes haven’t been used for days, they may freeze together
and unable to dispense. If this happens, pull out the ice bin and
shake it, then push it in.
Ice dispensing button
Place a cup under the ice dispenser.
Press and hold the “Ice” button to dispense ice.
Dispensing water
Water dispensing button
Place a cup under the water dispenser.
Press and hold the “Water” button to dispense water.
6
info@fluridaappliances.com
DISPENSER CARE
DANGER
Unplug the unit or disconnect power before performing any maintenance.

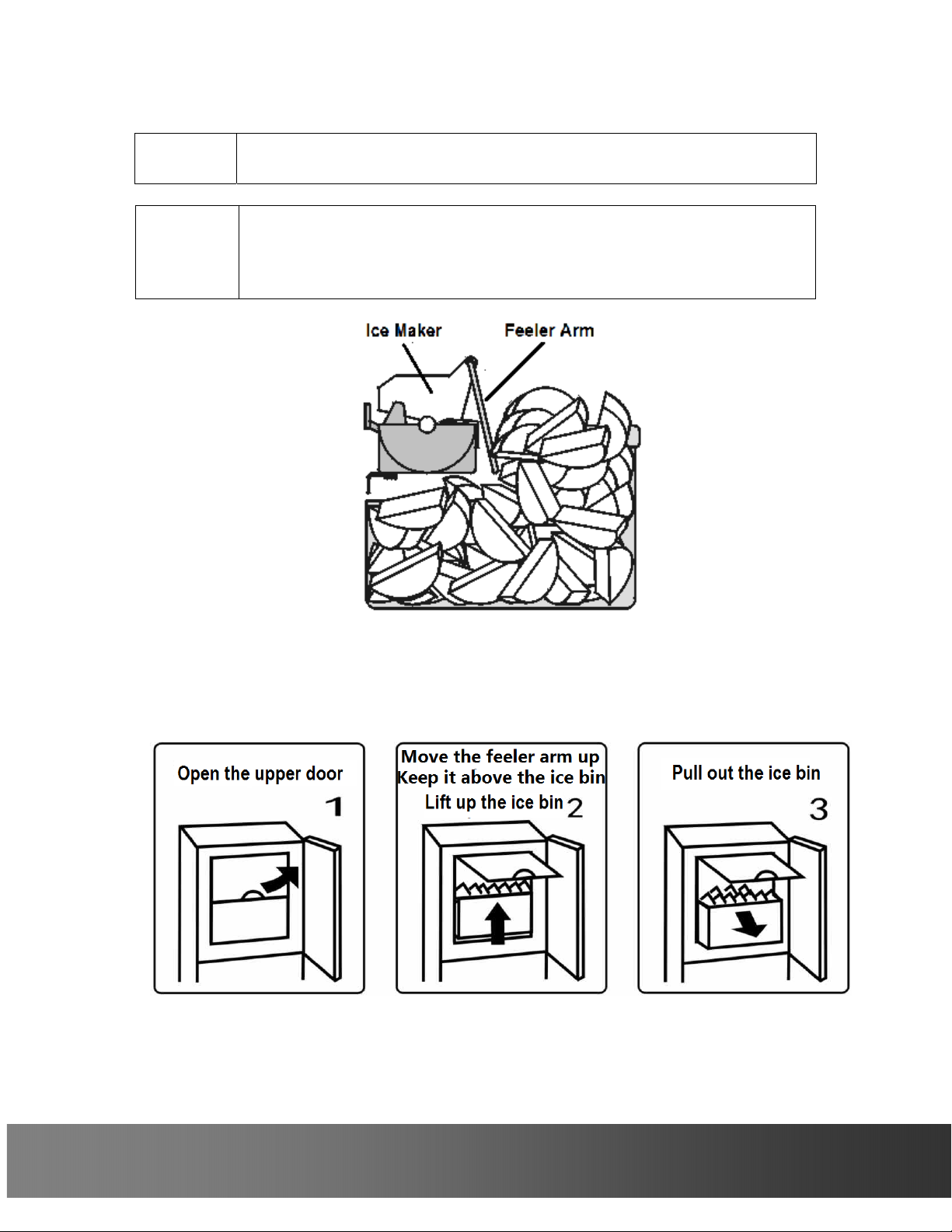

If ice cubes block the feeler arm, clear the ice cubes before you pull out
the ice bin.
Move the feeler arm up and keep it above the ice bin while you pull out
CAUTION
the ice bin. Otherwise the feeler arm may be damaged if it is obstructed
by the ice bin.
How to empty ice bin
Use the instructions below to remove the ice bin when emptying ice or
cleaning the ic e bin .
Push the ice bin back until the auger is engaged in the auger coupler. If
it is stuck, rotate the auger 1/8 turn, then push it in again.
24412 Main St. Suite 105, Carson, CA 90745
7
If the dispenser does not dispense water
Air may be trapped.
Release a cup of water from the water release drain.
How to remove condensate
The unit is operated with automatic defrost cycle. The water collects in a
water tray that is located at the compressor compartment. Normally, the
water evaporates through the hot gas tubing.
In very high humidity conditions, manually empty water if the tray is full.
How to clean the water system with citric acid if heavy sediment has
built
Fill a 5 gallon bottler with cold water and add 8 oz of citric acid powder.
Insert a ¼” OD tube to the line connector located at the back of the unit,
and insert another tube end into the bottle near the bottom.
Place the bottle above the unit so the water in the bottle can flow into
the internal water tank by siphon.
Dispense water to flush the system. Repeat this procedure until the
bottle is empty.
Release the remaining water through the release drain.
Fill the container with clean cold water.
Dispense water to rinse the system until water is clear
Release the remaining water.
If heavy frost builds up in the ice freezer
Press and hold the “Ice” and “Water” buttons at the same time for more
than 10 seconds until you will hear a long beep when the defrost cycle
starts.
If ice cubes are frozen together
Press the “Ice” button to dispense ice for a few minutes.
8
info@fluridaappliances.com
Open the upper door and pull out the ice bin to shake it or remove the
large clumps of ice cubes.
If the ice bin is stuck
Unplug the unit.
Use a hair dryer with warm or cold air to melt the ice.
Pull out the ice bin and empty it.
Wipe up water and put the ice bin back.
Plug in the unit.
If ice cubes are jammed in the ice maker
Unplug the unit.
Use a hair dryer with warm or cold air to melt the jammed ice cubes.
Then remove the jammed ice cubes.
Plug in the unit.
If a power outage happens
Unplug the unit.
Pull out the ice bin and empty it.
Wipe up water and put the ice bin back.
If you are away on holidays or vacations
Unplug the unit or disconnect the power.
Open the upper door
Pull out the ice bin and empty it.
Let the freezer defrost.
Wipe up water and dry the freezer.
Release the remaining water.
What normal operating sounds you may hear
You may hear a boiling, rattling or gurgling sound produced by flow of
refrigerant through the evaporator.
You may hear air being forced through the unit by the evaporator fan.
You may hear air being forced through the condenser by the condenser
fan.
You may hear a clicking sound produced by the refrigerant valve or
dispensing valve.
You may hear a water dripping sound during automatic defrost cycle.
You may hear a high pitched hum or pulsating sound produced by the
compressor.
You may hear the ice cubes being ejected from the ice maker to the ice
bin.
24412 Main St. Suite 105, Carson, CA 90745
9
INSTALLATION INSTRUCTIONS
Location
CAUTION
Place the unit away from direct sunlight and heat sources.
Do not install the unit in moist areas.
Do not install the unit in garage.
Do not install the unit where the ambient temperature range will be
below 50 °F or above 110 °F. Otherwise, the compressor will not be able
to maintain proper temperature.
The unit must be placed in a properly ventilated locat ion to prevent heat
build-up generated by the refrigeration system. Failure to do so will
prevent the unit f rom co olin g prope rly, a nd ma y resu lt in dam age to un it
components as well as its contents.
The unit must be installed on a co unter that is level and strong enough
to support a fully loaded unit up to 100 lb.
Clearance
CAUTION
This unit is designed for indoor use only.
This unit is designed for free-standing or recessed installation.
Allow for minimum 2” on the back, and 1” at the top for proper air
circulation.
If the unit is installed next to a fixed wall on the right side, leave 1”
minimum clearance to allow the door to swing.
Adjust the levelling legs to level the unit at a height that allows the door
to be opened and closed properly.
Electrical Requirements
It is required that you connect this unit only to a GFCI protected
DANGER
receptacle. It is strongly recommended that you do not use an adapter
or an extension cord to connect this unit because of potential safety
hazards.
A dedicated 120V, 60Hz, 15A fused, grounded electrical supply is
required. It is recommended that a separate circuit serving only your
appliance be provided.
Only connect to properly polarized outlets.
Use outlets that cannot be turned off by a switch.
Only plug the unit into a grounded 3 prong outlet.
10
info@fluridaappliances.com
How to insert or disconnect a tube or plug
1. Remove the lock clip first.
2. To install, insert a tube or plug until it is engaged;
To disconnect, press the release ring down and pull out a tube or plug.
3. Install the lock clip.
Water filtration system application
NOTE
A municipal water supply or other potable water with water pressure between
20 and 120 psig is required to operate this unit. Drain is not required.
Remove the plug of the filtered water inlet connector (8), which is
located at the back of the unit. Insert the free end of the filtered water
line into the connector (8) until it stops.
24412 Main St. Suite 105, Carson, CA 90745
11
g
Chart
Complaint Possible Causes Response
Unit is not working
and display is not lit
Icemaker is not
producing ice
Icemaker is not
producing enough ice
or ice cubes are small
Ice cubes are hollow
Ice cubes are frozen
together in the ice bin
TROUBLESHOOTINGS
a. Power cord is unplugged.
b. No power at outlet.
c. Power cord is broken.
d. Control PCB is defective or
with wiring problems.
e. Display PCB is defective or
with wirin
a. There is ice in the ice mould,
but the icemaker is turned off.
b. There is ice in the ice mould,
but ice cubes are jammed.
c. There is no water in the ice
mould and the water fill tube
freezes.
d. There is no water in the ice
mould and the water filters are
clogged.
e. There is no water in the ice
mould and the icemaker water
valve is defective or with wiring
problems.
f. There is no water in the ice
mould and the icemaker is
defective.
g. There is ice in the ice mould,
but the icemaker is not
working.
h. There is water in the ice mould
but the cooling system is not
working.
a. The freezer door is not closed
properly.
b. The ice chute flap is not closed
properly
c. Air is trapped in the icemaker
water line and the ice mould is
not filled with sufficient water.
d. The icemaker water valve is
not working properly.
e. The icemaker is not working
properly.
f. The cooling system is not
working properly.
a. The icemaker thermostat is
defective.
b. The icemaker water valve is
defective.
c. The cooling system is not
working properly.
a. If ice cubes haven’t been used
for a long period of time, they
may freeze together.
problems.
a. Plug in the power cord.
b. Check for outlet and breaker or fuse.
c. Call for service.
d. Call for service.
e. Call for service.
a. Turn the icemaker on.
b. Clear the ice cubes.
c. Unplug the unit and remove the ice bin
d. Bypass the water filters and check if ice
e. Call for service.
f. Call for service.
g. Call for service.
h. Call for service.
a. Check for the door seal and door
b. Check for the flap.
c. Release cups of water from the water
d. Call for services.
e. Call for service.
f. Call for service.
a. Call for service.
b. Call for service.
c. Call for service.
a. Pull out the ice bin and shake it or
then wait until fill tube is clear.
quality improves.
opening.
release drain.
remove the large clumps of ice cubes.
12
info@fluridaappliances.com
Ice is not dispensed
Water dispensing is
not working
Water dispenser is
slow
Water is leaking
Icemaker evaporator
is iced
Both freezer and
icemaker evaporators
are iced
b. Ice cubes are produced
continuously because the
feeler arm is blocked up.
c. The freezer door is not closed
properly.
d. The icemaker is not working
properly.
e. The cooling system is not
working properly.
a. There are not enough ice
cubes in the ice bin.
b. Ice cubes are frozen together
in the ice bin.
c. The freezer door is open.
d. The freezer door magnetic
switch is defective.
e. The auger motor is broken.
f. The flap motor is broken or
with wiring problems.
g. Control PCB is defective or
with wiring problems.
h. Display PCB is defective or
with wiring problems.
a. Air is trapped.
b. The dispensing valve water
tubes are broken.
c. The water dispensing valve is
defective.
d. Control PCB is defective or
with wiring problems.
e. Display PCB is defective or
with wiring problems.
a. The water dispensing tubes
are kinked.
b. The water dispensing valve is
defective.
a. The dispenser drip tray is full.
b. The condensate drip tray is
full.
c. The internal water reservoir or
tubes is leaking.
d. The water level sensor of the
internal water reservoir is
defective.
e. The water dispensing valve is
defective.
f. Ice is being melted because of
high freezer temperature.
a. The freezer door is not closed
properly.
b. The ice chute flap is not closed
properly.
c. Water fill tube is leaking water.
a. The defrost solenoid valve is
defective or with wiring
problems.
b. Clear ice cubes around the feeler arm.
c. Check for the door seal or door
opening.
d. Call for service.
e. Call for service.
a. See Icemaker is not producing ice or
Icemaker is not producing enough
ice or ice cubes are small.
b. Pull out the ice bin and shake it or
remove the large clumps of ice cubes.
c. Close it.
d. Replace it.
e. Call for service.
f. Call for service.
g. Call for service.
h. Call for service.
a. Release cups of water from the water
release drain.
b. Call service.
c. Call service.
d. Call service.
e. Call service.
a. Straighten them.
b. Call service.
a. Empty it.
b. Empty it.
c. .Call for service.
d. Call for service.
e. Call for service.
f. Check for power or call for service.
a. Close it.
b. Close it.
c. Align the fill tube in the fill cup.
a. Call for service.
24412 Main St. Suite 105, Carson, CA 90745
13
b. The defrost drip tray heater is
broken or with wiring problems.
c. The evaporator fan is broken.
d. The defrost sensor is
defective.
e. The freezer sensor is
defective.
b. Call for service.
c. Call for service.
d. Call for service.
e. Call for service.
14
info@fluridaappliances.com
SERVICE & IMPORTANT NOTICE
The manufacturer has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice.
Contact us with any questions at 800-433-9938 or info@fluridaappliances.com
Or visit 24412 Main St. Suite 105 Carson, CA 90745 and
www.fluridaappliances.com
LIMITED WARRANTY: Seller warrants that the goods will be free of defects in materials and
workmanship for a period of 12 (twelve) months from date of sale, removal and re-installation
of unit is not included in warranted labour. For a scratch and dent or refurbished unit,
warranty is 3 months from your dated invoice (parts for function only, not cosmetic). There is
no warranty on parts purchased separately. Purchaser’s exclusive remedy is limited, at Seller’s
option; to repair or replace defective part[s] with either new or factory reconditioned part[s].
Purchaser is responsible for shipping the unit pre-paid to designated facility and Seller will pay
return shipping charges in the continental United States for items repaired under warranty
within 12 (twelve) months from date of sale. Improper placement of the unit will void the
warranty. This limited warranty does not cover damage due to such things as accident,
misuse, abuse, mishandling, neglect, acts of God, fires, earthquakes, floods, high winds,
government, war, riot or labour trouble, strikes, lockouts, delay of carrier, unauthorized
repair, or any other cause beyond the control of the Seller, whether similar or dissimilar to the
foregoing. Seller is not responsible for any damages caused to Seller’s property resulting from
the good. This limited warranty applies only inside the Continental US. (Alaska, Puerto Rico
and Hawaii are not warranted.)
Seller is not responsible for incidental or consequential damages, and there are no warranties,
expressed or implied, which extend beyond the Limited Warranty described above. The implied
warranties of merchantability and of fitness for a particular purpose are hereby expressly
disclaimed. Some states do not allow the exclusion of incidental or consequential damages, or
a waiver of the implied warranties of fitness and/or merchantability, so the above limitations
may not apply to you. This warranty gives you specific legal rights and you may also have
other rights which vary from state to state. In the event of any dispute between Seller and
Purchaser arising out of or relating to these terms and conditions or to the goods sold
generally, Purchaser must first file a written claim with Seller within ten days of the occurrence
giving rise to the claim and wait an additional thirty days for a response before initiating any
legal action. The sale and all terms are subject to Nevada law. Any legal proceeding arising out
of or relating to these terms and conditions or to the goods sold generally sh all be brought
solely and exclus ively in the City of Las Vega s. In no event may Purchaser initiate any legal
proceeding more than six months after the occurrence of the event giving rise to the dispute.
The above terms and conditions are the only ones governing this transaction and Seller makes
no oral representations of any kind. These Terms and Conditions can only be modified in
writing, signed by both Purchaser and Seller.
FD is a registered trademark of Flurida Appliances Inc. All products, features, and services are
subject to change without notice. We cannot guarantee the accur acy of the contents of this
document. We disclaim liability for errors, omissions, or future changes.
Copyright©2018 Flurida Appliances Inc. All rights reserved.
24412 Main St. Suite 105, Carson, CA 90745
15
Loading...
