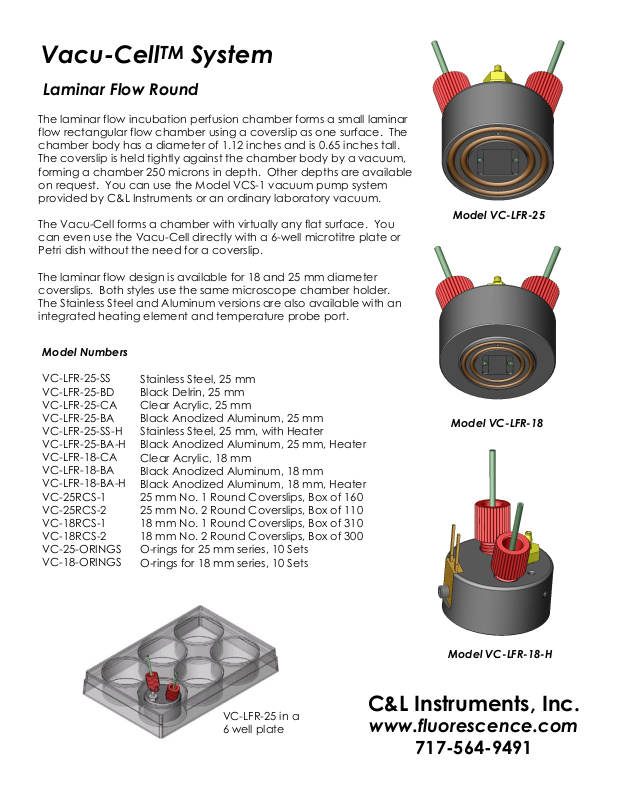

FLUORESCENCE VC-L User Manual

Vacu-Cell

TM

System

Laminar Flow Round

The laminar flow incubation perfusion chamber forms a small laminar
flow rectangular flow chamber using a coverslip as one surface. The
chamber body has a diameter of 1.12 inches and is 0.65 inches tall.
The coverslip is held tightly against the chamber body by a vacuum,
forming a chamber 250 microns in depth. Other depths are available
on request. You can use the Model VCS-1 vacuum pump system
provided by C&L Instruments or an ordinary laboratory vacuum.

The Vacu-Cell forms a chamber with virtually any flat surface. You
can even use the Vacu-Cell directly with a 6-well microtitre plate or
Petri dish without the need for a coverslip.

The laminar flow design is available for 18 and 25 mm diameter
coverslips. Both styles use the same microscope chamber holder.
The Stainless Steel and Aluminum versions are also available with an
integrated heating element and temperature probe port.

Model VC-LFR-25

Model Numbers

VC-LFR-25-SS
VC-LFR-25-BD
VC-LFR-25-CA
VC-LFR-25-BA
VC-LFR-25-SS-H
VC-LFR-25-BA-H
VC-LFR-18-CA
VC-LFR-18-BA
VC-LFR-18-BA-H
VC-25RCS-1
VC-25RCS-2
VC-18RCS-1
VC-18RCS-2
VC-25-ORINGS
VC-18-ORINGS

Stainless Steel, 25 mm
Black Delrin, 25 mm
Clear Acrylic, 25 mm
Black Anodized Aluminum, 25 mm
Stainless Steel, 25 mm, with Heater
Black Anodized Aluminum, 25 mm, Heater
Clear Acrylic, 18 mm
Black Anodized Aluminum, 18 mm
Black Anodized Aluminum, 18 mm, Heater
25 mm No. 1 Round Coverslips, Box of 160
25 mm No. 2 Round Coverslips, Box of 110
18 mm No. 1 Round Coverslips, Box of 310
18 mm No. 2 Round Coverslips, Box of 300
O-rings for 25 mm series, 10 Sets
O-rings for 18 mm series, 10 Sets

Model VC-LFR-18

VC-LFR-25 in a
6 well plate

Model VC-LFR-18-H

C&L Instruments, Inc.

www.fluorescence.com

717-564-9491
