USER'S MANUAL

Split Air Conditioner

MODEL

FSS101EI/JDF-N3
FSS121EI/JDF-N3
FSS181EI/JDF-N3

FSS 241 EI/JDF-N3

Operation Notices

Precautions ........................................................................................................ 1

Parts name .......................................................................................................... 6

Operation Guide

Operation guide.................................................................................................. 7

Remote controller .............................................................................................. 8

Buttons on remote controller............................................................................ 9

Indoor unit address inquiry............................................................................. 13

Maintenance

Clean and maintenance ................................................................................... 13

Malfunction

Malfunction analysis ........................................................................................ 15

Safety operation of ammable refrigerant ..................................................... 18

Installation Notice

Installation drawing ......................................................................................... 20

Installation prepare .......................................................................................... 21

Installation

Installation of indoor unit ................................................................................ 24

Check after installation ................................................................................... 29

Test operation ................................................................................................... 30

Content

This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for
environmental safe recycling.

If it needs to install, move or maintain the air conditioner, please contact dealer or local

service center to conduct it at rst. Air conditioner must be installed, moved or maintained

by appointed unit. Otherwise, it may cause serious damage or personal injury or death.

R32:675

1

Precautions

Please read this operating manual carefully before operating the unit.

Appliance lled with ammable gas R32.

Before use the appliance, read the owner's manual rst.

Befoer install the appliance, read the installation manual rst.

Befoer repair the appliance, read the service manual rst.

The gures in this manual may be different with the material objects, please refer to the

material objects for reference.

To realize the function of the air conditioner unit, a special refrigerant circulates in the system.

The used refrigerant is the uoride R32, which is specially cleaned. The refrigerant is
ammable and inodorous. Furthermore, it can leads to explosion under certain condition.
But the ammability of the refrigerant is very low. It can be ignited only by re.

Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm to the
ozonosphere. The inuence upon the greenhouse effect is also lower. R32 has got very
good thermodynamic features which lead to a really high energy efciency. The units
therefore need a less lling.

The Refrigerant

WARNING:

Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nearest
authorized Service Center.

Any repairs carried out by unqualied personnel may be dangerous.

The appliance shall be stored in a room without continuously operating ignition sources.

(For example: open ames, an operating gas appliance or an operating electric heater.)

Do not pierce or burn.

Appliance shall be installed, operated and stored in a room with a oor area larger than

“X”m

2

(see table 1). (only applies to appliances that are not xed appliances)

Appliance lled with ammable gas R32. For repairs, strictly follow manufacturer's

instructions only.
Be aware that refrigerants not contain odour.

Read specialist’s manual.

2

This appliance can be used by children aged of 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children
without supervision.

Do not connect air conditioner to multi-purpose socket.

Otherwise, it may cause re hazard.

Do disconnect power supply when cleaning air conditioner.

Otherwise, it may cause electric shock.
If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.

Do not wash the air conditioner with water to avoid electric

shock.
Do not spray water on indoor unit. It may cause electric shock

or malfunction.

After removing the lter, do not touch ns to avoid injury.

Do not use re or hair dryer to dry the lter to avoid deformation
or re hazard.

Maintenance must be performed by qualied professionals.
Otherwise, it may cause personal injury or damage.

Do not repair air conditioner by yourself. It may cause electric

shock or damage. Please contact dealer when you need to
repair air conditioner.

Do not extend ngers or objects into air inlet or air outlet. It may
cause personal injury or damage.

Precautions

Operation and Maintenance

WARNING

3

Attachment

Installation must be performed by qualied professionals.
Otherwise, it may cause personal injury or damage.

Must follow the electric safety regulations when installing the
unit.

According to the local safety regulations, use qualied power
supply circuit and circuit break.

Do install the circuit break. If not, it may cause malfunction.

An all-pole disconnection switch having a contact separation of
at least 3mm in all poles should be connected in xed wiring.

Air Conditioner should be properly grounded. Incorrect

grounding may cause electric shock.

Do not block air outlet or air inlet. It may cause malfunction.

Do not spill water on the remote controller, otherwise the
remote controller may be broken.

When below phenomenon occurs, please turn off air conditioner
and disconnect power immediately, and then contact the dealer
or qualied professionals for service.

● Power cord is overheating or damaged.

● There’s abnormal sound during operation.

● Circuit break trips off frequently.

● Air conditioner gives off burning smell.

● Indoor unit is leaking.

If the air conditioner operates under abnormal conditions, it
may cause malfunction, electric shock or re hazard.

When turning on or turning off the unit by emergency operation
switch, please press this switch with an insulating object other

than metal.

Precautions

WARNING

4

Including an circuit break with suitable capacity, please note the
following table.Air switch should be included magnet buckle
and heating buckle function, it can protect the circuit-short and
overload.

Don't use unqualied power cord.

Make sure the power supply matches with the requirement of

air conditioner.Unstable power supply or incorrect wiring or
malfunction. Please install proper power supply cables before

using the air conditioner.

Properly connect the live wire, neutral wire and grounding wire

of power socket.

Be sure to cut off the power supply before proceeding any work

related to electricity and safety.

Do not put through the power before nishing installation.

If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.

The temperature of refrigerant circuit will be high, please keep
the interconnection cable away from the copper tube.

The appliance shall be installed in accordance with national

wiring regulations.

Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only.

The air conditioner is the rst class electric appliance. It must
be properly grounding with specialized grounding device
by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.

The yellow-green wire in air conditioner is grounding wire,
which can't be used for other purposes.

The grounding resistance should comply with national electric
safety regulations.

Precautions

WARNING

5

Working temperature range

NOTE:

The operating temperature range (outdoor temperature) for cooling is 18°C ~43°C ; Heating
temperature range for the model without electric heating belt for chassis is -15°C ~ 24°C ;
Heating temperature range for the model with electric heating belt for chassis is

-20°C ~24°C .

Indoor side DB/WB(°C) Outdoor side DB/WB(°C)

Maximum cooling 32/23 43/26

Maximum heating 27/- 24/18

The appliance must be positioned so that the plug is accessible.

All wires of indoor unit and outdoor unit should be connected
by a professional.

If the length of power connection wire is insufcient, please
contact the supplier for a new one. Avoid extending the wire by

yourself.

For the air conditioner with plug, the plug should be reachable
after nishing installation.

For the air conditioner without plug, an circuit break must be

installed in the line.

If you need to relocate the air conditioner to another place, only
the qualied person can perform the work. Otherwise, it may
cause personal injury or damage.

Select a location which is out of reach for children and far away

from animals or plants.If it is unavoidable, please add the fence

for safety purpose.

The indoor unit should be installed close to the wall.

Precautions

WARNING

6

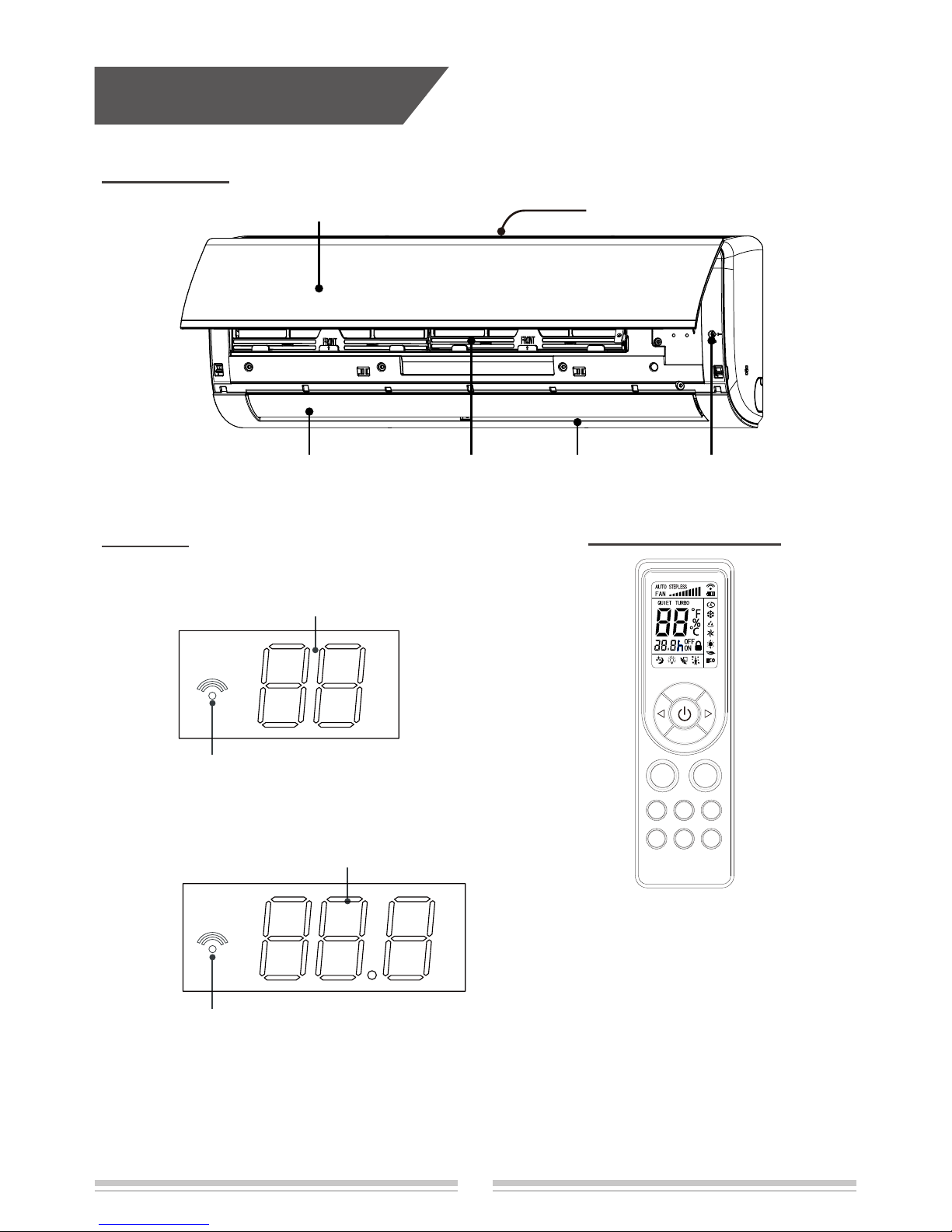

Parts name

Panel

Horizontal louver Aux.button

Air inlet

Filter Air outlet

Indoor unit

Remote controller

Actual product may be different from above graphics,please refer to actual products.

NOTE:

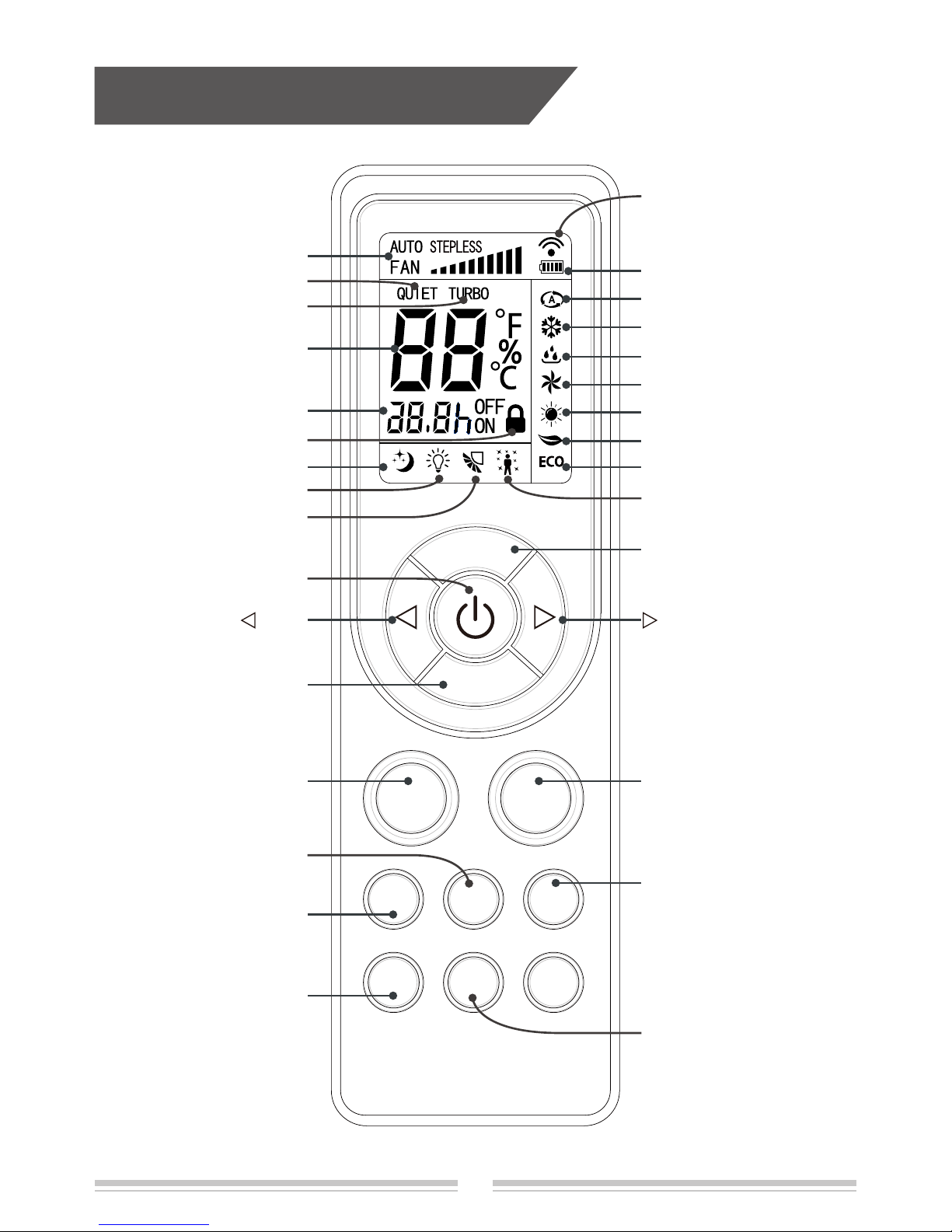

Display

Temp.indicator

Temp.indicator

Wi-Fi indicator

Wi-Fi indicator

)$1

6:,1*

02'(

785%2

7,0(5

+($/7+

6/((3

/,*+7

(&2

For some model:

For some model:

7

● During operation, point the remote control signal sender at the receiving window on indoor unit.

● The distance between signal sender and receiving window should be no more than 8m, and there

should be no obstacles between them.

● Signal may be interfered easily in the room where there is uorescent lamp or wireless telephone;

remote controller should be close to indoor unit during operation.

● Replace new batteries of the same model when replacement is required.

● When you don’t use remote controller for a long time, please take out the batteries.

● If the display on remote controller is fuzzy or there’s no display, please replace batteries.

NOTE:

Operation guide

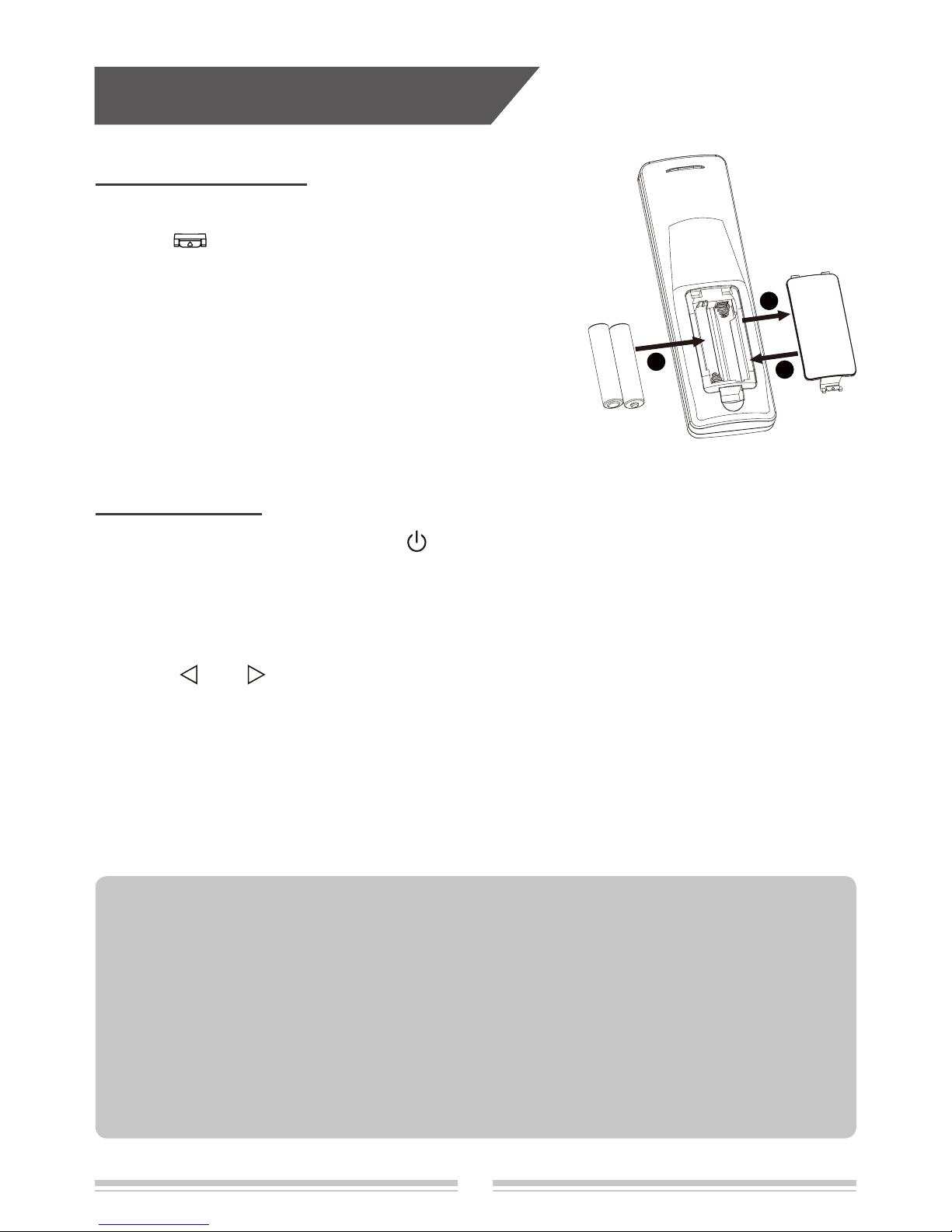

1. Press the back side of remote controller marked
with "

", as shown in the g, and then push out

the cover of battery box along the arrow direction.

2. Installation two 7# (AAA 1.5V) dry batteries, and

make sure the position of "+" polar and "-" polar are
correct.

3. Reinstall the cover of battery box.

Installation batteries

Operation guide

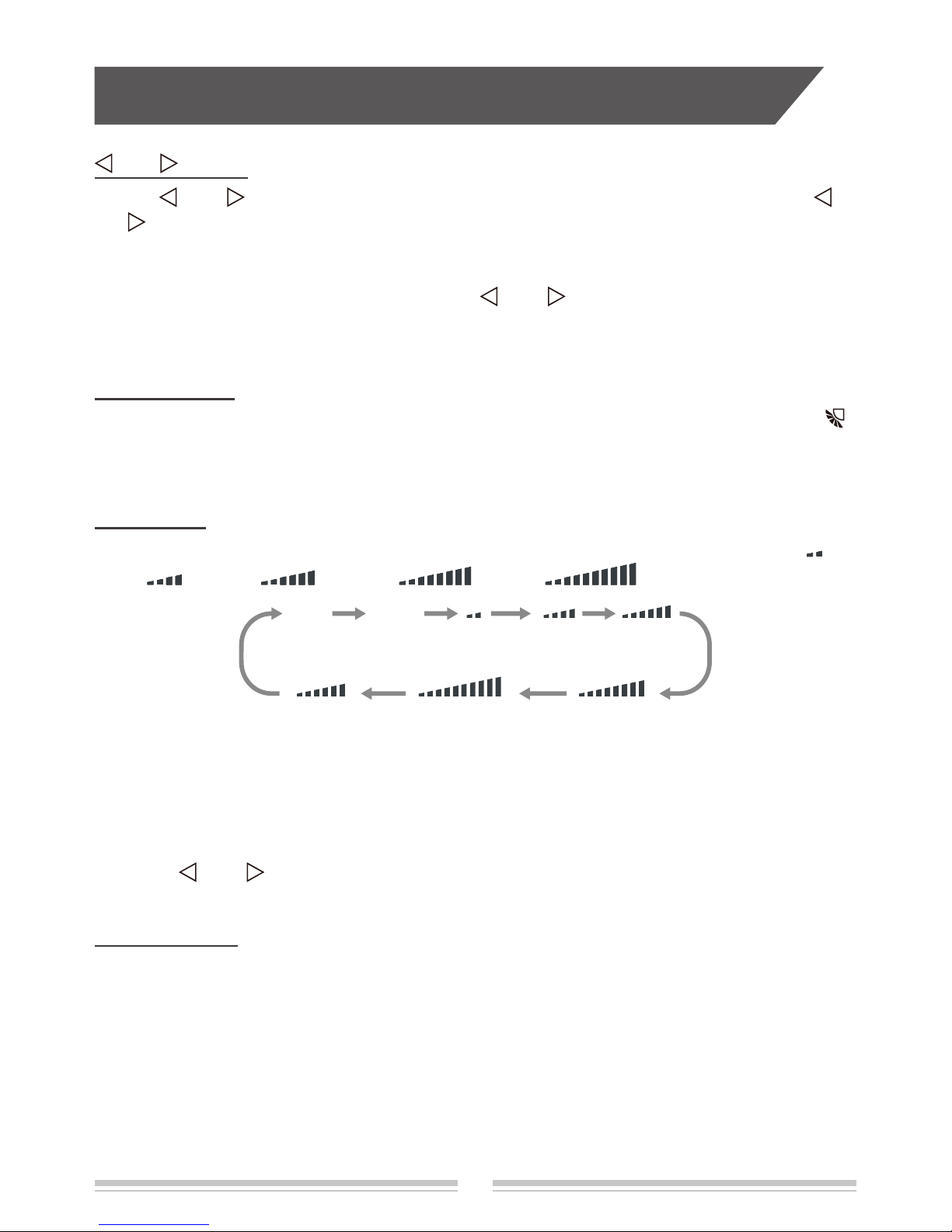

1. After connecting the power, press " " button on remote controller to turn on the air
conditioner.

2. Press "MODE" button to select your required mode: Auto, Cool, Dry, Fan, Heat.

3. Press "

" or " " button to set your required temperature. (Temperature can’t be

adjusted under auto mode).

4. Press "FAN" button to set your required fan speed: auto , quiet , fan1, fan2 , fan3 , fan4 ,

fan5 , stepless speed.

5. Press "SWING" button to turn on or turn off the swing function.

ὐ

ὑ

ὒ

8

Remote controller

)$1

6:,1*

02'(

785%2

7,0(5

+($/7+

6/((3

/,*+7

(&2

Turbo function

Quiet function

Set fan speed

Child lock

Sleep function

Swing function

Light

Dual-8 nixietube

Auto mode

Cooling mode

Dry mode

Fan mode

Heating mode

Health function

ECO function

Clock display

SWING button

TURBO button

TIMER button

HEALTH button

button

button

ON/OFF button

SLEEP button

FAN button

MODE button

ECO button

LIGHT button

Battery

I feel function

Smart function
There is no this function for
the unit.

9

Buttons on remote controller

After connecting the power, the air conditioner will make a sound.
Power indicator is ON. After that, you can operate the air conditioner by using remote controller.

In state of turning on, pressing the button on the remote controller, the air conditioner will make a
"beep" sound, which means the signal has been sent to the air conditioner.The display will show the
corresponding setting function icons.
In state of turning off, light icon will be displayed on the display of remote controller (If timer on and
light functions are set, the corresponding icons will be displayed on the display of remote controller at

the same time).

ON/OFF button

Press this button can turn on or turn off the air conditioner.

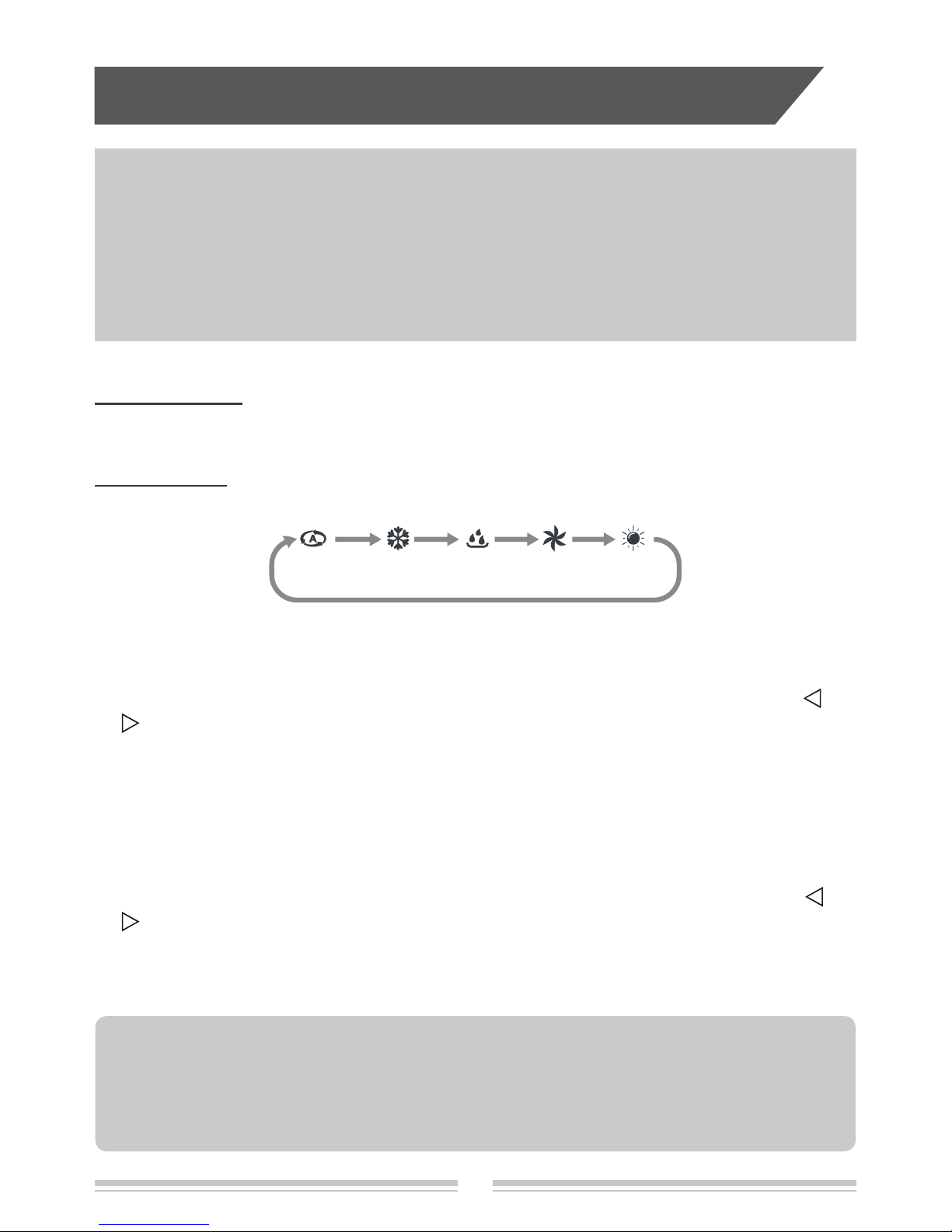

MODE button

Press this button to select your required operation mode.

Auto Cool Dry Fan Heat

●

When selecting auto mode, air conditioner will operate automatically according to ex-factory
setting. Setting temperature can’t be adjusted and will not be displayed as well. Press "FAN"
button can adjust fan speed. Press "SWING" button turn on or turn off the swing function.

● When selecting cool mode, air conditioner will operate under cooling mode. Press "

" or

"

" button to adjust setting temperature. Press "FAN" button to adjust fan speed.

Press "SWING" button to turn on or turn off the swing function.

●

When selecting dry mode, the air conditioner will operate in fan1, fan speed can’t be adjusted.

Press "SWING" button to turn on or turn off the swing function.

● When selecting fan mode, the air conditioner will only blow, no cooling and no heating.

Press "FAN" button to adjust fan speed. Press "SWING" button to turn on or turn off the

swing function.

● When selecting heat mode, the air conditioner will operate in heating mode. Press "

" or

"

" button to adjust setting temperature. Press "FAN" button to adjust fan speed. Press
"SWING" button to turn on or turn off the swing function. (Cooling only unit won’t receive
heat mode signal. If setting heating mode with remote controller, press ON/OFF button
can’t start up the unit).

Note:

● To preventing cold air, after starting up heating mode, indoor unit will delay 1~5 minutes
to blow air (actual delay time is depend on indoor ambient temperature).

● Seting temperature range from remote controller: 16~31°C;
Fan speed: auto, quiet, fan1, fan2, fan3, fan4, fan5, stepless speed.

10

Buttons on remote controller

FAN button

Pressing this button can set fan speed circularly as: auto (AUTO), quiet(QUIET), fan1( ),
fan2 (

) , fan3 ( ) , fan4 ( ), fan5 ( ), stepless speed.

Note:

● In AUTO speed, air conditioner will select proper fan speed automatically according to

ambient temperature.

● Fan speed under dry mode is fan1.

● No quiet fan speed under FAN mode.

● After entering the stepless speed function, users can adjust the fan speed according to the

button "

" or " ".

AUTO QUIET

fan1 fan2 fan3

fan4

fan5stepless speed

SWING button

Press this button can turn on or turn off the swing function. When swing

function is on, " "

icon is displayed on remote controller.

TURBO button

Press this button to turn on or turn off the turbo function in cool、heat、fan mode. When turbo
function is on, "

TURBO

" icon is displayed on remote controller.

Note:

● Press "FAN" button the unit will quit this function.

● This function is no use in auto mode or dry mode.

● When start turbo function, quiet fan speed will quit automatically.

and button

Press " " or " " button once to increase or decrease 1℃of temperature. Holding " "
or "

" button, temperature on remote controller will change quickly. On releasing button
after setting is nished, temperature indicator on indoor unit will change accordingly.
(Temperature can’t be adjusted under auto mode)
When setting TIMER ON, TIMER OFF, press " " or " " button to adjust time.
(Refer to " TIMER " button)

11

Buttons on remote controller

ECO button

In cool mode, press this button can turn on or turn off the ECO function.

When

ECO

function

is on, "

ECO

" icon is displayed on remote controller.

Note:

● Air conditioner will operate at auto speed. Set temperature can’t be adjusted.

●

Under cool mode, sleep function can not work with ECO function together at the same time.

● Change mode will exit the ECO function.

● No turbo function under ECO condition.

SLEEP button

Press this button to turn on or turn off the Sleep function under cool, heat, dry mode.

When

Sleep function is on, "

" icon is displayed on remote controller.

Note:

● This function is off as defaulted after power on.

● It will be cleared after changing mode.

● It is no use under "Fan" mode and "Auto" mode.

TIMER button

This button can set the time for timer on(timer off). After pressing this button, " " icon
displayed and "

( ) " icon blinking. Press " " or " " button within 5s to set timer on

(timer off) time. Each pressing of "

" or " " button, the time will increase or decrease

0.5 hour. Hold "

" or " " button, the time will change quickly until reaching your required

time. Press "TIMER" button to conrm it. The icon "

( ) " will stop blinking.

Cancel Timer on (off)

In the condition of timer on (off) is started up, press "TIMER" button to cancel it.

Note:

● Time set range 0.5~24hours, time scale is 0.5 hours.

● Timing of the initital set hour is 0.0 hour.

LIGHT button

Press this button can turn on or turn off

the light for indoor unit’s display. When

light

function

is on, "

" icon is displayed on remote controller.

HEALTH button

Press this button to turn on or turn off the health function.

When health function is on, " "

icon is displayed on remote controller.

Note:

This function is not available for some models.

12

Buttons on remote controller

Function introduction for combination buttons

Child lock function

Press " " and " " simultaneously to turn on or turn off child lock function. When child

lock function is on, "

" icon is displayed on remote controller. If you operate the remote

controller, the "

" icon will blink three times without sending signal to the unit.

In the heating mode, press "FAN" and "MODE" buttons together for 3s would start or cancel
the Force defrost.

Force defrost

●

In heating mode, pressing "MODE" and " " button at the same time will enter/exit the low

temperature heating function.

● "

" would be showed on the remote controller after entered into the low temperature

heating funtion.

● When switching from one mode to another mode, low temperature heating function was

canceled. Turn off and then turn on air conditioner that will remain the low temperature

heating function. After powered on, the low temperature heating mode was default to off

status.

● In the low temperature heating function, "Sleep" and "Low temperature heating" function

cannot start at the same time. When low temperature heating function has already started,

meanwhile you press the "SLEEP" button, the air conditioner will exit low temperature

heating

mode and enter the sleep mode. Vice versa.

Note:

1.

In the low temperature heating function, the fan speed was default to Auto and non-ajusatable.

2. In the low temperature heating function, Turbo function can't be set. If enter the low

temperature heating

function

, the turbo and quiet function that started before will be

canceled.

As well as when exit the low temperature heating function, it will resume .

3. When exit from the low temperature heating function, the speed and temperature will turn

into the original condition before it started.

4. You can set up other function.

Low temperature heating function setting

13

Indoor unit address inquiry

● If match with MULTI-S outdoor unit, when units has malfunction and need to inquire the
address to maintainance, the step is as below:
Remote controller aims to the indoor display, press "Light" and "-" buttons at the same time
for 3s , then will display the indoor unit address(1~5) for 3s.

WARNING

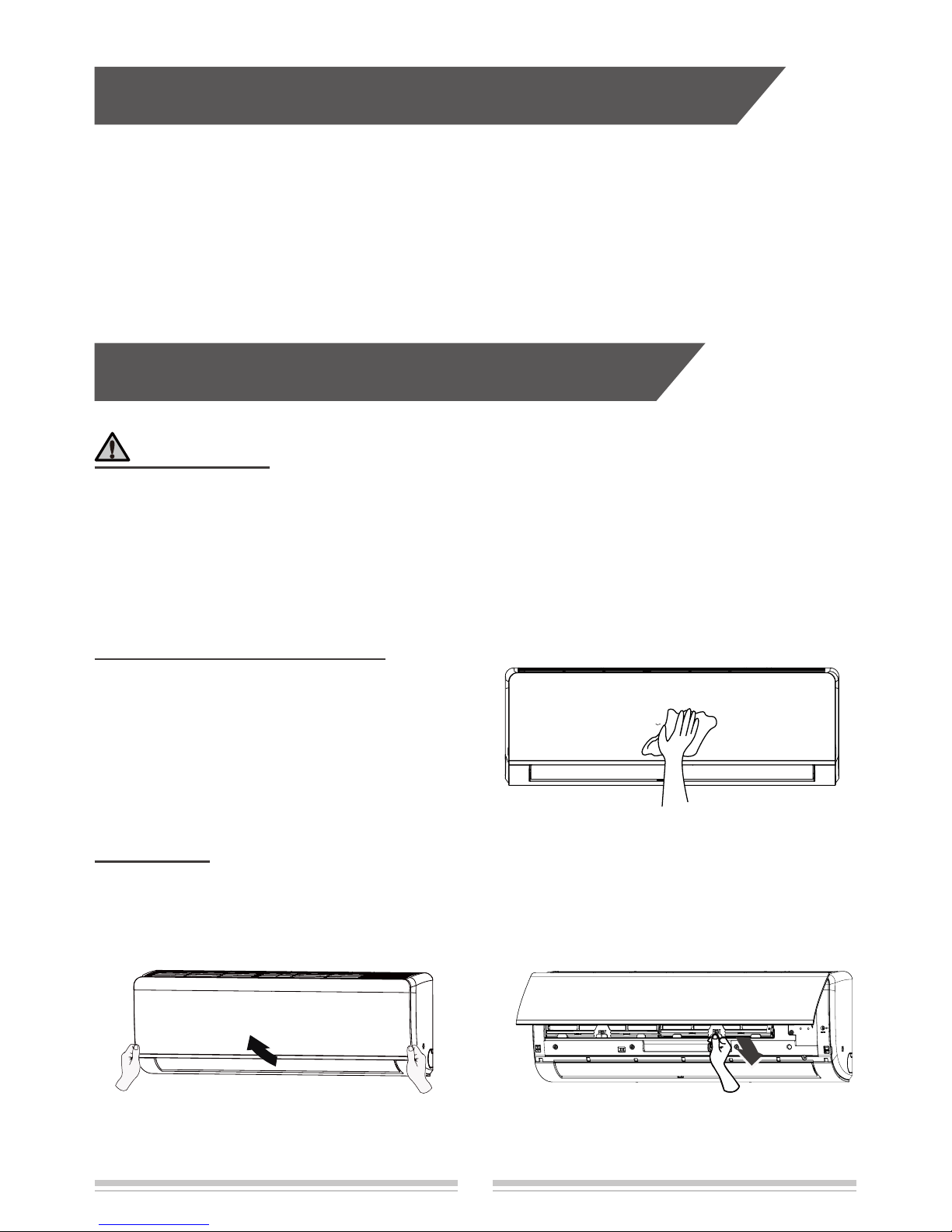

■ Turn off the air conditioner and disconnect the power before cleaning the

air conditioner to avoid electric shock.

■ Do not wash the air conditioner with water to avoid electric shock.

■ Do not use volatile liquid to clean the air conditioner.

Clean surface of indoor unit

When the surface of indoor unit is dirty, it is
recommended to use a soft dry cloth or wet
cloth to wipe it.

Note:

Do not remove the panel when cleaning it.

Clean lter

Open panel Remove lter

Pull out the panel to a certain angle as

shown in the g.

Remove the lter as indicated in the g.

1 2

Clean and maintenance

14

NOTE:

● The lter should be cleaned every three months. If there is much dust in the operation
environment, clean frequency can be increased.

● After removing the lter, do not touch ns to avoid injury.

● Do not use re or hair dryer to dry the lter to avoid deformation or re hazard.

Checking before use-season

1. Check whether air inlets and air outlets are blocked.

2. Check whether air switch, plug and socket are in good condition.

3. Check whether lter is clean.

4. Check whether drainage pipe is damaged.

Checking after use-season

1. Disconnect power supply.

2. Clean lter and indoor unit's panel .

Notice for recovery

1. Most of packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.

2. If you want to dispose the air conditioner, please contact local dealer or consultant

service center for the correct disposal method.

Clean and maintenance

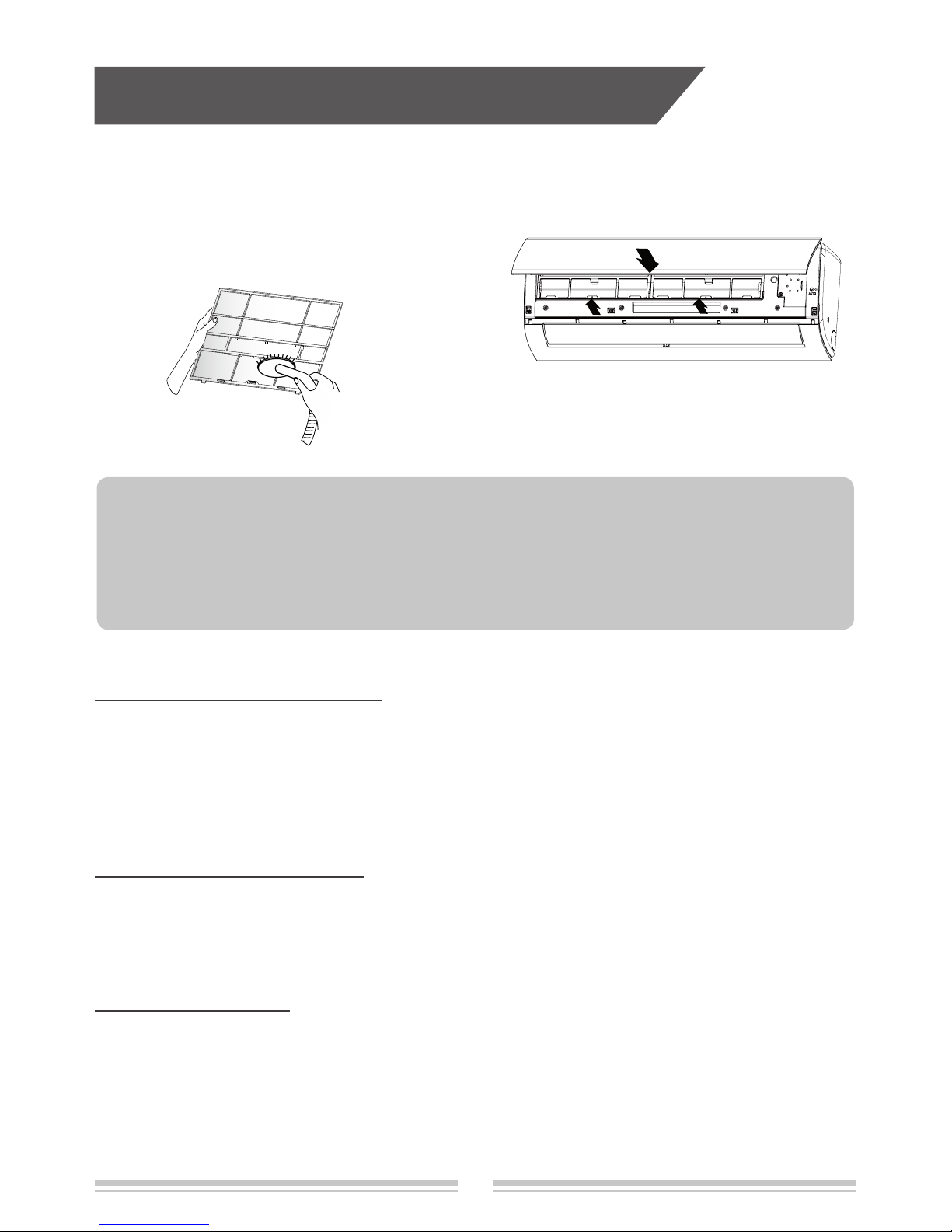

Clean lter Installation lter

Use dust catcher or water to clean the

lter. when the lter is very dirty, use
the water (below 45°C) to clean it, and

then put it in a shady and cool place to
dry.

Installtion the lter and then close the

panel cover tightly.

3 4

15

General phenomenon analysis

Please check below items before asking for maintenance. If the malfunction still can't be

eliminated,please contact local dealer or qualied professionals.

Phenomenon Check items Solution

Indoor unit can’t

receive remote

controller’s signal

or remote
controller has no
action.

Whether it's interfered severely
(such as static electricity, stable

voltage)?

Pull out the plug. Reinsert the plug
after about 3min, and then turn on

the unit again.

Whether remote controller is

within the signal receiving range?

Signal receiving range is 8m.

Whether there are obstacles? Remove obstacles.

Whether remote controller is

pointing at the receiving window?

Select proper angle and point the
remote controller at the receiving
window on indoor unit

Is sensitivity of remote controller

low; fuzzy display and no display?

Check the batteries. If the power of
batteries is too low,please replace
them.

No display when operating
remote controller?

Check whether remote controller
appears to be damaged. If yes,
replace it.

Fluorescent lamp in room?

Take the remote controller close to
indoor unit.

Turn off the uoresent lamp and then

try it again.

No air emitted

from indoor unit.

Air inlet or air outlet of indoor unit
is blocked?

Eliminate obstacles.

Under heating mode, indoor
temperature is reached to set

temperature?

After reaching to set temperature,

indoor unit will stop blowing out air.

Heating mode is turned on just
now?

In order to prevent blowing out cold
air, indoor unit will be started after
delaying for several minutes, which is
a normal phenomenon.

Air conditioner
can’t operate

Power failure? Wait until power recovery.

Is plug loose? Reinsert the plug.

Circuit break trips off or fuse is

burnt out?

Ask professional to replace circuit

break or fuse.

Wiring has malfunction? Ask professional to replace it

Unit has restarted immediately

after stopping operation?

Wait for 3min, and then turn on the

unit again.

Whether the function setting for

remote controller is correct?

Reset the function.

Malfunction analysis

16

Phenomenon Check items Solution

Mist is emitted

from indoor unit’s

air outlet.

Indoor temperature and humidity

is high?

Because indoor air is cooled rapidly.

After a while, indoor temperature and

humidity will be decrease and mist
will disappear.

Set temperature

can’t be adjusted

Unit is operating under auto

mode?

Temperature can’t be adjusted under

auto mode.
Please switch the operation mode if
you need to adjust temperature.

Your required temperature
exceeds the set temperature
range?

Set temperature range:
16℃~31

℃

Cooling (heating)

effect is not good.

Voltage is too low?

Wait until the voltage resumes
normal.

Filter is dirty? Clean the lter.

Set temperature is in proper

range?

Adjust temperature to proper range.

Door and window are open? Close door and window.

Odours are
emitted

Whether there’s odour

source,such as furniture and
cigarette, etc.

Clean the lter.

Eliminate the odour source.

Air conditioner

operates normally
suddenly

Whether there’s interference,such

as thunder, wireless devices, etc.

Disconnect power, put back
power, and then turn on the
unit again.

“ Water owing”

noise

Air conditioner is turned on or
turned off just now?

The noise is the sound of refrigerant

owing inside the unit, which is a

normal phenomenon.

Cracking noise

Air conditioner is turned on or
turned off just now?

This is the sound of friction caused by

expansion and/or contraction of panel

or other parts due to the change of
temperature.

Malfunction analysis

When below phenomenon occurs, please turn off air conditioner and disconnect power

immediately, and then contact the dealer or qualied professionals for service.

● Power cord is overheating or damaged.

● Air conditioner gives off burning smell.

● There’s abnormal sound during operation.

● Circuit break trips off frequently.

● Indoor unit is leaking.
Do not repair or ret the air conditioner by yourself.

If the air conditioner operates under abnormal conditions, it may cause malfuntion, electric

shock or re hazard.

Contact us

17

Error Code

When air conditioner status is abnormal, temperature indicator on indoor unit will blink to

dispiay corresponding error code. Please refer to below list for identication of error code.

Below listed error codes are only part error codes. Please refero to error code list in serive
manual for more information.

If there're other error codes, please contact qualied professionals for service.

Malfunction analysis

Error

code

Troubleshooting Solution

CL Filter lth blockage alert

Power off,clean lter.If the lter is not dirtey, turn off
the air conditioner for 2s then restart,the code will be

removed automatically.

E1 Overheat protection

Turn off,restart after 5min,if the code occurs again after
a few minutes, please contact the professional person.

E2 Overcurrent protection

Turn off,restart after 5min,if the code occurs again after
a few minutes, please contact the professional person.

HE

Auxiliary heat control

circuit malfunction

Pull out the plug, please contact the professional
person.

L0 Jumper malfunction

Pull out the plug, restart after 10s, if the code occurs

again , please contact the professional person.

L1

PG motor(indoor)zero-

crossing detecting circuit

malfunction

Turn off,restart after a few seconds, if the code
occurs again after a few minutes, please contact the
professional person.

L2

No feedback signal of

indoor unit fan

Turn off,restart after a few seconds, if the code
occurs again after a few minutes, please contact the
professional person.

L3/L6

Communication

malfunction

Power off the unit, restart after 10s, if the code occurs

again ,please check the communication wire of indoor
unit and outdoor unit is correct of not, then power on
again.

U0

Short/open circuit of indoor

environment sensor

Power off the unit, restart after 10s, if the code occurs

again , please contact the professional person.

U1

Short/open circuit of indoor

unit tube sensor

Power off the unit, restart after 10s, if the code occurs

again , please contact the professional person.

U6

Liquid pipe temp. sensor

malfunction

Power off the unit, restart after 10s, if the code occurs

again , please contact the professional person.

U7

Gas pipe temp. sensor

malfunction

Power off the unit, restart after 10s, if the code occurs

again , please contact the professional person.

PC Mode conict

The mode of this indoor unit is conicting with other

indoor units, please turn off other indoor units or

change the mode to non-conicted mode.

18

Safety operation of ammable refrigerant

Qualication requirement for installation and maintenance man

All the work men who are engaging in the refrigeration system should bear the valid certication
awarded by the authoritative organization and the qualicationfor dealing with the refrigeration

system recognized by this industry. If it needs other technician to maintain and repair the

appliance, they should be supervisedby the person who bears the qualication for using the
ammable refrigerant. It can only be repaired by the method suggested by the equipment’s

manufacturer.

Installation notes

1.The air conditioner is not allowed to use in a room that has running re (such as resource,
working coal gas ware, operating heater).

2.It is not allowed to drill hole or burn the connection pipe.

3.The air conditioner must be installed in a room that is larger than the minimum roomarea.

The minimum room area is shown on the nameplate or following table 1.

4.Leak test is a must after installation.

Minimum

room area

( m

2

)

Charge amount (kg) ≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5

oor location / 14.5 16.8 19.3 22.0 24.8 27.8 31.0 34.4 37.8 41.5 45.4 49.4 53.6

window mounted / 5.2 6.1 7.0 7.9 8.9 10.0 11.2 12.4 13.6 15 16.3 17.8 19.3

wall mounted / 1.6 1.9 2.1 2.4 2.8 3.1 3.4 3.8 4.2 4.6 5 5.5 6.0

ceiling mounted / 1.1 1.3 1.4 1.6 1.8 2.1 2.3 2.6 2.8 3.1 3.4 3.7 4.0

Maintenance notes

Check whether the maintenance area or the room area meet the requirement of the
nameplate.

—

It’s only allowed to be operated in the rooms that meet the requirement of the

nameplate.

Check whether the maintenance area is well-ventilated.

—

The continuous ventilation status should be kept during the operation process.

Check whether there is re source or potential re source in the maintenance area.

—

The naked ame is prohibited in the maintenance area; and the “no smoking” warning

board should be hanged.

Check whether the appliance mark is in good condition.

—

Replace the vague or damaged warning mark.

Table 1:Minimum room area (m2)

19

Safety operation of ammable refrigerant

Filling the refrigerant

1. Use the refrigerant lling appliances specialized for R32. Make sure that different kinds
of refrigerant won’t contaminate with each other.

2. The refrigerant tank should be kept upright at the time of lling refrigerant.

3. Stick the label on the system after lling is nished (or haven’t nished).

4. Don’t overlling.

5. After lling is nished, please do the leakage detection before test running; another time
of leak detection should be done when it’s removed.

Safety instructions for transportation and storage

1. Please use the ammable gas detector to check before unload and open the container.

2. No re source and smoking.

3. According to the local rules and laws.

Welding

If you should cut or weld the refrigerant system pipes in the process of maintaining, please

follow the steps as below:

1. Shut down the unit and cut power supply.

2. Eliminate the refrigerant.

3. Vacuuming.

4. Clean it with N2 gas.

5. Cutting or welding.

6. Carry back to the service spot for welding.

The refrigerant should be recycled into the specialized storage tank.

Make sure that there isn’t any naked ame near the outlet of the vacuum pumpand it’s

well-ventilated.

20

Installation drawing

Selection of location

Basic requirement

Installing the unit in the following places maycause malfunction. If it is unavoidable, please

consult the local dealer:

1. The place with strong heat sources,vapors,ammable or explosive gas,or volatile objects

spread in the air.

2. The place with high-frequency devices (such as welding machine,medical equipment).

3. The place near coast area.

4. The place with oil or fumes in the air.

5. The place with sulfureted gas.

6. Other places with special circumstances.

7. The appliance shall not be installed in the laundry.

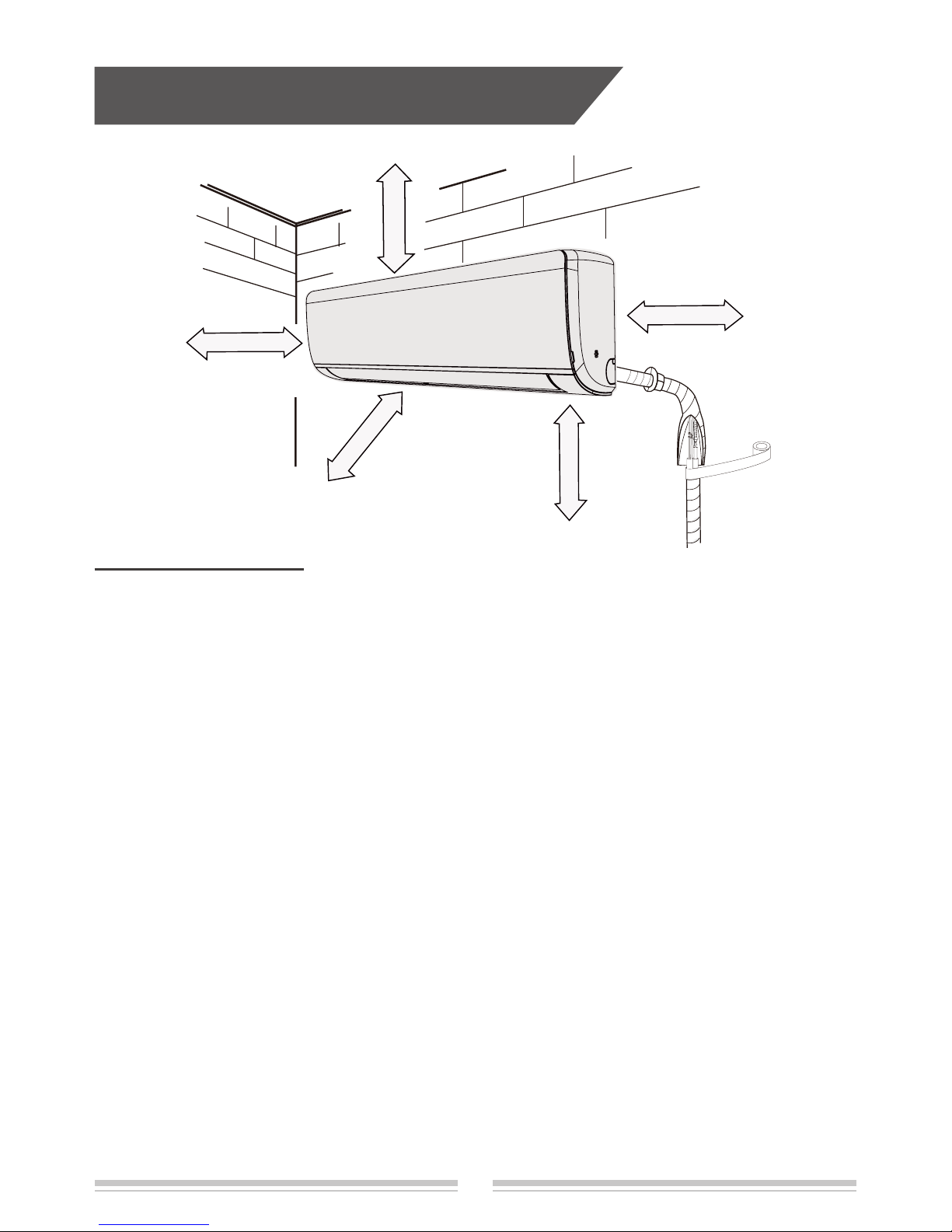

Indoor unit

1. There should be noobstruction near air inlet and air outlet.

2. Choose a place where the condensation water can be dispersed easily and won't affect

other people.

3. Choose a place which is convenient to connect the outdoor unit and near the power

socket.

4. Choose a place which is out of the reach of children.

5. The place should be ableto withstand the weight of indoor unit and won't increase noise
and vibration.

6. The appliance must be installed 2.5m above oor.

7. Don't install the indoor unit right above the electric appliance.

8. Please try your best to keep way from uorescent lamp.

At least 250cm

At least 15cm

Space to the ceilin

g

At least 15cm

At least 15cm

Space to the wall

Space to the wal

l

At least 300cm

Space to the obstruction

Space to the floor

21

Installation prepare

1 Level meter 2 Screw driver 3 Impact drill

4 Drill head 5 Pipe expander 6 Torque wrench

7 Open-end wrench 8 Pipe cutter 9 Leakage detector

10 Vacuum pump 11 Pressure meter 12 Universal meter

13 Inner hexagon spanner 14 Measuring tape

Tools

Safety precaution

1. Must follow the electric safety regulations when installing the unit.

2. According to the local safety regulations, use qualied power supply circuit and circuit

break.

3. Make sure the power supply matches with the requirement of air conditioner. Unstable

power supply or incorrect wiring or malfunction. Please install proper power supply cables
before using the air conditioner.

4. Properly connect the live wire, neutral wire and grounding wire of power socket.

5. Be sure to cut off the power supply before proceeding any work related to electricity and
safety.

6. Do not connect the power before nishing inatallation.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.

8. The temperature of refrigerant circuit will be high, please keep the interconnection cable

away from the copper tube.

9. The appliance shall be installed in accordance with national wiring regulations.

10. Installation must be performed in accordance with the requirement of NEC and CEC by

authorized personnel only.

11. Appliance shall be installed, operated and stored in a room with a oor area larger than

“X”m

2

(see table 1).

Please notice that the unit is filled with flammable gas R32. Inappropriate

treatment of the unit involves the risk of severe damages of people
andmaterial. Details to this refrigerant are found in chapter "refrigerant".

22

Installation prepare

1. When installing or relocating the unit, be sure to keep the refrigerant circuit free

from air or substances other than the specied refrigerant.

—

Any presence of air or other foreign substance in the refrigerant circuit will cause system

pressure rise or compressor rupture, resulting in injury.

2. When installing or moving this unit, do not charge the refrigerant which is not

comply with that on the nameplate or unqualied refrigerant.

—

Otherwise, it may cause abnormal operation, wrong action, mechanical malfunction or

even series safety accident.

3. When refrigerant needs to be recovered during relocating or repairing the unit,

be sure that the unit is running in cooling mode. Then, fully close the valve at high
pressure side (liquid valve). About 30-40 seconds later, fully close the valve at low
pressure side (gas valve), immediately stop the unit and disconnect power. Please
note that the time for refrigerant recovery should not exceed 1 minute.

—

If refrigerant recovery takes too much time, air may be sucked in and cause pressure

rise or compressor rupture, resulting in injury.

4. During refrigerant recovery, make sure that liquid valve and gas valve are fully
closed and power is disconnected before detaching the connection pipe.

—

If compressor starts running when stop valve is open and connection pipe is not yet
connected, air will be sucked in and cause pressure rise or compressor rupture, resulting
in injury.

To ensure safety, please be mindful of the following precautions.

WARNING

Safety precautions for installing and relocating the unit

Grounding requirement

1. The air conditioner is the rst class electric appliance. It must be properly grounding with

specialized grounding device by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.

2. The yellow-green wire in air conditioner is grounding wire, which can't be used for other

purposes.

3. The grounding resistance should comply with national electric safety regulations.

4. The appliance must be positioned so that the plug is accessible.

5. An all-pole disconnection switch having a contact separation of at least 3mm in all poles
should be connected in xed wiring. For models with a power plug, make sure the plug is

within reach after installation.

23

5. When installing the unit, make sure that connection pipe is securely connected

before the compressor starts running.

—

If compressor starts running when stop valve is open and connection pipe is not yet
connected, air will be sucked in and cause pressure rise or compressor rupture,
resulting in injury.

6. Prohibit installing the unit at the place where there may be leaked corrosive gas or
ammable gas.

—

If there leaked gas around the unit, it may cause explosion and other accidents.

7. Do not use extension cords for electrical connections. If the electric wire is not
long enough, please contact a local service center authorized and ask for a proper

electric wire.

—

Poor connections may lead to electric shock or re.

8. Use the specied types of wires for electrical connections between the indoor
and outdoor units. Firmly clamp the wires so that their terminals receive no
external stresses.

—

Electric wires with insufcient capacity, wrong wire connections and insecure wire
terminals may cause electric shock or re.

Installation prepare

24

Step 1: Choosing installation location

Recommend the installation location to the client and then conrm it with the client.

Step 2: Install wall-mounting frame

1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the level
meter and then point out the screw xing holes on the wall .

2. Drill the screw xing holes on the wall with impact drill (the specication of drill head
should be the same as the plastic expansion particle) and then ll the plastic expansion

particles in the holes.

3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and then
check if the frame is rmly inatalled by pulling the frame. If the plastic expansion particle
is loose, please drill another xing hole nearby.

Step 3: Open piping hole

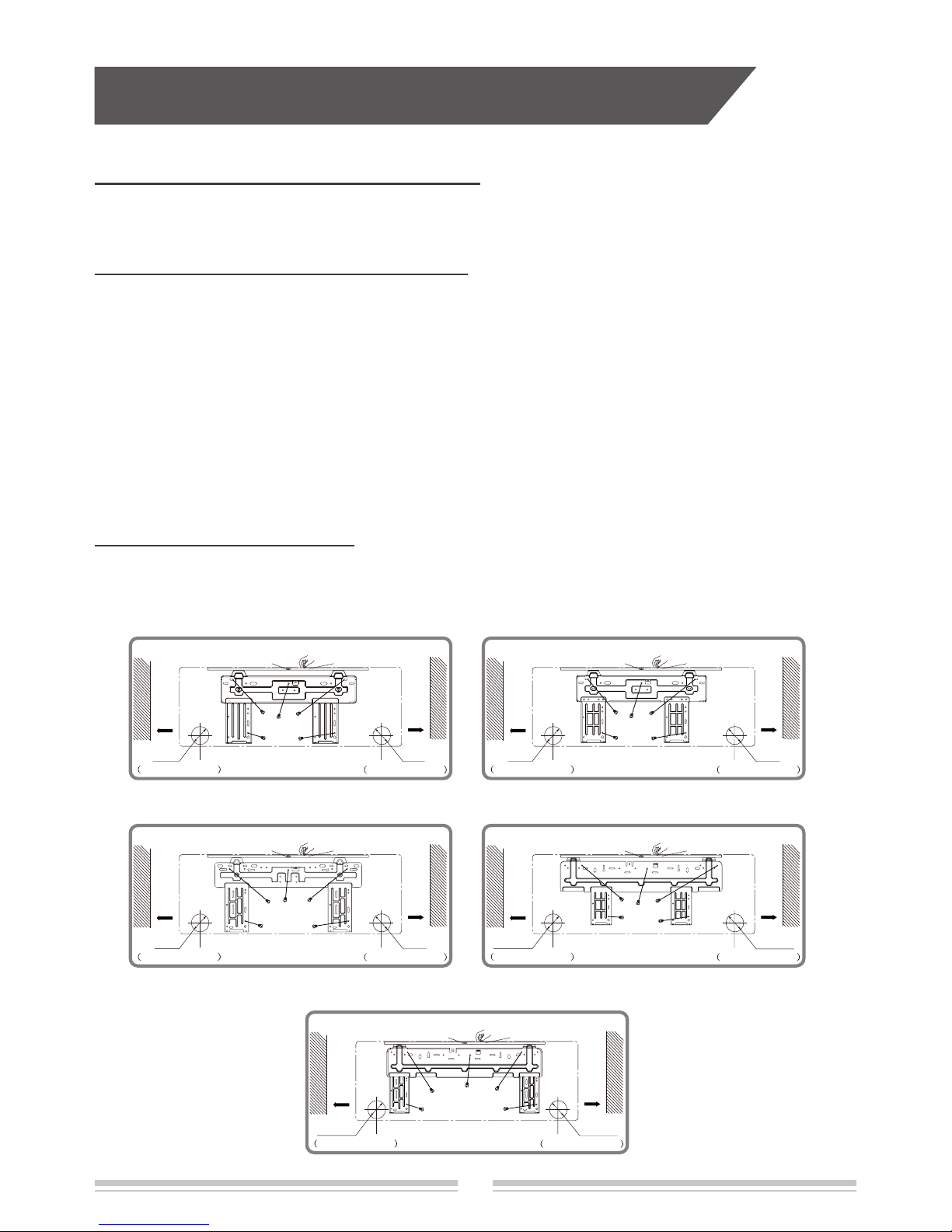

1. Choose the position of piping hole according to the direction of outlet pipe. The position
of piping hole should be a little lower than the wall-mounted frame, shown as below.

Left

Wall

Φ55/Φ70

Right

Mark in the middle of it

Level meter

Rear piping hole

Wall

Space

to the

wall

above

150mm

Space

to the

wall

above

150mm

Φ55/Φ70

Rear piping hole

Dimension: 1081x327x248

Left

Wall

Φ55

Right

Mark in the middle of it

Level meter

Rear piping hole

Wall

Space

to the

wall

above

150mm

Space

to the

wall

above

150mm

Φ55

Rear piping hole

Left

Wall

Φ55

Right

Mark in the middle of it

Level meter

Rear piping hole

Wall

Space

to the

wall

above

150mm

Space

to the

wall

above

150mm

Φ55

Rear piping hole

Dimension: 721x274x195 Dimension: 792x279x195

Left

Wall

Φ55

Right

Mark in the middle of it

Level meter

Rear piping hole

Wall

Space

to the

wall

above

150mm

Space

to the

wall

above

150mm

Φ55

Rear piping hole

Left

Wall

Φ55/Φ70

Right

Mark in the middle of it

Level meter

Rear piping hole

Wall

Space

to the

wall

above

150mm

Space

to the

wall

above

150mm

Φ55/Φ70

Rear piping hole

Dimension: 850x291x203

Dimension: 972x302x224

Installation of indoor unit

25

2. Open a piping hole with the diameter of Φ55/Φ70 on the selected outlet pipe position. In

order to drain smoothly, slant the piping hole on the wall slightly downward to the outdoor

side with the gradient of 5-10°.

Indoor Outdoor

5~10°

Φ55/Φ70

Note:

● Pay attention to dust prevention and take relevant safety

measures when opening the hole.

● The plastic expansion particles are not provided and

should be bought locally.

Step 4: Outlet pipe

1. The pipe can be led out in the direction of
right, rear right or left.

left

right

rear right

2. When select leading out the pipe from

left or right, please cut off the corresponding
hole on the bottom case.

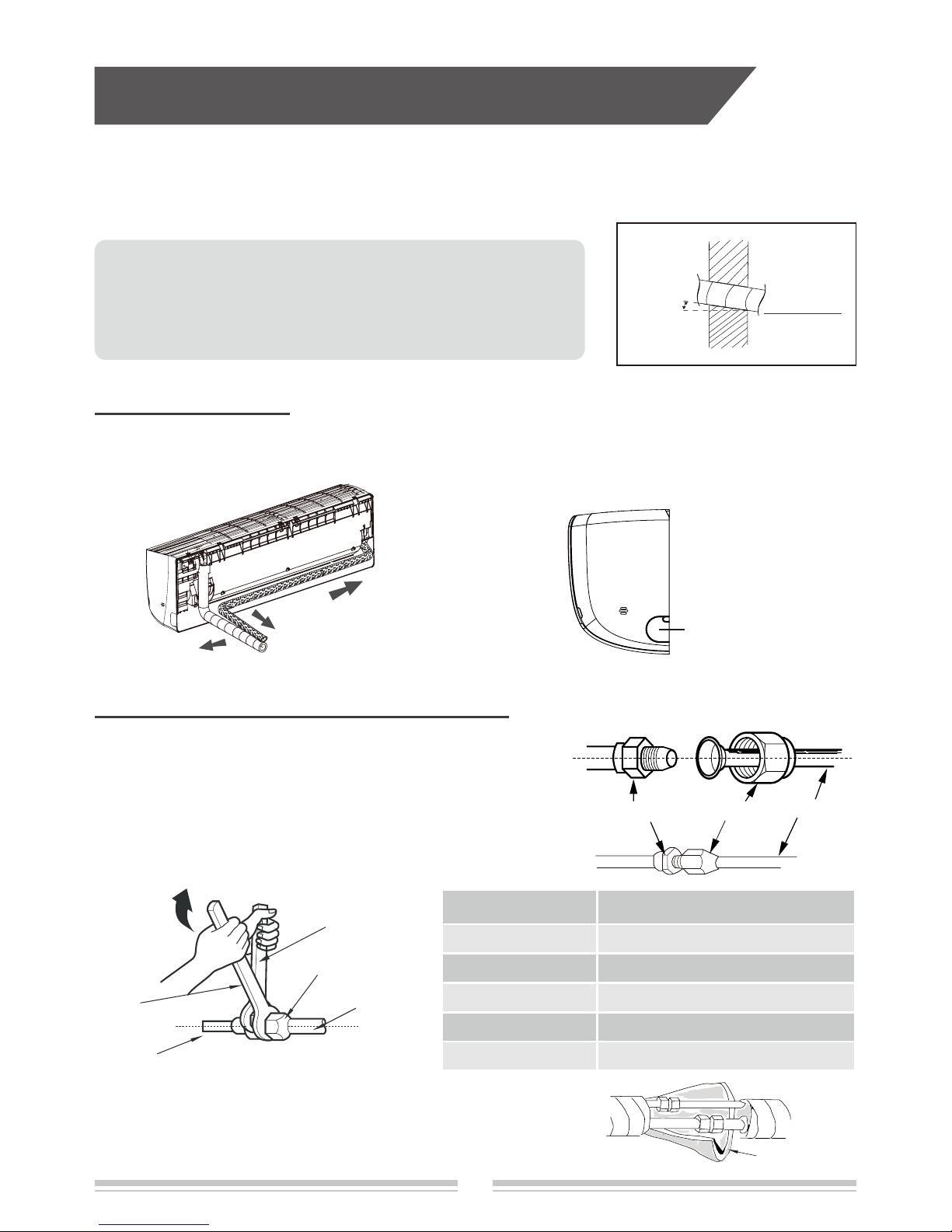

Step 5: Connect the pipe of indoor unit

1. Aim the pipe joint at the corresponding bellmouth.

2. Pretightening the union nut with hand.

3. Adjust the torque force by referring to the following

sheet. Place the open-end wrench on the pipe joint

and place the torque wrench on the union nut.
Tighten the union nut with torque wrench.

union nutpipe joint

pipe

cut off the hole

insulating pipe

torque wrench

open-end
wrench

indoor pipe

pipe

union nut

Hex nut diameter Tightening torque (N.m)

Φ 6 15~20

Φ 9.52 30~40

Φ 12 45~55

Φ 16 60~65

Φ 19 70~75

4.Wrap the indoor pipe and joint of connection pipe

with insulating pipe, and then wrap it with tape.

Installation of indoor unit

26

Step 6: Install drain hose

1. Connect the drain hose to the outlet pipe of indoor unit.

2. Bind the joint with tape.

outlet

pipe

drain hose

drain hose

tape

outlet pipe

drain hose

insulating pipe

● Add insulating pipe in the indoor drain hose in order to prevent condensation.

● The plastic expansion particles are not provided.

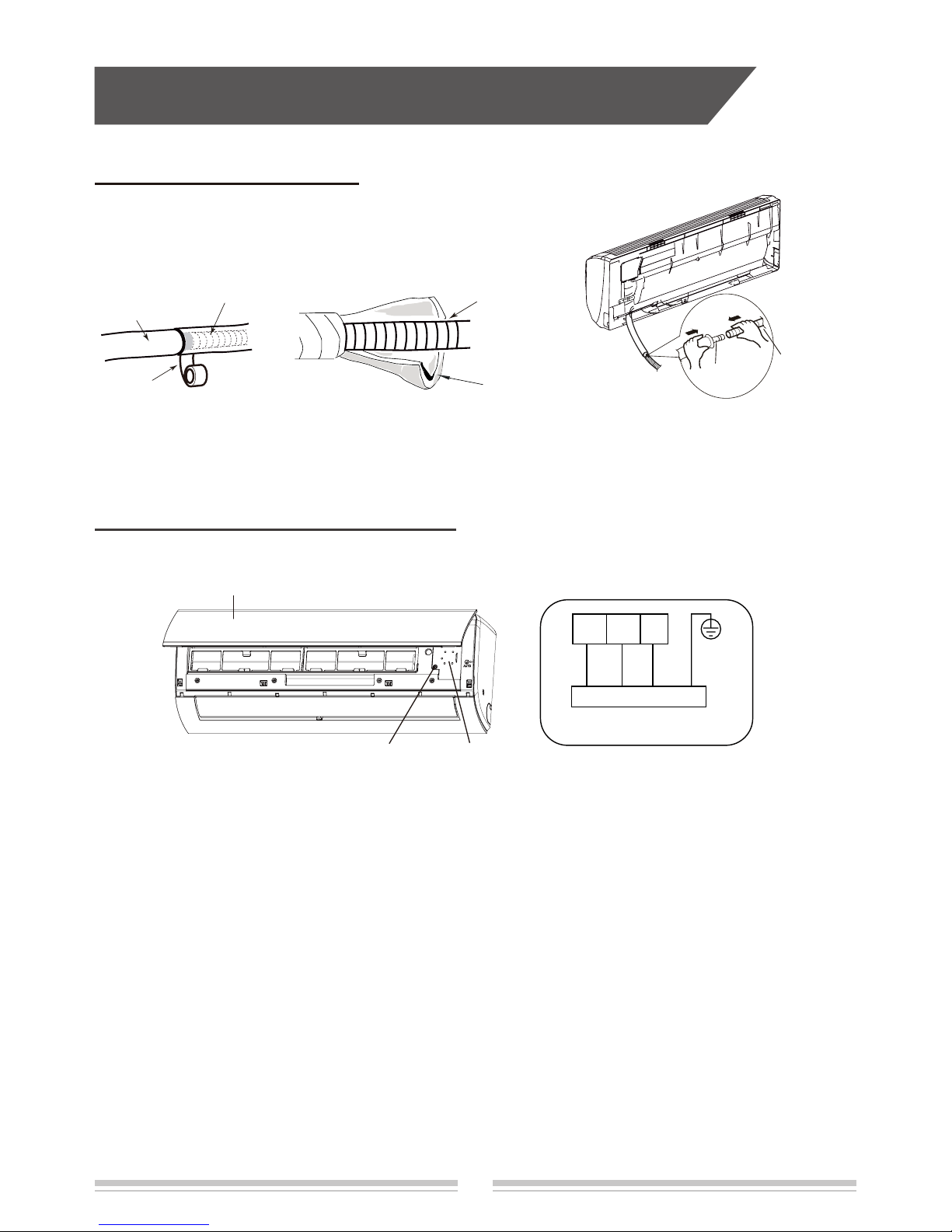

Step 7: Connect wire of indoor unit

1.Open the panel, remove the screw on the wiring cover and then take down the cover.

2. Make the power connection wire go through the cable-cross hole at the back of indoor

unit and then pull it out from the front side.

3. Remove the wire clip,connect the power connection wire to the wiring terminal according
to the color; tighten the screw and then x the power connection wirewith wire clip.

4. Put wiring cover back and then tighten the screw.

5. Close the panel.

Note:

● All wires of indoor unit and outdoor unit should be connected by a professional.

● If the length of power connection wire is insufcient, please contact the supplier for a new
one. Avoid extending the wire by yourself.

● For the air conditioner with plug,the plug should be reachable after nishing installation.

● For the air conditioner without plug, an air switch must be installed in the line.

The air switch should be all-pole partingand the contact parting distance should be more

than 3mm.

panel

screw wiring cover

black

Outdoor unit connection

N(1) 2

blue brown

yellow­green

3

Installation of indoor unit

27

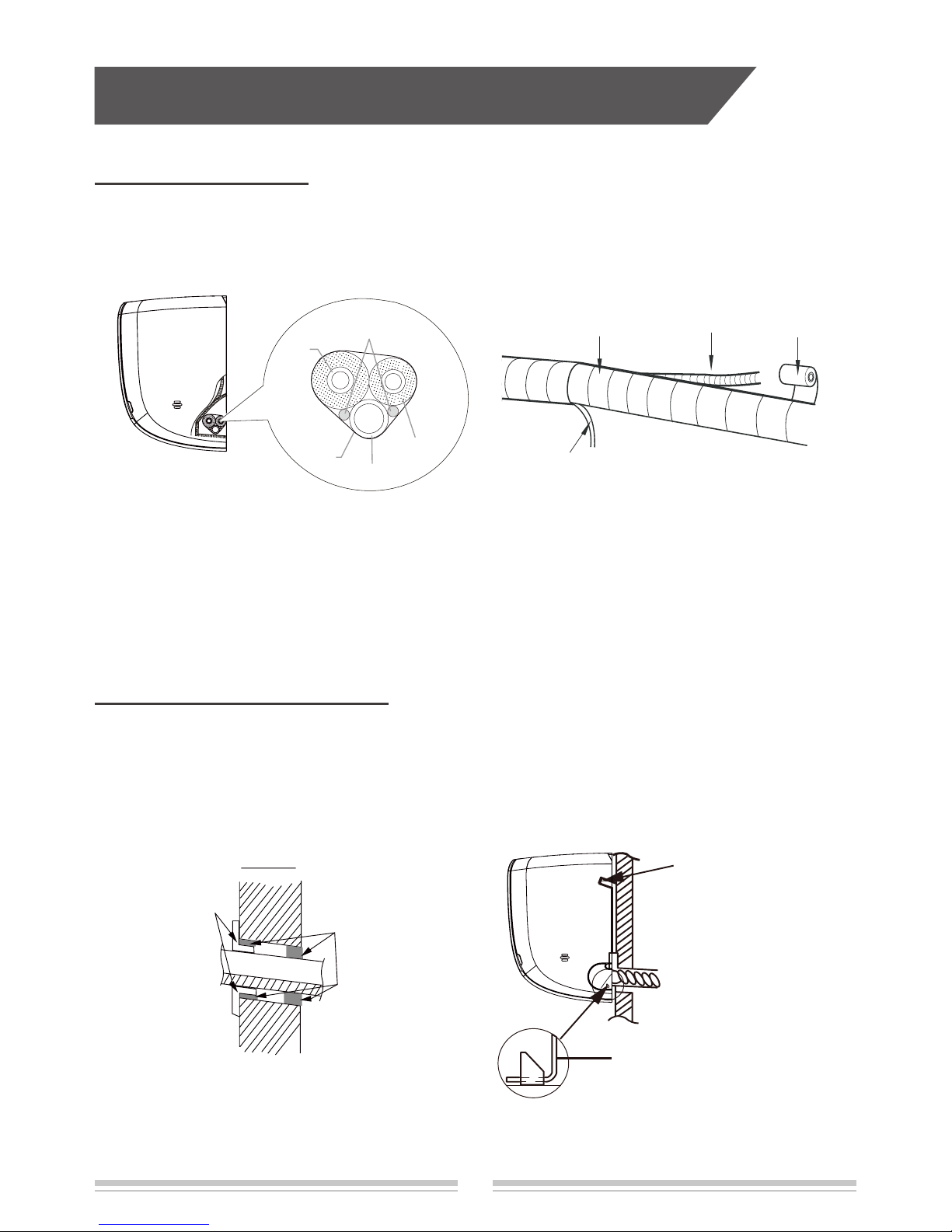

Step 8: Bind up pipe

1. Bind up the connection pipe, power cord and drain hose with the band.

2. Reserve a certain length of drain hose and power cord for installation when binding them.

When binding to a certain degree, separate the indoor power and then separate the drain
hose.

3. Bind them evenly.

4. The liquid pipe and gas pipe should be bound separately at the end.

Step 9: Hang the indoor unit

1. Put the bound pipes in the wall pipe and then make them pass through the wall hole.

2. Hang the indoor unit on the wall-mounting frame.

3. Stuff the gap between pipes and wall hole with sealing gum.

4. Fix the wall pipe.

5. Check if the indoor unit is installed rmly and closed to the wall.

● Do not bend the drain hose too excessively in order to prevent blocking.

indoor unit

gas
pipe

indoor and

outdoor power cord

liquid pipe

drain hose

band

drain hose

band

connection pipe

indoor power cord

Note:

● The power cord and control wire can't be crossed or winding.

● The drain hose should be bound at the bottom.

indoor

outdoor

wall pipe

sealing gum

upper hook

lower hook of

wall-mounting frame

Installation of indoor unit

28

Installation of indoor unit

Note:

●

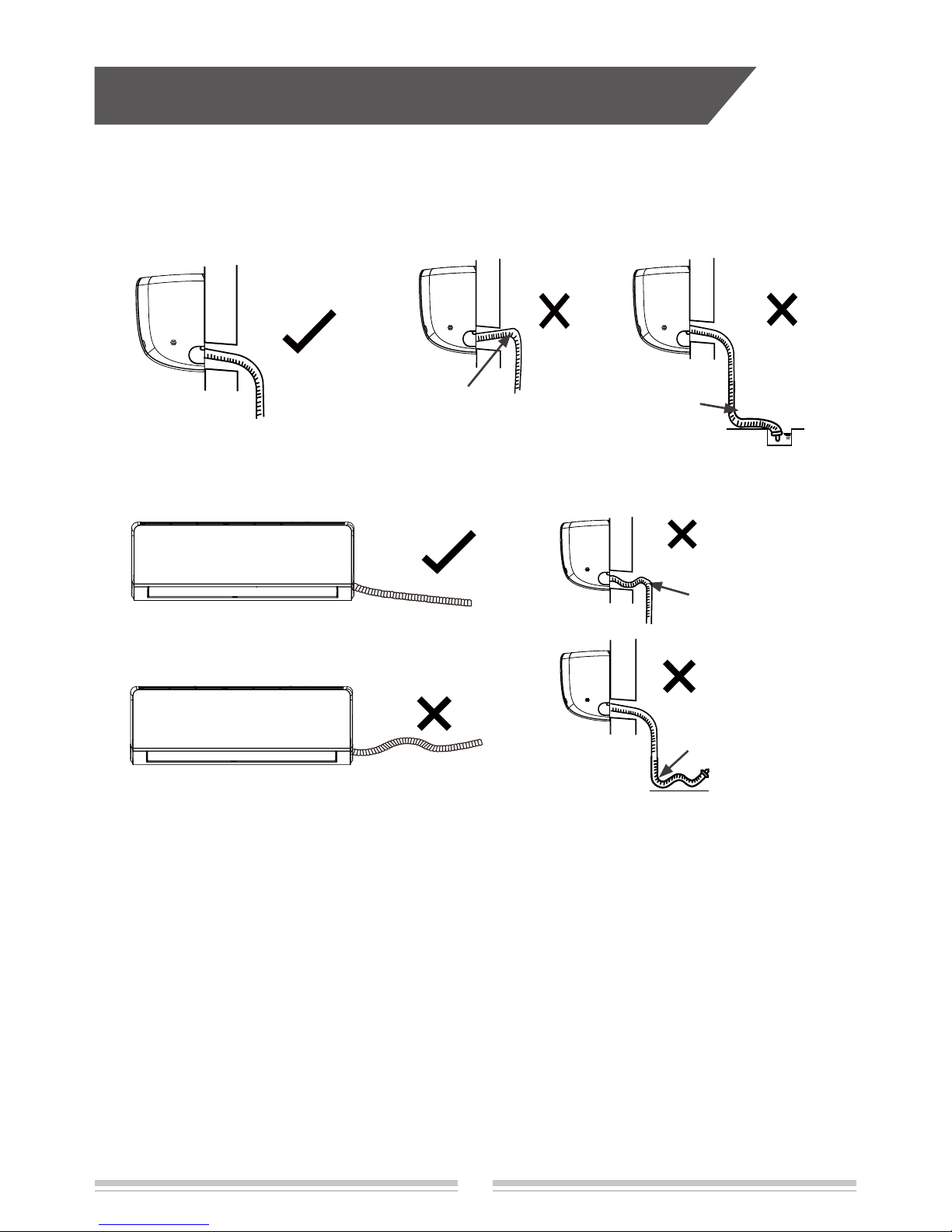

The through-wall height of drain hose shouldn't be higher than the outlet pipe hole of indoor

unit.

● The water outlet can't be placed in water in order to drain smoothly.

Slant the drain hose slightly downwards. The drain hose can't be curved, raised and uctuant,

etc.

The drain hose can't
raise upwards.

The water outlet can't
be placedin water

The drain hose can't be uctuan.

The drain hose

can't be uctuant

The water outlet

can't be uctuant

29

Check according to the following requirement after nishing installation.

Check after installation

Items to be checked Possible malfunction

Has the unit been installed rmly? The unit may drop, shake or emit noise

.

Have you done the refrigerant leakage
test?

It may cause in sufcient cooling (heating)

capacity.

Is heat insulation of pipeline sufcient? It may cause condensation and water dripping.

Is water drained well? It may cause condensation and water dripping.

Is the voltage of power supply according
to the voltage marked on the

nameplate?

It may cause malfunction or damaging the parts.

Is electric wiring and pipeline installed

correctly?

It may cause malfunction or damaging the parts.

Is the unit grounded securely? It may cause electric leakage.

Does the power cord follow the

specication?

It may cause malfunction or damaging the parts.

Is there any obstruction in the air inlet

and outlet?

It may cause in sufcient cooling(heating)

capacity.

The dust and sundries caused during

installation are removed?

It may cause malfunction or damaging the parts.

The gas valve and liquid valve of
connection pipe are open completely?

It may cause in sufcient cooling(heating)

capacity.

30

Test operation

1. Preparation of test operation

● The client approves the air conditioner.

● Specify the important notes for air conditioner to the client.

2. Method of test operation

● Connect the power, press "ON/OFF" button on the remote controller to start operation.

● Press "MODE" button to select AUTO, COOL, DRY, FAN and HEAT to check whether

the operation is normal or not.

● If the ambient temperature is lower than 16°C, the air conditioner can’t start cooling.

3. If match with MULTI-S outdoor unit, after installing the complete units,

must test operating when rst power on and turn on units to ensure the

correct installation.

The steps of test operation is as below:

A: Use remote controller to select cooling mode and set the temperature in 16°C . Aim

to the indoor display board, press"

, , , , , " in 5s, then the indoor display

"LL" with a long whistle. This indicates the units start to test operating.

B: The test operating is nished when indoor display change to show temperature from

"LL".

C: If the indoor display show "PA" and outdoor unit stop in test operating, indicate the

installation has mistake, please check the cable connection and the pipe connection of
refrigerant. Correct the mistake and start to test operating again.

Note:

All the units can operating normally until pass the test operating.
